Scalable Vector Graphics (SVG) 2

View this example as SVG (SVG-enabled browsers only)

Content model:

Any number of the following elements, in any order:

animation elements — ‘animate’, ‘animateMotion’, ‘animateTransform’, ‘discard’, ‘set’
descriptive elements — ‘desc’, ‘title’, ‘metadata’
paint server elements — ‘solidcolor’, ‘linearGradient’, ‘radialGradient’, ‘mesh’, ‘pattern’, ‘hatch’
shape elements — ‘circle’, ‘ellipse’, ‘line’, ‘path’, ‘polygon’, ‘polyline’, ‘rect’
structural elements — ‘defs’, ‘g’, ‘svg’, ‘symbol’, ‘use’

a, clipPath, cursor, filter, foreignObject, image, marker, mask, script, style, switch, text, view

Attributes:

aria attributes — ‘aria-activedescendant’, ‘aria-atomic’, ‘aria-autocomplete’, ‘aria-busy’, ‘aria-checked’, ‘aria-colcount’, ‘aria-colindex’, ‘aria-colspan’, ‘aria-controls’, ‘aria-current’, ‘aria-describedat’, ‘aria-describedby’, ‘aria-disabled’, ‘aria-dropeffect’, ‘aria-expanded’, ‘aria-flowto’, ‘aria-grabbed’, ‘aria-haspopup’, ‘aria-hidden’, ‘aria-invalid’, ‘aria-label’, ‘aria-labelledby’, ‘aria-level’, ‘aria-live’, ‘aria-modal’, ‘aria-multiline’, ‘aria-multiselectable’, ‘aria-orientation’, ‘aria-owns’, ‘aria-placeholder’, ‘aria-posinset’, ‘aria-pressed’, ‘aria-readonly’, ‘aria-relevant’, ‘aria-required’, ‘aria-rowcount’, ‘aria-rowindex’, ‘aria-rowspan’, ‘aria-selected’, ‘aria-setsize’, ‘aria-sort’, ‘aria-valuemax’, ‘aria-valuemin’, ‘aria-valuenow’, ‘aria-valuetext’, ‘role’
conditional processing attributes — ‘requiredExtensions’, ‘systemLanguage’
core attributes — ‘id’, ‘tabindex’, ‘lang’, ‘xml:space’
document event attributes — ‘onunload’, ‘onabort’, ‘onerror’, ‘onresize’, ‘onscroll’, ‘onzoom’
global event attributes — ‘oncancel’, ‘oncanplay’, ‘oncanplaythrough’, ‘onchange’, ‘onclick’, ‘onclose’, ‘oncuechange’, ‘ondblclick’, ‘ondrag’, ‘ondragend’, ‘ondragenter’, ‘ondragexit’, ‘ondragleave’, ‘ondragover’, ‘ondragstart’, ‘ondrop’, ‘ondurationchange’, ‘onemptied’, ‘onended’, ‘onerror’, ‘onfocus’, ‘oninput’, ‘oninvalid’, ‘onkeydown’, ‘onkeypress’, ‘onkeyup’, ‘onload’, ‘onloadeddata’, ‘onloadedmetadata’, ‘onloadstart’, ‘onmousedown’, ‘onmouseenter’, ‘onmouseleave’, ‘onmousemove’, ‘onmouseout’, ‘onmouseover’, ‘onmouseup’, ‘onmousewheel’, ‘onpause’, ‘onplay’, ‘onplaying’, ‘onprogress’, ‘onratechange’, ‘onreset’, ‘onresize’, ‘onscroll’, ‘onseeked’, ‘onseeking’, ‘onselect’, ‘onshow’, ‘onstalled’, ‘onsubmit’, ‘onsuspend’, ‘ontimeupdate’, ‘ontoggle’, ‘onvolumechange’, ‘onwaiting’
graphical event attributes — ‘onfocusin’, ‘onfocusout’
presentation attributes —
style attributes — ‘class’, ‘style’
‘viewBox’
‘preserveAspectRatio’
‘zoomAndPan’

Geometry properties:

‘x’
‘y’
‘width’
‘height’

DOM Interfaces:

SVGSVGElement

The ‘x’ and ‘y’ attributes specify the top-left corner of the rectangular region into which an embedded ‘svg’ element is placed. On an outermost svg element, these attributes have no effect.

For outermost svg elements, the ‘width’ and ‘height’ attributes specify the intrinsic size of the SVG document fragment. For embedded ‘svg’ elements, they specify the size of the rectangular region into which the ‘svg’ element is placed.

Attribute definitions:

Name Value Initial value Animatable zoomAndPan disable | magnify magnify no: Specifies whether the user agent should supply a means to zoom and pan the SVG content. See the definition of ‘zoomAndPan’ for details.

Name	Value	Initial value	Animatable
zoomAndPan	disable \| magnify	magnify	no

If an SVG document is likely to be referenced as a component of another document, the author will often want to include a ‘viewBox’ attribute on the outermost svg element of the referenced document. This attribute provides a convenient way to design SVG documents to scale-to-fit into an arbitrary viewport.

The ‘svg’ element exposes as event handler content attributes a number of the event handlers of the Window object. It also mirrors their event handler IDL attributes.

The onblur, ‘onerror’, onfocus, ‘onload’, and ‘onscroll’ event handlers of the Window object, exposed on the ‘svg’ element, replace the generic event handlers with the same names normally supported by SVG elements.

4.2. Grouping: the ‘g’ element

4.2.1. Overview

container element: An element which can have graphics elements and other container elements as child elements. Specifically: ‘a’, ‘defs’, ‘g’, ‘marker’, ‘mask’, ‘pattern’, ‘svg’, ‘switch’ and ‘symbol’.

The ‘g’ element is a container element for grouping together related graphics elements.

A group of elements, as well as individual objects, can be given a name using the ‘id’ attribute. Named groups are needed for several purposes such as animation and re-usable objects.

An example:

<?xml version="1.0" standalone="no"?>
<svg xmlns="http://www.w3.org/2000/svg"
     version="1.1" width="5cm" height="5cm">
  <desc>Two groups, each of two rectangles</desc>
  <g id="group1" fill="red">
    <rect x="1cm" y="1cm" width="1cm" height="1cm"/>
    <rect x="3cm" y="1cm" width="1cm" height="1cm"/>
  </g>
  <g id="group2" fill="blue">
    <rect x="1cm" y="3cm" width="1cm" height="1cm"/>
    <rect x="3cm" y="3cm" width="1cm" height="1cm"/>
  </g>

  <!-- Show outline of canvas using 'rect' element -->
  <rect x=".01cm" y=".01cm" width="4.98cm" height="4.98cm"
        fill="none" stroke="blue" stroke-width=".02cm"/>
</svg>

A ‘g’ element can contain other ‘g’ elements nested within it, to an arbitrary depth.

4.2.2. The ‘g’ element

‘g’

Categories:

Content model:

Any number of the following elements, in any order:

animation elements — ‘animate’, ‘animateMotion’, ‘animateTransform’, ‘discard’, ‘set’
descriptive elements — ‘desc’, ‘title’, ‘metadata’
paint server elements — ‘solidcolor’, ‘linearGradient’, ‘radialGradient’, ‘mesh’, ‘pattern’, ‘hatch’
shape elements — ‘circle’, ‘ellipse’, ‘line’, ‘path’, ‘polygon’, ‘polyline’, ‘rect’
structural elements — ‘defs’, ‘g’, ‘svg’, ‘symbol’, ‘use’

a, clipPath, cursor, filter, foreignObject, image, marker, mask, script, style, switch, text, view

Attributes:

aria attributes — ‘aria-activedescendant’, ‘aria-atomic’, ‘aria-autocomplete’, ‘aria-busy’, ‘aria-checked’, ‘aria-colcount’, ‘aria-colindex’, ‘aria-colspan’, ‘aria-controls’, ‘aria-current’, ‘aria-describedat’, ‘aria-describedby’, ‘aria-disabled’, ‘aria-dropeffect’, ‘aria-expanded’, ‘aria-flowto’, ‘aria-grabbed’, ‘aria-haspopup’, ‘aria-hidden’, ‘aria-invalid’, ‘aria-label’, ‘aria-labelledby’, ‘aria-level’, ‘aria-live’, ‘aria-modal’, ‘aria-multiline’, ‘aria-multiselectable’, ‘aria-orientation’, ‘aria-owns’, ‘aria-placeholder’, ‘aria-posinset’, ‘aria-pressed’, ‘aria-readonly’, ‘aria-relevant’, ‘aria-required’, ‘aria-rowcount’, ‘aria-rowindex’, ‘aria-rowspan’, ‘aria-selected’, ‘aria-setsize’, ‘aria-sort’, ‘aria-valuemax’, ‘aria-valuemin’, ‘aria-valuenow’, ‘aria-valuetext’, ‘role’
conditional processing attributes — ‘requiredExtensions’, ‘systemLanguage’
core attributes — ‘id’, ‘tabindex’, ‘lang’, ‘xml:space’
global event attributes — ‘oncancel’, ‘oncanplay’, ‘oncanplaythrough’, ‘onchange’, ‘onclick’, ‘onclose’, ‘oncuechange’, ‘ondblclick’, ‘ondrag’, ‘ondragend’, ‘ondragenter’, ‘ondragexit’, ‘ondragleave’, ‘ondragover’, ‘ondragstart’, ‘ondrop’, ‘ondurationchange’, ‘onemptied’, ‘onended’, ‘onerror’, ‘onfocus’, ‘oninput’, ‘oninvalid’, ‘onkeydown’, ‘onkeypress’, ‘onkeyup’, ‘onload’, ‘onloadeddata’, ‘onloadedmetadata’, ‘onloadstart’, ‘onmousedown’, ‘onmouseenter’, ‘onmouseleave’, ‘onmousemove’, ‘onmouseout’, ‘onmouseover’, ‘onmouseup’, ‘onmousewheel’, ‘onpause’, ‘onplay’, ‘onplaying’, ‘onprogress’, ‘onratechange’, ‘onreset’, ‘onresize’, ‘onscroll’, ‘onseeked’, ‘onseeking’, ‘onselect’, ‘onshow’, ‘onstalled’, ‘onsubmit’, ‘onsuspend’, ‘ontimeupdate’, ‘ontoggle’, ‘onvolumechange’, ‘onwaiting’
graphical event attributes — ‘onfocusin’, ‘onfocusout’
presentation attributes —
style attributes — ‘class’, ‘style’

DOM Interfaces:

SVGGElement

4.3. Unknown elements

SVG 2 Requirement:	Have unknown elements treated as ‘g’ for the purpose of rendering.
Resolution:	Accept having unknown elements treated as ‘g’ for the purpose of rendering.
Purpose:	To allow fallbacks without the use of ‘switch’, and to align with the behavior of unknown elements in HTML.
Owner:	Nobody (no action)

‘unknown’

Categories:

None

Content model:

Any elements or character data.

Attributes:

aria attributes — ‘aria-activedescendant’, ‘aria-atomic’, ‘aria-autocomplete’, ‘aria-busy’, ‘aria-checked’, ‘aria-colcount’, ‘aria-colindex’, ‘aria-colspan’, ‘aria-controls’, ‘aria-current’, ‘aria-describedat’, ‘aria-describedby’, ‘aria-disabled’, ‘aria-dropeffect’, ‘aria-expanded’, ‘aria-flowto’, ‘aria-grabbed’, ‘aria-haspopup’, ‘aria-hidden’, ‘aria-invalid’, ‘aria-label’, ‘aria-labelledby’, ‘aria-level’, ‘aria-live’, ‘aria-modal’, ‘aria-multiline’, ‘aria-multiselectable’, ‘aria-orientation’, ‘aria-owns’, ‘aria-placeholder’, ‘aria-posinset’, ‘aria-pressed’, ‘aria-readonly’, ‘aria-relevant’, ‘aria-required’, ‘aria-rowcount’, ‘aria-rowindex’, ‘aria-rowspan’, ‘aria-selected’, ‘aria-setsize’, ‘aria-sort’, ‘aria-valuemax’, ‘aria-valuemin’, ‘aria-valuenow’, ‘aria-valuetext’, ‘role’
conditional processing attributes — ‘requiredExtensions’, ‘systemLanguage’
core attributes — ‘id’, ‘tabindex’, ‘lang’, ‘xml:space’
global event attributes — ‘oncancel’, ‘oncanplay’, ‘oncanplaythrough’, ‘onchange’, ‘onclick’, ‘onclose’, ‘oncuechange’, ‘ondblclick’, ‘ondrag’, ‘ondragend’, ‘ondragenter’, ‘ondragexit’, ‘ondragleave’, ‘ondragover’, ‘ondragstart’, ‘ondrop’, ‘ondurationchange’, ‘onemptied’, ‘onended’, ‘onerror’, ‘onfocus’, ‘oninput’, ‘oninvalid’, ‘onkeydown’, ‘onkeypress’, ‘onkeyup’, ‘onload’, ‘onloadeddata’, ‘onloadedmetadata’, ‘onloadstart’, ‘onmousedown’, ‘onmouseenter’, ‘onmouseleave’, ‘onmousemove’, ‘onmouseout’, ‘onmouseover’, ‘onmouseup’, ‘onmousewheel’, ‘onpause’, ‘onplay’, ‘onplaying’, ‘onprogress’, ‘onratechange’, ‘onreset’, ‘onresize’, ‘onscroll’, ‘onseeked’, ‘onseeking’, ‘onselect’, ‘onshow’, ‘onstalled’, ‘onsubmit’, ‘onsuspend’, ‘ontimeupdate’, ‘ontoggle’, ‘onvolumechange’, ‘onwaiting’
graphical event attributes — ‘onfocusin’, ‘onfocusout’
presentation attributes —
style attributes — ‘class’, ‘style’

DOM Interfaces:

SVGUnknownElement

The SVGUnknownElement interface must be used for elements in the SVG namespace that are not defined by this specification.

Known elements in the SVG namespace that occur in places where SVG's content model doesn't explicitly allow it must not render.

Unknown elements in the SVG namespace render as if the unknown element was a ‘g’ element.

Known and unknown elements in other namespaces that occur as a child of any SVG element except ‘foreignObject’, must not render unless explicitly stated otherwise in this specification.

Consequently, in the following example:

the ‘path’ element inside the unknown ‘mysteryElement’ must render
‘hideElement’ and its contents must not render
the ‘text’ element must not render the string contained in the inner ‘text’ element
the ‘path’ element inside of ‘gradientExtension’ must not render since the ‘linearGradient’ element isn't directly rendered
regardless of whether the user agent supports XHTML or not, the ‘div’ element and its contents must not render

<?xml version="1.0" standalone="no"?>
<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 700 200">
  <mysteryElement>
    <path d="M0 0h600v200h-600z"/>
  </mysteryElement>
  <hideElement xmlns="http://www.example.com/invisibleML">
    nothing to see here
    <path d="M0 0h600v200h-600z"/>
  </hideElement>
  <text y="1em"><text>this text must not be visible</text></text>
  <linearGradient>
    <gradientExtension>
      <path d="M0 0h600v200h-600z"/>
    </gradientExtension>
  </linearGradient>
  <div xmlns="http://www.w3.org/1999/xhtml">this must not be visible</div>
</svg>

Should it be possible to somehow force rendering of unknown elements in other namespaces?

Do we need to mention anything about attributes, properties and such on SVGUnknownElements?

Should SVGUnknownElement be a container element?

4.4. Defining content for reuse, and the ‘defs’ element

4.4.1. Overview

SVG allows graphical objects to be defined for later reuse. To do this, it makes extensive use of URL references [RFC3987] to these other objects. For example, to fill a rectangle with a linear gradient, you first define a ‘linearGradient’ element and give it an ID, as in:

<linearGradient id="MyGradient">...</linearGradient>

You then reference the linear gradient as the value of the ‘fill’ property for the rectangle, as in:

<rect style="fill:url(#MyGradient)"/>

Some types of element, such as gradients, will not by themselves produce a graphical result. They can therefore be placed anywhere convenient. However, sometimes it is desired to define a graphical object and prevent it from being directly rendered. it is only there to be referenced elsewhere. To do this, and to allow convenient grouping defined content, SVG provides the ‘defs’ element.

It is recommended that, wherever possible, referenced elements be defined inside of a ‘defs’ element. Among the elements that are always referenced: ‘clipPath’, ‘cursor’, ‘filter’, ‘linearGradient’, ‘marker’, ‘mask’, ‘pattern’, ‘radialGradient’ and ‘symbol’.

4.4.2. The ‘defs’ element

‘defs’

Categories:

Content model:

Any number of the following elements, in any order:

animation elements — ‘animate’, ‘animateMotion’, ‘animateTransform’, ‘discard’, ‘set’
descriptive elements — ‘desc’, ‘title’, ‘metadata’
paint server elements — ‘solidcolor’, ‘linearGradient’, ‘radialGradient’, ‘mesh’, ‘pattern’, ‘hatch’
shape elements — ‘circle’, ‘ellipse’, ‘line’, ‘path’, ‘polygon’, ‘polyline’, ‘rect’
structural elements — ‘defs’, ‘g’, ‘svg’, ‘symbol’, ‘use’

a, clipPath, cursor, filter, foreignObject, image, marker, mask, script, style, switch, text, view

Attributes:

core attributes — ‘id’, ‘tabindex’, ‘lang’, ‘xml:space’
graphical event attributes — ‘onfocusin’, ‘onfocusout’
global event attributes — ‘oncancel’, ‘oncanplay’, ‘oncanplaythrough’, ‘onchange’, ‘onclick’, ‘onclose’, ‘oncuechange’, ‘ondblclick’, ‘ondrag’, ‘ondragend’, ‘ondragenter’, ‘ondragexit’, ‘ondragleave’, ‘ondragover’, ‘ondragstart’, ‘ondrop’, ‘ondurationchange’, ‘onemptied’, ‘onended’, ‘onerror’, ‘onfocus’, ‘oninput’, ‘oninvalid’, ‘onkeydown’, ‘onkeypress’, ‘onkeyup’, ‘onload’, ‘onloadeddata’, ‘onloadedmetadata’, ‘onloadstart’, ‘onmousedown’, ‘onmouseenter’, ‘onmouseleave’, ‘onmousemove’, ‘onmouseout’, ‘onmouseover’, ‘onmouseup’, ‘onmousewheel’, ‘onpause’, ‘onplay’, ‘onplaying’, ‘onprogress’, ‘onratechange’, ‘onreset’, ‘onresize’, ‘onscroll’, ‘onseeked’, ‘onseeking’, ‘onselect’, ‘onshow’, ‘onstalled’, ‘onsubmit’, ‘onsuspend’, ‘ontimeupdate’, ‘ontoggle’, ‘onvolumechange’, ‘onwaiting’
presentation attributes —
style attributes — ‘class’, ‘style’

DOM Interfaces:

SVGDefsElement

The ‘defs’ element is a container element for referenced elements. For understandability and accessibility reasons, it is recommended that, whenever possible, referenced elements be defined inside of a ‘defs’.

The content model for ‘defs’ is the same as for the ‘g’ element; thus, any element that can be a child of a ‘g’ can also be a child of a ‘defs’, and vice versa.

Elements that are descendants of a ‘defs’ are not rendered directly; they are prevented from becoming part of the rendering tree just as if the ‘defs’ element were a ‘g’ element and the ‘display’ property were set to none. Note, however, that the descendants of a ‘defs’ are always present in the source tree and thus can always be referenced by other elements; thus, the value of the ‘display’ property on the ‘defs’ element or any of its descendants does not prevent those elements from being referenced by other elements.

4.5. The ‘desc’ and ‘title’ elements

4.5.1. Definition

descriptive element: An element which provides supplementary descriptive information about its parent. Specifically, the following elements are descriptive elements: ‘desc’, ‘metadata’ and ‘title’.

‘desc’

Categories:

Descriptive element

Content model:

Any elements or character data.

Attributes:

core attributes — ‘id’, ‘tabindex’, ‘lang’, ‘xml:space’
global event attributes — ‘oncancel’, ‘oncanplay’, ‘oncanplaythrough’, ‘onchange’, ‘onclick’, ‘onclose’, ‘oncuechange’, ‘ondblclick’, ‘ondrag’, ‘ondragend’, ‘ondragenter’, ‘ondragexit’, ‘ondragleave’, ‘ondragover’, ‘ondragstart’, ‘ondrop’, ‘ondurationchange’, ‘onemptied’, ‘onended’, ‘onerror’, ‘onfocus’, ‘oninput’, ‘oninvalid’, ‘onkeydown’, ‘onkeypress’, ‘onkeyup’, ‘onload’, ‘onloadeddata’, ‘onloadedmetadata’, ‘onloadstart’, ‘onmousedown’, ‘onmouseenter’, ‘onmouseleave’, ‘onmousemove’, ‘onmouseout’, ‘onmouseover’, ‘onmouseup’, ‘onmousewheel’, ‘onpause’, ‘onplay’, ‘onplaying’, ‘onprogress’, ‘onratechange’, ‘onreset’, ‘onresize’, ‘onscroll’, ‘onseeked’, ‘onseeking’, ‘onselect’, ‘onshow’, ‘onstalled’, ‘onsubmit’, ‘onsuspend’, ‘ontimeupdate’, ‘ontoggle’, ‘onvolumechange’, ‘onwaiting’
style attributes — ‘class’, ‘style’

DOM Interfaces:

SVGDescElement

‘title’

Categories:

Descriptive element

Content model:

Any elements or character data.

Attributes:

core attributes — ‘id’, ‘tabindex’, ‘lang’, ‘xml:space’
global event attributes — ‘oncancel’, ‘oncanplay’, ‘oncanplaythrough’, ‘onchange’, ‘onclick’, ‘onclose’, ‘oncuechange’, ‘ondblclick’, ‘ondrag’, ‘ondragend’, ‘ondragenter’, ‘ondragexit’, ‘ondragleave’, ‘ondragover’, ‘ondragstart’, ‘ondrop’, ‘ondurationchange’, ‘onemptied’, ‘onended’, ‘onerror’, ‘onfocus’, ‘oninput’, ‘oninvalid’, ‘onkeydown’, ‘onkeypress’, ‘onkeyup’, ‘onload’, ‘onloadeddata’, ‘onloadedmetadata’, ‘onloadstart’, ‘onmousedown’, ‘onmouseenter’, ‘onmouseleave’, ‘onmousemove’, ‘onmouseout’, ‘onmouseover’, ‘onmouseup’, ‘onmousewheel’, ‘onpause’, ‘onplay’, ‘onplaying’, ‘onprogress’, ‘onratechange’, ‘onreset’, ‘onresize’, ‘onscroll’, ‘onseeked’, ‘onseeking’, ‘onselect’, ‘onshow’, ‘onstalled’, ‘onsubmit’, ‘onsuspend’, ‘ontimeupdate’, ‘ontoggle’, ‘onvolumechange’, ‘onwaiting’
style attributes — ‘class’, ‘style’

DOM Interfaces:

SVGTitleElement

The attribute ‘lang’ added to allow internationalization of the ‘desc’ and ‘title’ elements.

Adding 'lang' resolved at Rigi Kaltbad face-to-face. Removed text that limited number of 'desc' and 'title' elements.

Is there any updated wording from SVG Tiny 1.2 that we should be using wrt tooltips?

Each container element or graphics element in an SVG drawing can supply one or more ‘desc’ and/or one or more ‘title’ description strings where the description is text-only. When the current SVG document fragment is rendered as SVG on visual media, ‘desc’ and ‘title’ elements are not rendered as part of the graphics. The ‘title’ child element represents advisory information for the element, such as would be appropriate for a tooltip. On a link, this could be the title or a description of the target resource; on an image or drawing object, it could be the image credit or short description of the image; it could be further information about the source; on interactive content, it could be a label for, or instructions for, use of the element; and so forth. The value is text. The ‘desc’ element represents more detailed, textual information, for the element. This is typically exposed to assistive technologies to provide more detailed information, such as help information about the element. The value is text.

Authors are provided two vehicles for providing a visible label with a drawing element. The first way is to embed text within the drawing element. The second is to associate visible text with a drawing element through the use of ‘aria-labelledby’ on the element being labelled. Authors may provide a non-visible label to a drawing element by applying an ‘aria-label’ to it but also by providing a descendant ‘title’ element. An author may also expose a hidden label on an element to an assistive technologies through the use of ‘aria-labelledby’ when it points to content that is hidden and contains text. It is common for user agents to render the ‘title’ element as a tooltip. Tooltips are an important way to convey alternative text information for a drawing object where the text label is either not readily visible or could be rendered in a clearer way in response to passing over the drawing element with a pointing device. One benefit of using a descendant 'title' element can be seen when using SVG to to produce an image button or small drawing that has no visible text but it is important to be able to render a short textual equivalent label, or tooltip, when a pointing device passes over the button.

Authors should provide a ‘title’ child element to the outermost svg element within a stand-alone SVG document. Since users often consult documents out of context, authors should provide context-rich titles. Thus, instead of a title such as "Introduction", which doesn't provide much contextual background, authors should supply a title such as "Introduction to Medieval Bee-Keeping" instead. For reasons of accessibility, user agents should always make the content of the ‘title’ child element to the outermost svg element available to users. The mechanism for doing so depends on the user agent (e.g., as a caption, spoken).

If the SVG document is embedded in an HTML document, the outermost svg element may only serve to act as a container for SVG drawings and applying a ‘title’ child element may not be of value. Applying a ‘title’ element to the outermost SVG element in this may may result in a tooltip being generated.

Unlike the desc element, authors also have the ability to associate more detailed information with content that includes visible text. This can be achieved by applying ‘aria-describedby’ to the element, or container of elements being described and passing an ID reference to content that includes text that describes the element in question. However, if the text describing the object is hidden the text within the description would be exposed to assistive technologies as detailed text information, similar to a descendant ‘desc’ element. The ‘aria-describedby’ attribute takes precedence over the child ‘desc’ when providing a description, consequently authors should only use ‘aria-describedby’ when an element is described by visible text on the screen, otherwise the use of a child ‘desc’ is preferred.

User agents may, however, for example, display the ‘title’ element as a tooltip, as the pointing device moves over particular elements. Alternate presentations are possible, both visual and aural, which display the ‘desc’ and ‘title’ elements but do not display ‘path’ elements or other graphics elements. For deep hierarchies, and for following ‘use’ element references, it is sometimes desirable to allow the user to control how deep they drill down into descriptive text.

More than one ‘desc’ or ‘title’ may be present with different ‘lang’ attributes. The text displayed will be the text from the element where the ‘lang’ attribute best matches the language set by the user agent. If no match exists, the text from the first element is used (to allow default text to be given for legacy renderers). If multiple equally valid matches exist, the first match is used.

The following is an example. In typical operation, the SVG user agent would not render the ‘desc’ and ‘title’ elements but would render the remaining contents of the ‘g’ element.

<?xml version="1.0" standalone="no"?>
<svg xmlns="http://www.w3.org/2000/svg"
     width="4in" height="3in">
  <g>
    <title>Company sales by region</title>
    <title lang="fr">Chiffre d'affaires par région</title>
    <desc>Bar chart which shows company sales by region.</desc>
    <desc lang="fr">Graphique illustrant les ventes par région.</desc>
    <!-- Bar chart defined as vector data -->
  </g>
</svg>

Description and title elements can contain marked-up text from other namespaces.

We should say what purpose including other-namespaced markup in ‘title’ and ‘desc’ has. If it is just that these are basically metadata extension points for other profiles or uses of SVG, then we should say that.

We have this sentence here about tooltips which is stronger than the earlier note that some implementations do this. We should look at how HTML describes the ‘title’ attribute and whether a tooltip is required, suggested, etc., and follow that.

Once we have said how ARIA attributes can be used in SVG, we might want to define ‘title’ and ‘desc’ in a manner consistent with them, so that it is clear what it means for example for an element to have both a ‘desc’ element child and an ‘aria-describedby’ attribute.

4.6. The ‘metadata’ element

Metadata which is included with SVG content should be specified within ‘metadata’ elements. The contents of the ‘metadata’ should be elements from other XML namespaces, with these elements from these namespaces expressed in a manner conforming with the Namespaces in XML Recommendation [XML-NS].

Authors should provide a ‘metadata’ child element to the outermost svg element within a stand-alone SVG document. The ‘metadata’ child element to an ‘svg’ element serves the purposes of identifying document-level metadata.

The definitions of many of SVG's elements (particularly, container and text elements) place no restriction on the placement or number of the ‘metadata’ sub-elements. This flexibility is only present so that there will be a consistent content model for container elements, because some container elements in SVG allow for mixed content, and because the mixed content rules for XML ([XML10], section 3.2.2) do not permit the desired restrictions. Future versions of the SVG language might provide more restrictive mixed content rules. It is strongly recommended that at most one ‘metadata’ element appear as a child of any particular element, and that this element appear before any other child elements (except possibly ‘desc’ or ‘title’ elements) or character data content. If metadata-processing user agents need to choose among multiple ‘metadata’ elements for processing it should choose the first one.

‘metadata’

Categories:

Descriptive element

Content model:

Any elements or character data.

Attributes:

core attributes — ‘id’, ‘tabindex’, ‘lang’, ‘xml:space’
global event attributes — ‘oncancel’, ‘oncanplay’, ‘oncanplaythrough’, ‘onchange’, ‘onclick’, ‘onclose’, ‘oncuechange’, ‘ondblclick’, ‘ondrag’, ‘ondragend’, ‘ondragenter’, ‘ondragexit’, ‘ondragleave’, ‘ondragover’, ‘ondragstart’, ‘ondrop’, ‘ondurationchange’, ‘onemptied’, ‘onended’, ‘onerror’, ‘onfocus’, ‘oninput’, ‘oninvalid’, ‘onkeydown’, ‘onkeypress’, ‘onkeyup’, ‘onload’, ‘onloadeddata’, ‘onloadedmetadata’, ‘onloadstart’, ‘onmousedown’, ‘onmouseenter’, ‘onmouseleave’, ‘onmousemove’, ‘onmouseout’, ‘onmouseover’, ‘onmouseup’, ‘onmousewheel’, ‘onpause’, ‘onplay’, ‘onplaying’, ‘onprogress’, ‘onratechange’, ‘onreset’, ‘onresize’, ‘onscroll’, ‘onseeked’, ‘onseeking’, ‘onselect’, ‘onshow’, ‘onstalled’, ‘onsubmit’, ‘onsuspend’, ‘ontimeupdate’, ‘ontoggle’, ‘onvolumechange’, ‘onwaiting’

DOM Interfaces:

SVGMetadataElement

Here is an example of how metadata can be included in an SVG document. The example uses the Dublin Core version 1.1 schema. (Other XML-compatible metadata languages, including ones not based on RDF, can be used also.)

<?xml version="1.0" standalone="yes"?>
<svg width="4in" height="3in"
    xmlns = 'http://www.w3.org/2000/svg'>
    <desc xmlns:myfoo="http://example.org/myfoo">
      <myfoo:title>This is a financial report</myfoo:title>
      <myfoo:descr>The global description uses markup from the
        <myfoo:emph>myfoo</myfoo:emph> namespace.</myfoo:descr>
      <myfoo:scene><myfoo:what>widget $growth</myfoo:what>
      <myfoo:contains>$three $graph-bar</myfoo:contains>
        <myfoo:when>1998 $through 2000</myfoo:when> </myfoo:scene>
   </desc>
    <metadata>
      <rdf:RDF
           xmlns:rdf = "http://www.w3.org/1999/02/22-rdf-syntax-ns#"
           xmlns:rdfs = "http://www.w3.org/2000/01/rdf-schema#"
           xmlns:dc = "http://purl.org/dc/elements/1.1/" >
        <rdf:Description about="http://example.org/myfoo"
             dc:title="MyFoo Financial Report"
             dc:description="$three $bar $thousands $dollars $from 1998 $through 2000"
             dc:publisher="Example Organization"
             dc:date="2000-04-11"
             dc:format="image/svg+xml"
             dc:language="en" >
          <dc:creator>
            <rdf:Bag>
              <rdf:li>Irving Bird</rdf:li>
              <rdf:li>Mary Lambert</rdf:li>
            </rdf:Bag>
          </dc:creator>
        </rdf:Description>
      </rdf:RDF>
    </metadata>
</svg>

4.7. The ‘symbol’ element

‘symbol’

Categories:

Graphics element, graphics referencing element, structural element, structurally external element

Content model:

Any number of the following elements, in any order:

animation elements — ‘animate’, ‘animateMotion’, ‘animateTransform’, ‘discard’, ‘set’
descriptive elements — ‘desc’, ‘title’, ‘metadata’
paint server elements — ‘solidcolor’, ‘linearGradient’, ‘radialGradient’, ‘mesh’, ‘pattern’, ‘hatch’
shape elements — ‘circle’, ‘ellipse’, ‘line’, ‘path’, ‘polygon’, ‘polyline’, ‘rect’
structural elements — ‘defs’, ‘g’, ‘svg’, ‘symbol’, ‘use’

a, clipPath, cursor, filter, foreignObject, image, marker, mask, script, style, switch, text, view

Attributes:

aria attributes — ‘aria-activedescendant’, ‘aria-atomic’, ‘aria-autocomplete’, ‘aria-busy’, ‘aria-checked’, ‘aria-colcount’, ‘aria-colindex’, ‘aria-colspan’, ‘aria-controls’, ‘aria-current’, ‘aria-describedat’, ‘aria-describedby’, ‘aria-disabled’, ‘aria-dropeffect’, ‘aria-expanded’, ‘aria-flowto’, ‘aria-grabbed’, ‘aria-haspopup’, ‘aria-hidden’, ‘aria-invalid’, ‘aria-label’, ‘aria-labelledby’, ‘aria-level’, ‘aria-live’, ‘aria-modal’, ‘aria-multiline’, ‘aria-multiselectable’, ‘aria-orientation’, ‘aria-owns’, ‘aria-placeholder’, ‘aria-posinset’, ‘aria-pressed’, ‘aria-readonly’, ‘aria-relevant’, ‘aria-required’, ‘aria-rowcount’, ‘aria-rowindex’, ‘aria-rowspan’, ‘aria-selected’, ‘aria-setsize’, ‘aria-sort’, ‘aria-valuemax’, ‘aria-valuemin’, ‘aria-valuenow’, ‘aria-valuetext’, ‘role’
core attributes — ‘id’, ‘tabindex’, ‘lang’, ‘xml:space’
global event attributes — ‘oncancel’, ‘oncanplay’, ‘oncanplaythrough’, ‘onchange’, ‘onclick’, ‘onclose’, ‘oncuechange’, ‘ondblclick’, ‘ondrag’, ‘ondragend’, ‘ondragenter’, ‘ondragexit’, ‘ondragleave’, ‘ondragover’, ‘ondragstart’, ‘ondrop’, ‘ondurationchange’, ‘onemptied’, ‘onended’, ‘onerror’, ‘onfocus’, ‘oninput’, ‘oninvalid’, ‘onkeydown’, ‘onkeypress’, ‘onkeyup’, ‘onload’, ‘onloadeddata’, ‘onloadedmetadata’, ‘onloadstart’, ‘onmousedown’, ‘onmouseenter’, ‘onmouseleave’, ‘onmousemove’, ‘onmouseout’, ‘onmouseover’, ‘onmouseup’, ‘onmousewheel’, ‘onpause’, ‘onplay’, ‘onplaying’, ‘onprogress’, ‘onratechange’, ‘onreset’, ‘onresize’, ‘onscroll’, ‘onseeked’, ‘onseeking’, ‘onselect’, ‘onshow’, ‘onstalled’, ‘onsubmit’, ‘onsuspend’, ‘ontimeupdate’, ‘ontoggle’, ‘onvolumechange’, ‘onwaiting’
graphical event attributes — ‘onfocusin’, ‘onfocusout’
presentation attributes —
style attributes — ‘class’, ‘style’
‘preserveAspectRatio’
‘viewBox’
‘refX’
‘refY’

DOM Interfaces:

SVGSymbolElement

4.7.1. Attributes

Name	Value	Initial value	Animatable
refX	<length> \| left \| center \| right	0	yes
refY	<length> \| top \| center \| bottom	0	yes

New in SVG 2. Added to make it easier to align symbols to a particular point, as is often done in maps. Similar to the matching attributes on ‘marker’.

Add refX/refY to symbol element. Resolved at Leipzig F2F.

We will add top/center/bottom, left/center/right keywords to refX/refY on marker/symbol. Resolved at London F2F. Values inspired by 'background-position'.

The ‘refX’ and ‘refY’ attributes define the reference point of the symbol which is to be placed exactly at the symbol's position as defined by the ‘use’ element. They are interpreted as being in the coordinate system of the symbol contents, after application of the ‘viewBox’ and ‘preserveAspectRatio’ attributes.

4.7.2. Notes on symbols

The ‘symbol’ element is used to define graphical template objects which can be instantiated by a ‘use’ element.

The use of ‘symbol’ elements for graphics that are used multiple times in the same document adds structure and semantics.

The key distinctions between a ‘symbol’ and a ‘g’ are:

A ‘symbol’ element itself is not rendered. Only instances of a ‘symbol’ element (i.e., a reference to a ‘symbol’ by a ‘use’ element) are rendered.
A ‘symbol’ element has attributes ‘viewBox’ and ‘preserveAspectRatio’ which allow a ‘symbol’ to scale-to-fit within a rectangular viewport defined by the referencing ‘use’ element.

The user agent style sheet sets the ‘overflow’ property for ‘symbol’ elements to hidden, which causes a rectangular clipping path to be created at the bounds of symbol's viewport. Unless the ‘overflow’ property is overridden, any graphics within the symbol which goes outside of the symbol's viewport will be clipped.

Closely related to the ‘symbol’ element are the ‘marker’ and ‘pattern’ elements.

‘symbol’ elements are never rendered directly; their only usage is as something that can be referenced using the ‘use’ element. The ‘display’ property does not apply to the ‘symbol’ element; thus, ‘symbol’ elements are not directly rendered even if the ‘display’ property is set to a value other than none, and ‘symbol’ elements are available for referencing even when the ‘display’ property on the ‘symbol’ element or any of its ancestors is set to none.

4.8. The ‘use’ element

SVG 2 Requirement:	Allow ‘use’ to reference an external document's root element by omitting the fragment.
Resolution:	We will relax referencing requirements to particular elements to allow dropping fragments to mean referencing root element, where it makes sense, such as with use, in SVG 2.
Purpose:	To avoid requiring authors to modify the referenced document to add an ID to the root element.
Owner:	Cameron (ACTION-3417)

‘use’

Categories:

Content model:

Any number of the following elements, in any order:

animation elements — ‘animate’, ‘animateMotion’, ‘animateTransform’, ‘discard’, ‘set’
descriptive elements — ‘desc’, ‘title’, ‘metadata’
paint server elements — ‘solidcolor’, ‘linearGradient’, ‘radialGradient’, ‘mesh’, ‘pattern’, ‘hatch’
structurally external elements — ‘script’, ‘image’, ‘use’, ‘iframe’, ‘video’, ‘audio’, ‘foreignObject’

View this example as SVG (SVG-enabled browsers only)

Attributes:

aria attributes — ‘aria-activedescendant’, ‘aria-atomic’, ‘aria-autocomplete’, ‘aria-busy’, ‘aria-checked’, ‘aria-colcount’, ‘aria-colindex’, ‘aria-colspan’, ‘aria-controls’, ‘aria-current’, ‘aria-describedat’, ‘aria-describedby’, ‘aria-disabled’, ‘aria-dropeffect’, ‘aria-expanded’, ‘aria-flowto’, ‘aria-grabbed’, ‘aria-haspopup’, ‘aria-hidden’, ‘aria-invalid’, ‘aria-label’, ‘aria-labelledby’, ‘aria-level’, ‘aria-live’, ‘aria-modal’, ‘aria-multiline’, ‘aria-multiselectable’, ‘aria-orientation’, ‘aria-owns’, ‘aria-placeholder’, ‘aria-posinset’, ‘aria-pressed’, ‘aria-readonly’, ‘aria-relevant’, ‘aria-required’, ‘aria-rowcount’, ‘aria-rowindex’, ‘aria-rowspan’, ‘aria-selected’, ‘aria-setsize’, ‘aria-sort’, ‘aria-valuemax’, ‘aria-valuemin’, ‘aria-valuenow’, ‘aria-valuetext’, ‘role’
core attributes — ‘id’, ‘tabindex’, ‘lang’, ‘xml:space’
conditional processing attributes — ‘requiredExtensions’, ‘systemLanguage’
global event attributes — ‘oncancel’, ‘oncanplay’, ‘oncanplaythrough’, ‘onchange’, ‘onclick’, ‘onclose’, ‘oncuechange’, ‘ondblclick’, ‘ondrag’, ‘ondragend’, ‘ondragenter’, ‘ondragexit’, ‘ondragleave’, ‘ondragover’, ‘ondragstart’, ‘ondrop’, ‘ondurationchange’, ‘onemptied’, ‘onended’, ‘onerror’, ‘onfocus’, ‘oninput’, ‘oninvalid’, ‘onkeydown’, ‘onkeypress’, ‘onkeyup’, ‘onload’, ‘onloadeddata’, ‘onloadedmetadata’, ‘onloadstart’, ‘onmousedown’, ‘onmouseenter’, ‘onmouseleave’, ‘onmousemove’, ‘onmouseout’, ‘onmouseover’, ‘onmouseup’, ‘onmousewheel’, ‘onpause’, ‘onplay’, ‘onplaying’, ‘onprogress’, ‘onratechange’, ‘onreset’, ‘onresize’, ‘onscroll’, ‘onseeked’, ‘onseeking’, ‘onselect’, ‘onshow’, ‘onstalled’, ‘onsubmit’, ‘onsuspend’, ‘ontimeupdate’, ‘ontoggle’, ‘onvolumechange’, ‘onwaiting’
graphical event attributes — ‘onfocusin’, ‘onfocusout’
presentation attributes —
style attributes — ‘class’, ‘style’
xlink attributes — ‘xlink:href’, ‘xlink:title’
‘x’
‘y’
‘width’
‘height’
‘href’

DOM Interfaces:

SVGUseElement

The ‘use’ element references another element and indicates that the graphical contents of that element is included/drawn at that given point in the document.

‘use’ is described as referencing template objects, but the parameters of the template are limited – just different inherited property values.

The graphical contents are any ‘svg’, ‘symbol’, ‘g’, graphics element or other ‘use’ elements, that a ‘use’ element references.

The ‘use’ element can reference an entire SVG document by specifying an ‘href’ value without a fragment. Such references are taken to be referring to the root element of the referenced document.

This allows an entire SVG document to be referenced without having to ensure that it has an ID on its root element.

The ‘use’ element has optional attributes ‘x’, ‘y’, ‘width’ and ‘height’ which are used to map the graphical contents of the referenced element onto a rectangular region within the current coordinate system.

The effect of a ‘use’ element is as if the graphical contents of the referenced element were deeply cloned into a separate non-exposed DOM tree which had the ‘use’ element as its parent and all of the ‘use’ element's ancestors as its higher-level ancestors. Because the cloned DOM tree is non-exposed, the SVG Document Object Model (DOM) only contains the ‘use’ element and its attributes. The SVG DOM does not show the referenced element's contents as children of ‘use’ element.

The non-exposed DOM tree must be created even if 'display: none' is set on the ‘use’ element. Note that ‘script’ elements that get conceptually cloned into the non-exposed DOM tree do not execute again, and ‘audio’ and ‘video’ elements that may play audio must only do so if the ‘use’ element is rendered.

We should define the behavior of ‘use’ in terms of Web Components. See ACTION-3729 (Tab)

The conceptual deep cloning of the referenced element into a non-exposed DOM tree also copies any property values resulting from the CSS cascade ([CSS21], chapter 6) on the referenced element and its contents. CSS2 selectors can be applied to the original (i.e., referenced) elements because they are part of the formal document structure. CSS2 selectors cannot be applied to the (conceptually) cloned DOM tree because its contents are not part of the formal document structure.

Property inheritance, however, works as if the referenced element had been textually included as a deeply cloned child of the ‘use’ element. The referenced element inherits properties from the ‘use’ element and the ‘use’ element's ancestors. An instance of a referenced element does not inherit properties from the referenced element's original parents.

Note that specifying 'visibility:hidden' on a ‘use’ element does not guarantee that the referenced content will not be rendered. If the ‘use’ element specifies 'visibility:hidden' and the element it references specifies 'visibility:hidden' or 'visibility:inherit', then that one element will be hidden. However, if the referenced element instead specifies 'visibility:visible', then that element will be visible even if the ‘use’ element specifies 'visibility:hidden'.

If event attributes are assigned to referenced elements, then the actual target for the event will be the element within the "instance tree" corresponding to the given referenced element.

The event handling for the non-exposed tree works as if the referenced element had been textually included as a deeply cloned child of the ‘use’ element, and events are dispatched according to the shadow tree event dispatching algorithm [SHADOWDOM]. The event's target and currentTarget attributes are set to the instance tree element that corresponds to the target and current target elements in the referenced subtree. An event propagates through the exposed and non-exposed portions of the tree in the same manner as it would in the regular document tree: first going from the root element to the ‘use’ element and then through non-exposed tree elements in the capture phase, followed by the target phase at the target of the event, then bubbling back through non-exposed tree to the use element and then back through regular tree to the root element in bubbling phase. In order to maintain encapsulation events must use the event retargeting algorithm [SHADOWDOM] when crossing from a non-exposed tree to the regular tree.

The element referenced by ‘use’ may be in a separate document. However, this specification does not define how or if the user agent will process stylesheets in that document, or what viewport will be used for resolving percentages and media queries in such documents, if animations run in the separate document and which document controls the animation timeline. Script elements in the resource document must not be executed, and the corresponding conceptually cloned script elements must also not execute.

When re-using external assets, therefore, authors are advised not to include any scripts in the external file and to use inline styles or presentation attributes only. Percentage lengths should only be used if the re-used assets define their own viewport (i.e., if the re-used element is an ‘svg’ or ‘symbol’). Declarative animations in external assets should not be used.

User agents may restrict restrict external resource documents for security reasons. In particular, this specification does not allow cross-origin resource requests in ‘use’. A future version of this or another specification may provide a method of securely enabling cross-origin re-use of assets.

Animations on a referenced element will cause the instances to also be animated.

A ‘use’ element has the same visual effect as if the ‘use’ element were replaced by the following generated content:

Except that the replaced content shouldn't affect how styles are matched.

In the generated content, the ‘use’ will be replaced by ‘g’, where all attributes from the ‘use’ element except for ‘x’, ‘y’, ‘width’, ‘height’, ‘href’ and ‘xlink:href’ are transferred to the generated ‘g’ element. An additional transformation translate(x,y) is appended to the end (i.e., right-side) of the ‘transform’ property on the generated ‘g’, where x and y represent the values of the ‘x’ and ‘y’ attributes on the ‘use’ element.

If the ‘use’ element references a ‘symbol’ element:

The referenced ‘symbol’ and its contents are deep-cloned into the generated tree, with the exception that the ‘symbol’ is replaced by an ‘svg’. This generated ‘svg’ will always have explicit values for its ‘width’ and ‘height’ presentation attributes. If attributes ‘width’ and/or ‘height’ are provided on the ‘use’ element, then these attributes will be transferred to the generated ‘svg’. If attributes ‘width’ and/or ‘height’ are not specified, the generated ‘svg’ element will use values of '100%' for these attributes.
If the ‘use’ element references an ‘svg’ element:

The referenced ‘svg’ and its contents are deep-cloned into the generated tree. If attributes ‘width’ and/or ‘height’ are provided on the ‘use’ element, then these values will override the corresponding attributes on the ‘svg’ in the generated tree.
Otherwise:

The referenced object and its contents are deep-cloned into the generated tree.

For user agents that support Styling with CSS, the generated ‘g’ element carries along with it the "cascaded" property values on the ‘use’ element which result from the CSS cascade ([CSS21], chapter 6). Additionally, the copy (deep clone) of the referenced resource carries along with it the "cascaded" property values resulting from the CSS cascade on the original (i.e., referenced) elements. Thus, the result of various CSS selectors in combination with the ‘class’ and ‘style’ attributes are, in effect, replaced by the functional equivalent of a ‘style’ attribute in the generated content which conveys the "cascaded" property values.

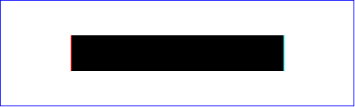

Example Use01 below has a simple ‘use’ on a ‘rect’.

<?xml version="1.0" standalone="no"?>
<svg width="10cm" height="3cm" viewBox="0 0 100 30" version="1.1"
     xmlns="http://www.w3.org/2000/svg">
  <desc>Example Use01 - Simple case of 'use' on a 'rect'</desc>
  <defs>
    <rect id="MyRect" width="60" height="10"/>
  </defs>
  <rect x=".1" y=".1" width="99.8" height="29.8"
        fill="none" stroke="blue" stroke-width=".2" />
  <use x="20" y="10" href="#MyRect" />
</svg>

Example Use01

The visual effect would be equivalent to the following document:

<?xml version="1.0" standalone="no"?>
<svg width="10cm" height="3cm" viewBox="0 0 100 30"
     xmlns="http://www.w3.org/2000/svg" version="1.1">
  <desc>Example Use01-GeneratedContent - Simple case of 'use' on a 'rect'</desc>
  <!-- 'defs' section left out -->

  <rect x=".1" y=".1" width="99.8" height="29.8"
        fill="none" stroke="blue" stroke-width=".2" />

  <!-- Start of generated content. Replaces 'use' -->
  <g transform="translate(20,10)">
    <rect width="60" height="10"/>
  </g>
  <!-- End of generated content -->

</svg>

View this example as SVG (SVG-enabled browsers only)

Example Use02 below has a ‘use’ on a ‘symbol’.

<?xml version="1.0" standalone="no"?>
<svg width="10cm" height="3cm" viewBox="0 0 100 30" version="1.1"
     xmlns="http://www.w3.org/2000/svg">
  <desc>Example Use02 - 'use' on a 'symbol'</desc>
  <defs>
    <symbol id="MySymbol" viewBox="0 0 20 20">
      <desc>MySymbol - four rectangles in a grid</desc>
      <rect x="1" y="1" width="8" height="8"/>
      <rect x="11" y="1" width="8" height="8"/>
      <rect x="1" y="11" width="8" height="8"/>
      <rect x="11" y="11" width="8" height="8"/>
    </symbol>
  </defs>
  <rect x=".1" y=".1" width="99.8" height="29.8"
        fill="none" stroke="blue" stroke-width=".2" />
  <use x="45" y="10" width="10" height="10" href="#MySymbol" />
</svg>

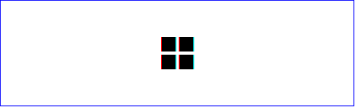

Example Use02

View this example as SVG (SVG-enabled browsers only)

The visual effect would be equivalent to the following document:

<?xml version="1.0" standalone="no"?>
<svg width="10cm" height="3cm" viewBox="0 0 100 30"
     xmlns="http://www.w3.org/2000/svg" version="1.1">
  <desc>Example Use02-GeneratedContent - 'use' on a 'symbol'</desc>

  <!-- 'defs' section left out -->

  <rect x=".1" y=".1" width="99.8" height="29.8"
        fill="none" stroke="blue" stroke-width=".2" />

  <!-- Start of generated content. Replaces 'use' -->
  <g transform="translate(45, 10)" >
    <!-- Start of referenced 'symbol'. 'symbol' replaced by 'svg',
         with x,y,width,height=0,0,100%,100% -->
    <svg width="10" height="10"
         viewBox="0 0 20 20">
      <rect x="1" y="1" width="8" height="8"/>
      <rect x="11" y="1" width="8" height="8"/>
      <rect x="1" y="11" width="8" height="8"/>
      <rect x="11" y="11" width="8" height="8"/>
    </svg>
    <!-- End of referenced symbol -->
  </g>
  <!-- End of generated content -->

</svg>

View this example as SVG (SVG-enabled browsers only)

Example Use03 illustrates what happens when a ‘use’ has a ‘transform’ property.

<?xml version="1.0" standalone="no"?>
<svg width="10cm" height="3cm" viewBox="0 0 100 30" version="1.1"
     xmlns="http://www.w3.org/2000/svg">
  <desc>Example Use03 - 'use' with a 'transform' attribute</desc>
  <defs>
    <rect id="MyRect" x="0" y="0" width="60" height="10"/>
  </defs>
  <rect x=".1" y=".1" width="99.8" height="29.8"
        fill="none" stroke="blue" stroke-width=".2" />
  <use href="#MyRect"
       transform="translate(20,2.5) rotate(10)" />
</svg>

Example Use03

View this example as SVG (SVG-enabled browsers only)

The visual effect would be equivalent to the following document:

<?xml version="1.0" standalone="no"?>
<svg width="10cm" height="3cm" viewBox="0 0 100 30"
     xmlns="http://www.w3.org/2000/svg" version="1.1">
  <desc>Example Use03-GeneratedContent - 'use' with a 'transform' attribute</desc>

  <!-- 'defs' section left out -->

  <rect x=".1" y=".1" width="99.8" height="29.8"
        fill="none" stroke="blue" stroke-width=".2" />

  <!-- Start of generated content. Replaces 'use' -->
  <g transform="translate(20,2.5) rotate(10)">
    <rect x="0" y="0" width="60" height="10"/>
  </g>
  <!-- End of generated content -->

</svg>

View this example as SVG (SVG-enabled browsers only)

Example Use04 illustrates a ‘use’ element with various methods of applying CSS styling.

<?xml version="1.0" standalone="no"?>
<svg width="12cm" height="3cm" viewBox="0 0 1200 300"
     xmlns="http://www.w3.org/2000/svg">
  <desc>Example Use04 - 'use' with CSS styling</desc>
  <defs style=" /* rule 9 */ stroke-miterlimit: 10" >
    <path id="MyPath" d="M300 50 L900 50 L900 250 L300 250"
                     class="MyPathClass"
                     style=" /* rule 10 */ stroke-dasharray:300,100" />
  </defs>
  <style type="text/css">
    <![CDATA[
      /* rule 1 */ #MyUse { fill: blue }
      /* rule 2 */ #MyPath { stroke: red }
      /* rule 3 */ use { fill-opacity: .5 }
      /* rule 4 */ path { stroke-opacity: .5 }
      /* rule 5 */ .MyUseClass { stroke-linecap: round }
      /* rule 6 */ .MyPathClass { stroke-linejoin: bevel }
      /* rule 7 */ use > path { shape-rendering: optimizeQuality }
      /* rule 8 */ g > path { visibility: hidden }
    ]]>
  </style>

  <rect x="0" y="0" width="1200" height="300"
         style="fill:none; stroke:blue; stroke-width:3"/>
  <g style=" /* rule 11 */ stroke-width:40">
    <use id="MyUse" href="#MyPath"
         class="MyUseClass"
         style="/* rule 12 */ stroke-dashoffset:50" />
  </g>
</svg>

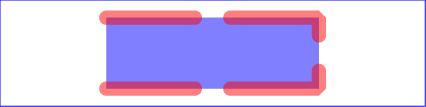

Example Use04

View this example as SVG (SVG-enabled browsers only)

The visual effect would be equivalent to the following document. Observe that some of the style rules above apply to the generated content (i.e., rules 1-6, 10-12), whereas others do not (i.e., rules 7-9). The rules which do not affect the generated content are:

Rules 7 and 8: CSS selectors only apply to the formal document tree, not on the generated tree; thus, these selectors will not yield a match.
Rule 9: The generated tree only inherits from the ancestors of the ‘use’ element and does not inherit from the ancestors of the referenced element; thus, this rule does not affect the generated content.

In the generated content below, the selectors that yield a match have been transferred into inline ‘style’ attributes for illustrative purposes.

<?xml version="1.0" standalone="no"?>
<svg width="12cm" height="3cm" viewBox="0 0 1200 300"
     xmlns="http://www.w3.org/2000/svg" version="1.1">
  <desc>Example Use04-GeneratedContent - 'use' with a 'transform' attribute</desc>

  <!-- 'style' and 'defs' sections left out -->

  <rect x="0" y="0" width="1200" height="300"
         style="fill:none; stroke:blue; stroke-width:3"/>
  <g style="/* rule 11 */ stroke-width:40">

    <!-- Start of generated content. Replaces 'use' -->
    <g style="/* rule 1 */ fill:blue;
                 /* rule 3 */ fill-opacity:.5;
                 /* rule 5 */ stroke-linecap:round;
                 /* rule 12 */ stroke-dashoffset:50" >
      <path d="M300 50 L900 50 L900 250 L300 250"
            style="/* rule 2 */ stroke:red;
                   /* rule 4 */ stroke-opacity:.5;
                   /* rule 6 */ stroke-linejoin: bevel;
                   /* rule 10 */ stroke-dasharray:300,100" />
    </g>
    <!-- End of generated content -->

  </g>
</svg>

View this example as SVG (SVG-enabled browsers only)

When a ‘use’ references another element which is another ‘use’ or whose content contains a ‘use’ element, then the deep cloning approach described above is recursive. However, a set of references that directly or indirectly reference a element to create a circular dependency is an error, as described in References and the ‘defs’ element.

Attribute definitions:

Name Value Initial value Animatable x, y <length> 0 yes width, height <length> (see below) yes

Name	Value	Initial value	Animatable
x, y	<length>	0	yes
width, height	<length>	(see below)	yes

The ‘x’, ‘y’, ‘width’ and ‘height’ attributes specify the positioning of the referenced element. The ‘width’ and ‘height’ attributes have different initial values depending on the type of the referenced element:

‘svg’: The initial values are the ‘width’ and ‘height’ presentation attribute values from the referenced ‘svg’ element.
anything else: The initial values are '100%'.

A negative value for ‘width’ or ‘height’ is an error (see Error processing). If ‘width’ or ‘height’ is zero then rendering of the ‘use’ element is disabled.

Name Value Initial value Animatable href URL [URL] (none) yes

Name	Value	Initial value	Animatable
href	URL [URL]	(none)	yes

An URL reference to the element/fragment within an SVG document to be cloned for rendering.

Refer to the common handling defined for URL reference attributes and deprecated XLink attributes.

4.9. Conditional processing

4.9.1. Conditional processing overview

SVG contains a ‘switch’ element along with attributes ‘requiredExtensions’ and ‘systemLanguage’ to provide an ability to specify alternate viewing depending on the capabilities of a given user agent or the user's language.

Attributes ‘requiredExtensions’ and ‘systemLanguage’ act as tests and evaluate to either true or false. The ‘switch’ renders the first of its children for which all of these attributes test true. If the given attribute is not specified, then a true value is assumed.

Similar to the ‘display’ property, conditional processing attributes only affect the direct rendering of elements and do not prevent elements from being successfully referenced by other elements (such as via a ‘use’).

In consequence:

‘requiredExtensions’ and ‘systemLanguage’ attributes affect ‘a’, ‘foreignObject’, ‘textPath’, and ‘tspan’ elements.
‘requiredExtensions’ and ‘systemLanguage’ attributes will have no effect on the ‘clipPath’, ‘filter’, ‘marker’, ‘mask’, ‘pattern’ and ‘symbol’ elements or on gradient elements.
‘requiredExtensions’ and ‘systemLanguage’ attributes do not apply to the ‘defs’, and ‘cursor’ elements because they are not part of the rendering tree.

4.9.2. Definitions

conditional processing attribute: A conditional processing attribute is one that controls whether or not the element on which it appears is processed. Most elements, but not all, may have conditional processing attributes specified on them. See Conditional processing for details. The conditional processing attributes defined in SVG 1.1 are ‘requiredExtensions’ and ‘systemLanguage’.

4.9.3. The ‘switch’ element

‘switch’

Categories:

Container element

Content model:

Any number of the following elements, in any order:

animation elements — ‘animate’, ‘animateMotion’, ‘animateTransform’, ‘discard’, ‘set’
descriptive elements — ‘desc’, ‘title’, ‘metadata’
paint server elements — ‘solidcolor’, ‘linearGradient’, ‘radialGradient’, ‘mesh’, ‘pattern’, ‘hatch’
shape elements — ‘circle’, ‘ellipse’, ‘line’, ‘path’, ‘polygon’, ‘polyline’, ‘rect’

a, clipPath, foreignObject, g, image, marker, mask, script, svg, switch, text, use

Attributes:

aria attributes — ‘aria-activedescendant’, ‘aria-atomic’, ‘aria-autocomplete’, ‘aria-busy’, ‘aria-checked’, ‘aria-colcount’, ‘aria-colindex’, ‘aria-colspan’, ‘aria-controls’, ‘aria-current’, ‘aria-describedat’, ‘aria-describedby’, ‘aria-disabled’, ‘aria-dropeffect’, ‘aria-expanded’, ‘aria-flowto’, ‘aria-grabbed’, ‘aria-haspopup’, ‘aria-hidden’, ‘aria-invalid’, ‘aria-label’, ‘aria-labelledby’, ‘aria-level’, ‘aria-live’, ‘aria-modal’, ‘aria-multiline’, ‘aria-multiselectable’, ‘aria-orientation’, ‘aria-owns’, ‘aria-placeholder’, ‘aria-posinset’, ‘aria-pressed’, ‘aria-readonly’, ‘aria-relevant’, ‘aria-required’, ‘aria-rowcount’, ‘aria-rowindex’, ‘aria-rowspan’, ‘aria-selected’, ‘aria-setsize’, ‘aria-sort’, ‘aria-valuemax’, ‘aria-valuemin’, ‘aria-valuenow’, ‘aria-valuetext’, ‘role’
conditional processing attributes — ‘requiredExtensions’, ‘systemLanguage’
core attributes — ‘id’, ‘tabindex’, ‘lang’, ‘xml:space’
global event attributes — ‘oncancel’, ‘oncanplay’, ‘oncanplaythrough’, ‘onchange’, ‘onclick’, ‘onclose’, ‘oncuechange’, ‘ondblclick’, ‘ondrag’, ‘ondragend’, ‘ondragenter’, ‘ondragexit’, ‘ondragleave’, ‘ondragover’, ‘ondragstart’, ‘ondrop’, ‘ondurationchange’, ‘onemptied’, ‘onended’, ‘onerror’, ‘onfocus’, ‘oninput’, ‘oninvalid’, ‘onkeydown’, ‘onkeypress’, ‘onkeyup’, ‘onload’, ‘onloadeddata’, ‘onloadedmetadata’, ‘onloadstart’, ‘onmousedown’, ‘onmouseenter’, ‘onmouseleave’, ‘onmousemove’, ‘onmouseout’, ‘onmouseover’, ‘onmouseup’, ‘onmousewheel’, ‘onpause’, ‘onplay’, ‘onplaying’, ‘onprogress’, ‘onratechange’, ‘onreset’, ‘onresize’, ‘onscroll’, ‘onseeked’, ‘onseeking’, ‘onselect’, ‘onshow’, ‘onstalled’, ‘onsubmit’, ‘onsuspend’, ‘ontimeupdate’, ‘ontoggle’, ‘onvolumechange’, ‘onwaiting’
graphical event attributes — ‘onfocusin’, ‘onfocusout’
presentation attributes —
style attributes — ‘class’, ‘style’

DOM Interfaces:

SVGSwitchElement

The ‘switch’ element evaluates the ‘requiredExtensions’ and ‘systemLanguage’ attributes on its direct child elements in order, and then processes and renders the first child for which these attributes evaluate to true. All others will be bypassed and therefore not rendered. If the child element is a container element such as a ‘g’, then the entire subtree is either processed/rendered or bypassed/not rendered.

Note that the values of properties ‘display’ and ‘visibility’ have no effect on ‘switch’ element processing. In particular, setting ‘display’ to none on a child of a ‘switch’ element has no effect on true/false testing associated with ‘switch’ element processing.

The ‘switch’ element does not affect the processing of ‘script’ and ‘style’ elements.

For more information and an example, see Embedding foreign object types.

4.9.4. The ‘requiredExtensions’ attribute

The ‘requiredExtensions’ attribute defines a list of required language extensions. Language extensions are capabilities within a user agent that go beyond the feature set defined in this specification. Each extension is identified by an URL reference.

Name Value Initial value Animatable requiredExtensions set of space-separated tokens [HTML] (none) no: The value is a list of URL references which identify the required extensions, with the individual values separated by white space. Determines whether all of the named extensions are supported by the user agent. If all of the given extensions are supported, then the attribute evaluates to true; otherwise, the current element and its children are skipped and thus will not be rendered.

Name	Value	Initial value	Animatable
requiredExtensions	set of space-separated tokens [HTML]	(none)	no

If a given URL reference contains white space within itself, that white space must be escaped.

If the attribute is not present, then it implicitly evaluates to "true". If a null string or empty string value is given to attribute ‘requiredExtensions’, the attribute evaluates to "false".

‘requiredExtensions’ is often used in conjunction with the ‘switch’ element. If the ‘requiredExtensions’ is used in other situations, then it represents a simple switch on the given element whether to render the element or not.

The URL names for the extension should include versioning information, such as "http://example.org/SVGExtensionXYZ/1.0", so that script writers can distinguish between different versions of a given extension.

4.9.5. The ‘systemLanguage’ attribute

Name Value Initial value Animatable systemLanguage set of comma-separated tokens [HTML] (none) no: The value is a set of comma-separated tokens, each of which must be a Language-Tag value, as defined in BCP 47 [BCP47].

Name	Value	Initial value	Animatable
systemLanguage	set of comma-separated tokens [HTML]	(none)	no

Evaluates to "true" if one of the languages indicated by user preferences exactly equals one of the languages given in the value of this parameter, or if one of the languages indicated by user preferences exactly equals a prefix of one of the languages given in the value of this parameter such that the first tag character following the prefix is "-".

Evaluates to "false" otherwise.

If the attribute is not present, then it implicitly evaluates to "true". If a null string or empty string value is given to attribute ‘systemLanguage’, the attribute evaluates to "false".

Note: This use of a prefix matching rule does not imply that language tags are assigned to languages in such a way that it is always true that if a user understands a language with a certain tag, then this user will also understand all languages with tags for which this tag is a prefix.

The prefix rule simply allows the use of prefix tags if this is the case.

Implementation note: When making the choice of linguistic preference available to the user, implementers should take into account the fact that users are not familiar with the details of language matching as described above, and should provide appropriate guidance. As an example, users may assume that on selecting "en-gb", they will be served any kind of English document if British English is not available. The user interface for setting user preferences should guide the user to add "en" to get the best matching behavior.

Multiple languages may be listed for content that is intended for multiple audiences. For example, content that is presented simultaneously in the original Maori and English versions, would call for:

<text systemLanguage="mi, en"><!-- content goes here --></text>

However, just because multiple languages are present within the object on which the ‘systemLanguage’ test attribute is placed, this does not mean that it is intended for multiple linguistic audiences. An example would be a beginner's language primer, such as "A First Lesson in Latin," which is clearly intended to be used by an English-literate audience. In this case, the ‘systemLanguage’ test attribute should only include "en".

Authoring note: Authors should realize that if several alternative language objects are enclosed in a ‘switch’, and none of them matches, this may lead to situations where no content is displayed. It is thus recommended to include a "catch-all" choice at the end of such a ‘switch’ which is acceptable in all cases.

‘systemLanguage’ is often used in conjunction with the ‘switch’ element. If the ‘systemLanguage’ is used in other situations, then it represents a simple switch on the given element whether to render the element or not.

4.10. HTML metadata elements

For user agents that support HTML, the following HTML elements (in the HTML namespace) must be supported in SVG documents:

the base element
the link element
the meta element
the style element
the script element

Note that the base element will affect all URL values in the document, including e.g paint server references.

4.11. Common attributes

4.11.1. Definitions

core attributes: The core attributes are those attributes that can be specified on any SVG element. This includes Common attributes, and styling attributes. The core attributes are ‘id’, ‘tabindex’, ‘lang’ and ‘xml:space’ and ‘class’ and ‘style’.

4.11.2. Attributes common to all elements: ‘id’

The ‘id’ attribute is available on all SVG elements:

Name Value Initial value Animatable id (see below) (none) no: Reflects the element's ID [DOM4]. The ‘id’ attribute must be any value other than the empty string.

Name	Value	Initial value	Animatable
id	(see below)	(none)	no

4.11.3. The ‘lang’ and ‘xml:lang’ attributes

The ‘lang’ attribute (in no namespace) specifies the primary language for the element's contents and for any of the element's attributes that contain text.

The ‘lang’ attribute in the XML namespace is defined in XML [XML10].

If these attributes are omitted from an element, then the language of this element is the same as the language of its parent element, if any.

The ‘lang’ attribute in the XML namespace may be used on SVG elements in XML documents. If both the ‘lang’ attribute in no namespace and the ‘lang’ attribute in the XML namespace are specified on the same element, they must have exactly the same value when compared in an ASCII case-insensitive manner.

If both the ‘lang’ attribute in no namespace and the ‘lang’ attribute in the XML namespace are set on an element, user agents must use the ‘lang’ attribute in the XML namespace, and the ‘lang’ attribute in no namespace must be ignored for the purposes of determining the element's language.

SVG 2 Requirement:	Deprecate the use of ‘xml:space’ to affect text layout and use the ‘white-space’ property instead.
Resolution:	We drop xml:space from SVG 2 and remove the relating tests from the SVG 1.1. test suite.
Purpose:	To align with CSS.
Owner:	Chris (ACTION-3004, done; and ACTION-3005, done)

Name Value Initial value Animatable lang Language-Tag [ABNF] (none) no: The ‘lang’ attribute specifies the primary language for the element's contents and for any of the element's attributes that contain text. Its value must be a valid BCP 47 language tag, or the empty string. Setting the attribute to the empty string indicates that the primary language is unknown. [BCP47].

Name	Value	Initial value	Animatable
lang	Language-Tag [ABNF]	(none)	no

4.11.4. The ‘xml:space’ attribute

Name Value Initial value Animatable xml:space (see below) default no

Name	Value	Initial value	Animatable
xml:space	(see below)	default	no

Deprecated XML attribute to specify whether white space is preserved in character data. The only possible values are the strings 'default' and 'preserve', without white space. Refer to the Extensible Markup Language (XML) 1.0 Recommendation [XML10] and to the discussion white space handling in SVG.

New content should use the ‘white-space’ property instead.

4.11.5. The ‘tabindex’ attribute

Name Value Initial value Animatable tabindex valid integer [HTML] (none) no

Name	Value	Initial value	Animatable
tabindex	valid integer [HTML]	(none)	no

This content attribute allows authors to control whether an element is focusable, whether it is supposed to be reachable using sequential focus navigation, and what is to be the relative order of the element for the purposes of sequential focus navigation.

The name "tab index" comes from the common use of the "tab" key to navigate through the focusable elements. The term "tabbing" refers to moving forward through the focusable elements that can be reached using sequential focus navigation.

4.12. WAI-ARIA attributes

4.12.1. Definitions

ARIA attributes: These are the attributes used consisting of WAI-ARIA states and properties as well as the role attribute whose values are defined defined in WAI-ARIA. See WAI-ARIA WAI-ARIA Definition of Roles and WAI-ARIA Supported States and Properties. The aria attributes are ‘aria-activedescendant’, ‘role’, ‘aria-autocomplete’, ‘aria-busy’, ‘aria-checked’, ‘aria-colcount’, ‘aria-colindex’, ‘aria-colspan’, ‘aria-controls’, ‘aria-current’, ‘aria-describedat’, ‘aria-describedby’, ‘aria-disabled’, ‘aria-dropeffect’, ‘aria-expanded’, ‘aria-flowto’, ‘aria-grabbed’, ‘aria-haspopup’, ‘aria-hidden’, ‘aria-invalid’, ‘aria-label’, ‘aria-labelledby’, ‘aria-level’, ‘aria-atomic’, ‘aria-modal’, ‘aria-multiline’, ‘aria-multiselectable’, ‘aria-orientation’, ‘aria-owns’, ‘aria-placeholder’, ‘aria-posinset’, ‘aria-pressed’, ‘aria-readonly’, ‘aria-relevant’, ‘aria-required’, ‘aria-rowcount’, ‘aria-rowindex’, ‘aria-rowspan’, ‘aria-selected’, ‘aria-setsize’, ‘aria-sort’, ‘aria-valuemax’, ‘aria-valuemin’, ‘aria-valuenow’, ‘aria-valuetext’ and ‘aria-live’.

4.12.2. Role attribute

SVG elements having native semantics that are not limited to presentation (having "no role"), may have an ARIA role attribute specified. The attribute, if specified, must have a value that is a set of space-separated tokens representing the various WAI-ARIA roles that the element belongs to. These tokens are role values defined in Definition of Roles ([ARIA], section 5.4).

The WAI-ARIA role that an SVG element has assigned to it is the first non-abstract role found in the list of values generated when the role attribute is split on spaces.

Name Value Initial value Animatable role set of space-separated tokens [HTML] (see below) no

Name	Value	Initial value	Animatable
role	set of space-separated tokens [HTML]	(see below)	no

The ‘role’ attribute must be a set of space-separated tokens having values defined in Definition of Roles ([ARIA], section 5.4).

The role value is a set of white-space separated machine-extractable semantic information used to define the purpose of the element.

The initial value for the ‘role’ attribute, for each SVG element, is the corresponding default implied ARIA semantic for SVG elements.

4.12.3. State and property attributes (all aria- attributes)

SVG elements having native semantics that are not limited to presentation (having "no role"), may have an may have WAI-ARIA state and property attributes specified. These attributes are defined by ARIA in Definitions of States and Properties (all aria-* attributes) ([ARIA], section 6.6).

These attributes, if specified, must have a value that is the WAI-ARIA value type in the "Value" field of the definition for the state or property, mapped to the appropriate SVG value type according to Mapping WAI-ARIA Value types to languages using the SVG mapping ([ARIA], section 10.2).

WAI-ARIA State and Property attributes can be used on any element. They are not always meaningful, however, and in such cases user agents might not perform any processing aside from including them in the DOM. Unlike some other host languages, SVG is not considered to have strong native host language semantics in terms of the user interface, consequently state and property attributes are processed according to the ARIA and SVG Accessibility API Mappings specification specifications. [ARIA] [SVG-AAM]

4.12.4. Implicit ARIA Semantics

The following table defines the default implicit ARIA semantics that apply to SVG elements. Each language feature (element) in a cell in the first column implies the ARIA semantics (role, states, and/or properties) given in the cell in the second column of the same row. The third column defines restrictions as to what WAI-ARIA semantic (role, state, or property) may or may not apply.

Language feature	Default implied ARIA semantics	Restrictions
‘a’	`link` role	no restrictions
‘audio’	`group` role	If specified, role must be `application`
‘canvas’	`group` role	no restrictions
‘circle’	`none` role provided no associated ‘title’ element, ‘desc’ element, ‘aria-label’ attribute, ‘aria-labelledby’ attribute, ‘aria-describedby’ attribute; or ‘tabindex’ attribute; otherwise, `group` role	no restrictions
‘clipPath’	none	no role may be applied
‘cursor’	none	no restrictions
‘defs’	none	no role may be applied
‘desc’	none	no role may be applied
‘ellipse’	`none` role provided no associated ‘title’ element, ‘desc’ element, ‘aria-label’ attribute, ‘aria-labelledby’ attribute, ‘aria-describedby’ attribute; or ‘tabindex’ attribute; otherwise, `group` role	no restrictions
‘feBlend’	none	no role may be applied
‘feColorMatrix’	none	no role may be applied
‘feComponentTransfer’	none	no role may be applied
‘feComposite’	none	no role may be applied
‘feConvolveMatrix’	none	no role may be applied
‘feDiffuseLighting’	none	no role may be applied
‘feDisplacementMap’	none	no role may be applied
‘feDistantLight’	none	no role may be applied
‘feDropShadow’	none	no role may be applied
‘feFlood’	none	no role may be applied
‘feFuncA’	none	no role may be applied
‘feFuncB’	none	no role may be applied
‘feFuncG’	none	no role may be applied
‘feFuncR’	none	no role may be applied
‘feGaussianBlur’	none	no role may be applied
‘feImage’	none	no role may be applied
‘feMerge’	none	no role may be applied
‘feMergeNode’	none	no role may be applied
‘feMorphology’	none	no role may be applied
‘feOffset’	none	no role may be applied
‘fePointLight’	none	no role may be applied
‘feSpecularLighting’	none	no role may be applied
‘feSpotLight’	none	no role may be applied
‘feTile’	none	no role may be applied
‘feTurbulence’	none	no role may be applied
‘filter’	none	no role may be applied
‘foreignObject’	`none` role provided no associated ‘title’ element, ‘desc’ element, ‘aria-label’ attribute, ‘aria-labelledby’ attribute, ‘aria-describedby’ attribute; or ‘tabindex’ attribute; otherwise, `group` role	no restrictions
‘g’	`none` role provided no associated ‘title’ element, ‘desc’ element, ‘aria-label’ attribute, ‘aria-labelledby’ attribute, ‘aria-describedby’ attribute; or ‘tabindex’ attribute; otherwise, `group` role	no restrictions
‘hatch’	none	no role may be applied
‘hatchpath’	none	no role may be applied
‘iframe’	no role	If Specified, role must be either `application`, `document`, or `img` roles
‘image’	`img` role	no restrictions
‘line’	`none` role provided no associated ‘title’ element, ‘desc’ element, ‘aria-label’ attribute, ‘aria-labelledby’ attribute, ‘aria-describedby’ attribute; or ‘tabindex’ attribute; otherwise, `group` role	no restrictions
‘linearGradient’	none	no role may be applied
‘marker’	none	no role may be applied
‘mask’	none	no role may be applied
‘mesh’	none	no role may be applied
‘meshpatch’	none	no role may be applied
‘meshrow’	none	no role may be applied
‘metadata’	none	no role may be applied
‘mpath’	none	no role may be applied
‘path’	`none` role provided no associated ‘title’ element, ‘desc’ element, ‘aria-label’ attribute, ‘aria-labelledby’ attribute, ‘aria-describedby’ attribute; or ‘tabindex’ attribute; otherwise, `group` role	no restrictions
‘pattern’	none	no role may be applied
‘polygon’	`none` role provided no associated ‘title’ element, ‘desc’ element, ‘aria-label’ attribute, ‘aria-labelledby’ attribute, ‘aria-describedby’ attribute; or ‘tabindex’ attribute; otherwise, `group` role	no restrictions
‘polyline’	`none` role provided no associated ‘title’ element, ‘desc’ element, ‘aria-label’ attribute, ‘aria-labelledby’ attribute, ‘aria-describedby’ attribute; or ‘tabindex’ attribute; otherwise, `group` role	no restrictions
‘radialGradient’	none	no role may be applied
‘rect’	`none` role provided no associated ‘title’ element, ‘desc’ element, ‘aria-label’ attribute, ‘aria-labelledby’ attribute, ‘aria-describedby’ attribute; or ‘tabindex’ attribute; otherwise, `group` role	no restrictions
‘script’	none	no role may be applied
‘solidcolor’	none	no role may be applied
‘stop’	none	no role may be applied
‘style’	none	no role may be applied
‘svg’	`group` role	no restrictions
‘switch’	`none` role provided no associated ‘title’ element, ‘desc’ element, ‘aria-label’ attribute, ‘aria-labelledby’ attribute, ‘aria-describedby’ attribute; or ‘tabindex’ attribute; otherwise, `group` role	no restrictions
‘symbol’	`none` role provided no associated ‘title’ element, ‘desc’ element, ‘aria-label’ attribute, ‘aria-labelledby’ attribute, ‘aria-describedby’ attribute; or ‘tabindex’ attribute; otherwise, `group` role	no restrictions
‘text’	`group` role	no restrictions
‘textPath’	`group` role	no restrictions
‘title’	none	no role may be applied
‘tspan’	`group` role	no restrictions
‘use’	`none` role provided no associated ‘title’ element, ‘desc’ element, ‘aria-label’ attribute, ‘aria-labelledby’ attribute, ‘aria-describedby’ attribute; or ‘tabindex’ attribute; otherwise, `img` role	no restrictions
‘video’	`group` role	If specified, role must be `application`
‘view’	`none` role provided no associated ‘title’ element, ‘desc’ element, ‘aria-label’ attribute, ‘aria-labelledby’ attribute, ‘aria-describedby’ attribute; or ‘tabindex’ attribute; otherwise, `group` role	no restrictions

4.13. DOM interfaces

4.13.1. Extensions to the Document interface

The DOM Core specification defines a Document interface, which this specification extends.

In the case where an SVG document is embedded by reference, such as when an HTML document has an ‘object’ element whose ‘data’ attribute references an SVG document (i.e., a document whose MIME type is "image/svg+xml" and whose root element is thus an ‘svg’ element), there will exist two distinct DOM hierarchies. The first DOM hierarchy will be for the referencing document (e.g., an XHTML document). The second DOM hierarchy will be for the referenced SVG document.

For historical reasons, Window objects must also have a writable, configurable, non-enumerable property named SVGDocument whose value is the Document interface object.

partial interface Document {
  readonly attribute SVGSVGElement rootElement;
};

The rootElement IDL attribute represents the root ‘svg’ element. On getting rootElement, the root element of the document is returned, if it is an ‘svg’ element, or null otherwise.

This attribute is deprecated, and may be removed in a future SVG specification. Authors are encouraged to use the documentElement attribute on Document instead.

The following IDL fragment must be supported only if the SVG implementation is also a Web browser or other interactive user agent, and therefore implements HTML.

// must only be implemented in certain implementations
partial interface Document {
  readonly attribute DOMString title;
  readonly attribute DOMString referrer;
  readonly attribute DOMString domain;
  readonly attribute Element? activeElement;
};

This is because the interface members above are already defined in HTML, and in implementations that support SVG and HTML they cannot be duplicated.

The title, referrer, domain and activeElement IDL attributes must behave the same as the corresponding IDL attributes defined in HTML.

4.13.2. Interface SVGSVGElement

An SVGSVGElement object represents an ‘svg’ element in the DOM. The SVGSVGElement interface also contains miscellaneous utility methods, such as data type object factory methods.

An SVGSVGElement object maintains an internal DOMPoint object, called its current translate point object, which is the object returned from the currentTranslate IDL attribute.

interface SVGSVGElement : SVGGraphicsElement {

  [SameObject] readonly attribute SVGAnimatedLength x;
  [SameObject] readonly attribute SVGAnimatedLength y;
  [SameObject] readonly attribute SVGAnimatedLength width;
  [SameObject] readonly attribute SVGAnimatedLength height;

  attribute float currentScale;
  [SameObject] readonly attribute DOMPointReadOnly currentTranslate;

  NodeList getIntersectionList(DOMRectReadOnly rect, SVGElement? referenceElement);
  NodeList getEnclosureList(DOMRectReadOnly rect, SVGElement? referenceElement);
  boolean checkIntersection(SVGElement element, DOMRectReadOnly rect);
  boolean checkEnclosure(SVGElement element, DOMRectReadOnly rect);

  void deselectAll();

  SVGNumber createSVGNumber();
  SVGLength createSVGLength();
  SVGAngle createSVGAngle();
  DOMPoint createSVGPoint();
  DOMMatrix createSVGMatrix();
  DOMRect createSVGRect();
  SVGTransform createSVGTransform();
  SVGTransform createSVGTransformFromMatrix(DOMMatrixReadOnly matrix);

  // Deprecated methods that have no effect when called,
  // but which are kept for compatibility reasons.
  unsigned long suspendRedraw(unsigned long maxWaitMilliseconds);
  void unsuspendRedraw(unsigned long suspendHandleID);
  void unsuspendRedrawAll();
  void forceRedraw();
};

SVGSVGElement implements SVGFitToViewBox;
SVGSVGElement implements SVGZoomAndPan;
SVGSVGElement implements WindowEventHandlers;

The x, y, width and height IDL attributes reflect the computed values of the ‘x’, ‘y’, ‘width’ and ‘height’ properties and their corresponding presentation attributes, respectively.

The currentScale and currentTranslate IDL attributes represent the transform applied to the document in response to user magnification and panning operations, as described under Magnification and panning.

The document's magnification and panning transform is a 2x3 matrix of the form [currentScale 0 0 currentScale currentTranslate.x currentTranslate.y]. The value of the ‘transform’ property does not affect currentScale or currentTranslate.

On getting currentScale, the following steps are run:

If the current ‘svg’ element is not the outermost svg element, then return 1.
Let [a b c d e f] be the 2x3 matrix that represents the document's magnification and panning transform.
Return a.

On setting currentScale, the following steps are run:

If the current ‘svg’ element is not the outermost svg element, then return.
Let scale be the value being assigned to currentScale.
Let [a b c d e f] be the 2x3 matrix that represents the document's magnification and panning transform.
Set the document's magnification and panning transform to [scale 0 0 scale e f].

On getting currentTranslate, the SVGSVGElement object's current translate point object is returned. This object represents the current translation for the ‘svg’ element. A current translate point object must be read only when its ‘svg’ element is not the outermost svg element, and writable otherwise.

See the rules for assigning to a DOMPoint for how modifying the current translate point object affects the document's magnification and panning transform.

Whenever the document's magnification and panning transform changes in response to user interaction or whenever the outermost svg element changes, the following steps are run:

Let [a b c d e f] be the 2x3 matrix that represents the document's magnification and panning transform.
Let element be the outermost svg element.
Update the x and y components of element's current translate point object to e and f, respectively.

Running these steps when the outermost svg element changes will ensure that if the document element is replaced with a different ‘svg’ element, that its currentTranslate will be immediately updated to reflect the translation component of the document's magnification and panning transform.

Whenever an ‘svg’ element is no longer outermost svg element, the x and y components of its current translate point object must be set to 0.

Note that the value of the ‘zoomAndPan’ attribute on the outermost svg element only controls whether the document's magnification and panning transform can be updated through user interaction. Regardless of the value of that attribute, the current scale and translation can be changed by modifying currentScale and currentTranslate.

The suspendRedraw, unsuspendRedraw, unsuspendRedrawAll and forceRedraw methods are all deprecated and defined to have no effect. When the suspendRedraw method is called, it must return 1.

The getIntersectionList, getEnclosureList, checkIntersection and checkEnclosure methods are used to perform geometry operations on graphics elements to find those whose (or check whether their) graphical content lies partially or completely within a given rectangle.

To find the intersecting or enclosed descendants of a given element element with a given rectangle rectangle using ancestor as the element in whose coordinate space rectangle is to be interpreted, the following steps are run:

Let result be an initially empty list.
If element is not displayed, due to having a ‘display’ value of none or being in a subtree that has failing conditional processing attributes or a failing branch of a ‘switch’, then return result.
For each child element child of element, in document order:
1. If child is an ‘svg’ or ‘g’ element, then:
  1. Let descendants be the result of finding the intersecting (or enclosed) descendants of child with rectangle in ancestor's coordinate space.
  2. Append to result all the elements of descendants.
2. Otherwise, if child is a ‘use’ element, then:
  1. Let root be the root of the child's shadow tree.
  2. Let descendants be the result of finding the intersecting (or enclosed) descendants of child with rectangle in ancestor's coordinate space.
  3. If descendants is not empty, then append child to result.
    This means that although we look at the specific content referenced by the ‘use’ element, we don't place the referencing content in the result list; only the ‘use’ element itself is returned.
3. Otherwise, if child is a graphics element, then:
  1. Let region be the shape in child's coordinate system that is sensitive to hit detection, taking into account the rules for interpreting child's ‘pointer-events’ value.
  2. Transform region into ancestor's coordinate system.
  3. If we are finding intersecting descendants and region lies partially or fully within rectangle, then append child to result.
  4. Otherwise, we are finding enclosed descendants. If region lies fully within rectangle, then append child to result.
Return result.

To find the non-container graphics elements within a given element element, the following steps are run:

Let result be an initially empty list.
If element is an ‘svg’ or ‘g’ element, then for each child element child of element, in document order:
1. Let descendants be the result of finding the non-container graphics elements within child.
2. Append to result all the elements of descendants.
Otherwise, if element is a graphics element then append element to result.
Return result.

When getIntersectionList(rect, referenceElement) or getEnclosureList(rect, referenceElement) is called, the following steps are run:

Let descendants be a list, depending on what method we are in:

getIntersectionList

descendants is the result of finding the intersecting descendants of the current ‘svg’ element with rectangle rect in the current ‘svg’ element's coordinate system.

getEnclosureList

descendants is the result of finding the enclosed descendants of the current ‘svg’ element with rectangle rect in the current ‘svg’ element's coordinate system.
If referenceElement is not null, then remove from descendants any element that does not have referenceElement as an ancestor.
Return a static NodeList that contains all of the elements in descendants. ([DOM4], section 5.2.7)

When checkIntersection(element, rect) or checkEnclosure(element, rect) is called, the following steps are run:

Let descendants be a list, depending on what method we are in:

getIntersectionList

descendants is the result of finding the intersecting descendants of the current ‘svg’ element with rectangle rect in the current ‘svg’ element's coordinate system.

getEnclosureList

descendants is the result of finding the enclosed descendants of the current ‘svg’ element with rectangle rect in the current ‘svg’ element's coordinate system.
Let elements be the result of finding the non-container graphics elements within element.
If elements is empty, then return false.
If any element in elements is not also in descendants, then return false.
Return true.

The deselectAll method is used to remove any selections from the document. When deselectAll() is called, all ranges from the document's selection are removed and the selection's direction is set to forwards. [DOM4][EDITING] This method is deprecated, as it duplicates functionality from the Selection API.

This is equivalent to calling document.getSelection().removeAllRanges() on the document that this ‘svg’ element is in.

The createSVGNumber, createSVGLength, createSVGAngle, createSVGPoint, createSVGMatrix, createSVGRect and createSVGTransform methods are all factory functions used to create a new datatype object of a particular type. When one of these methods is called, a new object is returned according to the following table:

Method	Object and details
createSVGNumber	A new, detached SVGNumber object whose value is 0.
createSVGLength	A new, detached SVGLength object whose value is the unitless <number> 0.
createSVGAngle	A new, detached SVGAngle object whose value is the unitless <number> 0.
createSVGPoint	A new, detached DOMPoint object whose coordinates are all 0.
createSVGMatrix	A new, detached DOMMatrix object representing the identity matrix.
createSVGRect	A new, DOMRect object whose x, y, width and height are all 0.
createSVGTransform	A new, detached SVGTransform object whose value is matrix(1, 0, 0, 1, 0, 0).

The createSVGPoint, createSVGMatrix and createSVGRect methods are all deprecated and kept only for compatibility with legacy content. Authors are encouraged to use the DOMPoint, DOMMatrix and DOMRect constructors instead.

The createSVGTransformFromMatrix method is used to create a new SVGTransform object from a matrix object. Its behavior is the same as the createSVGTransformFromMatrix method on SVGTransformList.

4.13.3. Interface SVGGElement

An SVGGElement object represents a ‘g’ element in the DOM.

interface SVGGElement : SVGGraphicsElement {
};

4.13.4. Interface SVGUnknownElement

An SVGUnknownElement object represents an unknown element in the SVG namespace.

interface SVGUnknownElement : SVGGraphicsElement {
};

4.13.5. Interface SVGDefsElement

An SVGDefsElement object represents a ‘defs’ element in the DOM.

interface SVGDefsElement : SVGGraphicsElement {
};

4.13.6. Interface SVGDescElement

An SVGDescElement object represents a ‘desc’ element in the DOM.

interface SVGDescElement : SVGElement {
};

4.13.7. Interface SVGMetadataElement

An SVGMetadataElement object represents a ‘metadata’ element in the DOM.

interface SVGMetadataElement : SVGElement {
};

4.13.8. Interface SVGTitleElement

An SVGTitleElement object represents a ‘title’ element in the DOM.

interface SVGTitleElement : SVGElement {
};

4.13.9. Interface SVGSymbolElement

An SVGSymbolElement object represents a ‘symbol’ element in the DOM.

interface SVGSymbolElement : SVGElement {
};

SVGSymbolElement implements SVGFitToViewBox;

4.13.10. Interface SVGUseElement

An SVGUseElement object represents a ‘use’ element in the DOM.

interface SVGUseElement : SVGGraphicsElement {
  [SameObject] readonly attribute SVGAnimatedLength x;
  [SameObject] readonly attribute SVGAnimatedLength y;
  [SameObject] readonly attribute SVGAnimatedLength width;
  [SameObject] readonly attribute SVGAnimatedLength height;
};

SVGUseElement implements SVGURIReference;

The x, y, width and height IDL attributes reflect the computed values of the ‘x’, ‘y’, ‘width’ and ‘height’ properties and their corresponding presentation attributes, respectively.

4.13.11. Interface SVGSwitchElement

An SVGSwitchElement object represents a ‘switch’ element in the DOM.

interface SVGSwitchElement : SVGGraphicsElement {
};

4.13.12. Interface GetSVGDocument

This interface provides access to an SVG document embedded by reference in another DOM-based language. The expectation is that the interface is implemented on DOM objects that allow such SVG document references.

This interface is deprecated and may be dropped from future versions of the SVG specification. To access the SVG document inside an ‘iframe’ or ‘object’ element, authors are suggested to use the contentDocument attribute on the HTMLIFrameElement or HTMLObjectElement interface, respectively.

The HTMLIFrameElement, HTMLEmbedElement and HTMLObjectElement interfaces all define their own getSVGDocument method, which provides access to the SVG document in the same way that the GetSVGDocument does. Those three interfaces therefore do not need to implement GetSVGDocument. Still, authors are strongly recommended to use contentDocument instead.

[NoInterfaceObject]
interface GetSVGDocument {
  Document getSVGDocument();
};

The getSVGDocument method is used to return a referenced SVG document. When getSVGDocument() is called, it must return the Document object referenced by the embedding element that implements the GetSVGDocument interface; if there is no document, null is returned.

Note that this does no check to see whether the referenced document is indeed an SVG document. Instead, any document is returned.

SVG 2 Requirement:	Add HTML5 ‘style’ element attributes to SVG's ‘style’ element.
Resolution:	SVG 2 ‘style’ element shall be aligned with the HTML5 ‘style’ element.
Purpose:	To not surprise authors with different behavior for the ‘style’ element in HTML and SVG content.
Owner:	Cameron (ACTION-3277)

Name	Value	Initial value	Animatable
type	(see below)	text/css	no

Name	Value	Initial value	Animatable
media	(see below)	all	no

Name	Value	Initial value	Animatable
title	(see below)	(none)	no

Name	Value	Initial value	Animatable
class	set of space-separated tokens [HTML]	(none)	yes

Name	Value	Initial value	Animatable
style	(see below)	(none)	no

Properties with a presentation attribute	Elements that support the presentation attribute
‘`alignment-baseline`’, ‘`baseline-shift`’, ‘`clip`’, ‘`clip-path`’, ‘`clip-rule`’, ‘`color`’, ‘`color-interpolation`’, ‘`color-interpolation-filters`’, ‘`color-rendering`’, ‘`cursor`’, ‘`direction`’, ‘`display`’, ‘`dominant-baseline`’, ‘`fill`’, ‘`fill-opacity`’, ‘`fill-rule`’, ‘`filter`’, ‘`flood-color`’, ‘`flood-opacity`’, ‘`font-family`’, ‘`font-size`’, ‘`font-size-adjust`’, ‘`font-stretch`’, ‘`font-style`’, ‘`font-variant`’, ‘`font-weight`’, ‘`glyph-orientation-horizontal`’, ‘`glyph-orientation-vertical`’, ‘`image-rendering`’, ‘`inline-size`’, ‘`letter-spacing`’, ‘`lighting-color`’, ‘`marker-end`’, ‘`marker-mid`’, ‘`marker-start`’, ‘`mask`’, ‘`opacity`’, ‘`overflow`’, ‘`paint-order`’, ‘`pointer-events`’, ‘`shape-rendering`’, ‘`solid-color`’, ‘`solid-opacity`’, ‘`stop-color`’, ‘`stop-opacity`’, ‘`stroke`’, ‘`stroke-dasharray`’, ‘`stroke-dashoffset`’, ‘`stroke-linecap`’, ‘`stroke-linejoin`’, ‘`stroke-miterlimit`’, ‘`stroke-opacity`’, ‘`stroke-width`’, ‘`text-anchor`’, ‘`text-decoration`’, ‘`text-overflow`’, ‘`text-rendering`’, ‘`transform`’, ‘`unicode-bidi`’, ‘`vector-effect`’, ‘`visibility`’, ‘`white-space`’, ‘`word-spacing`’, ‘`writing-mode`’	descriptive elements, graphics elements, text content elements, container elements, paint server elements, ‘clipPath’, ‘cursor’, ‘feFlood’, ‘filter’ and ‘stop’
‘`cx`’, ‘`cy`’	‘circle’ and ‘ellipse’
‘`height`’, ‘`width`’, ‘`x`’, ‘`y`’	‘foreignObject’, ‘image’, ‘mask’, ‘rect’ and ‘svg’
‘`r`’	‘circle’
‘`rx`’, ‘`ry`’	‘ellipse’ and ‘rect’

Property	Element	Presentation attribute name
‘`transform`’	‘linearGradient’ and ‘radialGradient’	‘gradientTransform’
‘`transform`’	‘pattern’	‘patternTransform’

Name:	cx
Value:	<length> \| <percentage>
Initial:	0
Applies to:	‘circle’ and ‘ellipse’
Inherited:	no
Percentages:	refer to the size of the current viewport (see Units)
Media:	visual
Computed value:	absolute length or percentage
Animatable:	yes

Name:	cy
Value:	<length> \| <percentage>
Initial:	0
Applies to:	‘circle’ and ‘ellipse’
Inherited:	no
Percentages:	refer to the size of the current viewport (see Units)
Media:	visual
Computed value:	absolute length or percentage
Animatable:	yes

Name:	r
Value:	<length> \| <percentage>
Initial:	0
Applies to:	‘circle’
Inherited:	no
Percentages:	refer to the size of the current viewport (see Units)
Media:	visual
Computed value:	absolute length or percentage
Animatable:	yes

Name:	rx
Value:	<length> \| <percentage>
Initial:	0
Applies to:	‘ellipse’, ‘rect’
Inherited:	no
Percentages:	refer to the size of the current viewport (see Units)
Media:	visual
Computed value:	absolute length or percentage
Animatable:	yes

Name:	ry
Value:	<length> \| <percentage>
Initial:	0
Applies to:	‘ellipse’, ‘rect’
Inherited:	no
Percentages:	refer to the size of the current viewport (see Units)
Media:	visual
Computed value:	absolute length or percentage
Animatable:	yes

Name:	x
Value:	<length> \| <percentage>
Initial:	0
Applies to:	‘mask’, ‘svg’, ‘rect’, ‘image’, ‘foreignObject’
Inherited:	no
Percentages:	refer to the size of the current viewport (see Units)
Media:	visual
Computed value:	absolute length or percentage
Animatable:	yes

Name:	y
Value:	<length> \| <percentage>
Initial:	0
Applies to:	‘mask’, ‘svg’, ‘rect’, ‘image’, ‘foreignObject’
Inherited:	no
Percentages:	refer to the size of the current viewport (see Units)
Media:	visual
Computed value:	absolute length or percentage
Animatable:	yes

Chapter 7: Coordinate Systems, Transformations and Units

7.1. Introduction

canvas: The infinite surface onto which viewports are mapped and graphics elements are drawn.
SVG viewport: Various elements establish an SVG viewport, See Establishing a new SVG viewport). An SVG viewport defines a region on the canvas, bounded by a rectangle that provides a reference that further transformations can be applied to (e.g. through the ‘viewBox’ attribute) and that percentages can be resolved against.
current viewport: The viewport established by the closest ancestor element that establishes a viewport. See (Establishing a new SVG viewport).
user units: A coordinate value or length expressed in user units represents a coordinate value or length in the current local coordinate system. Thus, 10 user units represents a length of 10 units in the current user coordinate system. Unless specified otherwise, one user unit is also equal to one CSS pixel in the current local coordinate system.
viewport coordinate system: In general, a coordinate system defines locations and distances on the current canvas. The viewport coordinate system is the coordinate system that is active at the start of processing of an ‘svg’ element, before processing the optional ‘viewBox’ attribute. In the case of an SVG document fragment that is embedded within a parent document which uses CSS to manage its layout, then the viewport coordinate system will have the same orientation and lengths as in CSS, with the origin at the top-left on the SVG viewport. See The initial viewport and Establishing a new viewport.

For all media, the canvas describes "the space where the SVG content is rendered." The canvas is infinite for each dimension of the space, but rendering occurs relative to a finite rectangular region of the canvas. This finite rectangular region is called the SVG viewport. For visual media ([CSS21], section 7.3.1) the SVG viewport is the viewing area where the user sees the SVG content.

The above paragraph and definitions need to be merged.

The size of the SVG viewport (i.e., its width and height) is determined by a negotiation process (see Establishing the size of the initial viewport) between the SVG document fragment and its parent (real or implicit). Once that negotiation process is completed, the SVG user agent is provided the following information:

a number (usually an integer) that represents the width in CSS pixels of the viewport
a number (usually an integer) that represents the height in CSS pixels of the viewport

Using the above information, the SVG user agent determines the SVG viewport, an initial viewport coordinate system and an initial local coordinate system such that the two coordinates systems are identical. Both coordinates systems are established such that the origin matches the origin of the viewport (for the root viewport, the viewport origin is at the top/left corner), and one unit in the initial coordinate system equals one CSS pixel in the SVG viewport. (See Initial coordinate system.)

New SVG viewports can be established. By establishing a new viewport, you can redefine the meaning of percentages units and provide a new reference rectangle for "fitting" a graphic relative to a particular rectangular area.

7.2. The initial viewport

SVG content can be embedded (by reference or inline) within a containing document. This containing document might include attributes, properties and/or other parameters (explicit or implicit) which specify or provide hints about the dimensions of the viewport for the SVG content. SVG content itself optionally can provide information about the appropriate viewport region for the content via the ‘width’ and ‘height’ presentation attributes on the outermost svg element. If SVG is embedded within a containing element.

The ‘width’ presentation attribute on the outermost svg element establishes the viewport's width, unless the following conditions are met:

the SVG content is a separately stored resource that is embedded by reference (such as the ‘object’ element in HTML), or the SVG content is embedded inline within a containing document;
and the referencing element or containing document is styled using CSS [CSS21] or XSL [XSL];
and there are CSS-compatible positioning properties ([CSS21], section 9.3) specified on the referencing element (e.g., the ‘object’ element) or on the containing document's outermost svg element that are sufficient to establish the width of the viewport.

Under these conditions, the positioning properties establish the viewport's width.

Similarly, if there are positioning properties specified on the referencing element or on the outermost svg element that are sufficient to establish the height of the viewport, then these positioning properties establish the viewport's height; otherwise, the ‘height’ presentation attribute on the outermost svg element establishes the viewport's height.

If the ‘width’ or ‘height’ presentation attributes on the outermost svg element are in user units (i.e., no unit identifier has been provided), then the value is assumed to be equivalent to the same number of "px" units (see Units).

In the following example, an SVG graphic is embedded inline within a parent XML document which is formatted using CSS layout rules. Since CSS positioning properties are not provided on the outermost svg element, the width="100px" and height="200px" attributes determine the size of the initial viewport:

<?xml version="1.0" standalone="yes"?>
<parent xmlns="http://some.url">

   <!-- SVG graphic -->
   <svg xmlns='http://www.w3.org/2000/svg'
      width="100px" height="200px">
      <path d="M100,100 Q200,400,300,100"/>
      <!-- rest of SVG graphic would go here -->
   </svg>

</parent>

7.3. The initial coordinate system

For the outermost svg element, the SVG user agent determines an initial viewport coordinate system and an initial local coordinate system such that the two coordinates systems are identical. The origin of both coordinate systems is at the origin of the viewport, and one unit in the initial coordinate system equals one "pixel" (i.e., a px unit as defined in CSS 2.1 ([CSS21], section 4.3.2) in the SVG viewport. In most cases, such as stand-alone SVG documents or SVG document fragments embedded (by reference or inline) within XML parent documents where the parent's layout is determined by CSS [CSS21] or XSL [XSL], the initial viewport coordinate system (and therefore the initial user coordinate system) has its origin at the top/left of the viewport, with the positive x-axis pointing towards the right, the positive y-axis pointing down, and text rendered with an "upright" orientation, which means glyphs are oriented such that Roman characters and full-size ideographic characters for Asian scripts have the top edge of the corresponding glyphs oriented upwards and the right edge of the corresponding glyphs oriented to the right.

If the SVG implementation is part of a user agent which supports styling XML documents using CSS 2.1 compatible px units, then the SVG user agent should set its initial value for the size of a px unit in real world units to match the value used for other XML styling operations; otherwise, if the user agent can determine the size of a px unit from its environment, it should use that value; otherwise, it should choose an appropriate size for one px unit. In all cases, the size of a px must be in conformance with the rules described in CSS 2.1 ([CSS21], section 4.3.2).

Example InitialCoords below shows that the initial coordinate system has the origin at the top/left with the x-axis pointing to the right and the y-axis pointing down. The initial user coordinate system has one user unit equal to the parent (implicit or explicit) user agent's "pixel".

<?xml version="1.0" standalone="no"?>
<svg width="300px" height="100px" version="1.1"
     xmlns="http://www.w3.org/2000/svg">
  <desc>Example InitialCoords - SVG's initial coordinate system</desc>

  <g fill="none" stroke="black" stroke-width="3" >
    <line x1="0" y1="1.5" x2="300" y2="1.5" />
    <line x1="1.5" y1="0" x2="1.5" y2="100" />
  </g>
  <g fill="red" stroke="none" >
    <rect x="0" y="0" width="3" height="3" />
    <rect x="297" y="0" width="3" height="3" />
    <rect x="0" y="97" width="3" height="3" />
  </g>
  <g font-size="14" font-family="Verdana" >
    <text x="10" y="20">(0,0)</text>
    <text x="240" y="20">(300,0)</text>
    <text x="10" y="90">(0,100)</text>
  </g>
</svg>

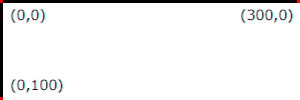

Example InitialCoords

View this example as SVG (SVG-enabled browsers only)

7.4. The ‘transform’ property

See the CSS3 Transforms spec for the description of the ‘transform’ property [CSS3TRANSFORMS].

7.5. The ‘viewBox’ attribute

Name Value Initial value Animatable viewBox [<min-x> <min-y> <width> <height>] As if not specified. yes

Name	Value	Initial value	Animatable
viewBox	[<min-x> <min-y> <width> <height>]	As if not specified.	yes

<min-x>, <min-x>, <width>, <height> = <number>

Transform on the ‘svg’ element is a bit special due to the ‘viewBox’ attribute. The transform should be applied as if the ‘svg’ had a parent element with that transform set.

RESOLUTION: transform property applies conceptually to the outside of the 'svg' element and there is no difference between presentation attribute and style property (in terms of the visual result).

It is often desirable to specify that a given set of graphics stretch to fit a particular container element. The ‘viewBox’ attribute provides this capability.

All elements that establish a new viewport (see elements that establish viewports), plus the ‘marker’, ‘pattern’ and ‘view’ elements have attribute ‘viewBox’. The value of the ‘viewBox’ attribute is a list of four numbers <min-x>, <min-y>, <width> and <height>, separated by whitespace and/or a comma, which specify a rectangle in user space which should be mapped to the bounds of the viewport established by the given element, taking into account attribute ‘preserveAspectRatio’. If specified, an additional transformation is applied to all descendants of the given element to achieve the specified effect.

A negative value for <width> or <height> is an error (see Error processing). A value of zero disables rendering of the element.

Example ViewBox illustrates the use of the ‘viewBox’ attribute on the outermost svg element to specify that the SVG content should stretch to fit bounds of the viewport.

<?xml version="1.0" standalone="no"?>
<svg width="300px" height="200px"
     viewBox="0 0 1500 1000" preserveAspectRatio="none"
     xmlns="http://www.w3.org/2000/svg">
  <desc>Example ViewBox - uses the viewBox
   attribute to automatically create an initial user coordinate
   system which causes the graphic to scale to fit into the
   viewport no matter what size the viewport is.</desc>
  <!-- This rectangle goes from (0,0) to (1500,1000) in local coordinate system.
       Because of the viewBox attribute above,
       the rectangle will end up filling the entire area
       reserved for the SVG content. -->
  <rect x="0" y="0" width="1500" height="1000"
        fill="yellow" stroke="blue" stroke-width="12"  />
  <!-- A large, red triangle -->
  <path fill="red"  d="M 750,100 L 250,900 L 1250,900 z"/>
  <!-- A text string that spans most of the viewport -->
  <text x="100" y="600" font-size="200" font-family="Verdana" >
    Stretch to fit
  </text>
</svg>

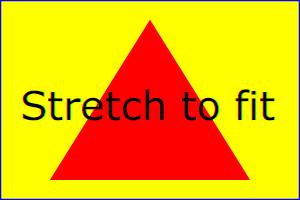

Example ViewBox
Rendered into viewport with width=300px, height=200px		Rendered into viewport with width=150px, height=200px

View this example as SVG (SVG-enabled browsers only)

The effect of the ‘viewBox’ attribute is that the user agent automatically supplies the appropriate transformation matrix to map the specified rectangle in local coordinate system to the bounds of a designated region (often, the viewport). To achieve the effect of the example on the left, with viewport dimensions of 300 by 200 pixels, the user agent needs to automatically insert a transformation which scales both X and Y by 0.2. The effect is equivalent to having a viewport of size 300px by 200px and the following supplemental transformation in the document, as follows:

<?xml version="1.0" standalone="no"?>
<svg width="300px" height="200px"
     xmlns="http://www.w3.org/2000/svg">
  <g transform="scale(0.2)">
    <!-- Rest of document goes here -->
  </g>
</svg>

To achieve the effect of the example on the right, with viewport dimensions of 150 by 200 pixels, the user agent needs to automatically insert a transformation which scales X by 0.1 and Y by 0.2. The effect is equivalent to having a viewport of size 150px by 200px and the following supplemental transformation in the document, as follows:

<?xml version="1.0" standalone="no"?>
<svg width="150px" height="200px"
     xmlns="http://www.w3.org/2000/svg">
  <g transform="scale(0.1 0.2)">
    <!-- Rest of document goes here -->
  </g>
</svg>

Note that in some cases the user agent will need to supply a translate transformation in addition to a scale transformation. For example, on an outermost svg element, a translate transformation will be needed if the ‘viewBox’ attributes specifies values other than zero for <min-x> or <min-y>.

If both ‘transform’ (or ‘patternTransform’) and ‘viewBox’ are applied to an element two new coordinate systems are established. ‘transform’ establishes the first new coordinate system for the element. ‘viewBox’ establishes a second coordinate system for all descendants of the element. The first coordinate system is post-multiplied by the second coordinate system.

Unlike the ‘transform’ property, the automatic transformation that is created due to a ‘viewBox’ does not affect the ‘x’, ‘y’, ‘width’ and ‘height’ attributes (or in the case of the ‘marker’ element, the ‘markerWidth’ and ‘markerHeight’ attributes) on the element with the ‘viewBox’ attribute. Thus, in the example above which shows an ‘svg’ element which has ‘width’ and ‘height’ presentation attributes and a ‘viewBox’ attribute, the ‘width’ and ‘height’ represent values in the coordinate system that exists before the ‘viewBox’ transformation is applied. On the other hand, like the ‘transform’ property, it does establish a new coordinate system for all other attributes and for descendant elements.

7.6. The ‘preserveAspectRatio’ attribute

Name Value Initial value Animatable preserveAspectRatio <align> <meetOrSlice>? xMidYMid meet yes

Name	Value	Initial value	Animatable
preserveAspectRatio	<align> <meetOrSlice>?	xMidYMid meet	yes

<align> = none | xMinYMin | xMidYMin | xMaxYMin | xMinYMid | xMidYMid | xMaxYMid | xMinYMax | xMidYMax | xMaxYMax

<meetOrSlice> = meet | slice

Indicates whether or not to force uniform scaling. Applies to all elements that establish a new viewport (see elements that establish viewports), plus the ‘image’, ‘marker’, ‘pattern’ and ‘view’ elements

In some cases, typically when using the ‘viewBox’ attribute, it is desirable that the graphics stretch to fit non-uniformly to take up the entire viewport. In other cases, it is desirable that uniform scaling be used for the purposes of preserving the aspect ratio of the graphics.

For elements that establish a new viewport (see elements that establish viewports), plus the ‘marker’, ‘pattern’ and ‘view’ elements, ‘preserveAspectRatio’ only applies when a value has been provided for ‘viewBox’ on the same element. For these elements, if attribute ‘viewBox’ is not provided, then ‘preserveAspectRatio’ is ignored.

For ‘image’ elements, ‘preserveAspectRatio’ indicates how referenced images should be fitted with respect to the reference rectangle and whether the aspect ratio of the referenced image should be preserved with respect to the current user coordinate system.

The <align> parameter indicates whether to force uniform scaling and, if so, the alignment method to use in case the aspect ratio of the ‘viewBox’ doesn't match the aspect ratio of the SVG viewport. The <align> parameter must be one of the following strings:

none - Do not force uniform scaling. Scale the graphic content of the given element non-uniformly if necessary such that the element's bounding box exactly matches the viewport rectangle.
(Note: if <align> is none, then the optional <meetOrSlice> value is ignored.)
xMinYMin - Force uniform scaling.
Align the <min-x> of the element's ‘viewBox’ with the smallest X value of the viewport.
Align the <min-y> of the element's ‘viewBox’ with the smallest Y value of the viewport.
xMidYMin - Force uniform scaling.
Align the midpoint X value of the element's ‘viewBox’ with the midpoint X value of the viewport.
Align the <min-y> of the element's ‘viewBox’ with the smallest Y value of the viewport.
xMaxYMin - Force uniform scaling.
Align the <min-x>+<width> of the element's ‘viewBox’ with the maximum X value of the viewport.
Align the <min-y> of the element's ‘viewBox’ with the smallest Y value of the viewport.
xMinYMid - Force uniform scaling.
Align the <min-x> of the element's ‘viewBox’ with the smallest X value of the viewport.
Align the midpoint Y value of the element's ‘viewBox’ with the midpoint Y value of the viewport.
xMidYMid (the initial value) - Force uniform scaling.
Align the midpoint X value of the element's ‘viewBox’ with the midpoint X value of the viewport.
Align the midpoint Y value of the element's ‘viewBox’ with the midpoint Y value of the viewport.
xMaxYMid - Force uniform scaling.
Align the <min-x>+<width> of the element's ‘viewBox’ with the maximum X value of the viewport.
Align the midpoint Y value of the element's ‘viewBox’ with the midpoint Y value of the viewport.
xMinYMax - Force uniform scaling.
Align the <min-x> of the element's ‘viewBox’ with the smallest X value of the viewport.
Align the <min-y>+<height> of the element's ‘viewBox’ with the maximum Y value of the viewport.
xMidYMax - Force uniform scaling.
Align the midpoint X value of the element's ‘viewBox’ with the midpoint X value of the viewport.
Align the <min-y>+<height> of the element's ‘viewBox’ with the maximum Y value of the viewport.
xMaxYMax - Force uniform scaling.
Align the <min-x>+<width> of the element's ‘viewBox’ with the maximum X value of the viewport.
Align the <min-y>+<height> of the element's ‘viewBox’ with the maximum Y value of the viewport.

The <meetOrSlice> parameter is optional and, if provided, is separated from the <align> value by one or more spaces and then must be one of the following strings:

meet (the default) - Scale the graphic such that:
- aspect ratio is preserved
- the entire ‘viewBox’ is visible within the viewport
- the ‘viewBox’ is scaled up as much as possible, while still meeting the other criteria
In this case, if the aspect ratio of the graphic does not match the viewport, some of the viewport will extend beyond the bounds of the ‘viewBox’ (i.e., the area into which the ‘viewBox’ will draw will be smaller than the viewport).
slice - Scale the graphic such that:
- aspect ratio is preserved
- the entire viewport is covered by the ‘viewBox’
- the ‘viewBox’ is scaled down as much as possible, while still meeting the other criteria
In this case, if the aspect ratio of the ‘viewBox’ does not match the viewport, some of the ‘viewBox’ will extend beyond the bounds of the viewport (i.e., the area into which the ‘viewBox’ will draw is larger than the viewport).

Example PreserveAspectRatio illustrates the various options on ‘preserveAspectRatio’. The example creates several new viewports by including ‘svg’ sub-elements embedded inside the outermost svg element (see Establishing a new viewport).

<svg width="450px" height="300px"
     xmlns="http://www.w3.org/2000/svg">
  <desc>Example PreserveAspectRatio - illustrates preserveAspectRatio attribute</desc>
  <defs>
	<g id="smile">
<rect x='.5' y='.5' width='29' height='39' fill='black' stroke='red'/>
<g transform='translate(0, 5)'>
<circle cx='15' cy='15' r='10' fill='yellow'/>
<circle cx='12' cy='12' r='1.5' fill='black'/>
<circle cx='17' cy='12' r='1.5' fill='black'/>
<path d='M 10 19 A 8 8 0 0 0 20 19' stroke='black' stroke-width='2'/>
</g>
</g>
</defs>
  <rect x="1" y="1" width="448" height="298"
        fill="none" stroke="blue"/>
  <g font-size="9">
    <text x="10" y="30">SVG to fit</text>
    <g transform="translate(20,40)"><use href="#smile" /></g>
    <text x="10" y="110">Viewport 1</text>
    <g transform="translate(10,120)"><rect x='.5' y='.5' width='49' height='29' fill='none' stroke='blue'/>;</g>
    <text x="10" y="180">Viewport 2</text>
    <g transform="translate(20,190)"><rect x='.5' y='.5' width='29' height='59' fill='none' stroke='blue'/>;</g>

    <g id="meet-group-1" transform="translate(100, 60)">
      <text x="0" y="-30">--------------- meet ---------------</text>
      <g><text y="-10">xMin*</text><rect x='.5' y='.5' width='49' height='29' fill='none' stroke='blue'/>;
        <svg preserveAspectRatio="xMinYMin meet" viewBox="0 0 30 40"
             width="50" height="30"><use href="#smile" /></svg></g>
      <g transform="translate(70,0)"><text y="-10">xMid*</text><rect x='.5' y='.5' width='49' height='29' fill='none' stroke='blue'/>;
        <svg preserveAspectRatio="xMidYMid meet" viewBox="0 0 30 40"
             width="50" height="30"><use href="#smile" /></svg></g>
      <g transform="translate(0,70)"><text y="-10">xMax*</text><rect x='.5' y='.5' width='49' height='29' fill='none' stroke='blue'/>;
        <svg preserveAspectRatio="xMaxYMax meet" viewBox="0 0 30 40"
             width="50" height="30"><use href="#smile" /></svg></g>
    </g>

    <g id="meet-group-2" transform="translate(250, 60)">
      <text x="0" y="-30">---------- meet ----------</text>
      <g><text y="-10">*YMin</text><rect x='.5' y='.5' width='29' height='59' fill='none' stroke='blue'/>;
        <svg preserveAspectRatio="xMinYMin meet" viewBox="0 0 30 40"
             width="30" height="60"><use href="#smile" /></svg></g>
      <g transform="translate(50, 0)"><text y="-10">*YMid</text><rect x='.5' y='.5' width='29' height='59' fill='none' stroke='blue'/>;
        <svg preserveAspectRatio="xMidYMid meet" viewBox="0 0 30 40"
             width="30" height="60"><use href="#smile" /></svg></g>
      <g transform="translate(100, 0)"><text y="-10">*YMax</text><rect x='.5' y='.5' width='29' height='59' fill='none' stroke='blue'/>;
        <svg preserveAspectRatio="xMaxYMax meet" viewBox="0 0 30 40"
             width="30" height="60"><use href="#smile" /></svg></g>
    </g>

    <g id="slice-group-1" transform="translate(100, 220)">
      <text x="0" y="-30">---------- slice ----------</text>
      <g><text y="-10">xMin*</text><rect x='.5' y='.5' width='29' height='59' fill='none' stroke='blue'/>;
        <svg preserveAspectRatio="xMinYMin slice" viewBox="0 0 30 40"
             width="30" height="60"><use href="#smile" /></svg></g>
      <g transform="translate(50,0)"><text y="-10">xMid*</text><rect x='.5' y='.5' width='29' height='59' fill='none' stroke='blue'/>;
        <svg preserveAspectRatio="xMidYMid slice" viewBox="0 0 30 40"
             width="30" height="60"><use href="#smile" /></svg></g>
      <g transform="translate(100,0)"><text y="-10">xMax*</text><rect x='.5' y='.5' width='29' height='59' fill='none' stroke='blue'/>;
        <svg preserveAspectRatio="xMaxYMax slice" viewBox="0 0 30 40"
             width="30" height="60"><use href="#smile" /></svg></g>
    </g>

    <g id="slice-group-2" transform="translate(250, 220)">
      <text x="0" y="-30">--------------- slice ---------------</text>
      <g><text y="-10">*YMin</text><rect x='.5' y='.5' width='49' height='29' fill='none' stroke='blue'/>;
        <svg preserveAspectRatio="xMinYMin slice" viewBox="0 0 30 40"
             width="50" height="30"><use href="#smile" /></svg></g>
      <g transform="translate(70,0)"><text y="-10">*YMid</text><rect x='.5' y='.5' width='49' height='29' fill='none' stroke='blue'/>;
        <svg preserveAspectRatio="xMidYMid slice" viewBox="0 0 30 40"
             width="50" height="30"><use href="#smile" /></svg></g>
      <g transform="translate(140,0)"><text y="-10">*YMax</text><rect x='.5' y='.5' width='49' height='29' fill='none' stroke='blue'/>;
        <svg preserveAspectRatio="xMaxYMax slice" viewBox="0 0 30 40"
             width="50" height="30"><use href="#smile" /></svg></g>
    </g>
  </g>
</svg>

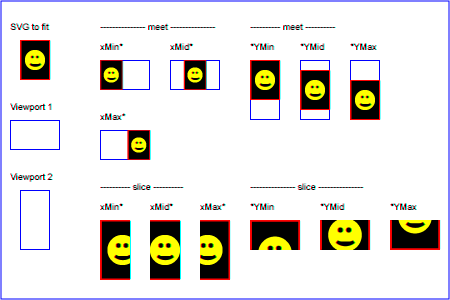

Example PreserveAspectRatio

7.7. Establishing a new SVG viewport

Note that this section handles the SVG viewport which is different from the term "viewport" in CSS.

At any point in an SVG drawing, you can establish a new SVG viewport into which all contained graphics is drawn by including an ‘svg’ element inside SVG content. By establishing a new SVG viewport, you also implicitly establish a new viewport coordinate system, a new user coordinate system. Additionally, there is a new meaning for percentage units defined to be relative to the current SVG viewport since a new SVG viewport has been established (see Units).

The bounds of the new SVG viewport are defined by the ‘x’, ‘y’, ‘width’ and ‘height’ attributes on the element establishing the new SVG viewport, such as an ‘svg’ element. Both the new viewport coordinate system and the new user coordinate system have their origins at (‘x’, ‘y’), where ‘x’ and ‘y’ represent the value of the corresponding attributes on the element establishing the SVG viewport. The orientation of the new viewport coordinate system and the new user coordinate system correspond to the orientation of the current user coordinate system for the element establishing the SVG viewport. A single unit in the new viewport coordinate system and the new user coordinate system are the same size as a single unit in the current user coordinate system for the element establishing the SVG viewport.

Here is an example:

<?xml version="1.0" standalone="no"?>
<svg width="4in" height="3in"
     xmlns="http://www.w3.org/2000/svg">
  <desc>This SVG drawing embeds another one,
    thus establishing a new SVG viewport
  </desc>
  <!-- The following statement establishing a new SVG viewport
       and renders SVG drawing B into that viewport -->
  <svg x="25%" y="25%" width="50%" height="50%">
     <!-- drawing B goes here -->
  </svg>
</svg>

For an extensive example of creating new SVG viewports, see Example PreserveAspectRatio.

The following elements establish new SVG viewports:

The ‘svg’ element
A ‘symbol’ element define new viewports whenever they are instanced by a ‘use’ element.
An ‘image’ element that references an SVG file will result in the establishment of a temporary new SVG viewport since the referenced resource by definition will have an ‘svg’ element.
An ‘iframe’ element that references an SVG file establishes new SVG viewport like the situation of ‘image’ element.
A ‘foreignObject’ element creates a new SVG viewport for rendering the content that is within the element. (It also creates a new initial containing block.)

Whether a new SVG viewport also establishes a new additional clipping path is determined by the value of the ‘overflow’ property on the element that establishes the new SVG viewport.

7.8. Units

SVG follows the description and definition of common values and units from the CSS Values and Units Module [CSS3VALUES] for attributes, presentation attributes and CSS properties. Each attribute and property must specify the used component value type. Subsequent or extending specifications published by the CSS WG or SVG WG may extend basic data types or add new data types.

For <percentage> values that are defined to be relative to the size of viewport:

For any x-coordinate value or width value expressed as a percentage of the viewport, the value to use is the specified percentage of the actual-width in user units for the nearest containing viewport, where actual-width is the width dimension of the viewport element within the user coordinate system for the viewport element.
For any y-coordinate value or height value expressed as a percentage of the viewport, the value to use is the specified percentage of the actual-height in user units for the nearest containing viewport, where actual-height is the height dimension of the viewport element within the user coordinate system for the viewport element.
For any other length value expressed as a percentage of the viewport, the percentage is calculated as the specified percentage of sqrt((actual-width)**2 + (actual-height)**2)/sqrt(2).

Example Units below illustrates some of the processing rules for different types of units.

<?xml version="1.0" standalone="no"?>
<svg width="400px" height="200px" viewBox="0 0 4000 2000"
     xmlns="http://www.w3.org/2000/svg">
  <title>Example Units</title>
  <desc>Illustrates various units options</desc>

  <!-- Frame the picture -->
  <rect x="5" y="5" width="3990" height="1990"
        fill="none" stroke="blue" stroke-width="10"/>

  <g fill="blue" stroke="red" font-family="Verdana" font-size="150">
    <!-- Absolute unit specifiers -->
    <g transform="translate(400,0)">
      <text x="-50" y="300" fill="black" stroke="none">Abs. units:</text>
      <rect x="0" y="400" width="4in" height="2in" stroke-width=".4in"/>
      <rect x="0" y="750" width="384" height="192" stroke-width="38.4"/>
      <g transform="scale(2)">
        <rect x="0" y="600" width="4in" height="2in" stroke-width=".4in"/>
      </g>
    </g>

    <!-- Relative unit specifiers -->
    <g transform="translate(1600,0)">
      <text x="-50" y="300" fill="black" stroke="none">Rel. units:</text>
      <rect x="0" y="400" width="2.5em" height="1.25em" stroke-width=".25em"/>
      <rect x="0" y="750" width="375" height="187.5" stroke-width="37.5"/>
      <g transform="scale(2)">
        <rect x="0" y="600" width="2.5em" height="1.25em" stroke-width=".25em"/>
      </g>
    </g>

    <!-- Percentages -->
    <g transform="translate(2800,0)">
      <text x="-50" y="300" fill="black" stroke="none">Percentages:</text>
      <rect x="0" y="400" width="10%" height="10%" stroke-width="1%"/>
      <rect x="0" y="750" width="400" height="200" stroke-width="31.62"/>
      <g transform="scale(2)">
        <rect x="0" y="600" width="10%" height="10%" stroke-width="1%"/>
      </g>
    </g>
  </g>
</svg>

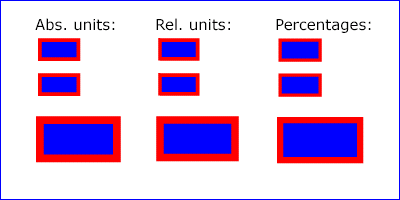

Example Units

The three rectangles on the left demonstrate the use of one of the absolute unit identifiers, the "in" unit (inch). CSS defines 1 inch to be equal to 96 pixels. Therefore, the topmost rectangle, which is specified in inches, is exactly the same size as the middle rectangle, which is specified in user units such that there are 96 user units for each corresponding inch in the topmost rectangle. The bottom rectangle of the group illustrates what happens when values specified in inches are scaled.

The three rectangles in the middle demonstrate the use of one of the relative unit identifiers, the "em" unit. Because the ‘font-size’ property has been set to 150 on the outermost ‘g’ element, each "em" unit is equal to 150 user units. The topmost rectangle, which is specified in "em" units, is exactly the same size as the middle rectangle, which is specified in user units such that there are 150 user units for each corresponding "em" unit in the topmost rectangle. The bottom rectangle of the group illustrates what happens when values specified in "em" units are scaled.

The three rectangles on the right demonstrate the use of percentages. Note that the width and height of the viewport in the user coordinate system for the viewport element (in this case, the outermost svg element) are 4000 and 2000, respectively, because processing the ‘viewBox’ attribute results in a transformed user coordinate system. The topmost rectangle, which is specified in percentage units, is exactly the same size as the middle rectangle, which is specified in equivalent user units. In particular, note that the ‘stroke-width’ property in the middle rectangle is set to 1% of the sqrt((actual-width)**2 + (actual-height)**2) / sqrt(2), which in this case is .01*sqrt(4000*4000+2000*2000)/sqrt(2), or 31.62. The bottom rectangle of the group illustrates what happens when values specified in percentage units are scaled.

7.9. Bounding boxes

bounding box: The bounding box (or "bbox") of an element is the tightest fitting rectangle aligned with the axes of that element's user coordinate system that entirely encloses it and its descendants.

Three kinds of bounding boxes can be computed for an element:

The object bounding box is the bounding box that contains only an element's geometric shape. For basic shapes, this is the area that is filled. Unless otherwise specified, this is what is meant by the unqualified term "bounding box".
The stroke bounding box is the bounding box that contains an element's geometric shape and its stroke shape.
The decorated bounding box is the bounding box that contains an element's geometric shape, its stroke shape and its markers.

Note that the values of the ‘opacity’, ‘visibility’, ‘fill’, ‘fill-opacity’, ‘fill-rule’, ‘stroke-dasharray’ and ‘stroke-dashoffset’ properties on an element have no effect on the bounding box of an element.

For curved shapes, the bounding box must enclose all portions of the shape along the edge, not just end points. Note that control points for a curve which are not defined as lying along the line of the resulting curve (e.g., the second coordinate pair of a Cubic Bézier command) must not contribute to the dimensions of the bounding box (though those points may fall within the area of the bounding box, if they lie within the shape itself, or along or close to the curve). For example, control points of a curve that are at a further distance than the curve edge, from the non-enclosing side of the curve edge, must be excluded from the bounding box.

Image showing the object bounding box of a quadratic Bézier curve.

The path 'M20,50 L35,100 H120 V50 Q70,10 20,50' is shown in light blue. On the left, a correct object bounding box of the path is shown. Note that it does not include the top-most control point of the curve, but it does include all of the blue shape, even the parts that lie outside of the convex hull of the control points.

Even if an element is not in the rendering tree – due to it being 'display: none', within a ‘defs’ element, not usually rendered like a ‘symbol’ element or not currently present in the document tree – it still has a bounding box. A call to getBBox on the element will return the same rectangle as if the element were rendered. However, an element that is not in the rendering tree does not contribute to the bounding box of any ancestor element.

The following example defines a number of elements. The expected object bounding box for each element with an ID is shown below.

<svg xmlns="http://www.w3.org/2000/svg">

  <title>Bounding Box Calculation</title>
  <desc>Examples of elements with different bounding box results based on context.</desc>

  <defs id="defs-1">
     <rect id="rect-1" x="20" y="20" width="40" height="40" fill="blue" />
  </defs>

  <g id="group-1">
    <use id="use-1" href="#rect-1" x="10" y="10" />

    <g id="group-2" display="none">
      <rect id="rect-2" x="10" y="10" width="100" height="100" fill="red" />
    </g>
  </g>
</svg>

Element ID	Bounding Box Result
"`defs-1`"	{0, 0, 0, 0}
"`rect-1`"	{20, 20, 40, 40}
"`group-1`"	{30, 30, 40, 40}
"`use-1`"	{30, 30, 40, 40}
"`group-2`"	{10, 10, 100, 100}
"`rect-2`"	{10, 10, 100, 100}

For text content elements, for the purposes of the bounding box calculation, each glyph must be treated as a separate graphics element. he calculations must assume that all glyphs occupy the full glyph cell. For example, for horizontal text, the calculations must assume that each glyph extends vertically to the full ascent and descent values for the font. An exception to this is when the ‘inline-size’ presentation attribute has been specified on the ‘text’ element, in which case the element's content area is its bounding box.

Because declarative or scripted animation can change the shape, size, and position of an element, the bounding box is mutable. Thus, the bounding box for an element shall reflect the current values for the element at the snapshot in time at which the bounding box is requested, whether through a script call or as part of a declarative or linking syntax.

An element which has zero width, zero height, or both (such as a vertical or horizontal line, or a ‘rect’ element with a zero ‘width’ or ‘height’) still has a bounding box, with a positive value for the positive dimension, or with '0' for both the width and height if no positive dimension is specified. Similarly, subpaths segments of a ‘path’ element with zero width and height must be included in that element's geometry for the sake of the bounding box.

An element with no position specified (such as a ‘path’ element with a value of (none) for the ‘d’ attribute) is positioned at the point (0,0) for the purposes of calculating a bounding box.

Note that elements whose DOM object does not derive from SVGGraphicsElement (such as gradient elements) do not have a bounding box, and thus have no interface to request a bounding box.

Elements in the rendering tree which reference unresolved resources shall still have a bounding box, defined by the position and dimensions specified in their attributes, or by the initial value for those attributes if no values are supplied. For example, the element <use href="#bad" x="10" y="10"/> would have a bounding box with an x and y of 10 and a width and height of 0.

The following algorithm defines how to compute a bounding box for a given element. The inputs to the algorithm are:

element, the element we are computing a bounding box for;
space, a coordinate space in which the bounding box will be computed;
fill, a boolean indicating whether the bounding box includes the geometry of the element and its descendants;
stroke, a boolean indicating whether the bounding box includes the stroke of the element and its descendants;
markers, a boolean indicating whether the bounding box includes the markers of the element and its descendants; and
clipped, a boolean indicating whether the bounding box is affected by any clipping paths applied to the element and its descendants.

Need to define what the union of rectangles with no area means.

The algorithm to compute the bounding box is as follows, depending on the type of element:

a shape

a text content element

an ‘a’ element within a text content element

Let box be a rectangle initialized to (0, 0, 0, 0).
Let fill-shape be the equivalent path of element if it is a shape, or a shape that includes each of the glyph cells corresponding to the text within the elements otherwise.
Need to update this take into account ‘inline-size’ on ‘text’.
If fill is true, then set box to the tightest rectangle in the coordinate system space that contains fill-shape.
The values of the ‘fill’, ‘fill-opacity’ and ‘fill-rule’ properties do not affect fill-shape.
If stroke is true and the element's ‘stroke’ is anything other than none, then set box to be the union of box and the tightest rectangle in coordinate system space that contains the stroke shape of the element, with the assumption that the element has no dash pattern.
The values of the ‘stroke-opacity’, ‘stroke-dasharray’ and ‘stroke-dashoffset’ do not affect the calculation of the stroke shape.
If markers is true, then for each marker marker rendered on the element:
1. For each descendant graphics element child of the ‘marker’ element that defines marker's content:
  1. If child has an ancestor element within the ‘marker’ that is 'display: none', has a failing conditional processing attribute, or is not an ‘a’, ‘g’, ‘svg’ or ‘switch’ element, then continue to the next descendant graphics element.
  2. Otherwise, set box to be the union of box and the result of invoking the algorithm to compute a bounding box with child as the element, space as the target coordinate space, true for fill, stroke and markers, and clipped for clipped.
If clipped is true and the value of ‘clip-path’ on element is not none, then set box to be the tighest rectangle in coordinate system space that contains the intersection of box and the clipping path.
Return box.

a container element

‘use’

Let box be a rectangle initialized to (0, 0, 0, 0).
Let parent be the container element if it is one, or the root of the ‘use’ element's shadow tree otherwise.
For each descendant graphics element child of parent:
1. If child has an ancestor element within parent that is 'display: none', has a failing conditional processing attribute, or is not an ‘a’, ‘g’, ‘svg’ or ‘switch’ element, then continue to the next descendant graphics element.
2. Otherwise, set box to be the union of box and the result of invoking the algorithm to compute a bounding box with child as the element and the same values for space, fill, stroke, markers and clipped as the corresponding algorithm input values.
Return box.

‘canvas’

‘foreignObject’

‘iframe’

‘image’

‘video’

Return the tightest rectangle in coordinate space space that contains the rectangle defined by the ‘x’, ‘y’, ‘width’ and ‘height’ attributes of the element.
The fill, stroke and markers input arguments to this algorithm do not affect the bounding box returned for these elements.

The object bounding box, stroke bounding box or decorated bounding box of an element is the result of invoking the bounding box computation algorithm above with the following arguments: element is the element itself; space is the element's user coordinate system; fill is true; stroke is true if we are computing the stroke bounding box or decorated bounding box, and false othwerise; markers is true if we are computing the decorated bounding box, and false otherwise; and clipped is false.

7.10. Object bounding box units

The following elements offer the option of expressing coordinate values and lengths as fractions (and, in some cases, percentages) of the object bounding box, by setting a specified attribute to 'objectBoundingBox' on the given element:

Element	Attribute	Effect
‘linearGradient’	‘gradientUnits’	Indicates that the attributes which specify the gradient vector (‘x1’, ‘y1’, ‘x2’, ‘y2’) represent fractions or percentages of the bounding box of the element to which the gradient is applied.
‘radialGradient’	‘gradientUnits’	Indicates that the attributes which specify the center (‘cx’, ‘cy’), the radius (‘r’) and focus (‘fx’, ‘fy’) represent fractions or percentages of the bounding box of the element to which the gradient is applied.
‘mesh’	‘gradientUnits’	Indicates that the attributes which specify the paint server mesh starting point (‘x’, ‘y’) represent fractions or percentages and that mesh path data represents fractions of the bounding box of the element to which the mesh is applied. If the mesh is rendered as a graphics object (i.e., not as a paint server) the current viewport is used in place of a bounding box.
‘pattern’	‘patternUnits’	Indicates that the attributes which define how to tile the pattern (‘x’, ‘y’, ‘width’, ‘height’) are established using the bounding box of the element to which the pattern is applied.
‘pattern’	‘patternContentUnits’	Indicates that the user coordinate system for the contents of the pattern is established using the bounding box of the element to which the pattern is applied.
‘clipPath’	‘clipPathUnits’	Indicates that the user coordinate system for the contents of the ‘clipPath’ element is established using the bounding box of the element to which the clipping path is applied.
‘mask’	‘maskUnits’	Indicates that the attributes which define the masking region (‘x’, ‘y’, ‘width’, ‘height’) is established using the bounding box of the element to which the mask is applied.
‘mask’	‘maskContentUnits’	Indicates that the user coordinate system for the contents of the ‘mask’ element are established using the bounding box of the element to which the mask is applied.
‘filter’	‘filterUnits’	Indicates that the attributes which define the filter effects region (‘x’, ‘y’, ‘width’, ‘height’) represent fractions or percentages of the bounding box of the element to which the filter is applied.
‘filter’	‘primitiveUnits’	Indicates that the various length values within the filter primitives represent fractions or percentages of the bounding box of the element to which the filter is applied.

In the discussion that follows, the term applicable element is the element to which the given effect applies. For gradients and patterns, the applicable element is the graphics element which has its ‘fill’ or ‘stroke’ property referencing the given gradient or pattern. (See Inheritance of Painting Properties. For special rules concerning text elements, see the discussion of object bounding box units and text elements.) For clipping paths, masks and filters, the applicable element can be either a container element or a graphics element.

When keyword objectBoundingBox is used, then the effect is as if a supplemental transformation matrix were inserted into the list of nested transformation matrices to create a new user coordinate system.

First, the (minx,miny) and (maxx,maxy) coordinates are determined by the extends of the object bounding box of the applicable element.

Then, coordinate (0,0) in the new user coordinate system is mapped to the (minx,miny) corner of the tight bounding box within the user coordinate system of the applicable element and coordinate (1,1) in the new user coordinate system is mapped to the (maxx,maxy) corner of the tight bounding box of the applicable element. In most situations, the following transformation matrix produces the correct effect:

[ (maxx-minx) 0 0 (maxy-miny) minx miny ]

When percentages are used with attributes that define the gradient vector, the pattern tile, the filter region or the masking region, a percentage represents the same value as the corresponding decimal value (e.g., 50% means the same as 0.5). If percentages are used within the content of a ‘pattern’, ‘clipPath’, ‘mask’ or ‘filter’ element, these values are treated according to the processing rules for percentages as defined in Units.

Any numeric value can be specified for values expressed as a fraction or percentage of object bounding box units. In particular, fractions less are zero or greater than one and percentages less than 0% or greater than 100% can be specified.

Keyword objectBoundingBox should not be used when the geometry of the applicable element has no width or no height, such as the case of a horizontal or vertical line, even when the line has actual thickness when viewed due to having a non-zero stroke width since stroke width is ignored for bounding box calculations. When the geometry of the applicable element has no width or height and objectBoundingBox is specified, then the given effect (e.g., a gradient or a filter) will be ignored.

7.11. Intrinsic sizing properties of the viewport of SVG content

SVG needs to specify how to calculate some intrinsic sizing properties to enable inclusion within other host documents. The intrinsic width and height of the SVG viewport of SVG content must be determined from the ‘width’ and ‘height’ properties. If either of these are not specified, the used value is the initial value 'auto'. Specifically, percentage values do not provide an intrinsic width or height.

We have the problem that either ‘width’ and ‘height’ are

'auto'
percentage values

Furthermore we can have a intrinsic ratio with ‘viewBox’. We need to describe all combinations and what happens in these cases in detail. The current text does not seem sufficient enough to describe all cases.

The outcome of this should be a intrinsic ratio for all cases.

The intrinsic aspect ratio of the SVG viewport of SVG content is necessary for example, when including SVG from an ‘object’ element in HTML styled with CSS. It is possible (indeed, common) for an SVG graphic to have an intrinsic aspect ratio but not to have an intrinsic width or height. The intrinsic aspect ratio must be calculated based upon the following rules:

The aspect ratio is calculated by dividing a width by a height.
If the ‘width’ and ‘height’ properties of the outermost svg element are both specified with unit identifiers (in, mm, cm, pt, pc, px, em, ex) or in user units, then the aspect ratio is calculated from the ‘width’ and ‘height’ properties after resolving both values to user units. We should use the terms relative and absolute length here.
If either/both of the ‘width’ and ‘height’ of the outermost svg element are in percentage units (or omitted) (used value is auto), the aspect ratio is calculated from the width and height values of the ‘viewBox’ specified for the current SVG document fragment. If the ‘viewBox’ is not correctly specified, the intrinsic aspect ratio cannot be calculated and is considered unspecified.
If the dimension and ratio of the SVG document are resolved to unspecified values, then the host document should follow the CSS rules for calculating width and ratio for inline replaced elements. In this case, the used width value would be 300px (or the rectanlge width fitting the device) and used ratio would be 2:1.

Examples:

Example: Intrinsic Aspect Ratio 1

<svg xmlns="http://www.w3.org/2000/svg"
     width="10cm" height="5cm">
  ...
</svg>

In this example the intrinsic aspect ratio of the SVG viewport is 2:1. The intrinsic width is 10cm and the intrinsic height is 5cm.

Example: Intrinsic Aspect Ratio 2

<svg xmlns="http://www.w3.org/2000/svg"
     width="100%" height="50%" viewBox="0 0 200 200">
  ...
</svg>

In this example the intrinsic aspect ratio of the outermost SVG viewport is 1:1. An aspect ratio calculation in this case allows embedding in an object within a containing block that is only constrained in one direction.

Example: Intrinsic Aspect Ratio 3

<svg xmlns="http://www.w3.org/2000/svg"
     width="10cm" viewBox="0 0 200 200">
  ...
</svg>

In this case the intrinsic aspect ratio is 1:1.

Example: Intrinsic Aspect Ratio 4

<svg xmlns="http://www.w3.org/2000/svg"
     width="75%" height="10cm" viewBox="0 0 200 200">
  ...
</svg>

In this example, the intrinsic aspect ratio is 1:1.

Add more examples for the new auto value? E.g some of the examples provided by David Vest.

7.12. DOM interfaces

7.12.1. Interface SVGTransform

The SVGTransform interface is used to represent <transform-function> values that appear in the ‘transform’ property and its presentation attributes ‘transform’, ‘gradientTransform’ and ‘patternTransform’. An SVGTransform represents a single component in a transform list, such as a single scale(…) or matrix(…) value.

An SVGTransform object can be designated as read only, which means that attempts to modify the object will result in an exception being thrown, as described below.

An SVGTransform object can be associated with a particular element. The associated element is used to determine which element's ‘transform’ presentation attribute to update if the object reflects that attribute. Unless otherwise described, an SVGTransform object is not associated with any element.

Every SVGTransform object operates in one of three modes. It can:

reflect an element of a presentation attribute value (being exposed through the methods on the baseVal member of an SVGAnimatedTransformList),
reflect an element of the computed value of the ‘transform’ property (being exposed through the methods on the animVal member of an SVGAnimatedTransformList),
be detached, which is the case for SVGTransform objects created with createSVGTransform and createSVGTransformFromMatrix.

An SVGTransform object maintains an internal <transform-function> value, which is called its value. It also maintains a DOMMatrix object, which is called its matrix object, which is the object returned from the matrix IDL attribute. An SVGTransform object's matrix object is always kept synchronized with it its value.

interface SVGTransform {

  // Transform Types
  const unsigned short SVG_TRANSFORM_UNKNOWN = 0;
  const unsigned short SVG_TRANSFORM_MATRIX = 1;
  const unsigned short SVG_TRANSFORM_TRANSLATE = 2;
  const unsigned short SVG_TRANSFORM_SCALE = 3;
  const unsigned short SVG_TRANSFORM_ROTATE = 4;
  const unsigned short SVG_TRANSFORM_SKEWX = 5;
  const unsigned short SVG_TRANSFORM_SKEWY = 6;

  readonly attribute unsigned short type;
  [SameObject] readonly attribute DOMMatrix matrix;
  readonly attribute float angle;

  void setMatrix(DOMMatrixReadOnly matrix);
  void setTranslate(float tx, float ty);
  void setScale(float sx, float sy);
  void setRotate(float angle, float cx, float cy);
  void setSkewX(float angle);
  void setSkewY(float angle);
};

The numeric transform type constants defined on SVGTransform are used to represent the type of an SVGTransform's value. Their meanings are as follows:

Constant	Meaning
SVG_TRANSFORM_MATRIX	A matrix(…) value.
SVG_TRANSFORM_TRANSLATE	A translate(…) value.
SVG_TRANSFORM_SCALE	A scale(…) value.
SVG_TRANSFORM_ROTATE	A rotate(…) value.
SVG_TRANSFORM_SKEWX	A skewX(…) value.
SVG_TRANSFORM_SKEWY	A skewY(…) value.
SVG_TRANSFORM_UNKNOWN	Some other type of value.

The use of numeric transform type constants is an anti-pattern and new constant values will not be introduced for any transform types supported by SVGTransform. If other types of transforms are supported and used, the SVGTransform uses the SVG_TRANSFORM_UNKNOWN type. See below for details on how the other properties of an SVGTransform operate with these types of transforms.

The type IDL attribute represents the type of transform item that the SVGTransform's value is. On getting type, the following steps are run:

If the SVGTransform's value is a matrix(…), translate(…), scale(…), rotate(…), skewX(…) or skewY(…) function, then return the corresponding constant value from the transform type table above.
Otherwise, return SVG_TRANSFORM_UNKNOWN.
For example, for a scaleX(…) or translate3d(…) transform, SVG_TRANSFORM_UNKNOWN would be returned.

The matrix IDL attribute represents the transform as a 4x4 homogeneous matrix, and on getting returns the SVGTransform's matrix object. When the matrix object is first created, its values are set to match the SVGTransform's transform function value, and is set to reflects the SVGTransform.

See the CSS Transforms specification for a description of how the different transform function types correspond to particular matrix values.

The angle IDL attribute represents the angle parameter of a rotate(…), skewX(…) or skewY(…) transform function. On getting, the following steps are run:

If the SVGTransform object's value is a rotate(…), skewX(…) or skewY(…) function, return its angle argument in degrees.
Otherwise, return 0.

The setMatrix method is used to set the SVGTransform to a given matrix value. When setMatrix(matrix) is called, the following steps are run:

If the SVGTransform object is read only, then throw a DOMException with code NO_MODIFICATION_ALLOWED_ERR.
If matrix would return true from its is2d method, then set the SVGTransform object's value to a matrix(…) value that represents the same matrix as matrix.
Otherwise, set the SVGTransform object's value to a matrix3d(…) value that represents the same matrix as matrix.
Copy the matrix component values from matrix into the SVGTransform object's matrix object.
If the SVGTransform object reflects an element of a presentation attribute value, then reserialize the reflected attribute.

The setTranslate, setScale, setRotate, setSkewX and setSkewY methods are used to set the SVGTransform to a new transform function value. When one of these methods is called, the following steps are run:

If the SVGTransform object is read only, then throw a DOMException with code NO_MODIFICATION_ALLOWED_ERR.
Set the SVGTransform object's value to a new transform function value, depending on which method was called:

setTranslate(tx, ty)

the new transform function value is translate(tx, ty)

setScale(sx, sy)

the new transform function value is scale(sx, sy)

setRotate(angle, cx, cy)

the new transform function value is rotate(angle, cx, cy)

setSkewX(angle)

the new transform function value is skewX(angle)

setSkewY(angle)

the new transform function value is skewY(angle)
Set the components of the SVGTransform object's matrix object to match the new transform function value.
If the SVGTransform object reflects an element of a presentation attribute value, then reserialize the reflected attribute.

This specification imposes additional requirements on the behavior of DOMMatrix objects beyond those described in the the Geometry Interfaces specification, so that they can be used to reflect presentation attributes that take transform values.

Every DOMMatrix object operates in one of two modes. It can:

reflect an SVGTransform (being exposed through the matrix IDL attribute on an SVGTransform), or
be detached, which is the case for DOMMatrix objects created using their constructor or with createSVGMatrix.

A DOMMatrix can be designated as read only, which means that attempts to modify the object will result in an exception being thrown. When assigning to any of a read only DOMMatrix's IDL attributes, or when invoking any of its mutable transform methods, a DOMException with code NO_MODIFICATION_ALLOWED_ERR must be thrown instead of updating the internal value.

Note that this applies only to the read-write DOMMatrix interface; the DOMMatrixReadOnly interface, which is not used for reflecting ‘transform’, will already throw an exception if an attempt is made to modify it.

When assigning to any of a writable DOMMatrix's IDL attributes, or when invoking any of its mutable transform methods, the following steps are run after updating the internal matrix value:

If the DOMMatrix reflects an SVGTransform, then:
1. If the DOMMatrix would return true from its is2d method, then set the SVGTransform object's value to a matrix(…) value that represents the same matrix as the DOMMatrix.
2. Otherwise, set the SVGTransform object's value to a matrix3d(…) value that represents the same matrix as the DOMMatrix.
3. If the SVGTransform object reflects an element of a presentation attribute value, then reserialize the reflected attribute.

7.12.2. Interface SVGTransformList

The SVGTransformList interface is a list interface whose elements are SVGTransform objects. An SVGTransformList represents a value that the ‘transform’ property can take, namely either a <transform-list> or the keyword none.

interface SVGTransformList {

  readonly attribute unsigned long length;
  readonly attribute unsigned long numberOfItems;

  void clear();
  SVGTransform initialize(SVGTransform newItem);
  getter SVGTransform getItem(unsigned long index);
  SVGTransform insertItemBefore(SVGTransform newItem, unsigned long index);
  SVGTransform replaceItem(SVGTransform newItem, unsigned long index);
  SVGTransform removeItem(unsigned long index);
  SVGTransform appendItem(SVGTransform newItem);
  setter void (unsigned long index, SVGTransform newItem);

  // Additional methods not common to other list interfaces.
  SVGTransform createSVGTransformFromMatrix(DOMMatrixReadOnly matrix);
  SVGTransform? consolidate();
};

The createSVGTransformFromMatrix method is used to create a new SVGTransform object from a matrix object. When the createSVGTransformFromMatrix(matrix) method is called, the following steps are run:

Let transform be a newly created SVGTransform object that is detached.
Follow the steps that would be run if the setMatrix method on transform were called, passing matrix as its argument.
Return transform.

The consolidate method is used to convert the transform list into an equivalent transformation using a single transform function. When the consolidate() method is called, the following steps are run:

If the SVGTransformList object is read only, then throw a DOMException with code NO_MODIFICATION_ALLOWED_ERR.
If the list is empty, return null.
Detach and then remove all elements in the list.
Let transform be a newly created SVGTransform object.
Let matrix be the matrix value obtained by beginning with an identity matrix, and then post-multiplying the value of the matrix object for each SVGTransform in the list, in order.
Set the components of transform's matrix object to the component values in matrix.
If transform's matrix object would return true from its is2d method, then set transform's value to a matrix(…) value that represents the same matrix as the matrix object.
Otherwise, set transform's value to a matrix3d(…) value that represents the same matrix as the matrix object.
Attach transform to this SVGTransformList.
Append transform to this list.
If the list reflects a presentation attribute, then reserialize the reflected attribute.
Return transform.

The behavior of all other interface members of SVGLengthList are defined in List interfaces.

7.12.3. Interface SVGAnimatedTransformList

An SVGAnimatedTransformList object is used to reflect the ‘transform’ property and its corresponding presentation attribute (which, depending on the element, is ‘transform’, ‘gradientTransform’ or ‘patternTransform’).

interface SVGAnimatedTransformList {
  [SameObject] readonly attribute SVGTransformList baseVal;
  [SameObject] readonly attribute SVGTransformList animVal;
};

The baseVal IDL attribute represents the value of the reflected presentation attribute. On getting baseVal, an SVGTransformList object is returned that reflects the given presentation attribute.

The animVal IDL attribute represents the computed value of the ‘transform’ property on an element. On getting animVal, an SVGTransformList object is returned that reflects the computed value of the ‘transform’ property on the given element.

The objects returned from baseVal and animVal must be distinct, even if there is no animation currently affecting the attribute.

7.12.4. Interface SVGPreserveAspectRatio

The SVGPreserveAspectRatio interface is used to represent values for the ‘preserveAspectRatio’ attribute.

An SVGPreserveAspectRatio object can be designated as read only, which means that attempts to modify the object will result in an exception being thrown, as described below.

Every SVGPreserveAspectRatio object operates in one of two modes. It can:

reflect the base value of a reflected ‘preserveAspectRatio’ attribute (being exposed through the methods on the baseVal member of an SVGAnimatedPreserveAspectRatio), or
reflect the animated value of a reflected ‘preserveAspectRatio’ attribute (being exposed through the methods on the animVal member of an SVGAnimatedPreserveAspectRatio).

interface SVGPreserveAspectRatio {

  // Alignment Types
  const unsigned short SVG_PRESERVEASPECTRATIO_UNKNOWN = 0;
  const unsigned short SVG_PRESERVEASPECTRATIO_NONE = 1;
  const unsigned short SVG_PRESERVEASPECTRATIO_XMINYMIN = 2;
  const unsigned short SVG_PRESERVEASPECTRATIO_XMIDYMIN = 3;
  const unsigned short SVG_PRESERVEASPECTRATIO_XMAXYMIN = 4;
  const unsigned short SVG_PRESERVEASPECTRATIO_XMINYMID = 5;
  const unsigned short SVG_PRESERVEASPECTRATIO_XMIDYMID = 6;
  const unsigned short SVG_PRESERVEASPECTRATIO_XMAXYMID = 7;
  const unsigned short SVG_PRESERVEASPECTRATIO_XMINYMAX = 8;
  const unsigned short SVG_PRESERVEASPECTRATIO_XMIDYMAX = 9;
  const unsigned short SVG_PRESERVEASPECTRATIO_XMAXYMAX = 10;

  // Meet-or-slice Types
  const unsigned short SVG_MEETORSLICE_UNKNOWN = 0;
  const unsigned short SVG_MEETORSLICE_MEET = 1;
  const unsigned short SVG_MEETORSLICE_SLICE = 2;

  attribute unsigned short align;
  attribute unsigned short meetOrSlice;
};

The numeric alignment type constants defined on SVGPreserveAspectRatio are used to represent the alignment keyword values that ‘preserveAspectRatio’ can take. Their meanings are as follows:

Constant	Meaning
SVG_PRESERVEASPECTRATIO_NONE	The none keyword.
SVG_PRESERVEASPECTRATIO_XMINYMIN	The xMinYMin keyword.
SVG_PRESERVEASPECTRATIO_XMIDYMIN	The xMidYMin keyword.
SVG_PRESERVEASPECTRATIO_XMAXYMIN	The xMaxYMin keyword.
SVG_PRESERVEASPECTRATIO_XMINYMID	The xMinYMid keyword.
SVG_PRESERVEASPECTRATIO_XMIDYMID	The xMidYMid keyword.
SVG_PRESERVEASPECTRATIO_XMAXYMID	The xMaxYMid keyword.
SVG_PRESERVEASPECTRATIO_XMINYMAX	The xMinYMax keyword.
SVG_PRESERVEASPECTRATIO_XMIDYMAX	The xMidYMax keyword.
SVG_PRESERVEASPECTRATIO_XMAXYMAX	The xMaxYMax keyword.
SVG_PRESERVEASPECTRATIO_UNKNOWN	Some other type of value.

Similarly, the numeric meet-or-slice type constants defined on SVGPreserveAspectRatio are used to represent the meet-or-slice keyword values that ‘preserveAspectRatio’ can take. Their meanings are as follows:

Constant	Meaning
SVG_MEETORSLICE_MEET	The meet keyword.
SVG_MEETORSLICE_SLICE	The slice keyword.
SVG_MEETORSLICE_UNKNOWN	Some other type of value.

The align IDL attribute represents the alignment keyword part of the ‘preserveAspectRatio’ value. On getting, the following steps are run:

Let value be a ‘preserveAspectRatio’ value, depending on the SVGPreserveAspectRatio object's mode:

reflecting the base value of a ‘preserveAspectRatio’ attribute

value is the current non-animated value of the attribute (using the attribute's initial value if it is not present or invalid).

reflecting the animated value of a ‘preserveAspectRatio’ attribute

If the attribute is currently being animated, then value is its current animated value. Otherwise, it is the current non-animated value of the attribute.
Return the constant value as specified in the alignment constant table above for the alignment keyword in value.

On setting align, the following steps are run:

If the SVGPreserveAspectRatio is read only, then throw a DOMException with code NO_MODIFICATION_ALLOWED_ERR.
If value is SVG_PRESERVEASPECTRATIO_UNKNOWN or does not have a corresponding entry in the alignment keyword table above, then return.
Let string be the corresponding keyword in the alignment keyword table above for value.
Append a single U+0020 SPACE character to string.
Let meet or slice be the value that would be returned from the meetOrSlice member on this SVGPreserveAspectRatio.
Append to string the corresponding keyword in the meet-or-slice keyword table above for meet or slice.
Set the reflected ‘preserveAspectRatio’ attribute to string.

The meetOrSlice IDL attribute represents the alignment keyword part of the ‘preserveAspectRatio’ value. On getting, the following steps are run:

Let value be a ‘preserveAspectRatio’ value, depending on the SVGPreserveAspectRatio object's mode:

reflecting the base value of a ‘preserveAspectRatio’ attribute

value is the current non-animated value of the attribute.

reflecting the animated value of a ‘preserveAspectRatio’ attribute

If the attribute is currently being animated, then value is its current animated value. Otherwise, it is the current non-animated value of the attribute.
If the meet-or-slice value is not present in value, then return SVG_MEETORSLICE_MEET.
Otherwise, the meet-or-slice value is present. Return the constant value as specified in the meet-or-slice constant table above for the meet-or-slice keyword in value.

On setting meetOrSlice, the following steps are run:

If the SVGPreserveAspectRatio is read only, then throw a DOMException with code NO_MODIFICATION_ALLOWED_ERR.
If value is SVG_MEETORSLICE_UNKNOWN or does not have a corresponding entry in the meet-or-slice keyword table above, then return.
Let align be the value that would be returned from the align member on this SVGPreserveAspectRatio.
Let string be the corresponding keyword in the alignment keyword table above for align.
Append a single U+0020 SPACE character to string.
Append to string the corresponding keyword in the meet-or-slice keyword table above for value.
Set the reflected ‘preserveAspectRatio’ attribute to string.

7.12.5. Interface SVGAnimatedPreserveAspectRatio

An SVGAnimatedPreserveAspectRatio object is used to reflect the ‘preserveAspectRatio’ attribute.

interface SVGAnimatedPreserveAspectRatio {
  [SameObject] readonly attribute SVGPreserveAspectRatio baseVal;
  [SameObject] readonly attribute SVGPreserveAspectRatio animVal;
};

The baseVal IDL attribute represents the current non-animated value of the reflected ‘preserveAspectRatio’ attribute. On getting baseVal, an SVGPreserveAspectRatio object is returned that reflects the base value of the ‘preserveAspectRatio’ attribute on the SVG element that the object with the reflcting IDL attribute of type SVGAnimatedPreserveAspectRatio was obtained from.

The animVal IDL attribute represents the current non-animated value of the reflected ‘preserveAspectRatio’ attribute. On getting animVal, an SVGPreserveAspectRatio object is returned that reflects the animated value of the ‘preserveAspectRatio’ attribute on the SVG element that the object with the reflcting IDL attribute of type SVGAnimatedPreserveAspectRatio was obtained from.

The objects returned from baseVal and animVal must be distinct, even if there is no animation currently affecting the attribute.

Chapter 8: Paths

8.1. Introduction

A path represents the outline of a shape which can be filled or stroked. A path can also be used as a clipping path, to describe animation, or position text. A path can be used for more than one of these functions at the same time. (See Filling, Stroking and Paint Servers, Clipping and Masking, Animation ('animateMotion'), and Text on a Path.)

A path is described using the concept of a current point. In an analogy with drawing on paper, the current point can be thought of as the location of the pen. The position of the pen can be changed, and the outline of a shape (open or closed) can be traced by dragging the pen in either straight lines or curves.

Paths represent the geometry of the outline of an object, defined in terms of moveto (set a new current point), bearing (set a new orientation), lineto (draw a straight line), curveto (draw a curve using a cubic Bézier), arc (elliptical or circular arc) and closepath (close the current shape by connecting to the last moveto) commands. Compound paths (i.e., a path with multiple subpaths) are possible to allow effects such as "donut holes" in objects.

This chapter describes the syntax, behavior and DOM interfaces for SVG paths. Various implementation notes for SVG paths can be found in ‘path’ element implementation Notes and Elliptical arc implementation notes.

A path is defined in SVG using the ‘path’ element.

The basic shapes are all described in terms of what their equivalent path is, which is what their shape is as a path. (The equivalent path of a ‘path’ element is simply the path itself.)

8.2. The ‘path’ element

‘path’

Categories:

Content model:

Any number of the following elements, in any order:

animation elements — ‘animate’, ‘animateMotion’, ‘animateTransform’, ‘discard’, ‘set’
descriptive elements — ‘desc’, ‘title’, ‘metadata’
paint server elements — ‘solidcolor’, ‘linearGradient’, ‘radialGradient’, ‘mesh’, ‘pattern’, ‘hatch’

View this example as SVG (SVG-enabled browsers only)

Attributes:

aria attributes — ‘aria-activedescendant’, ‘aria-atomic’, ‘aria-autocomplete’, ‘aria-busy’, ‘aria-checked’, ‘aria-colcount’, ‘aria-colindex’, ‘aria-colspan’, ‘aria-controls’, ‘aria-current’, ‘aria-describedat’, ‘aria-describedby’, ‘aria-disabled’, ‘aria-dropeffect’, ‘aria-expanded’, ‘aria-flowto’, ‘aria-grabbed’, ‘aria-haspopup’, ‘aria-hidden’, ‘aria-invalid’, ‘aria-label’, ‘aria-labelledby’, ‘aria-level’, ‘aria-live’, ‘aria-modal’, ‘aria-multiline’, ‘aria-multiselectable’, ‘aria-orientation’, ‘aria-owns’, ‘aria-placeholder’, ‘aria-posinset’, ‘aria-pressed’, ‘aria-readonly’, ‘aria-relevant’, ‘aria-required’, ‘aria-rowcount’, ‘aria-rowindex’, ‘aria-rowspan’, ‘aria-selected’, ‘aria-setsize’, ‘aria-sort’, ‘aria-valuemax’, ‘aria-valuemin’, ‘aria-valuenow’, ‘aria-valuetext’, ‘role’
conditional processing attributes — ‘requiredExtensions’, ‘systemLanguage’
core attributes — ‘id’, ‘tabindex’, ‘lang’, ‘xml:space’
global event attributes — ‘oncancel’, ‘oncanplay’, ‘oncanplaythrough’, ‘onchange’, ‘onclick’, ‘onclose’, ‘oncuechange’, ‘ondblclick’, ‘ondrag’, ‘ondragend’, ‘ondragenter’, ‘ondragexit’, ‘ondragleave’, ‘ondragover’, ‘ondragstart’, ‘ondrop’, ‘ondurationchange’, ‘onemptied’, ‘onended’, ‘onerror’, ‘onfocus’, ‘oninput’, ‘oninvalid’, ‘onkeydown’, ‘onkeypress’, ‘onkeyup’, ‘onload’, ‘onloadeddata’, ‘onloadedmetadata’, ‘onloadstart’, ‘onmousedown’, ‘onmouseenter’, ‘onmouseleave’, ‘onmousemove’, ‘onmouseout’, ‘onmouseover’, ‘onmouseup’, ‘onmousewheel’, ‘onpause’, ‘onplay’, ‘onplaying’, ‘onprogress’, ‘onratechange’, ‘onreset’, ‘onresize’, ‘onscroll’, ‘onseeked’, ‘onseeking’, ‘onselect’, ‘onshow’, ‘onstalled’, ‘onsubmit’, ‘onsuspend’, ‘ontimeupdate’, ‘ontoggle’, ‘onvolumechange’, ‘onwaiting’
graphical event attributes — ‘onfocusin’, ‘onfocusout’
presentation attributes —
style attributes — ‘class’, ‘style’
‘d’
‘pathLength’

DOM Interfaces:

SVGPathElement

Name Value Initial value Animatable d svg-path [EBNF] (none) yes

Name	Value	Initial value	Animatable
d	svg-path [EBNF]	(none)	yes

The definition of the outline of a shape. See Path data. Error processing for svg-path is done according to Path Data Error Handling.

Path data animation is only possible when each path data specification within an animation specification has exactly the same list of path data commands as the ‘d’ attribute. If an animation is specified and the list of path data commands is not the same, then the animation specification is in error (see Error Handling). The animation engine interpolates each parameter to each path data command separately based on the attributes to the given animation element. Flags and booleans are interpolated as fractions between zero and one, with any non-zero value considered to be a value of one/true.

The initial value, (none) indicates that the path element is valid but does not render.

Name Value Initial value Animatable pathLength <number> (none) yes

The author's computation of the total length of the path, in user units. This value is used to calibrate the user agent's own distance-along-a-path calculations with that of the author. The user agent will scale all distance-along-a-path computations by the ratio of ‘pathLength’ to the user agent's own computed value for total path length. ‘pathLength’ potentially affects calculations for text on a path, motion animation and various stroke operations.

A negative value is an error (see Error handling).

8.3. Path data

SVG 2 Requirement:	Support turtle-graphics-like current rotation in path syntax.
Resolution:	We will add a path rotation command.
Purpose:	Make path rotations easier to animate and pie charts easier to draw.
Owner:	Cameron (ACTION-3125)

8.3.1. General information about path data

A path is defined by including a ‘path’ element which contains a d="(path data)" attribute, where the ‘d’ attribute contains the moveto, bearing, lineto, curveto (both cubic and quadratic Béziers), arc and closepath instructions.

Example triangle01 specifies a path in the shape of a triangle. (The M indicates a moveto, the Ls indicate linetos, and the z indicates a closepath).

<?xml version="1.0" standalone="no"?>
<svg width="4cm" height="4cm" viewBox="0 0 400 400"
     xmlns="http://www.w3.org/2000/svg" version="1.1">
  <title>Example triangle01- simple example of a 'path'</title>
  <desc>A path that draws a triangle</desc>
  <rect x="1" y="1" width="398" height="398"
        fill="none" stroke="blue" />
  <path d="M 100 100 L 300 100 L 200 300 z"
        fill="red" stroke="blue" stroke-width="3" />
</svg>

Example triangle01

Path data can contain newline characters and thus can be broken up into multiple lines to improve readability. Newlines inside attributes in markup will be normalized to space characters while parsing.

The syntax of path data is concise in order to allow for minimal file size and efficient downloads, since many SVG files will be dominated by their path data. Some of the ways that SVG attempts to minimize the size of path data are as follows:

All instructions are expressed as one character (e.g., a moveto is expressed as an M).
Superfluous white space and separators such as commas can be eliminated (e.g., "M 100 100 L 200 200" contains unnecessary spaces and could be expressed more compactly as "M100 100L200 200").
The command letter can be eliminated on subsequent commands if the same command is used multiple times in a row (e.g., you can drop the second "L" in "M 100 200 L 200 100 L -100 -200" and use "M 100 200 L 200 100 -100 -200" instead).
For most commands there are absolute and relative versions available (uppercase means absolute coordinates, lowercase means relative coordinates).
Alternate forms of lineto are available to optimize the special cases of horizontal and vertical lines (absolute and relative).
Alternate forms of curve are available to optimize the special cases where some of the control points on the current segment can be determined automatically from the control points on the previous segment.

The path data syntax is a prefix notation (i.e., commands followed by parameters). The only allowable decimal point is a Unicode U+0046 FULL STOP (".") character (also referred to in Unicode as PERIOD, dot and decimal point) and no other delimiter characters are allowed [UNICODE]. (For example, the following is an invalid numeric value in a path data stream: "13,000.56". Instead, say: "13000.56".)

For the relative versions of the commands, all coordinate values are relative to the current point at the start of the command.

Relative path commands are also influenced by the current bearing, which is an angle set by the bearing commands. This allows for paths to be specified using a style of "turtle graphics", where straight line and curved path segments are placed with their starting point at a tangent (or at some other angle) to the current bearing.

In the tables below, the following notation is used to describe the syntax of a given path command:

(): grouping of parameters
+: 1 or more of the given parameter(s) is required

In the description of the path commands, cpx and cpy represent the coordinates of the current point, and cb represents the current bearing.

The following sections list the commands. Those that draw straight line segments include the lineto commands (L, l, H, h, V and v) and the close path commands (Z and z). These three groups of commands draw curves:

Cubic Bézier commands (C, c, S and s). A cubic Bézier segment is defined by a start point, an end point, and two control points.
Quadratic Bézier commands (Q, q, T and t). A quadratic Bézier segment is defined by a start point, an end point, and one control point.
Elliptical arc commands (A and a). An elliptical arc segment draws a segment of an ellipse.

8.3.2. The "moveto" commands

The "moveto" commands (M or m) establish a new current point. The effect is as if the "pen" were lifted and moved to a new location. A path data segment (if there is one) must begin with a "moveto" command. Subsequent "moveto" commands (i.e., when the "moveto" is not the first command) represent the start of a new subpath:

Command	Name	Parameters	Description
M (absolute) m (relative)	moveto	(x y)+	Start a new sub-path at the given (x,y) coordinates. M (uppercase) indicates that absolute coordinates will follow; m (lowercase) indicates that relative coordinates will follow. If a moveto is followed by multiple pairs of coordinates, the subsequent pairs are treated as implicit lineto commands. Hence, implicit lineto commands will be relative if the moveto is relative, and absolute if the moveto is absolute. If a relative moveto (m) appears as the first element of the path, then it is treated as a pair of absolute coordinates. In this case, subsequent pairs of coordinates are treated as relative even though the initial moveto is interpreted as an absolute moveto.

When a relative m command is used, the position moved to is (cpx + x cos cb + y sin cb, cpy + x sin cb + y cos cb).

8.3.3. The "closepath" command

The "closepath" (Z or z) ends the current subpath by connecting it back to its initial point in either of two ways:

If the previous command is complete, that is that all the required coordinate data has been supplied, then an automatic straight line is drawn from the current point to the initial point of the current subpath. This path segment may be of zero length.
If the previous command is missing required coordinate data then the initial point is used to fill in the missing data (but only for the last point or points).

Examples:

m 100,100 50,0 0,50 z: Implicit l command complete, z causes a straight line to be drawn resulting in a closed triangular path.
m 100,100 a 50,50 0 0 1 100,0 z: a command complete, z causes a straight line to be drawn resulting in a closed semi-circular path.
m 100,100 a 50,50 0 0 1 100,0 50,50 0 0 1 z: Second set of coordinates for the a command missing final point, z causes initial point to be used as final point resulting in a closed circular path.
m 100,100 a 50,50 0 0 1 100,0 c z: c command missing three coordinates, z causes initial point to be used as coordinate data for all c coordinates resulting in a closed semi-circle. Visually c z is the same as z but may be useful in animating path data.

SVG 2 adds the ability to fill in missing coordinate data with the Z or z command to avoid the need to add a zero length (or very short in the case of relative paths with rounding errors) path segment to close a subpath. This can effect the number of markers drawn and their orientation at the beginning/end of a closed subpath.

The use of Z or z to replace missing coordinate data with the coordinate of the initial point in a subpath was resolved at the Sydney (2015) meeting.

If a "closepath" is followed immediately by a "moveto", then the "moveto" identifies the start point of the next subpath. If a "closepath" is followed immediately by any other command, then the next subpath starts at the same initial point as the current subpath.

When a subpath ends in a "closepath," it differs in behavior from what happens when "manually" closing a subpath via a "lineto" command in how ‘stroke-linejoin’ and ‘stroke-linecap’ are implemented. With "closepath", the end of the final segment of the subpath is "joined" with the start of the initial segment of the subpath using the current value of ‘stroke-linejoin’. If you instead "manually" close the subpath via a "lineto" command, the start of the first segment and the end of the last segment are not joined but instead are each capped using the current value of ‘stroke-linecap’. At the end of the command, the new current point is set to the initial point of the current subpath.

The current bearing does not affect a z command.

Command	Name	Parameters	Description
Z or z	closepath	(none)	Close the current subpath by connecting it back to the current subpath's initial point (see prose above). Since the Z and z commands take no parameters, they have an identical effect.

8.3.4. The "lineto" commands

The various "lineto" commands draw straight lines from the current point to a new point:

Command	Name	Parameters	Description
L (absolute) l (relative)	lineto	(x y)+	Draw a line from the current point to the given (x,y) coordinate which becomes the new current point. L (uppercase) indicates that absolute coordinates will follow; l (lowercase) indicates that relative coordinates will follow. A number of coordinates pairs may be specified to draw a polyline. At the end of the command, the new current point is set to the final set of coordinates provided.
H (absolute) h (relative)	horizontal lineto	x+	Draws a horizontal line from the current point. H (uppercase) indicates that absolute coordinates will follow; h (lowercase) indicates that relative coordinates will follow. Multiple x values can be provided (although usually this doesn't make sense). An H or h command is equivalent to an L or l command with 0 specified for the y coordinate. At the end of the command, the new current point is taken from the final coordinate value.
V (absolute) v (relative)	vertical lineto	y+	Draws a vertical line from the current point. V (uppercase) indicates that absolute coordinates will follow; v (lowercase) indicates that relative coordinates will follow. Multiple y values can be provided (although usually this doesn't make sense). A V or v command is equivalent to an L or l command with 0 specified for the x coordinate. At the end of the command, the new current point is taken from the final coordinate value.

When a relative l command is used, the end point of the line is (cpx + x cos cb + y sin cb, cpy + x sin cb + y cos cb).

When a relative h command is used, the end point of the line is (cpx + x cos cb, cpy + x sin cb). This means that an h command with a positive x value draws a line in the direction of the current bearing. When the current bearing is 0, this is a horizontal line in the direction of the positive x-axis.

When there is a non-zero bearing, a mnemonic for the h command could be "head this distance at the current bearing", rather than "draw a horizontal line".

When a relative v command is used, the end point of the line is (cpx + y sin cb, cpy + y cos cb).

8.3.5. The cubic Bézier curve commands

The cubic Bézier commands are as follows:

Command	Name	Parameters	Description
C (absolute) c (relative)	curveto	(x1 y1 x2 y2 x y)+	Draws a cubic Bézier curve from the current point to (x,y) using (x1,y1) as the control point at the beginning of the curve and (x2,y2) as the control point at the end of the curve. C (uppercase) indicates that absolute coordinates will follow; c (lowercase) indicates that relative coordinates will follow. Multiple sets of coordinates may be specified to draw a polybézier. At the end of the command, the new current point becomes the final (x,y) coordinate pair used in the polybézier.
S (absolute) s (relative)	shorthand/smooth curveto	(x2 y2 x y)+	Draws a cubic Bézier curve from the current point to (x,y). The first control point is assumed to be the reflection of the second control point on the previous command relative to the current point. (If there is no previous command or if the previous command was not an C, c, S or s, assume the first control point is coincident with the current point.) (x2,y2) is the second control point (i.e., the control point at the end of the curve). S (uppercase) indicates that absolute coordinates will follow; s (lowercase) indicates that relative coordinates will follow. Multiple sets of coordinates may be specified to draw a polybézier. At the end of the command, the new current point becomes the final (x,y) coordinate pair used in the polybézier.

When a relative c or s command is used, each of the relative coordinate pairs is computed as for those in an m command. For example, the final control point of the curve of both commands is (cpx + x cos cb + y sin cb, cpy + x sin cb + y cos cb).

Example cubic01 shows some simple uses of cubic Bézier commands within a path. The example uses an internal CSS style sheet to assign styling properties. Note that the control point for the "S" command is computed automatically as the reflection of the control point for the previous "C" command relative to the start point of the "S" command.

<?xml version="1.0" standalone="no"?>
<svg width="5cm" height="4cm" viewBox="0 0 500 400"
     xmlns="http://www.w3.org/2000/svg" version="1.1">
  <title>Example cubic01- cubic Bézier commands in path data</title>
  <desc>Picture showing a simple example of path data
        using both a "C" and an "S" command,
        along with annotations showing the control points
        and end points</desc>
  <style type="text/css"><![CDATA[
    .Border { fill:none; stroke:blue; stroke-width:1 }
    .Connect { fill:none; stroke:#888888; stroke-width:2 }
    .SamplePath { fill:none; stroke:red; stroke-width:5 }
    .EndPoint { fill:none; stroke:#888888; stroke-width:2 }
    .CtlPoint { fill:#888888; stroke:none }
    .AutoCtlPoint { fill:none; stroke:blue; stroke-width:4 }
    .Label { font-size:22; font-family:Verdana }
  ]]></style>

  <rect class="Border" x="1" y="1" width="498" height="398" />

  <polyline class="Connect" points="100,200 100,100" />
  <polyline class="Connect" points="250,100 250,200" />
  <polyline class="Connect" points="250,200 250,300" />
  <polyline class="Connect" points="400,300 400,200" />
  <path class="SamplePath" d="M100,200 C100,100 250,100 250,200
                                       S400,300 400,200" />
  <circle class="EndPoint" cx="100" cy="200" r="10" />
  <circle class="EndPoint" cx="250" cy="200" r="10" />
  <circle class="EndPoint" cx="400" cy="200" r="10" />
  <circle class="CtlPoint" cx="100" cy="100" r="10" />
  <circle class="CtlPoint" cx="250" cy="100" r="10" />
  <circle class="CtlPoint" cx="400" cy="300" r="10" />
  <circle class="AutoCtlPoint" cx="250" cy="300" r="9" />
  <text class="Label" x="25" y="70">M100,200 C100,100 250,100 250,200</text>
  <text class="Label" x="325" y="350"
        style="text-anchor:middle">S400,300 400,200</text>
</svg>

Example cubic01

View this example as SVG (SVG-enabled browsers only)

The following picture shows some how cubic Bézier curves change their shape depending on the position of the control points. The first five examples illustrate a single cubic Bézier path segment. The example at the lower right shows a "C" command followed by an "S" command.

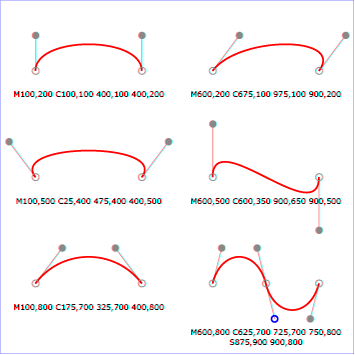

Example cubic02 - cubic Bézier commands in path data

View this example as SVG (SVG-enabled browsers only)

8.3.6. The quadratic Bézier curve commands

The quadratic Bézier commands are as follows:

Command	Name	Parameters	Description
Q (absolute) q (relative)	quadratic Bézier curveto	(x1 y1 x y)+	Draws a quadratic Bézier curve from the current point to (x,y) using (x1,y1) as the control point. Q (uppercase) indicates that absolute coordinates will follow; q (lowercase) indicates that relative coordinates will follow. Multiple sets of coordinates may be specified to draw a polybézier. At the end of the command, the new current point becomes the final (x,y) coordinate pair used in the polybézier.
T (absolute) t (relative)	Shorthand/smooth quadratic Bézier curveto	(x y)+	Draws a quadratic Bézier curve from the current point to (x,y). The control point is assumed to be the reflection of the control point on the previous command relative to the current point. (If there is no previous command or if the previous command was not a Q, q, T or t, assume the control point is coincident with the current point.) T (uppercase) indicates that absolute coordinates will follow; t (lowercase) indicates that relative coordinates will follow. At the end of the command, the new current point becomes the final (x,y) coordinate pair used in the polybézier.

When a relative q or t command is used, each of the relative coordinate pairs is computed as for those in an m command. For example, the final control point of the curve of both commands is (cpx + x cos cb + y sin cb, cpy + x sin cb + y cos cb).

Example quad01 shows some simple uses of quadratic Bézier commands within a path. Note that the control point for the "T" command is computed automatically as the reflection of the control point for the previous "Q" command relative to the start point of the "T" command.

<?xml version="1.0" standalone="no"?>
<svg width="12cm" height="6cm" viewBox="0 0 1200 600"
     xmlns="http://www.w3.org/2000/svg" version="1.1">
  <title>Example quad01 - quadratic Bézier commands in path data</title>
  <desc>Picture showing a "Q" a "T" command,
        along with annotations showing the control points
        and end points</desc>
  <rect x="1" y="1" width="1198" height="598"
        fill="none" stroke="blue" stroke-width="1" />

  <path d="M200,300 Q400,50 600,300 T1000,300"
        fill="none" stroke="red" stroke-width="5"  />
  <!-- End points -->
  <g fill="black" >
    <circle cx="200" cy="300" r="10"/>
    <circle cx="600" cy="300" r="10"/>
    <circle cx="1000" cy="300" r="10"/>
  </g>
  <!-- Control points and lines from end points to control points -->
  <g fill="#888888" >
    <circle cx="400" cy="50" r="10"/>
    <circle cx="800" cy="550" r="10"/>
  </g>
  <path d="M200,300 L400,50 L600,300
           L800,550 L1000,300"
        fill="none" stroke="#888888" stroke-width="2" />
</svg>

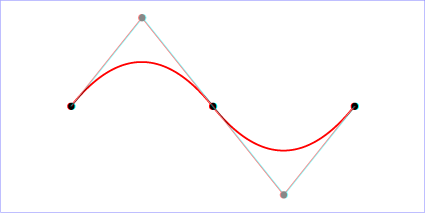

Example quad01

View this example as SVG (SVG-enabled browsers only)

8.3.7. The elliptical arc curve commands

SVG 2 Requirement:	Make it simpler to draw arcs in SVG path syntax.
Resolution:	Make arcs in paths easier.
Purpose:	To make it easier for authors to write path data with arcs by hand.
Owner:	Cameron (ACTION-3151)

The elliptical arc commands are as follows:

Command	Name	Parameters	Description
A (absolute) a (relative)	elliptical arc	(rx ry x-axis-rotation large-arc-flag sweep-flag x y)+	Draws an elliptical arc from the current point to (x, y). The size and orientation of the ellipse are defined by two radii (rx, ry) and an x-axis-rotation, which indicates how the ellipse as a whole is rotated relative to the current coordinate system. The center (cx, cy) of the ellipse is calculated automatically to satisfy the constraints imposed by the other parameters. large-arc-flag and sweep-flag contribute to the automatic calculations and help determine how the arc is drawn.

When a relative a command is used, the end point of the arc is (cpx + x cos cb + y sin cb, cpy + x sin cb + y cos cb). The effective value of the x-axis-rotation parameter is also affected by the current bearing: it is computed as x-axis-rotation + cb.

Example arcs01 shows some simple uses of arc commands within a path.

<?xml version="1.0" standalone="no"?>
<svg width="12cm" height="5.25cm" viewBox="0 0 1200 400"
     xmlns="http://www.w3.org/2000/svg" version="1.1">
  <title>Example arcs01 - arc commands in path data</title>
  <desc>Picture of a pie chart with two pie wedges and
        a picture of a line with arc blips</desc>
  <rect x="1" y="1" width="1198" height="398"
        fill="none" stroke="blue" stroke-width="1" />

  <path d="M300,200 h-150 a150,150 0 1,0 150,-150 z"
        fill="red" stroke="blue" stroke-width="5" />
  <path d="M275,175 v-150 a150,150 0 0,0 -150,150 z"
        fill="yellow" stroke="blue" stroke-width="5" />

  <path d="M600,350 l 50,-25
           a25,25 -30 0,1 50,-25 l 50,-25
           a25,50 -30 0,1 50,-25 l 50,-25
           a25,75 -30 0,1 50,-25 l 50,-25
           a25,100 -30 0,1 50,-25 l 50,-25"
        fill="none" stroke="red" stroke-width="5"  />
</svg>

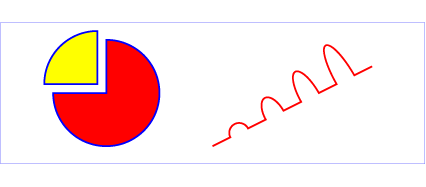

Example arcs01

View this example as SVG (SVG-enabled browsers only)

The elliptical arc command draws a section of an ellipse which meets the following constraints:

the arc starts at the current point
the arc ends at point (x, y)
the ellipse has the two radii (rx, ry)
the x-axis of the ellipse is rotated by x-axis-rotation relative to the x-axis of the current coordinate system.

For most situations, there are actually four different arcs (two different ellipses, each with two different arc sweeps) that satisfy these constraints. large-arc-flag and sweep-flag indicate which one of the four arcs are drawn, as follows:

Of the four candidate arc sweeps, two will represent an arc sweep of greater than or equal to 180 degrees (the "large-arc"), and two will represent an arc sweep of less than or equal to 180 degrees (the "small-arc"). If large-arc-flag is '1', then one of the two larger arc sweeps will be chosen; otherwise, if large-arc-flag is '0', one of the smaller arc sweeps will be chosen,
If sweep-flag is '1', then the arc will be drawn in a "positive-angle" direction (i.e., the ellipse formula x=cx+rx*cos(theta) and y=cy+ry*sin(theta) is evaluated such that theta starts at an angle corresponding to the current point and increases positively until the arc reaches (x,y)). A value of 0 causes the arc to be drawn in a "negative-angle" direction (i.e., theta starts at an angle value corresponding to the current point and decreases until the arc reaches (x,y)).

The following illustrates the four combinations of large-arc-flag and sweep-flag and the four different arcs that will be drawn based on the values of these flags. For each case, the following path data command was used:

<path d="M 125,75 a100,50 0 ?,? 100,50"
      style="fill:none; stroke:red; stroke-width:6"/>

where "?,?" is replaced by "0,0" "0,1" "1,0" and "1,1" to generate the four possible cases.

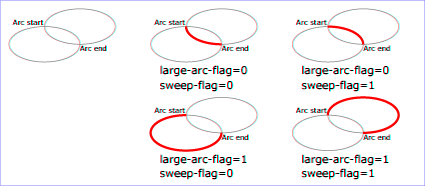

Illustration of flags in arc commands

View this example as SVG (SVG-enabled browsers only)

Refer to Elliptical arc implementation notes for detailed implementation notes for the path data elliptical arc commands.

8.3.8. The grammar for path data

Update for new 'Z'/'z' behavior.

SVG path data matches the following EBNF grammar.

svg-path:
    wsp* moveto-drawto-command-groups? wsp*
moveto-drawto-command-groups:
    moveto-drawto-command-group
    | moveto-drawto-command-group wsp* moveto-drawto-command-groups
moveto-drawto-command-group:
    moveto wsp* drawto-commands?
drawto-commands:
    drawto-command
    | drawto-command wsp* drawto-commands
drawto-command:
    closepath
    | lineto
    | horizontal-lineto
    | vertical-lineto
    | curveto
    | smooth-curveto
    | quadratic-bezier-curveto
    | smooth-quadratic-bezier-curveto
    | elliptical-arc
    | bearing
moveto:
    ( "M" | "m" ) wsp* moveto-argument-sequence
moveto-argument-sequence:
    coordinate-pair
    | coordinate-pair comma-wsp? lineto-argument-sequence
closepath:
    ("Z" | "z")
lineto:
    ( "L" | "l" ) wsp* lineto-argument-sequence
lineto-argument-sequence:
    coordinate-pair
    | coordinate-pair comma-wsp? lineto-argument-sequence
horizontal-lineto:
    ( "H" | "h" ) wsp* horizontal-lineto-argument-sequence
horizontal-lineto-argument-sequence:
    coordinate
    | coordinate comma-wsp? horizontal-lineto-argument-sequence
vertical-lineto:
    ( "V" | "v" ) wsp* vertical-lineto-argument-sequence
vertical-lineto-argument-sequence:
    coordinate
    | coordinate comma-wsp? vertical-lineto-argument-sequence
curveto:
    ( "C" | "c" ) wsp* curveto-argument-sequence
curveto-argument-sequence:
    curveto-argument
    | curveto-argument comma-wsp? curveto-argument-sequence
curveto-argument:
    coordinate-pair comma-wsp? coordinate-pair comma-wsp? coordinate-pair
smooth-curveto:
    ( "S" | "s" ) wsp* smooth-curveto-argument-sequence
smooth-curveto-argument-sequence:
    smooth-curveto-argument
    | smooth-curveto-argument comma-wsp? smooth-curveto-argument-sequence
smooth-curveto-argument:
    coordinate-pair comma-wsp? coordinate-pair
quadratic-bezier-curveto:
    ( "Q" | "q" ) wsp* quadratic-bezier-curveto-argument-sequence
quadratic-bezier-curveto-argument-sequence:
    quadratic-bezier-curveto-argument
    | quadratic-bezier-curveto-argument comma-wsp?
        quadratic-bezier-curveto-argument-sequence
quadratic-bezier-curveto-argument:
    coordinate-pair comma-wsp? coordinate-pair
smooth-quadratic-bezier-curveto:
    ( "T" | "t" ) wsp* smooth-quadratic-bezier-curveto-argument-sequence
smooth-quadratic-bezier-curveto-argument-sequence:
    coordinate-pair
    | coordinate-pair comma-wsp? smooth-quadratic-bezier-curveto-argument-sequence
elliptical-arc:
    ( "A" | "a" ) wsp* elliptical-arc-argument-sequence
elliptical-arc-argument-sequence:
    elliptical-arc-argument
    | elliptical-arc-argument comma-wsp? elliptical-arc-argument-sequence
elliptical-arc-argument:
    number comma-wsp? number comma-wsp?
        number comma-wsp flag comma-wsp? flag comma-wsp? coordinate-pair
bearing:
    ( "B" | "b" ) wsp* bearing-argument-sequence
bearing-argument-sequence:
    number
    | number comma-wsp? bearing-argument-sequence
coordinate-pair:
    coordinate comma-wsp? coordinate
coordinate:
    number
nonnegative-number:
    integer-constant
    | floating-point-constant
number:
    sign? integer-constant
    | sign? floating-point-constant
flag:
    "0" | "1"
integer-constant:
    digit-sequence
floating-point-constant:
    fractional-constant exponent?
    | digit-sequence exponent
fractional-constant:
    digit-sequence? "." digit-sequence
    | digit-sequence "."
exponent:
    ( "e" | "E" ) sign? digit-sequence
sign:
    "+" | "-"
digit-sequence:
    digit
    | digit digit-sequence
digit:
    "0" | "1" | "2" | "3" | "4" | "5" | "6" | "7" | "8" | "9"

The processing of the BNF must consume as much of a given BNF production as possible, stopping at the point when a character is encountered which no longer satisfies the production. Thus, in the string "M 100-200", the first coordinate for the "moveto" consumes the characters "100" and stops upon encountering the minus sign because the minus sign cannot follow a digit in the production of a "coordinate". The result is that the first coordinate will be "100" and the second coordinate will be "-200".

Similarly, for the string "M 0.6.5", the first coordinate of the "moveto" consumes the characters "0.6" and stops upon encountering the second decimal point because the production of a "coordinate" only allows one decimal point. The result is that the first coordinate will be "0.6" and the second coordinate will be ".5".

Note that the BNF allows the path ‘d’ attribute to be empty. This is not an error, instead it disables rendering of the path.

If path data not matching the grammar is encountered, then the path data is in error (see Error Handling).

8.4. Implementation notes

8.4.1. Error handling in path data

A conforming SVG user agent must implement path rendering as follows:

Error handling:
- The general rule for error handling in path data is that the SVG user agent shall render a ‘path’ element up to (but not including) the path command containing the first error in the path data specification. This will provide a visual clue to the user or developer about where the error might be in the path data specification. This rule will greatly discourage generation of invalid SVG path data.
- If a path data command contains an incorrect set of parameters, then the given path data command is rendered up to and including the last correctly defined path segment, even if that path segment is a sub-component of a compound path data command, such as a "lineto" with several pairs of coordinates. For example, for the path data string 'M 10,10 L 20,20,30', there is an odd number of parameters for the "L" command, which requires an even number of parameters. The user agent is required to draw the line from (10,10) to (20,20) and then perform error reporting since 'L 20 20' is the last correctly defined segment of the path data specification.
- Wherever possible, all SVG user agents shall report all errors to the user.
Markers, directionality and zero-length path segments:
- If markers are specified, then a marker is drawn on every applicable vertex, even if the given vertex is the end point of a zero-length path segment and even if "moveto" commands follow each other.
- Certain line-capping and line-joining situations and markers require that a path segment have directionality at its start and end points. Zero-length path segments have no directionality. In these cases, the following algorithm is used to establish directionality: to determine the directionality of the start point of a zero-length path segment, go backwards in the path data specification within the current subpath until you find a segment which has directionality at its end point (e.g., a path segment with non-zero length) and use its ending direction; otherwise, temporarily consider the start point to lack directionality. Similarly, to determine the directionality of the end point of a zero-length path segment, go forwards in the path data specification within the current subpath until you find a segment which has directionality at its start point (e.g., a path segment with non-zero length) and use its starting direction; otherwise, temporarily consider the end point to lack directionality. If the start point has directionality but the end point doesn't, then the end point uses the start point's directionality. If the end point has directionality but the start point doesn't, then the start point uses the end point's directionality. Otherwise, set the directionality for the path segment's start and end points to align with the positive x-axis in local coordinate system.
- As mentioned in Stroke Properties, linecaps must be painted for zero length subpaths when ‘stroke-linecap’ has a value of round or square.
The S/s commands indicate that the first control point of the given cubic Bézier segment is calculated by reflecting the previous path segments second control point relative to the current point. The exact math is as follows. If the current point is (curx, cury) and the second control point of the previous path segment is (oldx2, oldy2), then the reflected point (i.e., (newx1, newy1), the first control point of the current path segment) is:
```
(newx1, newy1) = (curx - (oldx2 - curx), cury - (oldy2 - cury))
               = (2*curx - oldx2, 2*cury - oldy2)
```
A non-positive radius value is an error.
Unrecognized contents within a path data stream (i.e., contents that are not part of the path data grammar) is an error.

8.5. Distance along a path

Various operations, including text on a path and motion animation and various stroke operations, require that the user agent compute the distance along the geometry of a graphics element, such as a ‘path’.

Exact mathematics exist for computing distance along a path, but the formulas are highly complex and require substantial computation. It is recommended that authoring products and user agents employ algorithms that produce as precise results as possible; however, to accommodate implementation differences and to help distance calculations produce results that approximate author intent, the ‘pathLength’ attribute can be used to provide the author's computation of the total length of the path so that the user agent can scale distance-along-a-path computations by the ratio of ‘pathLength’ to the user agent's own computed value for total path length.

A "moveto" or "bearing" operation within a ‘path’ element is defined to have zero length. Only the various "lineto", "curveto" and "arcto" commands contribute to path length calculations.

8.6. DOM interfaces

8.6.1. Interface SVGPathElement

An SVGPathElement object represents a ‘path’ in the DOM.

interface SVGPathElement : SVGGeometryElement {

  [SameObject] readonly attribute SVGAnimatedNumber pathLength;

  float getTotalLength();
  DOMPoint getPointAtLength(float distance);
};

The pathLength IDL attribute reflects the ‘pathLength’ content attribute.

The getTotalLength method is used to compute the length of the path. When getTotalLength() is called, the user agent's computed value for the total length of the path, in user units, is returned.

The user agent's computed path length does not take the ‘pathLength’ attribute into account.

The getPointAtLength method is used to return the point at a given distance along the path. When getPointAtLength(distance) is called, the following steps are run:

Let length be the user agent's computed value for the total length of the path, in user units.
As with getTotalLength, this does not take into account the ‘pathLength’ attribute.
Clamp distance to [0, length].
Let (x, y) be the point on the path at distance distance.
Return a newly created, detached DOMPoint object representing the point (x, y).

Chapter 9: Basic Shapes

9.1. Introduction and definitions

basic shape
shape
shape elements: A graphics element that is defined by some combination of straight lines and curves. Specifically: ‘circle’, ‘ellipse’, ‘line’, ‘path’, ‘polygon’, ‘polyline’ and ‘rect’.

SVG contains the following set of basic shape elements:

rectangles (including optional rounded corners), created with the ‘rect’ element,
circles, created with the ‘circle’ element,
ellipses, created with the ‘ellipse’ element,
straight lines, created with the ‘line’ element,
polylines, created with the ‘polyline’ element, and
polygons, created with the ‘polygon’ element.

Mathematically, these shape elements are equivalent to a ‘path’ element that would construct the same shape. The basic shapes may be stroked, filled and used as clip paths. All of the properties available for ‘path’ elements also apply to the basic shapes.

The equivalent path and algorithm to compute the stroke for each shape are defined in the shape sections below.

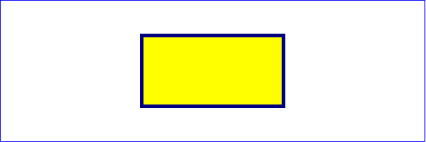

9.2. The ‘rect’ element

The ‘rect’ element defines a rectangle which is axis-aligned with the current local coordinate system. Rounded rectangles can be achieved by setting appropriate values for attributes ‘rx’ and ‘ry’.

‘rect’

Categories:

Graphics element, shape element

Content model:

Any number of the following elements, in any order:

animation elements — ‘animate’, ‘animateMotion’, ‘animateTransform’, ‘discard’, ‘set’
descriptive elements — ‘desc’, ‘title’, ‘metadata’
paint server elements — ‘solidcolor’, ‘linearGradient’, ‘radialGradient’, ‘mesh’, ‘pattern’, ‘hatch’

View this example as SVG (SVG-enabled browsers only)

Attributes:

aria attributes — ‘aria-activedescendant’, ‘aria-atomic’, ‘aria-autocomplete’, ‘aria-busy’, ‘aria-checked’, ‘aria-colcount’, ‘aria-colindex’, ‘aria-colspan’, ‘aria-controls’, ‘aria-current’, ‘aria-describedat’, ‘aria-describedby’, ‘aria-disabled’, ‘aria-dropeffect’, ‘aria-expanded’, ‘aria-flowto’, ‘aria-grabbed’, ‘aria-haspopup’, ‘aria-hidden’, ‘aria-invalid’, ‘aria-label’, ‘aria-labelledby’, ‘aria-level’, ‘aria-live’, ‘aria-modal’, ‘aria-multiline’, ‘aria-multiselectable’, ‘aria-orientation’, ‘aria-owns’, ‘aria-placeholder’, ‘aria-posinset’, ‘aria-pressed’, ‘aria-readonly’, ‘aria-relevant’, ‘aria-required’, ‘aria-rowcount’, ‘aria-rowindex’, ‘aria-rowspan’, ‘aria-selected’, ‘aria-setsize’, ‘aria-sort’, ‘aria-valuemax’, ‘aria-valuemin’, ‘aria-valuenow’, ‘aria-valuetext’, ‘role’
conditional processing attributes — ‘requiredExtensions’, ‘systemLanguage’
core attributes — ‘id’, ‘tabindex’, ‘lang’, ‘xml:space’
global event attributes — ‘oncancel’, ‘oncanplay’, ‘oncanplaythrough’, ‘onchange’, ‘onclick’, ‘onclose’, ‘oncuechange’, ‘ondblclick’, ‘ondrag’, ‘ondragend’, ‘ondragenter’, ‘ondragexit’, ‘ondragleave’, ‘ondragover’, ‘ondragstart’, ‘ondrop’, ‘ondurationchange’, ‘onemptied’, ‘onended’, ‘onerror’, ‘onfocus’, ‘oninput’, ‘oninvalid’, ‘onkeydown’, ‘onkeypress’, ‘onkeyup’, ‘onload’, ‘onloadeddata’, ‘onloadedmetadata’, ‘onloadstart’, ‘onmousedown’, ‘onmouseenter’, ‘onmouseleave’, ‘onmousemove’, ‘onmouseout’, ‘onmouseover’, ‘onmouseup’, ‘onmousewheel’, ‘onpause’, ‘onplay’, ‘onplaying’, ‘onprogress’, ‘onratechange’, ‘onreset’, ‘onresize’, ‘onscroll’, ‘onseeked’, ‘onseeking’, ‘onselect’, ‘onshow’, ‘onstalled’, ‘onsubmit’, ‘onsuspend’, ‘ontimeupdate’, ‘ontoggle’, ‘onvolumechange’, ‘onwaiting’
graphical event attributes — ‘onfocusin’, ‘onfocusout’
presentation attributes —
style attributes — ‘class’, ‘style’

Geometry properties:

‘x’
‘y’
‘width’
‘height’
‘rx’
‘ry’

DOM Interfaces:

SVGRectElement

The ‘x’ and ‘y’ coordinates refer to the left and top edges of the rectangle, in the current user coordinate system.

The ‘width’ and ‘height’ of the rectangle. A negative value for either attribute is an error (see Error processing). A value of zero for either attribute disables rendering of the element.

For rounded rectangles, the x- and y-axis radii of the ellipse used to round off the corners of the rectangle. A negative value for either attribute is an error (see Error processing).

The values used for the x- and y-axis rounded corner radii are determined implicitly if the ‘rx’ or ‘ry’ attributes (or both) are not specified, or are specified but with invalid values. The values are also subject to clamping so that the lengths of the straight segments of the rectangle are never negative. The effective values for ‘rx’ and ‘ry’ are determined by following these steps in order:

Let rx and ry be length values.
If neither ‘rx’ nor ‘ry’ are properly specified, then set both rx and ry to 0. (This will result in square corners.)
Otherwise, if a properly specified value is provided for ‘rx’, but not for ‘ry’, then set both rx and ry to the value of ‘rx’.
Otherwise, if a properly specified value is provided for ‘ry’, but not for ‘rx’, then set both rx and ry to the value of ‘ry’.
Otherwise, both ‘rx’ and ‘ry’ were specified properly. Set rx to the value of ‘rx’ and ry to the value of ‘ry’.
If rx is greater than half of ‘width’, then set rx to half of ‘width’.
If ry is greater than half of ‘height’, then set ry to half of ‘height’.
The effective values of ‘rx’ and ‘ry’ are rx and ry, respectively.

Mathematically, a ‘rect’ element is mapped to an equivalent ‘path’ element as follows: (Note: all coordinate and length values are first converted into local coordinate system coordinates according to Units.)

perform an absolute moveto operation to location (x+rx,y), where x is the value of the ‘rect’ element's ‘x’ attribute converted to user space, rx is the effective value of the ‘rx’ attribute converted to local coordinate system and y is the value of the ‘y’ attribute converted to local coordinate system
perform an absolute horizontal lineto operation to location (x+width-rx,y), where width is the ‘rect’ element's ‘width’ attribute converted to user space
perform an absolute elliptical arc operation to coordinate (x+width,y+ry), where the effective values for the ‘rx’ and ‘ry’ attributes on the ‘rect’ element converted to local coordinate system are used as the rx and ry attributes on the elliptical arc command, respectively, the x-axis-rotation is set to zero, the large-arc-flag is set to zero, and the sweep-flag is set to one
perform a absolute vertical lineto to location (x+width,y+height-ry), where height is the ‘rect’ element's ‘height’ attribute converted to user space
perform an absolute elliptical arc operation to coordinate (x+width-rx,y+height)
perform an absolute horizontal lineto to location (x+rx,y+height)
perform an absolute elliptical arc operation to coordinate (x,y+height-ry)
perform an absolute absolute vertical lineto to location (x,y+ry)
perform an absolute elliptical arc operation to coordinate (x+rx,y)

Path decomposition resolved during teleconference on June 3rd, 2013.

Example rect01 shows a rectangle with sharp corners. The ‘rect’ element is filled with yellow and stroked with navy.

<?xml version="1.0" standalone="no"?>
<svg width="12cm" height="4cm" viewBox="0 0 1200 400"
     xmlns="http://www.w3.org/2000/svg" version="1.1">
  <desc>Example rect01 - rectangle with sharp corners</desc>

  <!-- Show outline of canvas using 'rect' element -->
  <rect x="1" y="1" width="1198" height="398"
        fill="none" stroke="blue" stroke-width="2"/>

  <rect x="400" y="100" width="400" height="200"
        fill="yellow" stroke="navy" stroke-width="10"  />
</svg>

Example rect01

Example rect02 shows two rounded rectangles. The ‘rx’ specifies how to round the corners of the rectangles. Note that since no value has been specified for the ‘ry’ attribute, it will be assigned the same value as the ‘rx’ attribute.

<?xml version="1.0" standalone="no"?>
<svg width="12cm" height="4cm" viewBox="0 0 1200 400"
     xmlns="http://www.w3.org/2000/svg" version="1.1">
  <desc>Example rect02 - rounded rectangles</desc>

  <!-- Show outline of canvas using 'rect' element -->
  <rect x="1" y="1" width="1198" height="398"
        fill="none" stroke="blue" stroke-width="2"/>

  <rect x="100" y="100" width="400" height="200" rx="50"
        fill="green" />

  <g transform="translate(700 210) rotate(-30)">
    <rect x="0" y="0" width="400" height="200" rx="50"
          fill="none" stroke="purple" stroke-width="30" />
  </g>
</svg>

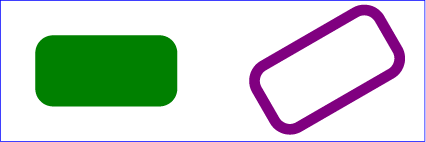

Example rect02

View this example as SVG (SVG-enabled browsers only)

9.3. The ‘circle’ element

The ‘circle’ element defines a circle based on a center point and a radius.

‘circle’

Categories:

Graphics element, shape element

Content model:

Any number of the following elements, in any order:

animation elements — ‘animate’, ‘animateMotion’, ‘animateTransform’, ‘discard’, ‘set’
descriptive elements — ‘desc’, ‘title’, ‘metadata’
paint server elements — ‘solidcolor’, ‘linearGradient’, ‘radialGradient’, ‘mesh’, ‘pattern’, ‘hatch’

View this example as SVG (SVG-enabled browsers only)

Attributes:

aria attributes — ‘aria-activedescendant’, ‘aria-atomic’, ‘aria-autocomplete’, ‘aria-busy’, ‘aria-checked’, ‘aria-colcount’, ‘aria-colindex’, ‘aria-colspan’, ‘aria-controls’, ‘aria-current’, ‘aria-describedat’, ‘aria-describedby’, ‘aria-disabled’, ‘aria-dropeffect’, ‘aria-expanded’, ‘aria-flowto’, ‘aria-grabbed’, ‘aria-haspopup’, ‘aria-hidden’, ‘aria-invalid’, ‘aria-label’, ‘aria-labelledby’, ‘aria-level’, ‘aria-live’, ‘aria-modal’, ‘aria-multiline’, ‘aria-multiselectable’, ‘aria-orientation’, ‘aria-owns’, ‘aria-placeholder’, ‘aria-posinset’, ‘aria-pressed’, ‘aria-readonly’, ‘aria-relevant’, ‘aria-required’, ‘aria-rowcount’, ‘aria-rowindex’, ‘aria-rowspan’, ‘aria-selected’, ‘aria-setsize’, ‘aria-sort’, ‘aria-valuemax’, ‘aria-valuemin’, ‘aria-valuenow’, ‘aria-valuetext’, ‘role’
conditional processing attributes — ‘requiredExtensions’, ‘systemLanguage’
core attributes — ‘id’, ‘tabindex’, ‘lang’, ‘xml:space’
global event attributes — ‘oncancel’, ‘oncanplay’, ‘oncanplaythrough’, ‘onchange’, ‘onclick’, ‘onclose’, ‘oncuechange’, ‘ondblclick’, ‘ondrag’, ‘ondragend’, ‘ondragenter’, ‘ondragexit’, ‘ondragleave’, ‘ondragover’, ‘ondragstart’, ‘ondrop’, ‘ondurationchange’, ‘onemptied’, ‘onended’, ‘onerror’, ‘onfocus’, ‘oninput’, ‘oninvalid’, ‘onkeydown’, ‘onkeypress’, ‘onkeyup’, ‘onload’, ‘onloadeddata’, ‘onloadedmetadata’, ‘onloadstart’, ‘onmousedown’, ‘onmouseenter’, ‘onmouseleave’, ‘onmousemove’, ‘onmouseout’, ‘onmouseover’, ‘onmouseup’, ‘onmousewheel’, ‘onpause’, ‘onplay’, ‘onplaying’, ‘onprogress’, ‘onratechange’, ‘onreset’, ‘onresize’, ‘onscroll’, ‘onseeked’, ‘onseeking’, ‘onselect’, ‘onshow’, ‘onstalled’, ‘onsubmit’, ‘onsuspend’, ‘ontimeupdate’, ‘ontoggle’, ‘onvolumechange’, ‘onwaiting’
graphical event attributes — ‘onfocusin’, ‘onfocusout’
presentation attributes —
style attributes — ‘class’, ‘style’

Geometry properties:

‘cx’
‘cy’
‘r’

DOM Interfaces:

SVGCircleElement

The ‘cx’ and ‘cy’ attributes define the coordinates of the center of the circle.

The ‘r’ attribute defines the radius of the circle. A negative value is an error (see Error processing). A value of zero disables rendering of the element.

Mathematically, a ‘circle’ element is mapped to an equivalent ‘path’ element that consists of four elliptical arc segments, each covering a quarter of the circle. The path begins at the "3 o'clock" point on the radius and proceeds in a clock-wise direction (before any transformations).

Path decomposition resolved during teleconference on June 3rd, 2013.

Example circle01 consists of a ‘circle’ element that is filled with red and stroked with blue.

<?xml version="1.0" standalone="no"?>
<svg width="12cm" height="4cm" viewBox="0 0 1200 400"
     xmlns="http://www.w3.org/2000/svg" version="1.1">
  <desc>Example circle01 - circle filled with red and stroked with blue</desc>

  <!-- Show outline of canvas using 'rect' element -->
  <rect x="1" y="1" width="1198" height="398"
        fill="none" stroke="blue" stroke-width="2"/>

  <circle cx="600" cy="200" r="100"
        fill="red" stroke="blue" stroke-width="10"  />
</svg>

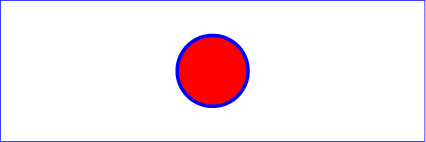

Example circle01

9.4. The ‘ellipse’ element

The ‘ellipse’ element defines an ellipse which is axis-aligned with the current local coordinate system based on a center point and two radii.

‘ellipse’

Categories:

Graphics element, shape element

Content model:

Any number of the following elements, in any order:

animation elements — ‘animate’, ‘animateMotion’, ‘animateTransform’, ‘discard’, ‘set’
descriptive elements — ‘desc’, ‘title’, ‘metadata’
paint server elements — ‘solidcolor’, ‘linearGradient’, ‘radialGradient’, ‘mesh’, ‘pattern’, ‘hatch’

View this example as SVG (SVG-enabled browsers only)

Attributes:

aria attributes — ‘aria-activedescendant’, ‘aria-atomic’, ‘aria-autocomplete’, ‘aria-busy’, ‘aria-checked’, ‘aria-colcount’, ‘aria-colindex’, ‘aria-colspan’, ‘aria-controls’, ‘aria-current’, ‘aria-describedat’, ‘aria-describedby’, ‘aria-disabled’, ‘aria-dropeffect’, ‘aria-expanded’, ‘aria-flowto’, ‘aria-grabbed’, ‘aria-haspopup’, ‘aria-hidden’, ‘aria-invalid’, ‘aria-label’, ‘aria-labelledby’, ‘aria-level’, ‘aria-live’, ‘aria-modal’, ‘aria-multiline’, ‘aria-multiselectable’, ‘aria-orientation’, ‘aria-owns’, ‘aria-placeholder’, ‘aria-posinset’, ‘aria-pressed’, ‘aria-readonly’, ‘aria-relevant’, ‘aria-required’, ‘aria-rowcount’, ‘aria-rowindex’, ‘aria-rowspan’, ‘aria-selected’, ‘aria-setsize’, ‘aria-sort’, ‘aria-valuemax’, ‘aria-valuemin’, ‘aria-valuenow’, ‘aria-valuetext’, ‘role’
conditional processing attributes — ‘requiredExtensions’, ‘systemLanguage’
core attributes — ‘id’, ‘tabindex’, ‘lang’, ‘xml:space’
global event attributes — ‘oncancel’, ‘oncanplay’, ‘oncanplaythrough’, ‘onchange’, ‘onclick’, ‘onclose’, ‘oncuechange’, ‘ondblclick’, ‘ondrag’, ‘ondragend’, ‘ondragenter’, ‘ondragexit’, ‘ondragleave’, ‘ondragover’, ‘ondragstart’, ‘ondrop’, ‘ondurationchange’, ‘onemptied’, ‘onended’, ‘onerror’, ‘onfocus’, ‘oninput’, ‘oninvalid’, ‘onkeydown’, ‘onkeypress’, ‘onkeyup’, ‘onload’, ‘onloadeddata’, ‘onloadedmetadata’, ‘onloadstart’, ‘onmousedown’, ‘onmouseenter’, ‘onmouseleave’, ‘onmousemove’, ‘onmouseout’, ‘onmouseover’, ‘onmouseup’, ‘onmousewheel’, ‘onpause’, ‘onplay’, ‘onplaying’, ‘onprogress’, ‘onratechange’, ‘onreset’, ‘onresize’, ‘onscroll’, ‘onseeked’, ‘onseeking’, ‘onselect’, ‘onshow’, ‘onstalled’, ‘onsubmit’, ‘onsuspend’, ‘ontimeupdate’, ‘ontoggle’, ‘onvolumechange’, ‘onwaiting’
graphical event attributes — ‘onfocusin’, ‘onfocusout’
presentation attributes —
style attributes — ‘class’, ‘style’

Geometry properties:

‘cx’
‘cy’
‘rx’
‘ry’

DOM Interfaces:

SVGEllipseElement

The ‘cx’ and ‘cy’ coordinates define the center of the ellipse.

The ‘cx’ and ‘cy’ attributes define the x- and y-axis radii of the ellipse. A negative value for either attribute is an error (see Error processing). A value of zero disables rendering of the element.

Mathematically, an ‘ellipse’ element is mapped to an equivalent ‘path’ element that consists of four elliptical arc segments, each covering a quarter of the ellipse. The path begins at the "3 o'clock" point on the radius and proceeds in a clock-wise direction (before any transformation).

Path decomposition resolved during teleconference on June 3rd, 2013.

Example ellipse01 below specifies the coordinates of the two ellipses in the user coordinate system established by the ‘viewBox’ attribute on the ‘svg’ element and the ‘transform’ property on the ‘g’ and ‘ellipse’ elements. Both ellipses use the default values of zero for the ‘cx’ and ‘cy’ attributes (the center of the ellipse). The second ellipse is rotated.

<?xml version="1.0" standalone="no"?>
<svg width="12cm" height="4cm" viewBox="0 0 1200 400"
     xmlns="http://www.w3.org/2000/svg" version="1.1">
  <desc>Example ellipse01 - examples of ellipses</desc>

  <!-- Show outline of canvas using 'rect' element -->
  <rect x="1" y="1" width="1198" height="398"
        fill="none" stroke="blue" stroke-width="2" />

  <g transform="translate(300 200)">
    <ellipse rx="250" ry="100"
          fill="red"  />
  </g>

  <ellipse transform="translate(900 200) rotate(-30)"
        rx="250" ry="100"
        fill="none" stroke="blue" stroke-width="20"  />

</svg>

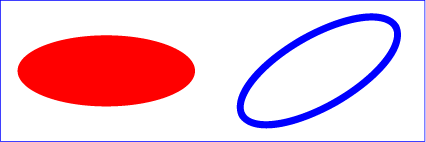

Example ellipse01

9.5. The ‘line’ element

The ‘line’ element defines a line segment that starts at one point and ends at another.

‘line’

Categories:

Content model:

Any number of the following elements, in any order:

animation elements — ‘animate’, ‘animateMotion’, ‘animateTransform’, ‘discard’, ‘set’
descriptive elements — ‘desc’, ‘title’, ‘metadata’
paint server elements — ‘solidcolor’, ‘linearGradient’, ‘radialGradient’, ‘mesh’, ‘pattern’, ‘hatch’

View this example as SVG (SVG-enabled browsers only)

Attributes:

aria attributes — ‘aria-activedescendant’, ‘aria-atomic’, ‘aria-autocomplete’, ‘aria-busy’, ‘aria-checked’, ‘aria-colcount’, ‘aria-colindex’, ‘aria-colspan’, ‘aria-controls’, ‘aria-current’, ‘aria-describedat’, ‘aria-describedby’, ‘aria-disabled’, ‘aria-dropeffect’, ‘aria-expanded’, ‘aria-flowto’, ‘aria-grabbed’, ‘aria-haspopup’, ‘aria-hidden’, ‘aria-invalid’, ‘aria-label’, ‘aria-labelledby’, ‘aria-level’, ‘aria-live’, ‘aria-modal’, ‘aria-multiline’, ‘aria-multiselectable’, ‘aria-orientation’, ‘aria-owns’, ‘aria-placeholder’, ‘aria-posinset’, ‘aria-pressed’, ‘aria-readonly’, ‘aria-relevant’, ‘aria-required’, ‘aria-rowcount’, ‘aria-rowindex’, ‘aria-rowspan’, ‘aria-selected’, ‘aria-setsize’, ‘aria-sort’, ‘aria-valuemax’, ‘aria-valuemin’, ‘aria-valuenow’, ‘aria-valuetext’, ‘role’
conditional processing attributes — ‘requiredExtensions’, ‘systemLanguage’
core attributes — ‘id’, ‘tabindex’, ‘lang’, ‘xml:space’
global event attributes — ‘oncancel’, ‘oncanplay’, ‘oncanplaythrough’, ‘onchange’, ‘onclick’, ‘onclose’, ‘oncuechange’, ‘ondblclick’, ‘ondrag’, ‘ondragend’, ‘ondragenter’, ‘ondragexit’, ‘ondragleave’, ‘ondragover’, ‘ondragstart’, ‘ondrop’, ‘ondurationchange’, ‘onemptied’, ‘onended’, ‘onerror’, ‘onfocus’, ‘oninput’, ‘oninvalid’, ‘onkeydown’, ‘onkeypress’, ‘onkeyup’, ‘onload’, ‘onloadeddata’, ‘onloadedmetadata’, ‘onloadstart’, ‘onmousedown’, ‘onmouseenter’, ‘onmouseleave’, ‘onmousemove’, ‘onmouseout’, ‘onmouseover’, ‘onmouseup’, ‘onmousewheel’, ‘onpause’, ‘onplay’, ‘onplaying’, ‘onprogress’, ‘onratechange’, ‘onreset’, ‘onresize’, ‘onscroll’, ‘onseeked’, ‘onseeking’, ‘onselect’, ‘onshow’, ‘onstalled’, ‘onsubmit’, ‘onsuspend’, ‘ontimeupdate’, ‘ontoggle’, ‘onvolumechange’, ‘onwaiting’
graphical event attributes — ‘onfocusin’, ‘onfocusout’
presentation attributes —
style attributes — ‘class’, ‘style’
‘x1’
‘y1’
‘x2’
‘y2’

DOM Interfaces:

SVGLineElement

Attribute definitions:

Name Value Initial value Animatable x1, y1 <length> | <percentage> | <number> 0 yes: The x- and y-axis coordinates of the start of the line.
Name Value Initial value Animatable x2, y2 <length> | <percentage> | <number> 0 yes: The x- and y-axis coordinates of the end of the line.

Mathematically, a ‘line’ element can be mapped to an equivalent ‘path’ element as follows: (Note: all coordinate and length values are first converted into local coordinate system coordinates according to Units.)

perform an absolute moveto operation to absolute location (x1,y1), where x1 and y1 are the values of the ‘line’ element's ‘x1’ and ‘y1’ attributes converted to local coordinate system, respectively
perform an absolute lineto operation to absolute location (x2,y2), where x2 and y2 are the values of the ‘line’ element's ‘x2’ and ‘y2’ attributes converted to local coordinate system, respectively

Because ‘line’ elements are single lines and thus are geometrically one-dimensional, they have no interior; thus, ‘line’ elements are never filled (see the ‘fill’ property).

Example line01 below specifies the coordinates of the five lines in the user coordinate system established by the ‘viewBox’ attribute on the ‘svg’ element. The lines have different thicknesses.

<?xml version="1.0" standalone="no"?>
<svg width="12cm" height="4cm" viewBox="0 0 1200 400"
     xmlns="http://www.w3.org/2000/svg" version="1.1">
  <desc>Example line01 - lines expressed in user coordinates</desc>

  <!-- Show outline of canvas using 'rect' element -->
  <rect x="1" y="1" width="1198" height="398"
        fill="none" stroke="blue" stroke-width="2" />

  <g stroke="green" >
    <line x1="100" y1="300" x2="300" y2="100"
            stroke-width="5"  />
    <line x1="300" y1="300" x2="500" y2="100"
            stroke-width="10"  />
    <line x1="500" y1="300" x2="700" y2="100"
            stroke-width="15"  />
    <line x1="700" y1="300" x2="900" y2="100"
            stroke-width="20"  />
    <line x1="900" y1="300" x2="1100" y2="100"
            stroke-width="25"  />
  </g>
</svg>

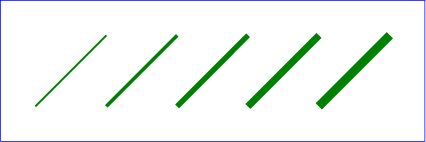

Example line01

9.6. The ‘polyline’ element

The ‘polyline’ element defines a set of connected straight line segments. Typically, ‘polyline’ elements define open shapes.

‘polyline’

Categories:

Content model:

Any number of the following elements, in any order:

animation elements — ‘animate’, ‘animateMotion’, ‘animateTransform’, ‘discard’, ‘set’
descriptive elements — ‘desc’, ‘title’, ‘metadata’
paint server elements — ‘solidcolor’, ‘linearGradient’, ‘radialGradient’, ‘mesh’, ‘pattern’, ‘hatch’

View this example as SVG (SVG-enabled browsers only)

Attributes:

aria attributes — ‘aria-activedescendant’, ‘aria-atomic’, ‘aria-autocomplete’, ‘aria-busy’, ‘aria-checked’, ‘aria-colcount’, ‘aria-colindex’, ‘aria-colspan’, ‘aria-controls’, ‘aria-current’, ‘aria-describedat’, ‘aria-describedby’, ‘aria-disabled’, ‘aria-dropeffect’, ‘aria-expanded’, ‘aria-flowto’, ‘aria-grabbed’, ‘aria-haspopup’, ‘aria-hidden’, ‘aria-invalid’, ‘aria-label’, ‘aria-labelledby’, ‘aria-level’, ‘aria-live’, ‘aria-modal’, ‘aria-multiline’, ‘aria-multiselectable’, ‘aria-orientation’, ‘aria-owns’, ‘aria-placeholder’, ‘aria-posinset’, ‘aria-pressed’, ‘aria-readonly’, ‘aria-relevant’, ‘aria-required’, ‘aria-rowcount’, ‘aria-rowindex’, ‘aria-rowspan’, ‘aria-selected’, ‘aria-setsize’, ‘aria-sort’, ‘aria-valuemax’, ‘aria-valuemin’, ‘aria-valuenow’, ‘aria-valuetext’, ‘role’
conditional processing attributes — ‘requiredExtensions’, ‘systemLanguage’
core attributes — ‘id’, ‘tabindex’, ‘lang’, ‘xml:space’
global event attributes — ‘oncancel’, ‘oncanplay’, ‘oncanplaythrough’, ‘onchange’, ‘onclick’, ‘onclose’, ‘oncuechange’, ‘ondblclick’, ‘ondrag’, ‘ondragend’, ‘ondragenter’, ‘ondragexit’, ‘ondragleave’, ‘ondragover’, ‘ondragstart’, ‘ondrop’, ‘ondurationchange’, ‘onemptied’, ‘onended’, ‘onerror’, ‘onfocus’, ‘oninput’, ‘oninvalid’, ‘onkeydown’, ‘onkeypress’, ‘onkeyup’, ‘onload’, ‘onloadeddata’, ‘onloadedmetadata’, ‘onloadstart’, ‘onmousedown’, ‘onmouseenter’, ‘onmouseleave’, ‘onmousemove’, ‘onmouseout’, ‘onmouseover’, ‘onmouseup’, ‘onmousewheel’, ‘onpause’, ‘onplay’, ‘onplaying’, ‘onprogress’, ‘onratechange’, ‘onreset’, ‘onresize’, ‘onscroll’, ‘onseeked’, ‘onseeking’, ‘onselect’, ‘onshow’, ‘onstalled’, ‘onsubmit’, ‘onsuspend’, ‘ontimeupdate’, ‘ontoggle’, ‘onvolumechange’, ‘onwaiting’
graphical event attributes — ‘onfocusin’, ‘onfocusout’
presentation attributes —
style attributes — ‘class’, ‘style’
‘points’

DOM Interfaces:

SVGPolylineElement

Attribute definitions:

Name Value Initial value Animatable points <points> (none) yes

where:

<points> =

[<number> ,? <number> ,?]+

The points that make up the polyline. All coordinate values are in the user coordinate system.

If an odd number of coordinates is provided, then the element is in error, with the same user agent behavior as occurs with an incorrectly specified ‘path’ element. In such error cases the user agent will drop the last, odd coordinate and otherwise render the shape.

The initial value, (none), indicates that the polyline element is valid but does not render.

Mathematically, a ‘polyline’ element can be mapped to an equivalent ‘path’ element as follows:

perform an absolute moveto operation to the first coordinate pair in the list of points
for each subsequent coordinate pair, perform an absolute lineto operation to that coordinate pair.

Example polyline01 below specifies a polyline in the user coordinate system established by the ‘viewBox’ attribute on the ‘svg’ element.

<?xml version="1.0" standalone="no"?>
<svg width="12cm" height="4cm" viewBox="0 0 1200 400"
     xmlns="http://www.w3.org/2000/svg" version="1.1">
  <desc>Example polyline01 - increasingly larger bars</desc>

  <!-- Show outline of canvas using 'rect' element -->
  <rect x="1" y="1" width="1198" height="398"
        fill="none" stroke="blue" stroke-width="2" />

  <polyline fill="none" stroke="blue" stroke-width="10"
            points="50,375
                    150,375 150,325 250,325 250,375
                    350,375 350,250 450,250 450,375
                    550,375 550,175 650,175 650,375
                    750,375 750,100 850,100 850,375
                    950,375 950,25 1050,25 1050,375
                    1150,375" />
</svg>

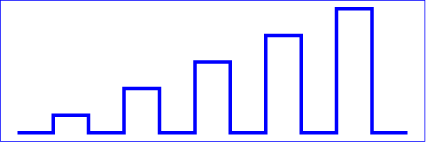

Example polyline01

9.7. The ‘polygon’ element

The ‘polygon’ element defines a closed shape consisting of a set of connected straight line segments.

‘polygon’

Categories:

Content model:

Any number of the following elements, in any order:

animation elements — ‘animate’, ‘animateMotion’, ‘animateTransform’, ‘discard’, ‘set’
descriptive elements — ‘desc’, ‘title’, ‘metadata’
paint server elements — ‘solidcolor’, ‘linearGradient’, ‘radialGradient’, ‘mesh’, ‘pattern’, ‘hatch’
