MicroType® Express (MTX) Font Format

1. Introduction

This document describes the MicroType Express font format. The MicroType Express font compression technology for OpenType TrueType fonts was designed to minimize memory usage for font data storage in resource-constrained environments, where both ROM and RAM memory savings are critical, and build relatively small font files without sacrificing the quality, features and capabilities of TrueType and OpenType fonts. It also minimizes the bandwidth consumption for transmission of font data, which is an important consideration for the web.

The principal goal for the MicroType Express font compression technology was to create a more compact file without losing any information. A two-step process was developed. The first process converts the TTF font into an intermediate form called Compact Table Format, or CTF format. The CTF format is comprised of three separate data blocks. The second process involves further compression using three instances of LZCOMP, a loss-less data compressor, producing three compressed data sets. These three data sets are then merged into a single output file, the MicroType Express font.

The purpose of this document is to provide the necessary information to the reader to compress and decompress a TrueType font. In addition to the details of the CTF format which explain the first step in the MicroType Express conversion, we provide actual sample code for the second step, the LZCOMP compression code to produce a MicroType Express font, and we provide the LZCOMP decompression code to decompress a MicroType Express font.

We will first discuss the format of a MicroType Express font, then the LZCOMP format, followed by the CTF format.

2. MicroType Express Font

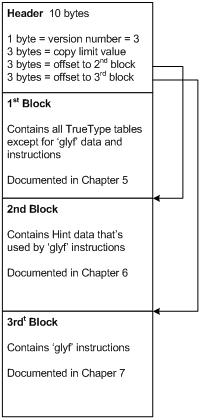

In a MicroType Express file the first 10 bytes comprise the version number (1 byte), the copy limit value used in the LZCOMP process (3 bytes), the offset to the second block of data (3 bytes), and the offset to the third block of data (3 bytes). The first block of data immediately follows these first ten bytes.

3. LZCOMP

As was mentioned in the introduction, after the intermediate form called CTF is generated, the second compression process is performed using the LZCOMP method.

The LZCOMP compression algorithm is a variation of the LZ77 theme. Appendix B gives an overview of how these two schemes differ. The three blocks are compressed separately by LZCOMP, since this produces a smaller total result, due to the different characteristics of the three sets and the adaptive nature of LZCOMP.

/*const long len_width = 3; */
/*const long num_DistRanges = 6; */

/*const int DUP2 = 256 + (1L << len_width) * num_DistRanges; */
/*const int DUP4 = DUP2 + 1; */
/*const int DUP6 = DUP4 + 1; */

4. Compact Table Format (CTF)

The first step of MicroType Express compression is the conversion of the original OpenType / TrueType (TTF) font into Compact Table Format (CTF). The TTF file consists of collection of tables. The CTF file is very similar and also consists of a collection of tables, but some of the tables are in a different format.

The TTF to CTF font converter translates the following five TrueType tables into a different format:

1. 'glyf' - This is encoded more compactly and redundant information is not stored.
2. 'loca' - This table is eliminated in the CTF format. It is reconstructed on-the-fly during decompression.
3. 'cvt ' - An attempt is made to store this table more compactly.
4. 'hdmx' - This is encoded on the bit-level. The code predicts the content and then encodes the prediction error.
5. 'VDMX' - This is also encoded on the bit-level. The code predicts the content and then encodes the prediction error.

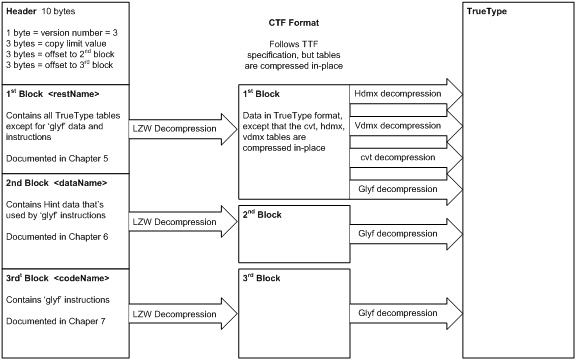

After the font tables are stored in a different format, the TTF to CTF converter splits the font data into three sets. The three data blocks produced by the TTF to CTF conversion contain the following information.

<restName>: This is all the font data other than the push data and instructions for the ’glyf’ table. This does include the ‘glyf’ outline data. It is the first data block stored in the CTF font. (see Compressed Data Set 1 - Font Tables)

<dataName>: All the initially pushed data from the 'glyf' table concatenated together and compressed. This pushed data from all glyphs are assembled together in a single table, in the same order that the glyphs are stored. This is the second data block in the CTF font. (see Compressed Data Set 2 – Glyph Push Data)

<codeName>: All the TrueType instructions for all the glyphs minus the initial push burst, concatenated together and compressed. This is the third data block in the CTF font. (see Compressed Data Set 3 –Glyph Instructions)

Compression algorithms, applied to font tables, take advantage of advanced knowledge of OpenType font tables, structures, and meaning of data (text, TrueType instructions, glyph data, etc.). Separation of these objects into groups with distinctly different statistical distributions allows us to employ a number of compression techniques, which results in producing most compact lossless-compressed data. These techniques are especially effective when compressing of the glyph data (‘glyf’ table), which is typically the biggest table in the TTF file.

The details of the data compression for 1st Block of the CTF font data are described in chapter 5 of this specification. The details of the data compression for 2nd Block, the pushed data for the glyph, are described in chapter 6. Finally, the details of the remaining glyph data compression, 3rd Block are described in chapter 7.

5. Compressed Data Set 1 - Font Tables

The 1st Block of the CTF format contains the ‘glyf’ table outline data and all of the font tables from the TrueType font, except for the ‘loca’ table which is removed. The CTF data compressed in 1st Block retains the entire format of the original TTF file, with the exception that the ‘cvt’, ‘hdmx’, ‘VDMX’, and ‘glyf’ tables contain the compressed data. All other tables from the TTF source file, including the Table Directory, are stored uncompressed in the CTF stream.

To decompress the CTF data in the 1st Block, one needs to parse the TTF file as is defined in the TTF specification, and decompress the data in the ‘cvt’, ‘hdmx’, ‘VDMX’ , and ‘glyf’ tables as described below.

short value;
const unsigned char cvt_pos8        = 255;
const unsigned char cvt_pos1        = 255 - 7;                    /* == cvt_pos8 - 7 */
const unsigned char cvt_neg8        = 255 - 7 - 1;                /* == cvt_pos1 - 1 */
const unsigned char cvt_neg1        = 255 - 7 - 1 - 7;            /* == cvt_neg8 - 7 */
const unsigned char cvt_neg0        = 255 - 7 - 1 - 7 - 1;        /* == cvt_neg1 - 1 */
const unsigned char cvt_wordCode    = 255 - 7 - 1 - 7 - 1 - 1;    /* == cvt_neg0 - 1 */
const short cvt_lowestCode          = 255 - 7 - 1 - 7 - 1 – 1;    /*==cvt_wordCode*/

if ( value < 0 )
{
    negative = true;
    value = (short)-value;
}

index = (shortvalue / cvt_lowestCode);
if ( index <= 8  && valueIn != -32768)
{
    /* write -32768 as a word below */
    register unsigned char *p = *pRef;
    if ( negative )
    {
        assert( cvt_neg0 + 8 == cvt_neg8 );
        code = (unsigned char)(cvt_neg0 + index);
        assert( code >=cvt_neg0 && code <= cvt_neg8 );
        *p++ = code;
        value = (short)(value - index * cvt_lowestCode);
        assert( value >=0 && value < cvt_lowestCode );
        *p++ = (unsigned char)value;
    }
    else
    {
        assert( cvt_pos1 + 7 == cvt_pos8 );
        if ( index > 0 )
        {
            code = (unsigned char)(cvt_pos1 + index - 1);
            assert( code >=cvt_pos1 && code <= cvt_pos8 );
            *p++ = code;
            value = (short)(value - index * cvt_lowestCode);
        }
        assert( value >=0 && value < cvt_lowestCode );
        *p++ = (unsigned char)value;
    }
    *pRef = p;
}
else
{
    *(*pRef)++ = cvt_wordCode; /* Do a word */
    WRITEWORD_INC( ( char **)pRef, valueIn );
}

code = *((*p)++);

if ( code < (unsigned char)cvt_lowestCode )
{
    value = code;
}
else
{
    if ( code >=cvt_pos1 && code <= cvt_pos8 )
    {
        index = (short)(code - cvt_pos1 + 1);
        assert( index >=1 && index <= 8 );
        value = *(*p)++;
        assert( value >=0 && value < cvt_lowestCode );
        value = (short)(value + index * cvt_lowestCode);
    }
    else if ( code >=cvt_neg0 && code <= cvt_neg8 )
    {
        index = (short)(code - cvt_neg0);
        assert( index >=0 && index <= 8 );
        value = *(*p)++;
        assert( value >=0 && value < cvt_lowestCode );
        value = (short)(value + index * cvt_lowestCode);
        value = (short)-value;
    }
    else
    {
        assert( code == cvt_wordCode );
        value = READWORD_INC( ( char **)p );
    }
}

for ( glyphIndex = 0; glyphIndex < (unsigned short)numEntries; glyphIndex++ )
{
    rounded_TT_AW = ((((long)64 * (long)ppem * (long)awArray[ glyphIndex ])+(long)unitsPerEm/2) / (long)unitsPerEm);
    rounded_TT_AW += 32;
    rounded_TT_AW /= 64;
    oldSize += 8;
    if ( TTF_To_CTF )
    {
        long newSize;
        short deltaAW = (short)(*GET_hdmxSubRecord_width_Ptr( devSubRecord, glyphIndex ) - rounded_TT_AW);

        /* widths is uint8 */
        newSize = ctfHeaderSize + (bitOffset+abs(deltaAW)+2+7)/8;

        if ( newSize > lengthIn )
        {
            /* we have a problem, set version to 0xFFFF-real version and just copy data */
            AllocateTTFSpace( t, destSfnt, pos, lengthIn, maxOutSize );

            /* Update dependencies on destSfnt */
            hdmxOut     = &(*destSfnt)[pos];
            ctf_devMetrics    = hdmxOut;

            memcpyHuge((char *)hdmxOut,(char *)hdmxIn,lengthIn);
            *GET_ctf_hdmx_version_Ptr( ctf_devMetrics ) = (short)(0xFFFF - SWAPENDS_16(*GET_hdmx_version_Ptr( devMetrics )));
            *GET_ctf_hdmx_version_Ptr( ctf_devMetrics ) = SWAPENDS_16(*GET_ctf_hdmx_version_Ptr( ctf_devMetrics ));
            MTX_mem_free( t->mem,awArray);
            return (lengthIn); /*****/
        }
        else
        {
            AllocateTTFSpace( t, destSfnt, pos, newSize, maxOutSize );
            /* Update dependencies on destSfnt */
            hdmxOut     = &(*destSfnt)[pos];
            ctf_devMetrics    = hdmxOut;
            WriteHdmxValue( deltaAW, (unsigned char __huge *)hdmxOut + ctfHeaderSize, &bitOffset );
        }
    }
}

version = CTF.hdmx.getNextUInt16()
numRecords = CTF.hdmx.getNextInt16()
recordSize = CTF.hdmx.getNextInt32()

ppemList = []
for recordNumber in 0 to (numRecords - 1)
{
    ppem = CTF.hdmx.getNextUInt8()
    maxWidth = CTF.hdmx.getNextUInt8()
    ppemList.append(ppem)
}

numGlyphs = CTF.maxp.numGlyphs
unitsPerEm = CTF.head.unitsPerEm

widths = {}
for ppem in ppemList
{
    widthList = []
    for glyphID in 0 to (numGlyphs - 1)
    {
        predictedAdvanceWidth = ((ppem * CTF.hmtx[glyphID])/unitsPerEm)
        surpriseAdvanceWidth = readMagnitudeEncodedValue(CTF.hdmx)
        width = (predictedAdvanceWidth + surpriseAdvanceWidth)
        widthList.append(width)
    }
    widths[ppem] = widthList
}

predictedAdvanceWidth = (((((64 * ppem * CTF.hmtx[glyphID]) + (unitsPerEm / 2)) / unitsPerEm) + 32) / 64)

p = VDMXIn; p += 2 * sizeof( uint16 );
CheckReadBoundsForTable( t, p, 2); /* numRatios */
numRatios = READWORD_INC( &p );

{
    char *offset; /* Harmless pointer related to VDMXIn */

    offset  = VDMXIn;
    offset += sfnt_VDMXFormatSize + (numRatios-1) * sfnt_VDMXRatio_Size;
    assert( sfnt_VDMXFormatSize == 10 );
    assert( sfnt_VDMXRatio_Size == 4 );

    p = offset;
    CheckReadBoundsForTable( t, p, 2);
    offsetValue = READWORD_INC( &p );

    pOut = (char __huge *)VDMXOut + offsetValue;
    pIn  = (char __huge *)VDMXIn  + offsetValue;
    p  = offset;
}

for ( i = 0; i < numRatios; i++ )
{
    CheckReadBoundsForTable( t, p, 2);
    offsetValue = READWORD_INC( &p );
    if ( TTF_To_CTF )
    {
        long yMaxRatio, yMinRatio; /* 16.16 fixpoint */

        yMaxRatio = yMinRatio = 0;
        groups = (VDMXIn + offsetValue);
        CheckReadBoundsForTable( t, (char *)GET_VDMXGroup_recs_Ptr( groups ), VDMXGroupSize ); /* groups->recs */
        numGroupRecs = SWAPENDS_U16(*GET_VDMXGroup_recs_Ptr( groups ));
        /* Check all entries */
        CheckReadBoundsForTable( t, (char *)GET_VDMXGroup_entry_yPelHeight_Ptr( groups, 0 ), VDMXTableSize * numGroupRecs);
        /* yPelHeight, yMax, yMin */
        for ( k = 0; k < numGroupRecs; k++ )
        {
            ppem = SWAPENDS_U16(*GET_VDMXGroup_entry_yPelHeight_Ptr( groups, k ));
            yMax = SWAPENDS_16(*GET_VDMXGroup_entry_yMax_Ptr( groups, k ));
            yMin = SWAPENDS_16(*GET_VDMXGroup_entry_yMin_Ptr( groups, k ));
            yMaxRatio += (((long)yMax << 16)+(long)ppem/2)/ ppem; /* 16.16 */
            yMinRatio += (((long)yMin << 16)-(long)ppem/2)/ ppem;
        }
        yMaxRatio = (yMaxRatio+(long)numGroupRecs/2)/ numGroupRecs;
        yMinRatio = (yMinRatio-(long)numGroupRecs/2)/ numGroupRecs;
        yMaxMultiplier = (long)((yMaxRatio + 16) >> 5); /* convert to 21.11 */
        yMinMultiplier = (long)((-yMinRatio + 16) >> 5);

        WRITEWORD_INC( &pOut, numGroupRecs );
        WRITEWORD_INC( &pOut, (short)yMaxMultiplier );
        WRITEWORD_INC( &pOut, (short)yMinMultiplier );
        base = (unsigned char *)pOut;
    }
    bitOffset = 0;
    Predicted_ppem = 8;

    for ( k = 0; k < numGroupRecs; k++ )
    {
        if ( TTF_To_CTF )
        {
            long newLength;
            /* We have already bounds-checked this data  */
            ppem = SWAPENDS_U16(*GET_VDMXGroup_entry_yPelHeight_Ptr( groups, k ));
            yMax = SWAPENDS_16(*GET_VDMXGroup_entry_yMax_Ptr( groups, k ));
            yMin = SWAPENDS_16(*GET_VDMXGroup_entry_yMin_Ptr( groups, k ));

            /* Predicted_ppem; */
            Predicted_yMax = (short)((ppem * yMaxMultiplier + 1024L + 0) / 2048L);
            Predicted_yMin = (short)((ppem * yMinMultiplier + 1024L - 0) / 2048L);
            Predicted_yMin = (short)-Predicted_yMin;

            ppemError = (short)(ppem - Predicted_ppem);
            yMaxError = (short)(yMax - Predicted_yMax);
            yMinError = (short)(yMin - Predicted_yMin);

            newLength = (long)((char *)base + (bitOffset + abs(ppemError)+abs(yMaxError)+abs(yMinError)+6 + 7)/8  - VDMXOut);
            if ( newLength > lengthIn )
            {
                /* we have a problem, set version to 0xFFFF-real version and just copy data */

                memcpyHuge((char *)VDMXOut,(char *)VDMXIn,lengthIn);
                version = *((unsigned short*)VDMXOut);
                version = (unsigned short)SWAPENDS_U16( version );
                version = (unsigned short)(0xFFFF - version);
                version = SWAPENDS_U16( version );
                *((unsigned short*)VDMXOut) = version;
                return (lengthIn); /*****/
            }
            else
            {
                /* We know that we already have lengthIn bytes available so we are OK */
                WriteHdmxValue( ppemError, base, &bitOffset );
                WriteHdmxValue( yMaxError, base, &bitOffset );
                WriteHdmxValue( yMinError, base, &bitOffset );
            }
        }
        Predicted_ppem = (short)(ppem + 1);
    }
}

/*
 * ================================================================
 *                  Compressed 'VDMX' Table Layout
 * ================================================================
 *
 *     version                                                   USHORT
 *     numRecs                                                   USHORT
 *     numRatios                                                 USHORT
 *     ratio[0].bCharSet                                         BYTE
 *     ratio[0].xRatio                                           BYTE
 *     ratio[0].yStartRatio                                      BYTE
 *     ratio[0].yEndRatio                                        BYTE
 *     ...
 *     ratio[n-1].bCharSet, where n = numRatios.                 BYTE
 *     ratio[n-1].xRatio                                         BYTE
 *     ratio[n-1].yStartRatio                                    BYTE
 *     ratio[n-1].yEndRatio                                      BYTE
 *     offset[0]                                                 USHORT
 *     ...
 *     offset[n-1]                                               USHORT
 *  Skip to
 *     group[0].nRecs                                            USHORT
 *     yMaxMult                                                  SHORT
 *     yMinMult                                                  SHORT
 *     BitData for group[0] entries:
 *         group[0].entry[0].ppemError
 *         group[0].entry[0].yMaxError
 *         group[0].entry[0].yMinError
 *         ...
 *         group[0].entry[group[0].nRecs-1].ppemError
 *         group[0].entry[group[0].nRecs-1].yMaxError
 *         group[0].entry[group[0].nRecs-1].yMinError
 *     Skip to next byte if in the middle of a byte
 *
 *     group[1].nRecs                                            USHORT
 *     yMaxMult                                                  SHORT
 *     yMinMult                                                  SHORT
 *     BitData for group[1] entries:
 *         group[1].entry[0].ppemError
 *         group[1].entry[0].yMaxError
 *         group[1].entry[0].yMinError
 *         ...
 *         group[1].entry[group[1].nRecs-1].ppemError
 *         group[1].entry[group[1].nRecs-1].yMaxError
 *         group[1].entry[group[1].nRecs-1].yMinError
 *     Skip to next byte if in the middle of a byte
 *     ...
 *     group[numRecs-1].nRecs                                     USHORT
 *     yMaxMult                                                   SHORT
 *     yMinMult                                                   SHORT
 *     BitData for group[numRecs-1] entries:
 *         group[numRecs-1].entry[0].ppemError
 *         group[numRecs-1].entry[0].yMaxError
 *         group[numRecs-1].entry[0].yMinError
 *         ...
 *         group[numRecs-1].entry[group[numRecs-1].nRecs-1].nRecs-1].ppemError
 *         group[numRecs-1].entry[group[numRecs-1].nRecs-1].yMaxError
 *         group[numRecs-1].entry[group[numRecs-1].nRecs-1].yMinError
 *     Skip to next byte if in the middle of a byte
 *
 *     Note that the bit data is from least to most significant bit in byte.
 *
 */

/*
 * ================================================================
 *            External References to Utility Functions
 * ================================================================
 * The code snippet below contains references to the following functions
 * and structures.
 *
 * uint8 * getOTUShort( uint8 * ptr, USHORT * valP )
 *
 *     reads a BigEndian unsigned short starting at ptr,
 *     assigns the value to *valP,
 *     and returns a pointer to the byte after the unsigned short.
 *
 * uint8 * getOTShort( uint8 * ptr, SHORT * valP )
 *
 *     reads a BigEndian signed short starting at ptr,
 *     assigns the value to *valP,
 *     and returns a pointer to the byte after the signed short.
 *
 * MAG_DEP_ENC_STATE is an 'object' to remember the current byte and
 * bit offset while reading a series of "magnitude dependent encoded
 * numbers" from a data stream. Note that the "first bit of a byte"
 * is the low-order bit. Bits are read from low-order to high-order.
 *
 * Methods:
 *
 *    void mde_initReadState( MAG_DEP_END_STATE * rs, uint8 * b )
 *
 *        initializes rs to point at the first bit of byte 'b'.
 *
 *    int mde_getNextValue( MAG_DEP_END_STATE * rs )
 *
 *        returns the next values from stream and leaves 'rs' pointing
 *        at the first bit after the value.
 *
 *    uint8 * mde_getNextByteAddress( MAG_DEP_END_STATE * rs )
 *
 *        If pointing at the first bit of a byte, return the byte address.
 *        If in the middle of a byte, return the next byte address.
 */

typedef struct {
    BYTE            bCharSet;
    BYTE            xRatio;
    BYTE            yStartRatio;
    BYTE            yEndRatio;
} OTVDMXRATIO;

typedef struct {
    USHORT          yPelHeight;
    SHORT           yMax;
    SHORT           yMin;
} OTVDMXVTABLE;

typedef struct {
    USHORT          recs;
    BYTE            startsz;
    BYTE            endsz;
    OTVDMXVTABLE  * entry;
} OTVDMXGROUP;

typedef struct {
    USHORT          version;
    USHORT          numRecs;
    USHORT          numRatios;
    OTVDMXRATIO   * ratios;
    USHORT        * offset;
    OTVDMXGROUP   * groups;
} OTVDMXTABLE;

void
ReadVDMXTable( uint8 * tableStart, OTVDMXTABLE * vdmx )
{
    int     i;
    uint8 * b = tableStart; /* Point to beginning of compressed VDMX table */

    /* version, numRecs, numRatios */

    b = getOTUShort( b, &(vdmx->version) );
    b = getOTUShort( b, &(vdmx->numRecs) );
    b = getOTUShort( b, &(vdmx->numRatios) );

    /* Allocate space for and read ratios. No error checking for brevity */

    vdmx->ratios = ALLOC( vdmx->numRatios*sizeof(OTVDMXRATIO) );

    for ( i = 0; i < ( int )vdmx->numRatios; i++ ) {
        OTVDMXRATIO * ratio = &vdmx->ratios[i];
        ratio->bCharSet = *b;
        b++;
        ratio->xRatio = *b;
        b++;
        ratio->yStartRatio = *b;
        b++;
        ratio->yEndRatio = *b;
        b++;
    }

    /* Allocate space for and read offsets[0..numRatios-1] */

    vdmx->offset = ALLOC( vdmx->numRatios * sizeof(USHORT) );

    for ( i = 0; i < ( int )vdmx->numRatios; i++ ) {
        b = getOTUShort( b, &(vdmx->offset[i]) );
    }

    /*
     * Allocate space for and read the vdmx->numRecs groups
     * See the Layout comment above.
     * Values group[i]->startsz and group[i]->endsz are accumulated as we go.
     */

    vdmx->groups = ALLOC( vdmx->numRecs*sizeof(OTVDMXGROUP) );
    b = tableStart + vdmx->offset[0];

    for ( i = 0; i < ( int )vdmx->numRecs; i++ ) {

        OTVDMXGROUP * group = &vdmx->groups[i];
        MAG_DEP_ENC_STATE rs;
        int j;
        int predictedPPEM = 8;
        SHORT yMaxMult; /* Fixed point 7.11 */
        SHORT yMinMult; /* Fixed point 7.11 */
        b = getOTUShort( b, &(group->recs) );
        b = getOTShort( b, &yMaxMult );
        b = getOTShort( b, &yMinMult );

        group->entry = ALLOC( group->recs*sizeof(OTVDMXVTABLE) );

        mde_initReadState( &rs, b );
        for ( j = 0; j < ( int )group->recs; j++ ) {

            OTVDMXVTABLE * entry = &group->entry[j];
            int ppemError     = mde_getNextValue( &rs );
            int yMaxError     = mde_getNextValue( &rs );
            int yMinError     = mde_getNextValue( &rs );
            int actualPPEM    = ppemError + predictedPPEM;
            int predictedYMax = (actualPPEM * yMaxMult + 1024) / 2048;
            int predictedYMin = -((actualPPEM * yMinMult + 1024) / 2048);

            entry->yPelHeight = ( USHORT )actualPPEM;
            entry->yMax = ( SHORT )(predictedYMax + yMaxError);
            entry->yMin = ( SHORT )(predictedYMin + yMinError);

            if ( 0 == j ) {
                group->startsz = actualPPEM; /* Write the first time only */
            }
            group->endsz = actualPPEM; /* Overwritten each time. */

            predictedPPEM = actualPPEM + 1;
        }
        b = mde_getNextByteAddress( &rs );

    }
}

for i = 0 to (glyph.numberOfPoints - 1)
{
    bitflags = flags[i]
    isOnCurvePoint = ((bitflags & 0x80) == 0)
    index = (bitflags & 0x7F)
    xIsNegative = coordEncoding[index].xIsNegative
    yIsNegative = coordEncoding[index].yIsNegative;

    # subtract one from byteCount since one byte is for the flags
    byteCount = coordEncoding[index].byteCount - 1

    data = 0
    for j = 0 to (byteCount - 1)
    {
        data <<= 8
        ultmp = glyfData.getNextUInt8()
        data |= ultmp
    }

    ultmp = data >> ((byteCount * 8) - coordEncoding[index].xBits)
    ultmp &= ((1L << coordEncoding[index].xBits ) - 1)
    dx = ultmp

    ultmp = data >> ((byteCount * 8) - coordEncoding[index].xBits
        - coordEncoding[index].yBits)
    ultmp &= ((1L << coordEncoding[index].yBits ) - 1)
    dy = ultmp

    dx += coordEncoding[index].deltaX
    dy += coordEncoding[index].deltaY

    if ( xIsNegative )
        dx = -dx

    if ( yIsNegative )
        dy = -dy

    x = (x+dx)
    y = (y+dy)
}

6. Compressed Data Set 2 - Glyph Push Data

As mentioned earlier, the pushed data from all glyphs are assembled together in a single block, in the same order that the glyphs are stored. It is decoded interspersed with the decoding of the glyph data block, glyph by glyph. This will be explained in more detail below.

Read255UShort( data )
{
    wordCode            = 253
    oneMoreByteCode2    = 254
    oneMoreByteCode1    = 255

    lowestUCode         = 253

    code = data.getNextUInt8()
    if ( code == wordCode )
    {
        value = data.getNextUInt8()
        value <<= 8
        value &= 0xff00
        value2 = data.getNextUInt8()
        value |= value2 & 0x00ff
    }
    else if ( code == oneMoreByteCode1 )
    {
        value = data.getNextUInt8()
        value = (value + lowestUCode)
    }
    else if ( code == oneMoreByteCode2 )
    {
        value = data.getNextUInt8()
        value = (value + lowestUCode*2)
    }
    else
    {
        value = code
    }

    return value
}

Read255Short( data )
{
    flipSignCode        = 250
    wordCode            = 253
    oneMoreByteCode2    = 254
    oneMoreByteCode1    = 255

    lowestCode          = 250

    code = data.getNextUInt8()
    if ( code == wordCode )
    {
        value = data.getNextUInt8()
        value <<= 8
        value &= 0xff00
        temp = data.getNextUInt8()
        value |= (temp & 0xFF)
    }
    else
    {
        sign = 1
        if ( code == flipSignCode )
        {
            sign = -1
            code = data.getNextUInt8()
        }

        if ( code == oneMoreByteCode1 )
        {
            value = data.getNextUInt8()
            value = (value + lowestCode)
        }
        else if ( code == oneMoreByteCode2 )
        {
            value = data.getNextUInt8()
            value =(value + lowestCode * 2)
        }
        else
        {
            value = code
        }
        value = (value * sign)
    }
    return value
}

CHAR *input;
int i;
BYTE code;
SHORT A;
SHORT pushCount = Read255UShort(input);
SHORT *pushData  = (SHORT *) malloc(sizeof(SHORT) * pushCount);

for ( i = 0; i < pushCount; )
{
    code = *input;
    if (code == Hop3Code )
    {
        A = pushData[i-2];
        input++;                              /* Hop3Code */
        pushData[i++] = A;                    /* A */
        pushData[i++] = Read255Short(input);  /* X2 */
        pushData[i++] = A;                    /* A */
    }
    else if (code == Hop4Code )
    {
        A = pushData[i-2];
        input++;                              /* Hop4Code */
        pushData[i++] = A;                    /* A */
        pushData[i++] = Read255Short(input);  /* X2 */
        pushData[i++] = A;                    /* A */
        pushData[i++] = Read255Short(input);  /* X3 */
        pushData[i++] = A;                    /* A */
    }
    else
    {
        pushData[i++] = Read255Short(input);  /* Data */
    }
}

7. Compressed Data Set 3 - Glyph Instructions

Appendix A. Checking Validity of MicroType Express Font

If the file is greater than or equal to 8,388,611 bytes (0x800003L), test to make sure it is not a TTF font. This mysterious number comes from the fact that there are some TTF fonts that may look like a compressed MicroType Express file because of the combination of data items in the first 10 bytes of the file.

In a TTF font file the first 10 bytes comprise the version number (4 bytes), the number of tables (2 bytes), the searchRange (2 bytes), and the entrySelector (2 bytes). The searchRange and entrySelector are computed values based on the number of tables. The version number of a TTF font automatically passes the version check for a MicroType Express file, but the only combination of numTables, searchRange, and entrySelector that might be mistaken for the two data offsets in a MicroType Express file, is if there are between 9 and 15 tables in the TTF font, and that the font size is greater or equal to 0x800003.

Spelled out in detail, the possible byte combinations are:


(TTF)        numTables    searchRange    entrySelector
              00  09        00  80           00 03
              00  0A        00  80           00 03
              00  0B        00  80           00 03
              00  0C        00  80           00 03
              00  0D        00  80           00 03
              00  0E        00  80           00 03
              00  0F        00  80           00 03

(MTX)        |<--offset1-->|<--offset2-->|

Appendix B. LZCOMP Theory

The LZCOMP compression algorithm is a variation on the LZ77 theme. An excellent starting point for learning more about compression is [1].

LZ77

An unmodified LZ77 algorithm encodes the data to be compressed into tokens. Each token consists of:

• An offset to the start of the string to be copied.
• The length of the string.
• The first character in the Look-Ahead buffer that follows the string. [2]

Here is how LZCOMP differs from LZ77

1. LZCOMP uses a hash table to find matches. Alternatively we could have used binary search tree. Our 16 bit hash-key is simply the first 2 bytes concatenated of the string we are trying to match.
2. LZ77 always transmits a triplet (0,0,c) for a character not matched. We instead can output literals (characters not matched) and copy items (string matches) in any sequence and order.
3. We concatenate some predefined constant data in front of the history buffer, so that there is a possibility that copy items may be used even at the beginning of the data. This idea is mentioned in Nelson95.
4. We use Adaptive Huffman encoding to further enhance the compression. We actually use three separate Adaptive Huffman trees. The trees encode everything, including the offset amount.
5. We have 3 single byte copy commands. (This is helpful in our case, but not necessarily in the general case)
6. We encode the distance to the tail of the string and not the head as LZ77 does. This way we can reach a greater distance.
7. LZ77 only provides a small window into the previously seen text. LZCOMP can address all of the previously seen text.
8. LZ77 limits the length of the phrase that can be matched. LZCOMP has no such limit on the phrase length.
9. We use a variable minimum copy length. If the offset is greater or equal to 512 bytes our minimum phrase length is 3 bytes, otherwise it is 2 bytes.
10. The compression code communicates with entropy based encoders so that it knows the exact cost of various decisions. With this information it makes an optimal choice. This item (10) is highly related to item 11. This communication enables us to make a better choice than a normal “greedy” algorithm would.
11. LZ77 is greedy, we do a little better, since we consider all of the following.
    1. We consider the “best” copy item for the current position.
    2. We also consider using a literal instead of the “best” copy item.
    3. We consider cutting back the length of the “best” copy item by one byte.
    4. If the length of the copy item is just two, then we consider a combination of a copy item and literal item.
12. Our encoding scheme is so compact that we can advantageously have copy lengths as short as two bytes in the general case.

Appendix C. LZCOMP Compression/Decompression Sample Code

In the following code we assume that the following symbols are defined:

#define COMPRESS_ON
#define DECOMPRESS_ON

Optional defines are as follows:

#define BIT16           /* for 16-bit applications */
#define __cplusplus     /* for C++ applications */
#define _WINDOWS        /* for Windows applications */
#define VERBOSE         /* for standard printf printout */

/****************************************************************************************/
/*                                      ERRCODES.H                                      */
/****************************************************************************************/

#define NO_ERROR   0
#define ERR_BITIO_end_of_file      3304 /*BITIO::input_bit:UNEXPECTED END OF FILE*/
#define ERR_LZCOMP_Encode_bounds    3353 /*LZCOMP:Encode out of bounds i*/
#define ERR_LZCOMP_Decode_bounds    3354 /*LZCOMP::Decode out of bounds pos*/

/****************************************************************************************/
/*                                      MTXMEM.H                                        */
/****************************************************************************************/


#ifndef MEMORY_HPP
#define MEMORY_HPP

#include <setjmp.h>

#ifdef __cplusplus
extern "C" {
#endif

typedef struct {
    /* private */
    void *pointermem;
    long pointersize;
} mem_struct;

#ifndef MTX_MEMPTR
#define MTX_MEMPTR
#ifdef BIT16  /* for 16-bit applications */
typedef void *(*MTX_MALLOCPTR)(unsigned long);
typedef void *(*MTX_REALLOCPTR)(void *, unsigned long, unsigned long);
typedef void (*MTX_FREEPTR)(void *);
#else         /* for 32-bit applications */
typedef void *(*MTX_MALLOCPTR)(size_t);
typedef void *(*MTX_REALLOCPTR)(void *, size_t);
typedef void (*MTX_FREEPTR)(void *);
#endif /* BIT16 */
#endif /* MTX_MEMPTR */

typedef struct {
    /* private */
    mem_struct *mem_pointers;
    long mem_maxPointers;
    long mem_numPointers; /* Number of non-zero pointers */
    long mem_numNewCalls;

    MTX_MALLOCPTR    malloc;
    MTX_REALLOCPTR    realloc;
    MTX_FREEPTR        free;

    /* public */
    jmp_buf env;
} MTX_MemHandler;

/* public interface routines */
/* Call mem_CloseMemory on normal exit */
void MTX_mem_CloseMemory( MTX_MemHandler *t ); /*  Frees internal memory and for debugging purposes */
/* Call mem_FreeAllMemory insted on an abnormal (exception) exit */
void MTX_mem_FreeAllMemory( MTX_MemHandler *t ); /* Always call if the code throws an exception */


void *MTX_mem_malloc(MTX_MemHandler *t, unsigned long size);
void *MTX_mem_realloc(MTX_MemHandler *t, void *p, unsigned long size);
void  MTX_mem_free(MTX_MemHandler *t, void *deadObject);

MTX_MemHandler *MTX_mem_Create(MTX_MALLOCPTR mptr, MTX_REALLOCPTR rptr, MTX_FREEPTR fptr);
void MTX_mem_Destroy(MTX_MemHandler *t);


#ifdef __cplusplus
}
#endif

#endif /* MEMORY_HPP */
/****************************************************************************************/
/*                                      BITIO.H                                         */
/****************************************************************************************/
#include "MTXMEM.H"

#ifdef __cplusplus
extern "C" {
#endif

typedef struct {
    /* private */
    unsigned char  *mem_bytes;    /* Memory data buffer */
    long            mem_index;    /* Memory area size */
    long            mem_size;    /* Memory area size */


    unsigned short input_bit_count;     /* Input bits buffered */
    unsigned short input_bit_buffer;    /* Input buffer */
    long bytes_in;                /* Input byte count */

    unsigned short output_bit_count;    /* Output bits buffered */
    unsigned short output_bit_buffer;    /* Output buffer */
    long bytes_out;                /* Output byte count */

    char ReadOrWrite;

    MTX_MemHandler *mem;
    /* public */
    /* No public fields! */
} BITIO;

/* public interface routines */
/* Writes out <numberOfBits> to the output memory */
void MTX_BITIO_WriteValue( BITIO *t, unsigned long value, long numberOfBits );
/* Reads out <numberOfBits> from the input memory */
unsigned long MTX_BITIO_ReadValue( BITIO *t, long numberOfBits );

/* Read a bit from input memory */
short MTX_BITIO_input_bit(BITIO *t);

/* Write one bit to output memory */
void MTX_BITIO_output_bit(BITIO *t,unsigned long bit);
/* Flush any remaining bits to output memory before finnishing */
void MTX_BITIO_flush_bits(BITIO *t);

/* Returns the memory buffer pointer */
unsigned char *MTX_BITIO_GetMemoryPointer( BITIO *t );
long MTX_BITIO_GetBytesOut( BITIO *t ); /* Get method for the output byte count */
long MTX_BITIO_GetBytesIn( BITIO *t );  /* Get method for the input byte count */

/* Constructor for the new Memory based incarnation */
BITIO *MTX_BITIO_Create( MTX_MemHandler *mem, void *memPtr, long memSize, const char param ); /* mem Pointer, current size, 'r' or 'w' */
/* Destructor */
void MTX_BITIO_Destroy(BITIO *t);

#ifdef __cplusplus
}
#endif
/****************************************************************************************/
/*                                      BITIO.C                                         */
/****************************************************************************************/
#ifdef _WINDOWS
#include <windows.h>
#endif
#include <stdio.h>
#include <stdlib.h>
#include <assert.h>
#include <string.h>
#include <ctype.h>

#include "BITIO.H"
#include "ERRCODES.H"

/* Writes out <numberOfBits> to the output memory */
void MTX_BITIO_WriteValue( BITIO *t, unsigned long value, long numberOfBits )
{
    register long i;
    for ( i = numberOfBits-1; i >=0; i-- ) {
        MTX_BITIO_output_bit( t, (unsigned long)(value & (1L<<i)) );
    }
}


/* Reads out <numberOfBits> from the input memory */
unsigned long MTX_BITIO_ReadValue( BITIO *t, long numberOfBits )
{
    unsigned long value;
    long i;

    value = 0;
    for ( i = numberOfBits-1; i >=0; i-- ) {
        value <<= 1;
        if ( MTX_BITIO_input_bit(t) ) value |= 1;
    }
    return value; /******/
}

/* Read one bit from the input memory */
short MTX_BITIO_input_bit( register BITIO *t )
{
    /*assert( t->ReadOrWrite == 'r' ); */
    if ( t->input_bit_count-- == 0 ) {
        t->input_bit_buffer = t->mem_bytes[ t->mem_index++ ];
        if ( t->mem_index > t->mem_size ) {
            longjmp( t->mem->env, ERR_BITIO_end_of_file );
        }
        ++(t->bytes_in);
        t->input_bit_count = 7;
    }
    t->input_bit_buffer <<= 1;
    return(t->input_bit_buffer & 0x100);  /******/
}



/* Write one bit to the output memory */
void MTX_BITIO_output_bit( register BITIO *t, unsigned long bit )
{
    /*assert( t->ReadOrWrite == 'w' ); */
    t->output_bit_buffer <<= 1;
    if ( bit ) t->output_bit_buffer |= 1;
    if ( ++(t->output_bit_count) == 8 ) {
        if ( t->mem_index >=t->mem_size ) { /* See if we need more memory */
            t->mem_size += t->mem_size/2; /* Allocate in exponentially increasing steps */
            t->mem_bytes = (unsigned char *)MTX_mem_realloc( t->mem, t->mem_bytes, t->mem_size );
        }
        t->mem_bytes[t->mem_index++] = (unsigned char)t->output_bit_buffer;
        t->output_bit_count = 0;
        ++(t->bytes_out);
    }
}

/* Flush any remaining bits to output memory before finnishing */
void MTX_BITIO_flush_bits( BITIO *t )
{
    assert( t->ReadOrWrite == 'w' );
    if (t->output_bit_count > 0) {
        if ( t->mem_index >=t->mem_size ) {
            t->mem_size  = t->mem_index + 1;
            t->mem_bytes = (unsigned char *)MTX_mem_realloc( t->mem, t->mem_bytes, t->mem_size );
        }
        t->mem_bytes[t->mem_index++] = (unsigned char)(t->output_bit_buffer << (8 - t->output_bit_count));
        t->output_bit_count = 0;
        ++(t->bytes_out);
    }
}

/* Returns the memory buffer pointer */
unsigned char *MTX_BITIO_GetMemoryPointer( BITIO *t )
{
    return t->mem_bytes; /******/
}

/* Returns number of bytes written */
long MTX_BITIO_GetBytesOut( BITIO *t )
{
    assert( t->ReadOrWrite == 'w' );
    return t->bytes_out; /******/
}

/* Returns number of bytes read */
long MTX_BITIO_GetBytesIn( BITIO *t )
{
    assert( t->ReadOrWrite == 'r' );
    return t->bytes_out; /******/
}



/* Constructor for Memory based incarnation */
BITIO *MTX_BITIO_Create( MTX_MemHandler *mem, void *memPtr, long memSize, const char param )
{
    BITIO *t    = (BITIO *)MTX_mem_malloc( mem, sizeof( BITIO ) );
    t->mem        = mem;

    t->mem_bytes             = (unsigned char *)memPtr;
    t->mem_index             = 0;
    t->mem_size              = memSize;
    t->ReadOrWrite            = param;

    t->input_bit_count        = 0;
    t->input_bit_buffer        = 0;
    t->bytes_in                = 0;

    t->output_bit_count        = 0;
    t->output_bit_buffer        = 0;
    t->bytes_out            = 0;

    return t; /******/
}


/* Destructor */
void MTX_BITIO_Destroy(BITIO *t)
{
    if ( t->ReadOrWrite == 'w' ) {
        MTX_BITIO_flush_bits(t);
        assert( t->mem_index == t->bytes_out );
    }
    MTX_mem_free( t->mem, t );
}


/****************************************************************************************/
/*                                      AHUFF.H                                         */
/****************************************************************************************/
#include "MTXMEM.H"

#ifdef __cplusplus
extern "C" {
#endif

extern long MTX_AHUFF_BitsUsed( register long x );


/* This struct is only for internal use by AHUFF */
typedef struct {
    short up;
    short left;
    short right;
    short code; /* < 0 for internal node, == code otherwise */
    long weight;
} nodeType;


typedef struct {
    /* private */
    nodeType *tree;
    short *symbolIndex;
    long bitCount, bitCount2;
    long range;

    BITIO *bio;
    MTX_MemHandler *mem;

    int maxSymbol;


    long countA;
    long countB;
    long sym_count;
    /* public */
    /* No public fields! */
} AHUFF;


/* Public Interface */
short MTX_AHUFF_ReadSymbol( AHUFF *t );
long MTX_AHUFF_WriteSymbolCost( AHUFF *t, short symbol ); /* returns 16.16 bit cost */
void MTX_AHUFF_WriteSymbol( AHUFF *t, short symbol );

/* Constructor */
AHUFF *MTX_AHUFF_Create( MTX_MemHandler *mem, BITIO *bio, short range );        /* [0 .. range-1] */
/* Destructor */
void MTX_AHUFF_Destroy( AHUFF *t );

#ifdef __cplusplus
}
#endif
/****************************************************************************************/
/*                                      AHUFF.C                                         */
/****************************************************************************************/
#ifdef _WINDOWS
#include <windows.h>
#endif
#include <stdio.h>
#include <stdlib.h>
#include <assert.h>
#include <string.h>
#include <ctype.h>

#include "BITIO.H"
#include "AHUFF.H"
#include "MTXMEM.H"

/* Returns number of bits used in the positive number x */
long MTX_AHUFF_BitsUsed( register long x )
{
    register long n;

    assert( x >=0 );
    if ( x & 0xffff0000 ) {
        /* 17-32 */
        if ( x & 0xff000000 ) {
            /* 25-32 */
            if ( x & 0xf0000000 ) {
                /* 29-32 */
                if ( x & 0xC0000000 ) {
                    /* 31-32 */
                    n = x & 0x80000000 ? 32 : 31;
                } else {
                    /* 29-30 */
                    n = x & 0x20000000 ? 30 : 29;
                }
            } else {
                /* 25-28 */
                if ( x & 0x0C000000 ) {
                    /* 27-28 */
                    n = x & 0x08000000 ? 28 : 27;
                } else {
                    /* 25-26 */
                    n = x & 0x02000000 ? 26 : 25;
                }
            }
        } else {
            /* 17-24 */
            if ( x & 0x00f00000 ) {
                /* 21-24 */
                if ( x & 0x00C00000 ) {
                    /* 23-24 */
                    n = x & 0x00800000 ? 24 : 23;
                } else {
                    /* 21-22 */
                    n = x & 0x00200000 ? 22 : 21;
                }
            } else {
                /* 17-20 */
                if ( x & 0x000C0000 ) {
                    /* 19-20 */
                    n = x & 0x00080000 ? 20 : 19;
                } else {
                    /* 17-18 */
                    n = x & 0x00020000 ? 18 : 17;
                }
            }
        }
    } else {
        /* 1-16 */
        if ( x & 0xff00 ) {
            /* 9-16 */
            if ( x & 0xf000 ) {
                /* 13-16 */
                if ( x & 0xC000 ) {
                    /* 15-16 */
                    n = x & 0x8000 ? 16 : 15;
                } else {
                    /* 13-14 */
                    n = x & 0x2000 ? 14 : 13;
                }
            } else {
                /* 9-12 */
                if ( x & 0x0C00 ) {
                    /* 11-12 */
                    n = x & 0x0800 ? 12 : 11;
                } else {
                    /* 9-10 */
                    n = x & 0x0200 ? 10 : 9;
                }
            }
        } else {
            /* 1-8 */
            if ( x & 0xf0 ) {
                /* 5-8 */
                if ( x & 0x00C0 ) {
                    /* 7-8 */
                    n = x & 0x0080 ? 8 : 7;
                } else {
                    /* 5-6 */
                    n = x & 0x0020 ? 6 : 5;
                }
            } else {
                /* 1-4 */
                if ( x & 0x000C ) {
                    /* 3-4 */
                    n = x & 0x0008 ? 4 : 3;
                } else {
                    /* 1-2 */
                    n = x & 0x0002 ? 2 : 1;
                }
            }
        }
    }
    return n; /******/
}


#ifdef DEBUG
/* This method does various validity checks on the tree */
/* This is only needed for debugging, but if any changes */
/* are made to the code, then we need to ensure that */
/* this method still accepts the tree. */
static void check_tree( AHUFF *t )
{
    long i, j;
    short a, b, diff;
    register nodeType *tree = t->tree;
    const short ROOT = 1;

    /* assert children point to parents */
    for ( i = ROOT; i < t->range; i++ ) {
        if ( tree[i].code < 0 ) {
            if ( tree[tree[i].left].up != i ) {
                /*cout << i << "," << tree[i].left << "," << tree[tree[i].left].up << endl; */
#ifndef _WINDOWS
                printf("%ld , %ld , %ld\n", (long)i, (long)tree[i].left, (long)tree[tree[i].left].up );
#endif
            }
            assert( tree[tree[i].left].up == i );
            assert( tree[tree[i].right].up == i );

        }
    }
    /* assert weigths sum up */
    for ( i = ROOT; i < t->range; i++ ) {
        if ( tree[i].code < 0 ) {
#ifndef _WINDOWS
            if ( tree[i].weight != tree[tree[i].left].weight + tree[tree[i].right].weight ) {
                /*cout << i << "," << tree[i].left << "," << tree[i].right << endl; */
                printf("%ld , %ld , %ld\n", (long)i, (long)tree[i].left, (long)tree[i].right );
                /*cout << tree[i].weight << "," << tree[tree[i].left].weight << "," << tree[tree[i].right].weight << endl; */
                printf("%ld , %ld , %ld\n", (long)tree[i].weight, (long)tree[tree[i].left].weight, (long)tree[tree[i].right].weight );
            }
#endif
            assert( tree[i].weight == tree[tree[i].left].weight + tree[tree[i].right].weight );
        }
    }
    /* assert everything in decreasing order */
    j = t->range * 2 - 1;
    for ( i = ROOT; i < j; i++ ) {
        assert( tree[i].weight >=tree[i+1].weight );
    }
    /* assert siblings next to each other */
    for ( i = ROOT+1; i < j; i++ ) {
        if ( tree[i].code < 0 ) {
            /* Internal node */
            a   = tree[i].left;
            b   = tree[i].right;
            diff  = (short)(a >=b ? a - b : b - a);
            assert( diff == 1 );
        }
    }
    j = t->range * 2;
    for ( i = ROOT + 1; i < j; i++ ) {
        a = tree[i].up;
        assert( tree[a].left == i || tree[a].right == i );
    }
}
#endif /* DEBUG */


/* Swaps the nodes a and b */
static void SwapNodes( AHUFF *t, register short a, register short b )
{
    short code;
    short upa, upb;
    nodeType tNode;
    register nodeType *tree = t->tree;
    const short ROOT = 1;

    assert( a != b );
    assert( a > ROOT );
    assert( b > ROOT );
    assert( a < 2*t->range );
    assert( b < 2*t->range );
    assert( tree[a].code < 0 || t->symbolIndex[ tree[a].code ] == a );
    assert( tree[b].code < 0 || t->symbolIndex[ tree[b].code ] == b );

    upa = tree[a].up;
    upb = tree[b].up;
    assert( tree[upa].code < 0 );
    assert( tree[upb].code < 0 );

    assert( tree[upa].left == a || tree[upa].right == a );
    assert( tree[upb].left == b || tree[upb].right == b );

    assert( tree[a].weight == tree[b].weight );
    #ifdef OLD
        deltaW = -tree[a].weight + tree[b].weight;
        assert( deltaW == 0 );
        tree[upa].weight += deltaW;
        tree[upb].weight -= deltaW;
    #endif

    tNode   = tree[a];
    tree[a] = tree[b];
    tree[b] = tNode;

    tree[a].up = upa;
    tree[b].up = upb;

    code = tree[a].code;
    if ( code < 0 ) {
        /* Internal nodes have children */
        tree[tree[a].left ].up = a;
        tree[tree[a].right].up = a;
    } else {
        assert( code < t->range );
        t->symbolIndex[ code ] = a;
    }

    code = tree[b].code;
    if ( code < 0 ) {
        /* Internal nodes have children */
        tree[tree[b].left ].up = b;
        tree[tree[b].right].up = b;
    } else {
        assert( code < t->range );
        t->symbolIndex[ code ] = b;
    }
    assert( tree[upa].left == a || tree[upa].right == a );
    assert( tree[upb].left == b || tree[upb].right == b );
}


/* Updates the weight for index a, and it's parents */
static void UpdateWeight( register AHUFF *t, register short a )
{
    register nodeType *tree = t->tree;
    const short ROOT = 1;

    for (; a != ROOT; a = tree[a].up) {
        register long  weightA = tree[a].weight;
        register short b = (short)(a-1);
        /* This if statement prevents sibling rule violations */
        assert( tree[b].weight >=weightA );
        if ( tree[b].weight == weightA ) {
            do {
                b--;
            } while ( tree[b].weight == weightA );
            b++;
            assert( b >=ROOT );
            if ( b > ROOT ) {
                SwapNodes( t, a, b );
                a = b;
            }
        }
        tree[a].weight = ++weightA;
        #ifdef DEBUG
            if ( tree[a].code < 0 ) {
                assert( tree[a].weight == tree[tree[a].left].weight + tree[tree[a].right].weight );
            }
        #endif
    }
    assert( a == ROOT );
    tree[a].weight++;
    assert( tree[a].weight == tree[tree[a].left].weight + tree[tree[a].right].weight );
    /*check_tree(); slooow */
}

/* Recursively sets the parent weight equal to the sum of the two chilren's weights. */
static long init_weight(AHUFF *t, int a)
{
    register nodeType *tree = t->tree;
    if ( tree[a].code < 0 ) {
        /* Internal node */
        tree[a].weight = init_weight(t, tree[a].left) + init_weight(t, tree[a].right);
    }
    return tree[a].weight; /*****/
}

#ifdef OLD
/* Maps a symbol code into the corresponding index */
static short MapCodeToIndex( AHUFF *t, register short code )
{
    register short index = t->symbolIndex[ code ];
    assert( t->tree[index].code == code );

    return index; /*****/
}
#endif /* OLD */

/* Currently we never rescale the tables */
/* const short MAXWEIGHT = 30000; Max weight count before table reset */

/* Constructor */
AHUFF *MTX_AHUFF_Create( MTX_MemHandler *mem, BITIO *bio, short rangeIn )
{
    short i, limit, range;
    long j;
    const short ROOT = 1;

    AHUFF *t    = (AHUFF *)MTX_mem_malloc( mem, sizeof( AHUFF ) );
    t->mem        = mem;

    t->bio                = bio;
    range                = rangeIn;
    t->range            = rangeIn;
    t->bitCount            = MTX_AHUFF_BitsUsed( rangeIn - 1 );
    t->bitCount2        = 0;
    if ( rangeIn > 256 && rangeIn < 512 ) {
        rangeIn -= 256;
        t->bitCount2 = MTX_AHUFF_BitsUsed( rangeIn - 1 );
        t->bitCount2++;
    }

    /*assert( range == range ); */
    /* Max possible symbol == range - 1; */
    t->maxSymbol = range - 1;

    t->sym_count = 0;
    t->countA = t->countB = 100;
    /*t->symbolIndex = new short[ range ]; */
    t->symbolIndex = ( short *)MTX_mem_malloc( mem, sizeof(short) * range );
    /*t->tree  = new nodeType [ 2*range ]; */
    t->tree  = (nodeType *)MTX_mem_malloc( mem, sizeof(nodeType) * 2*range );

    /* Initialize the Huffman tree */

    limit = (short)((short)2 * (short)range);
    for ( i = 2; i < limit; i++ ) {
        t->tree[i].up = (short)((short)i/(short)2);
        t->tree[i].weight = (short)1;
    }
    for ( i = 1; i < range; i++ ) {
        t->tree[i].left  = (short)(2*i);
        t->tree[i].right = (short)(2*i+1);
    }
    for ( i = 0; i < range; i++ ) {
        t->tree[i].code            = -1;
        t->tree[range+i].code    = i;
        t->tree[range+i].left    = -1;
        t->tree[range+i].right    = -1;
        t->symbolIndex[i]        = (short)(range+i);
    }


    init_weight( t, ROOT );
#if defined(DEBUG)
    check_tree(t);
#endif

    if ( t->bitCount2 != 0 ) {
        /*assert( range == 256 + (1 << (t->bitCount2-1)) ); */
        UpdateWeight(t, t->symbolIndex[256]);
        UpdateWeight(t, t->symbolIndex[257]);
        /*UpdateWeight(t->symbolIndex[258]); */
        assert( 258 < range );
#if defined(DEBUG)
        check_tree( t );
#endif
        /* DUP2 */
        for ( i = 0; i < 12; i++ ) {
            UpdateWeight(t, t->symbolIndex[range-3]);
        }
        /* DUP4 */
        for ( i = 0; i < 6; i++ ) {
            UpdateWeight(t, t->symbolIndex[range-2]);
        }
        /* DUP6 range-1 */
    } else {
        for ( j = 0; j < 2; j++ ) {
            for ( i = 0; i < range; i++ ) {
                UpdateWeight(t, t->symbolIndex[i]);
            }
        }
    }
    t->countA = t->countB = 0;
    return t;/*****/
}

/* Deconstructor */
void MTX_AHUFF_Destroy( AHUFF *t )
{
    MTX_mem_free( t->mem, t->symbolIndex );
    MTX_mem_free( t->mem, t->tree );
    MTX_mem_free( t->mem, t );
}


/* Writes the symbol to the file using adaptive Huffman encoding */
/* Jusat like but with writeToFile == false assumed */
long MTX_AHUFF_WriteSymbolCost( AHUFF *t, short symbol )
{
    register nodeType *tree = t->tree;
    register short a;
    register int sp = 0;
    const short ROOT = 1;

    /* The array maps the symbol code into an index */
    a = t->symbolIndex[symbol];
    assert( t->tree[a].code == symbol );

    do {
        sp++;
        a = tree[a].up;
    } while (a != ROOT);
    return (long)sp << 16; /******/
}


/* Writes the symbol to the file using adaptive Huffman encoding */
void MTX_AHUFF_WriteSymbol( AHUFF *t, short symbol )
{
    register nodeType *tree = t->tree;
    register short a, aa;
    register int sp = 0;
    char stackArr[50]; /* use this to reverse the bits */
    register char *stack = stackArr;
    register BITIO *bio = t->bio;
    register short up;
    const short ROOT = 1;

    /* The array maps the symbol code into an index */
    a = t->symbolIndex[symbol];
    assert( t->tree[a].code == symbol );
    aa = a;


    do {
        up = tree[a].up;
        stack[sp++] = (char)(tree[up].right == a);
        a = up;
    } while (a != ROOT);
    assert( sp < 50 );
    do {
        MTX_BITIO_output_bit( bio, stack[--sp] );
    } while (sp);
    UpdateWeight( t, aa );
}

/* Reads the symbol from the file */
short MTX_AHUFF_ReadSymbol( AHUFF *t )
{
    const short ROOT = 1;
    register nodeType *tree = t->tree;
    register short a = ROOT, symbol;
    register BITIO *bio = t->bio;

    do {
        a = (short)(MTX_BITIO_input_bit( bio ) ? tree[a].right : tree[a].left);
        symbol = tree[a].code;
    } while ( symbol < 0 );
    UpdateWeight( t, a );
    return symbol; /******/
}


/****************************************************************************************/
/*                                      LZCOMP.H                                        */
/****************************************************************************************/
#include "MTXMEM.H"

#ifdef __cplusplus
extern "C" {
#endif

/* This class was added to improve the compression performance */
/* for subsetted large fonts. */
typedef struct {
    /* private */
    /* State information for SaveBytes */
    unsigned char escape, count, state;
    MTX_MemHandler *mem;
    /* No public fields! */
} RUNLENGTHCOMP;

/* public RUNLENGTHCOMP interface */
#ifdef COMPRESS_ON
/* Invoke this method to run length compress a file in memory */
unsigned char *MTX_RUNLENGTHCOMP_PackData( RUNLENGTHCOMP *t, unsigned char *data, long lengthIn, long *lengthOut );
#endif
#ifdef DECOMPRESS_ON
/* Use this method to decompress the data transparently */
/* as it goes to the output memory. */
void MTX_RUNLENGTHCOMP_SaveBytes( RUNLENGTHCOMP *t, unsigned char value, unsigned char * *dataOut, long *dataOutSize, long *index );
#endif
RUNLENGTHCOMP *MTX_RUNLENGTHCOMP_Create( MTX_MemHandler *mem  );
void MTX_RUNLENGTHCOMP_Destroy( RUNLENGTHCOMP *t );


/* This structure is only for private use by LZCOMP */
typedef struct hn {
    long index;
    struct hn *next;
} hasnNode;

typedef struct {
    /* private */
    unsigned char *ptr1;
    char ptr1_IsSizeLimited;
    char filler1, filer2, filler3;
    /* New August 1, 1996 */
    RUNLENGTHCOMP *rlComp;
    short usingRunLength;

    long length1, out_len;
    long maxIndex;

    long num_DistRanges;
    long dist_max;
    long DUP2, DUP4, DUP6, NUM_SYMS;
    long maxCopyDistance;

    AHUFF *dist_ecoder;
    AHUFF *len_ecoder;
    AHUFF *sym_ecoder;
    BITIO *bitIn, *bitOut;


    #ifdef COMPRESS_ON
        hasnNode **hashTable;
        hasnNode *freeList;
        long nextFreeNodeIndex;
        hasnNode *nodeBlock;
    #endif /* COMPRESS_ON */
    MTX_MemHandler *mem;
    /* public */
    /* No public fields! */
} LZCOMP;

    /* public LZCOMP interface */

#ifdef COMPRESS_ON
    /* Call this method to compress a memory area */
    unsigned char *MTX_LZCOMP_PackMemory( LZCOMP *t, void *dataIn, long size_in, long *sizeOut);
#endif

#ifdef DECOMPRESS_ON
    /* Call this method to un-compress memory */
    unsigned char *MTX_LZCOMP_UnPackMemory( LZCOMP *t, void *dataIn, long dataInSize, long *sizeOut, unsigned char version );
#else
#ifdef DEBUG
    unsigned char *MTX_LZCOMP_UnPackMemory( LZCOMP *t, void *dataIn, long dataInSize, long *sizeOut, unsigned char version );
#endif
#endif

/* Constructors */
LZCOMP *MTX_LZCOMP_Create1( MTX_MemHandler *mem  );
LZCOMP *MTX_LZCOMP_Create2( MTX_MemHandler *mem, long maxCopyDistance );
/* Destructor */
void MTX_LZCOMP_Destroy( LZCOMP *t );

#ifdef __cplusplus
}
#endif
/****************************************************************************************/
/*                                      LZCOMP.C                                        */
/****************************************************************************************/
#ifdef _WINDOWS
#include <windows.h>
#endif
#include <stdio.h>
#include <stdlib.h>
#include <assert.h>
#include <string.h>
#include <ctype.h>

#include "BITIO.H"
#include "AHUFF.H"
#include "LZCOMP.H"
#include "ERRCODES.H"

#define sizeof_hasnNodePtr 4


/*const long num_DistRanges = 6; */
/*const long dist_max   = ( dist_min + (1L << (dist_width*num_DistRanges)) - 1 ); */

/*const int DUP2          = 256 + (1L << len_width) * num_DistRanges; */
/*const int DUP4          = DUP2 + 1; */
/*const int DUP6          = DUP4 + 1; */
/*const int NUM_SYMS      = DUP6 + 1; */

const long max_2Byte_Dist = 512;

/* Sets the maximum number of distance ranges used, based on the <length> parameter */
static void SetDistRange( LZCOMP *t, long length )
{
    const long len_min   = 2;
    const long len_min3  = 3;
    const long len_width = 3;

    const long bit_Range = 3 - 1; /* == len_width - 1 */


    const long dist_min      = 1;
    const long dist_width = 3;
    t->num_DistRanges = 1;
    t->dist_max   = ( dist_min + (1L << (dist_width*t->num_DistRanges)) - 1 );
    while ( t->dist_max  < length ) {
        t->num_DistRanges++;
        t->dist_max    = ( dist_min + (1L << (dist_width*t->num_DistRanges)) - 1 );
    }
    t->DUP2          = 256 + (1L << len_width) * t->num_DistRanges;
    t->DUP4          = t->DUP2 + 1;
    t->DUP6          = t->DUP4 + 1;

    t->NUM_SYMS      = t->DUP6 + 1;
}

#ifdef COMPRESS_ON

/* Returns the number of distance ranges necessary to encode the <distance> */
#ifndef SLOWER
#define GetNumberofDistRanges( distance ) ((MTX_AHUFF_BitsUsed( (distance) - dist_min ) + dist_width-1) / dist_width)
#else
static long GetNumberofDistRanges( register long distance )
{
    register long distRanges, bitsNeeded;
    const long len_min      = 2;
    const long len_min3  = 3;
    const long len_width = 3;

    const long bit_Range = 3 - 1; /* == len_width - 1 */


    const long dist_min      = 1;
    const long dist_width = 3;

    assert( distance >=dist_min );
    bitsNeeded = MTX_AHUFF_BitsUsed( distance - dist_min );
    /* 1,2,3.. */
    #ifdef OLD
        distRanges = bitsNeeded / dist_width;
        if ( distRanges * dist_width < bitsNeeded ) distRanges++;
    #endif /* OLD */
    distRanges = (bitsNeeded + dist_width-1) / dist_width;    assert( distRanges * dist_width >=bitsNeeded );
    assert( (distRanges-1) * dist_width < bitsNeeded );
    return distRanges; /******/
}
#endif /* SLOWER */
#endif /*COMPRESS_ON */




#ifdef COMPRESS_ON
/* Encodes the length <value> and the number of distance ranges used for this distance */
static void EncodeLength( LZCOMP *t, long value, long distance, long numDistRanges )
{
    long i, bitsUsed, symbol;
    unsigned long mask = 1;
    const long len_min      = 2;
    const long len_min3  = 3;
    const long len_width = 3;

    const long bit_Range = 3 - 1; /* == len_width - 1 */


    const long dist_min      = 1;
    const long dist_width = 3;

    if ( distance >=max_2Byte_Dist ) {
        value -= len_min3;
    } else {
        value -= len_min;
    }
    assert( value >=0 );
    assert( numDistRanges >=1 && numDistRanges <= t->num_DistRanges );
    bitsUsed = MTX_AHUFF_BitsUsed( value );
    assert( bit_Range == len_width - 1 );

    /* for ( i = 0; i < bitsUsed; ) i += bit_Range; */
    /* i = (bitsUsed + bit_Range-1)/bit_Range * bit_Range; */
    /* for ( i = bit_Range; i < bitsUsed; ) i += bit_Range; */
    for ( i = bit_Range; bitsUsed > i; ) i += bit_Range; /* fastest option ! */
    assert ( bitsUsed <= i );
    mask = 1L << (i-1);
    symbol = bitsUsed > bit_Range ? 2 : 0; /* set to 2 so we eliminate the first symbol <= 1 below */
    /* repeat bit_Range times, hard-wire so that we do not have to loop */
    assert( bit_Range == 2 );
    /* 1 */
    if ( value & mask ) symbol |= 1; mask >>=1;
    /* 2 */
    symbol <<= 1;
    if ( value & mask ) symbol |= 1; mask >>=1;


    MTX_AHUFF_WriteSymbol( t->sym_ecoder, (short)(256 + symbol +  (numDistRanges - 1) * (1L << len_width)) );
    for ( i = bitsUsed - bit_Range; i >=1; ) {
        symbol = i > bit_Range ? 2 : 0; /* set to 2 so we eliminate the first symbol <= 1 below */
        /* repeat bit_Range times, hard-wire so that we do not have to loop */
        assert( bit_Range == 2 );
        /* 1 */
        if ( value & mask ) symbol |= 1; mask >>=1;
        /* 2 */
        symbol <<= 1;
        if ( value & mask ) symbol |= 1; mask >>=1;

        i -= bit_Range;
        MTX_AHUFF_WriteSymbol( t->len_ecoder, (short)symbol );
    }
}


/* Same as EncodeLength, except it only computes the cost */
static long EncodeLengthCost( LZCOMP *t, long value, long distance, long numDistRanges )
{
    long i, bitsUsed, symbol, count;
    unsigned long mask = 1;
    const long len_min   = 2;
    const long len_min3  = 3;
    const long len_width = 3;

    const long bit_Range = 3 - 1; /* == len_width - 1 */


    const long dist_min   = 1;
    const long dist_width = 3;

    if ( distance >=max_2Byte_Dist ) {
        value -= len_min3;
    } else {
        value -= len_min;
    }
    assert( value >=0 );
    assert( numDistRanges >=1 && numDistRanges <= t->num_DistRanges );
    bitsUsed = MTX_AHUFF_BitsUsed( value );
    assert( bit_Range == len_width - 1 );

    /* for ( i = 0; i < bitsUsed; ) i += bit_Range; */
    /* i = (bitsUsed + bit_Range-1)/bit_Range * bit_Range; */
    /* for ( i = bit_Range; i < bitsUsed; ) i += bit_Range; */
    for ( i = bit_Range; bitsUsed > i; ) i += bit_Range; /* fastest option ! */
    assert ( bitsUsed <= i );
    mask = 1L << (i-1);
    symbol = bitsUsed > bit_Range ? 2 : 0; /* set to 2 so we eliminate the first symbol <= 1 below */
    /* repeat bit_Range times, hard-wire so that we do not have to loop */
    assert( bit_Range == 2 );
    /* 1 */
    if ( value & mask ) symbol |= 1; mask >>=1;
    /* 2 */
    symbol <<= 1;
    if ( value & mask ) symbol |= 1; mask >>=1;


    count = MTX_AHUFF_WriteSymbolCost( t->sym_ecoder, (short)(256 + symbol +  (numDistRanges - 1) * (1L << len_width)) );
    for ( i = bitsUsed - bit_Range; i >=1; ) {
        symbol = i > bit_Range ? 2 : 0; /* set to 2 so we eliminate the first symbol <= 1 below */
        /* repeat bit_Range times, hard-wire so that we do not have to loop */
        assert( bit_Range == 2 );
        /* 1 */
        if ( value & mask ) symbol |= 1; mask >>=1;
        /* 2 */
        symbol <<= 1;
        if ( value & mask ) symbol |= 1; mask >>=1;

        i -= bit_Range;
        count += MTX_AHUFF_WriteSymbolCost( t->len_ecoder, (short)symbol );
    }
    return count; /*****/
}

#endif /* COMPRESS_ON */

#ifdef DECOMPRESS_ON
/* Decodes the length, and also returns the number of distance ranges used for the distance */
static long DecodeLength( LZCOMP *t, int symbol, long *numDistRanges )
{
    unsigned long mask;
    long done, bits, firstTime = symbol >=0, value = 0;
    const long len_min   = 2;
    const long len_min3  = 3;
    const long len_width = 3;

    const long bit_Range = 3 - 1; /* == len_width - 1 */


    const long dist_min   = 1;
    const long dist_width = 3;

    mask      = 1L << bit_Range;
    do {
        if ( firstTime ) {
            bits = symbol - 256;
            firstTime = false;
            assert( bits >=0 );
            /*assert( bits < 8 ); */
            *numDistRanges = (bits / (1L << len_width) ) + 1;
            assert( *numDistRanges >=1 && *numDistRanges <= t->num_DistRanges );
            bits = bits % (1L << len_width);
        } else {
            bits = MTX_AHUFF_ReadSymbol(t->len_ecoder);
        }
        done = (bits & mask) == 0;
        bits &= ~mask;
        value <<= bit_Range;
        value |= bits;
    } while ( !done );

    value += len_min;

    return value; /******/
}
#endif /* DECOMPRESS_ON */


#ifdef COMPRESS_ON
/* Encodes the distance */
static void EncodeDistance2( LZCOMP *t, long value, long distRanges )
{
    register long i;
    const long len_min   = 2;
    const long len_min3  = 3;
    const long len_width = 3;

    const long bit_Range = 3 - 1; /* == len_width - 1 */


    const long dist_min   = 1;
    const long dist_width = 3;
    const long mask = (1L << dist_width) - 1;


    value -= dist_min;
    assert( value >=0 );
    assert( distRanges >=1 && distRanges <= t->num_DistRanges );
    for ( i = (distRanges-1)*dist_width; i >=0; i -= dist_width ) {
        MTX_AHUFF_WriteSymbol( t->dist_ecoder, (short)((value >> i) & mask) );
    }
}

/* Same as EncodeDistance2, except it only computes the cost */
static long EncodeDistance2Cost( LZCOMP *t, long value, long distRanges )
{
    register long i, count = 0;
    const long len_min   = 2;
    const long len_min3  = 3;
    const long len_width = 3;

    const long bit_Range = 3 - 1; /* == len_width - 1 */


    const long dist_min   = 1;
    const long dist_width = 3;
    const long mask = (1L << dist_width) - 1;


    value -= dist_min;
    assert( value >=0 );
    assert( distRanges >=1 && distRanges <= t->num_DistRanges );
    for ( i = (distRanges-1)*dist_width; i >=0; i -= dist_width ) {
        count += MTX_AHUFF_WriteSymbolCost( t->dist_ecoder, (short)((value >> i) & mask) );
    }
    return count;
}
#endif /*COMPRESS_ON */

#ifdef COMPRESS_ON

/* Frees all nodes from the hash */
static void FreeAllHashNodes(LZCOMP *t)
{
    register hasnNode *nextNodeBlock;
    const short hNodeAllocSize = 4095;

    while ( t->nodeBlock != NULL ) {
        nextNodeBlock = t->nodeBlock[hNodeAllocSize].next;
        MTX_mem_free( t->mem, t->nodeBlock );
        t->nodeBlock = nextNodeBlock;
    }
}


/* Returns a new hash node */
static hasnNode *GetNewHashNode(LZCOMP *t)
{
    register hasnNode *hNode;
    const short hNodeAllocSize = 4095;


    /* Try recycling first */
    if ( t->freeList != NULL ) {
        hNode = t->freeList;
        t->freeList = hNode->next;
    } else {
        if ( t->nextFreeNodeIndex >=hNodeAllocSize ) {
            register hasnNode *oldNodeBlock;

            oldNodeBlock = t->nodeBlock;
            t->nodeBlock = (hasnNode *)MTX_mem_malloc( t->mem, sizeof(hasnNode) * (hNodeAllocSize+1) );

            assert( t->nodeBlock != NULL );
            t->nodeBlock[hNodeAllocSize].next = oldNodeBlock;
            t->nextFreeNodeIndex = 0;
        }
        hNode = &t->nodeBlock[t->nextFreeNodeIndex++];
    }
    return hNode; /******/
}




/* Updates our model, for the byte pointed to by <index> */
static void UpdateModel( LZCOMP *t, long index )
{
    hasnNode *hNode;
    unsigned char c = t->ptr1[ index ];
    long pos;
    unsigned short prev_c;

    if ( index > 0 ) {
        hNode = GetNewHashNode( t );

        prev_c = t->ptr1[ index -1 ];
        pos = (prev_c << 8) |  c;

        hNode->index = index-1;
        hNode->next  = t->hashTable[ pos ];
        t->hashTable[ pos ] = hNode;
    }
}
#else
static void UpdateModel( LZCOMP *t, long index )
{
    ;
}
#endif /* COMPRESS_ON */

#ifdef DECOMPRESS_ON
/* Decodes the distance */
static long DecodeDistance2( LZCOMP *t, long distRanges )
{
    long i, bits, value = 0;
    const long len_min      = 2;
    const long len_min3  = 3;
    const long len_width = 3;

    const long bit_Range = 3 - 1; /* == len_width - 1 */


    const long dist_min      = 1;
    const long dist_width = 3;

    /* for ( i = 0; i < distRanges; i++ ) */
    for ( i = distRanges; i > 0; i-- ) {
        bits = MTX_AHUFF_ReadSymbol(t->dist_ecoder);
        value <<= dist_width;
        value |= bits;
    }
    value += dist_min;
    return value; /******/
}
#endif /* DECOMPRESS_ON */

/*
 * Initializes our hashTable and also pre-loads some data so that
 * there is a chance that bytes in the beginning of the file
 * might use copy items.
 * if compress is true then it initializes for compression, otherwise
 * it initializes only for decompression.
 */
static void InitializeModel( LZCOMP *t, int compress )
{
    long i, j, k;
    const long preLoadSize = 2*32*96 + 4*256;

#ifdef COMPRESS_ON
    if ( compress ) {
        unsigned long hashSize;
        /*t->hashTable         = new hasnNode * [ 0x10000 ]; assert( t->hashTable != NULL );
        t->hashTable         = (hasnNode **)MTX_mem_malloc( t->mem, sizeof(hasnNode *) * 0x10000 ); */
        hashSize            = (unsigned long)sizeof_hasnNodePtr * 0x10000;
        t->hashTable         = (hasnNode **)MTX_mem_malloc( t->mem, hashSize );
        for ( i = 0; i < 0x10000; i++ ) {
            t->hashTable[i] = NULL;
        }
    }
#endif
    i = 0;
    assert( preLoadSize > 0 );

    if ( compress ) {
        for ( k = 0; k < 32; k++ ) {
            for ( j = 0; j < 96; j++ ) {
                t->ptr1[i] = (unsigned char)k; UpdateModel(t,i++);
                t->ptr1[i] = (unsigned char)j; UpdateModel(t,i++);
            }
        }
        j = 0;
        while ( i < preLoadSize && j < 256 ) {
            t->ptr1[i] = (unsigned char)j; UpdateModel(t,i++);
            t->ptr1[i] = (unsigned char)j; UpdateModel(t,i++);
            t->ptr1[i] = (unsigned char)j; UpdateModel(t,i++);
            t->ptr1[i] = (unsigned char)j; UpdateModel(t,i++);
            j++;
        }
    } else {
        for ( k = 0; k < 32; k++ ) {
            for ( j = 0; j < 96; j++ ) {
                t->ptr1[i++] = (unsigned char)k;
                t->ptr1[i++] = (unsigned char)j;
            }
        }
        j = 0;
        while ( i < preLoadSize && j < 256 ) {
            t->ptr1[i++] = (unsigned char)j;
            t->ptr1[i++] = (unsigned char)j;
            t->ptr1[i++] = (unsigned char)j;
            t->ptr1[i++] = (unsigned char)j;
            j++;
        }
    }
    assert( j == 256 );
    assert( i == preLoadSize );
}


#ifdef COMPRESS_ON
/* Finds the best copy item match */
static long Findmatch( register LZCOMP *t, long index, long *bestDist, long *gainOut, long *costPerByte  )
{
    long length, bestLength = 0, bestGain = 0;
    long maxLen, i, distance, bestCopyCost = 0, bestDistance = 0;
    long copyCost, literalCost, distRanges, gain;
    register hasnNode *hNode, *prevNode = NULL;
    long hNodeCount = 0;
    long maxIndexMinusIndex = t->maxIndex - index;
    unsigned char *ptr2 = &t->ptr1[index];
#define MAX_COST_CACHE_LENGTH 32
    long literalCostCache[MAX_COST_CACHE_LENGTH+1], maxComputedLength = 0;
    unsigned short pos;
    const long len_min   = 2;
    const long len_min3  = 3;
    const long len_width = 3;

    const long bit_Range = 3 - 1; /* == len_width - 1 */


    const long dist_min   = 1;
    const long dist_width = 3;

    assert( index >=0 );
    literalCostCache[0] = 0;
    if ( 1 < maxIndexMinusIndex ) {
        pos   = ptr2[0];
        pos <<= 8;
        assert( &ptr2[1] < &t->ptr1[t->maxIndex] );
        pos  |= ptr2[1];

        /* *costPerByte = 0xff0000; */
        for ( hNode = t->hashTable[ pos ]; hNode != NULL; prevNode = hNode, hNode = hNode->next ) {
            i          = hNode->index;
            distance = index - i; /* to head */
            /* hNodeCount added March 14, 1996 */
            if ( ++hNodeCount > 256 || distance > t->maxCopyDistance ) { /* Added Feb 26, 1996 */
                if ( t->hashTable[ pos ] == hNode ) {
                    assert( prevNode == NULL );
                    t->hashTable[ pos ] = NULL;
                } else {
                    assert( prevNode != NULL );
                    assert( prevNode->next == hNode );
                    prevNode->next = NULL;
                }
                while ( hNode != NULL ) {
                    hasnNode *oldHead    = t->freeList;
                    t->freeList            = hNode;
                    hNode                 = hNode->next;
                    t->freeList->next     = oldHead;
                }
                break; /******/
            }
            maxLen    = index - i;
            if ( maxIndexMinusIndex < maxLen ) maxLen = maxIndexMinusIndex;

            if ( maxLen < len_min )                                        continue; /******/
            assert( t->ptr1[i+0] == ptr2[0] );
            assert( t->ptr1[i+1] == ptr2[1] );
            /* We already have two matching bytes, so start at two instead of zero !! */
            /* for ( length = 0; i < index && length+index < t->maxIndex; i++ ) */
            i += 2;
            assert( &ptr2[maxLen-1] < &t->ptr1[t->maxIndex] );
            for ( length = 2; length < maxLen && t->ptr1[i] == ptr2[length]; i++ ) {
                length++;
            }
            assert( length >=2 || index + length >=t->maxIndex );
            if ( length < len_min )                                        continue; /******/

            distance    = distance - length + 1; /* tail */
            assert( distance > 0 );

            if ( distance > t->dist_max  )                                continue; /******/
            if ( length == 2 && distance >=max_2Byte_Dist )            continue; /******/
            if ( length <= bestLength && distance > bestDistance ) {
                if ( length <= bestLength-2 )                             continue; /***** SPEED optimization *****/
                if ( distance > (bestDistance << dist_width) ) {
                    if ( length < bestLength )                             continue; /***** SPEED optimization *****/
                    if ( distance > (bestDistance << (dist_width+1)) )    continue; /***** SPEED optimization *****/
                }
            }

            if ( length > maxComputedLength ) {
                long limit = length;
                if ( limit > MAX_COST_CACHE_LENGTH ) limit = MAX_COST_CACHE_LENGTH;
                for ( i = maxComputedLength; i < limit; i++ ) {
                    literalCostCache[i+1] = literalCostCache[i] + MTX_AHUFF_WriteSymbolCost( t->sym_ecoder, ptr2[i] );
                }
                maxComputedLength = limit;
                if ( length > MAX_COST_CACHE_LENGTH ) {
                    assert( maxComputedLength == MAX_COST_CACHE_LENGTH );
                    literalCost = literalCostCache[MAX_COST_CACHE_LENGTH];
                    /* just approximate */
                    literalCost += literalCost/MAX_COST_CACHE_LENGTH * (length-MAX_COST_CACHE_LENGTH);
                } else {
                    literalCost = literalCostCache[length];
                }
            } else {
                literalCost = literalCostCache[length];
            }

            if ( literalCost > bestGain ) {
                distRanges    = GetNumberofDistRanges( distance );
                copyCost    = EncodeLengthCost( t, length, distance, distRanges );
                if ( literalCost - copyCost - (distRanges << 16) > bestGain ) {
                    /* The if statement above conservatively assumes only one bit per range for distBitCount */
                    copyCost    += EncodeDistance2Cost( t,  distance, distRanges );
                    gain         = literalCost - copyCost;

                    if ( gain > bestGain ) {
                        bestGain         = gain;
                        assert( hNode->index < index );
                        bestLength        = length;
                        bestDistance    = distance;
                        bestCopyCost    = copyCost;
                    }
                }
            }
        }
    }
    *costPerByte  = bestLength ? bestCopyCost / bestLength : 0; /* To avoid divide by zero */
    *bestDist = bestDistance;
    *gainOut  = bestGain;
    return bestLength; /******/
}
#endif /*COMPRESS_ON */

#ifdef COMPRESS_ON
/* Makes a decision on whether to use a copy item, and then if it decides */
/* to use a copy item it decides on an optimal length & distance for the copy. */
static long MakeCopyDecision( LZCOMP *t, long index, long *bestDist )
{
    long dist1, dist2, dist3;
    long len1, len2, len3;
    long gain1, gain2, gain3;
    long costPerByte1, costPerByte2, costPerByte3;
    long lenBitCount, distBitCount;
    long here, symbolCost, dup2Cost;
    const long len_min   = 2;
    const long len_min3  = 3;
    const long len_width = 3;

    const long bit_Range = 3 - 1; /* == len_width - 1 */


    const long dist_min      = 1;
    const long dist_width = 3;

    here    = index;
    len1    = Findmatch( t, index, &dist1, &gain1, &costPerByte1 );
    UpdateModel(t, index++ );
    if ( gain1 > 0 ) {
        len2 = Findmatch( t, index, &dist2, &gain2, &costPerByte2 );
        symbolCost = MTX_AHUFF_WriteSymbolCost( t->sym_ecoder, t->ptr1[here]);
        if ( gain2 >=gain1 && costPerByte1 > (costPerByte2 * len2 + symbolCost ) / (len2+1) ) {
            len1 = 0;
        } else if ( len1 > 3 ) {
            /* Explore cutting back on len1 by one unit */
            len2 = Findmatch( t, here + len1, &dist2, &gain2, &costPerByte2 );
            if ( len2 >=2 ) {
                len3 = Findmatch( t, here + len1-1, &dist3, &gain3, &costPerByte3 );
                if ( len3 > len2 && costPerByte3 < costPerByte2 ) {
                    long cost1A, cost1B, distRanges;
                    distRanges = GetNumberofDistRanges( dist1 + 1 );

                    lenBitCount  = EncodeLengthCost( t, len1-1, dist1+1, distRanges );
                    distBitCount = EncodeDistance2Cost( t,  dist1+1, distRanges );
                    cost1B  = lenBitCount + distBitCount;
                    cost1B += costPerByte3 * len3;

                    cost1A  = costPerByte1 * len1;
                    cost1A += costPerByte2 * len2;
                    if ( (cost1A / (len1+len2)) > (cost1B/ (len1-1+len3))  ) {
                        len1--;
                        dist1++;
                    }
                }
            }
        }
        if ( len1 == 2 ) {
            if ( here >=2 && t->ptr1[here] == t->ptr1[here-2] ) {
                dup2Cost = MTX_AHUFF_WriteSymbolCost( t->sym_ecoder, (short)t->DUP2 );
                if ( costPerByte1 * 2 > dup2Cost + MTX_AHUFF_WriteSymbolCost( t->sym_ecoder, t->ptr1[here+1] )  ) {
                    len1 = 0;
                }
            } else if ( here >=1 && here+1 < t->maxIndex && t->ptr1[here+1] == t->ptr1[here-1] ) {
                dup2Cost = MTX_AHUFF_WriteSymbolCost( t->sym_ecoder, (short)t->DUP2 );
                if ( costPerByte1 * 2 > symbolCost + dup2Cost ) {
                    len1 = 0;
                }
            }
        }
    }
    *bestDist = dist1;
    return len1; /******/
}
#endif /* COMPRESS_ON */

#ifdef COMPRESS_ON
/* This method does the compression work */
static void Encode( LZCOMP *t )
{
    register long i, j, limit;
    long here, len, dist;
    long distRanges;
    const long len_min   = 2;
    const long len_min3  = 3;
    const long len_width = 3;

    const long bit_Range = 3 - 1; /* == len_width - 1 */


    const long dist_min   = 1;
    const long dist_width = 3;
    const long preLoadSize = 2*32*96 + 4*256;

    assert( (t->length1 & 0xff000000) == 0 );

    t->maxIndex = t->length1+preLoadSize;
    InitializeModel( t, true );
    MTX_BITIO_WriteValue( t->bitOut, t->length1, 24 );

    limit = t->length1+preLoadSize;
    for ( i = preLoadSize; i < limit; ) {
        here    = i;
        len        = MakeCopyDecision( t, i++, &dist );

        if ( len > 0  ) {
            assert( dist > 0 );

            distRanges  = GetNumberofDistRanges( dist );
            EncodeLength( t, len, dist, distRanges );
            EncodeDistance2( t,  dist, distRanges );

            /*for ( j = 0; j < len; j++ ) { */
            /*    assert( t->ptr1[here+j] == t->ptr1[here-dist-len+1 + j] ); */
            /*} */
            for ( j = 1; j < len; j++ ) {
                UpdateModel(t, i++ );
            }
        } else {
            unsigned char c = t->ptr1[here];
            if ( here >=2 && c == t->ptr1[here-2] ) {
                MTX_AHUFF_WriteSymbol( t->sym_ecoder, (short)t->DUP2 );
            } else {
                if ( here >=4 && c == t->ptr1[here-4] ) {
                    MTX_AHUFF_WriteSymbol( t->sym_ecoder, (short)t->DUP4 );
                } else {
                    if ( here >=6 && c == t->ptr1[here-6] ) {
                        MTX_AHUFF_WriteSymbol( t->sym_ecoder, (short)t->DUP6 );
                    } else {
                        MTX_AHUFF_WriteSymbol( t->sym_ecoder, t->ptr1[here] ); /* 0-bit + byte */
                    }
                }
            }
        }
    }
    if ( i != t->maxIndex ) longjmp( t->mem->env, ERR_LZCOMP_Encode_bounds );
}
#endif /* COMPRESS_ON */

#ifdef DECOMPRESS_ON
/* This method does the de-compression work */
/* There is potential to save some memory in the future by uniting */
/* dataOut and ptr1 only when the run length encoding is not used. */
static unsigned char *Decode( register LZCOMP *t, long *size )
{
    register int symbol;
    long j, length, distance, start, pos = 0;
    long numDistRanges;
    register unsigned char *ptr1;
    register unsigned char value;
    register usingRunLength = t->usingRunLength;
    long dataOutSize, index = 0;
    unsigned char *dataOut;
    const long preLoadSize = 2*32*96 + 4*256;

    dataOut = (unsigned char *)MTX_mem_malloc( t->mem, dataOutSize = t->out_len );

    InitializeModel( t, false );
    if ( !t->ptr1_IsSizeLimited ) {
        ptr1 = (unsigned char __huge *)t->ptr1 + preLoadSize;
        for ( pos = 0; pos < t->out_len;) {
            symbol = MTX_AHUFF_ReadSymbol(t->sym_ecoder);
            if ( symbol < 256 ) {
                /* Literal item */
                value = (unsigned char)symbol;
            } else if ( symbol == t->DUP2 ) {
                /* One byte copy item */
                value = ptr1[ pos - 2 ];
            } else if ( symbol == t->DUP4 ) {
                /* One byte copy item */
                value = ptr1[ pos - 4 ];
            } else if ( symbol == t->DUP6 ) {
                /* One byte copy item */
                value = ptr1[ pos - 6 ];
            } else {
                /* Copy item */
                length        = DecodeLength( t, symbol, &numDistRanges );
                distance    = DecodeDistance2( t, numDistRanges );
                if ( distance >=max_2Byte_Dist  ) length++;
                start        = pos - distance - length + 1;
                for ( j = 0; j < length; j++ ) {
                    value = ptr1[ start + j ];
                    ptr1[ pos++ ] = value;
                    if ( usingRunLength ) {
                        MTX_RUNLENGTHCOMP_SaveBytes( t->rlComp, value, &dataOut, &dataOutSize, &index );
                    } else {
                        assert( index <= dataOutSize );
                        if ( index >=dataOutSize ) {
                            dataOutSize += dataOutSize>>1; /* Allocate in exponentially increasing steps */
                            dataOut = (unsigned char *)MTX_mem_realloc( t->mem, dataOut, dataOutSize );
                        }
                        dataOut[ index++ ] = value;
                        /*fputc( value, fpOut ); */
                    }
                }
                continue; /****** Do not fall through *****/
            }
            ptr1[ pos++ ] = value;
            if ( usingRunLength ) {
                MTX_RUNLENGTHCOMP_SaveBytes( t->rlComp, value, &dataOut, &dataOutSize, &index );
            } else {
                assert( index <= dataOutSize );
                if ( index >=dataOutSize ) {
                    dataOutSize += dataOutSize>>1; /* Allocate in exponentially increasing steps */
                    dataOut = (unsigned char *)MTX_mem_realloc( t->mem, dataOut, dataOutSize );
                }
                dataOut[ index++ ] = value;
                /*fputc( value, fpOut ); */
            }
        }
    } else {
        long src, dst = preLoadSize; /* source and destination indeces */
        ptr1 = t->ptr1;
        assert( t->maxCopyDistance > preLoadSize );
        for ( pos = 0; pos < t->out_len;) {
            symbol = MTX_AHUFF_ReadSymbol(t->sym_ecoder);
            if ( symbol < 256 ) {
                /* Literal item */
                value = (unsigned char)symbol;
            } else if ( symbol == t->DUP2 ) {
                /* One byte copy item */
                src = dst - 2;
                if ( src < 0 ) src = src + t->maxCopyDistance;
                value = ptr1[ src ];
            } else if ( symbol == t->DUP4 ) {
                /* One byte copy item */
                src = dst - 4;
                if ( src < 0 ) src = src + t->maxCopyDistance;
                value = ptr1[ src ];
            } else if ( symbol == t->DUP6 ) {
                /* One byte copy item */
                src = dst - 6;
                if ( src < 0 ) src = src + t->maxCopyDistance;
                value = ptr1[ src ];
            } else {
                /* Copy item */
                length        = DecodeLength( t, symbol, &numDistRanges );
                distance    = DecodeDistance2( t, numDistRanges );
                if ( distance >=max_2Byte_Dist  ) length++;
                start        = dst - distance - length + 1;
                assert( distance + length - 1 <= t->maxCopyDistance );
                for ( j = 0; j < length; j++ ) {
                    src = start + j;
                    if ( src < 0 ) src = src + t->maxCopyDistance;
                    value = ptr1[ src ];
                    ptr1[ dst ] = value;
                    dst = (dst + 1) % t->maxCopyDistance;
                    pos++;
                    if ( usingRunLength ) {
                        MTX_RUNLENGTHCOMP_SaveBytes( t->rlComp, value, &dataOut, &dataOutSize, &index );
                    } else {
                        assert( index <= dataOutSize );
                        if ( index >=dataOutSize ) {
                            dataOutSize += dataOutSize>>1; /* Allocate in exponentially increasing steps */
                            dataOut = (unsigned char *)MTX_mem_realloc( t->mem, dataOut, dataOutSize );
                        }
                        dataOut[ index++ ] = value;
                        /*fputc( value, fpOut ); */
                    }
                }
                continue; /****** Do not fall through *****/
            }
            ptr1[ dst ] = value;
            dst = (dst + 1) % t->maxCopyDistance;
            pos++;
            if ( usingRunLength ) {
                MTX_RUNLENGTHCOMP_SaveBytes( t->rlComp, value, &dataOut, &dataOutSize, &index );
            } else {
                assert( index <= dataOutSize );
                if ( index >=dataOutSize ) {
                    dataOutSize += dataOutSize>>1; /* Allocate in exponentially increasing steps */
                    dataOut = (unsigned char *)MTX_mem_realloc( t->mem, dataOut, dataOutSize );
                }
                dataOut[ index++ ] = value;
                /*fputc( value, fpOut ); */
            }
        }
    }
    assert( pos == t->out_len );
    assert( t->usingRunLength || index == t->out_len );
    if ( pos != t->out_len ) longjmp( t->mem->env, ERR_LZCOMP_Decode_bounds );
    *size = index;
    assert( dataOutSize >=*size );
    if ( t->usingRunLength ) {
        dataOut = (unsigned char *)MTX_mem_realloc( t->mem, dataOut, *size ); /* Free up some memory if possible */
    }
    return dataOut; /******/
}


#endif /*DECOMPRESS_ON */


#ifdef COMPRESS_ON
void * memcpyHuge( void * object2, void * object1, unsigned long size )
{
    unsigned long  i;
    void * object2Ptr;
    object2Ptr = object2;
    for (i=0; i<size; i++)
      *(((char __huge *)object2)++) = *(((char __huge *)object1)++);
    return object2Ptr;
}

/* Call this method to compress a memory area */
unsigned char *MTX_LZCOMP_PackMemory( register LZCOMP *t, void *dataIn, long size_in, long *sizeOut )
{
    long lengthOut;
    unsigned char *bin;
    long binSize;
    const long len_min   = 2;
    const long len_min3  = 3;
    const long len_width = 3;

    const long bit_Range = 3 - 1; /* == len_width - 1 */


    const long dist_min   = 1;
    const long dist_width = 3;
    const long preLoadSize = 2*32*96 + 4*256;

    t->length1 = size_in;

    /* DeAllocate Memory */
    if ( t->ptr1 != NULL ) {
        MTX_mem_free( t->mem, t->ptr1 );
    }
    t->ptr1 = NULL;

    /* Allocate Memory */
    t->ptr1 = (unsigned char *)MTX_mem_malloc( t->mem, sizeof(unsigned char) * (t->length1 + preLoadSize) );

    memcpyHuge( (unsigned char __huge *)t->ptr1+preLoadSize, dataIn, t->length1 );

    t->usingRunLength = false;
    {
        long i, packedLength = 0;
        unsigned char *out, *d;
        t->rlComp = MTX_RUNLENGTHCOMP_Create( t->mem );

        out = MTX_RUNLENGTHCOMP_PackData( t->rlComp, (unsigned char __huge *)t->ptr1+preLoadSize, t->length1, &packedLength );
        /* Only use run-length encoding if there is a clear benefit */
        if ( packedLength < t->length1 * 3 / 4 ) {
            t->usingRunLength = true;
            t->length1 = packedLength;
            MTX_mem_free( t->mem, t->ptr1 );
            t->ptr1 = (unsigned char *)MTX_mem_malloc( t->mem, sizeof(unsigned char) * (t->length1 + preLoadSize) );
            d = (unsigned char __huge *)t->ptr1+preLoadSize;
            for ( i = 0; i < t->length1; i++ ) {
                *d++ = out[i];
            }
        }
        MTX_mem_free( t->mem, out );

        MTX_RUNLENGTHCOMP_Destroy( t->rlComp ); t->rlComp = NULL;
    }
    binSize = 1024;
    bin = (unsigned char *)MTX_mem_malloc( t->mem, binSize );

    t->bitOut = MTX_BITIO_Create( t->mem, bin, binSize, 'w'); assert( t->bitOut != NULL );
    MTX_BITIO_output_bit(t->bitOut, t->usingRunLength);

    t->dist_ecoder = MTX_AHUFF_Create( t->mem, t->bitOut, (short)(1L << dist_width) );
    assert( t->dist_ecoder != NULL );
    t->len_ecoder  = MTX_AHUFF_Create( t->mem, t->bitOut, (short)(1L << len_width) );
    assert( t->len_ecoder != NULL );

    SetDistRange( t, t->length1 ); /* sets t->NUM_SYMS */
    t->sym_ecoder  = MTX_AHUFF_Create( t->mem, t->bitOut, (short)t->NUM_SYMS); assert( t->sym_ecoder != NULL );
    Encode(t);  /* Do the work ! */

    MTX_AHUFF_Destroy( t->dist_ecoder ); t->dist_ecoder = NULL;
    MTX_AHUFF_Destroy( t->len_ecoder  ); t->len_ecoder  = NULL;
    MTX_AHUFF_Destroy( t->sym_ecoder  ); t->sym_ecoder  = NULL;

    MTX_BITIO_flush_bits( t->bitOut );
    lengthOut = MTX_BITIO_GetBytesOut( t->bitOut );
    bin = MTX_BITIO_GetMemoryPointer( t->bitOut );

    MTX_BITIO_Destroy( t->bitOut );
    t->bitOut = NULL;

    *sizeOut = lengthOut;
    return bin; /******/
}

#endif /* COMPRESS_ON */

#ifdef DECOMPRESS_ON
/* Call this method to un-compress memory */
unsigned char *MTX_LZCOMP_UnPackMemory( register LZCOMP *t, void *dataIn, long dataInSize, long *sizeOut, unsigned char version )
{
    long maxOutSize;
    unsigned char *dataOut;
    const long len_width = 3;
    const long dist_width = 3;
    const long preLoadSize = 2*32*96 + 4*256;

    assert( dataIn != NULL );

    /* DeAllocate Memory */
    if ( t->ptr1 != NULL ) {
        MTX_mem_free( t->mem, t->ptr1 );
    }
    t->ptr1 = NULL;
    t->rlComp = MTX_RUNLENGTHCOMP_Create( t->mem );


    t->bitIn = MTX_BITIO_Create( t->mem, dataIn, dataInSize, 'r' ); assert( t->bitIn != NULL );
    if ( version == 1 ) {  /* 5-Aug-96 awr */
        t->usingRunLength = false;
    } else {
        t->usingRunLength = MTX_BITIO_input_bit( t->bitIn );
    }

    t->dist_ecoder = MTX_AHUFF_Create( t->mem, t->bitIn, (short)(1L << dist_width) );
    assert( t->dist_ecoder != NULL );
    t->len_ecoder  = MTX_AHUFF_Create( t->mem, t->bitIn, (short)(1L << len_width) );
    assert( t->len_ecoder != NULL );

    t->out_len = MTX_BITIO_ReadValue( t->bitIn, 24 );
    SetDistRange( t, t->out_len ); /* Sets t->NUM_SYMS */
    /* Allocate Memory, but never more than t->maxCopyDistance bytes */
    maxOutSize = t->out_len + preLoadSize;
    t->ptr1 = (unsigned char *)MTX_mem_malloc( t->mem, sizeof(unsigned char) *
           (t->maxCopyDistance < maxOutSize ?  t->ptr1_IsSizeLimited = true, t->maxCopyDistance : maxOutSize) );

    t->sym_ecoder  = MTX_AHUFF_Create( t->mem, t->bitIn, (short)t->NUM_SYMS );

    assert( t->sym_ecoder != NULL );
    dataOut = Decode( t, sizeOut); /* Do the work ! */

    MTX_AHUFF_Destroy( t->dist_ecoder );     t->dist_ecoder = NULL;
    MTX_AHUFF_Destroy( t->len_ecoder  );    t->len_ecoder  = NULL;
    MTX_AHUFF_Destroy( t->sym_ecoder  );     t->sym_ecoder  = NULL;

    MTX_BITIO_Destroy( t->bitIn );             t->bitIn = NULL;
    MTX_RUNLENGTHCOMP_Destroy( t->rlComp );    t->rlComp = NULL;

    assert( t->usingRunLength || *sizeOut < maxOutSize );

    #ifdef VERBOSE
        /*cout << "Wrote " << *sizeOut << " Bytes to file <" << outName << ">" << endl; */
        printf("Wrote %ld Bytes to file <%s>\n", (long)*sizeOut, outName );
    #endif
    return dataOut; /******/
}



#endif /* DECOMPRESS_ON */


/* Constructor */
LZCOMP *MTX_LZCOMP_Create1( MTX_MemHandler *mem  )
{
    const short hNodeAllocSize = 4095;
    LZCOMP *t    = (LZCOMP *)MTX_mem_malloc( mem, sizeof( LZCOMP ) );
    t->mem        = mem;

    t->ptr1                = NULL;
    t->maxCopyDistance     = 0x7fffffff;
    t->ptr1_IsSizeLimited = false;
#ifdef COMPRESS_ON
    t->freeList            = NULL;
    t->hashTable         = NULL;
    t->nodeBlock        = NULL;
    t->nextFreeNodeIndex    = hNodeAllocSize;
#endif
    return t; /*****/
}

LZCOMP *MTX_LZCOMP_Create2( MTX_MemHandler *mem, long maxCopyDistance )
{
    const long preLoadSize = 2*32*96 + 4*256;
    const short hNodeAllocSize = 4095;
    LZCOMP *t    = (LZCOMP *)MTX_mem_malloc( mem, sizeof( LZCOMP ) );
    t->mem        = mem;

    t->ptr1                = NULL;
    t->maxCopyDistance    = maxCopyDistance;
    if ( t->maxCopyDistance < (preLoadSize+64) ) t->maxCopyDistance = preLoadSize+64;
    t->ptr1_IsSizeLimited = false;
#ifdef COMPRESS_ON
    t->freeList            = NULL;
    t->hashTable         = NULL;
    t->nodeBlock        = NULL;
    t->nextFreeNodeIndex    = hNodeAllocSize;
#endif
    return t; /*****/
}


/* Deconstructor */
void MTX_LZCOMP_Destroy( LZCOMP *t )
{
    MTX_mem_free( t->mem, t->ptr1 );
#ifdef COMPRESS_ON
    FreeAllHashNodes(t);
    MTX_mem_free( t->mem, t->hashTable );
#endif
    MTX_mem_free( t->mem, t );
}



/*---- Begin RUNLENGTHCOMP --- */
#ifdef COMPRESS_ON
/* Invoke this method to run length compress a file in memory */
unsigned char *MTX_RUNLENGTHCOMP_PackData( RUNLENGTHCOMP *t, unsigned char *data, long lengthIn, long *lengthOut )
{
    unsigned long counters[256], minCount;
    register long i, runLength;
    unsigned char escape, theByte;
    unsigned char *out, *outBase;

    /* Reset the counters */
    for ( i = 0; i < 256; i++ ) {
        counters[i] = 0;
    }
    /* Set the counters */
    for ( i = 0; i < lengthIn; i++ ) {
        counters[data[i]]++;
    }
    /* Find the least frequently used byte */
    escape      = 0; /* Initialize */
    minCount = counters[0];
    for ( i = 1; i < 256; i++ ) {
        if ( counters[i] < minCount ) {
            escape     = (unsigned char)i;
            minCount = counters[i];
        }
    }
    /* Use the least frequently used byte as the escape byte to */
    /* ensure that we do the least amount of "damage". */

    /* We can at most grow the file by the first escape byte + minCount, since all bytes */
    /* equal to the escape byte are represented as two bytes */
    outBase = out = (unsigned char *)MTX_mem_malloc( t->mem, sizeof(unsigned char) * (lengthIn + minCount + 1) );

    /* write: escape byte */
    *out++ = escape;
    for ( i = 0; i < lengthIn; ) {
        long j;
        theByte = data[i];
        for ( runLength = 1, j = i + 1; j < lengthIn; j++) {
            if ( theByte == data[j] ) {
                runLength++;
                if ( runLength >=255 ) break;/******/
            } else {
                break; /******/
            }
        }
        if ( runLength > 3 ) {
            assert( runLength <= 255 );
            /* write: escape, runLength, theByte */
            /* We have a run of bytes which are equal to theByte. */
            /* This is were we WIN. */
            *out++ = escape;
            *out++ = (unsigned char)runLength;
            *out++ = theByte;
        } else {
            runLength = 1;
            if ( theByte != escape ) {
                /* write: theByte */
                /* Just write out the byte */
                *out++ = theByte;
            } else {
                /* write: escape, 0         */
                /* This signifies that we a have single byte which is equal to the escape byte! */
                /* This is the only case were we loose, and expand intead of compress. */
                *out++ = escape;
                *out++ = 0;
            }
        }
        i += runLength;
    }
    *lengthOut = (long)(out - outBase);
    assert( *lengthOut <= (long)(lengthIn + minCount + 1) );
    return outBase; /******/
}
#endif /* COMPRESS_ON */

const unsigned char initialState    = 100;
const unsigned char normalState     = 0;
const unsigned char seenEscapeState = 1;
const unsigned char needByteState   = 2;

#ifdef DECOMPRESS_ON

/* Use this method to decompress the data transparantly */
/* as it goes to the memory. */
void MTX_RUNLENGTHCOMP_SaveBytes( register RUNLENGTHCOMP *t, unsigned char value, unsigned char * *dataOutRef, long *dataOutSizeRef, long *indexRef )
{
    register unsigned char *dataOut = *dataOutRef;
    register long dataOutSize = *dataOutSizeRef;
    register long index = *indexRef;

    if ( t->state == normalState ) {
        if ( value == t->escape ) {
            t->state = seenEscapeState;
        } else {
            assert( index <= dataOutSize );
            if ( index >=dataOutSize ) {
                dataOutSize += dataOutSize>>1; /* Allocate in exponentially increasing steps */
                dataOut = (unsigned char *)MTX_mem_realloc( t->mem, dataOut, dataOutSize );
            }
            dataOut[ index++ ] = value;
        }
    } else if ( t->state == seenEscapeState ) {
        if ( (t->count = value) == 0 ) {
            assert( index <= dataOutSize );
            if ( index >=dataOutSize ) {
                dataOutSize += dataOutSize>>1; /* Allocate in exponentially increasing steps */
                dataOut = (unsigned char *)MTX_mem_realloc( t->mem, dataOut, dataOutSize );
            }
            dataOut[ index++ ] = t->escape;
            t->state = normalState;
        } else {
            t->state = needByteState;
        }
    } else if ( t->state == needByteState ) {
        register int i;

        if ( index + (long)t->count > dataOutSize ) {
            dataOutSize = index + (long)t->count + (dataOutSize>>1); /* Allocate in exponentially increasing steps */
            dataOut = (unsigned char *)MTX_mem_realloc( t->mem, dataOut, dataOutSize );
        }
        /* for ( i = 0; i < t->count; i++ ) */
        for ( i = t->count; i > 0; i-- ) {
            dataOut[ index++ ] = value;
        }
        assert( index <= dataOutSize );
        t->state = normalState;
    } else {
        assert( t->state == initialState );
        t->escape     = value;
        t->state    = normalState;
    }
    *dataOutRef     = dataOut;
    *dataOutSizeRef    = dataOutSize;
    *indexRef         = index;
}


#endif /* DECOMPRESS_ON */

/* Constructor */
RUNLENGTHCOMP *MTX_RUNLENGTHCOMP_Create( MTX_MemHandler *mem  )
{
    RUNLENGTHCOMP *t    = (RUNLENGTHCOMP *)MTX_mem_malloc( mem, sizeof( RUNLENGTHCOMP ) );
    t->mem                = mem;
    t->state             = initialState; /* Initialize */
    return t; /*****/
}


/* Deconstructor */
void MTX_RUNLENGTHCOMP_Destroy( RUNLENGTHCOMP *t )
{
    MTX_mem_free( t->mem, t );
}

/*---- End RUNLENGTHCOMP --- */

Bibliography

1. Nelson, Mark, “The Data Compression Book”, 2nd edition. ISBN 1-55851-434-1.

2. Ziv, J., “A universal Algorithm for Sequential Data Compression”, IEEE Transactions on Information Theory, Vol. 23, No 3, pp 337-343.
