This document presents several use cases that illustrate SWSO -- the Semantic Web Services Ontology, and SWSL -- the Semantic Web Services Language.

Status of this document

Table of contents

1 Introduction
2 Use Cases Illustrating the Conceptual Model
3 The Amazon E-commerce Service
4 Service Discovery with SWSL-Rules
5 Policy Rules for E-Commerce
6 Using Defaults in Domain-Specific Service Ontologies
7 Glossary
8 References

1 Introduction

This document is part of the technical report of the Semantic Web Services Language (SWSL) Committee of the Semantic Web Services Initiative (SWSI). The overall structure of the report is described in the document titled Semantic Web Services Framework Overview. The present document discusses a number of use cases that illustrate the Semantic Web Services Ontology (SWSO), which is defined in a separate document, and the Semantic Web Services Language (SWSL), which is also described separately.

Section 2 presents use cases that illustrate various aspects of SWSO with emphasis on the process model. Section 3 considers a particular use case, the Amazon.com service, and shows how SWSO and SWSL can be used to describe this service. Section 4 focuses on the problem of Web service discovery and shows how services, user goals, mediators, and the discovery engine itself can be defined in SWSL-Rules, which is a sublanguage of SWSL. Section 5 presents use cases for policy specification in e-commerce and shows how these cases can be specified in SWSL-Rules. Finally, Section 6 uses SWSL-Rules to illustrate the need for non-monotonic inheritance and overriding in domain-specific service ontologies.

2 Use Cases Illustrating the Conceptual Model

We introduce here several examples, which are useful in illustrating selected aspects of the Process Model portion of the Conceptual Model underlying the FLOWS Ontology. Section 2.1 focuses on human-machine interactions, and describes a hypothetical on-line bookseller. The example illustrates aspects of atomic processes, fluents, and messages. Section 2.2 focuses on machine-machine interaction, and illustrates the use of channels, and the possible FLOWS-Core extensions for Guarded Automata and Meta-Server. Finally, Section 2.3, illustrates the flexibility of the conceptual model, by showing briefly how it can be applied to specify services coordination in a telecommunications context.

2.1 Illustration of Atomic Processes and Messages

This example focuses on a web service Acme_Book_Sales, that provides support for the external web presence of the hypothetical Acme book selling business. We focus primarily on the occurrences of the Acme_Book_Sales service that interact with end-users (modeled abstractly as service occurrences), and mention only at a high level some aspects of the interaction of occurrences of this service with other services (e.g., to arrange for credit card charges and shipping). In the following we describe (i) three of the domain-specific fluents manipulated by occurrences of Acme_Book_Sales, (ii) four atomic processes used by Acme_Book_Sales, (iii) four of the types of message that Acme_Book_Sales can send or receive, and (iv) finally a typical process flow in occurrences of Acme_Book_Sales.

Note that the domain-specific fluents described here might be accessed by services operated by Acme other than the service Acme_Book_Sales, and perhaps accessed by services operated by enterprises other than Acme. (E.g., a shipper might have read or read/write access on some of these fluents.) Likewise, the atomic processes used in the service Acme_Book_Sales might be used in the specification of other services (supported by Acme or other enterprises).

The description here is intended to illustrate certain aspects of the process model of the SWSL conceptual model, and is not intended to provide a complete specification of the Acme_Book_Sales service. (In any event, recall that SWSL can support both complete and incomplete specifications of services.) We focus on three domain-specific fluents:

      Book_info[
	  ISBN => xsd#string,
	  Title => xsd#string,
	  Author => xsd#string
      ].


For each book that Acme is selling, this fluent holds a record (i,t,a) for each author of the book, where i is the ISBN number, t is the title, and a is the author name.

(For simplicity of exposition, this is not, in the parlance of relational databases, in Third Normal Form.) Note that some books listed in Book_info may not be in Acme's stock at a given time.

      Book_inventory[
	  ISBN => xsd#string
	  warehouse_id => xsd#string,
	  quantity_on_hand => xsd#integer
      ].


We assume that the Acme company operates multiple warehouses, and that copies of a given book might be available from one or more of these warehouses.

      Book_reservation[
	  ISBN => xsd#string,
	  user_id => xsd#string,
	  warehouse_id => xsd#string
      ].


When a user puts a book in their shopping cart, this corresponds to a commitment by Acme that it will actually ship the book if the user commits to the purchase (and the payment details are successful). To this end, Acme has to reserve a copy of the book while the user is deciding whether to commit. The fluent Book_reservations is intended to hold triples of the form (u,i,w), that will indicate that a copy of the book with ISBN number i is being held at warehouse w for user u.

We now overview four atomic processes used by Acme_Book_Sales. The description here is somewhat informal and is intended to provide an intuitive understanding, not a formal specification.

      book_search[
	  input => book_descriptor[ISBN => xsd#string,
                                   title => xsd#string,
				   authors => Person,
                                   keywords => xsd#string],
	  output => book_record[ISBN => xsd#string,
	                        title => xsd#string,
	                        authors => xsd#string],
	  effect => Formula  // focused on output only
      ].


This process supports searches against the full catalog of books sold by the bookseller. The input argument for this may include precise information such as ISBN, title, author, and/or may include more open-ended information such as key-words (in the title), partial author names, etc. This atomic process returns a (possibly empty) list of books that satisfy the search criteria. There are no side-effects.

      book_reserve[
	  input => reservation_input[user_id => xsd#integer,
                                     ISBN => xsd#string],
	  output => reservation_output[warehouse => xsd#string,
                                       expected_ship_date => xsd#date],
	  effect => Formula
	     // the effect is supposed to be: if the book is available, then
             // decrement quantity of book for this warehouse,
	     // insert record into the "reserved" relation
	     // if not, then no effect
      ].


Intuitively, this process corresponds to a user putting a book into her shopping cart. In this case, Acme commits that it can in fact ship the book. So it decrements the quantity of copies available from one of the warehouses, and puts a record into the Book_reservations fluent.

      reservation_cancel[
	  input => cancellation_result[user_ID => xsd#integer, ISBN => xsd#string],
	  output => success_flag_type,
	  effect => Formula
             // Intended effect:
	     //    If the book is reserved for this user
	     //    remove appropriate records from "reserved" relation,
	     //    increment quantity of book for appropriate warehouse,
	     //    set success_flag to true;
	     //    if not set success_flag to false;
      ].


      book_shipment[
	  input => ship_type[user_ID => xsb#integer,
                                ISBN => xsd#string],   // list of ISBNs
	  output => xsb#integer,                      // confirmation_#;
	  effect => Formula
	     // Intended effect: Assuming no exceptions,
	     //    remove appropriate records from "reserved" relation,
	     //    (possibly, move a copy of book to loading dock);
      ].


These atomic processes deal with "clean up" concerning reserved books. reservation_cancel effectively cancels out the reservation of the book, and book_shipment records the fact that the book should really be shipped (and might include physically moving a copy of the book to a loading dock).

So far we have focused on how occurrences of Acme_Book_Sales "interacts" with domain-specific fluents. What about interaction with other services, and with humans (which are modeled as services)? Some of the messages that Acme_Book_Sales can send and receive include the following. As before, the description of argument types is for intuitive purposes only.

      book_search_request(User_ID: string, search_criteria: search_criteria_type)


A user can send a message of this type to an occurrence of Acme_Book_Sales. The single argument is an amalgam of whatever search criteria the user has specified. In practice we would expect this argument to be assembled by the user interface code running on the user's web browser and Acme's web server, based on the inputs of the user into her browser.

      book_search_response(ISBN: string, title: string, list_of [author: string])


This message can be sent by an occurrence of Acme_Book_Sales to a user, indicating information about zero or more books that Acme is selling.

      shopping_cart_request(user_ID: string, ISBN: string)


This message can be sent by a user to an occurrence of Acme_Book_Sales, indicating that the user wants the specified book to be put into her shopping cart.

      book_availability_response(ISBN: string, title: string,
                                 list_of [author: string], ship_date: date)


This message can be sent by an occurrence of Acme_Book_Sales to a user, indicating that the indicated book is available, and can be shipped to the user on ship_date.

Acme_Book_Sales is capable of sending and receiving several other types of message. This includes messages from the user to commit to a purchase, and to put in credit card information, and messages back to the user to confirm various operations. It includes messages between occurrences of Acme_Book_Sales and banking services, and between Acme_Book_Sales and shipping services.

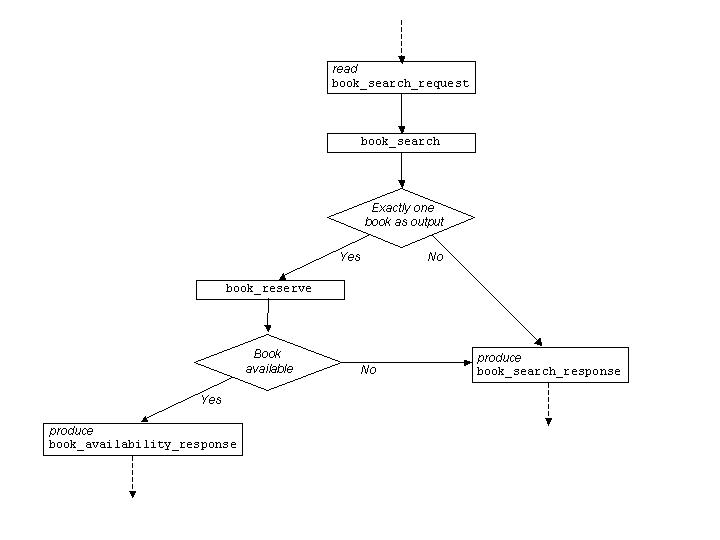

Figure 2.1: Part of process flow for Acme_Book_Sales service activity

Example 2.1(a): Atomic Processes and Internal Process Model. We now briefly discuss a partial specification of the permitted process flow of atomic process occurrences in interpretations of the theory for this application domain. Figure 2.1 illustrates a portion of this process flow, using a flow-chart paradigm. In terms of a formal domain theory, this (or something equivalent) could be specified using the Control Constructs extension of FLOWS-Core, or by using more primitive PSL-OuterCore predicates such as soo_precedes.

A notable aspect of the process flow indicated in Figure 2.1 is that there is not necessarily a one-to-one correspondence between messages being sent by a user and invocations of atomic processes in the occurrence of Acme_Book_Sales. Specifically, after an Read_Message occurrence of kind book_search_request, there will be an occurrence in Acme_Book_Sales of the atomic process book_search, with the appropriate input argument. If zero or more than one books is output from this atomic process occurrence, then there is a Produce_Message occurrence that creates a message of type book_search_response. (Presumably, this is followed by an appropriate Read_Message occurrence in the end-user.) However, if exactly one book was returned by the book_search occurrence, then in the occurrence of Acme_Book_Sales there is an occurrence of book_reserve. Intuitively, this is a pro-active step by Acme_Book_Sales, in order to provide for the user information about availability and possible shipping date of this book. If the book is available, then in Acme_Book_Sales there is a Produce_Message occurrence that produces a message of type book_availability_response. (If the book is not available, then in Acme_Book_Sales there would be a Produce_Message occurrence that creates a message of type book_search_response, or perhaps of a different type, that includes the fact that the book is currently unavailable.)

(We note that if the end-user has a Produce_Message occurrence that creates a message of type book_search_request then the response message may have one of two kinds. We assume that the Acme web server and the user's web browser software will present these to the user in an appropriate manner.)

It is possible, using the knowledge pre-conditions and conditional effects portion of the FLOWS-Core ontology, to precisely characterize the flow of information between atomic process occurrences in an occurrence of the Acme_Book_Sales service. One application of this capability would be to support a form of de-bugging, in which one could verify that a domain theory for a service such as Acme_Book_Sales provides for the flow of information needed to support a desired objective. Another application of this capability is presented in the next example.

Example 2.1(b): Inferring Message Production and Reads We now consider a variation, in which the domain theory T for Acme_Book_Sales includes two parts:

• T1: An explicit description of the domain-specific atomic processes that Acme_Book_Sales can perform along with constraints on their sequencing, relationship to domain-specific fluents, etc.
• T2: A family of generic constraints that state properties such as that if an atomic process (e.g., book_search) requires a certain form of input (e.g., ISBN# and/or book title and/or ...), and there is an occurrence of that process, then a message holding the required information in its payload must have been produced (e.g., the the user) and read by some Read_Message occurrence in the occurrence of Acme_Book_Sales.

Here, the family T2 of constraints might be used in a variety different contexts involving services that embody many different variations of Acme_Book_Sales.

Imagine now that we want to study the possible occurrences satisfying the theory T1 union T2, in which a user's goal is to buy a book with a given ISBN#. Suppose further that o is an occurrence of the overall system in which the user's goal is achieved. From the constraints in T1 one can infer properties of o concerning the actual ordering of the domain-specific atomic process occurrences, the input and output values associated to those occurrences, and the values of the domain-specific fluents. Furthermore, one can use T2, along with axioms from the FLOWS-Core ontology, to infer that certain messages must have been produced and read in o, and infer some of the characteristics of the payloads of those messages. Thus, assuming that an appropriate family T2 of constraints is specified, one can specify the full behavior of a web service by specifying only the domain-specific atomic processes involved that service. In particular, the message-handling atomic processes of the service can be inferred, and do not have to be specified explicitly.

2.2 Illustration of Channels, Meta-Service, Guarded Automata

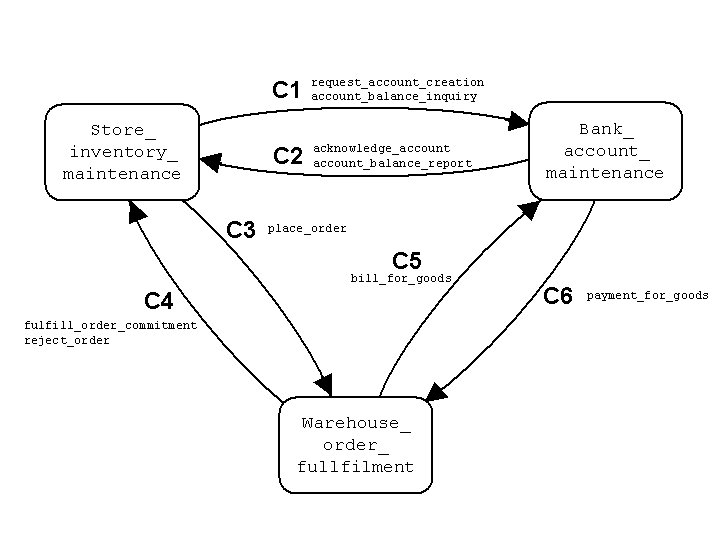

We now describe the Store-Warehouse-Bank example, which is based loosely on an example in [Bultan03] (see also [Hull03]). As suggested in Figure 2.2 below, we assume the existence of three entities, namely a (bricks-and-mortar) Store, a Warehouse, and a Bank. (Unlike the example of Subsection 2.1, the store here is assumed to maintain a physical inventory on premises.) For each entity we focus on one of the several web services that it might perform; these have the following names:

Store_inventory_maintenance

A "back-office" service, that attempts to ensure that the for each item sold by the store, the available stock at the store remains above some threshold.

Warehouse_order_fulfillment

This service running at the Warehouse responds to orders from the Store. As part of its operation it charges an account of the Store held at the Bank.

Bank_account_maintenance

This service running at the Warehouse responds to orders from the Store. As part of its operation it charges an account of the Store held at the Bank.

In the following we describe, for the three services, (a) the domain-specific fluents they can access and manipulate, (b) the atomic domain-specific atomic processes in them, and (c) the kinds of messages that they can create, read, and destroy.

(FLOWS-Core does not consider parameter typing, but we include types here as an intuitive convenience. The use of structured values in message parameters, and atomic process outputs, can in principle be provided in extensions of FLOWS-Core, such as Relation-valued Parameters and XML-valued Parameters; see Section 3.7.2.)

For this example, we assume the following service-specific fluents and relations:

Bank_accounts(account_id:int, owner_id:int, balance:int)

This fluent holds data on bank accounts. It is accessed and maintained exclusively by some services associated with the Bank (including Bank_account_maintenance).

Store_inventory(item_id:int, quantity:int)

This fluent holds data on inventory held by the store. It is accessed and maintained exclusively by some services associated with the Store (including Store_inventory_maintenance).

Warehouse_inventory(item_id:int, quantity:int)

This fluent holds data on inventory held by the warehouse. It is accessed and maintained exclusively by some services associated with the Warehouse (including Warehouse_order_fulfillment. (For simplicity, we assume that the Store and Warehouse use the same numbering system.)

Goods_in_transit(shipment_id:int, shipping_date:date, expected_delivery_date:date, transport_content_list_id:int)

This fluent holds data on goods that are being shipped (from the Warehouse to the Store). For this example, we assume that it can be viewed by some services associated with the Warehouse and the Store. (In practice, this fluent might be maintained by yet another service, e.g., operated by an entity Shipper. In that case, services associated with the Store and Warehouse might "read" information in Goods_in_transit by exchanging messages with a service operated by Shipper.)

Transport_content_lists(transport_content_list_id:int, item_id:int, quantity:int)

This relation holds the contents of shipments. (The approach to modeling taken by this fluent is suggestive of how the extension Relation-Valued Parameters on FLOWS-Core might be constructed.) It can be accessed by the same services that can access Good_in_transit.

Wholesale_order_content_lists(wholesale_order_id:int, item_id:int, quantity:int)

Similar to Transport_content_lists, this relation holds the contents of orders (made by the Store against the Warehouse). This fluent can be read by some services associated with the Store and the Warehouse. (The reader may wonder why this is not a fluent. The answer is that the association between wholesale_order_id's and the item_id,quantity pairs need not vary over time -- it can be viewed as fixed for the duration of the execution of the overall system being modeled. In particular, a given wholesale_order_id will be used in exactly one message payload, and so there is no need to override the item_id,quantity pairs associated to it.)

At least the following kinds of domain-specific atomic processes can be performed by the various services.

Create_account(owner_id:int, account_id:int, initial_balance:int)

Modify_account_balance(account_id:int, amount:int)

These have the expected semantics, and can be performed by occurrences of Bank_account_maintenance (and perhaps other services associated with the Bank).

Transfer_funds(source_account_id:int, target_bank_id:int, target_account_id:int, amount)

This atomic activity is performed by occurrences of Bank_account_maintenance (and perhaps other services associated with the Bank). The source account must be maintained by the Bank service (the target might be another bank), and the source account must have enough funds to cover the transfer.

Send_shipment_from_warehouse(shipment_id:int, transport_content_list_id:int, ship_date:date)

This atomic activity is performed by occurrences of the Warehouse_order_fulfillment service. It corresponds intuitively to the situation where a physical shipment is created by the warehouse (for the store). The primary pre-condition is that there is enough inventory in Warehouse_inventory; the conditional effect is to update Warehouse_inventory, Goods_in_transit and Transport_contents_lists appropriately. In practice, occurrences of this atomic activity will occur after a message is received from the Store, requesting a shipment of goods.

Receive_shipment_to_store(shipment_id:int, transport_content_list_id:int, receive_date:date)

This atomic activity is performed by occurrences of the Store_inventory_maintenance service. It corresponds intuitively to the situation where a physical shipment is received by the store (from the warehouse). One pre-condition is that there is a record in Goods_in_transit with this shipment_id. (Additional pre-conditions might be based on dates.) The primary conditional effect is that the Store_inventory and Goods_in_transit are updated appropriately.

We mention two additional atomic domain-specific activities that are associated with the Store and Bank, respectively, but which do not arise in the services Store_inventory_maintenance or Warehouse_order_fulfillment.

Sell_to_buyer(buyer_id:int, retail_order_id:int, price:int)

This atomic activity corresponds intuitively to the situation where an individual makes a purchase at the store. As with orders against the Warehouse, an additional fluent Retail_order_content_lists(retail_order_id:int, item_id:int, quantity:int) can be maintained to hold the list of goods involved in a retail order. The pre-condition on this atomic activity is that there is sufficient inventory at the Store, and the conditional effect is that the Store_inventory is updated appropriately.

Receive_shipment_to_warehouse(shipment_id:int, transport_content_list_id:int, ship_date:date)

This atomic activity corresponds intuitively to the situation where a physical shipment is received by the warehouse (from a service not discussed in the example). The conditional effect is to update Warehouse_inventory appropriately.

Finally, we turn to the kinds of messages that the three services can exchange.

request_account_creation(store_id:int; account_amount:int)

Intuitively, this message requests establishment of an account by the Bank for the Store in the given amount.

acknowledge_account(account_id:int, account_balance:int)

Intuitively, this message acknowledges the establishment of an account by the Bank for the Store, and provides the (newly created) account_id, along with current balance.

account_balance_inquiry(store_id:int; account_id:int)

Intuitively, this message requests the current balance of a bank account.

account_balance_report(account_id:int, account_balance:int)

Intuitively, this message gives the current balance in an account.

place_order(order_id:int, store_id:int, wholesale_order_id:int, bank_account_id:int, stop_attempt_date:date)

Intuitively, this message places an order by the Store against the Warehouse. It will fail if there is not sufficient inventory in the Warehouse to fill the order. In that case, the Store wants the Warehouse to keep trying to fill the order until stop_attempt_date. (The list of things ordered is found in the fluent Wholesale_order_contents_lists, associated with the value of wholesale_order_id; see Example 2.2(a) below.)

fulfill_order_commitment(order_id:int; shipment_id:int)

Intuitively, this message indicates that an order against the Warehouse will be filled, and provides the shipment_id. (Further information on the shipment can be obtained from the fluents Goods_in_transit and Transport_contents_lists.)

reject_order(order_id:int)

Intuitively, this message indicates that an order against the Warehouse cannot be filled.

bill_for_goods(account_id:int; order_id:int, bill_amount:int, target_bank_id:int, target_account_id:int)

Intuitively, this message indicates that the Warehouse is sending a bill to the Bank for payment from the specified account. Here the value of target_account_id is intended to be a bank account of the Warehouse; it might be maintained by the Bank highlighted in this example or by some other bank (as indicated by the value of target_bank_id).

payment_for_goods(account_id:int; order_id:int, payment_amount:int target_account_id:int)

Intuitively, this message indicates that the Bank is making a payment of the specified amount to the Warehouse.

Example 2.2(a): Relation-valued parameters. Using the above we can illustrate concretely the approach described in Subsection 3.7.2 for supporting in FLOWS-Core parameters having the form of relations (rather than having form essentially equivalent to single objects or scalars). Consider the message type place_order, whose third argument is wholesale_order_id. Speaking intuitively, to understand the information conveyed by the third argument, one must look at the relation Wholesale_order_content_lists(wholesale_order_id, item_id, quantity). In particular, a given value W for wholesale_order_id will be associated by Wholesale_order_content_lists with a set of item_id,quantity pairs; these will correspond to the set of items (with quantities) that the Store is ordering.

In a similar manner, the output parameter transport_content_list_id of atomic process Send_shipment_from_warehouse identifies a set of item-quantity pairs, according to the relation Transport_content_lists.

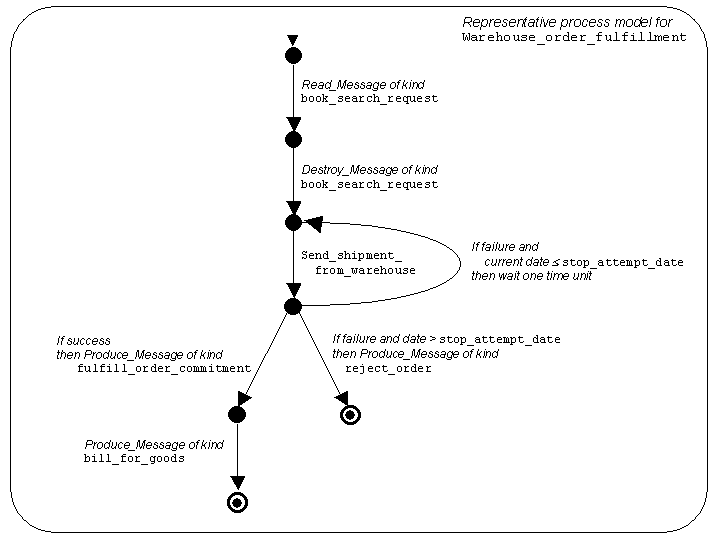

Example 2.2(b): Guarded Automata. We now consider one approach to formally specifying a representative process flow for the activity associated with service Warehouse_order_fulfillment. This is illustrated in Figure 2.2, which shows informally a Guarded Automaton that specifies a possible behavior. This follows the spirit of the potential PSL extension of FLOWS-Core described in Subsection 3.7.6.

Intuitively, a typical flow of activity for (occurrences of) this service could be as follows:

1. At the beginning, there would be a Read_Message atomic process occurrence of kind place_order, followed by a Destroy_Message occurrence (which destroys the message just read).
2. An occurrence of atomic process Send_shipment_from_warehouse is next. Note that the automaton state reached after this occurrence has three out-edges. These are guarded by conditions, which in this case are disjoint. (In general, the conditions of edges from a given state of a guarded automaton may be overlapping, which models a form of non-determinism.)
3. If this atomic process occurrence fails (e.g., because the warehouse does not have sufficient inventory) then the occurrence of Warehouse_order_fulfillment will include additional occurrences of atomic process Send_shipment_from_warehouse, if the current time precedes the stop_attempt_date specified as an argument of the place_order message that was initially read.
4. If there is a successful occurrence of Send_shipment_from_warehouse, then there is a Produce_Message occurrence that creates a message of type fulfill_order_commitment (intended for the Store), and there is a Produce_Message occurrence that creates a message of type bill_for_goods (intended for the Bank).
5. If there is no successful occurrence of Send_shipment_from_warehouse, then there is a Produce_Message occurrence that creates a message of type reject_order.

Can a single occurrence of Warehouse_order_fulfillment accommodate many orders, or in other words, can it include many occurrences of the Read_Message atomic process of kind book_search_request? As specified in Figure 2.2, this is not possible; rather, a new occurrence of the service Warehouse_order_fulfillment will be needed for each message of type place_order coming from the Store. An alternative design for Warehouse_order_fulfillment would be to add transitions from the two final states shown in Figure 2.2, which point back to the start state. This would enable a form of sequential handling of order requests. A problem with this design is that it may take a long period of time to process a single order (in the case where there is looping on attempts to have successful execution of Send_shipment_from_warehouse). The next example describes how the use of a meta-service can enable a better design.

Example 2.2(c): Meta-Service In Subsection 3.7.1 above a potential extension for FLOWS-Core is described, in which "Servers" are used to support the orderly creation of occurrences of a given service. We illustrate that notion here, in the context of the Store-Warehouse-Bank example. In particular, we assume now that are Formal Servers Store_server, Warehouse_server, and Bank_server associated with the Store, Warehouse, and Bank.

We assume that server_service(Warehouse_server, Warehouse_order_fulfillment) holds. The fluent server_service might also associate other services with Warehouse_server, e.g., for making orders against manufacturing enterprises, for managing its own bank account, etc.

Suppose now that the service Warehouse_order_fulfillment has been specified so that an occurrence of this service is focused on fulfilling a single order placed by the Store (or other entities), basically as in Figure 2.2. If we use Warehouse_server, then the messages of type place_order will be read and destroyed by Warehouse_server. When such a message is read, then an occurrence of service Warehouse_order_fulfillment will come into existence. It would be typical for this new occurrence to start with a Read_Message occurrence, which reads a message produced by Warehouse_server (which might be essentially a copied version of the place_order message.) The new occurrence of Warehouse_order_fulfillment could then operate as specified in Figure 2.2.

Example 2.2(d): Static and Dynamic Channels. We now consider how channels might be used in the Store-Warehouse-Bank example. Figure 2.3, illustrates how six pre-defined channels might be established between the three services (see Subsection 3.1.5). The figure also shows how the various message types are assigned to the channels. In a domain theory over FLOWS-Core, this would be achieved by asserting constraints such as channel_source(C5, Warehouse_order_fulfillment), channel_target(C5, Bank_account_maintenance), and channel_mtype(C5, bill_for_goods).

Suppose that constraints of this sort are specified in a domain theory, and also that a constraint is specified stating that all messages must be placed on a channel. Then specification of service behavior can be simplified. To illustrate, consider a Produce_Message atomic process that is a subactivity of Warehouse_order_fulfillment, and that creates messages of type bill_for_goods. For any occurrence of this atomic process, the message created will necessarily be placed on channel C5. Furthermore, only occurrences of the service Bank_account_maintenance will be able to read this message.

Suppose now that new Warehouses can be added to the overall system at arbitrary times. For example, suppose that a new service Alternative_warehouse_order_fulfillment becomes available at some time t. It might be natural in this case to create new channels C7 and C8, analogous to C3 and C4, but connecting Store_inventory_maintenance to Alternative_warehouse_order_fulfillment rather than to Warehouse_order_fulfillment. After this, occurrences of Store_inventory_maintenance could make orders against either warehouse.

A different approach to using the new warehouse service Alternative_warehouse_order_fulfillment would be to modify channel C3 by adding Alternative_warehouse_order_fulfillment as a new target, and to modify channel C4 by adding Alternative_warehouse_order_fulfillment as a new source. In an associated application domain theory, the destination of place_order messages might be non-deterministic, or might be determined by properties of the message payload and/or relevant fluents (e.g., the inventory at the two warehouses).

2.3 Illustration of Rich Internal Process Model

This brief example is intended to illustrate the flexibility of the FLOWS-Core ontology. Specifically, we illustrate how the framework can be applied in the context of services coordination for telecommunications, a discipline which has characteristics somewhat different than traditional e-commerce oriented, transaction-based web services. A basic building block in the deployment of telecommunications services is the notion of "session" (e.g., in which several people are in communication, possibly by multiple media), and a basic concern in telecommunications is dealing with asynchronous events (such as wireless connections dropping or pre-pay accounts running out) that might occur at essentially any time. The IETF Session Initiation Protocol (SIP) provides an extensible family of standardized protocols for initiating and maintaining communication sessions; this operates at a fairly low level in the network, tends to focus on a single media at a time, and addresses a variety of details concerning both signaling and real-time packet streams, the selection of codecs, etc. The 3GPP IP Multimedia Subsystem (IMS) reference architecture provides an architectural framework and a broad family of protocols extending core SIP, with a focus on enabling rich, flexible, and scalable communication services. We focus here on the use of the FLOWS-Core ontology for describing session management and orchestration at an even higher level, which can be realized on top of the SIP and IMS layers.

To illustrate, we describe a simple environment which includes 3 core services, namely, audio_bridge, video_server, teleconf_manager; and includes in essence a service corresponding to each kind of end-user device, say, device_1, ..., device_n. (E.g., perhaps we could have a service device_i for each style of cell phone currently available.)

The audio_bridge would support messages of the sort "initiate_audio_bridge" (in-going), "audio_bridge_initiated(bridge_id:)" (out-going), "add_end_point(bridge_id, end_point_id)" (in-going), "drop_end_point(bridge_id, end_point_id)" (in-going), and "cancel_audio_bridge(bridge_id)" (in-going). Atomic processes internal to the audio_bridge would include things like "add_to_bridge(bridge_id, end_point_id)", which would have the real-world effect of establishing a real-time packet (RTP) stream between the physical bridge server and the physical end-point. To represent this real-world situation a domain-specific fluent active_audio_sessions(bridge_id, end_point_id), can be used, where a pair (b, e) in this fluent would indicate that end-point e is currently connected to bridge b. Note that a failure in the network could lead to breaking the RTP stream, and in turn the removal of pairs from the fluent, at essentially any (non-deterministic) time during processing.

The video_server would support similar messages for enabling one or more end-points to connect to the server, support atomic processes for establishing RTP streams to end-points, and rely on a fluent active_video_sessions(session_id, end_point_id) analogous to active_audio_sessions. In addition, for a given video session s, there will be the state of the video server, which is whether it is currently streaming a video clip, or whether an end-user has requested fast-forward, fast-reverse, or scene-based look-up request. Thus, the video_server can support incoming messages of the sort "play_video(session_id, video_id)", "fast_forward(session_id)", "fast_reverse(session_id)", "indexed_scene_selection(session_id,index)". Additional atomic processes in video_server would include capabilities for manipulating the content of those streams. A corresponding domain-specific fluent video_session_status(session_id, current_video_id, play_back_state, video_location) is used to track the status of each video session. (PSL is based on discrete time, so this fluent is assumed to work with discrete time as well.)

The conference_manager can serve as a single point of access, so that end-points can enter into multi-media multi-party teleconferences, and take advantage of additional features not directly available from the audio_bridge and video_server services. This might include mute capabilities, the establishment of "whisper" sessions (e.g., in which a subset of the teleconference participants temporarily drop out of the primary audio session and create a separate, private audio session just for themselves), the possibility that only a subset of the participants are watching the video, an awareness of who is speaking at a given moment (so that it can be delivered through a web portal to end-users), etc. The conference_manager might also take care of billing considerations, using messages to and from a billing server. In practice, the conference_manager will need to maintain the state of all of the conferences it is managing. One natural way to represent this would be using one or more domain-specific fluents, which are accessible only by occurrences of conference_manager.

We note that the process model used inside the conference_manager might be based on explicit support for sessions and subsessions, rather than being based on flowchart-based constructs as found in [BPEL 1.1] or [OWL-S 1.1]. In particular, it would be natural for the internal process model to support in essence spawning of an unbounded number of sub-processes (sub-activity occurrences), where each one corresponds to the addition of one more participant into a teleconference. This is reminiscent of the ability of many process algebras to support process spawning, but is not supported in BPEL 1.1. (Such unbounded spawning is supported in BPML [BPML].) Furthermore, it is important that the internal model for conference_manager be able to accommodate specifications for what should happen if asynchronous events of various types should arise at essentially any time. There is evidence that it is cumbersome to specify the treatment of such asynchronous events in BPEL, because the BPEL constructs related to "waiting" for asynchronous events are generally tied to scopes. In a telecom context, the natural treatments for several kinds of asynchronous events cut across the scoping that is convenient to establish in a BPEL specification. In any case, the needed internals of conference_manager can be modeled accurately using FLOWS-Core.

Finally, there are services associated with the end-points. These will include the capability for sending messages to the conference_manager to request a teleconference and perhaps to request information about an ongoing teleconference (e.g., who is speaking now?). Atomic processes would include the ability to start receiving or sending an RTP stream, the initiation or cancellation of presentation/display of audio/video output to the end-user, and maintenance of information in connection with the RTP streams.

3 The Amazon E-Commerce Service

The Amazon e-commerce service (ECS)exposes a range of capabilities including the full Amazon product catalogue. A freely downloadable development kit enables developers to create value-added web-sites and services. In addition to exposing product information through comprehensive search capabilities, Amazon offer remote shopping cart resources that can be managed online and submitted for check-out processing.

We use the Amazon scenario to explore the benefits that semantic modeling of web-services can provide. We focus on the requirements for advertising & matchmaking; contracting & negotiation; process modeling & enactment, and express these in terms of a concrete and straightforward challenge for semantic modeling: to assist the customer in buying a copy of "The Description Logic Handbook" at the cheapest price.

The terminology of the scenario is drawn from the Web Services Architecture document (plus extensions from [Preist04]).

Advertising and Matchmaking

We don't assume from the outset that the customer will buy the book from Amazon. They may in fact consult many different book vendors and select the cheapest offer. We are interested in how the customer finds the Amazon service, and how detailed the service description needs to be. Let us be clear, we are not at this stage trying to describe the operational web-service interface for which one may continue to use WSDL. Rather we aim to describe, and advertise, the service in terms of its value proposition.

Advertising is therefore concerned with the description of this service offer and its flip-side the service requirement. It is unreasonable to expect Amazon to advertise their service in terms of each and every product available; they may instead publish a generalized service offer. For example, Amazon divide their product range into a number of offerings including Books, Music, DVDs, etc. The service offer may simply describe Amazon as a book vendor, assuming we have a readily available domain ontology that declares the concept of 'Books' together with a suitable 'offering' relationship. Another resource we have available to describe the type of service offered by Amazon is the MIT Process handbook that classifies the customer interaction with Amazon.com as an example of the 'Sell via electronic store with posted prices' business process.

The service offer is published in some form so that the Amazon service can be discovered either directly by the customer, or by using some third-party discovery service. The service requirements mirror the service offer, though we will assume the request is more general in the way it classifies the service but is more specific in the product detail. The requirements will define only a service that will 'Sell' a Book with the name 'The Description Logic Handbook'. To 'Sell' is more generic than to 'Sell via electronic store...', however the class of Books with this specific product name is more specific than Books in general. Therefore, even in this simple example there is no strict taxonomical relationship between the service offer and requirements.

The function of matchmaking is to identify the relationship (if any) between the service offer and the service request. We are primarily interested in matches in the intersection of the service offer and request. An additional conundrum appears when we consider the service offer, described above, in relation to other service offers. For example, consider an alternative offer that describes Amazon as a Music vendor. If Music is not explicitly disjoint from Books then there are also solutions in the intersection where Music is deemed synonymous with Books. What is the logical justification for ranking the Books offer over the Music offer? SWSL rules may be used to define this matchmaking relationship; the relationship between matching service offers and requirements. These rules may be interpreted by an agent to perform service discovery. Furthermore, the non-monotonic features of SWSL rules enable us to select the best matches available - selecting Amazon Books over Amazon Music.

Contracting and Negotiation

The abstract nature of the service offer means that we can't immediately see if the required book is actually for sale and at what price. The requester must enter into direct negotiation with the service provider agent to fill in the gaps - to come up with the service contract. The contract represents an agreement between the customer and the service provider, defining exactly the service (instance) to be provided. The contract must be specific about the required product, for the title may not be sufficient: for books the Amazon Standard Item Number (ASIN) provides a unique product code equivalent to the book's ISBN.

As with service descriptions and matchmaking, the service contract defines the content of a negotiation process. With Amazon ECS, negotiation involves a catalogue search that returns product info including price and availability. Only at this point do we have the raw material for a service contract - a tangible offer. To flesh-out and and shake-hands on the contract, the agent adds the book to the cart and proceeds to the checkout. We assume the final go-ahead to make the purchase is referred back to the customer. This style of negotiation follows a very simple take-it-or-leave-it  pattern, but requires a technically non-trivial choreography that differs between services. For this reason, we require a method of process modeling so that our agent can negotiate on the customer's behalf.

Process Modeling and Enactment

A key feature of the Service Oriented Architecture is its characterization of the tasks and actions concomitant with the negotiation and delivery of the service. Tasks are modeled as processes, which break down by way of composite processes into more primitive atomic processes that represent these basic actions. Additionally, every process is modeled in terms of its Inputs, Outputs, Preconditions and Effects (IOPEs) which provide an epistemic account of the impact of these actions on the knowledge-base of the agent. Through process modeling we aim to describe the overall negotiation task which involves actions that relate to catalogue search; remote cart management; and checkout processing (there are also tasks that pertain to service delivery, such as order tracking, that are not covered in the immediate scenario). The SWSL process model expresses declarative processes constraints rather than directly executable programs, providing additional flexibility to agents that may use them to govern, rather than determine, their behaviour. The process model is further underpinned by a theory of the semantics of these tasks which captures the meaning and purpose, over and above the mechanics, of the interaction.

For brevity we only model a subset of the Amazon ECS capabilities required to describe the book-buying scenario. One of the basic operations available to the customer agent is to search the product catalogue for the desired item. One of the actions available to the requester agent is to request an ItemSearch. This atomic process is defined below. The search index defines the Amazon store to be searched which for the scenario will be 'Books'. The 'title' of the book is a string as defined above which represents all or part of the required product name. The 'items' parameter represents the search output that will include potentially more than one matching item with pricing and availability details. The example is described using the presentation syntax which is a convenience notation that translates into SWSL-FOL axioms.

aws#ItemSearch(?searchIndex,?title,?items) {
      	Atomic
      	input aws#SubscriptionId xs#string
      	input aws#Operation xs#string 'ItemSearch'
      	input aws#SearchIndex xs#string ?searchIndex
      	input aws#Title xs#string ?title
      	input aws#ResponseGroup xs#string 'Offers'
	output aws#Items aws#ItemsOffered ?items
}

These examples are supported by the creation of a domain ontology that defines the structured objects that appear in the scenario, specifically definitions of 'ItemsOffered', using SWSL. 'ItemsOffered' is simply a collection of 'ItemOffered' (a 'Item') each of which may have a number of actual offers. The only property that is necessary for an item is the ASIN. This is subclassed in  ItemSearch to include offers detailing pricing and availability information. It is also subclassed in CartCreate to include the required quantity for each item.

prefix aws = _"http://webservices.amazon.com#".
prefix xs = _"http://www.w3.org/2001/XMLSchema#".

aws#Items [ aws#item => aws#Item ].
aws#Item [ aws#ASIN => xs#string ].

aws#ItemsOffered [ aws#item => aws#ItemOffered ] :: aws#Items.
aws#ItemOffered [ aws#offers => aws#Offers ] :: aws#Item.

aws#Offers [ aws#offer => aws#Offer ].
aws#Offer [
	aws#price => aws#Price,
	aws#availability => xs#string
].

aws#Price [
	aws#amount => xs#positiveInteger,
	aws#currencyCode => xs#string
].

The advantage of using a domain ontology is that we can work with the data indepedently of any particular message syntax. For example, it may allow us to compare the catalogue content with that of other online stores. We also have a level of abstraction that is resilient to minor version changes in the interface specification (unless there is a semantic difference). The service grounding should identify the appropriate domain ontology and provide enough information for a client to lift message content into this abstract ontology. Amazon web-services are interesting in this respect because they provide two alternative modes of service invocation with equivalent semantics. A Service Oriented Model utilizing SOAP over HTTP is supported, together with a REST-compliant Resource Oriented Model.

In the last example, nothing really changes other than the agent's knowledge of the product catalogue.  Contrast this with the effect of adding the book to the cart. Amazon provides a 'remote shopping cart' resource that is managed by the Amazon server. Operations on the cart allow an agent to add items to a new or existing cart; to clear and modify a cart; and to view the current contents of a cart. The real-world effect is the state-change of a remote shopping cart (a new cart resource is created). Any stateful resource  is described by a fluent that reflects the way it changes in response to events. Effects encode the changes that can be directly attributed to an action. Preconditions describe the state of the world (i.e. not just the knowledge of our agent) that must pertain prior to performing an action.

We look first at adding an item to a new shopping cart with CartCreate. We can add more than one item at a time so the input is again a collection of items. The response includes a URL from which the contents of the cart may be purchased. The existence of this new shopping cart is a statement of fact about the world so this is expressed as an effect; an assertion of the existence of the new cart with a specific cart identifier.

aws#CartCreate(?items,?url) {
	Atomic
	input aws#SubscriptionId xs#string
	input aws#Operation xs#string 'CartCreate'
	input aws#Items aws#ItemsRequested ?items
	output aws#CartId xs#string ?cart
	output aws#purchaseURL xs#anyURI ?url
	effect aws#cart(?cart)
}

This example require additional domain classes that define 'ItemsRequested'. This is again a subclass of 'Items' with the addition in 'ItemRequested' of the required quantity required.

aws#ItemsRequested [ aws#item => aws#ItemRequested ] :: aws#Items.
aws#ItemRequested [ aws#quantity => xs#positiveInteger ] :: aws#Item.

The 'items' are an output of item search and a required input to any cart operation. We can describe this linkage of inputs to outputs as a constraint on the relative ordering of an occurrence of a search and cart operation. In this case we wish to describe a sequential composition where we put the search before the cart. We describe this composite process as a shopping activity, and just like window shopping there is no implication that anything is actually purchased.

aws#shopping(?searchIndex,?title,?qty,?cart,?url) {
	Sequence
	occurrence ?o1 aws#ItemSearch(?searchIndex,?title,?items)
	occurrence ?o2 aws#CartCreate(?items,?cart,?url)
	?o1 soo_precedes ?o2
}

Currently, the Amazon API does not allow an agent to complete a purchase automatically, but each shopping cart has a purchase URL that the customer can visit to finalize the purchase. This creates an interesting challenge for process modeling. How do we represent these out-of-band actions that are not directly performed by the agent and are not grounded in web-services? The effect of order submission is also significantly different from the simple state-changes we see in shopping carts. Adding items to a cart does not commit the buyer to anything. However, when the buyer places a confirmed order, the seller is then under an obligation to deliver the product (and the customer is under obligation to pay). This is understood to be central to the buyer/seller contract and may be described as an obligation between the requester and provider. It represents a commitment to honour an agreement at all future times (until it is discharged). In reality, these obligations are conditional. The buyer has the right to cancel the order at any time up until the order is actually dispatched. Conversely, a permission proffers the right at some future time to perform an action (until it is withdrawn). Both obligations and permissions are described in the web-service policy model.

aws#purchase(?cart,?url) {
	Atomic
	input aws#purchaseURL xs#anyURI ?url
	effect aws#commit(?cart)
}

4 Service Discovery with SWSL-Rules

This example illustrates the use of SWSL-Rules for Web service discovery. The particular features of the language that this example relies on include frame-based representation, reification, and nonmonotonic Lloyd-Topor extensions. In addition, logical updates à la Transaction logic [Bonner98] are used in the discovery queries. Transaction Logic was mentioned in Section 3.15 as a possible extension for SWSL-Rules.

To make the example manageable, services are described only by their names and conditional effects. To discover a service, users must represent their goals using the goal ontology described below. These goals are described in terms of user requests, which represent formulas that the user wants to be true in the after-state of the service (i.e., the state that would result after the execution of the service).

User goals and services may be expressed in different ontologies and so mediators are needed to translate between those ontologies. This type of mediators is known as wgMediators [Bruijn05]. In this example, we assume that each service advertises the mediators that can be used to talk to this service though the attribute mediators.

Ontologies

Geographical ontology. To begin, we assume the following simple geographic taxonomy, which is shared by user goals and services. It defines several regions and subregions, such as America, USA, Europe, Tyrol. Each region is viewed as a class of cities. For instance, Innsbruck is a city in Tyrol and 'Stony Brook' is a town in the New York State (NYState).

    USA::America.
    Germany::Europe.
    Austria::Europe.
    France::Europe.
    Tyrol::Austria.
    NewYorkState::USA.
    StonyBrook:NewYorkState.
    NewYork:NewYorkState.
    Innsbruck:Tyrol.
    Lienz:Tyrol.
    Vienna:Austria.
    Bonn:Germany.
    Frankfurt:Germany.
    Paris:France.
    Nancy:France.

    Europe:Region.
    America:Region.

    ?Reg:Region :- ?Reg1:Region and ?Reg::?Reg1.
    ?Loc:Location :- ?Reg:Region and ?Loc:?Reg.


To make it easier to specify what is a region and what is not, we use a rule (the penultimate statement above) to say that a subclasses of a region are also regions and, therefore, such subclasses do not need to be explicitly declared as regions. The last rule simply says that any object that is a member of a geographical region is a location.

Goal ontology. Services write their descriptions to conform to specific ontologies. Likewise, clients describe their goals in terms of goal ontologies. Here we will not describe these ontologies, but rather the forms of the inputs and outputs that the services expect to produce and the structure of the user goals. Furthermore, since users and service designers are unlikely to be skilled knowledge engineers, we assume that the inputs, the outputs, and the goals are fairly simple and that most of the intelligence lies in the mediators.

We assume that there is one ontology for goals and two for services. Consequently, there are two mediators: one translating between the goal ontology and the first service ontology, and the other between the goal ontology and the second service ontology.

The goal ontology looks as follows:

    Goal[requestId *=> Request,
         request   *=> TravelSearchQuery,
         result    *=> Service
    ].


The classes Request and Service will be specified explicitly by placing specific object Ids in them. The class TravelSearchQuery consists of the following search queries:

    searchTrip(?From,?To):TravelSearchQuery :-
                  ?From:(Region or Location) and ?To:(Region or Location).
    searchCitipass(?Loc):TravelSearchQuery :- ?Loc:(Region or Location).

The meaning of the query searchTrip(?X,?Y) depends on whether the parameters are regions or just locations. For location-parameters, the query is assumed to fetch the services that serve those locations. For region-parameters, the query is assumed to find services that service every location in the region that is known to the knowledge base. For instance, searchTrip(Paris, Germany) is a request for travel services that can sell a ticket from Paris to any city in Germany. Similarly, searchCitipass(NewYork) is interpreted as a search for travel services that can sell city passes for New York and the request searchCitipass(USA) is looking for services that can sell city passes for every location in USA. The result attribute is provided by the ontology as a place where the discovery mechanism is supposed to put the results.

Domain-specific service ontologies. A service ontology is intended to represent the inputs and outputs of the service as well as the effects of the service. Since the inputs are not generally provided in the user goal (since the user is not expected to know anything about such inputs), the job of translating goal queries into the inputs to the services lies with the mediator.

Service ontology #1 is defined as follows:

  // Service input
  search(?requestId,?fromLocation,?toLocation):ProcessInput :-
		   ?requestId:Request and
                   ?fromLocation:Location and ?toLocation:Location.
  search(?requestId,?city):ProcessInput  :-
		   ?requestId:Request and ?city:Location.
  // Service output
  ItineraryInfo::ServiceOutput.
  PassInfo::ServiceOutput.
  ItineraryInfo[from*=>Location, to*=>Location].
  PassInfo[city*=>Location].
  itinerary(?reqNumber):ItineraryInfo :- ?reqNumber:Request.
  pass(?reqNumber):PassInfo :- ?reqNumber:Request.

Note that services expect locations as part of their input and they know nothing about regions. In contrast, as we have seen, user goals can have region-wide requests. It is one of the responsibilities of the mediators to bridge this mismatch.

Service ontology #2 is similar to ontology #1 except that it understands only requests for citipasses and the formats for the input and the output are slightly different.

  // Service input
  discover(?requestId,?city):ProcessInput  :-
		   ?requestId:Request and ?city:Location.
  // Service output
  ServiceOutput[location*=>Location].
  ?reqNumber:ServiceOutput :- ?reqNumber:Request.

Shared core ontology for services. In addition, we need a core ontology that is shared by everyone in order to provide a common ground for the service infrastructure. In this example, the core ontology is represented by a single class Service, which is declared as follows:

   prefix xsd = "http://www.w3.org/2001/XMLSchema".
   Service[
      name        *=> xsd#string,
      process     *=> Process[effect(ProcessInput) *=> Formula],
      mediators   *=> Mediator
   ].

Note that the definition of the class Service belongs to the core ontology and therefore it is shared by everybody. The method effect represents the conditional effect of the service. It takes an input to the service as a parameter and returns a set of rules that specify the effects of the service for that input. Formula is a predefined class. The attribute mediators indicates the mediators that the service advertises for anywho would want to talk to that service.

Note that the class ProcessInput belongs to the core ontology, but it's extension (the set of objects that are members of that class) is defined by domain-specific ontologies.

Examples of Concrete Services

We now present instances of concrete services.

// This service uses ontology #1, and mediator med1 bridges it to the goal ontology
serv1:Service[
   name -> "Schwartz Travel, Inc.",

   // Input must be a request for ticket from somewhere in Germany to somewhere
   // in Austria  OR  a request for a city pass for a city in Tyrol
   // Depending on the input, output is either an itinerary object with Id
   // itinerary(requestId) or a citipass object with Id
   // pass(requestId).
   process ->
       _#[effect(?Input) -> ${
	       (itinerary(?Req)[from->?From,to->?To] :-
			   Input = search(?Req, ?From:Germany, ?To:Austria))
	       and
	       (pass(?Req)[city->?City] :- ?Input=search(?Req,?City:Tyrol))
			     }],
    mediators -> med1
].

// Another ontology #1 service
serv2:Service[
    name -> "Mueller Travel, Inc.",
    process ->
	_#[effect(?Input)-> ${
		itinerary(?Req)[from->?From, to->?To] :-
		     ?Input = search(?Req,?From:(France or Germany),?To:Austria)
			      }],
    mediators -> med1
].

// An ontology #2 service
serv3:Service[
    name -> "France Citeseeing, Inc.",
    process ->
	_#[effect(?Input)-> ${
	         ?Req[location->?City] :- ?Input=discover(?Req,?City:France)
		               }],
    mediators -> med2
].

// Another ontology #2 service
serv4:Service[
    name -> "Province Travel",
    process ->
        _#[effect(?Input)-> ${
	       ?Req[location->?City] :-
			?Input = discover(?Req,?City:France) and ?City != Paris
			      }],
    mediators -> med2
].

User Goals

Next we show examples of user goals. Note that the value of the attribute result is initially the empty set. When the goal is posed to the discovery engine, this value will be changed to contain the result of the discovery.

goal1:Goal[
   requestId -> _#:Request,
   request   -> searchTrip(Bonn,Innsbruck),
   result    -> {}
].

// search for services that serve all cities in France and Austria
goal2:Goal[
   requestId -> _#:Request,
   request   -> searchTrip(France,Austria),
   result    -> {}
].

goal3:Goal[
   requestId -> _#:Request,
   request   -> searchCitipass(Frankfurt),
   result    -> {}
].

goal4:Goal[
   requestId -> _#:Request,
   request   -> searchCitipass(Innsbruck),
   result    -> {}
].

// services that can sell citipasses for every city in France
goal5:Goal[
   requestId -> _#:Request,
   request   -> searchCitipass(France),
   result    -> {}
].

Mediators

Each of the two mediators, med1 and med2, consists of several main clauses. The first clause in each mediator takes a user goal and translates it into input (to services) that is appropriate for the corresponding domain-specific service ontology.

The remaining clauses define the mediator's method getResult. This method is supposed to be invoked in the after-state of the service execution. It takes as parameters the user goal and the service (in whose after-state the method is invoked). Depending on the form of the goal's request, getResult poses a query that is appropriate for that request and the service ontology of the service. For instance, if the request is searchCitipass(?City:Location), i.e., finding services that can sell citipasses for a specific location, then the query appropriate for services that use ontology #1 is pass(?)[city->?City] and the query for ontology #2 is ?[location->?City]. Finally, if the query yields results, the mediator constructs output that can be used to return results to the user and this output is compliant with our goal ontology.

Each form of the input has two cases: one assumes that the parameters are locations (e.g., searchCitipass(?City:Location)) and the other that they are regions (e.g., searchCitipass(?City:Region)). Therefore, for each form of the input our mediators have two clauses. Since ontology #2 understands only one input, med2 uses only two clauses to define getResult. The mediator for ontology #1, med1, needs four clauses to cover both forms of the input.

Finally, we remark that the clauses that deal with region-based requests have to construct more sophisticated queries to be asked in the after-state of the services. In our example, we use nonmonotonic Lloyd-Topor extensions to simplify such queries.

// mediator for ontology #1
med1:Mediator.
med1[constructInput(?Goal)->?Input] :-
	?Goal[requestId->?ReqId, request->?Query] and
        if ?Query = searchTrip(?From,?To)
        then ?Input = search(?ReqId,?From1,?To1)
        else if ?Query = searchCitipass(?City)
        then ?Input = search(?ReqId,?City1).

med1[getResult(?Goal,?Serv) -> ${?Goal[result->?Serv]}] :-
	?Goal[request->searchCitipass(?City:Location)] and
        pass(?)[city->?City].
med1[getResult(?Goal,?Serv) -> ${?Goal[result->?Serv]}] :-
	?Goal[request->searchCitipass(?Region:Region)] and
        forall ?City (?City:?Region ==> pass(?)[city->?City]).

med1[getResult(?Goal,?Serv) -> ${?Goal[result->?Serv]}] :-
	?Goal[request->searchTrip(?From:Location,?To:Location)] and
        itinerary(?)[from->?From, to->?To].
med1[getResult(?Goal,?Serv) -> and ?Result = ${?Goal[result->?Serv]}] :-
	?Goal[request->searchTrip(?From:Region,?To:Region)] and
	forall ?From,?To (?City1:?FromReg and ?City2:?ToReg
                          ==> itinerary(?)[from->?City1, to->?City2]).

// mediator for ontology #2
med2:Mediator.
med2[constructInput(?Goal)->?Input] :-
	?Goal[requestId->?ReqId, request->?Query] and
        if ?Query = searchCitipass(?City)
        then ?Input = discover(?ReqId,?City1).

med2[getResult(?Goal,?Serv) -> ${?Goal[result->?Serv]}] :-
	?Goal[request->searchCitipass(?City:Location)] and
        ?[location->?City].
med2[getResult(?Goal,?Serv) -> ${?Goal[result->?Serv]}] :-
	?Goal[request->searchCitipass(?Region:Region)] and
        forall ?City (?City:?Region ==> ?[location->?City]).

The Discovery Engine

The final piece of the puzzle is the actual engine that performs service discovery. It relies on the features, borrowed from Transaction Logic [Bonner98], which are currently not in SWSL-Language, but are considered for future extensions. These features include modifications to the current state of the knowledge base and hypothetical execution of such modifications.

findService(?Goal) :-
	?Serv[mediators -> ?Mediator] and
        ?Mediator[constructInput(?Goal) -> ?Input] and
	?Serv.process[effect(?Input) -> ?Effects] and
        hypothetically(
	    insert{?Effects} and
            ?Mediator[getResult(?Goal,?Serv) -> ?Result]
        ) and
	insert{?Result}.

The findService transaction performs the following tasks:

1. For each service instance, s, it finds the mediator that the service advertises.
2. It then uses the mediator to construct the input for that service based on the user goal.
3. Using the input, it computes the effects that the service guarantees to be true in the after-state of the execution.

4. It then hypothetically does the following:

   1. It inserts the effects (which are rules in this case) into the knowledge base. This simulates the execution of the service s and temporarily creates the after-state of the service execution.
   2. Using the mediator, it checks whether the user goal is true in the after-state of the service s and then returns the result.

5. If the above hypothetical execution fails for a particular service, no result is returned and the subsequent insert operation is not executed. If the hypothetical execution succeeds, it means that the service s matches the goal. After the hypothetical execution, the state of the knowledge base returns to what was before the execution of the service, but the variable ?Result is now bound to a result, which is a formula of the form

    goal[result->s]

   This is then inserted into the knowledge base. In this way, the set of answers to the goal is built as the value of the result attribute of the goal object.

For instance, if

 ?- findService(goal1).

is executed then the following will become true:

 goal1[result -> {serv1,serv2}]

Similarly, executing

 ?- findService(goal2).

yields goal2[result -> serv2]. The third goal, goal3, matches none of the services listed above, so only goal3[result->{}] can be derived. Executing

 ?- findService(goal4).

yields goal4[result -> serv1].

A more interesting goal is goal5, because it requests citipasses for an entire region (France). Given the information available in our knowledge base, only serv3 should match. Note that serv4 does not match because it does not serve Paris, while the goal specifies only those services that can sell citipasses for every location in France.

5 Policy Rules for E-Commerce

The overall SWSL language and ontologies support many kinds of application scenarios. In this subsection, we discuss in detail how SWSL-Rules can be used to represent several (fictional) examples of policies for e-commerce. Some of these examples are given directly in the remainder of this section, in full detail. These include:

price discounting example;
refunds example;
supply chain ordering lead time example;
creditworthiness example; and
credit card transaction authorization example.

Taken together these examples include both B2C/retailing and B2B/supply-chain aspects, in several industry domains (books, appliances, and computer equipment manufacturing). Each of these policies is useful for not just one but several different kinds of tasks within an application realm. For example, price discounting rules are useful in advertising and in service contract specification. Most of these detailed examples are rather brief, for the sake of expository simplicity. However, the example dealing with authorization of credit card transactions is significantly longer and more realistic.

Additional examples of policy rules are available that use the same fundamental knowledge representation as SWSL-Rules. [Grosof2004e] gives a long example of e-contracting policy rules that combines rules with ontologies and deals with exception handling / monitoring. The [Grosof2004f] tutorial gives a collection of use cases and examples, including those for semantic mediation. The SweetRules [Grosof2004f] downloadable includes a collection of examples.

Overall, the SWSL-Rules is especially well suited to represent available knowledge and desired patterns of reasoning for several of the SWS tasks, including:

• authorization policies (for security, access control, confidentiality, privacy, and other kinds of trust);
• contracts (partial or complete, proposed or finalized), e.g., terms and conditions, service provisions, or surrounding business process policies;
• monitoring of processes to recognize and handle exceptions or other dynamic conditions (e.g., monitoring of performance of contracts to detect and respond to violations of contract provisions such as late delivery or non-payment);
• advertising, discovery, and matchmaking (e.g., advertisements and requests for quotation or requests for proposals can be regarded as partial contract proposals);
• semantic mediation, especially translation mappings that mediate between different ontologies or contexts and thus between knowledge expressed in those different ontologies or contexts (e.g., to translate from the output of one service to the input expected by another service); and
• object-oriented ontologies that use default inheritance with priorities and/or cancellation (e.g., in the manner of the Process Handbook [Process Handbook, Bernstein2003, Grosof2004d]).

In particular, the capabilities of SWSL-Rules for logical nonmonotonicity (negation-as-failure and/or Courteous prioritized conflict handling) is used heavily in many use case scenarios for each of the above tasks and its associated kinds of knowledge.

Personalized Price Discounting in an E-Bookstore

Next, we give an example of a set of policy rules that specify personalized price discounting in an e-bookstore. These rules are useful in advertising, and also as part of a contract (proposed or final).

The policy rules specify that by default, a shopper gets no discount (i.e., gets a zero percent discount). However, there are some particular circumstances which do warrant a discount. Loyal purchasers get a five percent discount. Members of the Platinum Club get a ten percent discount. However, customers who have been late in making payments during the last year get no discount. Also there is a mutex (integrity constraint) rule which specifies that it is a contradiction to conclude two different values of the discount percentage for the same customer, i.e., that the discount percentage should be unique.

/* price discounting policy rules */

{ordinary}
giveDiscount(percent00,?Cust) :- shopper(?Cust).

{loyal}
giveDiscount(percent05,?Cust) :- shopper(?Cust) and loyalPurchaser(?Cust).

{platinum}
giveDiscount(percent10,?Cust) :- shopper(?Cust) and member(?Cust,platinumClub).

{slowPayer}
giveDiscount(percent00,?Cust) :- slowToPay(?Cust,last1year).

overrides(loyal,ordinary).

overrides(platinum,loyal).
overrides(platinum,ordinary).

overrides(slowPayer,loyal).
overrides(slowPayer,platinum).

!- giveDiscount(?X,?Cust) and giveDiscount(?Y,?Cust) | notEquals(?X,?Y).


/* some "case" facts about particular customers ann, cal, kim, and peg. */

shopper(ann).

shopper(cal).
loyalPurchaser(cal).

shopper(kim).
member(kim,platinumClub).

shopper(peg).
loyalPurchaser(peg).
slowToPay(peg,last1year).

The above premises (policy rules and case facts) together entail the following conclusions about the discount percentages for the particular customers Ann, Cal, Kim, and Peg.

/* the entailed discount percentages for the particular customers */

giveDiscount(percent00,ann).

giveDiscount(percent05,cal).

giveDiscount(percent10,kim).

giveDiscount(percent00,peg).

Refunds in an E-Retailer

Next, we give a typical example of a seller's refund policy, as a set of policy rules that specify refunds in an e-retailer (here, of small consumer appliances) These rules are useful in advertising, and as part of a contract (proposed or final), and as part of contract monitoring / exception handling (which is in turn part of contract execution).

The unconditional guarantee rule says that if the buyer returns the purchased good for any reason, within 30 days, then the purchase amount, minus a 10 percent restocking fee, will be refunded. The defective guarantee rule says that if the buyer returns the purchased good because it is defective, within 1 year, then the full purchase amount will be refunded. A priority rule says that if both of the previous two rules apply, then the defective guarantee rule "wins", i.e., has higher priority. A mutex says that the refund percentage is unique per customer return.

/* refund policy rules */

{unconditionalGuarantee}
refund(?Return,percent90) :- return(?Return) and delay(?Return,?D) and lessThanOrEqual(?D,days30).

{defectiveGuarantee}
refund(?Return,percent100) :-
        return(?Return) and reason(?Return,defective) and delay(?Return,?D) and lessThanOrEqual(?D,years1).

overrides(defectiveGuarantee,unconditionalGuarantee).

!- refund(?Refund,percent90) and refund(?Refund,percent100).


/* some background facts (typically provided by lessThanOrEqual
being a built-in predicate */

lessThanOrEqual(days12,days30).
lessThanOrEqual(days44,years1).
lessThanOrEqual(days22,years1).
lessThanOrEqual(days22,days30).


/* some "case" facts about particular customer returns of items */

return(toaster02).
delay(toaster02,days12).


return(blender08).
delay(blender08,days44).
reason(blender08,defective).

return(radio04).
delay(radio04,days22).
reason(radio04,defective).

The above premises (policy rules, background facts, and case facts) together entail the following conclusions about the discount refund percentages for the particular customer returns of the toaster, blender, and radio.

/* the entailed refund percentages for the particular customer returns */

refund(toaster02,percent90).

refund(blender08,percent100).

refund(radio04,percent100).

Ordering Lead Time in Supply Chain (B2B)

In B2B commerce, e.g., in supply chains (especially in manufacturing), sellers often specify how much lead time, i.e., minimum advance notice, is required when a buyer places or modifies a purchase order. Next, we give an example of a part supplier vendor's (here, Samsung supplying computer equipment) lead time policies as a set of rules. These rules are useful in advertising, and as part of a contract (proposed or final), and as part of contract monitoring / exception handling (which is in turn part of contract execution).

The first policy rule says "14 days lead time if the buyer is a preferred customer". This might be authored by the marketing part of the seller's organization. The second policy rule says "30 days lead time if the ordered item is a minor part". This might be authored by the financial accounting part of the seller's organization. The third policy rule says "2 days lead time if: the ordered item is backlogged at the vendor (i.e., the seller is having trouble fulfilling its overall set of existing orders), and the order is a modification to reduce the quantity of the item, and the buyer is a preferred customer". This might be authored by the operations part of the seller's organization. The third rule is given higher priority than the first rule, say, because operations' authority (about lead time) is greater than that of marketing. A mutex says that the lead time is unique per purchase order.

/* ordering lead time policy rules */

{leadTimeRule1}
orderModificationNotice(?Order,days14) :-
        preferredCustomerOf(?Buyer,?Seller) and purchaseOrder(?Order,?Buyer,?Seller).

{leadTimeRule2}
orderModificationNotice(?Order,days30) :-
        minorPart(?Order) and purchaseOrder(?Order,?Buyer,?Seller).

{leadTimeRule3}
orderModificationNotice(?Order,days2) :-
        preferredCustomerOf(?Buyer,?Seller) and orderModificationType(?Order,reduce) and
        orderItemIsInBacklog(?Order) and purchaseOrder(?Order,?Buyer,?Seller).

overrides(leadTimeRule3,leadTimeRule1).

!- orderModificationNotice(?Order,?X) and orderModificationNotice(?Order,?Y) | notEquals(?X,?Y).


/* some "case" facts about particular purchase orders */

purchaseOrder(po1234567,compUSA,samsung).
preferredCustomerOf(compUSA,samsung).

purchaseOrder(po5678901,microCenter,samsung).
preferredCustomerOf(microCenter,samsung).
orderModificationType(po5678901,reduce).
orderItemIsInBacklog(po5678901).

The above premises (policy rules and case facts) together entail the following conclusions about the ordering lead time for the particular purchase orders po1234567 and po5678901.

/* the entailed lead times for the particular purchase orders */

orderModificationNotice(po1234567,days14).

orderModificationNotice(po5678901,days2).

Creditworthiness using Credit Report and Fraud Alert Services

Policies about authorization, including creditworthiness and other kinds of trustworthiness to access information or perform transactions, are often naturally expressed in terms of necessary and sufficient conditions. Such conditions include: credentials, e.g., credit ratings or professional certifications; third-party recommendations; properties of a transaction in question, e.g., its size or mode of payment; and historical experience between the agents, e.g., familiarity or satisfaction.

Next, we give a simple example of policy rules of a merchant about creditworthiness (of customers) using a credit report service and a fraud alert service. These rules are useful for representing authorization policies, as part of contract negotiation, and in contract monitoring and exception handling (e.g., if the fraud alert arrives after contractual agreement has been reached).

The first policy rule says that, by default, the merchant deems a requester customer to be creditworthy if the requester has a good rating from a particular credit report service (CreditReportsRUs, a source trusted by the merchant). The second policy rule says that the merchant deems a requester to be not creditworthy if the requester has a bad rating from any fraud alert service that is recommended as expert by a particular security consultant (recommenderServiceD, again, a source trusted by the merchant). The second rule is given higher priority than the first rule. The merchant is called "self" (as is conventional in the security policy literature for the granting authority institution).

/* creditworthiness policy rules */

{credSelf}
honest(self,?Requester) :- creditRating(creditReportsRUs,?Requester,good).

{frauSelf}
neg honest(self,?Requester) :-
        creditRating(?BlackballService,?Requester,bad) and
        fraudExpert(recommenderServiceD,?BlackballService).

overrides(frauSelf,credSelf).

fraudExpert(recommenderServiceD,studentLoanAgency).


/* some "case" facts about particular requester customers */

creditRating(creditReportsRUs,sue,good).

creditRating(creditReportsRUs,joe,good).
creditRating(studentLoanAgency,joe,bad).

The above premises (policy rules and case facts) together entail the following conclusions about the creditworthiness of the particular requester customers Sue and Joe.

/* the entailed creditworthiness of the particular requester customers */

honest(self,sue).

neg honest(self,joe).

Credit Card Transaction Authorization by Merchant and Bank

Next, we give a longer and more realistic example of authorization in e-commerce: authorization by a merchant of credit card transactions requested by customers. In this example, the merchant ("eSellWow") merges the authorization policies of credit card issuer (called the "bank") with the merchant's own additional authorization policies. These rules are useful for specifying authorization policies, contracts, and exception handling.

/* Some terminological abbreviations:
CVC: Card Verification Code (the three or so numbers found on the back of a credit card)
"Bank": the credit card company that is the issuer of the credit card (e.g., Mastercard)
*/
/* Predicates' meaning:

transactionRequest: a credit card transaction requested by a customer
merchant: a merchant who is established to do credit card transactions
with the credit card company
ccInGoodStanding: credit card is in good standing with the credit card company that is
the issuer of the credit card
ccInfo: credit card info about the account and its status, that is on file with the bank
authorize: the credit card transaction is authorized
transactionExpirationDateOf: customer-supplied expiration date that is part of the transaction
transactionCardholderNameOf: customer-supplied cardholder name that is part of the transaction
transactionCVCOf: customer-supplied CVC that is part of the transaction
transactionCardholderAddressOf: customer-supplied cardholder billing address
that is part of the transaction
ccFraudRating: rating of a credit card by a fraud alerting/tracking service
fraudExpert: a service is a legitimate expert in fraud alerting/tracking
fraudRecommenderFor: trusted recommender of fraud experts
customerRating: the rating of customer based on the merchant's own/other experience

Built-in predicates (used):
notEquals
lessThan
*/


/* The following group of rules are policies of the bank,
then adopted/imported as a group/module by the merchant, in this case eSellWow. */

/* bankGoodStanding: Bank says by default the transaction is authorized if the card is in
good standing */
/* expiredCard: Bank says the transaction is disallowed if the card is expired. */
/* overLimit: Bank says the transaction is disallowed if the card is above its account limit. */
/* mismatchExpirationDate: Bank says the transaction is disallowed if the expiration date from
the customer or card in the transaction does not match what's on file for the card.
However, the expiration date may not be available as part of the transaction. */
/* mismatchCVC: Bank says the transaction is disallowed if the Card Verification Code
does not match what's on file for the card.
However, note that the CVC may not be available as part of the transaction. */
/* mismatchAddress: Bank says the transaction is disallowed if customer-supplied cardholder
billing address does not match what's on file for the card.
However, the customer-supplied cardholder billing address may not be available. */
/* mismatchName: Bank says the transaction is disallowed if customer-supplied cardholder
name does not match what's on file for the card.
However, the customer-supplied cardholder billing address may not be available. */
/* The expiredCard, overLimit, mismatchExpirationDate, mismatchCVC, mismatchAddress, and
mismatchName rules all have higher priority than bankGoodStanding. */

/* The following group of rules are additional policies of the merchant eSellWow,
which it adopted/imported from a vendor and consultant when setting up its e-store website */
/* merchantRespectBank: Merchant say a transaction is disallowed if the bank does. */
/* merchantTrustBank: Merchant says, by default, that a transaction is allowed if the bank does. */
/* fraudAlert: Merchant says transaction is disallowed if a trusted fraud tracking service
rates the fraud risk as high for the card. */
/* trustTRW: Merchant relies on recommenderServiceTRW for establishing such trust. */
/* badCustomer: Merchant says transaction is disallowed if its own/other experience indicates that the
customer is a bad customer to deal with. */
/* The fraudAlert and badCustomer rules both have higher priority than merchantTrustBank. */

/* The following are additional background fact rules, known to the merchant eSellWow and the bank. */
/* eSellWow is an established merchant for mastercard and visa. */

/* The following are additional background fact rules, known to the merchant eSellWow. */
/* recommenderServiceTRW recommends fraudscreen */



{bankGoodStanding}
authorize(?Bank,?TransactionID) :-
        transactionRequest(?TransactionID,?Merchant,?CreditCardNumber,?Amount) and
        issuer(?CreditCardNumber,?Bank) and merchant(?Merchant,?Bank) and
        ccInGoodStanding(?Bank,?CreditCardNumber).

{expiredCard}
neg authorize(?Bank,?TransactionID) :-
        transactionRequest(?TransactionID,?Merchant,?CreditCardNumber,?Amount) and
        issuer(?CreditCardNumber,?Bank) and merchant(?Merchant,?Bank) and
        ccInfo(?CreditCardNumber,?Bank,?CardholderName,?AccountLimit,
                ?ExpiredFlag,?ExpirationDate,?CardholderAddress,?CVC) and
        notEquals(?ExpiredFlag,"false").

{overLimit}
neg authorize(?Bank,?TransactionID) :-
        transactionRequest(?TransactionID,?Merchant,?CreditCardNumber,?Amount) and
        issuer(?CreditCardNumber,?Bank) and merchant(?Merchant,?Bank) and
        ccInfo(?CreditCardNumber,?Bank,?CardholderName,?AccountLimit,
                ?ExpiredFlag,?ExpirationDate,?CardholderAddress,?CVC) and
        lessThan(?AccountLimit,?Amount).

{mismatchExpirationDate}
neg authorize(?Bank,?TransactionID) :-
        transactionRequest(?TransactionID,?Merchant,?CreditCardNumber,?Amount) and
        issuer(?CreditCardNumber,?Bank) and merchant(?Merchant,?Bank) and
        ccInfo(?CreditCardNumber,?Bank,?CardholderName,?AccountLimit,
                ?ExpiredFlag,?ExpirationDate,?CardholderAddress,?CVC) and
        transactionExpirationDateOf(?TransactionID,?TransactionExpirationDate) and
        notEquals(?TransactionExpirationDate,?ExpirationDate).

{mismatchName}
neg authorize(?Bank,?TransactionID) :-
        transactionRequest(?TransactionID,?Merchant,?CreditCardNumber,?Amount) and
        issuer(?CreditCardNumber,?Bank) and merchant(?Merchant,?Bank) and
        ccInfo(?CreditCardNumber,?Bank,?CardholderName,?AccountLimit,
                ?ExpiredFlag,?ExpirationDate,?CardholderAddress,?CVC) and
        transactionCardholderNameOf(?TransactionID,?TransactionCardholderName) and
        notEquals(?TransactionCardholderName,?CardholderName).

{mismatchCVC}
neg authorize(?Bank,?TransactionID) :-
        transactionRequest(?TransactionID,?Merchant,?CreditCardNumber,?Amount) and
        issuer(?CreditCardNumber,?Bank) and merchant(?Merchant,?Bank) and
        ccInfo(?CreditCardNumber,?Bank,?CardholderName,?AccountLimit,
                ?ExpiredFlag,?ExpirationDate,?CardholderAddress,?CVC) and
        transactionCVCOf(?TransactionID,?TransactionCVC) and notEquals(?TransactionCVC,?CVC).

{mismatchAddress}
neg authorize(?Bank,?TransactionID) :-
        transactionRequest(?TransactionID,?Merchant,?CreditCardNumber,?Amount) and
        issuer(?CreditCardNumber,?Bank) and merchant(?Merchant,?Bank) and
        ccInfo(?CreditCardNumber,?Bank,?CardholderName,?AccountLimit,
                ?ExpiredFlag,?ExpirationDate,?CardholderAddress,?CVC) and
        transactionCardholderAddressOf(?TransactionID,?TransactionCardholderAddress),
        notEquals(?TransactionCardholderAddress,?CardholderAddress).

overrides(expiredCard,bankGoodStanding).
overrides(overLimit,bankGoodStanding).
overrides(mismatchExpirationDate,bankGoodStanding).

overrides(mismatchName,bankGoodStanding).
overrides(mismatchCVC,bankGoodStanding).
overrides(mismatchAddress,bankGoodStanding).

{merchantTrustBank}
authorize(?Merchant,?TransactionID) :-
        transactionRequest(?TransactionID,?Merchant,?CreditCardNumber,?Amount) and
        issuer(?CreditCardNumber,?Bank) and merchant(?Merchant,?Bank) and
        authorize(?Bank,?TransactionID).

{merchantRespectBank}
neg authorize(?Merchant,?TransactionID) :-
        transactionRequest(?TransactionID,?Merchant,?CreditCardNumber,?Amount) and
        issuer(?CreditCardNumber,?Bank) and merchant(?Merchant,?Bank) and
        neg authorize(?Bank,?TransactionID).

{fraudAlert}
neg authorize(?Merchant,?TransactionID) :-
        transactionRequest(?TransactionID,?Merchant,?CreditCardNumber,?Amount) and
        issuer(?CreditCardNumber,?Bank) and merchant(?Merchant,?Bank) and
        ccInfo(?CreditCardNumber,?Bank,?CardholderName,?AccountLimit,
                ?ExpiredFlag,?ExpirationDate,?CardholderAddress,?CVC) and
        fraudRecommenderFor(?Merchant,?recommenderService) and
        fraudExpert(?recommenderService,?FraudFirm) and
        ccFraudRiskRating(?FraudFirm,?CardholderName,high).

{badCustomer}
neg authorize(?Merchant,?TransactionID) :-
        transactionRequest(?TransactionID,?Merchant,?CreditCardNumber,?Amount) and
        issuer(?CreditCardNumber,?Bank) and merchant(?Merchant,?Bank) and
        ccInfo(?CreditCardNumber,?Bank,?CardholderName,?AccountLimit,
                ?ExpiredFlag,?ExpirationDate,?CardholderAddress,?CVC) and
        customerRating(?Merchant,?CardholderName,bad).

overrides(fraudAlert,merchantTrustBank).

overrides(badCustomer,merchantTrustBank).

fraudRecommenderFor(eSellWow,recommenderServiceTRW).

merchant(eSellWow,mastercard).

merchant(eSellWow,visa).

fraudExpert(recommenderServiceTRW,fraudscreen).


/* The following groups of "case" facts each specify a
particular case scenario of a requested customer transaction. */

/* Joe Goya has a card in good standing, unexpired, and
the transaction amount is below the account limit.
His customer rating is good.
Transaction expiration date, address, and CVC are unavailable, as
is fraud alert rating.
The policies thus imply that his transaction ought to be authorized
by the merchant as well as by the bank. */

/* Mary Freund has a card in good standing, unexpired, and
the transaction amount is below the account limit.
Her address matches, and her fraud report and customer rating are fine.
But the transaction CVC and address do not match the ones on file.
Thus the policies imply that the transaction on her card
ought to be disallowed by the merchant as well as the bank. */

/* Andy Lee has a card in good standing, unexpired,
and the transaction amount is under the account limit.
But his customer rating is bad.
Thus the policies imply that his transaction ought to be disallowed
by the merchant (regardless of whether the bank allows it). */

transactionRequest(trans1014,eSellWow,"999912345678",70).
issuer("999912345678",mastercard).
ccInfo("999912345678",mastercard,joeGoya,1100,"false","2007_08","43 Garden Drive, Cincinnati OH",702).
ccInGoodStanding(mastercard,"999912345678").
customerRating(eSellWow,joeGoya,good).

transactionRequest(trans2023,eSellWow,"999987654321",410).
issuer("999987654321",visa).
ccInfo("999987654321",visa,maryFreund,2400,"false","2008_02","325 Haskell Street, Seattle, WA",684).
ccInGoodStanding(visa,"999987654321").
ccFraudRiskRating(fraudscreen,maryFreund,low).
customerRating(eSellWow,maryFreund,excellent).
transactionCVCOf(trans2023,524).
transactionTransactionAddressOf(trans2023,"1493 Belair Place, Los Angeles, CA").

transactionRequest(trans3067,eSellWow,"999956781234",120).
issuer("999956781234",mastercard).
ccInfo("999956781234",mastercard,andyLee,900,"false","2006_05","1500 Seaview Boulevard, Daytona Beach, FL",837).
ccInGoodStanding(mastercard,"999956781234").
customerRating(eSellWow,andyLee,bad).

The above premises (policy rules and case facts) together entail the following conclusions about the authorization of the particular requested transactions by customers Joe Goya, Mary Freund, and Andy Lee. Notice that in the case of Andy Lee's, the merchant denies authorization even though the bank approves it, because of the merchant's own customer rating info and policies.

/* the entailed approval vs. denial by the bank, and by the merchant, of
authorization of the particular requested credit card transactions. */

authorize(mastercard, trans1014).
authorize(eSellWow, trans1014).

neg authorize(visa, trans2023).
neg authorize(eSellWow, trans2023).

authorize(mastercard, trans3067).
neg authorize(eSellWow, trans3067).

6 Using Defaults in Domain-Specific Service Ontologies

SWSO is a core service ontology and is domain-independent. However, it is often necessary to represent domain-specific ontologies. Such ontologies might be represented in SWSL-Rules or in SWSL-FOL. An important and frequently-used flavor of domain-specific service ontologies uses the object-oriented framework of the kind found in object-oriented programming languages and in AI frame-based systems. In such frameworks, the values of a property P of a superclass are inherited by each of its subclasses. These subclasses are known as the specializations of the parent superclass. For example, the property P might be a data attribute or a method definition. This inheritance has default flavor: explicitly specified information about the property for the subclass overrides -- or cancels -- the inheritance. Such default inheritance (and, by extension, such an ontology) is logically nonmonotonic and cannot be represented in SWSL-FOL. However, it can be represented in SWSL-Rules, which is object-oriented and includes inheritance as a basic feature.

To illustrate this point, we give an example of a service, Sell Product, which relies on such a domain-specific service ontology. The ontology describes a Sell Product business process and a some of its specializations. The form and domain of this ontology are similar to those found in the Process Handbook [Process Handbook, Malone99]. This kind of ontology is useful for business process modeling and design, and thus is useful -- along with other knowledge -- for a number of SWS tasks, including:

• service discovery [Bernstein2002];
• service execution [Bernstein2000];
• service composition;
• contract formation and negotiation [Grosof2004e]; and
• contract monitoring and exception handling [Grosof2004e].

In [Bernstein2003] we introduced an example about Sell Product. The example below is adapted from that. There  we give an approach to representing default inheritance about process ontologies in terms of Courteous LP. Another approach to representing default inheritance in a similar spirit is shown in [Yang02] who use LP with NAF but without Courteous, instead defining special constructs that extend the LP KR.
Below, we give an approach similar in spirit to both of the above, that is relatively simple -- simple enough for a self contained brief presentation here -- although lacking some of the advantages and subtleties of the above two approaches.

Modeling the parent service "Sell Product"

Suppose we need to design a sales process that is used in an organization in two ways. One version is used in a mail-order business and the other in a retail store. First, we need to model a generic sales process for which one can find a template in a process repository (e.g., the Process Handbook). The "Sell product" service consists of five subtasks: "Identify potential customers," "Inform potential customers," "Obtain Order," "Deliver product ," and "Receive payment." In this example, we do not model any sequencing dependencies between the subtasks.

One way to represent this situation is to treat the main service as a class and its subtasks as attributes:

  SellProduct[
      identifyCustomers *-> genericFindCust,
      informCustomers *-> genericInformCust,
      obtainOrder *-> genericGetOrder,
      deliverProduct *-> genericDeliver,
      receivePay *-> genericGetPay
  ].

Here the attribute names represent the names of the subtasks and the values of these attributes are the names of the actual procedures to be used to perform these tasks. These procedures can be written in a procedural programming language, such as Java, or even in SWSL-Rules. For instance,

   ?Product[genericInformCust] :-
           ?Product[genericFindCust -> ?Cust] and
           generateFlyer(?Cust) and
           informMailRoom.

Some of the formulas in the body of the above rule could be purely declarative and be defined by other rules in the knowledge base (e.g., genericFindCust) while others could have side effects in the physical world (such as generateFlyer and informMailRoom). Such side-effectful statements are not currently part of SWSL-Rules, but they are planned for future extensions.

Note that the method genericFindCust returns a set of customers (based on some marketing criteria), and the method genericFindCust is executed for each such customer.

Overriding and Canceling Inherited Features

Continuing the example, we specify the "Sell by mail order" and "Sell in retail store" services as subclasses of the "Sell Product" process, as shown in Figure 6.1.

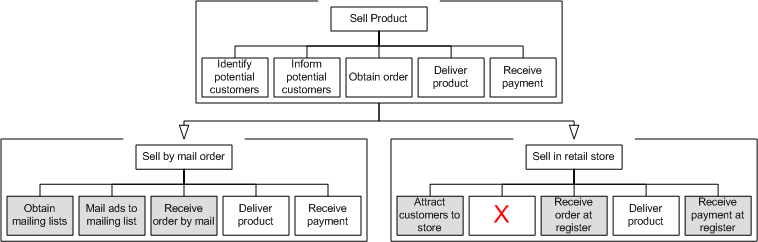

Figure 6.1: The "Sell Product" service with two subclasses. The grayed out subtasks are overwritten with more specific alternatives; the subtask with the red cross is deleted ("canceled").

This subclassing approach has several advantages. First, it provides a simple way of reusing the elements already defined in an object-oriented manner. Second, taxonomic organization of processes has been found useful for human browsing [Malone99].

For "Sell by mail order," inheritance of three of the subtasks of the parent service "Sell product" is overwritten by other subtasks, and two subtasks are inherited. For "Sell in retail store", one subtask is inherited, inheritance of three others is overwritten, and one subtask is "canceled" (i.e., is no longer defined for the subsprocess).

Since nonmonotonic inheritance is one of the basic concepts of SWSL-Rules, modeling of the service "Sell by mail order" is straightforward. First, we need to specify it as a subclass of SellProduct. Then we need to explicitly define the three overwritten subtasks and provide new values (new procedures) for them. We do not need to mention the two tasks that are inherited:

  SellByMailOrder::SellProduct[
      identifyCustomers *-> obtainMailLists,
      informCustomers *-> junkmailAds,
      obtainOrder *-> getOrderByMail
  ].

Because of the overriding in the SellByMailOrder subclass, the subtask informCustomers is no longer performed using the previously defined method genericInformCust. Instead, the method junkmailAds is used; it could be defined in SWSL-Rules as follows:

  ?Product[junkmailAds] :-
          ?Product[obtainMailLists -> ?List] and
          ?List[address -> ?Addr] and
          affixLabelToAd(?Addr) and
          informMailRoom.

To model the "Sell in retain store" we first specify a new subclass of the "Sell Product" service. According to the figure, this subclass inherits the deliverProduct attribute, while three other attributes, identifyCustomers, obtainOrder, and receivePay, are overwritten. This is modeled similarly to the SellByMailOrder subclass:

  SellInRetail::SellProduct[
           identifyCustomers *-> attractToBrickAndMortar,
           obtainOrder *-> getOrderAtRegister,
           receivePay *-> getPayAtRegister
  ].

The more interesting case is the cancellation of the informCustomers attribute. One way to achieve this is to introduce a special null subtask and use it to override inheritance of the genericInformCust procedure. A more interesting way it to take advantage of the semantics of multiple inheritance in SWSL-Rules according to which conflicting multiple inheritance for the same attribute makes the value undefined. To achieve this, we can introduce a family of classes parameterized by the features that need to be canceled:

 FeatureTerminator(?Feature)[?Feature *-> null].

For each concrete attribute, the above statement says that the value of that attribute in the corresponding class is null. As a special case (when ?Feature = informCustomers), the value of the attribute informCustomers in class FeatureTerminator(informCustomers) is null. To cancel the inheritance of informCustomers we now need to add the following fact:

 SellInRetail::FeatureTerminator(informCustomers).

With this statement, SellInRetail becomes a subclass of two classes, SellProduct and FeatureTerminator(informCustomers). Each of these classes has an explicit definition of the attribute informCustomers, but those definitions are in conflict. According to the semantics of inheritance in SWSL-Rules, this makes the value of informCustomers in class SellInRetail undefined and thus the inheritance of that attribute is "canceled."

Adding Exception Handling

Next, suppose that we need to extend the repertoire of selling services with a third process, "Sell electronically," which can be executed electronically.

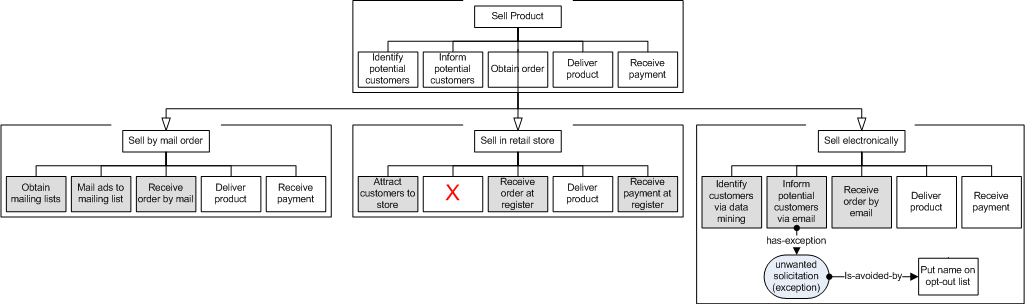

Figure 6.2: The "Sell Product" service with three subclasses; the third subclass has an exception handler.

Figure 6.2 shows that the new process has an exception attached to the second subtask "Inform potential customers by email" in order to addresses the issue of unwanted email solicitations. The exception permits people to remove themselves from the mailing list by putting their addresses on the opt-out list.

Inheritance and overriding of the attributes from the parent class is modeled as before:

  SellElectronically::SellProduct[
           identifyCustomers *-> obtainByDataMining,
           informCustomers *-> informByEmail,
           obtainOrder *-> getOrderByEMail
  ].

The method informByEmail could be defined as follows:

  ?Product[informByEmail] :-
           ?Product[obtainByDataMining -> ?Email] and
           sendEmail(?Email).

One way to incorporate the opt-out exception to the general policy is by adding the premise naf optOutList(?Email) to the body of the above rule. However, this approach is not modular, since it requires modification of the existing rules (the method informByEmail may have already been defined). Even if it were acceptable to make this change now, further changes to the opt-out policy might require additional changes to the existing rules. A more scalable approach is to express the above opt-out exception using constraints, and this is where the mutex primitive of the Courteous layer of SWSL-Rules comes in:

 !- sendEmail(?Email) and optOut(?Email).

This constraint says that sendEmail(?Email) and optOut(?Email) cannot be true together for the same individual. For people who put their names on the opt-out list, optOut(?Email) will be true and, therefore, sendEmail(?Email) will be false. On the other hand, for an email address, e, that is not found on the opt-out list, the corresponding predicate predicate optOut(e) will not be provable and, by negation-as-failure, optOut(e) will be assumed false. Therefore, sending email to that address will not be blocked.

7 Glossary

Activity

Activity. In the formal PSL ontology, the notion of activity is a basic construct, which corresponds intuitively to a kind of (manufacturing or processing) activity. In PSL, an activity may have associated occurrences, which correspond intuitively to individual instances or executions of the activity. (We note that in PSL an activity is not a class or type with occurrences as members; rather, an activity is an object, and occurrences are related to this object by the binary predicate occurrence_of.) The occurrences of an activity may impact fluents (which provide an abstract representation of the "real world"). In FLOWS, with each service there is an associated activity (called the "service activity" of that service). The service activity may specify aspects of the internal process flow of the service, and also aspects of the messaging interface of that service to other services.

Channel

Channel. In FLOWS, a channel is a formal conceptual object, which corresponds intuitively to a repository and conduit for messages. The FLOWS notion of channel is quite primitive, and under various restrictions can be used to model the form of channel or message-passing as found in web services standards, including WSDL, BPEL, WS-Choreography, WSMO, and also as found in several research investigations, including process algrebras.

FLOWS

First-order Logic Ontology for Web Services. FLOWS, also known as SWSO-FOL, is the first-order logic version of the Semantic Web Services Ontology. FLOWS is an extension of the PSL-OuterCore ontology, to incorporate the fundamental aspects of (web and other electronic) services, including service descriptors, the service activity, and the service grounding.

Fluent

Fluent. In FLOWS, following PSL and the situation calculii, a fluent is a first-order logic term or predicate whose value may vary over time. In a first-order model of a FLOWS theory, this being a model of PSL-OuterCore, time is represented as a discrete linear sequence of timees, and fluents has a value for each time in this sequence.

Grounding

Grounding. The SWSO concepts for describing service activities, and the instantiations of these concepts that describe a particular service activity, are abstract specifications, in the sense that they do not specify the details of particular message formats, transport protocols, and network addresses by which a Web service is accessed. The role of the grounding is to provide these more concrete details. A substantial portion of the grounding can be acheived by mapping SWSO concepts into corresponding WSDL constructs. (Additional grounding, e.g., of some process-related aspects of SWSO, might be acheived using other standards, such as BPEL.)

Message

Message. In FLOWS, a message is a formal conceptual object, which corresponds intuitively to a single message that is created by a service occurrence, and read by zero or more service occurrences. The FLOWS notion of message is quite primitive, and under various restrictions can be used to model the form of messages as found in web services standards, including WSDL (1.0 and 2.0), BPEL, WS-Choreography, WSMO, and also as found in several research investigations. A message has a payload, which corresponds intuitively to the body or contents of the message. In FLOWS emphasis is placed on the knowledge that is gained by a service occurrence when reading a message with a given payload (and the knowledge needed to create that message.

Occurrence

Occurence (of a service). In FLOWS, a service S has an associated FLOWS activity A (which generalizes the notion of PSL activity). An occurrence of S is formally a PSL occurrence of the activity A. Intuitively, this occurrence corresponds to an instance or execution (from start to finish) of the activity A, i.e., of the process associated with service S. As in PSL, an occurrence has a starting time time and an ending time.

PSL

Process Specification Language. The Process Specification Language (PSL) is a formally axiomatized ontology [Gruninger03a, Gruninger03b] that has been standardized as ISO 18629. PSL provides a layered, extensible ontology for specifying properties of processes. The most basic PSL constructs are embodied in PSL-Core; and PSL-OuterCore incorporates several extensions of PSL-Core that includes several useful constructs. (An overview of concepts in PSL that are relevant to FLOWS is given in Section 6 of the Semantic Web Services Ontology document.)

QName

Qualified name. A pair (URI, local-name). The URI represents a namespace and local-name represents a name used in an XML document, such as a tag name or an attribute name. In XML, QNames are syntactically represented as prefix:local-name, where prefix is a macro that expands into a concrete URI. See Namespaces in XML for more details.

ROWS

Rules Ontology for Web Services. ROWS, also known as SWSO-Rules, is the rules-based version of the Semantic Web Services Ontology. ROWS is created by a relatively straight-forward, almost faithful, transformation of FLOWS, the First-order Logic Ontology for Web Services. As with FLOWS, ROWS incorporates fundamental aspects of (web and other electronic) services, including service descriptors, the service activity, and the service grounding. ROWS enables a rules-based specification of a family of services, including both the underlying ontology and the domain-specific aspects.

Service

(Formal) Service. In FLOWS, a service is a conceptual object, that corresponds intuitively to a web service (or other electronically accessible service). Through binary predicates a service is associated with various service descriptors (a.k.a. non-functional properties) such as Service Name, Service Author, Service URL, etc.; an activity (in the sense of PSL) which specifies intuitively the process model associated with the service; and a grounding.

Service contract

Describes an agreement between the service requester and service provider, detailing requirements on a service occurrence or family of service occurrences.

Service descriptor

Service Descriptor. This is one of several non-functional properties associated with services. The Service Descriptors include Service Name, Service Author, Service Contract Information, Service Contributor, Service Description, Service URL, Service Identifier, Service Version, Service Release Date, Service Language, Service Trust, Service Subject, Service Reliability, and Service Cost.

Service offer description

Describes an abstract service (i.e. not a concrete instance of the service) provided by a service provider agent.

Service requirement description

Describes an abstract service required by a service requester agent, in the context of service discovery, service brokering, or negotiation.

sQName

Serialized QName. A serialized QName is a shorthand representation of a URI. It is a macro that expands into a full-blown URI. sQNames are not QNames: the former are URIs, while the latter are pairs (URI, local-name). Serialized QNames were originally introduced in RDF as a notation for shortening URI representation. Unfortunately, RDF introduced confusion by adopting the term QName for something that is different from QNames used in XML. To add to the confusion, RDF uses the syntax for sQNames that is identical to XML's syntax for QNames. SWSL distinguishes between QNames and sQNames, and uses the syntax prefix#local-name for the latter. Such an sQName expands into a full URI by concatenating the value of prefix with local-name.

URI

Universal Resource Identifier. A symbol used to locate resources on the Web. URIs are defined by IETF. See Uniform Resource Identifiers (URI): Generic Syntax for more details. Within the IETF standards the notion of URI is an extension and refinement of the notions of Uniform Resource Locator (URL) and Relative Uniform Resource Locators.

8 References

[Berardi03]

Automatic composition of e-services that export their behavior. D. Berardi, D. Calvanese, G. De Giacomo, M. Lenzerini, and M. Mecella. In Proc. 1st Int. Conf. on Service Oriented Computing (ICSOC), volume 2910 of LNCS, pages 43--58, 2003.

[Bernstein2000]

How can cooperative work tools support dynamic group processes? Bridging the specificity frontier. A. Bernstein. In Proc. Computer Supported Cooperative Work (CSCW'2000), 2000.

[Bernstein2002]

Towards High-Precision Service Retrieval. A. Bernstein, and M. Klein. In Proc. of the first International Semantic Web Conference (ISWC'2002), 2002.

[Bernstein2003]

Beyond Monotonic Inheritance: Towards Semantic Web Process Ontologies. A. Bernstein and B.N. Grosof (NB: authorship sequence is alphabetic). Working Paper, Aug. 2003. Available at: http://ebusiness.mit.edu/bgrosof/#beyond-mon-inh-basic.

[Bonner93]

Database Programming in Transaction Logic. A.J. Bonner, M. Kifer, M. Consens. Proceedings of the 4-th Intl.~Workshop on Database Programming Languages, C. Beeri, A. Ohori and D.E. Shasha (eds.), 1993. In Springer-Verlag Workshops in Computing Series, Feb. 1994: 309-337.

[Bonner98]

A Logic for Programming Database Transactions. A.J. Bonner, M. Kifer. Logics for Databases and Information Systems, J. Chomicki and G. Saake (eds.). Kluwer Academic Publishers, 1998: 117-166.

[Bruijn05]

Web Service Modeling Ontology (WSMO). J. de Bruijn, C. Bussler, J. Domingue, D. Fensel, M. Hepp, M. Kifer, B. Kaenig-Ries, J. Kopecky, R. Lara, E. Oren, A. Polleres, J. Scicluna, M. Stollberg. DERI Technical Report.

[BPML 1.0]

A. Arkin. Business Process Modeling Language. BPMI.org, 2002

[BPEL 1.1]

Business Process Execution Language for Web Services, Version 1.1 . S. Thatte, editor. OASIS Standards Specification, May 5, 2003.

[Bultan03]

Conversation specification: A new approach to design and analysis of e-service composition. T. Bultan, X. Fu, R. Hull, and J. Su. In Proc. Int. World Wide Web Conf. (WWW), May 2003.

[Chang73]

Symbolic Logic and Mechanical Theorem Proving. C.L. Chang and R.C.T. Lee. Academic Press, 1973.

[Chen93]

HiLog: A Foundation for Higher-Order Logic Programming. W. Chen, M. Kifer, D.S. Warren. Journal of Logic Programming, 15:3, February 1993, 187-230.

[Chimenti89]

Towards an Open Architecture for LDL. D. Chimeti, R. Gamboa, R. Krishnamurthy, VLDB Conference, 1989: 195-203.

[deGiacomo00]

ConGolog, A Concurrent Programming Language Based on the Situation Calculus. G. de Giacomo, Y. Lesperance, and H. Levesque. Artificial Intelligence, 121(1--2):109--169, 2000.

[Fu04]

WSAT: A Tool for Formal Analysis of Web Services. X. Fu, T. Bultan, and J. Su. 16th International Conference on Computer Aided Verification (CAV), July 2004.

[Frohn94]

Access to Objects by Path Expressions and Rules. J. Frohn, G. Lausen, H. Uphoff. Intl. Conference on Very Large Databases, 1994, pp. 273-284.

[Gosling96]

The Java language specification.Gosling, James, Bill Joy, and Guy L. Steele. 1996. Reading, Mass.: Addison-Wesley.

[Grosof99a]

A Courteous Compiler From Generalized Courteous Logic Programs To Ordinary Logic Programs. B.N. Grosof. IBM Report included as part of documentation in the IBM CommonRules 1.0 software toolkit and documentation, released on http://alphaworks.ibm.com. July 1999. Also available at: http://ebusiness.mit.edu/bgrosof/#gclp-rr-99k.

[Grosof99b]

A Declarative Approach to Business Rules in Contracts. B.N. Grosof, J.K. Labrou, and H.Y. Chan. Proceedings of the 1st ACM Conference on Electronic Commerce (EC-99). Also available at: http://ebusiness.mit.edu/bgrosof/#econtracts+rules-ec99.

[Grosof99c]

DIPLOMAT: Compiling Prioritized Default Rules Into Ordinary Logic Programs (Extended Abstract of Intelligent Systems Demonstration). B.N. Grosof. IBM Research Report RC 21473, May 1999. Extended version of 2-page refereed conference paper appearing in Proceedings of the National Conference on Artificial Intelligence (AAAI-99), 1999. Also available at: http://ebusiness.mit.edu/bgrosof/#cr-ec-demo-rr-99b.

[Grosof2003a]

Description Logic Programs: Combining Logic Programs with Description Logic. B.N. Grosof, I. Horrocks, R. Volz, and S. Decker. Proceedings of the 12th International Conference on the World Wide Web (WWW-2003). Also available at: http://ebusiness.mit.edu/bgrosof/#dlp-www2003.

[Grosof2004a]

Representing E-Commerce Rules Via Situated Courteous Logic Programs in RuleML. B.N. Grosof. Electronic Commerce Research and Applications, 3:1, 2004, 2-20. Preprint version is also available at: http://ebusiness.mit.edu/bgrosof/#.

[Grosof2004b]

SweetRules: Tools for Semantic Web Rules and Ontologies, including Translation, Inferencing, Analysis, and Authoring. B.N. Grosof, M. Dean, S. Ganjugunte, S. Tabet, C. Neogy, and D. Kolas. http://sweetrules.projects.semwebcentral.org. Software toolkit and documentation. Version 2.0, Dec. 2004.

[Grosof2004c]

Hypermonotonic Reasoning: Unifying Nonmonotonic Logic Programs with First Order Logic. B.N. Grosof. http://ebusiness.mit.edu/bgrosof/#HypermonFromPPSWR04InvitedTalk. Slides from Invited Talk at Workshop on Principles and Practice of Semantic Web Reasoning (PPWSR04), Sep. 2004; revised Oct. 2004. Paper in preparation.

[Grosof2004d]

SweetPH: Using the Process Handbook for Semantic Web Services. B.N. Grosof and A. Bernstein. http://ebusiness.mit.edu/bgrosof/#SweetPHSWSLF2F1204Talk. Slides from Presentation at SWSL Meeting, Dec. 9-10, 2004. Note: Updates the design in the 2003 Working Paper "Beyond Monotonic Inheritance: Towards Semantic Web Process Ontologies" and describes implementation.

[Grosof2004e]

SweetDeal: Representing Agent Contracts with Exceptions using Semantic Web Rules, Ontologies, and Process Descriptions. B.N. Grosof and T.C. Poon. International Journal of Electronic Commerce (IJEC), 8(4):61-98, Summer 2004 Also available at: http://ebusiness.mit.edu/bgrosof/#sweetdeal-exceptions-ijec.

[Grosof2004f]

Semantic Web Rules with Ontologies, and their E-Business Applications. B.N. Grosof and M. Dean. Slides of Conference Tutorial (3.5-hour) at the 3rd International Semantic Web Conference (ISWC-2004). Available at: http://ebusiness.mit.edu/bgrosof/#ISWC2004RulesTutorial.

[Gruninger03a]

A Guide to the Ontology of the Process Specification Language. M. Gruninger. Handbook on Ontologies in Information Systems. R. Studer and S. Staab (eds.). Springer Verlag, 2003.

[Gruninger03b]

Process Specification Language: Principles and Applications. M. Gruninger and C. Menzel. AI Magazine, 24:63-74, 2003.

[Gruninger03c]

Applications of PSL to Semantic Web Services. M. Gruninger. Workshop on Semantic Web and Databases. Very Large Databases Conference, Berlin.

[Hayes04]

RDF Model Theory. Hayes, P. W3C, February 2004.

[Helland05]

Data on the Outside Versus Data on the Inside. P. Helland. Proc. 2005 Conf. on Innovative Database Research (CIDR), January, 2005.

[Hull03]

E-Services: A Look Behind the Curtain. R. Hull, M. Benedikt, V. Christophides, J. Su. Proc. of the ACM Symp. on Principles of Database Systems (PODS), San Diego, June, 2003.

[Kifer95]

Logical Foundations of Object-Oriented and Frame-Based Languages, M. Kifer, G. Lausen, J. Wu. Journal of ACM, 1995, 42, 741-843.

[Kifer04]

A Logical Framework for Web Service Discovery, M. Kifer, R. Lara, A. Polleres, C. Zhao. Semantic Web Services Workshop, November 2004, Hiroshima, Japan.

[Klein00a]

Towards a Systematic Repository of Knowledge About Managing Collaborative Design Conflicts. Klein, Mark. 2000.  Proceedings of the Conference on Artificial Intelligence in Design. Boston, MA, USA.

[Klein00b]

A Knowledge-Based Approach to Handling Exceptions in Workflow Systems. Klein, Mark, and C. Dellarocas. 2000.  Computer Supported Cooperative Work: The Journal of Collaborative Computing 9:399-412.

[Lloyd87]

Foundations of logic programming (second, extended edition). J. W. Lloyd. Springer series in symbolic computation. Springer-Verlag, New York, 1987.

[Lindenstrauss97]

Automatic Termination Analysis of Logic Programs. N. Lindenstrauss and Y. Sagiv. International Conference on Logic Programming (ICLP), 1997.

[Maier81]

Incorporating Computed Relations in Relational Databases. D. Maier, D.S. Warren. SIGMOD Conference, 1981: 176-187.

[Malone99]

Tools for inventing organizations: Toward a handbook of organizational processes. T. W. Malone, K. Crowston, J. Lee, B. Pentland, C. Dellarocas, G. Wyner, J. Quimby, C. Osborne, A. Bernstein, G. Herman, M. Klein, E. O'Donnell. Management Science, 45(3), pages 425--443, 1999.

[McIlraith01]

Semantic Web Services. IEEE Intelligent Systems, Special Issue on the Semantic Web, S. McIlraith, T.Son and H. Zeng. 16(2):46--53, March/April, 2001.

[Milner99]

Communicating and Mobile Systems: The π-Calculus. R. Milner. Cambridge University Press, 1999.

[Narayanan02]

Simulation, Verification and Automated Composition of Web Services. S. Narayanan and S. McIlraith. In Proceedings of the Eleventh International World Wide Web Conference (WWW-11), May, 2002.

[Ontobroker]

Ontobroker 3.8. Ontoprise, GmbH.

[OWL Reference]

OWL Web Ontology Language 1.0 Reference. Mike Dean, Dan Connolly, Frank van Harmelen, James Hendler, Ian Horrocks, Deborah L. McGuinness, Peter F. Patel-Schneider, and Lynn Andrea Stein. W3C Working Draft 12 November 2002. Latest version is available at http://www.w3.org/TR/owl-ref/.

[OWL-S 1.1]

OWL-S: Semantic Markup for Web Services. David Martin, editor. Technical Overview (associated with OWL-S Release 1.1).

[Papazoglou03]

Service-Oriented Computing: Concepts, Characteristics and Directions. M.P. Papazoglou. Keynote for the 4th International Conference on Web Information Systems Engineering (WISE 2003), December 10-12, 2003.

[Perlis85]

Languages with Self-Reference I: Foundations. D. Perlis. Artificial Intelligence, 25, 1985, 301-322.

[Preist04]

A Conceptual Architecture for Semantic Web Services, C. Preist, 1993. In Proceedings of Third International Semantic Web Conference, Nov. 2004: 395-409.

[Reiter01]

Knowledge in Action: Logical Foundations for Specifying and Implementing Dynamical Systems. Raymond Reiter. MIT Press. 2001

[Scherl03]

Knowledge, Action, and the Frame Problem. R. B. Scherl and H. J. Levesque. Artificial Intelligence, Vol. 144, 2003, pp. 1-39.

[Singh04]

Protocols for Processes: Programming in the Large for Open Systems. M. P. Singh, A. K. Chopra, N. V. Desai, and A. U. Mallya. Proc. of the 19th Annual ACM Conf. on Object-Oriented Programming, Systems, Languages, and Applications (OOPSLA), Vancouver, October 2004.

[SWSL Requirements]

Semantic Web Services Language Requirements. B. Grosof, M. Gruninger, et al, editors. White paper of the Semantic Web Services Language Committee.

[UDDI v3.02]

Universal Description, Discovery and Integration (UDDI) protocol. S. Thatte, editor. OASIS Standards Specification, February 2005.

[VanGelder91]

The Well-Founded Semantics for General Logic Programs. A. Van Gelder, K.A. Ross, J.S. Schlipf. Journal of ACM, 38:3, 1991, 620-650.

[WSCL 1.0]

Web Services Conversation Language (WSCL) 1.0. A. Banerji et al. W3C Note, March 14, 2002.

[WSDL 1.1]

Web Services Description Language (WSDL) 1.1. E. Christensen, F. Curbera, G. Meredith, and S. Weerawarana. W3C Note, March 15, 2001.

[WSDL 2.0]

Web Services Description Language (WSDL) 2.0 -- Part 1: Core Language. R. Chinnici, M. Gudgin, J.-J. Moreau, J. Schlimmer, and S. Weerawarana. W3C Working Draft, August 3, 2004.

[WSDL 2.0 Primer]

Web Services Description Language (WSDL) Version 2.0 -- Part 0: Primer. D. Booth, C. Liu, editors. W3C Working Draft, 21 December 2004.

[WS-Choreography]

Web Services Choreography Description Language Version 1.0. N. Kavantzas, D. Burdett, et. al., editors. W3C Working Draft, December 17, 2004.

[XSLT]

XSL Transformations (XSLT) Version 1.0. J. Clark, editor. W3C Recommendation, 16 November 1999.

[XQuery 1.0]

XQuery 1.0: An XML Query Language. S. Boag, D. Chamberlin, et al, editors. W3C Working Draft 04 April 2005.

[Yang02]

Well-Founded Optimism: Inheritance in Frame-Based Knowledge Bases. G. Yang, M. Kifer. Intl. Conference on Ontologies, DataBases, and Applications of Semantics for Large Scale Information Systems (ODBASE), October 2002.

[Yang03]

Reasoning about Anonymous Resources and Meta Statements on the Semantic Web. G. Yang, M. Kifer. Journal on Data Semantics, Lecture Notes in Computer Science 2800, Springer Verlag, September 2003, 69-98.

[Yang04]

FLORA-2 User's Manual. G. Yang, M. Kifer, C. Zhao, V. Chowdhary. 2004.
