Tagged PDF documents
This technique relates to:
See PDF Technology Notes for information on user agent and assistive technology support.
The objective of this technique is to specify the language of a passage, phrase, or word using the /Lang entry to provide information in the PDF document that user agents need to present text and other linguistic content correctly. This is normally accomplished using a tool for authoring PDF.
Both assistive technologies and conventional user agents can render text more accurately when the language is identified. Screen readers can load the correct pronunciation rules. As a result, users with disabilities are better able to understand the content.
Note: This technique can be used to set the default language for the entire document if the entire document is contained in the container or tag. In this case, this technique would apply to Success Criterion 3.1.1.
This example is shown with Adobe Acrobat Pro. There are other software tools that perform similar functions. See the list of other software tools in PDF Authoring Tools that Provide Accessibility Support.
In the Tools menu, select Advanced Editing.
Select the TouchUp Reading Order Tool.
Click the Show Order Panel button in the TouchUp Reading Order Tool
Select the Tags tab in the Show Order Panel and select the paragraph that is in the different language. You can also use the Options menu in the Tags tab: select Find Tag from Selection.
Right-click the selection and select Properties in the context menu.
In the Tags tab in the Properties dialog, select the language from the drop-down list.
Note: Acrobat includes 16 preset language selections. If you need to specify a language that is not on the list, such as Russian, you must type the ISO 639 code for the language, not its name.
This example is shown with Adobe Acrobat Pro. There are other software tools that perform similar functions. See the list of other software tools in PDF Authoring Tools that Provide Accessibility Support.

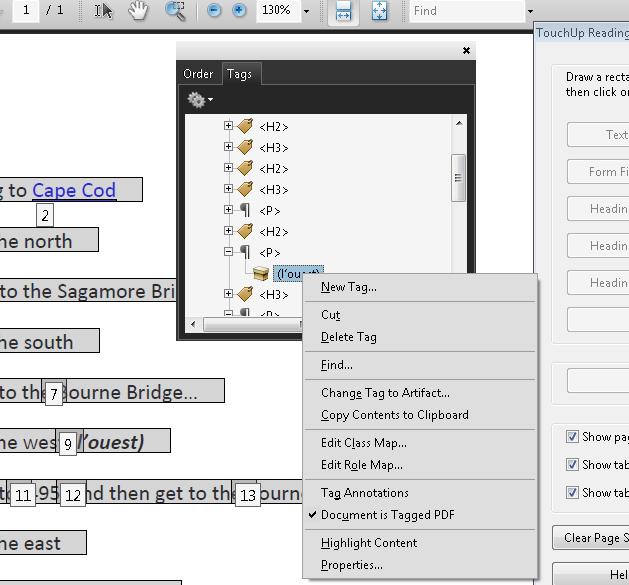

Select the word or phrase that is in a different language and create a tag for it in the Reading Order Panel (e.g., Text).
Open the Tags tab in the Show Order Panel and select the tagged word or phrase that is in the different language. You can also use the Options menu in the Tags tab: select Create Tag from Selection.
Right-click the selection and select Properties in the context menu.
In the Tags tab in the Properties dialog, select the language from the drop-down list.
When you tag a word or phrase, Acrobat splits the original content into three document content tags: one for the text that precedes your selection, one for the selection, and one for the text that follows the selection. As needed, drag the document content tag for the selected text into position between the other two tags, so that the text reads in the proper order. All three tags must also be at the same level beneath their parent tag. Drag them into place if they are not.
This example is shown in operation in the working example of marking a specific word or phrase in Acrobat Pro.
Below the level of the default document language, the language for a passage may be specified for the following items:
Marked-content sequences that are not in the structure hierarchy, through a /Lang entry in a property list attached to the marked-content sequence with a Span tag.
Structure elements of any type, through a /Lang entry in the structure element dictionary.
The following code fragment illustrates code that is typical for using the /Lang entry to override the default document language by specifying a marked-content sequence within a page's content stream:
/P % Start of marked-content sequence
BDC
(See you later, or in Spanish you would say, ) Tj
/Span << /Lang (es-MX) >>% Start of nested marked-content sequence
BDC
(Hasta la vista.) Tj
EMC% End of nested marked-content sequence
EMC% End of marked-content sequence
The following code fragment illustrates code that is typical for using the /Lang entry in the structure element dictionary. In this case, the /Lang entry applies to the marked-content sequence having an MCID (marked-content identifier) value of 0 within the indicated page's content stream.
1 0 obj% Structure element
<< /Type /StructElem
/S /Span% Structure type
/P /P% Parent in structure hierarchy
/K<< /Type /MCR
/Pg 2 0 R% Page containing marked-content sequence
/MCID 0% Marked-content identifier
>>
/Lang (es-MX)% Language specification for this element
>>
endobj
2 0 obj% Page object
<< /Type /Page
/Contents 3 0 R% Content stream
…
>>
endobj
3 0 obj% Page's content stream
<< /Length … >>
stream
BT
/P % Start of marked-content sequence
BDC
(See you later, or in Spanish you would say, ) Tj
/Span << /MCID 0 >>% Start of nested marked-content sequence
BDC
(Hasta la vista.) Tj
EMC% End of nested marked-content sequence
EMC% End of marked-content sequence
ET
endstream
endobj
Resources are for information purposes only, no endorsement implied.
Section 14.9.2 (Natural Language Specification) in PDF 1.7 (ISO 32000-1)
PDF Reference 1.6, 10.8.1 Natural Language Specification (PDF 8.7 Mb)
Adobe® Acrobat® 9 Pro Accessibility Guide: Creating Accessible PDF from Microsoft® Word
Verify that the language of a passage, phrase, or word that differs from the language of the surrounding text is correctly specified by a /Lang entry on an enclosing tag or container:
Read the PDF document with a screen reader that supports the language of the phrase and the language of the surrounding text, listening to hear that the text is read in the correct natural language.
Using a PDF editor, select the word or phrase that is in the different language and check that the language is set correctly.
Use a tool which is capable of showing the /Lang entry value to open the PDF document and view the language settings.
Use a tool that exposes the document through the accessibility API and verify that the language for the passage or phrase is set correctly.
Verify that if the container or tag contains the entire document, the language setting is the language intended as the default for the document.
#1 and #2 are true.
If this is a sufficient technique for a success criterion, failing this test procedure does not necessarily mean that the success criterion has not been satisfied in some other way, only that this technique has not been successfully implemented and can not be used to claim conformance.
