Abstract
This document describes a precise semantics for the Resource Description
Framework 1.1 [RDF11-CONCEPTS] and RDF Schema [RDF11-SCHEMA]. It defines a number of distinct entailment regimes and corresponding patterns of entailment. It is part of a suite of documents which comprise the full specification of RDF 1.1.
Status of This Document
This section describes the status of this document at the time of its publication.
Other documents may supersede this document. A list of current W3C publications and the
latest revision of this technical report can be found in the W3C technical reports index at
http://www.w3.org/TR/.
This document is part of RDF 1.1 document suite.
This is a revision of the 2004 Semantics specification for RDF
[RDF-MT] and supersedes that
document. For an informal summary of the substantive (non-editorial)
changes since then, see Entailment
Changes.
This document was published by the RDF Working Group as a Recommendation.
If you wish to make comments regarding this document, please send them to
public-rdf-comments@w3.org
(subscribe,
archives).
All comments are welcome.
Please see the Working Group's implementation
report.
This document has been reviewed by W3C Members, by software developers, and by other W3C
groups and interested parties, and is endorsed by the Director as a W3C Recommendation.
It is a stable document and may be used as reference material or cited from another
document. W3C's role in making the Recommendation is to draw attention to the
specification and to promote its widespread deployment. This enhances the functionality
and interoperability of the Web.
This document was produced by a group operating under the
5 February 2004 W3C Patent
Policy.
W3C maintains a public list of any patent
disclosures
made in connection with the deliverables of the group; that page also includes
instructions for disclosing a patent. An individual who has actual knowledge of a patent
which the individual believes contains
Essential
Claim(s) must disclose the information in accordance with
section
6 of the W3C Patent Policy.
Notes
Notes in this style indicate changes from the 2004 RDF 1.0 semantics.
Notes in this style are technical asides on obscure or recondite matters.
1. Introduction
This document defines a model-theoretic semantics for RDF graphs and the RDF and RDFS vocabularies, providing an exact formal specification of when truth is preserved by transformations of RDF or operations which derive RDF content from other RDF.
3. Semantic Extensions and Entailment Regimes
RDF is intended for use as a base notation for a variety of extended notations such as OWL [OWL2-OVERVIEW] and RIF [RIF-OVERVIEW], whose expressions can be encoded as RDF graphs which use a particular vocabulary with a specially defined meaning. Also, particular IRI vocabularies may be given meanings by other specifications or conventions. When such extra meanings are assumed, a given RDF graph may support more extensive entailments than are sanctioned by the basic RDF semantics. In general, the more assumptions that are made about the meanings of IRIs in an RDF graph, the more entailments follow from those assumptions.
A particular such set of semantic assumptions is called a semantic extension. Each semantic extension defines an entailment regime (used here in the same sense as in the SPARQL 1.1 Entailment Regime recommendation [SPARQL11-ENTAILMENT] ) of entailments which are valid under that extension. RDFS, described later in this document, is one such semantic extension. We will refer to entailment regimes by names such as RDFS entailment, D-entailment, etc.
Semantic extensions MAY impose special syntactic conditions or restrictions upon RDF graphs, such as requiring certain triples to be present, or prohibiting particular combinations of IRIs in triples, and MAY consider RDF graphs which do not conform to these conditions to be errors. For example, RDF statements of the form
ex:a rdfs:subClassOf "Thing"^^xsd:string .
are prohibited in the OWL semantic extension based on description logics [OWL2-SYNTAX]. In such cases, basic RDF operations such as taking a subset of triples, or combining RDF graphs, may cause syntax errors in parsers which recognize the extension conditions. None of the semantic extensions normatively defined in this document impose such syntactic restrictions on RDF graphs.
All entailment regimes MUST be monotonic extensions of the simple entailment regime described in the document, in the sense that if A simply entails B then A also entails B under any extended notion of entailment, provided that any syntactic conditions of the extension are also satisfied. Put another way, a semantic extension cannot "cancel" an entailment made by a weaker entailment regime, although it can treat the result as a syntax error.
4. Notation and Terminology
This document uses the following terminology for describing RDF graph syntax, all as defined in the companion RDF Concepts specification [RDF11-CONCEPTS]: IRI, RDF triple, RDF graph, subject, predicate, object, RDF source, node, blank node, literal, isomorphic, and RDF dataset. All the definitions in this document apply unchanged to generalized RDF triples, graphs, and datasets.
An interpretation is a mapping from IRIs and literals into a set, together with some constraints upon the set and the mapping. This document defines various notions of interpretation, each corresponding in a standard way to an entailment regime. These are identified by prefixes such as simple interpretation, etc., and are defined in later sections. The unqualified term interpretation is usually used to refer to any compatible kind of interpretation in general, but if clear from the context might refer to a specific kind of interpretation.
The words denotes and refers to are used interchangeably as synonyms for the relationship between an IRI or literal and what it refers to in a given interpretation, itself called the denotation or referent. IRI meanings may also be determined by other constraints external to the RDF semantics; when we wish to refer to such an externally defined naming relationship, we will use the word identify and its cognates. For example, the fact that the IRI http://www.w3.org/2001/XMLSchema#decimal is widely used as the name of a datatype described in the XML Schema document [XMLSCHEMA11-2] might be described by saying that the IRI identifies that datatype. If an IRI identifies something it may or may not refer to it in a given interpretation, depending on how the semantics is specified. For example, an IRI used as a graph name identifying a named graph in an RDF dataset may refer to something different from the graph it identifies.
Throughout this document, the equality sign = indicates strict identity. The statement "A = B" means that there is one entity to which both expressions "A" and "B" refer. Angle brackets < x, y > are used to indicate an ordered pair
of x and y.
Throughout this document, RDF graphs and other fragments of RDF abstract syntax are written using the notational conventions of the Turtle syntax [TURTLE]. The namespace prefixes rdf: rdfs: and xsd: are used as in [RDF11-CONCEPTS], section 1.4. When the exact IRI does not matter, the prefix ex: is used. When stating general rules or conditions we use three-character variables such as aaa, xxx, sss to indicate arbitrary IRIs, literals, or other components of RDF syntax. Some cases are illustrated by node-arc diagrams showing the graph structure directly.
A name is any IRI or literal. A typed literal contains
two names: itself and its internal type
IRI. A vocabulary is a set of names.
The empty graph is the empty set of triples.
A subgraph of an RDF graph is a subset
of the triples in the graph. A triple is identified with the singleton set
containing it, so that each triple in a graph is considered to be a subgraph.
A proper subgraph is a proper subset of the triples in the graph.
A ground RDF graph is one that contains no blank
nodes.
Suppose that M is a functional mapping from a set of blank
nodes to some set of literals, blank nodes and IRIs. Any graph obtained
from a graph G by replacing some or all of the blank nodes N in G by M(N) is
an instance of G. Any graph is an instance of itself,
an instance of an instance of G is an instance of G,
and if H is an instance of G then every triple in H is an instance of at least one triple
in G.
An instance with respect to a vocabulary
V is an instance in which all the
names in the instance that were substituted
for blank nodes in the original are names
from V.
A proper instance of a graph
is an instance in which a blank node has been replaced by a name, or two blank
nodes in the graph have been mapped into the same node in the instance.
Two graphs are isomorphic when each maps into the other by a 1:1 mapping on blank nodes. Isomorphic graphs are mutual instances with an invertible instance
mapping. As blank nodes have no particular identity beyond their location in a graph, we will often treat isomorphic graphs as identical.
An RDF graph is lean if it has no instance which is
a proper subgraph of itself. Non-lean graphs have internal redundancy
and express the same content as their lean subgraphs. For example, the graph
ex:a ex:p _:x .
_:y ex:p _:x .
is not lean, but
ex:a ex:p _:x .
_:x ex:p _:x .
is lean. Ground graphs are lean.
4.1 Shared blank nodes, unions and merges
Graphs share blank nodes only if they are derived from graphs
described by documents or other structures (such as an RDF dataset) that explicitly provide for the sharing of blank nodes between different RDF graphs. Simply downloading a
web document does not mean that the blank nodes in a resulting RDF
graph are the same as the blank nodes coming from other downloads of
the same document or from the same RDF source.
RDF applications which manipulate concrete syntaxes for RDF which use blank node identifiers should take care to keep track of the identity of the blank nodes they identify. Blank node identifiers often have a local scope, so when RDF from different sources is combined, identifiers may have to be changed in order to avoid accidental conflation of distinct blank nodes.
For example, two documents may both use the blank node identifier "_:x" to identify a blank node, but unless these documents are in a shared identifier scope or are derived from a common source, the occurrences of "_:x" in one document will identify a different blank node than the one in the graph described by the other document. When graphs are formed by combining RDF from multiple sources, it may be necessary to standardize apart the blank node identifiers by replacing them by others which do not occur in the other document(s). For example, the two graphs represented by the following texts:
ex:a ex:p _:x .
ex:b ex:q _:x .

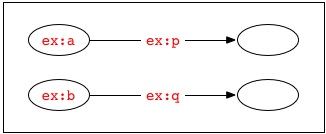

contain four nodes. Their union would therefore also contain four nodes:
However, the document formed by simply concatenating these textual surface representations:
ex:a ex:p _:x .
ex:b ex:q _:x .
describes a graph containing three nodes:
since the two occurrences of the blank node identifier "_:x" occurring in a common identifier scope identify the same blank node. The four-node union of these two graphs is more properly described by a surface form such as:
ex:a ex:p _:x1 .
ex:b ex:q _:x2 .
in which the blank node identifiers have been standardized apart to avoid conflating the distinct blank nodes. (The particular blank node identifiers used have no significance, only that they are distinct.)

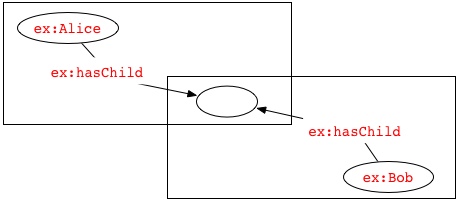

It is possible for two or more graphs to share a blank node, for example if they are subgraphs of a single larger graph or derived from a common source. In this case, the union of a set of graphs preserves the identity of blank nodes shared between the graphs. In general, the union of a set of RDF graphs accurately represents the same semantic content as the graphs themselves, whether or not they share blank nodes.
A related operation, called merging, takes the union after forcing any shared blank nodes, which occur in more than one graph, to be distinct in each graph. The resulting graph is called the merge. The merge of subgraphs of a graph may be larger than the original graph. For example, the result of merging the two singleton subgraphs of the three-node graph
is the four-node graph
The union is always an instance of the merge. If graphs have no blank nodes in common, then their merge and union are identical.
5. Simple Interpretations
This section defines the basic notions of simple interpretation and truth for RDF graphs. All semantic extensions of any vocabulary or higher-level notation encoded in RDF MUST conform to these minimal truth conditions. Other semantic extensions may extend and add to these, but they MUST NOT modify or negate them. For example, because simple interpretations are mappings which apply to IRIs, a semantic extension cannot interpret different occurrences of a single IRI differently.
The entire semantics applies to RDF graphs, not to RDF sources. An RDF source has a semantic meaning only through the graph that is its value at a given time, or in a given state. Graphs cannot change their semantics with time.
A simple interpretation I is a structure consisting of:
Definition of a simple interpretation.
| 1. A non-empty set IR of resources, called the domain or universe
of I.
2. A set IP, called the set of properties of I.
3. A mapping IEXT from IP into the powerset of IR x IR i.e. the
set of sets of pairs < x, y > with x and y in IR .
4. A mapping IS from IRIs into (IR union IP)
5. A partial mapping IL from literals into IR
|
The 2004 RDF 1.0 semantics defined simple interpretations relative to a vocabulary.
In the 2004 RDF 1.0 semantics, IL was a total, rather than partial, mapping.
The 2004 RDF 1.0 specification divided literals into 'plain' literals with no type and optional language tags, and typed literals. Usage has shown that it is important that every literal have a type. RDF 1.1 replaces plain literals without language tags by literals typed with the XML Schema string datatype, and introduces the special type rdf:langString for language-tagged strings. The full semantics for typed literals is given in the next section.
Simple interpretations are required to interpret all names, and are therefore infinite. This simplifies the exposition. However, RDF can be interpreted using finite structures, supporting decidable algorithms. Details are given in Appendix B.
IEXT(x), called
the extension of x, is a
set of pairs which identify the arguments for which the property is true,
that is, a binary relational extension.
The distinction between IR and IL will become significant below when the semantics of datatypes are defined. IL is allowed to be partial because some literals may fail to have a referent.
It is conventional to map a relation name to a relational extension directly. This however presumes that the vocabulary is segregated into relation names and individual names, and RDF makes no such assumption. Moreover, RDF allows an IRI to be used as a relation name applied to itself as an argument. Such self-application structures are used in RDFS, for example. The use of the IEXT mapping to distinguish the relation as an object from its relational extension accommodates both of these requirements. It also provides for a notion of RDFS 'class' which can be distinguished from its set-theoretic extension. A similar technique is used in the ISO/IEC Common Logic standard [ISO24707].
The denotation of a ground RDF graph in a simple interpretation I is then given by the following
rules, where the interpretation is also treated as a function from expressions (names, triples and graphs) to elements of the universe and truth values:
Semantic conditions for ground graphs.
| if E is a literal then I(E) = IL(E) |
| if E is an IRI then I(E) = IS(E) |
if E is a ground triple s p o.
then I(E) = true if
I(p) is in IP and the pair <I(s),I(o)>
is in IEXT(I(p))
otherwise I(E) = false. |
| if E is a ground RDF graph then I(E) = false if I(E') =
false for some triple E' in E, otherwise I(E) =true. |
If IL(E) is undefined for some literal E then E has no semantic value, so any triple containing it will be false, so any graph containing that triple will also be false.
The final condition implies that the empty graph (the empty set of triples) is always true.
The sets IP and IR may overlap, indeed IP can be a subset of IR. Because of the domain conditions on IEXT, the denotation of the subject and object of any true triple will be in IR; so any IRI which occurs in a graph both as a predicate and as a subject or object will denote something in the intersection of IP and IR.
Semantic extensions may impose further constraints upon interpretation mappings by requiring some IRIs to refer in particular ways. For example, D-interpretations, described below, require some IRIs, understood as identifying and referring to datatypes, to have a fixed denotation.
5.1 Blank nodes
Blank nodes are treated as simply indicating the existence of a thing, without using an IRI to identify any particular thing. This is not the same as assuming that the blank node indicates an 'unknown' IRI.
Suppose I is a simple interpretation and A is a mapping from a set of blank nodes to the universe IR of I. Define the mapping [I+A] to be I on names, and A on blank nodes on the set: [I+A](x)=I(x) when x is a name and [I+A](x)=A(x) when x is a blank node; and extend this mapping to triples and RDF graphs using the rules given above for ground graphs. Then the semantic conditions for an RDF graph are:
Semantic condition for blank nodes.
| If E is an RDF graph then I(E) = true if [I+A](E) =
true for some mapping A from the set of blank nodes in E to IR, otherwise
I(E)= false. |
Mappings from blank nodes to referents are not part of the definition of a simple interpretation, since the truth condition refers only to some such mapping.
Blank nodes themselves differ from other nodes in not being assigned
a denotation by a simple interpretation, reflecting the intuition that
they have no 'global' meaning.
5.2 Simple Entailment
Following standard terminology, we say that I (simply) satisfies E when I(E)=true, that E is (simply) satisfiable when a simple interpretation exists which satisfies it, otherwise (simply) unsatisfiable, and that a graph G simply entails a graph E when every interpretation which satisfies G also satisfies E. If two graphs E and F each entail the other then they are logically equivalent.
In later sections these notions will be adapted to other classes of interpretations, but throughout this section 'entailment' should be interpreted as meaning simple entailment.
We do not define a notion of entailment between sets of graphs. To determine whether a set of graphs entails a graph, the graphs in the set must first be combined into one graph, either by taking the union or the merge of the graphs. Unions preserve the common meaning of shared blank nodes, while merging effectively ignores any sharing of blank nodes. Merging the set of graphs produces the same definition of entailment by a set that was defined in the 2004 RDF 1.0 specification.
Any process which constructs a graph E from
some other graph S is (simply) valid if S
simply entails E in every case, otherwise invalid.
The fact that an inference is valid should not be understood as meaning that any RDF application is obliged or required to make the inference. Similarly, the logical invalidity of some RDF transformation or process does not mean that the process is incorrect or prohibited. Nothing in this specification requires or prohibits any particular operations on RDF graphs or sources. Entailment and validity are concerned solely with establishing the conditions on such operations which guarantee the preservation of truth. While logically invalid processes, which do not follow valid entailments, are not prohibited, users should be aware that they may be at risk of introducing falsehoods into true RDF data. Nevertheless, particular uses of logically invalid processes may be justified and appropriate for data processing under circumstances where truth can be ensured by other means.
Entailment refers only to the truth of RDF graphs, not to their suitability for any other purpose. It is possible for an RDF graph to be fitted for a given purpose and yet validly entail another graph which is not appropriate for the same purpose. An example is the RDF test cases manifest [RDF-TESTCASES] which is provided as an RDF document for user convenience. This document lists examples of correct entailments by describing their antecedents and conclusions. Considered as an RDF graph, the manifest simply entails a subgraph which omits the antecedents, and would therefore be incorrect if used as a test case manifest. This is not a violation of the RDF semantic rules, but it shows that the property of "being a correct RDF test case manifest" is not preserved under RDF entailment, and therefore cannot be described as an RDF semantic extension. Such entailment-risky uses of RDF should be restricted to cases, as here, where it is obvious to all parties what the intended special restrictions on entailment are, in contrast with the more normal case of using RDF for the open publication of data on the Web.
7. Literals and datatypes
In the 2004 RDF 1.0 specification, datatype D-entailment was defined as a semantic extension of RDFS-entailment. Here it is defined as a direct extension to basic RDF. This is more in conformity with actual usage, where RDF with datatypes is widely used without the RDFS vocabulary. If there is a need to distinguish this from the 2004 RDF 1.0 terminology, the longer phrasing "simple D-entailment" or "simple datatype entailment" should be used rather than "D-entailment".
Datatypes are identified by IRIs. Interpretations will vary according to which IRIs are recognized as denoting datatypes. We describe this using a parameter D on simple interpretations, where D is the set of recognized datatype IRIs.
The previous version of this specification defined the parameter D as a datatype map from IRIs to datatypes, i.e. as a restricted kind of interpretation mapping. As the current semantics presumes that a recognized IRI identifies a unique datatype, this IRI-to-datatype mapping is globally unique and externally specified, so we can think of D as either a set of IRIs or as a fixed datatype map. Formally, the datatype map corresponding to the set D is the restriction of a D-interpretation to the set D. Semantic extensions which are stated in terms of conditions on datatype maps can be interpreted as applying to this mapping.
The exact mechanism by which an IRI identifies a datatype is considered to be external to the semantics, but the semantics presumes that a recognized IRI identifies a unique datatype wherever it occurs. RDF processors which are not able to determine which datatype is identified by an IRI cannot recognize that IRI, and should treat any literals with that IRI as their datatype IRI as unknown names.
RDF literals and datatypes are fully described in Section 5 of [RDF11-CONCEPTS]. In summary: with one exception, RDF literals combine a string and an IRI identifying a datatype. The exception is language-tagged strings, which have two syntactic components, a string and a language tag, and are assigned the type rdf:langString. A datatype is understood to define a partial mapping, called the lexical-to-value mapping, from a lexical space (a set of character strings) to values. The function L2V maps datatypes to their lexical-to-value mapping. A literal with datatype d denotes the value obtained by applying this mapping to the character string sss: L2V(d)(sss). If the literal string is not in the lexical space, so that the lexical-to-value mapping gives no value for the literal string, then the literal has no referent. The value space of a datatype is the range of the lexical-to-value mapping. Every literal with that type either refers to a value in the value space of the type, or fails to refer at all. An ill-typed literal is one whose datatype IRI is recognized, but whose character string is assigned no value by the lexical-to-value mapping for that datatype.
RDF processors are not required to recognize any datatype IRIs other than rdf:langString and xsd:string, but when IRIs listed in Section 5 of [RDF11-CONCEPTS] are recognized, they MUST be interpreted as described there, and when the IRI rdf:PlainLiteral is recognized, it MUST be interpreted to refer to the datatype defined in [RDF-PLAIN-LITERAL]. RDF processors MAY recognize other datatype IRIs, but when other datatype IRIs are recognized, the mapping between the datatype IRI and the datatype it refers to MUST be specified unambiguously, and MUST be fixed during all RDF transformations or manipulations. In practice, this can be achieved by the IRI linking to an external specification of the datatype which describes both the components of the datatype itself and the fact that the IRI identifies the datatype, thereby fixing a value of the datatype map of this IRI.
Literals with rdf:langString as their datatype are an exceptional case which are given a special treatment. The IRI rdf:langString is classified as a datatype IRI, and interpreted to refer to a datatype, even though no L2V mapping is defined for it. The value space of rdf:langString is the set of all pairs of a string with a language tag. The semantics of literals with this as their type are given below.
RDF literal syntax allows any IRI to be used in a typed literal, even when it is not recognized as referring to a datatype. Literals with such an "unknown" datatype IRI, which is not in the set of recognized datatypes, SHOULD NOT be treated as errors, although RDF applications MAY issue a warning. Such literals SHOULD be treated like IRIs and assumed to denote some thing in the universe IR. RDF processors which do not recognize a datatype IRI will not be able to detect some entailments which are visible to one which does. For example, the fact that
ex:a ex:p "20.0000"^^xsd:decimal .
entails
ex:a ex:p "20.0"^^xsd:decimal .
will not be visible to a processor which does not recognize the datatype IRI xsd:decimal.
7.1 D-interpretations
Let D be a set of IRIs identifying datatypes. A (simple) D-interpretation is a simple interpretation which satisfies the following conditions:
Semantic conditions for datatyped literals.
If rdf:langString is in D, then for every language-tagged string E with lexical form sss and language tag ttt, IL(E)= < sss, ttt' >, where ttt' is ttt converted to lower case using US-ASCII rules |
| For every other IRI aaa in D, I(aaa) is the datatype identified by aaa, and for every literal "sss"^^aaa, IL("sss"^^aaa) = L2V(I(aaa))(sss) |
If the literal is ill-typed then the L2V(I(aaa)) mapping has no value, and so the literal cannot denote anything. In this case, any triple containing the literal must be false. Thus, any triple, and hence any graph, containing an ill-typed literal will be D-unsatisfiable, i.e. false in every D-interpretation. This applies only to literals typed with recognized datatype IRIs in D; literals with an unrecognized type IRI are not ill-typed and cannot give rise to a D-unsatisfiable graph.
The special datatype rdf:langString has no ill-typed literals. Any syntactically legal literal with this type will denote a value in every D-interpretation where D includes rdf:langString. The only ill-typed literals of type xsd:string are those containing a Unicode code point which does not match the Char production in [XML10]. Such strings cannot be written in an XML-compatible surface syntax.
In the 2004 RDF 1.0 specification, ill-typed literals were required to denote a value in IR, and D-unsatisfiability could be recognized only by using the RDFS semantics.
7.2 Datatype entailment
A graph is (simply) D-satisfiable or satisfiable recognizing D when it has the value true in some D-interpretation, and a graph S (simply) D-entails or entails recognizing D a graph G when every D-interpretation which satisfies S also D-satisfies G.
Unlike the case with simple interpretations, it is possible for a graph to have no satisfying D-interpretations, i.e. to be D-unsatisfiable. RDF processors MAY treat an unsatisfiable graph as signaling an error condition, but this is not required.
A D-unsatisfiable graph D-entails any graph.
The fact that an unsatisfiable statement entails any other statement has been known since antiquity. It is called the principle of ex falso quodlibet. It should not be interpreted to mean that it is necessary, or even permissible, to actually draw any conclusion from an unsatisfiable graph.
In all of this language, 'D' is being used as a parameter to represent some set of datatype IRIs, and different D sets will yield different notions of satisfiability and entailment. The more datatypes are recognized, the stronger is the entailment, so that if D ⊂ E and S E-entails G then S must D-entail G. Simple entailment is { }-entailment, i.e. D-entailment when D is the empty set, so if S D-entails G then S simply entails G.
8. RDF Interpretations
RDF interpretations impose extra semantic conditions on xsd:string and part of the infinite
set of IRIs with the namespace prefix rdf: .
| RDF vocabulary |
rdf:type rdf:subject rdf:predicate rdf:object
rdf:first rdf:rest rdf:value rdf:nil
rdf:List rdf:langString rdf:Property rdf:_1 rdf:_2
...
|
An RDF interpretation recognizing D is a D-interpretation I where D includes rdf:langString and xsd:string, and which satisfies:
RDF semantic conditions.
x is
in IP if and only if <x, I(rdf:Property)> is in IEXT(I(rdf:type)) |
For every IRI aaa in D, < x, I(aaa) > is in IEXT(I(rdf:type)) if and only if x is in the value space of I(aaa) |
and satisfies every triple in the following infinite set:
RDF axioms.
rdf:type rdf:type rdf:Property .
rdf:subject rdf:type rdf:Property .
rdf:predicate rdf:type rdf:Property .
rdf:object rdf:type rdf:Property .
rdf:first rdf:type rdf:Property .
rdf:rest rdf:type rdf:Property .
rdf:value rdf:type rdf:Property .
rdf:nil rdf:type rdf:List .
rdf:_1 rdf:type rdf:Property .
rdf:_2 rdf:type rdf:Property .
...
|
RDF imposes no particular normative meanings on the rest of the RDF vocabulary. Appendix D describes the intended uses of some of this vocabulary.
The datatype IRIs rdf:langString and xsd:string MUST be recognized by all RDF interpretations.
Two other datatypes rdf:XMLLiteral and rdf:HTML are defined in [RDF11-CONCEPTS]. RDF-D interpretations MAY fail to recognize these datatypes.
8.1 RDF entailment
S RDF entails E recognizing D when every RDF interpretation recognizing D which satisfies S also satisfies E. When D is {rdf:langString, xsd:string} then we simply say S RDF entails E. E is RDF unsatisfiable (recognizing D) when it has no satisfying RDF interpretation (recognizing D).
The properties of simple entailment described earlier do not all apply to RDF entailment. For example, all the RDF axioms are true in every RDF interpretation, and so are RDF entailed by the empty graph, contradicting interpolation for RDF entailment.
9. RDFS Interpretations
RDF Schema [RDF11-SCHEMA]
extends RDF to a larger vocabulary
with more complex semantic constraints:
| RDFS vocabulary |
rdfs:domain rdfs:range rdfs:Resource rdfs:Literal
rdfs:Datatype rdfs:Class rdfs:subClassOf rdfs:subPropertyOf
rdfs:member rdfs:Container rdfs:ContainerMembershipProperty
rdfs:comment rdfs:seeAlso rdfs:isDefinedBy
rdfs:label |
(rdfs:comment, rdfs:seeAlso, rdfs:isDefinedBy
and rdfs:label are included here because some constraints which
apply to their use can be stated using rdfs:domain, rdfs:range
and rdfs:subPropertyOf. Other than this, the formal semantics does
not constrain their meanings.)
It is convenient to state the RDFS semantics
in terms of a new semantic construct, a class, i.e. a resource which represents
a set of things in the universe which all have that class as a value of their
rdf:type property. Classes are defined to be things of type rdfs:Class,
and the set of all classes in an interpretation will be called IC.
The semantic conditions are stated in terms of a mapping ICEXT (for the Class
Extension in I) from IC to the set of subsets of IR.
A class may have an
empty class extension. Two different classes can have the same class extension.
The class extension of rdfs:Class contains the class rdfs:Class.
An RDFS interpretation (recognizing D) is an RDF interpretation (recognizing D) I
which satisfies the semantic conditions in the following table, and all the triples in the subsequent table of RDFS axiomatic triples.
RDFS semantic conditions.
| ICEXT(y) is defined to be { x : < x,y > is in IEXT(I(rdf:type)) }
IC is defined to be ICEXT(I(rdfs:Class))
LV is defined to be ICEXT(I(rdfs:Literal))
ICEXT(I(rdfs:Resource)) = IR
ICEXT(I(rdf:langString)) is the set {I(E) : E a language-tagged string }
for every other IRI aaa in D, ICEXT(I(aaa)) is the value space of I(aaa)
for every IRI aaa in D, I(aaa) is in ICEXT(I(rdfs:Datatype))
|
| If
< x,y > is in IEXT(I(rdfs:domain)) and < u,v > is
in IEXT(x) then u is in ICEXT(y) |
| If
< x,y > is in IEXT(I(rdfs:range)) and < u,v > is
in IEXT(x) then v is in ICEXT(y) |
IEXT(I(rdfs:subPropertyOf))
is transitive and reflexive on IP |
| If
<x,y> is in IEXT(I(rdfs:subPropertyOf)) then x and
y are in IP and IEXT(x) is a subset of IEXT(y) |
If
x is in IC then < x, I(rdfs:Resource) > is in IEXT(I(rdfs:subClassOf)) |
IEXT(I(rdfs:subClassOf))
is transitive and reflexive on IC |
| If
< x,y > is in IEXT(I(rdfs:subClassOf)) then x and y are
in IC and ICEXT(x) is a subset of ICEXT(y) |
If
x is in ICEXT(I(rdfs:ContainerMembershipProperty)) then:
< x, I(rdfs:member) > is in IEXT(I(rdfs:subPropertyOf))
|
If
x is in ICEXT(I(rdfs:Datatype)) then < x,
I(rdfs:Literal) > is in IEXT(I(rdfs:subClassOf)) |
RDFS axiomatic triples.
rdf:type rdfs:domain rdfs:Resource .
rdfs:domain rdfs:domain rdf:Property .
rdfs:range rdfs:domain rdf:Property .
rdfs:subPropertyOf rdfs:domain rdf:Property .
rdfs:subClassOf rdfs:domain rdfs:Class .
rdf:subject rdfs:domain rdf:Statement .
rdf:predicate rdfs:domain rdf:Statement .
rdf:object rdfs:domain rdf:Statement .
rdfs:member rdfs:domain rdfs:Resource .
rdf:first rdfs:domain rdf:List .
rdf:rest rdfs:domain rdf:List .
rdfs:seeAlso rdfs:domain rdfs:Resource .
rdfs:isDefinedBy rdfs:domain rdfs:Resource .
rdfs:comment rdfs:domain rdfs:Resource .
rdfs:label rdfs:domain rdfs:Resource .
rdf:value rdfs:domain rdfs:Resource .
rdf:type rdfs:range rdfs:Class .
rdfs:domain rdfs:range rdfs:Class .
rdfs:range rdfs:range rdfs:Class .
rdfs:subPropertyOf rdfs:range rdf:Property .
rdfs:subClassOf rdfs:range rdfs:Class .
rdf:subject rdfs:range rdfs:Resource .
rdf:predicate rdfs:range rdfs:Resource .
rdf:object rdfs:range rdfs:Resource .
rdfs:member rdfs:range rdfs:Resource .
rdf:first rdfs:range rdfs:Resource .
rdf:rest rdfs:range rdf:List .
rdfs:seeAlso rdfs:range rdfs:Resource .
rdfs:isDefinedBy rdfs:range rdfs:Resource .
rdfs:comment rdfs:range rdfs:Literal .
rdfs:label rdfs:range rdfs:Literal .
rdf:value rdfs:range rdfs:Resource .
rdf:Alt rdfs:subClassOf rdfs:Container .
rdf:Bag rdfs:subClassOf rdfs:Container .
rdf:Seq rdfs:subClassOf rdfs:Container .
rdfs:ContainerMembershipProperty rdfs:subClassOf rdf:Property .
rdfs:isDefinedBy rdfs:subPropertyOf rdfs:seeAlso .
rdfs:Datatype rdfs:subClassOf rdfs:Class .
rdf:_1 rdf:type rdfs:ContainerMembershipProperty .
rdf:_1 rdfs:domain rdfs:Resource .
rdf:_1 rdfs:range rdfs:Resource .
rdf:_2 rdf:type rdfs:ContainerMembershipProperty .
rdf:_2 rdfs:domain rdfs:Resource .
rdf:_2 rdfs:range rdfs:Resource .
...
|
In the 2004 RDF 1.0 semantics, LV was defined as part of a simple interpretation structure, and the definition given here was a constraint.
Since I is an RDF interpretation, the first condition implies that IP
= ICEXT(I(rdf:Property)).
The semantic conditions on RDF interpretations, together with the RDFS conditions on ICEXT, mean that every recognized datatype can be treated as a class whose extension is the value space of the datatype, and every literal with that datatype either fails to refer, or refers to a value in that class.
When using RDFS semantics, the referents of all recognized datatype IRIs can be considered to be in the class rdfs:Datatype.
The axioms and conditions listed above have some redundancy. For example, all but one
of the RDF axiomatic triples can be derived from the RDFS axiomatic triples
and the semantic conditions on ICEXT, rdfs:domain and rdfs:range.
Other triples which must be true in all RDFS interpretations
include the following. This is not a complete set.
Some rdfs-valid triples.
rdfs:Resource rdf:type rdfs:Class .
rdfs:Class rdf:type rdfs:Class .
rdfs:Literal rdf:type rdfs:Class .
rdf:XMLLiteral rdf:type rdfs:Class .
rdf:HTML rdf:type rdfs:Class .
rdfs:Datatype rdf:type rdfs:Class .
rdf:Seq rdf:type rdfs:Class .
rdf:Bag rdf:type rdfs:Class .
rdf:Alt rdf:type rdfs:Class .
rdfs:Container rdf:type rdfs:Class .
rdf:List rdf:type rdfs:Class .
rdfs:ContainerMembershipProperty rdf:type rdfs:Class .
rdf:Property rdf:type rdfs:Class .
rdf:Statement rdf:type rdfs:Class .
rdfs:domain rdf:type rdf:Property .
rdfs:range rdf:type rdf:Property .
rdfs:subPropertyOf rdf:type rdf:Property .
rdfs:subClassOf rdf:type rdf:Property .
rdfs:member rdf:type rdf:Property .
rdfs:seeAlso rdf:type rdf:Property .
rdfs:isDefinedBy rdf:type rdf:Property .
rdfs:comment rdf:type rdf:Property .
rdfs:label rdf:type rdf:Property .
|
RDFS does not partition the universe into disjoint categories of classes, properties and individuals. Anything in the universe can be used as a class or as a property, or both, while retaining its status as an individual which may be in classes and have properties. Thus, RDFS permits classes which contain other classes, classes of properties, properties of classes, etc. As the axiomatic triples above illustrate, it also permits classes which contain themselves and properties which apply to themselves. A property of a class is not necessarily a property of its members, nor vice versa.
9.2 RDFS entailment
S RDFS entails E recognizing D when every RDFS interpretation recognizing D
which satisfies S also satisfies E.
Since every RDFS interpretation is an RDF interpretation, if S RDFS entails
E then S also RDF entails E; but RDFS entailment is stronger than RDF entailment.
Even the empty graph has a large number of RDFS entailments which are not RDF entailments,
for example all triples of the form
aaa rdf:type rdfs:Resource .
where aaa is an IRI, are true in all RDFS interpretations.
10. RDF Datasets
RDF datasets, defined in RDF Concepts [RDF11-CONCEPTS], package up zero or more named RDF graphs along with a single unnamed, default RDF graph. The graphs in a single dataset may share blank nodes. The association of graph name IRIs with graphs is used by SPARQL [SPARQL11-QUERY] to allow queries to be directed against particular graphs.
Graph names in a dataset may refer to something other than the graph they are paired with. This allows IRI referring to other kinds of entities, such as persons, to be used in a dataset to identify graphs of information relevant to the entity denoted by the graph name IRI.
When a graph name is used inside RDF triples in a dataset it may or may not refer to the graph it names. The semantics does not require, nor should RDF engines presume, without some external reason to do so, that graph names used in RDF triples refer to the graph they name.
RDF datasets MAY be used to express RDF content. When used in this way, a dataset SHOULD be understood to have at least the same content as its default graph. Note however that replacing the default graph of a dataset by a logically equivalent graph will not in general produce a structurally similar dataset, since it may for example disrupt co-occurrences of blank nodes between the default graph and other graphs in the dataset, which may be important for reasons other than the semantics of the graphs in the dataset.
Other semantic extensions and entailment regimes MAY place further semantic conditions and restrictions on RDF datasets, just as with RDF graphs. One such extension, for example, could set up a modal-like interpretation structure so that entailment between datasets would require RDF graph entailments between the graphs with the same name (adding in empty graphs as required).
Appendices
A. Entailment rules (Informative)
This section is non-normative.
(This section is based on work described more fully in [HORST04], [HORST05], which should be consulted for technical details and proofs.)
The RDF and RDFS entailment patterns listed in the above tables can be viewed as left-to-right rules which add the entailed conclusion to a graph. These rule sets can be used to check RDF (or RDFS) entailment between graphs S and E, by the following sequence of operations:
1. Add to S all the RDF (or RDF and RDFS) axiomatic triples except those containing the container membership property IRIs rdf:_1, rdf:_2, ....
2. For every container membership property IRI which occurs in E, add the RDF (or RDF and RDFS) axiomatic triples which contain that IRI.
3. Apply the RDF (or RDF and RDFS) inference patterns as rules, adding each conclusion to the graph, to exhaustion; that is, until they generate no new triples.
4. Determine if E has an instance which is a subset of the set, i.e. whether the enlarged set simply entails E.
This process is clearly correct, in that if it gives a positive result then indeed S does RDF (RDFS) entail E. It is not, however, complete: there are cases of S entailing E which are not detectable by this process. Examples include:
| |
RDF entails |
ex:a ex:p "string"^^xsd:string .
ex:b ex:q "string"^^xsd:string . |
ex:a ex:p _:b .
ex:b ex:q _:b .
_:b rdf:type xsd:string . |
| |
RDFS entails |
ex:a rdfs:subPropertyOf _:b .
_:b rdfs:domain ex:c .
ex:d ex:a ex:e . |
ex:d rdf:type ex:c . |
Both of these can be handled by allowing the rules to apply to a generalization of the RDF syntax in which literals may occur in subject position and blank nodes may occur in predicate position.
Consider generalized RDF triples, graphs, and datasets instead of RDF triples, graphs and datasets (extending the generalization used in [HORST04] and following exactly the terms used in [OWL2-PROFILES]). The semantics described in this document applies to the generalization without change, so that the notions of interpretation, satisfiability and entailment can be used freely. Then we can replace the first RDF entailment pattern with the simpler and more direct
G-RDF-D entailment pattern.
| |
if S contains |
then S RDF entails, recognizing D |
| GrdfD1 |
xxx aaa "sss"^^ddd .
for ddd in D |
"sss"^^ddd rdf:type ddd . |
which gives the entailments;
ex:a ex:p "string"^^xsd:string .
ex:b ex:q "string"^^xsd:string .
"string"^^xsd:string rdf:type xsd:string . by GrdfD1
which is an instance (in generalized RDF) of the desired conclusion, above.
The second example can be derived using the RDFS rules:
ex:a rdfs:subPropertyOf _:b .
_:b rdfs:domain ex:c .
ex:d ex:a ex:e .
ex:d _:b ex:c . by rdfs7
ex:d rdf:type ex:c . by rdfs2
Where the entailment patterns have been applied to generalized RDF syntax but yield a final conclusion which is legal RDF.
With the generalized syntax, these rules are complete for both RDF and RDFS entailment. Stated exactly:
Let S and E be RDF graphs. Define the generalized RDF (RDFS) closure of S towards E to be the set obtained by the following procedure.
1. Add to S all the RDF (and RDFS) axiomatic triples which do not contain any container membership property IRI.
2. For each container membership property IRI which occurs in E, add the RDF (and RDFS) axiomatic triples which contain that IRI.
3. If no triples were added in step 2., add the RDF (and RDFS) axiomatic triples which contain rdf:_1.
4. Apply the rules GrdfD1 and rdfD2 (and the rules rdfs1 through rdfs13), with D={rdf:langString, xsd:string), to the set in all possible ways, to exhaustion.
Then we have the completeness result:
If S is RDF (RDFS) consistent, then S RDF entails (RDFS entails) E just when the generalized RDF (RDFS) closure of S towards E simply entails E.
The closures are finite. The generation process is decidable and of polynomial complexity. Detecting simple entailment is NP-complete in general, but of low polynomial order when E contains no blank nodes.
Every RDF(S) closure, even starting with the empty graph, will contain all RDF(S) tautologies which can be expressed using the vocabulary of the original graph plus the RDF and RDFS vocabularies. In practice there is little utility in re-deriving these, and a subset of the rules can be used to establish most entailments of practical interest.
If it is important to stay within legal RDF syntax, rule rdfD1 may be used instead of GrdfD1, and the introduced blank node can be used as a substitute for the literal in subsequent derivations. The resulting set of rules will not however be complete.
As noted earlier, detecting datatype entailment for larger sets of datatype IRIs requires attention to idiosyncratic properties of the particular datatypes.
D. RDF reification, containers and collections (Informative)
This section is non-normative.
The RDF semantic conditions do not place formal constraints on the meaning
of much of the RDF vocabulary which is intended for use in describing containers and bounded collections,
or the reification vocabulary intended to enable an RDF graph to describe RDF triples. This appendix briefly reviews the intended meanings of this vocabulary.
The omission of these conditions from the formal semantics is a design decision
to accommodate variations in existing RDF usage and to make it easier to implement
processes to check formal RDF entailment. For example, implementations may decide
to use special procedural techniques to implement the RDF collection vocabulary.
D.1 Reification
| RDF reification vocabulary |
rdf:Statement rdf:subject rdf:predicate
rdf:object |
The intended meaning of this vocabulary is to allow an RDF graph to act as metadata describing other RDF triples.
Consider an example graph containing a single triple:
ex:a ex:b ex:c .
and suppose that IRI ex:graph1 is used to identify this graph. Exactly how this identification is achieved is external to the RDF model, but it might be by the IRI resolving to a concrete syntax document describing the graph, or by the IRI being the associated name of a named graph in a dataset. Assuming that the IRI can be used to refer to the triple, then the reification vocabulary allows us to describe the first graph in another graph:
ex:graph1 rdf:type rdf:Statement .
ex:graph1 rdf:subject ex:a .
ex:graph1 rdf:predicate ex:b .
ex:graph1 rdf:object ex:c .
The second graph is called a reification of the triple in the first
graph.
Reification is not a form of quotation. Rather, the reification describes the
relationship between a token of a triple and the resources that the triple refers
to. The value of the rdf:subject property is not the
subject IRI itself but the thing it denotes, and similarly for rdf:predicate and rdf:object. For example, if the referent of ex:a is Mount Everest, then the subject of the reified triple is also the mountain, not the IRI which refers to it.
Reifications can be written with a blank node as subject, or with an IRI subject which does not identify any concrete realization of a triple, in both of which cases they simply assert the existence of the described triple.
The subject of a reification is intended to refer to a concrete realization of an RDF triple, such as a document in a surface syntax, rather than a triple considered as an abstract object. This supports use cases where properties such as dates of
composition or provenance information are applied to the
reified triple, which are meaningful only when thought of as
referring to a particular instance or token of a triple.
A reification of a triple does not entail the triple, and is not
entailed by it. The
reification only says that the triple token exists and what it is about,
not that it is true, so it does not entail the triple. On the other hand, asserting a triple does not automatically imply that any
triple tokens exist in the universe being described by the triple.
For example, the triple might be part of an ontology describing
animals, which could be satisfied by an interpretation in which the
universe contained only animals, and in which a reification of it was therefore
false.
Since the relation between triples and reifications of triples
in any RDF graph or graphs need not be one-to-one, asserting a
property about some entity described by a reification need not
entail that the same property holds of another such entity, even if
it has the same components. For example,
_:xxx rdf:type rdf:Statement .
_:xxx rdf:subject ex:subject .
_:xxx rdf:predicate ex:predicate .
_:xxx rdf:object ex:object .
_:yyy rdf:type rdf:Statement .
_:yyy rdf:subject ex:subject .
_:yyy rdf:predicate ex:predicate .
_:yyy rdf:object ex:object .
_:xxx ex:property ex:foo .
does not entail
_:yyy ex:property ex:foo .
D.2 RDF containers
| RDF(S) Container Vocabulary |
rdf:Seq rdf:Bag rdf:Alt rdf:_1 rdf:_2
... rdfs:member rdfs:Container rdfs:ContainerMembershipProperty |
RDF provides vocabularies for describing three classes of
containers. Containers have a type, and their members can
be enumerated by using a fixed set of container membership
properties. These properties are indexed by integers to
provide a way to distinguish the members from each other, but these
indices should not necessarily be thought of as defining an
ordering of the container itself; some containers are considered to be unordered.
The RDFS vocabulary adds a generic membership
property which holds regardless of position, and classes containing
all the containers and all the membership properties.
One should understand this vocabulary as describing
containers, rather than as a tool for constructing them, as
would typically be supplied by a programming language. The actual containers are entities in the semantic universe,
and RDF graphs which use the vocabulary simply provide very basic
information about these entities, enabling an RDF graph to
characterize the container type and give partial information about
the members of a container. Since the RDF container vocabulary is
so limited, many natural assumptions concerning RDF containers
cannot be formally sanctioned by the RDF formal semantics. This should not be taken as
meaning that these assumptions are false, but only that RDF does
not formally entail that they must be true.
There are no special semantic conditions on the container
vocabulary: the only structure which RDF presumes its containers
to have is what can be inferred from the use of this vocabulary and
the general RDF semantic conditions. This amounts to knowing the type of a container, and having a partial
enumeration
of the items in the container. The intended mode of use is that things
of type rdf:Bag
are considered to be unordered but to allow duplicates; things of
type rdf:Seq are considered to be ordered, and things
of type rdf:Alt are considered to represent a
collection of alternatives, possibly with a preference ordering.
If the container is of an ordered type, then the ordering of items in the container is intended to be
indicated by the numerical ordering of the container membership
properties, which are assumed to be single-valued.
However, these informal conditions are not reflected in any formal RDF
entailments.
The RDF semantics does not support any entailments which could arise from enumerating
the elements of an unordered rdf:Bag in a different order. For example,
_:xxx rdf:type rdf:Bag .
_:xxx rdf:_1 ex:a .
_:xxx rdf:_2 ex:b .
does not entail
_:xxx rdf:_1 ex:b .
_:xxx rdf:_2 ex:a .
(If this conclusion were valid, then the result of
adding it to the original graph would be entailed by the graph, and this would assert that both elements were in both
positions. This is a consequence of the fact that RDF is a purely
assertional language.)
There is no assumption that a property of a container applies to
any of the elements of the container, or vice versa.
There is no formal requirement that
the three container classes are disjoint, so that for example
it is consistent to assert that something is both an rdf:Bag and an rdf:Seq.
There is no assumption that containers are gap-free, so that for example
_:xxx rdf:type rdf:Seq.
_:xxx rdf:_1 ex:a .
_:xxx rdf:_3 ex:c .
does not entail
_:xxx rdf:_2 _:yyy .
There is no way in RDF to assert
that a container contains only a fixed number of members. This is a
reflection of the fact that it is always consistent to add a triple
to a graph asserting a membership property of any container. And
finally, there is no built-in assumption that an RDF container has
only finitely many members.
D.3 RDF collections
| RDF Collection Vocabulary |
rdf:List rdf:first rdf:rest rdf:nil |
RDF provides a vocabulary for describing collections, i.e.'list
structures', in terms of head-tail links. Collections differ from
containers in allowing branching structure and in having an
explicit terminator, allowing applications to determine the exact
set of items in the collection.
As with containers, no special semantic conditions are imposed on this vocabulary
other than the type of rdf:nil being rdf:List. It
is intended for use typically in a context where a container is described using
blank nodes to connect a 'well-formed' sequence of items, each described by
two triples of the form
_:c1 rdf:first aaa .
_:c1 rdf:rest _:c2 .
where the final item is indicated by the use of rdf:nil as the
value of the property rdf:rest. In a familiar convention, rdf:nil
can be thought of as the empty collection. Any such graph amounts to an assertion
that the collection exists, and since the members of the collection can be determined
by inspection, this is often sufficient to enable applications to determine
what is meant. The semantics does not require any collections
to exist other than those mentioned explicitly in a graph (and the empty collection).
For example, the existence of a collection containing two items does not automatically
guarantee that the similar collection with the items permuted also exists:
_:c1 rdf:first ex:aaa .
_:c1 rdf:rest _:c2 .
_:c2 rdf:first ex:bbb .
_:c2 rdf:rest rdf:nil .
does not entail
_:c3 rdf:first ex:bbb .
_:c3 rdf:rest _:c4 .
_:c4 rdf:first ex:aaa .
_:c4 rdf:rest rdf:nil .
Also, RDF imposes no 'well-formedness' conditions on the use of this
vocabulary, so that it is possible to write RDF graphs which assert
the existence of highly peculiar objects such as lists with forked
or non-list tails, or multiple heads:
_:666 rdf:first ex:aaa .
_:666 rdf:first ex:bbb .
_:666 rdf:rest ex:ccc .
_:666 rdf:rest rdf:nil .
It is also possible to write a set of triples which under-specify a collection
by failing to specify its rdf:rest property value.
Semantic extensions may
place extra syntactic well-formedness restrictions on the use of this vocabulary
in order to rule out such graphs. They may
exclude interpretations of the collection vocabulary which violate the convention
that the subject of a 'linked' collection of two-triple items of the form described
above, ending with an item ending with rdf:nil, denotes a totally
ordered sequence whose members are the denotations of the rdf:first
values of the items, in the order got by tracing the rdf:rest properties
from the subject to rdf:nil. This permits sequences which contain
other sequences.
The RDFS semantic conditions require that any
subject of the rdf:first property, and any subject or object of
the rdf:rest property, be of rdf:type rdf:List.
