People have very different needs. There are many people with cognitive and learning disabilities that affect their ability to interact with the web. Some people cannot process numeric information (dyscalculia), but others understand numbers better than words. Some people with severe language disabilities use symbols to represent words; some people need (or want) simplified user-interfaces. Different people find different layouts and types of content easier to understand, and what is useable and understandable by one person can be be too complex for another. One of the main challenges is to address these varied and conflicting user needs, so that content can be understandable by the individual users. The specification (and modules) described in this Explainer provide a means for web technologies to address these requirements.
The WAI-Adapt specification enables authors to add extra semantic information about content to enable personalization for the individual user. This provides extra support and facilitates user-agents for people with learning and cognitive disabilities.
Authors add extra semantic information using a collection of new attribute(s) and values, with (in most cases) a fixed token list (taxonomies). This document is an explanation for understanding how the WAI-Adapt attributes are used to personalize an accessible web site.
This section describes the status of this document at the time of its publication. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at https://www.w3.org/TR/.
This document was published by the Accessible Platform Architectures Working Group as a Group Draft Note using the Note track. The name of the Task Force is changed from Personalization to WAI-Adapt, and the names of all documents will be renamed accordingly. The purpose of this publication is to change the name of the document. For details, please refer to the Resolution and Discussions of the WAI-Adapt Task Force.
To comment, file an issue in the W3C WAI-Adapt GitHub repository. If this is not feasible, send email to public-adapt@w3.org (archives). Comments are requested by 10 July 2022.
Group Draft Notes are not endorsed by W3C nor its Members.
This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.
The W3C Patent Policy does not carry any licensing requirements or commitments on this document.
This document is governed by the 2 November 2021 W3C Process Document.
This section is non-normative.
The WAI-Adapt specification:
Technology holds the promise of being extremely flexible and the design of many systems includes the expectation that users can optimize their interaction experience according to their personal preferences or accessibility needs.
WAI-Adapt will allow assitive technology to:
To achieve this, we need standardized terms and supportive syntax. These can be linked to associated symbols, terms, translations and explanations. This allows modifications based on an individual's personal preferences.
Example of sending an email:
An author programmatically identifies that a button sends an email. Based on user preference settings the interface can be modified to:
Requirements for WAI-Adapt elaborates many use cases that further contextualize the above summary of user needs. These example use cases form the basis of requirements for this technology. WAI-Adapt enables developers to create targeted extensions as additional use cases are encountered.
Examples
Someone who is either easily distracted or can be easily overwhelmed with too much information on a web page needs the ability to simplify the page. They want just the critical information, and need anything that is not integral to the understanding and use of the page suppressed.
Example: The user wants to get the latest weather report for their city and goes to a weather website.
Finding the actual weather forecast is actually a little challenging even if you have no disabilities due to all the additional content on the screen; along with advertisements, there is also the day's top stories, trending news, and social media to cognitively filter. If you are easily overwhelmed or distracted getting the key information about today's weather is a challenge. Having the ability to personalize and prioritize all but the key information (i.e. just the weather forecast for my city) is critical for this user.
In this example, the author can mark the <section>
, <p>
, or <div>
that contains the actual weather report and any associated tools to manipulate the weather report (i.e. city search, hourly vs. 5 day forecast, etc.) with the data-simplification
attribute (with a value of "critical"), and mark the other on-screen content as "medium" (default) or "low". (e.g. <p data-simplification="critical">
Today’s forecast is a high of 95° and a low of 40°</p>
)
For websites which rely on advertising revenue, it may be undesirable to completely suppress advertisements. We envision that this attribute could also facilitate relocating the most critical sections of a website above anything that is a lower priority. (i.e. Content re-ordering)
Someone who has dyscalculia will have difficulty understanding numbers and will have a hard time interacting with websites that use numbers to convey information. Therefore, critical numeric information must be provided in an alternative format that the user can understand.
Example: The user wants to get the latest weather report for their city and goes to a weather website.
For today’s forecast, it shows a high of 95° and a low of 40°. This representation is not understandable for particular user. Presenting this numeric information as a symbol or text would benefit the user. For example, next to the number 95, there could be:
Next to the number 40, there can be:
Next to the humidity index of 90%, there could be a text alternative of “muggy”.
In this example, the author would mark up the numbers using the data-numberfree
attribute. The default would show the numeric value. Those needing an alternative representation for numbers, would get an associated image or description/values as simplified text instead.
It is important to note that people with dyscalculia are often very good with words, so long text can be better than short numbers.
Those who have a moderate Language Impairment / Learning Disability may have a limited vocabulary. They will only know terms that are in the core vocabulary they have learned. They may also use symbols to represent words and concepts.
Example: The user may know the word "name" or "last name" but have not learned the term "family name".
For some users, learning new terms is very slow, requiring hours of work. For these users, reading may also be very slow, so finding the right information can be a barrier. The ability to personalize a web page and present symbols instead helps users to easily understand the content being provided
Note that some people with language disabilities are good at numbers. They will want a long string of text replaced with a short number: <span data-easylang="90% of the time this happens"> normally this is the expected outcome</span>
. This is the opposite of the numberfree example.
Additionally, because reading content for some users is extremely time-consuming, they may also want less content and features on the web page.
Some users with a severe speech and/or physical impairment may communicate using symbols, rather than written text, as part of an Augmentative and Alternative Communication (AAC) system. The use of symbols to represent words is their primary means of communication when both consuming and producing information. Symbol users face a wide variety of barriers to accessing web content, but one of the main challenges is a lack of standard inter-operability between different proprietary symbol sets, or a mechanism for translating the same concept from one symbol set to another.
User Stories include:
Example: Using the data-symbol
attribute, an author programmatically tags the label for a form input with the appropriate symbol value. Based on user preference settings, a browser helper application or stand-alone tool could then render that label using an appropriate symbol, alternative term, and/or furnishes an additional tool-tip that is understandable by the individual user. Using the Bliss Symbolics set's unique reference numbers as our 'taxonomy', other symbol sets can map their equivalent symbols against the Bliss set.
<label for="bar" data-symbol="14885">Your Principle Residence</label>
<input type="textarea" id="bar" name="address" data-purpose="street-address">
Where the symbol value 14855 maps back to "Home".

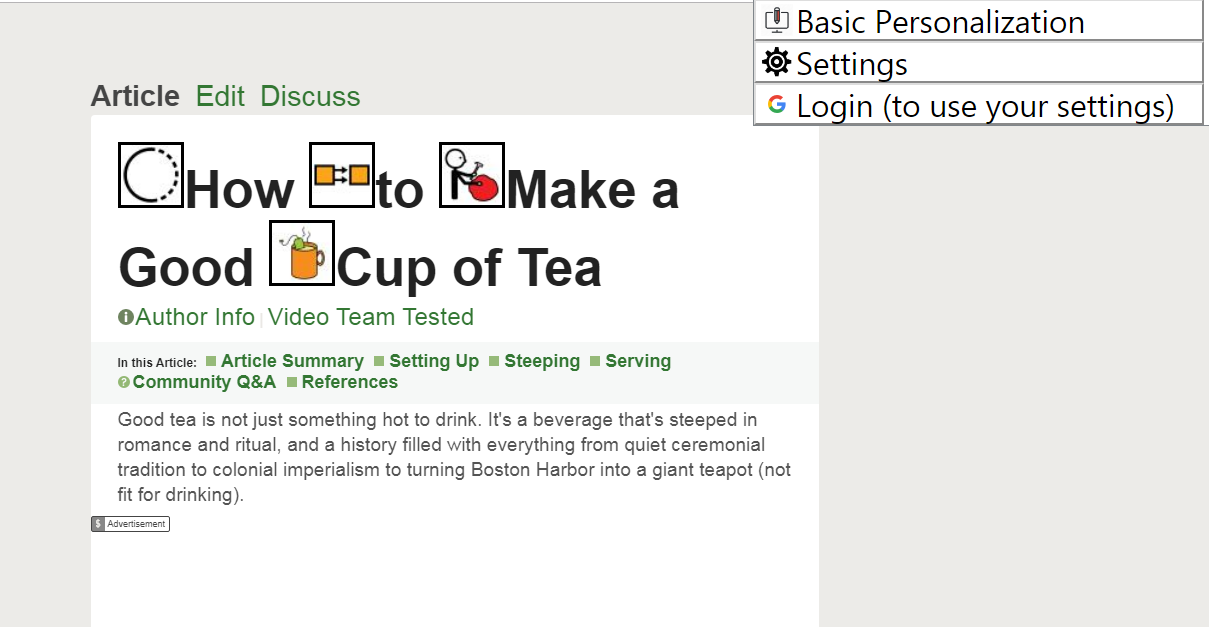

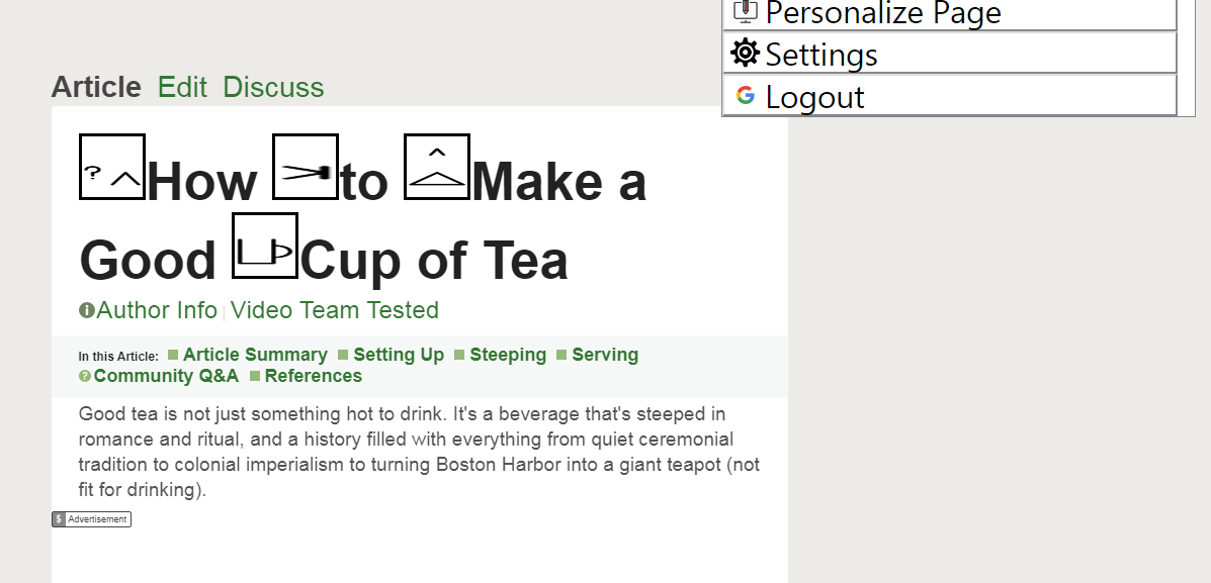

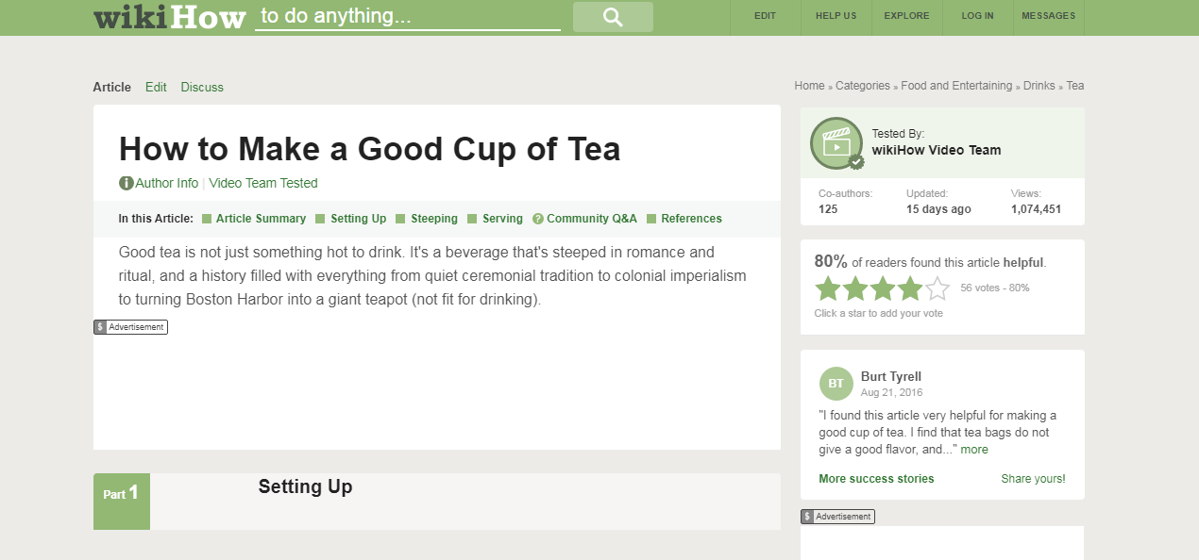

In the screen shots below, a browser extension uses the data-symbol
attribute to load symbols that are familiar to the user.
Note that users learn a specific symbol vocabulary. However, the various symbol vocabularies are mutually unintelligible: users familiar with one set of symbols may not be familiar with or understand an alternative set. WAI-Adapt's data-symbol
attribute offers a mechanism to translate between symbol sets, to allow people to communicate with one another where it was previously not possible.
Users may have differences in both working and short-term memory. For some users, the number of items or data that can be stored in working memory is a fraction of the general population's average. Whereas most adults can repeat about seven digits in correct order, a specific user may only manage two or three numbers. When they become distracted, they are also likely to forget any information in their working memory.
Example: Many processes consist of a sequence of separate steps or actions which must be performed by a user to complete a process or workflow.
Users need to remember completed tasks in order to identify their location in a process. In addition, a user must be able to navigate to completed tasks to make modifications or corrections.
A step indicator allows an author to define steps within a process or represent an entire user path outside of the context of a defined process. This includes turning steps between defined processes into breadcrumbs or linked steps that identify completed tasks. This allows the user to navigate back to completed steps and identify a user's current location in a path.
More information on personas and user needs can be found in Making Content Usable for People with Cognitive and Learning Disabilities.
While the intention of this work is to introduce a new set of attributes to support WAI-Adapt, the following work items are out of scope:
data-symbol
We encourage a the development of these items and a list of implementations can be found on our wiki.
This section is non-normative.
This specification has been divided into modules.
Each module has use cases and vocabularies:
This module provides vocabularies that enable user-agents to augment or adapt content to the user scenario which helps the user use and understand the content.
It includes use-cases and vocabularies for identifying the purpose of controls, symbols and user interface elements, and supports simplification and avoiding distractions.
The first working draft of this module is now available.
This module addresses adding information about the content to enable help scaffolding and additional support for different user scenarios.
The first working draft of this module is now available.
This module addresses adding information about the content to enable user-agents and extensions to provide additional support to the user. One example is adaptable breadcrumbs.
This section is non-normative.
WAI-Adapt is made of a vocabulary of properties and their values. This generic structure makes it possible to apply WAI-Adapt in a variety of contexts by adapting how the vocabulary is instantiated. The Vocabulary Implementations section below describes current ways to use the vocabulary.
Properties are the main units of WAI-Adapt types supported by the vocabulary. A given property supports a specific type of WAI-Adapt. That property would only be used once on a given piece of content, but multiple different properties could be used on the same piece of content to address different needs.
Values provide the specific WAI-Adapt information for the property. The possible values for each property are elaborated in the definition of the property in the modules. Some properties require the value to come from a predefined list of possible values, others can accept arbitrary strings, and some may accept multiple values. The attribute value may be one of the following types:
This section is non-normative.
At the present stage of development, the WAI-Adapt vocabulary can be used in HTML content using data-* attributes [html5]. Attributes in this form can be used in valid HTML to implement features recognized by browser extensions or other special processors. WAI-Adapt is using this approach to gain early implementation experience of the features in a way that is simple and likely to be accepted within the web ecosystem as an interim approach.
This publication of the WAI-Adapt provides several key-value pairs (attribute = value). These attributes include but are not limted to:
Other properties exist or will be developed as the modules mature. See the discussion Prototypes with data dash.
The WAI-Adapt specification currently defines and relies on multiple entity attributes constructed according to the requirements of Sec. 3.2.6.6 of the HTML Specification, Embedding custom non visible data with the data-* attributes and by express request of W3C's Technical Advisory Group (TAG). The HTML data- attribute syntax is not intended to be used for long-term wide-scale features. The task force is using this approach at the moment to gain implementation experience and demonstrate the usefulness of WAI-Adapt in practice.
Implementers are cautioned that the "data-" prefix will be removed or replaced for some or all attribute values in succeeding iterations of this specification following additional consideration in W3C and the WHATWG.
The task force reviewed various vocabulary options before deciding upon the use of the data- HTML attribute syntax. The list of technologies included:
aria-action
)aui-action
)The details of our research and discussion are documented on the Comparison of ways to use vocabulary in content and Prototypes with data dash pages in our Wiki.
We presented some of these options at the TPAC 2018 WAI-Adapt Plenary Day presentation and provided a working example using the data- attribute to add WAI-Adapt features. The data- solution was recommended by representatives of several working groups attending our presentation and discussions. See the Vocabulary Implementations section in this Explainer document for further details on the use of data- attributes.
This section is non-normative.
This document is useful for:
For early implementations of content we suggest including a link to an extension implementation that can maximize the benefit for users.
This section is non-normative.
The following people contributed to the development of this document.
This publication has been funded in part with U.S. Federal funds from the Health and Human Services, National Institute on Disability, Independent Living, and Rehabilitation Research (NIDILRR) under contract number HHSP23301500054C. The content of this publication does not necessarily reflect the views or policies of the U.S. Department of Health and Human Services, nor does mention of trade names, commercial products, or organizations imply endorsement by the U.S. Government. Some of the work on this project has also received funding from the European Union’s Horizon 2020 research and innovation programme under grant agreement No.780529 and 643399.
