Web Publications

Abstract

The primary objective of this specification is to define requirements for the production of Web Publications. In doing so, it also defines a framework for creating packaged publication formats, such as EPUB and audiobooks, where a pathway to the Web is highly desirable but not necessarily the primary method of interchange or consumption.

2. PART I: Publication Manifest

2.1 Introduction

This section is non-normative.

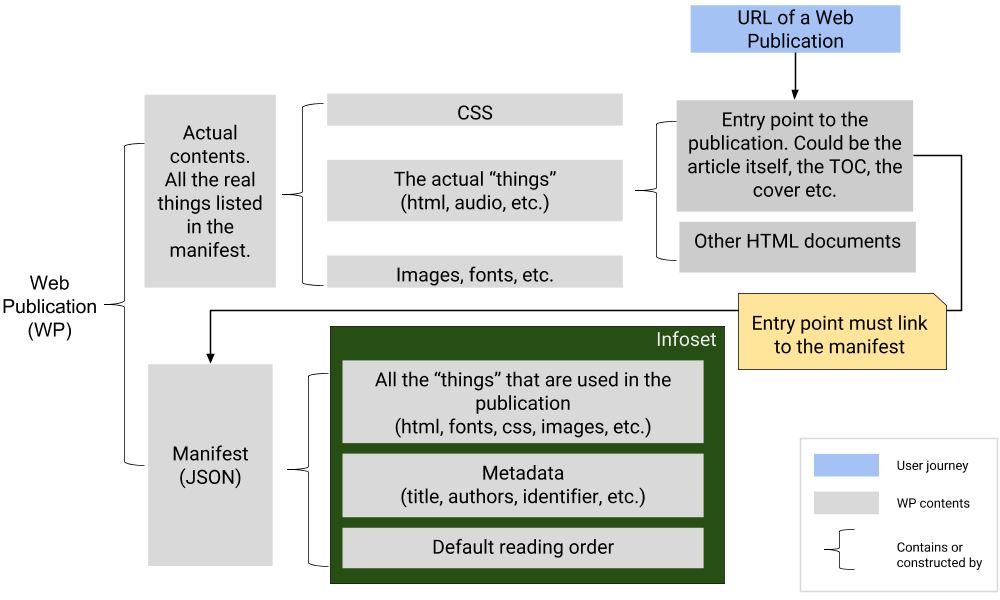

A digital publication is described by its manifest, which provides a set of properties expressed using the JSON-LD [json-ld] format (a variant of JSON [ecma-404] for linked data).

The manifest includes both descriptive properties about the publication, such as its title and author, as well as information about the nature and structure of the publication.

This section describes the construction requirements for manifests, and outlines the general set of properties for use with them.

2.2 Authored and Canonical Manifests

This section is non-normative.

Depending on the state of a digital publication, its manifest exists in one of two forms:

Authored Manifest: The Authored Publication Manifest is the serialization of the manifest that the author provides with the digital publication (i.e., prior to be digital publication being processed by a user agent). Note that the author does not have to be human; a machine could automatically produce authored manifests for digital publications.
Canonical Manifest: The Canonical Publication Manifest is a version of the manifest created by user agents when they process the authored manifest and remove all possible ambiguities and incorporate any missing values that can be inferred from another source.

It is possible that an authored manifest is the equivalent of the canonical manifest if there are no ambiguities or missing information, but a canonical manifest only exists after a user agent has inspected the authored manifest as part of the process of obtaining it.

This part of the specification describes the requirements for creating an authored manifest, regardless of the format of the digital publication. Rules for constructing a canonical manifest from the authored manifest are defined for each specific implementation (e.g., the process for Web Publications is described in § 2.7.3 Generating the Canonical Manifest).

2.3 WebIDL

2.3.1 Introduction

This section is non-normative.

Although a digital publication's manifest is authored as [json-ld], a user agent processes this information into an internal data structure in order to utilize the properties. The exact manner in which this processing occurs, and how the data is used internally, is user agent-dependent.

To ensure interoperability when exposing the items, this specification defines an abstract representation of the data structures using the Web Interface Definition Language (WebIDL) [webidl-1]. The WebIDL definitions express the expected names, datatypes, and possible restrictions for each member of the manifest. (A WebIDL representation can be mapped onto ECMAScript, C, or other programming languages.)

Note

Authors of digital publications are encouraged to review these definitions, but they are not necessary to understand.

2.3.2 The `PublicationManifest` Dictionary

dictionary PublicationManifest {

};

The PublicationManifest dictionary is the [webidl-1] representation of the collection of manifest properties. WebIDL definitions are also provided at the end of each property that belongs to the dictionary — these represent the members of the PublicationManifest dictionary.

Note

Refer to § F. IDL Index for a complete listing of the PublicationManifest dictionary.

2.4 Manifest Contexts

A digital publication's manifest MUST start by setting the JSON-LD context [json-ld]. The context has the following two major components:

the [schema.org] context: https://schema.org
the publication context: https://www.w3.org/ns/wp-context

Example 1 : The context declaration.

{
    "@context" : ["https://schema.org", "https://www.w3.org/ns/wp-context"],
    …
}

The publication context document adds features to the properties defined in Schema.org (e.g., the requirement for the creator property to be order preserving).

Editor's note

As part of the continuous contacts with Schema.org the additional features defined in the publication context file could migrate to the core Schema.org vocabulary.

Note

Although Schema.org is often referenced using the http URI scheme, the vocabulary is being migrated to use the secure https scheme as its default. This specification requires the use of https when referencing Schema.org in the manifest.

2.5 Publication Types

A digital publication's manifest MUST define its Publication Type using the type term [json-ld]. The type MAY be mapped onto CreativeWork [schema.org].

Example 2 : Setting a publication's type to CreativeWork.

{
    "@context" : ["https://schema.org", "https://www.w3.org/ns/wp-context"],
    "type"     : "CreativeWork"
    …
}

Schema.org also includes a number of more specific subtypes of CreativeWork, such as Article, Book, TechArticle, and Course. These MAY be used instead of, or in addition to, CreativeWork.

Example 3 : Setting a publication's type to Book.

{
    "@context" : ["https://schema.org", "https://www.w3.org/ns/wp-context"],
    "type"     : "Book"
    …
}

Each Schema.org type defines a set of properties that are valid for use with it. To ensure that the manifest can be validated and processed by Schema.org aware processors, the manifest SHOULD contain only the properties associated with the selected type.

If properties from more than one type are needed, the manifest MAY include multiple type declarations.

Example 4 : A publication that combines properties from both Book and VisualArtwork.

{
    "@context" : ["https://schema.org", "https://www.w3.org/ns/wp-context"],
    "type"     : ["Book", "VisualArtwork"],
    …
}

User agents SHOULD NOT fail to process manifests that are not valid to their declared Schema.org type(s).

Note

Refer to the Schema.org site for the complete list of CreativeWork subtypes.

partial dictionary PublicationManifest {
    required sequence<DOMString> type;
};

2.6 Properties

2.6.1 Introduction

This section is non-normative.

A digital publication's manifest is defined by a set of properties that describe the basic information a user agent requires to process and render the publication. These properties are categorized as followed:

descriptive properties: Descriptive properties describe aspects of a digital publication, such as its title, creator, and language. These properties are primarily drawn from Schema.org and its hosted extensions [schema.org], so they map to one or several Schema.org properties and inherit their syntax and semantics. (The following property categories typically do not have Schema.org equivalents, so are defined specifically for publications.)
resource categorization: Resource categorization properties describe or identify common sets of resources, such as the resource list and default reading order. These properties refer to one or more resources, such as HTML documents, images, script files, and separate metadata files.
informative properties: Informative properties identify resources that contain additional information about the publication, such as its privacy policy or accessibility report.
structural properties: Structural properties identify key meta structures of the publication, such as the cover image, table of contents, and page list.

Note

The categorization of properties is done to simplify comprehension of their purpose; the groupings have no relevance outside this specification (i.e., the groupings do not exist in the manifest).

Note

Each manifest item drawn from schema.org identifies the property it maps to and includes its defining type in parentheses. Properties are often available in many types, however, as a result of the schema.org inheritance model. Refer to each property definition for more detailed information about where it is valid to use.

Schema.org additionally includes a large number of properties that, though relevant for publishing, are not mentioned in this specification — publication authors can use any of these properties. This document defines only the minimal set of manifest items.

Editor's note

There are discussion on whether a best practices document would be created, referring to more schema.org terms. If so, it should be linked from here.

2.6.2 Quick Reference

This section is non-normative.

The way that properties are expressed in the manifest often differs from how they are referred to using natural language. The following table provides a mapping between property names and the sections where they are explained to help clarify the differing nomenclature:

Property Name	Defined In
`accessMode`	Accessibility
`accessModeSufficient`	Accessibility
`accessibilityAPI`	Accessibility
`accessibilityControl`	Accessibility
`accessibilityFeature`	Accessibility
`accessibilityHazard`	Accessibility
`accessibilitySummary`	Accessibility
`artist`	Creators
`author`	Creators
`contents`	Table of Contents
`contributor`	Creators
`creator`	Creators
`dateModified`	Last Modification Date
`datePublished`	Publication Date
`editor`	Creators
`https://www.w3.org/ns/wp#accessibility-report`	Accessibility Report
`https://www.w3.org/ns/wp#cover`	Cover
`https://www.w3.org/ns/wp#pagelist`	Pagelist
`illustrator`	Creators
`inDirection`	Direction
`inker`	Creators
`inLanguage`	Language
`letterer`	Creators
`link`	Links
`name`	Title
`penciler`	Creators
`privacy-policy`	Privacy Policy
`publisher`	Creators
`readBy`	Creators
`readingOrder`	Default Reading Order
`readingProgression`	Reading Progression Direction
`resources`	Resource List
`translator`	Creators

2.6.3 Value Categories

This section describes the categories of values that can be used with properties of the Publication Manifest.

2.6.3.1 Literals

Some manifest properties expect a literal text string as their value (i.e., one that is not language-dependent, such as a code value or date). These values are expressed as [json] strings.

Literal values are not changed during canonicalization of the manifest, unlike other values which might be, for example, converted to objects.

2.6.3.2 Explicit and Implied Objects

Various manifest properties are expected to be expressed as [json] objects. Although the use of objects is usually recommended, it is also acceptable to use string values that are interpreted as objects depending on the context. The exact mapping of text values to objects is part of the property or object definitions.

2.6.3.2.1 Localizable Strings

Some manifest properties expect a localizable text string as their value. These values are expressed either as:

a single string value;
an anonymous object with a value property containing a the property's text and a language property that identifies the language of the text.

In the case of single string values, these represent a implied object whose value property is the string's text and whose language will be determined from other information in the manifest.

2.6.3.2.2 Entities

A common case of implied objects in the Publication Manifest properties set is for creators. The entities responsible for the various aspects of creation are expressed as [schema.org] Person and/or Organization objects. To simplify authoring, however, a simple string value can be used for the entity's name. In this case, the entity is assumed to represent a Person.

Example 5 : Using a text string instead of a Person object.

The following author name is expressed as a text string:

{
    "author" : "Herman Melville",
    …
}

but, in the context of creators, it is equivalent to:

{
    "author" : {
        "type" : "Person"
        "name" : "Herman Melville"
    },
    …
}

(See § 2.6.4.2 Creators for further details.)

2.6.3.2.3 Links

With the exception of the descriptive properties, manifest properties typically link to one or more resources. When a property requires a link value, the link MUST be expressed in one of the following two ways:

as a string encoding the (absolute or relative) URL of the resources [url]; or
as an instance of a LinkedResource object that can be used to express the URL, the media type, and other characteristics of the target resource.

In the case of single string values, these represent an implied LinkedResource object whose url property is set to that string value.

Example 6 : Resource list that includes one link using a relative URL as a string ('datatypes.svg') and two that display the various properties of the a LinkedResource object

{
    …
    "resources" : [
        "datatypes.svg",
        {
            "type"            : "LinkedResource",
            "url"             : "test-utf8.csv",
            "encodingFormat"  : "text/csv",
            "name"            : "Test Results",
            "description"     : "CSV file containing the full data set used."
        },
        {
            "type"            : "LinkedResource",
            "url"             : "terminology.html",
            "encodingFormat"  : "text/html",
            "rel"             : "glossary"
        }
    ]
}

2.6.3.3 URLs

Both relative and absolute URL strings MAY be used in the manifest.

In the case of relative URL strings, these are resolved to absolute URL strings using a base URL [url].

The base URL for relative URLs is determined as follows:

In the case of an embedded manifest, the base URL is the document base URL [html] of the primary entry page of the publication;
In the case of a linked manifest, the base URL is URL of the manifest resource.

By consequence, relative URLs in embedded manifests are resolved against the URL of the primary entry page unless the page declares a base URL (i.e., in a <base> element in its header).

Issue

The usage (or not) of the <base> element for embedded manifests is currently the subject of several issues in the JSON-LD Working Group: JSON-LD #22, JSON-LD #57, and, ultimately, TAG #312.

2.6.3.4 Arrays

Some manifest properties allow one or more value of their respective type (literal, object, or URL). As a general rule, these values can be expressed as [json] arrays. When the property value is an array with a single element, however, the array syntax MAY be omitted.

Example 7 : Using a text string instead of an array

As a digital publication typically contains many resources, this declaration of a single resource:

{
    "resources" : "datatypes.svg",
    …
}

is equivalent to the array:

{
    "resources" : ["datatypes.svg"],
    …
}

2.6.4 Descriptive Properties

2.6.4.1 Accessibility

The accessibility properties provides information about the suitability of a digital publication for consumption by users with varying preferred reading modalities. These properties typically supplement an evaluation against established accessibility criteria, such as those provided in [WCAG20]. (For linking to a detailed accessibility report, see § 2.6.6.1 Accessibility Report.)

The following properties are categorized as accessibility properties:

Term	Description	Required Value	Value Category	[schema.org] Mapping
`accessMode`	The human sensory perceptual system or cognitive faculty through which a person may process or perceive information.	One or more text(s). Expected values.	Array of Literals	`accessMode` (CreativeWork)
`accessModeSufficient`	A list of single or combined accessModes that are sufficient to understand all the intellectual content of a resource.	One or more ItemList. Expected values.	Array of Literals	`accessModeSufficient` (CreativeWork)
`accessibilityAPI`	Indicates that the resource is compatible with the referenced accessibility APIs.	One or more text(s).Expected values.	Array of Literals	`accessibilityAPI` (CreativeWork)
`accessibilityControl`	Identifies input methods that are sufficient to fully control the described resource.	One or more text(s). Expected values.	Array of Literals	`accessibilityControl` (CreativeWork)
`accessibilityFeature`	Content features of the resource, such as accessible media, alternatives and supported enhancements for accessibility.	One or more text(s). Expected values.	Array of Literals	`accessibilityFeature` (CreativeWork)
`accessibilityHazard`	A characteristic of the described resource that is physiologically dangerous to some users.	One or more text(s).Expected values.	Array of Literals	`accessibilityHazard` (CreativeWork)
`accessibilitySummary`	A human-readable summary of specific accessibility features or deficiencies, consistent with the other accessibility metadata but expressing subtleties such as “short descriptions are present but long descriptions will be needed for non-visual users” or “short descriptions are present and no long descriptions are needed.”	Text.	Localizable String	`accessibilitySummary` (CreativeWork)

Detailed descriptions of these properties are available on the WebSchemas Wiki site.

Values SHOULD be drawn from the preferred vocabulary for each accessibility property, but user agents MUST NOT omit values from that are not included in the lists when generating the canonical manifest.

Note

The author can also provide a reference to a detailed Accessibility Report if more information is needed than can be expressed by these properties.

partial dictionary PublicationManifest {
    sequence<DOMString> accessMode;
    sequence<DOMString> accessModeSufficient;
    sequence<DOMString> accessibilityAPI;
    sequence<DOMString> accessibilityControl;
    sequence<DOMString> accessibilityFeature;
    sequence<DOMString> accessibilityHazard;
    LocalizableString   accessibilitySummary;
};

Example 8 : Example accessiblity metadata for a document with text and images. The publication provides alternative text and long descriptions appropriate for each image, so can also be read in purely textual form.

{
    "@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "type"     : "CreativeWork",
    …
    "accessibilityAPI"      : "ARIA",
    "accessMode"            : ["textual", "visual"],
    "accessModeSufficient"  : [
        {
            "type"           : "ItemList",
            "itemListElement": ["textual", "visual"]
        },
        {
            "type"           : "ItemList",
            "itemListElement": ["textual"]
        }
    ],
    …
}

2.6.4.2 Creators

A creator is an individual or entity responsible for the creation of the digital publication.

The following properties are categorized as creators:

Term	Description	Required Value	Value Category	[schema.org] Mapping
`artist`	The primary artist for the publication, in a medium other than pencils or digital line art.	One or more `Person`.	Array of Entities	`artist` (VisualArtwork)
`author`	The author of the publication.	One or more `Person` and/or `Organization`.	Array of Entities	`author` (CreativeWork)
`colorist`	The individual who adds color to inked drawings.	One or more `Person`.	Array of Entities	`colorist` (VisualArtwork)
`contributor`	Contributor whose role does not fit to one of the other roles in this table.	One or more `Person` and/or `Organization`.	Array of Entities	`contributor` (CreativeWork)
`creator`	The creator of the publication.	One or more `Person` and/or `Organization`.	Array of Entities	`creator` (CreativeWork)
`editor`	The editor of the publication.	One or more `Person`.	Array of Entities	`editor` (CreativeWork)
`illustrator`	The illustrator of the publication.	One or more `Person`.	Array of Entities	`illustrator` (Book)
`inker`	The individual who traces over the pencil drawings in ink.	One or more `Person`.	Array of Entities	`inker` (VisualArtwork)
`letterer`	The individual who adds lettering, including speech balloons and sound effects, to artwork.	One or more `Person`.	Array of Entities	`letterer` (VisualArtwork)
`penciler`	The individual who draws the primary narrative artwork.	One or more `Person`.	Array of Entities	`penciler` (VisualArtwork)
`publisher`	The publisher of the publication.	One or more `Person` and/or `Organization`.	Array of Entities	`publisher` (CreativeWork)
`readBy`	A person who reads (performs) the publication (for audiobooks).	One or more `Person`.	Array of Entities	`readBy` (Audiobook)
`translator`	The translator of the publication.	One or more `Person` and/or `Organization`.	Array of Entities	`translator` (CreativeWork)

Creators are represented in one of the following two ways:

as a string encoding the name of a Person [schema.org]; or
as an instance of a Person or Organization [schema.org].

In other words, a single string value is a shorthand for a [schema.org] Person whose name property is set to that string value. (See also § 2.6.3.2.2 Entities.)

When compiling each set of creator information from a [schema.org] Person or Organization type, user agents MUST retain the following information when available:

type: One or more strings that identifies the type of creator. This sequence SHOULD include "Person" or "Organization".
name: One or more localizable strings for the name of the creator.
id: A canonical identifier of the creator as a URL. [url]
url: An address for the creator in the form of a URL. [url]

Note that user agents MAY interpret a wider range of creator properties defined by Schema.org than the ones in the preceding list.

The manifest MAY include more than one of each type of creator.

partial dictionary PublicationManifest {
    sequence<CreatorInfo> artist;
    sequence<CreatorInfo> author;
    sequence<CreatorInfo> colorist;
    sequence<CreatorInfo> contributor;
    sequence<CreatorInfo> creator;
    sequence<CreatorInfo> editor;
    sequence<CreatorInfo> illustrator;
    sequence<CreatorInfo> inker;
    sequence<CreatorInfo> letterer;
    sequence<CreatorInfo> penciler;
    sequence<CreatorInfo> publisher;
    sequence<CreatorInfo> readBy;
    sequence<CreatorInfo> translator;
};


dictionary CreatorInfo {
             sequence<DOMString>         type;
    required sequence<LocalizableString> name;
             DOMString                   id;
             DOMString                   url;
};

Example 9 : Author of a book

{
    "type"     : "Book",
    "@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    …
    "url"      : "https://publisher.example.org/mobydick",
    "author"   : {
        "type"  : "Person",
        "name"  : "Herman Melville"
    }
}

Example 10 : Separate listing of editors, authors, and publisher, with some persons expressed as simple strings

{
    "@context"   : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "type"       : "TechArticle",
    …
    "id"         : "http://www.w3.org/TR/tabular-data-model/",
    "url"        : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
    "author"     : [
        "Jeni Tennison",
        {
            "type"  : "Person",
            "name" : "Gregg Kellogg",
        },{
            "type"  : "Person",
            "name" : "Ivan Herman",
            "id"   : "https://www.w3.org/People/Ivan/"
        }
    ],
    "editor"    : [
        "Jeni Tennison",
        {
            "type"  : "Person",
            "name" : "Gregg Kellogg",
        }
    ],
    "publisher" : {
        "type"  : "Organization",
        "name" : "World Wide Web Consortium",
        "id"   : "https://www.w3.org/"
    }
    …
}

2.6.4.3 Language and Base Direction

A digital publication has at least one natural language, which is the language that the content is expressed in (e.g., English, French, Chinese). It also has a natural base direction in which it is written — the display direction, either left-to-right or right-to-left.

The digital publication manifest includes entries to set both these concepts, which can influence, for example, the behavior of a user agent (e.g., it might place a pop-up for a table of contents on the right hand side for publications whose natural base direction is right-to-left).

Similarly, each natural language property value in the publication's manifest (e.g., title, creators) is localizable [string-meta], meaning that the same information is available for each.

The natural language and base direction can be set for both the publication and the natural language properties values of the manifest.

If a user agent requires the language and one is not available in the authored manifest (either globally or specifically for that property), or the obtained value is invalid, the user agent MAY attempt to determine the language when generating the canonical manifest. This specification does not mandate how such a language tag is created. The user agent might:

use the non-empty language declaration of the manifest;
use the first non-empty language declaration found in a resource in the default reading order;
calculate the language using its own algorithm.

No default values are specified for the language or the default base direction.

Issue 354 : Proposal for handling localizable texts (writeup of the F2F discussions) topic:internationalization

Proposal for handling localizable texts (writeup of the F2F discussions)

2.6.4.3.1 Global Language and Direction

The manifest MAY include global language and base direction declarations for the publication using the following properties.

Term	Description	Required Value	Value Category	[schema.org] Mapping
`inLanguage`	Default language for the publication as well as the textual manifest values	language code as defined in [bcp47]	Literal	`inLanguage` (Property)
`inDirection`	Default base direction for the publication as well as the textual manifest values	`ltr`, `rtl`, or `auto`	Literal	(None)

The natural language MUST be a tag that conforms to [bcp47], while the base language direction MUST have one of the following values:

ltr: indicates that the textual values are explicitly directionally set to left-to-right text;
rtl: indicates that the textual values are explicitly directionally set to right-to-left text;
auto indicates that the textual values are explicitly directionally set to the direction of the first character with a strong directionality, following the rules of the Unicode Bidirectional Algorithm [bidi].

When specified, these properties are also used as defaults for textual values in the manifest.

Note

It is important to differentiate the language of the publication from the language and the base direction of the individual resources that compose it. If such resources are, for example, in HTML, the language and direction need to be set in those resources, too. The language and base direction of the publication are not inherited.

The global language information MAY be overridden by individual values.

If the manifest is embedded in the primary entry page via a script element, and the manifest does not set the global language and/or the base direction (see § 2.6.4.3.1 Global Language and Direction), the lang and the dir attributes of the script element are used as the global language and base direction, respectively (see the details on handling the lang and dir attributes in [html]).

Issue

It is to be discussed whether this last paragraph, i.e., inheriting values from script, should be kept.

Note

If authors intend to use a manifest, or a manifest template, both as embedded manifest and as a separate resource, they are strongly encouraged to set these properties explicitly to avoid interference of the containing script element in case of embedding.

partial dictionary PublicationManifest {
    DOMString     inLanguage;
    TextDirection inDirection;
};

enum TextDirection {
    "ltr",
    "rtl",
    "auto"
};

2.6.4.3.2 Item-specific Language

It is possible to set the language for any textual value in the manifest. This information MUST be set as a localizable string, i.e., using the value and language terms (instead of a simple string) [json-ld]:

Example 11 : Setting the author name to French using a localizable string

{
    "@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "type"     : "Book",
    …
    "author" : {
        "type"  : "Person",
        "name" : {
            "value"    : "Marcel Proust",
            "language" : "fr"
        }
    }
}

The value of the language MUST be set to a language code as defined in [bcp47].

When used in a context of localizable texts, a simple string value is a shorthand for a localizable string, with the value set to the string value, and the language set to the value of the inLanguage property, if applicable, and unset otherwise. In other words, the previous example is equivalent to:

Example 12 : Setting the default language of an author name to French

{
    "@context"   : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "type"       : "Book",
    "inLanguage" : "fr",
    …
    "author"     : "Marcel Proust",
}

It is not possible to set the direction explicitly for a value.

Note

Setting the direction for a natural text value is currently not possible in JSON-LD [json-ld]. In case the JSON-LD community, as well as the schema.org community, introduces such a feature, future versions of this specification may extend the ability of manifests to include this.

When using manifests with bidirectional text, user agents SHOULD identify the base direction of any given natural language value by scanning the text for the first strong directional character. Once the base direction has been identified, user agents MUST determine the appropriate rendering and display of natural language values according to the Unicode Bidirectional Algorithm [bidi]. This could require wrapping additional control characters or markup around the string prior to display, in order to apply the base direction. (See § D. Examples for bidirectional texts.)

dictionary LocalizableString {
    required DOMString value;
             DOMString language;
};

2.6.4.4 Last Modification Date

The last modification date is the date when the digital publication was last updated (i.e., whenever changes were last made to any of the resources of the publication, including the manifest). It is expressed using the dateModified property.

Term	Description	Required Value	Value Category	[schema.org] Mapping
`dateModified`	Last modification date of the publication.	A `Date` or `DateTime` value [schema.org], both expressed in ISO 8601 Date, or Date Time formats, respectively [iso8601].	Literal	`dateModified` (CreativeWork)

The last modification date does not necessarily reflect all changes to the publication (e.g., third-party content could change without the author being aware). User agents SHOULD check the last modification date of individual resources to determine if they have changed and need updating.

partial dictionary PublicationManifest {
    DOMString dateModified;
};

Example 13 : Last modification date of the publication

{
    "@context"     : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "type"         : "TechArticle",
    …
    "id"           : "http://www.w3.org/TR/tabular-data-model/",
    "url"          : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
    "dateModified" : "2015-12-17",
    …
}

2.6.4.5 Publication Date

The publication date is the date on which the digital publication was originally published. It represents a static event in the lifecycle of a publication and allows subsequent revisions to be identified and compared. It is expressed using the datePublished property.

Term	Description	Required Value	Value Category	[schema.org] Mapping
`datePublished`	Creation date of the publication.	A `Date` or `DateTime`, both expressed in ISO 8601 Date, or Date Time formats, respectively [iso8601].	Literal	`datePublished` (CreativeWork)

The exact moment of publication is intentionally left open to interpretation: it could be when the publication is first made available online or could be a point in time before publication when the publication is considered final.

partial dictionary PublicationManifest {
    DOMString datePublished;
};

Example 14 : Creation and modification date of the publication

{
    "@context"      : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "type"          : "TechArticle",
    …
    "id"            : "http://www.w3.org/TR/tabular-data-model/",
    "url"           : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
    "datePublished" : "2015-12-17",
    "dateModified"  : "2016-01-30",
    …
}

2.6.4.6 Reading Progression Direction

The reading progression establishes the reading direction from one resource to the next within a digital publication. It is expressed using the readingDirection property.

Term	Description	Required Value	Value Category	[schema.org] Mapping
`readingProgression`	Reading direction from one resource to the other.	`ltr` or `rtl`	Literal	(None)

The value of this property MUST be either:

ltr: left-to-right;
rtl: right-to-left.

The default value is ltr.

This property has no effect on the rendering of the individual primary resources; it is only relevant for the progression direction from one resource to the other.

Note

The reading progression of a publication is used to adapt such publication level interactions as menu position, swap direction, defining tap zones to lead the user to the next and previous pages, touch gestures, etc.

If the readingProgression is not set, user agents MUST use the default value ltr when generating the canonical manifest.

partial dictionary PublicationManifest {
    ProgressionDirection readingProgression = "ltr";
};

enum ProgressionDirection {
	"ltr",
	"rtl"
};

Example 15 : Reading progression set explicitl to ltr

{
    "@context"           : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "type"               : "Book",
    …
    "url"                : "https://publisher.example.org/mobydick",
    "readingProgression" : "ltr"
}

2.6.4.7 Title

The title provides the human-readable name of the digital publication. It is expressed using the name property.

Term	Description	Required Value	Value Category	[schema.org] Mapping
`name`	Human-readable title of the publication.	One or more text items for the title.	Array of Localizable Strings	`name` (Thing)

If a title is not included in the authored manifest, and a digital publication does not define alternative rules for obtaining one, the user agent MUST create one. This specification does not specify what heuristics to use to generate such a title.

Note

A user agent is not expected to produce a meaningful title [wcag20] for a publication when one is not specified.

partial dictionary PublicationManifest {
    required sequence<LocalizableString> name;
};

Example 16 : Title of the book set explicitly

{
    "@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "type"     : "Book",
    …
    "url"      : "https://publisher.example.org/mobydick",
    "name"     : "Moby Dick"
}

2.6.5 Resource Categorization Properties

Publication resources are specified via the default reading order, the resource list, and the links, as defined in this section. These lists contain references to informative properties like the privacy policy, and structural properties like the table of contents.

Note that a particular resource's URL MUST NOT appear in more than one of these lists, and a URL MUST NOT be repeated within a list.

The manifest MUST NOT include a reference to itself within any of these lists.

2.6.5.1 Default Reading Order

The default reading order is a specific progression through a set of digital publication resources. A user might follow alternative pathways through the content, but in the absence of such interaction the default reading order defines the expected progression from one resource to the next.

The default reading order is expressed using the readingOrder property.

Term Description Required Value Value Category [schema.org] Mapping

Term	Description	Required Value	Value Category	[schema.org] Mapping
`readingOrder`		One or more of: a string, representing the URL [url] of the resource; or an instance of a `LinkedResource` object The order of items is significant. The URLs MUST NOT include fragment identifiers. Non-HTML resources SHOULD be expressed as `LinkedResource` objects with their `encodingFormat` values set.	Array of Links	(None)


											readingOrder

One or more of:

a string, representing the URL [url] of the resource; or
an instance of a LinkedResource object

The order of items is significant. The URLs MUST NOT include fragment identifiers. Non-HTML resources SHOULD be expressed as LinkedResource objects with their encodingFormat values set.

Array of Links

(None)

The default reading order MUST include at least one resource.

partial dictionary PublicationManifest {
   required sequence<LinkedResource> readingOrder;
};

Example 17 : Reading order expressed as a simple list of URLs

{
    "@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "type"     : "Book",
    …
    "url"      : "https://publisher.example.org/mobydick",
    "name"     : "Moby Dick",
    "readingOrder" : [
        "html/title.html",
        "html/copyright.html",
        "html/introduction.html",
        "html/epigraph.html",
        "html/c001.html",
        …
    ]
}

Example 18 : Reading order expressed as objects providing more information on items

{
    "@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "type"     : "Book",
    …
    "url"      : "https://publisher.example.org/mobydick",
    "name"     : "Moby Dick",
    "readingOrder" : [{
        "type"           : "LinkedResource",
        "url"            : "html/title.html",
        "encodingFormat" : "text/html",
        "name"           : "Title page"
    },{
        "type"           : "LinkedResource",
        "url"            : "html/copyright.html",
        "encodingFormat" : "text/html",
        "name"           : "Copyright page"
    },{
        …
    }]
}

2.6.5.2 Resource List

The resource list enumerates any additional resources used in the processing and rendering of a digital publication that are not already listed in the default reading order. It is expressed using the resources property.

Term Description Required Value Value Category [schema.org] Mapping

Term	Description	Required Value	Value Category	[schema.org] Mapping
`resources`		One or more of: a string, representing the URL [url] of the resource; or an instance of a `LinkedResource` object The order of items is not significant. The URLs MUST NOT include fragment identifiers. It is RECOMMENDED to use `LinkedResource` objects with their `encodingFormat` values set.	Array of Links	(None)


											resources

One or more of:

a string, representing the URL [url] of the resource; or
an instance of a LinkedResource object

The order of items is not significant. The URLs MUST NOT include fragment identifiers. It is RECOMMENDED to use LinkedResource objects with their encodingFormat values set.

Array of Links

(None)

The completeness of the resource list can affect the usability of a digital publication in certain reading scenarios (e.g., the ability to read it offline). For this reason, it is strongly RECOMMENDED to provide a comprehensive list of all of the publication's constituent resources beyond those listed in the default reading order.

In some cases, a comprehensive list of these resources might not be easily achieved (e.g., third-party scripts that reference resources from deep within their source), but a user agent SHOULD still be able to render a publication even if some of these resources are not identified as belonging to the publication (e.g., if it is taken offline without them).

partial dictionary PublicationManifest {
    sequence<LinkedResource> resources = [];
};

Example 19 : Listing resources, some via a simple URL, some with more details

{
    "@context"   : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "type"       : "TechArticle",
    …
    "id"         : "http://www.w3.org/TR/tabular-data-model/",
    "url"        : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
    …
    "resources"  : [
        "datatypes.html",
        "datatypes.svg",
        "datatypes.png",
        "diff.html",
        {
            "type"              : "LinkedResource",
            "url"               : "test-utf8.csv",
            "encodingFormat"    : "text/csv"
        },{
            "type"              : "LinkedResource",
            "url"               : "test-utf8-bom.csv",
            "encodingFormat"    : "text/csv"
        },{
            …
        }
    ],
    …
}

2.6.5.3 Links

The links property provides a list of resources that are not required for the processing and rendering of a digital publication (i.e., the content of the publication remains unaffected even if these resources are not available).

Term Description Required Value Value Category [schema.org] Mapping

Term	Description	Required Value	Value Category	[schema.org] Mapping
`links`		One or more of: a string, representing the URL [url] of the resource; or an instance of a `LinkedResource` object The order of items is not significant. It is RECOMMENDED to use `LinkedResource` objects with their `encodingFormat` and `rel` values set.	Array of Links	(None)


											links

One or more of:

a string, representing the URL [url] of the resource; or
an instance of a LinkedResource object

The order of items is not significant. It is RECOMMENDED to use LinkedResource objects with their encodingFormat and rel values set.

Array of Links

(None)

Linked resources are typically made available to user agents to augment or enhance the processing or rendering, such as:

a privacy policy or license that the user agent can offer a link to from a shelf;
a metadata record that the user agent can use to discover and display more information about the publication;
a dictionary of terms the user agent can process to provide enhanced language help;

Links can also be used to identify resources used in the online rendering of a publication, but that are not essential to include when the publication is taken offline or packaged (e.g., to minimize the size). These include:

large font files that enhance the appearance of the publication but are not vital to its display (i.e., a fallback font will suffice);
third-party scripts that are not intended for use when a publication is taken offline or packaged (e.g., tracking scripts).

The links list SHOULD include resources necessary to render a linked resource (e.g., scripts, images, style sheets).

Resources listed in the links list MUST NOT be listed in the default reading order or resource list.

User agents MAY ignore linked resources, and are not required to take them offline with a publication. These resources SHOULD NOT be included when packaging a publication.

partial dictionary PublicationManifest {
    sequence<LinkedResource> links = [];
};

2.6.6 Informative Properties

2.6.6.1 Accessibility Report

An accessibility report provides information about the suitability of a digital publication for consumption by users with varying preferred reading modalities. These reports typically identify the result of an evaluation against established accessibility criteria, such as those provided in [WCAG21], and are an important source of information in determining the usability of a publication.

An accessibility report is identified using the https://www.w3.org/ns/wp#accessibility-report link relationship.

The manifest SHOULD include a link to an accessibility report when one is available for a publication. It is RECOMMENDED that the report be included as a resource of the publication.

It is also RECOMMENDED that the accessibility report be provided in a human-readable format, such as [html]. Augmenting these reports with machine-processable metadata, such as provided in Schema.org [schema.org], is also RECOMMENDED.

Editor's note

The Working Group will attempt to define the accessibility-report term with IANA, to avoid using a URL.

Example 20 : Link to an accessibility report

{
    "@context"   : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "type"       : "Book",
    …
    "url"        : "https://publisher.example.org/mobydick",
    "name"       : "Moby Dick",
    "links"  : [{
        "type"        : "LinkedResource",
        "url"         : "https://www.publisher.example.org/mobydick-accessibility.html",
        "rel"         : "https://www.w3.org/ns/wp#accessibility-report"
    },{
        …
    }],
    …
}

2.6.6.2 Privacy Policy

Users often have the legal right to know and control what information is collected about them, how such information is stored and for how long, whether it is personally identifiable, and how it can be expunged. Including a statement that addresses such privacy concerns is consequently an important part of publishing digital publications. Even if no information is collected, such a declaration increases the trust users have in the content.

A link to a privacy policy can be included in the manifest for this purposes. It is RECOMMENDED that the privacy policy be included as a resource of the publication.

The privacy policy is identified using the privacy-policy link relationship [iana-link-relations].

It is RECOMMENDED that the privacy policy be provided in a human-readable format, such as HTML [html].

Refer to § 3.7 Privacy for more information about privacy considerations in publications.

Example 21 : Privacy policy expressed as an external link

{
    "@context"   : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "type"       : "TechArticle",
    …
    "id"         : "http://www.w3.org/TR/tabular-data-model/",
    "url"        : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
    …
    "links"  : [{
        "type"           : "LinkedResource",
        "url"            : "https://www.w3.org/Consortium/Legal/privacy-statement-20140324",
        "encodingFormat" : "text/html",
        "rel"            : "privacy-policy"
    },{
            …
    }],
    …
}

2.6.7 Structural Properties

2.6.7.1 Cover

The cover is a resource that user agents can use to present the digital publication (e.g., in a library or bookshelf, or when initially loading the publication).

The cover is identified by the https://www.w3.org/ns/wp#cover link relationship. The URL expressed in the url term MUST NOT include a fragment identifier.

If the cover is in an image format, a title and description SHOULD be provided. User agents can use these properties to provide alternative text and descriptions when necessary for accessibility.

More than one cover MAY be referenced from the manifest (e.g., to provide alternative formats and sizes for different device screens). If multiple covers are specified, each instance MUST define at least one unique property to allow user agents to determine its usability (e.g., a different format, height, width or relationship).

Editor's note

The Working Group will attempt to define the cover term by IANA, to avoid using a URL.

Example 22 : Cover HTML page

{
    "@context"   : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "type"       : "Book",
    …
    "url"        : "https://publisher.example.org/donquixote",
    "name"       : "Don Quixote",
    "resources"  : [{
        "type"           : "LinkedResource",
        "url"            : "cover.html",
        "encodingFormat" : "text/html"
        "rel"            : "https://www.w3.org/ns/wp#cover"
    },{
        …
    }],
    …
}

Example 23 : Cover image with title and description

{
    "@context"   : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "type"       : "Book",
    …
    "url"        : "https://publisher.example.org/mobydick",
    "name"       : "Moby Dick",
    "resources"  : [{
        "type"           : "LinkedResource",
        "url"            : "whale-image.jpg",
        "encodingFormat" : "image/jpeg",
        "rel"            : "https://www.w3.org/ns/wp#cover",
        "name"           : "Moby Dick attacking hunters",
        "description"    : "A white whale is seen surfacing from the water to attack a small whaling boat"
    },{
        …
    }],
    …
}

Example 24 : Cover image in JPEG and SVG formats

{
    "@context"   : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "type"       : "Book",
    …
    "url"        : "https://publisher.example.org/donquixote",
    "name"       : "Gulliver's Travels",
    "resources"  : [{
        "type"           : "LinkedResource",
        "url"            : "lilliput.jpg",
        "encodingFormat" : "image/jpeg",
        "rel"            : "https://www.w3.org/ns/wp#cover"
    },{
        "type"           : "LinkedResource",
        "url"            : "lilliput.svg",
        "encodingFormat" : "image/svg+xml",
        "rel"            : "https://www.w3.org/ns/wp#cover"
    },{
        …
    }],
    …
}

2.6.7.2 Page List

The page list property identifies the digital publication's page list. It MAY be used either to embed a page list within the manifest or to identify a resource that contains the list. How the page list has to be represented is determined by the digital publication format.

When the page list is contained in a separate resource, the resource MUST be identified by the https://www.w3.org/ns/wp#pagelist link relationship. The URL expressed in the url term MUST NOT include a fragment identifier.

The link to the page list MAY be specified in either the default reading order or resource-list, but MUST NOT be specified in both.

Example 25 : Pagelist identified in another resource of the publication

{
"@context"   : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type"       : "Book",
…
"url"        : "https://publisher.example.org/mobydick",
"name"       : "Moby Dick",
"resources"  : [{
	"type"       : "LinkedResource",
	"url"        : "toc_file.html",
	"rel"        : "https://www.w3.org/ns/wp#pagelist"
},{
	…
}],
…
}

2.6.7.3 Table of Contents

The table of contents property identifies the digital publication's table of contents. It MAY be used either to embed a table of contents within the manifest or to identify a resource that contains the table of contents. How the table of contents has to be represented is determined by the digital publication format.

When the table of contents is contained in a separate resource, the resource MUST be identified by the contents link relationship [iana-link-relations]. The URL expressed in the url term MUST NOT include a fragment identifier.

The link to the table of contents MAY be specified in either the default reading order or resource-list, but MUST NOT be specified in both.

Example 26 : Table of content identified in another resource of the publication

{
    "@context"   : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "type"       : "Book",
    …
    "url"        : "https://publisher.example.org/mobydick",
    "name"       : "Moby Dick",
    "resources"  : [{
        "type"       : "LinkedResource",
        "url"        : "toc_file.html",
        "rel"        : "contents"
    },{
        …
    }],
    …
}

Example 27 : If the primary entry page includes the TOC, no reference in the manifest is necessary

<head>
    …
    <script type="application/ld+json">
    {
        "@context"        : ["https://schema.org","https://www.w3.org/ns/wp-context"],
        "type"            : "TechArticle",
        …
        "id"              : "http://www.w3.org/TR/tabular-data-model/",
        "url"             : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
        …
    }
    </script>
    …
</head>
<body>
    …
    <section role="doc-toc">
        …
    </section>
    …
</body>

2.6.8 Extensibility

The manifest is designed to provide a basic set of properties for use by user agents in presenting and rendering a digital publication, but MAY be extended in the following ways:

by the provision of linked metadata records.
through the inclusion of additional properties in the manifest;

Although both methods are valid, the use of linked records is RECOMMENDED.

This specification does not define how such additional properties are compiled, stored or exposed by user agents in their internal representation of the manifest. A user agent MAY ignore some or all extended properties.

2.6.8.1 Linked records

Extending the manifest through links to a record, such as an ONIX [onix] or BibTeX [bibtex] file, MUST be expressed using a LinkedResource object, where:

the rel value of the LinkedResource SHOULD include a relevant identifier defined by IANA or by other organizations; if the link record contains descriptive metadata it MUST include the describedby (IANA) identifier;
the value of the encodingFormat in the link MUST use the MIME media type [rfc2046] defined for that particular type of record, if applicable.

Linked records MUST be included in the resource list when they are part of the publication (i.e., are needed for more than just manifest extensibility). Otherwise, they MUST be included in the links list.

Example 28 : Link to external ONIX for Books Metadata file

{
"@context"   : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type"       : "Book",
…
"url"        : "https://publisher.example.org/mobydick",
"name"       : "Moby Dick",
"links"  : [{
	"type"            : "LinkedResource",
	"url"             : "https://www.publisher.example.org/mobydick-onix.xml",
	"encodingFormat"  : "application/onix+xml",
	"rel"             : "describedby"
},{
	…
}],
…
}

Editor's note

The application/onix+xml MIME type has not yet been registered by IANA at the time of writing this document, and is included in the example for illustrative purposes only.

2.6.8.2 Additional Properties in the Manifest

Additional properties can be included directly in the manifest. It is RECOMMENDED that these properties be taken from public schemes like [schema.org] or [dcterms] and use values from controlled vocabularies whenever possible. Proprietary terms MAY be used, but it is RECOMMENDED that such terms be included using Compact IRIs [json-ld], with prefixes defined as part of the context.

Example 29 : Usage of the schema.org 'copyrightYear' and 'copyrightHolder' terms, as an extension to the basic data

{
"@context"        : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type"            : "TechArticle",
…
"id"              : "http://www.w3.org/TR/tabular-data-model/",
"url"             : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
"copyrightYear"   : "2015",
"copyrightHolder" : "World Wide Web Consortium",
…
}

Example 30 : Usage of the Dublin Core 'subject' with the 2012 ACM Classification terms, as an extension to the basic data

{
"@context"   : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type"       : "CreativeWork",
…
"id"         : "http://www.w3.org/TR/tabular-data-model/",
"url"        : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
"dc:subject" : ["Web data description languages","Data integration","Data Exchange"]
…
}

Note

A prefix definition dc for [dcterms] is included in the context file of [schema.org]. This means that it is not necessary to add the prefix explicitly. The same is true for a number of other public vocabularies; see the schema.org context file for further details.

2.7 Publication Manifest Lifecycle

2.7.1 Introduction

This section is non-normative.

This section describes the steps a user agent follows to process an authored manifest into an internal representation of the data structure it contains.

The first step in this process is to obtain the manifest, the exact steps by which to do so are typically defined by each digital publication format.

The process then involves generating a canonical form of the manifest, which is a representation that adds any missing data not explicitly authored (e.g., information could be gleaned from a containing HTML document if the manifest is embedded inside a script tag).

After a canonical manifest is generated, the data is put through a final set of post-processing steps to check its validity, ultimately resulting in a data structure that the user agent can use.

Within this process are various extension points that allow digital publication formats to enhance the basic requirements for their own specialized needs and audiences.

2.7.2 Processing a Manifest

The steps for processing a manifest are given by the following algorithm. The algorithm, if successful, returns a processed manifest; otherwise, it terminates prematurely and returns nothing. In the case of nothing being returned, the user agent MUST ignore the manifest declaration.

Let text be a UTF-8 string containing the manifest that is the result of:
- following the specific rules for obtaining a manifest defined by an application of this format; or
- reading the body of a manifest file provided as direct input to this algorithm.
Let json be the result of parsing text. If parsing throws an error, terminate this algorithm.
If Type(json) is not Object, terminate this algorithm.
Let canonical manifest be the canonical manifest derived from json, using the values of json, base, and Document as input to the algorithm described in § 2.7.3 Generating the Canonical Manifest.
Check whether the canonical manifest fulfills the minimal requirements for a Publication Manifest, namely:
- The JSON-LD context is set (see § 2.4 Manifest Contexts)
- The Publication type is set (see § 2.5 Publication Types)
- The Publication address is set (see § 3.4.1.2 Address)
If any of these requirements is not fulfilled, terminate the algorithm.
Let processed manifest be the result of post-processing a canonical manifest given canonical manifest.
Return processed manifest.

Note

The algorithm does not describes how error and warning messages should be reported. This is implementation dependent.

2.7.3 Generating the Canonical Manifest

The steps to convert a Publication Manifest into a Canonical Manifest are given by the following algorithm. The algorithm takes the following arguments:

the manifest: the JSON object that represent the manifest
the base: URL string, that represents the base URL for the manifest
the document: HTML Document (DOM) Node, representing the HTML document the manifest is embedded within (i.e., when it is not a standalone document).

The steps of the algorithm are described below. As an abuse of notation, P["term"] refers to the value in the object P for the label "term", where P is either manifest, or an object appearing within manifest (e.g., a Person). The algorithm replaces or adds some terms to manifest; the replacement terms are expressed in JSON syntax as {"term":"value"}.

let lang string represent the default language, set to:
- the value of the lang value for the script element in document (when set); or
- undefined otherwise
Explanation

This value is used in the step on language below.
let dir string represents the base direction, set to:
- the value of the dir value for the script element in document (when set); or
- undefined otherwise
Explanation

This value is used in the step on base direction below.
(§ 2.6.4.7 Title) if manifest["name"] is undefined, then locate the title HTML element using document. If that element exists and is non-empty, let t be its text content, and add to manifest:
- if the language of title is explicitly set to the value of l, then add
  "name": [{"value": t, "language": l}]
- otherwise
  "name": [t]
Explanation

This step ensures that the title element's content can be used, as a default, as the title. For example,
Example 31
```
<html>
<head>
    <title>Moby Dick</title>
    …
    <script type="application/ld+json">
    {
        "@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
        …
    }
    </script>
```
yields (unless the name is set explicitly in the manifest):
Example 32
```
{
    "@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "name"     : ["Moby Dick"],
    …
}
```
(§ 2.6.4.3 Language and Base Direction) if manifest["inLanguage"] is undefined and the value of lang is not undefined, add
"inLanguage": lang
to manifest
Explanation

This step ensures that the language explicitly set in the embedding document is valid. For example,
Example 33
```
<html>
<head>
    …
    <script type="application/ld+json" lang=ur>
    {
        "@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
        …
    }
    </script>
```
yields (unless the language and the direction are set explicitly in the manifest):
Example 34
```
{
    "@context"    : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "inLanguage"  : "ur",
    …
}
```

(§ 2.6.4.3 Language and Base Direction) if manifest["inDirection"] is undefined and the value of dir is not undefined, add
"inDirection": dir
to manifest

Explanation

This step ensures that the base direction explicitly set in the embedding document is valid for an embedded manifest content. For example,

Example 35

<html>
<head>
    …
    <script type="application/ld+json" dir=rtl lang=ur>
    {
        "@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
        "inLanguage"  : "ur",
        …
    }
    </script>

yields (unless the language and the direction are set explicitly in the manifest):

Example 36

{
    "@context"    : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "inLanguage"  : "ur",
    "inDirection" : "rtl"
    …
}

(§ 2.6.5.1 Default Reading Order) if manifest["readingOrder"] is undefined, let u be the value of document.URL, and add
"readingOrder": [{"type": ["LinkedResource"], "url": u}]
to the manifest

Explanation

If the Digital Publication consists only of the embedding document, the default reading order can be omitted; it will consist, automatically, of that single resource.

(§ 2.6.3.4 Arrays) for each value v of P["term"] that is a single string or an object, and where term expects an array: change the relevant term/value pair to
"term": [v]

Explanation

A number of terms require their values to be arrays but, for the sake of convenience, authors are allowed to use a single value instead of a one element array. For example,

Example 37

{
    "@context"  : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "name"      : "Moby Dick",
    "author"    : "Herman Melville",
    "resources" : [{
        "type"           : "LinkedResource",
        "rel"            : "https://www.w3.org/ns/wp#cover-page",
        "url"            : "images/cover.jpg"
        "encodingFormat" : "image/jpeg"
    },
        …
    }],
    …
}

yields:

Example 38

{
    "@context"  : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "name"      : ["Moby Dick"],
    "author"    : ["Herman Melville"],
    "resources" : [{
        "type"           : ["LinkedResource"],
        "rel"            : ["https://www.w3.org/ns/wp#cover-page"],
        "url"            : "images/cover.jpg"
        "encodingFormat" : "image/jpeg"
    },
        …
    }],
    …
}

(§ 2.6.4.2 Creators) for each value v in a manifest["term"] array that is a simple string or a

localizable
									string

, and where term expects an entity: exchange that element in the array to
{"type": ["Person"], "name": [v]}

Explanation

An author, editor, etc., should be explicitly designed as an object of type Person but, for the sake of convenience, authors are allowed to just give their name. For example,

Example 39

{
    "@context"  : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "name"      : ["Moby Dick"],
    "author"    : ["Herman Melville"],
    …
}

yields:

Example 40

{
    "@context"  : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "name"      : ["Moby Dick"],
    "author"    : [{
        "type" : ["Person"],
        "name" : "Herman Melville"
    }],
    …
}

(§ 2.6.3.2.3 Links) for each value v in a manifest["term"] array that is a simple string, and where term is one of the resource categorization properties: exchange that element in the array to
{"type": ["LinkedResource"], "url": v}
Explanation

Resource links should be explicitly designed as an object of type LinkedResource but, for the sake of convenience, authors are allowed to just give their absolute or relative URL. For example,
Example 41
```
{
    "@context"  : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    …
    "resources" : [
        "css/mobydick.css",
        …
    ],
    …
}
```
yields:
Example 42
```
{
    "@context"  : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    …
    "resources" : [{
        "type" : ["LinkedResource"],
        "url"  : "css/mobydick.css"
    },
        …
    ],
    …
}
```

(§ 2.6.3.2.1 Localizable Strings) for each value v of P["term"], or in P["term"] in the case the latter is an array, that is a simple string, and term expects a localizable string: change the relevant term/value to:

if manifest[inLanguage] is set to the value of l then
"term": {"value": v,"language": l}
otherwise
"term": {"value": v}

Explanation

Natural language text values should be explicitly designed as localizable string objects but, for the sake of convenience, authors are allowed to just use a simple string. I.e., if no language information has been provided (via inLanguage) in the manifest then, for example,

Example 43

{
    "@context"  : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "name"      : ["Moby Dick"],
    "author"    : ["Herman Melville"],
    …
}

yields:

Example 44

{
    "@context"  : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "name"      : [{
        "value" : "Moby Dick"
    }],
    "author"    : [{
        "value" : "Herman Melville"
    }],
    …
}

If an explicit language has also been provided in the manifest, that language is also added to the localizable string object. For example,

Example 45

{
    "@context"   : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "inLanguage" : "en",
    "name"       : ["Moby Dick"],
    "author"     : ["Herman Melville"],
    …
}

yields:

Example 46

{
    "@context"  : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "inLanguage": "en",
    "name"      : [{
        "value"    : "Moby Dick",
        "language" : "en"
    }],
    "author"    : [{
        "value"    : "Herman Melville"
        "language" : "en"
    }],
    …
}

(§ 2.6.3.3 URLs) for each value v of P["term"] that is not an absolute URL string, and where term expects a URL: resolve this value, considered to be a relative URL, using the value of base and yielding the value of au, and replace the term/value pair by
"term": au

Explanation

All relative URLs in the Publication Manifest must be resolved against the base value to yield absolute URLs.
(§ 4.2 Compatibility Requirements, extension point) if a profile defines its own canonicalization steps for profile specific terms, those steps are executed at this point.
Return the (transformed) manifest.

Note

See the diagram in the appendix for a visual representation of the algorithm. Also, to help understanding the result of the algorithm, there is a link to the corresponding canonical manifests for all the examples in § C. Manifest Examples.

2.7.4 Post-Processing the Canonical Manifest

The steps for post-processing a canonical manifest are given by the following algorithm. The algorithm takes a json object representing a canonical manifest. The output from inputting a JSON object into this algorithm is a processed manifest. The goal of the algorithm is to ensure that the data represented in json abides to the minimal requirements on the data, removing, if applicable, non-conformant data.

Let manifest be the result of converting json to a PublicationManifest dictionary.
Perform data cleanup operations on manifest, possibly removing data, as well as raising warnings.
1. Check whether the value of manifest["url"] is a valid URL [url]. If not, issue a warning.
2. For all the terms defined in § 2.6.4.1 Accessibility, except for accessModeSufficient and accessibilitySummary, check whether all tokens listed in manifest[term] are defined in the preferred vocabulary (see the list of expected values for each). Issue a warning for each unrecognized value.
3. For all values in manifest["accessModeSufficient"], check whether each token in each ItemList [schema.org] is defined in the preferred vocabulary (see the list of expected values). Issue a warning for all unrecognized values.
4. For all term that expect entities, check whether the value object Obj in manifest[term] has Obj["name"] set. If not, remove Obj from manifest[term] array and issue a warning.
5. Check whether the value of manifest["name"] is not empty. If it is, generate a value (see the separate note for details) and issue a warning.
6. For all term defined in § 2.6.5 Resource Categorization Properties, check whether every object Obj in manifest[term] has Obj["url"] set. If not, remove Obj from manifest[term] array and issue a warning. If yes, check whether Obj["url"] is a valid URL [url] and, if not, issue a warning.
7. Check whether manifest["datePublished"] is a valid date or date-time, per [iso8601]. If the check fails, issue a warning.
8. Check whether manifest["dateModified"] is a valid date or date-time, per [iso8601]. If the check fails, issue a warning.
Extension point: process any proprietary, profile specific, and/or other supported members at this point in the algorithm.
Return manifest.

3. PART II: Web Publications

3.1 Introduction

This section is non-normative.

A Web Publication is a discoverable and identifiable collection of resources. Information about the Web Publication is expressed in its manifest, which is an implementation of the format defined in § 2. PART I: Publication Manifest. The manifest is what enables user agents to understand the bounds of the Web Publication and the connection between its resources.

The manifest includes metadata that describe the Web Publication, as a publication has an identity and nature beyond its constituent resources. The manifest also provides a list of all the resources that belong to the Web Publication and a default reading order, which is how it connects resources into a single contiguous work.

A Web Publication is discoverable via the presence of a link to the manifest in any of its resources (i.e., by the use of an HTTP Link header or an HTML link element [html]). The linked manifest is contained either directly within the resource containing the link (in a special case called the primary entry page) or in a separate JSON-LD document.

With the establishment of Web Publications, user agents can build new experiences tailored specifically for their unique reading needs.

Figure 1 Simplified Diagram of the Structure of Web Publications.
A description of the structure diagram is available in the Appendix. Image available in SVG and PNG formats.

3.2 Conformance Classes

This specification defines two conformance classes: one for Web Publications and one for user agents that process them.

A Web Publication conforms to this specification if it meets the following criteria:

it has a manifest that conforms to § 3.4 Manifest;
it adheres to the construction requirements defined in § 3.3 Web Publication Construction.

A user agent conforms to this specification if it meets the following criteria:

it is capable of processing a conforming manifest for a Web Publication.

3.3 Web Publication Construction

3.3.1 Publication Bounds

A Web Publication consists of a finite set of resources that represent its content. This extent is known as its bounds and is defined within its manifest — it is obtained from the union of resources listed in the default reading order and resource list.

To determine whether a resource is within the bounds of a Web Publication, user agents MUST compare the absolute URL of a resource to the absolute URLs of the resources obtained from the union. If the resource is identified in the enumeration, it is within the bounds of the Web Publication. All other resources are external to the Web Publication.

Resources within the bounds of a Web Publication do not have to share the same domain.

3.3.2 Resources

A Web Publication MUST include at least one HTML document [html]—the primary entry page.

Otherwise, a Web Publication MAY references resources of any media type, both in the default reading order and as dependencies of other resources.

Note

When adding resources to a Web Publication, consider support in user agents. The use of progressive enhancement techniques and the provision of fallback content, as appropriate, will ensure a more consistent reading experience for users regardless of their preferred user agent.

3.3.3 Primary Entry Page

The primary entry page represents the preferred starting resource for a Web Publication and enables discovery of its manifest. It is the resource that is returned when accessing the Web Publication's address, and MUST be included in either the default reading order or the resource list.

Although any resource can link to the manifest, the primary entry page typically introduces the Web Publication and provides access to the content. It might contain all the content, in the case of a single-page Web Publication, or provide navigational aids to begin reading a multi-document Web Publication. To facilitate the user ease of consumption, the primary entry page SHOULD contain the table of contents.

It is not required that the primary entry page be included in the default reading order, nor that it be the first document listed when it is included. This specification leaves the exact nature of the document intentionally underspecified to provide flexibility for different approaches. If a default reading order is not provided, however, user agents will create one using the primary entry page.

The primary entry page is the only resource in which a manifest can be embedded.

To ensure discovery of the manifest, the primary entry page MUST provide a link to the manifest. It is RECOMMENDED to embed the manifest in the primary entry page, but the manifest MAY be external to, and linked from, it.

Note

Embedding is the preferred option as search engines might only process schema.org metadata in JSON-LD format when it is embedded in an HTML page.

The address of the primary entry page is also the canonical identifier for the Web Publication (i.e., it serves as its unique identifier).

In certain cases where information has been omitted from the manifest, user agents will sometimes use the primary entry page as a fallback source of information (see language and base direction and title).

3.3.4 Table of Contents

The table of contents provides a hierarchical list of links that reflects the structural outline of the major sections of the Web Publication.

The table of contents is expressed via an [html] element (typically a nav element) in one of the resources. This element MUST be identified by the role attribute [html] value "doc-toc" [dpub-aria-1.0], and MUST be the first element in the document — in document tree order [dom] — with that role value.

If the table of contents is not located in the primary entry page, the manifest SHOULD identify the resource that contains the structure.

When specified, the table of content MUST include a link to at least one resource, and all links SHOULD refer to resources within publication bounds.

Refer to the table of contents property definition for more information on how to identify which resource contains the table of contents.

3.3.5 Page List

The page list is a list of links that provides navigation to static page demarcation points within the content. These locations allow users to coordinate access into the content, but the exact nature of the locations is left to content creators to define. They usually correspond to pages of a print document which is the source of the Web Publication, but might be a purely digital creation added to ease navigation.

The page list is expressed via an [html] element (typically a nav element) in one of the resources. This element MUST be identified by the role attribute [html] value "doc-pagelist" [dpub-aria-1.0], and MUST be the first element in the document — in document tree order [dom] — with that role value.

If the page list is not located in the primary entry page, the manifest SHOULD identify the resource that contains the structure.

There are no requirements on the page list itself, except that, when specified, it MUST include a link to at least one resource.

Refer to the pagelist property definition for more information on how to identify which resource contains the page list.

3.4 Manifest

3.4.1 Properties

3.4.1.1 Requirements

The expression of properties in a Web Publication manifest includes a combination of those defined generally for digital publications as well as two specific to Web Publications: the publication's address and canonical identifier.

The requirements for the expression of these properties are as follows:

REQUIRED:

address
default reading order
title

RECOMMENDED:

accessibility
accessibility report
base direction
canonical identifier
cover
creators
language and base direction
links
last modification date
publication date
privacy policy
reading progression direction
resource list
table of contents
page list

These properties do not all have to be serialized in the authored manifest. Refer to each property's definition to determine whether it is required in the manifest or can be compiled into the canonical manifest from other information.

3.4.1.2 Address

A Web Publication's address is a URL [url] that represents the primary entry page for the Web Publication. It is expressed using the url property.

Term	Description	Required Value	[schema.org] Mapping
`url`	URL of the primary entry page.	A URL [url].	`url` (Thing)

If the address does not resolve to an HTML document [html], user agents SHOULD NOT provide access to the resource to users. A Web Publication MAY have more than one address, but all the addresses MUST resolve to the same document.

The referenced document SHOULD be a resource of the Web Publication. It can be any resource, including one that is not listed in the default reading order. This document MUST include a link to the manifest to ensure a bidirectional linking relationship (i.e., that user agents can also locate the manifest from the document at the address).

If the document is not a publication resource, user agents SHOULD load the first document in the default reading order when initiating the publication.

Note

To improve the usability of publications, particularly in user agents that do not support them, authors are encouraged to include navigation aids in the referenced document that facilitate consumption of the content, (e.g., provide a table of contents or a link to one).

Note

The publication's address can also be used as value for an identifier link relation [link-relation].

Example 47 : Setting the address of the main entry page

{
    "@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "type"     : "Book",
    …
    "url"      : "https://publisher.example.org/mobydick",
    …
}

3.4.1.3 Canonical Identifier

A Web Publication's canonical identifier is a unique identifier that resolves to the preferred version of the Web Publication. It is expressed using the id property.

Term	Description	Required Value	[schema.org] Mapping
`id`	Preferred version of the publication.	A URL [url].	(None)

Note

Ensuring uniqueness of canonical identifiers is outside the scope of this specification. The actual achievable uniqueness depends on such factors as the conventions of the identifier scheme used and the degree of control over assignment of identifiers.

The canonical identifier is intended to provide a measure of permanence above and beyond the Web Publication's address(es). If a Web Publication is permanently relocated to a new URL, for example, the canonical identifier provides a way of discovering the new location (e.g., a DOI registry could be updated with the new URL, or a redirect could be added to the URL of the canonical identifier). It is also intended to provide a means of identifying instances of the same Web Publication hosted at different URLs.

If a URL is not provided in the manifest, or the value is an invalid URL, the Web Publication does not have a canonical identifier. User agents MUST NOT attempt to construct a canonical identifier from any other identifiers provided in the manifest for the canonical manifest.

The specification of the canonical identifier MAY be complemented by the inclusion of additional types of identifiers for the Web Publication using the identifier property [schema.org] and/or its subtypes.

Example 48 : Example for setting both the canonical identifier as URL and the address of the same document

{
    "@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "type"     : "TechArticle",
    …
    "id"       : "http://www.w3.org/TR/tabular-data-model/",
    "url"      : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
    …
}

Example 49 : Example for setting both the ISBN and the address of the same document

{
    "@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "type"     : "Book",
    …
    "isbn"     : "9780123456789",
    "url"      : "https://publisher.example.org/mobydick",
    …
}

3.4.1.4 Default Reading Order

The Web Publication readingOrder property extends the Publication Manifest readingOrder property in the following ways:

The default reading order MAY be omitted when it only consists of the primary entry page. When the default reading order is absent, user agents MUST include an entry for the primary entry page when compiling the canonical manifest.

3.4.1.5 Page List

The Web Publication pagelist property extends the Publication Manifest pagelist property as described in this section.

The pagelist property MUST identify a resource that contains the page list for the Web Publication. It MUST NOT be used to embed a page list in the manifest.

User agents MUST compute the pagelist as follows:

Identify the page list resource:
- If a resource in either the default reading order or resource-list is identified with a rel value including https://www.w3.org/ns/wp#pagelist, the corresponding url value identifies the page list resource. If there are several such resources, the first one MUST be used, with the default reading order taking precedence over resource-list.
- Otherwise, the primary entry page is the page list resource.
If the page list resource contains an HTML element with the role [html] value doc-pagelist [dpub-aria-1.0], the user agent MUST use that element as the page list. If there are several such HTML elements the user agent MUST use the first in document tree order [dom].

If this process does not result in a link to the page list, the publication does not have a page list and this property MUST NOT be included in the canonical manifest.

Editor's note

The Working Group will attempt to define the pagelist term by IANA, to avoid using a URL.

Example 50 : Pagelist identified in another resource of the publication

{
"@context"   : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type"       : "Book",
…
"url"        : "https://publisher.example.org/mobydick",
"name"       : "Moby Dick",
"resources"  : [{
	"type"       : "LinkedResource",
	"url"        : "toc_file.html",
	"rel"        : "https://www.w3.org/ns/wp#pagelist"
},{
	…
}],
…
}

3.4.1.6 Title

The Web Publication title property extends the Publication Manifest title property in the following ways:

If a title is not included in the authored manifest, the user agent MUST use the value of the title element [html] of the Web Publication's primary entry page, if present, when generating the canonical manifest.

Note

Relying on the title element could be semantically problematic if the Web Publication consists of several HTML resources (e.g., one per chapter of a book), because the HTML definition defines this element as "metadata" for the enclosing HTML document, not for a collection of resources. Using this element is, on the other hand, preferred in the case of a Web Publication consisting of a single HTML document (e.g., a scholarly journal article).

3.4.1.7 Table of Contents

The Web Publication contents property extends the Publication Manifest contents property as described in this section.

The contents property MUST identify a resource that contains the page list for the Web Publication. It MUST NOT be used to embed a page list in the manifest.

User agents MUST compute the toc as follows:

Identify the table of contents resource:
- If a resource in either the default reading order or resource-list is identified with a rel value including contents [iana-link-relations], the corresponding url value identifies the table of contents resource. If there are several such resources, the first one MUST be used, with the default reading order taking precedence over resource-list.
- Otherwise, the primary entry page is the table of contents resource.
If the table of contents resource contains an HTML element with the role [html] value doc-toc [dpub-aria-1.0], the user agent MUST use that element as the table of contents. If there are several such HTML elements the user agent MUST use the first in document tree order [dom].

If this process does not result in a link to the table of contents, the publication does not have a table of contents and this property MUST NOT be included in the canonical manifest.

See the separate section § B. Machine-Processable Table of Contents for the HTML structure that the table of content SHOULD adhere to.

Example 51 : Table of content identified in another resource of the publication

{
    "@context"   : ["https://schema.org","https://www.w3.org/ns/wp-context"],
    "type"       : "Book",
    …
    "url"        : "https://publisher.example.org/mobydick",
    "name"       : "Moby Dick",
    "resources"  : [{
        "type"       : "LinkedResource",
        "url"        : "toc_file.html",
        "rel"        : "contents"
    },{
        …
    }],
    …
}

Example 52 : If the primary entry page includes the TOC, no reference in the manifest is necessary

<head>
    …
    <script type="application/ld+json">
    {
        "@context"        : ["https://schema.org","https://www.w3.org/ns/wp-context"],
        "type"            : "TechArticle",
        …
        "id"              : "http://www.w3.org/TR/tabular-data-model/",
        "url"             : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
        …
    }
    </script>
    …
</head>
<body>
    …
    <section role="doc-toc">
        …
    </section>
    …
</body>

3.4.2 Association

3.4.2.1 Embedding

A manifest MAY be embedded only in the primary entry page. In this case, the manifest MUST be included in a script element [html] whose type attribute is set to application/ld+json.

Additionally, the script element MUST include a unique identifier in an id attribute [html]. This identifier ensures that the manifest can be referenced.

Example 53 : A Web Publication Manifest included in an HTML document

<script id="example_manifest" type="application/ld+json">
   {
      …
   }
</script>

3.4.2.2 Linking

With the exception of the primary entry page, linking a resource to its manifest is OPTIONAL. Including a link is encouraged whenever possible, however, as it allows user agents to immediately ascertain that a resource belongs to a Web Publication regardless of how the user reaches the resource.

Links to a Web Publication Manifest MUST take one or both of the following forms:

An HTTP Link header field [rfc5988] with its rel parameter set to the value "publication".
Example 54
```
Link: <https://example.com/webpub/manifest>; rel=publication
```
A link element [html] with its rel attribute set to the value "publication".
Example 55
```
<link href="https://example.com/webpub/manifest" rel="publication"/>
```

When a manifest is embedded within an HTML document, the link MUST include a fragment identifier that references the script element that contains the manifest (see § 3.4.2.1 Embedding).

Example 56 : Link to a manifest within the same HTML resource

<link href="#example_manifest" rel="publication">
…
<script id="example_manifest" type="application/ld+json">
{
       "@context" : ["https://schema.org", "https://www.w3.org/ns/wp-context"],
       …
}
</script>

Issue 132 : Using rel="publication" topic:manifest

The exact value of rel is still to be agreed upon and should be registered by IANA.

Editor's note

The following details might be moved to the lifecycle section in a future draft.

When a resource links to multiple manifests, a user agent MAY choose to present one or more alternatives to the end user, or choose a single alternative on its own. The user agent MAY choose to present any manifest based upon information that it possesses, even one that is not explicitly listed as a parent (e.g., based upon information it calculates or acquires out of band). In the absence of a preference by user agent implementers, selection of the first manifest listed is suggested as a default.

3.5 Web Publication Lifecycle

The processing of the Web Publication manifest extends the lifecycle defined in § 2.7 Publication Manifest Lifecycle as described in this section.

Note

See the diagrams in the appendix for a visual representation of the lifecycle algorithm.

3.5.1 Obtaining a manifest

The steps for obtaining a manifest, starting from the primary entry page, are given by the following algorithm. The algorithm, if successful, returns a string containing the manifest for use as input to the first step in the processing stage.

From the Document of the top-level browsing context of the primary entry page, let origin be the Document's origin, and manifest link be the first link element in tree order in Document whose rel attribute contains the publication token.
If origin is an [html] opaque origin, terminate this algorithm.
If manifest link is null, terminate this algorithm.
If manifest link's href attribute's value is the empty string, terminate this algorithm.
If manifest link's href attribute's value is a relative URL, i.e., it points to origin and it has a non-null fragment identifying an identifier id in Document:
1. Let embedded manifest script be the first script element in tree order, whose id attribute is equal to id and whose type attribute is equal to application/ld+json.
2. If embedded manifest script is null, terminate this algorithm.
3. Let text be the child text content of embedded manifest script
4. Let base be the value of baseURI of the script element.
Explanation

This branch is in use when the manifest is embedded in the primary entry page. The algorithm locates the script element and extract the manifest itself. The document's URL or, if set by the author, the value of a possible base element will be used to turn relative URLs into absolute ones.
Otherwise:
1. Let manifest URL be the result of parsing the value of the href attribute, relative to the element's base URL. If parsing fails, then abort these steps.
2. Let request be a new [fetch] request, whose URL is manifest URL, and whose context is the same as the browsing context of the Document.
3. If the manifest link's crossOrigin attribute's value is 'use-credentials', then set request's credentials to 'include'.
4. Await the result of performing a fetch with request, letting response be the result.
5. If response is a network error, terminate this algorithm.
6. Let text be the result of UTF-8 decoding response's body.
7. Let base be the value of manifest URL.
Explanation

This branch is in use when the manifest is in a separate file. It performs the standard operations to retrieve the manifest from the Web; the URL of the manifest file will be used to turn relative URLs into absolute ones.

3.6 Security

Editor's note

Placeholder for security issues.

3.7 Privacy

Editor's note

Placeholder for privacy issues.

4. PART III: Modular Extensions

4.1 Introduction

This section is non-normative.

The first two parts of this specification define the cornerstones for developing additional digital publication formats that can be deployed to the Web. Various publishing communities (e.g., audio books, scholarly publications) MAY define extensions, also known as profiles, by extending the core § 2. PART I: Publication Manifest with module specific terms and possibly adding new requirements.

4.2 Compatibility Requirements

In order for a digital publication format to be compatible with this specification, following conditions MUST be met:

It MUST adhere to the manifest format requirements defined in § 2. PART I: Publication Manifest.
The generic canonicalization steps described in § 2.7.3 Generating the Canonical Manifest MUST remain valid for the extended manifest. To achieve this, and if new terms are added to the general § 2. PART I: Publication Manifest, then:
- The term SHOULD be categorized, if applicable, to one or more of the general term categories used in the algorithm (e.g., array or localizable string). This means the relevant canonicalization steps will be automatically executed for those terms
- If necessary, the profile MAY define its own canonicalization step, to be executed as the last step of the general canonicalization algorithm. Such an extra step MUST NOT invalidate the results of any of the steps defined for the canonicalization algorithm in general.
If necessary, the profile MAY define its own manifest processing step, to be executed as part of the steps described in § 2.7.2 Processing a Manifest

Editor's note

Adding an example of a term added by, e.g., the audiobook profile would be a good idea, when available.

Term	Description	Required Value	[schema.org] Mapping	Optionality
`url`	Location of the resource.	A URL [url]. Refer to the property definitions that accept this type for additional restrictions.	`url`	REQUIRED
`encodingFormat`	Media type of the resource (e.g., `text/html`).	MIME Media Type [rfc2046].	`encodingFormat`	OPTIONAL
`name`	Name of the item.	One or more Text items.	`name`	OPTIONAL
`description`	Description of the item.	Text.	`description`	OPTIONAL
`rel`	The relationship of the resource to the publication.	One or more relations. The values are either the relevant relationship terms of the IANA link registry [iana-link-relations], or specially-defined URLs if no suitable link registry item exists.	(None)	OPTIONAL

B. Machine-Processable Table of Contents

B.1 Introduction

This section is non-normative.

To facilitate navigation within pages and across sites, HTML uses the nav element [html] to express lists of links. Although generic in nature by default, the purpose of a nav element can be more specifically identified by use of the role attribute [html]. In particular, the doc-toc role from the [dpub-aria-1.0] vocabulary identifies the nav element as the Web Publications's table of contents.

Including an identifiable table of contents is an accessible way to produce any digital publication, but due to the flexibility of HTML markup, it also presents challenges for user agents trying to extract a meaningful hierarchy of links (e.g., to provide a custom view available from any page). To avoid duplicating the tables of contents for different uses, this section defines a syntax that is both human friendly and commonly used while still providing enough structure for user agent extraction.

Authors have a choice of lists (ordered or unordered) to construct their table of contents. By tagging each link within these lists in anchor tags (a elements), user agents can easily differentiate the information they need from any peripheral content (asides) or stylistic tagging that has also been added. The table of contents can consist of both active links (with an href attribute) and inactive links (excluding the href attribute), providing additional flexibility in how the table of contents is constructed (e.g., to omit links to certain headings or only link to certain content in a preview).

B.2 HTML Structure

This section is non-normative.

The machine-readable table of contents is defined within an [html] nav element. As described in § 3.3.4 Table of Contents, this nav element has to be both the first element in the document and identifiable by a role attribute with the value doc-toc.

Although the content model of the nav element is not restricted, user agents will only be able to extract a usable table of contents when the following markup guidelines are followed:

Table of Contents Title

Although a title for the table of contents is optional, to avoid having a user agent generate a placeholder title when one is needed, it is advised to add one. Titles are specified using any of the [html] h1 through h6 elements. Note that only the first such element is recognized as the title. If a heading element is not found before the list of links, user agents will assume that one has not been specified.

List of Links

The first [html] ol or ul list element encountered in the nav element is assumed to contain the list that defines the links into the content. This list will be found even if it is nested inside of div elements, for example, as the algorithm ignores elements that are not relevant to its processing. The list cannot occur inside of any skipped elements, however, since their internal contents are not evaluated.

If the nav element does not contain one of these elements, then user agents will not register the digital publication as containing a usable table of contents (e.g., a machine-rendered option will not be available).

Branches

If the table of contents is considered as a tree of links, then each list item (li element) inside of the list of links represents one branch. Each of these branches has to have a name and optional destination in order to be presented to users, and this information is obtained from the first a element found within the list item, wherever it is nested (again, excluding any a elements inside of skipped elements.)

The link destination for the branch is obtained from the a element's href attribute, when specified. This attribute can be omitted if a link is not available (e.g., in a preview) or not relevant (e.g., a grouping header). When providing a link into the content, it is also possible to specify the relationship of the linked document (in a rel attribute) and the media type of the linked resource (in a type attribute).

After finding the a element that labels the branch, user agents will continue to inspect the markup for another list element (i.e., sub-branches). If a list is found, it is similarly processed to extract its links, and so on, until there are no more nested branches left to process.

Skipped Elements

A small set of elements are ignored when the parsing table of contents to avoid misinterpretation. These are the [html] sectioning content elements and sectioning root elements. The reason they are ignored is because they can defined their own outlines (i.e., they can represent embedded content that is self-contained and not necessarily related to the structure of content links).

Any element that has its hidden attribute set is also skipped, since hidden elements are not intended to be directly accessed by users.

Although these elements can be included in the nav element, care has to be taken not to embed important content within them (e.g., do not wrap a section element around the list item that contains all the links into the content).

Ignored Elements

All elements that are not relevant to extracting the table of contents, and are not skipped, are ignored. Unlike skipped elements, ignoring means that user agents will continue to search inside them for relevant content, allowing greater flexibility in terms of the tagging that can be used.

B.2.1 Examples

This section is non-normative.

Example 57 : A basic multi-level table of contents.

Note that different list types can be used for the different levels.

<nav role="doc-toc">
   <h2>Contents</h2>

   <ol>
      <li>
        <a href="discourses.html">ZARATHUSTRA'S DISCOURSES.</a>
         <ul>
            <li><a href="discourses.html#s01">THE THREE METAMORPHOSES.</a></li>
            <li><a href="discourses.html#s02">THE ACADEMIC CHAIRS OF VIRTUE.</a></li>
            <li><a href="discourses.html#s03">BACKWORLDSMEN.</a></li>
            …
         </ul>
      </li>
      …
   </ol>
</nav>

Example 58 : A table of contents with ignored content.

The supplementary descriptive information is ignored by user agents.

<nav role="doc-toc">
   <h2>Contents</h2>

   <ol>
      <li>
         <div class="title"><a href="c01.html">CHAPTER I</a></div>
         <div class="description">Biographical and Introductory.</div>
      </li>
      <li>
         <div class="title"><a href="c02.html">CHAPTER II</a></div>
         <div class="description">A New System of Alternating Current Motors and Transformers.</div>
      </li>
      …
   </ol>
</nav>

Example 59 : A table of contents for a preview.

The a elements that link to content the user does not have access to do not include href attributes.

<nav role="doc-toc">
   <h2>Contents</h2>

  <ol>
     <li><a href="xmas_carol.html">Marley's Ghost</a></li>
     <li><a>The First of Three Spirits</a></li>
     <li><a>The Second of Three Spirits</a></li>
     <li><a>The Last of the Spirits</a></li>
     <li><a>The End of It</a></li>
  </ol>

   …
</nav>

Example 60 : A table of contents with unlinked headings.

In this example, the author names are not relevant link locations so href attributes are not included on their enclosing a elements.

<nav role="doc-toc">
   <h2>Contents</h2>

   <ol>
      <li>
         <a>Faraday, Michael</a>
         <ol>
            <li><a href="faraday.html#s01">Experimental Researches in Electricity</a></li>
            <li><a href="faraday.html#s02">The Chemical History of a Candle</a></li>
         </ol>
      </li>
      <li>
         <a>Forel, Auguste</a>
         <ol>
            <li><a href="forel.html">The Senses of Insects</a></li>
         </ol>
      </li>
      …
   </ol>
</nav>

B.3 User Agent Processing

This section defines an algorithm for extracting a table of contents from a nav element. It is defined in terms of a walk over the nodes of a DOM tree, in tree order, with each node being visited when it is entered and when it is exited during the walk. Each time a node is visited, it can be seen as triggering an enter or exit event.

Note

For illustrative purposes, the examples in this section show the structure of the table of contents as JavaScript objects. User agents can process and internalize the resulting structure in whatever language and form is appropriate.

For the purposes of this algorithm, a list element is defined as either an [html] ol or ul element.

The following algorithm MUST be applied to a walk of a DOM subtree rooted at the first nav element in document order with the role attribute value doc-toc. All explanations are informative.

Let toc be a object that represents the table of contents and initialize it as follows:
1. Create a name property for toc that represents the title of the table of contents and set to an empty string.
2. Create an entries property for toc that represents all the branches of the table of contents and set to an empty array.
Explanation

This step initializes the toc object that will store the title and the branches of the table of contents.
Example 61 : Visualization of the default toc object
```
{
   "name": '',
   "entries": []
}
```
Initialize a stack.

Explanation

The stack is used to hold branches that are not yet complete. As a new sub-branch is encountered, the parent gets pushed onto the stack so it can be retrieved later.
Let current toc branch be a variable set to null.

Explanation

current toc branch is used to hold the object that represents the branch of the table of contents that is currently being processed.
Walk over the DOM in tree order, starting with the nav element the table of contents is being built from, and trigger the first relevant step below for each element as the walk enters and exits it.
1. When entering a heading content element:

  Run these steps:
  1. If the stack is empty, and the name property of toc is an empty string, calculate the accessible name [accname-1.1] of the element. If the resulting value is not an empty string after trimming all leading and trailing whitespace, set the name property of toc to the value. Otherwise, set the name property either to a placeholder value or to null.
  2. Exit the element and continue processing with the next element.
  Explanation

  This step identifies the heading for the table of contents. A heading is only processed if the value of the toc name property is an empty string (i.e., no headings have yet been encountered).
  Example 62 : Visualization of the toc object with a heading
```
{
   "name": "Contents",
   "entries": []
}
```
  If the name is not an empty string, or is null, then a previous heading has already been encountered or content has been encountered that indicates the nav element does not have a heading (e.g., a list has already been processed, since the heading would not follow the list of links).
  Example 63 : Visualization of the toc object without a heading
```
{
   "name": null,
   "entries": []
}
```
  If a heading is not specified, the user agent can provide its own for later use.
2. When entering a list element:

  Run these steps:
  1. If the name property of toc is an empty string, set name to null.
  2. If current toc branch is not null:
    1. If the entries property of current toc branch is null or a non-empty array, exit the element and continue processing with the next element.
    2. Otherwise, push the object in current toc branch onto the stack and set current toc branch to null.
  3. Otherwise, if the stack is empty:
    1. If the entries property of toc is null or a non-empty array, exit the element and continue processing with the next element.
    2. Otherwise, do nothing.
  Explanation

  This algorithm does not process multiple lists in a single branch or at the root of the nav element, so if a list has already been encountered (the entries property contains one or more branches or is set to null), this list is skipped.

  If a list is encountered and the table of contents (toc) still does not have a name (i.e., no heading element has been encountered), the table of contents is assumed to not have a heading (i.e., the heading for the table of contents cannot appear after the first list of entries). The value of the name property is changed from an empty string to null as no further headings encountered apply, either.
3. When exiting a list element:

  If the stack is not empty, pop the top object off the stack and set current toc branch to it.

  Explanation

  This resets current toc branch back to the parent object after all of its child branches have been processed.
4. When entering a list item element:

  Run these steps:
  1. Set current toc branch to a new object.
  2. Create name, url, type, and rel properties for the object and set them to empty strings.
  3. Create an entries property for the object and set it to an empty array.
  Explanation

  Each list item represents a possible new branch in the table of contents, so whenever one is encountered a new blank object is created in current toc branch.
  Example 64 : Visualization of a new branch object
```
{
   "name": '',
   "url": '',
   "type": '',
   "rel": '',
   "entries": []
}
```
  This object gets populated with information as a descendant a element and list are encountered.
5. When exiting a list item element:

  Run these steps:
  1. If entries property of current toc branch contains an empty array, set its value to null.
  2. If the stack contains one or more entries:
    1. If the entries property of current toc branch contains a non-empty array, and its name property is an empty string, set its name to a placeholder value or null;
    2. If the entries property of current toc branch contains an empty array, and its name property is an empty string, set current toc branch to null and exit this processing step.
    Add current toc branch to the array in the entries property of the object at the top of the stack.
  3. Otherwise, add the object in current toc branch to the entries array of toc.
  4. Set current toc branch to null.
  Explanation

  Exiting a list item indicates that processing of the current branch is complete. Before adding this branch to its parent's entries array, the branch needs to be tested to see if it has a name and/or any sub-branches. If it does not have a name but has sub-branches, the branch is kept. The user agent can either supply a placeholder value of its own creation or set the value to null. If it does not have a name or any branches, it is invalid and is discarded.

  To determine where to merge the branch, the stack is checked. If there are no objects in the stack, it is added into the entries property of the root toc object (i.e., it is a top-level branch). Otherwise, it gets added into the entries property of the object immediately preceding it in the stack.

  As a final step, current toc branch is reset back to null.
  Example 65 : Visualization of a branch merge

  If the following two objects are in current toc branch
```
{
   "name": "Section 1",
   "url": "http://example.com/contents.html#s1",
   "type": "text/html",
   "rel": null,
   "entries": []
},
{
   "name": "Section 1.1",
   "url": "http://example.com/contents.html#s1.1",
   "type": "text/html",
   "rel": null,
   "entries": null
}
```
  Then only the following single object remains after merging:
```
{
   "name": "Section 1",
   "url": "http://example.com/contents.html#s1",
   "type": "text/html",
   "rel": null,
   "entries": [
      {
         "name": "Section 1.1",
         "url": "http://example.com/contents.html#s1.1",
         "type": "text/html",
         "rel": null,
         "entries": null
      }
   ]
}
```
6. When entering an anchor element and current toc branch is not null:

  Run these steps:
  1. If the name property of current toc branch is not an empty string, do nothing.
  2. Otherwise:
    1. Calculate the accessible name [accname-1.1] for the element. If the resulting value is a non-empty string after trimming leading and trailing white space, set the name property of current toc branch to the resulting value. Otherwise, set the property to null.
    2. If the element has an href attribute and the IRI in the attribute resolves to a resource in the default reading order or resource list, set the url property of current toc branch to the value. Otherwise, set the property to null.
    3. If the element has a type attribute, and the value of the attribute is not an empty string after trimming leading and trailing white space, set the type property of current toc branch to its value. Otherwise, set the property to null.
    4. If the element has a rel attribute, and the value of the attribute is not an empty string after trimming leading and trailing white space, set the rel property of current toc branch to its value. Otherwise, set the property to null.
    Exit the element and continue processing with the next element.
  Explanation

  This step processes anchor tags to obtain values for the name and url properties of a branch.

  If the name of the current branch is already defined, then processing of this element is terminated (i.e., to avoid processing multiple links for a single branch).

  In addition to having an href attribute specified, it is necessary that it resolve to a resource that belongs to the digital publication to meet the requirements of this specification. If not, the branch is retained but the entry will not be linkable.

  Additional information about the target of the link — the type of resource and its relationship — is also retained.
  Example 66 : Visualization of a link to an SVG image
```
{
   "name": "In the Beginning",
   "url": "http://example.com/page1.svg",
   "type": "image/svg",
   "rel": null,
   "entries": []
},
```
7. When entering a sectioning content element, a sectioning root element, or an element with a hidden attribute:

  Exit the element and continue processing with the next element.

  Explanation

  As sectioning and sectioning root elements can define their own outlines, descending into them poses problems for generating the table of contents (i.e., they may contain content that is not directly related). As a result, they are skipped over when encountered to prevent their child content from being processed.
8. Otherwise: do nothing.

  Explanation

  For all other elements, this steps allows their descendant elements to continue to be processed.
After completing the DOM walk, if the entries property of toc contains a non-empty array, toc represents the machine-processed table of contents.

Otherwise, the digital publication does not have a table of contents that can be used for machine rendering purposes.

Explanation

If the entries array in the root toc object does not contain any branches (either because no list was found in the nav element or the list did not contain any conforming list items), then the algorithm did not produce a usable table of contents.

Character order in memory	Direction	Method	Expected display
`פעילות הבינאום, W3C`	rtl	First strong directional character	פעילות הבינאום, W3C
`The document is titled, "⁧פעילות הבינאום, W3C⁩"`	ltr	First strong directional character	The document is titled, "פעילות הבינאום, W3C"
`‏HTML היא שפת סימון`	rtl	Bidi Control Character	`HTML היא שפת סימון`
`‎'سلام' is hello in Persian`	ltr	Bidi Control Character	`'سلام' is hello in Persian`

Web Publications

W3C Working Draft 09 April 2019

Abstract

Status of This Document

1. Introduction

1.1 Scope

1.2 Organization

1.3 Terminology

1.4 Conformance

2. PART I: Publication Manifest

2.1 Introduction

2.2 Authored and Canonical Manifests

2.3 WebIDL

2.3.1 Introduction

2.3.2 The PublicationManifest Dictionary

2.4 Manifest Contexts

2.5 Publication Types

2.6 Properties

2.6.1 Introduction

2.6.2 Quick Reference

2.6.3 Value Categories

2.6.3.1 Literals

2.6.3.2 Explicit and Implied Objects

2.6.3.2.1 Localizable Strings

2.6.3.2.2 Entities

2.6.3.2.3 Links

2.6.3.3 URLs

2.6.3.4 Arrays

2.6.4 Descriptive Properties

2.6.4.1 Accessibility

2.6.4.2 Creators

2.6.4.3 Language and Base Direction

2.6.4.3.1 Global Language and Direction

2.6.4.3.2 Item-specific Language

2.6.4.4 Last Modification Date

2.6.4.5 Publication Date

2.6.4.6 Reading Progression Direction

2.6.4.7 Title

2.6.5 Resource Categorization Properties

2.6.5.1 Default Reading Order

2.6.5.2 Resource List

2.6.5.3 Links

2.6.6 Informative Properties

2.6.6.1 Accessibility Report

2.6.6.2 Privacy Policy

2.6.7 Structural Properties

2.6.7.1 Cover

2.6.7.2 Page List

2.6.7.3 Table of Contents

2.6.8 Extensibility

2.6.8.1 Linked records

2.6.8.2 Additional Properties in the Manifest

2.7 Publication Manifest Lifecycle

2.7.1 Introduction

2.7.2 Processing a Manifest

2.7.3 Generating the Canonical Manifest

2.7.4 Post-Processing the Canonical Manifest

3. PART II: Web Publications

3.1 Introduction

3.2 Conformance Classes

3.3 Web Publication Construction

3.3.1 Publication Bounds

3.3.2 Resources

3.3.3 Primary Entry Page

3.3.4 Table of Contents

3.3.5 Page List

3.4 Manifest

3.4.1 Properties

3.4.1.1 Requirements

3.4.1.2 Address

3.4.1.3 Canonical Identifier

3.4.1.4 Default Reading Order

3.4.1.5 Page List

3.4.1.6 Title

3.4.1.7 Table of Contents

3.4.2 Association

3.4.2.1 Embedding

3.4.2.2 Linking

3.5 Web Publication Lifecycle

3.5.1 Obtaining a manifest

2.3.2 The `PublicationManifest` Dictionary

A. `LinkedResource` Definition
