This specification defines capabilities that enable Web applications to handle requests for payment.
This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at https://www.w3.org/TR/.
The Web Payments Working Group maintains a list of all bug reports that the group has not yet addressed. This draft highlights some of the pending issues that are still to be discussed in the working group. No decision has been taken on the outcome of these issues including whether they are valid. Pull requests with proposed specification text for outstanding issues are strongly encouraged.
This document was published by the Web Payments Working Group as a Working Draft. This document is intended to become a W3C Recommendation.
Publication as a Working Draft does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.
This document was produced by a group operating under the W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.
This document is governed by the 1 March 2017 W3C Process Document.
This section is non-normative.
The Web Payments Working Group seeks to streamline payments on the Web to help reduce "shopping cart abandonment" and make it easier to deploy new payment methods on the Web. It has published the Payment Request API [payment-request] as a standard way to initiate payment requests from E-Commerce Web sites and applications.
A payment app is a Web application that can handle payment requests on behalf of the user. This specification defines a number of new Web platform features to handle payment requests:
PaymentRequestEvent
). A
payment handler is an event handler for the
PaymentRequestEvent
.
PaymentInstrument
s.

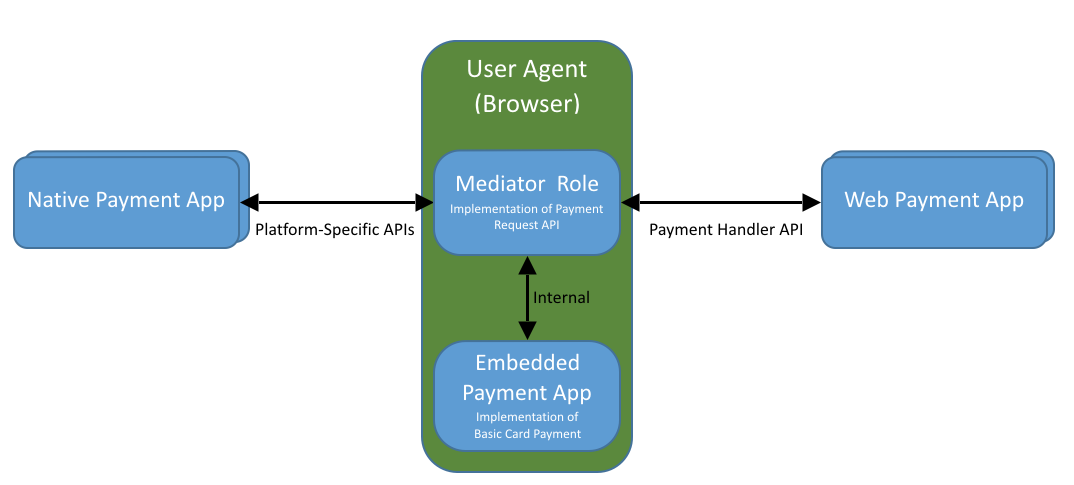

This specification does not address how software built with operating-system specific mechanisms (e.g., "native mobile apps") handle payment requests.
The term "payment app" may be useful as a shorthand for "Web app that can handle payments with Payment Request API."
As well as sections marked as non-normative, all authoring guidelines, diagrams, examples, and notes in this specification are non-normative. Everything else in this specification is normative.
The key words MAY, MUST, NOT REQUIRED, SHOULD, and SHOULD NOT are to be interpreted as described in [RFC2119].
This specification defines one class of products:
A user agent MUST behave as described in this specification to be considered conformant. In this specification, user agent means a Web browser or other interactive user agent as defined in [HTML].
User agents MAY implement algorithms given in this specification in any way desired, so long as the end result is indistinguishable from the result that would be obtained by the specification's algorithms.
A conforming Payment Handler API user agent MUST also be a conforming implementation of the IDL fragments of this specification, as described in the “Web IDL” specification. [WEBIDL]
In this document we envision the following flow:
capabilities
play a role in
matching computations.
instruments
supported by the
payment handler.
instruments
of
the candidate payment handlers. The user agent displays these choices
using information (labels and icons) provided at registration or
otherwise available from the Web app.
PaymentRequestEvent
(cf. the user interaction
task source) in the service worker whose PaymentManager the
instrument was registered with. The PaymentRequestEvent
includes
some information from the PaymentRequest (defined in
[payment-request]) as well as additional information (e.g., origin
and selected instrument).
An origin may implement a payment app with more than one service worker and therefore multiple payment handlers may be registered per origin. The handler that is invoked is determined by the selection made by the user of a payment instrument. The service worker which stored the payment instrument with its PaymentManager is the one that will be invoked.
This section is non-normative.
The logic of a payment handler is driven by the payment methods that it supports. Some payment methods, such as basic-card expect little to no processing by the payment handler which simply returns payment card details in the response. It is then the job of the payee website to process the payment using the returned data as input.
In contrast, some payment methods, such as a crypto-currency payments or bank originated credit transfers, require that the payment handler initiate processing of the payment. In such cases the payment handler will return a payment reference, endpoint URL or some other data that the payee website can use to determine the outcome of the payment (as opposed to processing the payment itself).
Handling a payment request may include numerous interactions: with the user through a new window or other APIs (such as [WebCryptoAPI]) or with other services and origins through web requests or other means.
This specification does not address these activities that occur
between the payment handler accepting the PaymentRequestEvent
and the payment handler returning a response. All of these activities
which may be required to configure the payment handler and handle the
payment request, are left to the implementation of the payment
handler, including:
Thus, an origin will rely on many other Web technologies defined elsewhere for lifecycle management, security, user authentication, user interaction, and so on.

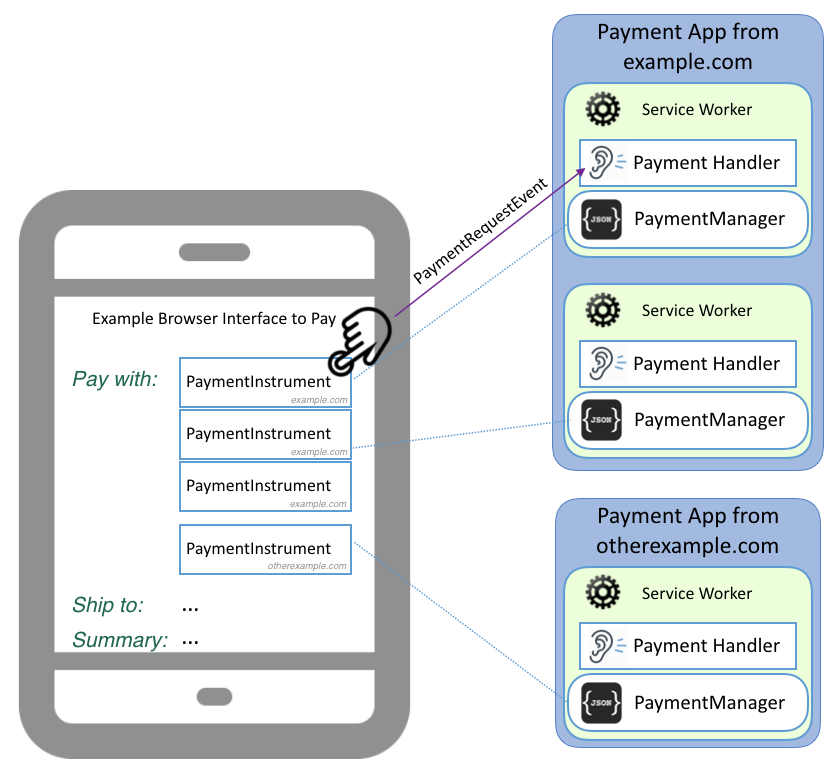

This section is non-normative.
PaymentRequestEvent
s. PaymentManagers
manage the definition, display, and user selection of
PaymentInstrument
s. A PaymentInstrument
supports one
or more payment methods.
This section is non-normative.
This specification does not address how third-party mobile payment apps interact (through proprietary mechanisms) with user agents, or how user agents themselves provide simple payment app functionality.
ServiceWorkerRegistration
interface
This specification extends the ServiceWorkerRegistration
interface with the addition of a paymentManager
attribute.
partial interface ServiceWorkerRegistration
{
readonly attribute PaymentManager paymentManager
;
};
[SecureContext,
Exposed=(Window,Worker)]
interface PaymentManager {
[SameObject]
readonly attribute PaymentInstruments
instruments
;
[Exposed=Window] static Promise<PermissionState> requestPermission();
attribute DOMString userHint
;
};
The PaymentManager is used by payment apps to manage their associated instruments and supported payment methods.
instruments
attribute
This attribute allows manipulation of payment instruments associated with a service worker (and therefore its payment handler). To be a candidate payment handler, a handler must have at least one registered payment instrument to present to the user. That instrument needs to match the payment methods and required capabilities specified by the payment request.
requestPermission()
method
The user agent is NOT REQUIRED to prompt the user to grant permission to the origin for each new supported payment method or new payment instrument.
When called, this method executes the following steps:
userHint
attribute
When displaying payment handler name and icon, the user agent may use this string to improve the user experience. For example, a user hint of "**** 1234" can remind the user that a particular card is available through this payment handler. When a agent displays all payment instruments available through a payment handler, it may cause confusion to display the additional hint.
PaymentInstruments
interface
[SecureContext,
Exposed=(Window,Worker)]
interface PaymentInstruments
{
Promise<boolean> delete(DOMString instrumentKey);
Promise<any> get(DOMString instrumentKey);
Promise<sequence<DOMString>> keys();
Promise<boolean> has(DOMString instrumentKey);
Promise<void> set(DOMString instrumentKey,
PaymentInstrument
details);
Promise<void> clear();
};
The PaymentInstruments
interface represents a collection of
payment instruments, each uniquely identified by an
instrumentKey. The instrumentKey identifier
will be passed to the payment handler to indicate the
PaymentInstrument
selected by the user, if any.
delete()
method
When called, this method executes the following steps:
PaymentInstrument
with a
matching instrumentKey, remove it from the collection
and resolve p with true.
get()
method
When called, this method executes the following steps:
PaymentInstrument
with a
matching instrumentKey, resolve p with that
PaymentInstrument
.
undefined
.
keys()
method
When called, this method executes the following steps:
PaymentInstrument
s
contained in the collection, in original insertion order.
has()
method
When called, this method executes the following steps:
PaymentInstrument
with a
matching instrumentKey, resolve p with
true.
set()
method
When called, this method executes the following steps:
NotAllowedError
.
icons
member of
details is present, then:
icons
member of
details is present, then for each icon in
details.icons
:
PaymentInstrument
with a
matching instrumentKey, replace it with the
PaymentInstrument
in details.
PaymentInstrument
in
details as a new member of the collection and associate
it with the key instrumentKey.
clear()
method
When called, this method executes the following steps:
PaymentInstrument
s from the collection and
resolve p.
PaymentInstrument
dictionary
dictionary PaymentInstrument
{
required DOMString name
;
sequence<ImageObject
> icons
;
sequence<DOMString> enabledMethods
;
object capabilities
;
};
name
member
name
member is a string that represents the label for
this PaymentInstrument
as it is usually displayed to the
user.
icons
member
icons
member is an array of image objects that can
serve as iconic representations of the payment instrument when
presented to the user for selection.
enabledMethods
member
enabledMethods
member is a list of one or more
payment method identifiers of the payment methods
supported by this instrument.
capabilities
member
capabilities
member is a list of
payment-method-specific capabilities that this payment handler is
capable of supporting for this instrument. For example, for the
basic-card payment method, this object will consist of an
object with two fields: one for supportedNetworks, and
another for supportedTypes.
ImageObject
dictionary
src
member
src
member is used to specify the ImageObject
's
source. It is a URL from which the user agent can fetch the
image’s data.
sizes
member
sizes
member is used to specify the
ImageObject
's sizes. It follows the spec of sizes member
in HTML link element,
which is a string consisting of an unordered
set of unique space-separated tokens which are ASCII case-insensitive that
represents the dimensions of an image. Each keyword is either an
ASCII
case-insensitive match for the string "any", or a value that
consists of two valid non-negative integers that do not have a
leading U+0030 DIGIT ZERO (0) character and that are separated by
a single U+0078 LATIN SMALL LETTER X or U+0058 LATIN CAPITAL
LETTER X character. The keywords represent icon sizes in raw
pixels (as opposed to CSS pixels). When multiple image objects
are available, a user agent MAY use the value to decide which
icon is most suitable for a display context (and ignore any that
are inappropriate). The parsing steps for the sizes
member
MUST follow the parsing
steps for HTML link element sizes attribute.
type
member
type
member is used to specify the
ImageObject
's MIME type. It is a hint as to the media type
of the image. The purpose of this member is to allow a user agent
to ignore images of media types it does not support.
When this algorithm with inputImages parameter is invoked, the user agent must run the following steps:
ImageObject
.
type
is not a valid MIME type or
the value of type is not a supported media format, then return
an empty Sequence of ImageObject
.
sizes
is not a valid value, then return an empty
Sequence of ImageObject
.
src
with the
context object's
relevant settings
object's API base
URL.
ImageObject
.
ImageObject
.
src
to url.
According to the step 2.3, it is also possible to use the relative
url for image.src
. The
following examples illustrate how relative URL resolution works in
different execution contexts.
<-- In this example, code is located in https://www.example.com/bobpay/index.html -->
<script>
const instrumentKey = "c8126178-3bba-4d09-8f00-0771bcfd3b11";
const { registration } = await navigator.serviceWorker.register("/register/sw.js");
await registration.paymentManager.paymentInstruments.set({
instrumentKey,
{
name: "My Bob Pay Account: john@example.com",
enabledMethods: ["https://bobpay.com/"],
icons: [{
src: "icon/lowres.webp",
sizes: "48x48",
type: "image/webp"
}]
});
const { storedInstrument } =
await registration.paymentManager.paymentInstruments.get(instrumentKey);
// storedInstrument.icons[0].src == "https://www.example.com/bobpay/icon/lowres.webp";
</script>
// In this example, code is located in https://www.example.com/register/sw.js
const instrumentKey = "c8126178-3bba-4d09-8f00-0771bcfd3b11";
await self.registration.paymentManager.paymentInstruments.set({
instrumentKey,
{
name: "My Bob Pay Account: john@example.com",
enabledMethods: ["https://bobpay.com/"],
icons: [{
src: "../bobpay/icon/lowres.webp",
sizes: "48x48",
type: "image/webp"
}]
});
const { storedInstrument } =
await registration.paymentManager.paymentInstruments.get(instrumentKey);
// storedInstrument.icons[0].src == "https://www.example.com/bobpay/icon/lowres.webp";
This section is non-normative.
The following example shows how to register a payment handler:
button.addEventListener("click", async() => {
if (!window.PaymentManager) {
return; // not supported, so bail out.
}
const result = await PaymentManager.requestPermission();
if (result !== "granted") {
return;
}
const { registration } =
await navigator.serviceWorker.register('/sw.js');
// Excellent, we got it! Let's now set up the user's cards.
await addInstruments(registration);
}, { once: true });
function addInstruments(registration) {
return Promise.all([
registration.paymentManager.instruments.set(
"dc2de27a-ca5e-4fbd-883e-b6ded6c69d4f",
{
name: "Visa ending ****4756",
enabledMethods: ["basic-card"],
capabilities: {
supportedNetworks: ['visa'],
supportedTypes: ['credit']
}
}),
registration.paymentManager.instruments.set(
"c8126178-3bba-4d09-8f00-0771bcfd3b11",
{
name: "My Bob Pay Account: john@example.com",
enabledMethods: ["https://bobpay.com/"]
}),
registration.paymentManager.instruments.set(
"new-card",
{
name: "Add new credit/debit card to ExampleApp",
enabledMethods: ["basic-card"],
capabilities: {
supportedNetworks:
['visa','mastercard','amex','discover'],
supportedTypes: ['credit','debit','prepaid']
}
}),
]);
};
After applying the matching algorithm defined in Payment Request API, the user agent displays a list of instruments from matching payment apps for the user to make a selection. This specification includes a limited number of display requirements; most user experience details are left to implementers.
The second bullet above may be amended to remove explicit mention of ordering defined by the payee.
The following are examples of payment handler ordering:
The Working Group has discussed two types of merchant preferences related to payment apps: (1) highlighting merchant-preferred payment apps already registered by the user and (2) recommending payment apps not yet registered by the user. The current draft of the specification does not address either point, and the Working Group is seeking feedback on the importance of these use cases. Note that for the second capability, merchants can recommend payment apps through other mechanisms such as links from their web sites.
The user agent MUST enable the user to select any displayed instrument.
The Working Group is discussing how default payment instrument display could further streamline the user experience.
Users agents may wish to enable the user to select individual displayed Instruments. The payment handler would receive information about the selected Instrument and could take action, potentially eliminating an extra click (first open the payment app then select the Instrument).
Once the user has selected an Instrument, the user agent fires a
PaymentRequestEvent
and uses the subsequent
PaymentHandlerResponse
to create a PaymentReponse for
[payment-request].
Payment Request API supports delegation of responsibility to manage an abort to a payment app. There is a proposal to add a paymentRequestAborted event to the Payment Handler interface. The event will have a respondWith method that takes a boolean parameter indicating if the paymentRequest has been successfully aborted.
ServiceWorkerGlobalScope
This specification extends the ServiceWorkerGlobalScope
interface.
partial interface ServiceWorkerGlobalScope
{
attribute EventHandler onpaymentrequest
;
};
onpaymentrequest
attribute
The onpaymentrequest
attribute is an event handler
whose corresponding event handler event type is
PaymentRequestEvent
.
PaymentRequestEvent
The PaymentRequestEvent represents the data and methods available to a Payment Handler after selection by the user. The user agent communicates a subset of data available from the PaymentRequest to the Payment Handler.
[Constructor(DOMString type, PaymentRequestEventInit
eventInitDict),
Exposed=ServiceWorker]
interface PaymentRequestEvent
: ExtendableEvent {
readonly attribute USVString topLevelOrigin
;
readonly attribute USVString paymentRequestOrigin
;
readonly attribute DOMString paymentRequestId
;
readonly attribute FrozenArray<PaymentMethodData> methodData
;
readonly attribute object total
;
readonly attribute FrozenArray<PaymentDetailsModifier> modifiers
;
readonly attribute DOMString instrumentKey
;
Promise<WindowClient?> openWindow(USVString url);
void respondWith(Promise<PaymentHandlerResponse
> handlerResponsePromise);
};
topLevelOrigin
attribute
This attribute is a string that indicates the origin of the top level payee web page. The string MUST be formatted according to the "Unicode Serialization of an Origin" algorithm defined in section 6.1 of [RFC6454].
paymentRequestOrigin
attribute
This attribute is a string that indicates the origin where a PaymentRequest was
initialized. When a PaymentRequest is initialized in the
topLevelOrigin
, the attributes have the same value,
otherwise the attributes have different values. For example, when a
PaymentRequest is initialized within an iframe from an
origin other than topLevelOrigin
, the value of this
attribute is the origin of the iframe. The string MUST be formatted
according to the "Unicode
Serialization of an Origin" algorithm defined in section 6.1 of
[RFC6454].
paymentRequestId
attribute
When getting, the paymentRequestId
attribute returns the
[[details]].id from the PaymentRequest that
corresponds to this PaymentRequestEvent
.
methodData
attribute
This attribute contains PaymentMethodData dictionaries containing the payment method identifiers for the payment methods that the web site accepts and any associated payment method specific data. It is populated from the PaymentRequest using the MethodData Population Algorithm defined below.
total
attribute
This attribute indicates the total amount being requested for
payment. It is of type PaymentCurrencyAmount dictionary as
defined in [payment-request], and initialized with a
structured clone of the total
field of the
PaymentDetailsInit provided when the corresponding
PaymentRequest object was instantiated.
modifiers
attribute
This sequence of PaymentDetailsModifier dictionaries contains modifiers for particular payment method identifiers (e.g., if the payment amount or currency type varies based on a per-payment-method basis). It is populated from the PaymentRequest using the Modifiers Population Algorithm defined below.
instrumentKey
attribute
This attribute indicates the PaymentInstrument
selected by
the user. It corresponds to the instrumentKey
provided to the
PaymentManager.instruments interface during registration. An
empty string means that the user did not choose a specific
PaymentInstrument
.
openWindow()
method
This method is used by the payment handler to show a window to the user. When called, it runs the open window algorithm.
respondWith()
method
This method is used by the payment handler to provide a
PaymentHandlerResponse
when the payment successfully
completes. When called, it runs the Respond to PaymentRequest
Algorithm with event and
handlerResponsePromise as arguments.
Should payment apps receive user data stored in the user agent upon explicit consent from the user? The payment app could request permission either at installation or when the payment app is first invoked.
PaymentRequestEventInit
dictionary
dictionary PaymentRequestEventInit
: ExtendableEventInit {
USVString topLevelOrigin
;
USVString paymentRequestOrigin
;
DOMString paymentRequestId
;
sequence<PaymentMethodData> methodData
;
PaymentCurrencyAmount total
;
sequence<PaymentDetailsModifier> modifiers
;
DOMString instrumentKey
;
};
The topLevelOrigin
, paymentRequestOrigin
,
paymentRequestId
, methodData
,
total
, modifiers
, and
instrumentKey
members share their definitions with those
defined for PaymentRequestEvent
To initialize the value of the methodData
, the user agent
MUST perform the following steps or their equivalent:
PaymentInstrument
instrument in the
payment handler's PaymentManager.instruments
,
add all entries in instrument.enabledMethods
to
registeredMethods.
methodData
to dataList.
To initialize the value of the modifiers
, the user agent
MUST perform the following steps or their equivalent:
PaymentInstrument
instrument in the
payment handler's PaymentManager.instruments
,
add all entries in instrument.enabledMethods
to
registeredMethods.
modifiers
in the corresponding payment request, perform the following steps:
total
to a structured
clone of inModifier.total
.
modifiers
to modifierList.
Instances of PaymentRequestEvent
are created with the internal
slots in the following table:
Internal Slot | Default Value | Description (non-normative) |
---|---|---|
[[windowClient]] | null | The currently active WindowClient. This is set if a payment handler is currently showing a window to the user. Otherwise, it is null. |
[[fetchedImage]] | undefined | This value is a result of fetching image object or a fallback image provided by the user agent. |
[[respondWithCalled]] | false | YAHO |
Upon receiving a PaymentRequest by way of PaymentRequest.show() and subsequent user selection of a payment instrument, the user agent MUST run the following steps:
ServiceWorkerRegistration
corresponding to the
PaymentInstrument
selected by the user.
InvalidStateError
" and
terminate these steps.
ServiceWorkerRegistration
of registration and
callbackSteps set to the following steps:
PaymentRequestEvent
interface, with the event type
paymentrequest, which does not bubble, cannot be canceled,
and has no default action.
topLevelOrigin
attribute
of e to the origin of the top level payee web page.
paymentRequestOrigin
attribute of e to the origin of the context where
PaymentRequest was initialized.
paymentRequestId
attribute of e to the [[details]].id from the
PaymentRequest.
methodData
and modifiers
attributes of
e by executing the MethodData Population Algorithm
and Modifiers Population Algorithm respectively.
total
attribute of e to a structured clone of the
total field on the PaymentDetailsInit from the
corresponding PaymentRequest.
instrumentKey
attribute
of e to the instrumentKey of the selected
PaymentInstrument
, or the empty string if none was
selected.
PaymentHandlerResponse
, reject the Promise that was
created by PaymentRequest.show() with a
DOMException whose value "OperationError
".
An invoked payment handler may or may not need to display information about itself or request user input. Some examples of potential payment handler display include:
A payment handler that requires visual display and user interaction, may call openWindow() to display a page to the user.
Since user agents know that this method is connected to the
PaymentRequestEvent
, they SHOULD render the window in a way that
is consistent with the flow and not confusing to the user. The
resulting window client is bound to the tab/window that initiated the
PaymentRequest. A single payment handler SHOULD NOT be
allowed to open more than one client window using this method.
This algorithm resembles the Open Window Algorithm in the Service Workers specification.
Should we refer to the Service Workers specification instead of copying their steps?
PaymentRequestEvent
.
PaymentRequestEvent
.
about:blank
, return a
Promise rejected with a TypeError
.
InvalidAccessError
.
InvalidStateError
" and
abort these steps.
PaymentRequestEvent
This section is non-normative.
This example shows how to write a service worker that listens to the
PaymentRequestEvent
. When a PaymentRequestEvent
is
received, the service worker opens a window to interact with the
user.
self.addEventListener('paymentrequest', function(e) {
e.respondWith(new Promise(function(resolve, reject) {
self.addEventListener('message', listener = function(e) {
self.removeEventListener('message', listener);
if (e.data.hasOwnProperty('name')) {
reject(e.data);
} else {
resolve(e.data);
}
});
e.openWindow("https://www.example.com/bobpay/pay")
.then(function(windowClient) {
windowClient.postMessage(e.data);
})
.catch(function(err) {
reject(err);
});
}));
});
The Web Payments Working Group plans to revisit these two examples.
Using the simple scheme described above, a trivial HTML page that is loaded into the payment handler window to implement the basic card scheme might look like the following:
<form id="form">
<table>
<tr><th>Cardholder Name:</th><td><input name="cardholderName"></td></tr>
<tr><th>Card Number:</th><td><input name="cardNumber"></td></tr>
<tr><th>Expiration Month:</th><td><input name="expiryMonth"></td></tr>
<tr><th>Expiration Year:</th><td><input name="expiryYear"></td></tr>
<tr><th>Security Code:</th><td><input name="cardSecurityCode"></td></tr>
<tr><th></th><td><input type="submit" value="Pay"></td></tr>
</table>
</form>
<script>
window.addEventListener("message", function(e) {
var form = document.getElementById("form");
/* Note: message sent from payment app is available in e.data */
form.onsubmit = function() {
/* See https://w3c.github.io/webpayments-methods-card/#basiccardresponse */
var basicCardResponse = {};
[ "cardholderName", "cardNumber","expiryMonth","expiryYear","cardSecurityCode"]
.forEach(function(field) {
basicCardResponse[field] = form.elements[field].value;
});
/* See https://w3c.github.io/payment-handler/#paymenthandlerresponse-dictionary */
var paymentAppResponse = {
methodName: "basic-card",
details: details
};
e.source.postMessage(paymentAppResponse);
window.close();
}
});
</script>
PaymentHandlerResponse
dictionary
dictionary PaymentHandlerResponse
{
DOMString methodName
;
object details
;
};
methodName
attribute
The payment method identifier for the payment method that the user selected to fulfil the transaction.
details
attribute
A JSON-serializable object that provides a payment method specific message used by the merchant to process the transaction and determine successful fund transfer.
The user agent receives a successful response from the payment
handler through resolution of the Promise provided to the
respondWith()
function of the corresponding PaymentRequestEvent
interface.
The application is expected to resolve the Promise with a
PaymentHandlerResponse
instance containing the payment
response. In case of user cancellation or error, the application
may signal failure by rejecting the Promise.
If the Promise is rejected, the user agent MUST run the payment app failure algorithm. The exact details of this algorithm are left to implementers. Acceptable behaviors include, but are not limited to:
When this algorithm is invoked with event and handlerResponsePromise parameters, the user agent MUST run the following steps:
InvalidStateError
" DOMException and
abort these steps.
InvalidStateError
" DOMException and abort these
steps.
PaymentHandlerResponse
dictionary. If this throws an exception, run the
payment app failure algorithm and terminate these steps.
methodName
is not present
or not set to one of the values from
event.methodData
,
run the payment app failure algorithm and terminate
these steps.
details
is not present or
not JSON-serializable, run the payment app failure
algorithm and terminate these steps.
methodName
. Rethrow any
exceptions.
details
. Rethrow any
exceptions.
The following example shows how to respond to a payment request:
paymentRequestEvent.respondWith(new Promise(function(accept,reject) {
/* ... processing may occur here ... */
accept({
methodName: "basic-card",
details: {
cardHolderName: "John Smith",
cardNumber: "1232343451234",
expiryMonth: "12",
expiryYear : "2020",
cardSecurityCode: "123"
}
});
}));
[payment-request] defines an ID that parties in the ecosystem (including payment app providers and payees) can use for reconciliation after network or other failures.
The Web Payments Working Group is also discussing Payment App authenticity; see the (draft) Payment Method Manifest.
This specification relies on several other underlying specifications.
TypeError
,
and JSON.stringify
are
defined by [ECMASCRIPT].
When this specification says to throw an error, the user agent must throw an error as described in [WEBIDL]. When this occurs in a sub-algorithm, this results in termination of execution of the sub-algorithm and all ancestor algorithms until one is reached that explicitly describes procedures for catching exceptions.
The algorithm for converting an ECMAScript value to a dictionary is defined by [WEBIDL].
DOMException and the following DOMException types from [WEBIDL] are used:
ServiceWorkerRegistration
,
ServiceWorkerGlobalScope
,
handle
functional event, extend lifetime
promises,pending promises
count, containing
service worker registration, uninstalling flag,
Try Clear
Registration, Try Activate, and
scope URL are
defined in [SERVICE-WORKERS].
partial interfaceServiceWorkerRegistration
{ readonly attribute PaymentManagerpaymentManager
; }; [SecureContext, Exposed=(Window,Worker)] interface PaymentManager { [SameObject] readonly attributePaymentInstruments
instruments
; [Exposed=Window] static Promise<PermissionState> requestPermission(); attribute DOMStringuserHint
; }; [SecureContext, Exposed=(Window,Worker)] interfacePaymentInstruments
{ Promise<boolean> delete(DOMString instrumentKey); Promise<any> get(DOMString instrumentKey); Promise<sequence<DOMString>> keys(); Promise<boolean> has(DOMString instrumentKey); Promise<void> set(DOMString instrumentKey,PaymentInstrument
details); Promise<void> clear(); }; dictionaryPaymentInstrument
{ required DOMStringname
; sequence<ImageObject
>icons
; sequence<DOMString>enabledMethods
; objectcapabilities
; }; dictionaryImageObject
{ required USVStringsrc
; DOMStringsizes
; DOMStringtype
; }; partial interfaceServiceWorkerGlobalScope
{ attribute EventHandleronpaymentrequest
; }; [Constructor(DOMString type,PaymentRequestEventInit
eventInitDict), Exposed=ServiceWorker] interfacePaymentRequestEvent
: ExtendableEvent { readonly attribute USVStringtopLevelOrigin
; readonly attribute USVStringpaymentRequestOrigin
; readonly attribute DOMStringpaymentRequestId
; readonly attribute FrozenArray<PaymentMethodData>methodData
; readonly attribute objecttotal
; readonly attribute FrozenArray<PaymentDetailsModifier>modifiers
; readonly attribute DOMStringinstrumentKey
; Promise<WindowClient?> openWindow(USVString url); void respondWith(Promise<PaymentHandlerResponse
> handlerResponsePromise); }; dictionaryPaymentRequestEventInit
: ExtendableEventInit { USVStringtopLevelOrigin
; USVStringpaymentRequestOrigin
; DOMStringpaymentRequestId
; sequence<PaymentMethodData>methodData
; PaymentCurrencyAmounttotal
; sequence<PaymentDetailsModifier>modifiers
; DOMStringinstrumentKey
; }; dictionaryPaymentHandlerResponse
{ DOMStringmethodName
; objectdetails
; };
