Payment Handler API

2. Conformance

As well as sections marked as non-normative, all authoring guidelines, diagrams, examples, and notes in this specification are non-normative. Everything else in this specification is normative.

The key words MAY, MUST, NOT REQUIRED, SHOULD, and SHOULD NOT are to be interpreted as described in [RFC2119].

This specification defines one class of products:

Conforming user agent

A user agent MUST behave as described in this specification to be considered conformant. In this specification, user agent means a Web browser or other interactive user agent as defined in [HTML5].

User agents MAY implement algorithms given in this specification in any way desired, so long as the end result is indistinguishable from the result that would be obtained by the specification's algorithms.

A conforming Payment Handler API user agent MUST also be a conforming implementation of the IDL fragments of this specification, as described in the “Web IDL” specification. [ WEBIDL-LS]

Note

3. Dependencies

This specification relies on several other underlying specifications.

Payment Request API

The terms payment method, PaymentRequest, PaymentResponse, supportedMethods, paymentDetailsModifier, paymentDetailsInit, PaymentMethodData, PaymentItem, ID, show(), and user accepts the payment request algorithm are defined by the Payment Request API specification [payment-request].

ECMA-262 6th Edition, The ECMAScript 2015 Language Specification

The terms Promise, internal slot,


          TypeError

, and JSON.stringify are defined by [ECMA-262-2015].

The term JSON-serialize applied to a given object means to run the algorithm specified by the original value of the JSON.stringify function on the supplied object, passing the supplied object as the sole argument, and return the resulting string. This can throw an exception.

Payment Method Identifiers

The terms payment method identifier is defined by the Payment Method Identifier specification [payment-method-id].

Basic Card Payment

The terms basic-card, supportedNetworks, and supportedTypes are defined in [payment-method-basic-card].

HTML5

The terms global object, top-level browsing context, structured clone, event handler, event handler event type, trusted event, and user interaction task source are defined by [HTML5].

RFC6454

The term origin is defined in [RFC6454].

DOM

The term fires (an event) is defined in [DOM4].

Web IDL

DOMException and the following DOMException types from [WEBIDL-LS] are used:

Secure Contexts

The term secure context is defined by the Secure Contexts specification [ SECURE-CONTEXTS].

Service Workers

The terms service worker, service worker client, ServiceWorkerRegistration, ServiceWorkerGlobalScope, handle functional event, extend lifetime promises, and scope URL are defined in [ SERVICE-WORKERS].

4. Overview of Handling Payment Requests

In this document we envision the following flow:

An origin requests permission from the user to handle payment requests for a set of supported payment methods. For example, a user visiting a retail or bank site may be prompted to register a payment handler from that origin. The origin establishes the scope of the permission but the origin's capabilities may evolve without requiring additional user consent. Although from a permissions perspective there is a single Web app per origin, this specification provides mechanisms to origins for flexible structuring and display of instruments and wallets.
Payment handlers are defined in service worker code.
During service worker registration, the PaymentManager is used to set:
- A list of enabled payment methods.
- [Optionally] the conditions under which the handler supports a given payment method; these capabilities play a role in matching computations.
- Information for organizing the display and grouping of instruments and wallets supported by the payment handler.
When the merchant (or other payee) calls the [ payment-request] method show() (e.g., when the user pushes a button on a checkout page), the user agent computes a list of candidate payment handlers, comparing the payment methods accepted by the merchant with those supported by registered payment handlers. For payment methods that support additional filtering, merchant and payment handler capabilities are compared as part of determining whether there is a match.
The user agent displays a set of choices to the user: the registered instruments of the candidate payment handlers. The user agent displays and groups these choices according to information (labels and icons) provided at registration or otherwise available from the Web app.
When the user (the payer) selects an instrument, the user agent fires a PaymentRequestEvent (cf. the user interaction task source) in the service worker whose PaymentManager the instrument was registered with. The PaymentRequestEvent includes some information from the PaymentRequest (defined in [ payment-request]) as well as additional information (e.g., origin and selected instrument).
Once activated, the payment handler performs whatever steps are necessary to handle the payment request, and return an appropriate payment response to the payee. If interaction with the user is necessary, the payment handler can open a window for that purpose.
The user agent receives a response asynchronously once the payment handler has finished handling the request. The response becomes the PaymentResponse (of [payment-request]).

Note

An origin may implement a payment app with more than one service worker and therefore multiple payment handlers may be registered per origin. The handler that is invoked is determined by the selection made by the user of a payment instrument. The service worker which stored the payment instrument with its PaymentManager is the one that will be invoked.

4.1 Handling a Payment Request

This section is non-normative.

The logic of a payment handler is driven by the payment methods that it supports. Some payment methods, such as basic-card expect little to no processing by the payment handler which simply returns payment card details in the response. It is then the job of the payee website to process the payment using the returned data as input.

In contrast, some payment methods, such as a crypto-currency payments or bank originated credit transfers, require that the payment handler initiate processing of the payment. In such cases the payment handler will return a payment reference, endpoint URL or some other data that the payee website can use to determine the outcome of the payment (as opposed to processing the payment itself).

Handling a payment request may include numerous interactions: with the user through a new window or other APIs (such as [ WebCryptoAPI]) or with other services and origins through web requests or other means.

This specification does not address these activities that occur between the payment handler accepting the PaymentRequestEvent and the payment handler returning a response. All of these activities which may be required to configure the payment handler and handle the payment request, are left to the implementation of the payment handler, including:

how the user establishes an account with an origin that provides payment services.
how an origin authenticates a user.
how communication takes place between the payee server and the payee Web application, or between a payment app origin and other parties.

Thus, an origin will rely on many other Web technologies defined elsewhere for lifecycle management, security, user authentication, user interaction, and so on.

4.2 Structure of a Web Payment App

This section is non-normative.

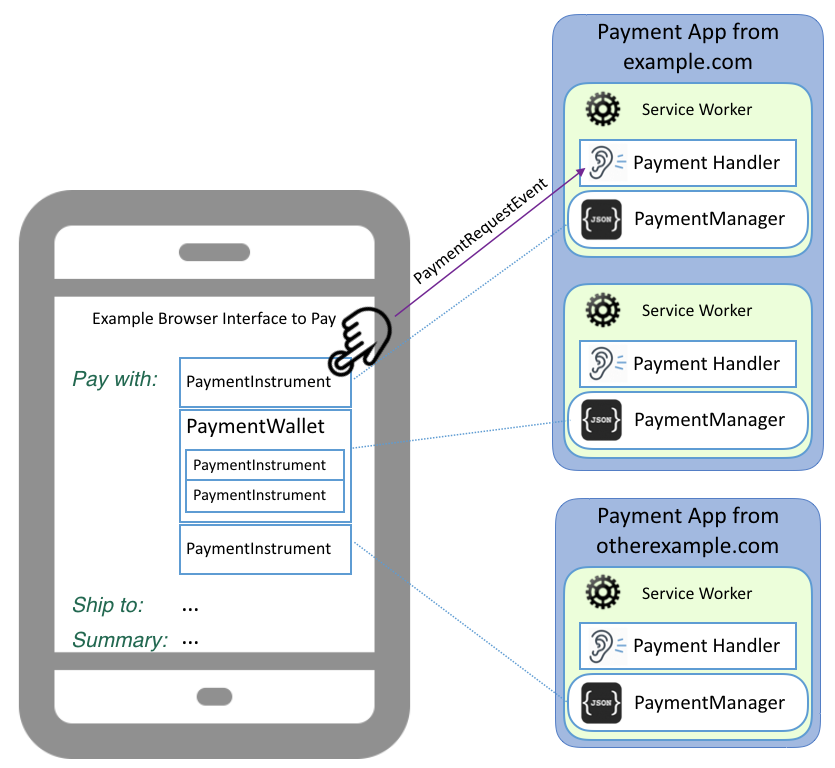

Architecture of a (Web) payment apps as defined in this specification. — Figure 1 A Web payment app is associated with an origin. Payment handlers respond to PaymentRequestEvents. PaymentManagers manage the definition, display, and user selection of PaymentInstruments. A PaymentInstrument supports one or more payment methods. A PaymentWallet contains one or more PaymentInstruments and may be used to enhance the user experience (e.g., business wallet and personal wallet).

4.3 Relation to Other Types of Payment Apps

This section is non-normative.

This specification does not address how third-party mobile payment apps interact (through proprietary mechanisms) with user agents, or how user agents themselves provide simple payment app functionality.

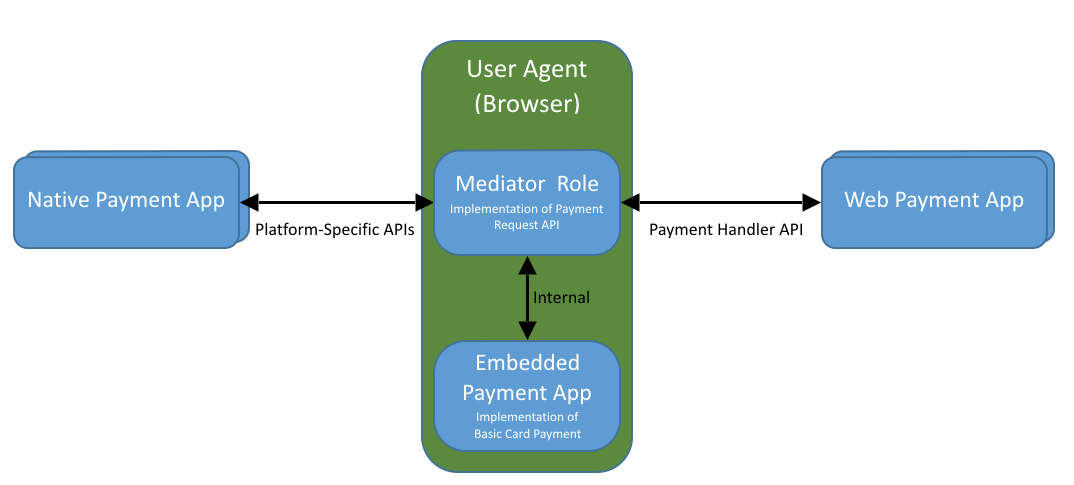

Different types of payment apps. Payment Handler API is for Web apps. — Figure 2 Payment Handler API enables Web apps to handle payments. Other types of payment apps may use other (proprietary) mechanisms.

5. Registration

5.1 Extension to the `ServiceWorkerRegistration` interface

This specification extends the ServiceWorkerRegistration interface with the addition of a paymentManager attribute.

partial interface ServiceWorkerRegistration {
    readonly attribute PaymentManager paymentManager;
};

5.2 PaymentManager interface

[SecureContext]
interface PaymentManager {
    [SameObject]
    readonly attribute PaymentInstruments instruments;
    [SameObject]
    readonly attribute PaymentWallets     wallets;
    [Exposed=Window]
    static Promise<PermissionState> requestPermission();
};

The PaymentManager is used by payment apps to manage their associated wallets, instruments and supported payment methods.

5.2.1 `instruments` attribute

This attribute allows manipulation of payment instruments associated with a service worker (and therefore its payment handler). To be a candidate payment handler, a handler must have at least one registered payment instrument to present to the user. That instrument needs to match the payment methods and required capabilities specified by the payment request.

5.2.2 `wallets` attribute

This attribute is used to group payment instruments (e.g., to group together "business account" payment instruments separately from "personal account" payment instruments). Developers can provide a name and icon for such a group. The use of this grouping mechanism by payment handlers is completely optional. If payment handlers use this grouping mechanism, then matching payment instruments that do not appear in any groups should still be presented to users by the user agent for selection.

Issue 98: Support grouped display of payment instruments?

Should the API support providing grouping information ("wallets") to the user agent? What should requirements be on user agents to display or provide for user interaction with this information?

5.2.3 `requestPermission()` method

Note

The user agent is NOT REQUIRED to prompt the user to grant permission to the origin for each new supported payment method.

When called, this method executes the following steps:

Let p be a new promise.
Run the following steps in parallel:
1. Let permission be the result of running retrieve the permission state algorithm of the permission associated with payment handler's origin.
2. If permission is "prompt", ask the user whether allowing adding new payment instruments for the current settings object's origin is acceptable. If it is, set permission to "granted", and "denied" otherwise.
3. Resolve p with permission.
Return p

5.3 `PaymentInstruments` interface

interface PaymentInstruments {
    Promise<boolean>             delete(DOMString instrumentKey);
    Promise<PaymentInstrument>   get(DOMString instrumentKey);
    Promise<sequence<DOMString>> keys();
    Promise<boolean>             has(DOMString instrumentKey);
    Promise<void>                set(DOMString instrumentKey,
                                     PaymentInstrument details);
    Promise<void>                clear();
};

The PaymentInstruments interface represents a collection of payment instruments, each uniquely identified by an instrumentKey. The instrumentKey identifier will be passed to the payment handler to indicate the PaymentInstrument selected by the user.

5.3.1 `delete()` method

When called, this method executes the following steps:

Let p be a new promise.
Run the following steps in parallel:
1. If the collection contains a PaymentInstrument with a matching instrumentKey, remove it from the collection and resolve p with true.
2. Otherwise, resolve p with false.
Return p

5.3.2 `get()` method

When called, this method executes the following steps:

Let p be a new promise.
Run the following steps in parallel:
1. If the collection contains a PaymentInstrument with a matching instrumentKey, resolve p with that PaymentInstrument.
2. Otherwise, reject p with a DOMException whose value is "NotFoundError".
Return p

5.3.3 `keys()` method

When called, this method executes the following steps:

Let p be a new promise.
Run the following steps in parallel:
1. Resolve p with a Sequence that contains all the instrumentKeys for the PaymentInstruments contained in the collection, in original insertion order.
Return p

5.3.4 `has()` method

When called, this method executes the following steps:

Let p be a new promise.
Run the following steps in parallel:
1. If the collection contains a PaymentInstrument with a matching instrumentKey, resolve p with true.
2. Otherwise, resolve p with false.
Return p

5.3.5 `set()` method

When called, this method executes the following steps:

Let permission be the result of running retrieving the permission state of the permission associated with payment handler's origin.
If permission is not "granted", then return a Promise rejected with a NotAllowedError.
If the icons member of details is present, then:
1. Let convertedIcons be the result of running the convert image objects algorithm passing details.icons as the argument.
2. If the convertedIcons is an empty Sequence, then return a Promise rejected with a TypeError.
3. Set details.icons to convertedIcons.
Let p be a new promise.
Run the following steps in parallel:
1. If the icons member of details is present, then for each icon in details.icons:
  1. If the user agent wants to display the icon, then:
    1. Let fetchedImage be the result of running the fetching image object passing icon as the argument.
    2. Set icon.[[fetchedImage]] to fetchedImage.
2. If the collection contains a PaymentInstrument with a matching instrumentKey, replace it with the PaymentInstrument in details.
3. Otherwise, insert the PaymentInstrument in details as a new member of the collection and associate it with the key instrumentKey.
4. Resolve p.
Return p

5.3.6 `clear()` method

When called, this method executes the following steps:

Let p be a new promise.
Run the following steps in parallel:
1. Remove all PaymentInstruments from the collection and resolve p.
Return p

Issue 129: Clear()

It be useful to have a clear() method for interfaces that store things.

5.4 `PaymentInstrument` dictionary

dictionary PaymentInstrument {
    required DOMString             name;
             sequence<ImageObject> icons;
             sequence<DOMString>   enabledMethods;
             object                capabilities;
};

name member: The name member is a string that represents the label for this PaymentInstrument as it is usually displayed to the user.
icons member: The icons member is an array of image objects that can serve as iconic representations of the payment instrument when presented to the user for selection.
enabledMethods member: The enabledMethods member is a list of one or more payment method identifiers of the payment methods supported by this instrument.
capabilities member: The capabilities member is a list of payment-method-specific capabilities that this payment handler is capable of supporting for this instrument. For example, for the basic-card payment method, this object will consist of an object with two fields: one for supportedNetworks, and another for supportedTypes.

5.5 `PaymentWallets` interface

interface PaymentWallets {
    Promise<boolean>             delete(DOMString walletKey);
    Promise<PaymentWallet>       get(DOMString walletKey);
    Promise<sequence<DOMString>> keys();
    Promise<boolean>             has(DOMString walletKey);
    Promise<void>                set(DOMString walletKey,
                                     PaymentWallet details);
    Promise<void>                clear();
};

Wallets are collections of payment instruments.

Where it appears, the walletKey argument is a unique identifier for the wallet.

5.5.1 `delete()` method

When called, this method executes the following steps:

Let p be a new promise.
Run the following steps in parallel:
1. If the collection contains a PaymentWallet with a matching walletKey, remove it from the collection and resolve p with true.
2. Otherwise, resolve p with false.
Return p

5.5.2 `get()` method

When called, this method executes the following steps:

Let p be a new promise.
Run the following steps in parallel:
1. If the collection contains a PaymentWallet with a matching walletKey, resolve p with that PaymentWallet.
2. Otherwise, reject p with a DOMException whose value is "NotFoundError".
Return p

5.5.3 `keys()` method

When called, this method executes the following steps:

Let p be a new promise.
Run the following steps in parallel:
1. Resolve p with a sequence that contains all the walletKeys for the PaymentWallets contained in the collection, in original insertion order.
Return p

5.5.4 `has()` method

When called, this method executes the following steps:

Let p be a new promise.
Run the following steps in parallel:
1. If the collection contains a PaymentWallet with a matching walletKey, resolve p with true.
2. Otherwise, resolve p with false.
Return p

5.5.5 `set()` method

When called, this method executes the following steps:

Let permission be the result of running retrieve the permission state algorithm of the permission associated with payment handler's origin.
If permission is not "granted", then return a Promise rejected with a NotAllowedError.
If the icons member of details is present, then:
1. Let convertedIcons be the result of running the convert image objects algorithm passing details.icons as the argument.
2. If the convertedIcons is an empty Sequence, then return a Promise rejected with a TypeError.
3. Set details.icons to convertedIcons.
Let p be a new promise.
Run the following steps in parallel:
1. If the icons member of details is present, then for each icon in details.icons:
  1. If the user agent wants to display the icon, then:
    1. Let fetchedImage be the result of running the fetching image object passing icon as the argument.
    2. Set icon.[[fetchedImage]] to fetchedImage.
2. If the collection contains a PaymentWallet with a matching walletKey, replace it with the PaymentWallet in details.
3. Otherwise, insert the PaymentWallet in details as a new member of the collection and associate it with the key walletKey.
4. Resolve p.
Return p

5.5.6 `clear()` method

When called, this method executes the following steps:

Let p be a new promise.
Run the following steps in parallel:
1. Remove all PaymentWallets from the collection and resolve p.
Return p

Issue: Clear()

See issue 129 and issue 153.

5.6 `PaymentWallet` dictionary

dictionary PaymentWallet {
    required DOMString             name;
             sequence<ImageObject> icons;
    required sequence<DOMString>   instrumentKeys;
};

name member: The name member is a string that represents the label for this wallet as it is usually displayed to the user.
icons member: The icons member is an array of image objects that can serve as iconic representations of the wallet when presented to the user for selection.
instrumentKeys member: The instrumentKeys member is a list of one or more instrumentKeys from PaymentManager.instruments, indicating which PaymentInstrument objects are associated with this Wallet, and should be displayed as being "contained in" the wallet. While it is not generally good practice, there is no restriction that prevents a PaymentInstrument from appearing in more than one Wallet.

5.7 `ImageObject` dictionary

dictionary ImageObject {
    required USVString src;
             DOMString sizes;
             DOMString type;
};

src member: The src member is used to specify the ImageObject's source. It is a URL from which the user agent can fetch the image’s data.
sizes member: The sizes member is used to specify the ImageObject's sizes. It follows the spec of sizes member in HTML link element, which is a string consisting of an unordered set of unique space-separated tokens which are ASCII case-insensitive that represents the dimensions of an image. Each keyword is either an ASCII case-insensitive match for the string "any", or a value that consists of two valid non-negative integers that do not have a leading U+0030 DIGIT ZERO (0) character and that are separated by a single U+0078 LATIN SMALL LETTER X or U+0058 LATIN CAPITAL LETTER X character. The keywords represent icon sizes in raw pixels (as opposed to CSS pixels). When multiple image objects are available, a user agent MAY use the value to decide which icon is most suitable for a display context (and ignore any that are inappropriate). The parsing steps for the sizes member MUST follow the parsing steps for HTML link element sizes attribute.
type member: The type member is used to specify the ImageObject's MIME type. It is a hint as to the media type of the image. The purpose of this member is to allow a user agent to ignore images of media types it does not support.

5.8 Convert image objects

When this algorithm with inputImages parameter is invoked, the user agent must run the following steps:

Let outputImages be an empty Sequence of ImageObject.
For each image in inputImages:
1. If image.type is not a valid MIME type or the value of type is not a supported media format, then return an empty Sequence of ImageObject.
2. If image.sizes is not a valid value, then return an empty Sequence of ImageObject.
3. Let url be the result of parsing image.src with the context object's relevant settings object's API base URL.
4. If url is failure, then return an empty Sequence of ImageObject.
5. If url's scheme is not "https", then return an empty Sequence of ImageObject.
6. Set image.src to url.
7. Append image to outputImages
Return outputImages.

According to the step 2.3, it is also possible to use the relative url for image.src. The following examples illustrate how relative URL resolution works in different execution contexts.

Example 1: Resolving the relative URL of image.src in window context.

<-- In this example, code is located in https://www.example.com/bobpay/index.html -->
<script>

const instrumentKey = "c8126178-3bba-4d09-8f00-0771bcfd3b11";
const { registration } = await navigator.serviceWorker.register("/register/sw.js");
await registration.paymentManager.paymentInstruments.set({
  instrumentKey,
  {
    name: "My Bob Pay Account: john@example.com",
    enabledMethods: ["https://bobpay.com/"],
    icons: [{
      src: "icon/lowres.webp",
      sizes: "48x48",
      type: "image/webp"
    }]
  });

const { storedInstrument } =
  await registration.paymentManager.paymentInstruments.get(instrumentKey);

// storedInstrument.icons[0].src == "https://www.example.com/bobpay/icon/lowres.webp";

</script>

Example 2: Resolving the relative URL of image.src in service worker context.

// In this example, code is located in https://www.example.com/register/sw.js

const instrumentKey = "c8126178-3bba-4d09-8f00-0771bcfd3b11";
await self.registration.paymentManager.paymentInstruments.set({
  instrumentKey,
  {
    name: "My Bob Pay Account: john@example.com",
    enabledMethods: ["https://bobpay.com/"],
    icons: [{
      src: "../bobpay/icon/lowres.webp",
      sizes: "48x48",
      type: "image/webp"
    }]
  });

const { storedInstrument } =
  await registration.paymentManager.paymentInstruments.get(instrumentKey);

// storedInstrument.icons[0].src == "https://www.example.com/bobpay/icon/lowres.webp";

5.9 Registration Example

This section is non-normative.

The following example shows how to register a payment handler:

Example 3: Payment Handler Registration

button.addEventListener("click", async() => {
  const permission =
    await navigator.permissions.query({ name: "paymenthandler" });
  switch (permission) {
    case "denied":
      return;
    case "prompt":
      const result = await registration.paymentManager.requestPermission();
      if (result !== "granted") {
        return;
      }
      break;
  }

  const { registration } =
    await navigator.serviceWorker.register('/sw.js');
  if (!registration.paymentManager) {
    return; // not supported, so bail out.
  }

  // Excellent, we got it! Let's now set up the user's cards.
  await addInstruments(registration);
}, { once: true });

function addInstruments(registration) {
  const instrumentPromises = [
    registration.paymentManager.instruments.set(
      "dc2de27a-ca5e-4fbd-883e-b6ded6c69d4f",
      {
        name: "Visa ending ****4756",
        enabledMethods: ["basic-card"],
        capabilities: {
          supportedNetworks: ['visa'],
          supportedTypes: ['credit']
        }
      }),

    registration.paymentManager.instruments.set(
      "c8126178-3bba-4d09-8f00-0771bcfd3b11",
      {
        name: "My Bob Pay Account: john@example.com",
        enabledMethods: ["https://bobpay.com/"]
      }),

    registration.paymentManager.instruments.set(
      "new-card",
      {
        name: "Add new credit/debit card to ExampleApp",
        enabledMethods: ["basic-card"],
        capabilities: {
          supportedNetworks:
            ['visa','mastercard','amex','discover'],
          supportedTypes: ['credit','debit','prepaid']
        }
      }),
    ];

    return Promise.all(instrumentPromises).then(() => {
      registration.paymentManager.wallets.set(
        "12a1b7e5-16c0-4c09-a312-9b191d08517b",
        {
          name: "Acme Bank Personal Accounts",
          icons: [
                   { src: "icon/lowres.webp",
                     sizes: "48x48",
                     type: "image/webp"
                   },
                   { src: "icon/lowres",
                     sizes: "48x48"
                   }
                 ],
          instrumentKeys: [
              "dc2de27a-ca5e-4fbd-883e-b6ded6c69d4f",
              "c8126178-3bba-4d09-8f00-0771bcfd3b11",
              "new-card"
            ]
        });
     });
  };

6. Origin and Instrument Display for Selection

After applying the matching algorithm defined in Payment Request API, the user agent displays a list of instruments from matching payment apps for the user to make a selection. This specification includes a limited number of display requirements; most user experience details are left to implementers.

6.1 Ordering of Payment Handlers

The user agent MUST favor user-side order preferences (based on user configuration or behavior) over payee-side order preferences.
The user agent MUST display matching payment handlers in an order that corresponds to the order of supported payment methods provided by the payee, except where overridden by user-side order preferences.
The user agent SHOULD allow the user to configure the display of matching payment handlers to control the ordering and define preselected defaults.

Issue 116: PR API payment method ordering and relation to this spec.

The second bullet above may be deleted based on PR API issue 481.

The following are examples of payment handler ordering:

For a given Web site, display payment handlers in an order that reflects usage patterns for the site (e.g., a frequently used payment handler at the top, or the most recently used payment handler at the top).
Enable the user to set a preferred order for a given site or for all sites.
If the origin of the site being visited by the user matches the origin of a payment handler, show the payment handler at the top of the list.

Issue 74: Merchant Preferences

The Working Group has discussed two types of merchant preferences related to payment apps: (1) highlighting merchant-preferred payment apps already registered by the user and (2) recommending payment apps not yet registered by the user. The current draft of the specification does not address either point, and the Working Group is seeking feedback on the importance of these use cases. Note that for the second capability, merchants can recommend payment apps through other mechanisms such as links from their web sites.

6.2 Display of Instruments

The user agent MUST enable the user to select any displayed instrument.

At a minimum, we expect user agents to display an icon and label for each matching origin to help the user make a selection.
In some contexts (e.g., a desktop browser) it may be possible to improve the user experience by offering additional detail to the user. For example, if the user's "bank.com" origin knows about two credit cards (thus, two potential responses to the same payment method "basic-card"), the user agent could display each credit card's brand and the last four digits of the card to remind the user which cards the origin knows about.

Issue: Display

In issue 98 there has been push-back to always requiring display of instruments (e.g., on a mobile devices). User agents can incrementally show instruments. Or user agents can return an empty instrumentKey and it becomes the payment app's responsibility to display instruments to the user.

6.3 Grouping of Instruments

At times, the same origin may wish to group instruments with greater flexibility and granularity than merely "by origin." These use cases include:

White label wallets - one origin provides wallet services for multiple vendors
Multiple user profiles with a single provider (e.g., business wallet vs personal wallet)
Multiple instruments held with a single provider

A Wallet is a grouping of instruments for display purposes.

To enable developers to build payment apps in a variety of ways, we decouple the registration (and subsequent display) of instruments from how payment handlers respond to a PaymentRequestEvent. However, the user agent is responsible for communicating the user's selection in the event.

6.4 Selection of Instruments

Users agents may wish to enable the user to select individual displayed Instruments. The payment handler would receive information about the selected Instrument and could take action, potentially eliminating an extra click (first open the payment app then select the Instrument).

Issue: selection

Again related to issue 98: Should we require that, if displayed, individual instruments must be selectable? Or should we allow flexibility that instruments may be displayed, but selecting any one invokes all registered payment handlers? One idea that has been suggested: the user agent (e.g., on a mobile device) could first display the app-level icon/logo. Upon selection, the user agent could display the Instruments in a submenu.

7. Invocation

Once the user has selected an Instrument, the user agent fires a PaymentRequestEvent and uses the subsequent PaymentHandlerResponse to create a PaymentReponse for [ payment-request].

Issue 117: Support for Abort() being delegated to Payment Handler

Payment Request API supports delegation of responsibility to manage an abort to a payment app. There is a proposal to add a paymentRequestAborted event to the Payment Handler interface. The event will have a respondWith method that takes a boolean parameter indicating if the paymentRequest has been successfully aborted.

7.1 Extension to `ServiceWorkerGlobalScope`

This specification extends the ServiceWorkerGlobalScope interface.

partial interface ServiceWorkerGlobalScope {
    attribute EventHandler onpaymentrequest;
};

7.1.1 `onpaymentrequest` attribute

The onpaymentrequest attribute is an event handler whose corresponding event handler event type is paymentrequest.

7.2 The `PaymentRequestEvent`

The PaymentRequestEvent represents a received PaymentRequest.

[Constructor(DOMString type, PaymentRequestEventInit eventInitDict),
 Exposed=ServiceWorker]
interface PaymentRequestEvent : ExtendableEvent {
    readonly attribute USVString                           topLevelOrigin;
    readonly attribute USVString                           paymentRequestOrigin;
    readonly attribute DOMString                           paymentRequestId;
    readonly attribute FrozenArray<PaymentMethodData>      methodData;
    readonly attribute object                              total;
    readonly attribute FrozenArray<PaymentDetailsModifier> modifiers;
    readonly attribute DOMString                           instrumentKey;
    Promise<WindowClient> openWindow(USVString url);
    void                  respondWith(Promise<PaymentHandlerResponse> handlerResponse);
};

7.2.1 `topLevelOrigin` attribute

This attribute is a string that indicates the origin of the top level payee web page. The string MUST be formatted according to the "Unicode Serialization of an Origin" algorithm defined in section 6.1 of [RFC6454].

7.2.2 `paymentRequestOrigin` attribute

This attribute is a string that indicates the origin where a PaymentRequest was initialized. When a PaymentRequest is initialized in the topLevelOrigin, the attributes have the same value, otherwise the attributes have different values. For example, when a PaymentRequest is initialized within an iframe from an origin other than topLevelOrigin, the value of this attribute is the origin of the iframe. The string MUST be formatted according to the "Unicode Serialization of an Origin" algorithm defined in section 6.1 of [ RFC6454].

7.2.3 `paymentRequestId` attribute

When getting, the paymentRequestId attribute returns the [[details]]. id from the PaymentRequest that corresponds to this PaymentRequestEvent.

7.2.4 `methodData` attribute

This attribute contains PaymentMethodData dictionaries containing the payment method identifiers for the payment methods that the web site accepts and any associated payment method specific data. It is populated from the PaymentRequest using the MethodData Population Algorithm defined below.

7.2.5 `total` attribute

This attribute indicates the total amount being requested for payment. It is of type PaymentItem dictionary as defined in [ payment-request], and initialized with a structured clone of the total field of the PaymentDetailsInit provided when the corresponding PaymentRequest object was instantiated.

7.2.6 `modifiers` attribute

This sequence of PaymentDetailsModifier dictionaries contains modifiers for particular payment method identifiers (e.g., if the payment amount or currency type varies based on a per-payment-method basis). It is populated from the PaymentRequest using the Modifiers Population Algorithm defined below.

7.2.7 `instrumentKey` attribute

This attribute indicates the PaymentInstrument selected by the user. It corresponds to the instrumentKey provided to the PaymentManager.instruments interface during registration.

7.2.8 `openWindow`() method

This method is used by the payment handler to show a window to the user. When called, it runs the open window algorithm.

7.2.9 `respondWith`() method

This method is used by the payment handler to provide a PaymentHandlerResponse when the payment successfully completes.

Issue 123: Share user data with payment app?

Should payment apps receive user data stored in the user agent upon explicit consent from the user? The payment app could request permission either at installation or when the payment app is first invoked.

7.2.10 `PaymentRequestEventInit` dictionary

dictionary PaymentRequestEventInit : ExtendableEventInit {
    USVString                        topLevelOrigin;
    USVString                        paymentRequestOrigin;
    DOMString                        paymentRequestId;
    sequence<PaymentMethodData>      methodData;
    PaymentItem                      total;
    sequence<PaymentDetailsModifier> modifiers;
    DOMString                        instrumentKey;
};

The topLevelOrigin, paymentRequestOrigin, paymentRequestId, methodData, total, modifiers, and instrumentKey members share their definitions with those defined for PaymentRequestEvent

7.2.11 MethodData Population Algorithm

To initialize the value of the methodData, the user agent MUST perform the following steps or their equivalent:

Set registeredMethods to an empty set.
For each PaymentInstrument instrument in the payment handler's PaymentManager.instruments, add all entries in instrument.enabledMethods to registeredMethods.
Create a new empty Sequence.
Set dataList to the newly created Sequence.
For each item in PaymentRequest@[[methodData]] in the corresponding payment request, perform the following steps:
1. Set inData to the item under consideration.
2. Set commonMethods to the set intersection of inData.supportedMethods and registeredMethods.
3. If commonMethods is empty, skip the remaining substeps and move on to the next item (if any).
4. Create a new PaymentMethodData object.
5. Set outData to the newly created PaymentMethodData.
6. Set outData.supportedMethods to a list containing the members of commonMethods.
7. Set outData.data to a structured clone of inData.data.
8. Append outData to dataList.
Set methodData to dataList.

7.2.12 Modifiers Population Algorithm

To initialize the value of the modifiers, the user agent MUST perform the following steps or their equivalent:

Set registeredMethods to an empty set.
For each PaymentInstrument instrument in the payment handler's PaymentManager.instruments, add all entries in instrument.enabledMethods to registeredMethods.
Create a new empty Sequence.
Set modifierList to the newly created Sequence.
For each item in PaymentRequest@[[paymentDetails]].modifiers in the corresponding payment request, perform the following steps:
1. Set inModifier to the item under consideration.
2. Set commonMethods to the set intersection of inModifier.supportedMethods and registeredMethods.
3. If commonMethods is empty, skip the remaining substeps and move on to the next item (if any).
4. Create a new PaymentDetailsModifier object.
5. Set outModifier to the newly created PaymentDetailsModifier.
6. Set outModifier.supportedMethods to a list containing the members of commonMethods.
7. Set outModifier.total to a structured clone of inModifier.total.
8. Append outModifier to modifierList.
Set modifiers to modifierList.

7.3 Internal Slots

Instances of PaymentRequestEvent are created with the internal slots in the following table:

Internal Slot	Default Value	Description (non-normative)
[[windowClient]]	null	The currently active WindowClient. This is set if a payment handler is currently showing a window to the user. Otherwise, it is null.
[[fetchedImage]]	undefined	This value is a result of fetching image object or a fallback image provided by the user agent.

7.4 Handling a PaymentRequestEvent

Upon receiving a PaymentRequest by way of PaymentRequest.show() and subsequent user selection of a payment instrument, the user agent MUST run the following steps:

Let registration be the ServiceWorkerRegistration corresponding to the PaymentInstrument selected by the user.
If registration is not found, reject the Promise that was created by PaymentRequest.show() with a DOMException whose value is "InvalidStateError" and terminate these steps.
Invoke the handle functional event algorithm with a ServiceWorkerRegistration of registration and callbackSteps set to the following steps:
1. Set global to the global object that was provided as an argument.
2. Create a trusted event, e, that uses the PaymentRequestEvent interface, with the event type paymentrequest, which does not bubble, cannot be canceled, and has no default action.
3. Set the topLevelOrigin attribute of e to the origin of the top level payee web page.
4. Set the paymentRequestOrigin attribute of e to the origin of the context where PaymentRequest was initialized.
5. Set the paymentRequestId attribute of e to the [[details]].id from the PaymentRequest.
6. Set the methodData and modifiers attributes of e by executing the MethodData Population Algorithm and Modifiers Population Algorithm respectively.
7. Set the total attribute of e to a structured clone of the total field on the PaymentDetailsInit from the corresponding PaymentRequest.
8. Set the instrumentKey attribute of e to the instrumentKey of the selected PaymentInstrument.
9. Dispatch e to global.
10. Wait for all of the promises in the extend lifetime promises of e to resolve.
11. If the payment handler has not provided a PaymentHandlerResponse, reject the Promise that was created by PaymentRequest.show() with a DOMException whose value "OperationError".

8. Windows

An invoked payment handler may or may not need to display information about itself or request user input. Some examples of potential payment handler displays include:

The payment handler opens a window for the user to provide an authorization code.
The payment handler opens a window that makes it easy for the user to confirm payment using default information for that site provided through previous user configuration.
When first selected to pay in a given session, the payment handler opens a window. For subsequent payments in the same session, the payment handler (through configuration) performs its duties without opening a window or requiring user interaction.

A payment handler that requires visual display and user interaction, may call openWindow() to display a page to the user.

Note

Since user agents know that this method is connected to the PaymentRequestEvent, they SHOULD render the window in a way that is consistent with the flow and not confusing to the user. The resulting window client is bound to the tab/window that initiated the PaymentRequest. A single payment handler SHOULD NOT be allowed to open more than one client window using this method.

8.1 Open Window Algorithm

Issue 115: The Open Window Algorithm

This algorithm resembles the Open Window Algorithm in the Service Workers specification.

Issue 97

Should we refer to the Service Workers specification instead of copying their steps?

Let event be this PaymentRequestEvent.
Let request be the PaymentRequest that triggered this PaymentRequestEvent.
If request.[[state]] is not "interactive", then return a Promise rejected with a DOMException whose name is " InvalidStateError".
Let url be the result of parsing the url argument.
If the url parsing throws an exception, return a Promise rejected with that exception.
If url is about:blank, return a Promise rejected with a TypeError.
If url's origin is not the same as the service worker's origin associated with the payment handler, return a Promise rejected with a SecurityError.
If this algorithm is not triggered by user activation, return a Promise rejected with a InvalidAccessError.
Let promise be a new Promise.
Run these steps in parallel:
1. If event.[[windowClient]] is not null, then:
  1. If event.[[windowClient]].visibilityState is not "unloaded", reject promise with a DOMException whose name is " InvalidStateError" and abort these steps.
2. Let newContext be a new top-level browsing context.
3. Navigate newContext to url, with exceptions enabled and replacement enabled.
4. If the navigation throws an exception, reject promise with that exception and abort these steps.
5. If the origin of newContext is not the same as the service worker client origin associated with the payment handler, then:
  1. Reject promise with a DOMException whose name is "SecurityError".
  2. Abort these steps.
6. Let client be the result of running the create window client algorithm with newContext as the argument.
7. Set event.[[windowClient]] to client.
8. Resolve promise with client.
Return promise.

8.2 Example of handling the `PaymentRequestEvent`

This section is non-normative.

This example shows how to write a service worker that listens to the PaymentRequestEvent. When a PaymentRequestEvent is received, the service worker opens a window to interact with the user.

Example 4: Handling the PaymentRequestEvent

self.addEventListener('paymentrequest', function(e) {
  e.respondWith(new Promise(function(resolve, reject) {
    self.addEventListener('message', listener = function(e) {
      self.removeEventListener('message', listener);
      if (e.data.hasOwnProperty('name')) {
        reject(e.data);
      } else {
        resolve(e.data);
      }
    });

    e.openWindow("https://www.example.com/bobpay/pay")
    .then(function(windowClient) {
      windowClient.postMessage(e.data);
    })
    .catch(function(err) {
      reject(err);
    });
  }));
});

Issue 128: Revisit examples

The Web Payments Working Group plans to revisit these two examples.

Using the simple scheme described above, a trivial HTML page that is loaded into the payment handler window to implement the basic card scheme might look like the following:

Example 5: Simple Payment Handler Window

<form id="form">
<table>
  <tr><th>Cardholder Name:</th><td><input name="cardholderName"></td></tr>
  <tr><th>Card Number:</th><td><input name="cardNumber"></td></tr>
  <tr><th>Expiration Month:</th><td><input name="expiryMonth"></td></tr>
  <tr><th>Expiration Year:</th><td><input name="expiryYear"></td></tr>
  <tr><th>Security Code:</th><td><input name="cardSecurityCode"></td></tr>
  <tr><th></th><td><input type="submit" value="Pay"></td></tr>
</table>
</form>

<script>
window.addEventListener("message", function(e) {
  var form = document.getElementById("form");
  /* Note: message sent from payment app is available in e.data */
  form.onsubmit = function() {
    /* See https://w3c.github.io/webpayments-methods-card/#basiccardresponse */
    var basicCardResponse = {};
    [ "cardholderName", "cardNumber","expiryMonth","expiryYear","cardSecurityCode"]
    .forEach(function(field) {
      basicCardResponse[field] = form.elements[field].value;
    });

    /* See https://w3c.github.io/payment-handler/#paymenthandlerresponse-dictionary */
    var paymentAppResponse = {
      methodName: "basic-card",
      details: details
    };

    e.source.postMessage(paymentAppResponse);
    window.close();
  }
});
</script>

9. Response

9.1 `PaymentHandlerResponse` dictionary

The PaymentHandlerResponse is conveyed using the following dictionary:

dictionary PaymentHandlerResponse {
    DOMString methodName;
    object    details;
};

9.1.1 `methodName` attribute

The payment method identifier for the payment method that the user selected to fulfil the transaction.

9.1.2 `details` attribute

A JSON-serializable object that provides a payment method specific message used by the merchant to process the transaction and determine successful fund transfer.

The user agent receives a successful response from the payment handler through resolution of the Promise provided to the respondWith() function of the corresponding PaymentRequestEvent dictionary. The application is expected to resolve the Promise with a PaymentHandlerResponse instance containing the payment response. In case of user cancellation or error, the application may signal failure by rejecting the Promise.

If the Promise is rejected, the user agent MUST run the payment app failure algorithm. The exact details of this algorithm are left to implementers. Acceptable behaviors include, but are not limited to:

Letting the user try again, with the same payment handler or with a different one.
Rejecting the Promise that was created by PaymentRequest.show().

9.2 Extention to User Accepts the Payment Request Algorithm

If the Promise is successfully resolved, the user agent MUST run the user accepts the payment request algorithm as defined in [ payment-request], replacing steps 6 and 7 with these steps or their equivalent:

Set handlerResponse to the PaymentHandlerResponse instance used to resolve the PaymentRequestEvent.respondWith() Promise.
If handlerResponse.methodName is not present or not set to one of the values from PaymentRequestEvent.methodData, run the payment app failure algorithm and terminate these steps.
Create a structured clone of handlerResponse.methodName and assign it to response.methodName.
If handlerResponse.details is not present, run the payment app failure algorithm and terminate these steps.
Create a structured clone of handlerResponse.details and assign it to response.details.

The following example shows how to respond to a payment request:

Example 6: Sending a Payment Response

paymentRequestEvent.respondWith(new Promise(function(accept,reject) {
  /* ... processing may occur here ... */
  accept({
    methodName: "basic-card",
    details: {
      cardHolderName:   "John Smith",
      cardNumber:       "1232343451234",
      expiryMonth:      "12",
      expiryYear :      "2020",
      cardSecurityCode: "123"
     }
  });
});

Note

[payment-request] defines an ID that parties in the ecosystem (including payment app providers and payees) may use for reconciliation after network or other failures.

10. Security and Privacy Considerations

10.1 Information about the User Environment

The API does not share information about the user's registered payment handlers. Information from origins is only shared with the payee with the consent of the user.
Similarly, user agents should not share payment request information with any payment handler until the user has selected that payment handler.

10.3 Secure Communications

See Service Worker security considerations
Payment method security is outside the scope of this specification and is addressed by payment handlers that support those payment methods.

10.4 Payment App Authenticity

Note

The Web Payments Working Group is also discussing Payment App authenticity; see the (draft) Payment Method Manifest.

10.5 Data Validation

Payees should validate that the data they have received through the paymentRequest API is what they expect (e.g., the total that was paid, etc.).

10.6 Private Browsing Mode

When the Payment Request API is invoked in a "private browsing mode," the user agent should launch payment handlers in a private context. This will generally prevent sites from accessing any previously-stored information. In turn, this is likely to require either that the user log in to the origin or re-enter payment instrument details.

B.1 Normative references

[DOM4]: DOM Standard. Anne van Kesteren. WHATWG. Living Standard. URL: https://dom.spec.whatwg.org/
[ECMA-262-2015]: ECMA-262 6th Edition, The ECMAScript 2015 Language Specification. Allen Wirfs-Brock. Ecma International. June 2015. Standard. URL: http://www.ecma-international.org/ecma-262/6.0/index.html
[HTML]: HTML Standard. Anne van Kesteren; Domenic Denicola; Ian Hickson; Philip Jägenstedt; Simon Pieters. WHATWG. Living Standard. URL: https://html.spec.whatwg.org/multipage/
[HTML5]: HTML5. Ian Hickson; Robin Berjon; Steve Faulkner; Travis Leithead; Erika Doyle Navara; Theresa O'Connor; Silvia Pfeiffer. W3C. 28 October 2014. W3C Recommendation. URL: https://www.w3.org/TR/html5/
[RFC2119]: Key words for use in RFCs to Indicate Requirement Levels. S. Bradner. IETF. March 1997. Best Current Practice. URL: https://tools.ietf.org/html/rfc2119
[RFC6454]: The Web Origin Concept. A. Barth. IETF. December 2011. Proposed Standard. URL: https://tools.ietf.org/html/rfc6454
[SECURE-CONTEXTS]: Secure Contexts. Mike West. W3C. 15 September 2016. W3C Candidate Recommendation. URL: https://www.w3.org/TR/secure-contexts/
[SERVICE-WORKERS]: Service Workers 1. Alex Russell; Jungkee Song; Jake Archibald; Marijn Kruisselbrink. W3C. 11 October 2016. W3C Working Draft. URL: https://www.w3.org/TR/service-workers-1/
[URL]: URL Standard. Anne van Kesteren. WHATWG. Living Standard. URL: https://url.spec.whatwg.org/
[WEBIDL-LS]: Web IDL. Cameron McCormack; Boris Zbarsky; Tobie Langel. W3C. 15 December 2016. W3C Editor's Draft. URL: https://heycam.github.io/webidl/
[WebCryptoAPI]: Web Cryptography API. Mark Watson. W3C. 26 January 2017. W3C Recommendation. URL: https://www.w3.org/TR/WebCryptoAPI/
[appmanifest]: Web App Manifest. Marcos Caceres; Kenneth Christiansen; Mounir Lamouri; Anssi Kostiainen. W3C. 8 June 2017. W3C Working Draft. URL: https://www.w3.org/TR/appmanifest/
[payment-method-basic-card]: Basic Card Payment. Adrian Bateman; Zach Koch; Roy McElmurry. W3C. 4 May 2017. W3C Working Draft. URL: https://www.w3.org/TR/payment-method-basic-card/
[payment-method-id]: Payment Method Identifiers. Adrian Bateman; Zach Koch; Roy McElmurry; Marcos Caceres. W3C. 23 June 2017. W3C Working Draft. URL: https://www.w3.org/TR/payment-method-id/
[payment-request]: Payment Request API. Adrian Bateman; Zach Koch; Roy McElmurry; Domenic Denicola; Marcos Caceres. W3C. 3 May 2017. W3C Working Draft. URL: https://www.w3.org/TR/payment-request/
[permissions]: The Permissions API. Mounir Lamouri; Marcos Caceres. W3C. 7 April 2015. W3C Working Draft. URL: https://www.w3.org/TR/permissions/

B.2 Informative references

[WEBIDL]: Web IDL. Cameron McCormack; Boris Zbarsky; Tobie Langel. W3C. 15 December 2016. W3C Editor's Draft. URL: https://heycam.github.io/webidl/
[payment-handler]: Payment Handler API. Adrian Hope-Bailie; Tommy Thorsen; Adam Roach; Jason Normore; Ian Jacobs; Rouslan Solomakhin; Jinho Bang. W3C. 23 June 2017. W3C Working Draft. URL: https://www.w3.org/TR/payment-handler/

Abstract

Status of This Document

1. Introduction

2. Conformance

3. Dependencies

4. Overview of Handling Payment Requests

4.1 Handling a Payment Request

4.2 Structure of a Web Payment App

4.3 Relation to Other Types of Payment Apps

5. Registration

5.1 Extension to the ServiceWorkerRegistration interface

5.2 PaymentManager interface

5.2.1 instruments attribute

5.2.2 wallets attribute

5.2.3 requestPermission() method

5.3 PaymentInstruments interface

5.3.1 delete() method

5.3.2 get() method

5.3.3 keys() method

5.3.4 has() method

5.3.5 set() method

5.3.6 clear() method

5.4 PaymentInstrument dictionary

5.5 PaymentWallets interface

5.5.1 delete() method

5.5.2 get() method

5.5.3 keys() method

5.5.4 has() method

5.5.5 set() method

5.5.6 clear() method

5.6 PaymentWallet dictionary

5.7 ImageObject dictionary

5.8 Convert image objects

5.9 Registration Example

6. Origin and Instrument Display for Selection

6.1 Ordering of Payment Handlers

6.2 Display of Instruments

6.3 Grouping of Instruments

6.4 Selection of Instruments

7. Invocation

7.1 Extension to ServiceWorkerGlobalScope

7.1.1 onpaymentrequest attribute

7.2 The PaymentRequestEvent

7.2.1 topLevelOrigin attribute

7.2.2 paymentRequestOrigin attribute

7.2.3 paymentRequestId attribute

7.2.4 methodData attribute

7.2.5 total attribute

7.2.6 modifiers attribute

7.2.7 instrumentKey attribute

7.2.8 openWindow() method

7.2.9 respondWith() method

7.2.10 PaymentRequestEventInit dictionary

7.2.11 MethodData Population Algorithm

7.2.12 Modifiers Population Algorithm

7.3 Internal Slots

7.4 Handling a PaymentRequestEvent

8. Windows

8.1 Open Window Algorithm

8.2 Example of handling the PaymentRequestEvent

9. Response

9.1 PaymentHandlerResponse dictionary

9.1.1 methodName attribute

9.1.2 details attribute

9.2 Extention to User Accepts the Payment Request Algorithm

10. Security and Privacy Considerations

10.1 Information about the User Environment

10.2 User Consent before Payment

10.3 Secure Communications

10.4 Payment App Authenticity

10.5 Data Validation

10.6 Private Browsing Mode

A. IDL Index

B. References

B.1 Normative references

B.2 Informative references

5.1 Extension to the `ServiceWorkerRegistration` interface

5.2.1 `instruments` attribute

5.2.2 `wallets` attribute

5.2.3 `requestPermission()` method

5.3 `PaymentInstruments` interface

5.3.1 `delete()` method

5.3.2 `get()` method

5.3.3 `keys()` method

5.3.4 `has()` method

5.3.5 `set()` method

5.3.6 `clear()` method

5.4 `PaymentInstrument` dictionary

5.5 `PaymentWallets` interface

5.5.1 `delete()` method

5.5.2 `get()` method

5.5.3 `keys()` method

5.5.4 `has()` method

5.5.5 `set()` method

5.5.6 `clear()` method

5.6 `PaymentWallet` dictionary

5.7 `ImageObject` dictionary

7.1 Extension to `ServiceWorkerGlobalScope`

7.1.1 `onpaymentrequest` attribute

7.2 The `PaymentRequestEvent`

7.2.1 `topLevelOrigin` attribute

7.2.2 `paymentRequestOrigin` attribute

7.2.3 `paymentRequestId` attribute

7.2.4 `methodData` attribute

7.2.5 `total` attribute

7.2.6 `modifiers` attribute

7.2.7 `instrumentKey` attribute

7.2.8 `openWindow`() method

7.2.9 `respondWith`() method

7.2.10 `PaymentRequestEventInit` dictionary

8.2 Example of handling the `PaymentRequestEvent`

9.1 `PaymentHandlerResponse` dictionary

9.1.1 `methodName` attribute

9.1.2 `details` attribute
