This document describes how dense geospatial raster data can be represented using the W3C RDF Data Cube (QB) ontology [vocab-data-cube]
in concert with other popular ontologies including the W3C/OGC Semantic Sensor Network ontology (SSN) [vocab-ssn], the W3C/OGC
Time ontology (Time) [owl-time], the W3C Simple Knowledge Organisation System (SKOS) [skos-reference],
W3C PROV-O [prov-o] and the W3C/OGC QB4ST [qb4st]. It offers general methods supported by worked examples that focus on Earth observation imagery. Current triple stores, as the default database architecture for RDF, are not suitable
for storing voluminous data like gridded coverages derived from Landsat satellite sensors. However we show here how SPARQL queries can be served through an OGC Discrete Global Grid System for observational data, coupled with a triple store
for observational metadata. While the approach may also be suitable for other forms of coverage, we leave the application to such data as an exercise for the reader.
Status of This Document
This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at https://www.w3.org/TR/.
For OGC This is a Public Draft of a document prepared by the Spatial Data on the Web Working Group (SDWWG) — a joint W3C-OGC
project (see charter). The document is prepared following W3C conventions. The document is released at this time to solicit public comment.
Publication as a Working Group Note does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate
to cite this document as other than work in progress.
Publishing data on the Web using Linked Data technologies makes it more accessible, easier to discover, and machine-readable. In the context of the rapidly growing availability and importance
of earth observation data, this work aims to leverage the Linked Data approach to data publishing to make such data both much more easily usable by non-specialists and much more easily integrated with other Web data in applications. Linked
Data has worked well for multi-dimensional statistical data using the RDF Data Cube [vocab-data-cube]. Following this success, Earth Observation imagery can be readily modelled
as a Data Cube with the three dimensions of latitude, longitude, and time. This simple conceptualisation and its encoding as Linked Data may be convenient for scientists and consumer app developers everywhere, and especially to statisticians
such as those in National Statistics Organisations.
Satellite imagery is commonly modelled as a multidimensional grid coverage, as discussed in [sdw-bp]. The large number of data points that is typical of coverage data such as Landsat imagery means that publishers may be justifiably reluctant to address the size explosion that accompanies converting data to RDF. While such a conversion provides maximum machine-readability, many benefits of Linked Data can be realized with
a compromise approach where only the metadata is directly expressed in RDF. Further benefits can be realized by storing voluminous gridded coverage data in more efficient storage representations and using specialised middleware to generate
an RDF representation on-the-fly to respond to service requests.
This document illustrates that approach showing how Earth Observation imagery can be published as Linked Data using the RDF Data Cube vocabulary [vocab-data-cube] in concert with other
relevant ontologies including the W3C/OGC Semantic Sensor Network ontology (SSN) [vocab-ssn], the W3C/OGC
Time ontology (Time) [owl-time], the W3C Simple Knowledge Organisation System (SKOS) [skos-reference],
W3C PROV-O [prov-o] and the W3C/OGC QB4ST [qb4st]. We show how SPARQL queries can be served through a scalable OGC Discrete Global Grid System for observation data, coupled with a triple store for observational metadata.
Throughout the document we refer to relevant Use Cases and Requirements of the Spatial Data on the Web Working Group (UCR) [sdw-ucr] and Best Practices of the Spatial Data on the Web Working
Group (BP) [sdw-bp]. Those references may be helpful to provide real-world applications and further rationale for the approach described here. We refer to extracts from a small example
for illustration. The complete source file for the example is
ANU-LED example.
2. The RDF Data Cube
The RDF Data Cube [vocab-data-cube] is a standard for representing multidimensional data as RDF. It is typically used for numerical data that is associated with geographic regions
(e.g. suburbs) and classifications (e.g. age, industry, or time periods). Common practice includes using the SKOS vocabulary to define the concepts being reported [
Observed property in coverage]. The RDF Data Cube vocabulary allows the publisher to define all the relevant components of their data and the concepts they quantify, including:
Traditionally, there is a distinction between data, that is the observations proper such as Landsat pixels and metadata, which adds context to the observations such as resolution. In Linked Data modelling, this distinction is
not strict. However, it is possible to separate the two in a typical Data Cube.
The value of an RDF Data Cube component can be attached to each individual observation or to the dataset as a whole. Dataset-wide metadata can therefore be distinguished from the rest of the dataset, because it is attached to the qb:DataSet object. This makes it easy to fetch the metadata alone with a simple SPARQL query. This dataset-wide description alone is already a useful (and web-of-data friendly) approach to publishing spatial data [
Spatial metadata].
The RDF Data Cube also enables much more detailed metadata, like separate provenance for each observation. While it is not practical to serve Landsat imagery with such detailed metadata attached to each
pixel, it may be reasonable to attach such metadata to aggregated tiles of pixels. In this case, each
qb:Observation will be a whole tile (:GridSquare) rather than an individual pixel [Support for
tiling]. Note that this technique applies BP Use
globally unique persistent HTTP URIs for spatial things at the level of image tiles.
In the ideal web of data, every single observation has a unique URI, can be queried using SPARQL, and has metadata attached to it. Upon hearing this, anyone familiar with Landsat data would be forgiven for rejecting the whole enterprise as entirely
impractical. But all is not lost! Most of the benefits of Linked Data (namely, linkability, enhanced discoverability, machine-readability) can be realized by just publishing the dataset-wide metadata in this format. More 'linkiness' provides
diminishing returns along with increasing costs. Publishers must decide on the appropriate compromise position for their data.
To characterize the spectrum, we can broadly define three applications of RDF for coverages. From most to least costly, these are: to store a coverage dataset, to serve a coverage (“serialization”), and to describe the metadata of a coverage (“description”).
3.1 Storing a coverage
RDF data is typically stored natively in a triple store. The Data Cube, and RDF in general, are too verbose to be viable for storing large coverages.
3.2 Serving a coverage
In this model, coverage data is physically stored in some more appropriate format (such as HDF5). Specialized middleware implements a virtual triple store by receiving SPARQL queries from a client and responding with dynamically-generated
RDF. Such a response may be verbose, but the cost is much lower than physically storing the whole coverage as RDF. Query optimization is also necessary for this to be viable. Furthermore, we suggest using tiles for each
qb:Observation in the RDF Data Cube, rather than individual pixels [Support for
tiling]. This significantly reduces the blowup that comes from encoding data as RDF [Compressible].
The key advantage of serving a coverage in RDF is that the entire coverage, and individual tiles within it, become linkable [Linkability]; this could be a major contribution to the
Linked Data Web. With sufficiently advanced middleware, SPARQL queries over the dataset can be served just as if the data were stored in RDF, but for a fraction of the storage cost. Not only that, but it is possible to make direct SPARQL
queries performant through use of spatial data structures and assumptions about data layout, as explained in Implementation. Hence, it is still possible for publishers of dense spatial data to leverage much
of the power of linked data.
It is common to want only a chunk of the data available, for example, all observations within 10km of Canberra in the past year, as required for BP [ Expose spatial data through 'convenience APIs'].
Regardless of the format chosen, an ability to assign persistent identifiers to these sorts of queries is essential to publishers of coverages. Although the RDF Data Cube offers predefined chunks of triples called qb:slices
for this purpose, coverage applications typically demand a greater degree of flexibility. Our approach is to let the publisher define appropriate chunks [Reference
data chunks] using SPARQL queries. For example,
FILTERs with inequalities can be used to return all tiles of a particular resolution within a particular spatial rectangle. If using this method to denote chunks, publishers should make it easy for a user to select chunks
without the use of SPARQL directly, e.g. by providing an interface to generate the appropriate query using a few predefined operators.
Whatever approach is taken, it should be as easy as possible for the user to grab just the metadata, without having to figure out how to write an appropriate query. The definition of a qb:DataSet and the associated
qb:DataStructureDefinition can serve this role, but it is still up to the publisher to make it easy for the user to download those definitions.
It is also helpful if the user can easily identify the domain of a coverage, that is, the spatial and temporal area where measurements are made [
Spatial metadata].
QB4ST [qb4st] does not currently have a term for that, but it might in the future.
Discrete global grid systems are a family of spatial reference systems that subdivide the Earth's surface into a hierarchy of cells. Larger cells are subdivided into smaller cells deeper in the hierarchy. A location on the Earth's surface is specified
by a cell id, not a latitude and longitude. Smaller cells are more precise, so choosing a cell forces the publisher to include a measure of uncertainty for any spatial measure. Cells are convenient units of tiling for gridded coverages. Each
pixel in a tile corresponding to a larger cell can represent a measurement made on a smaller cell in the hierarchy below. The OGC published a standard specification of DGGS in August 2017 as
”Topic 21: Discrete Global Grid Systems Abstract Specification” [OGC-15-104r5].
The ANU-LED example in this document does not require the use of a DGGS. However, the DGGS has some convenient
properties that make it particularly suitable for Linked Data. First, each DGGS cell has a unique identifier, so it is easy to generate natural URIs for each chunk of data. Second, the
DGGS we use, rHEALPix [rHealPIX], defines cell geometries so that cells at the same level of the hierarchy have equal areas. This makes rHEALPix a suitable format for storing multiple
datasets at different resolutions, or several different resolution views of the same dataset. The equal-area constraint means that different resolution pixels are directly comparable, and no resampling is required [Avoid
coordinate transformations], as advised by BP Choose the coordinate reference system to suit your user's applications. Third, the hierarchical nature of the
DGGS makes it convenient to implement spatial optimizations when responding to queries, by pruning the tree early to eliminate whole regions of unpromising cells that fall outside the desired
area.
Data structures other than DGGS are also amenable to these approaches, for example n-dimensional gridded data, whether geospatial or not, and hierarchical structures such as tile sets, octrees
and quadtrees.
5. Scalable Implementation
A proof of concept demonstrating the ANU-LED example with a SPARQL query system employing rHEALPix to retrieve satellite imagery has been implemented. This section briefly describes some of the strategies employed
to make the implementation efficient. All code referenced here is available on GitHub [led-github].
As discussed previously, scalable implementations of a Data Cube for Earth observations must grapple with the verbosity of RDF representations relative to specialized coverage formats like GeoTIFF. This precludes materializing the entire dataset
as RDF, storing it on disk, and serving it using an off-the-shelf triple store. Instead, implementations must employ a “virtual graph”, which can be used to service SPARQL queries without materializing all triples in advance. This approach
has precedent: virtual graphs have been used to provide linked data interfaces to relational databases, RSS feeds, and ordinary HTML pages with no semantic markup [
perf-vgraph].
For the purpose of illustrating how triple stores service SPARQL queries—regardless of whether they are backed by virtual or materialized graphs—consider the query below.
Example 6
SELECT ?s ?v WHERE {
?s a :egType ;
rdfs:label "Example" ;
:value ?v .
FILTER (?v < 15)
}
The heart of the query above is a Basic Graph Pattern (BGP) which specifies the triples to be accessed. In this case, the BGP contains three patterns. Written explicitly, they are:
Conceptually, a triple store will service the query above by iterating through each triple pattern in turn. First, a set of bindings for ?s will be generated that are consistent with ?s a :egType. That set of bindings
will then be filtered by matching them against the pattern ?s rdfs:label
"Example". The final ?s :value ?v will further filter the bindings for ?s by considering only subjects
?s with a :value property; it will also introduce a corresponding set of bindings for ?v. Having generated all bindings relevant to the BGP, a typical triple store will then apply the FILTER condition to each. This general approach works for both traditional storage backends (like on-disk RDF databases) and non-traditional ones (like virtual graphs).
In practice, processing each element of a SPARQL query sequentially is too inefficient to be of use in a large database. Instead, triple stores employ a range of optimisations to combine steps of the query process, speed up selected operations, or minimise
the number of bindings produced by each stage, as outlined in [
sparql-opt]. For example, a triple store could speed up matching triples of the form ?s a :egType by keeping an index of all URIs associated with each present rdf:type,
or could accelerate BGP matching by reordering the pattern to ensure that the most restrictive patterns are evaluated first.
Although we do not materialise our RDF triples, similar techniques are applicable to our virtual graph middleware. As a simple illustration of the optimisation opportunities available, we have implemented two simple optimisations:
User-supplied triple patterns often generate highly selective constraints on the data returned by a SPARQL query. For example, the pattern
?s :dggsLevelSquare 5 . allows a virtual graph implementation to ignore all observations not corresponding to cells at the fifth level of the DGGS hierarchy. In a naive implementation,
only one such BGP can be considered at a time; this makes strategies for BGP ordering essential. In contrast, a virtual graph query processor can simultaneously consider all supplied constraints in conjunction. For instance, if
the user specifies ?s :dggsLevelSquare 5;
:etmBand 3, then the virtual graph implementation can safely narrow its search to observations at level 5 of the DGGS hierarchy which correspond to Landsat's third ETM band.
Consumers of spatial datasets typically request only a small spatial rectangle of the available data. In SPARQL, such a rectangle can be identified by a FILTER statement restricting the appropriate location properties. By
inspecting the contents of
FILTER statements, virtual graph implementations can preemptively narrow the set of bindings they generate to include only bindings which are spatially relevant. In general, this approach can yield excellent gains when the
spatial extent of queries is small relative to the spatial extent of the overall dataset, which is typical of Earth Observation imagery.
These simple optimizations can improve query time substantially. Consider the following SPARQL query, which fetches the intensity (?val) and URI (?s) associated with each single-pixel observation in a satellite imagery
database. Note the use of custom :latMin and :longMax to define the edges of a bounding box—we have included these in our demonstration system for ease of implementation, but it is expected that in a production system
would use GeoSPARQL-style
FILTERs together with the WKT-formatted
:bounds predicate used elsewhere in this document.
Example 8
SELECT DISTINCT ?s ?val WHERE {
?s a :Pixel
:etmBand "1"^^xsd:int ;
:dggsLevelSquare "5"^^xsd:int ;
# See comment above on :latMin/:longMax
:latMin ?latMin ;
:longMax ?longMax ;
:dataPixelValue ?val .
# Everything north-west of Parliament House
FILTER (?latMin > -35.3082
&& ?longMax < 149.1244)
}
The above query was executed on a 500MB HDF5 dataset containing over 4000 distinct observations. Repeating the query a thousand times with ten concurrent clients on a desktop machine yielded the following mean running times. In the following, the “naive”
implementation simply iterates through the BGP specified above on a pattern-by-pattern basis, subsequently passing results to the SPARQL engine for evaluation against the filter constraint. “Multiple pattern-matching” corresponds to the first
optimization identified above, and “additional spatial optimizations” refers to a combination of the first and second optimizations.
Implementation
Mean runtime (± standard deviation)
Naive
378ms (±65.5ms)
…with multiple-pattern matching
35ms (±22.2ms)
…with additional spatial optimisations
17ms (±11.8ms)
“Multiple-pattern matching” is a relatively simple optimization, yet is sufficient to improve query performance tenfold. Accounting for the bounding box constraint specified in the query improves performance by another factor of two. It is likely that
further performance gains could be found with more sophisticated optimizations. In particular, processing queries with general polygonal spatial constraints could be further improved by employing an R-tree or some other specialized spatial
data structure.
To demonstrate the practical utility of our system, we produced a simple web-based client application. The client application is able to fetch Landsat imagery and its associated metadata via SPARQL queries. It can then overlay the retrieved images on
a movable map. As mentioned previously, code for both the client and sever is available on GitHub [led-github].

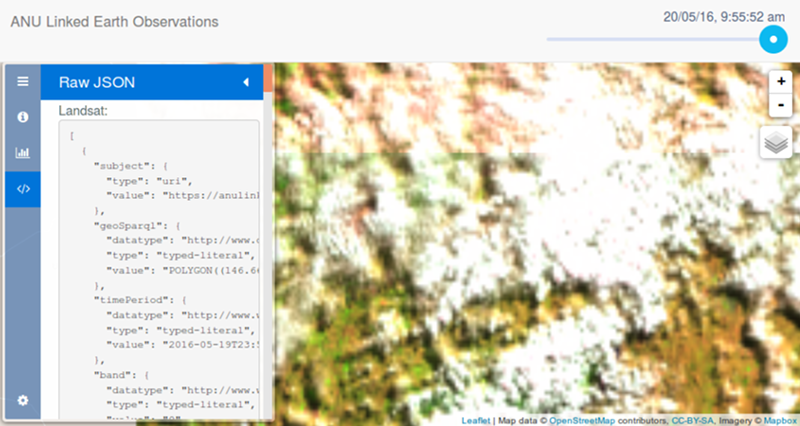

Figure 1A screenshot of the client application running in a browser.
6. Use of existing ontologies
RDF makes it easy to re-use terms defined in external ontologies and some of the most widely applicable are explained here. See the
ANU-LED example for some specific examples of these.
The PROV ontology [prov-o] allows the provenance of data to be traced [
Provenance]. It provides terms for describing what entities the data is based on, what processes were used to convert those entities into others and into the final data, and what
individuals and organisations were responsible for those processes. PROV-O descriptions can be attached at the dataset level, and also at the individual observation or tile level to indicate precisely from which source material each observation
is derived.
Spatial data best practice eschews unqualified uses of “latitude” and “longitude”. Commonly, these terms refer to the WGS-84 Coordinate Reference System (CRS), but data published according to BP State how coordinate values are encoded should always make its CRS explicit [Georectification]. In RDF, the WGS-84 geo vocabulary is often used, with its provided geo:lat and geo:long properties.
QB4ST defines the qb4st:crs property to identify a CRS definition [
CRS definition, Spatial metadata]. The RDF Data Cube and QB4ST make is easy to define several CRSs and to use them simultaneously, providing clients with several views of the data [Multiple CRSs]. In the example below, a grid square can be identified
by the latitude and longitude of its centroid, by its boundary, or by its rHEALPix cell.
The RDF Data Cube is commonly used in conjunction with a SKOS [skos-reference] concept scheme (such as SDMX-RDF and its concept scheme)
to define the meanings of the components [Observed property in coverage]. It is appropriate to use this for coverages also, but appropriate SKOS concepts do not always
exist. They may need to be published along with the data proper.
Coverages should be annotated appropriately with the times observations were taken [
Coverage temporal extent], that is BP Describe properties that change over time. OWL-Time [owl-time]
defines terms for time intervals that are useful for expressing the temporal domain of the dataset. It also allows temporal reference systems other than the Gregorian calendar. However, for Gregorian time instants which are typically used
for Earth observation data, a datatype property using the built-in xsd:dateTime datatype is sufficient.
QB4ST defines terms that work well together with OWL-Time.
This work would not be possible without the TechLauncher program of the Australian National University and its ardent convenor, Shayne Flint. We also thank Matthew Purss of Geoscience Australia for participating in the program and supporting this
project. Finally, Ed Parsons of Google, Robert Woodcock of CSIRO, Robert Atkinson of the OGC and Bill Roberts of SWIRRL provided valuable discussions and feedback. The editors gratefully acknowledge the contributions of all members of the
Spatial Data on the Web Working Group, its chairs Kerry Taylor and Ed Parsons, and W3C and OGC staff Phil Archer, Francois Daoust and Scott Simmons.
