RDFa 1.1 Primer - Third Edition

Abstract

The last couple of years have witnessed a fascinating evolution: while the Web was initially built predominantly for human consumption, web content is increasingly consumed by machines which expect some amount of structured data. Sites have started to identify a page's title, content type, and preview image to provide appropriate information in a user's newsfeed when she clicks the "Like" button. Search engines have started to provide richer search results by extracting fine-grained structured details from the Web pages they crawl. In turn, web publishers are producing increasing amounts of structured data within their Web content to improve their standing with search engines.

A key enabling technology behind these developments is the ability to add structured data to HTML pages directly. RDFa (Resource Description Framework in Attributes) is a technique that allows just that: it provides a set of markup attributes to augment the visual information on the Web with machine-readable hints. In this Primer, we show how to express data using RDFa in HTML, and in particular how to mark up existing human-readable Web page content to express machine-readable data.

This document provides only a Primer to RDFa 1.1. The complete specification of RDFa, with further examples, can be found in the RDFa 1.1 Core [rdfa-core], RDFa Lite [rdfa-lite], XHTML+RDFa 1.1 [xhtml-rdfa], and the HTML5+RDFa 1.1 [html-rdfa] specifications.

2. Using RDFa

2.1 The Basics of RDFa: RDFa Lite

We begin the introduction to RDFa by using a subset of all the possibilities called RDFa Lite 1.1 [rdfa-lite]. The goal, when defining that subset, was to define a set of possibilities that can be applied to most simple to moderate structured data markup tasks, without burdening the authors with additional complexities. Many Web authors will not need to use more than this minimal subset.

2.1.1 The First Steps: Adding Machine-Readable Hints to Web Pages

Consider Alice, a blogger who publishes a mix of professional and personal articles at http://example.com/alice. We will construct markup examples to illustrate how Alice can use RDFa. A more complete markup of these examples is available on a dedicated page.

Alice publishes a blog and would like to provide extra structural information on her pages like the publication date or the title. She would like to use the terms defined in the Dublin Core vocabulary [dc11], a set of terms that are widely used by, for example, the publishing industry or libraries. Her blog already contain that information:

Example 1

<html>
<head>
  ...
</head>
<body>
  ...
  <h2>The Trouble with Bob</h2>
  <p>Date: 2011-09-10</p>
  ...
</body>

This information is, however, aimed at humans only; computers need some sophisticated methods to extract it. But, using RDFa, she can annotate her page to make the structured data clear:

Example 2

<html>
<head>
  ...
</head>
<body>
  ...
  <h2 property="http://purl.org/dc/terms/title">The Trouble with Bob</h2>
  <p>Date: <span property="http://purl.org/dc/terms/created">2011-09-10</span></p>
  ...
</body>

(Notice the markup colored in red: these are the RDFa "hints".)

One useful way to visualize the structured data is:

It is worth emphasizing that RDFa uses URLs to identify just about everything. This is why, instead of just using properties like title or created, we use http://purl.org/dc/terms/title and http://purl.org/dc/terms/created. The reason behind this design decision is rooted in data portability, consistency, and information sharing. Using URLs removes the possibility for ambiguities in terminology. Without ensuring that there is no ambiguity, the term "title" might mean "the title of a work", "a job title", or "the deed for real-estate property". When each vocabulary term is a URL, a detailed explanation for the vocabulary term is just one click away. It allows anything, humans or machines, to follow the link to find out what a particular vocabulary term means. By using a URL to identify a particular creation time, for example http://purl.org/dc/terms/created, both humans and machines can understand that the URL unambiguously refers to the "Date of creating the resource", such as a web page.

By using URLs as identifiers, RDFa provides a solid way of disambiguating vocabulary terms. It becomes trivial to determine whether or not vocabulary terms used in different documents mean the same thing. If the URLs are the same, the vocabulary terms mean the same thing. It also becomes very easy to create new vocabulary terms and vocabulary documents. If one can publish a document to the Web, one automatically has the power to create a new vocabulary document containing new vocabulary terms.

2.1.1.2 Links with Flavor

The previous example demonstrated how Alice can markup text to make it machine readable. She would also like to mark up the links in a machine-readable way, to express the type of link being described. RDFa lets the publisher add a "flavor", i.e., a label, to an existing clickable link that processors can understand. This makes the same markup help both humans and machines.

In her blog's footer, Alice already declares her content to be freely reusable, as long as she receives due credit when her articles are cited. The HTML includes a link to a Creative Commons [cc-about] license:

Example 3

<p>All content on this site is licensed under
   <a href="http://creativecommons.org/licenses/by/3.0/">
     a Creative Commons License</a>. ©2011 Alice Birpemswick.</p>

A human clearly understands this sentence, in particular the meaning of the link with respect to the current document: it indicates the document's license, the conditions under which the page's contents are distributed. Unfortunately, when Bob visits Alice's blog, his browser sees only a plain link that could just as well point to one of Alice's friends or to her CV. For Bob's browser to understand that this link actually points to the document's licensing terms, Alice needs to add some flavor, some indication of what kind of link this is.

She can add this flavor using again the property attribute. Indeed, when the element contains the href (or src) attribute, property is automatically associated with the value of this attribute rather than the textual content of the a element. The value of the attribute is the http://creativecommons.org/ns#license, defined by the Creative Commons:

Example 4

<p>All content on this site is licensed under
   <a property="http://creativecommons.org/ns#license" href="http://creativecommons.org/licenses/by/3.0/">
     a Creative Commons License</a>. ©2011 Alice Birpemswick.</p>

With this small update, Bob's browser will now understand that this link has a flavor: it indicates the blog's license:

Fig. 3 two Web pages connected by a link labeled 'license' and two notes with a 'license' relationship

Alice is quite pleased that she was able to add only structured-data hints via RDFa, never having to repeat the content of her text or the URL of her clickable links.

2.1.1.3 Setting a Default Vocabulary

In a number of simple use cases, such as our example with Alice's blog, HTML authors will predominantly use a single vocabulary. However, while generating full URLs via a CMS system is not a particular problem, typing these by hand may be error prone and tedious for humans. To alleviate this problem RDFa introduces the vocab attribute to let the author declare a single vocabulary for a chunk of HTML. Thus, instead of:

Example 5

<html>
<head>
  ...
</head>
<body>
  ...
  <h2 property="http://purl.org/dc/terms/title">The Trouble with Bob</h2>
  <p>Date: <span property="http://purl.org/dc/terms/created">2011-09-10</span></p>
  ...
</body>

Alice can write:

Example 6

<html>
<head>
  ...
</head>
<body vocab="http://purl.org/dc/terms/">
  ...
  <h2 property="title">The Trouble with Bob</h2>
  <p>Date: <span property="created">2011-09-10</span></p>
  ...
</body>

Note how the property values are single "terms" now; these are simply concatenated to the URL defined via the vocab attribute. The attribute can be placed on any HTML element (i.e., not only on the body element like in the example) and its effect is valid for all the elements below that point.

Default vocabularies and full URIs can be mixed at any time. I.e., Alice could have written:

Example 7

<html>
<head>
  ...
</head>
<body vocab="http://purl.org/dc/terms/">
  ...
  <h2 property="title">The Trouble with Bob</h2>
  <p>Date: <span property="http://purl.org/dc/terms/created">2011-09-10</span></p>
  ...
</body>

Perhaps a more interesting example is the combination of the header with the licensing segment of her web page:

Example 8

<html>
<head>
  ...
</head>
<body vocab="http://purl.org/dc/terms/">
  ...
  <h2 property="title">The Trouble with Bob</h2>
  <p>Date: <span property="created">2011-09-10</span></p>
  ...
  <p>All content on this site is licensed under
   <a property="http://creativecommons.org/ns#license" href="http://creativecommons.org/licenses/by/3.0/">
     a Creative Commons License</a>. ©2011 Alice Birpemswick.</p>
</body>
</html>

The full URL for the license term is necessary to avoid mixing vocabularies. As an alternative, Alice could have also chosen to use the vocab attribute again:

Example 9

<html>
<head>
  ...
</head>
<body vocab="http://purl.org/dc/terms/">
  ...
  <h2 property="title">The Trouble with Bob</h2>
  <p>Date: <span property="created">2011-09-10</span></p>
  ...
  <p vocab="http://creativecommons.org/ns#">All content on this site is licensed under
    <a property="license" href="http://creativecommons.org/licenses/by/3.0/">
      a Creative Commons License</a>. ©2011 Alice Birpemswick.</p>
</body>
</html>

because the vocab in the license paragraph overrides the definition inherited from the body of the document.

Note

The vocab attribute references structured data vocabularies, identified using URLs. RDFa does not limit the form of these URLs or the document formats accessible by de-referencing them; however users SHOULD aim to use widely shared, conventional values for identifying such vocabularies, following conventions of case, spelling etc. established by their publishers.

2.1.1.4 Multiple Items per Page

Alice's blog page may contain, of course, multiple entries. Sometimes, Alice's sister Eve guest blogs, too. The front page of the blog lists the 10 most recent entries, each with its own title, author, and introductory paragraph. How, then, should Alice mark up the title of each of these entries individually even though they all appear within the same web page? RDFa provides resource, an attribute for specifying the "context", i.e., the exact URL to which the contained RDFa markup applies:

Example 10

<body vocab="http://purl.org/dc/terms/">
   ...
   <div resource="/alice/posts/trouble_with_bob">
      <h2 property="title">The trouble with Bob</h2>
      <p>Date: <span property="created">2011-09-10</span></p>
      <h3 property="creator">Alice</h3>
      ...
   </div>
   ...
   <div resource="/alice/posts/jos_barbecue">
      <h2 property="title">Jo's Barbecue</h2>
      <p>Date: <span property="created">2011-09-14</span></p>
      <h3 property="creator">Eve</h3>
      ...
   </div>
   ...
</body>

(Note that we used relative URLs in the example; the value of resource could have been any URLs, i.e., relative or absolute.) We can represent this, once again, as a diagram connecting URLs to properties:

Fig. 4 two separate nodes, each with two properties

Alice can use the same technique to give her friend Bob proper credit when she posts one of his photos:

Example 11

<div resource="/alice/posts/trouble_with_bob">
    <h2 property="title">The trouble with Bob</h2>
    ...
    The trouble with Bob is that he takes much better photos than I do:
    ...
    <div resource="http://example.com/bob/photos/sunset.jpg">
      <img src="http://example.com/bob/photos/sunset.jpg" />
      <span property="title">Beautiful Sunset</span>
      by <span property="creator">Bob</span>.
    </div>
 </div>

Notice how the innermost resource value, http://example.com/bob/photos/sunset.jpg, "overrides" the outer value /alice/posts/trouble_with_bob for all markup inside the containing div. Once again, here is a diagram that represents the underlying data of this new portion of markup:

2.1.3 Repeated Patterns

We have seen, in a previous section, how Alice can use RDFa to include Creative Commons statements on her blog. However, the solution in that section assigned these statements to the whole page, and not to individual blog items. This may be an issue if the page includes multiple items. Indeed, Alice may be forced to repeat the relevant statements like this:

Example 21

<body vocab="http://purl.org/dc/terms/">
   ...
   <div resource="/alice/posts/trouble_with_bob">
      <h2 property="title">The trouble with Bob</h2>
      <p>Date: <span property="created">2011-09-10</span></p>
      <h3 property="creator">Alice</h3>
      ...
      <p vocab="http://creativecommons.org/ns#">All content on this blog item is licensed under
        <a property="license" href="http://creativecommons.org/licenses/by/3.0/">
          a Creative Commons License</a>. <span property="attributionName">©2011 Alice Birpemswick</span>.</p>
   </div>
   ...
   <div resource="/alice/posts/jims_concert">
      <h2 property="title">I was at Jim's concert the other day</h2>
      <p>Date: <span property="created">2011-10-22</span></p>
      <h3 property="creator">Alice</h3>
      ...
      <p vocab="http://creativecommons.org/ns#">All content on this blog item is licensed under
        <a property="license" href="http://creativecommons.org/licenses/by/3.0/">
          a Creative Commons License</a>. <span property="attributionName">©2011 Alice Birpemswick</span>.</p>
   </div>
   ...
</body>

which may be tedious and error prone.

HTML+RDFa introduces the notion of "Property copying" to alleviate this situation. Using this feature Alice can "collect" a number of statements as a pattern, and refer to that pattern from other parts of the page. This is done using the magic property rdfa:copy and the magic type rdfa:Pattern as follows:

Example 22

<body vocab="http://purl.org/dc/terms/">
   ...
   <div resource="/alice/posts/trouble_with_bob">
      <h2 property="title">The trouble with Bob</h2>
      <p>Date: <span property="created">2011-09-10</span></p>
      <h3 property="creator">Alice</h3>
      ...
      <link property="rdfa:copy" href="#ccpattern"/>
    </div>
   ...
   <div resource="/alice/posts/jims_concert">
      <h2 property="title">I was at Jim's concert the other day</h2>
      <p>Date: <span property="created">2011-10-22</span></p>
      <h3 property="creator">Alice</h3>
      ...
      <link property="rdfa:copy" href="#ccpattern"/>
   </div>
   ...

   <div resource="#ccpattern" typeof="rdfa:Pattern">
      <p vocab="http://creativecommons.org/ns#">All content on this blog item is licensed under
        <a property="license" href="http://creativecommons.org/licenses/by/3.0/">
          a Creative Commons License</a>. <span property="attributionName">©2011 Alice Birpemswick</span>.</p>
   </div>

</body>

(Alice may choose to use CSS to make the CC statements invisible on the screen if she wants.) The effect of this structure is to, conceptually, "copy" all the RDFa statements appearing in the pattern to replace the link element, yielding the following structure:

Fig. 8 8 node network with 12 relationships

2.1.4 Internal References

Alice may want to add her personal data to her individual blog items, too. She decides to combine her FOAF data with the blog items, i.e.:

Example 23

<div vocab="http://purl.org/dc/terms/">

   <div resource="/alice/posts/trouble_with_bob">
      <h2 property="title">The trouble with Bob</h2>
      ...
      <h3 vocab="http://xmlns.com/foaf/0.1/" property="http://purl.org/dc/terms/creator" typeof="Person">
        <span property="name">Alice Birpemswick</span>,
        Email: <a property="mbox" href="mailto:alice@example.com">alice@example.com</a>,
        Phone: <a property="phone" href="tel:+1-617-555-7332">+1 617.555.7332</a>
      </h3>
      ...
   </div>
   ...
</div>

The structured data she generates looks like this:

Fig. 9 The simple blog structure extended with Alice's foaf data as blank node

Unfortunately, this solution is not optimal in two respects. First of all, notice that Alice had to use the full URI for the creator property: this is because the vocab attribute is used to set the FOAF terms, i.e., the simple creator value would have been misinterpreted. We will come back to the issue of using several vocabularies in another section below.

The other issue is that Alice would like to design her Web page so that her personal data would not appear on the page in each individual blog item but, rather, in one place like a footnote or a sidebar. I.e., what she would like to see is something like:

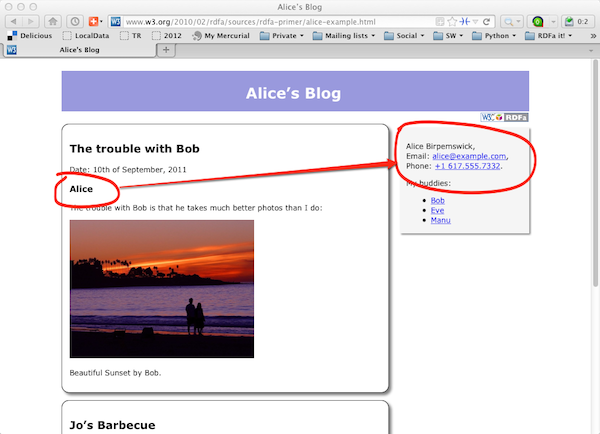

Fig. 10 Mock-up of Alice's blog page design, with blogs on the left and personal data on the right

If the FOAF data were included in each blog item, Alice would have to create a complex set of CSS rules to achieve the visual effect she wants.

To solve this, Alice decides to make use of the structure she already used for her FOAF data but, this time, assigning it a separate URI using the resource attribute:

Example 24

<div vocab="http://xmlns.com/foaf/0.1/" resource="#me" typeof="Person">
  <p>
   <span property="name">Alice Birpemswick</span>,
     Email: <a property="mbox" href="mailto:alice@example.com">alice@example.com</a>,
     Phone: <a property="phone" href="tel:+1-617-555-7332">+1 617.555.7332</a>
  </p>
  ...
</div>

It is actually considered as a good practice to use real URIs whenever possible, i.e., Alice's new alternative should be preferred in general. Indeed, if a real URI is used, then it becomes possible to unambiguously refer to that particular piece of information, whereas that becomes more complicated with blank nodes.

Note

The resource="#me" markup (which, by the way, also presupposes that the target is in the same HTML scope) is a FOAF convention: the URL that represents the person Alice is http://example.com/alice#me. It should not be confused with Alice's homepage, http://example.com/alice. Of course, Alice could have used a different URI if, for example, her blog and her personal homepage were kept separate; e.g., she could have used resource="http://alice.example.com/alice/home#myself" instead of resource="#me".

Using the explicit URI for her FOAF data Alice can add a direct reference to the blog item using again the resource attribute:

Example 25

<div vocab="http://purl.org/dc/terms/">
   <div resource="/alice/posts/trouble_with_bob">
      <h2 property="title">The trouble with Bob</h2>
      <h3 property="creator" resource="#me">Alice</h3>
      ...
   </div>
</div>
   ...
<div class="sidebar" vocab="http://xmlns.com/foaf/0.1/" resource="#me" typeof="Person">
  <p>
   <span property="name">Alice Birpemswick</span>,
     Email: <a property="mbox" href="mailto:alice@example.com">alice@example.com</a>,
     Phone: <a property="phone" href="tel:+1-617-555-7332">+1 617.555.7332</a>
  </p>
  ...
</div>

The resource attribute appears, in this case, together with property on the same element: in this situation resource indicates the "target" of the relation. Usage of this attribute allows Alice to "distribute" the various parts of her structured data on her page. What she gets is a slightly modified version of the previous structure, where the only difference is the usage of an explicit URI instead of a blank node:

Fig. 11 The simple blog structure extended with Alice's foaf data with an explicit URI

Using this approach, it becomes very easy to also add references to the same data from different blog posts:

Example 26

<div vocab="http://purl.org/dc/terms/">
   <div resource="/alice/posts/trouble_with_bob">
      <h2 property="title">The trouble with Bob</h2>
      <h3 property="creator" resource="#me">Alice</h3>
      ...
   </div>
</div>
   ...
<div vocab="http://purl.org/dc/terms/">
   <div resource="/alice/posts/my_photos">
      <h2 property="title">I will post my photos nevertheless…</h2>
      <h3 property="creator" resource="#me">Alice</h3>
      ...
   </div>
</div>
   ...
<div class="sidebar" vocab="http://xmlns.com/foaf/0.1/" resource="#me" typeof="Person">
  <p>
   <span property="name">Alice Birpemswick</span>,
     Email: <a property="mbox" href="mailto:alice@example.com">alice@example.com</a>,
     Phone: <a property="phone" href="tel:+1-617-555-7332">+1 617.555.7332</a>
  </p>
  ...
</div>

Leading to the following structure:

Fig. 12 The simple blog structure with two blogs extended with Alice's foaf data with an explicit URI

Note

Combined with property, the resource attribute plays exactly the same role as href, already used for "links with flavor", except that it does not provide a clickable link to the browser like href does. Also, the resource attribute can be used on any HTML element, as opposed to href whose usage is restricted, in HTML, to the a and link elements.

Note

There is a similarity between this issue and its solution and the issue and the approach taken in the section on property copying. There is, however, a subtle but important difference between the two. The solution using the resource attribute introduces a new node in the graph, as shown on Figure 12, whereas copying the properties does not. Which of the two approaches should be adopted is often based on the vocabulary that is used.

2.1.5 Using Multiple Vocabularies

The previous examples show that, for more complex cases, multiple vocabularies have to be used to express the various aspects of structured data. We have seen Alice using the Dublin Core, as well as the FOAF and the Creative Commons vocabularies, but there may be more. For example. Alice may want to add vocabulary elements defined by search engines on their schema.org site [schema].

Alice can use either full URLs for all the terms, or can use the vocab attribute to abbreviate the terms for the predominant vocabulary. But, in some cases, the vocabularies cannot be separated easily, which means that the usage of vocab may become awkward. Here is, for example, the kind of HTML she might end up with:

Example 27

<html>
 <head>
    ...
 </head>
 <body vocab="http://schema.org/">
   <div resource="/alice/posts/trouble_with_bob" typeof="BlogPosting">
      <h2 property="http://purl.org/dc/terms/title">The trouble with Bob</h2>
      ...
      <h3 property="http://purl.org/dc/terms/creator" resource="#me">Alice</h3>
      <div property="articleBody">
        <p>The trouble with Bob is that he takes much better photos than I do:</p>
      </div>
      ...
   </div>
   ...
  </body>
 </html>

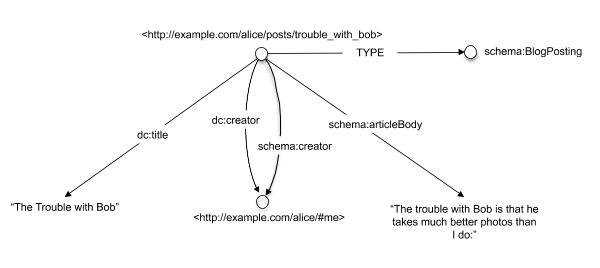

Note that the schema.org and the Dublin Core terms are intertwined for a specific blog, and it becomes an arbitrary choice whether to use the vocab attribute for http://purl.org/dc/terms/ or for http://schema.org/. We have seen the same problem in a previous section when FOAF and Dublin Core terms were mixed.

To alleviate this problem, RDFa offers the possibility of using prefixed terms: a special prefix attribute can assign prefixes to represent URLs and, using those prefixes, the vocabulary elements themselves can be abbreviated. The prefix:reference syntax is used: the URL associated with prefix is simply concatenated to reference to create a full URL. (Note that we have already used this convention to simplify our figures.) Here is how the HTML of the previous example looks like when prefixes are used:

Example 28

<html>
 <head>
   ...
 </head>
 <body prefix="dc: http://purl.org/dc/terms/ schema: http://schema.org/">
   <div resource="/alice/posts/trouble_with_bob" typeof="schema:BlogPosting">
      <h2 property="dc:title">The trouble with Bob</h2>
      ...
      <h3 property="dc:creator" resource="#me">Alice</h3>
      <div property="schema:articleBody">
        <p>The trouble with Bob is that he takes much better photos than I do:</p>
      </div>
     ...
   </div>
 </body>
</html>

The usage of prefixes can greatly reduce possible errors by concentrating the vocabulary choices to one place in the file. Just like vocab, the prefix attribute can appear anywhere in the HTML file, only affecting the elements below. prefix and vocab can also be mixed, for example:

Example 29

<html>
 <head>
   ...
 </head>
 <body vocab="http://purl.org/dc/terms/" prefix="schema: http://schema.org/">
   <div resource="/alice/posts/trouble_with_bob" typeof="schema:BlogPosting">
      <h2 property="title">The trouble with Bob</h2>
      ...
      <h3 property="creator" resource="#me">Alice</h3>
      <div property="schema:articleBody">
        <p>The trouble with Bob is that he takes much better photos than I do:</p>
      </div>
      ...
   </div>
 </body>
</html>

Note

An important issue may arise if the html element contains a large number of prefix declarations. The character encoding (i.e., UTF-8, UTF-16, ASCII, etc.) used for an HTML5 file is declared using a meta element in the header. In HTML5 this meta declaration must fall within the first 512 bytes of the page, or the HTML5 processor (browser, parser, etc.) will try to detect the encoding using some heuristics. A very "long" html tag may therefore lead to problems. One way of avoiding the issue is to place most of the prefix declarations on the body element.

2.1.5.1 Repeating properties

The previous example, whereby the Dublin Core and the schema.org vocabularies are used within the same blog post, raises another issue. It so happens that not only Dublin Core, but also schema.org has a property called creator. Because RDFa uses URIs to denote properties that, by itself, is not a problem. However, if Alice wants to use both these properties in the same blog post (e.g., because she wants search engines to manage her blog post but, at the same times, she wants Dublin Core aware applications, like catalogs, to handle her blog post, too) this is what she may have to do:

Example 30

<html>
 <head>
   ...
 </head>
 <body prefix="dc: http://purl.org/dc/terms/ schema: http://schema.org/">
   <div resource="/alice/posts/trouble_with_bob" typeof="schema:BlogPosting">
      <h2 property="dc:title">The trouble with Bob</h2>
      ...
      <h3 property="dc:creator" resource="#me"><span property="schema:creator" resource="#me">Alice</span></h3>
      <div property="schema:articleBody">
        <p>The trouble with Bob is that he takes much better photos than I do:</p>
      </div>
     ...
   </div>
 </body>
</html>

Which is a bit awkward. Fortunately, RDFa allows the value of a property attribute to be a list of values, i.e., she can also write:

Example 31

<html>
 <head>
   ...
 </head>
 <body prefix="dc: http://purl.org/dc/terms/ schema: http://schema.org/">
   <div resource="/alice/posts/trouble_with_bob" typeof="schema:BlogPosting">
      <h2 property="dc:title">The trouble with Bob</h2>
      ...
      <h3 property="dc:creator schema:creator" resource="#me">Alice</h3>
      <div property="schema:articleBody">
        <p>The trouble with Bob is that he takes much better photos than I do:</p>
      </div>
     ...
   </div>
 </body>
</html>

yielding the structure:

Fig. 13 The simple blog structure with two different creator properties

Similarly to property, typeof also accepts a list of values. For example, schema.org also has a notion of a Person, similar to FOAF; Alice may choose to use both:

Example 32

<div class="sidebar" prefix="foaf: http://xmlns.com/foaf/0.1/ schema: http://schema.org/"
     resource="#me" typeof="foaf:Person schema:Person">
  <p>
   <span property="foaf:name">Alice Birpemswick</span>,
     Email: <a property="foaf:mbox" href="mailto:alice@example.com">alice@example.com</a>,
     Phone: <a property="foaf:phone" href="tel:+1-617-555-7332">+1 617.555.7332</a>
  </p>
  ...
</div>

2.1.5.2 Default Prefixes (Initial Context)

A number of vocabularies are very widely used by the Web community with well-known prefixes—the Dublin Core vocabulary is a good example. These common vocabularies tend to be defined over and over again, and sometimes Web page authors forget to declare them altogether.

To alleviate this issue, RDFa introduces the concept of an initial context that defines a set of default prefixes. These prefixes, whose list is maintained and regularly updated by the W3C, provide a number of pre-defined prefixes that are known to the RDFa processor. Prefix declarations in a document always override declarations made through the defaults, but if a web page author forgets to declare a common vocabulary such as Dublin Core or FOAF, the RDFa Processor will fall back to those. The list of default prefixes are available on the Web for everyone to read.

For example, the following example does not declare the dc: prefix using a prefix attribute:

Example 33

<html>
 <head>
   ...
 </head>
 <body>
   <div>
      <h2 property="dc:title">The trouble with Bob</h2>
      ...
      <h3 property="dc:creator" resource="#me">Alice</h3>
       ...
   </div>
 </body>
</html>

However, an RDFa processor still recognizes the dc:title and dc:creator short-hands and expands the values to the corresponding URLs. The RDFa processor is able to do this because the dc prefix is part of the default prefixes in the initial context.

Note

Default prefixes are used as a mechanism to correct RDFa documents where authors accidentally forgot to declare common prefixes. While authors may rely on these to be available for RDFa documents, the prefixes may change over the course of 5-10 years, although the policy of W3C is that once a prefix is defined as part of a default profile, that particular prefix will not be changed or removed. Nevertheless, the best way to ensure that the prefixes that document authors use always map to the intent of the author is to use the prefix attribute to declare these prefixes.

Since default prefixes are meant to be a last-resort mechanism to help novice document authors, the markup above is not recommended. The rest of this document will utilize authoring best practices by declaring all prefixes in order to make the document author's intentions explicit.

2.2 Going Deeper: RDFa Core

As we have seen in the previous sections, RDFa Lite is fairly powerful. Alice could indeed express complex sets of structured information. However, there are cases when the set of attributes presented so far does not cover all the needs, or make the resulting HTML structure a bit awkward and possibly error-prone. In those cases additional RDFa possibilities, provided through additional RDFa attributes, may come to the rescue; some of these will be presented in this section.

Note

RDFa Lite does not define a separate class of RDFa processors. In other words conforming RDFa processors are supposed to handle all RDFa features, not only those listed used by RDFa Lite.

2.2.1 Using the `content` attribute

When creating her blog, Alice decided to use this simple structure to add Dublin Core information to her blog post (see also Figure 2):

Example 34

<html>
 <head>
   ...
 </head>
 <body>
   ...
   <h2 property="http://purl.org/dc/terms/title">The Trouble with Bob</h2>
   <p>Date: <span property="http://purl.org/dc/terms/created">2011-09-10</span></p>
   ...
 </body>
</html>

However, to do that, Alice had to accept a small compromise. Indeed, although the string "2011-09-10" unambiguously identifies a date for a machine, it does not looks very natural for a human reader. Surely a native English reader would prefer something like "10th of September, 2011". On the other hand, although it is of course possible for a machine to parse and interpret that string as a date, too, it is clearly more complicated to do so. The problem is that, as a default, RDFa uses the textual content of the element for the property value. While this works well in most of the cases, sometimes, like in this example, this has awkward consequences.

To alleviate this problem RDFa makes it possible to re-use the content attribute of HTML. The blog entry could be written as follows:

Example 35

<html>
 <head>
   ...
 </head>
 <body>
   ...
   <h2 property="http://purl.org/dc/terms/title">The Trouble with Bob</h2>
   <p>Date: <span property="http://purl.org/dc/terms/created" content="2011-09-10">10th of September, 2011</span></p>
   ...
 </body>
</html>

The resulting structure is exactly the same as before (i.e., Figure 2). The difference is the presence of the content attribute: it instructs the RDFa processor to overrule the default behavior of using the textual content, and to use the value of the content attribute instead. Using this attribute Alice could provide a more readable date, while maintaining an unambiguous content for machines using the structured data.

The content attribute has another important usage. The "traditional" approach to add simple metadata to a Web page has been to use the document header through the link and the meta elements. While there is no problem using link in RDFa Lite (which uses the href attribute, i.e., can be used to define "flavored" links), the fact that, in a conforming HTML file, the meta element may have no text content means that the only way of using the header for such statements is to use the content attribute. For example, using the meta element is the approach suggested by Facebook for the Open Graph Protocol [ogp] vocabulary; i.e., if Alice wants to make use of the "Like" button in her posts, this is what she would add to her header:

Example 36

<html>
 <head prefix="og: http://ogp.me/ns#" >
   ...
   <meta property="og:title" content="The Trouble with Bob" />
   <meta property="og:type"  content="text" />
   <meta property="og:image" content="http://example.com/alice/bob-ugly.jpg" />
   ...
 </head>
 <body>
  ...
 </body>
</html>

Note

In this example the prefix for the Open Graph Protocol vocabulary is defined via the prefix attribute. Alas, many authors forget to do so. Fortunately, the og prefix is part of the initial context for RDFa, i.e., the resulting information will be valid even without the prefix declaration…

2.2.2 Datatypes

Alice has already put license information on her page:

Example 37

<p>All content on this site is licensed under
   <a property="http://creativecommons.org/ns#license" href="http://creativecommons.org/licenses/by/3.0/">
     a Creative Commons License</a>. ©2011 Alice Birpemswick.</p>

but she would like to complete this by recording the date of her copyright statement as a structured data, too. She can use the date term of Dublin Core:

Example 38

<p>All content on this site is licensed under
   <a property="http://creativecommons.org/ns#license" href="http://creativecommons.org/licenses/by/3.0/">
     a Creative Commons License</a>. ©<span property="dc:date">2011</span> Alice Birpemswick.</p>

However, the value used for the date may be ambiguous for machines. Of course, if a program "knows" that that http://purl.org/dc/terms/date refers to a date, then of course it can find out that the string "2011" stands for a year. But there may be processors that, for example, provide a visual presentation of all the structured data on a specific page, and would like to use a different "widget" to represent a year and again another one to represent, say, an integer number. How would such a processor know which one to choose?

Alice may decide to be helpful by adding an additional information to that item in the form of a datatype. This additional information can be conveyed to the RDFa processor using the datatype RDFa attribute as follows:

Example 39

<p>All content on this site is licensed under
   <a property="http://creativecommons.org/ns#license" href="http://creativecommons.org/licenses/by/3.0/">
     a Creative Commons License</a>. ©<span property="dc:date" datatype="xsd:gYear">2011</span> Alice Birpemswick.</p>

where xsd:gYear stands for http://www.w3.org/2001/XMLSchema#gYear, and is one of the standard datatypes defined by W3C's Datatype specification [xmlschema11-2] which contains such types as booleans, integers, dates, or doubles. (xsd is one of the default prefixes for RDFa.)

2.2.3 Alternative for setting the context: `about`

Alice has used the following patterns to define structured data for the individual blogs:

Example 40

<div resource="/alice/posts/trouble_with_bob">
   <h2 property="title">The trouble with Bob</h2>
   <h3 property="creator" resource="#me">Alice</h3>
   ...
</div>

The role of the resource attribute in the div element is to set the "context", i.e., the subject for all the subsequent statements. Also, when combined with the property attribute, resource can be used to set the "target", i.e., the object for the statement (much as href).

This pattern is perfectly fine, but it may become too verbose in some cases. Indeed, let us suppose that Alice would like to set up a separate index page for all her blog posts, and the only information she would like to put there, as structured data, is references to the titles. Following the same pattern, she would have to do something like:

Example 41

<ul>
  <li resource="/alice/posts/trouble_with_bob"><span property="title">The trouble with Bob</span></li>
  <li resource="/alice/posts/jos_barbecue"><span property="title">Jo's Barbecue</span></li>
  ...
</ul>

This of course works, but it is a bit convoluted. Merging the information into one element, i.e.:

Example 42

<ul resource="/alice/posts/trouble_with_bob">
  <li resource="/alice/posts/trouble_with_bob" property="title">The trouble with Bob</li>
  ...
</ul>

would not be correct; the combination of property and resource would generate a different statement than originally intended.

RDFa introduces a separate attribute, called about, that can be used as an alternative to resource in setting the the context. Using that attribute, Alice could write:

Example 43

<ul>
  <li about="/alice/posts/trouble_with_bob" property="title">The trouble with Bob</li>
  <li about="/alice/posts/jos_barbecue" property="title">Jo's Barbecue</li>
  ...
</ul>

The fundamental difference between about and resource is that the former is only used to set the context, whether combined with the property attribute on the same element or not. This also means that, for such usage, about and resource are interchangeable; i.e., in her original blog item, Alice could have chosen to write:

Example 44

<div about="/alice/posts/trouble_with_bob">
   <h2 property="title">The trouble with Bob</h2>
   <h3 property="creator" resource="#me">Alice</h3>
   ...
</div>

2.2.4 Alternative for setting the property: `rel`

Another pattern that Alice used in her code is as follows:

Example 45

<div vocab="http://xmlns.com/foaf/0.1/" resource="#me">
   <ul>
      <li property="knows" resource="http://example.com/bob/#me" typeof="Person">
        <a property="homepage" href="http://example.com/bob/"><span property="name">Bob</span></a>
      </li>
      <li property="knows" resource="http://example.com/eve/#me" typeof="Person">
        <a property="homepage" href="http://example.com/eve/"><span property="name">Eve</span></a>
      </li>
      <li property="knows" resource="http://example.com/manu/#me" typeof="Person">
        <a property="homepage" href="http://example.com/manu/"><span property="name">Manu</span></a>
      </li>
   </ul>
</div>

Each "branch" in the list sets a separate object (blank nodes in this example) and the same property (foaf:knows) is used to bind them to the same context. The property="knows" had to be repeated in each list element to define the corresponding property. If this structure is generated by some CMS systems, this is of course not a problem. However, if such structure is authored manually, it is clearly error prone: the property name can be misspelled or forgotten.

Instead, Alice could use another RDFa attribute, namely rel. Using this attribute the corresponding HTML would look as:

Example 46

<div vocab="http://xmlns.com/foaf/0.1/" resource="#me">
   <ul rel="knows">
      <li resource="http://example.com/bob/#me" typeof="Person">
        <a property="homepage" href="http://example.com/bob/"><span property="name">Bob</span></a>
      </li>
      <li resource="http://example.com/eve/#me" typeof="Person">
        <a property="homepage" href="http://example.com/eve/"><span property="name">Eve</span></a>
      </li>
      <li resource="http://example.com/manu/#me" typeof="Person">
        <a property="homepage" href="http://example.com/manu/"><span property="name">Manu</span></a>
      </li>
   </ul>
</div>

In contrast to property, rel never considers the textual content of an element (or the value of the content attribute). Instead, if no clear target has been specified for a link via, e.g., a resource or an href attribute, the processor is supposed to go “down” and find one or more targets in the hierarchy and use those. This is what happens in this case: the knows attribute on the ul element does not include any obvious target; however, the processor finds those in the individual li elements and will use those. This pattern is typical for the usage of rel.

Note

In many situations, property and rel are interchangeable when the intended structured data involves (flavored) links. There are, however, subtle differences involving, for example, “chaining” that must be used with care. The interested reader should consult the relevant section of the RDFa 1.1 specification for further details. In general, it is advised to use property, when possible.

RDFa 1.1 Primer - Third Edition

Rich Structured Data Markup for Web Documents

W3C Working Group Note 17 March 2015

Abstract

Status of This Document

Table of Contents

1. Introduction

1.1 HTML vs. XHTML

1.2 Validation

2. Using RDFa

2.1 The Basics of RDFa: RDFa Lite

2.1.1 The First Steps: Adding Machine-Readable Hints to Web Pages

2.1.1.2 Links with Flavor

2.1.1.3 Setting a Default Vocabulary

2.1.1.4 Multiple Items per Page

2.1.3 Repeated Patterns

2.1.4 Internal References

2.1.5 Using Multiple Vocabularies

2.1.5.1 Repeating properties

2.1.5.2 Default Prefixes (Initial Context)

2.2 Going Deeper: RDFa Core

2.2.1 Using the `content` attribute

2.2.2 Datatypes

2.2.3 Alternative for setting the context: `about`

2.2.4 Alternative for setting the property: `rel`

3. You Said Something about RDF?

3.1 Custom Vocabularies

4. RDFa Tools

5. Acknowledgments

A. References

A.1 Informative references

Abstract

Status of This Document

Table of Contents

1. Introduction

1.1 HTML vs. XHTML

1.2 Validation

2. Using RDFa

2.1 The Basics of RDFa: RDFa Lite

2.1.1 The First Steps: Adding Machine-Readable Hints to Web Pages

2.1.1.1 Hints on Social Networking Sites

2.1.1.2 Links with Flavor

2.1.1.3 Setting a Default Vocabulary

2.1.1.4 Multiple Items per Page

2.1.2 Exploring Further: Social networks

2.1.2.1 Contact Information

2.1.2.2 Describing Social Networks

2.1.3 Repeated Patterns

2.1.4 Internal References

2.1.5 Using Multiple Vocabularies

2.1.5.1 Repeating properties

2.1.5.2 Default Prefixes (Initial Context)

2.2 Going Deeper: RDFa Core

2.2.1 Using the content attribute

2.2.2 Datatypes

2.2.3 Alternative for setting the context: about

2.2.4 Alternative for setting the property: rel

3. You Said Something about RDF?

3.1 Custom Vocabularies

4. RDFa Tools

5. Acknowledgments

A. References

A.1 Informative references

2.2.1 Using the `content` attribute

2.2.3 Alternative for setting the context: `about`

2.2.4 Alternative for setting the property: `rel`
