CSS Line Grid Module Level 1

W3C Working Draft, 16 September 2014

This version:
http://www.w3.org/TR/2014/WD-css-line-grid-1-20140916/
Latest version:
http://www.w3.org/TR/css-line-grid-1/
Editor’s Draft:
http://dev.w3.org/csswg/css-line-grid/
Previous Versions:
http://www.w3.org/TR/2014/WD-css-line-grid-1-20140403/
Feedback:
www-style@w3.org with subject line “[css-line-grid] … message topic …”(archives)
Editors:
Elika Etemad (Invited Expert)
(Invited Expert)
(Adobe Systems, Inc.)

Abstract

This module contains CSS features for aligning content to a baseline grid.

CSS is a language for describing the rendering of structured documents (such as HTML and XML) on screen, on paper, in speech, etc.

Status of this document

This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.

Publication as a Working Draft does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.

The (archived) public mailing list www-style@w3.org (see instructions) is preferred for discussion of this specification. When sending e-mail, please put the text “css-line-grid” in the subject, preferably like this: “[css-line-grid] …summary of comment…

This document was produced by the CSS Working Group (part of the Style Activity).

This document was produced by a group operating under the 5 February 2004 W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.

This document is governed by the 14 October 2005 W3C Process Document.

Table of Contents

1 Introduction

1.1 Background

This section is not normative.

This specification provides features to align lines and blocks to invisible grids in the document.

Aligning lines and blocks to grids provides the following benefits:

There are several types of objects in a document that can break the vertical rhythm. Examples include lines with different sizes of text, pictures, and tables.

Vertical rhythm kept through pictures and different size of text in a multi-column document

Vertical rhythm kept through pictures and different size of text in a multi-column document.

Large text wraps within line grids

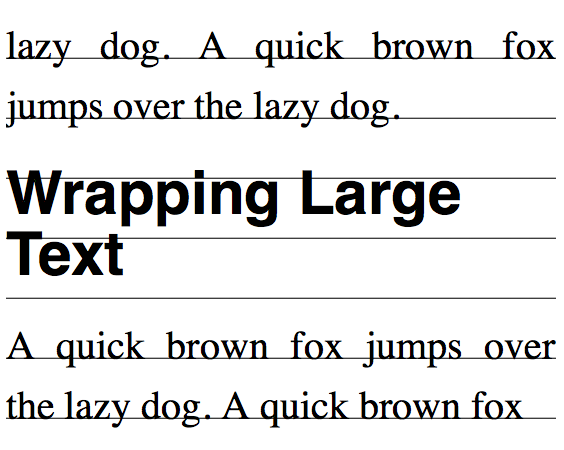

Large text wraps within line grids.

When a different size of text, such as a headings wraps, it is usually aligned to grids as a block and the lines within the block do not align.


Sidenotes (and footnotes for that matter) are often set at a smaller size than the basic text. This smaller text should still line up with the basic text. Authors can try to achieve this effect by calculating appropriate font-size, line-height, and margins*, but lack the proper tools to get the baselines to align.

Even if the author controls all this, the baselines won’t align. And careful calculations can be thrown off by user stylesheets.

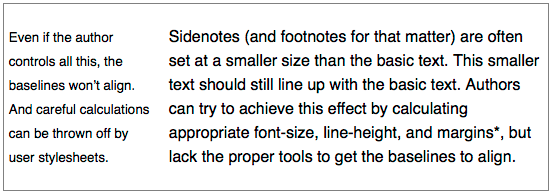

Sidenotes are set at a smaller size, and baselines don’t align.

sidenote rendering with aligned baselines
Sidenote with baselines aligned to the body text.
East Asian layouts may require width be a multiple of em without fractions

East Asian layouts may require width be a multiple of em without fractions.

East Asian layouts may require grid-like features in inline progression direction as well.

It is often desirable in East Asian layouts to make the line width a multiple of em without fractions. Because most East Asian characters have 1em advance and most East Asian documents are justified, this minimizes cases where justification needs to expand character spacing.

This module provides the following capabilities:

It is important to control these capabilities independently, so that, for example, aligning to grids can be turned off for tables, but can then be turned back on for aligning the following text to the grids.

1.2 Module Interactions

This module extends the line box model defined in [CSS21] sections 9.4.2 and 10.8.

1.3 Values

This specification follows the CSS property definition conventions from [CSS21]. Value types not defined in this specification are defined in CSS Level 2 Revision 1 [CSS21]. Other CSS modules may expand the definitions of these value types: for example [CSS3COLOR], when combined with this module, expands the definition of the <color> value type as used in this specification.

In addition to the property-specific values listed in their definitions, all properties defined in this specification also accept the inherit keyword as their property value. For readability it has not been repeated explicitly.

2 Defining a Line Grid: the line-grid property

Name:line-grid
Value:match-parent | create
Initial:match-parent
Applies to:block containers
Inherited:no
Media:visual
Computed value:as specified
Percentages:N/A
Animatable:no

Specifies whether this box creates a new baseline grid for its descendants or uses the same baseline grid as its parent. (Each box always has an associated line grid. However, whether a box or its contents snap to a line grid is determined by line-snap and box-snap.)

The values of this property have the following meanings:

match-parent
Box assumes the line grid of its parent.
create
Box creates a new line grid using its own font and line layout settings. The line grid consists of a series of horizontal lines corresponding to all the baselines (alphabetic, text-top, text-bottom, mathematic, central, hanging, etc.) and to the line-over and line-under edges, positioned where they would fall if the contents of this element consisted entirely of line boxes filled with text (no sub-elements) using the first available font. If the box is paginated, the line grid is restarted on each page; since line boxes cannot be fragmented, no page begins with the bottom part of a line’s grid.

The names of these values is currently up for debate. Current suggestions for match-parent include match-parent and normal; those for create include create and new.

The original proposal for line grids allowed an element to create a named grid. This property could still be extended to do this in the future.

Håkon points out that there might be a need to have line grids aligned to the page box rather than the page content box. The current proposal has no way to switch between the two.

There might need to be an offset for more complicated designs. How to set this offset is problematic: usually it’s not a fixed length, but the distance to clear some header content. This could be added to a later level of line-grid.

3 Snapping to a Grid

3.1 Snapping Line Boxes: the line-snap property

Name:line-snap
Value:none | baseline | contain
Initial:none
Applies to:all elements
Inherited:yes
Media:visual
Computed value:as specified
Percentages:N/A
Animatable:no

This property applies to all the line boxes directly contained by the element, and, when not none, causes each line box to shift (usually downward, possibly by zero) until it snaps to the line grid specified by line-grid. (The unshifted position is the position that would be determined by normal line stacking rules, with consideration of any new controls defined by other modules such as [CSS3LINE].) Shifting line boxes in this way affects layout – it is not merely a display translation. If a line box is shifted downward, then subsequent line boxes will be laid out using the new shifted position as input to their line stacking rules.

Values have the following meanings:

none
Line boxes do not snap to the grid; they stack normally.
baseline
The dominant baseline snaps with the matching baseline on the line grid applying to the element.
contain
Two baselines are used to align the line box: the line box is snapped so that its central baseline is centered between one of the line grid’s text-over-edge baselines and a subsequent (but not necessarily consecutive) text-under-edge baseline.

In some cases lines of equal line height will not align perfectly to a baseline grid: this happens, for example, when fonts (of the same size) with different baseline tables are mixed on a line. For this reason, if shifting the line by the largest difference between the smallest ascent and largest ascent of a single size used on the line would result in a smaller shift, then the contents of the line box are shifted up within the line box so as to allow the line to snap without jumping downward to the next grid line.

Line boxes almost always shift downward (towards the block-end direction) when snapping to a line grid. Here there are three lines with 20px line-height and line-snap:baseline that should snap to a 30px line grid. Each line box shifts down so that the baselines align with the grid lines.

line positions before snapping
Before line snapping
line positions after snapping
After line snapping

In the figures below, there are two additional lines from h3 elements with line-snap:none. These lines do not shift to align to the grid, but their positions can change based on the shifting of lines around them. In this example, lines 1 2 and 3 shift down to snap their baselines to the grid lines, and line B has normal line box placement just below the line above.

line positions before snapping
Before line snapping
line positions after snapping
After line snapping

The block containing all of these lines might not be top-aligned within its container. In the figures below, the block containing the elements is centered. In a centered situation, you have to align baselines while maintaining centering. This can be done in two shift-and-center steps.

First, shift the snapping lines as if the block was top-aligned (as in figure 9 above), then remove the shift for the very first snapping line. After removing the first shift, try centering the block. This is almost certain to throw the baseline alignment off. You can see one such result in the partial shifting figure below.

Second, measure the distance from the first snapped line’s baseline to the grid lines above and below, looking for the closest grid line to that baseline.

If the closest grid line is in the block-start direction, then add space below the last line in the block equal to twice that distance. Then the block is centered again, which will align all of the snapped lines to the grid.

line positions at step 1
Partial shifting
line positions after full snapping
Full line snapping

If the closest grid line is in the block-end direction, then the first snapped line is shifted downward by twice that distance. Then the block is centered again, which will again align all of the snapped lines to the grid.

line positions at step 1
Partial shifting
line positions after full snapping
Full line snapping

An end-aligned block also uses two steps, but is simpler than the centered case.

First, shift the snapping lines as if there were no end-alignment (as in figure 9 above), then end-align the block.

Second, shift the entire block contents upwards until the last snapped line aligns to a grid line. In this example, the shift is very minor.

line positions before snapping
Before snapping
line positions after snapping
After line snapping

3.2 Snapping Block Boxes: the box-snap property

This is a rough draft of trying to solve the box-snapping problem.

Some optional box values (margin-box, border-box) could be added to the before and after values to allow snapping various box model edges to the line grid.

An auto value could be useful - one that defaults to center, but snaps to before if it’s the first block in a fragment container, and snaps to after if it’s the last block in a fragment container.

Name:box-snap
Value:none | block-start | block-end | center | first-baseline | last-baseline
Initial:none
Applies to:block-level boxes and internal table elements except table cells
Inherited:yes
Media:visual
Computed value:as specified
Percentages:N/A
Animatable:no

Specifies how the block is snapped to the baseline grid.

Values have the following meanings:

none
The block is not snapped to any grid.
block-start
The block-start edge is snapped to the nearest grid line.
block-end
The block-end edge is snapped to the nearest grid line.
center
The block is centered centered between one of the baseline grid’s text-over baselines and a subsequent (but not necessarily consecutive) text-under baseline.
first-baseline
The first line box’s dominant baseline is snapped to the nearest grid line.
last-baseline
The last line box’s dominant baseline is snapped to the nearest grid line.

When snapping to baselines on a line grid, either the text-over-edge or text-under-edge baseline is chosen: whichever one is on the matching side of the central baseline. For example, when snapping the block-start edge in horizontal writing mode, the text-over-edge is chosen. In some cases the text-under-edge might be used instead for the block-start edge: for example, when the writing mode of the line grid doesn’t match that of the affected element, or when due to the text-orientation settings the text-under-edge corresponds to the block-start edge.

To snap a block-level element to a grid line, the effective margin is increased at that edge. If, however, the box is an empty block that could be collapsed through, then this property has no effect. [CSS21]

When applied to table row group and table row boxes, box-snap only affects the before and after edges, and only if those edges are not at the beginning or end of the table, respectively. To snap a before edge on a table row or row group, the preceding row’s height is increased. To snap an after edge on a table row or row group, the affected row’s height is increased.

When applied to table column group and table column boxes, 'box-snap’only affects the start and end edges, and only if those edges are not at the start or end of the table, respectively. How the space is redistributed among columns to satisfy snapping constraints is not defined, however:

To satisfy these constraints, some column edges may remain unsnapped.

Acknowledgments

This module was made possible by the advice and contributions of Dave Cramer, Dave Hyatt, Bem Jones-Bey, and the CSS Working Group members.

Change Log

Since April 3rd 2014

Conformance

Document conventions

Conformance requirements are expressed with a combination of descriptive assertions and RFC 2119 terminology. The key words "MUST", "MUST NOT", "REQUIRED", "SHALL", "SHALL NOT", "SHOULD", "SHOULD NOT", "RECOMMENDED", "MAY", and "OPTIONAL" in the normative parts of this document are to be interpreted as described in RFC 2119. However, for readability, these words do not appear in all uppercase letters in this specification.

All of the text of this specification is normative except sections explicitly marked as non-normative, examples, and notes. [RFC2119]

Examples in this specification are introduced with the words "for example" or are set apart from the normative text with class="example", like this:

This is an example of an informative example.

Informative notes begin with the word "Note" and are set apart from the normative text with class="note", like this:

Note, this is an informative note.

Advisements are normative sections styled to evoke special attention and are set apart from other normative text with <strong class="advisement">, like this: UAs MUST provide an accessible alternative.

Conformance classes

Conformance to this specification is defined for three conformance classes:

style sheet
A CSS style sheet.
renderer
A UA that interprets the semantics of a style sheet and renders documents that use them.
authoring tool
A UA that writes a style sheet.

A style sheet is conformant to this specification if all of its statements that use syntax defined in this module are valid according to the generic CSS grammar and the individual grammars of each feature defined in this module.

A renderer is conformant to this specification if, in addition to interpreting the style sheet as defined by the appropriate specifications, it supports all the features defined by this specification by parsing them correctly and rendering the document accordingly. However, the inability of a UA to correctly render a document due to limitations of the device does not make the UA non-conformant. (For example, a UA is not required to render color on a monochrome monitor.)

An authoring tool is conformant to this specification if it writes style sheets that are syntactically correct according to the generic CSS grammar and the individual grammars of each feature in this module, and meet all other conformance requirements of style sheets as described in this module.

Partial implementations

So that authors can exploit the forward-compatible parsing rules to assign fallback values, CSS renderers must treat as invalid (and ignore as appropriate) any at-rules, properties, property values, keywords, and other syntactic constructs for which they have no usable level of support. In particular, user agents must not selectively ignore unsupported component values and honor supported values in a single multi-value property declaration: if any value is considered invalid (as unsupported values must be), CSS requires that the entire declaration be ignored.

Experimental implementations

To avoid clashes with future CSS features, the CSS2.1 specification reserves a prefixed syntax for proprietary and experimental extensions to CSS.

Prior to a specification reaching the Candidate Recommendation stage in the W3C process, all implementations of a CSS feature are considered experimental. The CSS Working Group recommends that implementations use a vendor-prefixed syntax for such features, including those in W3C Working Drafts. This avoids incompatibilities with future changes in the draft.

Non-experimental implementations

Once a specification reaches the Candidate Recommendation stage, non-experimental implementations are possible, and implementors should release an unprefixed implementation of any CR-level feature they can demonstrate to be correctly implemented according to spec.

To establish and maintain the interoperability of CSS across implementations, the CSS Working Group requests that non-experimental CSS renderers submit an implementation report (and, if necessary, the testcases used for that implementation report) to the W3C before releasing an unprefixed implementation of any CSS features. Testcases submitted to W3C are subject to review and correction by the CSS Working Group.

Further information on submitting testcases and implementation reports can be found from on the CSS Working Group’s website at http://www.w3.org/Style/CSS/Test/. Questions should be directed to the public-css-testsuite@w3.org mailing list.

References

Normative References

[CSS21]
Bert Bos; et al. Cascading Style Sheets Level 2 Revision 1 (CSS 2.1) Specification. 7 June 2011. W3C Recommendation. URL: http://www.w3.org/TR/2011/REC-CSS2-20110607
[RFC2119]
S. Bradner. Key words for use in RFCs to Indicate Requirement Levels. URL: http://www.ietf.org/rfc/rfc2119.txt

Informative References

[CSS3COLOR]
Tantek Çelik; Chris Lilley; L. David Baron. CSS Color Module Level 3. 7 June 2011. W3C Recommendation. URL: http://www.w3.org/TR/2011/REC-css3-color-20110607
[CSS3LINE]
Michel Suignard; Eric A. Meyer. CSS3 module: line. 15 May 2002. W3C Working Draft. (Work in progress.) URL: http://www.w3.org/TR/2002/WD-css3-linebox-20020515
[JLREQ]
Yasuhiro Anan; et al. Requirements for Japanese Text Layout. 3 April 2012. W3C Working Group Note. URL: http://www.w3.org/TR/2012/NOTE-jlreq-20120403/

Index

Property index

NameValueInitialApplies toInh.%agesMediaAnimatableComputed value
line-gridmatch-parent | creatematch-parentblock containersnoN/Avisualnoas specified
line-snapnone | baseline | containnoneall elementsyesN/Avisualnoas specified
box-snapnone | block-start | block-end | center | first-baseline | last-baselinenoneblock-level boxes and internal table elements except table cellsyesN/Avisualnoas specified

Issues Index

The names of these values is currently up for debate. Current suggestions for match-parent include match-parent and normal; those for create include create and new.
Håkon points out that there might be a need to have line grids aligned to the page box rather than the page content box. The current proposal has no way to switch between the two.
This is a rough draft of trying to solve the box-snapping problem.
Some optional box values (margin-box, border-box) could be added to the before and after values to allow snapping various box model edges to the line grid.
An auto value could be useful - one that defaults to center, but snaps to before if it’s the first block in a fragment container, and snaps to after if it’s the last block in a fragment container.
