1. Introduction
This specification includes and expands on the basic font features described in the CSS3 Fonts specification ([CSS-FONTS-3]).
1.1. Value Definitions
This specification follows the CSS property definition conventions from [CSS2] using the value definition syntax from [CSS-VALUES-3]. Value types not defined in this specification are defined in CSS Values & Units [CSS-VALUES-3]. Combination with other CSS modules may expand the definitions of these value types.
In addition to the property-specific values listed in their definitions, all properties defined in this specification also accept the CSS-wide keywords as their property value. For readability they have not been repeated explicitly.
2. Basic Font Properties
The particular font face used to render a character is determined by the font family and other font properties that apply to a given element. This structure allows settings to be varied independent of each other.
2.1. Font family: the font-family property
Name: | font-family |
---|---|
Value: | [ <family-name> | <generic-family> ]# |
Initial: | depends on user agent |
Applies to: | all elements and text |
Inherited: | yes |
Percentages: | n/a |
Computed value: | list, each item a string and/or <generic-family> keywords |
Canonical order: | per grammar |
Animation type: | discrete |
Tests
- font-family-name-000.xht (visual test) (source)
- font-family-name-001.xht (live test) (source)
- font-family-name-002.xht (live test) (source)
- font-family-name-003.xht (live test) (source)
- font-family-name-004.xht (live test) (source)
- font-family-name-005.xht (live test) (source)
- font-family-name-006.xht (live test) (source)
- font-family-name-007.xht (live test) (source)
- font-family-name-008.xht (live test) (source)
- font-family-name-009.xht (live test) (source)
- font-family-name-010.xht (live test) (source)
- font-family-name-011.xht (live test) (source)
- font-family-name-012.xht (live test) (source)
- font-family-name-013.xht (live test) (source)
- font-family-name-014.xht (live test) (source)
- font-family-name-015.xht (live test) (source)
- font-family-name-016.xht (live test) (source)
- font-family-name-017.xht (live test) (source)
- font-family-name-018.xht (live test) (source)
- font-family-name-019.xht (live test) (source)
- font-family-name-020.xht (live test) (source)
- font-family-name-021.xht (live test) (source)
- font-family-name-022.xht (live test) (source)
- font-family-name-023.xht (live test) (source)
- font-family-name-024.xht (live test) (source)
- font-family-name-025.html (live test) (source)
- generic-family-keywords-003.html (live test) (source)
- standard-font-family-10.html (live test) (source)
- standard-font-family-11.html (live test) (source)
- standard-font-family-12.html (live test) (source)
- standard-font-family-13.html (live test) (source)
- standard-font-family-14.html (live test) (source)
- standard-font-family-15.html (live test) (source)
- standard-font-family-16.html (live test) (source)
- standard-font-family-17.html (live test) (source)
- standard-font-family-18.html (live test) (source)
- standard-font-family-19.html (live test) (source)
- standard-font-family-2.html (live test) (source)
- standard-font-family-20.html (live test) (source)
- standard-font-family-3.html (live test) (source)
- standard-font-family-4.html (live test) (source)
- standard-font-family-5.html (live test) (source)
- standard-font-family-6.html (live test) (source)
- standard-font-family-7.html (live test) (source)
- standard-font-family-8.html (live test) (source)
- standard-font-family-9.html (live test) (source)
- standard-font-family.html (live test) (source)
- test_font_family_parsing.html (live test) (source)
- system-fonts.html (live test) (source)
- font-family-computed.html (live test) (source)
- font-family-invalid.html (live test) (source)
- font-family-valid.html (live test) (source)
This property specifies a prioritized list of font family names or generic family names. A font family defines a set of faces that vary in weight, width or slope. CSS uses the combination of a family name with other font properties to select an individual face. Using this selection mechanism, rather than selecting a face via the style name as is often done in design applications, allows some degree of regularity in textual display when fallback occurs.
Component values are a comma-separated list indicating alternatives. A user agent iterates through the list of family names until it matches an available font that contains a glyph for the character to be rendered. (See § 5.3 Cluster matching.) This allows for differences in available fonts across platforms and for differences in the range of characters supported by individual fonts.
body{ font-family : Helvetica, Verdana, sans-serif; }
If Helvetica is available, it will be used when rendering. If neither Helvetica nor Verdana is present, then the generic font-family sans-serif font will be used.
There are three types of font family names, two of which may be used with this property:
- <family-name>
-
The name of a font family, such as Helvetica or Verdana in the previous example.
This might be a locally-instaled font, or might be a web font.
- <generic-family>
-
Each <generic-family> keyword represents
a generic font choice,
and behaves as a potential alias for one or more locally-installed fonts
belonging to the specified generic font category.
A <generic-family> can thus be used as a fallback
for when an author’s more specific font choices are not available.
There are three types of generic family:
-
Generics which apply to all Unicode characters and will always match a locally installed font. For example, monospaced.
-
Generics which apply to all Unicode characters but may not match to a locally installed font on some systems. For example, ui-rounded.
-
Generics which are writing-system specific, only apply to a subset of Unicode characters, and may not match to a locally installed font on some systems. For example, generic(fangsong).
Authors are encouraged to append a generic font family as a last alternative for improved robustness, and to use a more specific generic font family, if applicable, to prefer a specific style even if the individual named font family is not available.
Note that <generic-family> keywords cannot be quoted (otherwise they are interpreted as a <family-name>).
The set of generic family keywords is defined in § 2.1.5 Generic font families.
-
- <system-family-name>
-
A locally installed system font, whose use is subject to certain constraints.
In particular, it may not be used with the font-family property,
but can be used with the font shorthand.
The following values refer to system fonts:
- caption
- The font used for captioned controls (e.g., buttons, drop-downs, etc.).
- icon
- The font used to label icons.
- menu
- The font used in menus (e.g., dropdown menus and menu lists).
- message-box
- The font used in dialog boxes.
- small-caption
- The font used for labeling small controls.
- status-bar
- The font used in window status bars.
2.1.1. Syntax of <family-name>
<family-name> = <string> | <custom-ident>+
Font family names other than generic families or system font families must either be given quoted as <string>s, or unquoted as a sequence of one or more <custom-ident>.
Note: This means most punctuation characters and digits at the start of each token must be escaped in unquoted font family names.
font-family : Red/Black, sans-serif; font-family : "Lucida" Grande, sans-serif; font-family : Ahem!, sans-serif; font-family : test@foo , sans-serif; font-family : #POUND, sans-serif; font-family : Hawaii5 - 0 , sans-serif;
Any identifier which could be misinterpreted as a pre-defined keyword in the font-family value definition, or the CSS-wide keywords, is not allowed.
Note: this means that if you really have a font whose name is the same as one of the <generic-family> names, or the system font names, or the CSS-wide keywords, it must be quoted.
font-family : "sans-serif" , sans-serif; font-family : "default" , sans-serif; font-family : "initial" , sans-serif; font-family : "inherit" , sans-serif;
If a sequence of identifiers is given as a <family-name>, the computed value is the name converted to a string by joining all the identifiers in the sequence by single spaces.
To avoid mistakes in escaping, it is recommended to quote font family names that contain white space, digits, or punctuation characters other than hyphens:
body{ font-family : "New Century Schoolbook" , serif} <body style="font-family: '21st Century', fantasy" >
Font family names that happen to be the same as a font-family keyword value (e.g. CSS-wide keywords such as inherit, or <generic-family> keywords such as serif) must be quoted to prevent confusion with the keywords of the same names. UAs must not consider these keywords as matching the <family-name> type.
2.1.2. Syntax of <generic-family>
<generic-family> =generic ( <custom-ident>+) | <string> | <custom-ident>+
body{ font-family : "Adobe Fangsong Std R" , generic ( fangsong), serif}
The first choice in this example is a specific, named font, in Fang Song (仿宋) style. The family name is enclosed in quotes as it contains space characters. The second is a recently added script-specific generic font; it is unicode-range specific and so may not match to an actual installed font on some systems; but if it exists it will be an example of the requested style. The third is a universal generic font, which is guaranteed to match on all systems.
2.1.3. Syntax of <system-family-name>
<system-family-name> = caption | icon | menu | message-box | small-caption | status-bar
2.1.4. Relationship Between Faces and Families
A font family name only specifies a name given to a set of font faces; it does not specify an individual face.
Note: The CSS definition of font attributes used for selection are explicitly not intended to define a font taxonomy. A type designer’s idea of a family can often extend to a set of faces that vary along axes other than just the standard axes of weight (font-weight), width (font-width), and slant (font-style). A family can vary along axes that are unique to that family. The CSS font selection mechanism merely provides a way to determine the “closest” match when substitution is necessary.
Note: The precise way a set of fonts are grouped into font families varies depending upon the platform font management APIs. For example, the Windows GDI API only allows four faces to be grouped into a family, while the DirectWrite API, Core Text API, and other platforms support font families with a variety of weights, widths, and slopes (see Appendix A: Mapping platform font properties to CSS properties for more details).

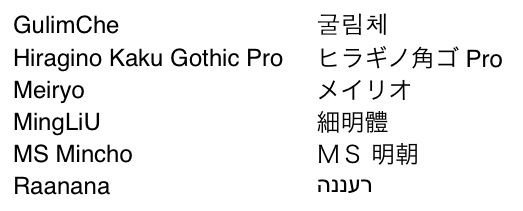

See § 5.1 Localized name matching below for information on how font-family names are matched.
2.1.5. Generic font families
A generic font family is a font family which has a standard name (as defined by CSS), but which is an alias for an existing installed font family present on the system. However, a single generic font family may be a composite face combining different typefaces based on such things as the Unicode range of the character, the content language of the containing element, user preferences, system settings, etc. Different generic font families may map to the same used font.
Tests
Note: Generic font families are intended to be widely implemented on many platforms, unlike arbitrary <family-name>s which are usually platform-specific names. They are expected to map to different fonts on different platforms. Authors may specify these generic family names if they desire their text to follow a particular design on many platforms, and are not particular about which specific font is chosen on those platforms.
User agents should provide reasonable default choices for the generic font families, that express the characteristics of each family as well as possible, within the limits allowed by the underlying technology. User agents are encouraged to allow users to select alternative faces for the generic font families.

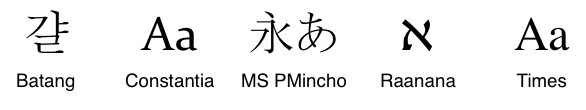

- serif
-
Serif fonts represent
glyphs that have finishing strokes,
flared or tapering ends,
or have actual serifed endings (including slab serifs).
Serif fonts are typically proportionately-spaced.
They often display a greater variation between thick and thin strokes
than fonts from the sans-serif generic font family.
Note: serif and sans-serif only apply to a small handful of writing scripts. Their use as generic font families in CSS is historical, and reflects the Latin-centric nature of early Web development. Better and more widely applicable names would have been, for example, "modulated" and "monoline". However, for reasons of Web compatibility, these names cannot be changed.
CSS uses the term "serif" to apply to a font for any script, although other names might be more familiar for particular scripts, such as Mincho (Japanese), Sung or Song (Chinese), Batang (Korean). For Arabic, the Naskh style would correspond to serif.
serif must always map to at least one matched font face.
Note: No guarantee is placed on the character coverage of that font face. Therefore, the font serif is mapped to may not end up being used for all content.

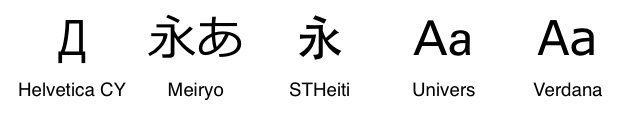

- sans-serif
-
Glyphs in sans-serif fonts,
as the term is used in CSS,
are generally low contrast
(vertical and horizontal stems have the close to the same thickness)
and have stroke endings that are plain
(without any flaring, cross stroke, or other ornamentation).
Sans-serif fonts are typically proportionately-spaced.
They often have little variation between thick and thin strokes,
compared to fonts from the serif family.
CSS uses the term "sans-serif" to apply to a font for any script,
although other names might be more familiar for particular scripts,
such as Gothic (Japanese),
Hei (Chinese),
or Gulim (Korean).
sans-serif must always map to at least one matched font face.
Note: No guarantee is placed on the character coverage of that font face. Therefore, the font sans-serif is mapped to may not end up being used for all content.
- cursive
- Glyphs in cursive fonts generally use a script style, and the result looks more like handwritten pen or brush writing than printed letterwork. CSS uses the term "cursive" to apply to a font for any script, although other names such as Chancery, Brush, Swing and Script are also used in font names.

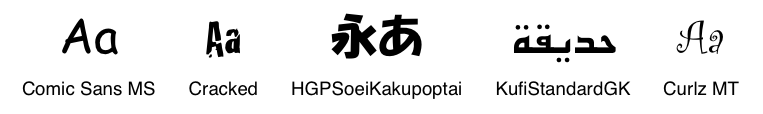

- fantasy
- Fantasy fonts are primarily decorative or expressive fonts that contain decorative or expressive representations of characters. These do not include Pi or Picture fonts which do not represent actual characters.

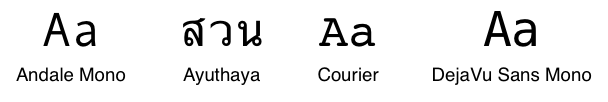

- monospace
-
The sole criterion of a monospace font is that all glyphs have the same fixed width.
This is often used to render samples of computer code.
monospace must always map to at least one matched font face.
Note: No guarantee is placed on the character coverage of that font face. Therefore, the font monospace is mapped to may not end up being used for all content.
- system-ui
-
This generic font family lets text render with the default user interface font
(which, as with all § 2.1.5 Generic font families may be a composite font)
on the platform on which the UA is running.
A cross-platform UA should use different fonts on its different supported platforms.
The purpose of system-ui is to allow web content
to integrate with the look and feel of the native OS.
Tests
- system-ui-ar.html (live test) (source)
- system-ui-ja-vs-zh.html (live test) (source)
- system-ui-ja.html (live test) (source)
- system-ui-mixed.html (live test) (source)
- system-ui-ur-vs-ar.html (live test) (source)
- system-ui-ur.html (live test) (source)
- system-ui-zh.html (live test) (source)
- system-ui.html (live test) (source)
The precise font used will depend on factors such as Unicode coverage and the content language.
As with other generic font families, the substitution of specific installed fonts for system-ui does not affect the computed style.<div id=
"system-text" style="font-family: system-ui" ></div> ... window.getComputedStyle ( document.getElementById ( "system-text" )) .getPropertyValue ( "font-family" ); The script above should not have any knowledge of how system-ui is expanded to include a collection of system user interface fonts. In particular, the above script should yield a result of "system-ui" on every platform.
- math
-
This font family is intended for use with mathematical expressions.
Such fonts may include additional data (for example, the OpenType MATH table) to help with the hierarchical process of equation layout. In particular, they may contain stylistic and stretching glyph variants useful in setting mathematical equations.
- generic(fangsong)
-
This font family is used for Fang Song (仿宋) typefaces in Chinese.
Fang Song is a relaxed, intermediate form
between Song (serif) and Kai (generic(kai)).
Typically, the horizontal lines are tilted,
the endpoint flourishes are smaller,
and there is less variation in stroke width,
compared to a Song style.
Fang Song is often used for official Chinese Government documents.
Note: generic(fangsong) might not map to any locally installed font, but if it does, that font will be in Fang Song style.
- generic(kai)
-
This font family is used in
Simplified & Traditional Chinese.
A major typeface, which provides calligraphic styles for Chinese text.
It shows notable handwriting features.
Kai is commonly used in official documents and textbooks.
Most official documents in Taiwan use Kai in full text.
Kai can also be combined with other typefaces
to be used in text that needs to be differentiated
from the rest of the content,
for example, headlines, references, quotations, and dialogs.
Note: generic(kai) might not map to any locally installed font, but if it does, that font will be in Kai style.
- generic(nastaliq)
-
This font family is the standard way of writing Urdu and Kashmiri,
and is also often a preferred style for Persian and other language text,
especially in literary genres such as poetry.
Key features include a sloping baseline for joined letters,
and overall complex shaping and positioning for base letters and diacritics alike.
There are also distinctive shapes for many glyphs and ligatures.
It is important not to fall back to a naskh style
for languages such as Urdu and Kashmiri.
Note: generic(nastaliq) might not map to any locally installed font, but if it does, that font will be in Nastaliq style.
- ui-serif
-
This font family is used for the serif variant of the system’s
user interface. The purpose of ui-serif is to allow web
content to integrate with the look and feel of the native OS.
Note: ui-serif is not expected to map to any font on platforms without an appropriate system font.

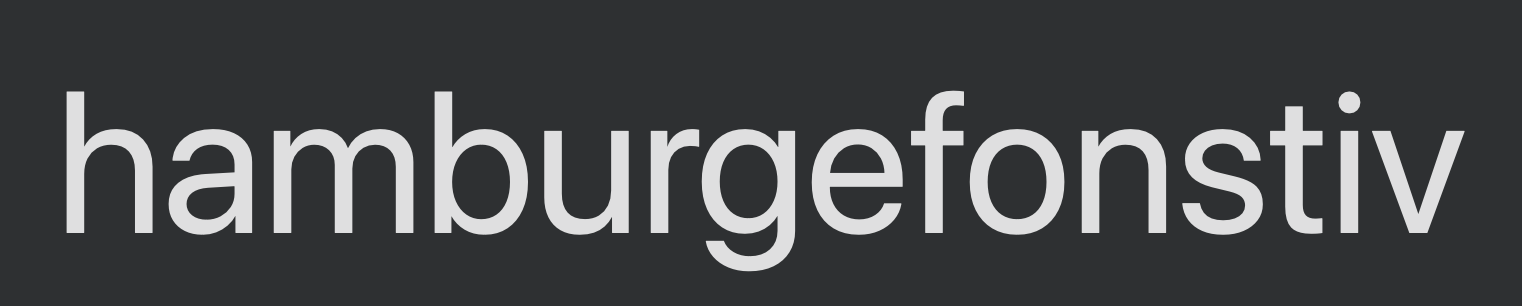

- ui-sans-serif
-
This font family is used for the sans-serif variant of the system’s
user interface. The purpose of ui-sans-serif is to allow web
content to integrate with the look and feel of the native OS.
Note: ui-sans-serif is not expected to map to any font on platforms without an appropriate system font.

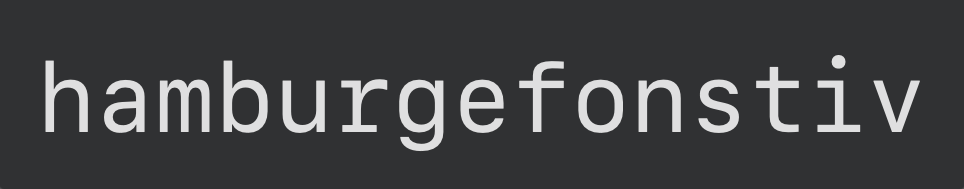

- ui-monospace
-
This font family is used for the monospaced variant of the
system’s user interface. The purpose of ui-monospace is to
allow web content to integrate with the look and feel of the
native OS.
Note: ui-monospace is not expected to map to any font on platforms without an appropriate system font.
- ui-rounded
-
This font family is used for the rounded variant of the system’s
user interface. The purpose of ui-rounded is to allow web
content to integrate with the look and feel of the native OS.
Note: ui-rounded is not expected to map to any font on platforms without an appropriate system font.
2.2. Font weight: the font-weight property
Name: | font-weight |
---|---|
Value: | <font-weight-absolute> | bolder | lighter |
Initial: | normal |
Applies to: | all elements and text |
Inherited: | yes |
Percentages: | n/a |
Computed value: | a number, see below |
Canonical order: | per grammar |
Animation type: | by computed value type |
Tests
- font-weight-bolder-001.xht (live test) (source)
- font-weight-lighter-001.xht (live test) (source)
- font-weight-normal-001.xht (live test) (source)
- test-synthetic-bold.xht (visual test) (source)
- font-weight-computed.html (live test) (source)
- font-weight-invalid.html (live test) (source)
- font-weight-valid.html (live test) (source)
- font-parse-numeric-stretch-style-weight.html (live test) (source)
- font-weight-interpolation.html (live test) (source)
- font-weight-lighter-bolder.html (live test) (source)
- font-weight-matching-installed-fonts.html (live test) (source)
- font-weight-matching.html (live test) (source)
- font-weight-metrics.html (live test) (source)
- font-weight-parsing.html (live test) (source)
The font-weight property specifies the weight of glyphs in the font, their degree of blackness, or stroke thickness.
This property accepts values of the following:
<font-weight-absolute> =[ normal | bold | <number[ 1 , 1000 ] >]
Values have the following meanings:
- <number [1,1000]>
-
Each number indicates a weight that is at least as dark as its predecessor.
Only values greater than or equal to 1, and less than or equal to 1000, are valid,
and all other values are invalid.
Numeric values typically correspond to the commonly used weight names below.
- 100 - Thin
- 200 - Extra Light (Ultra Light)
- 300 - Light
- 400 - Normal
- 500 - Medium
- 600 - Semi Bold (Demi Bold)
- 700 - Bold
- 800 - Extra Bold (Ultra Bold)
- 900 - Black (Heavy)
Note: A font might internally provide its own weight name mappings, but those mappings within the font are disregarded in CSS.
- normal
- Same as 400.
- bold
- Same as 700.
- bolder
- Specifies a bolder weight than the inherited value. See § 2.2.1 Relative Weights.
- lighter
- Specifies a lighter weight than the inherited value. See § 2.2.1 Relative Weights.
Font formats that use a scale other than a nine-step scale should map their scale onto the CSS scale so that 400 roughly corresponds with a face that would be labeled as Regular, Book, Roman and 700 roughly matches a face that would be labeled as Bold. Alternately, weights may be inferred from style names that correspond roughly with the scale above. The scale is relative, so a face with a larger weight value must never appear lighter. If style names are used to infer weights, care should be taken to handle variations in style names across locales.
2.2.1. Relative Weights
Specified values of bolder and lighter indicate weights relative to the weight of the parent element. The computed weight is calculated based on the inherited font-weight value using the chart below.
Inherited value (w) | bolder | lighter |
---|---|---|
w < 100 | 400 | No change |
100 ≤ w < 350 | 400 | 100 |
350 ≤ w < 550 | 700 | 100 |
550 ≤ w < 750 | 900 | 400 |
750 ≤ w < 900 | 900 | 700 |
900 ≤ w | No change | 700 |
Note: The table above is equivalent to selecting the next relative bolder or lighter face, given a font family containing normal and bold faces along with a thin and a heavy face. Authors who desire finer control over the exact weight values used for a given element can use numerical values instead of relative weights.

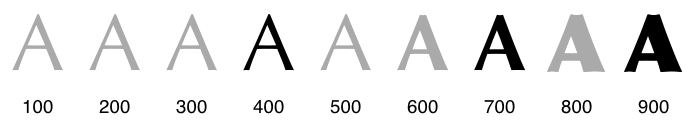

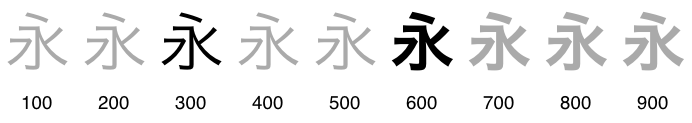

2.2.2. Missing weights
Quite often there are only a few weights available for a particular font family. When a weight is specified for which no face exists, a face with a nearby weight is used. In general, bold weights map to faces with heavier weights and light weights map to faces with lighter weights. (See the § 5 Font Matching Algorithm for a precise definition.)
Most user agents model a font as having a particular weight
which often corresponds to one of the numbers in the nine-step scale
described above.
While this is true of most fonts, some fonts might be configurable so as to support a range of weights.
In this situation, the user agent uses a face with a weight as close as possible to the weight requested
(see § 5 Font Matching Algorithm for the precise algorithm).
In particular, a user agent using a font which supports a range of weights
should behave the same as if a font is present at each individual weight in the range.
For TrueType / OpenType fonts that use variations,
the wght
variation is used to implement varying weights.
Fractional weights are valid.
Although the practice is not well-loved by typographers, bold faces are often synthesized by user agents for families that lack actual bold faces. For the purposes of font matching, these faces must be treated as if they exist within the family. Authors can explicitly avoid this behavior by using the font-synthesis property.
2.3. Font width: the font-width property
Name: | font-width |
---|---|
Value: | normal | <percentage [0,∞]> | ultra-condensed | extra-condensed | condensed | semi-condensed | semi-expanded | expanded | extra-expanded | ultra-expanded |
Initial: | normal |
Applies to: | all elements and text |
Inherited: | yes |
Percentages: | Not resolved |
Computed value: | a percentage, see below |
Canonical order: | per grammar |
Animation type: | by computed value type |
Tests
- font-stretch-01.html (live test) (source)
- font-stretch-02.html (live test) (source)
- font-stretch-03.html (live test) (source)
- font-stretch-04.html (live test) (source)
- font-stretch-05.html (live test) (source)
- font-stretch-06.html (live test) (source)
- font-stretch-07.html (live test) (source)
- font-stretch-08.html (live test) (source)
- font-stretch-09.html (live test) (source)
- font-stretch-10.html (live test) (source)
- font-stretch-11.html (live test) (source)
- font-stretch-12.html (live test) (source)
- font-stretch-13.html (live test) (source)
- font-stretch-14.html (live test) (source)
- font-stretch-15.html (live test) (source)
- font-stretch-16.html (live test) (source)
- font-stretch-17.html (live test) (source)
- font-stretch-18.html (live test) (source)
- font-stretch-interpolation.html (live test) (source)
- font-stretch-computed.html (live test) (source)
- font-stretch-invalid.html (live test) (source)
- font-stretch-valid.html (live test) (source)
- font-parse-numeric-stretch-style-weight.html (live test) (source)
- font-stretch.html (live test) (source)

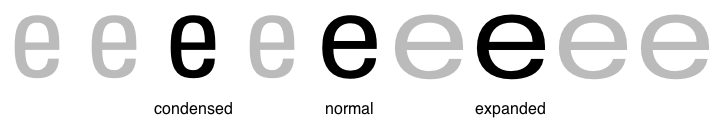

The font-width property selects a normal, condensed, or expanded face from a font family. Values are specified either as percentages or as keywords which map to a percentage as defined in the following table:
Absolute keyword value | Numeric value |
---|---|
ultra-condensed | 50% |
extra-condensed | 62.5% |
condensed | 75% |
semi-condensed | 87.5% |
normal | 100% |
semi-expanded | 112.5% |
expanded | 125% |
extra-expanded | 150% |
ultra-expanded | 200% |
<percentage [0,∞]> values represent the fractional width of the glyphs, with 100% representing “normal” glyph widths (as defined by the font designer). Values less than 0% are invalid.
When a face does not exist for a given width,
values less than 100% map to a narrower face if one exists, otherwise a wider face.
Conversely, values greater than or equal to 100% map to a wider face if one exists, otherwise a narrower face.
Some fonts might support a range of width values;
if the requested width value is not available in the font,
the closest supported value is used, using the same mapping rules
(see the § 5 Font Matching Algorithm for the precise algorithm).
For TrueType / OpenType fonts that support variations,
the wdth
variation is used to implement varying widths.
getComputedStyle()
always serializes its value as a <percentage>, regardless of how the value was specified by the author, or whether or not a keyword happens to map to the value.
2.3.1. Font width: the font-stretch legacy name alias
For historical reasons, a font-stretch property exists which is a legacy name alias and functions in the identical way to the font-width.
h1{ font-stretch : condensed; }
The specified value of the font-width on those headings becomes set to condensed'.
h1{ font-width : condensed; }
The specified value of the font-stretch on those headings becomes set to condensed.
Tests
- font-stretch-01.html (live test) (source)
- font-stretch-02.html (live test) (source)
- font-stretch-03.html (live test) (source)
- font-stretch-04.html (live test) (source)
- font-stretch-05.html (live test) (source)
- font-stretch-06.html (live test) (source)
- font-stretch-07.html (live test) (source)
- font-stretch-08.html (live test) (source)
- font-stretch-09.html (live test) (source)
- font-stretch-10.html (live test) (source)
- font-stretch-11.html (live test) (source)
- font-stretch-12.html (live test) (source)
- font-stretch-13.html (live test) (source)
- font-stretch-14.html (live test) (source)
- font-stretch-15.html (live test) (source)
- font-stretch-16.html (live test) (source)
- font-stretch-17.html (live test) (source)
- font-stretch-18.html (live test) (source)
- font-stretch-interpolation.html (live test) (source)
- font-stretch-computed.html (live test) (source)
- font-stretch-invalid.html (live test) (source)
- font-stretch-valid.html (live test) (source)
- font-parse-numeric-stretch-style-weight.html (live test) (source)
- font-stretch.html (live test) (source)
User agents must not synthesize condensed or expanded faces for font families which lack such faces and which do not have a width variation axis. In particular, user agents must not geometrically stretch such faces.
2.4. Font style: the font-style property
Name: | font-style |
---|---|
Value: | normal | italic | oblique <angle [-90deg,90deg]>? |
Initial: | normal |
Applies to: | all elements and text |
Inherited: | yes |
Percentages: | n/a |
Computed value: | the keyword specified, plus angle in degrees if specified |
Canonical order: | per grammar |
Animation type: | by computed value type;normal animates as oblique 0deg |
Tests
- font-style-angle.html (live test) (source)
- test-synthetic-italic-2.html (live test) (source)
- test-synthetic-italic-3.html (live test) (source)
- test-synthetic-italic.xht (visual test) (source)
- font-style-interpolation.html (live test) (source)
- font-style-computed.html (live test) (source)
- font-style-invalid.html (live test) (source)
- font-style-valid.html (live test) (source)
- font-parse-numeric-stretch-style-weight.html (live test) (source)
- font-slant-1.html (live test) (source)
- font-slant-2a.html (live test) (source)
- font-slant-2b.html (live test) (source)
- font-slant-2c.html (live test) (source)
- font-slant-3.html (live test) (source)
- font-style-interpolation.html (live test) (source)
- font-style-parsing.html (live test) (source)
- slnt-backslant-variable.html (live test) (source)
- slnt-variable.html (live test) (source)

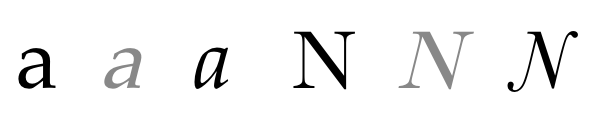

The font-style property allows italic or oblique faces to be selected. Italic forms are generally cursive in nature while oblique faces are typically sloped versions of the regular face.
Values have the following meanings:
- normal
- Matches against a face that is classified as a normal face, one that is neither italic or obliqued. This represents an oblique value of "0".
- italic
- Matches against a font that is labeled as an italic face, or an oblique face if one does not exist.
- oblique <angle [-90deg,90deg]>?
- Controls matching against an oblique face. Positive angles represent a clockwise slant; negative angles represent a counter-clockwise slant. The lack of an <angle> represents 14deg. (Note that a font might internally provide its own mapping for "oblique", but the mapping within the font is disregarded.) Fractional and negative values are accepted; however, values less than -90deg or values greater than 90deg are invalid. If no oblique faces exist, and font-synthesis-style has the value auto, a synthetic oblique face will be generated.
A font family might contain no italic or oblique faces,
only an italic face and no oblique,
only an oblique face and no italic,
both an oblique and an italic,
multiple oblique faces at various angles,
or various combinations thereof.
The font matching routine will select a font to use
which is of the correct sign as the requested angle,
and (if there are multiple such faces) closest to the requested angle.
In general, for a requested angle greater or equal to 11deg,
larger angles are preferred;
otherwise, smaller angles are preferred.
(See § 5 Font Matching Algorithm.)
For TrueType / OpenType fonts that use variations,
the slnt
variation is used to implement oblique values,
and the ital
variation with a value of 1 is used to implement the italic values.
Note: the OpenType slnt
axis is defined
with a positive angle meaning a counter-clockwise slant,
the opposite direction to CSS.
The CSS implementation will take this into account
when using variations
to produce oblique faces.
What direction should positive and negative obliques skew in vertical writing mode? How do we achieve skews in the opposite dimension (needed for vertical writing)?
If no italic or oblique face is available, oblique faces may be synthesized by rendering non-obliqued faces with an artificial obliquing operation. The use of these artificially obliqued faces can be disabled using the font-synthesis property.
Note: While oblique faces can be simulated by artificially sloping the glyphs of the regular face, this is not equivalent to a true oblique, in which optical stroke thicknesses are properly preserved despite the slant. It is always better to use an actual oblique font rather than rely on a synthetic version.
For the purposes of font matching, User agents may treat italic as a synonym for oblique. For user agents that treat these values distinctly, synthesis must not be performed for italic.
Note: Authors should also be aware that synthesized approaches might not be suitable for scripts like Cyrillic, where italic forms are very different in shape. It is always better to use an actual italic font rather than rely on a synthetic version.
Note: Many scripts lack the tradition of mixing a cursive form within text rendered with a normal face. Chinese, Japanese and Korean fonts almost always lack italic or oblique faces. Fonts that support a mixture of scripts will sometimes omit specific scripts, such as Arabic, from the set of glyphs supported in the italic face. User agents should be careful about making character map assumptions across faces when implementing synthesis across fonts, as italic faces in a family can have different character maps than Roman faces.
2.5. Font size: the font-size property
Name: | font-size |
---|---|
Value: | <absolute-size> | <relative-size> | <length-percentage [0,∞]> | math |
Initial: | medium |
Applies to: | all elements and text |
Inherited: | yes |
Percentages: | refer to parent element’s font size |
Computed value: | an absolute length |
Canonical order: | per grammar |
Animation type: | by computed value type |
Tests
- font-size-relative-across-calc-ff-bug-001.html (live test) (source)
- font-size-zero-1-ref.html (live test) (source)
- font-size-zero-1.html (live test) (source)
- font-size-zero-2.html (live test) (source)
- font-size-xxx-large.html (live test) (source)
- rem-in-monospace.html (live test) (source)
- font-size-interpolation-001.html (live test) (source)
- font-size-interpolation-002.html (live test) (source)
- font-size-interpolation-003.html (live test) (source)
- font-size-computed.html (live test) (source)
- font-size-invalid.html (live test) (source)
- font-size-valid.html (live test) (source)
This property indicates the desired height of glyphs from the font. For scalable fonts, the font-size is a scale factor applied to the EM unit of the font. For non-scalable fonts, the font-size is converted into absolute units and matched against the declared font-size of the font, using the same absolute coordinate space for both of the matched values.
Note: There is no requirement on how closely a glyph should fit its EM box. Individual fonts can have a different apparent visual size when rendered at the same font-size. Additionally, glyphs might render arbitrarily far outside their EM box; and if they overflow their containing block can induce ink overflow.
Values have the following meanings:
- <absolute-size>
-
An <absolute-size> keyword refers to an entry in a table of font sizes
computed and kept by the user agent.
See § 2.5.1 Absolute Size Keyword Mapping Table.
Possible values are:
[ xx-small | x-small | small | medium | large | x-large | xx-large | xxx-large] - <relative-size>
-
A <relative-size> keyword is interpreted
relative to the computed font-size of the parent element
and possibly the table of font sizes. Possible values are:
[ larger | smaller] If the parent element has a keyword font size in the absolute size keyword mapping table, larger may compute the font size to the next entry in the table, and smaller may compute the font size to the previous entry in the table. For example, if the parent element has a font size of font-size:medium, specifying a value of larger may make the font size of the child element font-size:large.
Instead of using next and previous items in the previous keyword table, User agents may instead use a simple ratio to increase or decrease the font size relative to the parent element. The specific ratio is unspecified, but should be around 1.2–1.5. This ratio may vary across different elements.
Note: A sight-impaired user may request a user agent use a higher ratio than default, in order to aid readability. In addition, a user agent may choose to use different ratios when it detects paragraph text as opposed to title text.
- <length-percentage [0,∞]>
-
A length value specifies an absolute font size
(independent of the user agent’s font table).
Negative lengths are invalid.
A percentage value specifies an absolute font size relative to the parent element’s computed font-size. Negative percentages are invalid.
Note: Use of percentage values or font-relative lengths such as ems and rems leads to more robust and cascadable style sheets.
- math
- Special mathematical scaling rules must be applied when determining the computed value of the font-size property.
p{ font-size : 12 pt ; } blockquote{ font-size : larger} em{ font-size : 150 % } em{ font-size : 1.5 em }
Note: The used value of this property can differ from its computed value due to font-size-adjust. However, child elements inherit the computed font-size value, which is not affected by font-size-adjust (otherwise, the effect of font-size-adjust would compound).
The actual value of this property can differ from the used value due to the unavailability of certain font sizes.
2.5.1. Absolute Size Keyword Mapping Table
The following table provides user agent guidelines for the absolute-size scaling factor and their mapping to HTML heading and absolute font-sizes. The medium value is used as the reference middle value. The user agent may fine-tune these values for different fonts or different types of display devices.
CSS absolute-size values | xx-small | x-small | small | medium | large | x-large | xx-large | xxx-large |
---|---|---|---|---|---|---|---|---|
scaling factor | 3/5 | 3/4 | 8/9 | 1 | 6/5 | 3/2 | 2/1 | 3/1 |
HTML headings | h6 | h5 | h4 | h3 | h2 | h1 | ||
HTML font sizes
| 1 | 2 | 3 | 4 | 5 | 6 | 7 |
Note: In CSS1, the suggested scaling factor between adjacent indexes was 1.5, which user experience proved to be too large. In CSS2, the suggested scaling factor for computer screen between adjacent indexes was 1.2 which still created issues for the small sizes. The new scaling factor varies between each index to provide a better readability.
To preserve readability, an UA applying these guidelines should nevertheless avoid creating font sizes of less than 9 device pixels per EM unit.
2.6. Relative sizing: the font-size-adjust property
Name: | font-size-adjust |
---|---|
Value: | none | <number [0,∞]> |
Initial: | none |
Applies to: | all elements and text |
Inherited: | yes |
Percentages: | N/A |
Computed value: | a number or the keyword none |
Canonical order: | per grammar |
Animation type: | by computed value type |
Tests
- font-size-adjust-001.html (live test) (source)
- font-size-adjust-002.html (live test) (source)
- font-size-adjust-003.xht (visual test) (source)
- font-size-adjust-005.xht (live test) (source)
- font-size-adjust-006.xht (live test) (source)
- font-size-adjust-007.xht (live test) (source)
- font-size-adjust-008.xht (live test) (source)
- font-size-adjust-009.html (live test) (source)
- font-size-adjust-010.html (live test) (source)
- font-size-adjust-011.html (live test) (source)
- font-size-adjust-012.html (live test) (source)
- font-size-adjust-013.html (live test) (source)
- font-size-adjust-014.html (live test) (source)
- font-size-adjust-metrics-override.html (live test) (source)
- font-size-adjust-order-001.html (live test) (source)
- font-size-adjust-reload.html (live test) (source)
- font-size-adjust-units-001.html (live test) (source)
- font-size-adjust-zero-1.html (live test) (source)
- font-size-adjust-zero-2.html (live test) (source)
- size-adjust-03.html (live test) (source)
- font-size-adjust-composition.html (live test) (source)
- font-size-adjust-interpolation.html (live test) (source)
- font-size-adjust-computed.html (live test) (source)
- font-size-adjust-invalid.html (live test) (source)
- font-size-adjust-valid.html (live test) (source)
For any given font size, the apparent size and effective legibility of text varies across fonts. For bicameral scripts such as Latin or Cyrillic that distinguish between upper and lowercase letters, the relative height of lowercase letters compared to their uppercase counterparts is a determining factor of legibility. This is commonly referred to as the aspect value and is equal to the x-height of a font divided by the font size.
Note: For text which uses diacritics, too large an x-height will actually decrease legibility as the diacritics become cramped.
In situations where font fallback occurs, fallback fonts might not share the same aspect value as the desired font family and will thus be less readable. The font-size-adjust property is a way to preserve the readability of text when font fallback occurs. It does this by adjusting the font-size so that the x-height is the same regardless of the font used.
p{ font-family : Verdana, Futura, Times; } p.adj{ font-size-adjust : 0.545 ; } <p>Lorem ipsum dolor sit amet, ...</p> <p class="adj" >Lorem ipsum dolor sit amet, ...</p>
Verdana has a relatively high aspect value of 0.545, meaning lowercase letters are relatively tall compared to uppercase letters, so at small sizes text appears legible. Times has a lower aspect value of 0.447, and so if fallback occurs, the text will be less legible at small sizes than Verdana unless font-size-adjust is also specified.
How text rendered in each of these fonts compares is shown below, the columns show text rendered in Verdana, Futura and Times. The same font-size value is used across cells within each row and red lines are included to show the differences in x-height. In the upper half, each row is rendered in the same font-size value. The same is true for the lower half, but in this half the font-size-adjust property is also set to 0.545, so that the actual font size is adjusted to preserve the x-height of Verdana across each row. Note how small text remains relatively legible across each row in the lower half.
This property allows authors to specify an aspect value for an element that will effectively preserve the x-height of the first choice font, whether it is substituted or not. Values have the following meanings:
- none
- Do not preserve the font’s x-height.
- <number [0,∞]>
-
Specifies the aspect value used in the calculation below
to calculate the adjusted font size:
c =
( a / a') swhere:
s = font-size value a = aspect value as specified by the
'font-size-adjust' property a' = aspect value of actual font c = adjusted font-size to useNegative values are invalid.
This value applies to any font that is selected but in typical usage it should be based on the aspect value of the first font in the font-family list. If this is specified accurately, the
term in the formula above is effectively 1 for the first font and no adjustment occurs. If the value is specified inaccurately, text rendered using the first font in the family list will display differently in older user agents that don’t support font-size-adjust.( a/a')
The value of font-size-adjust affects the used value of font-size but does not affect the computed value.
It affects the size of relative units
that are based on font metrics
such as ex
and ch
but does not affect the size of em
units.
Since numeric values of line-height refer to the computed size of font-size, font-size-adjust does not affect the used value of line-height.
Note: In CSS, authors often specify line-height as a multiple of the font-size. Since the font-size-adjust property affects the used value of font-size, authors should take care setting the line height when font-size-adjust is used. Setting the line height too tightly can result in overlapping lines of text in this situation.

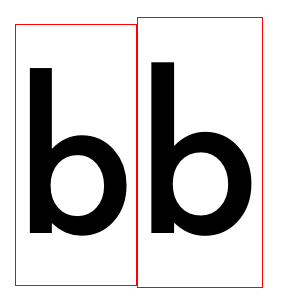

Two spans with borders are used to determine the aspect value of a font. The font-size is the same for both spans but the font-size-adjust property is specified only for the right span. Starting with a value of 0.5, the aspect value can be adjusted until the borders around the two letters line up.
p{ font-family : Futura; font-size : 500 px ; } span{ border : solid1 px red; } .adjust{ font-size-adjust : 0.5 ; } <p><span>b</span><span class="adjust" >b</span></p>
The box on the right is a bit bigger than the one on the left, so the aspect value of this font is something less than 0.5. Adjust the value until the boxes align.
2.7. Shorthand font property: the font property
Name: | font |
---|---|
Value: | [ [ <'font-style'> || <font-variant-css2> || <'font-weight'> || <font-width-css3> ]? <'font-size'> [ / <'line-height'> ]? <'font-family'> ] | <system-family-name> |
Initial: | see individual properties |
Applies to: | all elements and text |
Inherited: | yes |
Percentages: | see individual properties |
Computed value: | see individual properties |
Canonical order: | per grammar |
Animation type: | see individual properties |
Tests
- inheritance.html (live test) (source)
- font-shorthand-serialization-001.html (live test) (source)
- font-shorthand-serialization-font-stretch.html (live test) (source)
- font-shorthand-serialization-prevention.html (live test) (source)
- font-shorthand-subproperties-reset.html (live test) (source)
- quoted-generic-ignored.html (live test) (source)
- font-computed.html (live test) (source)
- font-invalid.html (live test) (source)
- font-valid.html (live test) (source)
- font-shorthand.html (live test) (source)
The syntax of this property is based on a traditional typographical shorthand notation to set multiple properties related to fonts. For historical and backwards-compatibility reasons, it is almost a shorthand property.
The font property is, except as described below, a shorthand property for setting font-style, font-variant, font-weight, font-width, font-size, line-height, font-family at the same place in the stylesheet.
Values for the font-variant property can also be included but only those supported in CSS 2.1; none of the font-variant values added in CSS Fonts Levels 3 or 4 can be used in the font shorthand:
<font-variant-css2>=[ normal | small-caps]
Values for the font-width property can also be included but only those supported in CSS Fonts level 3, none of the font-width values added in this specification can be used in the font shorthand:
<font-width-css3>=[ normal | ultra-condensed | extra-condensed | condensed | semi-condensed | semi-expanded | expanded | extra-expanded | ultra-expanded]
Therefore we have the following classification of font-related properties and their interaction with the font property:
- Set Explicitly
-
These properties may be set using the font property:
- Reset Implicitly
-
These may not be set, but are reset to their initial values:
- Cascaded Independently
-
There are neither set nor reset by the font property:
All subproperties of the font property in the Set Explicitly and Reset Implicitly groups are first reset to their initial values.
Then, those properties the Set Explicitly group that are given explicit values in the font shorthand are set to those values. For a definition of allowed and initial values, see the the individual longhand property definitions.
p{ font : 12 pt /14 pt sans-serif} p{ font : 80 % sans-serif} p{ font : x-large/110 % "new century schoolbook" , serif} p{ font : bold italic large Palatino, serif} p{ font : normal small-caps120 % /120 % fantasy} p{ font : condensed oblique12 pt "Helvetica Neue" , serif; } p{ font : condensed oblique25 deg 753 12 pt "Helvetica Neue" , serif; }
In the second rule, the font size percentage value ("80%") refers to the computed font-size of the parent element. In the third rule, the line height percentage ("110%") refers to the font size of the element itself.
The first three rules do not specify the font-variant and font-weight explicitly, so these properties receive their initial values (normal). Notice that the font family name "new century schoolbook", which contains spaces, is enclosed in quotes. The fourth rule sets the font-weight to bold, the font-style to italic, and implicitly sets font-variant to normal.
The fifth rule sets the font-variant (small-caps), the font-size (120% of the parent’s font size), the line-height (120% of the font size) and the font-family (fantasy). It follows that the keyword normal applies to the two remaining properties: font-style and font-weight.
The sixth rule sets the font-style, font-width, font-size, and font-family, the other font properties being set to their initial values.
The seventh rule sets font-style to oblique 25deg, font-weight to 753, and font-width to condensed. Note that the 25deg in this rule must be immediately following the "oblique" keyword.
Since the font-width property was not defined in CSS 2.1, when using font-width values within font rules, authors should include a extra version compatible with older user agents:
p{ font : 80 % sans-serif; /* for older user agents */ font: condensed80 % sans-serif; }
System fonts can only be set as a whole; that is, the font family, size, weight, style, etc. are all set at the same time. These values can then be altered individually if desired. If no font with the indicated characteristics exists on a given platform, the user agent should either intelligently substitute (e.g., a smaller version of the caption font might be used for the small-caption font), or substitute a user agent default font. As for regular fonts, if, for a system font, any of the individual properties are not part of the operating system’s available user preferences, those properties should be set to their initial values.
That is why this property is "almost" a shorthand property: system fonts can only be specified with this property, not with font-family itself, so font allows authors to do more than the sum of its subproperties. However, the individual properties such as font-weight are still given values taken from the system font, which can be independently varied.
Note that the keywords used for the system fonts listed above are only treated as keywords when they occur in the initial position, in other positions the same string is treated as part of the font family name:
font : menu; /* use the font settings for system menus */ font: large menu; /* use a font family named "menu" */
2.8. Controlling synthetic faces
Synthetic font faces are a fallback strategy to provide an approximation to the requested font when a font family lacks a suitable face.
-
synthesize a bold face by drawing a thin stroke around each glyph
-
synthesize small-caps, superscripts, or subscripts by rendering regular glyphs at a smaller size and positioning them appropriately
-
synthesize an oblique face by geometrical shearing of each glyph
Synthesis is a fallback strategy because the end result, while perhaps better than nothing at all, does not meet the level of quality of a face designed for the purpose.
Variable fonts, where the font designer has provided one or more axes of variation do not count as font synthesis and their use is not affected by the font-synthesis property.
2.8.1. Controlling synthesized bold: The font-synthesis-weight property
Name: | font-synthesis-weight |
---|---|
Value: | auto | none |
Initial: | auto |
Applies to: | all elements and text |
Inherited: | yes |
Percentages: | N/A |
Computed value: | specified keyword |
Canonical order: | per grammar |
Animation type: | discrete |
Media: | visual |
Tests
- font-synthesis-weight-binary.html (live test) (source)
- font-synthesis-weight-first-letter.html (live test) (source)
- font-synthesis-weight-first-line.html (live test) (source)
- font-synthesis-weight.html (live test) (source)
- font-synthesis-weight-invalid.html (live test) (source)
- font-synthesis-weight-valid.html (live test) (source)
This property controls whether user agents are allowed to synthesize bold font faces when a font family lacks bold faces.
- auto
- Synthesis of bold faces is allowed
- none
- Synthesis of bold faces is not allowed
2.8.2. Controlling synthesized oblique: The font-synthesis-style property
Name: | font-synthesis-style |
---|---|
Value: | auto | none |
Initial: | auto |
Applies to: | all elements and text |
Inherited: | yes |
Percentages: | N/A |
Computed value: | specified keyword |
Canonical order: | per grammar |
Animation type: | discrete |
Media: | visual |
Tests
- font-synthesis-style-binary.html (live test) (source)
- font-synthesis-style-first-letter.html (live test) (source)
- font-synthesis-style-first-line.html (live test) (source)
- font-synthesis-style.html (live test) (source)
- font-synthesis-style-invalid.html (live test) (source)
- font-synthesis-style-valid.html (live test) (source)
This property controls whether user agents are allowed to synthesize oblique font faces when a font family lacks oblique faces.
- auto
- Synthesis of oblique faces is allowed
- none
- Synthesis of oblique faces is not allowed
In vertical text, for positive oblique angles, the glyph is skewed such that the line-over edge shifts towards the line-right side while the line-under edge shifts towards the line-left side. For negative oblique angles, the glyph is skewed such that the line-over edge shifts towards the line-left side while the line-under edge shifts towards the line-right side. Skewing is about the center of the glyph.
2.8.3. Controlling synthesized small caps: The font-synthesis-small-caps property
Name: | font-synthesis-small-caps |
---|---|
Value: | auto | none |
Initial: | auto |
Applies to: | all elements and text |
Inherited: | yes |
Percentages: | N/A |
Computed value: | specified keyword |
Canonical order: | per grammar |
Animation type: | discrete |
Tests
- font-synthesis-small-caps-first-letter.html (live test) (source)
- font-synthesis-small-caps-first-line.html (live test) (source)
- font-synthesis-small-caps-not-applied.html (live test) (source)
- font-synthesis-small-caps.html (live test) (source)
- font-synthesis-small-caps-invalid.html (live test) (source)
- font-synthesis-small-caps-valid.html (live test) (source)

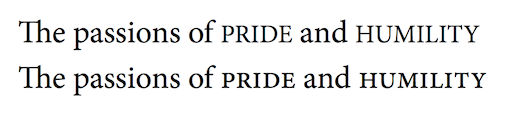

This property controls whether user agents are allowed to synthesize small caps font faces when a font family lacks small caps faces.
- auto
- Synthesis of small caps faces is allowed
- none
- Synthesis of small caps faces is not allowed
2.8.4. Controlling synthesized super- and subscripts: The font-synthesis-position property
Name: | font-synthesis-position |
---|---|
Value: | auto | none |
Initial: | auto |
Applies to: | all elements and text |
Inherited: | yes |
Percentages: | N/A |
Computed value: | specified keyword |
Canonical order: | per grammar |
Animation type: | discrete |
Tests

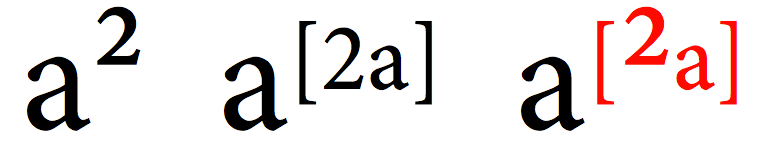

This property controls whether user agents are required to synthesize superscript and subscript glyphs for font-variant-position when a font lacks them.
- auto
- Synthesis of superscript and subscript forms is required
- none
- Synthesis of superscript and subscript forms is not allowed
2.8.5. Controlling synthetic faces: the font-synthesis shorthand
Name: | font-synthesis |
---|---|
Value: | none | [ weight || style || small-caps || position] |
Initial: | weight style small-caps position |
Applies to: | all elements and text |
Inherited: | yes |
Percentages: | N/A |
Computed value: | specified keyword(s) |
Canonical order: | per grammar |
Animation type: | discrete |
Tests
- font-synthesis-01.html (live test) (source)
- font-synthesis-02.html (live test) (source)
- font-synthesis-03.html (live test) (source)
- font-synthesis-04.html (live test) (source)
- font-synthesis-05.html (live test) (source)
- font-synthesis-06.html (live test) (source)
- font-synthesis-07.html (live test) (source)
- font-synthesis-08.html (live test) (source)
- font-synthesis-computed.html (live test) (source)
- font-synthesis-invalid.html (live test) (source)
- font-synthesis-valid.html (live test) (source)
This property is a shorthand for the font-synthesis-weight, font-synthesis-style, font-synthesis-small-caps, and font-synthesis-position properties. Values are mapped as following:
font-synthesis value | font-synthesis-weight value | font-synthesis-style value | font-synthesis-small-caps value | font-synthesis-position value |
---|---|---|---|---|
none | none | none | none | none |
weight | auto | none | none | none |
style | none | auto | none | none |
small-caps | none | none | auto | none |
position | none | none | none | auto |
weight style | auto | auto | none | none |
weight small-caps | auto | none | auto | none |
weight position | auto | none | none | auto |
style small-caps | none | auto | auto | none |
style position | none | auto | none | auto |
small-caps position | none | none | auto | auto |
weight style small-caps | auto | auto | auto | none |
weight style position | auto | auto | none | auto |
weight small-caps position | auto | none | auto | auto |
style small-caps position | none | auto | auto | auto |
weight style small-caps position | auto | auto | auto | auto |
*:lang ( ar) { font-synthesis : none; }
3. Font Rendering Controls
3.1. Introduction to Font Rendering Controls
When using downloadable Web Fonts via @font-face, the user agent needs to know what to do while the font is actively loading. Most web browsers have adopted some form of timeout:
Browser | Timeout | Fallback | Swap |
---|---|---|---|
Chrome 35+ | 3 seconds | yes | yes |
Opera | 3 seconds | yes | yes |
Firefox | 3 seconds | yes | yes |
Internet Explorer | 0 seconds | yes | yes |
Safari | 3 seconds | yes | yes |
-
Chrome and Firefox have a 3 second timeout after which the text is shown with the fallback font. Eventually, a swap occurs: the text is re-rendered with the intended font once it becomes available.
-
Internet Explorer has a 0 second timeout which results in immediate text rendering: if the requested font is not yet available, fallback is used, and text is rerendered later once the requested font becomes available.
While these default behaviors are reasonable, they’re unfortunately inconsistent across browsers. Worse, no single approach is sufficient to cover the range of use-cases required by modern user-experience– and performance–conscious applications.
The Font Loading API [CSS-FONT-LOADING-3] allows a developer to override some of the above behaviors, but that requires scripting, a non-trivial amount of effort, and ultimately doesn’t provide sufficient hooks to cover all reasonable cases. Additionally, the developer needs to either inline the loading script into their page or load an external library, introducing additional network latency before the fonts can be loaded and delaying text rendering.
Design/performance-conscious web developers have a good sense for the relative importance of a given Web Font for the intended user experience. This specification provides them the ability to control font timeout and rendering behavior. Specifically, it lets developers:
-
Define the font display policy when text is ready to be painted: block, or paint with fallback.
-
Define the font display policy once the desired font is available: rerender text with the new font, or leave it with the fallback.
-
Define custom timeout values for each font.
-
Define custom display and timeout policies per element.
3.2. The Font Display Timeline
At the moment the user agent first attempts to use a given downloaded font face on a page, the font face’s font download timer is started. This timer advances through three periods of time associated with the font face—the block period, the swap period, and the failure period—which dictate the rendering behavior of any elements using the font face:
-
The first period is the font block period. During this period, if the font face is not loaded, any element attempting to use it must instead render with an invisible fallback font face. If the font face successfully loads during the block period, the font face is then used normally.
-
The second period, occurring immediately after the block period, is the font swap period. During this period, if the font face is not loaded, any element attempting to use it must instead render with a fallback font face. If the font face successfully loads during the swap period, the font face is then used normally.
-
The third period, occurring immediately after the swap period, is the font failure period. If the font face is not yet loaded when this period starts, it’s marked as a failed load, causing normal font fallback. Otherwise, the font face is used normally.
To render with a fallback font face for a given element, the user agent must find the first font face specified in the element’s font-family list which is already loaded, and use that for rendering text. Doing this must not trigger loads of any of the fallback fonts.
To render with an invisible fallback font face for a given element, find a font face as per "render with a fallback font face". Create an anonymous font face with the same metrics as the selected font face but with all glyphs "invisible" (containing no "ink"), and use that for rendering text. Doing this must not trigger loads of any of the fallback fonts.
fallback and optional can result in some faces in a family being used while others are required to fallback, giving a "ransom note" look. Perhaps require that all fonts in a family have the same behavior (all swapped in, or all fallback)? See also the @font-feature-values for controlling the behavior on a font family basis.
4. Font Resources
4.1. The @font-face rule
The @font-face rule allows for linking to fonts that are automatically fetched and activated when needed. This allows authors to select a font that closely matches the design goals for a given page rather than limiting the font choice to a set of fonts available on a given platform. A set of font descriptors define the location of a font resource, either locally or externally, along with the style characteristics of an individual face. Multiple @font-face rules can be used to construct font families with a variety of faces. Using CSS font matching rules, a user agent can selectively download only those faces that are needed for a given piece of text.
Its syntax is:
@font-face { <declaration-list>}
Tests
The @font-face rule accepts the descriptors defined in this specification.
Each @font-facerule specifies a value for every font descriptor, either implicitly or explicitly. Those not given explicit values in the rule take the initial value listed with each descriptor in this specification. These descriptors apply solely within the context of the @font-face rule in which they are defined, and do not apply to document language elements. There is no notion of which elements the descriptors apply to or whether the values are inherited by child elements. When a given descriptor occurs multiple times in a given @font-face rule, only the last descriptor declaration is used and all prior declarations for that descriptor are ignored.
@font-face { font-family : Gentium; src : url ( http://example.com/fonts/Gentium.woff ); } p{ font-family : Gentium, serif; }
The user agent will download Gentium and use it when rendering text within paragraph elements. If for some reason the site serving the font is unavailable, the default serif font will be used.
A given set of @font-face rules define a set of fonts available for use within the documents that contain these rules. When font matching is done, fonts defined using these rules are considered before other available fonts on a system.
Downloaded fonts are only available to documents that reference them. The process of activating these fonts must not make them available to other applications or to documents that don’t directly link to the same font. User agent implementers might consider it convenient to use downloaded fonts when rendering characters in other documents for which no other available font exists as part of the installed font fallback procedure. However, this would cause a security leak since the contents of one page would be able to affect other pages, something an attacker could use as an attack vector. These restrictions do not affect caching behavior, fonts are cached the same way other web resources are cached.
This at-rule follows the forward-compatible parsing rules of CSS. Like properties in a declaration block, declarations of any descriptors that are not supported by the user agent must be ignored. @font-face rules require a font-family and src descriptor; if either of these are missing, the @font-face rule must not be considered when performing the font matching algorithm.
In cases where user agents have limited platform resources or implement the ability to disable downloadable font resources, @font-face rules must simply be ignored; the behavior of individual descriptors as defined in this specification should not be altered.
4.2. Font family: the font-family descriptor
Name: | font-family |
---|---|
For: | @font-face |
Value: | <family-name> |
Initial: | N/A |
This descriptor defines the font family name that will be used in all CSS font family name matching. It overrides the font family names contained in the underlying font data. If the font family name is the same as a font family available in a given user’s environment, it effectively hides the underlying font for documents that use the stylesheet. This permits a web author to freely choose font-family names without worrying about conflicts with font family names present in a given user’s environment. Likewise, platform substitutions for a given font family name must not be used.
4.3. Font reference: the src descriptor
Name: | src |
---|---|
For: | @font-face |
Value: | <font-src-list> |
Initial: | N/A |
This descriptor specifies the resource containing font data. Its value is a prioritized, comma-separated list of external references or locally-installed font face names. When a font is needed the user agent iterates over the set of references listed, using the first one it can successfully parse and activate. Parsing this descriptor is more complicated than parsing other descriptors; see § 4.3.1 Parsing the src descriptor for the parsing rules. Activation of a font involves downloading the file or reading it from disk, parsing it, and perhaps additional user-agent-dependent steps. Fonts containing invalid data or local font faces that are not found are ignored and the user agent loads the next font in the list.
4.3.1. Parsing the src descriptor
To parse a <font-src-list> production, parse a list of <font-src>s.
<font-src> = <url>[ format ( <font-format>)] ?[ tech ( <font-tech>#)] ? |local ( <family-name>)
<font-format>=[ <string> | collection | embedded-opentype | opentype | svg | truetype | woff | woff2]
<font-tech>=[ <font-features-tech> | <color-font-tech> | variations | palettes | incremental-patch | incremental-range | incremental-auto]
<font-features-tech>=[ features-opentype | features-aat | features-graphite]
<color-font-tech>=[ color-COLRv0 | color-COLRv1 | color-SVG | color-sbix | color-CBDT]
Tests
While keywords are preferred to identify font formats, for reasons of backwards compatibility the following strings are also accepted, and have the same effect as if the equivalent modern syntax had been used.
String form | Equivalent syntax |
---|---|
format("woff2") | format(woff2) |
format("woff") | format(woff) |
format("truetype") | format(truetype) |
format("opentype") | format(opentype) |
format("collection") | format(collection) |
format("woff2-variations") | format(woff2) tech(variations) |
format("woff-variations") | format(woff) tech(variations) |
format("truetype-variations") | format(truetype) tech(variations) |
format("opentype-variations") | format(opentype) tech(variations) |
Note: The CSS WG does not anticipate extending this list of format strings in the future.
If a component value is parsed correctly and is of a font format or font tech that the UA supports, add it to the list of supported sources. If parsing a component value results in a parsing error or its format or tech are unsupported, do not add it to the list of supported sources.
If there are no supported entries at the end of this process, the value for the src descriptor is a parse error.
These parsing rules allow for graceful fallback of fonts for user agents which don’t support a particular font tech or font format.
@font-face { font-family : "MyIncrementallyLoadedWebFont" ; src : url ( "FallbackURLForBrowsersWhichDontSupportIncrementalLoading.woff2" ) format ( "woff2" ); src : url ( "MyIncrementallyLoadedWebFont.otf" ) format ( opentype) tech ( incremental-range); }
4.3.2. Loading an individual item in the src descriptor
As with other URLs in CSS, the URL can be relative, in which case it is resolved relative to the location of the style sheet containing the @font-face rule. In the case of SVG fonts, the URL points to an element within a document containing SVG font definitions. If the element reference is omitted, a reference to the first defined font is implied. Similarly, font container formats that can contain more than one font must load one and only one of the fonts for a given @font-face rule. Fragment identifiers are used to indicate which font to load; these use the PostScript name of the font as defined in [RFC8081].
Conformant user agents must skip downloading a font resource if the fragment identifier is unknown or unsupported. For example, older user agents which do not support OpenType collections will skip to the next url in the list.
src : url ( fonts/simple.woff ); /* load simple.woff relative to stylesheet location */ src:url ( /fonts/simple.woff ); /* load simple.woff from absolute location */ src:url ( fonts/coll.otc#foo ); /* load font foo from collection coll.otc src: url(fonts/coll.woff2#foo); /* load font foo from woff2 collection coll.woff2 src: url(fonts.svg#simple); /* load SVG font with id 'simple' */
4.3.3. Selecting items in the src
External references consist of a URL, followed by an optional hint describing the format of the font resource referenced by that URL. Conformant user agents must skip downloading a font resource if the format hint indicates an unsupported or unknown font format, or if any of the font technologies are unsupported by the user agent. If no format hint is supplied, the user agent should download the font resource.
@font-face { font-family : bodytext; src : url ( ideal-sans-serif.woff2 ) format ( "woff2" ), url ( ideal-sans-serif.woff ) format ( "woff" ), url ( basic-sans-serif.ttf ) format ( "opentype" ); }
src : url ( ideal.woff2 ) format ( "woff2" ), url ( unsupported.zeb ) format ( "zebra" ), url ( basic.ttf ) format ( "opentype" );
@font-face { font-family : 源ノ角ゴシック Code JP; src : url ( SourceHanCodeJP.otc#Regular ) format ( "collection" ), url ( SourceHanCodeJP-Regular.ttf ) format ( "opentype" ); }
4.3.3.1. Local font fallback
When authors would prefer to use
a locally available copy of a given font
and download it if it’s not,
can be used.
The locally-installed <family-name> argument to
is a format-specific string
that uniquely identifies a single font face
within a larger family.
The name can optionally be enclosed in quotes.
If unquoted,
the unquoted font family name processing conventions apply;
in other words,
the name must be a sequence of identifiers
separated by whitespace which is converted to a string
by joining the identifiers together
separated by a single space;
and thus, CSS-wide keywords such as inherit, and <generic-family> keywords such as serif are not allowed inside
.
/* regular face of Gentium */ @font-face { font-family : MyGentium; src : local ( Gentium), /* prefer locally available Gentium */ url ( Gentium.woff ); /* otherwise, download it */ }
local ()
would be an error:
@font-face { font-family : foo; src : local ( inherit); }
For OpenType and TrueType fonts, this string is used to match only the Postscript name or the full font name in the name table of locally available fonts. Which type of name is used varies by platform and font, so authors should include both of these names to assure proper matching across platforms. Platform substitutions for a given font name must not be used.
/* bold face of Gentium */ @font-face { font-family : MyGentium; src : local ( Gentium Bold), /* full font name */ local ( Gentium-Bold), /* Postscript name */ url ( GentiumBold.woff ); /* otherwise, download it */ font-weight: bold; }
Just as an @font-face rule specifies
the characteristics of a single font
within a family,
the unique name used with
specifies a single font,
not an entire font family.
Defined in terms of OpenType font data,
the Postscript name is found in
the font’s name table,
in the name record with nameID = 6
(see [OPENTYPE] for more details).
The Postscript name is the commonly used key for all fonts on OSX
and for Postscript CFF fonts under Windows.
The full font name (nameID = 4) is used as a unique key
for fonts with TrueType glyphs on Windows.
For OpenType fonts with multiple localizations of the full font name, the US English version must be used (language ID = 0x409 for Windows and language ID = 0 for Macintosh) or the first localization when a US English full font name is not available (the OpenType specification recommends that all fonts minimally include US English names). User agents that also match other full font names, e.g. matching the Dutch name when the current system locale is set to Dutch, are considered non-conformant.
Note: This is done, not to prefer English, but to avoid matching inconsistencies across font versions and OS localizations, since font style names (e.g. "Bold") are frequently localized into many languages and the set of localizations available varies widely across platform and font version.
User agents that match a concatenation of family name (nameID = 1) with style name (nameID = 2) are considered non-conformant.
Note: This also allows for referencing faces that belong to larger families that cannot otherwise be referenced.
@font-face { font-family : Headline; src : local ( Futura-Medium), url ( images/fonts.svg#MyGeometricModern ) format ( "svg" ); }
Create an alias for local Japanese fonts on different platforms:
@font-face { font-family : jpgothic; src : local ( HiraKakuPro-W3), local ( Meiryo), local ( IPAPGothic); }
Reference a font face that cannot be matched within a larger family:
@font-face { font-family : Hoefler Text Ornaments; /* has the same font properties as Hoefler Text Regular */ src:local ( HoeflerText-Ornaments); }
Since localized fullnames never match, a document with the header style rules below would always render using the default serif font, regardless whether a particular system locale parameter is set to Finnish or not:
@font-face { font-family : SectionHeader; src : local ( "Arial Lihavoitu" ); /* Finnish fullname for Arial Bold, should fail */ font-weight: bold; } h2{ font-family : SectionHeader, serif; }
A conformant user agent would never load the font 'gentium.eot' in the example below, since it is included in the first definition of the src descriptor which is overridden by the second definition in the same @font-face rule:
@font-face { font-family : MainText; src : url ( gentium.eot ); /* for use with older user agents */ src:local ( "Gentium" ), url ( gentium.woff ); /* Overrides src definition */ }
4.4. Font property descriptors: the font-style, font-weight, and font-width descriptors
Name: | font-style |
---|---|
For: | @font-face |
Value: | auto | normal | italic | oblique [ <angle [-90deg,90deg]>{1,2} ]? |
Initial: | auto |
Name: | font-weight |
---|---|
For: | @font-face |
Value: | auto | <font-weight-absolute>{1,2} |
Initial: | auto |
Name: | font-width |
---|---|
For: | @font-face |
Value: | auto | <'font-width'>{1,2} |
Initial: | auto |
Tests
- font-face-range-order.html (live test) (source)
- font-face-stretch-auto-static.html (live test) (source)
- font-face-stretch-auto-variable.html (live test) (source)
- font-face-stretch-default-variable.html (live test) (source)
- font-face-style-auto-static.html (live test) (source)
- font-face-style-auto-variable.html (live test) (source)
- font-face-style-default-variable.html (live test) (source)
- font-face-weight-auto-static.html (live test) (source)
- font-face-weight-auto-variable.html (live test) (source)
- font-face-weight-default-variable.html (live test) (source)
- font-descriptor-range-reversed.html (live test) (source)
These descriptors define the characteristics of a font face and are used in the process of matching styles to specific faces. For a font family defined with several @font-face rules, user agents can either download all faces in the family or use these descriptors to selectively download font faces that match actual styles used in document. The meaning of the values for these descriptors are the same as those for the corresponding font properties except that relative keywords are not allowed, bolder and lighter. If these descriptors are omitted, initial values are assumed. If specified values are out of range of the accepted values of the property of the same name, the descriptor is treated as a parse error.
Ranges are accepted in these three descriptors in place of a single value. Where a single value is specified, it has the same meaning as a range with identical startpoint and endpoint. User agents must swap the computed value of the startpoint and endpoint of the range in order to forbid decreasing ranges. Both endpoints are inclusive. The ranges are used in the Font Matching Algorithm below.
Tests
The auto values for these three descriptors have the following effects:
-
For font selection purposes, the font is selected as if the appropriate normal value (normal, normal or normal) is chosen
-
For variation axis clamping, clamping does not occur
The value for these font face style attributes is used in place of the style implied by the underlying font data. This allows authors to combine faces in flexible combinations, even in situations where the original font data was arranged differently. User agents that implement synthetic bolding and obliquing must only apply synthetic styling in cases where the font descriptors imply this is needed, rather than based on the style attributes implied by the font data. However, variation values applied to fonts defined with '@font-face' will be clamped to both the values specified in these descriptors as well as the values supported by the font file itself.
Consider a family containing a single, regular face:
@font-face { font-family : BaskervilleSimple; src : url ( baskerville-regular.woff2 ); }
Unstyled text would display using the regular face defined in the @font-face rule:
However, italic text would display in most user agents using synthetically obliqued glyphs from the regular face, since a separate italic face is not defined:
Now consider a family for which an actual italic face is defined:
@font-face { font-family : BaskervilleFull; src : url ( baskerville-regular.woff2 ); } @font-face { font-family : BaskervilleFull; src : url ( baskerville-italic.woff2 ); font-style : italic; }
The second @font-face rule
defines the font resource baskerville-italic.woff
to have style attributes of normal weight, normal stretch and italic style.
When displaying italic text,
the user agent will use this font,
since it’s the closest match for italic text.
Thus, the text will display using glyphs designed by a type designer
rather than using synthetically obliqued glyphs from the regular face:
See the section on font matching for more complete details of the process used to select a particular face within a font family.
@font-face { font-family : Lastima; src : url ( lastima-varfont.woff2 ); font-weight : 100 399 ; }
The above @font-face rule indicates that lastima-varfont.woff
should be used when font-weight is between 100 and 399. Depending on if there are any other @font-face rules which specify
, lastima-varfont.woff
might be used for values of font-weight outside of the 100 - 399 range. For more details, see the § 5 Font Matching Algorithm.
As above, multiple @font-face rules may be joined together into a single family, spanning multiple ranges of font-weight, font-width, and/or font-style:
@font-face { font-family : Lastima; src : url ( lastima-varfont-lightrange.woff2 ); font-weight : 100 399 ; } @font-face { font-family : Lastima; src : url ( lastima-varfont-heavyrange.woff2 ); font-weight : 400 700 ; }
The above @font-face rules indicate that lastima-varfont-lightrange.woff
should be used when font-weight is between 100 and 399, whereas lastima-varfont-heavyrange.woff should be used when font-weight is between 400 and 700.
4.4.1. Font width: the font-stretch legacy name alias
For historical reasons, a font-stretch descriptor exists which is a legacy name alias and functions in the identical way to the font-width.
4.5. Character range: the unicode-range descriptor
Name: | unicode-range |
---|---|
For: | @font-face |
Value: | <urange># |
Initial: | U+0-10FFFF |
Tests
- font-face-unicode-range-2.html (live test) (source)
- font-face-unicode-range-nbsp.html (live test) (source)
- font-face-unicode-range.html (visual test) (source)
This descriptor defines the set of Unicode codepoints that may be supported by the font face for which it is declared. The descriptor value is a comma-delimited list of Unicode range (<urange>) values. The union of these ranges defines the set of codepoints that serves as a hint for user agents when deciding whether or not to download a font resource for a given text run.
Each <urange> value is a UNICODE-RANGE
token made up of a "U+" or "u+" prefix
followed by a codepoint range in one of the three forms listed below.
Ranges that do not fit one of these forms are invalid
and cause the declaration to be ignored.
- single codepoint (e.g. U+416)
- a Unicode codepoint, represented as one to six hexadecimal digits
- interval range (e.g. U+400-4ff)
- represented as two hyphen-separated Unicode codepoints indicating the inclusive start and end codepoints of a range
- wildcard range (e.g. U+4??)
- defined by the set of codepoints implied when trailing '?' characters signify any hexadecimal digit
Individual codepoints are written using hexadecimal values that correspond to Unicode character codepoints. Unicode codepoint values must be between 0 and 10FFFF inclusive. Digit values of codepoints are ASCII case-insensitive. For interval ranges, the start and end codepoints must be within the range noted above and the end codepoint must be greater than or equal to the start codepoint.
Wildcard ranges specified with ‘?’ that lack an
initial digit (e.g. "U+???") are valid and equivalent
to a wildcard range with an initial zero digit (e.g. "U+0???" = "U+0000-0FFF").
Wildcard ranges that extend beyond the range of
Unicode codepoints are invalid. Because of this, the maximum
number of trailing '?' wildcard characters is five, even though the UNICODE-RANGE
token accepts six.
Within the comma-delimited list of Unicode ranges in a unicode-range descriptor declaration, ranges may overlap. The union of these ranges defines the set of codepoints for which the corresponding font may be used. User agents must not download or use the font for codepoints outside this set. User agents may normalize the list of ranges into a list that is different but represents the same set of codepoints.
The associated font might not contain glyphs for the entire set of codepoints defined by the unicode-range descriptor. When the font is used, the effective character map is the intersection of the codepoints defined by unicode-range with the font’s character map. This allows authors to define supported ranges in terms of broad ranges without worrying about the precise codepoint ranges supported by the underlying font.
4.5.1. Using character ranges to define composite fonts
Multiple @font-face rules with different unicode ranges for the same family and style descriptor values can be used to create composite fonts that mix the glyphs from different fonts for different scripts. This can be used to combine fonts that only contain glyphs for a single script (e.g. Latin, Greek, Cyrillic) or it can be used by authors as a way of segmenting a font into fonts for commonly used characters and less frequently used characters. Since the user agent will only pull down the fonts it needs this helps reduce page bandwidth.
If the unicode ranges overlap for a set of @font-face rules with the same family and style descriptor values, the rules are ordered in the reverse order they were defined; the last rule defined is the first to be checked for a given character.
Example ranges for specific languages or characters:
- unicode-range: U+A5;
- a single code point, the yen/yuan symbol
- unicode-range: U+0-7F;
- code range for basic ASCII characters
- unicode-range: U+590-5ff;
- code range for Hebrew characters
- unicode-range: U+A5, U+4E00-9FFF, U+30??, U+FF00-FF9F;
- code range for Japanese kanji, hiragana and katakana characters plus yen/yuan symbol
@font-face { font-family : BBCBengali; src : url ( fonts/BBCBengali.woff ) format ( "woff" ); unicode-range : U+00 -FF , U+980 - 9 FF ; }
@font-face { font-family : STIXGeneral; src : local ( STIXGeneral), url ( /stixfonts/STIXGeneral.otf ); unicode-range : U+000 - 49 F , U+2000 - 27 FF , U+2900 - 2 BFF , U+1 D 400 - 1 D 7 FF ; }
@font-face { font-family : JapaneseWithGentium; src : local ( MSMincho); /* no range specified, defaults to entire range */ } @font-face { font-family : JapaneseWithGentium; src : url ( ../fonts/Gentium.woff ); unicode-range : U+0 - 2 FF ; }
/* fallback font - size: 4.5MB */ @font-face { font-family : DroidSans; src : url ( DroidSansFallback.woff ); /* no range specified, defaults to entire range */ } /* Japanese glyphs - size: 1.2MB */ @font-face { font-family : DroidSans; src : url ( DroidSansJapanese.woff ); unicode-range : U+3000 - 9 FFF , U+ff??; } /* Latin, Greek, Cyrillic along with some punctuation and symbols - size: 190KB */ @font-face { font-family : DroidSans; src : url ( DroidSans.woff ); unicode-range : U+000 - 5 FF , U+1e00 - 1 fff , U+2000 - 2300 ; }
For simple Latin text, only the font for Latin characters is downloaded:
body{ font-family : DroidSans; } <p>This is that</p>
In this case the user agent first checks the unicode-range for the font containing Latin characters (DroidSans.woff). Since all the characters above are in the range U+0-5FF, the user agent downloads the font and renders the text with that font.
Next, consider text that makes use of an arrow character (⇨):
<p>This ⇨ that<p>
The user agent again first checks the unicode-range of the font containing Latin characters. Since U+2000-2300 includes the arrow code point (U+21E8), the user agent downloads the font. For this character however the Latin font does not have a matching glyph, so the effective unicode-range used for font matching excludes this code point. Next, the user agent evaluates the Japanese font. The unicode-range for the Japanese font, U+3000-9FFF and U+ff??, does not include U+21E8, so the user agent does not download the Japanese font. Next the fallback font is considered. The @font-face rule for the fallback font does not define unicode-range so its value defaults to the range of all Unicode code points. The fallback font is downloaded and used to render the arrow character.
4.6. Font features and variations: the font-feature-settings and font-variation-settings descriptors
Name: | font-feature-settings |
---|---|
For: | @font-face |
Value: | normal | <feature-tag-value># |
Initial: | normal |
Tests
Name: | font-variation-settings |
---|---|
For: | @font-face |
Value: | normal | [ <string> <number>]# |
Initial: | normal |
Tests
- calc-in-font-variation-settings.html (live test) (source)
- font-variation-settings-serialization-001.html (live test) (source)
- font-variation-settings-composition.html (live test) (source)
- font-variation-settings-interpolation.html (live test) (source)
- font-variation-settings-computed.html (live test) (source)
- font-variation-settings-invalid.html (live test) (source)
- font-variation-settings-valid.html (live test) (source)
- font-variation-settings-inherit.html (live test) (source)
These descriptors define initial settings that apply when the font defined by an @font-face rule is rendered. They do not affect font selection. Values are identical to those defined for the corresponding font-feature-settings and font-variation-settings properties defined below except that the CSS-wide keywords are omitted. When multiple font feature descriptors, properties, or variations are used, optionally along with a named instance, the cumulative effect on text rendering is detailed in the section § 7 Font Feature and Variation Resolution below.
These descriptors set features and variation values on the font object which the @font-face rule represents, rather than on an entire element. Therefore, when using these descriptors, only some glyphs in an element may be rendered with that feature, due to § 5.3 Cluster matching.
4.7. Using named instances from variable fonts: the font-named-instance descriptor
Name: | font-named-instance |
---|---|
For: | @font-face |
Value: | auto | <string> |
Initial: | auto |
If the font-named-instance descriptor is set to a value other than auto, then the appropriate stage in the § 7 Font Feature and Variation Resolution will inspect the font file to find the first named instance in the font which has a localized name equal to the given <string> according to the rules given in § 5.1 Localized name matching. If no such named instance exists, this descriptor is treated as if it has a value of auto. Otherwise, this named instance’s variation axis values are applied to this position in the § 7 Font Feature and Variation Resolution.
@font-face { font-family : "AccuroVar" ; src : url ( "accurovar.otf" ) format ( "opentype" ); font-named-instance : "Grotesque" ; font-variation-settings : "XHGT" 0.7 ; }
Note: Because the variation axis values supplied in the font-weight, font-width, and font-style properties are applied before the value in the font-named-instance descriptor, there is no need to change the value of those properties when a named instance is desired.
4.8. Font request guidelines
4.8.1. Font loading guidelines
The @font-face rule is designed to allow lazy loading of font resources that are only downloaded when used within a document. A stylesheet can include @font-face rules for a library of fonts of which only a select set are used; user agents must only download those fonts that are referred to within the style rules applicable to a given page. User agents that download all fonts defined in @font-face rules without considering whether those fonts are in fact used within a page are considered non-conformant. In cases where a font might be downloaded in character fallback cases, user agents may download a font if it’s contained within the computed value of font-family for a given text run.
@font-face { font-family : GeometricModern; src : url ( font.woff ); } p{ /* font will be downloaded for pages with p elements */ font-family: GeometricModern, sans-serif; } h2{ /* font may be downloaded for pages with h2 elements, even if Futura is available locally */ font-family: Futura, GeometricModern, sans-serif; }
In cases where textual content is loaded before downloadable fonts are available, user agents must render text according to the font-display descriptor of that @font-face block. In cases where the font download fails, user agents must display the text visibly. Authors are advised to use fallback fonts in their font lists that closely match the metrics of the downloadable fonts to avoid large page reflows where possible.
4.8.2. Font fetching requirements
Note: The implications of this for authors are that fonts
will typically not be loaded cross-origin unless authors specifically
take steps to permit cross-origin loads. Sites can explicitly allow
cross-site loading of font data using the Access-Control-Allow-Origin
HTTP header. For other schemes, no explicit mechanism to allow
cross-origin loading, beyond what is permitted by the fetch algorithm, is defined or required.
https : //example.com/page.html
and all URLs link to valid
font resources supported by the user agent.
Fonts defined with the src descriptor values below will be loaded:
/* same origin (i.e. domain, scheme, port match document) */ src:url ( fonts/simple.woff ); /* data urls with no redirects are treated as same origin */ src:url ( "data:application/font-woff;base64,..." ); /* cross origin, different domain */ /* Access-Control-Allow-Origin response header set to '*' */ src:url ( http://another.example.com/fonts/simple.woff );
Fonts defined with the src descriptor values below will fail to load:
/* cross origin, different scheme *//* no Access-Control-xxx headers in response */ src:url ( http://example.com/fonts/simple.woff ); /* cross origin, different domain */ /* no Access-Control-xxx headers in response */ src:url ( http://another.example.com/fonts/simple.woff );
4.9. Controlling Font Display Per Font-Face: the font-display descriptor
The font-display descriptor for @font-face determines how a font face is displayed, based on whether and when it is downloaded and ready to use.
Name: | font-display |
---|---|
For: | @font-face |
Value: | auto | block | swap | fallback | optional |
Initial: | auto |
Tests
Note: For all of these values, user agents may use slightly different durations, or more sophisticated behaviors that can’t be directly expressed in the font-display syntax, in order to provide more useful behavior for their users. They may also provide the ability for users to override author-chosen behavior with something more desirable; for example, forcing all fonts to have a 0s block period.
- auto
-
The font display policy is user-agent-defined.
Note: Many browsers have a default policy similar to that specified by block.
- block
-
Gives the font face a short block period (3s is recommended in most cases)
and an infinite swap period.
Note: In other words, the browser draws "invisible" text at first if it’s not loaded, but swaps the font face in as soon as it loads.
This value must only be used when rendering text in a particular font is required for the page to be usable. It must only be used for small pieces of text.
For example, badly designed "icon fonts" might associate a "⎙" (printer) icon with an unrelated character like "P", so if the text is displayed with a fallback font instead there will be confusing letters scattered around the page rather than the desired icon. In this case, temporary blank spots are better than using a fallback font.(However, the fallback font is used eventually, as having confusing letters scattered around the page is better than having links and such never show up at all.)
A better solution is described in the Accessibility Considerations section.
- swap
-
Gives the font face an extremely small block period (100ms or less is recommended in most cases)
and an infinite swap period.
Note: In other words, the browser draws the text immediately with a fallback if the font face isn’t loaded, but swaps the font face in as soon as it loads.
This value should only be used when rendering text in a particular font is very important for the page, but rendering in any font will still get a correct message across. It should only be used for small pieces of text.
- fallback
-
Gives the font face an extremely small block period (100ms or less is recommended in most cases)
and a short swap period (3s is recommended in most cases).
Note: In other words, the font face is rendered with a fallback at first if it’s not loaded, but it’s swapped in as soon as it loads. However, if too much time passes, the fallback will be used for the rest of the page’s lifetime instead.
This value should be used for body text, or any other text where the use of the chosen font is useful and desired, but it’s acceptable for the user to see the text in a fallback font. This value is appropriate to use for large pieces of text.
For example, in large pieces of body text, it’s most important just to get the text rendered quickly, so the user can begin to read as quickly as possible. Further, once the user has started reading, they shouldn’t be disturbed by the text suddenly "shifting" as a new font is swapped in, as that’s distracting and annoying to re-find where one was in the text. - optional
-
If the font can be loaded "immediately"
(such that it’s available to be used for the "first paint" of the text),
the font is used.
Otherwise, the font is treated as if its block period and swap period both expired before it finished loading. If the font is not used due to this, the user agent may choose to abort the font download, or download it with a very low priority. If the user agent believes it would be useful for the user, it may avoid even starting the font download, and proceed immediately to using a fallback font.
An optional font must never cause the layout of the page to "jump" as it loads in. A user agent may choose to slightly delay rendering an element using an optional font to give it time to load from a possibly-slow local cache, but once the text has been painted to the screen with a fallback font instead, it must not be rendered with the optional font for the rest of the page’s lifetime.
This value should be used for body text, or any other text where the chosen font is purely a decorative "nice-to-have". It should be used anytime it is more important that the web page render quickly on first visit, than it is that the user wait a longer time to see everything perfect immediately.
For example, body text is perfectly readable in one of the browser default fonts, though a downloadable font face might be more attractive and mesh with the site’s aesthetics better. First time visitors to a site generally care far more about the site being quickly usable than they do about the finer points of its display, and optional provides a good behavior for them. If they return later, the desired font faces might have finished downloading, giving them the "intended" experience without slowing down either their first or subsequent visits.Users on very slow connections might not ever receive the "intended" experience, but optional ensures they can actually use the site, rather than quitting and going elsewhere because the site takes too long to load.
To increase the chance that an optional font will be available in time to use for rendering some text, it is recommended that the user agent employ heuristics to make it faster to access or to judge when it would be worthwhile to delay rendering some text, such as checking if the font is preloaded in HTML, or moving the file from slower to faster in-memory caches as soon as it is seen in a stylesheet (before it’s known whether it will be used on the page).These heuristics cannot be relied upon by authors, however; it must be understood that the optional value can result in the font never being used. If a somewhat higher assurance of the font being used is needed, authors should consider using the fallback value.
4.9.1. Controlling Font Display Per Font-Family via @font-feature-values
The font-display descriptor for @font-feature-values determines how a font family is displayed, by setting the "default" font-display value for @font-face rules targeting the same font family. When font-display is omitted in an @font-face rule, the user agent uses the font-display value set via @font-feature-values for the relevant font-family if one is set, and otherwise defaults to font-display: auto.
This mechanism can be used to set a default display policy for an entire font-family, and enables developers to set a display policy for @font-face rules that are not directly under their control. For example, when a font is served by a third-party font foundry, the developer does not control the @font-face rules but is still able to set a default font-display policy for the provided font-family. The ability to set a default policy for an entire font-family is also useful to avoid the ransom note effect (i.e. mismatched font faces) because the display policy is then applied to the entire font family.
Name: | font-display |
---|---|
For: | @font-feature-values |
Value: | auto | block | swap | fallback | optional |
Initial: | auto |
4.10. Default font language overriding: the font-language-override descriptor
Name: | font-language-override |
---|---|
For: | @font-face |
Value: | normal | <string> |
Initial: | normal |
This descriptor defines initial settings that apply when the font defined by an @font-face rule is rendered. It does not affect font selection. Values are identical to those defined for the font-language-override property defined below except that the value inherit is omitted. When multiple font feature descriptors, properties, or variations are used, the cumulative effect on text rendering is detailed in the section § 7 Font Feature and Variation Resolution below.
4.11. Default font metrics overriding: the ascent-override, descent-override and line-gap-override descriptors
Name: | ascent-override |
---|---|
For: | @font-face |
Value: | normal | <percentage [0,∞]> |
Initial: | normal |
Tests
Name: | descent-override |
---|---|
For: | @font-face |
Value: | normal | <percentage [0,∞]> |
Initial: | normal |
Tests
Name: | line-gap-override |
---|---|
For: | @font-face |
Value: | normal | <percentage [0,∞]> |
Initial: | normal |
Tests
The ascent-override, descent-override and line-gap-override descriptors define the ascent metric, descent metric and line gap metric of the font, respectively.
When the descriptor value is normal, the corresponding metric value is obtained from the font file directly.
Note: User agents may draw data from different places from the font file as the metric values, which results in different text layouts.
When the descriptor value is a percentage, the corresponding metric value is resolved as the given percentage multiplied by the used font size. Negative values are invalid at parse time.
@font-face { font-family : overridden-font; ascent-override : 50 % ; ...} <span style="font-family: overridden-font; font-size: 20px;" > Outer span content <span style="font-size: 150%;" >Inner span content</span> </span>
The outer span uses an ascent value of 10px, whereas the inner span uses 15px.
@font-face { font-family : cool-web-font; src : url ( "https://example.com/font.woff" ); } @font-face { font-family : fallback-to-local; src : local ( Some Local Font); /* Override metric values to match cool-web-font */ ascent-override:125 % ; descent-override : 25 % ; line-gap-override : 0 % ; } <div style="font-family: cool-web-font, fallback-to-local" >Title goes here</div> <img src="https://example.com/largeimage" alt="A large image that you don’t want to shift" >
The image will not be vertically shifted when the user agent finishes loading and switches to use the web font.
5. Font Matching Algorithm
The algorithm below describes how fonts are associated with individual runs of text. For each character in the run a font family is chosen and a particular font face is selected containing a glyph for that character.
The set of installed fonts available to the Font Matching Algorithm is explicitly undefined.
The default set of installed fonts will vary by UA, platform, and locale; it is important that users be able to customise which installed fonts are available for rendering web pages and to which generic font families, if any, these fonts are mapped.
UAs may choose to expose all installed fonts to the web, regardless of how that font was installed; doing so is likely to have good internationalization properties for users whose primary language is not supported by fonts shipping with their operating system.
UAs may alternatively choose to not initially expose any user-installed fonts to aid privacy on the web; for the set of installed fonts a user has installed is often used as a tracking vector to track users across the web. Users would then add to add to or remove fonts from that set, according to their needs.
UAs may choose a hybrid approach, where some user-installed fonts are initially exposed for internationalization, but others aren’t. Again, users would be able to customise this starting set.
UAs are expected to make informed decisions on which fonts they expose to the web by default, so as to balance between internationalization and privacy. UAs are expected to also provide a convenient means for users to add and subtract fonts to meet their particular needs.
Tests
5.1. Localized name matching
Some font file formats allow font faces to carry multiple localizations of a particular string (e.g. family name or named instance). User agents must recognize and correctly match all of these names independent of the underlying platform localization, system API used, or document encoding.
User agents must match these names case insensitively, using the "Default Caseless Matching" algorithm outlined in the Unicode specification [UNICODE]. This algorithm is detailed in section 3.13 entitled "Default Case Algorithms". Specifically, the algorithm must be applied without normalizing the strings involved and without applying any language-specific tailorings. The case folding method specified by this algorithm uses the case mappings with status field "C" or "F" in the CaseFolding.txt file of the Unicode Character Database.
Note: For authors this means that font family names are matched case insensitively, whether those names exist in a platform font or in the @font-face rules contained in a stylesheet. Authors should take care to ensure that names use a character sequence consistent with the actual font family name, particularly when using combining characters such as diacritical marks. For example, a family name that contains a lowercase a (U+0061) followed by a combining ring (U+030A) will not match a name that looks identical but which uses the precomposed lowercase a-ring character (U+00E5) instead of the combining sequence.
Note: Implementors should take care to verify that a given caseless string comparison implementation uses this precise algorithm and not assume that a given platform string matching routine follows it, as many of these have locale-specific behavior or use some level of string normalization.
5.2. Matching font styles
The procedure for choosing a font for a given character in a run of text consists of iterating over the font families named by the font-family property, selecting a font face with the appropriate style based on other font properties and then determining whether a glyph exists for the given character. This is done using the character map of the font, data which maps characters to the default glyph for that character. A font is considered to support a given character if (1) the character is contained in the font’s character map and (2) if required by the containing script, shaping information is available for that character.
Some legacy fonts might include a given character in the character map but lack the shaping information (e.g. OpenType layout tables or Graphite tables) necessary for correctly rendering text runs containing that character.
Codepoint sequences consisting of a base character followed by a sequence of combining characters are treated slightly differently, see the section on cluster matching below.
For this procedure, the default face for a given font family is defined to be the face that would be selected if all font style properties were set to their initial value.
-
Using the computed font property values for a given element, the user agent starts with the first family name specified by the font-family property.
-
If the family name is a generic family keyword, the user agent looks up the appropriate font family name to be used. User agents may choose the generic font family to use based on the language of the containing element or the Unicode range of the character.
-
For other family names, the user agent attempts to find the family name among fonts defined via @font-face rules and then among available installed fonts (this may include font aliases), matching names with a § 5.1 Localized name matching as outlined in the section above. If the font resources defined for a given face in an @font-face rule are either not available or contain invalid font data, then the face should be treated as not present in the family. If no faces are present for a family defined via @font-face rules, the family should be treated as missing; matching a platform font with the same name must not occur in this case.
-
If a font family match occurs, the user agent assembles the set of font faces in that family and then narrows the set to a single face using other font properties in the order given below. Fonts might be present in this group which can support a range of font-width, font-style, or font-weight properties. In this case, the algorithm proceeds as if each supported combination of values is a unique font in the set. If such a font is ultimately selected by this algorithm, particular values for font-width, font-style, and font-weight must be applied before any layout or rendering occurs. The application of these values must be applied in the Apply font matching variations step detailed in § 7 Font Feature and Variation Resolution. A group of faces defined via @font-face rules with identical font descriptor values but differing unicode-range values are considered to be a single composite face for this step:
Tests
-
font-width is tried first. If a font does not have any concept of varying strengths of width values, its width value is mapped according table in the property definition. If the matching set includes faces with width values containing the font-width desired value, faces with width values which do not include the desired width value are removed from the matching set. If there is no face which contains the desired value, a width value is chosen using the rules below:
-
If the desired width value is less than or equal to 100%, width values below the desired width value are checked in descending order followed by width values above the desired width value in ascending order until a match is found.
-
Otherwise, width values above the desired width value are checked in ascending order followed by width values below the desired width value in descending order until a match is found.
Once the closest matching width has been determined by this process, faces with widths which do not include this determined width are removed from the matching set.
This search algorithm can be thought of as a distance function, where the lowest-distance value present in the font family is selected, and all fonts not including that value are eliminated.Consider a font family with three fonts, named A, B, and C, each with associated supported ranges for the font-width descriptor. If an element is styled with "font-width: 125%", the search algorithm can be visualized as follows:
The font width ranges supported by fonts A, B, and C are shown in the graph above. As you can see, because font B contains the minimum width value across the entire family, font B would be selected by this algorithm. However, if font B were somehow eliminated from the family, font C would then contain the lowest distance in the family, so it would be selected.
Similar to the previous example, here is the conceptual distance graph for an element styled with "font-width: 75%":As you can see, because font B contains the minimum width value across the entire family, font B would be selected by this algorithm. However, if font B were somehow eliminated from the family, font A would then contain the lowest distance in the family, so it would be selected.
-
-
font-style is tried next (see § 5.2 Matching font styles). If a font does not have any concept of varying strengths of italics or oblique angles, its style is mapped according to the description in the font-style property definition.
If the value of font-style is italic:
-
If the matching set includes faces with italic values containing the mapped value of italic, then faces with italic values which do not include the desired italic mapped value are removed from the matching set.
-
Otherwise, italic values above the desired italic value are checked in ascending order followed by italic values below the desired italic value, until 0 is hit. Only positive values of italic values are checked in this stage.
-
If no match is found, oblique values greater than or equal to 11deg are checked in ascending order followed by oblique values below 11deg in descending order, until 0 is hit. Only positive values of oblique values are checked in this stage.
The threshold for preferring oblique over normal should be lower than the average angle.
-
If no match is found, italic values less than or equal to 0 are checked in descending order until a match is found.
-
If no match is found, oblique values less than or equal to 0deg are checked in descending order until a match is found.
Similar to the previous example, here is the conceptual distance graph for an element styled with "font-style: italic":As you can see, because font D contains the minimum italic value across the entire family, font D would be selected by this algorithm. However, if font D were somehow eliminated from the family, font E would then contain the lowest distance in the family, so it would be selected. If E were eliminated, C would be selected. If C were eliminated, font B would not be chosen immediately; instead, oblique values would be consulted and an oblique value might be chosen. However, if no oblique value is chosen, font B would then be selected, followed by font A.
If the value of font-style is oblique and the requested angle is greater than or equal to 11deg,
-
If the matching set includes faces with oblique values containing the value of oblique, faces with oblique values which do not include the desired oblique value are removed from the matching set.
-
Otherwise, oblique values above the desired oblique value are checked in ascending order followed by oblique values below the desired oblique value, until 0 is hit. Only positive values of oblique values are checked in this stage.
-
For variable fonts with a slnt axis, a match is created by setting the slnt value with the specified oblique value. Otherwise, if font-synthesis-style has the value auto, then a fallback match is produced by geometric shearing to the specified oblique value.
-
If no match is found, italic values greater than or equal to 1 are checked in ascending order followed by italic values below 1 in descending order, until 0 is hit. Only positive values of italic values are checked in this stage.
-
If no match is found, oblique values less than or equal to 0deg are checked in descending order until a match is found.
-
If no match is found, italic values less than or equal to 0 are checked in descending order until a match is found.
Similar to the previous example, here is the conceptual distance graph for an element styled with "font-style: oblique 40deg":As you can see, because font D contains the minimum oblique value across the entire family, font D would be selected by this algorithm. However, if font D were somehow eliminated from the family, font E would then contain the lowest distance in the family, so it would be selected. If E were eliminated, C would be selected. If C were eliminated, font B would not be chosen immediately; instead, italic values would be consulted and an italic value might be chosen. However, if no italic value is chosen, font B would then be selected, followed by font A.
If the value of font-style is oblique and the requested angle is greater than or equal to 0deg and less than 11deg,
-
If the matching set includes faces with oblique values containing the value of oblique, faces with oblique values which do not include the desired oblique value are removed from the matching set.
-
Otherwise, oblique values below the desired oblique value are checked in descending order until 0 is hit, followed by oblique values above the desired oblique value. Only positive values of oblique values are checked in this stage.
-
For variable fonts with a slnt axis, a match is created by setting the slnt value with the specified oblique value. Otherwise, if font-synthesis-style has the value auto, then a fallback match is produced by geometric shearing to the specified oblique value.
-
If no match is found, italic values less than 1 are checked in descending order until 0 is hit, followed by italic values above 1 in ascending order. Only positive values of italic values are checked in this stage.
-
If no match is found, oblique values less than or equal to 0deg are checked in descending order until a match is found.
-
If no match is found, italic values less than or equal to 0 are checked in descending order until a match is found.
Similar to the previous example, here is the conceptual distance graph for an element styled with "font-style: oblique 13deg":As you can see, because font D contains the minimum oblique value across the entire family, font D would be selected by this algorithm. However, if font D were somehow eliminated from the family, font C would then contain the lowest distance in the family, so it would be selected. If C were eliminated, E would be selected. If E were eliminated, font B would not be chosen immediately; instead, italic values would be consulted and an italic value might be chosen. However, if no italic value is chosen, font B would then be selected, followed by font A.
If the value of font-style is oblique and the requested angle is less than 0deg and greater than -11deg, follow the steps above, except with the negated values and opposite directions. If the value of font-style is oblique and the requested angle is less than or equal to -11deg, follow the steps above, except with the negated values and opposite directions.
If the value of font-style is normal,
-
Oblique values greater than or equal to 0 are checked in ascending order.
-
If no match is found, italic values greater than or equal to 0 are checked in ascending
-
If no match is found, oblique values less than 0deg are checked in descending order until a match is found.
-
If no match is found, italic values less than 0 are checked in descending order until a match is found.
Similar to the previous example, here is the conceptual distance graph for an element styled with "font-style: normal":As you can see, because font C contains the minimum oblique value across the entire family, font C would be selected by this algorithm. However, if font C were somehow eliminated from the family, font B would not be chosen immediately; instead, italic values would be consulted and an italic value might be chosen. However, if no italic value is chosen, font B would then be selected, followed by font A.
If an oblique angle was found in the above search, all faces which don’t include that oblique angle are excluded from the matching set. Otherwise, if an italic value was found in the above search, all faces which don’t include that italic value are excluded from the matching set.
User agents are not required to distinguish between italic and oblique fonts. In such user agents, the font-style matching steps above are performed by mapping both italic values and oblique angles onto a common scale. The exact nature of this mapping is undefined, however, an italic value of 1 must map to the same value that an oblique angle of 11deg maps to. Within font families defined via @font-face rules, italic and oblique faces must be distinguished using the value of the font-style descriptor.
For families that lack any italic or oblique faces, user agents may create artificial oblique faces, if this is permitted by the value of the font-synthesis property.
-
-
font-weight is matched next. If a font does not have any concept of varying strengths of weights, its weight is mapped according list in the property definition. If bolder/lighter relative weights are used, the effective weight is calculated based on the inherited weight value, as described in the definition of the font-weight property. If the matching set after performing the steps above includes faces with weight values containing the font-weight desired value, faces with weight values which do not include the desired font-weight value are removed from the matching set. If there is no face which contains the desired value, a weight value is chosen using the rules below:
-
If the desired weight is inclusively between 400 and 500, weights greater than or equal to the target weight are checked in ascending order until 500 is hit and checked, followed by weights less than the target weight in descending order, followed by weights greater than 500, until a match is found.
-
If the desired weight is less than 400, weights less than or equal to the desired weight are checked in descending order followed by weights above the desired weight in ascending order until a match is found.
-
If the desired weight is greater than 500, weights greater than or equal to the desired weight are checked in ascending order followed by weights below the desired weight in descending order until a match is found.
Similar to the previous example, here is the conceptual distance graph for an element styled with "font-weight: 400":As you can see, because font B contains the minimum distance across the entire family, font B would be selected by this algorithm. However, if font B were somehow eliminated from the family, font C would then contain the lowest distance in the family, so it would be selected. If C were eliminated, D would be selected, followed by fonts A and then E.
Similar to the previous example, here is the conceptual distance graph for an element styled with "font-weight: 450":As you can see, because font C contains the minimum distance across the entire family, font C would be selected by this algorithm. However, if font C were somehow eliminated from the family, font D would then contain the lowest distance in the family, so it would be selected. If D were also eliminated, B would be selected, followed by fonts A and then E.
Similar to the previous example, here is the conceptual distance graph for an element styled with "font-weight: 500":As you can see, because font D contains the minimum distance across the entire family, font D would be selected by this algorithm. However, if font D were somehow eliminated from the family, font B would then contain the lowest distance in the family, so it would be selected. If B were eliminated, C would be selected, followed by fonts B, A, and then E.
Similar to the previous example, here is the conceptual distance graph for an element styled with "font-weight: 300":As you can see, because font B contains the minimum distance across the entire family, font B would be selected by this algorithm. However, if font B were somehow eliminated from the family, font A would then contain the lowest distance in the family, so it would be selected. If A were eliminated, C would be selected.
Once the closest matching weight has been determined by this process, faces with weights which do not include this determined weight are removed from the matching set.
Note: There is a small behavior change between [CSS-FONTS-3] and this specification with the animation of the font-weight property. Previously, interpolated values of font-weight were rounded to their closest multiple of 100, and the font-matching algorithm was run on these rounded values. In this specification, the font-matching algorithm is able to accept any value, so no rounding occurs. The small behavior change is due to the discontinuous nature of the font-matching algorithm.
-
-
font-size must be matched within a UA-dependent margin of tolerance. (Typically, sizes for scalable fonts are rounded to the nearest whole pixel, while the tolerance for bitmapped fonts could be as large as 20%.) Further computations, e.g., by em values in other properties, are based on the font-size value that is used, not the one that is specified.
Note that more than one font might be remaining in the matching set after performing the above steps. If so, the user agent must choose a single font from the matching set and continue these steps with it. The choice of which font to choose can differ between multiple user agents and multiple operating system platforms; however, it must not differ between two elements in the same document.
-
-
If the matched face is defined via @font-face rules, user agents must use the procedure below to select a single font:
-
If the font resource has not been loaded and the range of characters defined by the unicode-range descriptor value includes the character in question, load the font.
-
After downloading, if the effective character map supports the character in question, select that font.
When the matched face is a composite face, user agents must use the procedure above on each of the faces in the composite face in reverse order of @font-face rule definition.
While the download occurs, user agents must either wait until the font is downloaded or render once with substituted font metrics and render again once the font is downloaded.
-
-
If no matching face exists or the matched face does not contain a glyph for the character to be rendered, the next family name is selected and the previous three steps repeated. Glyphs from other faces in the family are not considered. The only exception is that user agents may optionally substitute a synthetically obliqued version of the default face if that face supports a given glyph and synthesis of these faces is permitted by the value of the font-synthesis property. For example, a synthetic italic version of the regular face might be used if the italic face doesn’t support glyphs for Arabic.
-
If there are no more font families to be evaluated and no matching face has been found, then the user agent performs an installed font fallback procedure to find the best match for the character to be rendered. The result of this procedure can vary across user agents.
-
If a particular character cannot be displayed using any font, the user agent should indicate by some means that a character is not being displayed, displaying either a symbolic representation of the missing glyph (e.g. using a Last Resort Font) or using the missing character glyph from a default font.
Optimizations of this process are allowed provided that an implementation behaves as if the algorithm had been followed exactly. Matching occurs in a well-defined order to ensure that the results are as consistent as possible across user agents, given an identical set of available fonts and rendering tech.
The first available font, used for example in the definition of font-relative lengths such as ex or in the definition of the line-height property, is defined to be the first font for which the character U+0020 (space) is not excluded by a unicode-range, given the font families in the font-family list (or a user agent’s default font if none are available).
Installed fonts referenced directly by family name, rather than via @font-face rules, are considered to have a unicode-range that covers the entire Unicode code space.
Tests
- first-available-font-001.html (live test) (source)
- first-available-font-002.html (live test) (source)
- first-available-font-003.html (live test) (source)
- first-available-font-004.html (live test) (source)
- first-available-font-005.html (live test) (source)
- first-available-font-006.html (live test) (source)
- first-available-font-007.html (live test) (source)
Note: it does not matter whether that font actually has a glyph for the space character.
5.3. Cluster matching
When text contains characters such as combining marks, ideally the base character should be rendered using the same font as the mark, this assures proper placement of the mark. For this reason, the font matching algorithm for clusters is more specialized than the general case of matching a single character by itself. For sequences containing variation selectors, which indicate the precise glyph to be used for a given character, user agents always attempt installed font fallback to find the appropriate glyph before using the default glyph of the base character.
A sequence of codepoints containing combining mark or other modifiers is termed a grapheme cluster (see [CSS3TEXT] and [UAX29] for a more complete description). For a given cluster containing a base character, b and a sequence of combining characters c1, c2…, the entire cluster is matched using these steps:
-
For each family in the font list,
a face is chosen using the style selection rules
defined in the previous section.
- If all characters in the sequence b + c1 + c2 … are completely supported by the font, select this font for the sequence.
- If a sequence of multiple codepoints is canonically equivalent to a single character and the font supports that character, select this font for the sequence and use the glyph associated with the canonically equivalent character for the entire cluster.
-
If no font was found in the font list in step 1:
- If c1 is a variation selector, system fallback must be used to find a font that supports the full sequence of b + c1. If no font on the system supports the full sequence, match the single character b using the normal procedure for matching single characters and ignore the variation selector. Note: a sequence with more than one variation selector must be treated as an encoding error and the trailing selectors must be ignored. [UNICODE]
- Otherwise, the user agent may optionally use installed font fallback to match a font that supports the entire cluster.
- If no font is found in step 2, use the matching sequence from step 1 to determine the longest sequence that is completely supported by a font in the font list and attempt to match the remaining combining characters separately using the rules for single characters.
5.4. Character handling issues
CSS font matching is always performed on text runs containing Unicode characters [UNICODE], so documents using legacy encodings are assumed to have been transcoded before matching fonts. For fonts containing character maps for both legacy encodings and Unicode, the contents of the legacy encoding character map must have no effect on the results of the font matching process.
The font matching process does not assume that text runs are in either normalized or denormalized form (see [CHARMOD-NORM] for more details). Fonts may only support precomposed forms and not the decomposed sequence of base character plus combining marks. Authors should always tailor their choice of fonts to their content, including whether that content contains normalized or denormalized character streams.
If a given character is a Private-Use Area Unicode codepoint, user agents must only match font families named in the font-family list that are not generic families. If none of the families named in the font-family list contain a glyph for that codepoint, user agents must display some form of missing glyph symbol for that character rather than attempting installed font fallback for that codepoint. When matching the replacement character U+FFFD, user agents may skip the font matching process and immediately display some form of missing glyph symbol, they are not required to display the glyph from the font that would be selected by the font matching process.
In general, the fonts for a given family will all have the same or similar character maps. The process outlined here is designed to handle even font families containing faces with widely variant character maps. However, authors are cautioned that the use of such families can lead to unexpected results.
6. Font Feature Properties
Modern font technologies support a variety of advanced typographic and language-specific font features. Using these features, a single font can provide glyphs for a wide range of ligatures, contextual and stylistic alternates, tabular and old-style figures, small capitals, automatic fractions, swashes, and alternates specific to a given language. To allow authors control over these font capabilities, the font-variant property has been expanded. It now functions as a shorthand for a set of properties that provide control over stylistic font features.
6.1. Glyph selection and positioning
This section is non-normative
Simple fonts used for displaying Latin text use a very basic processing model. Fonts contain a character map which maps each character to a glyph for that character. Glyphs for subsequent characters are simply placed one after the other along a run of text. Modern font formats such as OpenType and AAT (Apple Advanced Typography) use a richer processing model. The glyph for a given character can be chosen and positioned not just based on the codepoint of the character itself, but also on adjacent characters as well as the language, script, and features enabled for the text. Font features may be required for specific scripts, or recommended as enabled by default or they might be stylistic features meant to be used under author control. The point at which font selection and positioning happens in the overall order of text processing operations (such as text transformation, text orientation and text alignment) is described in CSS Text 3 § A Text Processing Order of Operations.
For a detailed description of glyph processing for OpenType fonts, see [WINDOWS-GLYPH-PROC].
Stylistic font features can be classified into two broad categories: ones that affect the harmonization of glyph shapes with the surrounding context, such as kerning and ligature features, and ones such as the small-caps, subscript/superscript and alternate features that affect shape selection.
The subproperties of font-variant listed below are used to control these stylistic font features. They do not control features that are required for displaying certain scripts, such as the OpenType features used when displaying Arabic or Indic language text. They affect glyph selection and positioning, but do not affect font selection as described in the font matching section (except in cases required for compatibility with CSS 2.1).
To assure consistent behavior across user agents, the equivalent OpenType property settings are listed for individual properties and are normative. When using other font formats these should be used as a guideline to map CSS font feature property values to specific font features.
6.2. Language-specific display
OpenType also supports language-specific glyph selection and positioning, so that text can be displayed correctly in cases where the language dictates a specific display behavior. Many languages share a common script, but the shape of certain letters can vary across those languages. For example, certain Cyrillic letters have different shapes in Russian text than in Bulgarian. In Latin text, it’s common to render "fi" with an explicit fi-ligature that lacks a dot on the "i". However, in languages such as Turkish which uses both a dotted-i and a dotless-i, it’s important to not use this ligature or use a specialized version that contains a dot over the "i".
Tests
- language-specific-01.html (visual test) (source)
The example below shows language-specific variations based on stylistic traditions found in Spanish, Italian and French orthography:
If the content language of the element is known according to the rules of the document language, user agents are required to infer the OpenType language system from the content language and use that when selecting and positioning glyphs using an OpenType font. If a writing system has been explicitly specified, it must take precedence over the customary one implied by the content language.
For OpenType fonts, in some cases it may be necessary to explicitly declare the OpenType language to be used, for example when displaying text in a given language that uses the typographic conventions of another language or when the font does not explicitly support a given language but supports a language that shares common typographic conventions. The font-language-override property is used for this purpose.
6.3. Kerning: the font-kerning property
Name: | font-kerning |
---|---|
Value: | auto | normal | none |
Initial: | auto |
Applies to: | all elements and text |
Inherited: | yes |
Percentages: | n/a |
Computed value: | as specified |
Canonical order: | per grammar |
Animation type: | discrete |
Tests
- font-kerning-01.html (live test) (source)
- font-kerning-02.html (live test) (source)
- font-kerning-03.html (live test) (source)
- font-kerning-04.html (live test) (source)
- font-kerning-05.html (live test) (source)
- cjk-kerning.html (live test) (source)
- hiragana-katakana-kerning.html (live test) (source)
- font-kerning-computed.html (live test) (source)
- font-kerning-invalid.html (live test) (source)
- font-kerning-valid.html (live test) (source)
Kerning is the contextual adjustment of inter-glyph spacing. This property controls metric kerning, kerning that utilizes adjustment data contained in the font.
- auto
- Specifies that kerning is applied at the discretion of the user agent
- normal
- Specifies that kerning is applied
- none
- Specifies that kerning is not applied
For fonts that do not include kerning data this property will have no visible effect. When rendering with OpenType fonts, the [OPENTYPE] specification suggests that kerning be enabled by default. When kerning is enabled, the relevant OpenType kerning features are enabled (for horizontal typographic modes and for sideways typesetting in vertical typographic modes, the kern feature; for upright typesetting in vertical typographic modes, the vkrn feature. User agents must also support fonts that only support kerning via data contained in a kern font table, as detailed in the OpenType specification. If the letter-spacing property is defined, kerning adjustments are considered part of the default spacing and letter spacing adjustments are made after kerning has been applied.
When set to auto, user agents can determine whether to apply kerning or not based on a number of factors: text size, script, or other factors that influence text processing speed. Authors who want proper kerning should use normal to explicitly enable kerning. Likewise, some authors may prefer to disable kerning in situations where performance is more important than precise appearance. However, in well-designed modern implementations the use of kerning generally does not have a large impact on text rendering speed.
6.4. Ligatures: the font-variant-ligatures property
Name: | font-variant-ligatures |
---|---|
Value: | normal | none | [ <common-lig-values> || <discretionary-lig-values> || <historical-lig-values> || <contextual-alt-values> ] |
Initial: | normal |
Applies to: | all elements and text |
Inherited: | yes |
Percentages: | n/a |
Computed value: | as specified |
Canonical order: | per grammar |
Animation type: | discrete |
Tests
- font-variant-ligatures-01.html (live test) (source)
- font-variant-ligatures-02.html (live test) (source)
- font-variant-ligatures-03.html (live test) (source)
- font-variant-ligatures-04.html (live test) (source)
- font-variant-ligatures-05.html (live test) (source)
- font-variant-ligatures-06.html (live test) (source)
- font-variant-ligatures-07.html (live test) (source)
- font-variant-ligatures-08.html (live test) (source)
- font-variant-ligatures-09.html (live test) (source)
- font-variant-ligatures-10.html (live test) (source)
- font-variant-ligatures-11.optional.html (live test) (source)
- font-variant-ligatures.html (live test) (source)
- font-features-across-space-1.html (live test) (source)
- font-features-across-space-2.html (live test) (source)
- font-features-across-space-3.html (live test) (source)
- font-variant-ligatures-computed.html (live test) (source)
- font-variant-ligatures-invalid.html (live test) (source)
- font-variant-ligatures-valid.html (live test) (source)
Ligatures and contextual forms are ways of combining glyphs to produce more harmonized forms.
<common-lig-values> =[ common-ligatures | no-common-ligatures]
<discretionary-lig-values> =[ discretionary-ligatures | no-discretionary-ligatures]
<historical-lig-values> =[ historical-ligatures | no-historical-ligatures]
<contextual-alt-values> =[ contextual | no-contextual]
Individual values have the following meanings:
- normal
- A value of normal specifies that common default features are enabled, as described in detail in the next section. For OpenType fonts, common ligatures and contextual forms are on by default, discretionary and historical ligatures are not.
- none
- Specifies that all types of ligatures and contextual forms covered by this property are explicitly disabled. In situations where ligatures are not considered necessary, this may improve the speed of text rendering.
- common-ligatures
- Enables display of common ligatures (OpenType features: liga, clig). For OpenType fonts, common ligatures are enabled by default.
- no-common-ligatures
- Disables display of common ligatures (OpenType features: liga, clig).
- discretionary-ligatures
- Enables display of discretionary ligatures (OpenType feature: dlig). Which ligatures are discretionary or optional is decided by the type designer, so authors will need to refer to the documentation of a given font to understand which ligatures are considered discretionary.
- no-discretionary-ligatures
- Disables display of discretionary ligatures (OpenType feature: dlig).
- historical-ligatures
- Enables display of historical ligatures (OpenType feature: hlig).
- no-historical-ligatures
- Disables display of historical ligatures (OpenType feature: hlig).
- contextual
- Enables display of contextual alternates (OpenType feature: calt). Although not strictly a ligature feature, like ligatures this feature is commonly used to harmonize the shapes of glyphs with the surrounding context. For OpenType fonts, this feature is on by default.
- no-contextual
- Disables display of contextual alternates (OpenType feature: calt).
Required ligatures, needed for correctly rendering complex scripts, are not affected by the settings above, including none (OpenType feature: rlig).
6.5. Subscript and superscript forms: the font-variant-position property
Name: | font-variant-position |
---|---|
Value: | normal | sub | super |
Initial: | normal |
Applies to: | all elements and text |
Inherited: | yes |
Percentages: | n/a |
Computed value: | as specified |
Canonical order: | per grammar |
Animation type: | discrete |
Tests
- font-variant-position-01.html (live test) (source)
- font-variant-position-02.html (live test) (source)
- font-variant-position-03.html (live test) (source)
- font-variant-position-04.html (live test) (source)
- font-variant-position-05.html (live test) (source)
- font-variant-position.html (live test) (source)
- font-variant-position-computed.html (live test) (source)
- font-variant-position-invalid.html (live test) (source)
- font-variant-position-valid.html (live test) (source)
This property is used to enable typographic subscript and superscript glyphs. These are alternate glyphs designed within the same em-box as default glyphs and are intended to be laid out on the same baseline as the default glyphs, with no resizing or repositioning of the baseline. They are explicitly designed to match the surrounding text and to be more readable without affecting the line height.
Individual values have the following meanings:
- normal
- None of the features listed below are enabled.
- sub
- Enables display of subscript variants (OpenType feature: subs).
- super
- Enables display of superscript variants (OpenType feature: sups).
Because of the semantic nature of subscripts and superscripts, when the value is either sub or super for a given contiguous run of text, if a variant glyph is not available for all the characters in the run, simulated glyphs should be synthesized for all characters using reduced forms of the glyphs that would be used without this feature applied. This is done per run to avoid a mixture of variant glyphs and synthesized ones that would not align correctly. In the case of OpenType fonts that lack subscript or superscript glyphs for a given character, user agents must synthesize appropriate subscript and superscript glyphs.
In situations where text decorations are only applied to runs of text containing superscript or subscript glyphs, the synthesized glyphs may be used, to avoid problems with the placement of decorations.
In the past,
user agents have used font-size
and vertical-align
to simulate subscripts and superscripts
for the sub
and sup
elements.
To allow a backwards compatible way
of defining subscripts and superscripts,
it is recommended
that authors use conditional rules [CSS3-CONDITIONAL] so that older user agents will still render
subscripts and superscripts via
the older mechanism.
Because
is often used for these elements,
the effective scaling factor
applied to subscript and superscript text
varies depending upon the size.
For larger text,
the font size is often reduced by a third
but for smaller text sizes,
the reduction can be much less.
This allows subscripts and superscripts
to remain readable
even within elements using small text sizes.
User agents should consider this
when deciding how to synthesize
subscript and superscript glyphs.
The OpenType font format defines subscript and superscript metrics in the OS/2 table [OPENTYPE] but these are not always accurate in practice and so cannot be relied upon when synthesizing subscript and superscript glyphs.
Authors should note that fonts typically only provide subscript and superscript glyphs for a subset of all characters supported by the font. For example, while subscript and superscript glyphs are often available for Latin numbers, glyphs for punctuation and letter characters are less frequently provided. The synthetic fallback rules defined for this property try to ensure that subscripts and superscripts will always appear but the appearance may not match author expectations if the font used does not provide the appropriate alternate glyph for all characters contained in a subscript or superscript.
This property is not cumulative. Applying it to elements within a subscript or superscript won’t nest the placement of a subscript or superscript glyph. Images contained within text runs where the value of this property is sub or super will be drawn just as they would if the value was normal.
Because of these limitations, font-variant-position is not recommended for use in user agent stylesheets. Authors should use it in cases where subscripts or superscripts will only contain the narrow range of characters supported by the fonts specified.
The variant glyphs use the same baseline as the default glyphs would use. There is no shift in the placement along the baseline, so the use of variant glyphs doesn’t affect the height of the inline box or alter the height of the linebox. This makes superscript and subscript variants ideal for situations where it’s important that leading remain constant, such as in multi-column layout.
A typical user agent default style for the sub element:
sub{ vertical-align : sub; font-size : smaller; line-height : normal; }
Using font-variant-position to specify typographic subscripts in a way that will still show subscripts in older user agents:
@supports ( font-variant-position: sub) { sub{ vertical-align : baseline; font-size : 100 % ; line-height : inherit; font-variant-position : sub; } }
User agents that support the font-variant-position property will select a subscript variant glyph and render this without adjusting the baseline or font-size. Older user agents will ignore the font-variant-position property definition and use the standard defaults for subscripts.
6.6. Capitalization: the font-variant-caps property
Name: | font-variant-caps |
---|---|
Value: | normal | small-caps | all-small-caps | petite-caps | all-petite-caps | unicase | titling-caps |
Initial: | normal |
Applies to: | all elements and text |
Inherited: | yes |
Percentages: | n/a |
Computed value: | as specified |
Canonical order: | per grammar |
Animation type: | discrete |
Tests
- font-variant-caps-01.html (live test) (source)
- font-variant-caps-02.html (live test) (source)
- font-variant-caps-03.html (live test) (source)
- font-variant-caps-04.html (live test) (source)
- font-variant-caps-05.html (live test) (source)
- font-variant-caps-06.html (live test) (source)
- font-variant-caps-07.html (live test) (source)
- font-variant-caps.html (live test) (source)
- font-variant-caps-computed.html (live test) (source)
- font-variant-caps-invalid.html (live test) (source)
- font-variant-caps-valid.html (live test) (source)
This property allows the selection of alternate glyphs used for small or petite capitals or for titling. These glyphs are specifically designed to blend well with the surrounding normal glyphs, to maintain the weight and readability which suffers when text is simply resized to fit this purpose.
Individual values have the following meanings:
- normal
- None of the features listed below are enabled.
- small-caps
- Enables display of small capitals (OpenType feature: smcp). Small-caps glyphs typically use the form of uppercase letters but are reduced to the size of lowercase letters.
- all-small-caps
- Enables display of small capitals for both upper and lowercase letters (OpenType features: c2sc, smcp).
- petite-caps
- Enables display of petite capitals (OpenType feature: pcap).
- all-petite-caps
- Enables display of petite capitals for both upper and lowercase letters (OpenType features: c2pc, pcap).
- unicase
- Enables display of mixture of small capitals for uppercase letters with normal lowercase letters (OpenType feature: unic).
- titling-caps
- Enables display of titling capitals (OpenType feature: titl). Uppercase letter glyphs are often designed for use with lowercase letters. When used in all uppercase titling sequences they can appear too strong. Titling capitals are designed specifically for this situation.
The availability of these glyphs is based on whether a given feature is defined or not in the feature list of the font. User agents can optionally decide this on a per-script basis but should explicitly not decide this on a per-character basis.
Some fonts may only support a subset or none of the features described for this property. For backwards compatibility with CSS 2.1, if small-caps or all-small-caps is specified but small-caps glyphs are not available for a given font, user agents should simulate a small-caps font, for example by taking a normal font and replacing the glyphs for lowercase letters with scaled versions of the glyphs for uppercase characters (replacing the glyphs for both upper and lowercase letters in the case of all-small-caps).
The font-feature-settings property also affects the decision of whether or not to use a simulated small-caps font (unlike CSS Fonts 3).
#example1{ font-variant-caps : small-caps; } #example2{ font-variant-caps : small-caps; font-feature-settings : 'smcp' 0 ; }
For fonts which don’t support small caps, both #example1 and #example2 should be rendered with synthesized small caps. However, for fonts which do support small caps, #example1 should be rendered with native small caps, while #example2 should be rendered without any small-caps (native or synthesized).
To match the surrounding text, a font may provide alternate glyphs for caseless characters when these features are enabled but when a user agent simulates small capitals, it must not attempt to simulate alternates for codepoints which are considered caseless.
If either petite-caps or all-petite-caps is specified for a font that doesn’t support these features, the property behaves as if small-caps or all-small-caps, respectively, had been specified. If unicase is specified for a font that doesn’t support that feature, the property behaves as if small-caps was applied only to lowercased uppercase letters. If titling-caps is specified with a font that does not support this feature, this property has no visible effect. When simulated small capital glyphs are used, for scripts that lack uppercase and lowercase letters, small-caps, all-small-caps, petite-caps, all-petite-caps and unicase have no visible effect.
When casing transforms are used to simulate small capitals, the casing transformations must match those used for the text-transform property.
As a last resort, unscaled uppercase letter glyphs in a normal font may replace glyphs in a small-caps font so that the text appears in all uppercase letters.
Quotes rendered italicized, with small-caps on the first line:
blockquote{ font-style : italic; } blockquote:first-line{ font-variant : small-caps; } <blockquote>I’ll be honor-bound to slap them like a haddock.</blockquote>
6.7. Numerical formatting: the font-variant-numeric property
Name: | font-variant-numeric |
---|---|
Value: | normal | [ <numeric-figure-values> || <numeric-spacing-values> || <numeric-fraction-values> || ordinal || slashed-zero ] |
Initial: | normal |
Applies to: | all elements and text |
Inherited: | yes |
Percentages: | n/a |
Computed value: | as specified |
Canonical order: | per grammar |
Animation type: | discrete |
Tests
- font-variant-numeric-01.html (live test) (source)
- font-variant-numeric-02.html (live test) (source)
- font-variant-numeric-03.html (live test) (source)
- font-variant-numeric-04.html (live test) (source)
- font-variant-numeric-05.html (live test) (source)
- font-variant-numeric-06.html (live test) (source)
- font-variant-numeric-07.html (live test) (source)
- font-variant-numeric-08.html (live test) (source)
- font-variant-numeric-09.html (live test) (source)
- font-variant-numeric.html (live test) (source)
- font-variant-numeric-computed.html (live test) (source)
- font-variant-numeric-invalid.html (live test) (source)
- font-variant-numeric-valid.html (live test) (source)
Specifies control over numerical forms. The example below shows how some of these values can be combined to influence the rendering of tabular data with fonts that support these features. Within normal paragraph text, proportional numbers are used while tabular numbers are used so that columns of numbers line up properly:
Possible combinations:
<numeric-figure-values> =[ lining-nums | oldstyle-nums]
<numeric-spacing-values> =[ proportional-nums | tabular-nums]
<numeric-fraction-values> =[ diagonal-fractions | stacked-fractions]
Individual values have the following meanings:
- normal
- None of the features listed below are enabled.
- lining-nums
- Enables display of lining numerals (OpenType feature: lnum).
- oldstyle-nums
- Enables display of old-style numerals (OpenType feature: onum).
- proportional-nums
- Enables display of proportional numerals (OpenType feature: pnum).
- tabular-nums
- Enables display of tabular numerals (OpenType feature: tnum).
- diagonal-fractions
- Enables display of lining diagonal fractions (OpenType feature: frac).
- stacked-fractions
- Enables display of lining stacked fractions (OpenType feature: afrc).
- ordinal
- Enables display of letter forms used with ordinal numbers (OpenType feature: ordn).
- slashed-zero
- Enables display of slashed zeros (OpenType feature: zero).
In the case of ordinal, although ordinal forms are often the same as superscript forms, they are marked up differently.
For superscripts, the variant property is only applied to the sub-element containing the superscript:
sup{ font-variant-position : super; } x<sup>2 </sup>
For ordinals, the variant property is applied to the entire ordinal number rather than just to the suffix (or to the containing paragraph):
.ordinal{ font-variant-numeric : ordinal; } <span class="ordinal" >17 th </span>
In this case only the "th" will appear in ordinal form, the digits will remain unchanged. Depending upon the typographic traditions used in a given language, ordinal forms may differ from superscript forms. In Italian, for example, ordinal forms sometimes include an underline in the ordinal design.
A simple flank steak marinade recipe, rendered with automatic fractions and old-style numerals:
.amount{ font-variant-numeric : oldstyle-nums diagonal-fractions; } <h4>Steak marinade:</h4> <ul> <li><span class="amount" >2 </span> tbsp olive oil</li> <li><span class="amount" >1 </span> tbsp lemon juice</li> <li><span class="amount" >1 </span> tbsp soy sauce</li> <li><span class="amount" >1 1 /2 </span> tbsp dry minced onion</li> <li><span class="amount" >2 1 /2 </span> tsp italian seasoning</li> <li>Salt & pepper</li> </ul> <p>Mix the meat with the marinade and let it sit covered in the refrigerator for a few hours or overnight.</p>
Note that the fraction feature is only applied to values not the entire paragraph. Fonts often implement this feature using contextual rules based on the use of the slash ('/') character. As such, it’s not suitable for use as a paragraph-level style.
6.8. Alternates and swashes: the font-variant-alternates property
Name: | font-variant-alternates |
---|---|
Value: | normal | [ stylistic(<feature-value-name>) || historical-forms || styleset(<feature-value-name>#) || character-variant(<feature-value-name>#) || swash(<feature-value-name>) || ornaments(<feature-value-name>) || annotation(<feature-value-name>) ] |
Initial: | normal |
Applies to: | all elements and text |
Inherited: | yes |
Percentages: | n/a |
Computed value: | as specified |
Canonical order: | per grammar |
Animation type: | discrete |
Tests
- alternates-order.html (live test) (source)
- font-variant-alternates-01.html (live test) (source)
- font-variant-alternates-02.html (live test) (source)
- font-variant-alternates-03.html (live test) (source)
- font-variant-alternates-04.html (live test) (source)
- font-variant-alternates-05.html (live test) (source)
- font-variant-alternates-06.html (live test) (source)
- font-variant-alternates-07.html (live test) (source)
- font-variant-alternates-08.html (live test) (source)
- font-variant-alternates-09.html (live test) (source)
- font-variant-alternates-10.html (live test) (source)
- font-variant-alternates-11.html (live test) (source)
- font-variant-alternates-12.html (live test) (source)
- font-variant-alternates-13.html (live test) (source)
- font-variant-alternates-14.html (live test) (source)
- font-variant-alternates-15.html (live test) (source)
- font-variant-alternates-16.html (live test) (source)
- font-variant-alternates-17.html (live test) (source)
- font-variant-alternates-18.html (live test) (source)
- font-variant-alternates-19.html (live test) (source)
- font-variant-alternates-layers.html (live test) (source)
- font-variant-alternates-parsing.html (live test) (source)
- font-variant-alternates-invalid.html (live test) (source)
- font-variant-alternates-valid.html (live test) (source)
<feature-value-name> = <ident>
For any given character, fonts can provide a variety of alternate glyphs in addition to the default glyph for that character. This property provides control over the selection of these alternate glyphs.
For many of the property values listed below, several different alternate glyphs are available. How many alternates are available and what they represent is font-specific, so these are each marked font specific in the value definitions below. Because the nature of these alternates is font-specific, the @font-feature-values rule is used to define values for a specific font family or set of families that associate a font-specific numeric <feature-index> with a custom <feature-value-name>, which is then used in this property to select specific alternates:
@font-feature-values Noble Script{ @swash { swishy : 1 ; flowing : 2 ; } } p{ font-family : Noble Script; font-variant-alternates : swash ( flowing); /* use swash alternate #2 */ }
When a particular <feature-value-name> has not been defined for a given family or for a particular feature type, the computed value must be the same as if it had been defined. However, property values that contain these undefined <feature-value-name> identifiers must be ignored when choosing glyphs.
/* these two style rules are effectively the same */ p{ font-variant-alternates : swash ( unknown-value); } /* not a defined value, ignored */ p{ font-variant-alternates : normal; }
This allows values to be defined and used for a given set of font families but ignored if fallback occurs, since the font family name would be different. If a given value is outside the range supported by a given font, the value is ignored. These values never apply to generic font families.
Individual values have the following meanings:
- normal
- None of the features listed below are enabled.
- historical-forms
- Enables display of historical forms (OpenType feature: hist).
- stylistic(<feature-value-name>)
- Enables display of stylistic alternates (font specific, OpenType feature: salt <feature-index>).
- styleset(<feature-value-name>#)
- Enables display with stylistic sets (font specific, OpenType feature: ss<feature-index> OpenType currently defines ss01 through ss20).
- character-variant(<feature-value-name>#)
- Enables display of specific character variants (font specific, OpenType feature: cv<feature-index> OpenType currently defines cv01 through cv99).
- swash(<feature-value-name>)
- Enables display of swash glyphs (font specific, OpenType feature: swsh <feature-index>, cswh <feature-index>).
- ornaments(<feature-value-name>)
- Enables replacement of default glyphs with ornaments, if provided in the font (font specific, OpenType feature: ornm <feature-index>). Some fonts may offer ornament glyphs as alternates for a wide collection of characters; however, displaying arbitrary characters (e.g., alphanumerics) as ornaments is poor practice as it distorts the semantics of the data. Font designers are encouraged to encode all ornaments (except those explicitly encoded in the Unicode Dingbats blocks, etc.) as alternates for the bullet character (U+2022) to allow authors to select the desired glyph using ornaments().
- annotation(<feature-value-name>)
- Enables display of alternate annotation forms (font specific, OpenType feature: nalt <feature-index>).
6.9. Defining font specific alternates: the @font-feature-values rule
Several of the possible values of font-variant-alternates listed above are labeled as font specific; a font can define not just a single glyph for the feature, but multiple possible glyph variants, and associate each one with a numeric index to let you choose which to turn on.
These numeric indexes are idiosyncratic to each face;
a swsh
feature on one font face might turn on the swash version of capital Q,
while on another font face it turns on the swash version of the &.
Thus, specifying the index in font-feature-settings requires that the author know exactly which font will be used on an element;
if they get it wrong (due to font fallback selecting a different font)
they might end up turning on an entirely different,
and undesirable,
feature to what they wanted!
It also means that the author can’t easily turn on similar features for elements with different fonts;
they have to individually set different font-feature-settings values for each
that uses the correct numeric indexes for the desired features.
To fix this issue, the @font-feature-values rule lets an author assign, for each font face, a human-friendly name to specific feature indexes. Using these friendly names, an author can easily turn on similar features regardless of the font in use (if they’ve defined that name for all the fonts), and be sure they’re not accidentally turning on unrelated features (as fonts without those names defined for them simply won’t do anything).
Using a commonly named value allows authors to use a single style rule to cover a set of fonts for which the underlying selector is different for each font. If either font in the example below is found, a circled number glyph will be used:
@font-feature-values Otaru Kisa{ @annotation { circled : 1 ; black-boxed : 3 ; } } @font-feature-values Taisho Gothic{ @annotation { boxed : 1 ; circled : 4 ; } } h3.title{ /* circled form defined for both fonts */ font-family: Otaru Kisa, Taisho Gothic; font-variant : annotation ( circled); }
Trying to turn on the "circled" forms for either font explicitly,
using font-feature-values,
would require the author know for certain which font will be used;
if they expected "Otaru Kisa" and wrote font-feature-values: nalt 1;,
it would turn on "circled" characters in Otara Kisa,
but would instead turn on boxed characters
if the system fell back to Taisho Gothic,
as that’s what Taisho Gothic associates with nalt
!
6.9.1. Basic syntax
An @font-feature-values rule’s prelude contains a list of font family names, followed by a block containing multiple feature-value-blocks, a special type of subsidiary at-rule. Each feature-value-block' contains declarations mapping author-chosen human-friendly names (such as "flowing") to feature indexes for the associated feature.
Each <font-feature-value> has the same meaning as the corresponding value of the font-variant-alternates property.
@font-feature-values =@font-feature-values <family-name>#{ <declaration-rule-list>} font-feature-value-type = <@stylistic > | <@historical-forms > | <@styleset > | <@character-variant > | <@swash > | <@ornaments > | <@annotation >@stylistic =@stylistic { <declaration-list>} @historical-forms =@historical-forms { <declaration-list>} @styleset =@styleset { <declaration-list>} @character-variant =@character-variant { <declaration-list>} @swash =@swash { <declaration-list>} @ornaments =@ornaments { <declaration-list>} @annotation =@annotation { <declaration-list>}
Tests
The @font-feature-values prelude is a comma-delimited list of font family names that match the definition of <family-name> for the font-family property. This means that only named font families are allowed; rules that include generic or system fonts in the list of font families are syntax errors. However, if a user agent defines a generic font to be a specific named font (e.g. Helvetica), the settings associated with that family name will be used. If syntax errors occur within the <family-name> list, the entire rule @font-feature-values rule is invalid and must be ignored.
The @font-feature-values block accepts <declaration-rule-list> as its contents; these list items are either:
-
at-rules named by one of the <font-feature-value-type> at-keyword tokens
or
-
the font-display descriptor.
Specifying the same <font-feature-value-type> more than once is valid; their contents are cascaded together. Each <feature-value-block> accepts a list of declarations, the font feature value declarations, where the declaration’s name can be any identifier, and the value must be a list of one or more non-negative <integer>s.
The <feature-value-block>s accept any declaration name; these names must be identifiers, per standard CSS syntax rules, and are case-sensitive (so foo: 1; and FOO: 2 define two different features). Each declaration’s value must match the grammar <integer [0,∞]>+, or else the declaration is invalid and must be ignored.
Note: Each feature name is unique only within a single <feature-value-block>. Between different <feature-value-block>s, or the same type of <feature-value-block>s in separate @font-feature-values rules, names can be reused without colliding.
For each <family-name> in the @font-feature-values prelude, each font feature value declaration defines a mapping between a (family name, feature block name, declaration name) tuple and the list of one or more integers from the declaration’s value. If the same tuple appears more than once in a document (such as if a single block), the last-defined one is used.
/* Default */ @font-feature-values foo{ @swash { pretty : 1 ; cool : 2 ; } } /* Repeated declaration names */ @font-feature-values foo{ @swash { pretty : 0 ; pretty : 1 ; cool : 2 ; } } /* Multiple blocks of the same type */ @font-feature-values foo{ @swash { pretty : 1 ; } @swash { cool : 2 ; } } /* Multiple rules for the same family */ @font-feature-values foo{ @swash { pretty : 1 ; } } @font-feature-values foo{ @swash { cool : 2 ; } }
A syntax error within a font feature value declaration makes the declaration invalid and ignored, but does not invalidate the font feature value block it occurs in. An unknown at-rule within a @font-feature-values block (not using one of the predefined list of allowed at-keywords) makes that at-rule invalid and ignored, but does not invalidate the @font-feature-values rule.
@font-feature-values Bongo{ @swash { ornate : 1 ; } annotation{ boxed : 4 ; } /* should be @annotation! */ @swash { double-loops : 1 ; flowing : -1 ; } /* negative value */ @ornaments ; /* incomplete definition */ @styleset { double-W : 14 ; sharp-terminals : 16 1 } /* missing ; */ redrum/* random editing mistake */ }
The example above is equivalent to:
@font-feature-values Bongo{ @swash { ornate : 1 ; } @swash { double-loops : 1 ; } @styleset { double-W : 14 ; sharp-terminals : 16 1 ; } }
If multiple @font-feature-values rules are defined for a given family, the resulting values definitions are the union of the definitions contained within these rules. This allows a set of named values to be defined for a given font family globally for a site and specific additions made per-page.
site.css:
@font-feature-values Mercury Serif{ @styleset { stacked-g : 3 ; /* "two-storey" versions of g, a */ stacked-a:4 ; } }
page.css:
@font-feature-values Mercury Serif{ @styleset { geometric-m : 7 ; /* alternate version of m */ } } body{ font-family : Mercury Serif, serif; /* enable both the use of stacked g and alternate m */ font-variant-alternates:styleset ( stacked-g, geometric-m); }
6.9.2. Multi-valued feature value definitions
Most font specific functional values of the font-variant-alternates property take a single value (e.g. swash()) which enables the feature.
@font-feature-values Jupiter Serif{ @swash { swishy : 5 ; /* implies ss05 = 1 */ swirly:2 ; /* implies ss02 = 1 */ } }
The character-variant() property value and the @character-variant descriptor allow two values, which enables a feature (from the first value) and sets it to a given (second) value.
@font-feature-values MM Greek{ @character-variant { alpha-2 : 1 2 ; } /* implies cv01 = 2 */ @character-variant { beta-3 : 2 3 ; } /* implies cv02 = 3 */ }
For the styleset() property value and @styleset rule, multiple values indicate the style sets to be enabled. Values between 1 and 99 enable OpenType features ss01 through ss99. However, the OpenType standard only officially defines ss01 through ss20. For OpenType fonts, values greater than 99 or equal to 0 do not generate a syntax error when parsed but enable no OpenType features.
@font-feature-values Mars Serif{ @styleset { alt-g : 1 ; /* implies ss01 = 1 */ curly-quotes:3 ; /* implies ss03 = 1 */ code:4 5 ; /* implies ss04 = 1, ss05 = 1 */ } @styleset { dumb : 125 ; /* >99, ignored */ } @swash { swishy : 3 5 ; /* more than 1 value for swash, syntax error */ } } p.codeblock{ /* implies ss03 = 1, ss04 = 1, ss05 = 1 */ font-variant-alternates:styleset ( curly-quotes, code); }
For <@character-variant>, a single value between 1 and 99 indicates the enabling of OpenType feature cv01 through cv99. For OpenType fonts, values greater than 99 or equal to 0 are ignored but do not generate a syntax error when parsed but enable no OpenType features. When two values are listed, the first value indicates the feature used and the second the value passed for that feature. If more than two values are assigned to a given name, a syntax error occurs and the entire feature value definition is ignored.
@font-feature-values MM Greek{ @character-variant { alpha-2 : 1 2 ; } /* implies cv01 = 2 */ @character-variant { beta-3 : 2 3 ; } /* implies cv02 = 3 */ @character-variant { epsilon : 5 3 6 ; } /* more than 2 values, syntax error, definition ignored */ @character-variant { gamma : 12 ; } /* implies cv12 = 1 */ @character-variant { zeta : 20 3 ; } /* implies cv20 = 3 */ @character-variant { zeta-2 : 20 2 ; } /* implies cv20 = 2 */ @character-variant { silly : 105 ; } /* >99, ignored */ @character-variant { dumb : 323 3 ; } /* >99, ignored */ } #title{ /* use the third alternate beta, first alternate gamma */ font-variant-alternates:character-variant ( beta-3, gamma); } p{ /* zeta-2 follows zeta, implies cv20 = 2 */ font-variant-alternates:character-variant ( zeta, zeta-2); } .special{ /* zeta follows zeta-2, implies cv20 = 3 */ font-variant-alternates:character-variant ( zeta-2, zeta); }
In the figure above, the text in red is rendered using a font containing character variants that mimic the character forms found on a Byzantine seal from the 8th century A.D. Two lines below is the same text displayed in a font without variants. Note the two variants for U and N used on the seal.
@font-feature-values Athena Ruby{ @character-variant { leo-B : 2 1 ; leo-M : 13 3 ; leo-alt-N : 14 1 ; leo-N : 14 2 ; leo-T : 20 1 ; leo-U : 21 2 ; leo-alt-U : 21 4 ; } } p{ font-variant : discretionary-ligaturescharacter-variant ( leo-B, leo-M, leo-N, leo-T, leo-U); } span.alt-N{ font-variant-alternates : character-variant ( leo-alt-N); } span.alt-U{ font-variant-alternates : character-variant ( leo-alt-U); } <p>ENO....UP͞RSTU<span class="alt-U" >U</span>͞<span class="alt-U" >U</span>ΚΑΙTỤẠG̣IUPNS</p> <p>LEON|ΚΑΙCONSTA|NTI<span class="alt-N" >N</span>OS..|STOIBAṢ.|LIṢROM|AIO<span class="alt-N" >N</span></p>
6.10. East Asian text rendering: the font-variant-east-asian property
Name: | font-variant-east-asian |
---|---|
Value: | normal | [ <east-asian-variant-values> || <east-asian-width-values> || ruby ] |
Initial: | normal |
Applies to: | all elements and text |
Inherited: | yes |
Percentages: | n/a |
Computed value: | as specified |
Canonical order: | per grammar |
Animation type: | discrete |
Tests
- font-variant-east-asian-01.html (live test) (source)
- font-variant-east-asian-02.html (live test) (source)
- font-variant-east-asian-03.html (live test) (source)
- font-variant-east-asian-04.html (live test) (source)
- font-variant-east-asian-05.html (live test) (source)
- font-variant-east-asian-06.html (live test) (source)
- font-variant-east-asian-07.html (live test) (source)
- font-variant-east-asian-08.html (live test) (source)
- font-variant-east-asian-09.html (live test) (source)
- font-variant-east-asian-10.html (live test) (source)
- font-variant-east-asian.html (live test) (source)
- font-variant-east-asian-computed.html (live test) (source)
- font-variant-east-asian-invalid.html (live test) (source)
- font-variant-east-asian-valid.html (live test) (source)
Allows control of glyph substitution and sizing in East Asian text.
<east-asian-variant-values> =[ jis78 | jis83 | jis90 | jis04 | simplified | traditional]
<east-asian-width-values> =[ full-width | proportional-width]
Individual values have the following meanings:
- normal
- None of the features listed below are enabled.
- jis78
- Enables rendering of JIS78 forms (OpenType feature: jp78).
- jis83
- Enables rendering of JIS83 forms (OpenType feature: jp83).
- jis90
- Enables rendering of JIS90 forms (OpenType feature: jp90).
- jis04
-
Enables rendering of JIS2004 forms
(OpenType feature: jp04).
The various JIS variants reflect the glyph forms defined in different Japanese national standards. Fonts generally include glyphs defined by the most recent national standard, but it’s sometimes necessary to use older variants, to match signage for example.
- simplified
- Enables rendering of simplified forms (OpenType feature: smpl).
- traditional
-
Enables rendering of traditional forms
(OpenType feature: trad).
The simplified and traditional values allow control over the glyph forms for characters which have been simplified over time but for which the older, traditional form is still used in some contexts. The exact set of characters and glyph forms will vary to some degree by the context for which a given font was designed.
- full-width
- Enables rendering of full-width variants (OpenType feature: fwid).
- proportional-width
- Enables rendering of proportionally-spaced variants (OpenType feature: pwid).
- ruby
-
Enables display of ruby variant glyphs
(OpenType feature: ruby).
Since ruby text is generally smaller
than the associated body text,
font designers can design special glyphs for use with ruby
that are more readable than scaled down versions
of the default glyphs.
Only glyph selection is affected,
there is no associated font scaling
or other change that affects line layout.
The red ruby text below is shown with default glyphs (top) and with ruby variant glyphs (bottom). Note the slight difference in stroke thickness.
6.11. Overall shorthand for font rendering: the font-variant property
Name: | font-variant |
---|---|
Value: | normal | none | [ [ <common-lig-values> || <discretionary-lig-values> || <historical-lig-values> || <contextual-alt-values> ] || [ small-caps | all-small-caps | petite-caps | all-petite-caps | unicase | titling-caps ] || [ stylistic(<feature-value-name>) || historical-forms || styleset(<feature-value-name>#) || character-variant(<feature-value-name>#) || swash(<feature-value-name>) || ornaments(<feature-value-name>) || annotation(<feature-value-name>) ] || [ <numeric-figure-values> || <numeric-spacing-values> || <numeric-fraction-values> || ordinal || slashed-zero ] || [ <east-asian-variant-values> || <east-asian-width-values> || ruby ] || [ sub | super ] || [ text | emoji | unicode ] ] |
Initial: | normal |
Applies to: | all elements and text |
Inherited: | yes |
Percentages: | n/a |
Computed value: | as specified |
Canonical order: | per grammar |
Animation type: | discrete |
Tests
- font-variant-01.html (live test) (source)
- font-variant-02.html (live test) (source)
- font-variant-03.html (live test) (source)
- font-variant-04.html (live test) (source)
- font-shorthand-variant.html (live test) (source)
- font-variant-invalid.html (live test) (source)
- font-variant-valid.html (live test) (source)
The font-variant property is a shorthand for all font-variant subproperties:
The value normal resets all subproperties of font-variant to their initial value. The none value sets font-variant-ligatures to none and resets all other font feature properties to their initial value. Like other shorthands, using font-variant resets unspecified font-variant subproperties to their initial values.
It does not reset the values of font-language-override, font-feature-settings or font-variation-settings.
6.12. Low-level font feature settings control: the font-feature-settings property
Name: | font-feature-settings |
---|---|
Value: | normal | <feature-tag-value># |
Initial: | normal |
Applies to: | all elements and text |
Inherited: | yes |
Percentages: | n/a |
Computed value: | as specified |
Canonical order: | per grammar |
Animation type: | discrete |
Tests
- font-features-across-space-1.html (live test) (source)
- font-features-across-space-2.html (live test) (source)
- font-features-across-space-3.html (live test) (source)
- font-feature-settings-tibetan.html (live test) (source)
- font-feature-settings-computed.html (live test) (source)
- font-feature-settings-invalid.html (live test) (source)
- font-feature-settings-valid.html (live test) (source)
This property provides low-level control over OpenType font features. It is intended as a way of providing access to font features that are not widely used but are needed for a particular use case.
- The higher-level properties cascade individually. You can set one without setting the whole font-feature-settings list
- Some higher-level properties can be synthesized for fonts that do not support the font feature.
If you want to set this font feature | then use this instead of font-feature-settings | Notes |
---|---|---|
Kerning (kern ) or Vertical Kerning (vkrn )
| font-kerning: normal | The font-kerning property will set the kern or vkrn feature depending on the writing-mode.
|
Standard Ligatures (liga ) or Contextual Ligatures (clig )
| font-variant-ligatures: common-ligatures | |
Discretionary Ligatures (dlig )
| font-variant-ligatures: discretionary-ligatures | |
Historical Ligatures (hlig )
| font-variant-ligatures: historical-ligatures | |
Contextual Alternates (calt )
| font-variant-ligatures: contextual | |
Subscript (subs )
| font-variant-position: sub | |
Superscript (sups )
| font-variant-position: super | |
Small Capitals (smcp )
| font-variant-caps: small-caps | |
Small Capitals From Capitals (c2sc )
| font-variant-caps: all-small-caps | |
Petite Capitals (pcap )
| font-variant-caps: petite-caps | |
Petite Capitals From Capitals (c2pc )
| font-variant-caps: all-petite-caps | |
Unicase (unic )
| font-variant-caps: unicase | |
Titling (titl )
| font-variant-caps: titling-caps | |
Lining Figures (lnum )
| font-variant-numeric: lining-nums | |
Oldstyle Figures (onum )
| font-variant-numeric: oldstyle-nums | |
Proportional Figures (pnum )
| font-variant-numeric: proportional-nums | |
Tabular Figures (tnum )
| font-variant-numeric: tabular-nums | |
Fractions (frac )
| font-variant-numeric: diagonal-fractions | |
Alternative Fractions (afrc )
| font-variant-numeric: stacked-fractions | |
Ordinals (ordn )
| font-variant-numeric: ordinal | |
Slashed Zero (zero )
| font-variant-numeric: slashed-zero | |
Historical Forms (hist )
| font-variant-alternates: historical-forms | |
Stylistic Alternates (salt )
| font-variant-alternates: stylistic() | Define which alternate gets used by making an @font-feature-values rule |
Character Variant 1 - Character Variant 99 (cv01 - cv99 )
| font-variant-alternates: character-variant() | Define which character variant gets used by making an @font-feature-values rule |
Swash (swsh ) or Contextual Swash (cswh )
| font-variant-alternates: swash() | Define which swash gets used by making an @font-feature-values rule |
Ornaments (ornm )
| font-variant-alternates: ornaments() | Define which ornament gets used by making an @font-feature-values rule |
Alternate Annotation Forms (nalt )
| font-variant-alternates: annotation() | Define which annotation gets used by making an @font-feature-values rule |
JIS78 Forms (jp78 )
| font-variant-east-asian: jis78 | |
JIS83 Forms (jp83 )
| font-variant-east-asian: jis83 | |
JIS90 Forms (jp90 )
| font-variant-east-asian: jis90 | |
JIS2004 Forms (jp04 )
| font-variant-east-asian: jis04 | |
Simplified Forms (smpl )
| font-variant-east-asian: simplified | |
Traditional Forms (trad )
| font-variant-east-asian: traditional | |
Full Widths (fwid )
| font-variant-east-asian: full-width | |
Proportional Widths (pwid )
| font-variant-east-asian: proportional-width | |
Ruby Notation Forms (ruby )
| font-variant-east-asian: ruby |
For example, there is no font-variant value to control Scientific Inferiors (small numerals used in chemical formulae). Readability is enhanced by using them, so they must be enabled using font-feature-settings:
.chem{ font-feature-settings : 'sinf' }
The entire property value is set at once. Unlike the font-variant properties, there is no way to modify the inherited value by adding or removing individual features.
A value of normal means that no change in glyph selection or positioning occurs due to this property.
Feature tag values have the following syntax:
<feature-tag-value> = <opentype-tag>[ <integer[ 0 , ∞] > | on | off] ? <opentype-tag> = <string>
The <opentype-tag> is a case-sensitive OpenType feature tag. As specified in the OpenType specification [OPENTYPE], feature tags contain four ASCII characters. Tag strings longer or shorter than four characters, or containing characters outside the U+20–7E codepoint range are invalid. Feature tags need only match a feature tag defined in the font, so they are not limited to explicitly registered OpenType features. Fonts defining custom feature tags should follow the tag name rules defined in the OpenType specification [OPENTYPE-FEATURES].
Feature tags not present in the font are ignored; a user agent must not attempt to synthesize fallback behavior based on these feature tags. The one exception is that user agents may synthetically support the kern feature with fonts that contain kerning data in the form of a kern table but lack kern feature support in the GPOS table.
In general, authors should use the font-kerning property to explicitly enable or disable kerning since this property always affects fonts with either type of kerning data.
If present, a value indicates an index used for glyph selection. An <integer> value must be 0 or greater. A value of 0 indicates that the feature is disabled. For boolean features, a value of 1 enables the feature. For non-boolean features, a value of 1 or greater enables the feature and indicates the feature selection index. A value of on is synonymous with 1 and off is synonymous with 0. If the value is omitted, a value of 1 is assumed.
The computed value of font-feature-settings is a map, so any duplicates in the specified value must not be preserved. If the same feature tag appears more than once, the value associated with the last appearance supersedes any previous value for that axis.
The computed value contains the de-duplicated feature tags, sorted in ascending order by code unit.
font-feature-settings : "sinf" 1 ; /* sinf=1 enable Scientific Inferiors */ font-feature-settings:"sinf" on; /* sinf=1 enable Scientific Inferiors */ font-feature-settings:'sinf' ; /* sinf=1 enable Scientific Inferiors */ font-feature-settings:"sinf" off; /* sinf=0 disable Scientific Inferiors */ font-feature-settings:"sinf" , 'twid' ; /* sinf=1, twid=1 enable Scientific Inferiors and Third Widths */ font-feature-settings:"sinf" "twid" ; /* invalid, need a comma-delimited list */ font-feature-settings:"silly" off; /* invalid, tag too long */ font-feature-settings:"PKRN" ; /* PKRN=1 enable custom feature */ font-feature-settings: sinf; /* invalid, tag must be a string */
When values greater than the range supported by the font are specified, the behavior is explicitly undefined. For boolean features, in general these will enable the feature. For non-boolean features, out of range values will in general be equivalent to a 0 value. However, in both cases the exact behavior will depend upon the way the font is designed (specifically, which type of lookup is used to define the feature).
Implementations may choose to ignore turning off features which the OpenType specification says are always required, such as required ligatures "rlig".
Although specifically defined for OpenType feature tags, feature tags for other modern font formats that support font features may be added in the future. Where possible, features defined for other font formats should attempt to follow the pattern of registered OpenType tags.
The Japanese text below will be rendered with half-width kana characters:
body { font-feature-settings : "hwid" ; /* Half-width OpenType feature */ }
<p>毎日カレー食べてるのに、飽きない</p>
6.13. Font language override: the font-language-override property
Name: | font-language-override |
---|---|
Value: | normal | <string> |
Initial: | normal |
Applies to: | all elements and text |
Inherited: | yes |
Percentages: | N/A |
Computed value: | specified string or the keyword none |
Canonical order: | per grammar |
Animation type: | discrete |
Tests
- font-language-override-01.html (live test) (source)
- font-language-override-02.html (live test) (source)
- font-language-override-03.html (live test) (source)
- font-language-override-computed.html (live test) (source)
- font-language-override-invalid.html (live test) (source)
- font-language-override-valid.html (live test) (source)
Normally, authors can control the use of language-specific glyph substitutions and positioning by setting the content language of an element, as described above:
In some cases, authors may need to specify a language system that differs from the content language, for example due to the need to mimic another language’s typographic traditions. The font-language-override property allows authors to explicitly specify the language system of the font, overriding the language system implied by the content language.
Values have the following meanings:
- normal
- specifies that when rendering with OpenType fonts, the content language of the element is used to infer the OpenType language system
- <string>
- single four-character case-sensitive OpenType language system tag, specifies the OpenType language system to be used instead of the language system implied by the language of the element. If the string is shorter than four characters, it is padded at the end with space (U+0020) characters such that the length is 4, before being matched.
Unknown OpenType language system tags are silently ignored, and do not affect glyph selection and placement.
7. Font Feature and Variation Resolution
As described in the previous section, font features and variations can be enabled in a variety of ways, either via the use of font-variant, font-feature-settings, fontfont-variation-settings in a style rule or within an @font-face rule. The resolution order for the union of these settings is defined below. Features defined via CSS properties are applied on top of layout engine default features.
7.1. Default features
For OpenType fonts, user agents must enable the default features defined in the OpenType documentation for a given script and writing mode. Required ligatures, common ligatures and contextual forms must be enabled by default (OpenType features: rlig, liga, clig, calt), along with localized forms (OpenType feature: locl), and features required for proper display of composed characters and marks (OpenType features: ccmp, mark, mkmk). These features must always be enabled, even when the value of the font-variant and font-feature-settings properties is normal. Individual features are only disabled when explicitly overridden by the author, as when font-variant-ligatures is set to no-common-ligatures.
Tests
For handling complex scripts such as Arabic, Mongolian or Devanagari additional features are required. For upright text within vertical text runs, vertical alternates (OpenType feature: vert) must be enabled.
7.2. Feature and variation precedence
General and font specific font feature property settings are resolved in the order below, in ascending order of precedence. This ordering is used to construct a combined list of font features that affect a given text run.
-
Font features enabled by default are applied, including features required for a given script. See § 7.1 Default features for a description of these.
-
Font variations as enabled by the font-weight, font-width, and font-style properties are applied.
The application of the value enabled by font-style is affected by font selection, because this property might select an italic or an oblique font. The value applied is the closest matching value as determined by the font matching algorithm. User agents must apply at most one value due to the font-style property; both "ital" and "slnt" values must not be set together.
If the selected font is defined in an @font-face rule, then the values applied at this step should be clamped to the value of the font-weight, font-width, and font-style descriptors in that @font-face rule.
Then, the values applied in this step should be clamped (possibly again) to the values that are supported by the font.
-
The language specified by the inherited value of lang/xml:lang is applied.
-
If the font is defined via an @font-face rule, the font language override implied by the font-language-override descriptor in the @font-face rule is applied.
-
If the font is defined via an @font-face rule, that @font-face rule includes at least one valid font-named-instance descriptor with a value other than none, and the loaded font resource includes a named instance with that name according to the § 5.1 Localized name matching rules, then all the variation values represented by that named instance are applied. These values are clamped to the values that are supported by the font.
-
If the font is defined via an @font-face rule, the font variations implied by the font-variation-settings descriptor in the @font-face rule are applied.
-
If the font is defined via an @font-face rule, the font features implied by the font-feature-settings descriptor in the @font-face rule are applied.
-
The font language override implied by the value of the font-language-override property is applied.
-
Font variations implied by the value of the font-optical-sizing property are applied.
-
Font features implied by the value of the font-variant property, the related font-variant subproperties and any other CSS property that uses OpenType features (e.g. the font-kerning property) are applied.
-
Feature settings determined by properties other than font-variant or font-feature-settings are applied. For example, setting a non-default value for the letter-spacing property disables optional ligatures.
-
Font variations implied by the value of the font-variation-settings property are applied. These values should be clamped to the values that are supported by the font.
-
Font features implied by the value of font-feature-settings property are applied.
Tests
This ordering allows authors to set up a general set of defaults for fonts within their @font-face rules, then override them with property settings for specific elements. General property settings override the settings in @font-face rules and low-level font feature settings override font-variant property settings.
For situations where the combined list of font feature settings contains more than one value for the same feature, the last value is used. When a font lacks support for a given underlying font feature, text is simply rendered as if that font feature was not enabled; font fallback does not occur and no attempt is made to synthesize the feature except where explicitly defined for specific properties.
7.3. Feature precedence examples
body{ font-variant-numeric : proportional-nums; } table.prices td{ font-variant-numeric : tabular-nums; }
local ()
in the src descriptor of the @font-face definition:
@font-face { font-family : BodyText; src : local ( "HiraMaruPro-W4" ); font-variant : proportional-width; font-feature-settings : "ital" ; /* Latin italics within CJK text feature */ } body{ font-family : BodyText, serif; }
If available, a Japanese font "Hiragino Maru Gothic" will be used. When text rendering occurs, Japanese kana will be proportionally spaced and Latin text will be italicized. Text rendered with the fallback serif font will use default rendering properties.
@font-face { font-family : main; src : url ( fonts/ffmeta.woff ) format ( "woff" ); font-variant : discretionary-ligatures; } body{ font-family : main, Helvetica; } span.special{ font-variant-ligatures : no-discretionary-ligatures; }
Suppose one adds a rule using font-feature-settings to enable discretionary ligatures:
body{ font-family : main, Helvetica; } span{ font-feature-settings : "dlig" ; } span.special{ font-variant-ligatures : no-discretionary-ligatures; }
In this case, discretionary ligatures will be rendered within spans of class "special". This is because both the font-feature-settings and font-variant-ligatures properties apply to these spans. Although the no-discretionary-ligatures setting of font-variant-ligatures effectively disables the OpenType "dlig" feature, because the font-feature-settings is resolved after that, the "dlig" value reenables discretionary ligatures.
8. Font Variation Properties
Note: The technology in use in this section is named "font variations." An instance of one such font as a "variable font."
8.1. Optical sizing control: the font-optical-sizing property
Name: | font-optical-sizing |
---|---|
Value: | auto | none |
Initial: | auto |
Applies to: | all elements and text |
Inherited: | yes |
Percentages: | n/a |
Computed value: | specified keyword |
Canonical order: | per grammar |
Animation type: | discrete |
Tests
Typographically, text rendered at different sizes often benefits from slightly different visual representations. For example, to aid reading at small text sizes, strokes are often thicker with larger serifs. Larger text often has a more delicate figure with more contrast between thicker and thinner strokes.
- auto
- The user agent may modify the shape of glyphs based on the font-size and the pixel density of the screen. For OpenType and TrueType fonts using font variations, this is often done by using the "opsz" font variation.
- none
- The user agent must not modify the shape of glyphs for optical size.
font-size must be considered when selecting a variation value for the "opsz" axis, but other signals may also be considered.
Note: User agents are expected to supply a value for the "opsz" axis which is close to the used value for font-size. However, user agents might wish to consider other factors such as pixel density of the screen, or the solid angle the text subtends in the viewer’s retina. Experiments have shown, however, that disregarding these other ancillary factors and using only font-size might be the best way for a user agent to select this value.
Pixel density as well as visual size of the text may influence the variation value chosen for font-optical-sizing. When either pixel density or visual size of the text changes in response to a user operation or style change, user agents must not choose a new value for this variation value unless the change is layout-causing. User agents are free to determine which changes are layout-causing.
Note: Some user operations, such as pinch-zoom, can be considered not-layout-causing if they do not cause text to reflow. However, other user operations, such as increasing text size for accessibility purposes, can be considered layout-causing because they cause text to reflow. Similarly, the transform property can be considered not-layout-causing because transforms generally do not cause text to reflow. Each user-agent is free to decide whether or not each operation is layout-changing or not.
User agents must not synthesize optical sizing when it is not performed by the font directly.
User agents must not select a value for the "opsz" axis which is not supported by the font used for rendering the text. This can be accomplished by clamping a chosen value to the range supported by the font.
font-optical-sizing interacts with font-size-adjust. When applying optical sizing, User agents must apply an optical sizing value appropriate for the adjusted font size, subject to the above restrictions.
8.2. Low-level font variation settings control: the font-variation-settings property
Name: | font-variation-settings |
---|---|
Value: | normal | [ <opentype-tag> <number>]# |
Initial: | normal |
Applies to: | all elements and text |
Inherited: | yes |
Percentages: | n/a |
Computed value: | the keyword normal or a list, each item a string paired with a number |
Canonical order: | per grammar |
Animation type: | (see prose) |
Tests
This property provides low-level control over OpenType or TrueType font variations. It is intended as a way of providing access to font variations that are not widely used but are needed for a particular use case.
- The higher-level properties cascade individually. You can set one without setting the whole font-variation-settings list
- Some higher-level properties can be synthesized for fonts that do not support the font variation.
If you want to set this variation axis | then use this instead of font-variation-settings | Notes |
---|---|---|
Weight (wght )
| font-weight | The font-weight property will set the wght axis if one is present.
|
Width (wdth )
| font-width | The font-width property will set the wdth axis if one is present.
|
Slant (slnt ) or Italic (ital )
| font-style | The font-style property will set the slnt or ital axis, depending on its value.
|
Optical size (opsz )
| font-optical-sizing | The font-optical-sizing property will set the opsz axis if one is present.
|
The use of font variation settings does not affect font selection where a fallback font is to be used, where using font properties for the same axis would have an effect on font selection.
When possible, authors should generally use the other properties related to font variations (such as font-optical-sizing), and only use this property for special cases where its use is the only way of accessing a particular infrequently used font variation.
For example, it is preferable to use font-weight: 700 rather than font-variation-settings: "wght" 700.
A value of normal means that no change in glyph shape, matching, or positioning occurs due to this property.
The <opentype-tag> is a case-sensitive OpenType or TrueType variation axis name. As specified in the OpenType / TrueType specifications, axis names contain four ASCII characters. Axis name strings longer or shorter than four characters, or containing characters outside the U+20–7E codepoint range are invalid. Axis names need only match an axis tag defined in the font, so they are not limited to explicitly registered OpenType / TrueType variation axes. Fonts defining custom axis names should follow the name rules defined in the OpenType specification.
If a given axis is not supported by a font, its value setting is ignored and therefore has no effect; a user agent must not attempt to synthesize fallback behavior based on these axis tags. Other axis values within the same CSS font-variation-settings statement are not ignored.
If a variation axis is supported by a font but its set value is greater or less than the predefined font range, it will be clamped to the closest value supported by the font.
Values are allowed to be fractional or negative.
Note: it is preferable to obtain slanted faces
by using the font-style property.
However, if using the slnt
axis directly,
via font-variation-settings,
remember that it is defined
with a positive angle meaning a counter-clockwise slant,
the opposite direction to CSS.
If the same axis name appears more than once, the value associated with the last appearance supersedes any previous value for that axis. This deduplication is observable by accessing the computed value of this property.
The computed value contains the de-duplicated axis names, sorted in ascending order by code unit.
Although specifically defined for OpenType / TrueType variations, variation axes for other modern font formats that support font variations might be added in the future. Where possible, variations defined for other font formats should attempt to follow the pattern of registered variation axes.
Animating font-variation-settings is possible using the following mechanism. Two declarations of font-feature-settings can be animated between if they are "like". "Like" declarations are ones where the same set of properties appear (in any order). Because successive duplicate properties are applied instead of prior duplicate properties, two declarations can be "like" even if they have differing number of properties. If two declarations are "like" then animation occurs pairwise between corresponding values in the declarations. Otherwise, animation is not possible. In this situation, the "from" values of the animation are swapped to the "to" values at an unspecified time during the animation.
9. Color Font Support
Color fonts allow for font files to describe, not just the contours describing the edges of glyphs, but also the colors present inside the glyphs.
For some uses, such as emoji, having the colors fixed in the font is appropriate. For others, there is a need to control the colors used from a stylesheet.
CSS provides two ways to do this. The font-palette property allows selecting one of several different palettes contained in the font. The @font-palette-values rule allows overriding one or more colors from within a palette or even the creation of an entirely different palette.
9.1. Controlling Color Font Palettes: The font-palette property
Many color font file formats allow colors within glyphs to be parameterized. In these fonts, colors are referenced by index when describing the geometry of each glyph. These indices are resolved within a current active palette using a lookup table present inside the font. However, many fonts contain multiple palettes, each containing a set of complementary colors chosen by the font designer to provide pleasing visual results.
In addition, some color font file formats provide a regular, uncolored glyph outline as well as the colored versions.
Name: | font-palette |
---|---|
Value: | normal | light | dark | <palette-identifier> | <palette-mix()> |
Initial: | normal |
Applies to: | all elements and text |
Inherited: | yes |
Percentages: | N/a |
Computed value: | specified keyword, identifier or <palette-mix()> function. <palette-mix()> must be simplified to a single keyword or identifier if resulting palette is equivalent. |
Canonical order: | per grammar |
Animation type: | by computed value |
Tests
- font-palette-10.html (live test) (source)
- font-palette-11.html (live test) (source)
- font-palette-12.html (live test) (source)
- font-palette-13.html (live test) (source)
- font-palette-14.html (live test) (source)
- font-palette-15.html (live test) (source)
- font-palette-16.html (live test) (source)
- font-palette-17.html (live test) (source)
- font-palette-18.html (live test) (source)
- font-palette-19.html (live test) (source)
- font-palette-2.html (live test) (source)
- font-palette-20.html (live test) (source)
- font-palette-21.html (live test) (source)
- font-palette-22.html (live test) (source)
- font-palette-23.html (live test) (source)
- font-palette-24.html (live test) (source)
- font-palette-25.html (live test) (source)
- font-palette-26.html (live test) (source)
- font-palette-27.html (live test) (source)
- font-palette-28.html (live test) (source)
- font-palette-29.html (live test) (source)
- font-palette-3.html (live test) (source)
- font-palette-30.html (live test) (source)
- font-palette-31.html (live test) (source)
- font-palette-32.html (live test) (source)
- font-palette-33.html (live test) (source)
- font-palette-34.html (live test) (source)
- font-palette-35.html (live test) (source)
- font-palette-36.html (live test) (source)
- font-palette-4.html (live test) (source)
- font-palette-5.html (live test) (source)
- font-palette-6.html (live test) (source)
- font-palette-7.html (live test) (source)
- font-palette-8.html (live test) (source)
- font-palette-9.html (live test) (source)
- font-palette-add-2.html (live test) (source)
- font-palette-add.html (live test) (source)
- font-palette-empty-font-family.html (live test) (source)
- font-palette-modify-2.html (live test) (source)
- font-palette-modify.html (live test) (source)
- font-palette-non-ident-font-family.html (live test) (source)
- font-palette-remove-2.html (live test) (source)
- font-palette-remove.html (live test) (source)
- font-palette.html (live test) (source)
- font-palette-interpolation.html (live test) (source)
- font-palette-vs-shorthand.html (live test) (source)
- font-palette-computed.html (live test) (source)
- font-palette-invalid.html (live test) (source)
- font-palette-valid.html (live test) (source)
With the
function defined as follows:
<palette-mix()> = palette-mix(<color-interpolation-method> , [ [normal | light | dark | <palette-identifier> | <palette-mix()> ] && <percentage [0,100]>? ]#{2})
- normal
-
If the color-scheme property is set to a value other than normal',
user-agents should select the first light or dark palette as appropriate.
Otherwise, user-agents display the color font with the default palette
or default glyph colorisation.
User-agents should take the computed value of the color property into consideration when a color font format requires use of the foreground color
ForCOLR
/CPAL
[OPENTYPE] fonts, font-palette: normal usually means rendering the font with the palette in the font at index 0. - light
- Some color font formats include metadata marking certain palettes as applicable on a light (close to white) background. This keyword causes the user-agent to use the first available palette in the font file marked this way. If the font file format does not account for this metadata, or no palette in the font is marked this way, this value behaves as normal.
- dark
- Some color font formats include metadata marking certain palettes as applicable on a dark (close to black) background. This keyword causes the user-agent to use the first available palette in the font file marked this way. If the font file format does not account for this metadata, or no palette in the font is marked this way, this value behaves as normal.
- <palette-identifier>
-
This value identifies an CSS-defined palette to use.
Users can define a palette by using the @font-palette-values rule.
If no applicable @font-palette-values rule is present,
this value behaves as normal.
<palette-identifier> is parsed as a <dashed-ident>.
Note: Such a CSS-defined palette may be a reference to an existing palette already present in the font, be a modification of an existing palette already present in the font, or be an entirely new palette.
- <palette-mix()>
-
This value defines a position in the interpolation between two palette values,
identified by <palette-identifier>, by the palette keywords normal, light, dark,
or by another <palette-mix()> value.
The glyphs of the font must be rendered with a palette that is created by interpolating for each palette color index between the matching color indices of the first and second palette specified as arguments, recursively resolving <palette-mix()> functions if needed.
For each palette color, the interpolation follows the rules of the <color-mix()> function.
Percentages are normalized according to CSS Color 5 § 2.1 Percentage Normalization.
Note: The names light and dark describe the background the color palette is usable on, not the colors in the color palette themselves.
@media ( prefers-color-scheme: dark) { .banner{ font-palette : dark; } }
@font-palette-values --pink{ font-family : Nabla; base-palette : 1 ; } @font-palette-values --yellow{ font-family : Nabla; base-palette : 7 ; } @keyframes animate-palette{ from{ font-palette : --yellow; } to{ font-palette : --pink; } } p{ font-family : Nabla; animation : animate-palette1.4 s infinite alternate linear; }
Tests
Add more examples and pictures.
9.2. User-defined font color palettes: The @font-palette-values rule
The @font-palette-values rule defines a color palette and associates that color palette with a specific font. This allows a web author to select arbitrary <color>s to use inside a color font rather than being limited to the preexisting palettes inside font files.
Note: The OpenType CPAL table is restricted to sRGB colors. The <color>s in @font-palette-values allow any CSS color. Some implementations currently use APIs which are restricted to sRGB and may therefore map the specified colors to sRGB. This is expected to be a temporary limitation. Authors should not rely on this mapping to sRGB.
In addition, this rule’s association with a specific font allows a name of a palette to apply differently to different fonts, which allows similar colors to be used across multiple fonts when multiple fonts are used in an element (i.e. for font fallback).
Note: A web author might wish to create multiple palettes for a single font in order to create multiple themes for their web content. A web author might also wish to create matching palettes for multiple fonts to achieve a consistent design across a collection of different fonts.
A @font-palette-values rule represents a palette of colors used in a font. A palette consists of an ordered collection of colors. Using the @font-palette-values allows a web author to reference a palette existing within a font as well as creating a palette populated with author-defined colors. In addition, it allows overriding a set of colors from a palette in the font with colors described by the web author.
A palette is always complete, meaning that it is impossible to describe a palette which has missing colors. If colors would be missing, they are taken from the palette within the font identified by the base-palette descriptor.
Math functions, such as calc(), and also var(), and env(), are valid within descriptor values in a @font-palette-values rule. They are evaluated within the context of the root element. Relative units are also evaluated within the context of the root element.
The @font-palette-values rule consists of the @font-palette-values at-keyword followed by a block of descriptor declarations. It has the following syntax:
@font-palette-values <dashed-ident>{ <declaration-list>}
Tests
- palette-values-rule-add-2.html (live test) (source)
- palette-values-rule-add.html (live test) (source)
- palette-values-rule-delete-2.html (live test) (source)
- palette-values-rule-delete.html (live test) (source)
- font-palette-values-invalid.html (live test) (source)
- font-palette-values-valid.html (live test) (source)
The @font-palette-values rule accepts the descriptors defined in this specification.
@font-palette-values --Cooler{ font-family : Bixa; base-palette : 1 ; override-colors : 1 #7EB7E4; }
@font-palette-values --Augusta{ font-family : Handover Sans; base-palette : 3 ; override-colors : 1 rgb ( 43 , 12 , 9 ), 3 var ( --highlight); }
These descriptors apply solely within the context of the @font-palette-values rule in which they are defined, and do not apply to document language elements. When a given descriptor occurs multiple times in a given @font-palette-values rule, only the last descriptor declaration is used and all prior declarations for that descriptor are ignored.
Each of these palettes are applied to each @font-face that share a family name.
@font-face { font-family : Bixxxa; src : url ( './bixxxa.woff' ) format ( 'woff' ); } @font-face { font-family : Bungeehee; src : url ( './bungeehee.woff' ) format ( 'woff' ); } @font-palette-values --ToxicGreen{ font-family : Bixxxa; base-palette : 3 ; /* This is Bixxxa’s green palette */ } @font-palette-values --ToxicGreen{ font-family : Bungeehee; base-palette : 7 ; /* This is Bungeehee’s green palette... */ override-colors:2 lime; /* ...except this is pink, which I overwrite to lime */ } h1{ font-family : Bixxxa; font-palette : --ToxicGreen; } h2{ font-family : Bungeehee; font-palette : --ToxicGreen; }
Example by Roel Nieskens
Note: In the case where a family name is shared between multiple physical fonts, (such as when a compound font is created, using unicode-range), and if those fonts have different palettes, the result of specifying a partial palette using @font-palette-values is unlikely to be what the author intended. In this case, it is better to supply a complete palette definition.
h3{ font-family : Bixxxa, Bungeehee; font-palette : --ToxicGreen; }
Which would correctly apply the desired palette in each font even though they have different palette numbers.
A given set of @font-palette-values rules define which author-defined palettes are available for use within the documents that contain these rules.
An author-defined font color palette must only be available to the documents that reference it. Using an author-defined color palette outside of the documents that reference it would constitute a security leak since the contents of one page would be able to affect other pages, something an attacker could use as an attack vector.
This at-rule follows the forward-compatible parsing rules of CSS. Like properties in a declaration block, declarations of any descriptors that are not supported by the user agent must be ignored. @font-palette-values rules require a font-family descriptor; if it is missing, the @font-palette-values rule is invalid and must be ignored entirely.
In cases where user agents have limited platform resources, do not implement support for color fonts, or implement the ability to disable color fonts, @font-palette-values rules must simply be ignored; the behavior of individual descriptors as defined in this specification should not be altered.
9.2.1. Font family: the font-family descriptor
Name: | font-family |
---|---|
For: | @font-palette-values |
Value: | <family-name># |
Initial: | N/A |
This descriptor defines the font families that this palette applies to, using the same list of font families as § 5 Font Matching Algorithm. This palette will only ever be applied to the fonts with these family names. The value of this descriptor means that only named font families are allowed and rules that include generic fonts in the list of font families are syntax errors. If syntax errors occur within the font family list, the descriptor must be ignored (will still be in the CSS OM, but will not match any font families).
9.2.2. Specifying the base palette: the base-palette descriptor
Name: | base-palette |
---|---|
For: | @font-palette-values |
Value: | light | dark | <integer [0,∞]> |
Initial: | N/A |
- light
- Some color font formats include metadata marking certain palettes as applicable on a light (close to white) background. This keyword identifies the first available palette in the font file marked this way. If the font file format does not account for this metadata, or no palette in the font is marked this way, this value behaves as 0.
- dark
- Some color font formats include metadata marking certain palettes as applicable on a dark (close to black) background. This keyword identifies the first available palette in the font file marked this way. If the font file format does not account for this metadata, or no palette in the font is marked this way, this value behaves as 0.
- <integer>
- Identifies a (zero-based) numerical palette index within the font.
@font-palette-values --Festival{ font-family : Banner Flag; base-palette : 1 ; override-colors : 0 rgb ( 123 , 64 , 27 ), 1 darkblue, 2 var ( --highlight); }
This descriptor specifies a palette in the font which the containing @font-palette-values rule uses as an initial value. If no <override-colors> key is present in the @font-palette-values rule, then the @font-palette-values rule represents the palette in the font with the same index as the value of this descriptor. If a <override-colors> key is present in the @font-palette-values rule, each item in the value of that descriptor overrides a single color in the color palette represented by this @font-palette-values block.
@font-palette-values --Augusta{ font-family : Handover Sans; base-palette : 3 ; }
If this descriptor is not present in the @font-palette-values, or if the font does not contain a palette at the index of the value of base-palette, it behaves as if 0 were specified. If a font does not contain any color palettes, no colors are included in the initial color palette represented by this @font-palette-values rule. Colors in the palette can be overridden by using the override-color descriptor in the @font-palette-values rule.
9.2.3. Overriding a colors from a palette: The override-colors descriptor
Name: | override-colors |
---|---|
For: | @font-palette-values |
Value: | [ <integer [0,∞]> <color> ]# |
Initial: | N/A |
This descriptor overrides colors to the initial color palette represented by this @font-palette-values rule.
The specified <color> must be an absolute color.
The override-colors descriptor takes a comma-separated list of palette index entries and colors. Each item in the comma-separated list represents a tuple of an entry into the palette and a color to replace it with.
For each key/value pair in the value of this descriptor, the color with that key in the initial palette (i.e. by using the base-palette descriptor) is overwritten by the color specified in this descriptor’s value. A key that is outside the range of indices of the initial palette is ignored.
Palette index entries in the override-colors descriptor are a (zero-based) palette index entry.
Integer values are zero-indexed.
If the keys of multiple distinct key/value pairs identify the same color index (either by name or by integer), the last key is used for the purposes of rendering. However, for serialization purposes, both key/value pairs are present.
Note: This means that using font-palette with the same value on two different elements might result in different used palettes because the value of variables inside the @font-palette-values rule might apply differently in the context of those two elements.
Colors provided from CSS (as overrides, or as new entries) may use any supported colorspace.
@font-palette-values --Festival{ font-family : Blaka Ink; base-palette : 0 ; override-colors : 0 oklch ( 0.63 0.12 105.7 ), 1 color ( display-p30.23 0.22 0.04 ), 2 color ( prophoto-rgb0.37 0.27 0.09 ); }
Note: The colors specified in versions 0 and 1 of the CPAL table are in sRGB.
9.3. Selecting the text presentation style: The font-variant-emoji property
Name: | font-variant-emoji |
---|---|
Value: | normal | text | emoji | unicode |
Initial: | normal |
Applies to: | all elements and text |
Inherited: | yes |
Percentages: | N/a |
Computed value: | specified keyword |
Canonical order: | per grammar |
Animation type: | discrete |
Tests
This property allows web authors to select whether emoji presentation or text presentation is used for certain emoji code points. Traditionally, these presentation styles were selected by appending Variation Selector 15 (U+FE0E) or Variation Selector 16 (U+FE0F) to certain code points. However, font-variant-emoji allows web authors to set a default presentation style which can replace the variation selectors.
Only the code points listed by Unicode as contributing to a Unicode emoji presentation sequence are affected by this property. Within this CSS specification, these characters are referred to as Emoji Presentation Participating Code Points. This property has no effect on any other characters.
This property is expected to affect font fallback; however, the exact nature of the interaction of font fallback with font-variant-emoji is explicitly unspecified. However, a variation selector must be included in a previous cluster as defined by the cluster matching section above. A natural result of this behavior is that a variation selector must not be rendered in a different font than the previous character. It thus causes font fallback to behave as if the respective variation selector was intended (as in the values description); then font fallback, including the cluster fallback rules, is performed, which must take the presentation preference of these "appended" variation selectors into account.
Even when font-variant-emoji is used, the presence of Variation Selector 15 (U+FE0E) or Variation Selector 16 (U+FE0F) in the contents of an element override the rendering specified in font-variant-emoji. Therefore, font-variant-emoji sets a default presentation which the text being rendered can opt out of.
Note: Different platforms have different conventions about how to handle emoji presentation sequences. A cross-platform UA might wish to follow the conventions of each individual platform, or it might wish to use the same approach on all platforms. When tasked with a request for an emoji style rendering, a UA might wish to disregard fonts which do not include color tables. A different UA might wish instead to use the same mechanical cluster fallback algorithm that it would use for any arbitrary cluster.
Variation selectors other than FE0E VARIATION SELECTOR-15 and U+FE0F VARIATION SELECTOR-16 must not have any effect on font selection. If one of these variation selectors is present, but unsupported by the font previously selected, the variation selector is ignored.
BCP47’s -u-
extension to the language tag accepted by lang
or
should not be
considered when the user-agent decides whether to use emoji presentation or text presentation for a particular character.
- normal
- User agents can choose to draw a Presentation Participating Code Point in either emoji style or text style. User agents typically follow platform conventions when performing this decision.
- text
- Code points are rendered as if U+FE0E VARIATION SELECTOR-15 was appended to every Presentation Participating Code Point.
- emoji
- Code points are rendered as if U+FE0F VARIATION SELECTOR-16 was appended to every Presentation Participating Code Point.
- unicode
- Code points are rendered in accordance with [UTS51] as either emoji-default, text-default, or text-only, depending on the values of the Emoji and Emoji_Presentation properties for each Presentation Participating Code Point. If present, FE0E VARIATION SELECTOR-15 and U+FE0F VARIATION SELECTOR-16 will override the default presentation of individual Presentation Participating Code Points.
@font-face { font-family : "Custom Emoji" ; src : url ( "CustomEmoji.ttf" ) format ( "truetype" ); } ... <div style="font-family: 'Custom Emoji'; font-variant-emoji: emoji;" >🛋 </div>
10. Font Taxonomy
A given font may belong in one or more of the following categories:
10.1. Installed Fonts
A font may be installed globally on a device. Such fonts are generally accessible in any application, even applications which have no concept of CSS. The file or files backing the font object exist on the user’s device, not as a remote resource.
Installed Fonts must not be Web Fonts, and Web Fonts must not be Installed Fonts.
10.2. Web Fonts
A font may be backed by a remote resource, which must be requested using the user agent’s resource fetching infrastructure. Web Fonts are represented by one of two mechanisms:-
@font-face rules
-
A FontFace member of the Document’s FontFaceSet
A Web Font must not be accessible in any other Document from the one which either is associated with the @font-face rule or owns the FontFaceSet. Other applications on the device must not be able to access Web Fonts.
Installed Fonts must not be Web Fonts, and Web Fonts must not be Installed Fonts.
Web Fonts shadow Installed Fonts, so if an Installed Font has the same family name as a Web Font, the Installed Font is not accessible.
10.3. Preinstalled Fonts and User-Installed Fonts
Users can choose to install fonts on their devices. User-Installed Fonts are installed by an explicit action by the user, such as clicking an "Install" button or copying a file into a particular directory on their device. Such fonts are User-Installed Fonts and also are Installed Fonts. Web content authors should not count on the presence of user-installed fonts, because there is no guarantee any user will have performed the action to install a specific font.
Please see the Font Matching Algorithm description of how user-installed fonts may interact with the font matching algorithm.
Any Installed Font which is not a User-Installed font is a Preinstalled Font. It is likely that all users of a particular version of a particular Operating System will have the same set of Preinstalled Fonts installed. As such, Web content authors targeting these Operating Systems may wish to use these fonts' family names inside font-family properties.
10.4. System Font
The System Font is the font which is used by the system-ui generic font family name. It is an example of a Preinstalled Font.
Tests
- system-ui-ar.html (live test) (source)
- system-ui-ja-vs-zh.html (live test) (source)
- system-ui-ja.html (live test) (source)
- system-ui-mixed.html (live test) (source)
- system-ui-ur-vs-ar.html (live test) (source)
- system-ui-ur.html (live test) (source)
- system-ui-zh.html (live test) (source)
- system-ui.html (live test) (source)
11. Font Technologies and Formats
11.1. Font tech
The features-opentype, features-aat and features-graphite techs
refer to support for font features,
commonly implemented in [OPENTYPE] with the GSUB
and the GPOS
tables,
as well as in [AAT-FEATURES] using the morx
and kerx
tables
and [GRAPHITE] with the Silf
, Glat
, Gloc
, Feat
and Sill
tables
as documented in the Graphite Table Format.
The section on § 6 Font Feature Properties describes properties that interact with these facilities.
The variations tech refers to the support of font variations,
commonly implemented in [OPENTYPE] with the avar
, cvar
, fvar
, gvar
, HVAR
, MVAR
, STAT
, and VVAR
tables,
as well as in [AAT-FEATURES] using the avar
, cvar
, fvar
, gvar
tables.
The section on § 2 Basic Font Properties as well as the section on § 8 Font Variation Properties describe properties that interact with these facilities.
The color-colrv0, color-colrv1, color-svg, color-sbix and color-cbdt technologies refers to various types of color font file technologies.
Each one represents a table
(COLR
, SVG
, sbix
or CBDT
)
inside [OPENTYPE] or [AAT-FEATURES] fonts which must be supported
to satisfy this requirement.
The palettes tech refers to support for font palettes,
commonly implemented in the [OPENTYPE] and [AAT-FEATURES] with the CPAL
table.
The section on § 9 Color Font Support describes properties that interact with these facilities.
The incremental-patch, incremental-range and incremental-auto techs refer to client support for incremental font transfer [IFT], using the patch-subset, range-request, or automatic negotiation between these two methods.
For background on these, see [PFE-report].
Web authors can specify the tech function inside an @font-face src descriptor to indicate that support is required for correct rendering of a font. This mechanism can be used for gracefully falling back to an ancillary font when requested support is not present.
@font-face { font-family : "Trickster" ; src : url ( "trickster-COLRv1.otf" ) format ( opentype) tech ( color-COLRv1), url ( "trickster-outline.otf" ) format ( opentype); }
11.2. Font formats
Format strings defined by this specification are as follows. The <font-format> values are synonyms for the formats below.
String | Font Format | Common extensions | Common media types |
---|---|---|---|
"collection" | OpenType Collection | .otc,.ttc | font/collection |
"embedded-opentype" | Embedded OpenType | .eot | application/vnd.ms-fontobject |
"opentype" | OpenType | .ttf, .otf | font/otf, font/ttf |
"svg" | SVG Font (deprecated) | .svg, .svgz | image/svg+xml |
"truetype" | TrueType | .ttf | font/ttf |
"woff" | WOFF 1.0 (Web Open Font Format) | .woff | font/woff |
"woff2" | WOFF 2.0 (Web Open Font Format) | .woff2 | font/woff2 |
Given the overlap in common usage between TrueType and OpenType, the format hints "truetype" and "opentype" must be considered as synonymous; a format hint of "opentype" does not imply that the font contains Postscript CFF style glyph data or that it contains OpenType layout information (see Appendix A for more background on this).
12. Object Model
The contents of @font-face and @font-feature-values rules can be accessed via the following extensions to the CSS Object Model.
12.1. The CSSFontFaceRule
interface
The CSSFontFaceRule interface represents a <@font-face> rule.
[Exposed =Window ]interface :
CSSFontFaceRule CSSRule {readonly attribute CSSStyleDeclaration ; };
style
12.2. The CSSFontFeatureValuesRule
interface
The CSSRule
interface is extended as follows:
partial interface CSSRule {const unsigned short = 14; };
FONT_FEATURE_VALUES_RULE
The CSSFontFeatureValuesRule interface represents a
rule.
[Exposed =Window ]interface :
CSSFontFeatureValuesRule CSSRule {attribute CSSOMString ;
fontFamily readonly attribute CSSFontFeatureValuesMap ;
annotation readonly attribute CSSFontFeatureValuesMap ;
ornaments readonly attribute CSSFontFeatureValuesMap ;
stylistic readonly attribute CSSFontFeatureValuesMap ;
swash readonly attribute CSSFontFeatureValuesMap ;
characterVariant readonly attribute CSSFontFeatureValuesMap ; }; [
styleset Exposed =Window ]interface {
CSSFontFeatureValuesMap maplike <CSSOMString ,sequence <unsigned long >>;undefined (
set CSSOMString , (
featureValueName unsigned long or sequence <unsigned long >)); };
values
- fontFamily of type
CSSOMString
- The list of one or more font families for which a given set of feature values is defined.
- value maps of type
CSSFontFeatureValuesMap
, readonly - Maps of feature values associated with feature value names for a given font-variant-alternates value type
Each value map attribute of CSSFontFeatureValuesRule
reflects the values
defined via a corresponding feature value block.
Thus, the annotation attribute
contains the values contained within a
feature value block, the ornaments attribute contains the
values contained with a
feature value block and so forth.
The CSSFontFeatureValuesMap
interface uses the default map class methods but the set
method has different behavior. It takes a sequence of unsigned integers and
associates it with a given featureValueName
. The method
behaves the same as the default map class method
except that a single unsigned long value is treated as a sequence of a
single value. The method throws an exception if an invalid number of
values is passed in. If the associated feature value block only allows a limited number of values, the set
method
throws an InvalidAccessError
exception when the input
sequence to set
contains more than the limited number of
values. See the
description of multi-valued feature value definitions for details on the maximum number of values allowed for a given type
of feature value block. The get
method always returns a sequence of values, even if the sequence only contains
a single value.
12.3. The CSSFontPaletteValuesRule
interface
[Exposed =Window ]interface :
CSSFontPaletteValuesRule CSSRule {readonly attribute CSSOMString ;
name readonly attribute CSSOMString ;
fontFamily readonly attribute CSSOMString ;
basePalette readonly attribute CSSOMString ; };
overrideColors
The fontFamily
and basePalette
interfaces are parsed according to the appropriate CSS property syntax.
13. Serializing
13.1. Serializing font-related properties
Unless specifically noted for individual properties, the properties defined in this module follow the principles of CSSOM § 6.7.2 Serializing CSS Values.
13.2. Serializing font-related at-rules
Unless specifically noted for individual descriptors, the descriptors defined for at-rules in this module follow the principles of CSSOM § 6.7.2 Serializing CSS Values.
In particular, following the principle of shorter representation: for descriptors which accept a range of values, if the start and end values are the same (the range is zero) the descriptor is serialized as a single value, not a range.
@font-face { font-family : "foo" ; font-weight : 200 200 ; }
would serialize as
@font-face { font-family : "foo" ; font-weight : 200 ; }
Also, following the principle of retaining only the last-defined value, as well as the principle of shortest representation, multiply-specified tuples and multiple blocks are serialized as a single block containing only the last-defined value.
/* Repeated declaration names, and multiple blocks of the same type*/ @font-feature-values foo{ @swash { pretty : 0 ; cool : 2 ; } @swash { pretty : 1 ; } }
would be serialized as:
/* Canonical serialization */ @font-feature-values foo{ @swash { cool : 2 ; pretty : 1 ; } }
Appendix A: Mapping platform font properties to CSS properties
This appendix is included as background for some of the problems and situations that are described in other sections. It should be viewed as informative only.
Font properties in CSS are designed to be independent of the underlying font formats used; they can be used to specify bitmap fonts, Type1 fonts, SVG fonts in addition to the common TrueType and OpenType fonts. But there are facets of the TrueType and OpenType formats that often cause confusion for authors and present challenges to implementers on different platforms.
Originally developed at Apple, TrueType [TRUETYPE] was designed as an outline font format for both screen and print. Microsoft joined Apple in developing the TrueType format and both platforms have supported TrueType fonts since then. Font data in the TrueType format consists of a set of tables distinguished with common four-letter tag names, each containing a specific type of data. For example, naming information, including copyright and license information, is stored in the name table. The character map (cmap) table contains a mapping of character encodings to glyphs. Apple later added additional tables for supporting enhanced typographic functionality; these are now called Apple Advanced Typography, or AAT, fonts. Microsoft and Adobe developed a separate set of tables for advanced typography and called their format OpenType [OPENTYPE]. The OpenType specification is standardized at ISO as the Open Font Format [OPEN-FONT-FORMAT].
In many cases the font data used under Microsoft Windows or Linux is slightly different from the data used under Apple’s Mac OS X because the TrueType format allowed for explicit variation across platforms. This includes font metrics, names and character map data.
Specifically, font family name data is handled differently across platforms. For TrueType and OpenType fonts these names are contained in the name table, in name records with name ID 1. Multiple names can be stored for different locales, but Microsoft recommends fonts always include at least a US English version of the name. On Windows, Microsoft made the decision for backwards compatibility to limit this family name to a maximum of four faces; for larger groupings the "preferred family" (name ID 16) or "WWS family" (name ID 21) can be used. Other platforms such as OSX don’t have this limitation, so the family name is used to define all possible groupings.
Other name table data provides names used to uniquely identify a specific face within a family. The full font name (name ID 4) and the Postscript name (name ID 6) describe a single face uniquely. For example, the bold face of the Gill Sans family has a fullname of "Gill Sans Bold" and a Postscript name of "GillSans-Bold". There can be multiple localized versions of the fullname for a given face, but the Postscript name is always a unique name made from a limited set of ASCII characters.
On various platforms, different names are used to search for a font. For example, with the Windows GDI CreateIndirectFont API, either a family or fullname can be used to lookup a face, while on Mac OS X the CTFontCreateWithName API call is used to lookup a given face using the fullname and Postscript name. Under Linux, the fontconfig API allows fonts to be searched using any of these names. In situations where platform API’s automatically substitute other font choices, it may be necessary to verify a returned font matches a given name.
The weight of a given face can be determined via the usWeightClass field of the OS/2 table or inferred from the style name (name ID 2). Likewise, the width can be determined via the usWidthClass of the OS/2 table or inferred from the style name. For historical reasons related to synthetic bolding at weights 200 or lower with the Windows GDI API, font designers have sometimes skewed values in the OS/2 table to avoid these weights.
Rendering complex scripts that use contextual shaping such as Thai, Arabic and Devanagari requires features present only in OpenType or AAT fonts. Currently, complex script rendering is supported on Windows and Linux using OpenType font features while both OpenType and AAT font features are used under Mac OS X.
14. Security Considerations
See items 9, 16 and 17 in the self-review questionnaire below.
15. Privacy Considerations
Following Self-Review Questionnaire: Security and Privacy, and using the § 10 Font Taxonomy:
15.1. What information might this feature expose to Web sites or other parties, and for what purposes is that exposure necessary?
This specification allows the use of Web Fonts, which are requested on demand but are not installed. In the case where the document or stylesheet has a different origin to the Web Font, this network request exposes information in the Referer header, which may be harvested by font providers.
In addition to Web Fonts, this specification continues to allow the use of Installed Fonts (both Preinstalled Fonts and User-Installed Fonts) as introduced in CSS1.
While Web Fonts have the advantage of consistency across platforms, Installed Fonts have the advantage of zero download time.
In some cases, and particularly for poorly-supported or minority languages, Installed Fonts allow information to be displayed which could not otherwise be displayed because there is no freely licensable Web Font which supports that language or because the latency or download time would make it’s use infeasible, particularly for languages with a large character repertoire, or on slow or metered connections.
Note: The set of installed fonts available in the Font Matching Algorithm is explicitly undefined. The available set of fonts is used by trackers to fingerprint users and reduce their privacy. However, some installed fonts, even some user-installed fonts, are required to make languages readable. User Agents may choose to make all installed fonts available for language support and design integrity reasons, or may choose to make some fonts unavailable for privacy reasons. In addition, User Agents may have additional facilities for fine-tuning this balance, such as interfaces which prompt users to explicitly make certain requested fonts available or unavailable (perhaps on a per-site basis). Different User Agents, even running on the same Operating System, are expected to strike different balances here.
In the case of user agents which perform rendering of local resources (such as an HTML and CSS to PDF renderer, or a Web-based wordprocessor) access to all Installed Fonts (both Preinstalled Fonts and User-Installed Fonts) is necessary to provide the expected functionality.
An attacker may obtain fingerprinting information by querying the Installed Fonts. In contrast to older technologies (notably Adobe Flash, which provided a complete list of Installed Fonts and sent this information in HTTP headers) such probing must be done one font at a time, providing the font family name and then checking (either via script, or by using unicode-range to selectively download webfonts depending on whether the user has a font by a certain name that supports a certain character) whether the font was loaded. This takes time, and checking for more than a few hundred fonts introduces a noticeable delay in page rendering.
For especially privacy-sensitive contexts, options would include never downloading any webfonts (at the risk that some characters may be rendered incorrectly, or not at all), or always downloading all webfonts whether needed or not (ignoring unicode-range, and potentially downloading vast quantities of unused fonts each time the page is viewed).
15.2. Is this specification exposing the minimum amount of information necessary to power the feature?
An emerging consensus is that a user agent must expose Preinstalled Fonts for correct functioning, but there is no consensus on exposing User-Installed Fonts. This specification allows a user agent to ignore User-Installed Fonts for the purpose of the Font Matching Algorithm. Several existing user agents already do this.
The minimum amount varies by type of user and is currently being debated. There is a useful taxonomy of User-Installed Font users which has been slightly extended.
A permissive amount of information exposes potentially more fingerprinting information; a restrictive amount of information reduces fingerprinting but also reduces functionality and in some cases, for minority languages, would break the Web completely for those users.
The possibility of a configurable, per-user opt-in to exposing some or all User-Installed Fonts, or a per-origin opt-in, is being discussed.
The possibility of a privacy budget, which would penalize or disable a malicious web page which tested a large number of fonts, but allow a harmless page which tested a much smaller number, has also been discussed.
Some user agents expose a more restricted set of Preinstalled Fonts in their Private Browsing, Incognito, or Resist Fingerprinting modes, compared to their normal mode.
15.3. How does this specification deal with personal information or personally-identifiable information or information derived thereof?
Personal information is not exposed by this specification.
Personally identifiable information may be exposed in some cases. For example, for someone in Japan, having conditionally-enabled Japanese fonts enumerable probably isn’t a substantial fingerprinting vector. For someone in Europe who has a Japanese IME in the text input menu, they are.
15.4. How does this specification deal with sensitive information?
Fingerprinting on Installed Fonts may expose sensitive information in some cases. For example, persecuted minorities risk leaking sensitive information by exposing that they use fonts required for a persecuted minority language; either by requesting a Web Font from a third party service, or exposing Preinstalled Fonts or User-Installed Fonts associated with that language.
15.5. Does this specification introduce new state for an origin that persists across browsing sessions?
No.
Specifically, Web Fonts must not be accessible in any other Document from the one which either is associated with the @font-face rule or owns the FontFaceSet. Other applications on the device must not be able to access Web Fonts. This avoids information leaking across origins.
Similarly, font palette values must only be available to the documents that reference it. Using an author-defined color palette outside of the documents that reference it would constitute a security leak since the contents of one page would be able to affect other pages, something an attacker could use as an attack vector.
15.6. What information from the underlying platform, e.g. configuration data, is exposed by this specification to an origin?
The system-ui keyword exposes the operating system’s default system UI font to fingerprinting mechanisms.
15.7. Does this specification allow an origin access to sensors on a user’s device
No.
15.8. What data does this specification expose to an origin? Please also document what data is identical to data exposed by other features, in the same or different contexts.
For third-party Web Fonts loaded via a stylesheet, the stylesheet origin may be exposed to the third party in the Referer header. In addition, careful pairing of unicode-range and distinct src urls allows the third-party to see which characters are used on a page, which is a privacy risk for large character repertoire scripts such as CJK.
For third-party Web Fonts preloaded in the HTML, the document origin may be similarly exposed.
15.9. Does this specification enable new script execution/loading mechanisms?
No.
Specifically, for SVG-in-OpenType color fonts, the SVG used for glyph definitions should not contain script elements, and any script elements that do occur will not be executed.
15.10. Does this specification allow an origin to access other devices?
No.
15.11. Does this specification allow an origin some measure of control over a user agent’s native UI?
There is some risk that an attacker can spoof a native UI feature by determining the Operating System and using native-looking fonts appropriate to that Operating System.
15.12. What temporary identifiers might this specification create or expose to the web?
None.
15.13. How does this specification distinguish between behavior in first-party and third-party contexts?
For font loads, user agents must use the potentially CORS-enabled fetch method defined by the [HTML] specification for URLs defined within @font-face rules. When fetching, user agents must use "Anonymous" mode, set the referrer source to the stylesheet’s URL and set the origin to the URL of the containing document.
Thus, fonts will typically not be loaded cross-origin unless authors specifically take steps to permit cross-origin loads.
15.14. How does this specification work in the context of a user agent’s Private Browsing or "incognito" mode?
The specification makes no distinction.
Some user agents may expose a more restricted set of Installed Fonts in these modes.
15.15. Does this specification have a "Security Considerations" and "Privacy Considerations" section?
Yes.
15.16. Does this specification allow downgrading default security characteristics?
No.
15.17. What should this questionnaire have asked?
It should have asked whether a malicious payload could crash the application, or indeed the entire Operating System, or even cause remote code execution.
This possibility does exist for suitably crafted fonts on some platforms when fonts are installed and rendered, and this has been exploited in the wild.
In practice, user agents running on Operating Systems with this vulnerability use a font sanitizer to detect such malformed or malicious fonts and prevent their being used.
16. Accessibility Considerations
The use of fonts to provide a visual rendering of text should not, in general, impact accessibility. For example, people using a screen reader to render text to speech will not download fonts, and are unaffected by what those fonts would have contained.
However, this assumes that the semantics conveyed by the font glyphs and the semantics conveyed by the characters are the same.
Historically, this has not always been the case. For example, in the early days of the Web it was common to use fonts (such as "Symbol", though others were used) to make Latin letters have Greek glyphs; while this worked visually, it would not work with a screen reader and text was also hard to search or index because the mapping was font-specific. With the rise of Unicode, it is now standard practice to use Greek characters for Greek text, and for Greek glyphs in fonts to map to Greek characters.
Sadly, but avoidably, this practice persists with badly designed icon fonts. For example, such a font might put a "printer" icon on the Latin letter "P". This practice scatters meaningless letters through the text, which negatively affects text searching and indexing, gives hard to understand rendering if the icon font does not load, and impedes screen readers. A well designed font must assign such icons to semantically meaningful characters. For example, the printer icon might be assigned to the string "printer" or to the Unicode character 🖨 U+1F5A8 (PRINTER).
17. Acknowledgments
The CSS Working group would like to thank:
Peter Constable for assorted language fixes.
Optical sizing image prepared by Nick Sherman.
Urdu samples prepared by Richard Ishida.
Munira Tursunova and Dominik Röttsches developed the features for animating font-palette.
John Hudson was kind enough to take the time to explain the subtleties of OpenType language tags and provided the example of character variant usage for displaying text on Byzantine seals.
Elika Etemad supplied some of the initial design ideas for the '@font-feature-values' rule.
Special thanks to Tab Atkins Jr. for providing the text for the section on Font Rendering Controls as well as the section on the font-display descriptor. Special thanks to Ilya Grigorik and David Kuettel for their help in developing these sections.
18. Changes
18.1. Changes from the 21 December 2021 Working Draft
- Corrected some broken links
- In font matching algorithm, distinguished use of varfont slnt axis from synthetic obliquing
- Clarified that font variations do not count as font synthesis
- Clarified the effect of auto values on @font-face is to select the appropriate "normal" value
- Improved font fallback on font-variant-emoji with variation selectors
- Clarified that the oblique angle must be the same sign as requested
- Defined synthetic oblique in vertical text
- Used CSS Color 5 absolute color definition for override-colors
- Made font-stretch a legacy name alias for font-width
- The palette-mix() grammar requires color-interpolation-method, so removed leftover prose defining what to do if it is omitted
- Add more generics samples, for fang song and kai
- Listed fonts used for Urdu samples
- Users must be able to modify the set of installed fonts available for rendering web pages
- Added examples of Urdu text in nastaliq and in fallback naskh fonts
- Clarified that keywords inside local() are an error
- Clarified that the system-ui generic font family may be composite, and is affected by unicode coverage and content language
- Removed culturally specific claims that particular typographic styles universally convey concepts such as formality or playfulness
- Added a new generic(nastaliq) family, for Urdu, Persian, and other languages
- Added a new generic(kai) family, for Simplified and Traditional Chinese
- No longer claim that cursive and kaiti have identical meanings
- Added a note on the historical reasons for the serif and sans-serif generic font families
- Dropped the emoji generic font-family, because the font-variant-emoji property covers the desired functionality better
- Added Internet Media Types to the table of font formats
- Moved the consequences of installed fonts out of Taxonomy and into Font Matching Algorithm
- Clarified that the font-family and src descriptors are no longer required for validity, as they can be added later by script.
- Consistently use generic(fangsong) instead of fangsong, as the generic font family name. Note that it is script-specific
- Defined a third type of font family name, <system-family-name> which has some constraints on how it can be specified
- Added a missing at-keword in the production of @font-feature-values
- Refactored the @font-feature-values grammar
- Restored some acknowlegements which had been dropped when porting CSS Fonts 3 into this specification
- Redefined the grammar of the src attribute to use a <font-src-list> production, rather than "see prose"
- Deleted broken link to an informative reference which no longer exists
- Described three classes of generic font families, including whether they are writing system (script) specific and whether they are always required to match to a locally installed font
- Added a new functional notation, generic(), for new generic font families
- Added a clarifying note about platform API limitations which might restrict color font rendering to sRGB
- Removed leftover, no-longer applicable mention of "forcing colored glyphs not to be used"
- Refined the font-palette computed value
- Added an example of Nabla font with an animated palette
- Described modified font-palette syntax and rules for interpolation and percentage normalization, referencing the CSS Color specification
- Clarified that the used color-scheme affects font-palette: normal
- Added missing numeric range annotations for slope angle and font-feature-settings integer
- Defined a production for <family-name>
- For locally installed fonts, used local(<family-name>)
- Fixed ambiguous descriptor auto-links
- Fixed markup of the <family-name> production
- Defined feature and variation names with <opentype-tag> rather than bare strings
- Clarified that general math functions (not just calc) are allowed in @font-palette-values descriptors
- Added the font-synthesis-position property''
- Added an example of a non-sRGB color in override-colors
- Use rule-list rather than stylesheet in productions
- Added URL request modifiers for crossorigin, referrerpolicy & integrity
- Aligned the incremental tech keywords to match the latest Incremental Font Transfer specification
- Use last-defined value for font-feature-values
- font-feature-values and font-feature-settings are now de-duplicated, and sorted
- Suggested user agents prompt users to make certain user-installed fonts available, or unavailable
- Improved the Privacy Considerations, balancing privacy and legibility trade-offs for user-installed fonts
- Clarified the font shorthand, using the terms set explicitly, reset implicitly and cascade implicitly
- Clarified shorter representation for zero ranged descriptors
- Tightened definition of first available font
- Added emoji as a keyword to unicode-range
- Allowed implementations to ignore requests to turn off font features which the OpenType specification says are always required
- Gave clearer advice to authors about font-feature-settings and font-variation-settings
- Readability improvements to the grammar for font-variant sub-properties
- Corrections to some examples so they again match the specification
- Clarified what it means to ignore an invalid font-family descriptor
- Allowed the font-family descriptor of @font-palette-values to take a list
- Added Web Platform Tests coverage
- font-palette and '@font-palette-values' no longer at risk
- Allowed limited set of string-form format specifies, for Web compatibility
- Make feature-* features-* for consistency
- Changed initial value of font-variant-emoji from auto to normal, for consistency with other font-variant-* properties
- Added values from font-variant-emoji to font-variant shorthand
- Added canonical list of font-variant-* properties affected by font-variant shorthand
- Renamed "system font fallback" to "installed font fallback to avoid confusion with system font
- Updated property and descriptor values to use the range notation
- Fixed some examples which did not match the specification
- Clarified that color fonts are not enabled by default
- Added some more explanation to font-palette:light|dark
- Use last declaration of key/palette index in override-colors
- Removed currentColor from override-colors example
- Clarified that out of range palette indexes are ignored
- Assorted typo corrections and markup fixes
18.2. Changes from the 29 July 2021 Working Draft
- Clarified that functions and relative lengths in palettes are evaluated within the root element’s context
- Added new section, overall changes since CSS Fonts 3
- Added more font-palette-values examples
- Renamed technology to tech
- New math value added to font-size
- Security and Privacy are now separate sections
- Linked to OpenType, TrueType and Graphite table definitions
- Updated examples which had used "supports"
- Removed old "supports" from format in src descriptor, replaced with new technology production
- Moved font-technology & font-format to a new section
- Formalized fetching and resource timing reporting, applied to fetching fonts
- Removed the <string> values from override-color and base-palette
- Defined correct processing of conflicting override-colors
- Introduced concept of complete palettes
- Clearer description of override-colors
- Removed conflict between FONT_PALETTE_VALUES_RULE and VIEWPORT_RULE
- Defined context for resolving override-color colors, no longer per-element
- Allowed base-palette to reference dark and light palettes
- Changed properties in CSSFontPaletteValuesRule to be read-only
- The palette-identifier parses as a dashed-ident rather than custom-ident, for extensibility
- Renamed override-color descriptor to override-colors, because it accepts a list of colors
- Clarified that base-palette and override-color take non-negative integers
- Corrected grammar of the font shorthand property
- Several corrections to the IDL for CSSFontPaletteValuesRule
- Removed the "none" value from font-palette
- Clarified incremental requirement
- A few more examples
- Added incremental font technology to supports
- Reduced the critical angle for oblique font matching from 20deg to 11deg, per WG resolution
- Allowed font-display in @font-feature-values (the prose allowed it but the grammar did not)
18.3. Changes from the 17 November 2020 Working Draft
- Added Graphite reference
- Added font feature technology keywords opentype, aat, and graphite
- Removed scary wording about variable fonts being new and experimental
- Reference to CSS Fonts 3 in introduction is informative
- Differentiated COLRv1 from COLRv0
- Clarify well-designed vs badly-designed icon fonts in terms of Unicode codepoints
- Added Accessibility Considerations section
- Clarified that font-optical-sizing interacts with font-size-adjust
- Used consistent capitalization for "user agent"
- Clarified that font-stretch should serialize to a number/percentage, not a keyword
- Suggested heuristics for loading optional fonts
- Clarified repeated items in grammars
- Replaced obsolete “potentially CORS-enabled fetch” with reference to Fetch
- Added missing small-caps value to font-synthesis
- Be explicit about which properties apply to text
- Updated links
- Fixed typos, syntax errors
18.4. Changes from the 13 November 2019 Working Draft
- Clarified that JS-free probing of Unicode support of fonts is possible
- Clarified OpenType feature tags are 4 characters, trailing-space padded
- Added font metric override descriptors
- Added link to font features enabled by default
- Aligned with ebIDL specification (undefined, not void)
- Corrected cross-origin example to use http not https
- Clarified that font-range, per OpenType, is between 1 and 999
- (Privacy) added mention of unicode-range privacy exploit
- Clarified use of kern vs. vkrn
- Added font collection format, example of Font Collection
- Added CBDT color fonts
- Added Security & Privacy appendix
- Added palette examples, including dark mode
- Clarified colorspace of font palette entries
- Avoiding cross-site font leakage amde RFC-2119 MUST
- Clarified monochromatic fallback on color fonts
- Removed remaining references to min-font-size, max-font-size
- Clarified that color names are ASCII case insensitive
- Added the value none to font-palette
- Marked font-palette and @font-palette-values as at-risk
- Aligned value definition reference across all specs.
- Further clarified the behavior of optional
- Clarified that not all generic font families have to map to a font
- Reorganized generic font family introduction
- Added some motivation for generic font families
- Added a note about the generic emoji family and character support
- Clarified that italic is not a fallback for oblique
- Added warning on too large x-height
- Added better example for font-size-adjust
- Added example for ui-sans-serif
- Miscellaneous editorial improvements, typo fixes, broken link fixes and markup improvements
18.5. Changes from the 20 September 2018 Working Draft
- Add note encouraging UAs to also implement platform-specific names for standard font families
- Add ui-serif, ui-sans-serif, ui-monospace, and ui-rounded generic font families
- Remove font-variant @font-face descriptor per WG resolution
- Remove font-min-size and font-max-size per WG resolution
- Clarify that font-style normal animates as oblique 0deg
- Clarify why specifying incomplete color palettes for compound fonts is a bad idea
- Add explicit [Exposed=Window] on interfaces
- Use correct terms, Unicode emoji presentation sequence and Emoji Presentation Participating Code Points
- Clarify that each string in font-variation-settings is paired with a single number
- Remove stray titling-caps from definition of font-variant-numeric property
- Better introduction to color fonts
- Add basic multicolor example
- Clarify that font variation settings do no affect font selection of fallback fonts
- Clarify italic angle wrt direction of slnt axis
- Better define emoji and math generic font families
- Add font-size: xxx-large
- Link to CSS Values definition of ex units
- Add scientific inferiors example of font-feature-settings
- Clarify that letter-spacing disables optional ligatures
- Port font-feature-settings property from CSS Fonts 3
- Port font-variant shorthand property from CSS Fonts 3
- Port font-variant-east-asian property from CSS Fonts 3
- Port font-variant-numeric property from CSS Fonts 3
- Port font-variant-caps property from CSS Fonts 3
- Port font-variant-position property from CSS Fonts 3
- Port font-variant-ligatures property from CSS Fonts 3
- Port font-kerning property from CSS Fonts 3
- Update IDL of The CSSFontPaletteValuesRule interface
- Changed initial value of font property descriptors from normal to auto
- Update syntax for font-stretch in font matching section
- Update font style matching examples
- Clarify description of font palettes
- Stop claiming that ch uses the first available font
- Assorted formatting and markup fixes, link fixes, removal of inline closed issues
- Linking to latest versions of normative references
18.6. Changes from the 10 April 2018 Working Draft
- Added unicode value to font-variant-emoji
- Removed the media entry from property descriptions
- Broke up font-synthesis into longhands, for future extensibility
- Added override-color descriptor for color palettes
- Defined feature-value-name for font-variant-alternates
- Clarified @font-face src parsing rules
- Allow named instances from variable fonts to be used
- Appendix A: Mapping platform font properties to CSS properties ported over from CSS Fonts 3
- Character handling issues ported over from CSS Fonts 3
- Cluster matching ported over from CSS Fonts 3
- Add new auto value for font-weight, font-style and font-stretch descriptors
- Clarified font-display descriptor value names
- Support named palette entries
- More details on Fang Song generic family
- Changed default angle of oblique fonts to 14deg.
- font-feature-values ported over from CSS Fonts 3
- Clarified handling of unknown or unsupported fragment identifiers
- Clarified that color records in font palettes are zero-indexed
- Consistently use the new generic font families
- Editorial cleanup, clarifying examples, markup improvements, linkfixes, updating to latest references, and so on
18.7. Changes from the 20 September 2018 CSS Fonts 3 Recommendation
This summarizes the changes in CSS Fonts 4, compared to CSS Fonts 3.
- Added font-display descriptor for @font-face
- Added @font-feature-values rule
- Added font variation properties, including font-optical-sizing and font-variation-settings
- Added color font support
- Defined feature-value-name for font-variant-alternates
- Added new auto value for font-weight, font-style and font-stretch descriptors
- Added ui-serif, ui-sans-serif, ui-monospace, and ui-rounded generic font families
- Added font-size: xxx-large
- Added font metric override descriptors
- Added some motivation for generic font families
- Added font feature technology keywords opentype, aat, and graphite
- Added math value to font-size
