EMMA: Extensible MultiModal Annotation markup language Version 1.1

W3C Working Draft 27 June 2013

This version:
http://www.w3.org/TR/2013/WD-emma11-20130627/
Latest version:
http://www.w3.org/TR/emma11/
Previous version:
http://www.w3.org/TR/2012/WD-emma11-20120209/
Editor:
Michael Johnston (AT&T)
Authors:
Paolo Baggia (while at Loquendo, currently Nuance Communications)
Michael Bodell (until May 2012, while at Microsoft)
Daniel C. Burnett (Voxeo)
Deborah A. Dahl (W3C Invited Expert)

Copyright © 2013 W3C® (MIT, ERCIM, Keio, Beihang), All Rights Reserved. W3C liability, trademark and document use rules apply.

Abstract

The W3C Multimodal Interaction Working Group aims to develop specifications to enable access to the Web using multimodal interaction. This document is part of a set of specifications for multimodal systems, and provides details of an XML markup language for containing and annotating the interpretation of user input. Examples of interpretation of user input are a transcription into words of a raw signal, for instance derived from speech, pen or keystroke input, a set of attribute/value pairs describing their meaning, or a set of attribute/value pairs describing a gesture. The interpretation of the user's input is expected to be generated by signal interpretation processes, such as speech and ink recognition, semantic interpreters, and other types of processors for use by components that act on the user's inputs such as interaction managers.

Status of this Document

This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.

This is the 27 June 2013 Second Public Working Draft of "EMMA: Extensible MultiModal Annotation markup language Version 1.1". It has been produced by the Multimodal Interaction Working Group, which is part of the Multimodal Interaction Activity.

This specification describes markup for representing interpretations of user input (speech, keystrokes, pen input etc.) together with annotations for confidence scores, timestamps, input medium etc., and forms part of the proposals for the W3C Multimodal Interaction Framework.

The EMMA: Extensible Multimodal Annotation 1.0 specification was published as a W3C Recommendation in February 2009. Since then there have been numerous implementations of the standard and extensive feedback has come in regarding desired new features and clarifications requested for existing features. The W3C Multimodal Interaction Working Group examined a range of different use cases for extensions of the EMMA specification and published a W3C Note on Use Cases for Possible Future EMMA Features [ EMMA Use Cases]. In this working draft of EMMA 1.1, we have developed a set of new features based on feedback from implementers and have also added clarification text in a number of places throughout the specification. The new features include: support for adding human annotations (emma:annotation, emma:annotated-tokens), support for inline specification of process parameters (emma:parameters, emma:parameter, emma:parameter-ref), support for specification of models used in processing beyond grammars (emma:process-model, emma:process-model-ref), extensions to emma:grammar to enable inline specification of grammars, a new mechanism for indicating which grammars are active (emma:grammar-active, emma:active), support for non-XML semantic payloads (emma:result-format), support for multiple emma:info elements and reference to the emma:info relevant to an interpretation (emma:info-ref), and a new attribute to complement the emma:medium and emma:mode attributes that enables specification of the modality used to express an input (emma:expressed-through).

The changes from the last working draft are:

Also changes from EMMA 1.0 can be found in Appendix F.

Comments are welcome on www-multimodal@w3.org (archive). See W3C mailing list and archive usage guidelines.

Publication as a Working Draft does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.

This document was produced by a group operating under the 5 February 2004 W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.

The sections in the main body of this document are normative unless otherwise specified. The appendices in this document are informative unless otherwise indicated explicitly.

Conventions of this Document

All sections in this specification are normative, unless otherwise indicated. The informative parts of this specification are identified by "Informative" labels within sections.

The key words "MUST", "MUST NOT", "REQUIRED", "SHALL", "SHALL NOT", "SHOULD", "SHOULD NOT", "RECOMMENDED", "MAY", and "OPTIONAL" in this document are to be interpreted as described in [RFC2119].

Table of Contents

1. Introduction

This section is Informative.

This document presents an XML specification for EMMA, an Extensible MultiModal Annotation markup language, responding to the requirements documented in Requirements for EMMA [EMMA Requirements]. This markup language is intended for use by systems that provide semantic interpretations for a variety of inputs, including but not necessarily limited to, speech, natural language text, GUI and ink input.

It is expected that this markup will be used primarily as a standard data interchange format between the components of a multimodal system; in particular, it will normally be automatically generated by interpretation components to represent the semantics of users' inputs, not directly authored by developers.

The language is focused on annotating single inputs from users, which may be either from a single mode or a composite input combining information from multiple modes, as opposed to information that might have been collected over multiple turns of a dialog. The language provides a set of elements and attributes that are focused on enabling annotations on user inputs and interpretations of those inputs.

An EMMA document can be considered to hold three types of data:

Given the assumptions above about the nature of data represented in an EMMA document, the following general principles apply to the design of EMMA:

The annotations of EMMA should be considered 'normative' in the sense that if an EMMA component produces annotations as described in Section 3 and Section 4, these annotations must be represented using the EMMA syntax. The Multimodal Interaction Working Group may address in later drafts the issues of modularization and profiling; that is, which sets of annotations are to be supported by which classes of EMMA component.

1.1 Uses of EMMA

The general purpose of EMMA is to represent information automatically extracted from a user's input by an interpretation component, where input is to be taken in the general sense of a meaningful user input in any modality supported by the platform. The reader should refer to the sample architecture in W3C Multimodal Interaction Framework [MMI Framework], which shows EMMA conveying content between user input modality components and an interaction manager.

Components that generate EMMA markup:

  1. Speech recognizers
  2. Handwriting recognizers
  3. Natural language understanding engines
  4. Other input media interpreters (e.g. DTMF, pointing, keyboard)
  5. Multimodal integration component

Components that use EMMA include:

  1. Interaction manager
  2. Multimodal integration component

Although not a primary goal of EMMA, a platform may also choose to use this general format as the basis of a general semantic result that is carried along and filled out during each stage of processing. In addition, future systems may also potentially make use of this markup to convey abstract semantic content to be rendered into natural language by a natural language generation component.

1.2 Terminology

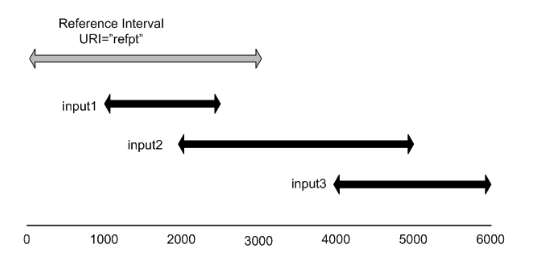

anchor point
When referencing an input interval with emma:time-ref-uri, emma:time-ref-anchor-point allows you to specify whether the referenced anchor is the start or end of the interval.
annotation
Information about the interpreted input, for example, timestamps, confidence scores, links to raw input, etc.
composite input
An input formed from several pieces, often in different modes, for example, a combination of speech and pen gesture, such as saying "zoom in here" and circling a region on a map.
confidence
A numerical score describing the degree of certainty in a particular interpretation of user input.
data model
For EMMA, a data model defines a set of constraints on possible interpretations of user input.
derivation
Interpretations of user input are said to be derived from that input, and higher level interpretations may be derived from lower level ones. EMMA allows you to reference the user input or interpretation a given interpretation was derived from, see semantic interpretation.
dialog
For EMMA, dialog can be considered as a sequence of interactions between a user and the application.
endpoint
In EMMA, this refers to a network location which is the source or recipient of an EMMA document. It should be noted that the usage of the term "endpoint" in this context is different from the way that the term is used in speech processing, where it refers to the end of a speech input.
gestures
In multimodal applications gestures are communicative acts made by the user or application. An example is circling an area on a map to indicate a region of interest. Users may be able to gesture with a pen, keystrokes, hand movements, head movements, or sound. Gestures often form part of composite input. Application gestures are typically animations and/or sound effects.
grammar
A set of rules that describe a sequence of tokens expected in a given input. These can be used by speech and handwriting recognizers to increase recognition accuracy.
handwriting recognition
The process of converting pen strokes into text.
ink recognition
This includes the recognition of handwriting and pen gestures.
input cost
In EMMA, this refers to a numerical measure indicating the weight or processing cost associated with a user's input or part of their input.
input device
The device proving a particular input, for example, a microphone, a pen, a mouse, a camera, or a keyboard.
input function
In EMMA, this refers to the use a particular input is serving, for example, as part of a recording or transcription, as part of a dialog, or as a means to verify the user's identity.
input medium
Whether the input is acoustic, visual, or tactile, for instance, a spoken utterance is an example of an aural input, a hand gesture as seen by a camera is an example of a visual input, pointing with a mouse or pen is an example of a tactile input.
input mode
This distinguishes a particular means of providing an input within a general input medium, for example, speech, DTMF, ink, key strokes, video, photograph, etc.
input source
This is the device that provided the input, for example a particular microphone or camera. EMMA allows you to identify these with a URI.
input tokens
In EMMA, this refers to a sequence of characters, words or other discrete units of input.
instance data
A representation in XML of an interpretation of user input.
interaction manager
A processor that determines how an application interacts with a user. This can be at multiple levels of abstraction, for example, at a detailed level, determining what prompts to present to the user and what actions to take in response to user input, versus a higher level treatment in terms of goals and tasks for achieving those goals. Interaction managers are frequently event driven.
interpretation
In EMMA, an interpretation of user input refers to information derived from the user input that is meaningful to the application.
keystroke input
Input provided by the user pressing on a sequence of keys (buttons), such as a computer keyboard or keypad.
lattice
A set of nodes interconnected with directed arcs such that by following an arc, you can never find yourself back at a node you have already visited (i.e. a directed acyclic graph). Lattices provide a flexible means to represent the results of speech and handwriting recognition, in terms of arcs representing words or character sequences. Different arcs from the same node represent different local hypotheses as to what the user said or wrote.
metadata
Information describing another set of data, for instance, a library catalog card with information on the author, title and location of a book. EMMA is designed to support input processors in providing metadata for interpretations of user input.
multimodal integration
The process of combining inputs from different modes to create an interpretation of composite input. This is also sometimes referred to as multimodal fusion.
multimodal interaction
The means for a user to interact with an application using more than one mode of interaction, for instance, offering the user the choice of speaking or typing, or in some cases, allowing the user to provide a composite input involving multiple modes.
natural language understanding
The process of interpreting text in terms that are useful for an application.
N-best list
An N-best list is a list of the most likely hypotheses for what the user actually said or wrote, where N stands for an integral number such as 5 for the 5 most likely hypotheses.
raw signal
An uninterpreted input, such as an audio waveform captured from a microphone.
semantic interpretation
A normalized representation of the meaning of a user input, for instance, mapping the speech for "San Francisco" into the airport code "SFO".
semantic processor
In EMMA, this refers to systems that can derive interpretations of user input, for instance, mapping the speech for "San Francisco" into the airport code "SFO".
signal interpretation
The process of mapping a discrete or continuous signal into a symbolic representation that can be used by an application, for instance, transforming the audio waveform corresponding to someone saying "2005" into the number 2005.
speech recognition
The process of determining the textual transcription of a piece of speech.
speech synthesis
The process of rendering a piece of text into the corresponding speech, i.e. synthesizing speech from text.
text to speech
The process of rendering a piece of text into the corresponding speech.
time stamp
The time that a particular input or part of an input began or ended.
URI: Uniform Resource Identifier
A URI is a unifying syntax for the expression of names and addresses of objects on the network as used in the World Wide Web. Within this specification, the term URI refers to a Universal Resource Identifier as defined in [RFC3986] and extended in [RFC3987] with the new name IRI. The term URI has been retained in preference to IRI to avoid introducing new names for concepts such as "Base URI" that are defined or referenced across the whole family of XML specifications. A URI is defined as any legal anyURI primitive as defined in XML Schema Part 2: Datatypes Second Edition Section 3.2.17 [SCHEMA2].
user input
An input provided by a user as opposed to something generated automatically.

2. Structure of EMMA documents

This section is Informative.

As noted above, the main components of an interpreted user input in EMMA are the instance data, an optional data model, and the metadata annotations that may be applied to that input. The realization of these components in EMMA is as follows:

An EMMA interpretation is the primary unit for holding user input as interpreted by an EMMA processor. As will be seen below, multiple interpretations of a single input are possible.

EMMA provides a simple structural syntax for the organization of interpretations and instances, and an annotative syntax to apply the annotation to the input data at different levels.

An outline of the structural syntax and annotations found in EMMA documents is as follows. A fuller definition may be found in the description of individual elements and attributes in Section 3 and Section 4.

From the defined root node emma:emma the structure of an EMMA document consists of a tree of EMMA container elements (emma:one-of, emma:sequence, emma:group) terminating in a number of interpretation elements (emma:interpretation). The emma:interpretation elements serve as wrappers for either application namespace markup describing the interpretation of the users input or an emma:lattice element or emma:literal element . A single emma:interpretation may also appear directly under the root node.

The EMMA elements emma:emma, emma:interpretation, emma:one-of, and emma:literal and the EMMA attributes emma:no-input, emma:uninterpreted, emma:medium, and emma:mode are required of all implementations. The remaining elements and attributes are optional and may be used in some implementations and not other depending on the specific modalities and processing being represented.

To illustrate this, here is an example of an EMMA document representing input to a flight reservation application. In this example there are two speech recognition results and associated semantic representations of the input. The system is uncertain whether the user meant "flights from Boston to Denver" or "flights from Austin to Denver". The annotations to be captured are timestamps and confidence scores for the two inputs.

Example:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:one-of id="r1" emma:start="1087995961542" emma:end="1087995963542"
     emma:medium="acoustic" emma:mode="voice">
    <emma:interpretation id="int1" emma:confidence="0.75"
    emma:tokens="flights from boston to denver">
      <origin>Boston</origin>
      <destination>Denver</destination>
    </emma:interpretation>

    <emma:interpretation id="int2" emma:confidence="0.68"
    emma:tokens="flights from austin to denver">
      <origin>Austin</origin>
      <destination>Denver</destination>
    </emma:interpretation>
  </emma:one-of>
</emma:emma>

Attributes on the root emma:emma element indicate the version and namespace. The emma:emma element contains an emma:one-of element which contains a disjunctive list of possible interpretations of the input. The actual semantic representation of each interpretation is within the application namespace. In the example here the application specific semantics involves elements origin and destination indicating the origin and destination cities for looking up a flight. The timestamp is the same for both interpretations and it is annotated using values in milliseconds in the emma:start and emma:end attributes on the emma:one-of. The confidence scores and tokens associated with each of the inputs are annotated using the EMMA annotation attributes emma:confidence and emma:tokens on each of the emma:interpretation elements.

Attributes in EMMA cascade from a containing emma:one-of element to the individual interpretations. In the example above, the emma:start, emma:end, emma:medium, and emma:mode attributes are all specified once on emma:one-of but apply to both of the contained emma:interpretation elements. This is an important mechanism as it limits the need to repeat annotations. More details on the scope of annotations among EMMA structural elements, and also on the scope of annotations within derivations, where multiple different processing stages apply to an input, can be found in Section 4.3.

Many EMMA elements allow for content to be specified either inline or by reference using the ref attribute. This is an important mechanism as it allows for EMMA documents to be less verbose and yet allows the EMMA consumer to access content from an external document, possibly on a remote server. For example, in the case of emma:grammar a grammar can either be specified inline within the element or the ref attribute on emma:grammar can indicate the location where the grammar document can be retrieved. Similarly with emma:model a data model can be specified inline or by reference through the ref attribute. A ref attribute can also be used on the EMMA container elements emma:sequence, emma:one-of, emma:group, and emma:lattice. In these cases, the ref attribute provides a pointer to a portion of an external EMMA document, possibly on a remote server. This can be achieved using URI ID references to pick out a particular element within the external EMMA document. One use case for ref with the container elements is to allow for inline content to be partial and for the ref to provide access to the full content. For example, in the case of emma:one-of, an EMMA document delivered to an EMMA consumer could contain an abbreviated list of interpretations, e.g. the top 3, while an emma:one-of element accessible through the URI in ref to include a more inclusive list of 20 emma:interpretation elements. The emma:partial-content attribute MUST be used on the partially specified element if the ref refers to a more fully specified element. The emma:ref attribute can also be used on emma:info, emma:parameters, and emma:annotation. The use of ref on specific elements is described and exemplified in the specific section describing each element.

2.1 Data model

An EMMA data model expresses the constraints on the structure and content of instance data, for the purposes of validation. As such, the data model may be considered as a particular kind of annotation (although, unlike other EMMA annotations, it is not a feature pertaining to a specific user input at a specific moment in time, it is rather a static and, by its very definition, application-specific structure). The specification of a data model in EMMA is optional.

Since Web applications today use different formats to specify data models, e.g. XML Schema Part 1: Structures Second Edition [XML Schema Structures], XForms 1.0 (Second Edition) [XFORMS], RELAX NG Specification [RELAX-NG], etc., EMMA itself is agnostic to the format of data model used.

Data model definition and reference is defined in Section 4.1.1.

2.2 EMMA namespace prefixes

An EMMA attribute is qualified with the EMMA namespace prefix if the attribute can also be used as an in-line annotation on elements in the application's namespace. Most of the EMMA annotation attributes in Section 4.2 are in this category. An EMMA attribute is not qualified with the EMMA namespace prefix if the attribute only appears on an EMMA element. This rule ensures consistent usage of the attributes across all examples.

Attributes from other namespaces are permissible on all EMMA elements. As an example xml:lang may be used to annotate the human language of character data content.

3. EMMA structural elements

This section defines elements in the EMMA namespace which provide the structural syntax of EMMA documents.

3.1 Root element: emma:emma

Annotation emma:emma
Definition The root element of an EMMA document.
Children The emma:emma element MUST immediately contain a single emma:interpretation element or EMMA container element: emma:one-of, emma:group, emma:sequence. It MAY also contain an optional single emma:derivation element. It MAY also contain multiple optional emma:grammar elements, emma:model elements, and emma:endpoint-info elements, emma:info elements, emma:process-model elements, emma:parameters elements, and emma:annotation elements. It may also contain a single emma:location element.
Attributes
  • Required:
    • version: the version of EMMA used for the interpretation(s). Interpretations expressed using this specification MUST use 1.1 for the value.
    • Namespace declaration for EMMA, see below.
  • Optional:
    • any other namespace declarations for application specific namespaces.
    • doc-ref: an attribute of type xsd:anyURI providing a URI indicating the location on a server where the EMMA document with emma:emma as root can be retrieved from.
    • prev-doc: an attribute of type xsd:anyURI providing a URI indicating the location on a server where the EMMA document previous to this EMMA document in the sequence of interaction can be retrieved from.
Applies to None

The root element of an EMMA document is named emma:emma. It holds a single emma:interpretation or EMMA container element (emma:one-of, emma:sequence, emma:group). It MAY also contain a single emma:derivation element containing earlier stages of the processing of the input (See Section 4.1.2). It MAY also contain multiple optional emma:grammar, emma:model, and emma:endpoint-info , emma:info, emma:process-model, emma:parameters, and emma:annotation elements.

It MAY hold attributes for information pertaining to EMMA itself, along with any namespaces which are declared for the entire document, and any other EMMA annotative data. The emma:emma element and other elements and attributes defined in this specification belong to the XML namespace identified by the URI "http://www.w3.org/2003/04/emma". In the examples, the EMMA namespace is generally declared using the attribute xmlns:emma on the root emma:emma element. EMMA processors MUST support the full range of ways of declaring XML namespaces as defined by the Namespaces in XML 1.1 (Second Edition) [XMLNS]. Application markup MAYMUST be declared either in an explicit application namespace, or an undefined namespace by setting xmlns="".

For example:

<emma:emma version="1.1" xmlns:emma="http://www.w3.org/2003/04/emma">
    ....
</emma:emma>

or

<emma version="1.1" xmlns="http://www.w3.org/2003/04/emma">
    ....
</emma>

The optional attributes doc-ref and prev-doc MAY be used on emma:emma in order to indicate the location where the EMMA document comprising that emma:emma element can be retrieved from, and the location of the previous EMMA document in a sequence of interactions. One important use case for doc-ref is for client side logging. A client receiving an EMMA document can record the URI found in doc-ref in a log file instead of a local copy of the whole EMMA document. The prev-doc attribute provides a mechanism for tracking a sequence of EMMA documents representing the results of processing distinct turns of interaction by an EMMA processor.

In the following example, doc-ref on EMMA provides a URI which indicates where the EMMA document embodied in this emma:emma can be retrieved from.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example"
    doc-ref="http://example.com/trainapp/user123/emma0727080512.xml">
  <emma:interpretation id="int1"
      emma:medium="acoustic"
      emma:mode="voice"
      emma:function="dialog"
      emma:verbal="true"
      emma:signal="http://example.com/audio/input678.amr"
      emma:process="http://example.com/asr/params.xml"
      emma:tokens="trains to london tomorrow">
    <destination>London</destination>
    <date>tomorrow</date>
  </emma:interpretation>
</emma:emma>

In the following example, again doc-ref indicates where the EMMA document can be retrieved from but in addition prev-doc indicates where the previous EMMA document can be retrieved from.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
    http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example"
    doc-ref="http://example.com/trainapp/user123/emma0730080512.xml"
    prev-doc="http://example.com/trainapp/user123/emma0727080512.xml">
  <emma:interpretation id="int1"
      emma:medium="acoustic"
      emma:mode="voice"
      emma:function="dialog"
      emma:verbal="true"
      emma:signal="http://example.com/audio/input679.amr"
      emma:process="http://example.com/asr/params.xml"
      emma:tokens="from cambridge">
    <origin>Cambridge</origin>
  </emma:interpretation>
</emma:emma>
EMMA processors may be use a number of different techniques to determine the prev-doc. It may, for example, be determined based on the session. In a session of interaction a server processing requests for processing can track the previous EMMA result for a client and indicate that in prev-doc. Alternatively, the URI of the last EMMA result could be passed in as a parameter in a request to an EMMA processor and returned in the prev-doc with the next result.

3.2 Interpretation element: emma:interpretation

Annotation emma:interpretation
Definition The emma:interpretation element acts as a wrapper for application instance data or lattices.
Children The emma:interpretation element MUST immediately contain either application instance data, or a single emma:lattice element, or a single emma:literal element, or in the case of uninterpreted input or no input emma:interpretation MUST be empty. It MAY also contain multiple optional emma:derived-from elements and an optional single emma:info element. It MAY also contain multiple optional emma:annotation elements. It MAY also contain multiple emma:parameters elements. It MAY also contain a single optional emma:grammar-active element. It may also contain a single emma:location element.
Attributes
  • Required: Attribute id of type xsd:ID that uniquely identifies the interpretation within the EMMA document.
  • Optional: The annotation attributes: emma:tokens, emma:process, emma:no-input, emma:uninterpreted, emma:lang, emma:signal, emma:signal-size, emma:media-type, emma:confidence, emma:source, emma:start, emma:end, emma:time-ref-uri, emma:time-ref-anchor-point, emma:offset-to-start, emma:duration, emma:medium, emma:mode, emma:function, emma:verbal, emma:cost, emma:grammar-ref, emma:endpoint-info-ref, emma:model-ref, emma:dialog-turn, emma:info-ref, emma:parameter-ref, emma:process-model-ref, emma:annotated-tokens, emma:result-format, emma:expressed-through, emma:device-type.
Applies to The emma:interpretation element is legal only as a child of emma:emma, emma:group, emma:one-of, emma:sequence, or emma:derivation.

The emma:interpretation element holds a single interpretation represented in application specific markup, or a single emma:lattice element, or a single emma:literal element.

The emma:interpretation element MUST be empty if it is marked with emma:no-input="true" (Section 4.2.3). The emma:interpretation element MUST be empty if it has been annotated with emma:uninterpreted="true" (Section 4.2.4) or emma:function="recording" (Section 4.2.11).

Attributes:

  1. id a REQUIRED xsd:ID value that uniquely identifies the interpretation within the EMMA document.
<emma:emma version="1.1" xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="r1" emma:medium="acoustic" emma:mode="voice">
    ...
  </emma:interpretation>
</emma:emma>

While emma:medium and emma:mode are optional on emma:interpretation, note that all EMMA interpretations must be annotated for emma:medium and emma:mode, so either these attributes must appear directly on emma:interpretation or they must appear on an ancestor emma:one-of node or they must appear on an earlier stage of the derivation listed in emma:derivation.

3.3 Container elements

3.3.1 emma:one-of element

Annotation emma:one-of
Definition A container element indicating a disjunction among a collection of mutually exclusive interpretations of the input.
Children The emma:one-of element MUST immediately contain a collection of one or more emma:interpretation elements or container elements: emma:one-of, emma:group, emma:sequence UNLESS it is annotated with ref. It MAY also contain multiple optional emma:derived-from elements and multiple emma:info elements. It MAY also contain multiple optional emma:annotation elements. It MAY also contain multiple optional emma:parameters elements. It MAY also contain a single optional emma:grammar-active element. It MAY also contain a single emma:lattice element containing the lattice result for the same input. It may also contain a single emma:location element.
Attributes
  • Required:
    • Attribute id of type xsd:ID
    • The attribute disjunction-type MUST be present if emma:one-of is embedded within emma:one-of. The possible values of disjunction-type are {recognition, understanding, multi-device, and multi-process}.
  • Optional:
    • On a single non-embedded emma:one-of the attribute disjunction-type is optional.
    • A single ref attribute of type xsd:anyURI providing a reference to a location where the content of the element can be retrieved from
    • An emma:partial-content attribute of type xsd:boolean indicating whether the content inside the element is partial and more can be retrieved from an external document through ref
    • The following annotation attributes are optional: emma:tokens, emma:process, emma:lang, emma:signal, emma:signal-size, emma:media-type, emma:confidence, emma:source, emma:start, emma:end, emma:time-ref-uri, emma:time-ref-anchor-point, emma:offset-to-start, emma:duration, emma:medium, emma:mode, emma:function, emma:verbal, emma:cost, emma:grammar-ref, emma:endpoint-info-ref, emma:model-ref, emma:dialog-turn,emma:info-ref , emma:parameter-ref, emma:process-model-ref, emma:annotated-tokens, emma:result-format, emma:expressed-through, emma:device-type.
Applies to The emma:one-of element MAY only appear as a child of emma:emma, emma:one-of, emma:group, emma:sequence, or emma:derivation.

The emma:one-of element acts as a container for a collection of one or more interpretation (emma:interpretation) or container elements (emma:one-of, emma:group, emma:sequence), and denotes that these are mutually exclusive interpretations.

An N-best list of choices in EMMA MUST be represented as a set of emma:interpretation elements contained within an emma:one-of element. For instance, a series of different recognition results in speech recognition might be represented in this way.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:one-of id="r1" emma:medium="acoustic" emma:mode="voice"
    ref="http://www.example.com/i156/emma.xml#r1>
    <emma:interpretation id="int1">
      <origin>Boston</origin>
      <destination>Denver</destination>
      <date>03112003</date>
    </emma:interpretation>
    <emma:interpretation id="int2">
      <origin>Austin</origin>
      <destination>Denver</destination>
      <date>03112003</date>
    </emma:interpretation>
  </emma:one-of>
</emma:emma>

The function of the emma:one-of element is to represent a disjunctive list of possible interpretations of a user input. A disjunction of possible interpretations of an input can be the result of different kinds of processing or ambiguity. One source is multiple results from a recognition technology such as speech or handwriting recognition. Multiple results can also occur from parsing or understanding natural language. Another possible source of ambiguity is from the application of multiple different kinds of recognition or understanding components to the same input signal. For example, an single ink input signal might be processed by both handwriting recognition and gesture recognition. Another is the use of more than one recording device for the same input (multiple microphones).

The optional ref attribute indicates a location where a copy of the content within the emma:one-of element can be retrieved from an external document, possibly located on a remote server.

In order to make explicit these different kinds of multiple interpretations and allow for concise statement of the annotations associated with each, the emma:one-of element MAY appear within another emma:one-of element. If emma:one-of elements are nested then they MUST indicate the kind of disjunction using the attribute disjunction-type. The values of disjunction-type are {recognition, understanding, multi-device, and multi-process}. For the most common use case, where there are multiple recognition results and some of them have multiple interpretations, the top-level emma:one-of is disjunction-type="recognition" and the embedded emma:one-of has the attribute disjunction-type="understanding".

As an example, in an interactive flight reservation application, recognition yielded 'Boston' or 'Austin' and each had a semantic interpretation as either the assertion of city name or the specification of a flight query with the city as the destination, this would be represented as follows in EMMA:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:one-of disjunction-type="recognition"
      start="12457990" end="12457995"
      emma:medium="acoustic" emma:mode="voice">
     <emma:one-of disjunction-type="understanding"
         emma:tokens="boston">
       <emma:interpretation>
          <assert><city>boston</city></assert>
       </emma:interpretation>
       <emma:interpretation>
          <flight><dest><city>boston</city></dest></flight>
       </emma:interpretation>
     </emma:one-of>
     <emma:one-of disjunction-type="understanding"
         emma:tokens="austin">
       <emma:interpretation>
          <assert><city>austin</city></assert>
       </emma:interpretation>
       <emma:interpretation>
          <flight><dest><city>austin</city></dest></flight>
       </emma:interpretation>
     </emma:one-of>
  </emma:one-of>
</emma:emma>

EMMA MAY explicitly represent ambiguity resulting from different processes, devices, or sources using embedded emma:one-of and the disjunction-type attribute. Multiple different interpretations resulting from different factors MAY also be listed within a single unstructured emma:one-of though in this case it is more complex or impossible to uncover the sources of the ambiguity if required by later stages of processing. If there is no embedding in emma:one-of, then the disjunction-type attribute is not required. If the disjunction-type attribute is missing then by default the source of disjunction is unspecified.

The example case above could also be represented as:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:one-of  start="12457990" end="12457995"
         emma:medium="acoustic" emma:mode="voice">
     <emma:interpretation emma:tokens="boston">
        <assert><city>boston</city></assert>
     </emma:interpretation>
     <emma:interpretation >
        <flight><dest><city>boston</city></dest></flight>
     </emma:interpretation>
     <emma:interpretation emma:tokens="austin">
        <assert><city>austin</city></assert>
     </emma:interpretation>
     <emma:interpretation emma:tokens="austin">
        <flight><dest><city>austin</city></dest></flight>
     </emma:interpretation>
  </emma:one-of>
</emma:emma>

But in this case information about which interpretations resulted from speech recognition and which resulted from language understanding is lost.

A list of emma:interpretation elements within an emma:one-of MUST be sorted best-first by some measure of quality. The quality measure is emma:confidence if present, otherwise, the quality metric is platform-specific.

With embedded emma:one-of structures there is no requirement for the confidence scores within different emma:one-of to be on the same scale. For example, the scores assigned by handwriting recognition might not be comparable to those assigned by gesture recognition. Similarly, if multiple recognizers are used there is no guarantee that their confidence scores will be comparable. For this reason the ordering requirement on emma:interpretation within emma:one-of only applies locally to sister emma:interpretation elements within each emma:one-of. There is no requirement on the ordering of embedded emma:one-of elements within a higher emma:one-of element.

While emma:medium and emma:mode are optional on emma:one-of, note that all EMMA interpretations must be annotated for emma:medium and emma:mode, so either these annotations must appear directly on all of the contained emma:interpretation elements within the emma:one-of, or they must appear on the emma:one-of element itself, or they must appear on an ancestor emma:one-of element, or they must appear on an earlier stage of the derivation listed in emma:derivation.

An important use case for ref on emma:one-of is to allow an EMMA processor to return an abbreviated list of container elements such as emma:interpretation within an emma:one-of and use the ref attribute to provide a reference to a more fully specified set. In these cases, the emma:one-of MUST be annotated with the emma:partial-content="true" attribute.

In the following example the EMMA document received has the two interpretations within emma:one-of. The emma:partial-content="true" provides an indication that there are more interpretations and those can be retrieved by accessing the URI in ref : "http://www.example.com/emma_021210_10.xml#r1".

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:one-of id="r1" emma:medium="acoustic" emma:mode="voice"
    ref="http://www.example.com/emma_021210_10.xml#r1

    emma:partial-content="true">
    <emma:interpretation id="int1"
     emma:tokens="from boston to denver"
     emma:confidence="0.9">
      <origin>Boston</origin>
      <destination>Denver</destination>
    </emma:interpretation>
    <emma:interpretation id="int2"
     emma:tokens="from austin to denver"
     emma:confidence="0.7">
      <origin>Austin</origin>
      <destination>Denver</destination>
    </emma:interpretation>
  </emma:one-of>
</emma:emma>

Where the document at "http://www.example.com/emma_021210_10.xml" is as follows, and there are two more interpretations within the emma:one-of with id "r1".

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
    http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:one-of id="r1" emma:medium="acoustic" emma:mode="voice"

    emma:partial-content="false">
    <emma:interpretation id="int1"
     emma:tokens="from boston to denver"
     emma:confidence="0.9">
      <origin>Boston</origin>
      <destination>Denver</destination>
    </emma:interpretation>
    <emma:interpretation id="int2"
     emma:tokens="from austin to denver"
     emma:confidence="0.7">
      <origin>Austin</origin>
      <destination>Denver</destination>
    </emma:interpretation>
    <emma:interpretation id="int3"
     emma:tokens="from tustin to denver"
     emma:confidence="0.3">
      <origin>Tustin</origin>
      <destination>Denver</destination>
    </emma:interpretation>
    <emma:interpretation id="int4"
     emma:tokens="from tustin to dallas"
     emma:confidence="0.1">
      <origin>Tustin</origin>
      <destination>Dallas</destination>
    </emma:interpretation>
  </emma:one-of>
</emma:emma>

It is also possible to specify a lattice of results alongside an N-best list of interpretations in emma:one-of. A single emma:lattice element can appear as a child of emma:one-of and contains a lattice representation of the processing of the same input resulting in the interpretations that appear within the emma:one-of. In this example, there are two N-best results and the emma:lattice enumerates two more as it includes arcs for "tomorrow" vs "today".

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:one-of id="r1" emma:medium="acoustic" emma:mode="voice">
    <emma:interpretation id="int1" emma:tokens="flights from boston to denver tomorrow">
      <origin>Boston</origin>
      <destination>Denver</destination>
      <date>tomorrow</date>
    </emma:interpretation>
    <emma:interpretation id="int2" emma:tokens="flights from austin to denver tomorrow">
      <origin>Austin</origin>
      <destination>Denver</destination>
      <date>tomorrow</date>
    </emma:interpretation>
     <emma:lattice initial="1" final="7">
      <emma:arc from="1" to="2">flights</emma:arc>
      <emma:arc from="2" to="3">from</emma:arc>
      <emma:arc from="3" to="4">boston</emma:arc>
      <emma:arc from="3" to="4">austin</emma:arc>
      <emma:arc from="4" to="5">to</emma:arc>
      <emma:arc from="5" to="6">denver</emma:arc>
      <emma:arc from="6" to="7">today</emma:arc>
      <emma:arc from="6" to="7">tomorrow</emma:arc>
    </emma:lattice>
  </emma:one-of>
</emma:emma>

3.3.2 emma:group element

Annotation emma:group
Definition A container element indicating that a number of interpretations of distinct user inputs are grouped according to some criteria.
Children The emma:group element MUST immediately contain a collection of one or more emma:interpretation elements or container elements: emma:one-of, emma:group, emma:sequence . It MAY also contain an optional single emma:group-info element. It MAY also contain multiple optional emma:derived-from elements and multiple emma:info elements. It MAY also contain multiple optional emma:annotation elements. It MAY also contain multiple optional emma:parameters elements. It MAY also contain a single optional emma:grammar-active element. It may also contain a single emma:location element.
Attributes
  • Required: Attribute id of type xsd:ID
  • Optional:
  • A single ref attribute of type xsd:anyURI providing a reference to a location where the content of the element can be retrieved from
  • An emma:partial-content attribute of type xsd:boolean indicating whether the content inside the element is partial and more can be retrieved from an external document through ref
  • The annotation attributes: emma:tokens, emma:process, emma:lang, emma:signal, emma:signal-size, emma:media-type, emma:confidence, emma:source, emma:start, emma:end, emma:time-ref-uri, emma:time-ref-anchor-point, emma:offset-to-start, emma:duration, emma:medium, emma:mode, emma:function, emma:verbal, emma:cost, emma:grammar-ref, emma:endpoint-info-ref, emma:model-ref, emma:dialog-turn,emma:info-ref , emma:parameter-ref, emma:process-model-ref, emma:annotated-tokens, emma:result-format, emma:expressed-through, emma:device-type.
Applies to The emma:group element is legal only as a child of emma:emma, emma:one-of, emma:group, emma:sequence, or emma:derivation.

The emma:group element is used to indicate that the contained interpretations are from distinct user inputs that are related in some manner. emma:group MUST NOT be used for containing the multiple stages of processing of a single user input. Those MUST be contained in the emma:derivation element instead (Section 4.1.2). For groups of inputs in temporal order the more specialized container emma:sequence MUST be used (Section 3.3.3). The following example shows three interpretations derived from the speech input "Move this ambulance here" and the tactile input related to two consecutive points on a map.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:group id="grp"
      emma:start="1087995961542"
      emma:end="1087995964542">
    <emma:interpretation id="int1"
      emma:medium="acoustic" emma:mode="voice">
      <action>move</action>
      <object>ambulance</object>
      <destination>here</destination>
    </emma:interpretation>
    <emma:interpretation id="int2"
      emma:medium="tactile" emma:mode="ink">
      <x>0.253</x>
      <y>0.124</y>
    </emma:interpretation>
    <emma:interpretation id="int3"
      emma:medium="tactile" emma:mode="ink">
      <x>0.866</x>
      <y>0.724</y>
    </emma:interpretation>
  </emma:group>
</emma:emma>

The emma:one-of and emma:group containers MAY be nested arbitrarily.

Like emma:one-of the contents for emma:group may be partial, indicated by emma:partial-content="true" and the full set of group members retrieved by accessing the element referenced in ref.

3.3.2.1 Indirect grouping criteria: emma:group-info element

Annotation emma:group-info
Definition The emma:group-info element contains or references criteria used in establishing the grouping of interpretations in an emma:group element.
Children The emma:group-info element MUST either immediately contain inline instance data specifying grouping criteria or have the attribute ref referencing the criteria.
Attributes
  • Optional: ref of type xsd:anyURI referencing the grouping criteria; alternatively the criteria MAY be provided inline as the content of the emma:group-info element.
Applies to The emma:group-info element is legal only as a child of emma:group.

Sometimes it may be convenient to indirectly associate a given group with information, such as grouping criteria. The emma:group-info element might be used to make explicit the criteria by which members of a group are associated. In the following example, a group of two points is associated with a description of grouping criteria based upon a sliding temporal window of two seconds duration.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example"
    xmlns:ex="http://www.example.com/ns/group">
  <emma:group id="grp">
    <emma:group-info>
      <ex:mode>temporal</ex:mode>
      <ex:duration>2s</ex:duration>
    </emma:group-info>
    <emma:interpretation id="int1"
      emma:medium="tactile" emma:mode="ink">
      <x>0.253</x>
      <y>0.124</y>
    </emma:interpretation>
    <emma:interpretation id="int2"
      emma:medium="tactile" emma:mode="ink">
      <x>0.866</x>
      <y>0.724</y>
    </emma:interpretation>
  </emma:group>
</emma:emma>

You might also use emma:group-info to refer to a named grouping criterion using external reference, for instance:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example"
    xmlns:ex="http://www.example.com/ns/group">
  <emma:group id="grp">
    <emma:group-info ref="http://www.example.com/criterion42"/>
    <emma:interpretation id="int1"
      emma:medium="tactile" emma:mode="ink">
      <x>0.253</x>
      <y>0.124</y>
    </emma:interpretation>
    <emma:interpretation id="int2"
      emma:medium="tactile" emma:mode="ink">
      <x>0.866</x>
      <y>0.724</y>
    </emma:interpretation>
  </emma:group>
</emma:emma>

3.3.3 emma:sequence element

Annotation emma:sequence
Definition A container element indicating that a number of interpretations of distinct user inputs are in temporal sequence.
Children The emma:sequence element MUST immediately contain a collection of one or more emma:interpretation elements or container elements: emma:one-of, emma:group, emma:sequence . It MAY also contain multiple optional emma:derived-from elements and multiple emma:info elements. It MAY also contain multiple optional emma:annotation elements. It MAY also contain multiple optional emma:parameters elements. It MAY also contain a single optional emma:grammar-active element. It may also contain a single emma:location element.
Attributes
  • Required: Attribute id of type xsd:ID
  • Optional:
  • A single ref attribute of type xsd:anyURI providing a reference to a location where the content of the element can be retrieved from
  • An emma:partial-content attribute of type xsd:boolean indicating whether the content inside the element is partial and more can be retrieved from the server through ref
  • The annotation attributes: emma:tokens, emma:process, emma:lang, emma:signal, emma:signal-size, emma:media-type, emma:confidence, emma:source, emma:start, emma:end, emma:time-ref-uri, emma:time-ref-anchor-point, emma:offset-to-start, emma:duration, emma:medium, emma:mode, emma:function, emma:verbal, emma:cost, emma:grammar-ref, emma:endpoint-info-ref, emma:model-ref, emma:dialog-turn, emma:info-ref, emma:parameter-ref, emma:process-model-ref, emma:annotated-tokens, emma:result-format, emma:expressed-through, emma:device-type.
Applies to The emma:sequence element is legal only as a child of emma:emma, emma:one-of, emma:group, emma:sequence, or emma:derivation.

The emma:sequence element is used to indicate that the contained interpretations are sequential in time, as in the following example, which indicates that two points made with a pen are in temporal order.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:sequence id="seq1">
    <emma:interpretation id="int1"
        emma:medium="tactile" emma:mode="ink">
      <x>0.253</x>
      <y>0.124</y>
    </emma:interpretation>
    <emma:interpretation id="int2"
        emma:medium="tactile" emma:mode="ink">
      <x>0.866</x>
      <y>0.724</y>
    </emma:interpretation>
  </emma:sequence>
</emma:emma>

The emma:sequence container MAY be combined with emma:one-of and emma:group in arbitrary nesting structures. The order of children in the content of the emma:sequence element corresponds to a sequence of interpretations. This ordering does not imply any particular definition of sequentiality. EMMA processors are expected therefore to use the emma:sequence element to hold interpretations which are either strictly sequential in nature (e.g. the end-time of an interpretation precedes the start-time of its follower), or which overlap in some manner (e.g. the start-time of a follower interpretation precedes the end-time of its precedent). It is possible to use timestamps to provide fine grained annotation for the sequence of interpretations that are sequential in time (see Section 4.2.10).

In the following more complex example, a sequence of two pen gestures in emma:sequence and a speech input in emma:interpretation is contained in an emma:group.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:group id="grp">
     <emma:interpretation id="int1" emma:medium="acoustic"
         emma:mode="voice">
       <action>move</action>
       <object>this-battleship</object>
       <destination>here</destination>
     </emma:interpretation>
     <emma:sequence id="seq1">
       <emma:interpretation id="int2" emma:medium="tactile"
           emma:mode="ink">
         <x>0.253</x>
         <y>0.124</y>
       </emma:interpretation>
     <emma:interpretation id="int3" emma:medium="tactile"
         emma:mode="ink">
       <x>0.866</x>
       <y>0.724</y>
     </emma:interpretation>
   </emma:sequence>
 </emma:group>
</emma:emma>

Like emma:one-of the contents for emma:group may be partial, indicated by emma:partial-content="true" and the full set of group members retrieved by accessing the element referenced in ref.

3.4 Lattice element

In addition to providing the ability to represent N-best lists of interpretations using emma:one-of, EMMA also provides the capability to represent lattices of words or other symbols using the emma:lattice element. Lattices provide a compact representation of large lists of possible recognition results or interpretations for speech, pen, or multimodal inputs.

In addition to providing a representation for lattice output from speech recognition, another important use case for lattices is for representation of the results of gesture and handwriting recognition from a pen modality component. Lattices can also be used to compactly represent multiple possible meaning representations. Another use case for the lattice representation is for associating confidence scores and other annotations with individual words within a speech recognition result string.

Lattices are compactly described by a list of transitions between nodes. For each transition the start and end nodes MUST be defined, along with the label for the transition. Initial and final nodes MUST also be indicated. The following figure provides a graphical representation of a speech recognition lattice which compactly represents eight different sequences of words.

speech lattice

which expands to:

a. flights to boston from portland today please
b. flights to austin from portland today please
c. flights to boston from oakland today please
d. flights to austin from oakland today please
e. flights to boston from portland tomorrow
f. flights to austin from portland tomorrow
g. flights to boston from oakland tomorrow
h. flights to austin from oakland tomorrow

3.4.1 Lattice markup: emma:lattice, emma:arc, emma:node elements

Annotation emma:lattice
Definition An element which encodes a lattice representation of user input.
Children The emma:lattice element MUST immediately contain one or more emma:arc elements and zero or more emma:node elements.
Attributes
  • Required:
    • initial of type xsd:nonNegativeInteger indicating the number of the initial node of the lattice.
    • final contains a space-separated list of xsd:nonNegativeInteger indicating the numbers of the final nodes in the lattice.
  • Optional:
    • idof type xsd:id
    • A single ref attribute of type xsd:anyURI providing a reference to a location where the content of the lattice element can be retrieved from
    • An emma:partial-content attribute of type xsd:boolean indicating whether the content inside the element is partial and more can be retrieved from an external document through ref
    • emma:time-ref-uri, emma:time-ref-anchor-point.
Applies to The emma:lattice element is legal only as a child of the emma:interpretation and emma:one-of elements.
Annotation emma:arc
Definition An element which encodes a transition between two nodes in a lattice. The label associated with the arc in the lattice is represented in the content of emma:arc.
Children The emma:arc element MUST immediately contain either character data or a single application namespace element or be empty, in the case of epsilon transitions. It MAY contain an emma:info element containing application or vendor specific annotations. It MAY contain zero or more optional emma:annotation elements containing annotations made by a human annotator.
Attributes
  • Required:
    • from of type xsd:nonNegativeInteger indicating the number of the starting node for the arc.
    • to of type xsd:nonNegativeInteger indicating the number of the ending node for the arc.
  • Optional: emma:start, emma:end, emma:offset-to-start, emma:duration, emma:confidence, emma:cost, emma:lang, emma:medium, emma:mode, emma:source, emma:annotated-tokens.
Applies to The emma:arc element is legal only as a child of the emma:lattice element.
Annotation emma:node
Definition An element which represents a node in the lattice. The emma:node elements are not required to describe a lattice but might be added to provide a location for annotations on nodes in a lattice. There MUST be at most one emma:node specification for each numbered node in the lattice.
Children An OPTIONAL emma:info element for application or vendor specific annotations on the node. It MAY contain zero or more optional emma:annotation elements containing annotations made by a human annotator.
Attributes
  • Required:
    • node-number of type xsd:nonNegativeInteger indicating the node number in the lattice.
  • Optional: emma:confidence, emma:cost.
Applies to The emma:node element is legal only as a child of the emma:lattice element.

In EMMA, a lattice is represented using an element emma:lattice, which has attributes initial and final for indicating the initial and final nodes of the lattice. For the lattice below, this will be: <emma:lattice initial="1" final="8"/>. The nodes are numbered with integers. If there is more than one distinct final node in the lattice the nodes MUST be represented as a space separated list in the value of the final attribute e.g. <emma:lattice initial="1" final="9 10 23"/>. There MUST only be one initial node in an EMMA lattice. Each transition in the lattice is represented as an element emma:arc with attributes from and to which indicate the nodes where the transition starts and ends. The arc's label is represented as the content of the emma:arc element and MUST be any well-formed character or XML content. In the example here the contents are words. Empty (epsilon) transitions in a lattice MUST be represented in the emma:lattice representation as emma:arc empty elements, e.g. <emma:arc from="1" to="8"/>.

The example speech lattice above would be represented in EMMA markup as follows:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="interp1"
    emma:medium="acoustic" emma:mode="voice">
    <emma:lattice initial="1" final="8">
      <emma:arc from="1" to="2">flights</emma:arc>
      <emma:arc from="2" to="3">to</emma:arc>
      <emma:arc from="3" to="4">boston</emma:arc>
      <emma:arc from="3" to="4">austin</emma:arc>
      <emma:arc from="4" to="5">from</emma:arc>
      <emma:arc from="5" to="6">portland</emma:arc>
      <emma:arc from="5" to="6">oakland</emma:arc>
      <emma:arc from="6" to="7">today</emma:arc>
      <emma:arc from="7" to="8">please</emma:arc>
      <emma:arc from="6" to="8">tomorrow</emma:arc>
    </emma:lattice>
  </emma:interpretation>
</emma:emma>

Alternatively, if we wish to represent the same information as an N-best list using emma:one-of, we would have the more verbose representation:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:one-of id="nbest1" emma:medium="acoustic" emma:mode="voice">
    <emma:interpretation id="interp1">
      <text>flights to boston from portland today please</text>
    </emma:interpretation>
    <emma:interpretationid="interp2">
      <text>flights to boston from portland tomorrow</text>
    </emma:interpretation>
    <emma:interpretation id="interp3">
      <text>flights to austin from portland today please</text>
    </emma:interpretation>
    <emma:interpretation id="interp4">
      <text>flights to austin from portland tomorrow</text>
    </emma:interpretation>
    <emma:interpretation id="interp5">
      <text>flights to boston from oakland today please</text>
    </emma:interpretation>
    <emma:interpretation id="interp6">
      <text>flights to boston from oakland tomorrow</text>
    </emma:interpretation>
    <emma:interpretation id="interp7">
      <text>flights to austin from oakland today please</text>
    </emma:interpretation>
    <emma:interpretation id="interp8">
      <text>flights to austin from oakland tomorrow</text>
    </emma:interpretation>
  </emma:one-of>
</emma:emma>

The lattice representation avoids the need to enumerate all of the possible word sequences. Also, as detailed below, the emma:lattice representation enables placement of annotations on individual words in the input.

For use cases involving the representation of gesture/ink lattices and use cases involving lattices of semantic interpretations, EMMA allows for application namespace elements to appear within emma:arc.

For example a sequence of two gestures, each of which is recognized as either a line or a circle, might be represented as follows:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="interp1"
    emma:medium="acoustic" emma:mode="voice">
    <emma:lattice initial="1" final="3">
      <emma:arc from="1" to="2">
        <circle radius="100"/>
      </emma:arc>
      <emma:arc from="2" to="3">
        <line length="628"/>
      </emma:arc>
      <emma:arc from="1" to="2">
        <circle radius="200"/>
      </emma:arc>
      <emma:arc from="2" to="3">
        <line length="1256"/>
      </emma:arc>
    </emma:lattice>
  </emma:interpretation>
</emma:emma>

As an example of a lattice of semantic interpretations, in a travel application where the source is either "Boston" or "Austin"and the destination is either "Newark" or "New York", the possibilities might be represented in a lattice as follows:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="interp1"
    emma:medium="acoustic" emma:mode="voice">
    <emma:lattice initial="1" final="3">
      <emma:arc from="1" to="2">
        <source city="boston"/>
      </emma:arc>
      <emma:arc from="2" to="3">
        <destination city="newark"/>
      </emma:arc>
      <emma:arc from="1" to="2">
        <source city="austin"/>
      </emma:arc>
      <emma:arc from="2" to="3">
        <destination city="new york"/>
      </emma:arc>
    </emma:lattice>
  </emma:interpretation>
</emma:emma>

The emma:arc element MAY contain either an application namespace element or character data. It MUST NOT contain combinations of application namespace elements and character data. However, an emma:info element MAY appear within an emma:arc element alongside character data, in order to allow for the association of vendor or application specific annotations on a single word or symbol in a lattice. Also an emma:annotation element may appear as a child of emma:arc or emma:node indicating human annotations on the arc or node.

So, in summary, there are four groupings of content that can appear within emma:arc:

The ref attribute on emma:lattice can be used for cases where the lattice is not returned in the document, but is made accessible through ref, or for cases where the lattice is partial and a full lattice is available on the server.

For example the following emma:lattice does not contain any emma:arc elements but ref indicates where the lattice can retrieved from.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="interp1"
    emma:medium="acoustic" emma:mode="voice"
    emma:tokens="flights to boston from oakland tomorrow">
    <emma:lattice id="l1" initial="1" final="8"
      emma:partial-content="true"
      ref="http://www.example.com/ex1/lattice.xml#l1"/>
  </emma:interpretation>
</emma:emma>
The document on the server in this case could for example be as follows.
<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="interp1"
    emma:medium="acoustic" emma:mode="voice"
    emma:tokens="flights to boston from oakland tomorrow">
    <emma:lattice id="l1" initial="1" final="8"
      emma:partial-content="false">
      <emma:arc from="1" to="2">flights</emma:arc>
      <emma:arc from="2" to="3">to</emma:arc>
      <emma:arc from="3" to="4">boston</emma:arc>
      <emma:arc from="3" to="4">austin</emma:arc>
      <emma:arc from="4" to="5">from</emma:arc>
      <emma:arc from="5" to="6">portland</emma:arc>
      <emma:arc from="5" to="6">oakland</emma:arc>
      <emma:arc from="6" to="7">today</emma:arc>
      <emma:arc from="7" to="8">please</emma:arc>
      <emma:arc from="6" to="8">tomorrow</emma:arc>
    </emma:lattice>
  </emma:interpretation>
</emma:emma>

Similarly the emma:lattice could have some arcs but not all and point to through ref to the full lattice. In this case the EMMA document received is a pruned lattice and the full lattice can be retrieved by accessing the external document indicated in ref.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="interp1"
    emma:medium="acoustic" emma:mode="voice">
    <emma:lattice id="l1" initial="1" final="8"
      emma:partial-content="true"
      ref="http://www.example.com/ex1/lattice.xml#l1">
      <emma:arc from="1" to="2">flights</emma:arc>
      <emma:arc from="2" to="3">to</emma:arc>
      <emma:arc from="3" to="4">boston</emma:arc>
      <emma:arc from="4" to="5">from</emma:arc>
      <emma:arc from="5" to="6">portland</emma:arc>
      <emma:arc from="6" to="8">tomorrow</emma:arc>
    </emma:lattice>
  </emma:interpretation>
</emma:emma>

3.4.2 Annotations on lattices

The encoding of lattice arcs as XML elements (emma:arc) enables arcs to be annotated with metadata such as timestamps, costs, or confidence scores:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="interp1"
    emma:medium="acoustic" emma:mode="voice">
    <emma:lattice initial="1" final="8">
      <emma:arc
       from="1"
       to="2"
       emma:start="1087995961542"
       emma:end="1087995962042"
       emma:cost="30">
         flights
       <emma:annotation id="label3"
        annotator="john_smith"
            time="2011-11-10T09:00:21"
            type="emotion"
            confidence="1.0"
            reference="false">
            <emotionml xmlns="http://www.w3.org/2009/10/emotionml">
                <emotion>
                <category set="everyday" name="angry"/>

                   <modality medium="acoustic" mode="voice"/>
                </emotion>
            </emotionml>
        </emma:annotation>
      </emma:arc>
      <emma:arc
       from="2"
       to="3"
       emma:start="1087995962042"
       emma:end="1087995962542"
       emma:cost="20">
         to
      </emma:arc>
      <emma:arc
       from="3"
       to="4"
       emma:start="1087995962542"
       emma:end="1087995963042"
       emma:cost="50">
         boston
      </emma:arc>
      <emma:arc
       from="3"
       to="4"
       emma:start="1087995963042"
       emma:end="1087995963742"
       emma:cost="60">
         austin
      </emma:arc>
      ...
    </emma:lattice>
  </emma:interpretation>
</emma:emma>

The following EMMA attributes MAY be placed on emma:arc elements: absolute timestamps (emma:start, emma:end), relative timestamps ( emma:offset-to-start, emma:duration), emma:confidence, emma:cost, the human language of the input (emma:lang), emma:medium, emma:mode, emma:source, and emma:annotated-tokens. The use case for emma:medium, emma:mode, and emma:source is for lattices which contains content from different input modes. The emma:arc element MAY also contain an emma:info element for specification of vendor and application specific annotations on the arc. The emma:arc and emma:node elements can also contain optional emma:annotation elements containing annotations mae by human annotators. For example, in the example above emma:annotation is used to indicate manual annotation of emotion on the word 'flights'.

The timestamps that appear on emma:arc elements do not necessarily indicate the start and end of the arc itself. They MAY indicate the start and end of the signal corresponding to the label on the arc. As a result there is no requirement that the emma:end timestamp on an arc going into a node should be equivalent to the emma:start of all arcs going out of that node. Furthermore there is no guarantee that the left to right order of arcs in a lattice will correspond to the temporal order of the input signal. The lattice representation is an abstraction that represents a range of possible interpretations of a user's input and is not intended to necessarily be a representation of temporal order.

Costs are typically application and device dependent. There are a variety of ways that individual arc costs might be combined to produce costs for specific paths through the lattice. This specification does not standardize the way for these costs to be combined; it is up to the applications and devices to determine how such derived costs would be computed and used.

For some lattice formats, it is also desirable to annotate the nodes in the lattice themselves with information such as costs. For example in speech recognition, costs might be placed on nodes as a result of word penalties or redistribution of costs. For this purpose EMMA also provides an emma:node element which can host annotations such as emma:cost. The emma:node element MUST have an attribute node-number which indicates the number of the node. There MUST be at most one emma:node specification for a given numbered node in the lattice. In our example, if there was a cost of 100 on the final state this could be represented as follows:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="interp1"
    emma:medium="acoustic" emma:mode="voice">
    <emma:lattice initial="1" final="8">
      <emma:arc
       from="1"
       to="2"
       emma:start="1087995961542"
       emma:end="1087995962042"
       emma:cost="30">
         flights
      </emma:arc>
      <emma:arc
       from="2"
       to="3"
       emma:start="1087995962042"
       emma:end="1087995962542"
       emma:cost="20">
         to
      </emma:arc>
      <emma:arc
       from="3"
       to="4"
       emma:start="1087995962542"
       emma:end="1087995963042"
       emma:cost="50">
         boston
      </emma:arc>
      <emma:arc
       from="3"
       to="4"
       emma:start="1087995963042"
       emma:end="1087995963742"
       emma:cost="60">
         austin
      </emma:arc>
        ...
      <emma:node node-number="8" emma:cost="100"/>
    </emma:lattice>
  </emma:interpretation>
</emma:emma>

3.4.3 Relative timestamps on lattices

The relative timestamp mechanism in EMMA is intended to provide temporal information about arcs in a lattice in relative terms using offsets in milliseconds. In order to do this the absolute time MAY be specified on emma:interpretation; both emma:time-ref-uri and emma:time-ref-anchor-point apply to emma:lattice and MAY be used there to set the anchor point for offsets to the start of the absolute time specified on emma:interpretation. The offset in milliseconds to the beginning of each arc MAY then be indicated on each emma:arc in the emma:offset-to-start attribute.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">

  <emma:interpretation id="interp1"
          emma:start="1087995961542" emma:end="1087995963042"
          emma:medium="acoustic" emma:mode="voice">
    <emma:lattice emma:time-ref-uri="#interp1"
        emma:time-ref-anchor-point="start"
        initial="1" final="4">
      <emma:arc
       from="1"
       to="2"
       emma:offset-to-start="0">
         flights
      </emma:arc>
      <emma:arc
       from="2"
       to="3"
       emma:offset-to-start="500">
         to
      </emma:arc>
      <emma:arc
       from="3"
       to="4"
       emma:offset-to-start="1000">
         boston
      </emma:arc>
    </emma:lattice>
  </emma:interpretation>
</emma:emma>

Note that the offset for the first emma:arc MUST always be zero since the EMMA attribute emma:offset-to-start indicates the number of milliseconds from the anchor point to the start of the piece of input associated with the emma:arc, in this case the word "flights".

3.5 Literal semantics: emma:literal element

Annotation emma:literal
Definition An element that contains string literal output.
Children String literal
Attributes An optional emma:result-format attribute.
Applies to The emma:literal is a child of emma:interpretation.

Certain EMMA processing components produce semantic results in the form of string literals without any surrounding application namespace markup. These MUST be placed with the EMMA element emma:literal within emma:interpretation. For example, if a semantic interpreter simply returned "boston" this could be represented in EMMA as:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="r1"
     emma:medium="acoustic" emma:mode="voice">
    <emma:literal>boston</emma:literal>
  </emma:interpretation>
</emma:emma>

Note that a raw recognition result of a sequence of words from speech recognition is also a kind of string literal and can be contained within emma:literal. For example, recognition of the string "flights to san francisco" can be represented in EMMA as follows:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="r1"
     emma:medium="acoustic" emma:mode="voice">
    <emma:literal>flights to san francisco</emma:literal>
  </emma:interpretation>
</emma:emma>

4. EMMA annotations

This section defines annotations in the EMMA namespace including both attributes and elements. The values are specified in terms of the data types defined by XML Schema Part 2: Datatypes Second Edition [XML Schema Datatypes].

4.1 EMMA annotation elements

4.1.1 Data model: emma:model element

Annotation emma:model
Definition The emma:model either references or provides inline the data model for the instance data.
Children If a ref attribute is not specified then this element contains the data model inline.
Attributes
  • Required:
    • id of type xsd:ID.
  • Optional:
    • ref of type xsd:anyURI that references the data model. Note that either an ref attribute or in-line data model (but not both) MUST be specified.
Applies to The emma:model element MAY appear only as a child of emma:emma.

The data model that may be used to express constraints on the structure and content of instance data is specified as one of the annotations of the instance. Specifying the data model is OPTIONAL, in which case the data model can be said to be implicit. Typically the data model is pre-established by the application.

The data model is specified with the emma:model annotation defined as an element in the EMMA namespace. If the data model for the contents of a emma:interpretation, container elements, or application namespace element is to be specified in EMMA, the attribute emma:model-ref MUST be specified on the emma:interpretation, container element, or application namespace element. Note that since multiple emma:model elements might be specified under the emma:emma it is possible to refer to multiple data models within a single EMMA document. For example, different alternative interpretations under an emma:one-of might have different data models. In this case, an emma:model-ref attribute would appear on each emma:interpretation element in the N-best list with its value being the id of the emma:model element for that particular interpretation.

The data model is closely related to the interpretation data, and is typically specified as the annotation related to the emma:interpretation or emma:one-of elements.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:model id="model1" ref="http://example.com/models/city.xml"/>
  <emma:interpretation id="int1" emma:model-ref="model1"
    emma:medium="acoustic" emma:mode="voice">
    <city> London </city>
    <country> UK </country>
  </emma:interpretation>
</emma:emma>

The emma:model annotation MAY reference any element or attribute in the application instance data, as well as any EMMA container element (emma:one-of, emma:group, or emma:sequence).

The data model annotation MAY be used to either reference an external data model with the ref attribute or provide a data model as in-line content. Either a ref attribute or in-line data model (but not both) MUST be specified.

Note that unlike the use of ref on e.g. emma:one-of it is not possible in EMMA to provide a partial specification of the data model inline and use emma:partial-content="true" to indicate that the full data model is available from the URI in ref.

4.1.2 Interpretation derivation: emma:derived-from element and emma:derivation element

Annotation emma:derived-from
Definition An empty element which provides a reference to the interpretation which the element it appears on was derived from.
Children None
Attributes
  • Required:
    • resource of type xsd:anyURI that references the interpretation from which the current interpretation is derived.
  • Optional:
    • composite of type xsd:boolean that is "true" if the derivation step combines multiple inputs and "false" if not. If composite is not specified the value is "false" by default.
Applies to The emma:derived-from element is legal only as a child of emma:interpretation, emma:one-of, emma:group, or emma:sequence.
Annotation emma:derivation
Definition An element which contains interpretation and container elements representing earlier stages in the processing of the input.
Children One or more emma:interpretation, emma:one-of, emma:sequence, or emma:group elements.
Attributes None
Applies to The emma:derivation MAY appear only as a child of the emma:emma, emma:interpretation, emma:one-of, emma:group, and emma:sequence elements.

Instances of interpretations are in general derived from other instances of interpretation in a process that goes from raw data to increasingly refined representations of the input. The derivation annotation is used to link any two interpretations that are related by representing the source and the outcome of an interpretation process. For instance, a speech recognition process can return the following result in the form of raw text:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="raw"
    emma:medium="acoustic" emma:mode="voice">
    <answer>From Boston to Denver tomorrow</answer>
  </emma:interpretation>
</emma:emma>

A first interpretation process will produce:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="better"
    emma:medium="acoustic" emma:mode="voice">
    <origin>Boston</origin>
    <destination>Denver</destination>
    <date>tomorrow</date>
  </emma:interpretation>
</emma:emma>

A second interpretation process, aware of the current date, will be able to produce a more refined instance, such as:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="best"
    emma:medium="acoustic" emma:mode="voice">
    <origin>Boston</origin>
    <destination>Denver</destination>
    <date>20030315</date>
  </emma:interpretation>
</emma:emma>

The interaction manager might need to have access to the three levels of interpretation. The emma:derived-from annotation element can be used to establish a chain of derivation relationships as in the following example:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:derivation>
    <emma:interpretation id="raw"
      emma:medium="acoustic" emma:mode="voice">
      <answer>From Boston to Denver tomorrow</answer>
    </emma:interpretation>
    <emma:interpretation id="better">
      <emma:derived-from resource="#raw" composite="false"/>
      <origin>Boston</origin>
      <destination>Denver</destination>
      <date>tomorrow</date>
    </emma:interpretation>
  </emma:derivation>
  <emma:interpretation id="best">
    <emma:derived-from resource="#better" composite="false"/>
    <origin>Boston</origin>
    <destination>Denver</destination>
    <date>20030315</date>
  </emma:interpretation>
</emma:emma>

The emma:derivation element MAY be used as a container for representations of the earlier stages in the interpretation of the input. The emma:derivation element MAY appear only as a child of the emma:emma, emma:interpretation, emma:one-of, emma:group, emma:sequence elements. That is, it can be a child of emma:emma, or any container element except literal or lattice. If emma:derivation appears within a container it MUST apply to that specific element, or to a descendant of that element. The latest stage of processing MUST be a direct child of emma:emma.

The resource attribute on emma:derived-from is a URI which can reference IDs in the current or other EMMA documents. Since emma:derivation elements can appear in multiple different places, EMMA processors MUST use the emma:derived-from element to identify earlier stages of the processing of an input, rather than the document structure. The option to have emma:derivation in locations other than directly under emma:emma is provided to make the document more transparent and improve human readability.

In the following example, emma:sequence is used to represent a sequence of two spoken inputs and each has its own emma:derivation element containing the previous stage of processing.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:sequence>
    <emma:interpretation id="nlu1">
      <emma:derived-from resource="#raw1" composite="false"/>
      <origin>Boston</origin>
      <emma:derivation>
         <emma:interpretation id="raw1"

          emma:medium="acoustic" emma:mode="voice">
            <emma:literal>flights from boston</emma:literal>
         </emma:interpretation>
      </emma:derivation>
  </emma:interpretation>
    <emma:interpretation id="nlu2">
      <emma:derived-from resource="#raw2" composite="false"/>
      <destination>Denver</destination>
      <emma:derivation>
         <emma:interpretation id="raw2"

          emma:medium="acoustic" emma:mode="voice">
            <emma:literal>to denver</emma:literal>
         </emma:interpretation>
      </emma:derivation>
    </emma:interpretation>
  </emma:sequence>
</emma:emma>

In addition to representing sequential derivations, the EMMA emma:derived-from element can also be used to capture composite derivations. Composite derivations involve combination of inputs from different modes.

In order to indicate whether an emma:derived-from element describes a sequential derivation step or a composite derivation step, the emma:derived-from element has an attribute composite which has a boolean value. A composite emma:derived-from MUST be marked as composite="true" while a sequential emma:derived-from element is marked as composite="false". If this attribute is not specified the value is false by default.

In the following composite derivation example the user said "destination" using the voice mode and circled Boston on a map using the ink mode:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:derivation>
    <emma:interpretation id="voice1"
        emma:start="1087995961500"
        emma:end="1087995962542"
        emma:process="http://example.com/myasr.xml"
        emma:source="http://example.com/microphone/NC-61"
        emma:signal="http://example.com/signals/sg23.wav"
        emma:confidence="0.6"
        emma:medium="acoustic"
        emma:mode="voice"
        emma:function="dialog"
        emma:verbal="true"
        emma:lang="en-US"
        emma:tokens="destination">
      <rawinput>destination</rawinput>
    </emma:interpretation>
    <emma:interpretation id="ink1"
        emma:start="1087995961600"
        emma:end="1087995964000"
        emma:process="http://example.com/mygesturereco.xml"
        emma:source="http://example.com/pen/wacom123"
        emma:signal="http://example.com/signals/ink5.inkml"
        emma:confidence="0.5"
        emma:medium="tactile"
        emma:mode="ink"
        emma:function="dialog"
        emma:verbal="false">
      <rawinput>Boston</rawinput>
    </emma:interpretation>
  </emma:derivation>
  <emma:interpretation id="multimodal1"
      emma:confidence="0.3"
      emma:start="1087995961500"
      emma:end="1087995964000"
      emma:medium="acoustic tactile"
      emma:mode="voice ink"
      emma:function="dialog"
      emma:verbal="true"
      emma:lang="en-US"
      emma:tokens="destination">
    <emma:derived-from resource="#voice1" composite="true"
    <emma:derived-from resource="#ink1" composite="true"
    <destination>Boston</destination>
  </emma:interpretation>
</emma:emma>

In this example, annotations on the multimodal interpretation indicate the process used for the integration and there are two emma:derived-from elements, one pointing to the speech and one pointing to the pen gesture.

The only constraints the EMMA specification places on the annotations that appear on a composite input are that the emma:medium attribute MUST contain the union of the emma:medium attributes on the combining inputs, represented as a space delimited set of nmtokens as defined in Section 4.2.11, and that the emma:mode attribute MUST contain the union of the emma:mode attributes on the combining inputs, represented as a space delimited set of nmtokens as defined in Section 4.2.11. In the example above this meanings that the emma:medium value is "acoustic tactile" and the emma:mode attribute is "voice ink". How all other annotations are handled is author defined. In the following paragraph, informative examples on how specific annotations might be handled are given.

With reference to the illustrative example above, this paragraph provides informative guidance regarding the determination of annotations (beyond emma:medium and emma:mode on a composite multimodal interpretation). Generally the timestamp on a combined input should contain the intervals indicated by the combining inputs. For the absolute timestamps emma:start and emma:end this can be achieved by taking the earlier of the emma:start values (emma:start="1087995961500" in our example) and the later of the emma:end values (emma:end="1087995964000" in the example). The determination of relative timestamps for composite is more complex, informative guidance is given in Section 4.2.10.4. Generally speaking the emma:confidence value will be some numerical combination of the confidence scores assigned to the combining inputs. In our example, it is the result of multiplying the voice and ink confidence scores (0.3). In other cases there may not be a confidence score for one of the combining inputs and the author may choose to copy the confidence score from the input which does have one. Generally, for emma:verbal, if either of the inputs has the value true then the multimodal interpretation will also be emma:verbal="true" as in the example. In other words the annotation for the composite input is the result of an inclusive OR of the boolean values of the annotations on the inputs. If an annotation is only specified on one of the combining inputs then it may in some cases be assumed to apply to the multimodal interpretation of the composite input. In the example, emma:lang="en-US" is only specified for the speech input, and this annotation appears on the composite result also. Similarly in our example, only the voice has emma:tokens and the author has chosen to annotate the combined input with the same emma:tokens value. In this example, the emma:function is the same on both combining input and the author has chosen to use the same annotation on the composite interpretation.

In annotating derivations of the processing of the input, EMMA provides the flexibility of both course-grained or fine-grained annotation of relations among interpretations. For example, when relating two N-best lists, within emma:one-of elements either there can be a single emma:derived-from element under emma:one-of referring to the ID of the emma:one-of for the earlier processing stage:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:derivation>
    <emma:one-of id="nbest1"
      emma:medium="acoustic" emma:mode="voice">
      <emma:interpretation id="int1">
       <res>from boston to denver on march eleven two thousand three</res>
      </emma:interpretation>
      <emma:interpretation id="int2">
       <res>from austin to denver on march eleven two thousand three</res>
      </emma:interpretation>
  </emma:one-of>
</emma:derivation>
<emma:one-of id="nbest2">
  <emma:derived-from resource="#nbest1" composite="false"/>
  <emma:interpretation id="int1b">
    <origin>Boston</origin>
    <destination>Denver</destination>
    <date>03112003</date>
  </emma:interpretation>
  <emma:interpretation id="int2b">
    <origin>Austin</origin>
    <destination>Denver</destination>
    <date>03112003</date>
  </emma:interpretation>
</emma:one-of>
</emma:emma>

Or there can be a separate emma:derived-from element on each emma:interpretation element referring to the specific emma:interpretation element it was derived from.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:one-of id="nbest2">
    <emma:interpretation id="int1b">
     <emma:derived-from resource="#int1" composite="false"/>
      <origin>Boston</origin>
      <destination>Denver</destination>
      <date>03112003</date>
    </emma:interpretation>
    <emma:interpretation id="int2b">
     <emma:derived-from resource="#int2" composite="false"/>
      <origin>Austin</origin>
      <destination>Denver</destination>
      <date>03112003</date>
    </emma:interpretation>
  </emma:one-of>
  <emma:derivation>
    <emma:one-of id="nbest1"
      emma:medium="acoustic" emma:mode="voice">
      <emma:interpretation id="int1">
       <res>from boston to denver on march eleven two thousand three</res>
      </emma:interpretation>
      <emma:interpretation id="int2">
       <res>from austin to denver on march eleven two thousand three</res>
      </emma:interpretation>
    </emma:one-of>
  </emma:derivation>
</emma:emma>

Section 4.3 provides further examples of the use of emma:derived-from to represent sequential derivations and addresses the issue of the scope of EMMA annotations across derivations of user input.

4.1.3 Reference to grammar used: emma:grammar element

Annotation emma:grammar
Definition An element used indicate the grammar used in processing the input. The grammar MUST either be specified inline OR referenced using the ref attribute.
Children In the case of inline specification of the grammar, this element contains an element with the specification of the grammar.
Attributes
  • Optional:
    • grammar-type of type xsd:string that indicate the MIME type of the grammar
    • ref of type xsd:anyURI that references a grammar used in processing the input.
  • Required:
    • id of type xsd:ID.
Applies to The emma:grammar is legal only as a child of the emma:emma element.

The grammar that was used to derive the EMMA result MAY be specified with the emma:grammar annotation defined as an element in the EMMA namespace. The emma:grammar-ref attribute appears on the specific interpretation and references the appropriate emma:grammar element. The emma:grammar element MUST either contain a representation of the grammar inline OR have a ref attribute which contains a URI referencing the grammar used in processing the input. The optional attribute grammar-type on emma:grammar contains a MIME type indicating the format of the specified grammar. For example an SRGS grammar in the XML format SHOULD be annotated as grammar-type="application/srgs-xml". The namespace of an inline grammar MUST be specified.

In the following example, there are three interpretations. Each interpretation is annotated with emma:grammar-ref to indicate the grammar that resulted in that interpretation. The two emma:grammar elements indicate the URI for the grammar using the ref attribute. Both grammars are SRGS XML grammars and so are annotated as grammar-type="application/srgs-xml".

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:grammar id="gram1" grammar-type="application/srgs-xml" ref="someURI"/>
  <emma:grammar id="gram2" grammar-type="application/srgs-xml" ref="anotherURI"/>
  <emma:one-of id="r1"
    emma:medium="acoustic" emma:mode="voice">
    <emma:interpretation id="int1" emma:grammar-ref="gram1">
      <origin>Boston</origin>
    </emma:interpretation>
    <emma:interpretation id="int2" emma:grammar-ref="gram1">
        <origin>Austin</origin>
    </emma:interpretation>
    <emma:interpretation id="int3" emma:grammar-ref="gram2">
        <command>help</command>
    </emma:interpretation>
  </emma:one-of>
</emma:emma>

In the following example, there are two interpretations, each from a different grammar, and the SRGS grammars used to derive the interpretations are specified inline each as a child of an emma:grammar element. The namespace of the inline grammars is indicated explicitly on each.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:grammar id="gram1" grammar-type="application/srgs-xml">

   <grammar xmlns="http://www.w3.org/2001/06/grammar"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2001/06/grammar
    http://www.w3.org/TR/speech-grammar/grammar.xsd"
    xml:lang="en" version="1.1" root="state" mode="voice"
    tag-format="semantics/1.0">

      <rule id="state" scope="public">
       <one-of>
         <item>California<tag>out="CA";</tag></item>
         <item>New Jersey<tag>out="NJ";</tag></item>
         <item>New York<tag>out="NY";</tag></item>
       </one-of>
      </rule>

    </grammar>
  </emma:grammar>
  <emma:grammar id="gram2" grammar-type="application/srgs-xml">

   <grammar xmlns="http://www.w3.org/2001/06/grammar"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2001/06/grammar
    http://www.w3.org/TR/speech-grammar/grammar.xsd"
    xml:lang="en" version="1.1" root="city" mode="voice"
    tag-format="semantics/1.0">

      <rule id="city" scope="public">
       <one-of>
         <item>Calgary<tag>out="YYC";</tag></item>
         <item>San Francisco<tag>out="SFO";</tag></item>
         <item>Boston<tag>out="BOS";</tag></item>
       </one-of>
      </rule>

    </grammar>
  </emma:grammar>
  <emma:one-of id="r1"
    emma:medium="acoustic" emma:mode="voice">
    <emma:interpretation id="int1" emma:tokens="California"
     emma:grammar-ref="gram1">
      <emma:literal>CA</emma:literal>
    </emma:interpretation>
    <emma:interpretation id="int2" emma:tokens="Calgary"
     emma:grammar-ref="gram2">
      <emma:literal>YYC</emma:literal>
    </emma:interpretation>
  </emma:one-of>
</emma:emma>

Non-XML grammar formats, such as the SRGS ABNF format, MUST be contained within <!-[CDATA[ ...]]>. Care should be taken in platforms generating EMMA to avoid conflicts between id values in the EMMA markup and those in any inline grammars. Authors should be aware that there could be conflicts between id values used in different embedded inline grammars within an EMMA document.

Note that unlike the use of ref on e.g. emma:one-of it is not possible in EMMA to provide a partial specification of the grammar inline and use emma:partial-content="true" to indicate that the full grammar is available from the URI in ref.

4.1.4 Reference to grammars active: emma:grammar-active element
Annotation emma:grammar-active
Definition An element used to indicate the grammars active during the processing of an input.
Children A list of emma:active elements, one for each grammar currently active.
Attributes
  • Required:
    • id of type xsd:ID.
Applies to emma:interpretation, emma:one-of, emma:group, emma:sequence
Annotation emma:active
Definition An element specifying a particular grammar active during the processing of an input.
Children None
Attributes
  • Required:
    • grammar-ref of type xsd:ID.
Applies to emma:grammar-active

The default when multiple emma:grammar elements are specified under emma:emma is to assume that all grammars are active for all of the interpretations specified in the top level of the current EMMA document. In certain use cases, such as documents containing results from different microphones or different modalities, this may not be the case and the set of grammars active for a specific interpretation or set of interpretations should be annotated explicitly using emma:grammar-active. Each grammar which is active is indicated by an active element which must have an emma:grammar-ref annotation pointing to the specific grammar. For example, to make explicit the fact that both grammars, gram1 and gram2 are active for all of the three N-best interpretations in the following example, an emma:grammar-active element appears as a child of the emma:one-of.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:grammar id="gram1" grammar-type="application/srgs-xml" ref="someURI"/>
  <emma:grammar id="gram2" grammar-type="application/srgs-xml" ref="anotherURI"/>
  <emma:one-of id="r1"
    emma:medium="acoustic" emma:mode="voice">
     <emma:grammar-active>
        <emma:active emma:grammar-ref="gram1"/>
      <emma:active emma:grammar-ref="gram2"/>
    </emma:grammar-active>
    <emma:interpretation id="int1" emma:grammar-ref="gram1">
      <origin>Boston</origin>
    </emma:interpretation>
    <emma:interpretation id="int2" emma:grammar-ref="gram1">
        <origin>Austin</origin>
    </emma:interpretation>
    <emma:interpretation id="int3" emma:grammar-ref="gram2">
        <command>help</command>
    </emma:interpretation>
  </emma:one-of>
</emma:emma>

The use of an element for each active grammar, allows for more complex use cases where specific metadata is associated with each active grammar. For example, a weighting of other parameters associated with each active grammar could be specified within an emma:info within emma:active.

4.1.5 Extensibility to application/vendor specific annotations: emma:info element

Annotation emma:info
Definition The emma:info element acts as a container for vendor and/or application specific metadata regarding a user's input.
Children One of more elements in the application namespace providing metadata about the input.
Attributes
  • Optional:
    • id of type xsd:ID
    • ref of type xsd:anyURI that references a remote document containing a specification of application/vendor specific annotations
    • An emma:partial-content attribute of type xsd:boolean indicating whether the content inside the element is partial and more can be retrieved from an external document through ref
    • indexed of type xsd:boolean indicating whether it has index scope
Applies to The emma:info element is legal only as a child of the EMMA elements emma:emma, emma:interpretation, emma:group, emma:one-of, emma:sequence, emma:arc, emma:node, or emma:annotation.

In Section 4.2, a series of attributes are defined for representation of metadata about user inputs in a standardized form. EMMA also provides an extensibility mechanism for annotation of user inputs with vendor or application specific metadata not covered by the standard set of EMMA annotations. The element emma:info MUST be used as a container for these annotations, UNLESS they are explicitly covered by emma:endpoint-info. For example, if an input to a dialog system needed to be annotated with the number that the call originated from, their state, some indication of the type of customer, and the name of the service, these pieces of information could be represented within emma:info as in the following example:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:info id="info_details">
    <caller_id>
      <phone_number>2121234567</phone_number>
      <state>NY</state>
    </caller_id>
    <customer_type>residential</customer_type>
    <service_name>acme_travel_service</service_name>
  </emma:info>
  <emma:one-of id="r1"

      emma:start="1087995961542"
      emma:end="1087995963542"
      emma:medium="acoustic" emma:mode="voice">
    <emma:interpretation id="int1" emma:confidence="0.75">
      <origin>Boston</origin>
      <destination>Denver</destination>
      <date>03112003</date>
    </emma:interpretation>
    <emma:interpretation id="int2" emma:confidence="0.68">
      <origin>Austin</origin>
      <destination>Denver</destination>
      <date>03112003</date>
    </emma:interpretation>
  </emma:one-of>
</emma:emma>

It is important to have an EMMA container element for application/vendor specific annotations since EMMA elements provide a structure for representation of multiple possible interpretations of the input. As a result it is cumbersome to state application/vendor specific metadata as part of the application data within each emma:interpretation. An element is used rather than an attribute so that internal structure can be given to the annotations within emma:info.

In addition to emma:emma, emma:info MAY also appear as a child of other structural elements such as emma:interpretation, emma:one-of and so on. When emma:info appears as a child of one of these elements the application/vendor specific annotations contained within emma:info are assumed to apply to all of the emma:interpretation elements within the containing element. The semantics of conflicting annotations in emma:info, for example when different values are found within emma:emma and emma:interpretation, are left to the developer of the vendor/application specific annotations.

There may be more than one emma:info element. One of the functions of this is to enable specification interpretations to indicate which emma:info applies to them using emma:info-ref. If emma:info has the optional id attribute then the emma:info-ref attribute (Section 4.2.19) can be used on emma:interpretation and other container elements to indicate that a particular set of application/vendor specific annotations apply to a particular interpretation.

The emma:info element can therefore have either position scope (applies to the element it appears in and the interpretations within in), or index scope where emma:info-ref attributes are used to show which interpretations a particular emma:info applies to. In order to distinguish emma:info elements that have positional vs. index scope the indexed attribute must be used. The attribute indexed=true indicates that the emma:info it appears on does not have positional scope and instead is referenced using emma:info-ref. The attribute indexed=false indicates than an emma:info has positional scope. The default value if indexed is not specified is false. The indexed attribute is required if and only if there is an emma:info-ref that refers to the id of the emma:info.

The ref attribute can also be used on emma:info instead of placing the application/vendor specific annotations inline. For example, assuming the example above was available at http://example.com/examples/123/emma.xml, the EMMA document delivered to an EMMA consumer could be:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:info ref="http://example.com/examples/123/emma.xml#info_details"/>
  <emma:one-of id="r1"

       emma:start="1087995961542"
      emma:end="1087995963542"
      emma:medium="acoustic" emma:mode="voice">
    <emma:interpretation id="int1" emma:confidence="0.75">
      <origin>Boston</origin>
      <destination>Denver</destination>
      <date>03112003</date>
    </emma:interpretation>
    <emma:interpretation id="int2" emma:confidence="0.68">
      <origin>Austin</origin>
      <destination>Denver</destination>
      <date>03112003</date>
    </emma:interpretation>
  </emma:one-of>
</emma:emma>

A ref on emma:info can also be used to point to an external document, not necessarily an EMMA document, containing additional annotations on the interpretation. For example, it could be used to point to an XML document providing a list of the specifications of the input device.

4.1.6 Endpoint reference: emma:endpoint-info element and emma:endpoint element

Annotation emma:endpoint-info
Definition The emma:endpoint-info element acts as a container for all application specific annotation regarding the communication environment.
Children One or more emma:endpoint elements.
Attributes
  • Required:
    • id of type xsd:ID.
Applies to The emma:endpoint-info elements is legal only as a child of emma:emma.
Annotation emma:endpoint
Definition The element acts as a container for application specific endpoint information.
Children Elements in the application namespace providing metadata about the input.
Attributes
  • Required:
    • id of type xsd:ID
  • Optional: emma:endpoint-role, emma:endpoint-address, emma:message-id, emma:port-num, emma:port-type, emma:endpoint-pair-ref, emma:service-name, emma:media-type, emma:medium, emma:mode.
Applies to emma:endpoint-info

In order to conduct multimodal interaction, there is a need in EMMA to specify the properties of the endpoint that receives the input which leads to the EMMA annotation. This allows subsequent components to utilize the endpoint properties as well as the annotated inputs to conduct meaningful multimodal interaction. EMMA element emma:endpoint can be used for this purpose. It can specify the endpoint properties based on a set of common endpoint property attributes in EMMA, such as emma:endpoint-address, emma:port-num, emma:port-type, etc. (Section 4.2.14). Moreover, it provides an extensible annotation structure that allows the inclusion of application and vendor specific endpoint properties.

Note that the usage of the term "endpoint" in this context is different from the way that the term is used in speech processing, where it refers to the end of a speech input. As used here, "endpoint" refers to a network location which is the source or recipient of an EMMA document.

In multimodal interaction, multiple devices can be used and each device can open multiple communication endpoints at the same time. These endpoints are used to transmit and receive data, such as raw input, EMMA documents, etc. The EMMA element emma:endpoint provides a generic representation of endpoint information which is relevant to multimodal interaction. It allows the annotation to be interoperable, and it eliminates the need for EMMA processors to create their own specialized annotations for existing protocols, potential protocols or yet undefined private protocols that they may use.

Moreover, emma:endpoint-info provides a container to hold all annotations regarding the endpoint information, including emma:endpoint and other application and vendor specific annotations that are related to the communication, allowing the same communication environment to be referenced and used in multiple interpretations.

Note that EMMA provides two locations (i.e. emma:info and emma:endpoint-info) for specifying vendor/application specific annotations. If the annotation is specifically related to the description of the endpoint, then the vendor/application specific annotation SHOULD be placed within emma:endpoint-info, otherwise it SHOULD be placed within emma:info.

The following example illustrates the annotation of endpoint reference properties in EMMA.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example"
    xmlns:ex="http://www.example.com/emma/port">
  <emma:endpoint-info id="audio-channel-1">
    <emma:endpoint id="endpoint1"
        emma:endpoint-role="sink"
        emma:endpoint-address="135.61.71.103"
        emma:port-num="50204"
        emma:port-type="rtp"
        emma:endpoint-pair-ref="endpoint2"
        emma:media-type="audio/dsr-202212; rate:8000; maxptime:40"
        emma:service-name="travel"
        emma:mode="voice">
      <ex:app-protocol>SIP</ex:app-protocol>
    </emma:endpoint>
    <emma:endpoint id="endpoint2"
        emma:endpoint-role="source"
        emma:endpoint-address="136.62.72.104"
        emma:port-num="50204"
        emma:port-type="rtp"
        emma:endpoint-pair-ref="endpoint1"
        emma:media-type="audio/dsr-202212; rate:8000; maxptime:40"
        emma:service-name="travel"
        emma:mode="voice">
      <ex:app-protocol>SIP</ex:app-protocol>
    </emma:endpoint>
  </emma:endpoint-info>
  <emma:interpretation id="int1"
      emma:start="1087995961542" emma:end="1087995963542"
      emma:endpoint-info-ref="audio-channel-1"
      emma:medium="acoustic" emma:mode="voice">
    <destination>Chicago</destination>
  </emma:interpretation>
</emma:emma>

The ex:app-protocol is provided by the application or the vendor specification. It specifies that the application layer protocol used to establish the speech transmission from the "source" port to the "sink" port is Session Initiation Protocol (SIP). This is specific to SIP based VoIP communication, in which the actual media transmission and the call signaling that controls the communication sessions, are separated and typically based on different protocols. In the above example, the Real-time Transmission Protocol (RTP) is used in the media transmission between the source port and the sink port.

4.1.7 Reference to process model used: emma:process-model element

Annotation emma:process-model
Definition An element used indicate the model used in processing the input. The model must be referenced using the ref attribute which is URI valued.
Children None.
Attributes
  • Required:
    • id of type xsd:ID.
    • ref of type xsd:anyURI that references a model used in processing the input.
    • type of type xsd:string that indicates the type of model
Applies to The emma:process-model is legal only as a child of the emma:emma element.

The model that was used to derive the EMMA result MAY be specified with the emma:process-model annotation defined as an element in the EMMA namespace. The emma:process-model-ref attribute appears on the specific interpretation and references the appropriate emma:process-model element. The emma:process-model element MUST have a ref attribute which contains a URI referencing the model used in processing the input. Unlike emma:grammar, emma:process-model does not allow for inline specification of a model. For each emma:process-model element there MUST be an emma:process-model-ref in the document those value is the id of that emma:process-model. The emma:process-model element cannot have positional scope.

The emma:process-model element MUST have an attribute type containing a string indicating the type of model referenced. The value of type is drawn from an open set including {svm,crf,neural_network,hmm...}.

Examples of potential uses of emma:process-model include referencing the model used for handwriting recognition or a text classification model used for natural language understanding. The emma:process-model annotation SHOULD be used for input processing models that are not grammars. Grammars SHOULD be referenced or specified inline using emma:grammar. Some input processing modules may utilize both a recognition model and a grammar. For example, for handwriting recognition of electronic ink a neural network might be used for character recognition while a language model or grammar is used to constrain the word or character sequences recognized. In this case, the neural network SHOULD be referenced using emma:process-model and the grammar or language model using emma:grammar.

In the following example, there are two interpretations. The EMMA document in this example is produced by a computer vision system doing object recognition. The first interpretation is generated by a process model for vehicle recognition and second competing interpretation is generated by a process model for person recognition.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
    http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:process-model id="pm1"
    type="neural_network"
    ref="http://example.com/vision/vehicle"/>
  <emma:process-model id="pm2"
    type="neural_network"
    ref="http://example.com/vision/people"/>
  <emma:one-of id="r1"
    emma:start="1087995961542"
    emma:end="1087995961542"
    emma:medium="visual"
    emma:mode="image"
    emma:process="http://example.com/mycompvision1.xml">>
    <emma:interpretation id="int1"
      emma:confidence="0.9"
      emma:process-model-ref="pm1">
      <object>aircraft</object>
    </emma:interpretation>
    <emma:interpretation id="int2"
      emma:confidence="0.1"
      emma:process-model-ref="pm2">
      <object>person</object>
    </emma:interpretation>
  </emma:one-of>
</emma:emma>

4.1.8 Reference to parameters used by a process: emma:parameters and emma:parameter elements

Annotation emma:parameters
Definition An element used indicate a set of parameters used to configure a processor used in producing an EMMA result.
Children Any number of emma:parameter elements
Attributes
  • Required:
    • id of type xsd:ID.
  • Optional:
    • api-ref of type xsd:string.
    • ref of type xsd:anyURI that references a document containing a list of parameters
    • An emma:partial-content attribute of type xsd:boolean indicating whether the content inside the element is partial and more can be retrieved from an external document through ref
Applies to The emma:parameters MAY appear only as a child of the emma:emma, emma:interpretation, emma:one-of, emma:group, and emma:sequence elements.
Annotation emma:parameter
Definition An element used indicate a specific parameter in the configuration of a processor used in producing an EMMA result.
Children None
Attributes
  • Required:
    • name of type xsd:string.
    • value of type xsd:string.
  • Optional:
    • api-ref of type xsd:string.
Applies to The emma:parameter is legal only as a child of the emma:parameters element.

A set of parameters that were used to configure the EMMA processor that produces an EMMA result MAY be specified with the emma:parameters annotation defined as an element in the EMMA namespace. The emma:parameter-ref attribute (Section 4.2.21) appears on the specific emma:interpretation or other container element and references the appropriate emma:parameters element. For example, typical parameters for speech recognition such as confidence thresholds, speed vs. accuracy, timeouts, settings for endpointing etc can be included in emma:parameters.

For each emma:parameters element there MUST be an emma:parameter-ref in the document those value is the id of that emma:parameters. The emma:parameters element cannot have positional scope.

The optional attribute api-ref on emma:parameter and emma:parameters, specifies the specific API that the name and value of a parameter is drawn from or names and values of the set of parameters are drawn from. It's value is a string from an open set including: {vxml2.1, vxml2.0, MRCPv2, MRCPv1, html+speech, OpenCV....}. A parameters name and value are from the API specified in api-ref on the emma:parameter element if present. Otherwise, they are from the API specified in api-ref, if present, on the surrounding emma:parameters element. If the api-ref is not defined on either emma:parameter or emma:parameters the API that the name(s) and value(s) are drawn from is undefined.

In the following example, the interpretation is annotated with emma:parameter-ref to indicate the set of processing parameters that resulted in that interpretation. These are contained within an emma:parameters under emma:emma. The API for the first two parameters is inherited from emma:parameters and is "vxml2.1". The API for the third parameter is vendor specific and specified directly in api-ref on that emma:parameter element.

<emma:emma version="1.1"

    xmlns:emma="http://www.w3.org/2003/04/emma"

    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

    xsi:schemaLocation="http://www.w3.org/2003/04/emma

     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"

    xmlns="http://www.example.com/example">

    <emma:parameters id="parameters1" api-ref="vxml2.1">

       <emma:parameter name="confidencelevel" value=".9"/>

       <emma:parameter name="completetimeout" value=".3s"/>
      <emma:parameter name="word_confusion_network_confidence" value="YES"
       api-ref="x-acme-recognizer"/>

    </emma:parameters>

    <emma:interpretation id="int1" emma:parameter-ref="parameters1"
       emma:medium="acoustic" emma:mode="voice"
       emma:process="http://example.com/asr>

      <origin>Boston</origin>

    </emma:interpretation>

</emma:emma>

Note that in an EMMA document describing a multimodal input or a derivation with multiple steps there may be multiple different emma:parameters elements specifying the parameters used for each specific mode or processing stage. The relationship between a emma:parameters element and the container element it applies to is captured by the emma:parameter-ref attribute.

Instead of specifying parameters inline the ref attribute can be used to provide a URI reference to an external document containing the parameters. This could be either a pointer to an emma:parameters element within an EMMA document, or it can be a reference to a non-EMMA document containing a specification of the parameters. In the following example, the emma:parameters element contains a reference to an separate parameters document.

<emma:emma version="1.1"

    xmlns:emma="http://www.w3.org/2003/04/emma"

    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

    xsi:schemaLocation="http://www.w3.org/2003/04/emma

     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"

    xmlns="http://www.example.com/example">

    <emma:parameters id="parameters1" api-ref="vxml2.1" ref="http://example.com/mobile/asr/params.xml"

    </emma:parameters>

    <emma:interpretation id="int1" emma:parameter-ref="parameters1"
       emma:medium="acoustic" emma:mode="voice"
       emma:process="http://example.com/asr>

      <origin>Boston</origin>

    </emma:interpretation>

</emma:emma>

4.1.9 Human annotation: emma:annotation element

Annotation emma:annotation
Definition The emma:annotation element acts as a container for annotations of user inputs made by human labellers
Children One or more elements providing annotations of the input. May also contain a single emma:info element.
Attributes
  • Optional:
    • id of type xsd:ID.
    • annotator of type xsd:string indicating the name or other identifier of the annotator
    • type of type xsd:string from the open set {transcription,semantics,emotion ...}
    • time of type xsd:dateTime indicating the time at which the annotation label was made
    • reference of type xsd:boolean indicating if this annotation is the reference for the current interpretation
    • emma:confidence an attribute of type xsd:decimal in range 0.0 to 1.0, indicating the annotators confidence in their annotation.
    • srcref an attribute of type xsd:anyURI used to refer to an annotation outside of the document
Applies to The emma:annotation element is legal only as a child of the EMMA elements emma:emma, emma:interpretation, emma:group, emma:one-of, emma:sequence, emma:arc, or emma:node.

In many spoken and multimodal applications, at some time after user interactions have taken place, human labellers are used to provide annotation of the input. For example, for speech input the most common annotation is to transcribe the actual words spoken by the user by listening to the audio. The correct semantic interpretation of the input may also be annotated. Labellers may also annotate other aspects of the input such as the emotional state of the user.

To provide support for augmenting logged EMMA documents with human annotations, the EMMA markup provides the emma:annotation element. Multiple instances of this element can appear as a children of the various EMMA containers. In examples with emma:one-of and multiple emma:interpretation elements, emma:annotation will generally appear as a child of emma:one-of as it is an annotation of the signal rather than of the specific interpretation hypotheses encoded in the individual interpretations. The emma:annotation element can also be used to annotated arcs and states in lattices by including it in emma:arc and emma:node.

In addition to id, the emma:annotation element provides a series of optional attributes that MAY be used to provide metadata regarding the annotation. The annotator attribute contains a string indicating the name or other identifier of the annotator. The type attribute indicates the kind of annotation and has an open set of values {transcription, semantics, emotion ...}. The time attribute on emma:annotation does not have any relation to the time of the input itself, rather it indicates the date and time that the annotation was made. The emma:confidence attribute is a value between 0 and 1 indicating the annotators confidence in their annotation. The reference attribute is a boolean which indicates whether the annotation is appears on is the reference annotation for the interpretation as opposed to some other annotation of the input. For example, if the interpretation in the EMMA document is a speech recognition result, annotation of the reference string SHOULD have reference="true", while an annotation of the emotional state of the user should be annotated as reference="false" Further metadata regarding the annotation can be captured by using emma:info within emma:annotation.

In addition to specifying annotations inline the srcref attribute on the emma:annotation element can be used to refer to an external document containing the annotation content.

In the following example, the EMMA document contains an N-best list with two recognition hypotheses and their semantic representations. Under emma:one-of there are three different annotations all made by different annotators on different days and times. The first is the transcription, this indicates that in fact neither of the N-best results was correct and actual utterance spoken was "flights from austin to denver tomorrow". The second annotation (label2) contains the annotated semantic interpretation of the reference string. The third annotation contains an additional piece of metadata captured by a human labeller, specifically it captures the fact that based on the audio, the user's emotional state was angry. Here as an illustration we utilize Emotion ML markup.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:one-of id="int1" emma:start="1087995961542"
      emma:end="1087995963542"
      emma:medium="acoustic"
      emma:mode="voice"
      emma:function="dialog"
      emma:verbal="true"
      emma:signal="http://example.com/signals/audio457.wav">
    <emma:interpretation id="int1" emma:confidence="0.75"
      emma:tokens="flights from boston to denver tomorrow">
      <origin>Boston</origin>
      <destination>Denver</destination>
      <date>tomorrow</date>
    </emma:interpretation>
    <emma:interpretation id="int2" emma:confidence="0.68"
      emma:tokens="flights from austin to denver today">
      <origin>Austin</origin>
      <destination>Denver</destination>
      <date>today</date>
    </emma:interpretation>
    <emma:annotation id="label1"
      annotator="joe_bloggs"
      time="2011-10-26T21:32:52"
       type="transcription"
      emma:confidence="0.9"
      reference="false">
      <emma:literal>flights from austin to denver tomorrow</emma:literal>
    </emma:annotation>
    <emma:annotation id="label2"
      annotator="mary_smith"
      time="2011-10-27T12:00:21"
        type="semantics"
      emma:confidence="1.0"
      reference="true">
       <origin>Austin</origin>
      <destination>Denver</destination>
      <date>tomorrow</date>
    </emma:annotation>
    <emma:annotation id="label3"
      annotator="tim_black"
      time="2011-11-10T09:00:21"
       type="emotion"
      emma:confidence="1.0"
      reference="false">
      <emotionml xmlns="http://www.w3.org/2009/10/emotionml">
        <emotion>
           <category set="everyday" name="angry"/>

           <modality medium="acoustic" mode="voice"/>
        </emotion>
      </emotionml>
    </emma:annotation>
  </emma:one-of>
</emma:emma>

In addition to this more powerful mechanism for adding human annotation to a document, EMMA also provides a shorthand emma:annotated-tokens attribute for the common use case of adding reference transcriptions to an EMMA document (Section 4.2.22) .

Note that 'annotation' as used in the emma:annotation element and the emma:annotated-tokens attribute refers only to annotations made in a post process by human labellers to indicate what the correct processing (reference) of an input should have been or to annotate other aspects of the input. This differs from the general sense of annotation as used more broadly in the specification as in the title "Extensible MultiModal Annotation", which refers in general to metadata provided about an input either by an EMMA processor or by a human labeller. The many annotation elements and attributes in EMMA are used to indicate metadata captured regarding an input. The emma:annotation element and emma:annotated-tokens attribute are specifically for the addition of information provided by human labellers.

Annotations such the Emotion ML in the example above can also be stored in separate files and referenced on an emma:annotation element using ref. Like emma:parameters, a partial specification of the annotation can be provided inline and emma:partial-content="true" provides an indication that the full annotation can be accessed at ref.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:one-of id="int1" emma:start="1087995961542"
      emma:end="1087995963542"
      emma:medium="acoustic"
      emma:mode="voice"
      emma:function="dialog"
      emma:verbal="true"
      emma:signal="http://example.com/signals/audio457.wav"
      emma:confidence="0.75">
    <emma:interpretation id="int1" emma:confidence="0.75"
      emma:tokens="flights from boston to denver tomorrow">
      <origin>Boston</origin>
      <destination>Denver</destination>
      <date>tomorrow</date>
    </emma:interpretation>    <emma:annotation id="label3"
      annotator="tim_black"
      time="2011-11-10T09:00:21"
        type="emotion"
      confidence="1.0"
      reference="false"
      ref="http://example.com/2011/11/10/emotion123.xml">
    </emma:annotation>
  </emma:one-of>
</emma:emma>

4.1.10 Location: emma:location element

Annotation emma:location
Definition The emma:location element acts as a container for information about the location of a user input, more precisely, information about the location of a capture device such as a mobile device.
Children none
Attributes
  • Required: id of type xsd:ID.
  • Optional:
    • emma:latitude of type xsd:float in the range -90 to 90, indicating the latitude of the capture device
    • emma:longitude of type xsd:float in the range -180 to 180, indicating the longitude of the capture device
    • emma:accuracy of type xsd:float, indicating the accuracy of the position in meters, it MUST be non-negative
    • emma:altitude of type xsd:float, indicating the height of the capture device in meters
    • emma:altitudeAccuracy of type xsd:float, indicating the accuracy of the altitude information. This value MUST be non-negative.
    • emma:heading of type xsd:float, in the range 0 ≤ heading < 360, indicating the direction in which the device is moving. The value is empty if the capture device is stationary.
    • emma:speed of type xsd:float in meters/second, indicating the speed at which the capture device is moving. This value MUST be non-negative. The value is the empty string if the device is stationary.
    • emma:description of type xsd:string, providing a description of the location of the device at the beginning of capture of the signal
    • emma:address of type xsd:string, providing the address of the device at the beginning of capture
Applies to The emma:location element is legal only as a child of the EMMA elements emma:emma, emma:interpretation, emma:group, emma:one-of, emma:sequence.

Many mobile devices and sensors are equiped with geolocation capabilities and information about where a unimodal or multimodal event occurred can be very useful both for interpretation and logging. Annotating interpretations with location information in EMMA is achieved with the emma:location element. The emma:location element indicates the location of the capture device. In many cases the device location and the user location will be identical, as in the case where the user is carrying a mobile device. In other use cases (e.g. cameras capturing distant motion, far field microphone arrays) the user may be distant from from the device location. Capturing the location of the user or other source of signal is beyond the scope of the emma:location annotation. Note that emma:location is not intended as a general semantic representation for location information, e.g. a gesture made a location on a map or a spoken location, these rather are part of the interpretation and should be contained within emma:interpretation rather than the emma:location annotation element. The location information in emma:location represents a point in space. Since a device or sensor may be moving during the capture of an input, the location may not be same at the beginning and end of an input. For this reason, the emma:location information is defined to be relative to the beginning of the capture. Note though that the bearing of the sensor can be annotated using the emma:heading and emma:speed attributes on emma:location. The emma:location element represents the location of single capture device. Uses cases where multiple input devices or sensors are involved in the capture of the input can be represented as composite inputs with an emma:location element annotation on each of the interpretations that are composed. Multimodal Interaction Working Group invites comments on use cases that may require a finer-grained representation of location metadata.

The emma:location attributes are based on the W3C Geolocation API [Geolocation] specification, with the addition of attributes for a description of the location and address information. The formats of the attributes from the Geolocation API are as defined in that specification. Specifically, they are:

The geographic coordinate reference system used by the attributes is the World Geodetic System (2d) [WGS84]. No other reference system is supported.

The emma:latitude and emma:longitude attributes are geographic coordinates of the capture device at the beginning of the capture. They MUST be specified in decimal degrees.

The emma:altitude attribute denotes the height of the position at the beginning of the capture. It MUST be specified in meters above the [WGS84] ellipsoid, or as provided by the device's geolocation implementation. If the implementation cannot provide altitude information, the value of this attribute MUST be the empty string.

The emma:accuracy attribute denotes the accuracy of the latitude and longitude coordinates. It MUST be specified in meters. The value of the emma:accuracy attribute MUST be a non-negative real number.

The emma:altitudeAccuracy attribute is specified in meters. If the implementation cannot provide altitude information, the value of this attribute MUST be the empty string. Otherwise, the value of the emma:altitudeAccuracy attribute MUST be a non-negative real number.

The emma:accuracy and emma:altitudeAccuracy values in a EMMA document SHOULD correspond to a 95% confidence level.

The emma:heading attribute denotes the direction of travel of the capture device at the beginning of the capture, and is specified in degrees, where 0° ≤ heading < 360°, counting clockwise relative to the true north. If the implementation cannot provide heading information, the value of this attribute MUST be the empty string. If the capture device is stationary (i.e. the value of the speed attribute is 0), then the value of the emma:heading attribute MUST be the empty string.

The emma:speed attribute denotes the magnitude of the horizontal component of the capture device's velocity at the beginning of the capture, and MUST be specified in meters per second. If the implementation cannot provide speed information, the value of this attribute MUST be the empty string. Otherwise, the value of the emma:speed attribute MUST be a non-negative real number.

The emma:description attribute is an arbitrary string describing the location of the capture device at the beginning of the capture.

The emma:address attribute is an arbitrary string describing the address of the capture device at the beginning of the capture.

The internal formats of the emma:description and the emma:address attributes are not defined in this specification.

The following example shows the location information for an input spoken at the W3C MIT office.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
    http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
   <emma:location
      latitude="42.361860"
       longitude="-71.091840"
       altitude="6.706"
       accuracy="20.5"
       altitudeAccuracy="1.6"
       heading=""
       speed=""
       description="W3C MIT office"
       address="32 Vassar Street, Cambridge, MA 02139 USA"/>
   </emma:location>
   <emma:interpretation id="nlu1"
      emma:medium="acoustic"
      emma:mode="voice"
      emma:tokens="flights from boston to denver">
         <origin>Boston</origin>
         <destination>Denver</destination>
   </emma:interpretation>
 </emma:emma>



4.2 EMMA annotation attributes

4.2.1 Tokens of input: emma:tokens attribute

Annotation emma:tokens
Definition An attribute of type xsd:string holding a sequence of input tokens.
Applies to emma:interpretation, emma:group, emma:one-of, emma:sequence, and application instance data.

The emma:tokens annotation holds a list of input tokens. In the following description, the term tokens is used in the computational and syntactic sense of units of input, and not in the sense of XML tokens. The value held in emma:tokens is the list of the tokens of input as produced by the processor which generated the EMMA document; there is no language associated with this value.

In the case where a grammar is used to constrain input, the value will correspond to tokens as defined by the grammar. So for an EMMA document produced by input to a SRGS grammar [SRGS], the value of emma:tokens will be the list of words and/or phrases that are defined as tokens in SRGS (see Section 2.1 of [SRGS]). Items in the emma:tokens list are delimited by white space and/or quotation marks for phrases containing white space. For example:

emma:tokens="arriving at 'Liverpool Street'"

where the three tokens of input are arriving, at and Liverpool Street.

The emma:tokens annotation MAY be applied not just to the lexical words and phrases of language but to any level of input processing. Other examples of tokenization include phonemes, ink strokes, gestures and any other discrete units of input at any level.

Examples:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="int1"
      emma:tokens="From Cambridge to London tomorrow"
      emma:medium="acoustic" emma:mode="voice">
    <origin emma:tokens="From Cambridge">Cambridge</origin>
    <destination emma:tokens="to London">London</destination>
    <date emma:tokens="tomorrow">20030315</date>
  </emma:interpretation>
</emma:emma>

4.2.2 Reference to processing: emma:process attribute

Annotation emma:process
Definition An attribute of type xsd:anyURI referencing the process used to generate the interpretation.
Applies to emma:interpretation, emma:one-of, emma:group, emma:sequence

A reference to the information concerning the processing that was used for generating an interpretation MAY be made using the emma:process attribute. For example:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:derivation>
    <emma:interpretation id="raw"
      emma:medium="acoustic" emma:mode="voice">
      <answer>From Boston to Denver tomorrow</answer>
    </emma:interpretation>
    <emma:interpretation id="better"
        emma:process="http://example.com/mysemproc1.xml">
      <origin>Boston</origin>
      <destination>Denver</destination>
      <date>tomorrow</date>
      <emma:derived-from resource="#raw"/>
    </emma:interpretation>
  </emma:derivation>
  <emma:interpretation id="best"
      emma:process="http://example.com/mysemproc2.xml">
    <origin>Boston</origin>
    <destination>Denver</destination>
    <date>03152003</date>
    <emma:derived-from resource="#better"/>
  </emma:interpretation>
</emma:emma>

The process description document, referenced by the emma:process annotation MAY include information on the process itself, such as grammar, type of parser, etc. EMMA is not normative about the format of the process description document.

Note that while the emma:process attribute may refer to a document that describes the process, the URI syntax itself can be used to briefly describe the process within the EMMA document without actually referring to an external document. For example, the results of a natural language understanding component could be annotated as follows:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="nlu1"
    emma:medium="acoustic"
    emma:mode="voice"
    emma:tokens="flights from boston to denver tomorrow please"
    emma:process="http://nlu/classifier=svm&model=travel&output=xml">
      <origin>Boston</origin>
      <destination>Denver</destination>
      <date>tomorrow</date>
  </emma:interpretation>
</emma:emma>

In this case the emma:process attribute indicates that the process is natural language understanding (nlu) that the classifier used is a support vector machine (svm), that the specific model is the 'travel' model and the required output was 'xml'. Note that none of the specific values used within the URI here are standardized. This simply illustrates how a URI can be used to provide a detailed process description.

4.2.3 Lack of input: emma:no-input attribute

Annotation emma:no-input
Definition Attribute holding xsd:boolean value that is true if there was no input.
Applies to emma:interpretation

The case of lack of input MUST be annotated as follows:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="int1" emma:no-input="true"

   emma:medium="acoustic" emma:mode="voice"/>
</emma:emma>

If the emma:interpretation is annotated with emma:no-input="true" then the emma:interpretation MUST be empty.

4.2.4 Uninterpreted input: emma:uninterpreted attribute

Annotation emma:uninterpreted
Definition Attribute holding xsd:boolean value that is true if no interpretation was produced in response to the input
Applies to emma:interpretation

An emma:interpretation element representing input for which no interpretation was produced MUST be annotated with emma:uninterpreted="true". For example:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
    http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="interp1" emma:uninterpreted="true"
   emma:medium="acoustic" emma:mode="voice"/>
</emma:emma>

The notation for uninterpreted input MAY refer to any possible stage of interpretation processing, including raw transcriptions. For instance, no interpretation would be produced for stages performing pure signal capture such as audio recordings. Likewise, if a spoken input was recognized but cannot be parsed by a language understanding component, it can be tagged as emma:uninterpreted as in the following example:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="understanding"
      emma:process="http://example.com/mynlu.xml"
      emma:uninterpreted="true"
      emma:tokens="From Cambridge to London tomorrow"
      emma:medium="acoustic" emma:mode="voice"/>
</emma:emma>

The emma:interpretation MUST be empty if the emma:interpretation element is annotated with emma:uninterpreted="true".

4.2.5 Human language of input: emma:lang attribute

Annotation emma:lang
Definition An attribute of type xsd:language indicating the language for the input.
Applies to emma:interpretation, emma:group, emma:one-of, emma:sequence, and application instance data.

The emma:lang annotation is used to indicate the human language for the input that it annotates. The values of the emma:lang attribute are language identifiers as defined by IETF Best Current Practice 47 [BCP47]. For example, emma:lang="fr" denotes French, and emma:lang="en-US" denotes US English. emma:lang MAY be applied to any emma:interpretation element. Its annotative scope follows the annotative scope of these elements. Unlike the xml:lang attribute in XML, emma:lang does not specify the language used by element contents or attribute values.

The following example shows the use of emma:lang for annotating an input interpretation.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="int1" emma:lang="fr"
    emma:medium="acoustic" emma:mode="voice">
    <answer>arretez</answer>
  </emma:interpretation>
</emma:emma>

Many kinds of input including some inputs made through pen, computer vision, and other kinds of sensors are inherently non-linguistic. Examples include drawing areas, arrows etc. using a pen and music input for tune recognition. If these non-linguistic inputs are annotated with emma:lang then they MUST be annotated as emma:lang="zxx". For example, pen input where a user circles an area on map display could be represented as follows where emma:lang="zxx" indicates that the ink input is not in any human language.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="pen1"
      emma:medium="tactile"
      emma:mode="ink"
      emma:lang="zxx">
    <location>
      <type>area</type>
      <points>42.1345 -37.128 42.1346 -37.120 ... </points>
    </location>
  </emma:interpretation>
</emma:emma>

If inputs for which there is no information about whether the source input is in a particular human language, and if so which language, are annotated with emma:lang, then they MUST be annotated as emma:lang="". Furthermore, in cases where there is not explicit emma:lang annotation, and none is inherited from a higher element in the document, the default value for emma:lang is "" meaning that there is no information about whether the source input is in a language and if so which language.

The xml:lang and emma:lang attributes serve uniquely different and equally important purposes. The role of the xml:lang attribute in XML 1.0 is to indicate the language used for character data content in an XML element or document. In contrast, the emma:lang attribute is used to indicate the language employed by a user when entering an input. Critically, emma:lang annotates the language of the signal originating from the user rather than the specific tokens used at a particular stage of processing. This is most clearly illustrated through consideration of an example involving multiple stages of processing of a user input. Consider the following scenario: EMMA is being used to represent three stages in the processing of a spoken input to an system for ordering products. The user input is in Italian, after speech recognition, the user input is first translated into English, then a natural language understanding system converts the English translation into a product ID (which is not in any particular language). Since the input signal is a user speaking Italian, the emma:lang will be emma:lang="it" on all of these three stages of processing. The xml:lang attribute, in contrast, will initially be "it", after translation the xml:lang will be "en-US", and after language understanding it will be "zxx" since the product ID is non-linguistic content. The following are examples of EMMA documents corresponding to these three processing stages, abbreviated to show the critical attributes for discussion here. Note that <transcription>, <translation>, and <understanding> are application namespace attributes, not part of the EMMA markup.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
   <emma:interpretation emma:lang="it" emma:mode="voice" emma:medium="acoustic">
     <transcription xml:lang="it">condizionatore</transcription>
   </emma:interpretation>
</emma:emma>


<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
    http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
    <emma:interpretation emma:lang="it" emma:mode="voice" emma:medium="acoustic">
       <translation xml:lang="en-US">air conditioner</translation>
    </emma:interpretation>
</emma:emma>

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
    http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
    <emma:interpretation emma:lang="it" emma:mode="voice" emma:medium="acoustic">
       <understanding xml:lang="zxx">id1456</understanding>
    </emma:interpretation>
</emma:emma>

In order to handle inputs involving multiple languages, such as through code switching, the emma:lang tag MAY contain several language identifiers separated by spaces.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="int1"
      emma:tokens="please stop arretez s'il vous plait"
      emma:lang="en fr"
      emma:medium="acoustic" emma:mode="voice">
    <command> CANCEL </command>
  </emma:interpretation>
</emma:emma>

4.2.6 Reference to signal: emma:signal and emma:signal-size attributes

Annotation emma:signal
Definition An attribute of type xsd:anyURI referencing the input signal.
Applies to emma:interpretation, emma:one-of, emma:group, emma:sequence, and application instance data.
Annotation emma:signal-size
Definition An attribute of type xsd:nonNegativeInteger specifying the size in eight bit octets of the referenced source.
Applies to emma:interpretation, emma:one-of, emma:group, emma:sequence, and application instance data.

A URI reference to the signal that originated the input recognition process MAY be represented in EMMA using the emma:signal annotation. For example, in the case of speech recognition, the emma:signal attribute is the annotation used to reference the audio that was recognized. The MIME type of the audio can be indicated using emma:media-type.

Here is an example where the reference to a speech signal is represented using the emma:signal annotation on the emma:interpretation element:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="intp1"
      emma:signal="http://example.com/signals/sg23.bin"
      emma:medium="acoustic" emma:mode="voice">
    <origin>Boston</origin>
    <destination>Denver</destination>
    <date>03152003</date>
  </emma:interpretation>
</emma:emma>

The emma:signal-size annotation can be used to declare the exact size of the associated signal in 8-bit octets. An example of the use of an EMMA document to represent a recording, with emma:signal-size indicating the size is as follows:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="intp1"
      emma:medium="acoustic"
      emma:mode="voice"
      emma:function="recording"
      emma:uninterpreted="true"
      emma:signal="http://example.com/signals/recording.mpg"
      emma:signal-size="82102"
      emma:duration="10000">
  </emma:interpretation>
</emma:emma>

4.2.7 Media type: emma:media-type attribute

Annotation emma:media-type
Definition An attribute of type xsd:string holding the MIME type associated with the signal's data format.
Applies to emma:interpretation, emma:one-of, emma:group, emma:sequence, emma:endpoint, and application instance data.

The data format of the signal that originated the input MAY be represented in EMMA using the emma:media-type annotation. An initial set of MIME media types is defined by [RFC2046].

Here is an example where the media type for the ETSI ES 202 212 audio codec for Distributed Speech Recognition (DSR) is applied to the emma:interpretation element. The example also specifies an optional sampling rate of 8 kHz and maxptime of 40 milliseconds.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="intp1"        emma:signal="http://example.com/signals/signal.dsr"
        emma:media-type="audio/dsr-es202212; rate:8000; maxptime:40"
        emma:medium="acoustic" emma:mode="voice">
    <origin>Boston</origin>
    <destination>Denver</destination>
    <date>03152003</date>
  </emma:interpretation>
</emma:emma>

4.2.8 Confidence scores: emma:confidence attribute

Annotation emma:confidence
Definition An attribute of type xsd:decimal in range 0.0 to 1.0, indicating the processor's confidence in the result.
Applies to emma:interpretation, emma:one-of, emma:group, emma:sequence, emma:annotation, and application instance data.

The confidence score in EMMA is used to indicate the quality of the input the processor or annotator's confidence in the assignment of the interpretation to the input, and if confidence is annotated on an input it MUST be given as the value of emma:confidence. The confidence score MUST be a number in the range from 0.0 to 1.0 inclusive. A value of 0.0 indicates minimum confidence, and a value of 1.0 indicates maximum confidence. Note that emma:confidence represents not only the confidence of the speech recognizer, but rather more generally the confidence of the whatever processor was responsible for creating the EMMA result, based on whatever evidence it has. For a natural language interpretation, for example, this might include semantic heuristics in addition to speech recognition scores. Moreover, the confidence score values do not have to be interpreted as probabilities. In fact confidence score values are platform-dependent, since their computation is likely to differ between platforms and different EMMA processors. Confidence scores are annotated explicitly in EMMA in order to provide this information to the subsequent processes for multimodal interaction. The example below illustrates how confidence scores are annotated in EMMA.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:one-of id="nbest1"
    emma:medium="acoustic" emma:mode="voice">
    <emma:interpretation id="meaning1" emma:confidence="0.6">
      <location>Boston</location>
    </emma:interpretation>
    <emma:interpretation id="meaning2" emma:confidence="0.4">
      <location> Austin </location>
    </emma:interpretation>
  </emma:one-of>
</emma:emma>

In addition to its use as an attribute on the EMMA interpretation and container elements, the emma:confidence attribute MAY also be used to assign confidences to elements in instance data in the application namespace. This can be seen in the following example, where the <destination> and <origin> elements have confidences.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="meaning1" emma:confidence="0.6"
     emma:medium="acoustic" emma:mode="voice">
     <destination emma:confidence="0.8"> Boston</destination>
     <origin emma:confidence="0.6"> Austin </origin>
  </emma:interpretation>
</emma:emma>

Although in general instance data can be represented in XML using a combination of elements and attributes in the application namespace, EMMA does not provide a standard way to annotate processors' confidences in attributes. Consequently, instance data that is expected to be assigned confidences SHOULD be represented using elements, as in the above example.

4.2.9 Input source: emma:source attribute

Annotation emma:source
Definition An attribute of type xsd:anyURI referencing the source of input.
Applies to emma:interpretation, emma:one-of, emma:group , emma:sequence, and application instance data.

The source of an interpreted input MAY be represented in EMMA as a URI resource using the emma:source annotation. Here is an example that shows different input sources for different input interpretations.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example"
    xmlns:myapp="http://www.example.com/myapp">
  <emma:one-of id="nbest1"
    emma:medium="acoustic" emma:mode="voice">
    <emma:interpretation id="intp1"
        emma:source="http://example.com/microphone/NC-61">
      <myapp:destination>Boston</myapp:destination>
    </emma:interpretation>
    <emma:interpretation id="intp2"
        emma:source="http://example.com/microphone/NC-4024">
      <myapp:destination>Austin</myapp:destination>
    </emma:interpretation>
  </emma:one-of>
</emma:emma>

4.2.10 Timestamps

The start and end times for input MAY be indicated using either absolute timestamps or relative timestamps. Both are in milliseconds for ease in processing timestamps. Note that the ECMAScript Date object's getTime() function is a convenient way to determine the absolute time.

4.2.10.1 Absolute timestamps: emma:start, emma:end attributes

Annotation emma:start, emma:end
Definition Attributes of type xsd:nonNegativeInteger indicating the absolute starting and ending times of an input in terms of the number of milliseconds since 1 January 1970 00:00:00 GMT
Applies to emma:interpretation, emma:group, emma:one-of, emma:sequence, emma:arc, and application instance data

Here is an example of a timestamp for an absolute time.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="int1"
       emma:start="1087995961542"
       emma:end="1087995963542"
       emma:medium="acoustic" emma:mode="voice">
    <destination>Chicago</destination>
  </emma:interpretation>
</emma:emma>

The emma:start and emma:end annotations on an input MAY be identical, however the emma:end value MUST NOT be less than the emma:start value.

4.2.10.2 Relative timestamps: emma:time-ref-uri, emma:time-ref-anchor-point, emma:offset-to-start attributes

Annotation emma:time-ref-uri
Definition Attribute of type xsd:anyURI indicating the URI used to anchor the relative timestamp.
Applies to emma:interpretation, emma:group, emma:one-of, emma:sequence, emma:lattice, and application instance data
Annotation emma:time-ref-anchor-point
Definition Attribute with a value of start or end, defaulting to start. It indicates whether to measure the time from the start or end of the interval designated with emma:time-ref-uri.
Applies to emma:interpretation, emma:group, emma:one-of, emma:sequence, emma:lattice, and application instance data
Annotation emma:offset-to-start
Definition Attribute of type xsd:integer, defaulting to zero. It specifies the offset in milliseconds for the start of input from the anchor point designated with emma:time-ref-uri and emma:time-ref-anchor-point
Applies to emma:interpretation, emma:group, emma:one-of, emma:sequence, emma:arc, and application instance data

Relative timestamps define the start of an input relative to the start or end of a reference interval such as another input.

relative timestamps

The reference interval is designated with emma:time-ref-uri attribute. This MAY be combined with emma:time-ref-anchor-point attribute to specify whether the anchor point is the start or end of this interval. The start of an input relative to this anchor point is then specified with emma:offset-to-start attribute.

Here is an example where the referenced input is in the same document:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:sequence>
    <emma:interpretation id="int1"
     emma:medium="acoustic" emma:mode="voice">
    <origin>Denver</origin>
    </emma:interpretation>
    <emma:interpretation id="int2"
        emma:medium="acoustic" emma:mode="voice"
        emma:time-ref-uri="#int1"
        emma:time-ref-anchor-point="start"
        emma:offset-to-start="5000">
    <destination>Chicago</destination>
    </emma:interpretation>
  </emma:sequence>
</emma:emma>

Note that the reference point refers to an input, but not necessarily to a complete input. For example, if a speech recognizer timestamps each word in an utterance, the anchor point might refer to the timestamp for just one word.

The absolute and relative timestamps are not mutually exclusive; that is, it is possible to have both relative and absolute timestamp attributes on the same EMMA container element.

Timestamps of inputs collected by different devices will be subject to variation if the times maintained by the devices are not synchronized. This concern is outside of the scope of the EMMA specification.

4.2.10.3 Duration of input: emma:duration attribute

Annotation emma:duration
Definition Attribute of type xsd:nonNegativeInteger, defaulting to zero. It specifies the duration of the input in milliseconds.
Applies to emma:interpretation, emma:group, emma:one-of, emma:sequence, emma:arc, and application instance data

The duration of an input in milliseconds MAY be specified with the emma:duration attribute. The emma:duration attribute MAY be used either in combination with timestamps or independently, for example in the annotation of speech corpora.

In the following example, the duration of the signal that gave rise to the interpretation is indicated using emma:duration.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
    <emma:interpretation id="int1" emma:duration="2300"
        emma:medium="acoustic" emma:mode="voice">
    <origin>Denver</origin>
    </emma:interpretation>
</emma:emma>

4.2.10.4 Composite Input and Relative Timestamps

This section is informative.

The following table provides guidance on how to determine the values of relative timestamps on a composite input.

Informative Guidance on Relative Timestamps in Composite Derivations
emma:time-ref-uri If the reference interval URI is the same for both inputs then it should be the same for the composite input. If it is not the same then relative timestamps will have to be resolved to absolute timestamps in order to determine the combined timestamp. .
emma:time-ref-anchor-point If the anchor value is the same for both inputs then it should be the same for the composite input. If it is not the same then relative timestamps will have to be resolved to absolute timestamps in order to determine the combined timestamp.
emma:offset-to-start Given that the emma:time-ref-uri and emma:time-ref-anchor-point are the same for both combining inputs, then the emma:offset-to-start for the combination should be the lesser of the two. If they are not the same then relative timestamps will have to be resolved to absolute timestamps in order to determine the combined timestamp.
emma:duration Given that the emma:time-ref-uri and emma:time-ref-anchor-point are the same for both combining inputs, then the emma:duration is calculated as follows. Add together the emma:offset-to-start and emma:duration for each of the inputs. Take whichever of these is greater and subtract from it the lesser of the emma:offset-to-start values in order to determine the combined duration. If emma:time-ref-uri and emma:time-ref-anchor-point are not the same then relative timestamps will have to be resolved to absolute timestamps in order to determine the combined timestamp.

4.2.11 Medium, mode, and function of user inputs: emma:medium, emma:mode, emma:function, emma:verbal attributes

Annotation emma:medium
Definition An attribute of type xsd:nmtokens which contains a space delimited set of values from the set {acoustic, tactile, visual}.
Applies to emma:interpretation, emma:group, emma:one-of, emma:sequence, emma:endpoint, and application instance data
Annotation emma:mode
Definition An attribute of type xsd:nmtokens which contains a space delimited set of values from an open set of values including: {voice, dtmf, ink, gui, keys, video, photograph, ...}.
Applies to emma:interpretation, emma:group, emma:one-of, emma:sequence, emma:endpoint, and application instance data
Annotation emma:function
Definition An attribute of type xsd:string constrained to values in the open set {recording, transcription, dialog, verification, ...}.
Applies to emma:interpretation, emma:group, emma:one-of, emma:sequence, and application instance data
Annotation emma:verbal
Definition An attribute of type xsd:boolean.
Applies to emma:interpretation, emma:group, emma:one-of, emma:sequence, and application instance data
Annotation emma:device-type
Definition The type of device, or list of types of device through which the input is captured. An attribute of type xsd:nmtokens which contains a space delimited set of values from an open set of values including: {microphone, touchscreen, mouse, keypad, keyboard, pen, joystick, touchpad, scanner, camera_2d, camera_3d, thumbwheel...}.
Applies to emma:interpretation, emma:group, emma:one-of, emma:sequence, and application instance data
Annotation emma:expressed-through
Definition The modality, or list of modalities, through which the interpretation is expressed. An attribute of type xsd:nmtokens which contains a space delimited set of values from an open set of values including: {gaze, face, head, torso, hands, leg, locomotion, posture, physiology, ...}.
Applies to emma:interpretation, emma:group, emma:one-of, emma:sequence, and application instance data

EMMA provides two properties for the annotation of input modality. One indicating the broader medium or channel (emma:medium) and another indicating the specific mode of communication used on that channel (emma:mode). The input medium is defined from the users perspective and indicates whether they use their voice (acoustic), touch (tactile), or visual appearance/motion (visual) as input. Tactile includes most hand-on input device types such as pen, mouse, keyboard, and touch screen. Visual is used for camera input.

emma:medium = space delimited sequence of values from the set:
            [acoustic|tactile|visual]

The mode property provides the ability to distinguish between different modes of communication that may be within a particular medium. For example, in the tactile medium, modes include electronic ink (ink), and pointing and clicking on a graphical user interface (gui).

emma:mode = space delimited sequence of values from the set:
            [voice|dtmf|ink|gui|keys|video|photograph| ... ]

The emma:medium classification is based on the boundary between the user and the device that they use. For emma:medium="tactile" the user physically touches the device in order to provide input. For emma:medium="visual" the user's movement is captured by sensors (cameras, infrared) resulting in an input to the system. In the case where emma:medium="acoustic" the user provides input to the system by producing an acoustic signal. Note then that DTMF input will be classified as emma:medium="tactile" since in order to provide DTMF input the user physically presses keys on a keypad.

In order to clarify the difference between emma:medium and emma:mode consider the following examples of different ways to capture drawn input. If the user input consists of drawing it will be classified as emma:mode="ink". If the user physically draws on a touch sensitive screen then the input is classified as emma:medium ="tactile" since the user interacts with the system by direct contact. If instead the user draws on a tabletop and their input is captured by a camera mounted above (or below) the surface then the input is emma:medium ="visual". Similarly, drawing on a large screen display using hand gestures made in space and sensed with a camera will be classified as emma:mode="ink" and emma:medium ="visual".

While emma:medium and emma:mode are optional on specific elements such as emma:interpretation and emma:one-of, note that all EMMA interpretations must be annotated for emma:medium and emma:mode, so either these attributes must appear directly on emma:interpretation or they must appear on an ancestor emma:one-of node or they must appear on an earlier stage of the derivation listed in emma:derivation.

The emma:device-type annotation can be used to indicate the specific type of device used to capture the input. This allow for differentiation of, multiple different tactile inputs within the ink mode, such as touchscreen input, pen, and mouse.

emma:device-type = space delimited sequence of values from the set:
                     [microphone|keypad|keyboard|touchscreen|touchpad|
                    mouse|pen|joystick|thumbwheel|
                    camera_2d|camera_3d|scanner... ]

The emma:device-type attribute SHOULD be used to indicate the general category of the sensor used to captured the input. The specific model number or characteristics SHOULD be captured instead using emma:process (Section 4.2.2).

Orthogonal to the mode, user inputs can also be classified with respect to their communicative function. This enables a simpler mode classification.

emma:function = [recording|transcription|dialog|verification| ... ]

For example, speech can be used for recording (e.g. voicemail), transcription (e.g. dictation), dialog (e.g. interactive spoken dialog systems), and verification (e.g. identifying users through their voiceprints).

EMMA also supports an additional property emma:verbal which distinguishes verbal use of an input mode from non-verbal. This MAY be used to distinguish the use of electronic ink to convey handwritten commands from the user of electronic ink for symbolic gestures such as circles and arrows. Handwritten commands, such as writing downtown in order to change a map display to show the downtown are classified as verbal (emma:function="dialog" emma:verbal="true"). Pen gestures (arrows, lines, circles, etc), such as circling a building, are classified as non-verbal dialog (emma:function="dialog" emma:verbal="false"). The use of handwritten words to transcribe an email message is classified as transcription (emma:function="transcription" emma:verbal="true").

emma:verbal = [true|false]

Handwritten words and ink gestures are typically recognized using different kinds of recognition components (handwriting recognizer vs. gesture recognizer) and the verbal annotation will be added by the recognition component which classifies the input. The original input source, a pen in this case, will not be aware of this difference. The input source identifier will tell you that the input was from a pen of some kind but will not tell you if the mode of input was handwriting (show downtown) or gesture (e.g. circling an object or area).

Here is an example of the EMMA annotation for a pen input where the user's ink is recognized as either a word ("Boston") or as an arrow:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:one-of id="nbest1">
    <emma:interpretation id="interp1"
     emma:confidence="0.6"
     emma:medium="tactile"
     emma:mode="ink"
     emma:device-type="pen"
     emma:function="dialog"
     emma:verbal="true">
       <location>Boston</location>
    </emma:interpretation>
    <emma:interpretation id="interp2"
     emma:confidence="0.4"
     emma:medium="tactile"
     emma:mode="ink"
     emma:device-type="pen"
     emma:function="dialog"
     emma:verbal="false">
       <direction>45</direction>
    </emma:interpretation>
  </emma:one-of>
</emma:emma>

Here is an example of the EMMA annotation for a spoken command which is recognized as either "Boston" or "Austin":

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:one-of>
    <emma:interpretation id="interp1"
     emma:confidence="0.6"
     emma:medium="acoustic"
     emma:mode="voice"
       emma:device-type="microphone"
     emma:function="dialog"
     emma:verbal="true">
       <location>Boston</location>
    </emma:interpretation>
    <emma:interpretation id="interp2"
     emma:confidence="0.4"
     emma:medium="acoustic"
     emma:mode="voice"
     emma:device-type="microphone"
     emma:function="dialog"
     emma:verbal="true">
       <location>Austin</location>
    </emma:interpretation>
  </emma:one-of>
</emma:emma>

The following table shows the relationship between the medium, mode, and function properties and serves as an aid for classifying inputs. For the dialog function it also shows some examples of the classification of inputs as verbal vs. non-verbal.

Medium Device-type Mode Function
recording dialog transcription verification
acoustic microphone voice audiofile (e.g. voicemail) spoken command / query / response (verbal = true) dictation speaker recognition
singing a note (verbal = false)
tactile keypad dtmf audiofile / character stream typed command / query / response (verbal = true) text entry (T9-tegic, word completion, or word grammar) password / pin entry
command key "Press 9 for sales" (verbal = false)
keyboard dtmf character / key-code stream typed command / query / response (verbal = true) typing password / pin entry
command key "Press S for sales" (verbal = false)
pen ink trace, sketch handwritten command / query / response (verbal = true) handwritten text entry signature, handwriting recognition
gesture (e.g. circling building) (verbal = false)
gui N/A tapping on named button (verbal = true) soft keyboard password / pin entry
drag and drop, tapping on map (verbal = false)
touchscreen ink trace, sketch handwritten command / query / response (verbal = true) handwritten text entry signature, handwriting recognition
gesture (e.g. circling building) (verbal = false)
gui N/A tapping on named button (verbal = true) soft keyboard password / pin entry
drag and drop, tapping on map (verbal = false)
mouse ink trace, sketch handwritten command / query / response (verbal = true) handwritten text entry N/A
gesture (e.g. circling building) (verbal = false)
gui N/A clicking named button (verbal = true) soft keyboard password / pin entry
drag and drop, clicking on map (verbal = false)
joystick ink trace,sketch gesture (e.g. circling building) (verbal = false) N/A N/A
gui N/A pointing, clicking button / menu (verbal = false) soft keyboard password / pin entry
visual scanner photograph image handwritten command / query / response (verbal = true) optical character recognition, object/scene recognition (markup, e.g. SVG) N/A
drawings and images (verbal = false)
camera_2d photograph image objects (verbal = false) visual object/scene recognition face id, retinal scan
camera_2d video movie sign language (verbal = true) audio/visual recognition face id, gait id, retinal scan
face / hand / arm / body gesture (e.g. pointing, facing) (verbal = false)

The emma:expressed-through attribute describes the modality through which an input is produced, usually by a human being. This differs from the specific mode of communication (emma:mode) and the broader channel or medium (emma:medium). For example in the case where a user provides ink input on a touchscreen using their hands the input would be classified as emma:medium="tactile", emma:mode="ink", and emma:expressed-through="hands". The emma:expressed-through attribute is not specific about the sensors used for observing the modality. These can be specified using emma:medium and emma:mode attributes.

This mechanism allows for more fine grained annotation of the specific body part that is analyzed in the assignment of an EMMA result. For example, in an emotion recognition task using computer vision techniques on video camera input, emma:medium="visual" and emma:mode="video". If the face is being analyzed to determine the result then emma:expressed-through="face" while if the body motion is being analyzed then emma:expressed-through="locomotion".

The list of values provided covers a broad range of modalities through which inputs may be expressed. These values SHOULD be used if they are appropriate. The list is an open set in order to allow for more fine-grained distinctions such as "eyes" vs. "mouth" etc.

4.2.12 Composite multimodality: emma:hook attribute

Annotation emma:hook
Definition An attribute of type xsd:string constrained to values in the open set {voice, dtmf, ink, gui, keys, video, photograph, ...} or the wildcard any
Applies to Application instance data

The attribute emma:hook MAY be used to mark the elements in the application semantics within an emma:interpretation which are expected to be integrated with content from input in another mode to yield a complete interpretation. The emma:mode to be integrated at that point in the application semantics is indicated as the value of the emma:hook attribute. The possible values of emma:hook are the list of input modes that can be values of emma:mode (see Section 4.2.11). In addition to these, the value of emma:hook can also be the wildcard any indicating that the other content can come from any source. The annotation emma:hook differs in semantics from emma:mode as follows. Annotating an element in the application semantics with emma:mode="ink" indicates that that part of the semantics came from the ink mode. Annotating an element in the application semantics with emma:hook="ink" indicates that part of the semantics needs to be integrated with content from the ink mode.

To illustrate the use of emma:hook consider an example composite input in which the user says "zoom in here" in the speech input mode while drawing an area on a graphical display in the ink input mode. The fact that the location element needs to come from the ink mode is indicated by annotating this application namespace element using emma:hook

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation emma:medium="acoustic" emma:mode="voice">
    <command>
      <action>zoom</action>
      <location emma:hook="ink">
        <type>area</type>
      </location>
    </command>
  </emma:interpretation>
</emma:emma>

For more detailed explanation of this example see Appendix C.

4.2.13 Cost: emma:cost attribute

Annotation emma:cost
Definition An attribute of type xsd:decimal in range 0.0 to 10000000, indicating the processor's cost or weight associated with an input or part of an input.
Applies to emma:interpretation, emma:group, emma:one-of, emma:sequence, emma:arc, emma:node, and application instance data.

The cost annotation in EMMA indicates the weight or cost associated with an user's input or part of their input. The most common use of emma:cost is for representing the costs encoded on a lattice output from speech recognition or other recognition or understanding processes. emma:cost MAY also be used to indicate the total cost associated with particular recognition results or semantic interpretations.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:one-of emma:medium="acoustic" emma:mode="voice">
    <emma:interpretation id="meaning1" emma:cost="1600">
      <location>Boston</location>
    </emma:interpretation>
    <emma:interpretation id="meaning2" emma:cost="400">
      <location> Austin </location>
    </emma:interpretation>
  </emma:one-of>
</emma:emma>

4.2.14 Endpoint properties: emma:endpoint-role, emma:endpoint-address, emma:port-type, emma:port-num, emma:message-id, emma:service-name, emma:endpoint-pair-ref, emma:endpoint-info-ref attributes

Annotation emma:endpoint-role
Definition An attribute of type xsd:string constrained to values in the set {source, sink, reply-to, router}.
Applies to emma:endpoint
Annotation emma:endpoint-address
Definition An attribute of type xsd:anyURI that uniquely specifies the network address of the emma:endpoint.
Applies to emma:endpoint
Annotation emma:port-type
Definition An attribute of type xsd:QName that specifies the type of the port.
Applies to emma:endpoint
Annotation emma:port-num
Definition An attribute of type xsd:nonNegativeInteger that specifies the port number.
Applies to emma:endpoint
Annotation emma:message-id
Definition An attribute of type xsd:anyURI that specifies the message ID associated with the data.
Applies to emma:endpoint
Annotation emma:service-name
Definition An attribute of type xsd:string that specifies the name of the service.
Applies to emma:endpoint
Annotation emma:endpoint-pair-ref
Definition An attribute of type xsd:anyURI that specifies the pairing between sink and source endpoints.
Applies to emma:endpoint
Annotation emma:endpoint-info-ref
Definition An attribute of type xsd:IDREF referring to the id attribute of an emma:endpoint-info element.
Applies to emma:interpretation, emma:group, emma:one-of, emma:sequence, and application instance data.

The emma:endpoint-role attribute specifies the role that the particular emma:endpoint performs in multimodal interaction. The role value sink indicates that the particular endpoint is the receiver of the input data. The role value source indicates that the particular endpoint is the sender of the input data. The role value reply-to indicates that the particular emma:endpoint is the intended endpoint for the reply. The same emma:endpoint-address MAY appear in multiple emma:endpoint elements, provided that the same endpoint address is used to serve multiple roles, e.g. sink, source, reply-to, router, etc., or associated with multiple interpretations.

The emma:endpoint-address specifies the network address of the emma:endpoint, and emma:port-type specifies the port type of the emma:endpoint. The emma:port-num annotates the port number of the endpoint (e.g. the typical port number for an http endpoint is 80). The emma:message-id annotates the message ID information associated with the annotated input. This meta information is used to establish and maintain the communication context for both inbound processing and outbound operation. The service specification of the emma:endpoint is annotated by emma:service-name which contains the definition of the service that the emma:endpoint performs. The matching of the sink endpoint and its pairing source endpoint is annotated by the emma:endpoint-pair-ref attribute. One sink endpoint MAY link to multiple source endpoints through emma:endpoint-pair-ref. Further bounding of the emma:endpoint is possible by using the annotation of emma:group (see Section 3.3.2).

The emma:endpoint-info-ref attribute associates the EMMA result in the container element with an emma:endpoint-info element.

The following example illustrates the use of these attributes in multimodal interactions where multiple modalities are used.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example"
    xmlns:ex="http://www.example.com/emma/port">
  <emma:endpoint-info id="audio-channel-1" >
    <emma:endpoint id="endpoint1"
        emma:endpoint-role="sink"
        emma:endpoint-address="135.61.71.103"
        emma:port-num="50204"
        emma:port-type="rtp"
        emma:endpoint-pair-ref="endpoint2"
        emma:media-type="audio/dsr-202212; rate:8000; maxptime:40"
        emma:service-name="travel"
        emma:mode="voice">
      <ex:app-protocol>SIP</ex:app-protocol>
    </emma:endpoint>
    <emma:endpoint id="endpoint2" emma:endpoint-role="source"
        emma:endpoint-address="136.62.72.104"
        emma:port-num="50204"
        emma:port-type="rtp"
        emma:endpoint-pair-ref="endpoint1"
        emma:media-type="audio/dsr-202212; rate:8000; maxptime:40"
        emma:service-name="travel"
        emma:mode="voice">
      <ex:app-protocol>SIP</ex:app-protocol>
    </emma:endpoint>
  </emma:endpoint-info>
  <emma:endpoint-info id="ink-channel-1">
     <emma:endpoint id="endpoint3" emma:endpoint-role="sink"
         emma:endpoint-address="http://emma.example/sink"
         emma:endpoint-pair-ref="endpoint4"
         emma:port-num="80" emma:port-type="http"
         emma:message-id="uuid:2e5678"
         emma:service-name="travel"
         emma:mode="ink"/>
     <emma:endpoint id="endpoint4"
         emma:endpoint-role="source"
         emma:port-address="http://emma.example/source"
         emma:endpoint-pair-ref="endpoint3"
         emma:port-num="80"
         emma:port-type="http"
         emma:message-id="uuid:2e5678"
         emma:service-name="travel"
         emma:mode="ink"/>
  </emma:endpoint-info>
  <emma:group>
    <emma:interpretation id="int1" emma:start="1087995961542"
        emma:end="1087995963542"
        emma:endpoint-info-ref="audio-channel-1"
        emma:medium="acoustic" emma:mode="voice">
      <destination>Chicago</destination>
    </emma:interpretation>
    <emma:interpretation id="int2" emma:start="1087995961542"
        emma:end="1087995963542"
        emma:endpoint-info-ref="ink-channel-1"
        emma:medium="acoustic" emma:mode="voice">
      <location>
         <type>area</type>
         <points>34.13 -37.12 42.13 -37.12 ... </points>
      </location>
    </emma:interpretation>
  </emma:group>
</emma:emma>

4.2.15 Reference to emma:grammar element: emma:grammar-ref attribute

Annotation emma:grammar-ref
Definition An attribute of type xsd:IDREF referring to the id attribute of an emma:grammar element.
Applies to emma:interpretation, emma:group, emma:one-of, emma:sequence, and emma:active.

The emma:grammar-ref attribute associates the EMMA result in the container element with an emma:grammar element. The emma:grammar-ref attribute is also used on emma:active elements within emma:grammar-active in order to indicate which grammars are active during the processing of an input (4.1.4).

The following example shows the use of emma:grammar-ref on the container element emma:interpretation and on the emma:active element:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:grammar id="gram1" grammar-type="application/srgs-xml ref="someURI"/>
  <emma:grammar id="gram2" grammar-type="application/srgs-xml ref="anotherURI"/>
  <emma:one-of id="r1"
    emma:medium="acoustic" emma:mode="voice">
    <emma:grammar-active>
        <emma:active emma:grammar-ref="gram1"/>
        <emma:active emma:grammar-ref="gram2"/>
    </emma:grammar-active>
    <emma:interpretation id="int1" emma:grammar-ref="gram1">
      <origin>Boston</origin>
    </emma:interpretation>
    <emma:interpretation id="int2" emma:grammar-ref="gram1">
      <origin>Austin</origin>
    </emma:interpretation>
    <emma:interpretation id="int3" emma:grammar-ref="gram2">
      <command>help</command>
    </emma:interpretation>
  </emma:one-of>
</emma:emma>

4.2.16 Reference to emma:model element: emma:model-ref attribute

Annotation emma:model-ref
Definition An attribute of type xsd:IDREF referring to the id attribute of an emma:model element.
Applies to emma:interpretation, emma:group, emma:one-of, emma:sequence, and application instance data.

The emma:model-ref annotation associates the EMMA result in the container element with an emma:model element.

Example:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:model id="model1" ref="someURI"/>
  <emma:model id="model2" ref="anotherURI"/>
  <emma:one-of id="r1"
    emma:medium="acoustic" emma:mode="voice">
    <emma:interpretation id="int1" emma:model-ref="model1">
      <origin>Boston</origin>
    </emma:interpretation>
    <emma:interpretation id="int2" emma:model-ref="model1">
      <origin>Austin</origin>
    </emma:interpretation>
    <emma:interpretation id="int3" emma:model-ref="model2">
      <command>help</command>
    </emma:interpretation>
  </emma:one-of>
</emma:emma>

4.2.17 Dialog turns: emma:dialog-turn attribute

Annotation emma:dialog-turn
Definition An attribute of type xsd:string referring to the dialog turn associated with a given container element.
Applies to emma:interpretation, emma:group, emma:one-of, and emma:sequence.

The emma:dialog-turn annotation associates the EMMA result in the container element with a dialog turn. The syntax and semantics of dialog turns is left open to suit the needs of individual applications. For example, some applications might use an integer value, where successive turns are represented by successive integers. Other applications might combine a name of a dialog participant with an integer value representing the turn number for that participant. Ordering semantics for comparison of emma:dialog-turn is deliberately unspecified and left for applications to define.

Example:

<emma:emma version="1.1"
    emma="http://www.w3.org/2003/04/emma"
    xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="int1" emma:dialog-turn="u8"
    emma:medium="acoustic" emma:mode="voice">
    <quantity>3</quantity>
  </emma:interpretation>
</emma:emma>

4.2.18 Semantic representation type: emma:result-format attribute

Annotation emma:result-format
Definition An attribute of type xsd:string containing a MIME type which indicates the representation used in the application semantics that appears within the contained emma:interpretation.
Applies to emma:interpretation, emma:literal, emma:group, emma:one-of, and emma:sequence.

Typically, the application semantics contained within EMMA is in XML format, as can be seen in examples throughout the specification. The application semantics can be also be a simple string, contained within emma:literal. EMMA also accommodates other semantic representation formats such as JSON (JavaScript Object Notation [JSON] )using CDATA within emma:literal. The function of the emma:result-format attribute is to make explicit the specific format of the semantic representation. The value is a MIME type. The value to generally be used for XML semantic representations is text/xml. If emma:result-format is not specified, the assumed default is text/xml. If a more specific XML MIME type is being used then this should be indicated explicitly in emma:result-format, e.g. for RDF the emma:result-format would be application/rdf+xml. In the following example, the application semantic representation is JSON and the MIME type application/json appears in emma:result-format indicating to an EMMA processor what to expect within the contained emma:literal.

<emma:emma

  version="1.1"

  xmlns:emma="http://www.w3.org/2003/04/emma"

  xmlns="http://www.example.com/example">

  <emma:interpretation id=“int1"

    emma:confidence="0.75”

    emma:medium="acoustic"

    emma:mode="voice"

    emma:verbal="true"

    emma:function="dialog"

    emma:result-format="application/json"

      <emma:literal>

        <![CDATA[

              {

           drink: {

              liquid:"coke",

              drinksize:"medium"},

           pizza: {

              number: "3",

              pizzasize: "large",

              topping: [ "pepperoni", "mushrooms" ]

           }

          }

          ]]>

      </emma:literal>

  </emma:interpretation>

</emma:emma>

Note that while many of the examples of semantic representation in the specification are simple lists of attributes and values, EMMA interpretations can contain arbitrarily complex semantic representations. XML representation can be used for the payload, so representations can be nested, have attributes, and ID references can be used to capture aspects of the interpretation such as variable binding or co-reference. Also using emma:result-format and emma:literal as above, other kinds of logical representations and notations, not necessarily XML, can also be carried as EMMA payloads.

4.2.19 Reference to emma:info element: emma:info-ref attribute

Annotation emma:info-ref
Definition An attribute of type xsd:IDREF referring to the id attribute of an emma:info element.
Applies to emma:interpretation, emma:group, emma:one-of, emma:sequence, and application instance data.

The emma:info-ref annotation associates the EMMA result in the container element with a particular emma:info element. This allows a single emma:info block of application and vendor specific annotations to apply to multiple different members of an emma:one-of or emma:group or emma:sequence. Alternatively, emma:info could appear separately as a child of each emma:interpretation. The benefit of using emma:info-ref is it avoids the need to repeat the same block of emma:info for multiple different interpretations.

Example:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:info id="info1">
    <customer_type>residential</customer_type>
    <service_name>acme_travel_service</service_name>
  </emma:info>
   <emma:info id="info2">
    <customer_type>residential</customer_type>
    <service_name>acme_pizza_service</service_name>
  </emma:info>
  <emma:one-of id="r1" emma:start="1087995961542"
      emma:end="1087995963542"
      emma:medium="acoustic" emma:mode="voice">
    <emma:interpretation id="int1" emma:confidence="0.75"
      emma:tokens="flights from boston to denver tomorrow"
      emma:info-ref="info1">
      <origin>Boston</origin>
      <destination>Denver</destination>
    </emma:interpretation>
    <emma:interpretation id="int2" emma:confidence="0.68"
       emma:tokens="pizza with pepperoni and onions"
       emma:info-ref="info2">
      <order>pizza</order>
      <topping>pepperoni</topping>
      <topping>onion</topping>
    </emma:interpretation>
    <emma:interpretation id="int3" emma:confidence="0.38"
       emma:tokens="pizza with peppers and cheese"
       emma:info-ref="info2">
      <order>pizza</order>
      <topping>pepperoni</topping>
      <topping>cheese</topping>
    </emma:interpretation>
  </emma:one-of>

4.2.20 Reference to emma:process-model element: emma:process-model-ref attribute

Annotation emma:process-model-ref
Definition An attribute of type xsd:IDREF referring to the id attribute of an emma:process-model element.
Applies to emma:interpretation, emma:group, emma:one-of, emma:sequence, and application instance data.

The emma:process-model-ref annotation associates the EMMA result in the container element with an emma:process-model element. In the following example the specific model used to produce two different object recognition results based on an image as input are indicated on the interpretations using emma:process-model-ref which references an emma:process-model element under emma:emma whose ref attribute contains URI identifying the particular model used.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
    http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:process-model id="pm1"
    type="neural_network"
    ref="http://example.com/vision/vehicle"/>
  <emma:process-model id="pm2"
    type="neural_network"
    ref="http://example.com/vision/people"/>
  <emma:one-of id="r1"
    emma:start="1087995961542"
    emma:end="1087995961542"
    emma:medium="visual"
    emma:mode="image"
    emma:process="http://example.com/mycompvision1.xml">>
    <emma:interpretation id="int1"
      emma:confidence="0.9"
      emma:process-model-ref="pm1">
      <object>aircraft</object>
    </emma:interpretation>
    <emma:interpretation id="int2"
      emma:confidence="0.1"
      emma:process-model-ref="pm2">
      <object>person</object>
    </emma:interpretation>
  </emma:one-of>
</emma:emma>

4.2.21 Reference to emma:parameters element: emma:parameter-ref attribute

Annotation emma:parameter-ref
Definition An attribute of type xsd:IDREF referring to the id attribute of an emma:parameters element.
Applies to emma:interpretation, emma:group, emma:one-of, and emma:sequence.

The emma:parameter-ref annotation associates the EMMA result(s) in the container element it appears on with an emma:parameters element that specifies a series of parameters used to configure the processor that produced those result(s). This allows a set of parameters to be specified once in an EMMA document and referred to by multiple different interpretations. Different configurations of parameters can be associated with different interpretations. In the example, below there are two emma:parameters elements and in the N-best list of alternative interpretations within emma:one-of each emma:interpretation references the relevant set of parameters using emma:parameter-ref.

<emma:emma version="1.1"

    xmlns:emma="http://www.w3.org/2003/04/emma"

    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

    xsi:schemaLocation="http://www.w3.org/2003/04/emma

     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"

    xmlns="http://www.example.com/example">

    <emma:parameters id="parameters1" api-ref="voicexml2.1">

       <emma:parameter name="speedvsaccuracy" value=".5"/>

       <emma:parameter name="sensitivity" value=".6"/>

    </emma:parameters>
    <emma:parameters id="parameters2" api-ref="voicexml2.1">

     <emma:parameter name="speedvsaccuracy" value=".7"/>

       <emma:parameter name="sensitivity" value=".3"/>

    </emma:parameters>
   <emma:one-of emma:medium="acoustic" emma:mode="voice" emma:process="http://example.com/myasr1.xml">

    <emma:interpretation id="int1" emma:parameter-ref="parameters1">

      <origin>Boston</origin>

    </emma:interpretation>
     <emma:interpretation id="int2" emma:parameter-ref="parameters2">

      <origin>Austin</origin>

    </emma:interpretation>
   </emma:one-of>

</emma:emma>

4.2.22 Human transcription: the emma:annotated-tokens attribute

Annotation emma:annotated-tokens
Definition An attribute of type xsd:string holding the reference sequence of tokens determined by a human annotator
Applies to emma:interpretation, emma:group, emma:one-of, emma:sequence, emma:arc, and application instance data.

The emma:annotated-tokens attribute holds a list of input tokens. In the following description, the term tokens is used in the computational and syntactic sense of units of input, and not in the sense of XML tokens. The value held in emma:annotated-tokens is the list of the tokens of input as determined by a human annotator. For example, in case of speech recognition this will contain the reference string. The emma:annotated-tokens annotation MAY be applied not just to the lexical words and phrases of language but to any level of input processing. Other examples of tokenization include phonemes, ink strokes, gestures and any other discrete units of input at any level.

In the following example, a speech recognizer has processed an audio input signal and the hypothesized string is "from cambridge to london tomorrow" contained in emma:tokens. A human labeller has listened to the audio and added the reference string "from canterbury to london today" in the emma:annotated-tokens attribute.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="int1"
      emma:medium="acoustic"
      emma:mode="voice"
      emma:function="dialog"
      emma:verbal="true"
      emma:signal="http://example.com/audio/input678.amr"
      emma:process="http://example.com/asr/params.xml"
      emma:tokens="from cambridge to london tomorrow"

      emma:annotated-tokens="from canterbury to london today">
    <origin>Cambridge</origin>
    <destination>London</destination>
    <date>tomorrow</date>
  </emma:interpretation>
</emma:emma>

In order to provide metadata on the annotation such as the name of the annotator or time of annotation, the more powerful emma:annotation element mechanism should be used. This also allows for structured annotations such as labelling of a semantic interpretation in XML.

4.2.23 Partial Content: emma:partial-content

Annotation emma:partial-content
Definition An attribute of type xsd:Boolean indicating whether the content of an element is partial and the full element can be retrieved by retrieving the URI indicated in the ref attribute on the same element
Applies to emma:one-of, emma:group, emma:sequence, emma:lattice, emma:info, emma:annotation, emma:parameters and application instance data.

The emma:partial-content attribute is required on the element it applies to when the content contained within the element is a subset of the content contained within the element referred to through the ref attribute on the same element. If the local element is empty, but a full document can be retrieved from the server, then in that case emma:partial-content must be true. If the element is empty and the element on the server is also empty then emma:partial-content must be false. The default value in emma:partial-content is not specified is false.

4.3 Scope of EMMA annotations

The emma:derived-from element (Section 4.1.2) can be used to capture both sequential and composite derivations. This section concerns the scope of EMMA annotations across sequential derivations of user input connected using the emma:derived-from element (Section 4.1.2). Sequential derivations involve processing steps that do not involve multimodal integration, such as applying natural language understanding and then reference resolution to a speech transcription. EMMA derivations describe only single turns of user input and are not intended to describe a sequence of dialog turns.

For example, an EMMA document could contain emma:interpretation elements for the transcription, interpretation, and reference resolution of a speech input, utilizing the id values: raw, better, and best respectively:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
 <emma:derivation>
  <emma:interpretation id="raw"
      emma:process="http://example.com/myasr1.xml"
      emma:medium="acoustic" emma:mode="voice">
    <answer>From Boston to Denver tomorrow</answer>
  </emma:interpretation>
  <emma:interpretation id="better"
      emma:process="http://example.com/mynlu1.xml">
    <emma:derived-from resource="#raw" composite="false"/>
    <origin>Boston</origin>
    <destination>Denver</destination>
    <date>tomorrow</date>
  </emma:interpretation>
 </emma:derivation>
  <emma:interpretation id="best"
      emma:process="http://example.com/myrefresolution1.xml">
    <emma:derived-from resource="#better" composite="false"/>
    <origin>Boston</origin>
    <destination>Denver</destination>
    <date>03152003</date>
  </emma:interpretation>
</emma:emma>

Each member of the derivation chain is linked to the previous one by a derived-from element (Section 4.1.2), which has an attribute resource that provides a pointer to the emma:interpretation from which it is derived. The emma:process annotation (Section 4.2.2) provides a pointer to the process used for each stage of the derivation.

The following EMMA example represents the same derivation as above but with a more fully specified set of annotations:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:derivation>
    <emma:interpretation id="raw"
        emma:process="http://example.com/myasr1.xml"
        emma:source="http://example.com/microphone/NC-61"
        emma:signal="http://example.com/signals/sg23.wav"
        emma:confidence="0.6"
        emma:medium="acoustic"
        emma:mode="voice"
        emma:function="dialog"
        emma:verbal="true"
        emma:tokens="from boston to denver tomorrow"
        emma:lang="en-US">
      <answer>From Boston to Denver tomorrow</answer>
    </emma:interpretation>
    <emma:interpretation id="better"
        emma:process="http://example.com/mynlu1.xml"
        emma:source="http://example.com/microphone/NC-61"
        emma:signal="http://example.com/signals/sg23.wav"
        emma:confidence="0.8"
        emma:medium="acoustic"
        emma:mode="voice"
        emma:function="dialog"
        emma:verbal="true"
        emma:tokens="from boston to denver tomorrow"
        emma:lang="en-US">
      <emma:derived-from resource="#raw" composite="false"/>
      <origin>Boston</origin>
      <destination>Denver</destination>
      <date>tomorrow</date>
    </emma:interpretation>
  </emma:derivation>
  <emma:interpretation id="best"
      emma:process="http://example.com/myrefresolution1.xml"
      emma:source="http://example.com/microphone/NC-61"
      emma:signal="http://example.com/signals/sg23.wav"
      emma:confidence="0.8"
      emma:medium="acoustic"
      emma:mode="voice"
      emma:function="dialog"
      emma:verbal="true"
      emma:tokens="from boston to denver tomorrow"
      emma:lang="en-US">
    <emma:derived-from resource="#better" composite="false"/>
    <origin>Boston</origin>
    <destination>Denver</destination>
    <date>03152003</date>
  </emma:interpretation>
</emma:emma>

EMMA annotations on earlier stages of the derivation often remain accurate at later stages of the derivation. Although this can be captured in EMMA by repeating the annotations on each emma:interpretation within the derivation, as in the example above, there are two disadvantages of this approach to annotation. First, the repetition of annotations makes the resulting EMMA documents significantly more verbose. Second, EMMA processors used for intermediate tasks such as natural language understanding and reference resolution will need to read in all of the annotations and write them all out again.

EMMA overcomes these problems by assuming that annotations on earlier stages of a derivation automatically apply to later stages of the derivation unless a new value is specified. Later stages of the derivation essentially inherit annotations from earlier stages in the derivation. For example, if there was an emma:source annotation on the transcription (raw) it would also apply to the later stages of the derivation such as the result of natural language understanding (better) or reference resolution (best).

Because of the assumption in EMMA that annotations have scope over later stages of a sequential derivation, the example EMMA document above can be equivalently represented as follows:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:derivation>
    <emma:interpretation id="raw"
        emma:process="http://example.com/myasr1.xml"
        emma:source="http://example.com/microphone/NC-61"
        emma:signal="http://example.com/signals/sg23.wav"
        emma:confidence="0.6"
        emma:medium="acoustic"
        emma:mode="voice"
        emma:function="dialog"
        emma:verbal="true"
        emma:tokens="from boston to denver tomorrow"
        emma:lang="en-US">
      <answer>From Boston to Denver tomorrow</answer>
    </emma:interpretation>
    <emma:interpretation id="better"
        emma:process="http://example.com/mynlu1.xml"
        emma:confidence="0.8">
      <emma:derived-from resource="#raw" composite="false"/>
      <origin>Boston</origin>
      <destination>Denver</destination>
      <date>tomorrow</date>
    </emma:interpretation>
  </emma:derivation>
  <emma:interpretation id="best"
      emma:process="http://example.com/myrefresolution1.xml">
    <emma:derived-from resource="#better" composite="false"/>
    <origin>Boston</origin>
    <destination>Denver</destination>
    <date>03152003</date>
  </emma:interpretation>
</emma:emma>

The fully specified derivation illustrated above is equivalent to the reduced form derivation following it where only annotations with new values are specified at each stage. These two EMMA documents MUST yield the same result when processed by an EMMA processor.

The emma:confidence annotation is respecified on the better interpretation. This indicates the confidence score for natural language understanding, whereas emma:confidence on the raw interpretation indicates the speech recognition confidence score.

In order to determine the full set of annotations that apply to an emma:interpretation element an EMMA processor or script needs to access the annotations directly on that element and for any that are not specified follow the reference in the resource attribute of the emma:derived-from element to add in annotations from earlier stages of the derivation.

The EMMA annotations break down into three groups with respect to their scope in sequential derivations. One group of annotations always holds true for all members of a sequential derivation. A second group is always respecified on each stage of the derivation. A third group may or may not be respecified.

Scope of Annotations in Sequential Derivations
Classification Annotation
Applies to whole derivation emma:signal
emma:signal-size
emma:dialog-turn
emma:source
emma:medium
emma:mode
emma:function
emma:verbal
emma:lang
emma:tokens
emma:start
emma:end
emma:time-ref-uri
emma:time-ref-anchor-point
emma:offset-to-start
emma:duration
Specified at each stage of derivation emma:derived-from
emma:process
May be respecified emma:confidence
emma:cost
emma:grammar-ref
emma:model-ref
emma:no-input
emma:uninterpreted

One potential problem with this annotation scoping mechanism is that earlier annotations could be lost if earlier stages of a derivation were dropped in order to reduce message size. This problem can be overcome by considering annotation scope at the point where earlier derivation stages are discarded and populating the final interpretation in the derivation with all of the annotations which it could inherit. For example, if the raw and better stages were dropped the resulting EMMA document would be:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="best"
      emma:start="1087995961542"
      emma:end="1087995963542"
      emma:process="http://example.com/myrefresolution1.xml"
      emma:source="http://example.com/microphone/NC-61"
      emma:signal="http://example.com/signals/sg23.wav"
      emma:confidence="0.8"
      emma:medium="acoustic"
      emma:mode="voice"
      emma:function="dialog"
      emma:verbal="true"
      emma:tokens="from boston to denver tomorrow"
      emma:lang="en-US">
    <emma:derived-from resource="#better" composite="false"/>
    <origin>Boston</origin>
    <destination>Denver</destination>
    <date>03152003</date>
  </emma:interpretation>
</emma:emma>

Annotations on an emma:one-of element are assumed to apply to all of the container elements within the emma:one-of.

If emma:one-of appears with another emma:one-of then annotations on the parent emma:one-of are assumed to apply to the children of the child emma:one-of.

Annotations on emma:group or emma:sequence do not apply to their child elements.

5. Conformance

The contents of this section are normative.

5.1 Conforming EMMA Documents

A document is a Conforming EMMA Document if it meets both the following conditions:

The EMMA specification and these conformance criteria provide no designated size limits on any aspect of EMMA documents. There are no maximum values on the number of elements, the amount of character data, or the number of characters in attribute values.

Within this specification, the term URI refers to a Universal Resource Identifier as defined in [RFC3986] and extended in [RFC3987] with the new name IRI. The term URI has been retained in preference to IRI to avoid introducing new names for concepts such as "Base URI" that are defined or referenced across the whole family of XML specifications.

5.2 Using EMMA with other Namespaces

The EMMA namespace is intended to be used with other XML namespaces as per the Namespaces in XML Recommendation [XMLNS]. Future work by W3C is expected to address ways to specify conformance for documents involving multiple namespaces.

5.3 Conforming EMMA Processors

A EMMA processor is a program that can process and/or generate Conforming EMMA documents.

In a Conforming EMMA Processor, the XML parser MUST be able to parse and process all XML constructs defined by XML 1.1 [XML] and Namespaces in XML [XMLNS]. It is not required that a Conforming EMMA Processor uses a validating XML parser.

A Conforming EMMA Processor MUST correctly understand and apply the semantics of each markup element or attribute as described by this document.

There is, however, no conformance requirement with respect to performance characteristics of the EMMA Processor. For instance, no statement is required regarding the accuracy, speed or other characteristics of output produced by the processor. No statement is made regarding the size of input that a EMMA Processor is required to support.

Appendices

Appendix A. XML and RELAX NG schemata

This section is Normative.

This section defines the formal syntax for EMMA documents in terms of a normative XML Schema.

The schema provided here is for the EMMA 1.0 Recommendation. No schema exists as of yet for the EMMA 1.1 Working Draft as it is a work in progress.

There are both an XML Schema and RELAX NG Schema for the EMMA markup. The latest version of the XML Schema for EMMA is available at http://www.w3.org/TR/emma/emma.xsd and the RELAX NG Schema can be found at http://www.w3.org/TR/emma/emma.rng.

For stability it is RECOMMENDED that you use the dated URI available at http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd and http://www.w3.org/TR/2009/REC-emma-20090210/emma.rng.

Appendix B. MIME type

This section is Normative.

The media type associated with the EMMA: Extensible MultiModal Annotation markup language specification is "application/emma+xml" and the filename suffix is ".emma" as defined in Appendix B.1 of the EMMA: Extensible Multimodal Annotation specification.

Appendix C. emma:hook and SRGS

This section is Informative.

One of the most powerful aspects of multimodal interfaces is their ability to provide support for user inputs which are distributed over the available input modes. These composite inputs are contributions made by the user within a single turn which have component parts in different modes. For example, the user might say "zoom in here" in the speech mode while drawing an area on a graphical display in the ink mode. One of the central motivating factors for this kind of input is that different kinds of communicative content are best suited to different input modes. In the example of a user drawing an area on a map and saying "zoom in here", the zoom command is easiest to provide in speech but the spatial information, the specific area, is easier to provide in ink.

Enabling composite multimodality is critical in ensuring that multimodal systems support more natural and effective interaction for users. In order to support composite inputs, a multimodal architecture must provide some kind of multimodal integration mechanism. In the W3C Multimodal Interaction Framework [MMI Framework], multimodal integration can be handled by an integration component which follows the application of speech understanding and other kinds of interpretation procedures for individual modes.

Given the broad range of different techniques being employed for multimodal integration and the extent to which this is an ongoing research problem, standardization of the specific method or algorithm used for multimodal integration is not appropriate at this time. In order to facilitate the development and inter-operation of different multimodal integration mechanisms EMMA provides markup language enabling application independent specification of elements in the application markup where content from another mode needs to be integrated. These representation 'hooks' can then be used by different kinds of multimodal integration components and algorithms to drive the process of multimodal integration. In the processing of a composite multimodal input, the result of applying a mode-specific interpretation component to each of the individual modes will be EMMA markup describing the possible interpretation of that input.

One way to build an EMMA representation of a spoken input such as "zoom in here" is to use grammar rules in the W3C Speech Recognition Grammar Specification [SRGS] using the Semantic Interpretation [SISR] tags to build the application semantics with the emma:hook attribute. In this approach [ECMAScript] is specified in order to build up an object representing the semantics. The resulting ECMAScript object is then translated to XML.

For our example case of "zoom in here". The following SRGS rule could be used. The Semantic Interpretation for Speech Recognition specification [SISR] provides a reserved property _nsprefix for indicating the namespace to be used with an attribute.

<rule id="zoom">
  zoom in here
  <tag>
    $.command = new Object();
    $.command.action = "zoom";
    $.command.location = new Object();
    $.command.location._attributes = new Object();
    $.command.location._attributes.hook = new Object();
    $.command.location._attributes.hook._nsprefix = "emma";
    $.command.location._attributes.hook._value = "ink";
    $.command.location.type = "area";
  </tag>
</rule>

Application of this rule will result in the following ECMAScript object being built.

command: {
      action: "zoom"
      location: {
        _attributes: {
           hook: {
             _nsprefix: "emma"
             _value: "ink"
             }
           }
        type: "area"
      }
}

SI processing in an XML environment would generate the following document:

<command>
  <action>zoom</action>
  <location emma:hook="ink">
     <type>area</type>
  </location>
</command>

This XML fragment might then appear within an EMMA document as follows:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="voice1"
      emma:medium="acoustic"
      emma:mode="voice">
    <command>
      <action>zoom</action>
      <location emma:hook="ink">
         <type>area</type>
      </location>
    </command>
  </emma:interpretation>
</emma:emma>

The emma:hook annotation indicates that this speech input needs to be combined with ink input such as the following:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="pen1"
      emma:medium="tactile"
      emma:mode="ink">
    <location>
      <type>area</type>
      <points>42.1345 -37.128 42.1346 -37.120 ... </points>
    </location>
  </emma:interpretation>
</emma:emma>

This representation could be generated by a pen modality component performing gesture recognition and interpretation. The input to the component would be an Ink Markup Language specification [INKML] of the ink trace and the output would be the EMMA document above.

The combination will result in the following EMMA document for the combined speech and pen multimodal input.

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation
      emma:medium="acoustic tactile"
      emma:mode="voice ink"
      emma:process="http://example.com/myintegrator.xml">
    <emma:derived-from resource="http://example.com/voice1.emma/#voice1" composite="true"/>
    <emma:derived-from resource="http://example.com/pen1.emma/#pen1" composite="true"/>
    <command>
       <action>zoom</action>
       <location>
         <type>area</type>
         <points>42.1345 -37.128 42.1346 -37.120 ... </points>
        </location>
     </command>
  </emma:interpretation>
</emma:emma>

There are two components to the process of integrating these two pieces of semantic markup. The first is to ensure that the two are compatible; that is, that no semantic constraints are violated. The second is to fuse the content from the two sources. In our example, the <type>area</type> element is intended to indicate that this speech command requires integration with an area gesture rather than, for example, a line gesture, which would have the subelement <type>line</type>. This constraint needs to be enforced by whatever mechanism is responsible for multimodal integration.

Many different techniques could be used for achieving this integration of the semantic interpretation of the pen input, a <location> element, with the corresponding <location> element in the speech. The emma:hook simply serves to indicate the existence of this relationship.

One way to achieve both the compatibility checking and fusion of content from the two modes is to use a well-defined general purpose matching mechanism such as unification. Graph unification [Graph unification] is a mathematical operation defined over directed acylic graphs which captures both of the components of integration in a single operation: the applications of the semantic constraints and the fusing of content. One possible semantics for the emma:hook markup indicates that content from the required mode needs to be unified with that position in the application semantics. In order to unify, two elements must not have any conflicting values for subelements or attributes. This procedure can be defined recursively so that elements within the subelements must also not clash and so on. The result of unification is the union of all of the elements and attributes of the two elements that are being unified.

In addition to the unification operation, in the resulting emma:interpretation the emma:hook attribute needs to be removed and the emma:mode attribute changed to the list of the modes of the individual inputs , e.g. "voice ink".

Instead of the unification operation, for a specific application semantics, integration could be achieved using some other algorithm or script. The benefit of using the unification semantics for emma:hook is that it provides a general purpose mechanism for checking the compatibility of elements and fusing them, whatever the specific elements are in the application specific semantic representation.

The benefit of using the emma:hook annotation for authors is that it provides an application independent method for indicating where integration with content from another mode is required. If a general purpose integration mechanism is used, such as the unification approach described above, authors should be able to use the same integration mechanism for a range of different applications without having to change the integration rules or logic. For each application the speech grammar rules [SRGS] need to assign emma:hook to the appropriate elements in the semantic representation of the speech. The general purpose multimodal integration mechanism will use the emma:hook annotations in order to determine where to add in content from other modes. Another benefit of the emma:hook mechanism is that it facilitates interoperability among different multimodal integration components, so long as they are all general purpose and utilize emma:hook in order to determine where to integrate content.

The following provides a more detailed example of the use of the emma:hook annotation. In this example, spoken input is combined with two ink gestures. The semantic representation assigned to the spoken input "send this file to this" indicates two locations where content is required from ink input using emma:hook="ink":

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:interpretation id="voice2"
      emma:medium="acoustic"
      emma:mode="voice"
      emma:tokens="send this file to this"
      emma:start="1087995961500"
      emma:end="1087995963542">
    <command>
      <action>send</action>
        <arg1>
          <object emma:hook="ink">
            <type>file</type>
            <number>1</number>
          </object>
        </arg1>
       <arg2>
         <object emma:hook="ink">
           <number>1</number>
         </object>
       </arg2>
    </command>
  </emma:interpretation>
</emma:emma>

The user gesturing on the two locations on the display can be represented using emma:sequence:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
  <emma:sequence id="ink2">
    <emma:interpretation emma:start="1087995960500"
      emma:end="1087995960900"
      emma:medium="tactile"
      emma:mode="ink">
      <object>
       <type>file</type>
       <number>1</number>
       <id>test.pdf</id>
      <object>
    </emma:interpretation>
    <emma:interpretation emma:start="1087995961000"
      emma:end="1087995961100"
      emma:medium="tactile"
      emma:mode="ink">
      <object>
        <type>printer</type>
        <number>1</number>
        <id>lpt1</id>
      <object>
    </emma:interpretation>
  </emma:sequence>
</emma:emma>

A general purpose unification-based multimodal integration algorithm could use the emma:hook annotation as follows. It identifies the elements marked with emma:hook in document order. For each of those in turn, it attempts to unify the element with the corresponding element in order in the emma:sequence. Since none of the subelements conflict, the unification goes through and as a result, we have the following EMMA for the composite result:

<emma:emma version="1.1"
    xmlns:emma="http://www.w3.org/2003/04/emma"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.w3.org/2003/04/emma
     http://www.w3.org/TR/2009/REC-emma-20090210/emma.xsd"
    xmlns="http://www.example.com/example">
<emma:interpretation id="multimodal2"
      emma:medium="acoustic tactile"
      emma:mode="voice ink"
      emma:tokens="send this file to this"
      emma:process="http://example.com/myintegration.xml"
      emma:start="1087995960500"
      emma:end="1087995963542">
  <emma:derived-from resource="http://example.com/voice2.emma/#voice2" composite="true"/>
  <emma:derived-from resource="http://example.com/ink2.emma/#ink2" composite="true"/>
  <command>
   <action>send</action>
    <arg1>
     <object>
       <type>file</type>
       <number>1</number>
        <id>test.pdf</id>
     </object>
    </arg1>
    <arg2>
     <object>
       <type>printer</type>
        <number>1</number>
       <id>lpt1</id>
     </object>
    </arg2>
  </command>
</emma:interpretation>
</emma:emma>

Appendix D. EMMA event interface

This section is Informative.

The W3C Document Object Model [DOM] defines platform and language neutral interfaces that gives programs and scripts the means to dynamically access and update the content, structure and style of documents. DOM Events define a generic event system which allows registration of event handlers, describes event flow through a tree structure, and provides basic contextual information for each event.

This section of the EMMA specification extends the DOM Event interface for use with events that describe interpreted user input in terms of a DOM Node for an EMMA document.

// File: emma.idl

#ifndef _EMMA_IDL_
#define _EMMA_IDL_

#include "dom.idl"#include "views.idl"#include "events.idl"
#pragma prefix "dom.w3c.org"module emma
{
  typedef dom::DOMString DOMString;
  typedef dom::Node Node;

  interface EMMAEvent : events::UIEvent {
    readonly attribute dom::Node  node;
    void               initEMMAEvent(in DOMString typeArg,
                                   in boolean canBubbleArg,
                                   in boolean cancelableArg,
                                   in Node node);
  };
};

#endif // _EMMA_IDL_

Appendix E. References

E.1 Normative references

BCP47
A. Phillips and M. Davis, editors. Tags for the Identification of Languages, IETF, September 2006.
RFC3023
M. Murata et al., editors. XML Media Types. IETF RFC 3023, January 2001.
RFC2046
N. Freed and N. Borenstein, editors. Multipurpose Internet Mail Extensions (MIME) Part Two: Media Types. IETF RFC 2046, November 1996.
RFC2119
S. Bradner, editor. Key words for use in RFCs to Indicate Requirement Levels, IETF RFC 2119, March 1997.
RFC3986
T. Berners-Lee et al., editors. Uniform Resource Identifier (URI): Generic Syntax. IETF RFC 3986, January 2005.
RFC3987
M. Duerst and M. Suignard, editors. Internationalized Resource Identifiers (IRIs). IETF RFC 3987, January 2005.
XML
Tim Bray et al., editors. Extensible Markup Language (XML) 1.1. World Wide Web Consortium, W3C Recommendation, 2004.
XMLNS
Tim Bray et al., editors. Namespaces in XML 1.1, World Wide Web Consortium, W3C Recommendation, 2006.
XML Schema Structures
Henry S. Thompson et al., editors. XML Schema Part 1: Structures Second Edition, World Wide Web Consortium, W3C Recommendation, 2004.
XML Schema Datatypes
Paul V. Biron and Ashok Malhotra, editors. XML Schema Part 2: Datatypes Second Edition, World Wide Web Consortium, W3C Recommendation, 2004.

E.2 Informative references

DOM
Document Object Model, World Wide Web Consortium, 2005.
ECMAScript
ECMAScript
INKML
Stephen M. Watt and Tom Underhill, editors. Ink Markup Language (InkML), World Wide Web Consortium, W3C Recommendation 2011.
JSON
D. Crockford. The application/json Media Type for JavaScript Object Notation. RFC 4627. IETF Network Working Group Memo.
SISR
Luc Van Tichelen and Dave Burke, editors. Semantic Interpretation for Speech Recognition, World Wide Web Consortium, W3C Proposed Recommendation, 2007.
SRGS
Andrew Hunt, Scott McGlashan, editors. Speech Recognition Grammar Specification Version 1.0, World Wide Web Consortium, W3C Recommendation, 2004.
XFORMS
John M. Boyer et al., editors. XForms 1.0 (Second Edition), World Wide Web Consortium, W3C Recommendation, 2006.
RELAX-NG
James Clark and Makoto Murata, editors. RELAX NG Specification, OASIS, Committee Specification, 2001.
EMMA Requirements
Stephane H. Maes and Stephen Potter, editors. Requirements for EMMA, World Wide Web Consortium, W3C Note, 2003.
Graph Unification
Bob Carpenter. The Logic of Typed Feature Structures, Cambridge Tracts in Theoretical Computer Science 32, Cambridge University Press, 1992.
Kevin Knight. Unification: A Multidisciplinary Survey, ACM Computing Surveys, 21(1), 1989.
Michael Johnston. Unification-based Multimodal Parsing, Proceedings of Association for Computational Linguistics, pp. 624-630, 1998.
MMI Framework
James A. Larson, T.V. Raman and Dave Raggett, editors. W3C Multimodal Interaction Framework, World Wide Web Consortium, W3C Note, 2003.
MMI Requirements
Stephane H. Maes and Vijay Saraswat, editors. Multimodal Interaction Requirements, World Wide Web Consortium, W3C Note, 2003.
Emotion ML
Mark Schroeder, editor. Emotion Markup Language (Emotion ML ) 1.0. World Wide Web Consortium, W3C Last Call Working Draft, 2011.
EMMA Use Cases
Michael Johnston, editor. Use Cases for Possible Future EMMA Features World Wide Web Consortium, W3C Note, 2009.
[Geolocation]
Geolocation API Specification World Wide Web Consortium Proposed Recommendation 10 May 2012. See http://www.w3.org/TR/geolocation-API/
[WGS84]
National Imagery and Mapping Agency Technical Report 8350.2, Third Edition. National Imagery and Mapping Agency, 3 January 2000. See http://earth-info.nga.mil/GandG/publications/tr8350.2/wgs84fin.pdf

Appendix F. Changes since EMMA 1.0

This section is Informative.

Since the publication of the EMMA 1.0 Recommendation, the following changes have been made.

Appendix G. Acknowledgements

This section is Informative.

The editors would like to recognize the contributions of the current and former members of the W3C Multimodal Interaction Group (listed in alphabetical order):

Kazuyuki Ashimura, W3C
Patrizio Bergallo, (until 2008, while at Loquendo)
Jerry Carter (while at Nuance Communications)
Wu Chou, Avaya
Max Froumentin, (until 2006, while at W3C)
Katriina Halonen, Nokia
Jin Liu, T-Systems
Gerry McCobb, Openstream
Roberto Pieraccini, (while at Speechcycle)
Stephen Potter, (while at Microsoft)
Dave Raggett, (until 2007, while at Volantis and Canon)
Massimo Romanelli, DFKI
Yuan Shao, Canon
