Delivery Context: Interfaces (DCI) Accessing Static and Dynamic Properties

W3C Candidate Recommendation 19 October 2006

This version:
http://www.w3.org/TR/2006/CR-DPF-20061019
Latest version:
http://www.w3.org/TR/DPF
Previous version:
http://www.w3.org/TR/2005/WD-DPF-20051111
Editors:
Keith Waters, France Telecom
Rafah A. Hosn, IBM
Dave Raggett, W3C/Volantis
Sailesh Sathish, Nokia
Matt Womer, France Telecom
Max Froumentin, W3C

Abstract

This document defines platform and language neutral programing interfaces that provide Web applications access to a hierarchy of dynamic properties representing device capabilities, configurations, user preferences and environmental conditions.

Status of this Document

This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.

This is a W3C Candidate Recommendation of the Delivery Context: Interfaces (DCI) Accessing Static and Dynamic Properties specification, for review by W3C members and other interested parties.

W3C publishes a Candidate Recommendation to indicate that the document is believed to be stable and to encourage implementation by the developer community. The Working Group plans to submit this specification for consideration as a W3C Proposed Recommendation if the following exit criteria have been met:

The test suite is currently under development, and will be released along with a call for implementations for this specification. This specification will remain a Candidate Recommendation at least until 31 March 2007. No feature has been identified as at risk at this point.

The changes that this version introduces from the second Last Call Working Draft are only editorial in nature: each change is either a clarification of the previous text or a correction of a typographical error. Those changes are result of the feedback received on the public mailing list. This feedback as well as the resulting modifications are compiled in the Disposition of Comments document.

Please send comments to www-di@w3.org. This list is archived at http://lists.w3.org/Archives/Public/www-di/. The group's record of the comments received during the Last Call period and their disposition is available.

Publication as a Candidate Recommendation does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.

This document is published as part of the W3C Device Independence Activity by the Device Independence Working Group (Member Only Link). It is a deliverable as defined in the Charter of that group.

This document was produced by a group operating under the 5 February 2004 W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.

Table of Contents

1 Introduction
2 Assumptions
3 Datatypes for Property Values
4 Property Interfaces
    4.1 Delivery Context Interfaces Property Hierarchy
        4.1.1 Initialization of Properties
        4.1.2 Properties in Distributed Systems
        4.1.3 Access Rights and Validation
        4.1.4 Events
        4.1.5 Metadata
        4.1.6 Property Layout
5 Interface Definitions
    5.1 DCIProperty
        5.1.1 Attributes
        5.1.2 Methods
           5.1.2.1 hasProperty
           5.1.2.2 searchProperty
    5.2 DCIPropertyFilter
        5.2.1 Methods
           5.2.1.1 acceptProperty
    5.3 DCIComponent
        5.3.1 Attributes
    5.4 Exceptions
6 Event Processing Model
7 Conformance
8 ECMAScript Language Binding
    8.1 DCIException Interface
    8.2 DCIProperty Interface
    8.3 DCIComponent Interface
    8.4 DCIPropertyFilter

Appendices

A IDL Definitions for the DCI
B Informative Use Case: Resolved Postal Code
C Normative References
D Informative References
E Acknowledgments


1 Introduction

Many applications, particularly those that are device independent, are expected to function in heterogeneous environments with widely varying device capabilities. The device configuration, user preferences and environmental conditions can vary over time and applications need to be able to adapt accordingly. For example, how can an application deal with low battery alerts, variable network strength, or even loss of connectivity? Perhaps the user mutes their microphone or disabled the audio output during a session? Dynamic configurations are typically temporal, however bringing devices together, such as a camera phone and a color printer with Bluetooth, are also considered. These dynamic changes to the configuration can directly effect the features that applications offer to users.

Within Web applications, a devices capabilities and operational environment can shape the input and output presented to the user via a browser. Once the available modes have been established, it is useful to distinguish between persistent (static) and transient (dynamic) properties. Static properties refers to data that remains constant for the session duration, for example specifying a users language preference for prompt playback, while dynamic properties refers to notifications and events during a session, for example generated through Global Positioning System (GPS) notifications [LIF] updating the location of a mobile device on a map rendered in a browser.

Delivery Context Interfaces (DCI) provides access methods for manipulating static and dynamic properties such that content can be adapted to a particular device context. These APIs are of particular relevance to multimodal interaction, where a variety of different modes can be present and active during a session. The W3C Multimodal Interaction Framework [MMI] identifies the core components for multimodal systems. At its heart, lies the Interaction Manager [IM], which coordinates data and manages execution flow from various input and output modalities. The DCI can provide the Interaction Manager with dynamic access to a hierarchy of properties representing the current device capabilities, device configuration, user preferences and environmental conditions. These properties can indicate which modes are supported, which are currently active, as well as a means to enable or disable particular modal functions and get notifications when users make changes themselves.

It is natural and commonplace to express such properies as a hierarchy. The Document Object Model [DOM] provides a familiar model to express such hierarchies. It also provides an eventing model, which is required for dynamically changing properties. However, DCI properties are tightly coupled to the physical capabilities of a device, for example screen brightness or battery level. Changes in battery level are reflected in property values in DCI. Likewise, changes to the DCI property representing screen brightness are reflected in the brightness of the screen. The need to support this behavior requires DCI to extend the DOM.

Device independent applications including multimodality, can be best demonstrated on mobile devices, where the constraints of the device and the environment dictate which modes get utilized. Examples of mobile devices span portables with high resolution displays, touch screens, powerful CPUs and high bandwidth data channels. Such portable devices can be contrasted to today's mobile phones with much smaller screens, limited keypad (Dual Tone Multi-Frequency, or DTMF) for input and low bandwidth data channels. The rapid acceleration of the mobile handset industry—coupled to next generation mobile networks—clearly indicate that tomorrow's emerging mobile phones will be richer, faster and far more capable. The proliferation of mobile devices will demand multimodal interaction because of the wide range of basic functionality; some devices may have full keyboards, others only keypads, likewise touch screens for pen input, local or remote speech recognition, GPS localization etc. For a multimodal content provider, it will be increasingly challenging to create content that can be re-purposed for all mobile contexts. Likewise, from a user's perspective, it will be increasingly important to choose which modes they want to use.

Typical environmental properties involve dynamic status information, such as the remaining battery life, mobile signal strength, ambient brightness, location and display orientation information. These properties often vary during a session and need to be signaled to the application to adapt to the new environmental conditions. Static properties are typically defined by user preferences and device context, such as the selected voice for speech synthesis, a preference for pen input over the keypad, or preferences for the font size and color. Such properties usually remain persistent for the duration of the session and can be configured at the start of the session.

The Delivery Context Interfaces provide mechanisms to both query and update properties that are part of the delivery context [DCO]. For dynamic properties it is important to be able to respond to changes when they occur, for example, the devices' new location. Consequently a mechanism to subscribe and unsubscribe to specific events is required. This functionality directly supports the basic requirements of the W3C Multimodal Interaction Requirements [MMIReqs] (MMI-G14, MMI-G15, MMI-A4).

The Delivery Context Interfaces are designed to allow for properties to be defined by different organizations. For instance, the W3C Device Independence Activity [DevInd] is working on defining a set of core presentation attributes. The Open Mobile Alliance [OMA] (formerly known as the WAP Forum) has developed a set of properties call User Agent Profiles [UAPROF] describing static characteristics of mobile phones. Device vendors are expected to define additional properties for proprietary features.

CC/PP is complementary to the Delivery Context Interfaces. CC/PP provides the means to transfer sets of device characteristics from one device to another, while the Delivery Context Interfaces provides Interaction Managers with dynamic access to device characteristics on a moment to moment basis, thereby enabling applications to respond to changes in real time.

W3C's Composite Capability/Preference Profiles [CCPP] is a representation of device characteristics that are based on the Resource Description Framework [RDF]. CC/PP allows devices to pass a description of these characteristics to Web servers for use in content selection and adaptation. CC/PP has been used for the OMA User Agent Profiles [UAPROF], which describe three classes of static device characteristics:

  1. Hardware: e.g., screen size, type of keyboard,

  2. Software: e.g., browser manufacturer and supported markup language, and

  3. User preferences: e.g., audio enabled and chosen color scheme.

The Delivery Context Interface framework is designed to provide direct access to properties even though they may be represented by particular vocabularies originating in different specifications and organizations. DCI concentrates on interfaces by which access to characteristics are obtained in programming environments, rather than on mechanisms used to represent the information. As a result, DCI provides a level of insulation from specific representations.

The DCI may well encompass sets of properties and characteristics defined by other organizations for example [UAPROF] by [OMA]. However defining property sets is outside the scope of DCI. However, it is the intent of the Device Independence Working Group [DIWG] to specify representations of ontologies through [OWL], as well as presentation characteristics being developed by the [DIWG] through Core Presentation Characteristics [CPC] work item activities. Consequently, the DCI provide mechanisms to access device properties and characteristics whose ontologies and accessing interfaces are specified elsewhere.

The DCI framework focuses on interfaces that can be accessed via programing environments. Therefore the DCI Recommendation provides a normative ECMAScript binding.

2 Assumptions

The Delivery Context Interfaces are based upon the following fundamental normative concepts:

  1. All properties have a name, namespace and parent node that can be used to compare properties. This enables properties to be defined by multiple organizations without fear of conflict.

  2. Property values may be dependent on data held remotely, however blocking for any significant length of time is unacceptable for DCI applications.

  3. There is a flexible means to subscribe and unsubscribe to notifications of changes to properties. This gives authors detailed control over notifications which are raised in a property specific manner.

  4. Properties may be dynamically added, removed or changed at runtime. For instance, when a camera module is connected to a cell phone the capability to take photographs is added.

  5. The DCI framework builds on the Document Object Model [DOM]. At least DOM Level 2 is required. For information on DOM levels and conformance, see section 7 Conformance.

  6. The Delivery Context is separate from the document markup. The document markup originates from the author, while the Delivery Context originates from the device, the network, etc.

3 Datatypes for Property Values

This section is informative.

Each property is associated with a given data type, for example: number, string or structure type like arrays or named fields. DCI supports all data types mandated by the W3C Document Object Model specifications [DOM]. More information can be found in the Conformance section (7 Conformance). The data types supported by DOM are:

Each property is associated with a given data type, for example: number, string or structure type like arrays or named fields. All data types supported by W3C DOM specifications should be supported. This section is informative. For more information, see the DOM Core specification [DOM] for specific details. The data types supported by DOM are:

In general, the DOM and thus the DCI operations return values that may indicate error conditions. In "exceptional" circumstances, DCI operations may raise exceptions, for example, when an operation is impossible to perform.

XML namespaces [XML-Namespaces] and URIs in general are treated as being of type DOMString.

4 Property Interfaces

This section is informative.

4.1 Delivery Context Interfaces Property Hierarchy

The Delivery Context Interfaces operate on a hierarchy of properties, rooted as shown in Figure 1. Each property is associated with a name, a namespace, a value and an ordered list of subsidiary (child) properties.

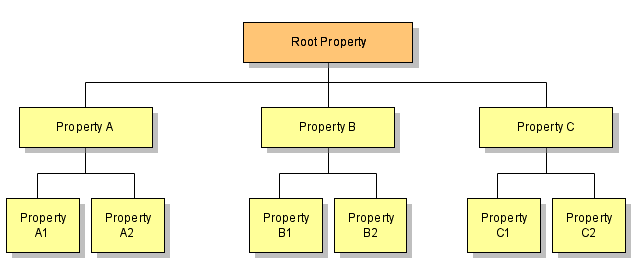

component hierarchy

Figure 1. DCI property hierarchy.

The Delivery Context Interfaces are formally defined in terms of OMG IDL [IDL] interfaces. The DCIProperty represents a node (property) in the DCI tree. The DCIProperty interface inherits from the DOM Node and EventTarget interfaces. It provides support for creating and manipulating a hierarchy of properties. Unless specifically stated otherwise, the behavior of the DCI is the same as the DOM. Within the DCI context, the DOM Node that is returned through the DOM NodeList::item() method call should be interpreted as a DCIProperty. The DCIComponent, the Root Property in Figure 1, is itself a property node with an additional read-only attribute for the DCI version number. For DOM conformance details see section 7 Conformance.

Properties raise events to notify changes in property values, or the removal or addition of properties themselves. DCIProperty supports methods for adding and removing event listeners. The DCIProperty supports the event capture/bubbling model. This allows an event listener to be added at different levels of the property hierarchy. This is independent of the event propagation model in the host environment.

DCI conforms to the naming conventions for property names and namespaces adopted by XML [XML] and RFC2396 [RFC2396], respectively. In case those conventions are not respected, the standard DOM exceptions must be raised.

4.1.1 Initialization of Properties

Properties are only accessible within the DCI tree after they have been initialized. The means to initialize and to de-initialize properties is outside the scope of the DCI Framework. The time at which properties are initialized may vary from property to property. Some properties may be initialized when the device or application is started while others may be initialized the first time properties are needed. In general, properties may be dynamically added or removed from the DCI property tree as capabilities available to the device are modified over time.

4.1.2 Properties in Distributed Systems

For distributed applications, some properties may be dependent on data held on a server, or on another device. One example is a property indicating the toner levels in a networked printer. Another example is accessing geolocation values from a service within the network.

The addressing mechanisms and protocols used to synchronize such properties are outside the scope of this specification. Some possibilities include SIP Events [SIP], Web Services, Universal Plug and Play. For each property, information may be provided for use in initialization as well as determining the conditions under which events are raised to signal updates to the property value. A means to reinitialize the property may be provided to cater for changes to these conditions. Such information can be exposed either as sub-properties or as metadata associated with the property.

4.1.3 Access Rights and Validation

The DCI provide a means for accessing and updating user preferences, device configuration and environmental factors. A form of access control is needed along with the means to ensure that integrity constraints are upheld. Both access right and integrity checks are outside the scope of the DCI specification.

There are instances where certain components should be prevented from modifying property values or adding/removing properties. Access rights are also useful for restricting event handling. In a case where there is an access right violation, the exception ACCESS_VIOLATION_ERR must be raised.

Integrity checks are appropriate whenever the DCI hierarchy is modified. For example, a property describing a speech recognizer might not be permissible as a sub-property of the device's geographical location. In general, the types and values for sub properties need to be consistent with their parent property. In a case where there is an integrity error the DOM exception HIERARCHY_REQUEST_ERR must be raised.

4.1.4 Events

Properties raise events to notify changes to property values. The data passed with each event will vary according to the property. All events extend the DOM Event interface. The conditions under which an event is raised also vary and may be controlled either through the value of sub-properties or property specific metadata interface.

For notifications incurring network traffic, there are considerations of cost and efficient network utilization. An example is location updates for a mobile phone. An application may require updates at frequent intervals, while others will only need updates when the location has changed by a suitable amount, or when the mobile is approaching key landmarks (street intersection, bank, restaurant or a freeway exit).

Additional events are used to notify when properties are removed or added to the hierarchy.

The DCI framework does not normatively define particular events, as opposed to general events defined in 7 Conformance. Some informative examples are: low battery alerts, loss of network connectivity, location updates, and alerts for when speech recognition rates drops below some predefined threshold.

4.1.5 Metadata

Metadata can be directly or indirectly associated with DCI properties. Some potential examples of metadata include the version of a property interface, and timestamps for property creation and modification. Richer metadata could describe ontologies of properties, and be expressed using powerful metadata frameworks like OWL [OWL] for the purposes of authoring solutions.

Note that the kinds of metadata and their representation is outside the scope of this specification. The DCIMetadataInterface attribute provides a means for accessing metadata directly associated with a property, in terms of a pointer to an interface for the metadata and a DOMString value identifying the type for that interface.

4.1.6 Property Layout

Properties can be placed anywhere within the DCI hierarchy (however it is recommended that they follow logical rules that are outside the scope of DCI). As a result, it is possible for properties to have the same name and namespace attributes residing at multiple locations in the hierarchy. In such cases a property search can return a list of properties with the same name and namespace value and therefore appear to be identical. To disambiguate between such properties the parent values can be checked, or where applicable, the metadata can be used.

GPS hierarchy

Figure 2. An example GPS hierarchy.

For example, there could be two or more GPS systems present with the relationship shown in Figure 2. As a result of a searchProperty on the node named C:GPS with a namespaceURI parameter set to "*", the propertyName parameter set to "GPS" and deep parameter set to "true", the NodeList returned would contain three properties, two properties with a namespace value of A and another with a namespace value of B. These nodes can be disambiguated by comparing their parentNode attributes.

5 Interface Definitions

This section describes the DCI Property and method interfaces in detail. In addition to interfaces defined here, the standard DOM interfaces must be available to a DCI implementation, subject to DCI restrictions if applicable.

5.1 The DCIProperty Interface

5.1.1 Attributes
 attribute any value;

The value attribute provides read/write access to the property's value. It is of type DOMString. Note that the value attribute does not override the DOM Node nodeValue attribute but extends the DOM Node to provide an additional value attribute for DCI properties. This has been provided so that DCI implementations can re-use existing DOM implementations without overriding any DOM attributes. In DCI context, the DOM Node nodeValue attribute should be the value null.

For nodes that do not have any value (example DCIComponent node), this attribute has the value null.

readonly attribute DOMString valueType;

This read-only attribute describes the type of value that the property supports. Applications can read the valueType attribute to determine the type and the format of a property value present in the value attribute. The values for valueType are dictated by the properties and are defined by property vendors or other bodies. To avoid name clashes, the value of valueType should be a URI.

The value of this attribute is null for a DCIComponent node.

For string values, the value type must be the string "DOMString".

 attribute DOMString propertyType;

The propertyType attribute denotes the type of property that the DCIProperty Interface references. The propertyType attribute provides an additional level of granularity to the DCI interface. This allows the extension of the DCIProperty interface for a particular type of property. The propertyType attribute is a read-only attribute of type DOMString. For example, a presentation characteristic description can describe additional interfaces for the DCI presentation property that would be needed to access additional screen specific properties. For example, the DCIPropertyType for such an interface could be the string "DCIPresentationType".

The propertyType values and corresponding DCIProperty interface extensions will be specified by other groups/vendors and is outside the scope of the current specification. The default value for the propertyType attribute is the null value.

readonly attribute boolean readOnly;

The readOnly attribute is used to determine whether the value and propertyType attributes can be modified. When readOnly is true, any attempt to modify the value and propertyType attributes will result in a NO_MODIFICATION_ALLOWED_ERR exception being raised. When readOnly is set to false the value attribute may be changed.

readonly attribute DOMString DCIMetadataInterfaceType;
readonly attribute any DCIMetadataInterface;

The DCIMetadataInterface attribute contains an interface for accessing property specific metadata. The type of interface is determined by the DOMString DCIMetadataInterfaceType attribute. The definitions for the exact type of metadata interface is outside the scope of the current specification. The details of the DCIMetadataInterface interface depends on its type, which is implementation specific. See 7 Conformance for more implementation details regarding DCIMetadataInterface.

For example, the DCIMetadataInterfaceType for a property could be set to "application/rdf+xml", and the value of the DCIMetadataInterface could be a URI that points to the RDF meta data information available for this property. This interface allows a script author to recognize the MIME type contained within DCIMetadataInterfaceType, and then fetch and process the RDF meta data at the URI contained in the DCIMetadataInterface.

5.1.2 Methods

5.1.2.1 hasProperty

boolean hasProperty(in DOMString namespaceURI,
                    in DOMString propertyName,
                    in boolean deep);
;

This method is used to determine whether this property has a given named property as identified by its name and namespace amongst its descendants.

Parameters
namespaceURI
The namespaceURI parameter is a DOMString containing the namespace URI of the property being searched. The namespaceURI string may be "*", which denotes a 'wildcard', i.e., it matches any namespace found.

propertyName
The propertyName parameter is a DOMString containing the name of the property being searched. The propertyName string may be "*", which denotes a 'wildcard', i.e., it matches any property name found.

deep
When deep is true, the search applies to the children recursively. When false, the search is limited to this property's immediate children. An implementation may choose not to respect a deep value of true and thereby exclude properties based upon access rights.

Return Value
boolean The return value is true if one or more properties match the search parameters, and false otherwise.

No Exceptions

5.1.2.2 searchProperty

NodeList searchProperty(in DOMString namespaceURI,
                               in DOMString propertyName,
                               in DCIPropertyFilter dciPropertyFilter,
                               in boolean deep)
                               raises(DCIException);

This method provides a way to obtain a filtered list of child properties, using an application defined filter passed via dciPropertyFilter. The DCIPropertyFilter interface is described below.

Parameters
namespaceURI
The namespaceURI parameter is a DOMString containing the namespace URI of the property being searched. The namespaceURI string may be "*", which denotes a 'wildcard', i.e., it matches any namespace found.

propertyName
The propertyName parameter is a DOMString containing the name of the property being searched. The propertyName string may be "*", which denotes a 'wildcard', i.e., it matches any property name found.

dciPropertyFilter
The dciPropertyFilter method is a filter which is executed for each property that passes the name/namespace criteria. A result of true means the property will be included in the search results, and false means it will not be included. The parameter value can be null indicating that no filter is used.

deep
If true, the current operation applies to all nodes below the current parent node recursively. If false, the search is limited to the immediate children of this property. An implementation may choose not to respect a deep value of true and thereby exclude properties based upon access rights.

Return Value
NodeList This method returns a NodeList. The NodeList provides the abstraction of an ordered collection of DOM Nodes. Note that within the DCI context, Nodes are DCIProperty nodes. The NodeList has an integer attribute "length" that gives the number of DCIProperty entries within the NodeList. If the operation did not match any properties for entry to the list, the return value would be a NodeList with length attribute value of zero.

Exceptions

PROPERTY_FILTER_ERR: This exception is raised if the optional DCIPropertyFilter makes an invalid or illegal operation on the DCIPropertyList.


5.2 The DCIPropertyFilter Interface

The dciPropertyFilter parameter is a filter which is executed for each property that passes the name/namespace criteria. A result of true means the property will be included in the search results, and false means it will not be included.

5.2.1 Methods

5.2.1.1 acceptProperty

boolean acceptProperty(in DCIProperty property)
                      raises(DCIException);

This method is called by the DCI implementation to check if a property node can be included within a NodeList. If the return value is true, the node is included, otherwise the node is rejected. The application author provides the implementation for this method that would contain additional filtering criteria for each Node. Only those properties which satisfy the search criterion within the acceptProperty implementation will be returned via the NodeList.

Parameters
property
The DCIProperty node that will be passed to acceptProperty by the DCI implementation to check if the node can be accepted to be included within the NodeList.

Return Value
boolean true if the node in property is to be included in the NodeList, and false if it is to be excluded.

Exceptions

PROPERTY_FILTER_ERR: This exception is raised if the filter makes an invalid or illegal operation on the DCIPropertyList.


5.3 The DCIComponent Interface

The DCIComponent interface forms the root node of the DCI hierarchy. DCIComponent derives from the DCIProperty interface and contains an additional read-only attribute called version. The value of the version attribute is the version number of the Delivery Context: Interfaces component. The value of version for this release is the string "1.0". The parent and value attributes of an DCIComponent have the value null.

5.3.1 Attributes
readonly attribute DOMString version;

Identifies the version number of the DCI specification that has been implemented. The version number for this specification is "1.0".

No Methods

5.4 Exceptions

Below is the DCI defined exception error constant:.

PROPERTY_FILTER_ERR
This exception is raised if the filter makes an invalid or illegal operation on the DCIPropertyList.

6 Event Processing Model

The DCI eventing model conforms to the DOM Event Specification including capture and bubble phases. Modules that implement the DOM EventListener interface, such as a browser or Interaction Manager [IM], can register as listeners on the DCI tree. Concurrent with the DOM Event propagation algorithm, when an DOM Event is dispatched on the DCI property tree, listeners registered for this event type get activated. The listener receives a DOM Event object type that may need to be copied or appropriately casted before it can be processed by that listener (if that listener cannot directly process DOM Events).

The DCI framework specifies an additional notification event that listeners can register for:

dci-prop-change:this event is raised after a property changes value. This event is targeted at the property that has changed value. If the event namespace feature is implemented, the event must be in the DCI namespace which is: http://www.w3.org/2005/dci.

The DCI framework also uses DOM Events [DOM2-Events] to notify listeners on properties that have been added or removed from the DCI DOM tree. The following events are of interest to DCI listeners:

DOMSubtreeModified: This is a general event for notification of all changes to the DCI DOM tree. It can be used instead of the more specific events listed below. It may be dispatched after a single modification to the tree or, at the implementation's discretion, after multiple changes have occurred. The latter use should generally be used to accommodate multiple changes which occur either simultaneously or in rapid succession. The target of this event is the lowest common parent of the changes which have taken place. This event is dispatched after any other events caused by the mutation(s) have occurred.

DOMNodeInserted: This event is raised when a new property has been added as a child of another property. This event is dispatched after the insertion has taken place. The target node of this event is the property being inserted.

DOMNodeRemoved: This event is raised when a property is being removed from its parent property. This event is dispatched before the property is removed from the tree. The target node of this event is the property being removed.

7 Conformance

This section describes conformance requirements for implementations of the Delivery Context: Interfaces (DCI) defined in this specification.

In this document the key words must, must not, required, shall, shall not, should, should not, recommended, may, and optional when appearing in bold are to be interpreted as described in [IETF RFC 2119].

A conforming DCI implementation must implement all the normative sections of this document, including the DOM EventTarget interface [DOM2-Events]. As defined in the IDL Definitions for the DCI, the DCIProperty interface inherits from the DOM Node. In addition, a conformant DCI implementation must also implement the DOM EventTarget interface [DOM2-Events].

The EventTarget interface is used for event propagation in the DCI framework as explained in section 4.1.4 Events and section 6 Event Processing Model.

The conformance requirements for the DCI have been chosen to allow implementations based upon existing W3C DOM Levels 2 and 3 implementations and must support the use of the isSupported method introduced in DOM Level 2. The isSupported method allows a DCI to determine which level of the DOM a given implementation supports. Feature names are case sensitive as described in [DOM3-Core]. This specification defines the feature "DCI" for DOM versions "2.0" and "3.0".

All data types supported by W3C DOM specifications [DOM] must be supported. The DOM Core specifications specifies the list of data types that can be used.

Although the DCIProperty interface inherits from the DOM Node interface, not all of the attributes and methods defined for the Node interface are applicable to delivery context properties. In particular implementations:

  1. must return DCIPROPERTY_NODE as the value of nodeType for DCIProperty nodes

  2. must return DCICOMPONENT_NODE as the value of nodeType for DCIComponent nodes

  3. must return true for calls to isSupported with the feature name "DCI" and version "2.0"

  4. must return false for calls to isSupported with the feature name "DCI" and version "3.0" unless the corresponding DOM Level 3 features are supported

  5. must raise the DOM exception HIERARCHY_REQUEST_ERR if a property is added in location that it does not belong

  6. must raise ACCESS_VIOLATION_ERR when there is an access right violation

  7. must set the value of the textContent attribute to null, if DOM Level 3 is supported.

  8. must raise NOT_SUPPORTED_ERR if the implementation does not supported the requested type of object or operation.

  9. may raise the DOM exception NOT_SUPPORTED_ERR when an attempt is made to insert nodes with types other than DCIProperty, this applies to the methods insertBefore, replaceChild, and appendChild

  10. may return null for the node attribute ownerDocument

  11. may implement the DCIMetaDataInterface attribute as type DOMObject when available, or as DOMString otherwise

  12. may implement node cloning, adopting and importing, but must raise NOT_SUPPORTED_ERR if not supported.

A DCI implementation that conforms to DOM Level 3 may implement the event interfaces described in the [DOM3-Events] Note: The DOM 3 Event Note adds the notions of event namespace, groups and categories to the DOM 2 Event Recommendation; these are useful features in the DCI context.

Event namespaces can be used to distinguish between DCI events raised by properties that have the same name but are defined by different organizations. They also allow modules to listen for property events from a particular organization. If the event namespace feature is implemented, the DCI dci-prop-change event must have the DCI namespace URI: "http://www.w3.org/2005/dci".

Event groups can be used to prevent listeners from stopping an event's propagation before other listeners have a chance to react to it. The DOM 3 EventsNote [DOM3-Events] specifies that if two listeners are registered in two different groups one cannot prevent the other from being triggered. This feature is useful when multiple modules are listening to the same event and some of them need a guarantee that they will indeed receive it regardless of some listeners in other groups stopping their propagation.

An event category is represented by a namespace URI and a local name. Event categories allow listeners to be registered for a hierarchy of DCI events rather than for a specific event type. For example, events denoting an automatic speech recognition (ASR) connection status can be associated with the following three categories {"http://www.example.org/2003/voicexml", "connection"}, {"http://www.example.org/2003/voicexml", "connection.disconnect"} or {"http://www.example.org/2003/voicexml", "connection.disconnect.hangup"} [VoiceXML]. An event listener that wishes to be notified on the overall status of an ASR connection would register for the first category of events, and would thus be notified upon the ASR engine being connected, disconnected, and when disconnected if it was a hangup or not. On the other hand, an event listener that wants to be notified only on hangup calls would register for the last event category.

8 ECMAScript Language Binding

This section describes a normative ECMAScript [ECMAScript] language binding for DCI.

The type of the value and DCIMetadataInterface attributes, specified below, depends on the version of the DOM used: for DOM level 2, the type is String. For DOM level 3, the type is Object (ECMAScript binding equivalent of DOM3 DOMObject)

8.1 DCIException Interface

Properties of DCIException:
DCIException.ACCESS_VIOLATION_ERR
The value of the constant ACCESS_VIOLATION_ERR is 0
DCIException.NOT_SUPPORTED_ERR
The value of the constant NOT_SUPPORTED_ERR is 1

8.2 DCIProperty Interface

Objects that implement the DCIProperty interface have all properties and functions of the EventTarget and the Node interfaces as well as the functions and properties defined below:

Properties of objects that implement the DCIProperty interface:
value
This property is of type String for DOM2, or Object otherwise.
valueType
This read-only property is a String.
propertyType
This property is a String.
readOnly
This read-only property is a Boolean.
DCIMetadataInterfaceType
This read-only property is a String.
DCIMetadataInterface
This read-only property is of type String for DOM2, or Object otherwise.
Functions of objects that implement the DCIProperty interface:
searchProperty(namespaceURI, propertyName, dciPropertyFilter, deep)
This function returns a NodeList.
The namespaceURI parameter is a String.
The propertyName parameter is a String.
The dciPropertyFilter parameter is a DCIPropertyFilter.
The deep parameter is a Boolean.
hasProperty(namespaceURI, propertyName, deep)
This function returns a Boolean.
The namespaceURI parameter is a String.
The propertyName parameter is a String.
The deep parameter is a Boolean.

8.3 DCIComponent Interface

Objects that implement the DCIComponent interface:
Objects that implement the DCIComponent interface have all properties and functions of the DCIProperty interface as well as the property defined below.
Properties of objects that implement the DCIComponent interface
version
This read-only property is a String.

8.4 DCIPropertyFilter

This is an ECMAScript function reference. The method takes in a DCIProperty object as parameter and returns a boolean value.

A IDL Definitions for the DCI

This appendix contains the complete OMG IDL [IDL] definitions for the DCI Framework with the exception of existing DOM modules for the DOM core and DOM events, which are used for some common DOM data types and the EventTarget interface.

// File: DCI.idl

#include "dom.idl"
#include "events.idl"

#pragma prefix "dom.w3c.org"
module dci
{
  // NodeType as an addition to list in DOM3 Core
  const unsigned short DCIPROPERTY_NODE       = 15;
  const unsigned short DCICOMPONENT_NODE      = 16;

  typedef dom::DOMString DOMString;
  typedef dom::Node Node;
  typedef dom::NodeList NodeList;
  typedef events::EventTarget EventTarget
  interface DCIComponent : DCIProperty
  {
    readonly attribute DOMString version;
  };
  interface DCIPropertyFilter
  {
     boolean acceptProperty(in DCIProperty property)
                           raises DCIException;
  } ;
  interface DCIProperty : Node
  {

     attribute any value;
     // raises(DCIException) on setting
     // raises(DCIException) on retrieval

     readonly attribute DOMString valueType;
     attribute DOMString propertyType;
     readonly attribute boolean readOnly;


     // used for direct association of metadata
     readonly attribute any DCIMetadataInterfaceType;
     readonly attribute any DCIMetadataInterface;


     // a pair of convenience functions that save
     // having to explicitly walk the propertytree

     NodeList searchProperty(
               in DOMString namespaceURI,
               in DOMString propertyName,
               in DCIPropertyFilter dciPropertyFilter,
               in boolean deep)
             raises(DCIException);

     boolean hasProperty(
               in DOMString namespaceURI,
               in DOMString propertyName,
               in boolean deep);

  };
}

B Informative Use Case: Resolved Postal Code

This section provides an illustration of how the DCI could operate. The DCI specific code in the examples has been highlighted.

This example demonstrates how events can be used. In this example location events are provided whenever the device has moved a certain distance. The location may be determined by GPS, or via a location based service.

Three DCI properties are used in this example: location, updateDistance and format. The location property contains the current location in the form specified by the format property. The updateDistance property is used by the implementation to determine when to trigger the update event. This reduces the number of events being triggered, as postal codes are often quite large and as such it would be inefficient to have more frequent events triggered. This is an example of how conditional events can be implemented via an additional property.

<?xml version="1.0"?>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">
<html xmlns="http://www.w3.org/1999/xhtml" xml:lang="en"
      xmlns:dci="http://www.w3.org/2005/dci"
      xmlns:ev="http://www.w3.org/2001/xml-events">
  <head>
    <title>GPS location example</title>

    <!--
      Initialize GPS location property in DCI Framework
      to provide updated values every 20 seconds with the format
      specified to be the postal code for the device's GPS location.
      The mechanism used to provide these updates is hidden from
      the application and might be based on a Web Service.
    -->
    <script type="text/javascript">
    <![CDATA[
      // convenience function for accessing child properties
      function childProperty(property, name)
      {
         // 1st parameter is "*" for wild card that matches any namespace
         // 2nd argument is the property name we are searching for
         // 3rd parameter is null for default search filter function
         // 4th parameter is false to restrict search to immediate children
         var list = property.searchProperty("*", name, null, false);

         // return first node in property list
         if (list && list.length > 0)
            return list[0];

         return null;
      }

      // get handle to location property
      var location = childProperty(DCI, "location");

      // get handle to location format property
      var format = childProperty(location, "format");

      // now set the format we want for location values
      format.value ="postal code";

      // get handle to updateFrequency property
      var updateDistance = childProperty(location, "updateDistance");

      // and set the update event to be triggered when the browser
      // has moved 50 meters.  this is an example of how conditional
      // can be placed on events by using another property

      updateDistance.value = "50m";
    ]]>
    </script>

    <!--
      This is an event handler that listens for location update
      events raised whenever the location property is updated.
      The handler reads the value and sets it as the content
      of the span element with id="location". The defer attribute
      is used to prevent execution when document is first loaded.
    -->
    <script defer="defer" type="text/javascript"
      ev:event="dci:locationUpdate">

      <![CDATA[
        // get DOM Node for element to place location value
        var field = document.getElementById("location");

        // update field with current value of location property

        field.firstChild.nodeValue = location.value;
      ]]>
    </script>
  </head>
  <body>
    <h1>Track your location as you walk</h1>

    <p>Your current postal code is: <span id="location">(please
    wait)</span></p>
  </body>
</html>

C Normative References

XML
"Extensible Markup Language (XML) 1.0 (Third Edition)", Tim Bray, Jean Paoli, C.M. Sperberg-McQueen, Eve Maler, Francois Yergeau, Editors, revised 4 February 2004. (See http://www.w3.org/TR/2004/REC-xml-20040204/.)
XML-Namespaces
"Namespaces in XML", Tim Bray, Dave Hollander, Andrew Layman, Editors, revised 14 January 1999. (See http://www.w3.org/TR/1999/REC-xml-names-19990114/.)
ECMAScript
"Standard ECMA-262: ECMAScript Language Specification", 3rd edition, December 1999. (See http://www.ecma-international.org/publications/files/ECMA-ST/Ecma-262.pdf.)
DOM
"Document Object Model (DOM) Technical Reports", Tom Pixley, Editor. (See http://www.w3.org/DOM/DOMTR.)
RFC2396
http://www.ietf.org/rfc/rfc2396.txt "Uniform Resource Identifiers (URI): Generic Syntax", T. Berners-Lee, R. Fielding, U.C. Irvine, L. Masinter, August 1998. (See http://www.ietf.org/rfc/rfc2396.txt.)
DOM2-Events
"Document Object Model (DOM) Level 2 Events Specification", Tom Pixley, Editor, revised 13 November 2000. (See http://www.w3.org/TR/2000/REC-DOM-Level-2-Events-20001113/.)
DOM3-Events
"Document Object Model (DOM) Level 3 Events Specification", Philippe Le Hegaret, Tom Pixley, Editors, revised 7 November 2003. (See http://www.w3.org/TR/2003/NOTE-DOM-Level-3-Events-20031107/.)
DOM3-Core
"Document Object Model (DOM) Level 3 Core Specification", Arnaud Le Hors, Philippe Le Hegaret, Lauren Wood, Gavin Nicol, Jonathan Robie, Mike Champion, Steve Byrne, Editors, revised 7 April 2004. (See http://www.w3.org/TR/2004/REC-DOM-Level-3-Core-20040407/.)
IETF RFC 2119
"Key words for use in RFCs to Indicate Requirement Levels", S. Bradner, March 1997 (See http://www.ietf.org/rfc/rfc2119.txt.)
IDL
"OMG IDL Syntax and Semantics", Object Management Group. (See http://www.omg.org/technology/documents/formal/corba_2.htm.)

D Informative References

CPC
"Device Independence Working Group Charter, Work Item: Core Presentation Characteristics Version 1.0", Rhys Lewis (Chair). (See http://www.w3.org/2004/05/di-charter-2004-06.html#delcon-cpc.)
DevInd
"Device Independence Activity". (See http://www.w3.org/2001/di/.)
DIWG
"Device Independence Working Group", Rhys Lewis, DIWG Chair. (See http://www.w3.org/2001/di/ .)
DCO
"Delivery Context Overview for Device Independence", Roger Gimson and Rhys Lewis, DIWG Chair. (See http://www.w3.org/TR/di-dco/ .)
MMI
"W3C Multimodal Interaction Framework", James A. Larson, T.V. Raman, Dave Raggett, Editors, revised 6 May 2003. (See http://www.w3.org/TR/2003/NOTE-mmi-framework-20030506/.)
MMIReqs
"Multimodal Interaction Requirements", Stephane H. Maes, Vijay Saraswat, Editors, revised 8 January 2003. (See http://www.w3.org/TR/2003/NOTE-mmi-reqs-20030108/.)
IM
"W3C Multimodal Interaction Framework: Specification of interaction management component", James A. Larson, T.V. Raman, Dave Raggett, Editors, revised 6 May 2003. (See http://www.w3.org/TR/2003/NOTE-mmi-framework-20030506/#s6.)
OMA
"Open Mobile Alliance". (See http://www.openmobilealliance.org.)
OWL
"The Web Ontology Language", Eric Miller, Jim Hendler, Editors, revised 2 March 2004. (See http://www.w3.org/2004/OWL/.)
SIP
"SIP: Session Initiation Protocol", J. Rosenberg, H. Schulzrinne, et al, revised June 2002. (See http://www.ietf.org/rfc/rfc3261.txt.)
CCPP
"Composite Capability/Preference Profiles (CC/PP): Structure and Vocabularies 1.0", Graham Klyne, Franklin Reynolds, Chris Woodrow, Hidetaka Ohto, Johan Hjelm, Mark H. Butler, Luu Tran, Editors, revised 15 January 2004. (See http://www.w3.org/TR/2004/REC-CCPP-struct-vocab-20040115/.)
RDF
"RDF Vocabulary Description Language 1.0: RDF Schema", Dan Brickley, R.V. Guha, Editors, revised 10 February 2004. (See http://www.w3.org/TR/2004/REC-rdf-schema-20040210/.)
UAPROF
"Wireless Application Group User Agent Profile Specification", Wireless Application Group, revised 10 November 1999. (See http://www.wapforum.org/what/technical/SPEC-UAProf-19991110.pdf.)
XPath
"XML Path Language (XPath) ", James Clark, Steve DeRose, Editors, revised 16 November 1999. (See http://www.w3.org/TR/1999/REC-xpath-19991116.)
VoiceXML
"Voice Extensible Markup Language (VoiceXML) Version 2.0", Scott McGlashan,Daniel C. Burnett, Jerry Carter, Peter Danielsen, Jim Ferrans, Andrew Hunt, Bruce Lucas, Brad Porter, Ken Rehor, Steph Tryphonas, revised 16 March 2004. (See http://www.w3.org/TR/2004/REC-voicexml20-20040316/.)
LIF
"OMA Mobile Location Protocol (MLP) Candidate Version 3.1", Open Mobile Alliance, revised 16 March 2004. (See http://member.openmobilealliance.org/ftp/Public_documents/LOC/Permanent_documents/OMA-LIF-MLP-V3_1-20040316-C.zip.)
XHTML
"XHTML 1.0: The Extensible HyperText Markup Language (Second Edition)", Members of W3C HTML Working Group, Editors, revised 26 January 2000/1 August 2002. (See http://www.w3.org/TR/2002/REC-xhtml1-20020801/.)
DISelect
"Content Selection for Device Independence (DISelect) 1.0", Rhys Lewis, Roland Merrick, Editors, revised 11 June 2004. (See http://www.w3.org/TR/2004/WD-cselection-20040611/.)

E Acknowledgments

The editors would like to recognize the contributions of the following members of the W3C Multimodal Interaction Group (in alphabetical order):

This document was also produced with the participation of the Device Independence Working Group participants:
