XML Path Language (XPath) 2.0

2.1.1 Static Context

[Definition: The static context of an expression is the information that is available during static analysis of the expression, prior to its evaluation.] This information can be used to decide whether the expression contains a static error. If analysis of an expression relies on some component of the static context that has not been assigned a value, a static error is raised.[err:XP0001]

The individual components of the static context are summarized below. Further rules governing the semantics of these components can be found in C.1 Static Context Components.

• [Definition: XPath 1.0 compatibility mode. This value is true if rules for backward compatibility with XPath Version 1.0 are in effect; otherwise it is false.]

• [Definition: Statically known namespaces. This is a set of (prefix, URI) pairs that define all the namespaces that are known during static processing of a given expression.] Note the difference between in-scope namespaces, which is a dynamic property of an element node, and statically known namespaces, which is a static property of an expression.

• [Definition: Default element/type namespace. This is a namespace URI or "none". The namespace URI, if present, is used for any unprefixed QName appearing in a position where an element or type name is expected.] The initial default element/type namespace may be provided by the host language.

• [Definition: Default function namespace. This is a namespace URI that is used for any unprefixed QName appearing as the function name in a function call. The initial default function namespace may be provided by the external environment.]

• [Definition: In-scope schema definitions. This is a generic term for all the element, attribute, and type definitions that are in scope during processing of an expression.] It includes the following three parts:

  • [Definition: In-scope type definitions. Each type definition is identified either by an expanded QName (for a named type) or by an implementation-dependent type identifier (for an anonymous type). The in-scope type definitions include the predefined types described in 2.5.1 Predefined Types. ]

  • [Definition: In-scope element declarations. Each element declaration is identified either by an expanded QName (for a top-level element declaration) or by an implementation-dependent element identifier (for a local element declaration). ] An element declaration includes information about the element's substitution group affiliation.

    [Definition: Substitution groups are defined in [XML Schema] Part 1, Section 2.2.2.2. Informally, the substitution group headed by a given element (called the head element) consists of the set of elements that can be substituted for the head element without affecting the outcome of schema validation.]

  • [Definition: In-scope attribute declarations. Each attribute declaration is identified either by an expanded QName (for a top-level attribute declaration) or by an implementation-dependent attribute identifier (for a local attribute declaration). ]

• [Definition: In-scope variables. This is a set of (expanded QName, type) pairs. It defines the set of variables that are available for reference within an expression. The expanded QName is the name of the variable, and the type is the static type of the variable.]

  An expression that binds a variable (such as a for, some, or every expression) extends the in-scope variables of its subexpressions with the new bound variable and its type.

• Context item static type. This component defines the static type of the context item within the scope of a given expression.

• [Definition: Function signatures. This component defines the set of functions that are available to be called from within an expression. Each function is uniquely identified by its expanded QName and its arity (number of parameters).] In addition to the name and arity, each function signature specifies the static types of the function parameters and result.

  The function signatures include the signatures of constructor functions, which are discussed in 3.10.4 Constructor Functions.

• [Definition: Statically known collations. This is a set of (URI, collation) pairs. It defines the names of the collations that are available for use in function calls that take a collation name as an argument.] [Definition: A collation is a specification of the manner in which character strings are compared and, by extension, ordered. For a more complete definition of collation, see [XQuery 1.0 and XPath 2.0 Functions and Operators].]

• [Definition: Default collation. This identifies one of the collations in statically known collations as the collation to be used by string comparison functions and operators when no explicit collation is specified.]

• [Definition: Base URI. This is an absolute URI, used when necessary in the resolution of relative URIs (for example, by the fn:resolve-uri function.)]

• [Definition: Statically known documents. This is a mapping from strings onto types. The string represents the absolute URI of a resource that is potentially available using the fn:doc function. The type is the static type of a call to fn:doc with the given URI as its literal argument. ] If the argument to fn:doc is a string literal that is not present in statically known documents, then the static type of fn:doc is document-node()?.

  Note:

  The purpose of the statically known documents is to provide static type information, not to determine which documents are available. A URI need not be found in the statically known documents to be accessed using fn:doc.

• [Definition: Statically known collections. This is a mapping from strings onto types. The string represents the absolute URI of a resource that is potentially available using the fn:collection function. The type is the type of the sequence of nodes that would result from calling the fn:collection function with this URI as its argument.] If the argument to fn:collection is a string literal that is not present in statically known collections, then the static type of fn:collection is node()*.

  Note:

  The purpose of the statically known collections is to provide static type information, not to determine which collections are available. A URI need not be found in the statically known collections to be accessed using fn:collection.

• [Definition: Statically known default collection type. This is the type of the sequence of nodes that would result from calling the fn:collection function with no arguments.] Unless initialized to some other value by an implementation, the value of statically known default collection type is node()*.

2.1.2 Dynamic Context

[Definition: The dynamic context of an expression is defined as information that is available at the time the expression is evaluated.] If evaluation of an expression relies on some part of the dynamic context that has not been assigned a value, a dynamic error is raised.[err:XP0002]

The individual components of the dynamic context are summarized below. Further rules governing the semantics of these components can be found in C.2 Dynamic Context Components.

The dynamic context consists of all the components of the static context, and the additional components listed below.

[Definition: The first three components of the dynamic context (context item, context position, and context size) are called the focus of the expression. ] The focus enables the processor to keep track of which items are being processed by the expression.

Certain language constructs, notably the path expression E1/E2 and the filter expression E1[E2], create a new focus for the evaluation of a sub-expression. In these constructs, E2 is evaluated once for each item in the sequence that results from evaluating E1. Each time E2 is evaluated, it is evaluated with a different focus. The focus for evaluating E2 is referred to below as the inner focus, while the focus for evaluating E1 is referred to as the outer focus. The inner focus exists only while E2 is being evaluated. When this evaluation is complete, evaluation of the containing expression continues with its original focus unchanged.

• [Definition: The context item is the item currently being processed. An item is either an atomic value or a node.][Definition: When the context item is a node, it can also be referred to as the context node.] The context item is returned by the expression ".". When an expression E1/E2 or E1[E2] is evaluated, each item in the sequence obtained by evaluating E1 becomes the context item in the inner focus for an evaluation of E2.

• [Definition: The context position is the position of the context item within the sequence of items currently being processed.] It changes whenever the context item changes. Its value is always an integer greater than zero. The context position is returned by the expression fn:position(). When an expression E1/E2 or E1[E2] is evaluated, the context position in the inner focus for an evaluation of E2 is the position of the context item in the sequence obtained by evaluating E1. The position of the first item in a sequence is always 1 (one). The context position is always less than or equal to the context size.

• [Definition: The context size is the number of items in the sequence of items currently being processed.] Its value is always an integer greater than zero. The context size is returned by the expression fn:last(). When an expression E1/E2 or E1[E2] is evaluated, the context size in the inner focus for an evaluation of E2 is the number of items in the sequence obtained by evaluating E1.

• [Definition: Variable values. This is a set of (expanded QName, value) pairs. It contains the same expanded QNames as the in-scope variables in the static context for the expression. The expanded QName is the name of the variable and the value is the dynamic value of the variable, which includes its dynamic type.]

• [Definition: Function implementations. Each function in function signatures has a function implementation that enables the function to map instances of its parameter types into an instance of its result type. ]

• [Definition: Current dateTime. This information represents an implementation-dependent point in time during the processing of a queryor transformation, and includes an explicit timezone. It can be retrieved by the fn:current-dateTime function. If invoked multiple times during the execution of a queryor transformation, this function always returns the same result.]

• [Definition: Implicit timezone. This is the timezone to be used when a date, time, or dateTime value that does not have a timezone is used in a comparison or arithmetic operation. The implicit timezone is an implementation-defined value of type xdt:dayTimeDuration. See [ISO 8601] for the range of legal values of a timezone.]

• [Definition: Available documents. This is a mapping of strings onto document nodes. The string represents the absolute URI of a resource. The document node is the root of a tree that represents that resource using the data model. The document node is returned by the fn:doc function when applied to that URI.] The set of available documents is not constrained by the set of statically known documents, and it may be empty.

• [Definition: Available collections. This is a mapping of strings onto sequences of nodes. The string represents the absolute URI of a resource. The sequence of nodes represents the result of the fn:collection function when that URI is supplied as the argument. ] The set of available collections is not constrained by the set of statically known collections, and it may be empty.

• [Definition: Default collection. This is the sequence of nodes that would result from calling the fn:collection function with no arguments.] The value of default collection must be initialized by the implementation.

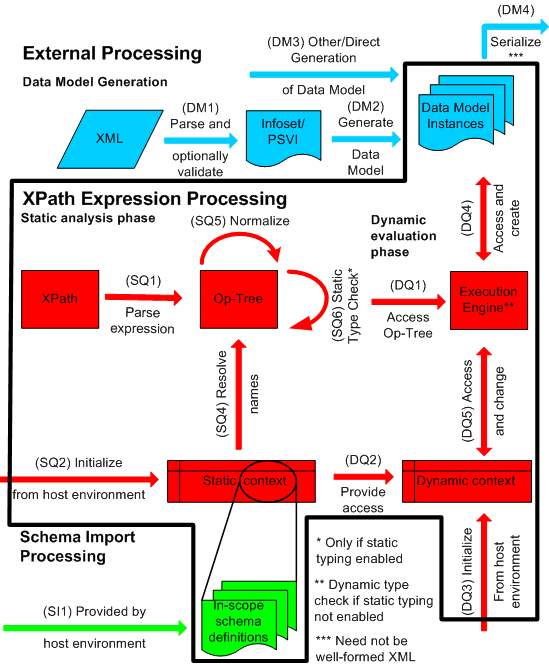

2.2.1 Data Model Generation

Before a queryor transformation can be processed, its input data must be represented as a data model instance. This process occurs outside the domain of XPath, which is why Figure 1 represents it in the external processing domain. Here are some steps by which an XML document might be converted to a data model instance:

1. A document may be parsed using an XML parser that generates an XML Information Set (see [XML Infoset]). The parsed document may then be validated against one or more schemas. This process, which is described in [XML Schema], results in an abstract information structure called the Post-Schema Validation Infoset (PSVI). If a document has no associated schema, its Information Set is preserved. (See DM1 in Fig. 1.)

2. The Information Set or PSVI may be transformed into a data model instance by a process described in [XQuery 1.0 and XPath 2.0 Data Model]. (See DM2 in Fig. 1.)

The above steps provide an example of how a data model instance might be constructed. A data model instance might also be synthesized directly from a relational database, or constructed in some other way (see DM3 in Fig. 1.) XPath is defined in terms of the data model, but it does not place any constraints on data model instances are constructed.

[Definition: Each atomic value, element node, and attribute node in a data model instance has a dynamic type. The dynamic type specifies a range of values—for example, an attribute named version might have the dynamic type xs:decimal, indicating that it contains a decimal value.]

[Definition: The type annotation of an element or attribute node is an implementation-dependent representation of its dynamic type.] If the data model instance was derived from an validated XML document as described in [XQuery 1.0 and XPath 2.0 Data Model], the type annotations of the element and attribute nodes are derived from schema validation. XPath does not provide a way to directly access the type annotation of an element or attribute node.

The value of an attribute is represented directly within the attribute node. An attribute node whose type is unknown (such as might occur in a schemaless document) is annotated with the dynamic type xdt:untypedAtomic.

The value of an element is represented by the children of the element node, which may include text nodes and other element nodes. The dynamic type of an element node indicates how the values in its child text nodes are to be interpreted. An element that has not been validated (such as might occur in a schemaless document) is annotated with the type xdt:untyped. An element that has been validated and found to be partially valid is annotated with the type xs:anyType. If an element node is annotated xdt:untyped, all its descendant element nodes are also annotated xdt:untyped. However, if an element node is annotated xs:anyType, some of its descendant element nodes may have a more specific type annotation.

An atomic value of unknown type is annotated with the type xdt:untypedAtomic.

2.2.2 Schema Import Processing

2.2.3 Expression Processing

XPath defines two phases of processing called the static analysis phase and the dynamic evaluation phase (see Fig. 1). During the static analysis phase, static errors or type errors may be raised. During the dynamic evaluation phase, dynamic errors or type errors may be raised. These kinds of errors are defined in 2.3.1 Kinds of Errors.

In processing an expression, an implementation is free to use any strategy or algorithm whose result conforms to the specifications in this document.

2.2.4 Serialization

[Definition: Serialization is the process of converting a data model instance into a sequence of octets (step DM4 in Figure 1.) ] The general framework for serialization is described in [XSLT 2.0 and XQuery 1.0 Serialization].

2.2.5 Consistency Constraints

In order for XPath to be well defined, the input data model instance, the static context, and the dynamic context must be mutually consistent. The consistency constraints listed below are prerequisites for correct functioning of an XPath implementation. Enforcement of these consistency constraints is beyond the scope of this specification. This specification does not define the result of an expression under any condition in which one or more of these constraints is not satisfied.

Some of the consistency constraints use the term data model schema. [Definition: For a given node in a data model instance, the data model schema is defined as the schema from which the type annotation of that node was derived.] For a node that was constructed by some process other than schema validation, the data model schema consists simply of the type definition that is represented by the type annotation of the node.

• For every node that has a type annotation, if that type annotation is found in the in-scope schema definitions (ISSD), then its definition in the ISSD must be the same as its definition in the data model schema. Furthermore, all types that are derived by extension from the given type in the data model schema must also be known by equivalent definitions in the ISSD.

• For every element name EN that is found both in a data model instance and in the in-scope schema definitions (ISSD), all elements that are known in the data model schema to be in the substitution group headed by EN must also be known in the ISSD to be in the substitution group headed by EN.

• Every item type (i.e., every element, attribute, or type name) referenced in in-scope variables or function signatures must be in the in-scope schema definitions.

• For each mapping of a string to a document node in available documents, if there exists a mapping of the same string to a document type in statically known documents, the document node must match the document type, using the matching rules in 2.5.4 SequenceType Matching.

• For each mapping of a string to a sequence of nodes in available collections, if there exists a mapping of the same string to a type in statically known collections, the sequence of nodes must match the type, using the matching rules in 2.5.4 SequenceType Matching.

• For each (variable, type) pair in in-scope variables and the corresponding (variable, value) pair in variable values such that the variable names are equal, the value must match the type, using the matching rules in 2.5.4 SequenceType Matching.

2.3.1 Kinds of Errors

As described in 2.2.3 Expression Processing, XPath defines an analysis phase, which does not depend on input data, and an evaluation phase, which does depend on input data. Errors may be raised during each phase.

[Definition: A static error is an error that must be detected during the analysis phase. A syntax error is an example of a static error. The means by which static errors are reported during the analysis phase is implementation-defined. ]

[Definition: A dynamic error is an error that must be detected during the evaluation phase and may be detected during the analysis phase. Numeric overflow is an example of a dynamic error. ]

[Definition: A type error may be raised during the analysis or evaluation phase. During the analysis phase, a type error occurs when the static type of an expression does not match the expected type of the context in which the expression occurs. During the evaluation phase, a type error occurs when the dynamic type of a value does not match the expected type of the context in which the value occurs. ]

The outcome of the analysis phase is either success or one or more type errors and/or static errors. The result of the evaluation phase is either a result value, a type error, or a dynamic error.

If any expression (at any level) can be evaluated during the analysis phase (because all its explicit operands are known and it has no dependencies on the dynamic context), then any error in performing this evaluation may be reported as a static error. However, the fn:error() function must not be evaluated during the analysis phase. For example, an implementation is allowed (but not required) to treat the following expression as a static error, because it calls a constructor function with a constant string that is not in the lexical space of the target type:

xs:date("Next Tuesday")

If the Static Typing Feature is not in effect but an implementation can nevertheless determine during the analysis phase that an expression will necessarily raise a type error, the implementation may report that error during the analysis phase.

In addition to static errors, dynamic errors, and type errors, an XPath implementation may raise warnings, either during the analysis phase or the evaluation phase. The circumstances in which warnings are raised, and the ways in which warnings are handled, are implementation-defined.

In addition to the errors defined in this specification, an implementation may raise a dynamic error if insufficient resources are available for processing a given expression. For example, an implementation may specify limitations on the maximum numbers or sizes of various objects. These limitations, and the consequences of exceeding them, are implementation-dependent.

2.3.2 Identifying and Reporting Errors

The errors defined in this specification are identified by QNames that have the form err:XPYYnnnn, where:

• err denotes the namespace for XPath and XQuery errors, http://www.w3.org/2004/10/xqt-errors. This binding of the namespace prefix err is used for convenience in this document, and is not normative.

• XP identifies the error as an XPath error.

• YY denotes the error category, using the following encoding:

  • ST denotes a static error.

  • DY denotes a dynamic error.

  • TY denotes a type error.

• nnnn is a unique numeric code.

An error, if it occurs, is reported to the external processing environment in the form of a URI reference that is derived from the error QName. An error QName with namespace URI NS and local part LP will be returned as the URI reference NS#LP. The method by which the URI reference is returned to the external processing environment is implementation-defined.

As an example, an error identified in this document as err:XPST0017 would be returned to the external processing environment as http://www.w3.org/2004/10/xqt-errors#XPST0017.

2.3.3 Handling Dynamic Errors

Except as noted in this document, if any operand of an expression raises a dynamic error, the expression also raises a dynamic error. If an expression can validly return a value or raise a dynamic error, the implementation may choose to return the value or raise the dynamic error. For example, the logical expression expr1 and expr2 may return the value false if either operand returns false, or may raise a dynamic error if either operand raises a dynamic error.

If more than one operand of an expression raises an error, the implementation may choose which error is raised by the expression. For example, in this expression:

($x div $y) + xs:decimal($z)

both the sub-expressions ($x div $y) and xs:decimal($z) may raise an error. The implementation may choose which error is raised by the "+" expression. Once one operand raises an error, the implementation is not required, but is permitted, to evaluate any other operands.

A dynamic error is identified by a QName, and may also carry a descriptive string and one or more additional values called error values. An implementation may provide a mechanism whereby an application-defined error handler can process error values and produce diagnostic messages.

A dynamic error may be raised by a built-in function or operator. For example, the div operator raises an error if its operands are xs:decimal values and its second operand is equal to zero. Errors raised by built-in functions and operators are defined in [XQuery 1.0 and XPath 2.0 Functions and Operators].

A dynamic error can also be raised explicitly by calling the fn:error function, which only raises an error and never returns a value. This function is defined in [XQuery 1.0 and XPath 2.0 Functions and Operators]. For example, the following function call raises a dynamic error, providing a QName that identifies the error, a descriptive string, and a diagnostic value:

fn:error(QName("app:err057"), "Unexpected value", fn:string($v))

2.3.4 Errors and Optimization

Because different implementations may choose to evaluate or optimize an expression in different ways, certain aspects of the detection and reporting of dynamic errors are implementation-dependent, as described in this section.

When an implementation is able to evaluate an expression without evaluating some subexpression, the implementation is never required to evaluate that subexpression solely to determine whether it raises a dynamic error. For example, if a function parameter is never used in the body of the function, an implementation may choose whether to evaluate the expression bound to that parameter in a function call.

Similarly, in evaluating an expression, an implementation is not required to search for data whose only possible effect on the result would be to raise an error, as illustrated in the following examples.

• If an implementation can find (for example, by using an index) that at least one item returned by $expr1 in the following example has the value 47, it is allowed to return true as the result of the some expression, without searching for another item returned by $expr1 that would raise an error if it were evaluated.

  some $x in $expr1 satisfies $x = 47


• In the following example, if an implementation can find (for example, by using an index) the product element-nodes that have an id child with the value 47, it is allowed to return these nodes as the result of the path expression, without searching for another product node that would raise an error because it has an id child whose value is not an integer.

  //product[id = 47]


An implementation is always free to evaluate the operands of an operator in any order.

In some cases, an optimizer may be able to achieve substantial performance improvements by rearranging an expression so that the underlying operations are performed in a different order than that in which they are written. In such cases, errors may be raised that would not have been raised if the expression were evaluated as written. However, an expression must not be rearranged in a way that changes its result value in the absence of errors.

• The expression in the following example cannot raise a casting error if it is evaluated exactly as written (i.e., left to right). An implementation is permitted, however, to reorder the predicates to achieve better performance (for example, by taking advantage of an index). This reordering could cause the expression to raise an error.

  $N[@x castable as xs:date][xs:date(@x) gt xs:date("2000-01-01")]


To avoid unexpected errors caused by reordering of expressions, tests that are designed to prevent dynamic errors should be expressed using conditional expressions. Conditional expressions raise only dynamic errors that occur in the branch that is actually selected.

• Unlike the previous example, the following example cannot raise a dynamic error if @x is not castable into an xs:date.

  $N[if (@x castable as xs:date)
     then xs:date(@x) gt xs:date("2000-01-01")
     else false()]


2.4.1 Document Order

An ordering called document order is defined among all the nodes accessible during a given queryor transformation, which may consist of one or more trees (documents or fragments). Document order is defined in [XQuery 1.0 and XPath 2.0 Data Model], and its definition is repeated here for convenience. [Definition: The node ordering that is the reverse of document order is called reverse document order.]

Document order is a total ordering, although the relative order of some nodes is implementation-dependent. [Definition: Informally, document order is the order in which nodes appear in the XML serialization of a document.] [Definition: Document order is stable, which means that the relative order of two nodes will not change during the processing of a given queryor transformation, even if this order is implementation-dependent.]

Within a tree, document order satisfies the following constraints:

1. The root node is the first node.

2. Every node occurs before all of its children and descendants.

3. Namespace nodes immediately follow the element node with which they are associated. The relative order of namespace nodes is stable but implementation-dependent.

4. Attribute nodes immediately follow the namespace nodes of the element node with which they are associated. The relative order of attribute nodes is stable but implementation-dependent.

5. The relative order of siblings is the order in which they occur in the children property of their parent node.

6. Children and descendants occur before following siblings.

The relative order of nodes in distinct trees is stable but implementation-dependent, subject to the following constraint: If any node in a given tree T1 is before any node in a different tree T2, then all nodes in tree T1 are before all nodes in tree T2.

2.4.2 Atomization

The semantics of some XPath operators depend on a process called atomization. Atomization is applied to a value when the value is used in a context in which a sequence of atomic values is required. The result of atomization is either a sequence of atomic values or a type error. [Definition: Atomization of a sequence is defined as the result of invoking the fn:data function on the sequence, as defined in [XQuery 1.0 and XPath 2.0 Functions and Operators].]

The semantics of fn:data are repeated here for convenience. The result of fn:data is the sequence of atomic values produced by applying the following rules to each item in the input sequence:

• If the item is an atomic value, it is returned.

• If the item is a node, its typed value is returned.

Atomization is used in processing the following types of expressions:

• Arithmetic expressions

• Comparison expressions

• Function calls and returns

• Cast expressions

2.4.3 Effective Boolean Value

Under certain circumstances (listed below), it is necessary to find the effective boolean value of a value. [Definition: The effective boolean value of a value is defined as the result of applying the fn:boolean function to the value, as defined in [XQuery 1.0 and XPath 2.0 Functions and Operators].]

The semantics of fn:boolean are repeated here for convenience. fn:boolean returns false if its operand is any of the following:

• An empty sequence

• The boolean value false

• A zero-length value of type xs:string or xdt:untypedAtomic

• A numeric value that is equal to zero

• The xs:double or xs:float value NaN

Otherwise, fn:boolean returns true.

The effective boolean value of a sequence is computed implicitly during processing of the following types of expressions:

• Logical expressions (and, or)

• The fn:not function

• Certain types of predicates, such as a[b]

• Conditional expressions (if)

• Quantified expressions (some, every)

2.4.4 Input Sources

XPath has a set of functions that provide access to input data. These functions are of particular importance because they provide a way in which an expression can reference a document or a collection of documents. The input functions are described informally here; they are defined in [XQuery 1.0 and XPath 2.0 Functions and Operators].

An expression can access input data either by calling one of the input functions or by referencing some part of the dynamic context that is initialized by the external environment, such as a variable or context item.

The input functions supported by XPath are as follows:

• The fn:doc function takes a string containing a URI. If that URI is associated with a document in available documents, fn:doc returns a document node whose content is the data model representation of the given document; otherwise it raises a dynamic error (see [XQuery 1.0 and XPath 2.0 Functions and Operators] for details).

• The fn:collection function with one argument takes a string containing a URI. If that URI is associated with a collection in available collections, fn:collection returns the data model representation of that collection; otherwise it raises a dynamic error (see [XQuery 1.0 and XPath 2.0 Functions and Operators] for details). A collection may be any sequence of nodes. For example, the expression fn:collection("http://example.org")//customer identifies all the customer elements that are descendants of nodes found in the collection whose URI is http://example.org.

• The fn:collection function with zero arguments returns the default collection, an implementation-dependent sequence of nodes.

If a given input function is invoked repeatedly with arguments that resolve to the same absolute URI during the scope of a single queryor transformation, each invocation must return the same node sequence.

2.5.1 Predefined Types

1. [Definition: xdt:untyped is used to denote the dynamic type of an element node that has not been validated, or has been validated in skip mode.] No predefined types are derived from xdt:untyped.

2. [Definition: xdt:untypedAtomic is used to denote untyped atomic data, such as text that has not been assigned a more specific type.] An attribute that has been validated in skip mode, or that has a PSVI property of xs:anySimpleType, is represented in the Data Model by an attribute node with the type xdt:untypedAtomic. No predefined types are derived from xdt:untypedAtomic.

3. [Definition: xdt:dayTimeDuration is derived by restriction from xs:duration. The lexical representation of xdt:dayTimeDuration is restricted to contain only day, hour, minute, and second components.]

4. [Definition: xdt:yearMonthDuration is derived by restriction from xs:duration. The lexical representation of xdt:yearMonthDuration is restricted to contain only year and month components.]

5. [Definition: xdt:anyAtomicType includes all atomic values (and no values that are not atomic).] It is derived from xs:anySimpleType, which is the base type for all simple types, including atomic, list, and union types. All specific atomic types such as xs:integer, xs:string, and xdt:untypedAtomic, are derived from xdt:anyAtomicType.

   Note:

   xdt:anyAtomicType will not appear as the type of an actual value in the Data Model.

The relationships among the types in the xs and xdt namespaces are illustrated in Figure 2. A more complete description of the XPath type hierarchy can be found in [XQuery 1.0 and XPath 2.0 Functions and Operators].

Figure 2: Summary of XPath Type Hierarchy

2.5.2 Typed Value and String Value

In the data model, every node has a typed value and a string value. [Definition: The typed value of a node is a sequence of atomic values and can be extracted by applying the fn:data function to the node.] [Definition: The string value of a node is a string and can be extracted by applying the fn:string function to the node.] Definitions of fn:data and fn:string can be found in [XQuery 1.0 and XPath 2.0 Functions and Operators].

An implementation may store both the typed value and the string value of a node, or it may store only one of these and derive the other from it as needed. In general, the string value of a node must be a valid lexical representation of the typed value of the node, but the node is not required to preserve the string representation from the original source document. For example, if the typed value of a node is the xs:integer value 30, its string value might be "30" or "0030".

As a convenience to the reader, the relationship between typed value and string value for various kinds of nodes is summarized and illustrated by examples below.

1. For text and document nodes, the typed value of the node is the same as its string value, as an instance of the type xdt:untypedAtomic. The string value of a document node is formed by concatenating the string values of all its descendant text nodes, in document order.

2. The typed value of a comment, namespace, or processing instruction node is the same as its string value. It is an instance of the type xs:string.

3. The typed value of an attribute node with the type annotation xdt:untypedAtomic is the same as its string value, as an instance of xdt:untypedAtomic. The typed value of an attribute node with any other type annotation is derived from its string value and type annotation using the lexical-to-value-space mapping defined in [XML Schema] Part 2 for the relevant type.

   Example: A1 is an attribute having string value "3.14E-2" and type annotation xs:double. The typed value of A1 is the xs:double value whose lexical representation is 3.14E-2.

   Example: A2 is an attribute with type annotation xs:IDREFS, which is a list datatype whose item type is the atomic datatype xs:IDREF. Its string value is "bar baz faz". The typed value of A2 is a sequence of three atomic values ("bar", "baz", "faz"), each of type xs:IDREF. The typed value of a node is never treated as an instance of a named list type. Instead, if the type annotation of a node is a list type (such as xs:IDREFS), its typed value is treated as a sequence of the atomic type from which it is derived (such as xs:IDREF).

4. For an element node, the relationship between typed value and string value depends on the node's type annotation, as follows:

   1. If the type annotation is xdt:untyped or denotes a complex type with mixed content (including xs:anyType), then the typed value of the node is equal to its string value, as an instance of xdt:untypedAtomic.

      Example: E1 is an element node having type annotation xdt:untyped and string value "1999-05-31". The typed value of E1 is "1999-05-31", as an instance of xdt:untypedAtomic.

      Example: E2 is an element node with the type annotation formula, which is a complex type with mixed content. The content of E2 consists of the character "H", a child element named subscript with string value "2", and the character "O". The typed value of E2 is "H2O" as an instance of xdt:untypedAtomic.

   2. If the type annotation denotes a simple type or a complex type with simple content, then the typed value of the node is derived from its string value and its type annotation in a way that is consistent with schema validation.

      Example: E3 is an element node with the type annotation cost, which is a complex type that has several attributes and a simple content type of xs:decimal. The string value of E3 is "74.95". The typed value of E3 is 74.95, as an instance of xs:decimal.

      Example: E4 is an element node with the type annotation hatsizelist, which is a simple type derived from the atomic type hatsize, which in turn is derived from xs:integer. The string value of E4 is "7 8 9". The typed value of E4 is a sequence of three values (7, 8, 9), each of type hatsize.

      Example: E5 is an element node with the type annotation my:integer-or-string which is a union type with member types xs:integer and xs:string. The string value of E5 is "47". The typed value of E5 is 47 as an xs:integer, since xs:integer is the member type that validated the content of E5. In general, when the type annotation of a node is a union type, the typed value of the node will be an instance of one of the member types of the union.

      Note:

      If an implementation stores only the string value of a node, and the type annotation of the node is a union type, the implementation must be able to deliver the typed value of the node as an instance of the appropriate member type.

   3. If the type annotation denotes a complex type with empty content, then the typed value of the node is the empty sequence and its string value is the zero-length string.

   4. If the type annotation denotes a complex type with element-only content, then the typed value of the node is undefined. The fn:data function raises a type error [err:XP0007] when applied to such a node.

      Example: E6 is an element node with the type annotation weather, which is a complex type whose content type specifies element-only. E6 has two child elements named temperature and precipitation. The typed value of E6 is undefined, and the fn:data function applied to E6 raises an error.

2.5.3 SequenceType Syntax

[Definition: When it is necessary to refer to a type in an XPath expression, the SequenceType syntax is used. The name SequenceType suggests that this syntax is used to describe the type of an XPath value, which is always a sequence.]

Here are some examples of SequenceTypes that might be used in XPath expressions:

• xs:date refers to the built-in atomic Schema type named xs:date

• attribute()? refers to an optional attribute

• element() refers to any element

• element(po:shipto, po:address) refers to an element that has the name po:shipto and has the type annotation po:address (or a type derived from po:address)

• element(*, po:address) refers to an element of any name that has the type annotation po:address (or a type derived from po:address)

• element(customer) refers to an element named customer of any type

• schema-element(customer) refers to an element named customer whose type annotation matches the type declared for a customer element in the in-scope element declarations

• node()* refers to a sequence of zero or more nodes of any type

• item()+ refers to a sequence of one or more nodes or atomic values

2.5.4 SequenceType Matching

[Definition: During evaluation of an expression, it is sometimes necessary to determine whether a value with a known type "matches" an expected type, expressed in the SequenceType syntax. This process is known as SequenceType matching.] For example, an instance of expression returns true if the actual type of a given value matches a given type, or false if it does not.

QNames appearing in a SequenceType have their prefixes expanded to namespace URIs by means of the statically known namespaces and the default element/type namespace. As usual, two expanded QNames are equal if their local parts are the same and their namespace URI's are the same.

[Definition: The use of a value whose actual type is derived from the expected type is known as subtype substitution.] Subtype substitution does not change the actual type of a value. For example, if an xs:integer value is used where an xs:decimal value is expected, the value retains its type as xs:integer.

The rules for SequenceType matching compare the actual type of a value with an expected type. These rules are a subset of the formal rules that match a value with an expected type defined in [XQuery 1.0 and XPath 2.0 Formal Semantics], because the Formal Semantics must be able to match a value with any XML Schema type, whereas the rules below only match values against those types expressible by the SequenceType syntax.

Some of the rules for SequenceType matching require determining whether a given type name is the same as or derived from an expected type name. The given type name may be "known" (defined in the in-scope schema definitions), or "unknown" (not defined in the in-scope schema definitions). An unknown type name might be encountered, for example, if a source document has been validated using a schema that was not imported into the static context. In this case, an implementation is allowed (but is not required) to provide an implementation-dependent mechanism for determining whether the unknown type name is derived from the expected type name. For example, an implementation might maintain a data dictionary containing information about type hierarchies.

The definition of SequenceType matching relies on a pseudo-function named derives-from(AT, ET), which takes an actual simple or complex type name AT and an expected simple or complex type name ET, and either returns a boolean value or raises a type error. [err:XP0004][err:XP0006] The pseudo-function derives-from is defined below and is defined formally in [XQuery 1.0 and XPath 2.0 Formal Semantics].

• derives-from(AT, ET) returns true if ET is a known type and any of the following three conditions is true:

  1. AT is a type name found in the in-scope schema definitions, and is the same as ET or is derived by restriction or extension from ET

  2. AT is a type name not found in the in-scope schema definitions, and an implementation-dependent mechanism is able to determine that AT is derived by restriction from ET

  3. There exists some type name IT such that derives-from(IT, ET) and derives-from(AT, IT) are true.

• derives-from(AT, ET) returns false if ET is a known type and either the first and third or the second and third of the following conditions are true:

  1. AT is a type name found in the in-scope schema definitions, and is not the same as ET, and is not derived by restriction or extension from ET

  2. AT is a type name not found in the in-scope schema definitions, and an implementation-dependent mechanism is able to determine that AT is not derived by restriction from ET

  3. No type name IT exists such that derives-from(IT, ET) and derives-from(AT, IT) are true.

• derives-from(AT, ET) raises a type error [err:XP0004][err:XP0006] if:

  1. ET is an unknown type, or

  2. AT is an unknown type, and the implementation is not able to determine whether AT is derived by restriction from ET.

The rules for SequenceType matching are given below, with examples (the examples are for purposes of illustration, and do not cover all possible cases).

2.6.1 Static Typing Feature

[Definition: An XPath implementation that supports the Static Typing Feature is required to detect and raise type errors during the static analysis phase.] Implementations that do not support this feature are not required to detect type errors statically; however, they must detect and raise non-type-related static errors during the static analysis phase.

2.6.2 XML and Names 1.1 Feature

[Definition: An XPath host language may choose to support either [XML 1.0] and [XML Names], or alternatively, [XML 1.1] and [XML Names 1.1]. An implementation that supports the latter pair of specifications is said to support the XML and Names 1.1 Feature.] This feature affects the space of valid names and certain aspects of serialization, as described elsewhere in this document.

3.1.1 Literals

[Definition: A literal is a direct syntactic representation of an atomic value.] XPath supports two kinds of literals: numeric literals and string literals.

The value of a numeric literal containing no "." and no e or E character is an atomic value of type xs:integer. The value of a numeric literal containing "." but no e or E character is an atomic value of type xs:decimal. The value of a numeric literal containing an e or E character is an atomic value of type xs:double. Values of numeric literals are interpreted according to the rules in [XML Schema].

The value of a string literal is an atomic value whose type is xs:string and whose value is the string denoted by the characters between the delimiting apostrophes or quotation marks. If the literal is delimited by apostrophes, two adjacent apostrophes within the literal are interpreted as a single apostrophe. Similarly, if the literal is delimited by quotation marks, two adjacent quotation marks within the literal are interpreted as one quotation mark.

Here are some examples of literal expressions:

• "12.5" denotes the string containing the characters '1', '2', '.', and '5'.

• 12 denotes the integer value twelve.

• 12.5 denotes the decimal value twelve and one half.

• 125E2 denotes the double value twelve thousand, five hundred.

• "He said, ""I don't like it.""" denotes a string containing two quotation marks and one apostrophe.

The boolean values true and false can be represented by calls to the built-in functions fn:true() and fn:false(), respectively.

Values of other atomic types can be constructed by calling the constructor for the given type. The constructors for XML Schema built-in types are defined in [XQuery 1.0 and XPath 2.0 Functions and Operators]. In general, the name of a constructor function for a given type is the same as the name of the type (including its namespace). For example:

• xs:integer("12") returns the integer value twelve.

• xs:date("2001-08-25") returns an item whose type is xs:date and whose value represents the date 25th August 2001.

• xdt:dayTimeDuration("PT5H") returns an item whose type is xdt:dayTimeDuration and whose value represents a duration of five hours.

Constructor functions can also be used to create special values that have no literal representation, as in the following examples:

• xs:float("NaN") returns the special floating-point value, "Not a Number."

• xs:double("INF") returns the special double-precision value, "positive infinity."

It is also possible to construct values of various types by using a cast expression. For example:

• 9 cast as hatsize returns the atomic value 9 whose type is hatsize.

3.1.2 Variable References

[Definition: A variable reference is a QName preceded by a $-sign.] Two variable references are equivalent if their local names are the same and their namespace prefixes are bound to the same namespace URI in the statically known namespaces. An unprefixed variable reference is in no namespace.

Every variable reference must match a name in the in-scope variables, which include variables from the following sources:

1. A variable may be added to the in-scope variables by the host language environment.

2. A variable may be bound by an XPath expression. The kinds of expressions that can bind variables are for expressions (3.7 For Expressions) and quantified expressions (3.9 Quantified Expressions).

Every variable binding has a static scope. The scope defines where references to the variable can validly occur. It is a static error [err:XP0008] to reference a variable that is not in scope. If a variable is bound in the static context for an expression, that variable is in scope for the entire expression.

If a variable reference matches two or more variable bindings that are in scope, then the reference is taken as referring to the inner binding, that is, the one whose scope is smaller. At evaluation time, the value of a variable reference is the value of the expression to which the relevant variable is bound. The scope of a variable binding is defined separately for each kind of expression that can bind variables.

3.1.3 Parenthesized Expressions

Parentheses may be used to enforce a particular evaluation order in expressions that contain multiple operators. For example, the expression (2 + 4) * 5 evaluates to thirty, since the parenthesized expression (2 + 4) is evaluated first and its result is multiplied by five. Without parentheses, the expression 2 + 4 * 5 evaluates to twenty-two, because the multiplication operator has higher precedence than the addition operator.

Empty parentheses are used to denote an empty sequence, as described in 3.3.1 Constructing Sequences.

3.1.4 Context Item Expression

A context item expression evaluates to the context item, which may be either a node (as in the expression fn:doc("bib.xml")/books/book[fn:count(./author)>1]) or an atomic value (as in the expression (1 to 100)[. mod 5 eq 0]).

If the context item is undefined, a context item expression raises a dynamic error.[err:XP0002]

3.1.5 Function Calls

[Definition: The built-in functions supported by XPath are defined in [XQuery 1.0 and XPath 2.0 Functions and Operators].] Additional functions may be provided in the static context. XPath per se does not provide a way to declare functions, but a host language may provide such a mechanism.

A function call consists of a QName followed by a parenthesized list of zero or more expressions, called arguments. If the QName in the function call has no namespace prefix, it is considered to be in the default function namespace.

If the expanded QName and number of arguments in a function call do not match the name and arity of a function signature in the static context, an error is raised (the host language environment may define this error as either a static or a dynamic error).[err:XP0017]

A function call is evaluated as follows:

1. Argument expressions are evaluated, producing argument values. The order of argument evaluation is implementation-dependent and a function need not evaluate an argument if the function can evaluate its body without evaluating that argument.

2. Each argument value is converted by applying the function conversion rules listed below.

3. The function is evaluated using the converted argument values. The result is either an instance of the function's declared return type or a dynamic error. The dynamic type of a function result may be derived from the declared return type. Errors raised by functions are defined in [XQuery 1.0 and XPath 2.0 Functions and Operators].

The function conversion rules are used to convert an argument value to its expected type; that is, to the declared type of the function parameter. The expected type is expressed as a SequenceType. The function conversion rules are applied to a given value as follows:

• If XPath 1.0 compatibility mode is true and an argument is not of the expected type, then the following conversions are applied sequentially to the argument value V:

  1. If the expected type calls for a single item or optional single item (examples: xs:string, xs:string?, xdt:untypedAtomic, xdt:untypedAtomic?, node(), node()?, item(), item()?), then the value V is effectively replaced by V[1].

  2. If the expected type is xs:string or xs:string?, then the value V is effectively replaced by fn:string(V).

  3. If the expected type is a (possibly optional) numeric type, then the value V is effectively replaced by fn:number(V).

• If the expected type is a sequence of an atomic type (possibly with an occurrence indicator *, +, or ?), the following conversions are applied:

  1. Atomization is applied to the given value, resulting in a sequence of atomic values.

  2. Each item in the atomic sequence that is of type xdt:untypedAtomic is cast to the expected atomic type. For built-in functions where the expected type is specified as numeric, arguments of type xdt:untypedAtomic are cast to xs:double.

  3. For each numeric item in the atomic sequence that can be promoted to the expected atomic type using numeric type promotion as described in B.1 Numeric Type Promotion, the promotion is done.

• If, after the above conversions, the resulting value does not match the expected type according to the rules for SequenceType Matching, a type error is raised. [err:XP0004][err:XP0006] Note that the rules for SequenceType Matching permit a value of a derived type to be substituted for a value of its base type.

Since the arguments of a function call are separated by commas, any argument expression that contains a top-level comma operator must be enclosed in parentheses. Here are some illustrative examples of function calls:

• my:three-argument-function(1, 2, 3) denotes a function call with three arguments.

• my:two-argument-function((1, 2), 3) denotes a function call with two arguments, the first of which is a sequence of two values.

• my:two-argument-function(1, ()) denotes a function call with two arguments, the second of which is an empty sequence.

• my:one-argument-function((1, 2, 3)) denotes a function call with one argument that is a sequence of three values.

• my:one-argument-function(( )) denotes a function call with one argument that is an empty sequence.

• my:zero-argument-function( ) denotes a function call with zero arguments.

3.2.1 Steps

A step generates a sequence of items and then filters the sequence by zero or more predicates. The value of the step consists of those items that satisfy the predicates. A step may be either an axis step or a filter expression. Filter expressions are described in 3.3.2 Filter Expressions.

The result of an axis step is always a sequence of zero or more nodes, and these nodes are always returned in document order. An axis step may be either a forward step or a reverse step, followed by zero or more predicates. An axis step might be thought of as beginning at the context node and navigating to those nodes that are reachable from the context node via a specified axis. Such a step has two parts: an axis, which defines the "direction of movement" for the step, and a node test, which selects nodes based on their kind, name, and/or type. If the context item is not a node, a type error is raised.[err:XP0020]

In the abbreviated syntax for a step, the axis can be omitted and other shorthand notations can be used as described in 3.2.4 Abbreviated Syntax.

The unabbreviated syntax for an axis step consists of the axis name and node test separated by a double colon. The result of the step consists of the nodes reachable from the context node via the specified axis that have the node kind, name, and/or type specified by the node test. For example, the step child::para selects the para element children of the context node: child is the name of the axis, and para is the name of the element nodes to be selected on this axis. The available axes are described in 3.2.1.1 Axes. The available node tests are described in 3.2.1.2 Node Tests. Examples of steps are provided in 3.2.3 Unabbreviated Syntax and 3.2.4 Abbreviated Syntax.

3.2.2 Predicates

[Definition: A predicate consists of an expression, called a predicate expression, enclosed in square brackets. A predicate serves to filter a sequence, retaining some items and discarding others.] For each item in the sequence to be filtered, the predicate expression is evaluated using an inner focus derived from that item, as described in 2.1.2 Dynamic Context. The result of the predicate expression is coerced to a xs:boolean value, called the predicate truth value, as described below. Those items for which the predicate truth value is true are retained, and those for which the predicate truth value is false are discarded.

The predicate truth value is derived by applying the following rules, in order:

1. If the value of the predicate expression is an atomic value of a numeric type, the predicate truth value is true if the value of the predicate expression is equal (by the eq operator) to the context position, and is false otherwise. [Definition: A predicate whose predicate expression returns a numeric type is called a numeric predicate.]

2. Otherwise, the predicate truth value is the effective boolean value of the predicate expression.

Here are some examples of axis steps that contain predicates:

• This example selects the second chapter element that is a child of the context node:

  child::chapter[2]


• This example selects all the descendants of the context node that are elements named "toy" and whose color attribute has the value "red":

  descendant::toy[attribute::color = "red"]


• This example selects all the employee children of the context node that have both a secretary child element and an assistant child element:

  child::employee[secretary][assistant]


When using predicates with a sequence of nodes selected using a reverse axis, it is important to remember that the the context positions for such a sequence are assigned in reverse document order. For example, preceding::foo[1] returns the first qualifying foo element in reverse document order, because the predicate is part of an axis step using a reverse axis. By contrast, (preceding::foo)[1] returns the first qualifying foo element in document order, because the parentheses cause (preceding::foo) to be parsed as a primary expression in which context positions are assigned in document order. Similarly, ancestor::*[1] returns the nearest ancestor element, because the ancestor axis is a reverse axis, whereas (ancestor::*)[1] returns the root element (first ancestor in document order).

3.2.3 Unabbreviated Syntax

This section provides a number of examples of path expressions in which the axis is explicitly specified in each step. The syntax used in these examples is called the unabbreviated syntax. In many common cases, it is possible to write path expressions more concisely using an abbreviated syntax, as explained in 3.2.4 Abbreviated Syntax.

• child::para selects the para element children of the context node

• child::* selects all element children of the context node

• child::text() selects all text node children of the context node

• child::node() selects all the children of the context node, whatever their node type. Note that no attribute nodes are returned, because attributes are not children.

• attribute::name selects the name attribute of the context node

• attribute::* selects all the attributes of the context node

• parent::node() selects the parent of the context node. If the context node is an attribute node, this expression returns the element node (if any) to which the attribute node is attached.

• descendant::para selects the para element descendants of the context node

• ancestor::div selects all div ancestors of the context node

• ancestor-or-self::div selects the div ancestors of the context node and, if the context node is a div element, the context node as well

• descendant-or-self::para selects the para element descendants of the context node and, if the context node is a para element, the context node as well

• self::para selects the context node if it is a para element, and otherwise returns an empty sequence

• child::chapter/descendant::para selects the para element descendants of the chapter element children of the context node

• child::*/child::para selects all para grandchildren of the context node

• / selects the root of the tree that contains the context node, but raises a dynamic error if this root is not a document node

• /descendant::para selects all the para elements in the same document as the context node

• /descendant::list/child::member selects all the member elements that have a list parent and that are in the same document as the context node

• child::para[fn:position() = 1] selects the first para child of the context node

• child::para[fn:position() = fn:last()] selects the last para child of the context node

• child::para[fn:position() = fn:last()-1] selects the last but one para child of the context node

• child::para[fn:position() > 1] selects all the para children of the context node other than the first para child of the context node

• following-sibling::chapter[fn:position() = 1]selects the next chapter sibling of the context node

• preceding-sibling::chapter[fn:position() = 1]selects the previous chapter sibling of the context node

• /descendant::figure[fn:position() = 42] selects the forty-second figure element in the document containing the context node

• /child::book/child::chapter[fn:position() = 5]/child::section[fn:position() = 2] selects the second section of the fifth chapter of the book whose parent is the document node that contains the context node

• child::para[attribute::type="warning"]selects all para children of the context node that have a type attribute with value warning

• child::para[attribute::type='warning'][fn:position() = 5]selects the fifth para child of the context node that has a type attribute with value warning

• child::para[fn:position() = 5][attribute::type="warning"]selects the fifth para child of the context node if that child has a type attribute with value warning

• child::chapter[child::title='Introduction']selects the chapter children of the context node that have one or more title children whose typed value is equal to the string Introduction

• child::chapter[child::title] selects the chapter children of the context node that have one or more title children

• child::*[self::chapter or self::appendix] selects the chapter and appendix children of the context node

• child::*[self::chapter or self::appendix][fn:position() = fn:last()] selects the last chapter or appendix child of the context node

3.2.4 Abbreviated Syntax

The abbreviated syntax permits the following abbreviations:

1. The attribute axis attribute:: can be abbreviated by @. For example, a path expression para[@type="warning"] is short for child::para[attribute::type="warning"] and so selects para children with a type attribute with value equal to warning.

2. If the axis name is omitted from an axis step, the default axis is child unless the axis step contains an AttributeTest; in that case, the default axis is attribute. For example, the path expression section/para is an abbreviation for child::section/child::para, and the path expression section/@id is an abbreviation for child::section/attribute::id. Similarly, section/attribute(id) is an abbreviation for child::section/attribute::attribute(id). Note that the latter expression contains both an axis specification and a node test.

3. Each non-initial occurrence of // is effectively replaced by /descendant-or-self::node()/ during processing of a path expression. For example, div1//para is short for child::div1/descendant-or-self::node()/child::para and so will select all para descendants of div1 children.

   Note:

   The path expression //para[1] does not mean the same as the path expression /descendant::para[1]. The latter selects the first descendant para element; the former selects all descendant para elements that are the first para children of their respective parents.

4. A step consisting of .. is short for parent::node(). For example, ../title is short for parent::node()/child::title and so will select the title children of the parent of the context node.

   Note:

   The expression ., known as a context item expression, is a primary expression, and is described in 3.1.4 Context Item Expression.

Here are some examples of path expressions that use the abbreviated syntax:

• para selects the para element children of the context node

• * selects all element children of the context node

• text() selects all text node children of the context node

• @name selects the name attribute of the context node

• @* selects all the attributes of the context node

• para[1] selects the first para child of the context node

• para[fn:last()] selects the last para child of the context node

• */para selects all para grandchildren of the context node

• /book/chapter[5]/section[2] selects the second section of the fifth chapter of the book whose parent is the document node that contains the context node

• chapter//para selects the para element descendants of the chapter element children of the context node

• //para selects all the para descendants of the root document node and thus selects all para elements in the same document as the context node

• //@version selects all the version attribute nodes that are in the same document as the context node

• //list/member selects all the member elements in the same document as the context node that have a list parent

• .//para selects the para element descendants of the context node

• .. selects the parent of the context node

• ../@lang selects the lang attribute of the parent of the context node

• para[@type="warning"] selects all para children of the context node that have a type attribute with value warning

• para[@type="warning"][5] selects the fifth para child of the context node that has a type attribute with value warning

• para[5][@type="warning"] selects the fifth para child of the context node if that child has a type attribute with value warning

• chapter[title="Introduction"] selects the chapter children of the context node that have one or more title children whose typed value is equal to the string Introduction

• chapter[title] selects the chapter children of the context node that have one or more title children

• employee[@secretary and @assistant] selects all the employee children of the context node that have both a secretary attribute and an assistant attribute

• book/(chapter|appendix)/section selects every section element that has a parent that is either a chapter or an appendix element, that in turn is a child of a book element that is a child of the context node.

• If E is any expression that returns a sequence of nodes, then the expression E/. returns the same nodes in document order, with duplicates eliminated based on node identity.

3.3.1 Constructing Sequences

[Definition: One way to construct a sequence is by using the comma operator, which evaluates each of its operands and concatenates the resulting sequences, in order, into a single result sequence.] Empty parentheses can be used to denote an empty sequence.

A sequence may contain duplicate atomic values or nodes, but a sequence is never an item in another sequence. When a new sequence is created by concatenating two or more input sequences, the new sequence contains all the items of the input sequences and its length is the sum of the lengths of the input sequences.

Here are some examples of expressions that construct sequences:

• The result of this expression is a sequence of five integers:

  (10, 1, 2, 3, 4)


• This expression combines four sequences of length one, two, zero, and two, respectively, into a single sequence of length five. The result of this expression is the sequence 10, 1, 2, 3, 4.

  (10, (1, 2), (), (3, 4))


• The result of this expression is a sequence containing all salary children of the context node followed by all bonus children.

  (salary, bonus)


• Assuming that $price is bound to the value 10.50, the result of this expression is the sequence 10.50, 10.50.

  ($price, $price)


A range expression can be used to construct a sequence of consecutive integers. Each of the operands of the to operator is converted as though it was an argument of a function with the expected parameter type xs:integer?. If either operand is an empty sequence, or if the integer derived from the first operand is greater than the integer derived from the second operand, the result of the range expression is an empty sequence. Otherwise, the result is a sequence containing the two integer operands and every integer between the two operands, in increasing order.

• This example uses a range expression as one operand in constructing a sequence. It evaluates to the sequence 10, 1, 2, 3, 4.

  (10, 1 to 4)


• This example constructs a sequence of length one containing the single integer 10.

  10 to 10


• The result of this example is a sequence of length zero.

  15 to 10


• This example uses the fn:reverse function to construct a sequence of six integers in decreasing order. It evaluates to the sequence 15, 14, 13, 12, 11, 10.

  fn:reverse(10 to 15)


3.3.2 Filter Expressions

A filter expression consists simply of a primary expression followed by zero or more predicates. The result of the filter expression consists of all the items returned by the primary expression for which all the predicates are true. If no predicates are specified, the result is simply the result of the primary expression. This result may contain nodes, atomic values, or any combination of these. The ordering of the items returned by a filter expression is the same as their order in the result of the primary expression. Context positions are assigned to items based on their ordinal position in the result sequence. The first context position is 1.

Here are some examples of filter expressions:

• Given a sequence of products in a variable, return only those products whose price is greater than 100.

  $products[price gt 100]


• List all the integers from 1 to 100 that are divisible by 5. (See 3.3.1 Constructing Sequences for an explanation of the to operator.)

  (1 to 100)[. mod 5 eq 0]


• The result of the following expression is the integer 25:

  (21 to 29)[5]


• The following example illustrates the use of a filter expression as a step in a path expression. It returns the last chapter or appendix within the book bound to variable $book:

  $book/(chapter | appendix)[fn:last()]


• The following example also illustrates the use of a filter expression as a step in a path expression. It returns the element node within the specified document whose ID value is "tiger":

  fn:doc("zoo.xml")/fn:id('tiger')


3.3.3 Combining Node Sequences

XPath provides the following operators for combining sequences of nodes:

• The union and | operators are equivalent. They take two node sequences as operands and return a sequence containing all the nodes that occur in either of the operands.

• The intersect operator takes two node sequences as operands and returns a sequence containing all the nodes that occur in both operands.

• The except operator takes two node sequences as operands and returns a sequence containing all the nodes that occur in the first operand but not in the second operand.

All these operators eliminate duplicate nodes from their result sequences based on node identity. The resulting sequence is returned in document order.

If an operand of union, intersect, or except contains an item that is not a node, a type error is raised.[err:XP0004][err:XP0006]

Here are some examples of expressions that combine sequences. Assume the existence of three element nodes that we will refer to by symbolic names A, B, and C. Assume that the variables $seq1, $seq2 and $seq3 are bound to the following sequences of these nodes:

• $seq1 is bound to (A, B)

• $seq2 is bound to (A, B)

• $seq3 is bound to (B, C)

Then:

• $seq1 union $seq2 evaluates to the sequence (A, B).

• $seq2 union $seq3 evaluates to the sequence (A, B, C).

• $seq1 intersect $seq2 evaluates to the sequence (A, B).

• $seq2 intersect $seq3 evaluates to the sequence containing B only.

• $seq1 except $seq2 evaluates to the empty sequence.

• $seq2 except $seq3 evaluates to the sequence containing A only.

In addition to the sequence operators described here, [XQuery 1.0 and XPath 2.0 Functions and Operators] includes functions for indexed access to items or sub-sequences of a sequence, for indexed insertion or removal of items in a sequence, and for removing duplicate items from a sequence.

3.5.1 Value Comparisons

The value comparison operators are eq, ne, lt, le, gt, and ge. Value comparisons are used for comparing single values.

The first step in evaluating an value comparison is to evaluate its operands. The order in which the operands are evaluated is implementation-dependent. Each operand is evaluated by applying the following steps, in order:

1. Atomization is applied to the operand. The result of this operation is called the atomized operand.

2. If the atomized operand is an empty sequence, the result of the value comparison is an empty sequence, and the implementation need not evaluate the other operand or apply the operator. However, an implementation may choose to evaluate the other operand in order to determine whether it raises an error.

3. If the atomized operand is a sequence of length greater than one, a type error is raised.[err:XP0004][err:XP0006]

4. If the atomized operand is of type xdt:untypedAtomic, it is cast to xs:string.

   Note:

   The purpose of this rule is to make value comparisons transitive. Users should be aware that the general comparison operators have a different rule for casting of xdt:untypedAtomic operands. Users should also be aware that transitivity of value comparisons may be compromised by loss of precision during type conversion (for example, two xs:integer values that differ slightly may both be considered equal to the same xs:float value because xs:float has less precision than xs:integer).

After evaluation of the operands, if the types of the operands are a valid combination for the given operator, the operator is applied to the operands. The combinations of atomic types that are accepted by the various value comparison operators, and their respective result types, are listed in B.2 Operator Mapping together with the operator functions that define the semantics of the operator for each type combination. The definitions of the operator functions are found in [XQuery 1.0 and XPath 2.0 Functions and Operators].

Informally, if both atomized operands consist of exactly one atomic value, then the result of the comparison is true if the value of the first operand is (equal, not equal, less than, less than or equal, greater than, greater than or equal) to the value of the second operand; otherwise the result of the comparison is false.

If the types of the operands, after evaluation, are not a valid combination for the given operator, according to the rules in B.2 Operator Mapping, a type error is raised.[err:XP0004][err:XP0006]

Here are some examples of value comparisons:

• The following comparison is true only if $book1 has exactly one author subelement and its typed value is "Kennedy" as an instance of xs:string or xdt:untypedAtomic. If $book1 has more than one author subelement, a type error is raised.[err:XP0004][err:XP0006] If $book1 has no author subelement, the result of the expression is the empty sequence.

  $book1/author eq "Kennedy"


• The following path expression contains a predicate that selects products whose weight is greater than 100. For any product that does not have a weight subelement, the value of the predicate is the empty sequence, and the product is not selected:

  //product[weight gt 100]


• The following comparison is true if my:hatsize and my:shoesize are both user-defined types that are derived by restriction from a primitive numeric type:

  my:hatsize(5) eq my:shoesize(5)


3.5.2 General Comparisons

The general comparison operators are =, !=, <, <=, >, and >=. General comparisons are existentially quantified comparisons that may be applied to operand sequences of any length. The result of a general comparison that does not raise an error is always true or false.

If XPath 1.0 compatibility mode is false, a general comparison is evaluated by applying the following rules, in order:

1. Atomization is applied to each operand. After atomization, each operand is a sequence of atomic values.

2. The result of the comparison is true if and only if there is a pair of atomic values, one in the first operand sequence and the other in the second operand sequence, that have the required magnitude relationship. Otherwise the result of the comparison is false. The magnitude relationship between two atomic values is determined by applying the following rules. If a cast operation called for by these rules is not successful, a dynamic error is raised. [err:XP0021]

   1. If one of the atomic values is an instance of xdt:untypedAtomic and the other is an instance of a numeric type, then the xdt:untypedAtomic value is cast to the type xs:double.

   2. If one of the atomic values is an instance of xdt:untypedAtomic and the other is an instance of xdt:untypedAtomic or xs:string, then the xdt:untypedAtomic value (or values) is (are) cast to the type xs:string.

   3. If one of the atomic values is an instance of xdt:untypedAtomic and the other is not an instance of xs:string, xdt:untypedAtomic, or any numeric type, then the xdt:untypedAtomic value is cast to the dynamic type of the other value.

   4. After performing the conversions described above, the atomic values are compared using one of the value comparison operators eq, ne, lt, le, gt, or ge, depending on whether the general comparison operator was =, !=, <, <=, >, or >=. The values have the required magnitude relationship if and only if the result of this value comparison is true.

When evaluating a general comparison in which either operand is a sequence of items, an implementation may return true as soon as it finds an item in the first operand and an item in the second operand that have the required magnitude relationship. Similarly, a general comparison may raise a dynamic error as soon as it encounters an error in evaluating either operand, or in comparing a pair of items from the two operands. As a result of these rules, the result of a general comparison is not deterministic in the presence of errors.

Here are some examples of general comparisons:

• The following comparison is true if the typed value of any author subelement of $book1 is "Kennedy" as an instance of xs:string or xdt:untypedAtomic:

  $book1/author = "Kennedy"


• The following example contains three general comparisons. The value of the first two comparisons is true, and the value of the third comparison is false. This example illustrates the fact that general comparisons are not transitive.

  (1, 2) = (2, 3)
  (2, 3) = (3, 4)
  (1, 2) = (3, 4)


• The following example contains two general comparisons, both of which are true. This example illustrates the fact that the = and != operators are not inverses of each other.

  (1, 2) = (2, 3)
  (1, 2) != (2, 3)


• Suppose that $a, $b, and $c are bound to element nodes with type annotation xdt:untypedAtomic, with string values "1", "2", and "2.0" respectively. Then ($a, $b) = ($c, 3.0) returns false, because $b and $c are compared as strings. However, ($a, $b) = ($c, 2.0) returns true, because $b and 2.0 are compared as numbers.

3.5.3 Node Comparisons

Node comparisons are used to compare two nodes, by their identity or by their document order. The result of a node comparison is defined by the following rules:

1. The operands of a node comparison are evaluated in implementation-dependent order.

2. Each operand must be either a single node or an empty sequence; otherwise a type error is raised.[err:XP0004][err:XP0006]

3. If either operand is an empty sequence, the result of the comparison is an empty sequence, and the implementation need not evaluate the other operand or apply the operator. However, an implementation may choose to evaluate the other operand in order to determine whether it raises an error.

4. A comparison with the is operator is true if the two operand nodes have the same identity, and are thus the same node; otherwise it is false. See [XQuery 1.0 and XPath 2.0 Data Model] for a definition of node identity.

5. A comparison with the << operator returns true if the left operand node precedes the right operand node in document order; otherwise it returns false.

6. A comparison with the >> operator returns true if the left operand node follows the right operand node in document order; otherwise it returns false.

Here are some examples of node comparisons:

• The following comparison is true only if the left and right sides each evaluate to exactly the same single node:

  /books/book[isbn="1558604820"] is /books/book[call="QA76.9 C3845"]


• The following comparison is true only if the node identified by the left side occurs before the node identified by the right side in document order:

  /transactions/purchase[parcel="28-451"]
     << /transactions/sale[parcel="33-870"]


3.10.1 Instance Of

The boolean operator instance of returns true if the value of its first operand matches the SequenceType in its second operand, according to the rules for SequenceType matching; otherwise it returns false. For example:

• 5 instance of xs:integer

  This example returns true because the given value is an instance of the given type.

• 5 instance of xs:decimal

  This example returns true because the given value is an integer literal, and xs:integer is derived by restriction from xs:decimal.

• . instance of element()

  This example returns true if the context item is an element node or false if the context item is defined but is not an element node. If the context item is undefined, a dynamic error is raised.[err:XP0002]

3.10.2 Cast

Occasionally it is necessary to convert a value to a specific datatype. For this purpose, XPath provides a cast expression that creates a new value of a specific type based on an existing value. A cast expression takes two operands: an input expression and a target type. The type of the input expression is called the input type. The target type must be a named atomic type, represented by a QName, optionally followed by the occurrence indicator ? if an empty sequence is permitted. If the target type has no namespace prefix, it is considered to be in the default element/type namespace. The semantics of the cast expression are as follows:

1. Atomization is performed on the input expression.

2. If the result of atomization is a sequence of more than one atomic value, a type error is raised.[err:XP0004][err:XP0006]

3. If the result of atomization is an empty sequence:

   1. If ? is specified after the target type, the result of the cast expression is an empty sequence.

   2. If ? is not specified after the target type, a type error is raised.[err:XP0004][err:XP0006]

4. If the result of atomization is a single atomic value, the result of the cast expression depends on the input type and the target type. In general, the cast expression attempts to create a new value of the target type based on the input value. Only certain combinations of input type and target type are supported. A summary of the rules are listed below— the normative definition of these rules is given in [XQuery 1.0 and XPath 2.0 Functions and Operators]. For the purpose of these rules, an implementation may determine that one type is derived by restriction from another type either by examining the in-scope schema definitions or by using an alternative, implementation-dependent mechanism such as a data dictionary.

   1. cast is supported for the combinations of input type and target type listed in [XQuery 1.0 and XPath 2.0 Functions and Operators]. For each of these combinations, both the input type and the target type are primitive schema types. For example, a value of type xs:string can be cast into the type xs:decimal. For each of these built-in combinations, the semantics of casting are specified in [XQuery 1.0 and XPath 2.0 Functions and Operators].

   2. cast is supported if the input type is a non-primitive atomic type that is derived by restriction from the target type. In this case, the input value is mapped into the value space of the target type, unchanged except for its type. For example, if shoesize is derived by restriction from xs:integer, a value of type shoesize can be cast into the type xs:integer.

   3. cast is supported if the target type is a non-primitive atomic type and the input type is xs:string or xdt:untypedAtomic. The input value is first converted to a value in the lexical space of the target type by applying the whitespace normalization rules for the target type; a dynamic error [err:XP0029] is raised if the resulting lexical value does not satisfy the pattern facet of the target type. The lexical value is then converted to the value space of the target type using the schema-defined rules for the target type; a dynamic error[err:XP0029] is raised if the resulting value does not satisfy all the facets of the target type.

   4. cast is supported if the target type is a non-primitive atomic type that is derived by restriction from the input type. The input value must satisfy all the facets of the target type (in the case of the pattern facet, this is checked by generating a string representation of the input value, using the rules for casting to xs:string). The resulting value is the same as the input value, but with a different dynamic type.

   5. If a primitive type P1 can be cast into a primitive type P2, then any type derived by restriction from P1 can be cast into any type derived by restriction from P2, provided that the facets of the target type are satisfied. First the input value is cast to P1 using rule (b) above. Next, the value of type P1 is cast to the type P2, using rule (a) above. Finally, the value of type P2 is cast to the target type, using rule (d) above.

   6. For any combination of input type and target type that is not in the above list, a cast expression raises a type error.[err:XP0004][err:XP0006]

If casting from the input type to the target type is supported but nevertheless it is not possible to cast the input value into the value space of the target type, a dynamic error is raised.[err:XP0021] This includes the case when any facet of the target type is not satisfied. For example, the expression "2003-02-31" cast as xs:date would raise a dynamic error.

3.10.3 Castable

XPath provides an expression that tests whether a given value is castable into a given target type. The expression V castable as T returns true if the value V can be successfully cast into the target type T by using a cast expression; otherwise it returns false. The castable expression can be used as a predicate to avoid errors at evaluation time. It can also be used to select an appropriate type for processing of a given value, as illustrated in the following example:

if ($x castable as hatsize)
   then $x cast as hatsize
   else if ($x castable as IQ)
   then $x cast as IQ
   else $x cast as xs:string

3.10.4 Constructor Functions

For every atomic type in the in-scope type definitions that is in a namespace, a constructor function is implicitly defined. In each case, the name of the constructor function is the same as the name of its target type (including namespace). The signature of the constructor function for type T is as follows:

T($arg as xdt:anyAtomicType?) as T?

Constructor functions are normatively defined in [XQuery 1.0 and XPath 2.0 Functions and Operators]. In general, if the argument to a constructor function is of type xs:string, the string is whitespace-normalized and converted to the target type by schema validation; otherwise, the semantics of the constructor function are identical to $arg cast as T.

The following examples illustrate the use of constructor functions:

• This example is equivalent to "2000-01-01" cast as xs:date.

  xs:date("2000-01-01")


• This example is equivalent to ($floatvalue * 0.2E-5) cast as xs:decimal.

  xs:decimal($floatvalue * 0.2E-5)


• This example returns a xdt:dayTimeDuration value equal to 21 days. It is equivalent to "P21D" cast as xdt:dayTimeDuration.

  xdt:dayTimeDuration("P21D")


• If usa:zipcode is a user-defined atomic type in the in-scope type definitions, then the following expression is equivalent to the expression "12345" cast as usa:zipcode.

  usa:zipcode("12345")


Atomic types that are not in a namespace do not have constructor functions. To construct an instance of such a type, it is necessary to use a cast expression. For example, if the user-defined type apple is derived from xs:integer but is not in a namespace, an instance of this type can be constructed as follows (but only if the default element/type namespace is no namespace):

17 cast as apple

3.10.5 Treat

XPath provides an expression called treat that can be used to modify the static type of its operand.

Like cast, the treat expression takes two operands: an expression and a SequenceType. Unlike cast, however, treat does not change the dynamic type or value of its operand. Instead, the purpose of treat is to ensure that an expression has an expected dynamic type at evaluation time.

The semantics of expr1 treat as type1 are as follows:

• During static analysis:

  The static type of the treat expression is type1. This enables the expression to be used as an argument of a function that requires a parameter of type1.

• During expression evaluation:

  If expr1 matches type1, using the rules for SequenceType matching, the treat expression returns the value of expr1; otherwise, it raises a dynamic error.[err:XP0050] If the value of expr1 is returned, its identity is preserved. The treat expression ensures that the value of its expression operand conforms to the expected type at run-time.

• Example:

  $myaddress treat as element(*, USAddress)


  The static type of $myaddress may be element(*, Address), a less specific type than element(*, USAddress). However, at run-time, the value of $myaddress must match the type element(*, USAddress) using rules for SequenceType matching; otherwise a dynamic error is raised.[err:XP0050]
