SVG's XML Binding Language (sXBL)

W3C Working Draft 01 September 2004

This version:
http://www.w3.org/TR/2004/WD-sXBL-20040901
Latest version:
http://www.w3.org/TR/sXBL
Editors:
Jon Ferraiolo, Adobe Systems, jon.ferraiolo@adobe.com
Ian Hickson, Opera Software, ian@hixie.ch
David Hyatt, Apple, hyatt@apple.com

Abstract

This working draft describes SVG's XML Binding Language (sXBL). sXBL is a mechanism for defining the presentation and interactive behavior of elements described in a namespace other than SVG's.

sXBL is intended to be used to enable XML vocabularies (tag sets) to be implemented in terms of SVG elements. For instance, a tag set describing a flowchart could be mapped to low-level SVG path and text elements, possibly including interactivity and animation.

sXBL is intended to be an SVG-specific first version of a more general-purpose XBL specification (e.g., "XBL 2.0"). The intent is that, in the future, a general-purpose and modularly-defined XBL specification will be developed which will replace this specification and will define additional features that are necessary to support scenarios beyond SVG, such as integration into web browsers that support CSS. Once a general-purpose XBL is defined, sXBL would just become an SVG-specific subset (i.e., a profile) of the larger XBL specification.

Status of this document

This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.

This document is the first public working draft of the sXBL specification. The feature set in sXBL represents a repackaging and generalization of the Rendering Custom Content feature which had been described in previous SVG 1.2 specifications (see RCC). With this public draft, the features that were formerly in RCC have been factored out into a separate specification, reformulated for more general applicability for possible future use with other markup languages and moved into an XBL-specific namespace. The refactoring of RCC into sXBL was partly the result of coordination efforts within the W3C across working groups (particularly the SVG and CSS working groups) to ensure that RCC/sXBL was forward-looking and could develop into a future modularly-defined and general-purpose XBL specification which met the needs of multiple XML markup languages, not just SVG.

As a result of the reformulation, nearly every element from RCC has been renamed. Although there have been major changes in syntax, the resulting sXBL feature set performs the same operations and satisfies the same requirements as RCC. Sometimes it is possible to migrate RCC-based widget definitions to XBL-based widget definitions after some global search and replace string substitutions.

This document has been produced by a joint effort of the W3C SVG Working Group as part of the W3C Graphics Activity and the W3C CSS Working Group as part of the W3C Style Activity, within the Interaction Domain.

We explicitly invite comments on this specification. Please send them to www-svg@w3.org, the public e-mail list for issues related to vector graphics on the Web. This list is archived and acceptance of this archiving policy is requested automatically upon first post. To subscribe to this list send an email to www-svg-request@w3.org with the word subscribe in the subject line.

The XBL task force considers the sXBL specification nearly ready for Last Call. After evaluating public feedback on this draft, the next public draft might be a Last Call working draft.

The patent policy for this document is expected to become the 5 February 2004 W3C Patent Policy, pending the Advisory Committee review of the renewal of the SVG Working Group. Patent disclosures relevant to this specification may be found on the SVG Working Group's patent disclosure page. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) with respect to this specification should disclose the information in accordance with section 6 of the W3C Patent Policy.

Publication as a Working Draft does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.

Table of contents


1. Introduction

This specification defines SVG's XML Binding Language (or XBL for short) and some supporting DOM interfaces. sXBL is a mechanism for defining the presentation and interactive behavior of particular elements described in a namespace other than SVG's with a "binding". Bindings can be attached to elements by declaring, in XBL, that a particular element in a particular namespace is implemented by a particular binding. The element that the binding is attached to, called the bound element, acquires the new behavior and presentation specified by the binding.

XBL is currently defined as a set of new elements that can be used in SVG document fragments and SVG resources. A future version may extend XBL to be applicable to any markup, and the current version has been designed with this goal in mind.

XBL cannot be used to give a document new semantics (except if script invoked by XBL explicitly changes the original DOM). The meaning of a document is not changed by any bindings that are associated with it, only its presentation and interactive behavior.

The following is a simple SVG example where a custom element (<myNS:HelloWorld/>) acquires the alternate presentation behavior defined by the <xbl:definition> element at the top of the file. The <myNS:HelloWorld/> element will be rendered by using the contents of the shadow tree which is attached by the binding. The shadow tree consists of an <svg:text> element which has the string "Hello, world, using sXBL" inside:

<?xml version="1.0"?>
<svg width="10cm" height="3cm" viewBox="0 0 200 60"
     xmlns="http://www.w3.org/2000/svg" version="1.2"
     xmlns:xbl="http://www.w3.org/2004/xbl"
     xmsns:myNS="http://www.example.com">
  <title>Example xbl01.svg - "hello world" sample file</title>
  <desc>A simple "Hello, world" sXBL example where the
         rendering behavior of a custom element 'myNS:HelloWorld'
         consists of an 'svg:text' element which has the string
         "Hello, world, using sXBL" inside.</desc>
  <defs>
    <xbl:xbl>

      <!-- The following 'xbl:definition' element defines the
         presentation and interactive behavior that must be used
         for all 'myNS:HelloWorld' elements in this document. -->
      <xbl:definition element="myNS:HelloWorld>
        <xbl:template>
          <text>Hello, world, using sXBL</text>
        </xbl:template>
      </xbl:definition>

    </xbl:xbl>
  </defs>

  <rect x="1" y="1" width="198" height="58" fill="none" stroke="blue"/>
  <g font-size="14" font-family="Verdana" transform="translate(10,35)">

    <!-- Here is an instance of an 'myNS:HelloWorld' element.
       The above binding definition attaches a shadow tree which
       defines alternative rendering and interactive behavior for this element.
       Instead of the standard SVG behavior where unknown elements are not rendered,
       the binding definition causes an 'svg:text' element to be rendered. -->
    <myNS:HelloWorld/>

  </g>

</svg>

The above example results in equivalent rendering to the following SVG. The highlighted sections below (i.e., the <g> and <text> elements) represent the shadow tree which the binding definition (i.e., the <xbl:definition> element defined above) attaches to the custom element. The SVG user agent renders the shadow tree in place of the custom element.

  <svg width="10cm" height="3cm" viewBox="0 0 200 60"
       xmlns="http://www.w3.org/2000/svg" version="1.2">
    <title>Example xbl01-equivalent.svg -
           equivalent rendering for "hello world" sample file</title>

    <rect x="1" y="1" width="198" height="58" fill="none" stroke="blue"/>
    <g font-size="14" font-family="Verdana" transform="translate(10,35)">

      <!-- The document is rendered as if the 'myNS:HelloWorld' element
           were replaced by an SVG 'g' element with a 'text' element inside. -->
      <g>
        <text>Hello, world, using sXBL</text>
      </g>

    </g>

  </svg>

The result is as if the 'g' element simply contained the
    text directly.

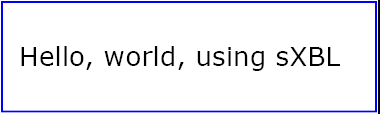

View this image as SVG (SVG/sXBL-enabled browsers only)

Other examples can be found in the Examples section.

1.1. History

This specification is the culmination of several years of work by several groups.

Action Sheets A Modular Way of Defining Behavior for XML and HTML (AS)
Vidur Apparao, Brendan Eich, Ramanathan Guha, Nisheeth Ranjan; Netscape Communications Corp. W3C Member Submission, June 1998.
HTML Components - Componentizing Web Applications (HTCs)
Chris Wilson; Microsoft. W3C Member Submission, October 1998.
Behavioral Extensions to CSS (BECSS)
Vidur Apparao, Daniel Glazman, Chris Wilson; CSS Working Group. W3C Working Draft, August 1999.
XBL - XML Binding Language (XBL)
David Hyatt; mozilla.org. W3C Member Submission, January 2001.
Rendering Custom Content (RCC; part of some SVG 1.2 drafts)
Dean Jackson; SVG Working Group. W3C Working Draft, March 2004.

1.2. Terminology and Conventions

A binding is the definition of behavior that can be applied to an element so as to define its presentation.

An XBL subtree is a subtree in an SVG document fragment, the subtree having as its root node an xbl element in the XBL namespace, which is used to define bindings.

For convenience, the term binding source is used to mean a document containing an SVG fragment that itself contains XBL subtrees.

A bound element is an element in an arbitrary XML namespace, to which a binding has been applied.

A bound document is a document containing an SVG fragment with one or more bound elements.

The shadow tree for a bound element is the subtree of nodes that are attached to a bound element as a result of XBL processing. (See: shadow content.) The contents of the shadow tree augment the bound element's standard presentation and interactive behavior with alternate behavior. The shadow tree is hidden from normal DOM processing (hence the name "shadow"). The shadow tree is attached to the bound element. Once attached, the shadow tree can be accessed only via XBL-specific DOM extensions and therefore is not accessible via Core DOM navigation facilities such as firstChild or nextSibling. (See: DOM interfaces.)

The term shadow content refers to the various nodes in the shadow tree of a bound element. (See: shadow content.)

In this specification, the term in error, when used of an element or attribute, means that the element or attribute is not conformant according to the rules of this specification.

SVG defines how UAs must handle documents that are in error. [SVG]

A correct element or attribute is one which is not in error.

The namespace of all the XBL elements must be http://www.w3.org/2004/xbl. XBL elements are frequently referred to by just their local name in this specification. In real documents, they must be associated with the XBL namespace as per the rules given in the Namespaces in XML specification [XMLNS].

For convenience, elements and attributes from specific namespaces are sometimes referred to simply in the form prefix:localname, without explicitly stating which namespace the prefix is bound to. When this occurs, readers should assume the following prefix declarations are in scope:

xmlns:xbl="http://www.w3.org/2004/xbl"
xmlns:xforms="http://www.w3.org/2002/xforms"
xmlns:ev="http://www.w3.org/2001/xml-events"
xmlns:svg="http://www.w3.org/2000/svg"
xmlns:xlink="http://www.w3.org/1999/xlink"

All element names, attribute names, and attribute values in XBL are case sensitive.

1.3. Conformance

The key words "MUST", "MUST NOT", "REQUIRED", "SHALL", "SHALL NOT", "SHOULD", "SHOULD NOT", "RECOMMENDED", "MAY", and "OPTIONAL" in this document are to be interpreted as described in [RFC2119]. For readability, these words are not capitalised in this specification.

All sections of this specification including the introduction and the schema snippets are normative unless they explicitly state otherwise. Errata are also normative but override conflicting parts of the specification.

1.4. Loading External Resources

Several features in XBL allow external resources to be loaded.

When the specification says that the resource must be loaded unless it has already been loaded, then references to the same resource (even if they are somewhat indirect, for example via HTTP redirects) must result in the same instance being reused, or shared. To determine if two resources are the same, their final base URIs (after all redirects) are compared.

Assume RX is a resource that redirects to resource X using the HTTP 301 redirection mechanism. A document contains an import element that refers to binding document X. A new DOM Document instance is created to represent that instance and the relevant bindings are used. The binding document (X) itself then refers to resource RX. While that resource was being loaded, the redirect to X would be discovered, and therefore instead of creating a new Document, the existing one would be reused.

Such resource sharing is limited to resources loaded by a document, and the resources loaded by already-loaded-shared-resources for that document. Can we phrase that better? The idea is that two IFRAMEs whose documents use the same resource should NOT share that resource.

Several XBL attributes are defined to contain URIs. All URIs may be relative. For relative URIs, the rules given in [XMLBASE] must be used to resolve the value to an absolute URI.

2. XBL Elements

The start of any XBL subtree is an xbl element, which is described below.

When an XBL subtree does not conform to the descriptions given below in the "Expected context" and "Expected children" sections, the document is in error. When an error is detected in a bindings subtree, the normal SVG error handling rules apply.

2.1. The xbl Element

RelaxNG language definition:
<element name='xbl'>
  <zeroOrMore><ref name='definition'/></zeroOrMore>
  <zeroOrMore><ref name='import'/></zeroOrMore>
  <ref name='id.attrib'/>
</element>
Expected children (in any order):
definition: zero or more.
import: zero or more.
Any non-XBL element.

The xbl element is the root element of all XBL subtrees.

The following example shows an SVG example with an xbl element which contains two binding definitions. It also shows an example of an svg:defs element.

<svg:svg xmlns:svg="http://www.w3.org/2000/svg" version="1.2">
 <xbl xmlns="http://www.w3.org/2004/xbl">
  <svg:defs>
      <!-- possible definitions of SVG gradients, filters, etc.
           that might be referenced from the binding definitions. -- >
  </svg:defs>
  <definition id="binding1" element="example">
    ...
  </definition>
  <definition id="binding2">
    ...
  </definition>
 </xbl>
</svg:svg>

Attributes

id
The id attribute.

2.2. The definition Element

RelaxNG language definition:
<element name='definition'>
  <choice>
    <attribute name='ref'><data type='anyURI'/></attribute>
    <group>
      <optional><ref name='template'/></optional>
      <optional><ref name='handlerGroup'/></optional>
      <attribute name='element'><data type='QName'/></attribute>
    </group>
  </choice>
  <ref name='id.attrib'/>
</element>
Expected context:
xbl
Expected children (in any order), if the ref attribute is not specified:
template: zero or one.
handlerGroup: zero or one.
Any non-XBL element
Expected children (in any order), if the ref attribute is specified:
None.

The definition element describes a single XBL binding that adds presentation and interactive behavior to non-SVG elements. Each binding has these optional components:

Template: The optional template defines the initial shadow content for the bound element.

Behavior: A binding can define event listeners for various types of events. Some examples are: UI events (e.g., key and mouse events) on the bound element or on elements within the shadow content; mutation events on the bound element and its descendants; and events having to do with XBL's binding operations (e.g., the prebind and bound events). (See: event handlers.)

Alternatively, a binding may reference an existing binding, with the ref attribute. In this case, the ref attribute must reference a definition element which in turn supplies the binding definition.

Bindings may also act as an attachment mechanism, specifying a namespace and local name of elements to associate with the given binding when the binding is imported, using the element attribute.

In addition to the above, the definition element may contain any element outside the XBL namespace, for example svg:defs. These are handled as they would be in any other context, and are ignored by the XBL processing model.

Attributes

id
The id attribute.
ref

This attribute specifies a URI to use to find the binding instead of looking inside the definition element itself. (See: interpretation of URIs to XBL bindings.)

When a definition element has a ref attribute, the UA must fetch the specified resource (unless it has already been loaded).

If the URI references a definition element, and that element does not have a ref attribute, then for the purposes of the rest of the XBL processing model, the element with the ref attribute is treated as if it had the children nodes of the element to which it refers.

If the URI does not reference a definition element, it is in error.

The referenced definition element cannot have a ref attribute (i.e., only one level of indirection is allowed); otherwise, the original definition element is in error.

element
This attribute specifies the qualified name (QName) of an element to attach to the binding when the binding is imported.

If an element attribute does not resolve to a valid qualified name (QName) using the attribute QName resolving semantics and the namespace prefix declarations in scope on the element, it is in error. [XMLNS]

If a definition element contains both a ref attribute and has child nodes other than comment nodes or whitespace text nodes, then it is in error.

The task force believes that a sentence equivalent to the following note needs to be somewhere in the spec, so that people don't think XBL can be used as a justification for sending markup over the wire without verifying that the sender and consumer both agree on the meaning of the markup. It was generally agreed that the word "semantics" might be better avoided while expressing this concept, however, and so this text is not yet final.

The definition element defines a presentation and behavior binding. It does not define an element's semantics. If an element has no semantics when processed alone, then it has no semantics when processed with XBL.

2.3. The template Element

RelaxNG language definition:
<element name='template'>
  <ref name='id.attrib'/>
</element>
Expected context:
definition
Expected children:
Anything. Of particular interest, the content element may occur as descendants.

The template element contains child nodes that can be in any namespace. The subtree specified by the template element is referred to as the shadow content template. When a binding is attached, the template element's child nodes are cloned and attached to the bound document under the bound element (where they are accessible via the xblShadowTree DOM property). Because the nodes are hidden from their parent and exist outside the normal document tree, they are referred to as shadow content.

Attributes

id
The id attribute.

2.4. The content Element

RelaxNG language definition:
<element name='content'>
  <optional><attribute name='includes'><text/></attribute></optional>
  <ref name='id.attrib'/>
</element>
Expected context:
Any, but there must be a correct template element somewhere in the ancestor chain, and there must not be any correct content elements anywhere in the ancestor chain.
Expected children:
Anything.

The content element is used inside shadow content to specify insertion points for explicit content that might already exist underneath the bound element. As far as the presentation model is concerned, any shadow content the binding places between the bound element and the content elements is interleaved between the bound element and its explicit children without affecting the document model. (See: processing content elements.)

If the includes attribute successfully matches against children of the bound element, then those children are inserted into the final flattened tree in place of the content element. If the includes attribute does not match against any children, then the child elements of the content element are inserted into the final flattened tree in place of the content element instead.

Attributes

id
The id attribute.
includes
The includes attribute can be used to indicate that only certain content should be placed at the content element. Its value is a local name (with no namespace). (See: processing content elements.)

2.5. The handlerGroup Element

RelaxNG language definition:
<element name='handlerGroup'>

  <!-- the content model for this element mentions ev:listener and svg:handler
       but is rather unclear as to what should be included here -->

  <ref name='id.attrib'/>
</element>
Expected context:
definition
Expected children:
Any event listening element, in particular ev:listener and svg:handler.

The handlerGroup element's event handlers can be called for events that flow through the bound element. During capture, target and bubbling phases, when a given event is received by a bound element, if a corresponding event listener has been attached to the handlerGroup element, then the event will be forwarded to that event listener. (See: event forwarding, binding attachment and detachment.)

Attributes

id
The id attribute.

2.6. The import Element

RelaxNG language definition:
<element name='import'>
  <optional><attribute name='bindings'><data type='anyURI'/></attribute></optional>
  <ref name='id.attrib'/>
</element>
Expected contexts:
Any, but the ancestors must all be correct.
Expected children:
None.

The import element specifies a group of bindings to use. Unless explicitly imported using an import element, binding definitions that declare attachments using the element attribute are only used in the document that defines them.

The import element may occur anywhere, within and without XBL subtrees.

Attributes

id
The id attribute.
bindings
The bindings attribute specifies the URI of the bindings to import. If it has a fragment identifier it specifies the subpart of the specified resource to examine for binding attachment declarations. This attribute is required. If it is omitted, the element is in error.

The URI must point to an SVG document. If the URI designated by an import element has a fragment identifier, it must point to an xbl element in the specified document. If these conditions are not met, the element is in error.

When an import element is parsed or inserted into a document, and whenever the bindings attribute is subseqently changed, the URI specified by its bindings attribute must be loaded (unless it has already been loaded).

If the URI designated by an import element cannot be resolved, or returns an HTTP 404 error, or does not point to a resource with an XML MIME type, or has any other problem that makes it unusable, then the element is in error.

While the import element remains in the document, all the bindings that it imports and that specify an attachment must be attached to any matching elements in the document. (See: binding attachment.)

If there is a fragment identifier, it imports all the definition elements in the subtree designated by that fragment identifier. Otherwise, it imports all the definition elements in the binding document.

An import is live, if new definition elements are added to a subtree that is being imported by a document, then the new bindings are immediately applied to that document. Similarly, if an import element is removed, or if the bindings attribute is changed, then the bindings it was importing are detached from any elements they were affecting.

XBL bindings are always implicitly imported into the document in which they are defined.

An XBL subtree that defines some bindings is automatically imported in that document, so such mappings are always used. The following example demonstrates this.

example.svg

<svg xmlns="http://www.w3.org/2000/svg" ...>
 <xbl xmlns="http://www.w3.org/2004/xbl" ...>
  <definition element="foo">
   ...
  <definition>
  <definition element="bar">
   ...
  <definition>
 </xbl ...>
 <foo xmlns=""/> <!-- this will have a binding applied -->
 <bar xmlns=""/> <!-- this will have a binding applied -->
</svg>

If the binding definitions are in a separate file, then that file needs to be imported explicitly:

widgets.svg

<svg xmlns="http://www.w3.org/2000/svg" ...>
 <xbl xmlns="http://www.w3.org/2004/xbl" ...>
  <definition element="foo">
   ...
  <definition>
  <definition element="bar">
   ...
  <definition>
 </xbl ...>
</svg>
example.svg

<svg:svg ...
         xmlns:svg="http://www.w3.org/2000/svg"
         xmlns:xbl="http://www.w3.org/2004/xbl">
 <xbl:import bindings="widgets.svg"/>
 <foo/> <!-- bound -->
 <bar/> <!-- bound -->
</svg:svg>

If a file imports a specific binding but the file containing that binding has its own import elements, the second import only affects nodes in that document. For example:

foo.svg

<svg xmlns="http://www.w3.org/2000/svg" ...>
 <xbl xmlns="http://www.w3.org/2004/xbl" ...>
  <definition element="foo" id="foo">
   <content>
    <bar xmlns=""/> <!-- not bound, not even when in shadow content -->
   </content>
  <definition>
 </xbl>
</svg>
bar.svg

<svg xmlns="http://www.w3.org/2000/svg" ...>
 <xbl id="bindings" xmlns="http://www.w3.org/2004/xbl" ...>
  <definition element="bar" id="bar">
   <content>
    <foo xmlns=""/> <!-- bound: this document imports foo.svg -->
    <bar xmlns=""/> <!-- bound: bar binding is defined locally -->
   </content>
  <definition>
 </xbl>
 <import bindings="foo.svg" xmlns="http://www.w3.org/2004/xbl"/>
</svg>
example.svg

<svg:svg ...
         xmlns:svg="http://www.w3.org/2000/svg"
         xmlns:xbl="http://www.w3.org/2004/xbl">
 <xbl:import bindings="bar.svg#bindings"/>
 <foo/> <!-- not bound: foo.svg not imported here -->
 <bar/> <!-- bound -->
</svg:svg>

2.7. The id attribute of XBL elements

RelaxNG language definition:
<define name='id.attrib'>
  <optional>
    <attribute name='id'>
      <data type='ID'/>
    </attribute>
  </optional>
</define>
Expected element:
Any element in the XBL namespace.

The id attribute assigns a name to an element. This name must be unique in the document. The id attribute is of type ID. Refer to the "Extensible Markup Language (XML)" Recommendation [XML].

An id attribute's value must be valid, as defined by XML. (See XML 1.0, section 3.3.1.)

3. Binding Attachment and Detachment

3.1. Interpretation of URIs to XBL bindings

The sXBL attachment mechanism can use a URI to specify which binding to attach to the designated element:

<definition element="my:foo"
            ref="http://www.example.org/bindings.xml#fooBinding"/>

This section defines how URIs in the definition element's ref attribute are to be interpreted.

The URI specifies a particular binding source (a document with SVG fragments containing one or more XBL subtrees).

If the URI contains a fragment identifier, it must point to a specific definition element (by id) within an XBL subtree in the specified document, and that element must be a direct child of an xbl element that does not itself have an xbl element as an ancestor.

If there is no fragment identifier the URI does not point to a correct binding and is in error.

3.2. Attachment using definition

The binding mechanism is the definition element. It declares which bindings should be attached to which elements.

While an element matches the element attribute of one of the definition elements that is imported into, or defined in, the element's document, the binding defined by the first such definition element must be bound to the element.

A ref attribute may be used to defer the definition of the binding to another definition element. (See: the definition element.)

3.3. Binding Attachment Model

When a new binding is attached, the UA must perform the following steps in order (or act as if it did). Implementations may choose to suspend redraw during this process.

  1. Events must start being routed through the binding's handlerGroup element, when there is one. (See: event forwarding.)
  2. Shadow content is then cloned, if needed:
    1. If the new binding has a shadow template, then a new shadow tree is created. (See: rules for shadow content generation.) The prebind event is fired during its construction.
    2. Otherwise, if the binding has no shadow tree, a prebind event in the XBL namespace that bubbles but is not cancellable is fired on the bound element.
  3. Any pending bindings of any descendents are attached.
  4. Once all the bindings of any descendent elements are attached, a bound event in the XBL namespace that bubbles but is not cancellable is fired on the bound element.

3.4. Binding Detachment Model

Before a binding is detached, an unbinding event in the XBL namespace that bubbles but is not cancellable is fired on the bound element.

The shadow content nodes, the shadow tree, any forwarding of events to the binding, etc, are then removed from the element.

3.5. Summary of Events

The following events are fired during attachment and detachment:

{"http://www.w3.org/2004/xbl", "prebind"}
A new binding is in the process of being attached to the event target. This event is fired after the contents of the template element, if any, have been cloned but before attachment to the bound element's xblShadowTree and recursive XBL processing on shadow tree contents. (See: binding attachment model.)
{"http://www.w3.org/2004/xbl", "bound"}
A new binding has been attached to the event target, and all of its descendants in the final flattened tree for which bindings are to be applied have had the bound event fired on them.
{"http://www.w3.org/2004/xbl", "unbinding"}
A binding is being detached from the event target. This event is fired before the current contents of xblShadowTree are removed before the value of xblShadowTree is set to null.

The prebind event uses the following interface:

interface ShadowTreeEvent : Event {
  readonly attribute TemplateElement xblShadowTree;
  void               initShadowTreeEvent(in DOMString typeArg,
                                         in boolean canBubbleArg,
                                         in boolean cancelableArg,
                                         in TemplateElement xblShadowTreeArg);
  void               initShadowTreeEventNS(in DOMString namespaceURIArg,
                                           in DOMString typeArg,
                                           in boolean canBubbleArg,
                                           in boolean cancelableArg,
                                           in TemplateElement xblShadowTreeArg);
};

The two methods initialise the event in a manner analogous to other events in DOM3 Events. [DOM3EVENTS]

The xblShadowTree member contains a pointer to the shadow tree being constructed, if any, and is null otherwise.

3.6. Script contexts

Script must always be executed in the script context of the document specified by the script's element's ownerDocument DOM attribute. This implies that scripts from different bindings in the same binding source bound to different elements in the same document share the same scripting scope. If the bindings were defined in the document itself, then the scope is the same scope as for that document.

4. Shadow Content

A binding can specify a shadow content template using the template element. This template describes a content tree that will be generated under the bound element during binding attachment. An element declared in a bound document using a single element can then be constructed out of multiple child elements, and this implementation is hidden from the bound document.

When the shadow content template is cloned (as described in this section), the clone is called a shadow tree.

4.1. Rules for Shadow Content Generation

Whenever bindings are attached to an element, shadow content will potentially be generated or destroyed.

When a template element is mutated in any way, any bindings whose shadow tree was constructed from that element must be reconstructed as described in this section.

If a definition element that had no template element has a template element added, then a shadow tree is generated. If the template element is removed, then the shadow tree is destroyed.

Everything described in this section up to the firing of the event, and everything described in this section after the firing of the event, must be completed atomically — that is, the UA must not execute author scripts during those two parts of the process. User agents may optimise this algorithm so long as the end result is the same.

If the binding has a shadow content template, then its template element is deeply cloned. Otherwise, no shadow content will be generated for the bound element, its xblShadowTree attribute will be null, and its xblChildNodes attribute will equal its childNodes attribute.

The xml:base data of the cloned nodes must be set so that the baseURI of nodes in the resulting shadow tree is the same as their pre-cloning counterparts. All shadow nodes' ownerDocument pointers are left pointing at the binding source's Document node.

An prebind event in the XBL namespace that bubbles but is not cancellable is fired on the bound element, with the newly cloned template element as the event data.

The bound element's xblShadowTree attribute is set to point to the root template element of this tree of clones.

The shadow tree is then applied to the bound element: the xbl* DOM attributes are updated and the CSS cascade and inheritance should be computed.

Some implementations might optimize this algorithm, such as using "lazy evaluation" approaches and thereby postpone the cascade and inheritance operations.

4.2. Processing content elements

The shadow content template may contain content elements that define where explicit children should be inserted in the shadow content.

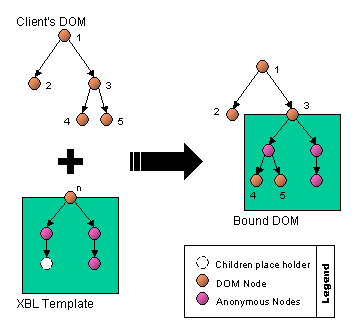

example of interleavingXBL bindings can interleave shadow content between bound elements and their explicit children. They do so using XBL's content element. Any number of content nodes may be used in a binding's shadow content template.

Expressions specified using the includes attribute determine which content element a given child should be placed under.

Request for public feedback

The XBL task force has not yet decided the syntax to use for includes attributes.

Several syntaxes have been proposed:

  1. Full XPath
  2. Full Selectors
  3. A predefined XPath profile of some sort
  4. A predefined Selectors profile of some sort
  5. A drastically small subset of XPath such as only allowing:
    • *
    • name
    • name[n]
    • id('id')
  6. A drastically small subset of Selectors such as only allowing:
    • *
    • name
    • name:nth-of-type(n)
    • #id

Which solution is used will also decide how namespaces are to be referred to when using qualified names.

The task force would like to know what authors will want to use to dynamically sort their elements using content elements. For example, would it be useful to match elements that are being designated by the mouse? That have focus? That are links? Would authors want to sort their elements by class name? By attribute value? Would authors like to be able to match on context (e.g. only p elements inside blockquotes)? On sibling relationships?

If no includes attribute is specified, a content element is considered generic and will match on all content, including text nodes, CDATA nodes, comments, and so on.

The content element used for a given piece of content is the first encountered with an expression that matches the element when doing a depth-first walk of the content template.

The content element itself is present in the shadow tree template, but is not visible in the xblChildNodes list. In that list, it is simply replaced by the elements that matched it, or, if there were no matches, by its contents.

Request for public feedback

The task force is currently split on how to handle elements that don't match any content elements.

Proposal 1: If an explicit child of the bound element does not match any of the content elements (or if there are no content elements in the shadow tree), then that child does not appear in the rendering tree.

Proposal 2: If an explicit child of the bound element does not match any of the content elements (or if there are no content elements in the shadow tree), then it shall be inserted at an implied content element at the end of the shadow tree (as if there was a content node with no attributes as the last child of every template element). (This ensures that the fully flattened tree is always a superset of the original DOM tree. Nodes that authors do not want in the rendering can always be explicitly inserted into a container that is marked display:none.)

4.3. Handling DOM Changes

ll of the nodes in the shadow tree are live. Whenever an element is inserted into, removed from, or appended to the DOM, all the children must check that their assigned content element is still appropriate, following all the same rules that applied when first placing explicit children during shadow content generation. If one or more nodes stop fitting into any of the content elements then they should be inserted into an implied content element at the end of the shadow tree.

It is possible to manipulate the shadow content contained underneath a bound element using standard DOM APIs. If shadow content that contains a content element is removed, then any explicit children assigned to that element are relocated to the first content elements that match them.

Whenever the subtree of a template element is dynamically modified, any shadow trees that were constructed by cloning that element must be reconstructed. (As no events are fired during this process, there is no way for such bindings to update their shadow trees after it happens.)

4.4. Shadow Content and CSS

Special care should be used when considering the interactions of CSS and XBL.

4.4.1. Terminology

Shadow content introduces the concept of shadow scope to nodes within a document. Because shadow content elements can also have bindings attached that generate their own shadow content, this scoping can be taken to an arbitrary level of nesting.

Explicit content is said to be at the document-level scope, which is the highest, or outermost, shadow scope. Shadow content nodes are in their own binding-level shadow scopes. Binding scopes are determined by the bound element that contains the binding responsible for the generation of the shadow nodes. The bound element itself is in the shadow scope of the content around it, and its binding's shadow content is in a deeper shadow scope. Shadow content that contains no elements that are themselves bound is said to be in the deepest, or innermost, shadow scope.

The resulting tree, after all children have been assigned to content elements, is called the final flattened tree, and is the tree used by the rendering model. (See: selectors and shadow scopes.)

4.4.2. Selectors and Shadow Scopes

Bindings can interleave shadow elements between the bound element and its explicit children. (See: processing content elements.) In this situation, a new tree emerges that is different from the explicit content node tree. In addition to having a single explicit parent (the bound element) and a single set of children (the explicit children in the DOM tree), elements also have a set of shadow parents and and shadow children (introduced by bindings when content elements were used). This necessarily affects the CSS model.

Request for public feedback

There is an open technical issue regarding CSS selector processing on shadow trees. Should selectors match only based on Core DOM parent-child links, ignoring XBL DOM links both in the bound document and the xblShadowTree subtree; or should they match against just the flattened tree traversals at each scope. The description below describes the processing model for the latter case.

Combinators: As far as CSS is concerned, shadow content nodes are children (or descendants) of the bound element, they are ancestors of explicit content, and they are (potentially) siblings of the explicit content. Style rules using the child, descendent or sibling combinators operating on the fully flattened tree but must not cross scopes.

In DOM terms, this corresponds to ">" and " " combinators using the chain of xblParentNode attributes up to but not including the element's bound element, and the "+" and "~" combinators using the xblScopedChildNodes attribute of the xblParentNode, with no simple selector in the selector chain ever matching an element that is not from the same scope as the element itself.

Pseudo-classes: Structural pseudo-classes such as :empty are evaluated in the context of the element's shadow scope. For example, if a bound element has no explicit children, it must match :empty even if it has shadow content descendants.

In DOM terms, this corresponds to pseudo-classes using the xblScopeChildNodes and xblParentNode attributes.

Inheritance: The final modified content tree determines how CSS properties (e.g., fonts and colors) are inherited. An element either ends up underneath its explicit parent (just as in the content model), or it ends up being nested through a series of content elements. When nested, it inherits from the innermost shadow parent.

In DOM terms, this corresponds to inheritance using the xblParentNode attribute.

4.5. Shadow Content and SVG

This will eventually be moved to the SVG specification.

In XBL, the SVG rendering model is subtly altered to handle elements with shadow trees.

Painting: When painting groups, for child elements that have xblShadowTrees, instead of painting the child element itself, the group should paint the nodes in that element's xblChildNodes list.

ID references and URIs: When a URI identifies an element with an xblShadowTree, the SVG processor must use the first element node given by the element's xblChildNodes list instead of the element itself. If there are no elements, or if there is more than one element, then the document is in error.

4.6. Binding Stylesheets

Shadow content nodes must be styled using the stylesheets specified in the binding source document.

Bound elements must be styled using the sheets from their shadow scope, not the style sheets from their binding.

If the binding source document specifies alternate stylesheets, the stylesheets used must be those that are appropriate for the currently selected style sheet set in that document. This may differ from the selected style sheet set of the bound document.

Sheets are always walked from the innermost shadow scope to the outermost shadow scope (with rules in the outermost shadow scope therefore overriding rules of equal specificity in the innermost shadow scope). With this ordering a binding that defines a widget can define a default look for the widget that can then be easily overridden by a client of the widget.

User agent sheets and user sheets are always applied to all shadow scopes.

5. Event Handlers

5.1. Event forwarding

Often, XBL developers will want to register the same event listener on all bound elements corresponding to a given definition element. For example, suppose your XBL contains the following definition:

<xbl:definition element="myNS:button">
  ...
</xbl:definition>

And suppose you create three instances of "myNS:button" as follows:

<myNS:button id="b1">...</myNs:button>
<myNS:button id="b2">...</myNs:button>
<myNS:button id="b3">...</myNs:button>

And suppose you want to attach a "DOMActivate" event listener to each of the three instances. You can certainly register three separate event listeners using either three separate event listener registration elements (e.g., in the case of SVG, you can use svg:handler) or using three separate DOM method calls (e.g., three calls to EventTarget::addEventListener). However, sometimes it is more convenient to define the event listener once as part of the definition element and then have the given event listener (in effect) automatically assigned to each bound element instance that corresponds to the given definition.

In order to provide such convenience, XBL provides an automatic event forwarding mechanism for all events listeners attached to a handlerGroup element.

Every time an event fires on a bound element (whether during the capture, target, or bubbling phases), if any event listeners for the given event exist on the corresponding handlerGroup element, then those listeners must be invoked.

To illustrate, if we update the above example to add handlerGroup and svg:handler elements as follows:

<xbl:definition element="myNS:button">
   <xbl:template>...</xbl:template>
   <xbl:handlerGroup>
      <svg:handler ev:event="DOMActivate"...>...</svg:handler>
   </xbl:handlerGroup>
</xbl:definition>
...
<myNS:button id="b1">...</myNs:button>
<myNS:button id="b2">...</myNs:button>
<myNS:button id="b3">...</myNs:button>

The result is that the user agent must automatically attach an implicit "DOMActivate" event listener to each myNS:button element. If the DOMActivate event is fired and dispatched to any of the myNS:button elements, then the user agent must invoke DOMActivate event handlers defined by the svg:handler element.

Event listeners attached to the handlerGroup element must always be fired last, after all the appropriate event listeners on the bound element itself.

Since XBL handlers usually constitute the default actions for a widget, this allows authors in the bound document to write events that potentially suppress the default actions taken by the XBL handlers (by using the stopImmediatePropagation() method).

Notes

5.2. Event Flow and Targeting Across Shadow Scopes

DOM events can fire on shadow targets just as they can on explicit targets. As long as the event flows within the same shadow tree scope, it is no different from the behavior outlined in the DOM Events specification.

Events must flow through the final transformed content model (the final flattened tree) after all elements have been repositioned through the usage of content elements.

Whenever events originating from a shadow tree flow from a shadow element in that shadow tree to the bound element, one of two actions occurs. Either the event is retargeted so that the bound element becomes the target, or the event is stopped and flow proceeds to the next phase. Whenever an event is retargeted, the event is cloned, with the clone's target field set to the bound element. The original event pointing at the shadow content responsible for the event can be obtained from a new field of the event object, originalEvent, which is set to the event that was cloned.

The action taken (retarget vs. stop) is specific to the event type. In general, UI events must be retargeted and mutation events must be stopped. Exceptions to the rule are noted below. The goal of this retargetting or stopping is to stop outer shadow scopes from being exposed to nodes from inner shadow scopes, and to stop outer shadow scopes from getting apparently meaningless events that only make sense in the context of inner shadow scopes.

During the capture phase, the semantics are exactly reversed. The first node to see the event is the node after which bubbling stops; and the target node, when the event is passing through a node at a higher shadow scope than the event target, is always the bound element in whose shadow content the event target lies.

5.3. Focus, DOMFocusIn, Blur, and DOMFocusOut Events

If shadow content underneath a focusable bound element loses focus and shadow content also underneath the bound element takes focus, then both focus change events must be stopped. As far as the bound element is concerned, it retains focus throughout the two events. (Other specifications may go into more detail as to how to determine if an element can be focussed.)

The 'nav-index' property defined in the CSS UI module [CSS3UI] can be used to specify the tab order for focusable elements. This property can be specified on shadow content. Each shadow scope has a unique tab order. The 'nav-index' values used in one shadow scope are ignored by other shadow scopes. The tab order is resolved in the shadow tree first to produce a list of elements in the tab order. This list is substituted in place of the bound element in the bound element's tree tab order.

This example illustrates what happens with focus if the shadow tree contains focusable elements. The example shows a binding for an element named FirstAndLastNames. The shadow tree for the binding contains two SVG editable text fields, one for the first name and one for the last name.

<svg viewBox="0 0 200 60"
     xmlns="http://www.w3.org/2000/svg" version="1.2"
     xmlns:xbl="http://www.w3.org/2004/xbl"
     xmsns:myNS="http://www.example.com">
   <defs>
     <xbl:xbl>
       <xbl:definition element="myNS:FirstAndLastNames">
         <xbl:template>
           <g font-size="16">
             <text x="10"  y="10">First name:</text>
             <text x="110" y="10" id="C" editable="true" nav-index="1"/>
             <text x="10"  y="30">Last name:</text>
             <text x="110" y="30" id="D" editable="true" nav-index="2"/>
           </g>
         </xbl:template>
       </xbl:definition>
     </xbl:xbl>
   </defs>
   <g transform="translate(20,30)">
     <text x="10"  y="10">Customer number:</text>
     <text x="110" y="10" id="A" editable="true" nav-index="10"/>
   </g>
   <g id="B" transform="translate(20,50)" nav-index="20">
     <myNS:FirstAndLastNames/>
   </g>
</svg>

Tabbing through the document will go from A to C to D, not C to D to A.

Because content in multiple shadow scopes can be focused, the CSS :focus pseudo-element is hierarchical in the presence of XBL, with up to one element in each shadow scope matching the pseudo-class. Style rules can be written with the assumption that they will match (in the above example) both the file control and the element focused inside the file control. In other words, an arbitrary chain of elements can be in the :focus state at the same time. (Further specifications may describe this in more detail.)

5.4. Mouseover and Mouseout Events

Mouseover and mouseout events must be retargeted if the pointing device genuinely moves onto (enters) or is moved away (exits) the bound element (in addition to entering or exiting some shadow content). If, however, the user has simply moved the pointing device from one element in the shadow tree to another element in the same shadow tree, without entering or exiting the bound element itself, then the event must be stopped.

6. DOM Interfaces

XBL introduces a few XBL-specific interfaces.

6.1. The NodeXBL Interface

The NodeXBL interface contains methods for accessing shadow content and for obtaining shadow parents in the altered model. The interface is implemented by DOM nodes that support XBL (regardless of whether they are currently bound) and may be obtained using binding-specific casting methods on a Node interface.

IDL Definition
interface NodeXBL {
  readonly attribute Node            xblParentNode;
  readonly attribute NodeList        xblChildNodes;
  readonly attribute NodeList        xblScopedChildNodes;
  readonly attribute Node            xblFirstChild;
  readonly attribute Node            xblLastChild;
  readonly attribute Node            xblPreviousSibling;
  readonly attribute Node            xblNextSibling;
  readonly attribute Element         xblFirstElementChild;
  readonly attribute Element         xblLastElementChild;
  readonly attribute Element         xblPreviousElementSibling;
  readonly attribute Element         xblNextElementSibling;

  readonly attribute Element         xblBoundElement;
  readonly attribute Element         xblShadowTree;
};
Attributes
xblParentNode of type Node, readonly
The xblParentNode attribute's value is the element's ancestor in the fully flattened tree after all shadow content has been applied.

If the node was repositioned by a content element, then this attribute has the same value as the parentNode attribute of the content element responsible for the repositioning in the deepest shadow scope, except if that is the template element at the top of the shadow tree, in which case the xblParentNode attribute has the same value as the xblBoundElement attribute of that content element.

If the node is a node in a shadow tree that is not currently in the final flattened tree (for example, the template element at the top of the shadow tree is never in the final flattened tree), then this attribute returns null.

If the node is in a shadow tree and has the template element at the top of the shadow tree as its parentNode, then this attribute returns the same value as the xblBoundElement attribute.

If the node is in a shadow tree and has a content element that is not in error as its parentNode, then this attribute returns the same value as the parentNode attribute on the content element, except if that would be the template element at the top of the shadow tree, in which case it returns the same as value as the xblBoundElement attribute.

Otherwise it returns the same as the parentNode attribute.

xblChildNodes of type NodeList, readonly
The xblChildNodes attribute is a NodeList that represents the true children of the node after content elements have been applied. This attribute can be used to navigate the content model according to XBL after bindings have moved explicit and shadow children using content elements. The attribute's value is the same as childNodes if the node is not bound.
xblScopedChildNodes of type NodeList, readonly
The xblScopedChildNodes attribute is a NodeList that represents the children of the node after content elements have been applied, ignoring any nested bindings. The attribute's value is the same as childNodes if the node is not bound, and the same as the xblChildNodes attribute if there are no nested bindings.
xblNextSibling of type Node, readonly
This attribute returns the node that follows the current node in the xblParentNode's xblChildNodes list, or null if xblParentNode is null or if the current node is the last node in that xblChildNodes list.
xblPreviousSibling of type Node, readonly
This attribute returns the node that precedes the current node in the xblParentNode's xblChildNodes list, or null if xblParentNode is null or if the current node is the first node in that xblChildNodes list.
xblFirstChild of type Node, readonly
This attribute returns the first node in the xblChildNodes list, or null if the list is empty.
xblLastChild of type Node, readonly
This attribute returns the last node in the xblChildNodes list, or null if the list is empty.
xblNextElementSibling of type Element, readonly
This attribute returns the first element to follow the current node in the xblParentNode's xblChildNodes list, or null if xblParentNode is null or if there are no elements past the current node in that xblChildNodes list.
xblPreviousElementSibling of type Element, readonly
This attribute returns the first element to precede the current node in the xblParentNode's xblChildNodes list, or null if xblParentNode is null or if there are no elements before the current node in that xblChildNodes list.
xblFirstElementChild of type Element, readonly
This attribute returns the first element in the xblChildNodes list, or null if the list contains no elements.
xblLastElementChild of type Element, readonly
This attribute returns the last element in the xblChildNodes list, or null if the list contains no elements.
xblBoundElement of type Element, readonly
The xblBoundElement attribute is used to obtain the bound element with the binding attached that is responsible for the generation of the specified shadow node. This attribute enables an author to determine the shadow scope of any content node. For content at the document-level scope, the attribute's value is null.
xblShadowTree of type Element, readonly
For bound elements, the xblShadowTree attribute returns the cloned copy of the template element that represents the shadow content template of the element. For other elements, it returns null.

6.1.1. Scoping and Access Using the DOM

In effect the shadow content exists in its own insulated pocket within the document, its shadow scope. Explicit parents have no knowledge of their shadow children in terms of DOM Core [DOM3CORE]. The shadow content is not accessible via the childNodes list for the bound element, nor is it accessible using firstChild/nextSibling to iterate over the children of the bound element.

The shadow scope of an element can be determined using the xblBoundElement property on the NodeXBL interface. This returns the bound element in the enclosing shadow scope that is responsible for the shadow node. If invoked on an element at the document-level scope, it returns null.

DOM methods that can be invoked on elements (e.g., getElementsByTagName) will only see nodes that are in the same shadow scope. Methods invoked on the document (e.g., getElementById) only see nodes that are at the document-level scope.

On shadow content nodes, ownerDocument always points to the document from which the nodes were cloned.

Elements in different shadow scopes may have clashing IDs. IDs need only be unique within each shadow scope.

Elements that are the root of a shadow tree (that is, cloned template elements that can be accessed by an xblShadowTree attribute) cannot be inserted into a document. Any attempt to do so must raise a HIERARCHY_REQUEST_ERR.

6.1.2. DOM Traversals in the Presence of XBL

When the DOM is navigated using the normal DOM Core attributes, starting from the document, the UA must represent the original DOM, with no XBL nodes and shadow content, and with children of bound elements in their original order.

The xblShadowTree attribute on bound elements returns the element that was cloned from the XBL template element. Manipulating the shadow content tree must directly affect the content under the bound element. content elements may be moved about or even removed altogether, etc, and all these changes must be immediately reflected in the DOM.

Because each bound element gets its own copy of the cloned template, changes to a bound element's shadow content only affect that bound element. Other bindings are unaffected.

If an element is added to the DOM dynamically, its shadow scope is that of its parent element. Adding an element as a child of a bound element causes that element to be assigned to an appropriate content element (if there is one — if there is not, an implied content element is used).

6.1.3. Example of XBL DOM Traversals

Imagine the following document fragment:

...
 <A>
  <B>
   <C/>
   <D/>
  </B>
 </A>
...

...is bound to the following XBL:

<xbl:xbl xmlns:xbl="http://www.w3.org/2004/xbl">
 <xbl:definition element="B">
  <xbl:template>
   <P>
    <Q>
     <xbl:content includes="C">
      <R/>
     </xbl:content>
    </Q>
    <xbl:content includes="D">
     <S/>
    </xbl:content>
   </P>
  </xbl:template>
 </xbl:definition>
 <xbl:definition element="Q">
  <xbl:template>
   <X>
    <Y>
     <xbl:content>
      <Z1/>
     </xbl:content>
     <xbl:content>
      <Z2/>
     </xbl:content>
    </Y>
   </X>
  </xbl:template>
 </xbl:definition>
</xbl:xbl>

The resulting DOM would look like the following. To read these diagrams, use the following key:

      |    Solid/dashed lines represent normal DOM traversal attribute
   ---+--- relationships using childNodes, parentNode, nextSibling,
      |    previousSibling, firstChild, lastChild, etc.

      :    Dotted lines represent XBL traversal attribute relationships
   ...:... using xblChildNodes, xblParentNode, xblNextSibling,
      :    xblPreviousSibling, xblFirstChild, xblLastChild, etc.

      )    xblShadowTree

White-space nodes have, for sanity, been left out of these diagrams.

DOM view:

   |
   +-- A
       |
       +-- B
           |
           +-- C
           |
           +-- D

Clone of the shadow tree for B elements (B.xblShadowTree):

   template
    |
    +-- P
        |
        +-- Q
        |   |
        |   +-- content
        |       |
        |       +-- R
        |
        +-- content
            |
            +-- S

Clone of the shadow tree for Q elements (Q.xblShadowTree):

   template
    |
    +-- X
        |
        +-- Y
            |
            +-- content
            |   |
            |   +-- Z1
            |
            +-- content
                |
                +-- Z2

The xbl traversal for the whole thing:

   :
   :.. A
       :
       :.. B
           :
           :.. P
               :
               :.. Q
               :   :
               :   :.. X
               :       :
               :       :.. Y
               :           :
               :           :.. C
               :           :
               :           :.. Z2
               :
               :.. D

The combined view of the DOM and XBL traversals of the whole thing:

   :|___
   :....A    template
        :|___ )   |
        :... B    |
            :|    |
            :|... P    template
             |   :|____ )    |
             |   :|... Q     |
             |   :|   :|     |
             |   :|   :|.... X
             |   :|    |     :\_______
             |   :|    |     :....... Y __
             |   :|    |              :   \
             |   :|    +-- content*   :    |
             |   :|         |         :    |
             |   :|         +-- R     :    +-- content*
             |   :|                   :    |    |
             +---:|--------- C* ......:    |    `-- Z1
             |   :|                   :    |
             |   :|                   :    `-- content
             |   :|                   :         |___
             |   :|                   :............ Z2
             |   :`-- content#
             |   :     |
             |   :     `-- S
             |___:____
                 :... D#

In this final tree, the dashed lines show the relationships that are described by the in xblScopedChildNodes attribute, when those aren't the same as the relationships described by the xblChildNodes attribute, which are themselves represented by the dotted lines:

   :
   :.. A
       :
       :.. B
          |:
          |:.. P
          |    :
          |    :.. Q
          |    :  |:
          |    :  |:.. X
          |    :  |    :
          |    :  |    :.. Y
          |    :           :
          |____:__|________:__
          |    :  `--------:-- C
          |    :           :''
          |    :           :
          |    :           :.. Z2
          |____:__
               :.. D

6.2. The Event Interface

Request for public feedback

Is it ok to extend Event?

The Event interface is extended by XBL.

IDL Definition
interface Event {
  // ... (same as in DOM3 Events)
  readonly attribute Event originalEvent;
};

One attribute is added, originalEvent, which is defined to point to the event that was cloned the last time the event was retargetted, if any, and is null if the event was never retargetted. (See: event flow and targeting across shadow scopes.)

If an event is retargetted several times, a chain is formed using this attribute, from which script can access each clone of the event, finding the original target at each step.

6.3. The XBLTemplateElement Interface

The XBLTemplateElement interface is implemented by template elements that are in the XBL namespace.

IDL Definition
interface XBLTemplateElement : Element {
Element getElementById(in DOMString elementId);
};
Attributes
None.
Methods
getElementById

This method is modelled after the method of the same name defined by [DOM3CORE] on the Document interface.

Returns the Element that has an ID attribute with the given value. If no such element exists, this returns null. If more than one element has an ID attribute with that value, what is returned is undefined.

The method shall only search through the template element and its descendants.

The DOM implementation is expected to use the attribute Attr.isId to determine if an attribute is of type ID.

Attributes with the name "ID" or "id" are not of type ID unless so defined. For example, elements with the name "id" on elements that are in the XHTML, SVG and XBL namespaces are defined to be of type ID by their respective specifications.

Parameters
elementId of type DOMString
The unique id value for an element.
Returns
Element
The matching element or null if there is none.
No Exceptions

7. Examples

This entire section is new and needs to be reviewed.

The flowchart example should be close to correct, but it still requires careful review.

The various other RCC examples (GML, XForms, UI) from the last SVG 1.2 public draft have been copied from the SVG 1.2 draft and placed into this document (after modifications to upgrade RCC to sXBL). The examples at the end are just as incomplete as they were when they were part of the writeup on SVG12/RCC.

This section contains some examples of using sXBL with SVG 1.2.

In the following example, bindings are used to make three new elements act like coloured text blocks.

<svg:svg xmlns:svg="http://www.w3.org/2000/svg" version="1.2"
            xmlns:xbl="http://www.w3.org/2004/xbl">
  <svg:defs>
   <xbl:xbl>
    <xbl:definition element="red">
     <xbl:template>
      <svg:text fill="red"><xbl:content/></svg:text>
     </xbl:template>
    <xbl:/definition>
    <xbl:definition element="green">
     <xbl:template>
      <svg:text fill="green"><xbl:content/></svg:text>
     </xbl:template>
    <xbl:/definition>
    <xbl:definition element="blue">
     <xbl:template>
      <svg:text fill="blue"><xbl:content/></svg:text>
     </xbl:template>
    <xbl:/definition>
   </xbl:xbl>
  </svg:defs>

  <red> Red text. </red>
  <green> Green text. </green>
  <blue> Blue text. </blue>

</svg:svg>

In the following example, an SVG file references a set of custom elements for flowcharting from an external file using the import element, and then uses the flowcharting custom elements to lay out and render a flowchart:

<svg width="12cm" height="3cm"
     xmlns="http://www.w3.org/2000/svg" version="1.2"
     xmlns:xbl="http://www.w3.org/2004/xbl">
  <desc>Example xbl02 - simple flowchart example using sXBL</desc>

  <!-- XPointer reference to the location for the flowchart extensions -->
  <xbl:import bindings="xbl02-flowcharts.svg#flowcharts"/>

  <!-- Define elements that use the flowchart extensions. As a result of using
       the extensions, a shadow tree of low-level SVG (circle, rect, path elements)
       is attached  to the 'flowchart' element. The user agent renders the shadow tree. -->
  <flowchart xmlns="http://example.org/flowcharts"
             x="0%" y="0%" width="100%" height="100%">
    <terminalNode>Start</terminalNode>
    <processNode>Step 1</processNode>
    <processNode>Step 2</processNode>
    <terminalNode>End</terminalNode>
  </flowchart>
</svg>

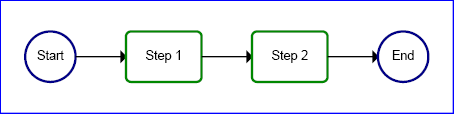

The result would have a blue circle saying 'Start' from which
   a black arrow exits, pointing at a green rectangle containing the text
   'Step 1', which itself has a similar arrow pointing to 'Step 2', which
   itself again has an arrow, this time pointing to a final blue circle
   saying 'End'.

View this image as SVG (SVG/sXBL-enabled browsers only)

Here is the file which defines the simple flowcharting extensions used in the example above:

<svg xmlns="http://www.w3.org/2000/svg" version="1.2"
     xmlns:xbl="http://www.w3.org/2004/xbl"
     xmlns:ev="http://www.w3.org/2001/xml-events"
     xmlns:flow="http://example.org/flowcharts">
  <desc>Supplemental file for example xbl02.svg -
        contains definition of simple flowchart extension elements.</desc>

  <xbl:xbl id="flowcharts">

    <!-- Example needs to be upgraded to show handling of mutation events -->

    <defs>
      <symbol id="connectorline">
        <path transform="translate(0 50)" stroke="black" stroke-width="3" fill="black"
              d="M 0,0 L 90,0 L 90,-10 L 100,0 L 90,10 L 90,0"/>
      </symbol>
    </defs>

    <xbl:definition element="flow:terminalNode">
      <xbl:template>
        <g>
          <circle stroke="#008" stroke-width="5" fill="none" cx="50" cy="50" r="50"/>
          <text x="50" y="57" font-size="25" text-anchor="middle"><xbl:content/></text>
        </g>
      </xbl:template>
    </xbl:definition>

    <xbl:definition name="flow:processNode">
      <xbl:template>
        <g>
          <rect stroke="#080" stroke-width="5" fill="none" width="150" height="100" rx="10"/>
          <text x="75" y="57" font-size="25" text-anchor="middle"><xbl:content/></text>
        </g>
      </xbl:template>
    </xbl:definition>

    <xbl:definition name="flow:flowchart">
      <!-- For this example, set up template with no extra whitespace to
           simplify the sample ECMAScript. -->
      <xbl:template><svg><xbl:content/></svg></xbl:template>
      <xbl:handlerGroup>
        <!-- Note: using the 'svg:handler' element that is new with SVG 1.2 -->
        <handler ev:event="xbl:bound" type="text/ecmascript"><![CDATA[
          var svgns = "http://www.w3.org/2000/svg";
          var xlinkns = "http://www.w3.org/1999/xlink";
          var flowchartns = "http://example.org/flowcharts";
          var ELEMENT_NODE = 1;
          var SIDE_INDENT = 50;
          var PROCESSNODE_WIDTH = 150;
          var TERMINALNODE_WIDTH = 100;
          var CONNECTOR_WIDTH = 100;
          var YPOS = 50;
          var flowchartelement = evt.target;
          var templateElement = flowchartelement.xblShadowTree;
          var svgElm = templateElement.firstChild;
          svgElm.setAttributeNS(null, "x", flowchartelement.getAttributeNS(null, "x"));
          svgElm.setAttributeNS(null, "y", flowchartelement.getAttributeNS(null, "y"));
          svgElm.setAttributeNS(null, "width", flowchartelement.getAttributeNS(null, "width"));
          svgElm.setAttributeNS(null, "height", flowchartelement.getAttributeNS(null, "height"));

          // Determine total width needed and set viewBox attribute appropriately.
          var totalWidth = 0;
          var nodeCount = 0;
          for( var node = flowchartelement.firstChild ; node != null ; node = node.nextSibling )
          {
            // only process elements in flowchart ns
            if( node.nodeType == ELEMENT_NODE && node.namespaceURI == flowchartns) {
              nodeCount++;
              if (node.localName == "processNode")
                totalWidth += PROCESSNODE_WIDTH;
              else if (node.localName == "terminalNode")
                totalWidth += TERMINALNODE_WIDTH;
            }
          }
          totalWidth += (nodeCount-1)*CONNECTOR_WIDTH + 2*SIDE_INDENT;
          svgElm.setAttributeNS(null, "viewBox", "0 0 "+totalWidth+" 200");
          var xtrans = 50;

          // Position all of the nodes and draw the connectors.
          var xpos = SIDE_INDENT;
          var nodeNum = 0;
          for( var node = flowchartelement.firstChild ; node != null ; node = node.nextSibling )
          {
            // only process elements in flowchart ns
            if( node.nodeType == ELEMENT_NODE && node.namespaceURI == flowchartns) {
              node.shadowTree.setAttributeNS(null, "transform", "translate("+xpos+" "+YPOS+")");
              var nodeWidth;
              if (node.localName == "processNode") {
                nodeWidth = PROCESSNODE_WIDTH;
              } else if (node.localName == "terminalNode") {
                nodeWidth = TERMINALNODE_WIDTH;
              }
              xpos += nodeWidth;
              // Add connector line to end of flowchart node's shadowTree.
              if (nodeNum < (nodeCount-1)) {
                var useElement = document.createElementNS(svgns, "use");
                useElement.setAttributeNS(xlinkns, "xlink:href", "#connectorline");
                useElement.setAttributeNS(null, "transform", "translate("+nodeWidth+" 0)");
                node.shadowTree.appendChild(useElement);
                xpos += CONNECTOR_WIDTH;
              }
              nodeNum++;
            }
          }
        ]]></handler>
      </xbl:handlerGroup>
    </xbl:definition>

  </xbl:xbl>

</svg>

The next example takes sample code from section 4.6 from the Geography Markup Language (GML) specification, version 2.1.2. The 'extensionDefs' element would effect a client-side transformation from original XML/GML into final-form SVG rendering.

<svg width="12cm" height="3cm"
     xmlns="http://www.w3.org/2000/svg" version="1.2"
     xmlns:xbl="http://www.w3.org/2004/xbl">
  <desc>Example xbl-gml-01 - GML and XBL</desc>

  <!-- XPointer reference to the location for the GML extensions -->
  <xbl:import bindings="xbl-gml-01-exts.svg#gml"/>

  <CityModel xmlns="http://www.opengis.net/examples"
             xmlns:gml="http://www.opengis.net/gml"
             xmlns:xlink="http://www.w3.org/1999/xlink"
             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xsi:schemaLocation="http://www.opengis.net/examples city.xsd">

    <gml:name>Cambridge</gml:name>
    <gml:boundedBy>
      <gml:Box srsName="http://www.opengis.net/gml/srs/epsg.xml#4326">
        <gml:coord><gml:X>0.0</gml:X><gml:Y>0.0</gml:Y></gml:coord>
        <gml:coord><gml:X>100.0</gml:X><gml:Y>100.0</gml:Y></gml:coord>
      </gml:Box>
    </gml:boundedBy>

    <cityMember>
      <River>
        <gml:description>The river that runs through Cambridge.</gml:description>
        <gml:name>Cam</gml:name>
        <gml:centerLineOf>
          <gml:LineString srsName="http://www.opengis.net/gml/srs/epsg.xml#4326">
            <gml:coord><gml:X>0</gml:X><gml:Y>50</gml:Y></gml:coord>
            <gml:coord><gml:X>70</gml:X><gml:Y>60</gml:Y></gml:coord>
            <gml:coord><gml:X>100</gml:X><gml:Y>50</gml:Y></gml:coord>
          </gml:LineString>
        </gml:centerLineOf>
      </River>
    </cityMember>

    <dateCreated>2000-11</dateCreated>
  </CityModel>
</svg>

The next example takes sample code from [Appendix G of the XForms specification | http://www.w3.org/TR/xforms/sliceG.html ] . The extensionDefs element would effect a client-side transformation from original XForms elements into final-form SVG rendering. In this example, the assumption is that the extension would implement all or at least a large part of the XForms specification via DOM/scripting.

<svg width="12cm" height="3cm"
     xmlns="http://www.w3.org/2000/svg" version="1.2"
     xmlns:xforms="http://www.w3.org/2002/xforms/cr"
     xmlns:xsd="http://www.w3.org/2001/XMLSchema"
     xmlns:ev="http://www.w3.org/2001/xml-events"
     xmlns:xbl="http://www.w3.org/2004/xbl"
     xmlns:my="http://commerce.example.com/payment">
  <desc>Example xbl-xforms-01 - using sXBL within a combined XForms+SVG user agent</desc>
  <title xml:lang="fr">XForms en SVG</title>

  <!-- XPointer reference to the location for the XForms extensions to SVG.
       The extensions convert the XForms UI elements into low-level SVG
       interactive graphics and also provide  high-level features,
       such as client-side validation and the XForms event model. -->
  <xbl:import bindings="xbl-xforms-01-exts.svg#xforms"/>

  <rx:renderXForms xmlns:rx="http://example.org/rcc-xforms"
         xmlns="http://www.w3.org/2002/xforms/cr">

    <model schema="payschema.xsd">
      <instance>
        <my:payment as="credit">
          <my:cc />
          <my:exp />
        </my:payment>
      </instance>
      <submission action="http://www.example.com/buy.rb" method="post" id="s00" />
      <bind nodeset="my:cc" relevant="../@as='credit'" required="true()" />
      <bind nodeset="my:exp" relevant="../@as='credit'" required="true()" />
    </model>

    <group xmlns="http://www.w3.org/2002/xforms/cr">
      <trigger>
        <label>Français</label>
        <toggle case="fr" ev:event="xforms-activate" />
      </trigger>
      <trigger>
        <label>English</label>
        <toggle case="en" ev:event="xforms-activate" />
      </trigger>
    </group>

    <input ref="my:cc">
      <label xml:lang="fr">Numéro de carte bancaire</label>
      <alert xml:lang="fr">Saisissez un numéro de carte
       bancaire valide en séparant chaque groupe de chiffres
       d'un espace ou d'un trait d'union.</alert>
    </input>

    <input ref="my:exp">
      <label xml:lang="fr">Date d'échéance</label>
    </input>

    <submit submission="s00">
      <label xml:lang="fr">Achetez</label>
    </submit>
</svg>

The next example supplements the XForms example above with the following simple example which shows a set of extension elements ui:menubar, ui:menu, ui:menuitem) which present a menubar and a scrolling area for graphics.

<svg width="525" height="575"
     xmlns="http://www.w3.org/2000/svg" version="1.2"
     xmlns:ui="http://example.org/xbl-ui">
  <desc>Example xbl-ui-01 - using XBL for UI elements</desc>
  <title>UI in SVG</title>

  <!-- XPointer reference to the location for the UI extensions to SVG.
       The extensions convert the UI elements into low-level SVG. -->
  <xbl:import bindings="xbl-ui-01-exts.svg#ui"/>

  <ui:menubar x="25" y="25" width="500" height="20" font-size="14">
    <ui:menu title=File>
      <ui:menuitem title=New op="newdoc(evt)">
      <ui:menuitem title=Open op="opendoc(evt)">
    </ui:menu>
    <ui:menu title=Edit>
      <ui:menuitem title=Copy op="copy(evt)">
      <ui:menuitem title=Past op="paste(evt)">
    </ui:menu>
  </ui:menubar>

  <ui:scrollArea x="25" y="50" width="500" height="400">
    <image xlink:href="..." ... />
    <path d="..." ... />
    <text transform="..." font-size="...">...</text>
  </ui:scrollArea>
</svg>

The last example shows XBL being used for custom container elements that perform layout, in this case a magazine layout.

<svg>
  ...

  <!-- XPointer reference to the location for the widgets extensions to SVG.
       The extensions convert the widget elements into low-level SVG. -->
  <xbl:import bindings="xbl-dynlayout-01-exts.svg#dynlayout" />

  <foo:DynamicPageLayout>
    <foo:articles>
      <foo:article>
        <foo:title>Major war erupts</foo:title>
        <foo:para>War broke out around the world today...</foo:para>
      </foo:article>
      <foo:article>
        <foo:title>Two headed-chicken born</foo:title>
        <foo:para>The sleepy town of Frostbite Falls is excited about...</foo:para>
      </foo:article>
    </foo:articles>
  </foo:DynamicPageLayout>
  ...
</svg>

8. Grammar

This grammar is not necessarily completely up to date.

The following defines the grammar for sXBL using RelaxNG.

<!-- ==============================================================
      sXBL 1.0 ~ simplied schema
      Robin Berjon <robin.berjon@expway.fr>
      31/05/2004
     ============================================================== -->
<grammar ns='http://www.w3.org/2004/xbl'
         xml:lang='en'
         xmlns='http://relaxng.org/ns/structure/1.0'
         xmlns:a='http://relaxng.org/ns/compatibility/annotations/1.0'
         datatypeLibrary='http://www.w3.org/2001/XMLSchema-datatypes'
         >
  <!--
    NOTES:
        - this is a simplified schema in that it does not define classes and
          other such constructs that would make it easier to integrate into the
          rest of the SVG schema
        - I seem to remember there was a bug in my RNG namespace wildcards. If
          so, it has been copied here (I have no reference handy).
        - I have followed the descriptions in the spec, so that if it says "zero
          or more foo" and then "zero or more bar", then the foos must occur
          before the bars. This can be changed.
        - there are some spec issues embedded in the comments
  -->

  <!-- ... common definitions .............................................. -->
  <define name='id.attrib'>
    <optional>
      <attribute name='id'>
        <data type='ID'/>
      </attribute>
    </optional>
  </define>

  <!-- ... elements ........................................................ -->
  <element name='xbl'>
    <zeroOrMore><ref name='definition'/></zeroOrMore>
    <zeroOrMore><ref name='import'/></zeroOrMore>
    <ref name='id.attrib'/>
  </element>

  <element name='definition'>
    <choice>
      <attribute name='ref'><data type='anyURI'/></attribute>
      <group>
        <optional><ref name='template'/></optional>
        <optional><ref name='handlerGroup'/></optional>
        <attribute name='element'><data type='QName'/></attribute>
      </group>
    </choice>
    <ref name='id.attrib'/>
  </element>

  <element name='template'>
    <ref name='id.attrib'/>
  </element>

  <element name='content'>
    <optional><attribute name='includes'><text/></attribute></optional>
    <ref name='id.attrib'/>
  </element>

  <element name='handlerGroup'>
    <!-- the content model for this element mentions ev:listener and svg:handler
         but is rather unclear as to what should be included here -->
    <ref name='id.attrib'/>
  </element>

  <element name='import'>
    <!-- this should really be either of xlink:href or src -->
    <optional><attribute name='bindings'><data type='anyURI'/></attribute></optional>
    <ref name='id.attrib'/>
  </element>
</grammar>

9. Comparison of sXBL to RCC

This section will be removed before the Last Call draft of the sXBL specification.

With this first public draft of sXBL, the SVG 1.2 feature formerly known as RCC (Rendering Custom Content: http://www.w3.org/TR/2004/WD-SVG12-20040510/#rcc) has been factored out into its own reusable namespace and reconciled to be forward-looking for use by other XBL grammars.

The following table provides a quick summary comparison of how sXBL compares with the RCC (Rendering Custom Content) feature found in earlier drafts of SVG 1.2:

RCC sXBL

<svg:extensionDefs xlink:href="xpointer"/>

In RCC, the svg:extensionDefs element could use an xpointer to reference the binding definitions. If so, the xpointer had to point to a different svg:extensionDefs element, typically in a separate file.

<xbl:import bindings="xpointer"/>

To accomplish the same functionality in sXBL, use the xbl:import element. In sXBL, there is more flexibility. The xpointer can point to either an xbl:xbl element, typically in a separate file, or to an SVG file which can contain any number of xbl:xbl elements, all of which get processed.

<svg:extensionDefs namespace="nsURI">
  ...definitions of custom elements...
</svg:extensionDefs>

In RCC, the 'namespace' attribute applied to all svg:elementDef children of the svg:extensionDefs element.

<xbl:xbl>
  ...definitions of custom elements...
</xbl:xbl>

In sXBL, the 'namespace' attribute is no longer needed. The 'element' attribute on the xbl:definition element takes a QName. The namespace prefix on the QName identifies the namespace for the custom element.

<svg:elementDef name="localname">
  ...binding definition...
</svg:elementDef>

In RCC, the 'name' attribute provided the localname of the custom element. The namespace for the custom element came from the 'namespace' attribute on the svg:extensionDefs element.

<xbl:definition element="QName">
  ...binding definition...
</xbl:definition>

In sXBL, the 'element' attribute identifies the custom element by a QName. The namespace prefix on the QName identifies the namespace for the custom element. The localname part of the QName completes the identification of the custom element.

N/A in RCC

<xbl:definition element="QName" ref="xpointer"/>

In sXBL, it is possible to have the bound document associate custom elements with per-element bindings using the xbl:definition element with a 'ref' attribute. This allows the bound document (i.e., the document which contains the custom elements) to dictate how to associate its custom elements with the binding definitions (i.e., xbl:definition elements) found in another document.

<svg:defs>, <svg:script>, <svg:handler>

In RCC, svg:defs, svg:script, and svg:handler could appear in various locations within RCC definitions.

<svg:defs>, <svg:script>, <svg:handler>

In general, sXBL has the same rules. One addition with sXBL is the xbl:handlerGroup element, described below.

<svg:prototype various attributes>
  ...initial shadow tree...
</svg:prototype>

In RCC, the svg:prototype contained an initial template for the elements which were cloned into the shadow tree for the custom element. The svg:prototype element was the root node of the set of elements which were rendered and received events. Because svg:prototype was part of the rendering and event pipelines, you were able to attach styling properties, transforms, and event attributes (the various attributes listed above) to the svg:prototype element.

<xbl:template>
  ...initial shadow tree...
</xbl:template>

sXBL is nearly the same. Just like svg:prototype, xbl:template contained an initial template for the elements which are cloned into the shadow tree for the custom element. xbl:template is the root node of the xblShadowTree, in much the same way that svg:prototype element was the root node of the shadow tree. However, one distinction is that for rendering the xbl:template is flattened out of the rendering pipeline. Therefore, it is not possible to attach styling properties, transforms, and event attributes to an xbl:template; instead, you need to include a container element such as an <svg:g> element in the shadow tree if you need to attach styling properties, transforms, and event attributes.

<svg:transformer>, <svg:param>

The latest public draft of RCC described these two elements (http://www.w3.org/TR/2004/WD-SVG12-20040510/#transformer-element), but warned the community that there features are "...likely to be removed from the next draft of SVG 1.2, due to the high burden on implementation and the difficulty in optimization."

Not available

In the transition from RCC to sXBL, <svg:transformer>, <svg:param> have been removed.

<svg:refContent [select="xpath"] various attributes/>

In RCC, the svg:refContent allowed the shadow content to include-by-reference child elements of the custom element. The svg:refContent element was a container node for the referenced elements and was part of the rendering and event pipelines. Because svg:refContent was part of the rendering and event pipelines, you were able to attach styling properties, transforms, and event attributes (the various attributes listed above) to the svg:refContent element.

<xbl:content [includes="???"]>
  ...backup content...
</xbl:xbl:content>

The most important aspects of sXBL are the same. Just like svg:prototype, xbl:content does an include-by-reference to the child elements of the custom element. The exact name of the attribute (e.g., 'select' versus 'includes' is still under debate and the syntax of this attribute (xpath? tagnames? CSS selector syntax?) is also still under debate. The rules for what happens if there is a mismatch between the bound element's content and the set of xbl:content elements is also under debate. Finally, sXBL might include a backup content feature that was not available in RCC.

One distinction with sXBL is that the xbl:content is flattened out of the rendering pipeline. Therefore, it is not possible to attach styling properties, transforms, and event attributes to an xbl:content; instead, you need to include a parent container element such as an <svg:g> element in the shadow tree if you need to attach styling properties, transforms, and event attributes.

<svg:traitDef>

In RCC, told the user agent about custom attributes to enable animation of custom attributes and attachment of mutation event listeners.

Moved out of RCC into SVG 1.2.

These features will be defined within the SVG 1.2 specification and will not be part of the sXBL specification.

SVGBindBegin, SVGBindEnd

In RCC, the SVGBindBegin event was raised just after cloning the svg:prototype but before recursively applying RCC bindings to the contents of the shadow tree. The SVGBindEnd event is raised after recursively applying RCC bindings to the elements which were cloned onto the shadow tree.

xbl:bound, xbl:bound, xbl:unbinding

In sXBL, the binding events are in the XBL namespace (http://www.w3.org/2004/xbl). xbl:bound matches SVGBindBegin, and xbl:bound matches SVGBindEnd. sXBL adds an xbl:unbinding event so that script can be told when a binding is about to be unattached from a custom element.

RCC detailed processing model

The SVG 1.2 drafts were incomplete in various ways in describing the complete details of the RCC processing model. Some aspects were well-specified. Other aspects were designed but had not been committed to the public specifications yet. Some aspects of the processing model were not yet resolved.

sXBL detailed processing model

The sXBL specification is still under development. In general, the detailed processing model for sXBL is highly consistent with the detailed processing model for the parts of RCC that were described in early SVG 1.2 drafts. Some aspects of the sXBL processing model are still under discussion.

10. Comparison of sXBL to XBL1

Request for public feedback

The working group is looking for volunteers who would be willing to write an appendix describing the differences between Mozilla's XBL and the sXBL language defined by this specification.

Acknowledgments

The membership of the XBL task force was drawn from the SVG and CSS working groups, and consisted of L. David Baron, Robin Berjon, Alex Danilo, Jon Ferraiolo, Darryl Fuller, Ian Hickson, David Hyatt, Dean Jackson, Christophe Jolif, Chris Lilley, Antoine Quint, Peter Sorotokin.

References

[CSS3UI]
"CSS3 Basic User Interface Module", T. Çelik, editor, 11 May 2004. Available at http://www.w3.org/TR/css3-ui.
[DOM3CORE]
"Document Object Model (DOM) Level 3 Core Specification", A. Le Hors, P. Le Hégaret et. al., editors, 07 April 2004. Available at http://www.w3.org/TR/DOM-Level-3-Core.
[DOM3EVENTS]
"Document Object Model (DOM) Level 3 Events Specification", P. Le Hégaret, T. Pixley, editors, 07 November 2003. Available at http://www.w3.org/TR/DOM-Level-3-Events.
[RFC2119]
"Key words for use in RFCs to Indicate Requirement Levels", S. Bradner, March 1997. Available at http://www.ietf.org/rfc/rfc2119.txt.
[SVG11]
"Scalable Vector Graphics (SVG) 1.1 Specification", J. Ferraiolo, 藤沢 淳, D. Jackson, editors, 14 January 2003. Available at http://www.w3.org/TR/SVG11/.
[XML10]
"Extensible Markup Language (XML) 1.0 (Third Edition)", T. Bray, J. Paoli, C.M. Sperberg-McQueen, E. Maler, F. Yergeau editors, 04 February 2004. Available at http://www.w3.org/TR/REC-xml.
[XMLBASE]
"XML Base", J. Marsh , editor, 20 December 2000. Available at http://www.w3.org/TR/xmlbase/.
[XMLNS]
"Namespaces in XML", T. Bray, D. Hollander, A. Layman, editors, 14 January 1999. Available at http://www.w3.org/TR/REC-xml-names/.
