W3C

XQuery 1.0 and XPath 2.0 Functions and Operators

W3C Working Draft 20 December 2001

This version:
http://www.w3.org/TR/2001/WD-xquery-operators-20011220/
Latest version:
http://www.w3.org/TR/xquery-operators/
Previous version:
http://www.w3.org/TR/2001/WD-xquery-operators-20010827/
Editors:
Ashok Malhotra (XML Query and XSL WGs), Microsoft <ashokma@microsoft.com>
Jim Melton (XML Query WG), Oracle Corp <jim.melton@acm.org>
Jonathan Robie (XML Query WG), Software AG <Jonathan.Robie@SoftwareAG-USA.com>
Norman Walsh (XSL WG), Sun Microsystems <Norman.Walsh@Sun.COM>

Abstract

This document defines basic operators and functions on the datatypes defined in [XML Schema Part 2: Datatypes] for use in XQuery, XPath, XSLT and other related XML standards. It also discusses operators and functions on nodes and node sequences as defined in the [XQuery 1.0 and XPath 2.0 Data Model] for use in XQuery, XPath, XSLT and other related XML standards.

Status of this Document

This section describes the status of this document at the time of its publication. Other documents may supersede this document. The latest status of this document series is maintained at the W3C.

This is a Public Working Draft of this document for review by W3C Members and other interested parties. It is a draft document and may be updated, replaced or made obsolete by other documents at any time. It is inappropriate to use W3C Working Drafts as reference material or to cite them as other than "work in progress". This is work in progress and does not imply endorsement by the W3C membership.

This document describes constructors, operators, and functions that are used in [XPath 2.0], [XQuery 1.0: An XML Query Language] and [XSLT 2.0]. The document is generally unconcerned with the specific syntax with which these constructors, operators, and functions will be used, and focuses instead on defining the semantics of them as precisely as feasible.

This document has been produced following the procedures set out for the W3C Process. This document was produced through the efforts of a joint task force of the W3C XML Query Working Group and the W3C XML Schema Working Group (both part of the W3C XML Activity) and a second joint task force of the W3C XML Query Working Group and the W3C XSL Working Group (part of the W3C Style Activity). It is designed to be read in conjunction with the following documents: [XQuery 1.0 and XPath 2.0 Data Model], [XPath 2.0], [XQuery 1.0: An XML Query Language] and [XSLT 2.0].

The following are identified as high priority issues. Reviewers are requested to provide feedback on these issues using the address below.

[Issue 135: Should we allow casting to/from derived types?]

[Issue 138: Need a table showing which functions an operator maps to.]

[Issue 139: Need a fuller treatment of error behaviour and possibly error handling.]

[Issue 145: Need decisions and text in several of our documents detailing conformance requirements based on resource limitations.]

[Issue 146: Need to align node-before, node-after functions with corresponding operators in the XPath/XQuery documents.]

[Issue 147: The xf:document() function needs to be aligned with XSLT.]

[Issue 148: Should the F&O document imply any type promotions at all or should the type promotion material be in the language documents? ]

[Issue 150: Should we support comparisons of date/time types that return indeterminate results?]

A list of current W3C Recommendations and other technical documents can be found at http://www.w3.org/TR/.

Comments on this document should be sent to the W3C mailing list www-xml-query-comments@w3.org (archived at http://lists.w3.org/Archives/Public/www-xml-query-comments/).

Table of Contents

1 Introduction
    1.1 Syntax
    1.2 Notations
    1.3 Namespace Prefix
2 Accessors
3 Constructors, Functions, and Operators on Numbers
    3.1 Numeric Types
    3.2 Numeric Constructors
        3.2.1 xf:decimal
        3.2.2 xf:integer
        3.2.3 xf:long
        3.2.4 xf:int
        3.2.5 xf:short
        3.2.6 xf:byte
        3.2.7 xf:float
        3.2.8 xf:double
    3.3 Operators on Numeric Values
        3.3.1 op:numeric-add
        3.3.2 op:numeric-subtract
        3.3.3 op:numeric-multiply
        3.3.4 op:numeric-divide
        3.3.5 op:numeric-mod
        3.3.6 op:numeric-unary-plus
        3.3.7 op:numeric-unary-minus
    3.4 Comparisons of Numeric Values
        3.4.1 op:numeric-equal
        3.4.2 op:numeric-less-than
        3.4.3 op:numeric-greater-than
        3.4.4 op:numeric-less-than-or-equal
        3.4.5 op:numeric-greater-than-or-equal
        3.4.6 op:numeric-not-equal
    3.5 Functions on Numeric Values
        3.5.1 xf:floor
        3.5.2 xf:ceiling
        3.5.3 xf:round
4 Constructors and Functions on Strings
    4.1 String Types
    4.2 String Constructors
        4.2.1 xf:string
        4.2.2 xf:normalizedString
        4.2.3 xf:token
        4.2.4 xf:language
        4.2.5 xf:Name
        4.2.6 xf:NMTOKEN
        4.2.7 xf:NCName
        4.2.8 xf:ID
        4.2.9 xf:IDREF
        4.2.10 xf:ENTITY
    4.3 Equality and Comparison of Strings
        4.3.1 xf:compare
    4.4 Functions on String Values
        4.4.1 Usage Notes
        4.4.2 xf:concat
        4.4.3 xf:starts-with
        4.4.4 xf:ends-with
        4.4.5 xf:contains
        4.4.6 xf:substring
        4.4.7 xf:string-length
        4.4.8 xf:substring-before
        4.4.9 xf:substring-after
        4.4.10 xf:normalize-space
        4.4.11 xf:normalize-unicode
        4.4.12 xf:upper-case
        4.4.13 xf:lower-case
        4.4.14 xf:translate
        4.4.15 xf:string-pad
        4.4.16 xf:match
        4.4.17 xf:replace
5 Constructors, Functions and Operators on Booleans
    5.1 Boolean Constructors
        5.1.1 xf:true
        5.1.2 xf:false
        5.1.3 xf:boolean-from-string
    5.2 Operators on Boolean Values
        5.2.1 op:boolean-and
        5.2.2 op:boolean-or
        5.2.3 op:boolean-equal
    5.3 Functions on Boolean Values
        5.3.1 xf:not
        5.3.2 xf:not3
6 Constructors, Functions, and Operators on Dates and Times
    6.1 Duration and Datetime Types
    6.2 Duration and Datetime Constructors
        6.2.1 xf:duration
        6.2.2 xf:dateTime
        6.2.3 xf:date
        6.2.4 xf:time
        6.2.5 xf:gYearMonth
        6.2.6 xf:gYear
        6.2.7 xf:gMonthDay
        6.2.8 xf:gMonth
        6.2.9 xf:gDay
    6.3 Comparisons of Duration and Datetime Values
        6.3.1 op:duration-equal
        6.3.2 op:duration-less-than
        6.3.3 op:duration-greater-than
        6.3.4 op:duration-less-than-or-equal
        6.3.5 op:duration-greater-than-or-equal
        6.3.6 op:duration-not-equal
        6.3.7 op:datetime-equal
        6.3.8 op:datetime-less-than
        6.3.9 op:datetime-greater-than
        6.3.10 op:datetime-less-than-or-equal
        6.3.11 op:datetime-greater-than-or-equal
        6.3.12 op:datetime-not-equal
    6.4 Component Extraction Functions on Datetime Values
        6.4.1 xf:get-Century-from-dateTime
        6.4.2 xf:get-Century-from-date
        6.4.3 xf:get-hour-from-dateTime
        6.4.4 xf:get-hour-from-time
        6.4.5 xf:get-minutes-from-dateTime
        6.4.6 xf:get-minutes-from-time
        6.4.7 xf:get-seconds-from-dateTime
        6.4.8 xf:get-seconds-from-time
        6.4.9 xf:get-timezone-from-dateTime
        6.4.10 xf:get-timezone-from-date
        6.4.11 xf:get-timezone-from-time
    6.5 Arithmetic Functions on Dates
        6.5.1 xf:add-days
    6.6 Functions and Operators on TimePeriod Values
        6.6.1 op:get-duration
        6.6.2 op:get-end-dateTime
        6.6.3 op:get-start-dateTime
7 Constructors and Functions on QNames
    7.1 Constructors for QNames
        7.1.1 xf:QName-from-uri
        7.1.2 xf:QName-from-string
        7.1.3 xf:QName
    7.2 Functions on QNames
        7.2.1 xf:get-local-name
        7.2.2 xf:get-namespace-uri
8 Constructors, Functions, and Operators for anyURI
    8.1 Constructor for anyURI
        8.1.1 xf:anyURI
9 Functions and Operators on base64Binary and hexBinary
    9.1 Comparisons of base64Binary and hexBinary Values
        9.1.1 op:hex-binary-equal
        9.1.2 op:base64-binary-equal
10 Constructors, Functions, and Operators on NOTATION
    10.1 NOTATION Constructor
        10.1.1 xf:NOTATION
11 Functions and Operators on Nodes
    11.1 Functions and Operators on Nodes
        11.1.1 xf:local-name
        11.1.2 xf:number
        11.1.3 op:node-equal
        11.1.4 xf:deep-equal
        11.1.5 op:node-before
        11.1.6 op:node-after
        11.1.7 xf:copy
        11.1.8 xf:shallow
    11.2 if-absent() and if-empty()
        11.2.1 xf:if-absent
        11.2.2 xf:if-empty
12 Constructors, Functions, and Operators on Sequences
    12.1 Constructors on Sequences
        12.1.1 op:to
    12.2 Functions and Operators on Sequences
        12.2.1 xf:boolean
        12.2.2 op:concatenate
        12.2.3 op:item-at
        12.2.4 xf:index-of
        12.2.5 xf:empty
        12.2.6 xf:exists
        12.2.7 xf:distinct-nodes
        12.2.8 xf:distinct-values
        12.2.9 xf:insert
        12.2.10 xf:remove
        12.2.11 xf:sublist
    12.3 Equals, Union, Intersection and Except
        12.3.1 xf:sequence-deep-equal
        12.3.2 xf:sequence-node-equal
        12.3.3 op:union
        12.3.4 op:intersect
        12.3.5 op:except
    12.4 Aggregate Functions
        12.4.1 xf:count
        12.4.2 xf:avg
        12.4.3 xf:max
        12.4.4 xf:min
        12.4.5 xf:sum
    12.5 Functions that Generate Sequences
        12.5.1 xf:id
        12.5.2 xf:idref
        12.5.3 xf:filter
        12.5.4 xf:document
13 Context Functions
    13.1 op:context-item
    13.2 xf:position
    13.3 xf:last
    13.4 op:context-document
        13.4.1 Semantics
    13.5 xf:current-dateTime
        13.5.1 Examples
14 Casting Functions
    14.1 Casting to primitive types from primitive types
    14.2 Casting from derived types to primitive types
    14.3 Casting to string
    14.4 Casting to numeric types
    14.5 Casting to duration and date and time types
    14.6 Casting to boolean
    14.7 Casting to base64Binary, hexBinary
    14.8 Casting to anyURI, QName and NOTATION

Appendices

A References
    A.1 Normative
    A.2 Non-normative
B Functions and Operators Issues List (Non-Normative)
C ChangeLog (Non-Normative)
D Function and Operator Quick Reference (Non-Normative)


1 Introduction

[XML Schema Part 2: Datatypes] defines a number of primitive and derived datatypes, collectively known as built-in datatypes. This document defines operations on those datatypes for use in XQuery, XPath, XSLT and related XML standards. This document also discusses operators and functions on nodes and node sequences as defined in the [XQuery 1.0 and XPath 2.0 Data Model] for use in XQuery, XPath, XSLT and other related XML standards.

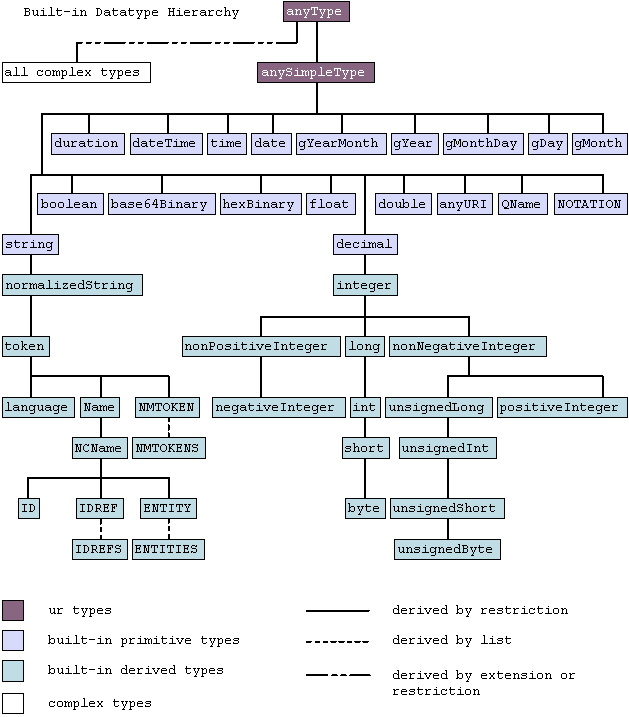

The diagram below shows the built-in [XML Schema Part 2: Datatypes]. Solid lines connect a base datatype above to a derived datatype below. Dashed lines connect a datatype created as a list of an item type above.

Type hierarchy graphic

Diagram courtesy Asir Vedamuthu, webMethods

1.1 Syntax

The purpose of this document is to catalog the functions and operators required for XPath 2.0, XML Query 1.0 and XSLT 2.0. The exact syntax used to invoke these functions and operators is specified in [XPath 2.0], [XQuery 1.0: An XML Query Language] and [XSLT 2.0].

In general, the above specifications do not support function overloading. Consequently, there are no overloaded functions in this document except for legacy [XPath 1.0] functions such as string() which takes a single argument of a variety of types and concat() which takes a variable number of string arguments. This does not apply to operators such as "+" which may be overloaded. Functions with optional arguments are allowed. If optional arguments are omitted, omissions are assumed to begin from the right.

1.2 Notations

This document defines, among other things, constructors and other functions that apply to one or more data types. Each constructor and function is defined by specifying its signature, a description of each of its arguments, and its semantics. For many constructors and functions, examples are included to illustrate their use.

Each function's signature is presented in a form like this:

xf:function-name(parameter-type $parameter-name, ...) => return-type

In this notation, function-name is the name of the function whose signature is being specified. If the function takes no parameters, then the name is followed by an empty set of parentheses: (); otherwise, the name is followed by a parenthesized list of parameter declarations, each declaration specifying the static type of the parameter and a non-normative name used to reference the parameter when the function's semantics are specified. If there are two or more parameter declarations, they are separated by a comma. The return-type specifies the static type of the value returned by the function.

The function name is a QName as defined in [XML 1.0 Recommendation (Second Edition)] and must adhere to it's syntatic conventions. Following [XPath 1.0], function names are composed of English words separated by hyphens,"-". If a function name contains a [XML Schema Part 2: Datatypes] datatype name, this may have intercapitalized spelling and is used in the function name as such. For example, xf:get-timezone-from-dateTime.

As is customary, the parameter type name indicates that the function accepts arguments of that type in that position. If the parameter type name is one of the simple types defined in [XML Schema Part 2: Datatypes] the function also accepts arguments with types derived from that type. These may one of the derived types in [XML Schema Part 2: Datatypes] or they may be user-derived types.

Some functions accept the empty sequence as an argument and some may return the empty sequence. This is indicated in the function signature by following the parameter type name with a question mark:

xf:function-name(parameter-type? $parameter-name) => return-type?

The names of constructor functions have been chosen so that their local names are "spelled the same" as the local names of the types for which they are constructors. For example, the name of the constructor function that constructs values whose type is xsd:decimal is xf:decimal. Throughout this document, we typically omit the prefix xsd: in the names of XML Schema types.

[Issue 133: Syntax for indicating that function accepts empty sequence is incorrect]

This document uses a functional notation to describe the arguments and semantics of all the operations that it defines. Some of these functions are not intented to be user-callable; instead, they are intended to be bound to operators by the host language. For example, multiplication is generally associated with the * operator, but it is described as a function in this document.

The signatures of these "operator functions" are identified with a special namespace prefix, "op:", as in this example:

op:multiply(numeric $operand1, numeric $operand2) => numeric

1.3 Namespace Prefix

The functions and operators discussed in this document are contained in two namespaces and referenced using a qualified name. The namespace prefix used in this document—merely for illustrative purposes—is xf for the user functions and op for the operator functions. The namespace prefix for these functions can vary, as long as the prefix is bound to the currect URI.

The actual namespaces (that is, the URI of the namespaces) are:

  • http://www.w3.org/2001/12/xquery-operators for operators

  • http://www.w3.org/2001/12/xquery-functions for functions.

2 Accessors

The [XQuery 1.0 and XPath 2.0 Data Model] describes accessors on different types of nodes and defines their semantics. Some of these accessors are exposed to the user. They are listed below.

FunctionAccessorAcceptsReturns
xf:node-kindnode-kindany kind of nodestring
xf:namenameany kind of nodezero or one QName
xf:stringstring-valuea sequence, a node of any kind, or a simple valuestring
xf:datatyped-valueany kind of nodesequence of zero or more typed simple values
xf:base-uribase-uriElement or Document nodeanyURI
xf:unique-IDunique-IDElement nodezero or one ID

3 Constructors, Functions, and Operators on Numbers

This section discusses arithmetic operators on the numeric datatypes defined in [XML Schema Part 2: Datatypes]. It uses an approach that permits lightweight operations whenever possible.

3.1 Numeric Types

The operators described in this section are defined on the following numeric types.

decimal
integer
int
long
short
byte
float
double

They also apply to user-defined types derived by restriction from these types.

3.2 Numeric Constructors

The following constructors are defined on the above numeric types. Each constructor takes a single string literal as argument. Leading and trailing whitespace, if present, is stripped from the literal before the value is constructed.

[Issue 149: Either the constructor functions should allow dynamic expressions or the syntax should be changed so that they do not appear to be functions. ]

ConstructorMeaning
xf:decimal Produces a decimal value by parsing and interpreting a string.
xf:integer Produces an integer value by parsing and interpreting a string.
xf:long Produces a long value by parsing and interpreting a string.
xf:int Produces an int value by parsing and interpreting a string.
xf:short Produces a short value by parsing and interpreting a string.
xf:byte Produces a byte value by parsing and interpreting a string.
xf:float Produces a float value by parsing and interpreting a string.
xf:double Produces a double value by parsing and interpreting a string.

For float and double, the string argument can indicate the special values: NaN, INF, -INF, +0, and -0.

If the argument string passed to a constructor results in an error (for example, if it conatains a letter other than "E" or "e" or a string other than the special values named above), the constructor returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

3.2.1 xf:decimal

xf:decimal(string $srcval) => decimal

Returns the decimal value that is represented by the characters contained in the value of $srcval. For this constructor, $srcval must be a string literal.

If the value of $srcval is not a valid lexical representation for the decimal type as specified in [XML Schema Part 2: Datatypes], then the error value is returned as specified in [XQuery 1.0 and XPath 2.0 Data Model].

If the number of characters contained in the value of $srcval that are digits is greater than the maximum number of decimal digits supported by the implementation, then the error value is returned as specified in [XQuery 1.0 and XPath 2.0 Data Model].

3.2.1.1 Examples
  • xf:decimal('123.5') returns the decimal value corresponding to one hundred twenty three and one-half.

  • xf:decimal('12.5E2') returns the error value, since the use of the letter "E" is prohibited in the constructor for the decimal type.

    xf:decimal(' 12.5 ') returns the decimal value corresponding to twelve and one-half.

3.2.2 xf:integer

xf:integer(string $srcval) => integer

Returns the integer value that is represented by the characters contained in the value of $srcval. For this constructor, $srcval must be a string literal.

If the value of $srcval is not a valid lexical representation for the integer type as specified in [XML Schema Part 2: Datatypes], then the error value is returned as specified in [XQuery 1.0 and XPath 2.0 Data Model].

If the number of characters contained in the value of $srcval that are digits is greater than the maximum number of digits supported by the implementation, then the error value is returned as specified in [XQuery 1.0 and XPath 2.0 Data Model].

3.2.2.1 Examples
  • xf:integer('-123') returns the integer value corresponding to negative one hundred twenty three.

  • xf:integer('123.5') returns the error value, since the use of a decimal point is prohibited in the constructor for the integer type.

3.2.3 xf:long

xf:long(string $srcval) => integer

Returns the long value that is represented by the characters contained in the value of $srcval. For this constructor, $srcval must be a string literal.

If the value of $srcval is not a valid lexical representation for the long type as specified in [XML Schema Part 2: Datatypes], then the error value is returned as specified in [XQuery 1.0 and XPath 2.0 Data Model].

If the value of the number corresponding to the characters contained in the value of $srcval is greater than 9,223,372,036,854,775,807 or less than -9,223,372,036,854,775,808, then the error value is returned as specified in [XQuery 1.0 and XPath 2.0 Data Model].

3.2.3.1 Examples
  • xf:long('-1235') returns the long value corresponding to negative one thousand two hundred thirty five.

  • xf:long('10000000000000000000') returns the error value, since ten quintillion is not a valid value for the long type.

3.2.4 xf:int

xf:int(string $srcval) => integer

Returns the int value that is represented by the characters contained in the value of $srcval. For this constructor, $srcval must be a string literal.

If the value of $srcval is not a valid lexical representation for the int type as specified in [XML Schema Part 2: Datatypes], then the error value is returned as specified in [XQuery 1.0 and XPath 2.0 Data Model].

If the value of the number corresponding to the characters contained in the value of $srcval is greater than 2,147,483,647 or less than -2,147,483,648, then the error value is returned as specified in [XQuery 1.0 and XPath 2.0 Data Model].

3.2.4.1 Examples
  • xf:int('1235') returns the int value corresponding to one thousand two hundred thirty five.

  • xf:int('2147483648') returns the error value, since the value two billion, one hundred forty seven million, four hundred eighty three thousand, six hundred forty eight is not a valid value for the short type.

3.2.5 xf:short

xf:short(string $srcval) => integer

Returns the short value that is represented by the characters contained in the value of $srcval. For this constructor, $srcval must be a string literal.

If the value of $srcval is not a valid lexical representation for the short type as specified in [XML Schema Part 2: Datatypes], then the error value is returned as specified in [XQuery 1.0 and XPath 2.0 Data Model].

If the value of the number corresponding to the characters contained in the value of $srcval is greater than 32,767 or less than -32,768, then the error value is returned as specified in [XQuery 1.0 and XPath 2.0 Data Model].

3.2.5.1 Examples
  • xf:short('1235') returns the short value corresponding to one thousand two hundred thirty five.

  • xf:short('32768') returns the error value, since the value thirty two thousand seven hundred sixty eight is not a valid value for the short type.

3.2.6 xf:byte

xf:byte(string $srcval) => integer

Returns the byte value that is represented by the characters contained in the value of $srcval. For this constructor, $srcval must be a string literal.

If the value of $srcval is not a valid lexical representation for the byte type as specified in [XML Schema Part 2: Datatypes], then the error value is returned as specified in [XQuery 1.0 and XPath 2.0 Data Model].

If the value of the number corresponding to the characters contained in the value of $srcval is greater than 127 or less than -128, then the error value is returned as specified in [XQuery 1.0 and XPath 2.0 Data Model].

3.2.6.1 Examples
  • xf:byte('127') returns the byte value corresponding to one hundred twenty seven.

  • xf:byte('128') returns the error value, since the value one hundred twenty eight is not a valid value for the byte type.

3.2.7 xf:float

xf:float(string $srcval) => float

Returns the float value that is represented by the characters contained in the value of $srcval. For this constructor, $srcval must be a string literal.

If the value of $srcval is "NaN", then the constructor returns the "not-a-number" value.

If the value of $srcval is "INF" or "+INF", then the constructor returns the "positive infinity" value. If the value of $srcval is "-INF", then the constructor returns the "negative infinity" value.

If the value of $srcval is "0" or "+0", then the constructor returns the value positive zero. If the value of $srcval is "-0", then the constructor returns the value negative zero.

If the value of $srcval is not a valid lexical representation for the float type as specified in [XML Schema Part 2: Datatypes], then the error value is returned as specified in [XQuery 1.0 and XPath 2.0 Data Model].

If the value of the number corresponding to the characters contained in the value of $srcval is not a valid value for the float type, then the error value is returned as specified in [XQuery 1.0 and XPath 2.0 Data Model].

3.2.7.1 Examples
  • xf:float('510E2') returns the float value corresponding to fifty one thousand.

  • xf:float('15.25') returns the float value corresponding to fifteen and a quarter.

  • xf:float('51D1') returns the error value, since the use of the letter "D" is prohibited in the constructor for the float type.

3.2.8 xf:double

xf:double(string $srcval) => double

Returns the double value that is represented by the characters contained in the value of $srcval. For this constructor, $srcval must be a string literal.

If the value of $srcval is "NaN", then the constructor returns the "not-a-number" value.

If the value of $srcval is "INF" or "+INF", then the constructor returns the "positive infinity" value. If the value of $srcval is "-INF", then the constructor returns the "negative infinity" value.

Note:

In XPath 1.0, double("INF") returned the "not-a-number" value.

If the value of $srcval is "0" or "+0", then the constructor returns the value positive zero. If the value of $srcval is "-0", then the constructor returns the value negative zero.

If the value of $srcval is not a valid lexical representation for the double type as specified in [XML Schema Part 2: Datatypes], then the error value is returned as specified in [XQuery 1.0 and XPath 2.0 Data Model].

If the value of the number corresponding to the characters contained in the value of $srcval is not a valid value for the float type, then the error value is returned as specified in [XQuery 1.0 and XPath 2.0 Data Model].

3.2.8.1 Examples
  • xf:double('510E2') returns the double value corresponding to fifty one thousand.

  • xf:double('15.25') returns the double value corresponding to fifteen and a quarter.

  • xf:double('51D1') returns the error value, since the use of the letter "D" is prohibited in the constructor for the double type.

3.3 Operators on Numeric Values

The arguments and return types for the arithmetic operators are the basic numeric types: decimal, float, and double and types derived from them. For simplicity, each operator is defined to operate on operands of the same datatype and to return the same datatype. If the two operands are not of the same datatype, one operand is promoted to be the type of the other operand.

The type promotion scheme includes only two rules:

  1. A derived type may be promoted its base type.

  2. decimal may be promoted to float, and float may be promoted to double.

The result type of operations depends on their argument datatypes and is defined in the following table:

OperatorReturns
op:operation(decimal, decimal)decimal
op:operation(float, float)float
op:operation(double, double)double
op:operation(decimal)decimal
op:operation(float)float
op:operation(double)double

These rules define any operation on any pair of arithmetic types. Consider the following example:

op:operation(int, double) => op:operation(double, double)

For this operation, int must be converted to double. This can be done, since by the rules above: int can be promoted to integer, integer can be promoted to decimal, decimal can be promoted to float, and float can be promoted to double. As far as possible, the promotions should be done in a single step.

As another example, a user may define height as a derived type of integer with a minimum value of 20 and a maximum value of 100. He may then derive oddHeight using a pattern to restrict the value to odd integers.

op:operation(oddHeight, 2) => op:operation(decimal, decimal)

oddHeight is first promoted to it's base type height. height is promoted to its base type integer and integer to it's base type decimal.

[Issue 72: Effects of overflow and underflow unspecified]

[Issue 105: XPath 1.0 compatibility broken for div]

Finally, consider some examples involving special IEEE 754 numerics.

  1. If either argument is "NaN", the result is "NaN".

  2. If neither argument is "NaN", but either argument is "INF", the result is "INF".

  3. If neither argument is "NaN" or "INF", but either argument is "-INF", the result is "-INF".

Note: In the case of multiplication and division, "INF" may become "-INF", and vice versa, as appropriate.

The functions op:numeric-add, op:numeric-subtract, op:numeric-multiply, op:numeric-divide and op:numeric-mod are each defined for three pairs of numeric operands of the same type: decimal, float and double. The functions op:numeric-unary-plus and op:numeric-unary-minus are defined for a single operand of the same three numeric types.

3.3.1 op:numeric-add

op:numeric-add(numeric $operand1, numeric $operand2) => numeric

Backs up the "+" operator and returns the arithmetic sum of its operands: ($operand1 + $operand2).

3.3.2 op:numeric-subtract

op:numeric-subtract(numeric $operand1, numeric $operand2) => numeric

Backs up the "-" operator and returns the arithmetic difference of its operands: ($operand1 - $operand2).

3.3.3 op:numeric-multiply

op:numeric-multiply(numeric $operand1, numeric $operand2) => numeric

Backs up the "*" operator and returns the arithmetic product of its operands: ($operand1 * $operand2).

3.3.4 op:numeric-divide

op:numeric-divide(numeric $operand1, numeric $operand2) => numeric

Backs up the "div" operator and returns the arithmetic quotient of its operands: ($operand1 div $operand2).

3.3.5 op:numeric-mod

op:numeric-mod(numeric $operand1, numeric $operand2) => numeric

Backs up the "mod" operator and returns the remainder after dividing the first operand by the second operand: ($operand1 mod $operand2). The result is of the same type as the operands after type promotion. The following rules apply:

  • If either operand is NaN, the result is NaN.

  • If the dividend is an infinity, or the divisor is a zero, or both, the result is NaN.

  • If not NaN, the sign of the result equals the sign of the dividend.

  • If the dividend is finite and the divisor is an infinity, the result equals the dividend.

  • If the dividend is a zero and the divisor is finite, the result is the same as the dividend.

  • In the remaining cases, where neither an infinity, nor a zero, nor NaN is involved, the float or double remainder r from a dividend n and a divisor d is defined by the mathematical relation r = n .(d * q) where q is an integer that is negative only if n/d is negative and positive only if n/d is positive, and whose magnitude is as large as possible without exceeding the magnitude of the true mathematical quotient of n and d. This is truncating division, analogous to integer division, not [IEEE 754-1985] rounding division.

Evaluation of a floating-point mod never throws a run-time exception, even if the right-hand operand is zero. Overflow, underflow, or loss of precision cannot occur.

3.3.5.1 Examples
  • op:numeric-mod(10,3) returns 1.

  • op:numeric-mod(6,2) returns 0.

  • op:numeric-mod(4.5,1.2) returns 0.9.

  • op:numeric-mod(1.23E2, 0.6E1) returns 3.0E0.

3.3.6 op:numeric-unary-plus

op:numeric-unary-plus(numeric $operand) => numeric

Backs up the unary "+" operator and returns its operand with the sign unchanged: (+ $operand). Semantically, this operation performs no operation.

3.3.7 op:numeric-unary-minus

op:numeric-unary-minus(numeric $operand) => numeric

Backs up the unary "-" operator and returns its operand with the sign reversed: (- $operand). If $operand is positive, its negative is returned; if it it is negative, its positive is returned.

3.4 Comparisons of Numeric Values

We define the following comparison operators on numeric values. Comparisons take two arguments of the same type. If the arguments are of different types, one argument is promoted to the type of the other. Each comparison operator returns a boolean value. If either, or both, operands are "NaN", false is returned.

[Issue 8: Relationships Between Some Numeric Types Should Be Reconsidered]

[Issue 87: It would be convenient to have compare functions such as compare-gte rather than just one compare function.]

[Issue 113: Need more complete numeric comparison semantics]

3.4.1 op:numeric-equal

op:numeric-equal(numeric $operand1, numeric $operand2) => boolean

Returns true if and only if $operand1 is exactly equal to $operand2. This function backs up the "eq" operator on numeric values.

3.4.2 op:numeric-less-than

op:numeric-less-than(numeric $operand1, numeric $operand2) => boolean

Returns true if and only if $operand1 is less than $operand2. This function backs up the "lt" operator on numeric values.

3.4.3 op:numeric-greater-than

op:numeric-greater-than(numeric $operand1, numeric $operand2) => boolean

Returns true if and only if $operand1 is greater than $operand2. This function backs up the "gt" operator on numeric values.

3.4.4 op:numeric-less-than-or-equal

op:numeric-less-than-or-equal(numeric $operand1, numeric $operand2) => boolean

Returns true if and only if $operand1 is less than or equal to $operand2. This function backs up the "le" operator on numeric values.

3.4.5 op:numeric-greater-than-or-equal

op:numeric-greater-than-or-equal(numeric $operand1, numeric $operand2) => boolean

Returns true if and only if $operand1 is greater than or equal to $operand2. This function backs up the "ge" operator on numeric values.

3.4.6 op:numeric-not-equal

op:numeric-not-equal(numeric $operand1, numeric $operand2) => boolean

Returns true if and only if $operand1 is not equal to $operand2. This function backs up the "ne" operator on numeric values.

3.5 Functions on Numeric Values

The following functions are defined on these numeric types. Each function returns an integer except:

  • If the argument is the empty sequence, the empty sequence is returned.

  • If the argument is "NaN", "NaN" is returned.

[Issue 79: How many digits of precision (etc.) are returned from certain functions?]

[Issue 142: Should floor ceiling and round return the same type as their argument? ]

3.5.1 xf:floor

xf:floor(double? $srcval) => integer?

Returns the largest (closest to positive infinity) integer that is not greater than the value of $srcval. If the argument is the empty sequence, returns the empty sequence.

3.5.1.1 Examples
  • xf:floor(10.5) returns 10.

  • xf:floor(-10.5) returns -11.

3.5.2 xf:ceiling

xf:ceiling(double? $srcval) => integer?

Returns the smallest (closest to negative infinity) number that is not smaller than the value of $srcvaland that is an integer. If the argument is the empty sequnce, returns the empty sequence.

3.5.2.1 Examples
  • xf:ceiling(10.5) returns 11.

  • xf:ceiling(-10.5) returns -10.

3.5.3 xf:round

xf:round(double? $srcval) => integer?

Returns the number that is closest to the argument and that is an integer. More formally, round(x) produces the same result as floor(x+0.5). These semantics are consistent with Java's semantics. If there are two such numbers, then the one that is closest to positive infinity is returned. If the argument is NaN, then NaN is returned. If the argument is positive infinity, then positive infinity is returned. If the argument is negative infinity, then negative infinity is returned. If the argument is positive zero, then positive zero is returned. If the argument is negative zero, then negative zero is returned. If the argument is less than zero, but greater than or equal to -0.5, then negative zero is returned. If the argument is the empty sequnce, returns the empty sequence.

3.5.3.1 Examples
  • xf:round(2.5) returns 3.

  • xf:round(2.4999) returns 2.

  • xf:round(-2.5) returns -2 (not the possible alternative, -3).

4 Constructors and Functions on Strings

This section discusses functions and operators on the [XML Schema Part 2: Datatypes] string datatype and the datatypes derived from string.

4.1 String Types

The operators described in this section are defined on the following string types.

string
normalizedString
token
language
NMTOKEN
Name
NCName
ID
IDREF
ENTITY

They also apply to user-defined types derived by restriction from these types.

[Issue 54: Certain constructors are not useful]

4.2 String Constructors

The following constructors are defined on string types. Each constructor takes a single string literal as argument.

ConstructorMeaning
xf:string Produces a string value by parsing and interpreting a supplied string.
xf:normalizedString Produces a normalizedString — the XML Schema datatype — value by parsing and interpreting a string
xf:token Produces a token value by parsing and interpreting a string.
xf:language Produces a language value by parsing and interpreting a string.
xf:Name Produces a Name value by parsing and interpreting a string.
xf:NMTOKEN Produces an NMTOKEN value by parsing and interpreting a string.
xf:NCName Produces an NCName value by parsing and interpreting a string.
xf:ID Produces an ID value by parsing and interpreting a string.
xf:IDREF Produces an IDREF value by parsing and interpreting a string.
xf:ENTITY Produces an ENTITY value by parsing and interpreting a string.

[Issue 14: Some function signatures are unclear about argument types]

[Issue 90: Constructors for id and idref need a document context for validity.]

[Issue 107: Notion of document context required?]

4.2.1 xf:string

xf:string(string $srcval) => string

Returns a string value that is the value of $srcval. This constructor is correctly perceived as a "no-op", but is included for the sake of orthogonality.

4.2.1.1 Examples
  • xf:string('abc') returns "abc".

  • If the context of an XML document, xf:string('Jéro&#x0302;me') returns "Jérôme". (The "&#x0302;" is the numeric code reference for the Unicode character U+0302, called "Combining Circumflex Accent". It is represented here with a numeric character reference that must be expanded by the XML parser; the constructors do not search for or replace numeric character references.)

    Note:

    The preceding semantic is correct if and only if this document requires the use of Unicode Normalization Form C (NFC) semantics for this constructor. [Character Model for the World Wide Web 1.0] requires normalization following certain operations, so it may be appropriate to mandate it here, too.

4.2.2 xf:normalizedString

xf:normalizedString(string $srcval) => normalizedString

Returns a normalizedString — the XML Schema datatype — value that is the value of $srcval. Every character contained in $srcval that is a line feed (#xA) is removed from the returned value.

If the argument string passed to a constructor is not a valid value in the lexical space of normalizedString as specified in [XML Schema Part 2: Datatypes], then the constructor returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model]. Note that the argument to construct a normalizedString cannot contain the carriage return (#xD) or the tab (#x9) character.

4.2.2.1 Examples
  • xf:normalizedString('abc') returns "abc".

  • In the context of an XML document, xf:normalizedString('ab&#xA;cd') returns "abcd". (The "&#xA;" is a numeric character reference that must be expanded by the XML parser.)

  • In the context of an XML document, xf:normalizedString('ab&#xD;cd') returns the error value. (The "&#xD;" is a numeric character reference that must be expanded by the XML parser.)

4.2.3 xf:token

xf:token(string $srcval) => token

Returns a token value that is the value of $srcval. Note that the argument to construct a token must not contain the line feed (#xA) nor tab (#x9) characters, have no leading or trailing spaces (#x20), and must have no internal sequences of two or more spaces. If the argument string passed to a constructor results in an error, the constructor returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

[Issue 46: xf:token: Should other Unicode space characters be considered?]

4.2.4 xf:language

xf:language(string $srcval) => language

Returns a language value that is the value of $srcval. Note that the value of $srcval to construct a value of type language must be a valid language identifier as defined in the language identification section of [XML 1.0 Recommendation (Second Edition)]. If the argument string passed to a constructor results in an error (for example, xyx is not a valid language identifier), the constructor returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

4.2.5 xf:Name

xf:Name(string $srcval) => Name

Returns a Name value that is the value of $srcval. Note that the value of $srcval to construct a value of type Name must match the Name production of [XML 1.0 Recommendation (Second Edition)]. If the argument string passed to a constructor results in an error, the constructor returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

4.2.6 xf:NMTOKEN

xf:NMTOKEN(string $srcval) => NMTOKEN

Returns an NMTOKEN value that is the value of $srcval. Note that the value of $srcval to construct a value of type NMTOKEN must match the Nmtoken production of [XML 1.0 Recommendation (Second Edition)]. If the argument string passed to a constructor results in an error, the constructor returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

4.2.7 xf:NCName

xf:NCName(string $srcval) => NCName

Returns an NCName value that is the value of $srcval. Note that the value of $srcval to construct a value of type NCName must match the NCName production of [XML 1.0 Recommendation (Second Edition)]. If the argument string passed to a constructor results in an error, the constructor returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

4.2.8 xf:ID

xf:ID(string $srcval) => ID

Returns an ID value that is the value of $srcval. Note that the value of $srcval to construct a value of type ID must match the NCName production of [XML 1.0 Recommendation (Second Edition)]. If the argument string passed to a constructor results in an error, the constructor returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

The semantic correctness of ID values (that they must be unique within a given document) is not enforced by the xf:ID function.

4.2.9 xf:IDREF

xf:IDREF(string $srcval) => IDREF

Returns an IDREF value that is the value of $srcval. Note that the value of $srcval to construct a value of type IDREF must match the NCName production of [XML 1.0 Recommendation (Second Edition)]. If the argument string passed to a constructor results in an error, the constructor returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

The semantic correctness of IDREF values (that there must be a corresponding ID value in the same document) is not enforced by the xf:IDREF function.

4.2.10 xf:ENTITY

xf:ENTITY(string $srcval) => ENTITY

Returns an ENTITY value that is the value of $srcval. Note that the value of $srcval to construct a value of type ENTITY must match the NCName production of [XML 1.0 Recommendation (Second Edition)]. If the argument string passed to a constructor results in an error, the constructor returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

4.3 Equality and Comparison of Strings

The [Character Model for the World Wide Web 1.0] discusses the fact that strings from a particular character set may need to be collated (sorted) differently for different applications. Thus, the collation needs to be taken into account when comparing strings in any context. Several functions in this and the following section make use of a collation.

In this document, we assume that collations can be named and the collation name, specified as a literal, is used as an argument to the comparison function. This document will also define the manner in which a default collation is determined, allowing the collation argument to be optional in the functions that allow it.

[Issue 44: Collations: URIs and URI references or short names?]

[Issue 70: How are "default" collations determined?]

Some collations can be "tailored" for various purposes. See [Unicode Collation Algorithm]. This document does not discuss tailoring. Instead, we assume that the collation argument to the various functions below is a tailored and named collation.

A specially named collation provides the ability to compare strings based on codepoint values.

A user who wishes to preserve the XPath 1.0 semantics of "<" and ">" can define a collation that converts each string to a number and then compares them numerically.

Collations can also indicate that some characters that are rendered differently are, in fact equal for collation purpose (e.g., "uve" and "uwe" are considered equivalent in some European languages). Thus, strings can be compared character-by-character or in a logical manner based on the collation.

[Issue 45: Collations: Is there a relationship to xml:lang?]

The [Character Model for the World Wide Web 1.0] recommends that all strings be subjected to Unicode normalization early and, thus, string comparisons need only be defined on normalized strings. If this is not the case, then we may also want to compare unnormalized strings based on their normalized representations.

FunctionMeaningSource
xf:compare Compares two character strings; a collation may optionally be specifiedXSLT 2.0, Req. 2.13 (Could)

[Issue 73: Is a "between" function needed?]

[Issue 87: It would be convenient to have compare functions such as compare-gte rather than just one compare function.]

[Issue 104: Need equality and inequality operators for strings.]

[Issue 140: Should the < and > operators apply to strings?]

4.3.1 xf:compare

xf:compare(string? $comparand1, string? $comparand2) => integer?
xf:compare(string? $comparand1, string? $comparand2, anyURI $collationLiteral) => integer?

Returns -1, 0, or 1, depending on whether the value of the $comparand1 is respectively less than, equal to, or greater than the value of $comparand2, according to the rules of the collation that is used.

If $collationLiteral is specified, then the value of $collationLiteral must identify a collation that is supported in the environment in which the function is invoked. Either an absolute URI or a relative URI may be specified. The collation identified by $collationLiteral, while effectively based on the Unicode Collation Algorithm, has implementation-defined semantics.

If no collation is specified, then the default collation is used. The default collation is determined according to the rules in TO BE DETERMINED.

If the value of $comparand2 begins with a string that is equal to the value of $comparand1 (according to the collation that is used) and has additional characters following that beginning string, then the result is -1. If the value of $comparand1 begins with a string that is equal to the value of $comparand2 (according to the collation that is used) and has additional characters following that beginning string, then the result is 1.

If either argument is the empty sequence, the result is the empty sequence.

This function backs up the "eq" operator on string values.

[Issue 141: Does string equality use the codepoint collation or the default collation?]

4.3.1.1 Examples
  • xf:compare('abc', 'abc') returns 0.

  • xf:compare('Strasse', 'Straße') returns 0 if and only if the default collation includes provisions that equate "ss" and the (German) character "ß" ("sharp-s"). (Otherwise, the returned value depends on the semantics of the default collation.)

  • xf:compare('Strasse', 'Straße', anyURI('deutsch')) returns 0 if and only if the collation identified by the relative URI constructed from the string value "deutsch" includes provisions that equate "ss" and the (German) character "ß" ("sharp-s"). (Otherwise, the returned value depends on the semantics of that collation.)

  • xf:compare('Strassen', 'Straße') returns 1 if and only if the default collation includes provisions that equate "ss" and the (German) character "ß" ("sharp-s"). (Since the value of $comparand1 has an additional character, an "n", following the string that is equal to "Straße", it is greater than the value of $comparand2.)

4.4 Functions on String Values

The following functions are defined on these string types. Several of these function use a collation. See 4.3 Equality and Comparison of Strings for a discussion of collations.

FunctionMeaningSource
xf:concat Concatenates two or more character strings. XPath 1.0
xf:starts-with Indicates whether the value of one string begins with the characters of the value of another string.
xf:ends-with Indicates whether the value of one string ends with the characters of the value of another string.
xf:contains Indicates whether the value of one string contains the characters of the value of another string. A collation may optionally be specified. XPath 1.0
xf:substring Returns a string located at a specified place in the value of a string. XPath 1.0
xf:string-length Returns the length of the argument. XPath 1.0
xf:substring-before Returns the characters of one string that precede in that string the characters in the value of another string. A collation may optionally be specified. XPath 1.0
xf:substring-after Returns the characters of one string that precede in that string the characters in the value of another string. A collation may optionally be specified. XPath 1.0
xf:normalize-space Returns the whitespace-normalized value of the argument.XPath 1.0
xf:normalize-unicode Returns the normalized value of the first argument in the normalization form specified by the second argument.XPath 2.0 Req 2.9 (Should)
xf:upper-case Returns the upper-cased value of the argument. XPath 2.0 Req 2.4.3 (Should)
xf:lower-case Returns the lower-cased value of the argument. XPath 2.0 Req 2.4.3 (Should)
xf:translate Returns the first argument string with occurrences of characters in the second argument replaced by the character at the corresponding position in the third string. XPath 1.0
xf:string-pad Returns a string composed of as many copies of its first argument as specified in its second argument.XPath 2.0 Req 2.4.2, 4.4 (Should)
xf:match Returns a sequence of integers indicating the positions in the value of the first argument that are matched by the regular expression that is the value of the second argument. XPath 2.0 Req 3. (Must)
xf:replace Returns the first argument with every substring matched by the second argument replaced by the value of the third argument. XPath 2.0 Req 2.4.1. (Should)

[Issue 23: "Returns a copy" is not appropriate wording]

[Issue 21: What is the precise type returned by each function?]

[Issue 37: Linguistic contains required?]

[Issue 94: Must allow searching for words near other words. ]

[Issue 143: Should we add a tokenize function to break a string into tokens?]

4.4.1 Usage Notes

Note that the resulting string after operations such as concatenation or substring must be normalized. See [Character Model for the World Wide Web 1.0].

[Issue 108: Should strings always be returned in Unicode normalized form?]

Note also that when the above operators and functions are applied to datatypes derived from string, they are guaranteeed to return legal strings, but they may not return legal value for the particular subtype to which they were applied.

[Issue 20: Many uses of "character" should be "codepoint"]

4.4.2 xf:concat

xf:concat() => string
xf:concat(string? $op1) => string
xf:concat(string? $op1, string? $op2, ...) => string

Accepts zero or more strings as arguments. Returns the string that is the concatenation of the values of its arguments. The resulting string might not be normalized in any Unicode or W3C normalization. If called with no arguments, returns the empty string. If any of the arguments is the empty sequence it is treated as the empty string.

The concat() function is specified to allow an arbitrary number of string arguments that are concatenated together. This capability is retained for compatibility with [XPath 1.0] and is the only function specified in this document that has that characteristic.

[Issue 144: Should the concat function accept sequences as arguments? ]

4.4.2.1 Examples
  • xf:concat('abc', 'def') returns "abcdef".

  • xf:concat('abc') returns abc.

  • xf:concat('abc', 'def', 'ghi', 'jkl', 'mno') returns "abcdefghijklmno".

  • xf:concat(()) returns "".

4.4.3 xf:starts-with

xf:starts-with(string? $operand1, string? $operand2) => boolean?
xf:starts-with(string? $operand1, string? $operand2, anyURI $collationLiteral) => boolean?

Returns a boolean indicating whether or not the value of $operand1 starts with a string that is equal to the value of $operand2 according to the collation that is used.

If the value of $operand2 is the zero-length string, then the function returns true. If the value of $operand1 is the zero-length string and the value of $operand2 is not the zero-length string, then the function returns false.

If the value of $operand1 or $operand2 is the empty sequence, the empty sequence is returned.

If $collationLiteral is specified, then the value of $collationLiteral must identify a collation that is supported in the environment in which the function is invoked. Either an absolute URI or a relative URI may be specified. The collation identified by $collationLiteral, while effectively based on the Unicode Collation Algorithm, has implementation-defined semantics.

If no collation is specified, then the default collation is used. The default collation is determined according to the rules in TO BE DETERMINED.

4.4.3.1 Examples
  • xf:starts-with("goldenrod", "gold") returns true.

  • xf:starts-with("goldenrod", "") returns true.

  • xf:starts-with("goldenrod", "rod") returns false.

4.4.4 xf:ends-with

xf:ends-with(string? $operand1, string? $operand2) => boolean?
xf:ends-with(string? $operand1, string? $operand2, anyURI $collationLiteral) => boolean?

Returns a boolean indicating whether or not the value of $operand1 ends with a string that is equal to the value of $operand2 according to the specified collation.

If the value of $operand2 is the zero-length string, then the function returns true. If the value of $operand1 is the zero-length string and the value of $operand2 is not the zero-length string, then the function returns false.

If the value of $operand1 or $operand2 is the empty sequence, the empty sequence is returned.

If $collationLiteral is specified, then the value of $collationLiteral must identify a collation that is supported in the environment in which the function is invoked. Either an absolute URI or a relative URI may be specified. The collation identified by $collationLiteral, while effectively based on the Unicode Collation Algorithm, has implementation-defined semantics.

If no collation is specified, then the default collation is used. The default collation is determined according to the rules in TO BE DETERMINED.

4.4.4.1 Examples
  • xf:ends-with("goldenrod","rod") returns true.

  • xf:ends-with("", "rod") returns false.

4.4.5 xf:contains

xf:contains(string? $operand1, string? $operand2) => boolean?
xf:contains(string? $operand1, string? $operand2, anyURI $collationLiteral) => boolean?

Returns a boolean indicating whether or not the value of $operand1 contains (at the beginning, at the end, or anywhere within) a string equal to the value of $operand1 according to the collation that is used.

If the value of $operand2 is the zero-length string, then the function returns true. If the value of $operand1 is the zero-length string and the value of $operand2 is not the zero-length string, then the function returns false.

If the value of $operand1 or $operand2 is the empty sequence, the empty sequence is returned.

If $collationLiteral is specified, then the value of $collationLiteral must identify a collation that is supported in the environment in which the function is invoked. Either an absolute URI or a relative URI may be specified. The collation identified by $collationLiteral, while effectively based on the Unicode Collation Algorithm, has implementation-defined semantics.

If no collation is specified, then the default collation is used. The default collation is determined according to the rules in TO BE DETERMINED.

4.4.6 xf:substring

xf:substring(string? $sourceString, decimal? $startingLoc) => string?
xf:substring(string? $sourceString, decimal? $startingLoc, decimal? $length) => string?

Returns the portion of the value of $sourceString beginning at the position indicated by the value of $startingLoc and continuing for the number of characters indicated by the value of $length.

If the value of $startingLoc is negative or greater than the length of $sourceString an error value as defined in [XQuery 1.0 and XPath 2.0 Data Model] is returned.

If $length is not specified, then the substring identifies characters to the end of $sourceString.

The value of $length can be greater than the number of characters in the value of $sourceString following the beginning position, in which case the substring identifies characters to the end of $sourceString.

The first character of a string is located at position 1 (not position 0).

If the value of any of the three parameters is the empty sequence, the empty sequence is returned.

4.4.6.1 Examples
  • xf:substring("motor car", 6) returns " car".

  • xf:substring("metadata", 4, 3) returns "ada".

4.4.7 xf:string-length

xf:string-length(string? $srcval) => integer?

Returns an integer equal to the length in characters of the value of $srcval. If the value of $srcval is the empty sequence, the empty sequence is returned.

4.4.7.1 Examples
  • xf:string-length("first we kill the lawyers") returns 25.

4.4.8 xf:substring-before

xf:substring-before(string? $operand1, string? $operand2) => string?
xf:substring-before(string? $operand1, string? $operand2, anyURI $collationLiteral) => string?

Returns the substring of the value of $operand1 that precedes in the value of $operand1 the first occurrence of a string that is equal to the value of $operand2 according to the collation that is used.

If the value of $operand2 is the zero-length string, then the function returns the value of $operand1. If the value of $operand1 is the zero-length string and the value of $operand2 is the zero-length string, then the function returns the zero-length string.

If the value of $operand1 does not contain a string that is equal to the value of $operand2, then the function returns the empty string.

If the value of $operand1 or $operand2 is the empty sequence, returns the empty sequence.

If $collationLiteral is specified, then the value of $collationLiteral must identify a collation that is supported in the environment in which the function is invoked. Either an absolute URI or a relative URI may be specified. The collation identified by $collationLiteral, while effectively based on the Unicode Collation Algorithm, has implementation-defined semantics.

If no collation is specified, then the default collation is used. The default collation is determined according to the rules in TO BE DETERMINED.

4.4.8.1 Examples
  • xf:substring-before("abcdabcd","d") returns "abc".

  • xf:substring-before("abcd","") returns "abcd".

4.4.9 xf:substring-after

xf:substring-after(string? $operand1, string? $operand2) => string?
xf:substring-after(string? $operand1, string? $operand2, anyURI $collationLiteral) => string?

Returns the substring of the value of $operand1 that follows in the value of $operand1 the first occurrence of a string that is equal to the value of $operand2 according to the collation that is used.

If the value of $operand2 is the zero-length string, then the function returns the value of $operand1. If the value of $operand1 is the zero-length string and the value of $operand2 is the zero-length string, then the function returns the zero-length string.

If the value of $operand1 does not contain a string that is equal to the value of $operand2, then the function returns the zero-length string.

If the value of $operand1 or $operand2 is the empty sequence, returns the empty sequence.

If $collationLiteral is specified, then the value of $collationLiteral must identify a collation that is supported in the environment in which the function is invoked. Either an absolute URI or a relative URI may be specified. The collation identified by $collationLiteral, while effectively based on the Unicode Collation Algorithm, has implementation-defined semantics.

If no collation is specified, then the default collation is used. The default collation is determined according to the rules in TO BE DETERMINED.

4.4.9.1 Examples
  • xf:substring-after("abcdabcd","d") returns "abcd".

4.4.10 xf:normalize-space

xf:normalize-space(string? $srcval) => string?

Returns the value of the string argument with whitespace normalized by stripping leading and trailing whitespace and replacing sequences of more than one whitespace character by a single space. If the value of $srcval is the empty sequence, returns the empty sequence.

4.4.10.1 Examples
  • xf:normalize-space(" hello world ") returns "hello world".

4.4.11 xf:normalize-unicode

xf:normalize-unicode(string? $srcval, string $normalizationForm) => string?

Returns the value of $srcval normalized according to the normalization criteria for a normalization form identified by the value of $normalizationForm. The effective value of the $normalizationForm is computed by removing leading and trailing blanks, if present, and converting to upper case:

  • If the effective value of $normalizationForm is "NFC", then the value returned by the function is the value of $srcval in Unicode Normalization Form C (NFC).

  • If the effective value of $normalizationForm is "NFD", then the value returned by the function is the value of $srcval in Unicode Normalization Form D (NFD).

  • If the effective value of $normalizationForm is "W3C", then the value returned by the function is the value of $srcval in W3C Normal Form.

If the effective value of the $normalizationForm is other than the above three values, returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

If the value of $srcval is the empty sequence, returns the empty sequence.

Note:

Are these forms sufficient, or are Unicode KC and KD (and perhaps other) forms also required?

4.4.12 xf:upper-case

xf:upper-case(string? $srcval) => string?

Returns the value of $srcval after translating every lower-case letter to its upper-case correspondent. Every lower-case letter that does not have an upper-case correspondent, and every character that is not a lower-case letter, is included in the returned value in its original form.

A "lower-case letter" is a character whose Unicode General Category class includes "Ll". The corresponding upper-case letter is determined using [Unicode Case Mappings].

If the value of $srcval is the empty sequence, returns the empty sequence.

4.4.12.1 Examples
  • xf:upper-case("abCd0") returns "ABCD0".

4.4.13 xf:lower-case

xf:lower-case(string? $srcval) => string?

Returns the value of $srcval after translating every upper-case letter to its lower-case correspondent. Every upper-case letter that does not have a lower-case correspondent, and every character that is not an upper-case letter, is included in the output in its original form.

An "upper-case letter" is a character whose Unicode General Category class includes "Lu". The corresponding lower-case letter is determined using [Unicode Case Mappings].

If the value of $srcval is the empty sequence, returns the empty sequence.

4.4.13.1 Examples
  • xf:lower-case("ABc!D") returns "abc!d".

4.4.14 xf:translate

xf:translate(string? $srcval, string? $mapString, string? $transString) => string?

Returns the value of $srcval modified so that every character in the value of $srcval that occurs at some position N in the value of $mapString has been replaced by the character that occurs at position N in the value of $transString.

Every character in the value of $srcval that does not appear in the value of $mapString is unchanged.

Every character in the value of $srcval that appears at some position M in the value of $mapString, where the value of $transString is less than M characters in length, is omitted from the returned value.

If the value of $srcval or $mapString or $transString is the empty sequence, returns the empty sequence.

4.4.14.1 Examples
  • xf:translate("abcdabc", "abc", "AB") returns "ABdAB".

4.4.15 xf:string-pad

xf:string-pad(string? $padString, decimal? $padCount) => string?

Returns a string consisting of $padCount copies of $padString concatenated together. Returns the empty string if $padCount is zero.

If the value of $padCount is less than zero, the function returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

If the value of $padString or $padCount is the empty sequence, returns the empty sequence.

4.4.15.1 Examples
  • xf:string-pad("XMLQuery", 2) returns "XMLQueryXMLQuery".

  • xf:string-pad(" ", 4) returns a string containing four spaces.

  • xf:string-pad(" ", 0) returns the empty string.

  • xf:string-pad(" ", -3) returns error.

4.4.16 xf:match

xf:match(string? $srcval, string? $regexp) => integer*

Returns a list of integers that identify the offset of the location within the value of $srcval that is matched by the regular expression that is the value of $regexp.

If there is no substring of $srcval that matches the regular expression, the empty sequence is returned. Otherwise, a sequence of two integers is returned: the first integer is the position of the start of the substring and the second integer is the length of the substring that matches.

If the value of $srcval or $regexp is the empty sequence, returns the empty sequence.

Note:

What should be done about the distinction between maximal and minimal matches?

The regular expression in the value of $regexp uses the syntax of regular expressions specified in Appendix F of [XML Schema Part 2: Datatypes].

Comparisons of characters and character strings are compared on a character by character basis using the Unicode values for each character.

[Issue 74: Is a "match-exact()" function needed?]

[Issue 75: The semantics of match() and replace() are incompletely specified]

[Issue 81: What are the precise semantics of regular expressions?]

4.4.16.1 Examples
  • match("abcabc", "[ab]") returns {1, 2}.

  • match("abcabc", "[xyz]") returns the empty sequence.

4.4.17 xf:replace

xf:replace(string? $srcval, string? $regexp, string? $repval) => string?

Returns the value of $srcval in which every substring of the value of $srcval that is matched by the regular expression that is the value of $regexp, has been replaced by a copy of the value of $repval.

Ordinary regular expression semantics are used. Among other characteristics, if the value of $regexp is an ordinary character string without any of the "special characters" that give regular expressions their semantics, then the phrase "matched by the regular expression" is equivalent in meaning to "equal to the string".

The value of $repval may use the standard regular expression syntax of "$N" (where N is some integer) to represent the N-th part of the matched pattern indicated by parentheses in the value of $regexp.

Comparisons of characters and character strings are compared on a character by character basis using the Unicode values for each character.

If the value of $srcval or $regexp or $repval is the empty sequence, returns the empty sequence.

[Issue 75: The semantics of match() and replace() are incompletely specified]

4.4.17.1 Examples
  • replace("abcabc", "[ab]", "x") returns "xxcxxc".

  • replace("aFOOa aBARa", "a(.*)a", "b$1b") would retain the characters matched by the first parenthesized component ($1) of the regular expression and replace the remaining portion as indicated, returning "bFOOb bBARb".

5 Constructors, Functions and Operators on Booleans

This section discusses operators on the [XML Schema Part 2: Datatypes] boolean datatype.

5.1 Boolean Constructors

The following constructors are defined on the boolean type.

ConstructorMeaningSource
xf:true booleanXPath 1.0
xf:false booleanXPath 1.0
xf:boolean-from-string boolean

5.1.1 xf:true

xf:true() => boolean

Returns the boolean value true.

5.1.1.1 Examples
  • xf:true() returns true.

5.1.2 xf:false

xf:false() => boolean

Returns the boolean value false.

5.1.2.1 Examples
  • xf:false() returns false.

5.1.3 xf:boolean-from-string

xf:boolean-from-string(string $srcval) => boolean

Takes a single string literal as argument. Leading and trailing whitespace, if present, is stripped from the literal and it is converted to upper case before the value is constructed. This is it's effective value. If the effective value of $srcval is "TRUE", then this constructor returns the boolean value true; if the effective value of $srcval is "FALSE", then this constructor returns the boolean value false.

If the effective value of $srcval is any value other than "TRUE" or "FALSE", the constructor returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

[Issue 157: boolean-from-string should accept only 1, 0, true, false.]

5.1.3.1 Examples
  • xf:boolean-from-string("True") returns true.

  • xf:boolean-from-string("fAlSe") returns false.

5.2 Operators on Boolean Values

The following operators are defined on these boolean types:

5.2.1 op:boolean-and

op:boolean-and(boolean $value1, boolean $value2) => boolean

The arguments and return type are all boolean. The result is true if both values are true and false if one of the values is false. The second operand is not evaluated if the first operand evaluates to false.

This function backs up the "and" operator

5.2.2 op:boolean-or

op:boolean-or(boolean $value1, boolean $value2) => boolean

The arguments and return type are all boolean. The result is false if both values are false and true if one of the values is true. The second operand is not evaluated if the first operand evaluates to true.

This function backs up the "or" operator.

5.2.3 op:boolean-equal

op:boolean-equal(boolean? $value1, boolean? $value2) => boolean?

The arguments and return type are all boolean. The result is true if both arguments are true or if both arguments are false. The result is false if one of the arguments is true and the other argument is false. Otherwise, returns the empty sequence.

This function backs up the "eq" operator on boolean values.

5.3 Functions on Boolean Values

The following functions are defined on boolean types:

FunctionMeaningSource
xf:not Inverts the boolean value of the argument. A () argument returns true.XPath 1.0
xf:not3 The 3-valued not function. Inverts the boolean value of the argument. A () argument returns ().XPath 1.0

5.3.1 xf:not

xf:not(boolean? $srcval) => boolean

Returns true if the value of $srcval is false and false if the value of $srcval is true. Returns true if the value of $srcval is the empty sequence.

5.3.1.1 Examples
  • xf:not(xf:true()) returns false.

5.3.2 xf:not3

xf:not3(boolean? $srcval) => boolean?

Implements the [SQL] NOT operator. Returns true if the value of $srcval is false and false if the value of $srcval is true. Returns the empty sequence if the value of $srcval is the empty sequence.

5.3.2.1 Examples
  • xf:not3(xf:false()) returns true.

  • xf:not3(()) returns ().

[Issue 134: What should be the name of the three-valued-logic NOT function?]

6 Constructors, Functions, and Operators on Dates and Times

This section discusses operators on the [XML Schema Part 2: Datatypes] date and time types.

[Issue 47: Should the design of the date (and time) functions be such that they could be generalized to full I18N support and what level of I18N support should be included in version 1.0? ]

[Issue 109: Calendar context allows for non-Gregorian calendars]

[Issue 136: Should we allow casting a date/time from one timezone to another?]

[Issue 153: Should we add functions to add/subtract durations and multiply a duration by a number? ]

6.1 Duration and Datetime Types

The operators described in this section are defined on the following duration and datetime types.

  • duration

  • dateTime

  • date

  • time

  • gYearMonth

  • gYear

  • gMonthDay

  • gMonth

  • gDay

CONFORMANCE NOTE

For a number of the above datatypes [XML Schema Part 2: Datatypes] extends the basic [ISO 8601] lexical representations, such as YYYY-MM-DDThh:mm:ss.s for dateTime, by allowing more than four digits to represent the year field -- no maximum is specified -- and an unlimited number of digits for fractional seconds.

For this specification, all minimally conforming processors must support year values with a minimum of 4 digits (i.e., YYYY) and a minimum fractional second precision of 100 nanoseconds or eight digits (i.e. s.ssssssss). However, conforming processors may set larger application-defined limits on the maximum number of digits they support in these two situations, in which case those application-defined maximum numbers must be clearly documented.

[Issue 159: For fractional seconds precision use 6 digits to match SQL TIMESTAMP.]

6.2 Duration and Datetime Constructors

The following constructors are defined on duration and datetime datatypes. Each constructor takes a single string literal as argument. Leading and trailing whitespace, if present, is stripped from the literal before the value is constructed.

ConstructorMeaning
xf:duration Returns a duration type derived by parsing and interpreting a string value.
xf:dateTime Returns a dateTime type derived by parsing and interpreting a string value.
xf:date Returns a date type derived by parsing and interpreting a string value.
xf:time Returns a time type derived by parsing and interpreting a string value.
xf:gYearMonth Returns a gYearMonth type derived by parsing and interpreting a string value.
xf:gYear Returns a gYear type derived by parsing and interpreting a string value.
xf:gMonthDay Returns a gMonthDay type derived by parsing and interpreting a string value.
xf:gMonth Returns a gMonth type derived by parsing and interpreting a string value.
xf:gDay Returns a gDay type derived by parsing and interpreting a string value.

6.2.1 xf:duration

xf:duration(string $srcval) => duration

If the value of $srcval conforms to the lexical representation of a duration as defined in [XML Schema Part 2: Datatypes], the constructor returns the duration corresponding to that representation. Otherwise, the constructor returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

6.2.1.1 Examples
  • xf:duration("P1Y") returns the duration value corresponding to one year.

  • xf:duration("P1Y2MT2H") returns the duration value corresponding to one year, two months and two hours.

6.2.2 xf:dateTime

xf:dateTime(string $srcval) => dateTime

If the value of $srcval conforms to the lexical representation of a dateTime as defined in [XML Schema Part 2: Datatypes], the constructor returns the dateTime corresponding to that representation. Otherwise, the constructor returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

6.2.2.1 Examples
  • xf:dateTime("1999-05-31T05:00:00") returns a dateTime value corresponding to the 31st. of May, 1999 at 5:00 AM in an unspecified timezone.

  • xf:dateTime("1999-05-31T13:20:00-05:00") returns a dateTime value corresponding to 1:20 pm on May the 31st, 1999 for a timezone which is 5 hours behind Coordinated Universal Time (UTC).

6.2.3 xf:date

xf:date(string $srcval) => date

If the value of $srcval conforms to the lexical representation of a date as defined in [XML Schema Part 2: Datatypes], the constructor returns the date corresponding to that representation. Otherwise, the constructor returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

6.2.3.1 Examples
  • xf:date("2001-5-31") returns a date value corresponding to the 31st of May, 2001.

  • xf:date("2001-4-31") returns an error.

6.2.4 xf:time

xf:time(string $srcval) => time

If the value of $srcval conforms to the lexical representation of a time as defined in [XML Schema Part 2: Datatypes], the constructor returns the time corresponding to that representation. Otherwise, the constructor returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

6.2.4.1 Examples
  • xf:time("11:33:24") returns a time value corresponding to 33 minutes and 24 seconds past 11 AM in an unspecified timezone.

  • xf:time("23:33:24.35-05:00") returns a time value corresponding to 33 minutes and 24.35 seconds past 11 PM for a timezone which is 5 hours behind Coordinated Universal Time (UTC).

6.2.5 xf:gYearMonth

xf:gYearMonth(string $srcval) => gYearMonth

If the value of $srcval conforms to the lexical representation of a gYearMonth as defined in [XML Schema Part 2: Datatypes], the constructor returns the gYearMonth corresponding to that representation. Otherwise, the constructor returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

6.2.5.1 Examples
  • xf:gYearMonth("2001-4") returns a gYearMonth corresponding to April in the year 2001 in an unspecified timezone.

  • xf:gYearMonth("2001-4Z") returns a gYearMonth corresponding to April in the year 2001 in the Coordinated Universal Time (UTC) timezone.

6.2.6 xf:gYear

xf:gYear(string $srcval) => gYear

If the value of $srcval conforms to the lexical representation of a gYear as defined in [XML Schema Part 2: Datatypes], the constructor returns the gYear corresponding to that representation. Otherwise, the constructor returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

6.2.6.1 Examples
  • xf:gYear("2001") returns a gYear corresponding the year 2001 in an unspecified timezone.

  • xf:gYear("2001-08:00") returns a gYear corresponding the year 2001 in a timezone that is 8 hours behind Coordinated Universal Time (UTC).

6.2.7 xf:gMonthDay

xf:gMonthDay(string $srcval) => gMonthDay

If the value of $srcval conforms to the lexical representation of a gMonthDay as defined in [XML Schema Part 2: Datatypes], the constructor returns the gMonthDay corresponding to that representation. Otherwise, the constructor returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

6.2.7.1 Examples
  • xf:gMonthDay("12-25) returns a gMonthDay corresponding to the 25th. of December in an unspecified timezone.

  • xf:gMonthDay("12-25Z") returns a gMonthDay corresponding to the 25th. of December in the Coordinated Universal Time (UTC) timezone.

6.2.8 xf:gMonth

xf:gMonth(string $srcval) => gMonth

If the value of $srcval conforms to the lexical representation of a gMonth as defined in [XML Schema Part 2: Datatypes], the constructor returns the gMonth corresponding to that representation. Otherwise, the constructor returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

6.2.8.1 Examples
  • xf:gMonth("10") returns a gMonth corresponding to October (the tenth month) in an unspecified timezone.

  • xf:gMonth("10+02:00") returns a gMonth corresponding to October (the tenth month) in a timezone that is 2 hours ahead of Coordinated Universal Time (UTC).

6.2.9 xf:gDay

xf:gDay(string $srcval) => gDay

If the value of $srcval conforms to the lexical representation of a gDay as defined in [XML Schema Part 2: Datatypes], the constructor returns the gDay corresponding to that representation. Otherwise, the constructor returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

6.2.9.1 Examples
  • xf:gDay("13") returns a gDay corresponding to the thirteenth day in an unspecified month and year in an unspecified timezone.

  • xf:gDay("14+02:30") returns a gDay corresponding to the fourteenth day in an unspecified month and year in a timezone that is 2.5 hours ahead of Coordinated Universal Time (UTC).

6.3 Comparisons of Duration and Datetime Values

The following operators are defined on dateTime and duration values. Each operator takes two operands of the same kind and returns a boolean result. As discussed in [XML Schema Part 2: Datatypes], the order relation on the duration and the dateTime datatypes is not a total order but, rather, a partial order. For this reason, operands to these operators are restricted as defined below to return a boolean result.

For the purpose of the operators defined in this section, durations are defined to be of two kinds: those that contain only years and months and those that contain only days, hours, minutes and seconds. In each case some fields may be omitted. These two kinds of durations correspond to the [SQL] interval types year-month interval and day-time interval.

In the same manner, two kinds of dateTimes are defined: those that have timezones and those that do not have timezones. If comparisons are restricted to like kinds of durations and dateTimes a boolean result is always returned. For the operators below, attempting to compare durations or dates of different kinds is an error.

If one or more operands is the empty sequence, the result is the empty sequence.

[Issue 151: Do we need comparison functions on other date and time types?]

6.3.1 op:duration-equal

op:duration-equal(duration $operand1, duration $operand2) => boolean

Returns true if and only if $operand1 is exactly equal to $operand2. Returns false otherwise.

This function backs up the "eq" operator on duration values.

6.3.2 op:duration-less-than

op:duration-less-than(duration $operand1, duration $operand2) => boolean

Returns true if and only if $operand1 is less than $operand2. Returns false otherwise.

This function backs up the "lt" operator on duration values.

6.3.3 op:duration-greater-than

op:duration-greater-than(duration $operand1, duration $operand2) => boolean

Returns true if and only if $operand1 is greater than $operand2. Returns false otherwise.

This function backs up the "gt" operator on duration values.

6.3.4 op:duration-less-than-or-equal

op:duration-less-than-or-equal(duration $operand1, duration $operand2) => boolean

Returns true if and only if $operand1 is less than or equal to $operand2. Returns false otherwise.

This function backs up the "le" operator on duration values.

6.3.5 op:duration-greater-than-or-equal

op:duration-greater-than-or-equal(duration $operand1, duration $operand2) => boolean

Returns true if and only if $operand1 is greater than or equal to $operand2. Returns false otherwise.

This function backs up the "ge" operator on duration values.

6.3.6 op:duration-not-equal

op:duration-not-equal(duration $operand1, duration $operand2) => boolean

Returns true if and only if $operand1 is not equal to $operand2. Returns false otherwise.

This function backs up the "ne" operator on duration values.

6.3.7 op:datetime-equal

op:datetime-equal(dateTime $operand1, dateTime $operand2) => boolean

Returns true if and only if $operand1 is exactly equal to $operand2. Returns false otherwise.

This function backs up the "eq" operator on dateTime values.

6.3.8 op:datetime-less-than

op:datetime-less-than(dateTime $operand1, dateTime $operand2) => boolean

Returns true if and only if $operand1 is less than $operand2. Returns false otherwise.

This function backs up the "lt" operator on dateTime values.

6.3.9 op:datetime-greater-than

op:datetime-greater-than(dateTime $operand1, dateTime $operand2) => boolean

Returns true if and only if $operand1 is greater than $operand2. Returns false otherwise.

This function backs up the "gt" operator on dateTime values.

6.3.10 op:datetime-less-than-or-equal

op:datetime-less-than-or-equal(dateTime $operand1, dateTime $operand2) => boolean

Returns true if and only if $operand1 is less than or equal to $operand2. Returns false otherwise.

This function backs up the "le" operator on dateTime values.

6.3.11 op:datetime-greater-than-or-equal

op:datetime-greater-than-or-equal(dateTime $operand1, dateTime $operand2) => boolean

Returns true if and only if $operand1 is greater than or equal to $operand2. Returns false otherwise.

This function backs up the "ge" operator on dateTime values.

6.3.12 op:datetime-not-equal

op:datetime-not-equal(dateTime $operand1, dateTime $operand2) => boolean

Returns true if and only if $operand1 is not equal to $operand2. Returns false otherwise.

This function backs up the "ne" operator on dateTime values.

6.4 Component Extraction Functions on Datetime Values

The date and time datatypes may be considered to be composite datatypes in that they contain distinct components. The extraction functions specified below extract one component from a date or time value.

[Issue 152: Create a single extraction function for each datatype that takes as a parameter the field it extracts. ]

6.4.1 xf:get-Century-from-dateTime

xf:get-Century-from-dateTime(dateTime? $srcval) => integer?

Returns an integer representing the century component of the year identified in the value of $srcval. If $srcval is the empty sequence, returns the empty sequence.

6.4.1.1 Examples
  • xf:get-Century-from-dateTime(xf:dateTime("1999-05-31T13:20:00-05:00")) returns 19 .

6.4.2 xf:get-Century-from-date

xf:get-Century-from-date(date? $srcval) => integer?

Returns an integer representing the century component of the year identified in the value of $srcval. If $srcval is the empty sequence, returns the empty sequence.

6.4.2.1 Examples
  • xf:get-Century-from-date(xf:date("1999-05-31")) returns 19 .

6.4.3 xf:get-hour-from-dateTime

xf:get-hour-from-dateTime(dateTime? $srcval) => integer?

Returns an integer representing the hour identified in the value of $srcval. The hour value ranges from 0 to 23, inclusive. If $srcval is the empty sequence, returns the empty sequence.

6.4.3.1 Examples
  • xf:get-hour-from-dateTime(xf:dateTime("1999-05-31T13:20:00-05:00")) returns 13 .

6.4.4 xf:get-hour-from-time

xf:get-hour-from-time(time? $srcval) => integer?

Returns an integer representing the hour identified in the value of $srcval. The hour value ranges from 0 to 23, inclusive. If $srcval is the empty sequence, returns the empty sequence.

6.4.4.1 Examples
  • xf:get-hour-from-time(xf:dateTime("11:23:00")) returns 11 .

6.4.5 xf:get-minutes-from-dateTime

xf:get-minutes-from-dateTime(dateTime? $srcval) => integer?

Returns an integer value representing the minute identified in the value of $srcval. The minute value ranges from 0 to 59, inclusive. If $srcval is the empty sequence, returns the empty sequence.

6.4.5.1 Examples
  • xf:get-minutes-from-dateTime(xf:dateTime("1999-05-31T13:20:00-05:00")) returns 20 .

6.4.6 xf:get-minutes-from-time

xf:get-minutes-from-time(time? $srcval) => integer?

Returns an integer value representing the minute identified in the value of $srcval. The minute value ranges from 0 to 59, inclusive. If $srcval is the empty sequence, returns the empty sequence.

6.4.6.1 Examples
  • xf:get-minutes-from-time(xf:time("13:00:00Z")) returns 0 .

6.4.7 xf:get-seconds-from-dateTime

xf:get-seconds-from-dateTime(dateTime? $srcval) => decimal?

Returns a decimal value representing the seconds and fractional seconds identified in the value of $srcval. The value ranges from 0 to 60.999..., inclusive. The number of digits of fractional seconds precision is determined by the relevant facet of the argument. Note that the value can be greater than 60 seconds to accomodate occassional leap seconds used to keep human time synchronized with the rotation of the planet. If $srcval is the empty sequence, returns the empty sequence.

6.4.7.1 Examples
  • xf:get-seconds-from-dateTime(xf:dateTime("1999-05-31T13:20:00-05:00")) returns 0 .

6.4.8 xf:get-seconds-from-time

xf:get-seconds-from-time(time? $srcval) => decimal?

Returns a decimal value representing the seconds and fractional seconds identified in the value of $srcval. The value ranges from 0 to 60.999..., inclusive. The number of digits of fractional seconds precision is determined by the relevant facet of the argument. Note that the value can be greater than 60 seconds to accomodate occassional leap seconds used to keep human time synchronized with the rotation of the planet. If $srcval is the empty sequence, returns the empty sequence.

6.4.8.1 Examples
  • xf:get-seconds-from-time(xf:time("13:20:10.5")) returns 10.5 .

6.4.9 xf:get-timezone-from-dateTime

xf:get-timezone-from-dateTime(dateTime? $srcval) => string?

Returns a string representing the timezone component of $srcval. The result is a duration in "hh:mm" format with an optional leading minus (-) sign, indicating the deviation from GMT (UTC). If $srcval does not contain a timezone, the result is the empty sequence. If $srcval is the empty sequence, returns the empty sequence.

[Issue 110: No timezone: Empty sequence or empty string?]

[Issue 137: Should functions that return timezones return a duration?]

6.4.9.1 Examples
  • xf:get-timezone-from-dateTime(xf:dateTime("1999-05-31T13:20:00-05:00")) returns "-05:00" .

  • xf:get-timezone-from-dateTime(xf:dateTime("2000-06-12T13:20:00Z")) returns "00:00" .

6.4.10 xf:get-timezone-from-date

xf:get-timezone-from-date(date? $srcval) => string?

Returns a string representing the timezone component of $srcval. The result is a duration in "hh:mm" format with an optional leading minus (-) sign, indicating the deviation from GMT (UTC). If $srcval does not contain a timezone, the result is the empty sequence. If $srcval is the empty sequence, returns the empty sequence.

6.4.10.1 Examples
  • xf:get-timezone-from-date(xf:date("1999-05-31-05:00")) returns "-05:00" .

  • xf:get-timezone-from-date(xf:date("2000-06-12Z")) returns "00:00" .

6.4.11 xf:get-timezone-from-time

xf:get-timezone-from-time(time? $srcval) => string?

Returns a string representing the timezone component of $srcval. The result is a duration in "hh:mm" format with an optional leading minus (-) sign, indicating the deviation from GMT (UTC). If $srcval does not contain a timezone, the result is the empty sequence. If $srcval is the empty sequence, returns the empty sequence.

6.4.11.1 Examples
  • xf:get-timezone-from-time(xf:time("13:20:00-05:00")) returns "-05:00" .

  • xf:get-timezone-from-time(xf:time("13:20:00")) returns the empty sequence .

6.5 Arithmetic Functions on Dates

FunctionMeaning
xf:add-days Adds the number of days indicated by the second argument to the first argument.

6.5.1 xf:add-days

xf:add-days(date? $dateParam, decimal? $incrDays) => date?

Adds the number of days indicated by the value of $incrDays to the value of $dateParam. The value of $incrDays may be negative. If the value of $dateparam has a timezone, it remains unchanged. The returned value is always normalized into a correct Gregorian calendar date. If either parameter is the empty sequence, returns the empty sequence.

6.5.1.1 Examples
  • xf:add-days(xf:date("2001-02-28"), 2) returns a date value corresponding to March 2, 2001.

6.6 Functions and Operators on TimePeriod Values

Let us define a time period as an interval or duration of time with a fixed start and end. Thus, time periods have three properties, two of which are independent. The three functions below take two of the properties as arguments and return the third.

These functions require add or subtracting a duration to or from a date. Appendix E of [XML Schema Part 2: Datatypes] describes an algorithm for adding durations to dates.

FunctionMeaning
op:get-duration Returns the difference between two dateTimes as a duration. The two arguments must both have a timezone or both have no timezone.
op:get-end-dateTime Returns the end of a time period by adding a duration to the dateTime that starts the period.
op:get-start-dateTime Returns the beginning of a time period by subtracting a duration from the the dateTime that ends the period.

[Issue 25: Is a normalize function needed for duration types?]

[Issue 96: These functions on time-period values are better written using operators as in SQL.]

6.6.1 op:get-duration

op:get-duration(dateTime $parameter1, dateTime $parameter2) => duration

Returns the duration that corresponds to the difference between the value of $parameter1 and the value of $parameter2. If the value of $parameter1 follows in time the value of $parameter2, then the returned value is a negative duration. The two arguments must both have a timezone or both have no timezone.

This function backs up the "-" operator on dateTime values.

6.6.1.1 Examples
  • op:get-duration(xf:dateTime("2000-10-30T11:12:00"), xf:dateTime("1999-11-28T09:00:00")) returns a duration value corresponding to 11 months, 3 days, 2 hours and 12 minutes.

6.6.2 op:get-end-dateTime

op:get-end-dateTime(dateTime $parameter1, duration $parameter2) => dateTime

Returns the end of a time period by adding a duration ($parameter2) to the dateTime that starts the period ($parameter1). If the duration is negative, then the "end" of the period precedes the "start" of the period. If either parameter is the empty sequence, returns the empty sequence.

This function backs up the "+" operator on a dateTime value and a duration value. May be written as date + duration or duration + date.

6.6.2.1 Examples
  • op:get-end-dateTime(xf:dateTime("2000-10-30T11:12:00"), xf:duration("P5DT13H10M")) returns a dateTime value corresponding to the literal 2000-11-05T00:22:00.

6.6.3 op:get-start-dateTime

xf:get-start-dateTime(dateTime $parameter1, duration $parameter2) => dateTime?

Returns the start of a time period by subtracting the duration of the period ($parameter2) from the dateTime that ends the period ($parameter1). If the duration is negative, then the "start" of the period follows the "end" of the period. If either parameter is the empty sequence, returns the empty sequence.

This function backs up the "-" operator on a dateTime value and a duration value. May be written as date - duration

6.6.3.1 Examples
  • op:get-start-dateTime(xf:dateTime("2000-10-30T11:12:00"), xf:duration("P5DT13H10M")) returns a dateTime value corresponding to the literal 2000-10-24T22:02:00.

7 Constructors and Functions on QNames

7.1 Constructors for QNames

This section discusses constructors for QNames as defined in [XML Schema Part 2: Datatypes]. Each constructor takes one or more single string literals as arguments. Leading and trailing whitespace, if present, is stripped from the literal before the value is constructed.

FunctionMeaningSource
xf:QName-from-uri Returns a QName with the namespace URI given in the first argument and the local name in the second argument.
xf:QName-from-string Accepts a string with a single embedded colon and returns a QName with the namespace URI that maps to the substring in the argument before the colon and the local name in the substring following the colon. The prefix-to-URI mapping uses the namespaces in scope.
xf:QName Returns a QName in no namespace with the local name given in the argument.

7.1.1 xf:QName-from-uri

xf:QName-from-uri(string $paramURI, string $paramLocal) => QName

Returns a QName with the namespace URI given in $paramURI and the local name in $paramLocal.

[Issue 112: QName-from-uri needs context]

7.1.1.1 Examples
  • xf:QName-from-uri("http://www.ashokmalhotra.com/example", "person") returns a QName with namespace URI = "http://www.ashokmalhotra.com/example" and local name = "person".

7.1.2 xf:QName-from-string

xf:QName-from-string(string $param) => QName

Accepts an argument which is a string containing a single colon. The substring before the colon indicates the prefix and the substring following the colon indicates the local name. The two substrings must obey the lexical constraints for prefix and local name, respectively. Returns a QName with the namespace URI that maps to the prefix and the local name. The prefix to URI mapping uses the namespaces in scope.

7.1.2.1 Examples
  • xf:QName-from-string("ashok:person") returns a QName with the namespace URI bound to the prefix "ashok" and local name = "person", provided the namespace URI is in scope. If the namespace URI is not in scope, then the function returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

7.1.3 xf:QName

xf:QName(string $paramLocal) => QName

Returns a QName in no namespace with the local name given in $paramLocal.

[Issue 112: QName-from-uri needs context]

7.1.3.1 Examples
  • xf:QName("person") returns a QName with no namespace URI and local name = "person".

7.2 Functions on QNames

This section discusses functions on QNames as defined in [XML Schema Part 2: Datatypes].

FunctionMeaningSource
xf:get-local-name Returns a string representing the local part of the QName argument.
xf:get-namespace-uri Returns the namespace URI for the QName argument. This may be the empty sequence if the QName is in no namespace.

7.2.1 xf:get-local-name

xf:get-local-name(QName? $srcval) => string?

Returns a string representing the local part of $srcval. If $srcval is the empty sequence, returns the empty sequence.

7.2.1.1 Examples
  • xf:get-local-name(xf:QName-from-uri("http://www.ashokmalhotra.com/example", "person")) returns "person".

7.2.2 xf:get-namespace-uri

xf:get-namespace-uri(QName? $srcval) => anyURI?

Returns the namespace URI for $srcval. If the QName is in no namespace, the empty sequence is returned. If $srcval is the empty sequence, the empty sequence is returned.

[Issue 116: What should get-namespace-uri() return?]

7.2.2.1 Examples
  • xf:get-namespace-uri(xf:QName-from-uri("http://www.ashokmalhotra.com/example", "person")) returns the namespace URI corresponding to "http://www.ashokmalhotra.com/example".

8 Constructors, Functions, and Operators for anyURI

8.1 Constructor for anyURI

This section discusses a constructor for anyURI as defined in [XML Schema Part 2: Datatypes]. The constructor takes a single string literal as argument.

FunctionMeaningSource
xf:anyURI Returns an anyURI with a URI reference as given in the argument.

8.1.1 xf:anyURI

xf:anyURI(string $srcval) => anyURI

Returns an anyURI value with a URI reference specified as the value of $srcval.

8.1.1.1 Examples
  • xf:anyURI("gopher://spinaltap.micro.umn.edu/00/Weather/California/Los%20Angeles") returns the URI with value "gopher://spinaltap.micro.umn.edu/00/Weather/California/Los%20Angeles"

  • xf:anyURI('myCollation') returns the relative URI with value "myCollation".

9 Functions and Operators on base64Binary and hexBinary

9.1 Comparisons of base64Binary and hexBinary Values

We define the following comparison operators on base64Binary and hexBinary values. Comparisons take two operands of the same type i.e both operands must be base64Binary or hexBinary. Each returns a boolean value.

9.1.1 op:hex-binary-equal

op:hex-binary-equal(hexBinary $value1, hexBinary $value2) => boolean

Returns true if $value1 and value2 are of the same length and contain the same code-points. Otherwise returns false.

This function backs up the "eq" and "ne" operators on hexBinary values.

9.1.2 op:base64-binary-equal

op:base64-binary-equal(base64Binary $value1, base64Binary $value2) => boolean

Returns true if $value1 and value2 are of the same length and contain the same code-points. Otherwise returns false.

This function backs up the "eq" and "ne" operators on base64Binary values.

10 Constructors, Functions, and Operators on NOTATION

10.1 NOTATION Constructor

This section discusses a constructor for NOTATION as defined in [XML Schema Part 2: Datatypes]. The constructor takes a single string literal as argument.

FunctionMeaningSource
xf:NOTATION Returns a NOTATION with the value given in the argument.

10.1.1 xf:NOTATION

xf:NOTATION(string $srcval) => NOTATION

Returns a NOTATION with the value given in $srcval.

11 Functions and Operators on Nodes

This section discusses functions and operators on nodes. Nodes are formally defined in [XQuery 1.0 and XPath 2.0 Data Model].

11.1 Functions and Operators on Nodes

FunctionMeaningSource
xf:local-name Returns the local name of the context node or the specified node as a QName. XPath 1.0 modified
xf:number Returns the value of the context node or the specified node converted to a number. XPath 2.0 req 1.5 (Could)
op:node-equal Returns true if the two arguments have the same identity. Data Model
xf:deep-equal Returns true if the two arguments have the same value. Data Model
op:node-before Indicates whether one node appears before another node in document order. Data Model
op:node-after Indicates whether one node appears before another node in document order. Data Model
xf:copy Returns a deep copy of a node. Not supported in XSLT.Data Model
xf:shallow Returns a shallow copy of a node. Not supported in XSLT.Data Model

[Issue 103: Need operators for BEFORE and AFTER.]

For the illustrative examples below, assume an XQuery operating on a Purchase Order document containing a number of item elements. Each item has child elements called description, quantity, etc. Quantity has simple content of type decimal. Further assume that variables $item1, $item2, etc. are bound to the nodes for the item elements in the document in sequence.

11.1.1 xf:local-name

xf:local-name() => string
xf:local-name(node $srcval) => string

Returns a string whose value corresponds to the local name of the specified node (or, if no node is provided, the context node) as a string.

11.1.2 xf:number

xf:number() => anySimpleType
xf:number(node $srcval) => anySimpleType

Returns the value of the node indicated by $srcval or, if $srcval is not specified, the context node, converted to a double. If the value of the node is not a valid lexical representation of a numeric simple type as defined in [XML Schema Part 2: Datatypes], then the function returns the error value as specified in [XQuery 1.0 and XPath 2.0 Data Model].

11.1.2.1 Examples
  • xf:number($item1/quantity) returns 5.

  • xf:number($item2) returns error.

11.1.3 op:node-equal

op:node-equal(node $parameter1, node $parameter2) => boolean

If the node identified by the value of $parameter1 is the same node as the node identified by the value of $parameter2 (that is, the two nodes have the same identity), then the function returns true; otherwise, the function returns false. This function backs up the "==" and "!==" operators on nodes.

11.1.3.1 Examples
  • op:node-equal($item1, $item1) returns true.

  • op:node-equal($item1, $item2) returns false.

11.1.4 xf:deep-equal

xf:deep-equal(node $parameter1, node $parameter2) => boolean
xf:deep-equal(node $parameter1, node $parameter2, anyURI $collation) => boolean

If the node identified by the value of $parameter1 has the same value as the node identified by the value of $parameter2, then the function returns true; otherwise, the function returns false.

We define deep-equality as follows. We assume equality over simple values is defined. Equality of string values is determined according to the collation that is used. Equality over all other data model values is defined recursively:

  • Given attributes a1 and a2, xf:deep-equal(a1,a2), if and only if xf:deep-equal(name(a1), name(a2)) and xf:deep-equal(value(a1), value(a2)).

  • Given elements e1 and e2, xf:deep-equal(e1, e2), if and only if xf:deep-equal(name(e1), name(e2)) and xf:deep-equal(attributes(e1), attributes(e2)) and xf:deep-equal(children(e1), children(e2)).

  • Given two sequences (u1, ..., uj) and (v1, ..., vk), xf:deep-equal((u1, ..., uj), (v1, ..., vk)) holds if and only if j = k and xf:deep-equal(ui, vi) holds for all 1 <= i <= n.

If $collationLiteral is specified, then the value of $collationLiteral must identify a collation that is supported in the environment in which the function is invoked. Either an absolute URI or a relative URI may be specified. The collation identified by $collationLiteral, while effectively based on the Unicode Collation Algorithm, has implementation-defined semantics.

If no collation is specified, then the default collation is used. The default collation is determined according to the rules in TO BE DETERMINED.

[Issue 158: We need equality functions for all simple datatypes. See also, issue 151.]

11.1.4.1 Examples
  • xf:deep-equal($item1, $item2) returns false.

  • xf:deep-equal($item1, $item1) returns true .

11.1.5 op:node-before

op:node-before(node $parameter1, node $parameter2) => boolean

If the node identified by the value of $parameter1 occurs in document order before the node identified by the value of $parameter2, this function returns true; otherwise, it returns false. The rules determining the order of nodes within a single document and in different documents can be found in [XQuery 1.0 and XPath 2.0 Data Model]. This function backs up the "<<" operator.

11.1.5.1 Examples
  • op:node-before($item1, $item2) returns true.

  • op:node-before($item1, $item1) returns false.

11.1.6 op:node-after

op:node-after(node $parameter1, node $parameter2) => boolean

If the node identified by the value of $parameter1 occurs in document after the node identified by the value of $parameter2, this function returns true; otherwise, it returns false. The rules determining the order of nodes within a single document and in different documents can be found in [XQuery 1.0 and XPath 2.0 Data Model]. This function backs up the ">>" operator.

11.1.6.1 Examples
  • op:node-after($item1, $item2) returns false.

  • op:node-after($item1, $item1) returns false.

11.1.7 xf:copy

xf:copy(node? $srcval) => node?

Returns a copy of the node that is the value of $srcval including all its attributes and descendants; the copy has a different identity than the node indicated by the value of $srcval.

Note:

XSLT will not support this function.

[Issue 60: What are the precise semantics of the copy() function?]

11.1.7.1 Examples

$var = xf:copy($item1) creates a node that is a copy of the value of $item1, including its attributes and descendants, gives it a different identity, and sets the value of $var equal to it. Assume that the value of $item1 was the element node:

   <family name='green'>
      <father>peter</father>
      <mother>mary<mother>
      <child>joseph</child>
   </family>

The value of $var would be

   <family name='green'>
      <father>peter</father>
      <mother>mary<mother>
      <child>joseph</child>
   </family>

11.1.8 xf:shallow

xf:shallow(node? $srcval) => node?

Returns a copy of the node that is the value of $srcval including all its attributes but not its descendants; the copy has a different identity than the node indicated by the value of $srcval.

Note:

XSLT will not support this function.

11.1.8.1 Examples

$var = xf:copy($item1) creates a node that is a copy of $item1, including only its attributes and not its descendants, gives it a different identity, and sets the value of $varequal to it. Assume that the value of $item1 was the element node:

   <family name='green'>
      <father>peter</father>
      <mother>mary<mother>
      <child>joseph</child>
   </family>

The value of $var would be

<family name='green'/>

11.2 if-absent() and if-empty()

FunctionMeaningSource
xf:if-absent If first argument is the empty sequence, returns second argument; otherwise returns content of first argument. XQuery
xf:if-empty If first argument is the empty sequence or an element node with empty content, returns second argument; otherwise returns content of first argument. XQuery

It is sometimes desirable to write arithmetic expressions in which absent data will be replaced by a default value. For example, it might be desirable for the expression emp/(salary + bonus) to return the salary in the case where an employee has no bonus. The + operator will return the empty sequence in this case. The above functions address this problem.

11.2.1 xf:if-absent

xf:if-absent((elementNode | attributeNode)? $node, anySimpleType $value) => (elementNode | attributeNode | anySimpleType)?

If the first argument is the empty sequence, if-absent() returns the second argument; otherwise it returns the content of the first argument.

11.2.1.1 Examples
  • xf:if-absent(bonus, 0) returns the content of the bonus element or 0 if there is no bonus element.

11.2.2 xf:if-empty

xf:if-empty((elementNode | attributeNode)? $node, anySimpleType $value) => (elementNode | attributeNode | anySimpleType)

If the first argument is the empty sequence or an element with empty content, if-empty() returns the second argument; otherwise it returns the content of the first argument.

[Issue 155: The term 'empty content' should be changed or, at least, be carefully defined.]

11.2.2.1 Examples
  • xf:if-empty(bonus, 0) returns the content of the bonus element or 0 if there is no bonus element or if the bonus element is empty.

12 Constructors, Functions, and Operators on Sequences

A sequence is an ordered collection of zero or more items. An item is either a node or a value. The terms sequence and item are defined formally in [XQuery 1.0: An XML Query Language] and [XPath 2.0].

[Issue 82: Clarify distinction between node sets, lists, and sequences]

[Issue 89: Functions that have anyType in their return are problematic.]

12.1 Constructors on Sequences

The following constructors are defined for sequences.

OperatorMeaning
op:to Returns the sequence containing every integer between the values of the operands.

12.1.1 op:to

op:to(decimal $firstval, decimal $lastval) => sequence

The effective values of $firstval and $lastval are computed as cast as integer(floor($firstval)) and cast as integer(floor($lastval)).

Converts both its operands to integers and returns the sequence containing every integer whose value is between the effective value of $firstval (inclusive) and the effective value of $lastval (inclusive), in monotonic order. If the effective value of the first operand is less than the effective value of the second, the sequence is in increasing order, otherwise it is in decreasing order. If the effective value of the two operands is equal, a sequence containing a single integer equal to the effective value is returned.

This function backs up the "to" operator.

12.2 Functions and Operators on Sequences

The following functions are defined on sequences.

FunctionMeaningSource
xf:boolean Casts a sequence to a boolean. See also 14.6 Casting to boolean .XPath 1.0
op:concatenate Concatenates two sequences. XPath 1.0
op:item-at Returns the item at given index. XPath 2.0 Req 4.4 (Should)
xf:index-of Returns a sequence of unsignedInts, each of which is the index of a member of the specified sequence that is equal to the simple value or node that is the value of the second argument. If no members of the specified sequence are equal to the value of the second argument, the function returns an empty sequence. XPath 2.0 Req 4.4 (Should)
xf:empty Indicates whether or not the provided sequence is empty. XPath 2.0 Req 4.4 (Should)
xf:exists Indicates whether or not the provided sequence is not empty.
xf:distinct-nodes Returns a sequence in which all redundant duplicate elements, based on node identity, have been deleted. The specific node in a collection of redundant duplicate nodes that is retained in implementation-dependent. XPath 2.0 Req 4.4 (Should)
xf:distinct-values Returns a sequence in which all redundant duplicate elements, based on value equality, have been deleted. The specific node in a collection of redundant duplicate nodes that is retained in implementation-dependent. XPath 2.0 Req 4.4 (Should)
xf:insert Inserts an element or sequence of elements into a specified position of a sequence. XPath 2.0 Req 2.4, 4.4 (Should)
xf:sublist Returns a sequence located at a specified place in the value of a given sequence. XPath 2.0 Req 4.4 (Should)

[Issue 63: Do we need variations of index-of for values and identity?]

[Issue 66: A function to reorder a sequence into document order is needed]

As in the previous section, for the illustrative examples below, assume an XQuery operating on a Purchase Order document containing a number of item elements. The variable $seq is bound to the sequence of item nodes in document order. The variables $item1, $item2, etc. are bound to individual item nodes in the sequence.

12.2.1 xf:boolean

xf:boolean(item* $srcval) => boolean

If $srcval is the empty sequence, returns false. If $srcval is a sequence containing more than one item, a type exception is thrown. A sequence with a single item is equivalent to the single item. If this is an untyped node a type exception is thrown, otherwise its typed-value is accessed. The value is then converted to boolean as defined in 14.6 Casting to boolean .

[Issue 156: How should the boolean function be defined? Legacy XPath 1.0 function? ]

12.2.2 op:concatenate

op:concatenate(item* $seq1, item* $seq2) => item*

Returns a sequence consisting of the items in $seq1 followed by the items in $seq2. This function backs up the infix operator ",". If either sequence is the empty sequence, the other operand is returned.

12.2.2.1 Examples
  • op:concatenate((1 2 3), (4 5)) returns (1 2 3 4 5).

  • op:concatenate((), ()) returns ().

12.2.3 op:item-at

op:item-at(item* $seqParam, decimal $posParam) => item?

Returns the item in $seqParam that is located at the index that is the value of $posParam.

If $seqParam is the empty sequence, returns the empty sequence.

If the value of $posParam is greater than the number of items in the sequence, or is less than or equal to zero, then the function returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

This function is used in the definition of the formal semantics of filter expressions, that is, expressions of the form expression-1[expression-2]

12.2.3.1 Examples
  • xf:node-equal(xf:item-at($seq, 1), $item1) returns true.

12.2.4 xf:index-of

xf:index-of(item* $seqParam, item $srchParam) => unsignedInt?
xf:index-of(item* $seqParam, item $srchParam, anyURI $collationLiteral) => unsignedInt?

If the value of $seqParam contains only simple values, then the function returns a sequence of unsigned integers indicating the indexes (positions) of items in the value of $seqParam that are equal to the simple value of $srchParam. If the data types of the simple values are strings, then equality is determined according to the collation that is used.

If the value of $seqParam contains nodes, then the function returns a sequence of unsigned integers indicating the indexes (positions) of nodes whose string values are equal to the string value of the node in the second argument. Equality of string values is determined according to the collation that is used.

If $collationLiteral is specified, then the value of $collationLiteral must identify a collation that is supported in the environment in which the function is invoked. Either an absolute URI or a relative URI may be specified. The collation identified by $collationLiteral, while effectively based on the Unicode Collation Algorithm, has implementation-defined semantics.

If no collation is specified, then the default collation is used. The default collation is determined according to the rules in TO BE DETERMINED.

The sequence must contain either simple values or nodes, not both. In addition, if the sequence contains simple values $srchParam must be a simple value and if the sequence contains nodes $srchParam must be a node. If the above conditions are violated, the function returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

If the value of $seqParam is the empty sequence, the empty sequence is returned.

The index is 1-based (not 0-based).

12.2.4.1 Examples
  • xf:index-of($seq, $item2) returns 2.

12.2.5 xf:empty

xf:empty(item* $srcval) => boolean

If the the value of $srcval is the empty sequence, the function returns true; otherwise, the function returns false.

12.2.5.1 Examples
  • xf:empty($seq) returns false.

12.2.6 xf:exists

xf:exists(item* $srcval) => boolean

If the the value of $srcval is not the empty sequence, the function returns true; otherwise, the function returns false.

12.2.6.1 Examples
  • xf:empty($seq) returns true.

12.2.7 xf:distinct-nodes

xf:distinct-nodes(node* $srcval) => node*

Returns the sequence that results from removing from $srcval all but one of a set of nodes that have the same identity as one another, based on node identity (that is, using node-equal()). The specific occurrence in a collection of identical nodes that is retained is implementation-dependent. If $srcval is the empty sequence, returns the empty sequence.

If the sequence contains one or more simple values, then the function returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

[Issue 128: doc-order() function needed?]

[Issue 154: Should we define a second order distinct function?]

12.2.7.1 Examples
  • xf:distinct-nodes($seq) returns $seq.

12.2.8 xf:distinct-values

xf:distinct-values(item* $srcval) => item*
xf:distinct-values(item* $srcval, anyURI $collationLiteral) => item*

$srcval must contain either simple values or nodes, not both. If the sequence contains both simple values and nodes, then the function returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

If $srcval contains only nodes, returns the sequence that results from removing from $srcval all but one of a set of nodes that are equal to one other, based on the nodes' values (that is, using deep-equal()). The specific node in a collection of nodes having equal values that is retained is implementation-dependent.

If $srcval contains only values, returns the sequence that results from removing from $srcval all but one of a set of values that are eq to one other. Values of the same type must have a total order: date/time values must either all contain a timezone or all not contain a timezone; duration values must all contain either only years and months or only days, hours, minutes and seconds. If this condition is not satisfied, the function returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model]. Equality of string values are determined according to the collation that is used. The specific node in a collection of values having equal values that is retained is implementation-dependent.

If $srcval is the empty sequence, returns the empty sequence.

If $collationLiteral is specified, then the value of $collationLiteral must identify a collation that is supported in the environment in which the function is invoked. Either an absolute URI or a relative URI may be specified. The collation identified by $collationLiteral, while effectively based on the Unicode Collation Algorithm, has implementation-defined semantics.

If no collation is specified, then the default collation is used. The default collation is determined according to the rules in TO BE DETERMINED.

12.2.8.1 Examples
  • xf:distinct-values($seq) returns $seq.

12.2.9 xf:insert

xf:insert(item* $target, decimal $position, item* $inserts) => item*

Returns a new sequence constructed from the value of $target with the value of $inserts inserted at the position specified by the value of $position. (The value of $target is not affected by the sequence construction.)

Let the effective value of $position be N computed as cast as unsignedInt(floor($position)).

If N is less than zero, the effective value of N is zero. If N is greater than the number of items in $target, then the effective value of N is equal to the number of items in $target plus 1.

The value returned by the function consists of all items of $target whose index is less than or equal to N, followed by all items of $inserts, followed by the remaining elements of $target, in that sequence.

If $target is the empty sequence, a copy of $inserts is returned. If $inserts is the empty sequence, a copy of $target is returned.

12.2.10 xf:remove

xf:remove(item* $target, decimal $position) => item*

Returns a new sequence constructed from the value of $target with the item at the position specified by the value of $position removed.

Let the effective value of $position be N computed as cast as unsignedInt(floor($position)).

If N is less than 1 or greater than the number of items in $target, no action is taken. Otherwise, the value returned by the function consists of all items of $target whose index is less than N, followed by all items of $target whose index is greater than N. If $target is the empty sequence, the empty sequence is returned.

12.2.11 xf:sublist

xf:sublist(item* $sourceSeq, decimal $startingLoc) => item*
xf:sublist(item* $sourceSeq, decimal $startingLoc, decimal $length) => item*

Returns the contiguous sequence of items in the value of $sourceSeq beginning at the position indicated by the value of $startingLoc and continuing for the number of items indicated by the value of $length.

If $length is not specified, then the sublist identifies items to the end of $sourceSeq.

The value of $length can be greater than the number of items in the value of $sourceSeq following the beginning position, in which case the sublist identifies items to the end of $length.

The first item of a sequence is located at position 1 (not position 0).

If $sourceSeq is the empty sequence, returns the empty sequence.

12.2.11.1 Examples
  • xf:sublist($seq, 4) returns ($item4, $item5, ...)

  • xf:sublist($seq, 4, 2) returns ($item4, $item5)

12.3 Equals, Union, Intersection and Except

FunctionMeaningSource
xf:sequence-deep-equal Returns true if the two arguments have the same value. Data Model
xf:sequence-node-equal Returns true if the two arguments have the same nodes. Data Model
op:union Returns the union of the two sequence arguments, eliminating duplicates. XPath 2.0 Req 1.5 (Should)
op:intersect Returns the intersection of the two sequence arguments, eliminating duplicates. XPath 2.0 Req 1.5 (Should)
op:except Returns the difference of the two sequence arguments, eliminating duplicates. XPath 2.0 Req 1.5 (Should)

[Issue 91: Need value-based functions for Union, Intersect and Except.]

[Issue 132: union(), intersect(), and except(): only for simple values?]

As in the previous sections, for the illustrative examples below, assume a XQuery operating on a Purchase Order document containing a number of item elements. The variables $item1, $item2, etc. are bound to individual item nodes in the sequence. We shall use sequences of these nodes in the examples below.

12.3.1 xf:sequence-deep-equal

xf:sequence-deep-equal(item* $parameter1, item* $parameter2) => boolean?
xf:sequence-deep-equal(item* $parameter1, item* $parameter2, anyURI $collationLiteral) => boolean?

If the sequences that are the values of $parameter1 and $parameter2 have the same values (that is, they have the same number of items and items in corresponding positions in the two sequences compare equal if they are values and deep-equal() if they are nodes.), then the function returns true; otherwise, the function returns false. Returns the empty sequence if one or both of its arguments is the empty sequence.

String values are compared according to the collation that is used.

If $collationLiteral is specified, then the value of $collationLiteral must identify a collation that is supported in the environment in which the function is invoked. Either an absolute URI or a relative URI may be specified. The collation identified by $collationLiteral, while effectively based on the Unicode Collation Algorithm, has implementation-defined semantics.

If no collation is specified, then the default collation is used. The default collation is determined according to the rules in TO BE DETERMINED.

12.3.2 xf:sequence-node-equal

xf:sequence-node-equal(item*? $parameter1, item*? $parameter2) => boolean?

If the sequences that are the values of $parameter1 and $parameter2 have the same nodes as content (that is, they have the same number of items and items in corresponding positions in the two sequences are the identical nodes), then the function returns true; otherwise, the function returns false. Returns the empty sequence if one or both of its arguments is the empty sequence.

The sequences must contain only nodes. If either sequence contains both simple values and nodes, then the function returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

12.3.2.1 Examples

Assume $seq1 = ($item1, $item2), $seq2 = ($item1, $item2) and $seq3 = ($item2, $item3).

  • xf:sequence-node-equal($seq1, $seq2) returns true.

  • xf:sequence-node-equal($seq2, $seq3) returns false.

12.3.3 op:union

op:union(item* $parameter1, item* $parameter2) => item*

Constructs a sequence containing every element that occurs in the values of $parameter1 or of $parameter2, eliminating duplicate items. Nodes are returned in document order. The order of simple values is implementation dependent.

Node items are equal if they are xf:node-equal(); simple-values are equal if they satisfy the eq operator; nodes and simple values are never equal.

This function backs up the "union" or "|" operator.

12.3.3.1 Examples

Assume $seq1 = ($item1, $item2), $seq2 = ($item1, $item2) and $seq3 = ($item2, $item3).

  • op:union($seq1, $seq1) returns the sequence ($item1, $item2).

  • op:union($seq2, $seq3) returns the sequence consisting of ($item1, $item2, $item3).

12.3.4 op:intersect

op:intersect(item* $parameter1, item* $parameter2) => item*

Constructs a sequence containing every item that occurs in the values of both $parameter1 and $parameter2, eliminating duplicate items. Nodes are returned in document order. The order of simple values is implementation dependent.

If either operand is the empty sequence, the empty sequence is returned.

Node items are equal if they are xf:node-equal(); simple-values are equal if they satisfy the eq operator; nodes and simple values are never equal.

This function backs up the "intersect" operator.

12.3.4.1 Examples

Assume $seq1 = ($item1, $item2), $seq2 = ($item1, $item2) and $seq3 = ($item2, $item3).

  • op:intersect($seq1, $seq1) returns the sequence ($item1, $item2).

  • op:intersect($seq2, $seq3) returns the sequence ($item2).

12.3.5 op:except

op:except(item* $parameter1, item* $parameter2) => item*

Constructs a sequence containing every item that occurs in the values of $parameter1, but not in the value of $parameter2, eliminating duplicate items. Nodes are returned in document order. The order of simple values is implementation dependent.

If $parameter1 is the empty sequence, the empty sequence is returned. If $parameter2 is the empty sequence, a copy of $parameter1 is returned.

Node items are equal if they are xf:node-equal(); simple-values are equal if they satisfy the eq operator; nodes and simple values are never equal.

This function backs up the "except" operator.

12.3.5.1 Examples

Assume $seq1 = ($item1, $item2), $seq2 = ($item1, $item2) and $seq3 = ($item2, $item3).

  • op:except($seq1, $seq2) returns the empty sequence.

  • op:except($seq2, $seq3) returns the sequence ($item1).

This function backs up the except operator.

12.4 Aggregate Functions

Aggregate functions take a sequence as argument and return a single value computed from values in the sequence. Except for xf:count, if the sequence contains nodes, the value is extracted from the node and used in the computation.

FunctionMeaningSource
xf:count Returns the number of items in the sequence. XPath 1.0
xf:avg Returns the average of a sequence of numbers. XSLT 2.0 Req. 1.4 (Must)
xf:max Returns the object with maximum value from a collection of comparable objects. XSLT 2.0 Req. 1.4 (Must)
xf:min Returns the object with minimum value from a collection of comparable objects. XSLT 2.0 Req. 1.4 (Must)
xf:sum Returns the sum of a sequence of numbers. XSLT 1.0

12.4.1 xf:count

xf:count(item* $srcval) => unsignedInt

Returns the number of items in the value of $srcval.

[Issue 67: Should duplicates be eliminated for count() and sum()?]

12.4.1.1 Examples

Assume $seq1 = ($item1, $item2) and $seq3 = (), the empty sequence.

  • xf:count($seq1) returns 2.

  • xf:count($seq3) returns 0.

12.4.2 xf:avg

xf:avg(item* $srcval) => double?

If $srcval contains nodes, the value of each node is extracted using the xf:data() function. Values that equal the empty sequence are discarded. If after this, $srcval contains only numbers, xf:avg() returns the average of the numbers (computed as sum($srcval) div count($srcval)). If $srcval is the empty sequence, the empty sequence is returned.

If, after extracting the values from nodes, $srcval does not contain only numbers, the function returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

12.4.2.1 Examples

Assume $seq1 = ($item1, $item2) and $seq3 = (3, 4, 5).

  • xf:avg($seq3) returns 4.0.

  • xf:avg($seq1) returns an error.

12.4.3 xf:max

xf:max(item* $srcval) => anySimpleType?
xf:max(item* $srcval, anyURI $collationLiteral) => anySimpleType?

If $srcval contains nodes, the value of each node is extracted using the xf:data() function. Values that equal the empty sequence are discarded. If, after this, $srcval is the empty sequence, the empty sequence is returned. After extracting the values from nodes, $srcval must contain only values of a single type. (For numeric values, the type promotion rules defined in 3.3 Operators on Numeric Values can be used to promote them to a single type.) In addition, the values in the sequence must have a total order: date/time values must either all contain a timezone or all not contain a timezone; duration values must all contain either only years and months or only days, hours, minutes and seconds. If either of these conditions is not true, the function returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

xf:max returns the item in the value of $srcval whose value is greater than the value of every other item in the value of $srcval. If there are two or more such items, then the specific item whose value is returned is implementation-dependent.

If the items in the value of $srcval are strings, then the determination of the greatest item is made according to the collation that is used.

If $collationLiteral is specified, then the value of $collationLiteral must identify a collation that is supported in the environment in which the function is invoked. Either an absolute URI or a relative URI may be specified. The collation identified by $collationLiteral, while effectively based on the Unicode Collation Algorithm, has implementation-defined semantics.

If no collation is specified, then the default collation is used. The default collation is determined according to the rules in TO BE DETERMINED.

12.4.3.1 Examples

Assume $seq1 = (3, 4, 5).

  • xf:max($seq1) returns 5.

12.4.4 xf:min

xf:min(item* $srcval) => anySimpleType?
xf:min(item* $srcval, anyURI $collationLiteral) => anySimpleType?

If $srcval contains nodes, the value of each node is extracted using the xf:data() function. Values that equal the empty sequence are discarded. If, after this, $srcval is the empty sequence, the empty sequence is returned. After extracting the values from nodes, $srcval must contain only values of a single type. (For numeric values, the type promotion rules defined in 3.3 Operators on Numeric Values can be used to promote them to a single type.) In addition, the values in the sequence must have a total order: date/time values must either all contain a timezone or all not contain a timezone; duration values must all contain either only years and months or only days, hours, minutes and seconds. If either of these conditions is not true, the function returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

xf:min returns the item in the value of $srcval whose value is less than the value of every other item in the value of $srcval. If there are two or more such items, then the specific item whose value is returned is implementation-dependent.

If the items in the value of $srcval are strings, then the determination of the least item is made according to the collation that is used.

If $collationLiteral is specified, then the value of $collationLiteral must identify a collation that is supported in the environment in which the function is invoked. Either an absolute URI or a relative URI may be specified. The collation identified by $collationLiteral, while effectively based on the Unicode Collation Algorithm, has implementation-defined semantics.

If no collation is specified, then the default collation is used. The default collation is determined according to the rules in TO BE DETERMINED.

12.4.4.1 Examples

Assume $seq1 = (3, 4, 5).

  • xf:min($seq1) returns 3.

12.4.5 xf:sum

xf:sum(item* $srcval) => double?

If $srcval contains nodes, the value of each node is extracted using the xf:data() function. Values that equal the empty sequence are discarded. If, after this, $srcval contains only numbers, xf:sum() returns the sum of the numbers. If it is the empty sequence, the empty sequence is returned.

If, after extracting the values from nodes, $srcval does not contain only numbers, the function returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

[Issue 67: Should duplicates be eliminated for count() and sum()?]

12.4.5.1 Examples

Assume $seq1 = ($item1, $item2) and $seq3 = (3, 4, 5).

  • xf:sum($seq1) returns an error.

  • xf:sum($seq3) returns 12.0.

12.5 Functions that Generate Sequences

FunctionMeaningSource
xf:id Returns the sequence of nodes having unique IDs that match the IDREFs represented by the argument sequence. XPath 1.0
xf:idref Returns the sequence of nodes with IDREFs matching the items in the argument sequence. XSLT 2.0 Req. 2.11 (Could)
xf:filter Returns a shallow copy of the nodes that are selected by the expression argument, preserving any relationships that exist among these nodes.XQuery
xf:document Treats its string argument as a URI Reference and returns the document node of the referenced document.XSLT 1.0

[Issue 68: The id-nodes() and id-NMTOKENS() functions must specify result documents]

12.5.1 xf:id

xf:id(IDREF* $srcval) => elementNode*

Returns the sequence of element nodes with ID values matching the value of one of the IDREFs in the sequence argument. If the value of $srcval is a single IDREF, it behaves as though a sequence of length one of was supplied.

12.5.2 xf:idref

xf:idref(string* $srcval) => elementNode*

Returns the sequence of element nodes with an IDREF value matching the value of one of the items in the sequence argument or an IDREFS value containing an IDREF matching the value of one of the items in the sequence argument. If the value of $srcval is a single string, it behaves as though a sequence of length one of strings was supplied. This function allows reverse navigation from IDs to IDREFs.

12.5.3 xf:filter

xf:filter(expression $srcval) => node*

The filter function returns a sequence of nodes containing shallow copies of the nodes that are selected by expression that is the value of $srcval, preserving any relationships that exist among these nodes.

12.5.3.1 Examples
  • Suppose that the argument to filter is a path expression that selects nodes X, Y, and Z from some document. Suppose that, in the original document, nodes Y and Z are descendants (at any level) of node X. Then the result of filter is a copy of node X, with copies of nodes Y and Z as its immediate children. Any other intervening nodes from the original document are not includeed in the result. The name filter suggests a function that operates on a document to extract the parts that are of interest and discard the remainder, while retaining the structure of the original document.

12.5.4 xf:document

xf:document(string? $srcval) => node?

Treats the string value of $srcval as a URI reference and returns the document node of the referenced document. Returns an error if the document cannot be accessed. [XSLT 1.0] allows many other kinds of arguments and returns a sequence of nodes.

13 Context Functions

The following functions are defined to obtain information from the evaluation context.

FunctionMeaningSource
op:context-item Returns the context item.XPath 1.0
xf:position Returns the position of the context item within the sequence of items currently being processed.XPath 1.0
xf:last Returns the number of items in the sequence of items currently being processed.XPath 1.0
op:context-document Returns the source document currently being processed.XPath 1.0
xf:current-dateTime Returns the current dateTime.XPath 1.0

13.1 op:context-item

op:context-item() => item

Returns the context item i.e. the item currently being processed. This is the function behind the "." operator.

13.2 xf:position

xf:position() => unsignedInt

Returns an unsignedInt indicating the position of the context item within the sequence of items currently being processed.

13.3 xf:last

xf:last() => unsignedInt

Returns an unsignedInt indicating the number of items in the sequence of items currently being processed.

13.4 op:context-document

op:context-document() => DocumentNode

13.4.1 Semantics

Returns a document node indicating the source document being processed. This is the function behind the "/" operator.

13.5 xf:current-dateTime

xf:current-dateTime() => dateTime

Returns the dateTime that is current at some time during the evaluation of the XQuery or XPath expression in which currentDateTime() is executed. All invocations of current-dateTime() that are executed during the course of a single outermost XQuery or XPath expression return the same value. The precise instant during that XQuery or Xpath expression's evaluation represented by the value of current-dateTime() is implementation-defined.

13.5.1 Examples

  • xf:current-dateTime() returns a dateTime corresponding to the current date and time.

14 Casting Functions

Cast functions or cast operators take an expression as their argument and return a value of a given type. There are two basic differences from constructor: casting takes an expression rather than a literal as argument, and validity checking is done at run time rather than at compile time.

This specification starts by defining casting between the 19 primitive types defined in [XML Schema Part 2: Datatypes]. The type conversions that are supported are indicated in the table below. In this table, there is a row for each primitive with that type as the source of the conversion and there is a column for each primitive type as the target of the conversion. The intersections of rows and columns contain one of three characters: "Y" indicates that a conversion from values of the type to which the row applies to the type to which the column applies is supported; "N" indicates that there are no supported conversions from values of the type to which the row applies to the type to which the column applies; and "M" indicates that a conversion from values of the type to which the row applies to the type to which the column applies may be supported, subject to restrictions dicsussed in this section.

[Issue 135: Should we allow casting to/from derived types?]

In the following tables, the columns and rows are identified by short codes that identify simple types as follows:

aURI = anyURI
b64 = base64Binary
bool = boolean
dat = date
Day = gDay
dbl = double
dec = decimal
dT = dateTime
dur = duration
flt = float
hxB = hexBinary
MD = gMonthDay
Mon = gMonth
NOT = NOTATION
QN = Qname
str = string
tim = time
YM = gYearMonth
Yr = gYear

In each of the following tables, the notation "S\T" indicates that the source ("S") of the conversion is indicated in the column below the notation and that the target ("T") is indicated in the row to the right of the notation.

14.1 Casting to primitive types from primitive types

The following table covers casting from primitive types to primitive types.

S\TstrfltdbldecdurdTtimdatYMYrMDDayMonBoolb64hxBaURIQNNOT
strYMMMMMMMMMMMMMNNMMN
fltYYYMNNNNNNNNNMNNNNN
dblYYYMNNNNNNNNNMNNNNN
decYYYYNNNNNNNNNMNNNNN
durYNNNYNNNNNNNNNNNNNN
dTYNNNNYNNNNNNNNNNNNN
timYNNNNNYNNNNNNNNNNNN
datYNNNNNNYYNNNNNNNNNN
YMYNNNNNNNYNNNNNNNNNN
YrYNNNNNNNNYNNNNNNNNN
MDYNNNNNNNNNYNNNNNNNN
DayYNNNNNNNNNNYNNNNNNN
MonYNNNNNNNNNNNYNNNNNN
boolYYYYNNNNNNNNNYNNNNN
b64YNNNNNNNNNNNNMYNNNN
hxBYMMMNNNNNNNNNMNYMNN
aURIYNNNNNNNNNNNNNNNYNN
QNYNNNNNNNNNNNNNNNNYN
NOTYNNNNNNNNNNNNNNNNNY

14.2 Casting from derived types to primitive types

Casting from a derived type to its base type is always permitted. No other casting from a derived type is supported.

14.3 Casting to string

Casting is permitted from any primitive to the primitive type string.

  1. When a value of any simple type is cast to string, the derivation of the string value TV depends on the source type ST and on the source value SV, as follows.

    • If ST is string, TV is SV.

    • If ST is float, double, or decimal then TV is the canonical representation of SV, as defined by [XML Schema Part 2: Datatypes].

    • If ST is duration, then TV is the lexical representation of SV, as defined by [XML Schema Part 2: Datatypes], in which each integer and decimal component is expressed in its canonical representation.

    • If ST is dateTime or time, then TV is the canonical representation of SV, as defined by [XML Schema Part 2: Datatypes].

    • If ST is date, gYearMonth, gYear, gMonthDay, gDay, or gMonth, then TV is the lexical representation of SV, as defined by [XML Schema Part 2: Datatypes].

    • If ST is boolean, then TV is "true" if SV is true and "false" if SV is false.

    • If ST is hexBinary, then TV is the canonical representation of SV, as defined by [XML Schema Part 2: Datatypes].

    • If ST is anyURI, then TV is the lexical representation of SV, as defined in [XML Schema Part 2: Datatypes], with each space replaced by the sequence "%20".

    • If ST is QName or NOTATION, then TV is SV.

14.4 Casting to numeric types

As specified in the preceding table, conversion from various simple types to the various numeric types (that is, float, double and decimal depends on factors considered below.

  1. When a value of any simple type is cast to float, the float value TV is derived from the source type ST and the source value SV as follows:

    • If ST is float, then TV is SV and the conversion is complete.

    • If ST is double and SV cannot be represented in the value space of float as defined in [XML Schema Part 2: Datatypes], then the cast returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

    • If ST is double and SV can be represented in the value space of float as defined in [XML Schema Part 2: Datatypes], then TV is SV and the conversion is complete.

    • If ST is decimal or a type derived from decimal, then TV is xf:float(cast as string( SV )) and the conversion is complete.

    • SV is converted to an intermediate value IV of type token.

    • If the value of xf:upper-case( IV ) is INF, -INF, or NAN, then TV is positive infinity, negative infinity, or not-a-number, respectively, and the conversion is complete.

    • If IV does not match the lexical structure of NumericLiteral as defined in [XQuery 1.0: An XML Query Language], then the cast returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

    • Otherwise, let NL be a NumericLiteral comprising the same sequence of characters as IV. TV is xf:float( NL ).

  2. When a value of any simple type is cast to double, the double value TV is derived from the source type ST and the source value SV as follows:

    • If ST is double, then TV is SV and the conversion is complete.

    • If ST is float or decimal or types derived from them, then TV is xf:double(cast as string( SV )) and the conversion is complete.

    • SV is converted to an intermediate value IV of type token.

    • If the value of xf:upper-case( IV ) is INF, -INF, or NAN, then TV is positive infinity, negative infinity, or not-a-number, respectively, and the conversion is complete.

    • If IV does not match the lexical structure of NumericLiteral as defined in [XQuery 1.0: An XML Query Language], then the cast returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

    • Otherwise, let NL be a NumericLiteral comprising the same sequence of characters as IV. TV is xf:double( NL ).

  3. When a value of any simple type is cast to decimal, the decimal value TV is derived from the source type ST and the source value SV as follows:

    • If ST is decimal, or a type derived from decimal, then TV is decimal(cast as string( SV )) and the conversion is complete.

    • If ST is float or double, then TV is decimal(cast as string(xf:round( SV ))) and the conversion is complete.

    • SV is converted to an intermediate value IV of type token.

    • If IV does not match the lexical structure of NumericLiteral as defined in [XQuery 1.0: An XML Query Language], then the cast returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

    • Otherwise, let NL be a NumericLiteral comprising the same sequence of characters as IV. TV is decimal(cast as string(xf:round( NL ))).

14.5 Casting to duration and date and time types

Conversion from primitive types to duration and date and time types depends on factors considered below.

  1. When a value of any primitive type is cast to duration, the duration value TV is derived from the source type ST and the source value SV as follows:

    • If ST is duration, then TV is SV.

    • If ST is string or a type derived from string, then TV is xf:duration(cast as string( SV )).

  2. When a value of any primitive type is cast to dateTime, time, date, gYearMonth, gYear, gMonthDay, gDay, or gMonth, let CYR be cast as string( xf:get-Year( xf:currentDateTime() ) ), let CMO be cast as string( xf:get-month( xf:currentDateTime() ) ), and let CDA be cast as string( xf:get-day( xf:currentDateTime() ) ).

  3. When a value of any primitive type is cast to dateTime, the dateTime value TV is derived from the source type ST and the source value SV as follows:

    • If ST is dateTime, then TV is SV.

    • If ST is time, then let SHR be cast as string( xf:get-hour( SV ) ), let SMI be cast as string( xf:get-minute( SV ) ), and let SSE be cast as string( xf:get-second( SV ) ); TV is xf:dateTime( xf:concat( CYR , '-', CMO , '-', CDA , 'T', SHR , ':', SMI , ':', SSE ) ).

    • If ST is date, then let SYR be cast as string( xf:get-Year( SV ) ), let SMO be cast as string( xf:get-month( SV ) ), and let SDA be cast as string( xf:get-day( SV ) ); TV is xf:dateTime( xf:concat( SYR , '-', SMO , '-', SDA , 'T00:00:00') ).

    • If ST is gYearMonth, then let SYR be cast as string( xf:get-Year( SV ) ) and let SMO be cast as string( xf:get-month( SV ) ); TV is xf:dateTime( xf:concat( SYR , '-', SMO , '-01T00:00:00') ).

    • If ST is gYear, then let SYR be cast as string( xf:get-Year( SV ) ); TV is xf:dateTime( xf:concat( SYR , '-01-01T00:00:00') ).

    • If ST is gMonthDay, then let SMO be cast as string( xf:get-month( SV ) ) and let SDA be cast as string( xf:get-day( SV ) ); TV is xf:dateTime( xf:concat( CYR , '-', SMO , '-', SDA , 'T00:00:00') ).

    • If ST is gDay, then let SDA be cast as string( SV ); TV is xf:dateTime( xf:concat( CYR , '-', CMO , '-', SDA , 'T00:00:00') ).

    • If ST is gMonth, then let SMO be cast as string( SV ); TV is xf:dateTime( xf:concat( CYR , '-', SMO , '-01T00:00:00') ).

    • If ST is string or a type derived from string and SV is not a valid lexical representation for dateTime as specified in [XML Schema Part 2: Datatypes], then the cast returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

    • If ST is string or a type derived from string and SV is a valid lexical representation for dateTime as specified in [XML Schema Part 2: Datatypes], then TV is xf:dateTime( SV ).

  4. When a value of any primitive type is cast to time, the time value TV is derived from the source type ST and the source value SV as follows:

    • If ST is time, then TV is SV.

    • If ST is dateTime, then TV is xf:time( xf:concat( cast as string( xf:get-hour( SV ) ), ':', cast as string( xf:get-minute( SV ) ), ':', cast as string( xf:get-second( SV ) ) ) ).

    • If ST is string or a type derived from string and SV is a valid lexical representation for time as specified in [XML Schema Part 2: Datatypes], then TV is xf:time( SV ).

  5. When a value of any primitive type is cast to date, the date value TV is derived from the source type ST and the source value SV as follows:

    • If ST is dateTime, then let SYR be cast as string( xf:get-Year( SV ) ), let SMO be cast as string( xf:get-month( SV ) ), and let SDA be cast as string( xf:get-day( SV ) ); TV is xf:dateTime( xf:concat( SYR , '-', SMO , '-', SDA ) ).

    • If ST is date, then TV is SV.

    • If ST is gYearMonth, then let SYR be cast as string( xf:get-Year( SV ) ) and let SMO be cast as string(xf:get-month( SV ) ); TV is xf:dateTime( xf:concat( SYR , '-', SMO , '-01') ).

    • If ST is gYear, then let SYR be cast as string( xf:get-Year( SV ) ); TV is xf:dateTime( xf:concat( SYR , '-01-01') ).

    • If ST is gMonthDay, then let SMO be cast as string( xf:get-month( SV ) ) and let SDA be cast as string( xf:get-day( SV ) ); TV is xf:dateTime( xf:concat( CYR , '-', SMO , '-', SDA ) ).

    • If ST is gDay, then let SDA be cast as string( SV ); TV is xf:dateTime( xf:concat( CYR , '-', CMO , '-', SDA ) ).

    • If ST is gMonth, then let SMO be cast as string ( SV ); TV is xf:dateTime( xf:concat( CYR , '-', SMO , '-01') ).

    • If ST is string or a type derived from string and SV is not a valid lexical representation for date as specified in [XML Schema Part 2: Datatypes], then the cast returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

    • If ST is string or a type derived from string and SV is a valid lexical representation for date as specified in [XML Schema Part 2: Datatypes], then TV is xf:date( SV ).

  6. When a value of any primitive type is cast to gYearMonth, the gYearMonth value TV is derived from the source type ST and the source value SV as follows:

    • If ST is dateTime or date, then let SMO be cast as string( xf:get-month( SV ) ) and let SDA be cast as string( xf:get-day( SV ) ); TV is xf:gYearMonth( xf:concat( SMO , '-', SDA ) ).

    • If ST is gYearMonth, then TV is SV.

    • If ST is gYear, then let SYR be cast as string( xf:get-Year( SV ) ); TV is xf:dateTime( xf:concat( SYR , '-01') ).

    • If ST is gMonthDay or gMonth, then let SMO be cast as string( xf:get-month( SV ) ); TV is xf:dateTime( xf:concat( CYR , '-', SMO ) ).

    • If ST is string or a type derived from string and SV is not a valid lexical representation for gYearMonth as specified in [XML Schema Part 2: Datatypes], then the cast returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

    • If ST is string or a type derived from string and SV is a valid lexical representation for gYearMonth as specified in [XML Schema Part 2: Datatypes], then TV is xf:date( SV ).

  7. When a value of any primitive type is cast to gYear, the gYear value TV is derived from the source type ST and the source value SV as follows:

    • If ST is dateTime, date, or gYearMonththen let SYR be cast as string( xf:get-Year( SV ) ); TV is xf:gYear( SYR ).

    • If ST is gYearMonth, then TV is SV.

    • If ST is string or a type derived from string and SV is not a valid lexical representation for gYear as specified in [XML Schema Part 2: Datatypes], then the cast returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

    • If ST is string or a type derived from string and SV is a valid lexical representation for gYear as specified in [XML Schema Part 2: Datatypes], then TV is xf:date( SV ).

  8. When a value of any primitive type is cast to gMonthDay, the gMonthDay value TV is derived from the source type ST and the source value SV as follows:

    • If ST is dateTime or date, then let SMO be cast as string( xf:get-month( SV ) ) and let SDA be cast as string( xf:get-day( SV ) ); TV is xf:gYearMonth( xf:concat( SMO , '-', SDA ) ).

    • If ST is gYearMonth, then let SMO be cast as string( xf:get-month( SV ) ); TV is xf:dateTime( xf:concat( SMO , '-01') ).

    • If ST is gMonthDay, then TV is SV.

    • If ST is gDay, then let SDA be cast as string( xf:get-day( SV ) ); TV is xf:dateTime( xf:concat( CMO , CDA ) ).

    • If ST is gMonth, then let SMO be cast as string( xf:get-month( SV ) ); TV is xf:dateTime( xf:concat( SMO , '-01') ).

    • If ST is string or a type derived from string and SV is not a valid lexical representation for gMonthDay as specified in [XML Schema Part 2: Datatypes], then the cast returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

    • If ST is string or a type derived from string and SV is a valid lexical representation for gMonthDay as specified in [XML Schema Part 2: Datatypes], then TV is xf:date( SV ).

  9. When a value of any primitive type is cast to gDay, the gDay value TV is derived from the source type ST and the source value SV as follows:

    • If ST is dateTime, date, or gMonthDay, then let SDA be cast as string( xf:get-day( SV ) ); TV is xf:gDay( SDA ).

    • If ST is gDay, then TV is SV.

    • If ST is string or a type derived from string and SV is not a valid lexical representation for gDay as specified in [XML Schema Part 2: Datatypes], then the cast returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

    • If ST is string or a type derived from string and SV is a valid lexical representation for gDay as specified in [XML Schema Part 2: Datatypes], then TV is xf:date( SV ).

  10. When a value of any primitive type is cast to gMonth, the gMonth value TV is derived from the source type ST and the source value SV as follows:

    • If ST is dateTime, date, gYearMonth, or gMonthDay, then let SMO be cast as string( xf:get-month( SV ) ); TV is xf:gMonth( SMO ).

    • If ST is gMonth, then TV is SV.

    • If ST is string or a type derived from string and SV is not a valid lexical representation for gMonth as specified in [XML Schema Part 2: Datatypes], then the cast returns the error value as defined in [XQuery 1.0 and XPath 2.0 Data Model].

    • If ST is string or a type derived from string and SV is a valid lexical representation for gMonth as specified in [XML Schema Part 2: Datatypes], then TV is xf:date( SV ).

14.6 Casting to boolean

When a value of any primitive type is cast to boolean, the boolean value TV is derived from the source type ST and the source value SV as follows:

  • If ST is string and xf:upper-case( SV ) is " TRUE " or " 1 ", then TV is true; if ST is string and xf:upper-case( SV ) is " FALSE " or " 0 ", then TV is false.

  • If ST is float, double, decimal and SV is 0, +0, -0 or NaN then TV is false.

  • If ST is float, double, decimal and SV is not one of the above values then TV is true.

  • If ST is boolean, then TV is SV.

  • If ST is base64Binary or hexBinary and SV is " 1 ", then TV is true; if ST is base64Binary or hexBinary and SV is " 0 ", then TV is false.

  • Otherwise, the error value is returned as specified in [XQuery 1.0 and XPath 2.0 Data Model].

14.7 Casting to base64Binary, hexBinary

Casting from any other simple type to base64Binary and hexBinary is not supported.

14.8 Casting to anyURI, QName and NOTATION

Casting to anyURI, or QName is possible only from the same type or possibly from string.

  1. When a value of any primitive type is cast to anyURI, the anyURI value TV is derived from the source type ST and the source value SV as follows:

  2. When a value of any primitive type is cast to QName, the QName value TV is derived from the source type ST and the source value SV as follows:

  3. It is not possible to cast values of any other type to NOTATION because the validity of a NOTATION value is context dependent and cannot, in general, be determined.

A References

A.1 Normative

IEEE 754-1985
IEEE. IEEE Standard for Binary Floating-Point Arithmetic. See http://standards.ieee.org/reading/ieee/std_public/description/busarch/754-1985_desc.html
Character Model for the World Wide Web 1.0
Character Model for the World Wide Web 1.0. Available at: http://www.w3.org/TR/charmod/
SQL
ISO (International Organization for Standardization). ISO/IEC 9075-2:1999, Information technology --- Database languages --- SQL --- Part 2: Foundation (SQL/Foundation). [Geneva]: International Organization for Standardization, 1999. See http://www.iso.ch/cate/d26197.html
Unicode Case Mappings
Unicode Technical Standard #21, Unicode Case Mappings. Available at: http://www.unicode.org/unicode/reports/tr21/
Unicode Collation Algorithm
Unicode Technical Standard #10, Unicode Collation Algorithm Available at: http://www.unicode.org/unicode/reports/tr10/
XML Information Set
World Wide Web Consortium. XML Information Set. Available at: http://www.w3.org/TR/xml-infoset/
XML Pointer Language
World Wide Web Consortium. XML Pointer Language (XPointer). Available at: http://www.w3.org/TR/xptr/
XML 1.0 Recommendation (Second Edition)
World Wide Web Consortium. Extensible Markup Language (XML) 1.0, Second Edition. Available at: http://www.w3.org/TR/2000/WD-xml-2e-20000814
XPath 1.0
World Wide Web Consortium. XML Path Language (XPath) Version 1.0. Available at: http://www.w3.org/TR/xpath
XPath 2.0
World Wide Web Consortium. XML Path Language (XPath) Version 2.0. Available at: http://www.w3.org/TR/xpath20
XSLT 1.0
World Wide Web Consortium. XSL Transformations Version 1.0. Available at: http://www.w3.org/TR/xslt
XSLT 2.0
World Wide Web Consortium. XSL Transformations Version 2.0. Available at: http://www.w3.org/TR/xslt20
XQuery 1.0 and XPath 2.0 Data Model
World Wide Web Consortium. XQuery 1.0 and XPath 2.0 Data Model. Available at: http://www.w3.org/TR/query-datamodel/
XQuery 1.0 Formal Semantics
World Wide Web Consortium. XQuery 1.0 Formal Semantics. Available at: http://www.w3.org/TR/query-semantics/ This version is out of date.
XQuery 1.0: An XML Query Language
World Wide Web Consortium. XQuery 1.0: An XML Query Language. Available at: http://www.w3.org/TR/xquery/
XML Schema Part 1: Structures
XML Schema Part 1: Structures. Available at: http://www.w3.org/TR/xmlschema-1/
XML Schema Part 2: Datatypes
XML Schema Part 2: Datatypes. Available at: http://www.w3.org/TR/xmlschema-2/
Namespaces in XML
Namespaces in XML. Available at: http://www.w3.org/TR/1999/REC-xml-names-19990114/

A.2 Non-normative

ISO 8601
ISO (International Organization for Standardization). Representations of dates and times, 2000-08-03. Available from: http://www.iso.ch/

B Functions and Operators Issues List (Non-Normative)

This section contains the current issues related to the operators specification.

Issue 1 [Closed] : Type of Numeric Literals: Range- or Syntax-Based? (operator-numeric-type-determination)

Originator: Operator Editors
Locus: Syntax

Description:

The mechanism of determining the precise XML Schema type of a numeric literal value has not yet been determined. The two broad approaches are (1)to determine the absolute value of the literal and determine its Schema type based on the range of values into which it falls, versus (2) to use additional syntax in the style of the C or Java programming languages to specify the Schema type.

Resolution:

Numeric literals' types are determined by their syntax, not by their values.

Issue 2 [Closed] : Additional Level of Details Needed for Numeric Constructors (operator-numeric-constructor-details)

Originator: Andrew Eisenberg
Locus: Syntax

Description:

An additional level of detail is required for some of the numeric constructors. For example, xf:double(string) takes a string as its argument. We need to carefully specify what strings are valid and which are not.

Resolution:

None recorded.

Issue 3 [Closed] : Is < a valid comparison operator? (operator-numeric-comparison-symbol)

Originator: Andrew Eisenberg
Locus: Syntax

Description:

We include the "<" operator in this table. "<" followed by a letter, a "_", or a "." is an element constructor. Does this mean that "<" followed by whitespace (or any other character) is the less-than operator?

Resolution:

"<" is acceptable as the less-than operator as long as it is not followed by a character that can start an XML identifier.

Issue 4 [Closed] : Must numeric types capture precision and scale? (operator-numeric-track-precision)

Originator: Andrew Eisenberg
Locus: Syntax

Description:

We state that decimal op decimal returns decimal. Don't we need to be taking precision and scale into account (this issue applies to the constructors as well)? If my expression is 4.5 * 2.11, SQL would state that the operands are DECIMAL (2,1) and DECIMAL (3,2), and the result is DECIMAL (*,3), where * is implementation-defined.

Resolution:

It is not necessarily the case that there will be facets, so numeric types do not necessarily have to capture precision and scale (which are, in fact, facets). When operations among numeric types are performed, facet information is lost.

Issue 5 [Closed] : Is xf:string(string) a no-op? (operator-string-constructor-noop)

Originator: Andrew Eisenberg
Locus: Syntax

Description:

The constructor xf:string takes a string as its argument. Is this constructor a no-op?

Resolution:

Yes, this constructor is a no-op, but it has been determined to keep it for sake of orthogonality.

Issue 6 [Closed] : Is Exclusive Or a Required Boolean function? (operator-boolean-xor)

Originator: Andrew Eisenberg
Locus: Syntax

Description:

Should another function, XOR, for "exclusive or", be added as another Boolean function?

Resolution:

The XOR function will not be introduced at this time.

Issue 7 [Closed] : Type Conversions Are Not Addressed (operator-type-conversions)

Originator: Michael Kay
Locus: Syntax

Description:

The document doesn't seem to address conversion between types, e.g., integer to string, boolean to number.

Resolution:

The document now has support for casting, using the syntax provided in [XQuery 1.0: An XML Query Language].

Issue 8: Relationships Between Some Numeric Types Should Be Reconsidered (operator-numeric-type-rationale)

Originator: Michael Kay
Locus: Syntax

Description:

Why is the relationship of float to double not the same as the relationship of int (and short, etc) to decimal? It seems that all operations on floats should produce a double, just as all operations on integers produce a decimal; and also that the default type for, say, 1.0E6 should be double rather than float. (In fact, some think it amazing that the schema group found a reason to support single-precision float at all; why would anyone want it? And, for that matter, why do they want byte, short, etc?).

Resolution:

None recorded.

This issue occurs in 3.4 Comparisons of Numeric Values

Issue 9 [Closed] : Should There Be Numeric Constructors for Multiple Types? (operator-numeric-constructor-result)

Originator: Michael Kay
Locus: Syntax

Description:

Does it make any difference whether the constructor "2" produces a byte, an int, or a decimal? There does not seem to be any operator or function in this document that produces a different answer depending on which it is. So why not make it a decimal?

Resolution:

There are different constructors for each of several type.

Issue 10 [Closed] : Do we need functions to decompose and resolve URIs? (operator-uri-decomposition)

Originator: Operators Task Force F2F 2001-03-21
Locus: Syntax

Description:

It may be desirable to define functions that will allow URIs to be decomposed into their component parts, resolve relative URIs into their absolute equivalents, and so forth.

Resolution:

None recorded.

Issue 11 [Closed] : Should complex types be supported now? (operator-complex-types)

Originator: Operators Task Force F2F 2001-03-21
Locus: Syntax

Description:

What should this version of the document do about complex types? Should they be covered in V1 or deferred to a future version? Or should they just never be part of this specification.

At the very minimum, this version of this document must contain a statement confirming that complex types are not covered in the current version of the document.

Resolution:

RESOLUTION: We will not support complex types.

Issue 12 [Closed] : Links to Schema documents needed (operator-links-to-schema)

Originator: Operators Task Force F2F 2001-03-21
Locus: Syntax

Description:

Prominent mentions of various schema types should be transformed into links into the Schema document(s). This may also be true of other items in this document regarding links to other documents.

Resolution:

Links to Schema and other relevant documents are found throughout this document.

Issue 13 [Closed] : What is the appropriate namespace to be used? (operator-namespace-choice)

Originator: Operators Task Force F2F 2001-03-21
Locus: Syntax

Description:

It is appropriate for many names (e.g., function names) specified in this document to be Qnames that are qualified by a namespace appropriate to this use. Some of the names in the current document are qualified with the identifier "xsd", which is probably inappropriate because that identifier is often used for the XML Schema namespace. Furthermore, having just an identifier is insufficient: a complete URI is required.

Resolution:

See section 1.3 Namespace Prefix.

Issue 14: Some function signatures are unclear about argument types (operator-function-signatures)

Originator: Operators Task Force F2F 2001-03-21
Locus: Syntax

Description:

A function signature like "make_string(string)" is misleading since it implies that the argument might have to be of most specific type "string" as opposed to IDREF. This document must make it clear that other types (e.g., subtypes of "string", or derived types derived from "string", such as "token" are acceptable. Question arose about whether there should also be a version of "make-string" with a "number" argument, as opposed (or in addition to) to explicit and/or implicit "cast" functions. The intent is to have "make-string(string)" only for symmetry, not to allow for subtypes.

Resolution:

None recorded.

This issue occurs in 4.2 String Constructors

Issue 15 [Closed] : Do we require an escape for the quotes? (operator-escape-for-quoted-strings)

Originator: Michael Brundage; private mail
Locus: Syntax

Description:

Strings can be quoted using single or double quotes? Do we require an escape for the quotes?

Resolution:

This is a syntax issue that should be dealt with in the XQuery document.

Issue 16 [Closed] : Is a constructor more than a different syntax for CAST? (operator-constructor-value)

Originator: Operators Task Force F2F 2001-03-21
Locus: Syntax

Description:

Several participants feel that there are three sorts of ways to "create" values of various types: (1)literals, (2)constructors, and (3)casting. There seems to be broad agreement on (1) and (3), but there are questions about the "meaning" of (2).

In particular, are constructors really functions, or do they use functional notation without actually being functions? If they are actual functions, it would appear that their function bodies are unlikely to be much more than a CAST. That sheds some doubt on the requirement to have constructor functions.

Resolution:

There is much similarity between constructors and casting, but there appears to be sufficient value in distinguishing them. Therefore, the constructors will be retained. See for more information.

Issue 17 [Closed] : Is CAST a function/operator for this document? (operator-cast-definition)

Originator: Operators Task Force F2F 2001-03-21
Locus: Syntax

Description:

CAST behaves in many ways like an operator or a function that is defined to operate on instances of several types. Should the definition of CAST be moved to this document (and eliminated from the XQuery document)?

Resolution:

XQuery will define syntax of cast. Paradigm and semantics in this document.

Issue 18 [Closed] : How rigid should a constructor be regarding input values? (operator-constructor-semantics)

Originator: Operators Task Force F2F 2001-03-21
Locus: Syntax

Description:

Should a constructor be as liberal as CAST in "fixing up" the contents of source data being transformed into another data type? Or should they be more rigid, as suggested in the current document, and require that source data be in precisely the proper "shape"?

Resolution:

Discussion: The discussion indicates that the input values should be extremely close to what schema validation supplies, although allowing things like the terminating "L" for "long literals" might be acceptable. Therefore, "long(3.5)" should be a syntax error rather than a compile-time round/truncate. Require the specified value to be "of the proper type" per Schema (with a few enhancements such as "L").

Issue 19 [Closed] : Do we need collation-sensitive comparisons and another sort? (operator-collation-vs-distinguishable)

Originator: Operators Task Force F2F 2001-03-21
Locus: Syntax

Description:

There is general agreement that character strings must be compared using a collation that gives culturally-correct results. However, there is sometimes the need to determine whether two character strings are "distinguishable" (meaning that they are to be compared without use of a collation).

Furthermore, it is possible to build collations that are "parameterized", perhaps allowing case-sensitive and case-insensitive (or accent-sensitive versus accent-insensitive comparisons) by providing a parameter to the collation when it is invoked. Should such a facility be provided in this specification? If so, how far should it be taken?

Resolution:

All string functions take an optional collation. Codepoint compare can be used to distinguish strings. Decided not to support parameterized collations.

Issue 20: Many uses of "character" should be "codepoint" (operator-codepoint-vs-character)

Originator: Operators Task Force F2F 2001-03-21
Locus: Syntax

Description:

Many uses of the word "character" in this specification would probably be better if changed to "codepoint" to make it clear precisely what Unicode concept is meant.

Resolution:

None recorded.

This issue occurs in 4.4.1 Usage Notes

Issue 21: What is the precise type returned by each function? (operator-function-return-types)

Originator: Operators Task Force F2F 2001-03-21
Locus: Syntax

Description:

What is the precise type returned by various functions? Is the specific type of the argument the returned type, or does it get "upcast" to "string"? Some operations might not be able to keep the most specific type (e.g., SUBSTRING(NCNAME,2) may not be a NCNAME!)

Resolution:

None recorded.

This issue occurs in 4.4 Functions on String Values

Issue 22 [Closed] : What normalization form or forms are required? (operator-normalization-forms)

Originator: Operators Task Force F2F 2001-03-21
Locus: Syntax

Description:

This specification appears to have assumed that "normalize" means "NFC". Should it support other forms (NFD, compatibility variants) in addition to NFC? Instead of NFC?

Resolution:

Added the normalization form as second argument to the function

Issue 23: "Returns a copy" is not appropriate wording (operator-copy-returns)

Originator: Operators Task Force F2F 2001-03-21
Locus: Syntax

Description:

Currently, the specification uses the phrase "...returns a copy" in several locations. That phrase is not appropriate and the wording should be changed to accurately describe the intended semantics.

Resolution:

None recorded.

This issue occurs in 4.4 Functions on String Values

Issue 24 [Closed] : What effect do facets have? (operator-facet-implications)

Originator: Operators Task Force F2F 2001-03-21
Locus: Syntax

Description:

For various numeric and datetime types, and possibly others as well, the document must address the facets of those types, specifying precisely what effect the facets have on the operators being defined.

Resolution:

RESOLVED: No explicit support for facets in v1 at least.

Issue 25: Is a normalize function needed for duration types? (operator-normalize-durations)

Originator: Operators Task Force F2F 2001-03-21
Locus: Syntax

Description:

Should this specification provide a function that normalizes timeDuration types so that the month/day boundary is not violated?

Resolution:

None recorded.

This issue occurs in 6.6 Functions and Operators on TimePeriod Values

Issue 26 [Closed] : Is the Gregorian calendar sufficient? (operator-gregorian-adequate)

Originator: Operators Task Force F2F 2001-03-21
Locus: Syntax

Description:

Is the Gregorian calendar adequate for V1? What about durations in specific additional (e.g., banking) calendars based on Gregorian?

Resolution:

For the first version of this document, only the Gregorian calendar is supported (particularly since XML Schema offers support for no other calendar).

Issue 27 [Closed] : What type is returned by contains? (operator-contains-return-type)

Originator: Operators Task Force F2F 2001-03-21
Locus: Syntax

Description:

What is the schema type returned by the datetime "contains" operator? It's not Boolean, since "indeterminate" is a possible returned value. Is it, for example, an enumerated type?

Resolution:

RESOLVED. We have redefined the contains functions to return a boolean value.

Issue 28: What sorts of function overloading are supported? (operator-function-overloading)

Originator: Operators Task Force F2F 2001-03-21
Locus: Syntax

Description:

What sorts of function overloading do we assume? None, number of arguments, declared types of parameters, or most-specific runtime types of arguments? What about user-defined types derived from a schema type (or from another user-defined type)?

Temporarily, it has been determined that functions can be overloaded only by the number of parameters and not by the data types of the parameters.

Resolution:

Limited overloading supported for now. See 1.1 Syntax. Need to clarify.

This issue is not referenced!

Issue 29 [Closed] : What types should be returned from datetime functions? (operator-datetime-return-types)

Originator: Operators Task Force F2F 2001-03-21
Locus: Syntax

Description:

The document currently defines functions such as "getDay(dateTime)" that returns a "gDay". Should there be a function that returns an "integer" (with the value of the day)?

Resolution:

Return types changed to integers.

Issue 30 [Closed] : A table indicating valid CASTs would be useful (operator-cast-table)

Originator: Operators Task Force F2F 2001-03-21
Locus: Syntax

Description:

This specification should probably contain a table, such as the one in the SQL standard, indicating what the valid combinations of source type and target type are for the CAST operation.

Resolution:

Such a table (four of them, actually) are now present in this document.

Issue 31 [Closed] : Distinguish between literals and constructors (operator-distinguish-constructors)

Originator: Operators Task Force F2F 2001-03-21
Locus: Syntax

Description:

This specification must distinguish between constructing a value from a lexical representation (that is, literals) and invoking a constructor function (e.g., "make-date(string)"). Of course, it must also have run-time type conversions ("cast", whether using the currently-proposed CAST AS syntax or some implicit function invocation as in SQL's user-defined type capability).

Some participants suggest that there might be only numeric literals and string literals and everything else (datetime, Booleans, lists) don't have literals but have constructors instead. Others asked why we don't do just what the XQuery document does today (literals for only a few types and constructors and/or casts for everything else).

Resolution:

The document currently provides literals for many data types, constructors for others, and casting for others.

Issue 32 [Closed] : Should there be literals for the datetime types? (operator-datetime-literals)

Originator: Operators Task Force F2F 2001-03-21
Locus: Syntax

Description:

In addition to, or instead of, constructors for datetime and timeDuration types, should there be a form of literal (such as is done in the SQL standard)?

Resolution:

The literals that look a lot like SQL's literals are too similar to the constructors, so there is no gain. Microsoft's approach of using square brackets to delimit them conflicts with XPath's use of square brackets. Resolved: No, there will not be literals; the constructors will be the closest we provide.

Issue 33 [Closed] : Issues should reference the source of the issues (operator-issue-source-url)

Originator: Operators Task Force F2F 2001-03-21
Locus: Syntax

Description:

Some participants believe that every issue in this specification should be linked to the URI of the source of the issue (e.g., minutes of a meeting or e-mail in the archives).

Resolution:

Most issues have a source specified.

Issue 34 [Closed] : The type signatures of functions will influence literals (operator-function-signatures-2)

Originator: Operators Task Force F2F 2001-03-21
Locus: Syntax

Description:

The type signature of functions will have a significant impact on some decisions about the type interpreted for numeric literals.

Resolution:

There should not be any influence on the types of literals caused by function signatures.

Issue 35 [Closed] : Where is concrete syntax for operators specified? (operator-concrete-syntax)

Originator: Operators Task Force F2F 2001-03-21
Locus: Syntax

Description:

The operators document has to address the required capabilities, but might not immediately prescribe the concrete syntax used to produce those capabilities.

Resolution:

RESOLVED: Syntax for operators in the XQuery/XPath documents.

Issue 36 [Closed] : Locale sensitivity required? (substring-contain-require-locale)

Originator: Michael Kay (member only message)
Locus: Syntax

Description:

The functions contains(), substring-before(), and substring-after() [spelt thus] rely on equality matching of substrings. They are therefore locale sensitive in the same way as "=" comparison. Arguably each of these functions needs a version that uses Unicode codepoint comparison, a version that uses a defined collation, and a version that does case-folded comparison.

Resolution:

Collations are always used for string comparisons and ordering. Another issue ([Issue 70: How are "default" collations determined?]) has been raised to capture questions about collations, default collation selection, and locales.

Issue 37: Linguistic contains required? (semantic-contains)

Originator: Michael Kay (member only message)
Locus: Syntax

Description:

Perhaps we need a "linguistic contains" as in free text searching, e.g. contains-word(., "England"). Would we then want to define the word-breaking, stemming, and matching rules, or leave it to the implementor? See also the Library of Congress Use Cases in e-mail: (member-only message)

Resolution:

None recorded.

This issue occurs in 4.4 Functions on String Values

Issue 38 [Closed] : How are indeterminate values in date/time values represented? (how-is-indeterminate-represented)

Originator: Mary Fernandez (member only message)
Locus: Syntax

Description:

The operators document has to address the required capabilities, but might not immediately prescribe the concrete syntax used to produce those capabilities.

Resolution:

The operands are restricted to be values of the same kind so indeterminate results never arise.

Issue 39 [Closed] : Should all XML Schema numeric types be supported? (support-all-schema-types)

Originator: Jim Melton
Locus: Syntax

Description:

This document offers support for 8 numeric types. Should support be explicitly provided for the remaining numeric types defined by XML Schema ([XML Schema Part 2: Datatypes])?

It has been suggested (see (member-only message)) that the "type promotion" scheme in this document implicitly means that the operators and functions already implicitly support all of XML Schema's numeric types.

Resolution:

RESOLVED: We support integer, decimal, float, double. Others can be constructed and used by type promotion.

Issue 40 [Closed] : Some numeric constructors have unexpected return types (numeric-constructor-return-types)

Originator: Jim Melton
Locus: Syntax

Description:

Some of the numeric constructors have return types that are unexpected and counter-intuitive. For example, xo:long(string) returns an integer instead of a long. Shouldn't constructors return the type they claim to be constructing?

Resolution:

RESOLVED: We agreed at recent F2F to return limited types, and Norm has implemented. This decision was motivated by the fact that the data model includes only a few numeric types.

Issue 41 [Closed] : Conflict: no function overloading, XPath function retention, constructor orthogonality (operator-xpath-string-compatibility)

Originator: Operator Editors
Locus: Syntax

Description:

XPath 1.0 has a function string(node), described thus: "Returns a string representation of the argument".

On 2001-07-17, the Operators Task Force F2F determined that the document will not (at this time) support function overloading solely by argument data type.

This document includes a constructor function string(string) whose signature is identical to the XPath 1.0 function except for the data type of the argument. This function has been stated to be desirable for reasons of orthogonality.

The names of all constructor functions presently in the document are the same as the names of the types for which they are constructors.

There appears to be a conflict between (1)the presence of string(string), (2)the decision to prohibit overloading by argument type, and (3)the XPath 1.0 function string(node). How shall this conflict be resolved? (Incidentally, a previous version of this document included a function string(node) with similar or identical functionality to the XPath 1.0 function; that function has been renamed string-value(node) to remove its overloading and to preserve the characteristic that the name of constructor functions is the same as the name of the type being constructed.

Resolution:

RESOLVED: Inconsistencies have been reconciled.

Issue 42 [Closed] : What is the proper name of the string concatenation function? (operator-string-concat-name)

Originator: Operator Editors
Locus: Syntax

Description:

On 2001-07-17, the Operators Task Force agreed that there will be no function overloading based solely on the data types of arguments, further deciding to rename all functions currently overloaded in this way by adopting the convention of prefixing their names with the names of the "primary" data type to which they apply. Therefore, "concat(string, string+)" became string-concat(string, string+). But the name of the corresonding XPath 1.0 function that requires us to keep a variable number of arguments is just string.

What, then, is the most appropriate name for the string concatenation function?

Resolution:

named "concat" for XPath compatibility.

Issue 43 [Closed] : Are function names ID/id and IDREF/idref confusing? (operator-id-idref-names)

Originator: Operator Editors
Locus: Syntax

Description:

This document specifies constructor functions named ID and IDREF. It also specifies functions named id and idref that return sets of nodes identified from the argument values.

Is it confusing to have two (pairs of) functions whose names are so similar, differing only in the case of their names, and is it thus appropriate to consider renaming the latter two to something possibly more descriptive?

Resolution:

RESOLVED: Yes, its unfortunate! Constructors follow Schema datatypes names.The id/idref function names follow XPath existing names.

Issue 44: Collations: URIs and URI references or short names? (operator-collation-specification)

Originator: Michael Sperberg-McQueen
Locus: Syntax

Description:

In a presentation at the July, 2001 F2F, it was said that collations would be referred to by URI references. Michael Rys said one rationale is to allow relative URI(-reference)s so one can refer to "French" rather than http://www.example.com/i18n/collation-sequences/case-sensitive/French, and so on. There may be negative impacts on the interoperability results caused by allowing relative URI referneces for this function. It is tempting to suggest requiring collation names to be absolute URIs without fragment identifiers. If brevity is really important, perhaps we should invent a way to assign short names to collations.

Issue resulted from e-mail: Michael Sperberg-McQueen (member-only message)

Resolution:

None recorded.

This issue occurs in 4.3 Equality and Comparison of Strings

Issue 45: Collations: Is there a relationship to xml:lang? (operator-collation-relation-to-lang)

Originator: Michael Sperberg-McQueen
Locus: Syntax

Description:

The relation of collation-sequence selection to xml:lang labeling of the data needs to be addressed explicitly, even if there is none. (Steve Zilles suggested that since nothing was said about getting defaults from xml:lang values, it was clear that xml:lang does not affect the selection of collation sequences. But earlier, people had said an implementation was clearly free to take a default-collation value from the user's locale, if one was available, on the grounds that nothing was said about it and thus nothing prevents it. We can't argue both that silence in the discussion allows implementors to do anything they like as regards the user's locale, and that it requires implementors to do nothing as regards xml:lang.

So I argue that if we want there to be no interaction with xml:lang, or if we want such an interaction to be legal but not required, or if we want it to be required, we ought to say explicitly what we want.

Issue resulted from e-mail: Michael Sperberg-McQueen (member-only message)

Resolution:

None recorded.

This issue occurs in 4.3 Equality and Comparison of Strings

Issue 46: xf:token: Should other Unicode space characters be considered? (operator-token-space-restriction)

Originator: Anders Berglund
Locus: Syntax

Description:

The semantics of xf:token() explicitly calls out #x20 as the only space character that is prohibited in the string that is an argument to the function. What about the "other" Unicode space characters, such as 00A0 NO-BREAK SPACE, 1361 ETHIOPIC WORDSPACE, 1680 OGHAM SPACE MARK, 2002 EN SPACE, 2003 EM SPACE, 2004 THREE-PER-EM SPACE, 2005 FOUR-PER-EM SPACE, 2006 SIX-PER-EM SPACE, 2007 FIGURE SPACE, 2008 PUNCTUATION SPACE, 2009 THIN SPACE, 200A HAIR SPACE, 200B ZERO WIDTH SPACE, 202F NARROW NO-BREAK SPACE, 3000 IDEOGRAPHIC SPACE, 303F IDEOGRAPHIC HALF FILL SPACE, and FEFF ZERO WIDTH NO-BREAK SPACE?

Issue resulted from e-mail: Anders Berglund (member-only message)

Resolution:

None recorded.

This issue occurs in 4.2.3 xf:token

Issue 47: Should the design of the date (and time) functions be such that they could be generalized to full I18N support and what level of I18N support should be included in version 1.0? (operator-datetime-internationalization)

Originator: Anders Berglund
Locus: Syntax

Description:

The requirement is to have an underlying design that permits (either in version 1.0, or at least permits a natural extension to) supporting:

  • Converting a "date" to a string in a non-Gregorian calendar.

  • Converting a string, in an appropriate format for a non Gregorian calendar, to a "date".

  • Comparisons of "dates" where the XML has these expressed in non-Gregorian calendar(s).

  • The range of supported calendars should probably be left to the implementation.

A possible design approach could be to:

  • Keep the schema/ISO-8601 date as the "hub" datatype.

  • Change some of the existing constructors by adding a "calendar" parameter, which would default to Gregorian.

  • Add some "date" to string functions for presenting non-Gregorian calendar dates.

A comparison of, say, two BE years would be achieved by

-- Year("2544", "BE") > Year("2540", "BE")

Naturally there is no requirement that the two calendars match, so a comparison

-- Year("2544", "BE") > Year("1374", "AH")

would be perfectly reasonable.

There are some issues that need solving/clear definition. These include:

  • What to do if the calendars do not match, for example a year in a lunar calendar (where a year is shorter than a Gregorian year) typically corresponds to two Gregorian years and arithmetic can become very interesting and certain functions may well need to be changed to accomodate this. This applies to calendars in use today.

  • Should country and date variations be taken into account? For example in some countries using the Julian calendar the year started September 1st (many of these countries changed it later to January 1st). This applies to "historic" dates.

  • Should "calendar change over" effects be taken into account? For example if a country had a "Gregorian April" with more than 30 days the year a switch from Julian to Gregorian calendar took place should this be reflected in the conversion? This applies to "historic" dates.

Issue resulted from member-only e-mail: Anders Berglund (member-only message) and subsequently amended by(member-only message)

Resolution:

None recorded.

This issue occurs in 6 Constructors, Functions, and Operators on Dates and Times

Issue 48: Timezone facility does not support areas using "sun time" (operator-datetime-suntime)

Originator: Anders Berglund
Locus: Syntax

Description:

The various get-timezone-from-*() functions will not really work for those areas that still use "sun time" (Saudi Arabia at least used to). Thus better to have "get-timezone" return a string and e.g. get-timezone-difference-from-GMT give a duration, which for sun time would vary.

Issue resulted from e-mail: Anders Berglund (member-only message)

Resolution:

None recorded.

This issue is not referenced!

Issue 49 [Closed] : There are several syntax problems with numeric literals (operator-literal-issues)

Originator: Michael Kay
Locus: Syntax

Description:

(a) the syntax doesn't agree with the XPath grammar.

(b) having a leading minus or plus sign as part of the literal isinconsistent with having it as a unary operator in front of the literal.

(c) I see no need to define special literal formats for a "long", alone among all the derived numeric types. 3L and 3 are the same value: the value space of int is a subset of the value space for long, so 3 is both an int and a long.

(d) 1.0e6 should be a double, not a float. Users who take the trouble to use floating point are more likely to want double precision than single precision; if they want single precision, they can use a constructor.

Resolution:

Literals have been removed from this document.

Issue 50 [Closed] : Should double("ZZZ") or cast as float("ZZZ") return an error or NaN? (operator-nan-conversion)

Originator: Michael Kay, Steve Tolkin
Locus: Syntax

Description:

I'm less sure whether it's right that xf:double('ZZZZZ') should return an error value, rather than NaN. In XPath 1.0 it's a general principle that NaN is used as a kind of null value for numbers: anything which would normally produce a number, produces NaN when no number is appropriate. But I can live with it.

Similarly, cast as float('ZZZZZ') is currently defined to return an error value, but could instead return NaN.

Issue resulted from e-mail: (member-only message)

Resolution:

RESOLVED. An error should be returned in the same way as an error is returned for other constructors. Meeting 12/5/2001.

Issue 51: Is "mod" a function or an operator? (operator-mod-func-or-oper)

Originator: Michael Kay
Locus: Syntax

Description:

In Xpath 1.0, "mod" is an operator, while it is defined in this document as a function. It should be redefined to be an operator, which will require moving it to a different section of the document.

Issue resulted from e-mail: Michael Kay (member-only message)

Resolution:

None recorded.

This issue is not referenced!

Issue 52 [Closed] : Certain functions do not yet handle special values (operator-functions-must-handle-special-values)

Originator: Michael Kay
Locus: Syntax

Description:

Section 2.6.2 - 2.6.4 (floor(), ceiling(), and round()). A complete treatment of these functions requires consideration of negative zero, NaN, Infinity, etc. This is all covered in XPath 1.0.

Issue resulted from e-mail: Michael Kay (member-only message)

Resolution:

RESOLVED. XPath 1.0 definitions used for these functions.

Issue 53 [Closed] : Certain XPath 1.0 functions and other needed functions are not included (operator-missing-functions)

Originator: Michael Kay
Locus: Syntax

Description:

General: there do not seem to be equivalents to the XPath 1.0 functions number(), boolean(), and string(), with all argument combinations, e.g. no function to convert a number to a boolean.

In addition, other possible desirable functions (e.g., abs()) are not specified and it should be determined how to decide what functions are to be included and what ones are not to be included.

Issue resulted from e-mail: Michael Kay (member-only message)

Resolution:

RESOLVED. number(), boolean() and string() added. It was decided not to add abs().

Issue 54: Certain constructors are not useful (operator-senseless-constructors)

Originator: Michael Kay
Locus: Syntax

Description:

Section 3.3: As discussed, I don't think xf:ID, xf:IDREF, or xf:ENTITY make sense.

Issue resulted from e-mail: Michael Kay (member-only message)

Resolution:

None recorded.

This issue occurs in 4.1 String Types

Issue 55 [Closed] : Some functions are said to come from XPath 1.0, even though new (operator-incorrect-sources)

Originator: Michael Kay
Locus: Syntax

Description:

Section 3.5, the "Source" column has many inaccuracies. Many of the functions attributed to XPath 1.0 are new.

Issue resulted from e-mail: Michael Kay (member-only message)

Resolution:

RESOLVED. Erroneous references to XPath 1.0 removed from table.

Issue 56 [Closed] : Some functions may be redundant (operator-redundant-functions)

Originator: Michael Kay
Locus: Syntax

Description:

Some functions (e.g., string-pad-beginning and string-pad-end?) seem to be composite functions that could more usefully be composed from concat() and a primitive pad(char, integer).

Issue resulted from e-mail: Michael Kay (member-only message)

Resolution:

RESOLVED: Functions have been removed.

Issue 57 [Closed] : Some boolean operators are incompletely or incorrectly specified (operator-boolean-operators)

Originator: Michael Kay
Locus: Syntax

Description:

AND and OR should be and and or. NOT should be not. For completeness, the semantics of these operators should be given. (Note this isn't trivial, because of the rules for whether the second argument is evaluated or not).

Issue resulted from e-mail: Michael Kay (member-only message)

Resolution:

RESOLVED: Changed names of the functions. Added explanation of semantics.

Issue 58 [Closed] : Should xf:name() return a string or a QName? (operator-name-returns-string)

Originator: Michael Kay
Locus: Syntax

Description:

Section 9.1, I think perhaps xf:name() should return the name as a QName, not as a string. This needs exploring, especially the semantics for comparing a Qname with a string, e.g. if (name(x) = 'foo:bar'). (For that matter, do we define "=" on two QNames?) This and several other functions return "" if the node has no name.

Issue resulted from e-mail: Michael Kay (member-only message)

Resolution:

name returns a QName.

Issue 59 [Closed] : Recommend = operator for value-equal and "is" for node-equal. (operator-function-needs-operator)

Originator: Michael Kay
Locus: Syntax

Description:

Section 9.9: I would like to see the operators "=" assigned to "value-equal", and "is" assigned to "node-equal".

Issue resulted from e-mail: Michael Kay (member-only message)

Resolution:

RESOLVED: Operators to be defined in XQuery/XPath.

Issue 60: What are the precise semantics of the copy() function? (operator-copy-semantics)

Originator: Michael Kay
Locus: Syntax

Description:

We need to specify which aspects of the newly constructed node are the same as the original. E.g. does it have the same name? string-value? namespaces? parent? children? This is the only function in this document with side-effects, so it needs special care. How does it relate to the node-construction functions defined in the data model?

Issue resulted from e-mail: Michael Kay (member-only message)

Resolution:

None recorded.

This issue occurs in 11.1.7 xf:copy

Issue 61 [Closed] : Some cited types of sequences do not exist (operator-undefined-types)

Originator: Michael Kay
Locus: Syntax

Description:

"node sequences", "user defined list types": we only have sequences.

Issue resulted from e-mail: Michael Kay (member-only message)

Resolution:

RESOLVED: The definition of sequences has been generalized to clear up the ambiguity.

Issue 62 [Closed] : Is NMTOKENS not required in this section? (operator-NMTOKENS-not-needed)

Originator: Michael Kay
Locus: Syntax

Description:

I'm not sure about NMTOKENS, etc. Perhaps we should simply provide a tokenize() on these that turns the NMTOKENS value into a sequence?

Issue resulted from e-mail: Michael Kay (member-only message)

Resolution:

RESOLVED: There is no longer special mention of NMTOKENS

Issue 63: Do we need variations of index-of for values and identity? (operator-augment-index-of)

Originator: Michael Kay
Locus: Syntax

Description:

index-of. Need find-by-value and find-by-identity.

Issue resulted from e-mail: Michael Kay (member-only message)

Resolution:

None recorded.

This issue occurs in 12.2 Functions and Operators on Sequences

Issue 64: Should reverse-sort be replaced by generic reverse? (operator-generic-reverse)

Originator: Michael Kay
Locus: Syntax

Description:

reverse-sort() looks like a composite function that could and should be defined in terms of reverse() and sort(): so replace it with a new primitive function reverse().

If there were an xf:reverse() function, would xf:reverse(xf:sort(x,y)) = xf:reverse-sort(x,y)?

Issue resulted from e-mail: Michael Kay (member-only message)

Resolution:

Sort and reverse-sort are removed but there is still no reverse() function.

This issue is not referenced!

Issue 65 [Closed] : Are certain sequence functions both adequate and required? (operator-more-redundant-functions)

Originator: Michael Kay
Locus: Syntax

Description:

sublist-before() etc. need "by value" and "by identity" variants. So it might be better to rely on index-of() and sublist() which can be used to compose these functions.

Similarly, a primitive pad-sequence(item, integer) would be more useful. (Having to write pad-end( (), 3, 'x') is silly!

truncate-beginning and end seem not especially useful, and can easily be composed from sublist().

resize-beginning and -end: I haven't begun to work out how these might be used, but they don't seem very primitive to me.

Issue resulted from e-mail: Michael Kay (member-only message)

Resolution:

RESOLVED: Said functions removed.

Issue 66: A function to reorder a sequence into document order is needed (operator-docorder-function)

Originator: Michael Kay (member-only message).
Locus: Syntax

Description:

Need a simple function to sort a sequence in document order (equivalent to union( (), $x )). See also item 20 in member-only e-mail from Don Chamberlin: http://lists.w3.org/Archives/Member/w3c-xml-query-wg/2001Aug/0216.html

Resolution:

None recorded.

This issue occurs in 12.2 Functions and Operators on Sequences,

Issue 67: Should duplicates be eliminated for count() and sum()? (operator-remove-dupes)

Originator: Michael Kay
Locus: Syntax

Description:

I think it may be important for 1.0 compatibility for count() and sum() to remove duplicate nodes first. This depends on the decision we make on the "/" operator.

Issue resulted from e-mail: Michael Kay (member-only message)

Resolution:

None recorded.

This issue occurs in 12.4.1 xf:count, 12.4.5 xf:sum

Issue 68: The id-nodes() and id-NMTOKENS() functions must specify result documents (operator-id-what-doc)

Originator: Michael Kay
Locus: Syntax

Description:

id(), need to say which documents the returned nodes come from.

Issue resulted from e-mail: Michael Kay (member-only message)

Resolution:

None recorded.

This issue occurs in 12.5 Functions that Generate Sequences

Issue 69 [Closed] : id-* and idref functions may be confused (operator-id-vs-idref)

Originator: Michael Kay, Mary Fernandez
Locus: Syntax

Description:

This idref() function does what id() does in XPath 1.0.

We do not understand what these functions mean. What is the 'node' argument to xf:id? Why does xf:idref return a sequence of nodes when its argument is a singleton IDREF. Also, the type to xf:idref is wrong: it should be xsd:IDREF.

We would expect to have a function with the following signature:

xf:id(xsd:IDREF)

Returns the node having the unique ID represented by the IDREF argument or or the empty sequence (or ERROR) if no such node exists.

Issue resulted from e-mail: Michael Kay (member-only message) and Mary Fernandez (member-only message)

Resolution:

Function names and signatures have been changed. Except that we made the argument to ID a string* rather than an IDREF for convenience.

Issue 70: How are "default" collations determined? (operator-collation-defaulting)

Originator: Steve Zilles and F2F 2001-07-17
Locus: Syntax

Description:

The binary comparison operations determine a "default" collation to use. These operators (and related string "operations" such as sort) must specify how the default collation is determined.

The rules for default collation should specify how "locale" information is taken into account in determining the default.

The rules for default collation should specify how any collation information associated with the data is merged with any other default collation specifications.

The F2F on 2001-07-17 agreed that it should be desirable to specify a default collation in a query (XQuery, at least) preamble, but that explicit specification of a collation in a function invocation overrides that default. The F2F also agreed that the Schema WG should be requested to reconsider whether it should be possible to specify default collations on schema and element (and type) definitions in an XML Schema; those default collations would be used in the absence of a query-level or a function invocation-level specification of a collation. The F2F further agreed that the "ultimate fallback" for a default collation must always be the Unicode Collation Algorithm. Finally, the Function and Operators F2F recognizes the value of allowing collations to be specified (or implied) by a client locale in many instances, but also firmly believes that many data-management situations preclude absolute dependence on locale as the governing factor for ordering decisions.

Issue resulted from e-mail: Steve Zilles (member-only message)

Resolution:

None recorded.

This issue occurs in 4.3 Equality and Comparison of Strings,

Issue 71 [Closed] : What is the effect of whitespace on numeric constructors? (operator-constructors-whitespace)

Originator: Andrew Eisenberg
Locus: Syntax

Description:

I believe that we are stating that xf:decimal (" 12.5 ") will generate an error. We should be much more explicit about this. A negative example in the text would help. (Similar comments apply to other numeric constructors.)

Issue resulted from e-mail: Andrew Eisenberg (member-only message)

Resolution:

RESOLVED. Leading and trailing whitespace stripped from literal strings passed to constructors except for string constructors.

Issue 72: Effects of overflow and underflow unspecified (operator-numeric-overflow)

Originator: Andrew Eisenberg
Locus: Syntax

Description:

I believe that we need to say something about numeric overflow and underflow in this section. In section 6, we may need to say something about overflow on date/time operations as years are restricted to 4 digits and fractional seconds to 8 digits.

Issue resulted from e-mail: Andrew Eisenberg (member-only message)

Resolution:

None recorded.

This issue occurs in 3.3 Operators on Numeric Values

Issue 73: Is a "between" function needed? (operator-compare-between)

Originator: Andrew Eisenberg
Locus: Syntax

Description:

I believe that we should have an xf:compare-between function (analogous to SQL's BETWEEN predicate, allowing quick determination of whether one value lies between two other values).

Issue resulted from e-mail: Andrew Eisenberg (member-only message)

Resolution:

None recorded.

This issue occurs in 4.3 Equality and Comparison of Strings

Issue 74: Is a "match-exact()" function needed? (operator-match-exact-required)

Originator: Andrew Eisenberg
Locus: Syntax

Description:

I was surprised that match is defined to see that match returns a list of offsets where a pattern is found.

Let's suppose that I'd like to know whether $x is a phone number (for which I have some pattern defined). If I test for xf:match ($x, $phone) = 1, then $x may have many extraneous trailing characters.

If we retain xf:match as it is specified, then I suggest an xf:exact-match function as well. Similar comment for xf:replace.

Issue resulted from e-mail: Andrew Eisenberg (member-only message)

Resolution:

None recorded.

This issue occurs in 4.4.16 xf:match,

Issue 75: The semantics of match() and replace() are incompletely specified (operator-match-semantics-imprecise)

Originator: Andrew Eisenberg
Locus: Syntax

Description:

This definition includes the following: "... that is the value of the second argument, or is matched by the regular expression that is the second argument, ...".

This seems ill-defined; perhaps two functions are needed.

It seems necessary to say something about the matching that is going on here.

xf:replace ("acadae", "a(.*)a", "b$1b") => "bcbdae" or "bcadbe"

The match could be to the shortest string that qualifies, or the longest string that qualifies.

It seems like I will need a special ("escape") mechanism to be able to include "$1" as actual replacement text in the third argument.

Issue resulted from e-mail: Andrew Eisenberg (member-only message)

Resolution:

None recorded.

This issue occurs in 4.4.16 xf:match, 4.4.17 xf:replace,

Issue 76 [Closed] : What does the xf:type() function return? (operator-type-returns)

Originator: Ashok Malhotra
Locus: Syntax

Description:

I had a question from one of our developers re. the "type" function on Node. Does this return the type of the node i.e. element-node, attribute-node, etc. or does it return the Schema type i.e. definition of that node? Since this function merely reflects an accessor in the data model draft, I checked that document. It says that the function returns a Schema component. So we need to make the text clearer to say that the "type" function returns the Schema definition of the node.

Resolution:

RESOLVED. The XPath taskforce decided on 7/24/2001 to remove the xf:type function.

[Issue 77: Should there be a function to convert characters to strings?]

Issue 77: Should there be a function to convert characters to strings? (operator-string-from-char)

Originator: Mary Fernandez
Locus: Syntax

Description:

Jerome and I are working on the mapping from XQuery to the core. We want to know whether there should be any operators defined on individual characters or whether all operators are on strings. At a minimum, we think we need a constructor that takes an individual character and returns a string.

Issue resulted from e-mail: Mary Fernandez (member-only message)

Resolution:

None recorded.

This issue occurs in

Issue 78 [Closed] : Type promotion rules appear to be inconsistent (operator-promotion-inconsistencies)

Originator: Steve Tolkin
Locus: Syntax

Description:

In one place, the type promotion rules say that any type may be promoted to the type of its "primitive ancestor", while in another, the phrase used is "most primitive ancestor". This discrepancy is confusing; is there intended to be a difference in semantics implied by the different wording?

In addition, two paragraphs claims that "one operand is promoted to be the type of the other operand", while the remainder of the section discussion promoting types to their "primitive ancestor".

Issue resulted from marked-up copy of Version 0.6.

Resolution:

RESOLVED: Inconsistent wording was changed

Issue 79: How many digits of precision (etc.) are returned from certain functions? (operator-returned-precision)

Originator: Steve Tolkin
Locus: Syntax

Description:

The xf:numeric-mod() function, the div operator, and others do not specify what the required number of digits of precision is in the result.

Issue resulted from marked-up copy of Version 0.6.

Resolution:

None recorded.

This issue occurs in 3.5 Functions on Numeric Values

Issue 80 [Closed] : Is there a function that returns a normalizedString by normalizing a string? (operator-normalize-string)

Originator: Steve Tolkin
Locus: Syntax

Description:

The constructor normalizedString() requires that the value of the supplied string argument conform to the lexical requirements of a normalizedString. Is there a function or constructor that will normalized a non-normalized string and return a normalizedString?

Issue resulted from marked-up copy of Version 0.6.

Resolution:

RESOLVED. Yes, its called normalize-space. Tkes a string as argument returns a normalized string. Casting from string to normalizedString will perform a similar function.

Issue 81: What are the precise semantics of regular expressions? (operator-regexp-semantics)

Originator: Paul Biron
Locus: Syntax

Description:

The precise semantics of regular expressions are not clear. The definition of regular expressions in XML Schema are somewhat ambiguous and, in addition, it is not completely clear what semantics would best benefit XQuery. One issue (just as an example): XML Schema's regular expressions do not support "$n" placeholders, even though the examples in this document depend on them.

Another example: Although the XML Schema definition of regular expressions provides a "greedy" algorithm that attempts to match the longest possible strings, the use cases for defining a subset of a datatype's lexical space, on the one hand, and on matching a string against a pattern, on the other hand, are different...and one might want different behavior. Meaning that one might want a variation that is not as "greedy".

See also [Issue 74: Is a "match-exact()" function needed?] and [Issue 75: The semantics of match() and replace() are incompletely specified].

Issue resulted from private e-mail exchange.

Resolution:

None recorded.

This issue occurs in 4.4.16 xf:match

Issue 82: Clarify distinction between node sets, lists, and sequences (operator-nodeset-list-sequence)

Originator: Steve Tolkin
Locus: Syntax

Description:

This document must properly align with [XQuery 1.0 and XPath 2.0 Data Model] when dealing with node sets (which are defined in [XPath 1.0]), lists, and sequences. The current wording in this document is sometimes confused about the distinctions.

Issue resulted from marked-up copy of Version 0.6.

Resolution:

None recorded.

This issue occurs in 12 Constructors, Functions, and Operators on Sequences

Issue 83: Are the cast tables appropriately structured and ordered? (operator-cast-table-structure)

Originator: Steve Tolkin
Locus: Syntax

Description:

The tables would be much more useful if these names grouped by "family" (e.g., all numeric types started with the letter "n", all date and time types with "d", string-like types with "s", and binary types with "b"). (Of course, boolean could go either in with the numeric types or in with the binary types.) Then the tables could be sorted alphabetically. There is already a system: the types cast to in the next few sections.

Issue resulted from marked-up copy of Version 0.6.

Resolution:

None recorded.

This issue is not referenced!

Issue 84: When casting to token, are linefeed/tab converted to space? (operator-cast-to-token)

Originator: Steve Tolkin
Locus: Syntax

Description:

The current definition of casting to token states that all line feed codes and all tab characters are removed, after which leading and trailing spaces are deleted and multiple spaces are replaced with a single space. Shouldn't line feed codes and tabs be converted to spaces instead of simply deleted?

Issue resulted from marked-up copy of Version 0.6.

Resolution:

None recorded.

This issue is not referenced!

Issue 85 [Closed] : The semantics of xf:boolean(node) is underspecified (operator-boolean-node-unspecified)

Originator: Steve Tolkin
Locus: Syntax

Description:

The semantics of xf:boolean(node) currently read "Returns a boolean based on the argument". This seems just a teensy big underspecified.

Issue resulted from marked-up copy of Version 0.6.

Resolution:

The semantics have been specified more completely.

Issue 86 [Closed] : In which document do the node accessors functions and the kind tests go? (accessors-in-which-document)

Originator: Jim Tivy and the WG telcon on 8/1
Locus: Syntax

Description:

Do the node accessor functions such as name(), string-value(), typed-value(), parent(), children(), node-kind() belong in this document or the datamodel document? Similarly, do the kind tests text(), noder() belong in this document or the XQuery document?

Resolution:

RESOLVED: Added sections showing accessors and kind tests that are exposed to the user as functions

Issue 87: It would be convenient to have compare functions such as compare-gte rather than just one compare function. (operators-more-better-comparison-functions)

Originator: Andrew Eisenberg (member-only message)
Locus: Syntax

Description:

Do the node accessor functions such as string-value(), typed-value(), parent(), children(), node-kind(), node(), text() and data() belong in this document or the datamodel document?.

Resolution:

This issue occurs in 3.4 Comparisons of Numeric Values, 4.3 Equality and Comparison of Strings

Issue 88 [Closed] : Should the input types to these functions be restricted so indeterminate values do not arise? (should-indeterminate-values-be-allowed)

Originator: Michael Rys on the August 15, 2001 telcon.
Locus: Syntax

Description:

Should the input parameters to these operators be restricted so that indeterminate values never arise. For example, when comparing dateTimes etc. both arguments either must or must not have a timezone. When comparing durations, both arguments mest be either year-month or day-hour-minute-sceond. This is what SQL allows.

Resolution:

The operands are restricted to be values of the same kind so indeterminate results never arise.

Issue 89: Functions that have anyType in their return are problematic. (functions-on-anyType-problematic)

Originator: Phil Wadler (member-only message)
Locus: Syntax

Description:

Functions with AnyType in the return are problematic for two reasons. To be concrete, I discuss the following.

-- xf:item-at(anyType* $seqParam, decimal $posParam) => anyType

(1) Note that the types anyType* and anyType are equivalent, which suggests that the typing here is not quite right. We should define

-- define group AnyItem = AnyElement | AnyAttribute | AnySimpleType

and then give the above the type

-- xf:item-at(anyItem* $seqParam, decimal $posParam) => anyItem

(2) Even having made the above change, the type is too broad to be useful, and one will almost always have to cast the result of calling xf:item-at (and similarly for other functions with anyItem or anyType in the result).

Instead, we should allow parametric polymorphism when specifying the signatures of built-in functions.

-- xf:item-at($anyItem* $seqParam, decimal $posParam) => $anyItem

Here $anyItem is a type variable which ranges over any group $anyItem such that $anyItem <: AnyItem. (Recall that s <: t if the extent of type s is a subset of the extent of type t, where the extent of a type is the set of values that have that type.)

Here are two examples of functions written with the current signature.

-- define function second-integer (integer* $integer-sequence) integer { treat as integer (xf:item($integer-sequence, 2)) }

-- define function third-book (Book* $book-sequence) book { treat as Book (xf:item($book-sequence, 3)) }

Here are two examples of functions that would type check under this scheme.

-- define function second-integer (integer* $integer-sequence) integer { xf:item($integer-sequence, 2) }

-- define function third-book (Book* $book-sequence) book { xf:item($book-sequence, 3) }

The definitions are easier to write and more efficient to execute (since no "treat as" needs to check the structure of the result).

Parametric polymorphism would also be useful for user-defined functions, it were clear how to define it for user-defined functions in general. But at the very least, we should allow parametric polymorphism for the built-in functions defined in the functions and operators document.

Resolution:

This issue occurs in 12 Constructors, Functions, and Operators on Sequences

Issue 90: Constructors for id and idref need a document context for validity. (id-and-idref-constructors-need-context)

Originator: Norm Walsh (member-only message).
Locus: Syntax

Description:

The constructor functions for ID and IDREF need a document context for validity.

Resolution:

This issue occurs in 4.2 String Constructors

Issue 91: Need value-based functions for Union, Intersect and Except. (value-based-union-intersect-except)

Originator: Steve Tolkin in August 15, 2001 telcon.
Locus: Syntax

Description:

There also need to be be versions of UNION, INTERSECT, and EXCEPT that work on value equality rather than node identity. See also the XQuery Issue 63: Set operations based on value (xquery-set-operators-on-values).

See also [Issue 132: union(), intersect(), and except(): only for simple values?].

Resolution:

This issue occurs in 12.3 Equals, Union, Intersection and Except,

Issue 92 [Closed] : The abs() function is required. (functions-abs-required)

Originator: Steve Tolkin (member-only message).
Locus: Syntax

Description:

The abs(), absolute, function is required. The question is, what should the return type be?

If there were a single type at the top of the numericv type hierarchy that would be a reasonable choice. But there isn't -- decimal, float and double are siblings.

A better answer is the return type is the type of the argument, e.g., abs(-1) is 1, abs(-2L) is 2L, abs(-3.4) is 3.4 etc. This implies function overloading. But I think thus is OK because this is a system defined function.

Resolution:

No support from taskforce.

Issue 93 [Closed] : Must allow case-insensitive search of text. Similarly it must support case-and-accent-insensitive search. (require-case-insensitive-contains)

Originator: Steve Tolkin (member-only message).
Locus: Syntax

Description:

For example a search for the string "bronte" should find the string "Bronté"

In earlier versions of this Functions and Operators document there were special functions that did this Then a decision was made that this should instead be based on a named collation. However at the moment there does not seem to be any vendor who supports a named collation that has this behavior. Nor does XQuery provide any way for a user to define a collation.

Assuming that such a collation exists we also need to clarify how (or if) a query can specify that it applies to string comparison done with the = operator.

Also the each of the two existing xf:substring functions should have a variant that takes a collation argument.

Resolution:

Named collations can be used for this purpose.y

Issue 94: Must allow searching for words near other words. (operator-within-window)

Originator: Steve Tolkin (member-only message).
Locus: Syntax

Description:

Systems that search text often provide a function to search for several terms that are near one another. Often this function is named NEAR and allows an argument to specify the maximum distance allowed between the terms. (Generally it only allow two terms, but sometimes it allows more).

XQuery should provide a standard function to achieve this. To avoid the difficult problem of deciding what is a word boundary etc. it should be defined instead on a sequence of nodes, and search their content.

One possible signature would be within-window(node* node-sequence, int size, string* strings, boolean order-matters)

The last argument order-matters is optional and if true the strings arguments would have to match in the order given.

A function like this could be used to answering the Library of Congress use cases at http://lcweb.loc.gov/crsinfo/xml/lc_usecases.html

It also could be used to answer the question of how to search for the sequence of pitches: C, D, E, C. as discussed in the memeber-only e-mail http://list3.w3.org/Archives/Member/w3c-xml-query-wg/2001Jul/0085.html

First the user would remove the extraneous ancestor nodes caused by the measures, leaving a sequence of note nodes. Then the essence of the query is simply: within-window(note-sequence, 4, make-list-of-strings("C","D","E","C"), true) where the 3rd argument is hypothetical syntax for constructing a list of strings.

Issue resulted from member-only e-mail http://lists.w3.org/Archives/Member/w3c-xml-query-wg/2001Jul/0127.html

Resolution:

This issue occurs in 4.4 Functions on String Values

Issue 95 [Closed] : Need if-absent and if-empty functions to handle missing and unknown data. (require-if-absent-and-if-empty-functions)

Originator: Steve Tolkin (member-only message).
Locus: Syntax

Description:

Users will need to test for absent elements, and optionally provide a value for them. (There is no support in XML Schema for a default value for absent elements.) Writing this function is quite complex -- perhaps too complex to expect from XQuery users -- and too verbose to include in every query that needs it. It should be provided as a built-in function.

The following code was provided by Mary Fernandez; see more in the e-mail cited below.

define function if_absent ( xs:AnyElement? $e, xs:AnySimpleType $s )
   return xs:AnySimpleType {

  typeswitch ($e) as $v
  case () return $s
  case xs:AnyElement return
    (typeswitch ($v)
     case ELEMENT * { xs:AnySimpleType } return data($v)
     default return error
    )
  default return error

Similarly users will need to be able to translate an empty element to an element with a particular value. This could be a separate issue, but for now we can keep it as part of this issue. The e-mail cited below has even more complex code for this function.

There should also be a way to test for an absent attribute. This might be a separate function, or combined into this function.

Issue resulted from member-only e-mail http://lists.w3.org/Archives/Member/w3c-xml-query-wg/2001Jul/0171.html

Resolution:

RESOLVED: Functions added.

Issue 96: These functions on time-period values are better written using operators as in SQL. (use-operators-for-timePeriod-functions)

Originator: Don Chamberlin (member-only message; Items 13 and 14)
Locus: Syntax

Description:

Section 5.7 describes three functions named get-duration(), get-end-dateTime(), and get-start-dateTime() whose purpose is to compute sums and differences of dates and durations. This purpose would be served in a much more readable way by using arithmetic operators, as in SQL. For example, get-end-dateTime(time1, duration2) could be better expressed as time1+duration2.

Section 5.7 also describes three functions named temporal-dateTimes-contains, temporal-dateTimeDuration-contains, and temporal-durationDateTimes-contains whose purpose is to test whether a time is contained in an interval. This purpose would be served in a much more readable way by using comparison operators. For example, temporal-dateTimeDuration-contains(time1, duration2, time3) could be better expressed as time3 >= time1 AND time3 <= time1 + duration2.

Resolution:

This issue occurs in 6.6 Functions and Operators on TimePeriod Values

Issue 97 [Closed] : We need a deep-equals function for nodes. (deep-equals-function-required)

Originator: Don Chamberlin (member-only message; Item 16)
Locus: Syntax

Description:

This section lists two equality-tests between nodes, called "node-equal" and "value-equal". Value-equal is defined to ignore nested markup, as in XPath 1.0. We also need a comparison-test, possibly called "deep-equal", which respects nested markup, requiring the nodes being compared to have the matching descendant-subtrees with corresponding nodes equal in name and content. For example, consider a book with author "Mark Twain" and title "Tom Sawyer", and another book with title "Mark Twain" and author "Tom Sawyer". These books would be value-equal (according to XPath 1.0) but not deep-equal.

Resolution:

RESOLVED: We now have deep-equals. The above example will not compare deep-equal.

Issue 98 [Closed] : Need head() and tail() functions on sequences. (request-head-and-tail-functions)

Originator: Dana Florescu (member-only message).
Locus: Syntax

Description:

We need head() and tail functions on sequences. Some disagreement from Denise Draper in member-only message : http://lists.w3.org/Archives/Member/w3c-xml-query-wg/2001Aug/0247.html

Resolution:

RESOLUTION: WG decided that head() and tail() were not required for sequences. Count() and item-at() were sufficient.

Issue 99 [Closed] : Remove sort and reverse-sort-functions. Covered by SORTBY operator in the language. (remove-sort-and-reverse-sort)

Originator: Don Chamberlin (member-only message; Item 20).
Locus: Syntax

Description:

Remove sort and reverse-sort-functions. They are covered by SORTBY operator in the language.

Resolution:

Done! But see issue 64.

Issue 100 [Closed] : Reconcile the definitions of these functions with XPath. (reconcile-with-xpath)

Originator: Don Chamberlin (member-only message; Item 20)
Locus: Syntax

Description:

last() is not correctly described. In the XPath 1.0 function library, last() takes no arguments, and it returns the "context size from the expression evaluation context". This terminology doesn't fit XQuery very well.

position() is not correctly described. In the XPath 1.0 function library, position() takes no arguments, and it returns the "context position from the expression evaluation context". This terminology doesn't fit XQuery very well.

Resolution:

RESOLVED: Functions removed and added to a new section on context function

Issue 101 [Closed] : Scalar functions should accept the empty sequence. (error-if-empty-sequence-where-scalar-expected)

Originator: Don Chamberlin (member-only message; Item 9)
Locus: Syntax

Description:

The WG has decided that if a function expects a scalar value and it is called with an empty sequence, an error results. But many functions are defined that expect scalar values. As specified, none of these functions can be safely used in a path expression. Consider floor(decimal) as an example. Consider the path expression //emp/floor(bonus). This expression will raise an error if any employee does not have a bonus. This is clearly not what is intended. Nearly all of the parameter declarations should be edited to allow for empty sequences.

Resolution:

RESOLVED: Functions that accept empty sequences should indicate this in their signature.

Issue 102 [Closed] : Need operators for UNION, INTERSECT and EXCEPT. (need-operators-for-union-intersect-except)

Originator: Don Chamberlin (member-only message; Item 1 (e)).
Locus: Syntax

Description:

We need operators for UNION, INTERSECT and EXCEPT; these are operators in XQuery. They can be implemented by mapping to the functions but should be added to the document.

Resolution:

XPath/XQuery will define them.

Issue 103: Need operators for BEFORE and AFTER. (need-operators-for-before-and-after)

Originator: Don Chamberlin (member-only message; Item 1 (f))
Locus: Syntax

Description:

We need operators for BEFORE and AFTER. They can be implemented by mapping to the functions but should be added to the document.

Resolution:

This issue occurs in 11.1 Functions and Operators on Nodes

Issue 104: Need equality and inequality operators for strings. (need-equality-inequality-operators-for-strings)

Originator: Don Chamberlin (member-only message; Item 10)
Locus: Syntax

Description:

XPath 1.0 supports six comparison operators between string-values. None of these are listed in this document. You should list them, and raise an issue about their meaning, since the XPath definition is probably no longer appropriate.

Resolution:

This issue occurs in 4.3 Equality and Comparison of Strings

Issue 105: XPath 1.0 compatibility broken for div (operator-div-compatibility)

Originator: Mike Kay (member-only message)
Locus: Syntax

Description:

A compatibility issue exists with the div operator. When XPath 1.0 semantics are used, 1 div 4 returns 0.25, but the current specification apparently returns zero.

Resolution:

This issue occurs in 3.3 Operators on Numeric Values

Issue 106 [Closed] : Do function invocations expand character references? (operators-function-expand-character-refs)

Originator: Mike Kay (member-only message)
Locus: Syntax

Description:

The examples may have to be changed, since expansion of character references is performed by a preprocessing step that may happen in some contexts (e.g., as part of an XML document), but not in others (e.g., when used in a Java application).

Resolution:

Appropriate wording added.

Issue 107: Notion of document context required? (operators-functions-need-context)

Originator: Norm Walsh (member-only message)
Locus: Syntax

Description:

It is not clear that many functions can make sense without some notion of document context. Perhaps those functions should have an optional context argument of some sort. What does it mean to have an XML ENTITY value without some notion of the document in which it occurs?

Resolution:

This issue occurs in 4.2 String Constructors

Issue 108: Should strings always be returned in Unicode normalized form? (operators-always-normalize)

Originator: Norm Walsh (member-only message)
Locus: Syntax

Description:

When does it make sense for a function to return a string that is in a form other than some Unicode normalized form?

Resolution:

This issue occurs in 4.4.1 Usage Notes

Issue 109: Calendar context allows for non-Gregorian calendars (operators-calendar-context)

Originator: Norm Walsh (member-only message)
Locus: Syntax

Description:

Some sort of (defaulted) calendar context is required for all these functions to allow for future support of non-Gregorian calendars.

Resolution:

This issue occurs in 6 Constructors, Functions, and Operators on Dates and Times

Issue 110: No timezone: Empty sequence or empty string? (operators-timezone-empty-sequence)

Originator: Norm Walsh (member-only message)
Locus: Syntax

Description:

"...does not contain a timezone, the result is the empty sequence" should be "...does not contain a timezone, the result is the empty string". Whatever we do, the result should be consistent with other such decisions e.g. what does the name accessor return if the node has no name.

Resolution:

This issue occurs in 6.4.9 xf:get-timezone-from-dateTime

Issue 111 [Closed] : get-end-datetime and get-start-datetime should be more unique (operators-get-end-start)

Originator: Norm Walsh (member-only message)
Locus: Syntax

Description:

The functions xf:get-end() and xf:get-start() should have more unique names, perhaps xf:get-end-dateTime() and xf:get-start-dateTime.

Resolution:

The names of the functions have been changed as suggested.

Issue 112: QName-from-uri needs context (operators-qname-from-uri-context)

Originator: Norm Walsh (member-only message)
Locus: Syntax

Description:

How can QName-from-uri operate without some sort of context?

What is a QName in no namespace?

Resolution:

This issue occurs in 7.1.1 xf:QName-from-uri, 7.1.3 xf:QName

Issue 113: Need more complete numeric comparison semantics (operators-numeric-comparison-semantics)

Originator: Mike Kay (member-only message)
Locus: Syntax

Description:

The document does not specify the complete semantics of numeric comparisons. For example, is -0.0e1 equal to +0.0e1? Is NaN equal to Nan?

Resolution:

This issue occurs in 3.4 Comparisons of Numeric Values

Issue 114 [Closed] : codepoint-compare versus compare with special collation (operators-codepoint-using-collation)

Originator: Mike Kay (member-only message)
Locus: Syntax

Description:

It would be simpler to provide codepoint-compare() by defining a standard collation name that represents "Unicode codepoint order". This would avoid the need for codepoint-substring-after(), etc.

Resolution:

RESOLVED: Functions changed to reflect this viewpoint.

Issue 115 [Closed] : QName-from-string function (operators-qname-string)

Originator: Mike Kay (member-only message)
Locus: Syntax

Description:

Users might reasonably expect us to provide a QName constructor that takes as input the string "prefix:local-name".

Resolution:

RESOLVED: Constructor added.

Issue 116: What should get-namespace-uri() return? (operators-get-namespace-uri-return)

Originator: Mike Kay (member-only message)
Locus: Syntax

Description:

It might be more user-friendly to return an empty string if the name is in no namespace, since an empty string can never be used as a namespace URI.

Resolution:

This issue occurs in 7.2.2 xf:get-namespace-uri

Issue 117 [Closed] : Data model defines document order for multiple documents (operators-result-not-impdep)

Originator: Mike Kay (member-only message)
Locus: Syntax

Description:

These sections state that, if the nodes are in different documents, the results are implementation-dependent. This is unnecessary, since [XQuery 1.0 and XPath 2.0 Data Model] defines what document order means in these cases.

Resolution:

RESOLVED. Wording changed.

Issue 118: Should xf:string(node) return error if argument not scalar? (operators-string-nonscalar-error)

Originator: Don Chamberlin (member-only message)
Locus: Syntax

Description:

string(node) contains the XPath 1.0 definition of the string() function. This definition is based on the type system of XPath 1.0, which has only four types, and it should be reconsidered for XQuery. For example, the definition says that a sequence is converted to a string by returning the string-value of the first item in the sequence. This conflicts with our general policy of raising an error if a scalar function is called with a sequence of length greater than one.

Resolution:

This issue is not referenced!

Issue 119 [Closed] : boolean(false) should return false (operators-boolean-values)

Originator: Don Chamberlin (member-only message)
Locus: Syntax

Description:

The XPath 1.0 definition of the boolean() function is based on the type system of XPath 1.0, which has only four types, and it should be reconsidered for XQuery. For example, the definition says that a sequence is true if and only if it is non-empty. But in XQuery we believe that a sequence that contains the single Boolean value False should in fact be False, not True.

Resolution:

RESOLVED. Part of resolution of implicit conversions.

Issue 120 [Closed] : union-all, intersect-all, and except-all: implementation-defined order and retain duplicates (operators-allfuncs-impdef-order)

Originator: Don Chamberlin (member-only message)
Locus: Syntax

Description:

The union-all, intersect-all, and except-all functions return their results in document order. These functions should return their results in implementation-defined order. The union, intersect, and except operators (like path-steps) eliminate duplicates and sort in document order. This is expensive. The "-all" versions of these operators should take the "cheap" strategy: don't eliminate duplicates and don't sort in document order. If the user has a need for either duplicate elimination or sorting, orthogonal functions are (or should be) available for this purpose (see [Issue 66: A function to reorder a sequence into document order is needed]).

Resolution:

RESOLVED. Functions removed.

Issue 121 [Closed] : Representation of indeterminate comparison (operators-comparison-indeterminate)

Originator: Don Chamberlin (member-only message)
Locus: Syntax

Description:

Comparison of datetime values describes six comparison operators that return true, false, or "indeterminate", said to be represented by the symbol "<>". All other comparison operators in the language represent the unknown truth value by an empty sequence. The operators in that section should be defined consistently with the rest of the language. This issue is not adequately described by , which deals with indeterminate date/time values (in the new issue, we need to represent an unknown truth-value, not an indeterminate date/time.)

Resolution:

The operands are restricted to be values of the same kind so indeterminate results never arise.

Issue 122: What is a "namespace in scope"? (operators-namespaces-in-scope)

Originator: Don Chamberlin (member-only message)
Locus: Syntax

Description:

Section 6.1.2.4 refers to namespace URI's as being "in scope". I do not understand what this means. XQuery has a concept of a scope for namespace prefixes, but as far as I know we have not defined the concept of scope for URI's.

Resolution:

This issue is not referenced!

Issue 123 [Closed] : Comparison of durations and datetimes: functions or operators? (operators-comparison-funcs-or-ops)

Originator: Jonathan Robie (member-only message)
Locus: Syntax

Description:

Comparisons of Duration and Datetime values: Should these be functions or operators?

Resolution:

Comparison of duration and dateTimes are defined as operators.

Issue 124 [Closed] : add-months() and add-years() incompletely specified (operators-add-months-years)

Originator: Jonathan Robie (member-only message)
Locus: Syntax

Description:

add-months() is incompletely specified. What is February 28th, 2001 + 1 month? Does the result always have the same value for DD? Or is there a standard length month? add-years() is also incompletely specified. Is leap-year taken into account? Does the result have the same values for MM and DD?

Resolution:

RESOLVED: These functions have been removed.

Issue 125 [Closed] : Do comparisons on base64Binary and hexBinary make sense? (operators-binary-comparisons)

Originator: Jonathan Robie (member-only message)
Locus: Syntax

Description:

Since these are essentially blobs, does it make sense to define comparators on them?

Resolution:

RESOLVED: Deleted. Only equal and not-equal remain.

Issue 126 [Closed] : Which boolean conversions make sense? (operators-casting-booleans)

Originator: Jonathan Robie (member-only message)
Locus: Syntax

Description:

We need to carefully consider which boolean conversions make sense.

Resolution:

Subsumed by issue 156.

Issue 127 [Closed] : distinct-values() versus distinct() (operators-distinct-values)

Originator: Jonathan Robie (member-only message)
Locus: Syntax

Description:

This document is missing the distinct() function used in the XQuery document. We have added xf:distinct-values() - I think it would be best to remove this latter function and add the former, which occurs liberally in our use cases and XQuery spec.

Resolution:

RESOLVED. We now have distinct-nodes and distinct-values.

Issue 128: doc-order() function needed? (operators-doc-order)

Originator: Jonathan Robie (member-only message)
Locus: Syntax

Description:

This document is missing a function to put nodes in document order, eliminating duplicates by identity. This has been called xf:doc-order() in some emails. I am not sure that we need xf:distinct-nodes(). If we have xf:doc-order() and xf:distinct(), that should be enough.

Resolution:

This issue occurs in 12.2.7 xf:distinct-nodes

Issue 129 [Closed] : sort and reverse-sort or SORTBY (operators-sort-or-sortby)

Originator: Jonathan Robie (member-only message)
Locus: Syntax

Description:

I also question the utility of the following: xf:sort() Why not use SORTBY instead? xf:reverse-sort() Again, use SORTBY.

Resolution:

RESOLVED. Functions removed.

Issue 130 [Closed] : Several functions might become second-order functions (operators-second-order-functions)

Originator: Jonathan Robie (member-only message)
Locus: Syntax

Description:

xf:position(), xf:sublist-before(), xf:sublist-after(), xf:sequence-pad-beginning(), xf:sequence-pad-end(), xf:truncate-beginning(), xf:truncate-end(), xf:resize-beginning(), xf:resize-end()

All of these rely on complex deep comparisons of nodes. But we will probably need to supply more than one way of comparing nodes. None of these feel like they fall on the right side of the 80/20 decision.

A complete specification of these functions is complex, and there are many different ways we might choose to define the comparisons that all make sense.

If we do choose to keep these functions, I would argue that they should be second order functions, where the user specifies the comparison function. Since we have agreed not to do second-order functions in Level 1.0, that would mean postponing it until Level 2.0.

Resolution:

RESOLVED: Most functions deleted; position is context function now.

Issue 131 [Closed] : Is the insert() function required? (operators-insert-needed)

Originator: Jonathan Robie (member-only message)
Locus: Syntax

Description:

xf:insert() - This is easy to do without the function.

xf:insert($target, $position, $inserts) => $target[1 to $position], $inserts, $target[($position+1) to last()]

Do we really need a function for this?

Resolution:

RESOLVED: WG voted to keep insert.

Issue 132: union(), intersect(), and except(): only for simple values? (operators-union-intersect-except-only-simple-values)

Originator: Jonathan Robie (member-only message)
Locus: Syntax

Description:

Since there is no one right way to compare nodes by value, this makes sense only for simple types. See also [Issue 91: Need value-based functions for Union, Intersect and Except.].

Resolution:

This issue occurs in 12.3 Equals, Union, Intersection and Except,

Issue 133: Syntax for indicating that function accepts empty sequence is incorrect (syntax-for-function-takes-empty-sequence)

Originator: (member-only message) Minutes of 10/31 Query telcon.
Locus: Syntax

Description:

The ? is used in the XML EBNF to indicate that a token is optional. Using the ? after a type name in a function signature to indicate that the empty sequence is allowed uses the ? to indicate a quite different semantic. This may be confusing to users.

Resolution:

This issue occurs in 1.2 Notations

Issue 134: What should be the name of the three-valued-logic NOT function? (name-of-three-valued-logic-not)

Originator: (member-only message) Minutes of 10/31 Query telcon.
Locus: Syntax

Description:

What should be the name of the three-valued NOT function?

Resolution:

This issue occurs in 5.3.2.1 Examples

Issue 135: Should we allow casting to/from derived types? (should-casting-to-derived-types-be-allowed)

Originator: (member-only message) Don Chamberlin.
Locus: Syntax

Description:

According to the rules in section 15.2.1, dollars can be cast into rubles and inches can be cast into meters as long as they have compatible base types (no actual conversion is performed; 100 dollars simply becomes 100 rubles with no warning.) I have misgivings about this.

Resolution:

This issue occurs in , 14 Casting Functions

Issue 136: Should we allow casting a date/time from one timezone to another? (function-datetime-timezone-conversion)

Originator: (member-only message) Anders Berglund.
Locus: Syntax

Description:

Should we have functions that convert a date/time time value from one timezone to another? If the original value has no timezone, the timezone is added. If it hasa timezone, the value is changed to conform to the specified timezone. Perhaps an alternate signature takes a timezone delta.

Resolution:

This issue occurs in 6 Constructors, Functions, and Operators on Dates and Times

Issue 137: Should functions that return timezones return a duration? (operators-timezone-return-duration)

Originator: Andrew Eisenberg. (member-only message)
Locus: Syntax

Description:

"Should the functions that return timezones return a duration rather than a string?"

Resolution:

This issue occurs in 6.4.9 xf:get-timezone-from-dateTime

Issue 138: Need a table showing which functions an operator maps to. (need-operators-to-function-mapping-table)

Originator: (member-only message) Minutes of December 5, 2001 meeting.
Locus: Syntax

Description:

We need a table showing the mapping of operators to functions. Which document should contain it?"

Resolution:

This issue occurs in

Issue 139: Need a fuller treatment of error behaviour and possibly error handling. (need-fuller-definition-of-error-behavior-and-handling)

Originator: (member-only message) Minutes of December 5, 2001 meeting.
Locus: Syntax

Description:

The documents talk vaguely about throwing errors, type errors, an error object; MFF suggested an error function. We need a comprehensive treatment of error behaviour and possibly error handling."

Resolution:

This issue occurs in

Issue 140: Should the < and > operators apply to strings? (should-gt-lt-apply-to-strings)

Originator: (member-only message) Minutes of December 5, 2001 meeting.
Locus: Syntax

Description:

Should > and < operators apply to strings? In the sense that do these operations make sense for strings?"

Resolution:

This issue occurs in 4.3 Equality and Comparison of Strings

Issue 141: Does string equality use the codepoint collation or the default collation? (does-string-equality-use-codepoint-or-default-collation)

Originator: (member-only message) Minutes of December 5, 2001 meeting.
Locus: Syntax

Description:

Does string equality use the codepoint collation or the default collation. Note that we decided that codepoint comparisons would be done via a special collation.

Resolution:

This issue occurs in 4.3.1 xf:compare

Issue 142: Should floor ceiling and round return the same type as their argument? (what-should-floor-ceiling-round-return)

Originator: (member-only message) Minutes of December 5, 2001 meeting.
Locus: Syntax

Description:

What do floor, ceiling and round return? The document says integer. But NaN and the empty sequnce are allowed. Should they return the same type as their operand (without a fractional part)? This allows them to operate on numbers larger than a decimal or integer can accomodate.

Resolution:

This issue occurs in 3.5 Functions on Numeric Values

Issue 143: Should we add a tokenize function to break a string into tokens? (need-tokenize-function)

Originator: (member-only message) Minutes of December 5, 2001 meeting.
Locus: Syntax

Description:

Should we add a function to tokenize a string, breaking on a specified character?"

Resolution:

This issue occurs in 4.4 Functions on String Values

Issue 144: Should the concat function accept sequences as arguments? (should-concat-accept-sequence-arguments)

Originator: (member-only message) Minutes of December 5, 2001 meeting.
Locus: Syntax

Description:

Should the concat function accept sequences as arguments? Should sequences of strings be flattened? Should string-values be used if the items in the sequence are not strings?

Resolution:

This issue occurs in 4.4.2 xf:concat

Issue 145: Need decisions and text in several of our documents detailing conformance requirements based on resource limitations. (need-to-specify-resource-limits)

Originator: (member-only message) Minutes of December 5, 2001 meeting.
Locus: Syntax

Description:

We need to specify minimum conformance requirements based on resource limitations such as the maximum number of nodes in a sequence, number of text nodes in a document, etc."

Resolution:

This issue occurs in

Issue 146: Need to align node-before, node-after functions with corresponding operators in the XPath/XQuery documents. (need-to-align-before-after-operators)

Originator: (member-only message) Minutes of December 5, 2001 meeting.
Locus: Syntax

Description:

Need to align the node-before and node-after functions with the precedes, follows, << and >> operators inn the XPath/XQuery documents.

Resolution:

This issue occurs in

Issue 147: The xf:document() function needs to be aligned with XSLT. (need-to-align-document-function)

Originator: (member-only message) Minutes of December 5, 2001 meeting.
Locus: Syntax

Description:

The xf:document() function needs to be aligned with XSLT.

Resolution:

This issue occurs in

Issue 148: Should the F&O document imply any type promotions at all or should the type promotion material be in the language documents? (where-should-type-promotion-go)

Originator: (member-only message) Minutes of December 5, 2001 meeting.
Locus: Syntax

Description:

Should the F&O document imply any type promotions at all or should all of the numeric type promotion material in section 3.3 be in the language documents?

Resolution:

This issue occurs in

Issue 149: Either the constructor functions should allow dynamic expressions or the syntax should be changed so that they do not appear to be functions. (should-constructors-accept-only-literals)

Originator: (member-only message) Minutes of December 5, 2001 meeting.
Locus: Syntax

Description:

Either the constructor functions should allow dynamic expressions or the syntax should be changed so that they do not appear to be functions.

Resolution:

This issue occurs in 3.2 Numeric Constructors

Issue 150: Should we support comparisons of date/time types that return indeterminate results? (should-comparison-that-return-indeterminate-results-be-supported)

Originator: (member-only message) Minutes of December 5, 2001 meeting.
Locus: Syntax

Description:

Comparisons of durations that contain both months and days can return indeteriminate results as defined by XML Schema. Similarly, date/time times that may or may not have a timezone specified return indeterminate results. Should such comparisons be supported?

Resolution:

This issue occurs in

Issue 151: Do we need comparison functions on other date and time types? (comparison-functions-for-other-date-and-time-types)

Originator: (member-only message) Minutes of December 5, 2001 meeting.
Locus: Syntax

Description:

We document currently defines comparison functions on durations and dateTime. Do we need comparison functions for other date/time types. See also, issue 150.

Resolution:

This issue occurs in 6.3 Comparisons of Duration and Datetime Values

Issue 152: Create a single extraction function for each datatype that takes as a parameter the field it extracts. (parameterized-extraction-functions-for-date-and-times)

Originator: (member-only message) Minutes of December 5, 2001 meeting.
Locus: Syntax

Description:

The document will be made more complete and smaller by having a single extraction function for each date/time datatype that takes as a parameter the name of the bfield it extracts. Break timezone into timezone hours and timezone minutes or extract as) duration.

Resolution:

This issue occurs in 6.4 Component Extraction Functions on Datetime Values

Issue 153: Should we add functions to add/subtract durations and multiply a duration by a number? (arithmetic-functions-on-durations)

Originator: (member-only message) Minutes of December 5, 2001 meeting.
Locus: Syntax

Description:

Should we add functions to add/subtract durations and multiply a duration by a number?

Resolution:

This issue occurs in 6 Constructors, Functions, and Operators on Dates and Times

Issue 154: Should we define a second order distinct function? (second-order-distinct-function)

Originator: (member-only message) Minutes of December 5, 2001 meeting.
Locus: Syntax

Description:

Should we define a second order distinct function where the comparison function is passed as an argument? Mike Kay to write a proposal.

Resolution:

This issue occurs in 12.2.7 xf:distinct-nodes

Issue 155: The term 'empty content' should be changed or, at least, be carefully defined. (define-if-empty)

Originator: (member-only message) Minutes of December 5, 2001 meeting.
Locus: Syntax

Description:

The term 'empty content' should be changed or, at least, be carefully defined. Is an attribute node with the value of the empty string empty content?

Resolution:

This issue occurs in 11.2.2 xf:if-empty

Issue 156: How should the boolean function be defined? Legacy XPath 1.0 function? (operators-boolean-function)

Originator: (member-only message) Minutes of December 5, 2001 meeting.
Locus: Syntax

Description:

Why is the definition of boolean() different from the rules for converting a sequence into a boolean? One possibility is to consider this a legacy function that performs the XPath 1.0 test. Should this function be moved into the XSLT document in that case? This needs to be synchronized with the fallback conversions for boolean in XPath 2.0.

Resolution:

This issue occurs in 12.2.1 xf:boolean

Issue 157: boolean-from-string should accept only 1, 0, true, false. (boolean-from-string-legal-literals)

Originator: Andrew Eisenberg. (member-only message)
Locus: Syntax

Description:

boolean-from-string should accept only 1, 0, true, false. This is what XML Schema allows and that's all we need.

Resolution:

This issue occurs in 5.1.3 xf:boolean-from-string

Issue 158: We need equality functions for all simple datatypes. See also, issue 151. (need-equality-functions-for-all-datatypes)

Originator: Don Chamberlin. (member-only message)
Locus: Syntax

Description:

We need equality functions for all datatypes. Currently, we are lacking equality functions for some date and time types (Issue 151), QNames, URI and NOTATION.

Resolution:

This issue occurs in 11.1.4 xf:deep-equal

Issue 159: For fractional seconds precision use 6 digits to match SQL TIMESTAMP. (minimum-conformance-for-fractional-seconds)

Originator: Andrew Eisenberg. (member-only message)
Locus: Syntax

Description:

For fractional seconds precision we should choose a limit that matched SQL's TIMESTAMP data type, which is 6 digits of fractional seconds precision.

Resolution:

This issue occurs in 6.1 Duration and Datetime Types

C ChangeLog (Non-Normative)

This appendix tracks gross changes in the document; it is not intended to provide a fine-grained revision history.

08 Oct 2001 (ndw): Removed xf:get-Century-from-gYear, xf:get-Century-from-gYearMonth, xf:get-gYear-from-dateTime, xf:get-gYear-from-date, xf:get-gYear-from-gYearMonth, xf:get-gMonth-from-dateTime, xf:get-gMonth-from-date, xf:get-gMonth-from-gYearMonth, xf:get-gMonth-from-gMonthDay, xf:get-gDay-from-dateTime, xf:get-gDay-from-date, xf:get-gDay-from-gMonthDay, xf:get-timezone-from-gYear, xf:get-timezone-from-gYearMonth, xf:get-timezone-from-gMonth, xf:get-timezone-from-gMonthDay, xf:get-timezone-from-gDay, xf:add-months, xf:add-years, xf:add-gMonth, xf:add-gYear, xf:sublist-before, xf:sublist-after, xf:sequence-pad-beginning, xf:sequence-pad-end, xf:truncate-beginning, xf:truncate-end, xf:resize-beginning, xf:resize-end, xf:unordered, xf:union-all, xf:intersect-all, and xf:except-all.

09 Oct 2001 (ndw): Replaced string-pad-beginning and string-pad-end with string-pad.

09 Oct 2001 (ndw): Reworked definition for xf:match.

09 Oct 2001 (ndw): Removed references to functions we've removed.

09 Oct 2001 (ndw): Added experimental "operators as functions" syntax.

26-Oct-2001 (AM) Added section showing exposed functions from accessors and kind tests.

26-Oct-2001 (AM) Changed comparison functions on dateTime and duration to accept only those arguments that would return a determinate result. Closed issues on indeterminate results.

26-Oct-2001 (AM) Added NOT3 function. Added issue on name of this function.

26-Oct-2001 (AM) Added if-absent() and if-empty() functions.

31Oct-2001 (AM) Added issue on syntax used to indicate that a function accepts a empty sequence.

31-Oct-2001 (AM) Added section with four context functions.

31-Oct-2001 (AM) Changed section on functions on sequences to discuss heterogeneous sequences. Changed aggregate function definitions accordingly.

31-Oct-2001 (AM) Added wording to say that constructors accept only literals as per Reston minutes.

1-Nov-2001 (AM) Rewrote notations section to add note on derived types.

1-Nov-2001 (AM) Rewrote match and replace functions to remove optional collation argument and use codepoint comparisons.

1-Nov-2001 (AM) Removed operators on nodes.

1-Nov-2001 (AM) Changed operators on hexBinary and base64Binary to functions.

2-Nov-2001 (AM) Changed operators on boolean to functions.

21-Nov-2001 (AM) Added issue on whether casting to derived types should be permitted.

25-Nov-2001 (AM) Added material on which functions back up which operators.

10-Dec-2001 (AM) Removed get-QName-from-prefix.

10-Dec-2001 (AM) Removed xf:temporal-dateTimes-contains, xf:temporal-dateTimeDuration-contains and xf:temporal-durationDateTimes-contains.

10-Dec-2001 (AM) Added issues, normal and high priority, as recorded in minutes of the 12/5 meeting: http://lists.w3.org/Archives/Member/w3c-xml-query-wg/2001Dec/0023.html

D Function and Operator Quick Reference (Non-Normative)

Constructors, Functions, and Operators on Numbers
Numeric Constructors
xf:decimal(string $srcval) => decimal
xf:integer(string $srcval) => integer
xf:long(string $srcval) => integer
xf:int(string $srcval) => integer
xf:short(string $srcval) => integer
xf:byte(string $srcval) => integer
xf:float(string $srcval) => float
xf:double(string $srcval) => double
Operators on Numeric Values
op:numeric-add(numeric $operand1, numeric $operand2) => numeric
op:numeric-subtract(numeric $operand1, numeric $operand2) => numeric
op:numeric-multiply(numeric $operand1, numeric $operand2) => numeric
op:numeric-divide(numeric $operand1, numeric $operand2) => numeric
op:numeric-mod(numeric $operand1, numeric $operand2) => numeric
op:numeric-unary-plus(numeric $operand) => numeric
op:numeric-unary-minus(numeric $operand) => numeric
Comparisons of Numeric Values
op:numeric-equal(numeric $operand1, numeric $operand2) => boolean
op:numeric-less-than(numeric $operand1, numeric $operand2) => boolean
op:numeric-greater-than(numeric $operand1, numeric $operand2) => boolean
op:numeric-less-than-or-equal(numeric $operand1, numeric $operand2) => boolean
op:numeric-greater-than-or-equal(numeric $operand1, numeric $operand2) => boolean
op:numeric-not-equal(numeric $operand1, numeric $operand2) => boolean
Functions on Numeric Values
xf:floor(double? $srcval) => integer?
xf:ceiling(double? $srcval) => integer?
xf:round(double? $srcval) => integer?
Constructors and Functions on Strings
String Constructors
xf:string(string $srcval) => string
xf:normalizedString(string $srcval) => normalizedString
xf:token(string $srcval) => token
xf:language(string $srcval) => language
xf:Name(string $srcval) => Name
xf:NMTOKEN(string $srcval) => NMTOKEN
xf:NCName(string $srcval) => NCName
xf:ID(string $srcval) => ID
xf:IDREF(string $srcval) => IDREF
xf:ENTITY(string $srcval) => ENTITY
Equality and Comparison of Strings
xf:compare(string? $comparand1, string? $comparand2) => integer?
xf:compare(string? $comparand1, string? $comparand2, anyURI $collationLiteral) => integer?
Functions on String Values
xf:concat() => string
xf:concat(string? $op1) => string
xf:concat(string? $op1, string? $op2, ...) => string
xf:starts-with(string? $operand1, string? $operand2) => boolean?
xf:starts-with(string? $operand1, string? $operand2, anyURI $collationLiteral) => boolean?
xf:ends-with(string? $operand1, string? $operand2) => boolean?
xf:ends-with(string? $operand1, string? $operand2, anyURI $collationLiteral) => boolean?
xf:contains(string? $operand1, string? $operand2) => boolean?
xf:contains(string? $operand1, string? $operand2, anyURI $collationLiteral) => boolean?
xf:substring(string? $sourceString, decimal? $startingLoc) => string?
xf:substring(string? $sourceString, decimal? $startingLoc, decimal? $length) => string?
xf:string-length(string? $srcval) => integer?
xf:substring-before(string? $operand1, string? $operand2) => string?
xf:substring-before(string? $operand1, string? $operand2, anyURI $collationLiteral) => string?
xf:substring-after(string? $operand1, string? $operand2) => string?
xf:substring-after(string? $operand1, string? $operand2, anyURI $collationLiteral) => string?
xf:normalize-space(string? $srcval) => string?
xf:normalize-unicode(string? $srcval, string $normalizationForm) => string?
xf:upper-case(string? $srcval) => string?
xf:lower-case(string? $srcval) => string?
xf:translate(string? $srcval, string? $mapString, string? $transString) => string?
xf:string-pad(string? $padString, decimal? $padCount) => string?
xf:match(string? $srcval, string? $regexp) => integer*
xf:replace(string? $srcval, string? $regexp, string? $repval) => string?
Constructors, Functions and Operators on Booleans
Boolean Constructors
xf:true() => boolean
xf:false() => boolean
xf:boolean-from-string(string $srcval) => boolean
Operators on Boolean Values
op:boolean-and(boolean $value1, boolean $value2) => boolean
op:boolean-or(boolean $value1, boolean $value2) => boolean
op:boolean-equal(boolean? $value1, boolean? $value2) => boolean?
Functions on Boolean Values
xf:not(boolean? $srcval) => boolean
xf:not3(boolean? $srcval) => boolean?
Constructors, Functions, and Operators on Dates and Times
Duration and Datetime Constructors
xf:duration(string $srcval) => duration
xf:dateTime(string $srcval) => dateTime
xf:date(string $srcval) => date
xf:time(string $srcval) => time
xf:gYearMonth(string $srcval) => gYearMonth
xf:gYear(string $srcval) => gYear
xf:gMonthDay(string $srcval) => gMonthDay
xf:gMonth(string $srcval) => gMonth
xf:gDay(string $srcval) => gDay
Comparisons of Duration and Datetime Values
op:duration-equal(duration $operand1, duration $operand2) => boolean
op:duration-less-than(duration $operand1, duration $operand2) => boolean
op:duration-greater-than(duration $operand1, duration $operand2) => boolean
op:duration-less-than-or-equal(duration $operand1, duration $operand2) => boolean
op:duration-greater-than-or-equal(duration $operand1, duration $operand2) => boolean
op:duration-not-equal(duration $operand1, duration $operand2) => boolean
op:datetime-equal(dateTime $operand1, dateTime $operand2) => boolean
op:datetime-less-than(dateTime $operand1, dateTime $operand2) => boolean
op:datetime-greater-than(dateTime $operand1, dateTime $operand2) => boolean
op:datetime-less-than-or-equal(dateTime $operand1, dateTime $operand2) => boolean
op:datetime-greater-than-or-equal(dateTime $operand1, dateTime $operand2) => boolean
op:datetime-not-equal(dateTime $operand1, dateTime $operand2) => boolean
Component Extraction Functions on Datetime Values
xf:get-Century-from-dateTime(dateTime? $srcval) => integer?
xf:get-Century-from-date(date? $srcval) => integer?
xf:get-hour-from-dateTime(dateTime? $srcval) => integer?
xf:get-hour-from-time(time? $srcval) => integer?
xf:get-minutes-from-dateTime(dateTime? $srcval) => integer?
xf:get-minutes-from-time(time? $srcval) => integer?
xf:get-seconds-from-dateTime(dateTime? $srcval) => decimal?
xf:get-seconds-from-time(time? $srcval) => decimal?
xf:get-timezone-from-dateTime(dateTime? $srcval) => string?
xf:get-timezone-from-date(date? $srcval) => string?
xf:get-timezone-from-time(time? $srcval) => string?
Arithmetic Functions on Dates
xf:add-days(date? $dateParam, decimal? $incrDays) => date?
Functions and Operators on TimePeriod Values
op:get-duration(dateTime $parameter1, dateTime $parameter2) => duration
op:get-end-dateTime(dateTime $parameter1, duration $parameter2) => dateTime
xf:get-start-dateTime(dateTime $parameter1, duration $parameter2) => dateTime?
Constructors and Functions on QNames
Constructors for QNames
xf:QName-from-uri(string $paramURI, string $paramLocal) => QName
xf:QName-from-string(string $param) => QName
xf:QName(string $paramLocal) => QName
Functions on QNames
xf:get-local-name(QName? $srcval) => string?
xf:get-namespace-uri(QName? $srcval) => anyURI?
Constructors, Functions, and Operators for anyURI
Constructor for anyURI
xf:anyURI(string $srcval) => anyURI
Functions and Operators on base64Binary and hexBinary
Comparisons of base64Binary and hexBinary Values
op:hex-binary-equal(hexBinary $value1, hexBinary $value2) => boolean
op:base64-binary-equal(base64Binary $value1, base64Binary $value2) => boolean
Constructors, Functions, and Operators on NOTATION
NOTATION Constructor
xf:NOTATION(string $srcval) => NOTATION
Functions and Operators on Nodes
Functions and Operators on Nodes
xf:local-name() => string
xf:local-name(node $srcval) => string
xf:number() => anySimpleType
xf:number(node $srcval) => anySimpleType
op:node-equal(node $parameter1, node $parameter2) => boolean
xf:deep-equal(node $parameter1, node $parameter2) => boolean
xf:deep-equal(node $parameter1, node $parameter2, anyURI $collation) => boolean
op:node-before(node $parameter1, node $parameter2) => boolean
op:node-after(node $parameter1, node $parameter2) => boolean
xf:copy(node? $srcval) => node?
xf:shallow(node? $srcval) => node?
if-absent() and if-empty()
xf:if-absent((elementNode | attributeNode)? $node, anySimpleType $value) => (elementNode | attributeNode | anySimpleType)?
xf:if-empty((elementNode | attributeNode)? $node, anySimpleType $value) => (elementNode | attributeNode | anySimpleType)
Constructors, Functions, and Operators on Sequences
Constructors on Sequences
op:to(decimal $firstval, decimal $lastval) => sequence
Functions and Operators on Sequences
xf:boolean(item* $srcval) => boolean
op:concatenate(item* $seq1, item* $seq2) => item*
op:item-at(item* $seqParam, decimal $posParam) => item?
xf:index-of(item* $seqParam, item $srchParam) => unsignedInt?
xf:index-of(item* $seqParam, item $srchParam, anyURI $collationLiteral) => unsignedInt?
xf:empty(item* $srcval) => boolean
xf:exists(item* $srcval) => boolean
xf:distinct-nodes(node* $srcval) => node*
xf:distinct-values(item* $srcval) => item*
xf:distinct-values(item* $srcval, anyURI $collationLiteral) => item*
xf:insert(item* $target, decimal $position, item* $inserts) => item*
xf:remove(item* $target, decimal $position) => item*
xf:sublist(item* $sourceSeq, decimal $startingLoc) => item*
xf:sublist(item* $sourceSeq, decimal $startingLoc, decimal $length) => item*
Equals, Union, Intersection and Except
xf:sequence-deep-equal(item* $parameter1, item* $parameter2) => boolean?
xf:sequence-deep-equal(item* $parameter1, item* $parameter2, anyURI $collationLiteral) => boolean?
xf:sequence-node-equal(item*? $parameter1, item*? $parameter2) => boolean?
op:union(item* $parameter1, item* $parameter2) => item*
op:intersect(item* $parameter1, item* $parameter2) => item*
op:except(item* $parameter1, item* $parameter2) => item*
Aggregate Functions
xf:count(item* $srcval) => unsignedInt
xf:avg(item* $srcval) => double?
xf:max(item* $srcval) => anySimpleType?
xf:max(item* $srcval, anyURI $collationLiteral) => anySimpleType?
xf:min(item* $srcval) => anySimpleType?
xf:min(item* $srcval, anyURI $collationLiteral) => anySimpleType?
xf:sum(item* $srcval) => double?
Functions that Generate Sequences
xf:id(IDREF* $srcval) => elementNode*
xf:idref(string* $srcval) => elementNode*
xf:filter(expression $srcval) => node*
xf:document(string? $srcval) => node?
Context Functions
op:context-item
xf:position
xf:last
op:context-document
xf:current-dateTime
