Topics / Goals of this Presentation

• Describe purposes of the W3C Internationalization Tag Set (ITS) Working Group: Development of a tag set and guidelines for Internationalization (i18n) and Localization (l10n)
• Describe issues of the ITS requirements which arise related to schema languages
• Get feedback from the audience! Main questions:
  • Is the purpose of ITS useful? Would you use ITS for your schema(s)?
  • How would you solve the issues which arise related to schema languages?

Overview

• Scope of W3C ITS WG and ITS Requirements
• The Need to go Beyond Schemas; possibly useful Technologies
• ITS relevant Characteristics of Schema Languages
• Namespace Sectioning
• Schema Annotation
• Processing Models
• Questions to the Audience

Scope: Different types of XML Documents

1. center on text e.g. OpenOffice
2. focus on code e.g. XUL Mozilla
3. mix prose and code e.g. DocBook
4. include presentational aspects e.g. XHTML

Requirement: Bidirecional Text Support

• Issue: Correct rendering of character directionality cannot rely only on Unicode directionality properties for characters (LTR, RTL, indifferent, weakly typed)
• Correct display:

The title is "مفتاح معايير الويب!" in Arabic.

• Markup to indicate the directionality of text. Wrong display without markup (overall directionality is LTR):

The title is "مفتاح معايير الويب!" in Arabic.

Markup to specify directionality

• Markup to specify RTL directionality:

<p>The title is
"<span xml:lang="ar"
dir="rtl" lang="ar">مفتاح معايير الويب!</span>
"in Arabic.</p>

Requirement: Support for Ruby Markup

• Issue: Annotation of additional information mainly used for Japanese / Chinese Text
• Visualization:

• Markup:

<p>これは
<ruby><rb>紙芝居</rb><rt>かみしばい</rt></p>です。

Requirement: Span-like Element

• Issue: Add various i18n or l10n specific information
• Available in existing markup schemes like XHTML:

<code>System.out.println("
<span xml:lang="ja" translate="no">
Ｗ３Ｃ国際活動</span>");</code>

Requirement: Retrieving External Information

• Sample application: localized error message in a user interface documentation:

<para>If you create a typing error like "strs(s)",
you will get the message
 <xref id="resfile.resx">
 <subst>
  <search>{0}</search>
   <replace>&lt;Filename&gt;</replace>
 </subst>
 </xref>.<para>

Overview of Further Requirements

• The set of all requirements is available in a Wiki as work items on the ITS home page:

Indicator of Constraints	Indicator for metrics
CDATA sections	Limited impact
Handling entities	Attributes and translatable text
Locale / Language identification	Localization notes
Term identification	Handling of white-spaces
Purpose specification / mapping	Multilingual documents
Cultural aspects of the content	Annotation markup

• Some requirements are to be published as a Working Draft on 5 August:
  http://www.w3.org/TR/itsreq/

Overview

• Scope of W3C ITS WG and ITS Requirements
• The Need to go Beyond Schemas; possibly useful Technologies
• ITS relevant Characteristics of Schema Languages
• Namespace Sectioning
• Schema Annotation
• Processing Models
• Questions to the Audience

The Need to go Beyond Schemas (I)

• Issue: Specifying uniqueness of elements in a collection of documents → Not possible with schema languages
• Issue: Expressing information about e.g. translatability of attribute (sub)content → Not possible with schema languages. Example: (Non-)Translation of program code:

<window>
 <box align="center">
  <button label="hello xFly"
   onclick="alert('Hello World');"/>
 </box>
</window>

The Need to go Beyond Schemas (II)

• Issue: ITS should not break processing chains. Example: XPath expressions might break due to ITS specific markup:

<code>System.out.println("
<span xml:lang="ja" translate="no">
Ｗ３Ｃ国際活動</span>");</code>

• Sample XPath expression:

code/text()

• Result with <span> element:

System.out.println("");

• Result without <span>:

System.out.println("Ｗ３Ｃ国際活動");

The Need to go Beyond Schemas (III)

• Issue: Versioning of existing schemas:
  • Version "A" of a schema might have elements which fit ITS purposes
  • Version "B" might not have the elements
  • Sustainable, hard-wired integration of ITS markup into a schema becomes impossible
  • Example: Markup for bidirectional text in various versions of (X)HTML

Deployment options for ITS

• existing schemas extend with ITS vocabulary
• schemas to be developed
• independent ITS schema
• need to work with different schema languages
• additions / fallback: guidelines for schema authors

→A single ITS schema in one schema language is insufficient

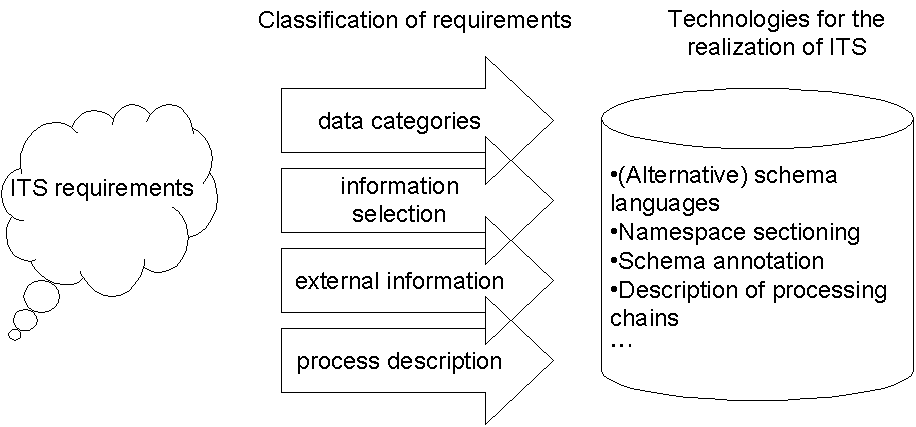

Status Quo:

A Word on Technologies

• In scope: review survey useful technologies for the realization of ITS
• Out of scope: Development of these technologies
• Danger: realization of ITS with too many, possibly not well accepted technologies; would hinder the widespread adoption of ITS (e.g. in the localization industry)

Overview

• Scope of W3C ITS WG and ITS Requirements
• The Need to go Beyond Schemas; possibly useful Technologies
• ITS relevant Characteristics of Schema Languages
• Namespace Sectioning
• Schema Annotation
• Processing Models
• Questions to the Audience

Schema languages: ITS relevant Characteristics

• Namespaces
• Pattern-based descriptions
• Usefulness of modularization and typing mechanisms for ITS

Namespaces

• Important means to separate markup, e.g. ITS versus XHTML
• Not supported in XML DTDs
• Do not solve the versioning problem, e.g. how to descripe relations of different XHTML versions to ITS

Pattern-Based Descriptions

• Complementary to grammar based schema languages
• Realizable e.g. with Schematron
• Sample use in ITS: By using XPath 2.0's collection() function, uniqueness in a collection of documents can be assured

Usefulness of Modularization and Typing Mechanisms for ITS

We will show the usage of existing mechanisms to realize the ITS locinfo data category

• XML DTDs: Marked sections
• XML Schema: Typing
• RELAX NG: Named patterns with ambiguous content models

XML DTDs: Marked Sections for ITS

• Parameter entities and marked sections for an XHTML versus an XHTML+ITS module:

<!ENTITY % para "INCLUDE">
<![%para;[
   <!ELEMENT p (#PCDATA)>
   <!ATTLIST p id ID #IMPLIED>
   <!ENTITY % its.para "IGNORE">]]>
<![%its.para;[
   <!ELEMENT p (#PCDATA)>
   <!ATTLIST p id ID #IMPLIED
               locinfo CDATA #IMPLIED>]]>

• Advantage: Can be adjusted in the XML document
• Disadvantage: Modularization information exists only before validation

XML Schema: Typing for ITS

• XHTML type and ITS sub type

<xs:complexType name="paraContent" mixed="true">
 <xs:attribute name="id" type="xs:ID"/>
</xs:complexType>
<xs:complexType name="itsParaContent">
 <xs:complexContent>
 <xs:extension base="paraContent">
  <xs:attribute name="locinfo" type="xs:string"/>
 </xs:extension>
 </xs:complexContent>
</xs:complexType>
<xs:element name="p" type="itsParaContent"/>

• Typing information exits after validation (thus is available e.g. for type based queries)

doc("mydoc.xml")//element(*, itsParaContent?)

RELAX NG: Ambiguity for ITS

• Description of named patterns p-html and p-its in RELAX NG:

p-html =
  element p { xhtml-p.content }
p-its =
  element p { xhtml-p.content,
  attribute locinfo { text } }
p = p-html | p-its
element div = p+

• Advantage: No restriction on ambiguity (no UPA Constraint): p-html and p-its are applicable in the same content model (e.g. <div>)
• Disadvantage: Named pattern exist only before validation (like parameter entities)

Assessing the Alternatives

• What is most important for the widespread adoption of ITS:
  • Possibility to adjust ITS in the XML document (relying on parameter entities and marked sections of XML DTDs)?
  • Ease of integration into existing schemas without ambiguity constraints (via named patterns of RELAX NG)?
  • Availability of ITS specific information for and after validation (via typing Information of XML Schema)?

• A possible, schema language independent answer to the schema integration / schema mapping problem: "namespace sectioning"

Overview

• Scope of W3C ITS WG and ITS Requirements
• The Need to go Beyond Schemas; possibly useful Technologies
• ITS relevant Characteristics of Schema Languages
• Namespace Sectioning
• Schema Annotation
• Processing Models
• Questions to the Audience

Namespace Sectioning (I)

• Separation of a document into element and attribute sections, e.g. for ITS and XHTML:

<h:html xmlns:h="http://www.w3.org/1999/xhtml"
 xmlns="http://www.example.org/its"
translate="yes">
 <h:head>...<h:meta translate="no">...
  <span>...<span>
</h:html>

• Validation against an ITS schema (here RELAX NG):

default namespace = "http://www.example.org/its"
attribute translate { "yes" | "no" }?
element span { text }

Namespace Sectioning (II)

• Existing formats: Namespace Routing Language (NRL) or
  Namespace-based Validation Dispatching Language (NVDL)
• Advantage: Possibly schema language independent approach to combine ITS and other schemas
• Disadvantage: Approach relies on namespaces, i.e. not applicable for XML DTDs or schemas without a namespace (e.g. DocBook)

Overview

• Scope of W3C ITS WG and ITS Requirements
• The Need to go Beyond Schemas; possibly useful Technologies
• ITS relevant Characteristics of Schema Languages
• Namespace Sectioning
• Schema Annotation
• Processing Models
• Questions to the Audience

ITS as Schema Annotation

• Issue: XHTML document contains ITS markup, validation against an XHTML schema is not possible:

<!DOCTYPE
 SYSTEM "xhtml-plus-its.dtd">
<html> ...
<its-span
 locinfo="...">...</its-span>
...
</html>

• Solution: schema for ITS is enhanced with annotations which specify relations to XHTML

ITS as Schema Annotation:
Architectural Forms (Annex of HyTime)

<?IS10744:arch name="its-arch"
  bridge-form="archbridge"
  renamer-att="its-arch.atts"
  dtd-system-id="xhtml1-transitional.dtd"?>
<!ELEMENT html (head, body)>
<!ATTLIST html its-arch NAME #FIXED "archbridge">
...
<!ELEMENT its-span (#PCDATA)>
<!ATTLIST its-span
its-arch NAME #FIXED "span"
its-arch.atts CDATA #FIXED "locinfo title">

• Annotation can be a basis for a transformation:
  <its-span> to <span>, and @locinfo to @title

ITS as Schema Annotation: Further approaches (I)

• RDF-based approach: statements about data categories (e.g. "span") and their realization
• No need to change the schemas
• Independent of namespace mechanism
• Applicable to all three schema languages (XML DTDs, XSD, RELAX NG)

http://example.com/its#span realizedAs
http://www.mySchema2.xsd#(/~element::span).

http://example.com/its#span realizedAs
"<!ELEMENT span (...)>".

http://example.com/its#span realizedAs
"element span { ... }".

ITS as Schema Annotation: Further approaches (II)

• ITS-specific approach:

<purposeSpec>
 <servesPurpose origVoc="span" its="its-span"/>
</purposeSpec>

• Not schema annotation really, but schema language specific abstraction mechanisms: XLink 1.1
  • Fixed attributes (XML DTDs)
  • Abstract element declarations (XML Schema)
  • Wildcards (RELAX NG)

A Word on Schema Annotation for ITS in General

• Common property of all approaches
  • Approaches describe relations between schemas and/or instantiation of schemas inside the schema ("inline schema annotation") or outside of the schema (e.g. RDF based approach)
  • Difference to fixed modularizations / application of typing mechanisms: No need to change the schemas
• Caveats:
  • No stable implementations
  • No widespread adoption

Overview

• Scope of W3C ITS WG and ITS Requirements
• The Need to go Beyond Schemas; possibly useful Technologies
• ITS relevant Characteristics of Schema Languages
• Namespace Sectioning
• Schema Annotation
• Processing Models
• Questions to the Audience

Processing Model for ITS

ITS might be implemented with presumably several processes

• "nrl" for namespace sectioning
• "validation" for validation
• "xslt" for transformations
• parallel execution of processes, merging of results presumably are needed

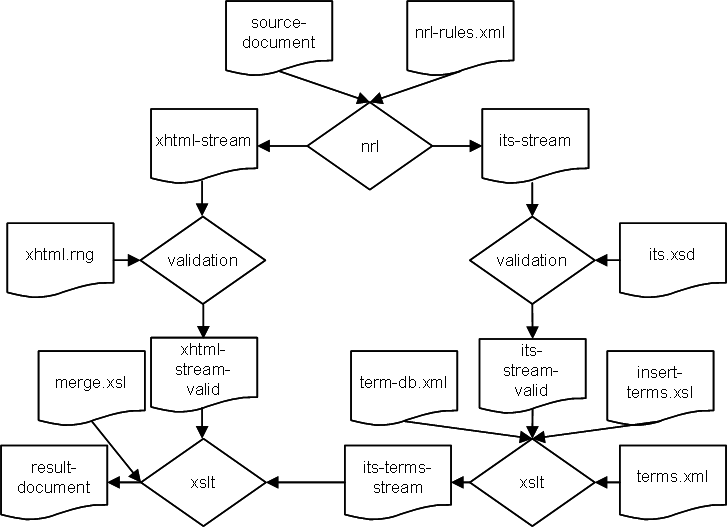

Sample Processing related to ITS

Technologies for Processing Models

• Various possible (emerging) standards for the description of processing models: Pipeline Definition Language, MT Pipeline, or XPL.
• Could solve issues which arise with requirements like retrieval of external information
• Question: Should ITS a processing model with a specific technology or would that hinder the adoption of ITS?

Overview

• Scope of W3C ITS WG and ITS Requirements
• The Need to go Beyond Schemas; possibly useful Technologies
• ITS relevant Characteristics of Schema Languages
• Namespace Sectioning
• Schema Annotation
• Processing Models
• Questions to the Audience

Instead of a Summary - Questions:

• Is the purpose of ITS useful? Would you use ITS to internationalize / localize your schema(s)?
• What do you prefer - Typing (XML Schema), no constraints on ambiguity (RELAX NG), ITS parametrization in XML document (XML DTDs)?
• Do we need a namespace for ITS, with the danger of not supporting DTDs?
• Do we need an abstract description of ITS, i.e. via schema annotation? What schema annotation mechanism would you propose (ArchForms, RDF, ITS-specific, ...), or what other abstraction mechanism?
• Do we need a processing model for ITS?

Please read
http://www.w3.org/TR/itsreq/
and send comments to www-international@w3.org
