Amaya with wxWidgets

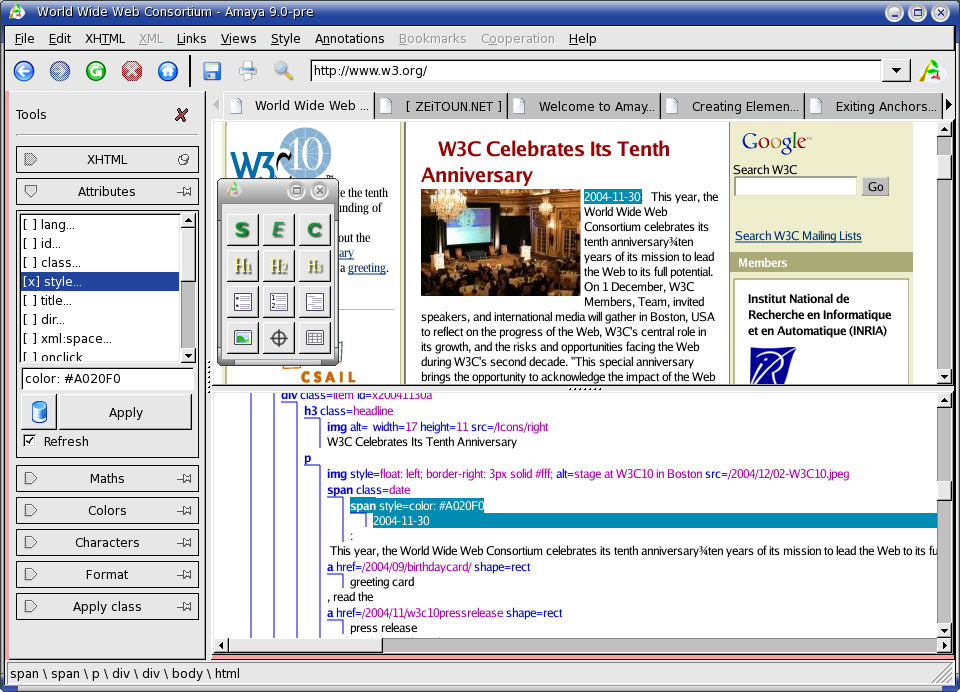

Amaya WX screenshot

The last version of Amaya user interface uses OpenGL (native or Mesa) canvas, wxWidgets toolkit, GTK+2.0 on Linux, Win32 on Windows and Cocoa on Mac OS X.

If you find a bug, please report it to the bug tracker or the correct amaya mailing list, after checking it hasn't be already reported.

This document explains how to compile wxWidgets on Linux or Mac OS X, and Windows plateforms.

What do I need to compile this version ?

Once you got the run needed librairies, you'll need the developpement package that containts headers and static libraries:

Required libraries

Debian Stable
libfreetype6-dev
libxt-dev
libgtk2.0-dev
xlibmesa-gl
xlibmesa-glu
xlibmesa-glu-dev
libglu1-mesa
xlibmesa-gl-dev or xlibmesa-dev
libtool
libraptor1-dev
libssl-dev

Fedora Core
freetype-devel
gtk2-devel
imlib-devel
libstdc++-devel
xorg-x11-libs
xorg-x11-Mesa-libGL
xorg-x11-Mesa-libGLU
xorg-x11-devel
libtool
raptor-devel
openssl-devel

How to compile Amaya-WX

On Unix platforms

  1. Download full unix sources of Amaya :

    amaya-sources-xxx.tgz

  2. Untar sources :

    tar xzvf amaya-sources-xxx.tgz

  3. Configure and compile Amaya :

    cd Amaya
    mkdir WX
    cd WX
    ../configure
    make

  4. Installing Amaya :

    su
    make install

On Windows (with Visual C++ 6.0)

  1. Download full windows sources of Amaya :

    amaya-sources-xxx.tgz

  2. Install the sources :

    Unzip the amaya-sources-xxx.tgz and follow the instructions.
    I suggest you to install it on C:\src

  3. Compile freetype :

    Open the workspace C:\src\freetype-xx\builds\win32\visualc\freetype.dsw
    Run in the menu : Build -> Batch Build -> Rebuild All
    (check all items if they are not checked)

  4. Compile wxWidgets :

    Open the workspace C:\src\wxWidgets\build\msw\wx.dsw
    Run in the menu : Build -> Batch Build -> Rebuild All
    (check all dll items if they are not checked)

  5. Compile Amaya :

    Open the workspace C:\src\Amaya\WindowsWX\amaya.dsw
    Select the build mode (Debug or Release) : Build -> Set Active Configuration
    Press F7 to lauch compilation.
    When amaya schema compilator popup, presse again F7, then exit the amaya compilator when it is finished.
    Wait for Amaya compilation finishing.

  6. Running Amaya :

    Go to C:\src\Amaya\WindowsWX\bin
    Execute amaya.exe

If an error occures verify you have correct installed libraries (configure should check that libraries are correctly installed). If the error persists, please report it to the Amaya developers mailing list.

How to debug OpenGL in Amaya (with Mesa)

  1. You must compile Mesa with debuging flags :
    • Edit your Amaya/WX/Mesa/config/current file
    • In CFLAGS section replace -O3 with -g -DMESA_DEBUG -DDEBUG
    • Then go to Amaya/WX/Mesa and typemake clean
    • Then go to Amaya/WX and type make (this will recompile Amaya)
  2. You must setup MESA_DEBUG environment variable. Add this line the your ~/.bash_profile :
    export MESA_DEBUG="XXX"

    Replace XXX by varray, tex, imm, pipe, driver, state, api, list, lighting, or flush.

    example : export MESA_DEBUG="list" will display debuging info about opengl display lists.


Stephane Gully & Irène Vatton
Date: 2009-10-09
