Comments on this document are welcome and should be sent to Brian Matthews
Deliverable 11.1 has outlined a framework in which trust can be considered. The present deliverable takes that framework a step further to show how the concepts relating to trust can be represented in a Semantic Web ontology to interact with other Semantic Web technologies, and be used an an implemented system.

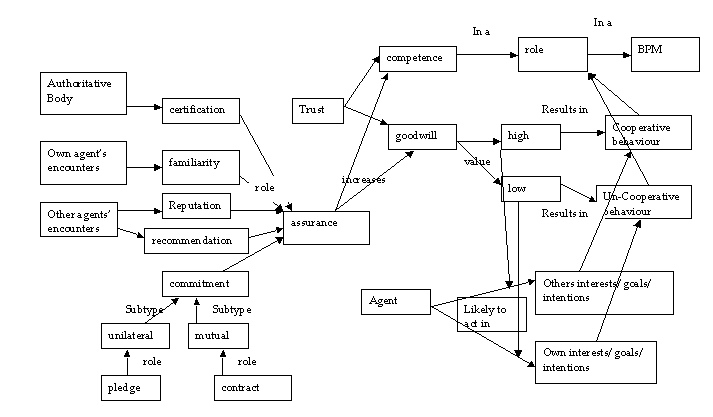

Figure 1 illustrates the core concepts relating to trust as used in social and economic sciences. The important point this makes is that trust is not competence at something, which can be seperately determined, but a measure of goodwill. The goodwill of an agent to another is a measure the probability that their actions will be motivated towards the goals of all parties involved in the relationship, and not purely be motivated by their own goals. In the accountancy literature there is considerable work which attempts to accept a financial valuation of this notion of good will between a company and both its suppliers and its customers. This effort results in the frequent updating of regulations on the permissability of goodwill as an intangible asset in auditable accounts, however, it does hold out hope that the concepts of trust in social science can be grounded both in financial prices and in security operations in computing. The breadth of the use of the concept of trust between finance, social science and computing both demonstrates the power of formalising conceptualisations of trust, and the conflicts that arise from incompatible interpretations used for different purposes.
This view of trust is strongly contrasted with that used in the computer science literature which is illustrated in figure 1, which relates trust concepts to those of security in systems under consideration.
This shows that the case of trust under consideration in the previous deliverable and that used in social science, is classified in computer science as Provision Trust, Service Provision Trust, or Business Trust. This concept of trust has been little addressed in the computing literature because of the vagueness of the conceptualisation of the trust relation itself, and the scope to which it applies.
In computing, the issue of competence has been addressed seperately by reputation systems. These record a history of the transactions of an agent, and calculate an assurence from this that can be passed as a certificate. The reputation calculation must include components to address the possible reliability errors in both the data collected, and the size of the data set in presenting assurences, as illustrated in Figure 3. However, these issues can be addressed from establish statistical theory. Work has already been undertaken showing how Semantic Web, or Semantic Grid, technologies can be used to represent reputation systems alone [Majithia, Ali, Rana, Walker] so this will not be taken further, as an issue in itself, here.

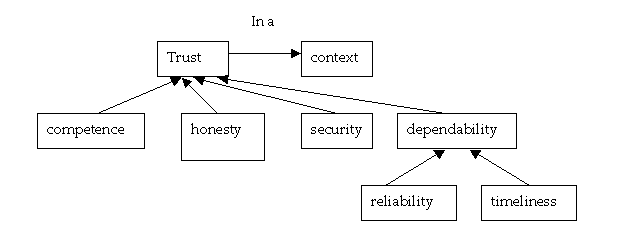

The next section of the paper will refine this concept of trust in the computing literature using the Sultan system as an example. In describing this Grandison and Sloman go further than the previously established computer science view of trust to define trust as as a composition of concepts as illustrated in figure 4 below.
Unfortunately for our current purposes, they choose to address the issue of representing a trust assertion in detail, rather than presenting a detailed account of the how these sub-components of trust can be combined in different algorithms to produce a single trust value. The structure of the trust assertion that they propose is presented below.
PolicyName: trust(Trustor, Trustee, ActionSet, Level)? ConstraintSet Where: PolicyName – the name of the policy Trustor – the name of the trust service providing the construct Trustee – the name of the entity being trusted ActionSet – the action to be undertaken by the trustee as the context of the construct Level – -100 to +100 range integer ConstraintSet – Boolean evaluable constraints that have to be true for the construct to apply
This assertion, or policy as they call it, states that a Trustor trust a Trustee to perform the actions listed in the ActionSet to a Level, given that the constraints in the ConstraintSet hold true. The constraints can include statements about the environment in which the relationship holds including recommendations from third parties which are represented in a recommendation policy as shown below.
PolicyName: recommend(Recommendor, Recommendee, ActionSet, Level)? ConstraintSet
The recommendation policy uses the same form as the trust policy, to hold as true if a Recommendor, recommends a Recommendee to performd the actions in the ActionSet at a stated level when further constraints stated in the ConstraintSet hold true. This use of recommendation policies as constraints on the trust policy very neatly avoids problems of users having to accept transitive trust relations whose role is hidden within the calculation of a trust value.
Both the trust and recommendation policies use an ActionSet to define the set of operations over which the policy applies. This aspect provides an opportunity for the Semantic Web technologies to bring added value to the existing approach. In trust systems of this class the actions in this set have no generalisable semantics. That is to say, if a bank is trusted to transfer money to another bank by a stated method, that is the limit of the trust. There is no mechanism in the semantic definition to generalise this trust in a bank to other services such as providing accounts to hold money whose existence the transfer is dependent upon, or to other facilities such as mortgage or insurence provision. This is not a criticism of approaches such as SULTAN, since it is not an issue that they intend to address. However, a richer representation of the pre- and post-conditions for the trusted action, and an ontological definition of the intities involved will support generalisations, either directly implicit in the trust assertion, entailed by it, or that can be drawn from it with additional knowledge. This ability to make generalisation inferences on the basis of explicit semantic knowledge is the benefit that the Semantic Web can bring to the business trust process.
So far we have established a rich conceptualisation of trust, mapping between that used in social science and computing, and described a detail statement of a trust assertion in a non-Semantic Web application. The issues of calculating the trust metric as a single value, and the transitivity of the trust relation have been highlightended. The issue of trust scope and generalisation has been identified and shows prospects of benefits from the Semantic Web approach to modelling. In the next section we will show how the assertion, and the complexities of the metric can be addressed using Semantic Web technologies.
A working definition of trust can be given as follows:
Trust of a party A to a party B for a service X is the measurable belief of A in that B behaves dependably for a specified period within a specified context (in relation to service X).Note that:
Thus any usable definition of trust on the semantic web needs to represent all of these factors. Special account needs to be taken of the trust metric used.
The assertion of trust between members of a human community have been addressed based on the FOAF schema [Goldsack Hendler and Parsia]. This assertion uses a single trust metric in a an integer range from 0-9. As outlined in the previous deliverable, in this discussion we wish to focus more specifically on trust relations in e-business, and more specifically on the trust relations between Web Services and their users.
Several research teams have addressed web services within the framework of the Semantic Web developing ontologies to define them [OWL-S, WSMO]. These define properties of web services, including a free field to define quality, but do not specifically address trust. However, we will return to these later to refer to concepts which they do define.
One of the most influential approaches to trust is that of [Josang] who has proposed mechanisms based upon Subjective Logic to calculate both reputation and recommendation providing a recommendation value including three measures that are meaningful within that framework. A Semantic Web ontology has been developed within SWAD-e to define this specific assertion (see appendix B, and SWAD Deliverable 11.1).
However, there has been no development in the Semantic Web to represent a more generic trust assertion following the SULTAN model.

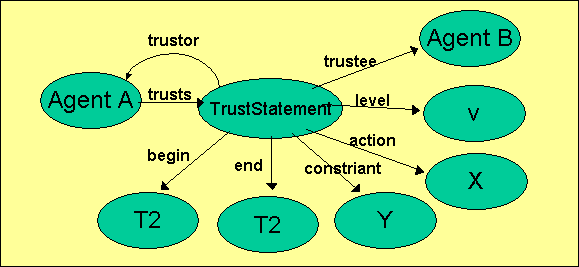

We gives a generic method for modelling Trust on the Semantic Web. The basic construct is a trust statement given as in Figure 5
Within the ontology presented are included various terms which are not defined in detail. These include Actor, Action and Metric. The Action and the Service can be defined as they are in the existing Semantic Web ontologies for web services such as OWL-s and SWMO. Thus the basic trust statement such as
A has trust in B to do X in context Y in time period (T1, T2) to value 0.8can be given as the set of RDF statements as follows.
<?xml version='1.0' encoding='UTF-8'?> <!DOCTYPE rdf:RDF [ <!ENTITY rdf 'http://www.w3.org/1999/02/22-rdf-syntax-ns#'> <!ENTITY rdf_ 'http://protege.stanford.edu/rdf/'> <!ENTITY xsd 'http://www.w3.org/2001/XMLSchema'> <!ENTITY rdfs 'http://www.w3.org/2000/01/rdf-schema#'> <!ENTITY trust 'http://www.w3c.rl.ac.uk/SWAD/TrustStatement#'> ]> <rdf:RDF xmlns:rdf="&rdf;" xmlns:rdf_="&rdf_;" xmlns:xsd="&xsd;" xmlns:trust="&trust;" xmlns:rdfs="&rdfs;"> <trust:TrustStatement rdf:ID="s111" > <trust:trustor> <trust:Agent rdf:about="A" /> </trust:trustor> <trust:trustee> <trust:Agent rdf:about="B" /> </trust:trustee> <trust:action> <trust:Action rdf:about="X" /> </trust:action> <trust:begin>T1</trust:begin> <trust:end>T2</trust:end> <trust:constraint> <trust:Constriant rdf:about="Y" /> </trust:constraint> <trust:level> <trust:TrustLevel> <trust:metric rdf:resource="http://example.org/trustMetric" /> <trust:level>0.8</trust:level> </trust:TrustLevel> </trust:level> </trust:TrustStatement> </rdf:RDF>
Here, an Agent A (human or machine) can trust another Agent B for some Action X, within some time bound T1 to T2 within constraints (or context) Y, to a trust level defined with some trust metric defined by some URI http://example.org/trustMetric with a value 0.8.
The full RDF schema for trust statements is given in Appendix A.
Further extensions of this RDF format is to allow the RDF model to give generic rules based on classes of agents. In Figure 5 we give a a rule stating that Agent A trust any Agent to a trust level V. Such rules can form the basis of trust policies.

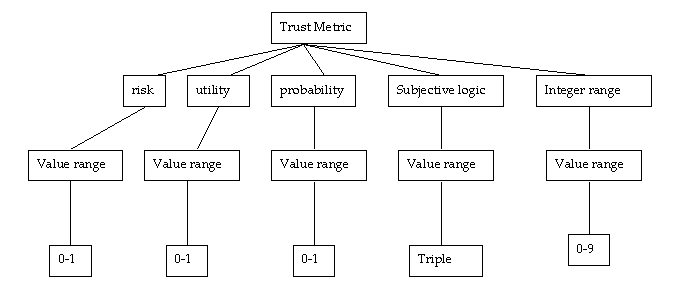

Within this model, a crucial role is played by the Trust Metric. There are a variety of possible metrics for trust that could be included in an ontology with different values that would be used in the trust assertion as outlined in figure 6.
We give an RDF Schema for representing common classes of trust metric, such as risk level (could then be enumerated as high, medium and low), the subjective logic triple valuation, (see Deliverable 1.1 for more details), a simple probabiliy (typically in the range 0-1), or one of a range of values (such as 0-9 in Goldsack and Hendler).
<?xml version='1.0' encoding='UTF-8'?> <!DOCTYPE rdf:RDF [ <!ENTITY rdf 'http://www.w3.org/1999/02/22-rdf-syntax-ns#'> <!ENTITY xsd 'http://www.w3.org/2001/XMLSchema'> <!ENTITY rdfs 'http://www.w3.org/2000/01/rdf-schema#'> <!ENTITY trust 'http://www.w3c.rl.ac.uk/SWAD/TrustStatement#'> ]> <rdf:RDF xmlns:rdf="&rdf;" xmlns:xsd="&xsd;" xmlns:trust="&trust;" xmlns:rdfs="&rdfs;"> <rdfs:Class rdf:about="Risk"> <rdfs:label="Risk"> <rdfs:subClassOf rdf:resource="trust:TrustMetric"/> </rdfs:Class> <rdfs:Class rdf:about="Utility"> <rdfs:label="Utility"> <rdfs:subClassOf rdf:resource="trust:TrustMetric"/> </rdfs:Class> <rdfs:Class rdf:about="Probability"> <rdfs:label="Probability"> <rdfs:subClassOf rdf:resource="trust:TrustMetric"/> </rdfs:Class> <rdfs:Class rdf:about="IntegerRange"> <rdfs:label="IntegerRange"> <rdfs:subClassOf rdf:resource="trust:TrustMetric"/> </rdfs:Class> <rdfs:Class rdf:about="SubjectiveLogic"> <rdfs:label="SubjectiveLogic"> <rdfs:subClassOf rdf:resource="trust:TrustMetric"/> </rdfs:Class> </rdf:RDF>
The definition of the Action element of the trust assertion in terms used in OWL-S, which can also be used in domain specific ontologies allows for the implementation of pre- and post- condition based reasoning about actions that will support generalisation inferences.
The ontology proposed here allows trust assertions of the class used in SULTAN to be used within a Semantic Web context that will support inferences
Another key feature of the trust model is the use of recommendations. This is covered in Deliverable 11.1, and so is not repeated here.
A trust model such as [Dimitrakos] defines several classes of agents.
Trust is (unintentionally) transitively transferred along certain mediating parties.Thus we can present an Ontology of types of agents.
<?xml version='1.0' encoding='UTF-8'?> <!DOCTYPE rdf:RDF [ <!ENTITY rdf 'http://www.w3.org/1999/02/22-rdf-syntax-ns#'> <!ENTITY xsd 'http://www.w3.org/2001/XMLSchema'> <!ENTITY rdfs 'http://www.w3.org/2000/01/rdf-schema#'> <!ENTITY trust 'http://www.w3c.rl.ac.uk/SWAD/TrustStatement#'> ]> <rdf:RDF xmlns:rdf="&rdf;" xmlns:xsd="&xsd;" xmlns:trust="&trust;" xmlns:rdfs="&rdfs;"> <rdfs:Class rdf:about="Guarantor"> <rdfs:label="Guarantor"> <rdfs:subClassOf rdf:resource="trust:Agent"/> </rdfs:Class> <rdfs:Class rdf:about="Intermediate"> <rdfs:label="Intermediate"> <rdfs:subClassOf rdf:resource="trust:Agent"/> </rdfs:Class> <rdfs:Class rdf:about="Advisor"> <rdfs:label="Probability"> <rdfs:subClassOf rdf:resource="trust:Agent"/> </rdfs:Class> <rdfs:Class rdf:about="TransparentIntermediate"> <rdfs:label="IntegerRange"> <rdfs:subClassOf rdf:resource="#Intermediate"/> </rdfs:Class> <rdfs:Class rdf:about="TranslucentIntermediate"> <rdfs:label="SubjectiveLogic"> <rdfs:subClassOf rdf:resource="#Intermediate"/> </rdfs:Class> <rdfs:Class rdf:about="OpaqueIntermediate"> <rdfs:label="SubjectiveLogic"> <rdfs:subClassOf rdf:resource="#Intermediate"/> </rdfs:Class> <rdfs:Class rdf:about="ProxyIntermediate"> <rdfs:label="SubjectiveLogic"> <rdfs:subClassOf rdf:resource="#Intermediate"/> </rdfs:Class> </rdf:RDF>
Thus generic rules of behaviour, such as those specified in [Dimitrakos] can be specified.

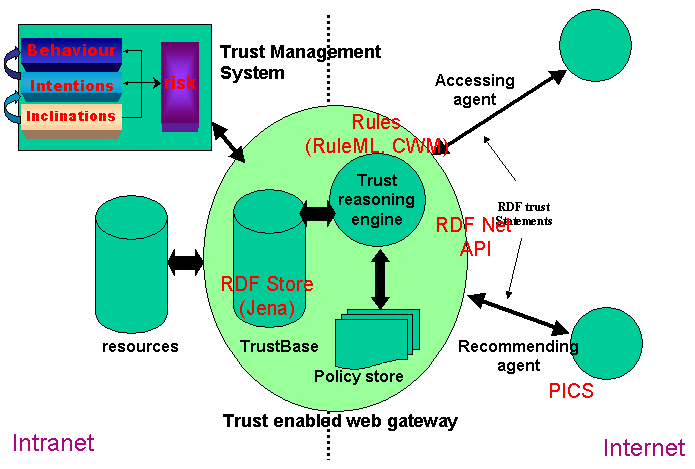

We give a description of a generic architecture for implementing trust within the context of virtual organisations. Figure 7 gives an overview of this architecture.
We go through the components of this architecture as follows.
Rules in the trust policy and rules for modifying the trust valuations in the light of experience and recommendations, are determined by the resource holder's trust management system which assesses the risk s involved on accessing resources and sets the rules accordingly.
We have presented a set of RDF vocabularies for representing trust properties, and an architecture for delivering trust based reasoning on the semantic web.
Theo Dimitrakos "A Service-Oriented Trust Management Framework Trust", Reputation and Security: Theories and Practice LCNS/LNAI special volume, Springer Verlag, (2003)
Jennifer Golbeck, James Hendler, and Bijan Parsia. Trust Networks on the Semantic Web. In Twelfth International World Wide Web Conference (WWW2003), Budapest, Hungary, May 20-24 2003.
Tyrone Grandison and Morris Sloman. SULTAN - A Language for Trust Specification and Analysis. In Proceedings of the 8th Annual Workshop HP OpenView University Association (HP-OVUA), Berlin, Germany, June 24-27 2001.
S. Majithia, A. Shaikh Ali, O. F. Rana, and D. W Walker, "Reputation-based Semantic Grid Service Discovery," in Proceedings of the Workshop on Emerging Technologies for Next generation GRID (ETNGRID-2004), June 2004.
DAML Services Homepage http://www.daml.org/services/owl-s/
Web Service Modelling Ontology Homepage http://www.wsmo.org/
<?xml version='1.0' encoding='UTF-8'?> <!DOCTYPE rdf:RDF [ <!ENTITY rdf 'http://www.w3.org/1999/02/22-rdf-syntax-ns#'> <!ENTITY a 'http://protege.stanford.edu/system#'> <!ENTITY rdf_ 'http://protege.stanford.edu/rdf/'> <!ENTITY xsd_ 'http://www.w3.org/2001/XMLSchema'> <!ENTITY rdfs 'http://www.w3.org/2000/01/rdf-schema#'> ]> <rdf:RDF xmlns:rdf="&rdf;" xmlns:rdf_="&rdf_;" xmlns:xsd="&xsd;" xmlns:a="&a;" xmlns:rdfs="&rdfs;"> <rdfs:Class rdf:about="Action"> <rdfs:label="Action"> <rdfs:subClassOf rdf:resource="&rdfs;Resource"/> </rdfs:Class> <rdfs:Class rdf:about="Agent"> <rdfs:label="Agent"> <rdfs:subClassOf rdf:resource="&rdfs;Resource"/> </rdfs:Class> <rdfs:Class rdf:about="Constriant"> <rdfs:label="Constriant"> <rdfs:subClassOf rdf:resource="&rdfs;Resource"/> </rdfs:Class> <rdfs:Class rdf:about="TrustLevel"> <rdfs:label="TrustLevel"> <rdfs:subClassOf rdf:resource="&rdfs;Resource"/> </rdfs:Class> <rdfs:Class rdf:about="TrustMetric"> <rdfs:label="TrustMetric"> <rdfs:subClassOf rdf:resource="&rdfs;Resource"/> </rdfs:Class> <rdfs:Class rdf:about="TrustStatement"> <rdfs:label="TrustStatement"> <rdfs:subClassOf rdf:resource="&rdfs;Resource"/> </rdfs:Class> <rdfs:Class rdf:about="TrustValue" rdfs:label="TrustValue"> <rdfs:subClassOf rdf:resource="&rdfs;Resource"/> </rdfs:Class> <rdf:Property rdf:about="action" rdfs:label="action"> <rdfs:range rdf:resource="#Action"/> <rdfs:domain rdf:resource="#TrustStatement"/> </rdf:Property> <rdf:Property rdf:about="begin" rdfs:label="constriant"> <rdfs:domain rdf:resource="#TrustStatement"/> <rdfs:range rdf:resource="&xsd;dateTime"/> </rdf:Property> <rdf:Property rdf:about="end" rdfs:label="constriant"> <rdfs:domain rdf:resource="#TrustStatement"/> <rdfs:range rdf:resource="&xsd;dateTime"/> </rdf:Property> <rdf:Property rdf:about="constriant" rdfs:label="constriant"> <rdfs:range rdf:resource="#Constriant"/> <rdfs:domain rdf:resource="TrustStatement"/> </rdf:Property> <rdf:Property rdf:about="trustee" rdfs:label="trustee"> <rdfs:range rdf:resource="#Agent"/> <rdfs:domain rdf:resource="#TrustStatement"/> </rdf:Property> <rdf:Property rdf:about="trustor" rdfs:label="trustor"> <rdfs:range rdf:resource="#Agent"/> <rdfs:domain rdf:resource="#TrustStatement"/> </rdf:Property> <rdf:Property rdf:about="level" rdfs:label="level"> <rdfs:domain rdf:resource="#TrustStatement"/> <rdfs:range rdf:resource="#TrustLevel"/> </rdf:Property> <rdf:Property rdf:about="metric" rdfs:label="metric"> <rdfs:domain rdf:resource="#TrustLevel"/> <rdfs:range rdf:resource="#TrustMetric"/> </rdf:Property> <rdf:Property rdf:about="value" rdfs:label="value"> <rdfs:domain rdf:resource="#TrustLevel"/> <rdfs:range rdf:resource="#TrustValue"/> </rdf:Property> </rdf:RDF>
<?xml version="1.0"?> <!-- Copyright World Wide Web Consortium, (Massachusetts Institute of Technology, Institut National de Recherche en Informatique et en Automatique, Keio University). All Rights Reserved. Please see the full Copyright clause at <http://www.w3.org/Consortium/Legal/copyright-software.html> Description: Strawman RDF Schema for publishing recommendations. Author: Jan Grant $Id: d11.2_trust_vocabularies.html,v 1.2 2004/12/21 13:58:43 lmiller Exp $ --> <!DOCTYPE rdf:RDF [ <!ENTITY rdfns 'http://www.w3.org/1999/02/22-rdf-syntax-ns#'> <!ENTITY rdfsns 'http://www.w3.org/2000/01/rdf-schema#'> <!ENTITY recns 'http://www.w3.org/2001/sw/Europe/reports/trust/recSchema#'> ]> <rdf:RDF xmlns:rdf="&rdfns;" xmlns:rdfs="&rdfsns;" xmlns:rec="&recns;"> <!-- classes --> <rdfs:Class rdf:about="&recns;Recommendation"> <rdfs:label xml:lang="en">Recommendation</rdfs:label> <rdfs:comment xml:lang="en"> A published recommendation of subject expertise in a given field. The Recommendation represents an assertion that the recommender has a given opinion of the proposition: "the recomendee is an expert in the subject identified by the field of this Recommendation". </rdfs:comment> <rdfs:isDefinedBy rdf:resource="&recns;"/> </rdfs:Class> <rdfs:Class rdf:about="&recns;Opinion"> <rdfs:label xml:lang="en">Opinion</rdfs:label> <rdfs:comment xml:lang="en">An abstract class that represents the opinion of a recommender on a particular proposition.</rdfs:comment> <rdfs:isDefinedBy rdf:resource="&recns;"/> </rdfs:Class> <rdfs:Class rdf:about="&recns;SLOpinion"> <rdfs:label xml:lang="en">Subjective-Logic Opinion</rdfs:label> <rdfs:comment xml:lang="en">An opinion expressed in terms of Subjective Logic.</rdfs:comment> <rdfs:isDefinedBy rdf:resource="&recns;"/> <rdfs:subClassOf rdf:resource="&recns;Opinion"/> </rdfs:Class> <!-- properties --> <rdf:Property rdf:about="&recns;recommender"> <rdfs:label xml:lang="en">Recommender</rdfs:label> <rdfs:comment xml:lang="en">The source of the published opinion. </rdfs:comment> <rdfs:isDefinedBy rdf:resource="&recns;"/> <rdfs:domain rdf:resource="&recns;Recommendation"/> </rdf:Property> <rdf:Property rdf:about="&recns;recommendee"> <rdfs:label xml:lang="en">Recommendee</rdfs:label> <rdfs:comment xml:lang="en">The target that the published opinion concerns. </rdfs:comment> <rdfs:isDefinedBy rdf:resource="&recns;"/> <rdfs:domain rdf:resource="&recns;Recommendation"/> </rdf:Property> <rdf:Property rdf:about="&recns;field"> <rdfs:label xml:lang="en">Field of Recommendation</rdfs:label> <rdfs:comment xml:lang="en">The subject that contextualises this Recommendation. </rdfs:comment> <rdfs:isDefinedBy rdf:resource="&recns;"/> <rdfs:domain rdf:resource="&recns;Recommendation"/> </rdf:Property> <rdf:Property rdf:about="&recns;validFrom"> <rdfs:label xml:lang="en">Valid From</rdfs:label> <rdfs:comment xml:lang="en">The Recommendation is not valid prior to this date. </rdfs:comment> <rdfs:isDefinedBy rdf:resource="&recns;"/> <rdfs:domain rdf:resource="&recns;Recommendation"/> <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#dateTime"/> </rdf:Property> <rdf:Property rdf:about="&recns;validUntil"> <rdfs:label xml:lang="en">Valid Until</rdfs:label> <rdfs:comment xml:lang="en">The Recommendation is not valid after to this date. </rdfs:comment> <rdfs:isDefinedBy rdf:resource="&recns;"/> <rdfs:domain rdf:resource="&recns;Recommendation"/> <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#dateTime"/> </rdf:Property> <rdf:Property rdf:about="&recns;opinion"> <rdfs:label xml:lang="en">Opinion</rdfs:label> <rdfs:comment xml:lang="en">The representation of the opinion associated with this Recommendation.</rdfs:comment> <rdfs:isDefinedBy rdf:resource="&recns;"/> <rdfs:domain rdf:resource="&recns;Recommendation"/> <rdfs:domain rdf:resource="&recns;Opinion"/> </rdf:Property> <rdf:Property rdf:about="&recns;belief"> <rdfs:label xml:lang="en">Belief</rdfs:label> <rdfs:comment xml:lang="en">A probabilistic measure of belief in a proposition; 0 <= belief <= 1.</rdfs:comment> <rdfs:isDefinedBy rdf:resource="&recns;"/> <rdfs:domain rdf:resource="&recns;SLOpinion"/> <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#decimal"/> </rdf:Property> <rdf:Property rdf:about="&recns;disbelief"> <rdfs:label xml:lang="en">Disbelief</rdfs:label> <rdfs:comment xml:lang="en">A probabilistic measure of belief in a proposition; 0 <= disbelief <= 1.</rdfs:comment> <rdfs:isDefinedBy rdf:resource="&recns;"/> <rdfs:domain rdf:resource="&recns;SLOpinion"/> <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#decimal"/> </rdf:Property> <rdf:Property rdf:about="&recns;uncertainty"> <rdfs:label xml:lang="en">Uncertainty</rdfs:label> <rdfs:comment xml:lang="en">A probabilistic measure of uncertainty in a proposition; 0 <= uncertainty <= 1.</rdfs:comment> <rdfs:isDefinedBy rdf:resource="&recns;"/> <rdfs:domain rdf:resource="&recns;SLOpinion"/> <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#decimal"/> </rdf:Property> </rdf:RDF>
