The World Wide Web is an network-spanning information space
consisting of resources, which are interconnected by links defined
within that space. This information space is the basis of, and is
shared by, a number of information systems. Within each of these
systems, agents (e.g., browsers, servers, spiders, and proxies) a
provide, retrieve, create, analyze, and reason about resources.
Web architecture encompasses both protocols that define the
information space, by way of identification and representation, and
protocols that define the interaction of agents within an
information system making use of the space. Web architecture is
influenced by social requirements and software engineering
principles, leading to design choices that constrain the behavior
of systems using the Web in order to achieve desired properties of
the shared information space: efficiency, scalability, and the
potential for indefinite growth across languages, cultures, and
information media. This document explores the three dimensions of
Web architecture: identification, interaction, and
representation.
The World Wide Web (WWW, or simply Web) is an
information space in which the information objects, referred to
collectively as resources, are identified by
global identifiers called URIs.
A travel
scenario is used throughout this document to illustrate some
typical behavior of Web agents — software
acting on this information space on behalf of a person, entity, or
process. Agents include servers, proxies, browsers, spiders,
multimedia players, and other user agents (software acting on
behalf of a person).
Story
While planning a trip to Mexico, Nadia reads "Oaxaca weather
information: 'http://weather.example.com/oaxaca
'" in a
glossy travel magazine. Nadia has enough experience with the Web to
recognize that "http://weather.example.com/oaxaca
" is
a URI. Given the context in which the URI appears, she expects that
it allows her to access relevant weather information. When Nadia
enters the URI into her browser:
- The browser performs an information retrieval action in
accordance with its configured behavior for resources identified
via the "http" URI scheme.
- The authority responsible for "weather.example.com" responds to
the retrieval action, providing information in a response.
- The browser displays the retrieved information, which includes
links to other information via additional URI references. Nadia can
follow these links to initiate new retrieval request actions.
This scenario (elaborated on throughout the document)
illustrates the three architectural divisions of the Web that are
discussed in this document:
- Identification. Each
resource is identified by
a Uniform Resource Identifier (URI). In this
travel scenario, the resource involves the weather in Oaxaca and
the URI is "
http://weather.example.com/oaxaca
".
- Interaction. Web agents
exchange information via messages; these messages arise as the
result of actions requested by a user or called for by a rendering
engine while processing hypermedia-aware data formats. Protocols
define the syntax and semantics of agent interactions, as well as
the sequence of interactions expected for a given task. In the
travel scenario, Nadia uses her browser to perform a retrieval
action for the identified resource. In this example, the browser
uses HTTP to retrieve a representation from the origin server at
"weather.example.com".
- Representation.
Messages carry representations of a resource. A
resource communicates everything about its state through these
representations, which are built from a non-exclusive set of data
formats, used separately or in combination (including XHTML, CSS,
PNG, XLink, RDF/XML, SVG, and SMIL animation). In this scenario,
Nadia's browser receives representations in the form of an XHTML
document and several SVG weather map images. The browser interprets
the XHTML representation data, which in turn call for retrieval of
weather maps through reference of their URIs, which results in
rendering the SVG images.

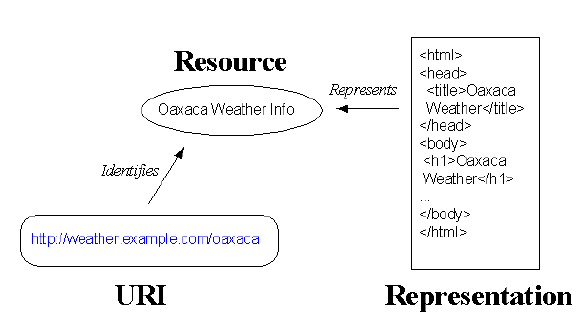

The following illustration shows the simplest relationship
between identifier, resource, and representation.
Editor's note: The TAG may include
additional illustrations in this document to help explain important
terms and their relationships.
This document is an ongoing attempt to describe the properties
we desire of the Web and the design choices that have been made to
achieve them.
This document promotes re-use of existing standards when
suitable, and gives some guidance on how to innovate in a manner
consistent with the Web architecture.
The intended audience for this document includes:
- Participants in W3C Activities; i.e., developers of Web
technologies and specifications in W3C.
- Other groups and individuals developing technologies to be
integrated into the Web.
- Implementers of W3C specifications, and those who use the
resulting products.
The terms MUST, MUST NOT, SHOULD, SHOULD NOT, and MAY are used
in accordance with RFC 2119 [RFC2119].
Editor's note: The TAG will need to
confirm either that the good practice and other notes use these
terms as advertised, or clarify the relationship to RFC2119
definitions.
Readers will benefit from familiarity with the Requests for Comments
(RFC) series from the IETF, some of which define pieces
of the architecture discussed in this document.
This document focuses on the architecture of the Web. Other
groups inside and outside W3C also address specialized aspects of
Web architecture, including accessibility, internationalization,
device independence, and Web Services. The section on Architectural Specifications
includes some references.
This document attempts to balance the value of brevity and
precision with the value of illustrative examples. TAG findings provide
more background, motivation, and examples.
The architecture described in this document is primarily the
result of experience. There has been some theoretical and modeling
work in the area of Web architecture, notably Roy Fielding's work
on "Representational State Transfer" [REST].
Uniform Resource
Identifiers (URI), defined in "Uniform Resource
Identifiers (URI): Generic Syntax" [URI], are central to Web architecture. URIs
identify (i.e., name) resources.1 Parties who wish to communicate about
something agree upon a shared set of identifiers and on their
meanings. This shared vocabulary has a tangible value: it reduces
the cost of communication. The ability to use common identifiers
across communities is what motivates global naming in Web
architecture.
When a representation of one resource
refers to another resource with a URI, this represents a link between the two
resources. A link defines a relationship that can be considered
active or passive, depending upon the type of information system in
use. For example, hypertext browsers consider anchors and in-line
image references to be active links (hyperlinks), whereas a reasoning system
might focus activity on namespace references, a messaging agent
might traverse service descriptions, or a subscriber might describe
"callback" control-points.
The networked information space is built of linked resources,
and the large-scale effect is a shared information space. The value
of the Web grows exponentially as a function of the number of
linked resources (the "network effect").
A URI must be assigned to a resource in order for the resource
to be named, shared, or linked to within the information space. It
follows that a resource should be assigned a URI if a third party
might reasonably want to link to it, make or refute assertions
about it, retrieve or cache a representation of it, include all or
part of it by reference into another representation, annotate it,
or perform other operations on it.
Principle: Use
URIs
A URI SHOULD be assigned to each resource that
is intended to be identified, shared, or described by
reference.2
Web architecture does not constrain resources to be uniquely
named; a resource may be assigned more than one URI.
There are many benefits to assigning a URI to a resource. Some
are by design (e.g., linking, book marking, and caching), others
(e.g., global search services) were not predicted.3
Editor's note: The TAG has not yet
reached agreement about whether to distinguish "information
resources" from other types of resources. An information resource
is one that conveys information (via representations). See TAG
issue httpRange-14.
Related to the concept of "information resource" is the expression
"on the Web". Roy Fielding suggested this definition of "on the
Web": "A resource is considered to be "on the Web" if it can be
independently referred to by at least one URI, even if access to
that resource is restricted." Others have expressed that actual
access should be a requirement as well.
The most straightforward way of establishing that two parties
are referring to the same resource is to compare, as character
strings, the URIs they are using. In section 6 of [URI], equivalence or difference of URIs is
determined by string comparison.
Good practice: Compare URI
characters
If a URI has been assigned to a resource, Web
agents SHOULD refer to the resource using the same URI, character
for character.
The term "character" refers to URI characters as defined section
2 of [URI].
Although it is possible to determine that two URIs are
equivalent, it is generally not possible to be sure that two URIs
that are not equivalent identify different resources. Applications
may apply rules beyond basic string comparison (e.g., for "http"
URIs, the authority agent is case-insensitive) to reduce the risk
of false negatives and positives. Please refer to section 6.1 of
[URI] for more information about
reducing the risk of false negatives and positives.
Web agents that reach conclusions based on comparisons done
through means other than those licensed by relevant specifications
take responsibility for any problems that result.
Agents should not assume, for example, that
"http://weather.example.com/Oaxaca
" and
"http://weather.example.com/oaxaca
" identify the same
resource, since none of the specifications involved states that the
path part of an "http" URI is case-insensitive.
To help parties know when they are referring to the same
resource, it follows that URI producers should be conservative
about the number of different URIs they produce for the same
resource.
Thus, the parties responsible for weather.example.com should not
use both "http://weather.example.com/Oaxaca
" and
"http://weather.example.com/oaxaca
" to refer to the
same resource; agents will not detect the equivalence relationship
by following specifications.
There may be other ways to establish that two parties are
identifying the same resource that are not based on string
comparison; see the section on future directions for determining that two URIs
identify the same resource.
Although it is tempting to guess at the nature of a resource by
inspection of a URI that identifies it, this is not licensed by
specifications; this is called URI opacity.
Good practice: URI
Opacity
Web agents making use of URIs assigned outside
of their own authority MUST NOT attempt to infer properties of the
referenced resource except as licensed by relevant normative
specifications or by URI assignment policies published by the
relevant URI assignment authority.
The example URI used in the travel scenario
("http://weather.example.com/oaxaca
") suggests that
the identified resource has something to do with the weather in
Oaxaca. A site reporting the weather in Oaxaca could just as easily
be identified by the URI "http://vjc.example.com/315
".
And the URI "http://weather.example.com/vancouver
"
might identify the resource "my photo album."
On the other hand, the "mailto" URI scheme specification states
that mail URIs identify Internet mailboxes. That normative
specification authorizes Web agents to infer that the identified
resource is an Internet mailbox, although it doesn't guarantee that
the authority who minted the URI is actually using the URI to
identify a mailbox.
Web agents using a URI assigned outside of their own authority
should make as few inferences as possible about the identified
resource based on the identifier. The more a piece of software
depends on such inferences, the more fragile it becomes to change
and the lower its generic utility.
For information about how agents convey information about a
resource, see the section on retrieving a
representation.
Editor's note: In this section,
"People and software" was changed to "Web agents". Since "agent" is
defined in the introduction to be software, is this narrowing
appropriate or does it go too far? See TAG issue metadataInURI-31
and TAG finding The use of
Metadata in URIs. There is a related principle that has not yet
been captured: don't restrict (e.g., through specifications) the
URI space allotted to resource owners. See TAG issue siteData-26:
Web site metadata improving on robots.txt, w3c/p3p and favicon
etc.
In the URI "http://weather.example.com/
", the
"http" that appears before the colon (":") is a URI scheme name.
Each URI scheme has a normative specification that explains how to
assign identifiers within that scheme. The URI syntax is thus a
federated and extensible naming mechanism wherein each scheme's
specification may further restrict the syntax and semantics of
identifiers within that scheme. Furthermore, the URI scheme
specification specifies whether and how an agent can dereference the URI.
Several URI schemes allow URI addressing of resources in
information systems that pre-date the Web:
- mailto URIs identify4 Internet mailboxes:
mailto:nobody@example.org
- ftp URIs identify files and directories accessible using the
FTP protocol:
ftp://example.org/aDirectory/aFile
- news URIs identify USENET newsgroups:
news:comp.infosystems.www
- tel URIs identify terminals on the telephone network:
tel:+1-816-555-1212
Other URI schemes have been introduced since the advent of the
Web, including those introduced as a consequence of new protocols.
Examples of such URI schemes include:
- http URIs:
http://www.example.org/something?with=arg1;and=arg2
- ldap URIs:
ldap://ldap.example.org/c=GB?objectClass?one
- URNs:
urn:oasis:SAML:1.0
The Internet Assigned Numbers Authority
(IANA) maintains a registry [IANASchemes] of mappings between URI scheme
names and scheme specifications. For instance, the IANA registry
indicates that the "http" scheme is defined in [RFC2616]. The process for registering a new URI
scheme is defined in [RFC2717].
Since many aspects of URI processing are scheme-dependent, and
since a huge amount of deployed software already processes URIs of
well-known schemes, the cost of introducing a new URI scheme is
high.
Good practice: New URI schemes
Authors of specifications SHOULD NOT introduce
a new URI scheme when an existing scheme provides the desired
properties of identifiers and their relation to resources.
Consider our travel
scenario: should the authority providing information about the
weather in Oaxaca register a new URI scheme "weather" for the
identification of resources related to the weather? They might then
publish URIs such as
"weather://travel.example.com/oaxaca
". While the Web
architecture allows the definition of new schemes, there is a cost
to registration and especially deployment of new schemes. When an
agent dereferences such a URI, if what really happens is that HTTP
GET is invoked to retrieve an HTML representation of the resource,
then an "http" URI would have sufficed. If a URI scheme exists that
meets the needs of an application, designers should use it rather
than invent one. Furthermore, designers should expect that it will
prove useful to be able to share a URI across applications, even if
that utility is not initially evident.
If the motivation behind registering a new scheme is to allow an
agent to launch a particular application when retrieving a
representation, such dispatching can be accomplished at lower
expense by registering a new Internet Media Type instead. Deployed
software is more likely to handle the introduction of a new media
type than the introduction of a new URI scheme.
The use of unregistered URI schemes is discouraged for a number
of reasons:
- There is no generally accepted way to locate the scheme
specification.
- Someone else may be using the scheme for other purposes.
- One should not expect that general-purpose software will do
anything useful with URIs of this scheme; the network effect is
lost.
Story
When navigating within the XHTML data that Nadia receives as a
representation of the resource identified by
"http://weather.example.com/oaxaca
", Nadia finds that
the URI "http://weather.example.com/oaxaca#tom
" refers
to information about tomorrow's weather in Oaxaca. This URI
includes the fragment identifier "tom" (the string after the
"#").
The fragment
identifier of a URI allows indirect identification of a
secondary resource by
reference to a primary resource and additional information. More
precisely:
- If URI "U" identifies primary resource "R", and
- a representation of "R" is in the data format "F", and
- the format specification for "F" specifies that fragment
identifiers in instances of "F" identify secondary resources,
then
- a URI for the secondary resource identified within an instance
of "F" by fragment identifier "fragid" is "U#fragid".
The secondary resource may be some portion or subset of the
primary resource, some view on representations of the primary
resource, or some other resource.
Fragment identifier semantics differ among format
specifications. The presence of a fragment identifier in a URI does
not imply that a retrieval action will take place.
Interpretation of the fragment identifier during a retrieval
action is performed solely by the agent; the fragment identifier is
not passed to other systems during the process of retrieval. This
means that some intermediaries in the Web architecture (e.g.,
proxies) have no effect on fragment identifiers and that
redirection (in HTTP [RFC2616],
for example) does not account for them.
Editor's note: Although there is
agreement within the TAG that format specifications define fragment
identifier syntax and semantics, the TAG has not yet agreed on text
regarding the relation between multiple available representations
(notably with incompatible frag id semantics) and a given
representation retrieved by an agent.
Story
The authority responsible for "weather.example.com" provides a
visual map of the meteorological conditions in Oaxaca as part of
the representation served for
"http://weather.example.com/oaxaca
". They encode the
same visual map in a number of image formats to meet different
needs (e.g., they might serve PNG, SVG, and JPEG/JFIF). Nadia's
browser and the server engage in HTTP content negotiation, so that
Nadia receives the best image format her browser can handle or the
image format she usually prefers.
The URI
"http://weather.example.com/oaxaca/map#zicatela
"
refers to a portion of the weather map that shows the Zicatela
Beach, where Nadia intends to go surfing.
Clients can do something useful with fragment identifiers if the
format used by the representation, e.g. SVG, defines fragment
identifier semantics. On the other hand, clients cannot do anything
useful with the fragment identifier and the PNG or JPEG/JFIF
representations because their fragment identifier semantics (which
are undefined) are inconsistent with those of SVG.
Errors can occur when the authority responsible for a resource
publishes a URI with a fragment identifier and representations of
the resource do not have consistent fragment identifier semantics.
Thus, the authority responsible for
"http://weather.example.com/oaxaca/map#zicatela
"
introduces the possibility of error by making available PNG and
JPEG/JFIF representations when a fragment identifier may be
present.
Good practice: Content
negotiation with fragments:
An authority that mints a URI with a fragment
identifier and that uses content negotiation to serve multiple
representations of the identified resource SHOULD NOT serve
representations with inconsistent fragment identifier
semantics.
See related TAG issues httpRange-14
and RDFinXHTML-35
and
abstractComponentRefs-37.
To dereference a URI means to access the resource identified by
the URI. Access may take many forms, including retrieving a representation
(e.g., using HTTP GET or HEAD), modifying the state of the resource
(e.g., using HTTP POST or PUT), and deleting the resource (e.g.,
using HTTP DELETE).
When accessing a resource, an agent applies relevant
specifications in succession, beginning with the specification of
the context in which the URI is found (e.g., a format or protocol
specification, or an application). Any one of these specifications
may define more than one access mechanism (such as GET, HEAD, and
POST in the HTTP protocol). Note that the information governing the
choice of access mechanism may be found in the context, not the URI
itself (e.g., the choice of HTTP GET v. HTTP HEAD). The TAG finding
"URIs,
Addressability, and the use of HTTP GET and POST."
discusses issues surrounding multiple access mechanisms and the
relation to URI addressability.
Some URI schemes (e.g., the URN scheme [RFC 2141]) do not define dereference
mechanisms.
See related TAG issue metadataInURI-31:
Should metadata (e.g., versioning information) be encoded in
URIs?
One of the most important actions involving a resource is to
retrieve a representation of it (for example, by
using HTTP GET; HTTP POST does not retrieve a
representation of the identified resource). The authority
responsible for assigning a URI to a resource determines which
representations are used for interaction with the resource.5 The
representations communicate all or part of the state of the
resource.
Good practice: Available representations
Owners of important resources SHOULD make
available representations of those resources.
As an example of representation retrieval, suppose that the URI
"http://weather.example.com/oaxaca
" is used within an
a
element of an SVG document. A succession of agents
carries out the retrieval by implementing the following relevant
specifications:
- The SVG 1.0 Recommendation [SVG10], which imports the link semantics defined
in XLink 1.0 [XLink10]. Section
17.1 of the SVG specification suggests that interaction with an
a
link involves retrieving a representation of a
resource, identified by the XLink href
attribute: "By
activating these links (by clicking with the mouse, through
keyboard input, and voice commands), users may visit these
resources."
- The attribute
xlink:href
is defined in section 5.4
of the XLink 1.0 [XLink10]
specification, which states that "The value of the href attribute
must be a URI reference as defined in [IETF RFC 2396], or must
result in a URI reference after the escaping procedure described
below is applied."
- The URI specification [URI]
states that "Each URI begins with a scheme name that refers to a
specification for assigning identifiers within that scheme." The
URI scheme name in this example is "http".
- To find out what specification defines the "http" scheme, we
look up the mapping in [IANASchemes]; the "http" URI scheme is
defined in the HTTP/1.1 specification (RFC 2616 [RFC2616], section 3.2.2).
- The HTTP/1.1 specification defines several access mechanisms.
In this SVG context, the user agent employs the GET method (defined
in section 9.3 of [RFC2616]) to
retrieve the representation. The HTTP/1.1 specification explains
how the server constructs the response (section 6 of [RFC2616]), including the
'Content-Type' field 6. Section 1.4 states "HTTP
communication usually takes place over TCP/IP connections." Though
not shown in this example, the user agent would continue this
process by implementing those specifications.
- The user agent interprets the returned representation according
to the value of the 'Content-Type' field, by looking up which
specification defines the Internet Media Type in the [MEDIATYPEREG] registry.
Note that, in general, one cannot determine the Internet Media
Type(s) of representation(s) of a resource by inspecting a URI for
that resource. For example, do not assume that all representations
of "http://example.com/page.html
" are HTML. The HTTP
protocol does not constrain the Internet Media Type based on the
path component of the URI; the server is free to return a
representation in the PNG or any other format for that URI.
Nadia's retrieval of weather information qualifies as a "safe"
interaction; a safe interaction is one
where the agent does not commit to anything beyond the interaction
and is not responsible for any consequences other than the
interaction itself (e.g., a read-only query or lookup). Other Web
interactions resemble orders more than queries. These unsafe interactions may
cause a change to the state of a resource and the user may be held
responsible for the consequences of these interactions. Unsafe
interactions include subscribing to a newsletter, posting to a
list, or modifying a database.
Safe interactions are important because these are interactions
where users can browse with confidence and where agents (e.g.,
search engines and browsers that pre-cache data for the user) can
follow links safely. Users (or agents acting on their behalf) do
not commit themselves to anything by querying a resource or
following a link.
Principle: Safe
retrieval
Agents do not incur obligations by retrieving
a representation.
For instance, it is incorrect to publish a link (e.g.,
"http://example.com/oaxaca/newsLetter
") that, when
followed, subscribes a user to a mailing list. Remember that search
engines may follow such links.
For more information about safe and unsafe operations using HTTP
GET and POST, and handling security concerns around the use of HTTP
GET, see the TAG finding "URIs,
Addressability, and the use of HTTP GET and POST."
The value of a URI increases with the predictability of
interactions using that URI.
Good practice: URI
persistence
Parties responsible for a URI SHOULD service
that URI predictably and consistently.
Service breakdowns include:
- No service available (i.e., dereferencing fails).
- Inconsistent representations served. Note the difference
between a resource owner changing representations predictably in
light of the nature of the resource (e.g., the weather in Oaxaca
changes) and the owner changing representations arbitrarily.
- Improper use of content negotiation, such as serving two images
as equivalent through HTTP content negotiation, where one image
represents a square and the other a circle.
There are strong social expectations that once a URI identifies
a particular resource, it should continue indefinitely to refer to
that resource; this is called URI persistence. URI
persistence is always a matter of policy and commitment on the part
of authorities servicing URIs. The choice of a particular URI
scheme provides no guarantee that those URIs will be persistent or
that they will not be persistent.
URI
ambiguity refers to the use of the same URI to refer to
more than one distinct thing.
Good practice: URI
ambiguity
Avoid URI ambiguity.
Ambiguous use of a URI can be costly. Suppose that one division
of Example, Inc. maintains data about company Web pages, including
who created them and when. Another division in the company
maintains data about companies, including who created them and
when. The second data set uses the URIs of the organization's home
page to identify the organization itself. When the two data sets
are merged, the reuse of the URI causes information about companies
to be merged with that of the home pages, resulting in potentially
costly nonsense.
Ambiguity is an error and should not be confused with indirect
identification, which is common. One indirectly identifies things
though related things, such as people by their mailboxes, and
organizations by their Web pages. For example, when conference
organizers ask meeting participants to register by giving their
email addresses, both parties know that they are using the mailbox
identifier to indirectly identify the person. In terms of Web
architecture, "mailto:joe@example.com
" still
identifies a mailbox, not a person.
The statement "'http://www.example.com/moby
'
identifies 'Moby Dick'" is a source of ambiguity since one could
understand the statement to refer to very distinct resources: a
particular printing of this work, or the work itself in an abstract
sense, or the fictional white whale, or a particular copy of the
book on the shelves of a library (via the Web interface of the
library's online catalog), or the record in the library's
electronic catalog which contains the metadata about the work, or
the Gutenberg project's online
version.
HTTP [RFC2616] has been
designed to help service URIs. For example, HTTP redirection (via
some of the 3xx response codes) permits servers to tell a user
agent that further action needs to be taken by the user agent in
order to fulfill the request (e.g., the resource has been assigned
a new URI). In addition, content negotiation also promotes
consistency, as a site manager is not required to define new URIs
when adding support for a new format specification. Protocols that
do not support content negotiation (e.g., FTP) require a new
identifier when a new format is introduced.
For more discussion about URI persistence, refer to [Cool].7
Editor's note: The TAG is not yet
satisfied with the paragraph on Moby Dick, as the ambiguity lies
with the English statements themselves.
As we have seen, identification of a resource is distinct from
interaction with that resource. It is reasonable to limit access to
the resource (e.g., for security reasons), but it is unreasonable
to prohibit others from merely identifying the resource.
As an analogy: A building might have a policy that the public
may only enter via the main front door, and only during business
hours. People employed in the building and in making deliveries to
it might use other doors as appropriate. Such a policy would be
enforced by a combination of security personnel and mechanical
devices such as locks and pass-cards. One would not enforce this
policy by hiding some of the building entrances, nor by requesting
legislation requiring the use of the front door and forbidding
anyone to reveal the fact that there are other doors to the
building.
Story
Nadia and Dirk both subscribe to the "weather.example.com"
newsletter. Nadia wishes to point out an article of particular
interest to Dirk, using a URI. The authority responsible for
"weather.example.com" can offer Nadia and Dirk the benefits of URIs
(e.g., book marking and linking) and still limit access to the
newsletter to authorized parties.
The Web provides several mechanisms to control access to
resources, none of which relies on hiding or suppressing URIs for
those resources. For more information on identification and access
control, please refer to the TAG finding "'Deep
Linking' in the World Wide Web."
There remain open questions regarding identifiers on the Web.
The following sections identify a few areas of future work in the
Web community. The TAG makes no commitment at this time to pursuing
these issues.
The integration of internationalized identifiers (i.e., composed
of characters beyond those allowed by [URI]) into the Web architecture is an important and
open issue. See TAG issue IRIEverywhere-27
for discussion about work going on in this area.
Emerging Semantic Web technologies, including "DAML+OIL" [DAMLOIL] and "Web Ontology
Language (OWL)" [OWL10], define
RDF properties such as equivalentTo
and
FunctionalProperty
to state — or at least claim
— formally that two URIs identify the same resource.
The Dynamic Delegation Discovery System
(DDDS) ([RFC3401] and related RFCs) is used to implement
lazy binding of strings to data, in order to support dynamically
configured delegation systems. This system is designed to allow
resolution of any type of URI, in particular URNs.
One area of work involves the creation of globally unique
identifiers in a file-sharing system without centralized or
hierarchical administration.
Web agents exchange information via messages that are
constructed according to a non-exclusive set of messaging protocols
(e.g., HTTP, FTP, NNTP, SMTP8, etc.). A message exchanged between Web
agents is an octet sequence consisting of representation data and possibly
three types of metadata:
- Resource metadata: Metadata
about the resource (e.g., HTTP 'Alternates' and 'Vary'
headers).
- Representation
metadata: Metadata about the representation data (e.g., HTTP
Content-Type field, Etags). Of particular importance is the
Internet Media Type9 (defined in RFC 2046 [RFC2046]) value of the Content-Type field,
which governs the authoritative interpretation of representation
data. Note: The terms data format and media type are often used
interchangeably. The phrase "media type M" is shorthand for "the
data format defined by the specification(s) paired with Internet
Media Type M in the IANA registry."
- Message
metadata: Metadata about the message (e.g., the HTTP
Transfer-encoding header). A message may even include metadata
about the message metadata (e.g., for message-integrity
checks).
This section describes the architectural principles and
constraints regarding interactions between agents, including such
topics as network protocols and interaction styles, along with
interactions between the Web as a system and the people that make
use of it. This will include the role of architectural styles, such
as REST and SOAP, and the impact of meta-architectures, such as Web
Services and the Semantic Web.
Story
Nadia retrieves a representation from the weather site
"http://weather.example.com/oaxaca
". She then follows
the link labeled "satellite image" in the representation data and
retrieves a representation of another resource, a satellite photo
of the Oaxaca region.
The link to the satellite image is an HTML link encoded as
<a href="http://example.com/satimage/oaxaca">satellite
image</a>
. Nadia's browser analyzes the URI and
determines that its scheme
is "http". The browser configuration determines how it locates the
identified information, which might be via a cache of prior
retrieval actions, by contacting an intermediary (e.g., a proxy
server), or by direct access to the server identified by the URI.
In this example, the browser opens a network connection to port 80
on the server at "example.com" and sends a "GET" message as
specified by the HTTP protocol, requesting a representation of the
resource identified by "/satimage/oaxaca".
The server sends a response message to the browser, once again
according to the HTTP protocol. The message consists of several
headers and a JPEG image.
The browser reads the headers, learns from the 'Content-Type'
field that the Internet Media Type of the representation data is
image/jpeg
, reads the sequence of octets that
comprises the representation data, and renders the image.
Story
Nadia decides to book a vacation to Oaxaca at
"booking.example.com." She completes a series of HTML forms and is
ultimately asked for credit card information to purchase the
airline tickets. She provides this information in another HTML
form. When she presses the "Purchase" button, her browser opens
another network connection to the server at "booking.example.com"
and sends a message conforming to the rules for an HTTP POST
request.
As described by the HTML specification, the message data
consists of a set of name/value pairs corresponding to the HTML
form fields. Note that this is not a safe interaction; Nadia wishes to
change the state of the system by exchanging money for airline
tickets.
The server reads the POST request, and after performing the
booking transaction returns a message to Nadia's browser that
contains a representation of the results of Nadia's request. The
representation data is in HTML so that it can be saved or printed
out for Nadia's records. Note that neither the data transmitted
with the POST nor the data received in the response necessarily
correspond to any resource named by a URI.
Successful communication between two parties using a piece of
information relies on shared understanding of the meaning of the
information. Thousands of independent parties can identify and
communicate about a Web resource. To give these parties the
confidence that they are all talking about the same thing when they
refer to "the resource identified by the following URI ..." the
design choice for the Web is, in general, that the owner of a
resource assigns the authoritative interpretation of
representations of the resource. See the TAG finding "Client
handling of MIME headers" for related discussion. See
also TAG issue rdfURIMeaning-39.
In our travel scenario, the
authority responsible for "weather.example.com" has license to
create representations of this resource and assign their
authoritative interpretation. Which representation(s) Nadia
receives depends on a number of factors, including:
- Whether the authority responsible for "weather.example.com"
responds to requests at all;
- Whether the authority responsible for "weather.example.com"
makes available one or more representations for the resource
identified by
"
http://weather.example.com/oaxaca
";
- Whether Nadia has access privileges to such a
representation;
- If the authority responsible for "weather.example.com" has
provided more than one representation (in different formats such as
HTML, PNG, or RDF, in different languages such as English and
Spanish, etc.), the resulting representation may depend on
negotiation between the user agent and server that occurs as part
of the HTTP transaction.
- When Nadia made the request. Since the weather in Oaxaca
changes, Nadia should expect that representations will change over
time.
Inconsistencies between the format of representation data and
assigned representation metadata do occur. Examples that have been
observed in practice include:
- The actual character encoding of a representation is
inconsistent with the charset parameter in the representation
metadata.
- The namespace of the root element of the representation data is
inconsistent with the value of the 'Content-Type' field in HTTP
headers.
User agents should detect such inconsistencies but should not
resolve them without involving the user (for example, due to
security issues).
Principle: Authoritative server metadata
User agents MUST NOT silently ignore
authoritative server metadata.
Thus, for example, if the parties responsible for
"weather.example.com" mistakenly label the satellite photo of
Oaxaca as "image/gif" instead of "image/jpeg", and if Nadia's
browser detects a problem, Nadia's browser must not silently ignore
the problem and render the JPEG image. Nadia's browser can notify
Nadia of the problem, notify Nadia and take corrective action, etc.
Of course, user agent designers should not ignore usability issues
when handling this type of error; notification may be discreet, and
handling may be tuned to meet the user's preferences.
See the TAG finding "Client
handling of MIME headers" for more in-depth discussion
and examples.
Furthermore, server managers can help reduce the risk of error
through careful assignment of representation metadata.
Principle: Don't
guess metadata
Server managers MUST ensure that
representation metadata is appropriate for each representation.
Good practice: Understand
REST
Designers of protocols SHOULD invest time in
understanding the REST model and consider the role to which of its
principles could guide their design:
- statelessness
- clear assignment of roles to parties
- uniform address space
- limited, uniform set of verbs
- Introduce notions of client and server? Relation of client to
agent and user agent. Relation of server to resource owner.
- Do specifications give me license to use any protocol I want
with a URI such as an "http" URI, where there is a strong
expectation that I will use HTTP? Are there practical examples of
this?
- Access a the resource may require the use of more than one
protocol, so even though we may talk about "GET", several protocols
may be invoked. Does this need discussion?
The representation of the state
of a resource is an octet sequence consisting of:
- Representation data:
Electronic data expressed in one or more data formats used separately or in
combination. A data format (e.g., XHTML, CSS, PNG, XLink, RDF/XML,
and SMIL animation) is defined by a format specification. A
format specification governs the handling of fragment identifiers.
- Representation
metadata
Web agents use representations to modify as well as retrieve
resource state.
The first data format used to build representations was HTML.
Since then, data formats for the Web have flourished. The Web
architecture does not constrain which data formats can be used to
build representations. This flexibility is important because there
is constant evolution in applications. This evolution results in
new data formats and refinements of existing formats.
Some characteristics of a data format make it easier to
integrate into the Web architecture. We examine some of those
characteristics below. This document does not address generally
beneficial characteristics of a specification such as readability,
simplicity, attention to programmer goals, attention to user needs,
accessibility, internationalization, etc. The section on architectural specifications
includes references to additional format specification
guidelines.
For a data format to be usefully interoperable between two
parties, the parties must have a shared understanding of its syntax
and semantics. This is not to imply that a sender of data
can count on constraining its treatment by a receiver; simply that
making good use of electronic data usually requires knowledge of
its designers' intentions.
Good practice: Format
specification availability
To promote the interoperability of a Web data
format, there SHOULD be a stable, normative specification for it
that is a widely available Web resource.
Good practice: Media type registration
A format specification SHOULD have an
officially registered Internet Media Type (see the [MEDIATYPEREG] registry).
See TAG finding "Internet Media
Type registration, consistency of use" for more
information.
Good practice: Specified
fragment identifier semantics
A format specification SHOULD define the syntax
and semantics of fragment identifiers.
Although the Web architecture allows for the deployment of new
data formats, the creation and deployment of new formats (and
agents able to handle them) is very expensive. Thus, before
inventing a new data format, designers should carefully consider
re-using one that is already available. For example, if a format is
required to contain human-readable text with embedded hyperlinks,
it is almost certainly better to use HTML for this purpose than to
invent a new format.
Errors occur in the deployment of software and data. The degree
to which errors are tolerated varies depends on application
context. User agents act on behalf of the user and therefore are
expected to help the user understand the nature of errors, and
possibly overcome them. User agents that correct errors without the
consent of the user are not acting on the user's behalf.
Principle: Error recovery
Silent recovery from error is harmful.
To promote interoperability, specifications should set
expectations about behavior in the face of known error
conditions.
Good practice: Specify error handling
Format specification designers SHOULD specify
agent behavior in the face of error conditions.
See the TAG finding "Client
handling of MIME headers" for more discussion about
error reporting. See also TAG issue errorHandling-20.
When designing specifications that address independent functions
of a system, normative dependencies between the specifications are,
in general, harmful since such dependencies impede the independent
evolution of the specifications.
For example, it is a strength of XML that XPath cannot query the
HTTP header. It is a strength of HTTP that it does not refer to
details of the underlying TCP to the extent that it cannot be run
over a different transport service. Similarly, the RDF data graph
has a significance that is independent of the actual
serialization.
Sometimes it is necessary (and even good for given application)
to cross specification boundaries. For example, it is good for an
HTTP agent to be aware of TCP speeds and round trip times to
different mirror servers in order to optimize the choice of
server.
Good practice: Identify
features that peek
Format specification designers SHOULD clearly
identify the features of a format specification that peek across
specification boundaries.
A textual data format is one in which the data is specified as a
sequence of characters.10 HTML, Internet e-mail, and all XML-based formats are textual.
In modern textual data formats, the characters are usually taken
from the Unicode repertoire [UNICODE].
Binary data formats are those in which portions of the data are
encoded for direct use by computer processors, for example
thirty-two bit little-endian two's-complement and sixty-four bit
IEEE double-precision floating-point. The portions of data so
represented include numeric values, pointers, and compressed data
of all sorts.
In principle, all data can be represented using textual
formats.
The trade-offs between binary and textual data formats are
complex and application-dependent. Binary formats can be
substantially more compact, particularly for complex pointer-rich
data structures. Also, they can be consumed more rapidly by agents
in those cases where they can be loaded into memory and used with
little or no conversion.
Textual formats are often more portable and interoperable, since
there are fewer choices for representation of the basic units
(characters), and those choices are well-understood and widely
implemented.
Textual formats also have the considerable advantage that they
can be directly read and understood by human beings. This can
simplify the tasks of creating and maintaining processing software,
and allow the direct intervention of humans in the processing chain
without recourse to tools any more complex than the ubiquitous text
editor. Finally, it simplifies the necessary human task of learning
about new data formats (the "View Source" effect).
It is important to emphasize that intuition as to such matters
as data size and processing speed are not a reliable guide in data
format design; quantitative studies are essential to a correct
understanding of the trade-offs.
TAG issue binaryXML-30:
Effect of Mobile on architecture - size, complexity, memory
constraints. Binary Infosets, storage efficiency.
Editor's note: The TAG has begun
work on a finding on the topic of extensibility and versioning. The
text in this section is likely to change once that finding has been
published.
A format is extensible if instances of the
format can include terms from other vocabularies. For example, XML
and XML Namespaces allow format designers to create and combine
vocabularies.
Good practice: Format
extensibility
Format designers should create extensible
formats.
Versioning is the term for the evolution of formats and
documents. Versioning is achieved through extensibility mechanisms
and format redefinition. When a format definition changes (e.g., by
addition or removal of element or attribute definitions), this
creates a new version of the format. When an instance of a format
includes elements from another data format, this creates an
extension of the instance; the original format definition has not
changed. An example is a SOAP message with a header block; this is
called a SOAP extension, not a new version of the SOAP format.
The following terms define important relationships among
different versions of a format:
- Compatible formats
- Format version M is compatible with format version N if agents
designed to process all instances of M can also process all
instances of N. The compatibility relationship is not always
symmetric.
- Forwards
compatibility
- Format version M is forwards compatible with respect to format
version N if M is compatible with N and M predates N.
- Backwards
compatibility
- Format version M is backwards compatible with respect to format
version N if M is compatible with N and N predates M.
Good practice: Format
compatibility
Format designers SHOULD define extensibility
models that allow forwards compatible and backwards compatible
changes.
Naturally, even if M and N are compatible but different versions
of a format, agents will process instances of them differently. For
instance, if format version M is forwards compatible with format
version N, M processors that encounter N instances might handle
unknown elements by ignoring them entirely, or by ignoring element
tags but continuing to process element content. Different format
specifications may require different compatibility behavior.
Good practice: Compatibility behavior
Format designers SHOULD define expected
behavior when agents designed to process one version of a format
encounter a compatible version of the format.
In some cases, format designers require that new features be
supported (i.e., not ignored). In this case, the new version of the
format (N) may be backwards compatible with the earlier version
(M), but M is not forwards compatible with N. The SOAP 1.2
Recommendation [SOAP12], for
example, defines the mustUnderstand
attribute in section
5.2.3.
For more information on format extensibility, refer to "Web
Architecture: Extensible Languages" [EXTLANG].
Editor's note: The TAG has begun
work on a finding on the topic of composing data formats. The text
in this section is likely to change once that finding has been
published.
Many modern data format specifications include mechanisms for
composition. These mechanisms range from relatively shallow and
limited to relatively deep and sophisticated.
Toward the shallow end of the spectrum, it is possible to embed
text comments in some image formats, such as JPEG/JFIF. Although
these comments are embedded in the containing data, they have
little or no effect on the content of the image.
Towards the deep end, it is possible to compose XML documents
with elements from a variety of namespaces. How these namespaces
interact and what effect an element's namespace has on its
ancestors, siblings, and descendents is not always obvious.
Near the middle of the spectrum, there are container formats
such as SOAP which fully expect to be composed from multiple
namespaces but which provide an overall semantic relationship of
message envelope and payload.
These relationships can be mixed and nested arbitrarily. In
principle, a SOAP message can contain a JPEG image that contains an
RDF comment that references a vocabulary of terms for describing
the image.
Composition is related to but distinct from the question of
whether a data format is intended as a final form. For example, one can imagine
embedding SVG in a JPEG image thus combining final-form and
reusable data, whereas a SOAP envelope might provide nothing more
than a container for a particular payload that has no final form at
all.
TAG issue xmlProfiles-29:
When, whither and how to profile W3C specifications in the XML
Family?
TAG issue mixedUIXMLNamespace-33:
Composability for user interface-oriented XML namespaces
TAG issue xmlFunctions-34:
XML Transformation and composability (e.g., XSLT, XInclude,
Encryption)
TAG issue RDFinXHTML-35:
Syntax and semantics for embedding RDF in XHTML
Replacement text from C. Lilley expected.
In many cases, the information encoded in a data format is
logically separable from the choice of ways in which it may be
presented to a human, and the modes of interaction it may
support.
While such separation is, where possible, often advantageous, it
is clearly not always possible and in some cases not desirable
either.
Final-form data formats are not designed to allow modification
or uses other than that intended by their designers. An example
would be PDF, which is designed to support the presentation of page
images on either screen or paper, and is not readily used in any
other way. XSL Formatting Objects (XSL-FO) share this
characteristic.
XHTML, on the other hand, can be and is put to a variety of uses
including direct display (with highly flexible display semantics),
processing by network-sensitive Web spiders to support search and
retrieval operations, and reprocessing into a variety of derivative
forms.
There are many cases where final-form is an application
requirement; representations which embody legally-binding
transactions are an obvious example. In such cases, the use of
digital signatures may be appropriate to achieve immutability.
On the other hand, where such requirements are not in play,
representations that are re-usable and re-purposable are in general
higher in value, particularly in the case where the information's
utility may be long-lived.
See also TAG issues Issue formattingProperties-19
and contentPresentation-26.
One of the greatest strengths of HTML as a format is that it
allows authors to embed hyperlink references to other resources via
URIs. The simplicity of <a href="#foo">
as a
link to foo
and <a name="foo">
as
the anchor foo
are partly (perhaps largely)
responsible for the birth of the hypertext Web as we know it
today.11
There are linking paradigms that are more powerful than HTML's
single-ended, single-direction, inline hyperlinks. But HTML-style
hyperlinks are easy to understand, and they can be authored by
individuals (or other agents) that have no control or write access
to the other end point.
Good practice: Link
mechanisms
Format specification designers SHOULD provide
mechanisms for identifying links to other resources and to portions
of representations (via fragment identifiers).
Good practice: Web
linking
Format specification designers SHOULD provide
mechanisms that allow Web-wide linking, not just internal document
linking.
Good practice: URI
genericity
Format specification designers SHOULD allow
authors to use URIs without constraining them to a limited set of
URI schemes.
See also the section on hyperlinks in XML.
Many representations contain data which is XML-based, that is to say conforms to
the syntax rules defined in the XML specification [XML10]. This section discusses issues that are
specific to such formats. Anyone seeking guidance in this area is
urged to consult the "Guidelines For the Use of XML in IETF
Protocols" [IETFXML], which
contains a very thorough discussion of the considerations that
govern whether or not XML ought to be used, as well as specific
guidelines on how it ought to be used. While it is directed at
Internet applications with specific reference to protocols, the
discussion is generally applicable to Web scenarios as well.
The discussion here should be seen as ancillary to the content
of [IETFXML]. Refer also to
"XML Accessibility Guidelines" [XAG] for help designing XML formats that lower
barriers to Web accessibility for people with disabilities.
XML defines textual data formats that are naturally suited to
describing data objects which are hierarchical and processed in an
in-order sequence. It is widely, but not universally applicable for
format specifications; an audio or video format, for example, is
unlikely to be well suited to representation in XML. Design
constraints that would suggest the use of XML include:
- Explicit representation of a hierarchical structure.
- The data's usefulness should outlive the tools currently used
to process it.
- Ability to support internationalization in a self-describing
way that makes confusion over coding options unlikely.
- Early detection of encoding errors with no requirement to "work
around" such errors.
- A high proportion of human-readable textual content.
- Potential composition of the data format with other XML-encoded
formats.
Story
The authority responsible for "weather.example.com" realizes
that it can provide more interesting representations by creating
instances that consist of elements defined in different XML-based formats, such as
XHTML, SVG, and MathML.
How do the application designers ensure that there are no naming
conflicts when they combine elements from different formats (e.g.,
suppose that the "p" element is defined in two or more XML
formats)? "Namespaces in XML" [XMLNS] provides a mechanism for establishing a
globally unique name that can be understood in any context.
The "expanded name" of an XML element or attribute name is the
combination of its namespace URI and its local name. This is
represented lexically in documents by associating namespace names
with (optional) prefixes and combining prefixes and local names
with a colon as described in "Namespaces in XML."
Format specification designers that declare namespaces thus
provide a global context for instances of the data format.
Establishing this global context allows those instances (and
portions thereof) to be re-used and combined in novel ways not yet
imagined. Failure to provide a namespace makes such re-use more
difficult, perhaps impractical in some cases.
Good practice: Use
Namespaces
Format specifications that create new XML
vocabularies SHOULD place all element names and global attribute
names in a namespace.
Attributes are always scoped by the element on which they
appear. In that respect they are a somewhat special case. An
attribute that is "global," that is, one that might meaningfully
appear on a great many elements, including elements in other
namespaces, should be explicitly placed in a namespace. Local
attributes, ones associated with only a particular element, need
not be included in a namespace since their meaning will always be
clear from the context provided by that element.
The type
attribute from W3C XML Schema is an
example of a global attribute. It can be used by authors of any
vocabulary to make an assertion about the type of the element on
which it appears. The type
attribute occurs in the W3C
XML Schema namespace and must always be fully qualified. The
frame
attribute on an HTML table is an example of a
local attribute. There is no value in placing that attribute in a
namespace since the attribute is very unlikely to be useful on an
element other than an HTML table.
The most significant technical drawback to using namespaces is
that they do not interact well with DTDs. DTDs perform validation
based on the lexical form of the name, making prefixes semantically
significant in ways that are not desirable. As other schema
technologies become widely deployed, this drawback will diminish in
significance.
Sophisticated linking mechanisms have been invented for XML
formats. XPointer allows links to address content that does not
have an explicit, named anchor. XLink allows links to have multiple
ends and to be expressed either inline or in "link bases" stored
external to any or all of the resources identified by the links it
contains.
For formats based on XML, format designers should examine XLink
and the XPointer framework for inspiration. To define fragment
identifier syntax, use at least the XPointer Framework and XPointer
element() Schemes.
TAG issue: What is the scope of using XLink? xlinkScope-23.
If a future revision of RFC 3023 identifies the XPointer
Framework, element(), and perhaps other ancillary schemes as the
fragment identifier syntax for XML documents, authors will be able
to rely on at least those schemes for all XML documents.
Good practice: QName
caution
Format specification designers MAY use
Qualified Names (QNames) for identifiers in representation data,
but should be aware of the limitations and interoperability risks
associated with them.
See the TAG finding "Using QNames as
Identifiers in Content" for more information. See also
TAG issues rdfmsQnameUriMapping-6
and qnameAsId-18.
Story
Nadia receives a representation from "weather.example.com" in an
unfamiliar data format. She knows enough about XML to recognize
which XML namespace the elements belong to. Since the namespace is
identified by a URI, she asks her browser to retrieve a
representation of the namespace via that URI. Nadia is requesting
the namespace document.
Nadia gets back some useful data that allows her to learn more
about the data format. Nadia's browser may also be able to use data
optimized for machines12 automatically to perform
useful tasks on Nadia's behalf, such as download additional agents
to process and render the format.
There are many reasons why a person or other agent might want
more information about the namespace. A person might want to:
- understand its purpose,
- learn how to use the markup vocabulary in the namespace,
- find out who controls it,
- request authority to access schemas or collateral material
about it, or
- report a bug or situation that could be considered an error in
some collateral material.
A namespace document should also support the automatic retrieval
of other Web resources that support processing the markup from this
vocabulary. Useful information to processors includes:
- schemas, to use for validation,
- style sheets, to use for presentation,
- ontologies, to use for making inferences, or
- any number of other application-specific details.
Good practice: Namespace
documents
XML namespace designers SHOULD make available
material intended for people to read and material optimized for
machines in order to meet the needs of those who will use the
namespace vocabulary.
In general, there is no "best" data format for encoding a
namespace document. See the section on future work regarding namespace document formats for more
information.
Issue: namespaceDocument-8:
What should a "namespace document" look like?
Issue:
abstractComponentRefs-37: Definition of abstract components
with namespace names and frag ids
Suppose that the URI "http://example.com/oaxaca
"
defines a resource with representations encoded in XML. What, then,
is the interpretation of the URI
"http://example.org/oaxaca#weather
"?
The URI specification [URI]
makes it clear that the interpretation depends on the media type of
the representation data. Per the previous good practice note on fragment
identifiers, designers of an XML-based format specification
should define the semantics of fragment identifiers in that format.
The XPointer Framework [XPTRFR]
provides a interoperable starting point.
When the media type assigned to representation data is
application/xml
, there are no semantics defined for
fragment identifiers,13 and authors should not
make use of fragment identifiers in such data. The same is true if
the assigned media type has the suffix +xml
(defined
in "XML Media Types" [RFC3023])
as there is no normative specification of fragment semantics in
this case.
Many people assume that the fragment identifier
#abc
, when referring to XML data, identifies the
element in the document with the ID "abc". However, there is no
normative support for this assumption and it is problematic in
practice.
Unfortunately, there are a number of open issues associated with
finding the element with the ID "abc" in an XML document. In XML,
the quality of "being an ID" is associated with the type of the
attribute, not it's name. Consider the following fragment:
<section name="foo">
. Does the
section
element have the ID "foo"? One cannot answer
this question by examining the element and its attributes alone.
Finding the IDs in a document requires additional processing.
- Processing the document with a processor that recognizes DTD
attribute list declarations (in the external or internal subset)
might reveal a declaration that identifies the name attribute as an
ID. Note: This processing is not necessarily part
of validation. A non-validating, DTD-aware processor can perform ID
assignment.
- Processing the document with a W3C XML Schema might reveal an
element declaration that identifies the name attribute as an
xs:ID
.
- In practice, processing the document with another schema
language, such as RELAX NG, might reveal the attributes of type ID.
Many modern specifications begin processing XML at the Infoset
level and do not specify normatively how an Infoset is constructed.
For those specifications, any process that establishes the ID type
in the Infoset (and/or Post Schema Validation Infoset, or
PSVI) may successfully identify the attributes
of type ID.
To further complicate matters, DTDs establish the ID type in the
Infoset whereas W3C XML Schema produces a PSVI but does not modify
the original Infoset. This leaves open the possibility that a
processor might only look in the Infoset and consequently would
fail to recognize schema-assigned IDs.
Editor's note: W3C's XML Core Working Group is
investigating the question of fragment identifier semantics.
TAG issue fragmentInXML-28:
Do fragment identifiers refer to a syntactic element (at least for
XML content), or can they refer to abstractions?
TAG issue xmlIDSemantics-32:
How should the problem of identifying ID semantics in XML formats
be addressed in the absence of a DTD? See TAG finding "How
should the problem of identifying ID semantics in XML formats be
addressed in the absence of a DTD?".
RFC 3023 defines the Internet Media Types
application/xml
and text/xml
, and
describes a convention whereby XML-based data formats use Internet
Media Types with a +xml
suffix, for example
image/svg+xml
.
These Internet Media Types create two problems: First, for data
identified as text/*
, Web intermediaries are allowed
to "transcode", i.e., convert one character encoding to another.
Since XML documents are designed to allow them to be
self-describing, and since this is a good and widely-followed
practice, any such transcoding will make the self-description false
and will cause the document to be not well-formed.
Second, representations whose Internet Media Types begin with
text/
are required, unless the charset
parameter is specified, to be considered to be encoded in US-ASCII.
In the case of XML, since it is self-describing, it is good
practice to omit the charset
parameter, and since XML
is very often not encoded in US-ASCII, the use of
"text/
" Internet Media Types effectively precludes
this good practice.
Good practice: XML and
text/*
In general, Internet Media Types beginning with
text/
SHOULD NOT be assigned to XML
representations.
There remain open questions regarding resource representations.
The following sections identify a few areas of future work in the
Web community. The TAG makes no commitment at this time to pursuing
these issues.
The Resource Directory Description Language [RDDL] is a proposal under discussion in the
community for a variant of XHTML optimized for the construction of
namespace documents which meet the goals described in this section.
Note, however, that RDDL (or a format like it) is no more
universally correct than any other type of representation.
Namespace developers should give careful consideration to choosing
the most appropriate format for their application, keeping in mind
the utility of information meant for people to read as well as
information optimized for machines.
